Fine Offset Electronics WH32J User Manual

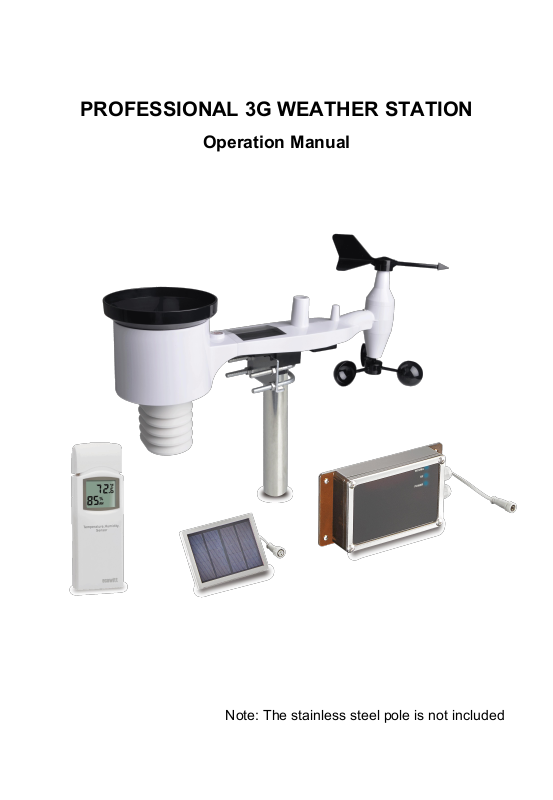

PROFESSIONAL 3G WEATHER STATION
Operation Manual
Note: The stainless steel pole is not included
-1-
Contents
Introduction.......................................................................................................... 2
Package Content:....................................................................................... 2
Outdoor 7-in-1 sensor array:.................................................................... 3
Indoor sensor:............................................................................................. 3
Receiver unit................................................................................................4
Solar panel Unit.......................................................................................... 5
Installation............................................................................................................5
Outdoor unit................................................................................................. 5
Install wind vane................................................................................. 5
Install wind speed...............................................................................6
Install Batteries................................................................................... 7
Mount outdoor sensor........................................................................7
Indoor Sensor..............................................................................................8
Sensor Set up..................................................................................... 8
Sensor Placement.............................................................................. 9
Initial Receiver Unit Set Up.....................................................................10
USB Configure Tool Operation.......................................................................12
1. Setup Menu...........................................................................................13
1.1 Basic Settings.............................................................................14
1.2 Alarm............................................................................................15
1.3 Calibration...................................................................................15
1.4 Rain.............................................................................................. 18
1.5 Mobile Network.......................................................................... 19
2. Record Menu.........................................................................................19
2.1 Max/Min.......................................................................................20
2.2 SDCard File................................................................................ 20
3. Upload....................................................................................................22
4. Update Firmware..................................................................................22
5. Factory Reset........................................................................................23
Mobile Phone Control via SMS...................................................................... 24
SMS data from station..................................................................................... 26
Weather Server................................................................................................. 28
Maintenance...................................................................................................... 30
Troubleshooting Guide.....................................................................................31
Specifications.................................................................................................... 33
FCC Statement................................................................................................. 34
Warranty Information........................................................................................35
-2-
Introduction
Thank you for your purchasing this professional weather station. This
device is working based on WCDMA /GSM network. It can be configured
to send data to a specified server by WCDMA/GSM so that users can run
remote monitoring of weather condition.
This manual will guide you step-by-step through setting up your device.
Use this manual to become familiar with your professional weather
station, and save it for future reference.
The device can measure the below weather data and transmit them to
web:www.wunderground.com by WCDMA/GSM network.
1. Wind direction
8.Indoor Temperature
2. Wind speed
9.Indoor Humidity
3. Solar radiation rate
10.Outdoor Temperature
4. UV index
11. Outdoor Humidity
5. Absolute pressure
12. Dew point
6. Relative pressure
13.Rain fall
7. Gust
Package Content:
It includes a receiver with built in WCDMA module, a 7-in-1 outdoor
sensor array, an indoor temperature & humidity sensor and a solar panel.
Below please find the package content:
QTY
Item
1
Receiver unit
1
Outdoor sensor(Thermo-hygrometer / Rain Gauge / Wind
Speed & direction Sensor /Transmitter)
1
Wind Vane
1
Solar panel Unit
1
Indoor temperature & humidity sensor
1
USB cable
1
5 meter connection cable for solar panel to connect to Receiver
1
User manual
-3-
Outdoor 7-in-1 sensor array:
1. Wind Vane
2. Wind Speed Sensor
3. UV sensor/ Light sensor
4. Solar panel
5. Rain collector
6. Thermo-hygro sensor
7. Bubble level
8. U-Bolt
9. LED Indicator: light on for 4s if the unit power up. Then the LED will
flash once every 16 seconds (the sensor transmission update period).
10. Battery compartment
11. Reset button
Indoor sensor:
-4-

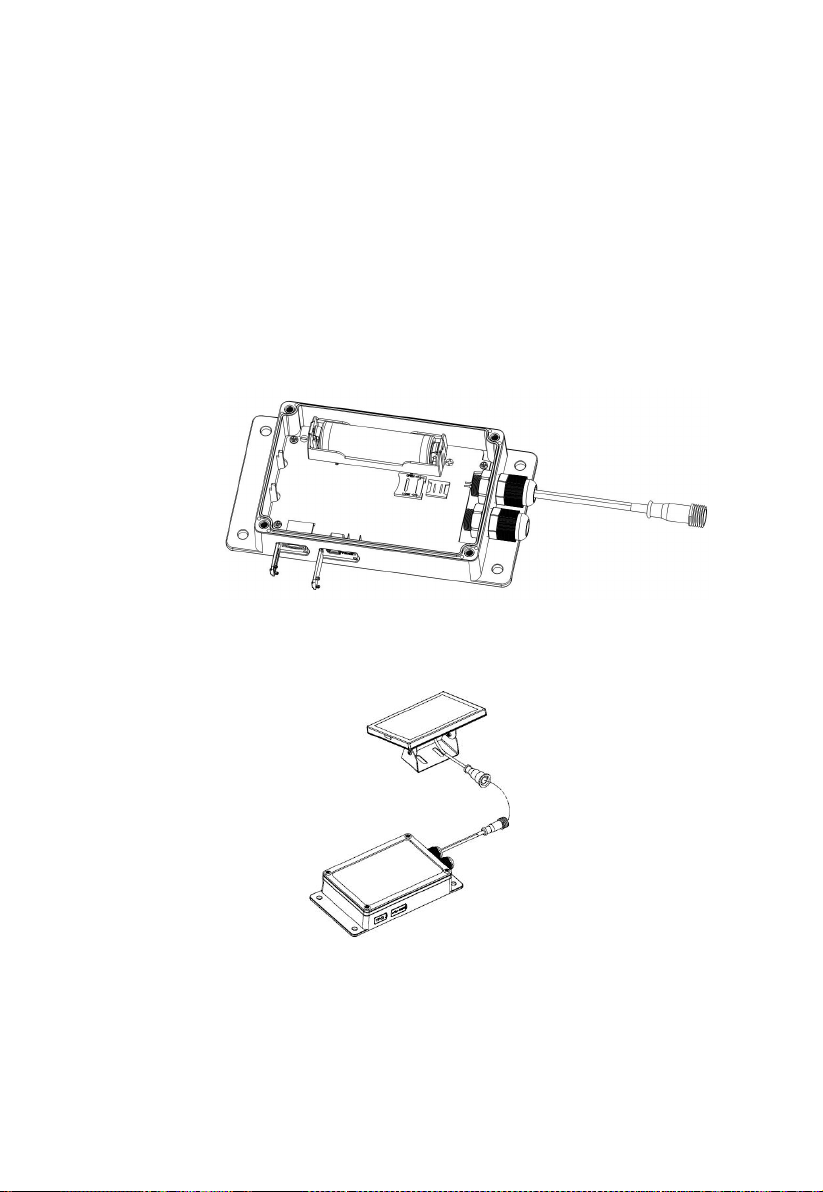

Receiver unit
Outside
Inside
1. +/- electrode symbol of battery
2.
TF card slot
3.
USB interface
4. Reset button
5. Micro SIM card slot
6. Nano SIM card slot
7. Connector for solar power unit
-5-
Solar panel Unit
The solar panel base is to be connected to the power connector for
receiver via a 2 core 5 meter extending cable.
Installation
Before placing and installing all components of the weather station at
their final destination, please set up the weather station with all parts
being nearby for testing the correct function. Also please note configuring
parameters on PC software is necessary before permanent installation.
(Refer to USB Configure Tool Operation part).
Outdoor unit
Install wind vane
Push the wind vane into the shaft. as shown in figure 1.
Tighten the set screw with as shown in figure 2. Make sure the wind
vane spin freely.
-6-
Figure1 Figure 2
There are four alphabet letter of "N", "E", "S" and "W" around the wind
direction, representing for the direction of North, East, South and
West. Wind direction sensor has to be adjusted so that the directions
on the sensor are matching with your real location. Permanent wind
direction error will be introduced when the wind direction sensor is not
positioned correctly during installation.
Install wind speed
Push the wind cup into the shaft. as shown in figure 3.
Tighten the set screw with as shown in figure 4. Make sure the wind
speed spin freely.
Figure 3 Figure 4
-7-
Install Batteries
Insert 2XAA batteries in the battery compartment. The LED indicator
on the back of the transmitter will turn on for four seconds and
normally flash once every 16 seconds (the sensor transmission
update period).
Figure 5 Figure 6
Note: If no LED light up or is lighted permanently, make sure the
battery is inserted the correct way or a proper reset is happened. Do
not install the batteries backwards. You can permanently damage the
outdoor sensor
Note: We recommend lithium batteries for cold weather climates, but
alkaline batteries are sufficient for most climates. We do not
recommend rechargeable batteries. They have lower voltages, do not
operate well at wide temperature ranges, and do not last as long,
resulting in poorer reception.
.
Mount outdoor sensor
Reference 8&9. The mounting assembly includes two U-Bolts and a
bracket that tightens around a 1 to 2” diameter pole (not included) using
the four U-Bolt nuts.
-8-
Use the bubble level beside the rain sensor as a guide to verify that
sensors are level.
Indoor Sensor
Sensor Set up
Note: To avoid permanent damage, please take note of the battery
polarity before inserting the batteries.
Remove the battery door on the back of the sensor. Insert two AA
batteries.
Figure 9
Figure 7
Figure 8
-9-
We recommend lithium batteries for cold weather climates, but
alkaline batteries are sufficient for most climates. We do not
recommend rechargeable batteries. They have lower voltages, do not
operate well at wide temperature ranges, and do not last as long,
resulting in poorer reception.
Replace the battery door. Note that the temperature and humidity will
be displayed on the LCD display. Looking at the back of the unit from
left to right, the polarity is (-) (+) for the top battery and (+) (-) for the
bottom battery.
Sensor Placement
Direct sunlight and radiant heat sources will result in inaccurate
temperature readings. Although the sensor is weatherproof, it is best
to mount in a well-protected area, such as an eve.
1. Use a screw or nail to affix the remote sensor to the wall, as shown in
Figure 10
2. Hang the remote sensor up on string, as shown in Figure 11.
Figure 6
Figure 11
Note: Make sure the sensor is mounted vertically and not lying down
on a flat surface. This will insure optimum reception. Wireless signals
are impacted by distance, interference (other weather stations,
wireless phones, wireless routers, TVs and computer monitors), and
transmission barriers, such as walls. In general, wireless signals will
not penetrate solid metal and earth (down a hill, for example).
Figure 10
-10-
Initial Receiver Unit Set Up
1. Before power on the device, please open the case (Figure 12) and
use a 3G SIM card to install in one of the SIM card slots. (Figure
13).The Bigger slot is for micro SIM card and the other is for Nano
SIM card.
Figure 12
Micro SIM card slot: 1.Unfold the foil of Micro sim card slot 2.Put
the SIM card into the compartment. 3. Cover the foil and lock
the slot.
Nano SIM card slot: Insert the sim card into slot directly as
shown in Figure 13.
Figure 13
Note: The SIM card must support SMS and mobile data. SIM card
lock must be disabled. Prepaid SIM cards are not recommended, as
data will not be uploaded when you run out of credit.
Note: Please install only 1 SIM card to work.
Loading...
