Receiver Model : WH2802
Sensor Model : WH32G
Advanced Color Wireless Weather Station
User Manual

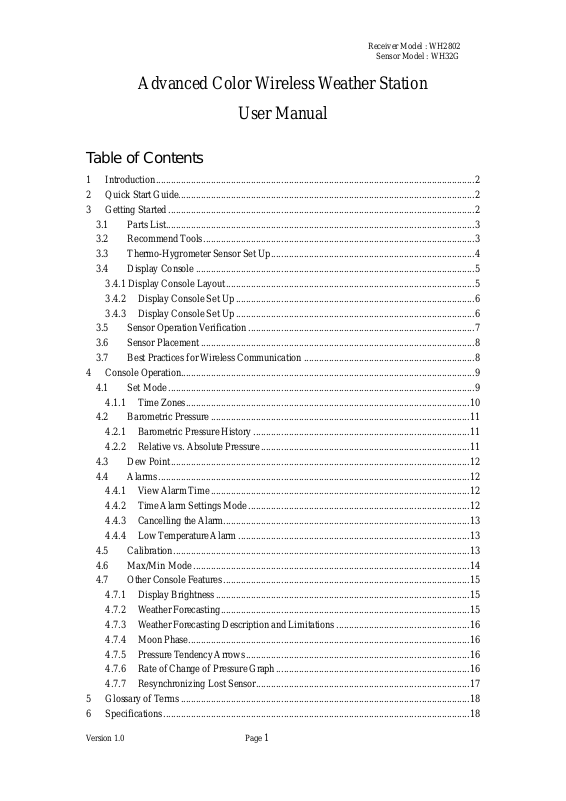

Table of Contents
3.1 Parts List ........................................................................................................................... 3
3.2 Recommend Tools ............................................................................................................ 3
3.3 Thermo-Hygrometer Sensor Set Up ................................................................................. 4
3.4 Display Console ............................................................................................................... 5
3.4.1 Display Console Layout ................................................................................................... 5
3.4.2 Display Console Set Up ............................................................................................... 6
3.4.3 Display Console Set Up ............................................................................................... 6
3.5 Sensor Operation Verification .......................................................................................... 7
3.6 Sensor Placement ............................................................................................................. 8
3.7 Best Practices for Wireless Communication .................................................................... 8
4.1 Set Mode .......................................................................................................................... 9
4.1.1 Time Zones ................................................................................................................. 10
4.2 Barometric Pressure ....................................................................................................... 11
4.2.1 Barometric Pressure History ...................................................................................... 11
4.2.2 Relative vs. Absolute Pressure ................................................................................... 11
4.3 Dew Point ....................................................................................................................... 12
4.4 Alarms ............................................................................................................................ 12
4.4.1 View Alarm Time ....................................................................................................... 12
4.4.2 Time Alarm Settings Mode ........................................................................................ 12
4.4.3 Cancelling the Alarm .................................................................................................. 13
4.4.4 Low Temperature Alarm ............................................................................................ 13
4.5 Calibration ...................................................................................................................... 13
4.6 Max/Min Mode .............................................................................................................. 14
4.7 Other Console Features .................................................................................................. 15
4.7.1 Display Brightness ..................................................................................................... 15
4.7.2 Weather Forecasting ................................................................................................... 15
4.7.3 Weather Forecasting Description and Limitations ..................................................... 16
4.7.4 Moon Phase ................................................................................................................ 16
4.7.5 Pressure Tendency Arrows ......................................................................................... 16
4.7.6 Rate of Change of Pressure Graph ............................................................................. 16
4.7.7 Resynchronizing Lost Sensor ..................................................................................... 17
Version 1.0 Page 1
Receiver Model : WH2802
Step
Description
Section
1
Power up Remote Sensor
3.3
2
Power Up Display Console
3.4
3
Set Up or Program Display Console
4.1
4
Install Sensor
3.6
5
Calibrate Barometer
4.2 and 4.5
Sensor Model : WH32G
6.1 Wireless Specifications .................................................................................................. 18
6.2 Measurement Specifications ........................................................................................... 19
6.3 Power Consumption .............................................................................................................. 19
1 Introduction
Thank you for your purchase of the Weather WH2802 Wireless Color Weather Station. The following user guide provides step by step instructions for installation, operation and troubleshooting.
The features:
Wireless outdoor and indoor humidity (%RH) Wireless outdoor and indoor temperature (°F or °C) Records min. and max. humidity Records min. and max. temperature Barometric pressure (inHg or hPa) Weather forecast Radio controlled (WWVB) automatic date and time or manual date and time 12 or 24-hour time display Perpetual calendar Time alarm with snooze Moon phase LED color backlight Wall hanging or free standing
2 Quick Start Guide
3 Getting Started
The weather station consists of a display console (receiver), thermos-hygrometer sensor and AC adapter.
Version 1.0 Page 2
Receiver Model : WH2802
QTY
Item
1
Display Console Frame Dimensions (LxHxW): 6.36 x 3.39 x 0.86” (161.5 x 86 x 21.5 mm) 1
Thermo-hygrometer transmitter (?) Dimensions (LxHxW): 4.80 x 1.57 x 0.71” (122 x 40 x 18 mm) 1
Manual 1
Power Adapter
Sensor Model : WH32G
Note: The power up sequence must be performed in the order shown in this section (remote
transmitter first, display console second) to properly synchronize the remote sensor to the console.
3.1 Parts List
3.2 Recommend Tools
Hammer and nail for hanging remote thermo-hygrometer transmitter.
Version 1.0 Page 3
Figure 1
Receiver Model : WH2802
Sensor Model : WH32G
3.3 Thermo-Hygrometer Sensor Set Up
Remove the battery door on the back of the sensor, as shown in Figure 2.
Figure 2
1. Insert two AA batteries.
2. After inserting the batteries, the remote sensor will display temperature and humidity on
the display, as shown in Figure 3.
Figure 3
3. Close the battery door.
Note: We recommend lithium batteries for cold weather climates, but alkaline batteries
are sufficient for most climates. We do not recommend rechargeable batteries. They have lower voltages, do not operate well at wide temperature ranges, and do not last as long, resulting in poorer reception.
Version 1.0 Page 4
4. Replace the battery door.
1. Daylight Savings Time
13. Outdoor humidity
2. Radio controlled reception
14. Outdoor humidity
3. Time
15. Min indoor humidity
4. Week day
16. Max indoor humidity
5. Date
17. Min indoor temperature
6. Moon phase
18. Max indoor temperature
7. Pressure rate of change
19. Indoor temperature
8. Barometric pressure
20. Min outdoor temperature
9. Barometric pressure trend arrow
21. Max outdoor temperature
10. Outdoor humidity
22. Outdoor temperature
11. Min outdoor humidity
23. Transmitter signal strength
12. Max outdoor humidity
24. Weather forecast icon based on barometer
3.4 Display Console
3.4.1 Display Console Layout
The display console layout is shown in Figure 4.
Receiver Model : WH2802
Sensor Model : WH32G
Version 1.0 Page 5
Figure 4
3.4.2 Display Console Set Up
Receiver Model : WH2802
Sensor Model : WH32G
Figure 5
3.4.3 Display Console Set Up
Place the remote thermo-hygrometer about 5 to 10 feet away from the display console (if the sensor is too close, it may not be received by the display console).
1. Insert the power adapter into the power jack of the console, and plug in the adapter. The LCD
display will beep once and then light up. The brightness selection is set to high when plugged into the adapter.
2. Remove the battery door on the back of the display. Insert three AAA (alkaline or lithium,
avoid rechargeable) batteries in the back of the display console. Looking at the back of the unit (left to right), the polarity is (+) (-) for the top battery, (-) (+) for the middle battery and (+) (-) for the bottom battery.
Note: To avoid permanent damage, please take note of the battery polarity before
inserting the batteries.
3. Replace the battery door, and fold out the desk stand and place the console in the upright
position, as shown in Figure 5.
Note: The batteries are intended for back-up power only. The backlight will remain on
for 5 seconds when on back up battery power only. Only when you use power adapter it will the back-light be continuously on.
Version 1.0 Page 6
Receiver Model : WH2802
Sensor Model : WH32G
4. After initialization, the console will instantly display indoor temperature, humidity, barometer,
moon phase, date and time. The remote search icon will turn on：
Do not touch any buttons until the remote sensor reports in, otherwise the remote sensor search mode will be terminated and the search icon will turn off. When the remote sensor data has been received, the console will automatically switch to the normal mode, and all further settings can be performed.
3.4.4 Radio Controlled Clock (RCC)
Your console is equipped with the Radio Controlled Clock (RCC). The icon WWVB will appear above the time to signify this.
The RCC is received by the wireless transmitter, and passed to the console. After the remote sensor is powered up, the sensor will transmit weather data for 30 seconds, and then the sensor will begin radio controlled clock (RCC) reception.
During the RCC time reception period (maximum 10 minutes), no weather data will be transmitted to avoid interference.
If the signal reception is not successful (normally during the day due to solar interference), the sensor search will be cancelled, the outdoor temperature and humidity will update as normal, and the RCC search will automatically resume every two hours until the signal is successfully captured. The regular RF link will resume once RCC reception routine is finished. In some locations, RCC reception may take a couple of days to receive the signal. The temperature and humidity data will continue to transmit during this period.
Once the radio controlled time is received, the RCC reception icon will turn on (reference Figure 4).
3.5 Sensor Operation Verification
Verify the indoor and outdoor humidity match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 10% worst case (the accuracy is ± 5%). Allow about 30 minutes for both sensors to stabilize.
Verify the indoor and outdoor temperature match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 4°F worst case (the accuracy is ± 2°F). Allow about 30 minutes for both sensors to stabilize.
Version 1.0 Page 7
Receiver Model : WH2802
Figure 6
Figure 7
Sensor Model : WH32G

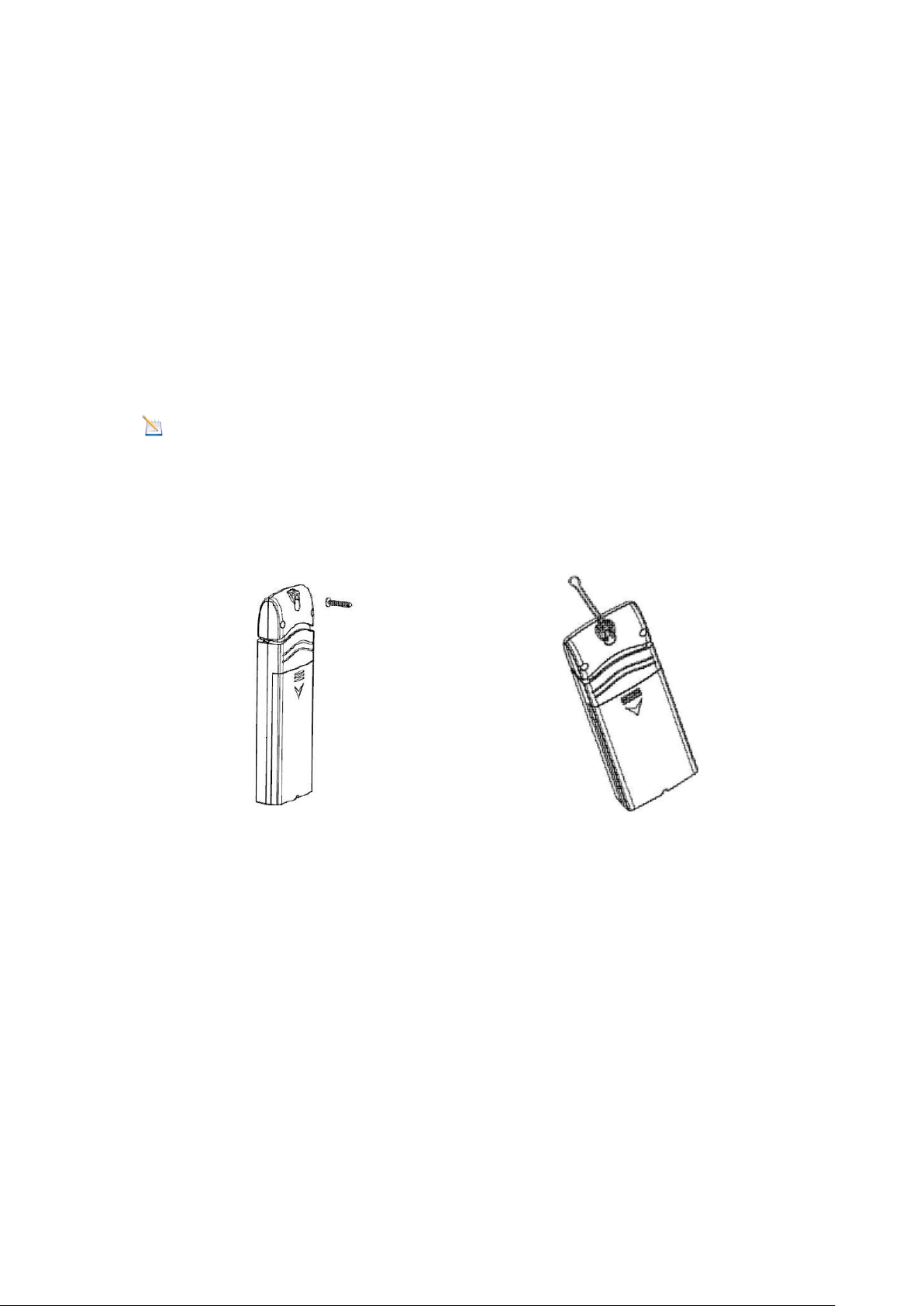

3.6 Sensor Placement
It is recommended you mount the remote sensor outside on a north facing wall, in a shaded area, at a height at or above the receiver. If a north facing wall is not possible, choose a shaded area, under an eve.
Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the sensor is weatherproof, it is best to mount in a well-protected area, such as an eve.
1. Use a screw or nail to affix the remote sensor to the wall, as shown in Figure 6.
2. Hang the remote sensor up on string, as shown in Figure 7.
Note: Make sure the sensor is mounted vertically and not lying down on a flat surface. This
will insure optimum reception. Wireless signals are impacted by distance, interference (other weather stations, wireless phones, wireless routers, TVs and computer monitors), and transmission barriers, such as walls. In general, wireless signals will not penetrate solid metal and earth (down a hill, for example).
3.7 Best Practices for Wireless Communication
Wireless communication is susceptible to interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication.
1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors and TVs.
2. Radio Frequency Interference (RFI). If you have other 915 MHz devices and communication is intermittent, try turning off these other devices for troubleshooting purposes. You may need to relocate the transmitters or receivers to avoid intermittent communication.
3. Line of Sight Rating. This device is rated at 300feet line of sight (no interference, barriers or walls) but typically you will get 100feet maximum under most real-world installations, which include passing through barriers or walls.
4. Metal Barriers. Radio frequency will not pass through metal barriers such as aluminum siding. If
Version 1.0 Page 8
Receiver Model : WH2802
Medium
RF Signal Strength Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%
Sensor Model : WH32G
you have metal siding, align the remote and console through a window to get a clear line of sight. The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction decreases the transmission range by the factor shown below.
4 Console Operation
Note: The console has four keys for easy operation: TEMP/+ key, ALARM key, BARO/-
key and SET key. There are four program modes: Set Mode, Alarm Mode, Calibration Mode and Min/Max Mode.
Any program mode can be exited at any time by either pressing the SNOOZE/LIGHT key (on the top of the display console), or waiting for the 30-second time-out to take effect.
4.1 Set Mode
The Set Mode allows you to change date, time, units of measure and other important functions, as referenced in Figure 8.
To enter the Set Mode, press and hold the SET key for two seconds (SET + 2 seconds). To advance each command, press (do not hold) the SET key.
Version 1.0 Page 9
Receiver Model : WH2802
Command
Function
Description
Settings
SET + 2 seconds
BEEP
Turns on or off the beep with each keystroke
Press TEMP/+ or BARO/- to toggle OFF and ON
SET
RST
Reset max/min daily at 12:00am (on) or manually (off)
Press TEMP/+ or BARO/- to toggle OFF and ON
SET
ZON
Time Zone (TZ)
Press TEMP/+ to increase or BARO/- to decrease (reference Figure 9).
SET
DST
Observe Daylight Savings Time (set to OFF in Arizona and Hawaii, ON everywhere else)
Press TEMP/+ or BARO/- to toggle OFF and ON
SET
12H
12/24 Hour Format
Press TEMP/+ or BARO/- to toggle between 12 hour (12h) and 24 hour (24h) format
SET
HR
Hour of Day
Press TEMP/+ to increase. BARO/- to decrease
SET
MIN
Minute of Day
Press TEMP/+ to increase. BARO/- to decrease
SET
M-D
Month Day Format
Press TEMP/+ or BARO/- to toggle between M-D (month/day) format and D-M (day/month) format
SET
Y
Year
Press TEMP/+ to increase and
BARO/- to decrease
SET
M
Month of Year
Press TEMP/+ to increase and
BARO/- to decrease
SET
D
Day of Month
Press TEMP/+ to increase and
BARO/- to decrease
SET
°F
Temperature Units of Measure
Press TEMP/+ to toggle between °F and °C
SET
inHg
Barometric Pressure Units of Measure
Press TEMP/+ to toggle between inHg and hPa
SET
NTH
Northern Hemisphere (NTH) or southern Hemisphere (STH) select
Press TEMP/+ to toggle between Northern and southern Hemisphere
SET
Exit Set Mode
Hours
from
GMT
Time Zone
Cities
-12
IDLW: International Date Line West
---
Sensor Model : WH32G
4.1.1 Time Zones
Version 1.0 Page 10
Figure 8
Receiver Model : WH2802
Hours
from
GMT
Time Zone
Cities
-11
NT: Nome
Nome, AK
-10
AHST: Alaska-Hawaii Standard CAT: Central Alaska HST: Hawaii Standard
Honolulu, HI
-9
YST: Yukon Standard
Yukon Territory
-8
PST: Pacific Standard
Los Angeles, CA, USA
-7
MST: Mountain Standard
Denver, CO, USA
-6
CST: Central Standard
Chicago, IL, USA
-5
EST: Eastern Standard
New York, NY, USA
-4
AST: Atlantic Standard
Caracas
-3
---
São Paulo, Brazil
-2
AT: Azores
Azores, Cape Verde Islands
-1
WAT: West Africa
---
0
GMT: Greenwich Mean WET: Western European
London, England
1
CET: Central European
Paris, France
2
EET: Eastern European
Athens, Greece
3
BT: Baghdad
Moscow, Russia
4
---
Abu Dhabi, UAE
5
---
Tashkent
6
---
Astana
7
---
Bangkok
8
CCT: China Coast
Bejing
9
JST: Japan Standard
Tokyo
10
GST: Guam Standard
Sydney
11
---
Magadan
12
IDLE: International Date Line East NZST: New Zealand Standard
Wellington, New Zealand
Sensor Model : WH32G
4.2 Barometric Pressure
4.2.1 Barometric Pressure History
While in normal mode, press BARO/- to check the barometric pressure history. Press the BARO/- button to switch to past 12hr/24hr/48hr/72hr average pressure. To exit the barometric pressure history mode, press the SNOOZE/LIGHT key (on the top of the display console), or wait 30 seconds for the timeout to take effect.
4.2.2 Relative vs. Absolute Pressure
While in normal mode, Press and hold the BARO/- button for 2 seconds to switch between
Version 1.0 Page 11
Figure 9
Receiver Model : WH2802
Sensor Model : WH32G
absolute (ABS) pressure and relative (REL) pressure.
Note: The display console displays two different pressures: absolute (measured) and relative
(corrected to sea-level).
To compare pressure conditions from one location to another, meteorologists correct pressure to sea-level conditions. Because the air pressure decreases as you rise in altitude, the sea-level corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured pressure.
Thus, your absolute pressure may read 28.62 inHg (969 mb) at an altitude of 1000 feet (305 m), but the relative pressure is 30.00 inHg (1016 mb).
The standard sea-level pressure is 29.92 in Hg (1013 mb). This is the average sea-level pressure around the world. Relative pressure measurements greater than 29.92 inHg (1013 mb) are considered high pressure and relative pressure measurements less than 29.92 inHg are considered low pressure.
To determine the relative pressure for your location, locate an official reporting station near you (the internet is the best source for real time barometer conditions, such as Weather.com or Wunderground.com), and set your weather station to match the official reporting station.
To calibrate the relative pressure to a local airport, please reference Section 4.5.
4.3 Dew Point
While in normal mode, Press the TEMP/+ key to view the Dew Point in the outdoor temperature field. If key idle 30 seconds, the display will return to normal mode.
To exit the Dew Point display mode, press the SNOOZE/LIGHT key (on the top of the display console), or wait 30 seconds for the timeout to take effect.
4.4 Alarms
4.4.1 View Alarm Time
While in normal mode, press the ALARM key to view the alarm time. The alarm icon will be displayed in the time field.
4.4.2 Time Alarm Settings Mode
To enter the Alarm Mode, press and hold the ALARM key for two seconds (ALARM + 2 seconds). To advance each command, press (do not hold) the SET key.
Version 1.0 Page 12
Receiver Model : WH2802
Command
Function
Description
Settings
ALARM + 2 seconds
Alarm Hour
Set the Alarm Hour Time
Press TEMP/+ or BARO/- to increase or decrease the alarm hour.
SET
Alarm Minute
Set the Alarm Hour Minute
Press TEMP/+ or BARO/- to increase or decrease the alarm minute.
SET
ALARM ON/OFF
Turn the Time Alarm On or Off.
Press TEMP/+ to toggle between Time Alarm ON and Time Alarm Off
SET
LOW Alarm
Turn the LOW Temperature Alarm On or Off
Press TEMP/+ to toggle between Time Alarm ON and Time Alarm Off
SET
Exit Set Mode
Sensor Model : WH32G
Figure 10
4.4.3 Cancelling the Alarm
If the time alarm sounds, press the any key to silence the alarm. Press the LIGHT/SNOOZE key to enter snooze mode.
The low temperature alert will reset automatically once the value has fallen into the low temperature alert range.
4.4.4 Low Temperature Alarm
The low temperature alarm sounds when the outdoor is between -3 °C and +2 °C (26.6 °F and
35.6 °F). The LO temperature icon will appear and flash on the console. If the BEEP is switched on, an audible alert will also activated when the low temperature alert occurs.
Figure 11
4.5 Calibration
While in the normal node, press and hold the SET and BARO/- keys for five seconds to enter calibration mode (note: the SET mode will appear after three seconds. Continue pressing the two keys until you see the CAL icon appear in the upper right hand corner of the display).
Enter the calibration offset to match the calibration source.
Version 1.0 Page 13
Receiver Model : WH2802
Command
Function
Description
Settings
SET and BARO/- + 5 seconds
OUTDOOR TEMP
Calibrate the outdoor temperature
Press TEMP/+ or BARO/- to increase or decrease the outdoor temperature offset.
SET
OUTDOOR HUMIDITY
Calibrate the outdoor humidity
Press TEMP/+ or BARO/- to increase or decrease the outdoor humidity offset.
SET
INDOOR TEMP
Calibrate the indoor temperature
Press TEMP/+ or BARO/- to increase or decrease the indoor temperature offset.
SET
INDOOR HUMIDITY
Calibrate the outdoor humidity
Press TEMP/+ or BARO/- to increase or decrease the indoor humidity offset.
SET
PRESSURE
Calibrate the relative pressure
Press TEMP/+ or BARO/- to increase or decrease relative pressure offset.
SET
Exit Set Mode
Sensor Model : WH32G
Figure 12
Example 1:
The calibrated temperature from a red spirit thermometer, or actual temperature is 60.0 °F. The uncalibrated or measured temperature is 58.7 °F. Offset = Calibrated Temperature – Uncalibrated Temperature = 60.0 – 58.7 = 1.3 °F. Enter the temperature offset +1.3 °F.
Example 2:
The calibrated relative pressure at the local airport is 29.86 inHg. The uncalibrated or measured relative pressure measured by the weather station is 29.92 inHg. Offset = 29.86 – 29.92 = -0.06 inHg Enter the relative pressure offset -0.06 inHg
To exit the calibration mode at any time, press the LIGHT/SNOOZE button.
Note: The calibration offset range limits are as follows:
Temperature: ± 9°F Humidity: ± 9% Relative: ± 10hpa (± 0.295 inHg)
4.6 Max/Min Mode
The Max/Min data is displayed below each parameter. The orange parameter on the left is the maximum value since the last reset, and the blue parameter on the left is the minimum value since the last reset.
Version 1.0 Page 14
Receiver Model : WH2802
Sunny
Partly Cloudy
Cloudy
Rainy
Stormy
Pressure increses for a sustained period of time
Pressure increases slightly, or initial power up
Pressure decreases slightly
Pressure decreases for a sustained period of time
Pressure rapidly decreases
Sensor Model : WH32G
Figure 13
To clear all of the MAX/MIN records, press and hold the TEMP/+ button for three seconds. Dashes will be displayed until the next update.
MAX/MIN records are cleared automatically at midnight. The MAX/MIN DAILY icon
will be displayed. To switch this feature off, reference Section 4.1.
4.7 Other Console Features
4.7.1 Display Brightness
Press the LIGHT/SNOOZE button to toggle the screen brightness between HIGH, MEDIUM and LOW.
4.7.2 Weather Forecasting
The five weather icons are Sunny, Partly Cloudy, Cloudy, Rainy and Stormy.
The forecast icon is based on the rate of change of barometric pressure. Please allow at least one month for the weather station to learn the barometric pressure over time.
Figure 14
Version 1.0 Page 15
Receiver Model : WH2802
New
Waxing
Crescent
First
Quarter
Waxing
Gibbous
Full
Waning
Gibbous
Third
Quarter
Waning
New
New
Waxing
Crescent
First
Quarter
Waxing
Gibbous
Full
Waning
Gibbous
Third
Quarter
Waning
New
Pressure is rising
Pressure is unchanged
Pressure is falling
Sensor Model : WH32G
4.7.3 Weather Forecasting Description and Limitations
In general, if the rate of change of pressure increases, the weather is generally improving (sunny to partly cloudy). If the rate of change of pressure decreases, the weather is generally degrading (cloudy, rainy or stormy). If the rate of change is relatively steady, it will read partly cloudy.
The reason the current conditions do not match the forecast icon is because the forecast is a prediction 24-48 hours in advance. In most locations, this prediction is only 70% accurate and it is a good idea to consult the National Weather Service for more accurate weather forecasts. In some locations, this prediction may be less or more accurate. However, it is still an interesting educational tool for learning why the weather changes.
The National Weather Service (and other weather services such as Accuweather and The Weather Channel) have many tools at their disposal to predict weather conditions, including weather radar, weather models, and detailed mapping of ground conditions.
4.7.4 Moon Phase
The following moon phases are displayed based on the calendar date and your northern vs southern hemisphere, as shown in Figure 15.
Northern Hemisphere:
Southern Hemisphere:
Figure 15
4.7.5 Pressure Tendency Arrows
The forecast trend arrow updates every 30 minutes. The trend reflects changes in pressure (1 hPa) over the past 3 hours.
Figure 16
4.7.6 Rate of Change of Pressure Graph
The rate of change of pressure graphic is shown to the left of the barometric pressure and signifies the difference between the daily average pressure and the 30 day average (in hPa).
Version 1.0 Page 16
Figure 17
4.7.7 Resynchronizing Lost Sensor
Receiver Model : WH2802
Sensor Model : WH32G
If the signal is lost between the remote sensor (or transmitter) and the display console (or the receiver), to resynchronize, while in normal mode, Press and hold SET and TEMP/+ button for 5 seconds, to register the outdoor transmitter. The sensor search icon will flash.
Please wait several minutes for the remote sensor reports in. Do not touch any buttons until synchronization is complete.
If the synchronization fails, reset the console by removing one battery from the display console, disconnect from AC power, wait 10 seconds, and reinsert the battery and reconnect AC power..
Version 1.0 Page 17
5 Glossary of Terms
Term
Definition
Accuracy
Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured.
Hygrometer
A hygrometer is a device that measures relative humidity. Relative humidity is a term used to describe the amount or percentage of water vapor that exists in air.
Range
Range is defined as the amount or extent a value can be measured.
Resolution
Resolution is defined as the number of significant digits (decimal places) to which a value is being reliably measured.
Absolute Barometric Pressure
Relative barometric pressure, corrected to sea-level. To compare pressure conditions from one location to another, meteorologists correct pressure to sea-level conditions. Because the air pressure decreases as you rise in altitude, the sea-level corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured pressure.
Relative Barometric Pressure
Measured barometric pressure relative to your location or ambient conditions.
HectoPascals (hPa)
Pressure units in SI (international system) units of measurement. Same as millibars (1 hPa = 1 mbar)
Inches of Mercury (inHg)
Pressure in Imperial units of measure. 1 inch of mercury = 33.86 millibars
Receiver Model : WH2802
Sensor Model : WH32G
6 Specifications
6.1 Wireless Specifications
Line of sight wireless transmission (in open air): 300 feet, 100 feet under most conditions Frequency: 915 MHz Update Rate: 60 seconds for rain sensor and thermo-hygrometer sensor, 16 seconds for wind
sensor.
Version 1.0 Page 18
Receiver Model : WH2802
Measurement
Range
Accuracy
Resolution
Indoor Temperature
-14 to 140 °F
-10 to 60 °C
± 1.8 °F ± 1 °C
0.1 °F
0.1 °C
Outdoor Temperature
-40 to 140 °F
-40 to 60 °C
± 1.8 °F ± 1 °C
0.1 °F
0.1 °C
Indoor Humidity
10 to 99 %
± 5% (only guaranteed between 20 to 90%)
1 %
Outdoor Humidity
10 to 99%
± 5% (only guaranteed between 20 to 90%)
1 %
Barometric Pressure
8.85 inHg to 32.48 inHg 300 hpa to 1100 hpa
± 0.09 inHg ±3 hpa (only guaranteed between 700 to 1100hpa)
0.01 inHg
0.1hpa
Problem
Solution
Wireless remote (thermo-hygrometer) not reporting in to console.
There are dashes (--.-) on the display console.
If any of the sensor communication is lost, dashes (--.-) will be displayed on the screen. To reacquire the signal, reference 4.7.7.
The maximum line of sight communication range is 300 feet and 100 feet under most conditions. Move the sensor assembly closer to the display console.
If the sensor assembly is too close (less than 5’), move
the sensor assembly away from the display console.
6.2 Measurement Specifications
The following table provides specifications for the measured parameters.
Sensor Model : WH32G
Figure 18
6.3 Power Consumption
Base station : 5V DC adaptor (included)
3 x AAA 1.5V Batteries (not included)
Remote sensor : 2 x AA Batteries (not included) Battery life: About 12 months for base station
About 12-24 months for thermometer-hygrometer sensor (use lithium batteries in cold weather climates)
7 Troubleshooting Guide
Version 1.0 Page 19
Receiver Model : WH2802
Problem
Solution
Make sure the remote sensor LCD display is working on both the console and the remote sensor.
Install a fresh set of batteries in the remote thermo-hygrometer. For cold weather environments, install lithium batteries.
Make sure the remote sensors are not transmitting through solid metal (acts as an RF shield), or earth barrier (down a hill).
Move the display console around electrical noise generating devices, such as computers, TVs and other wireless transmitters or receivers.
Move the remote sensor to a higher location. Move the remote sensor to a closer location.
Temperature sensor reads too high in the day time.
Make sure the thermo-hygrometer is mounted in a shaded area. The pre preferred location is a north facing wall because it is in the shade most of the day.
Indoor and Outdoor Temperature do not agree
Allow up to one hour for the sensors to stabilize due to signal filtering. The indoor and outdoor temperature sensors should agree within 3.6 °F (the sensor accuracy is ± 1.8 °F).
Use the calibration feature to match the indoor and outdoor temperature to a known source.
Indoor and Outdoor Humidity do not agree
Allow up to one hour for the sensors to stabilize due to signal filtering. The indoor and outdoor humidity sensors should agree within 10 % (the sensor accuracy is ± 5 %).
Use the calibration feature to match the indoor and outdoor humidity to a known source.
Display console contrast is weak
Plug into AC power. The console was not designed to run exclusively on batteries.
Sensor Model : WH32G
Version 1.0 Page 20
Receiver Model : WH2802
Accessory
Description
Energizer AAA Lithium Battery (2-pack) - Batteries for Long Life and Cold Climates
AAA lithium batteries for cold weather climates. Weather SRS100LX Temperature and Humidity Solar Radiation Shield
Solar Radiation Shield improves temperature accuracy for hot weather climates. Install over thermo-hygrometer.
Weather Humidity Calibration Kits
One step calibration kits for digital hygrometers use salt slurry formula to accurately calibrate the indoor and outdoor hygrometers.
Sensor Model : WH32G
8 Accessories
9 Liability Disclaimer
Please help in the preservation of the environment and return used batteries to an authorized depot. The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment.
Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place.
This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public information.
The specifications of this product may change without prior notice.
This product is not a toy. Keep out of the reach of children.
No part of this manual may be reproduced without written authorization of the manufacturer.
10 FCC Statement
Statement according to FCC part 15.19: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Statement according to FCC part 15.21:
Version 1.0 Page 21
Receiver Model : WH2802
Sensor Model : WH32G
Changes or modifications not expressly approved by this company could void the user's authority to operate the equipment. Statement according to FCC part 15.105: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
11 Warranty Information
We provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product.
Warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (lack of reasonable and necessary
maintenance); (2) damage resulting from failure to follow instructions contained in your owner’s
manual; (3) damage resulting from the performance of repairs or alterations by someone other than an authorized service center; (4) units used for other than home use (5) applications and uses that this product was not intended (6) the products inability to receive a signal due to any source of interference or metal obstructions and (7) extreme acts of nature, such as lightning strikes or floods.
This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.
Version 1.0 Page 22
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
