Fiesta XT40057 Assembly Manual

5B

WARNING

!

• Failure to follow all manufacturer’s
instructions could result in serious
personal injury and/or property
damage.

CAUTION

!

• Some parts may contain sharp edges

-especially as noted in manual!
Wear protective gloves if necessary.

SP911-37

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

21

22

23

24

25

27

28

32

37

34

33

31

30

36

52

47

42

43

20

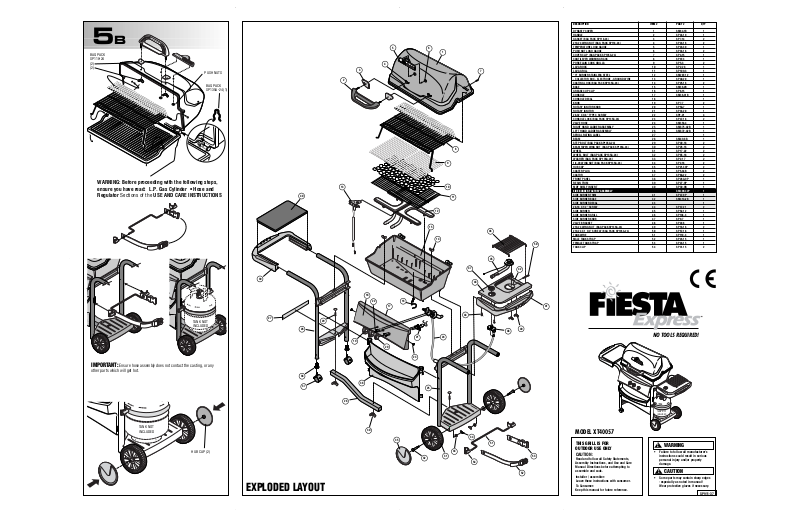

EXPLODED LAYOUT

29

26

38

39

40

41

50

45

48

44

51

53

54

BAG PACK
SP118-24
(2)
(2)

BAG PACK
SP135A-24 (1)

PUSH NUTS

WARNING: Before proceeding with the following steps,
ensure you have read: L.P. Gas Cylinder • Hose and
Regulator Sections of the USE AND CARE INSTRUCTIONS

46

49

IMPORTANT:

Ensure hose assembly does not contact the casting, or any

other parts which will get hot.

HUB CAP (2)

DESCRIPTION ITEM # PART # QTY

DYNASTY COVER 1 SM64-1B 1
HANDLE 2 SP43-19 1
GASKET (BAG PACK SP118-24) 3 SP7-14 2
#10-24 WING NUT (BAG PACK SP118-24) 4 SP24-16 2
TEMPERATURE LOGO GAUGE 5 SP24-30 1
PUSH NUT LOGO GAUGE 6 SP33-16 2
COVER CLIP (BAG PACK SP135A-24) 7 SP4-15 1
CANTILEVER WARMING RACK 8 SP97-3 1

PORCELAIN COOK GRILLS 9 SP5-3 2
LAVA ROCK 10 SP2-28 1
LAVA GRILL 11 SP109-3 1

“H” BURNER STAINLESS STEEL 12 SM207-12 1

- COLLECTOR BOX - ELECTRODE - GROUND WIRE 13 SP40-20 1
CASTING LOCK (BAG PACK SP135A-24) 14 SP25-16 2
BASE 15 SM36-2B 1
GREASE CUP CLIP 16 SP6-15 1
CONSOLE 17 SM36-31B 1
CONSOLE DECAL 18 1
KNOB 19 SP7-7 2
ROTARY IGNITOR KNOB 20 SP5A-7 1
ROTARY IGNITOR 21 SP33-20 1
#8-32 X 3/8” TYPE C SCREW 22 SP2-21 4
CONSOLE LOCK (BAG PACK SP135A-24) 23 SP47-18 2
VALVE HOSE 24 SM353-4 1

RIGHT HAND LADDER ASSEMBLY 25 SM375-42B 1
LEFT HAND LADDER ASSEMBLY 26 SM372-42B 1
SERIAL RATING LABEL 27 1
BEAM 28 SM49-8B 1
STEP BOLT (BAG PACK SP135A-24) 29 SP49-18 2

BEAM TAPER WING NUT (BAG PACK SP135A-24) 30 SP26-16 2

WHEEL 31 SP17-22 2
WHEEL BOLT (BAG PACK SP135A-24) 32 SP65-18 2
WASHER (BAG PACK SP135A-24) 33 SP2-17 2

1/4-20 WING NUT (BAG PACK SP135A-24) 34 SP2-16 2
HUB CAP 35 SP21-33P 2
CASTER PLUG 36 SP5-34B 2
CASTOR 37 SP8A-22 2

FRONT PANEL 38 SP28A-9P 1
RESIN TRIM 39 SP27-9P 1
MDF SHELF INSERT 40 SP39-9B 1

SIDE BURNER FACTORY ASSEMBLY SM409-42P 1

SIDE BURNER TRIM 41 SP47-9P 1
SIDE BURNER BASE 42 SM41A-2B 1
SIDE BURNER DECAL 43 1
#8-18 X 1/2” SCREW 44 SP37-21 2
SIDE BURNER 45 SP52-12 1
SIDE BURNER GRILL 46 SP138-3 1
SIDE BURNER KNOB 47 SP9-7 1
VALVE BRACKET 48 SP22-6 1
#10-24 WING NUT (BAG PACK SP135A-24) 49 SP18-16 2
#10-24 X 1 3/4” SCREW (BAG PACK SP135A-24) 50 SP57-18 1
TANK WIRE 51 SP110-3 1
MALE TANK STRAP 52 SP23-15 1
FEMALE TANK STRAP 53 SP24-15 1
TANK CLIP 54 SP31-15 2

THIS GRILL IS FOR
OUTDOOR USE ONLY

CAUTION:

Read and follow all Safety Statements,
Assembly Instructions, and Use and Care
Manual Directions before attempting to
assemble and cook.

Installer / assembler:
Leave these instructions with consumer.

To Consumer:
Keep this manual for future reference.

35

TANK NOT
INCLUDED

TANK NOT
INCLUDED

MODEL XT40057

NO TOOLS REQUIRED!

TANK NOT
INCLUDED

4B4A

SEE USE & CARE MANUAL FOR IMPORTANT SAFETY INSTRUCTIONS BEFORE USING.

3

Ensure venturi position
over valves before

locking burner into base.

BURNER LOCK

ATTAC H
IGNITOR WIRE
AND GROUND
WIRE.

SHELF LOCK

BAG PACK

SP135A-24 (2)

BAG PACK

SP135A-24 (1)

BAG PACK
SP135A-24

VALVE LOCK

1

Review parts list
and exploded
layout before
assembly.

2A

CAUTION Failure to install can

in clip will cause hot grease to
drip from bottom of grill with risk
of fire or property damage. Use an
empty soup can (not included) to
hang from grease clip.

BAG PACK SP135A-24 (2)

WHITE
COLOUR

2B

BAG PACK SP135A-24 (2)

BAG PACK
SP135A-24 (2)

BLACK
COLOUR
BAG PACK
SP135A-24 (2)

BAG PACK

SP135A-24 (2)

BAG PACK
SP135A-24 (2)

5A

SP911-37

BAG PACK
SP135A-24 (2)

ATTACH IGNITOR WIRE

10mm

10mm
