Driver Manual
(Supplement to the FieldServer Instruction Manual)
FS-8700-122
X30 Profibus DP Master
APPLICABILITY & EFFECTIVITY
Effective for all systems manufactured after May 1, 2001
Driver Version: 1.01 Document Revision: 3
FS-8700-122 X30 Profibus DP Master Manual Table of Contents
TABLE OF CONTENTS
X30 PROFIBUS DP MASTER DESCRIPTION..................................................................3
1.
2. DRIVER SCOPE OF SUPPLY...........................................................................................4
2.1. Supplied by FieldServer Technologies for this driver ...................................................4
2.2. Provided by the Supplier of 3rd Party Equipment..........................................................4
2.2.1. Required 3rd Party Software......................................................................................4
2.2.2. Required 3rd Party Configuration...............................................................................4
3. HARDWARE CONNECTIONS ..........................................................................................5
3.1. Hardware Connection Tips / Hints................................................................................5
4. CONFIGURING THE FIELDSERVER AS A X30 PROFIBUS DP MASTER CLIENT.......6
4.1. FieldServer ...................................................................................................................6
4.2. Data Arrays/Descriptors ...............................................................................................6
4.3. Client Side Connection Descriptions ............................................................................7
4.4. Client Side Node Descriptors .......................................................................................7
4.5. Client Side Map Descriptors ......................................................................................... 8
4.5.1. FieldServer Related Map Descriptor Parameters......................................................8
4.5.2. Driver Related Map Descriptor Parameters ..............................................................8
4.5.3. Timing Parameters....................................................................................................8
4.6. Map Descriptor Example. .............................................................................................9
4.7. Configuring the Embedded Profibus Database ..........................................................10
APPENDIX A. TROUBLESHOOTING TIPS............................................................................15
Appendix A.1. Connection Tips & Hints................................................................................15
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 3 of 16
1. X30 Profibus DP Master Description
The FieldServer Profibus X30 DP Master driver can be used to transfer I/O data with up to 125 Profibus DP Slave devices. The FieldServer is programmed with an embedded database using the required 3 number of slaves and I/O modules to be transferred with each slave. The tool requires the input of GSD/E files for each slave to be connected.
Max Nodes Supported
FieldServer Mode Nodes Comments
CLIENT DPV1 MASTER (CLASS 1) ONLY
A maximum total of 1536 bytes can be transferred with all DP Slaves
rd
party configuration tool. The embedded database contains information on the
125
The FieldServer can connect up to so many Profibus DP Slave devices.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 4 of 16
2. Driver Scope of Supply
2.1. Supplied by FieldServer Technologies for this driver
FieldServer Technologies PART #
FS-8700-122 Driver Manual. X30-Profibus DP Master Profibus X30 DP Master Card
Description
2.2. Provided by the Supplier of 3rd Party Equipment
2.2.1. Required 3rd Party Software
HMS Anybus NetTool for Profibus
2.2.2. Required 3rd Party Configuration
Connection to a correctly terminated Profibus network.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 5 of 16
3. Hardware Connections
The FieldServer is connected to the Profibus network as shown in the connection drawing below.
3.1. Hardware Connection Tips / Hints
Use the recommended network cable and terminators as specified by the Profibus network
organization and/or the manufacturer of your network equipment.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 6 of 16
4. Configuring the FieldServer as a X30 Profibus DP Master Client
For a detailed discussion on FieldServer configuration, please refer to the FieldServer Configuration Manual. The information that follows describes how to expand upon the factory defaults provided in the configuration files included with the FieldServer (See “.csv” sample files provided with the FieldServer).
This section documents and describes the parameters necessary for configuring the FieldServer to communicate with up to 125 Profibus DP Slaves.
4.1. FieldServer
Section Title
FieldServer
Column Title Function Legal Values
System_Station_Address Profibus address of the X30 DP Master 0-125
4.2. Data Arrays/Descriptors
The configuration file tells the FieldServer about its interfaces, and the routing of data required. In order to enable the FieldServer for X30 Profibus DP Master communications, the driver independent FieldServer buffers need to be declared in the “Data Arrays” section, the destination device addresses need to be declared in the “Client Side Nodes” section, and the data required from the servers needs to be mapped in the “Client Side Map Descriptors” section. Details on how to do this can be found below.
Note that in the tables, * indicates an optional parameter, with the bold legal value being the default.
Section Title
Data_Arrays
Column Title Function Legal Values
Data_Array_Name Provide name for Data Array
Data_Array_Format
Data_Array_Length
Provide data format. Each Data Array can only take on one format.
Number of Data Objects. Must be larger than the data storage area required by the Map Descriptors for the data being placed in this array.
Up to 15 alphanumeric characters Float, Bit, UInt16, SInt16, Packed_Bit, Byte, Packed_Byte, Swapped_Byte
1-10,000
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 7 of 16
Example
// Data Arrays
Data_Arrays Data_Array_Name, Data_Array_Format, Data_Array_Length Byte_Output, Byte, 10 Byte_Input, Byte, 10 Word_Output, Uint16, 10
Word_Input, Uint16, 10
Float_Output, Float, 10 Float_Input, Float, 10
4.3. Client Side Connection Descriptions
Section Title
Connections
Column Title Function Legal Values
Adapter Adapter Name Prof_DP
Example
// Client Side Connections
Connections Adapter Prof_DP
4.4. Client Side Node Descriptors
Section Title
Nodes
Column Title Function Legal Values
Node_Name Provide name for node Up to 32 alphanumeric characters
Node_ID
Station address of physical remote Profibus Slave
Protocol Specify protocol used Anybus_Prof_DP_M
Example
// Client Side Nodes
Nodes Node_Name, Node_ID, Protocol PDP_SLV003, 3, Anybus_Prof_DP_M PDP_SLV125, 125, Anybus_Prof_DP_M
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
0-125
FS-8700-122 X30 Profibus DP Master Manual Page 8 of 16
4.5. Client Side Map Descriptors
4.5.1. FieldServer Related Map Descriptor Parameters
Column Title Function Legal Values
Map_Descriptor_Name
Data_Array_Name
Data_Array_Offset
Function
Name of this Map Descriptor Name of Data Array where data is to be stored in the FieldServer Starting location in Data Array Function of Client Map Descriptor
Up to 32 alphanumeric characters
One of the Data Array names from “Data Array” section above
0 to maximum specified in “Data Array” section above
RDBC, WRBC
4.5.2. Driver Related Map Descriptor Parameters
Column Title Function Legal Values
Node_Name
Profibus_Data_Type Arrangement of buffer data
Address
Length Length of Map Descriptor
Important Note:
A maximum combined total length of 1536 bytes are permitted for all Map Descriptors accessing Slave devices.
Name of Node to fetch data from
Starting address of buffer in bytes
One of the node names specified in “Client Node Descriptor” above BYTE, WORD, BOOL, FLOAT
0 - 243
1 - 244 ( BYTE ) 1 - 122 ( WORD ) 1 - 1952 ( BOOL ) 1 - 61 ( FLOAT )
4.5.3. Timing Parameters
Column Title Function
Scan_Interval
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
Rate at which data is transferred from FieldServer data arrays to Profibus Master buffers.
Legal
Values
0.001s
FS-8700-122 X30 Profibus DP Master Manual Page 9 of 16
4.6. Map Descriptor Example.
This example demonstrates the transfer of I/O data with Remote Profibus DP Slaves using Station Addresses of 1 and 125.
Map Descriptor Map_Descriptor_Name, Data_Array_Name, Data_Array_Offset, Function, Node_Name, Profibus_Data_Type, Address, Length, Scan_Interval Word_In_003, Word_Input, 0, RDBC, PDP_SLV003, WORD 0, 50, 1s Word_Out_003, Word_Output, 0, WRBC, PDP_SLV003, WORD 0, 50, 1s Byte_In_125, Byte_Input, 0, RDBC, PDP_SLV125, BYTE, 0, 120, 1s Byte_Out_125, Byte_Output, 0. WRBC, PDP_SLV125, BYTE, 0, 120, 1s
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 10 of 16
4.7. Configuring the Embedded Profibus Database
The X30 Profibus Master has to be configured with an embedded database that contains information about the Profibus Network data rate and remote Slave devices to access. The HMS Anybus NetTool for Profibus software must be installed and used for this purpose. Connect a serial RS-232 cable from the PC with the tool installed to the serial connector on the X30 as shown below:
1) Run the Tool and select Project-> New

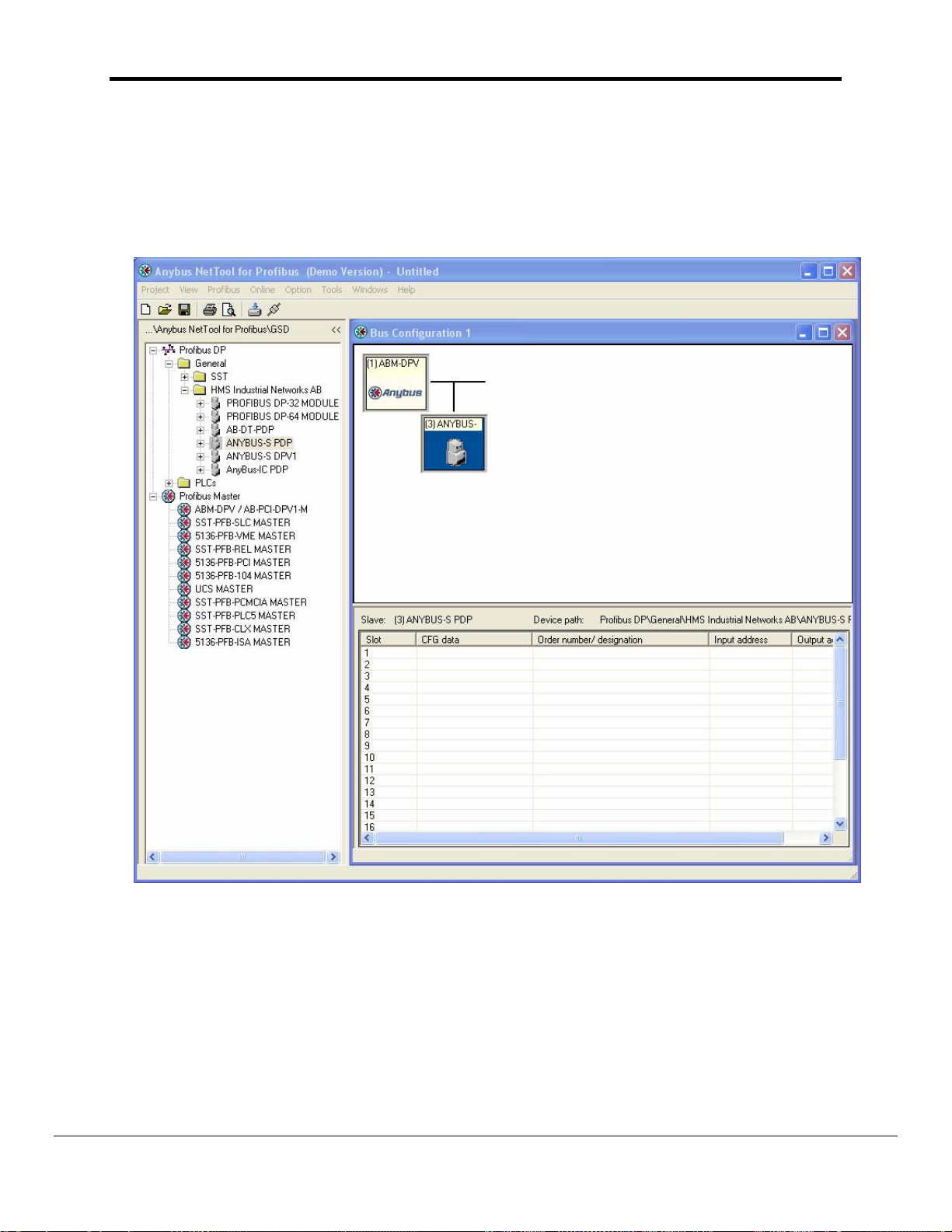

2) Expand the Profibus Master Tree, select the ABM-DPV device and drag it onto the Bus Configuration Screen. This is the X30 FieldServer Profibus DP Master device.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 11 of 16
3) Expand the Profibus DP tree and drag the Slave Device you want to connect to onto the Bus Configuration window.
Note: If your device does not show up, import the device’s GSD file by right clicking on
Profibus DP and selecting Install new GS*-file. The ANYBUS-S PDP Slave device is shown here for illustration purposes.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 12 of 16
4) Right-click on the Profibus Slave and assign its Profibus address.
5) Continue adding all other Slaves and setting their Profibus addresses.
6) Right click on the ABM-DPV Master device and select Object Properties. Set the Master Station Address to the same as the System_Station_Address used in the FieldServer’s config.csv file. Also set the desired Profibus Network Baud rate.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 13 of 16
7) Select the first slave device, right-click on the Slot 1 line and choose Module selection. Now you have to add I/O modules up to the total number of bytes or words that will be transferred with this slave as set up in the config.csv file. For Example, for the Map Descriptor for Slave1 using 50 Words In and Out, you would choose the following modules:
8) Continue selecting other Slaves and adding modules for them as well.
Important Note: Changing of Input and Output Addresses are not allowed. All addresses
must be contiguous for the X30 Profibus to work correctly.
9) Select Online-> Driver selection and on the serial Tab, choose the serial port on the PC connected to the X30 by clicking on Configure-> Configure path.
10) Make sure the X30 FieldServer is running and you’ve downloaded a matching configuration file to it with Node and Map Descriptors for each slave you have just configured Make sure you can connect with Ruinet to the X30 and there are no configuration errors.
11) Choose Online-> Download configuration to install the embedded database in the X30.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 14 of 16
Important Note:
Note that the X30 must be running with a valid configuration file before it will allow download of a new database.
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 15 of 16
Appendix A. Troubleshooting tips
Appendix A.1. Connection Tips & Hints
An error message displays when trying to download the Profibus database?
Ensure you have selected the correct serial port in the configure path setting.
Ensure that the X30 is powered up with a valid configuration file declaring all the slaves
to be communicated with.
Confirm that the Run Led is flashing.
The following message on the E screen of Ruinet is shown when the X30 detects a
request for new database download:
Detected New Profibus Database! Restarting FieldServer in 10 seconds...
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-9042 Toll_Free: 888-509-1970 email: support@fieldserver.com
FS-8700-122 X30 Profibus DP Master Manual Page 16 of 16
