Fieldpiece SC66 User Manual

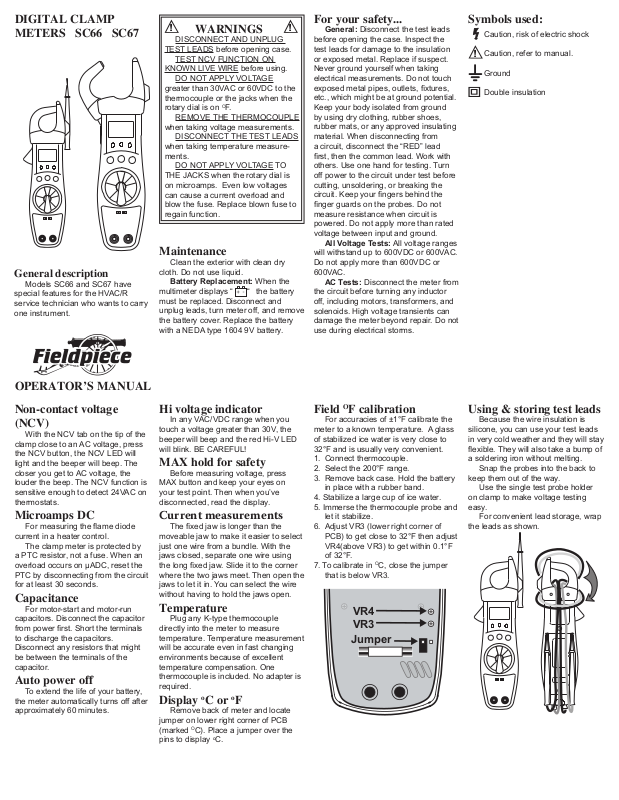

DIGITAL CLAMP

!!!

VR3

Jumper

VR4

METERS SC66 SC67

General description

Models SC66 and SC67 have
special features for the HVAC/R
service technician who wants to carry
one instrument.

WARNINGS

DISCONNECT AND UNPLUG

TEST LEADS before opening case.

TEST NCV FUNCTION ON

KNOWN LIVE WIRE before using.

DO NOT APPLY VOLTAGE

greater than 30VAC or 60VDC to the

thermocouple or the jacks when the

rotary dial is on

REMOVE THE THERMOCOUPLE

when taking voltage measurements.

DISCONNECT THE TEST LEADS
when taking temperature measure­ments.

DO NOT APPLY VOLTAGE TO
THE JACKS when the rotary dial is
on microamps. Even low voltages
can cause a current overload and
blow the fuse. Replace blown fuse to
regain function.

O

F.

Maintenance

Clean the exterior with clean dry

cloth. Do not use liquid.

Battery Replacement: When the
multimeter displays “ “ the battery
must be replaced. Disconnect and
unplug leads, turn meter off, and remove
the battery cover. Replace the battery
with a NEDA type 1604 9V battery.

For your safety...

General: Disconnect the test leads
before opening the case. Inspect the
test leads for damage to the insulation
or exposed metal. Replace if suspect.
Never ground yourself when taking
electrical measurements. Do not touch

exposed metal pipes, outlets, xtures,

etc., which might be at ground potential.
Keep your body isolated from ground
by using dry clothing, rubber shoes,
rubber mats, or any approved insulating
material. When disconnecting from
a circuit, disconnect the “RED” lead

rst, then the common lead. Work with

others. Use one hand for testing. Turn
off power to the circuit under test before
cutting, unsoldering, or breaking the

circuit. Keep your ngers behind the
nger guards on the probes. Do not

measure resistance when circuit is
powered. Do not apply more than rated
voltage between input and ground.

All Voltage Tests: All voltage ranges
will withstand up to 600VDC or 600VAC.
Do not apply more than 600VDC or
600VAC.

AC Tests: Disconnect the meter from
the circuit before turning any inductor
off, including motors, transformers, and
solenoids. High voltage transients can
damage the meter beyond repair. Do not
use during electrical storms.

Symbols used:

Caution, risk of electric shock

Caution, refer to manual.

Ground

Double insulation

OPERATOR’S MANUAL

Non-contact voltage
(NCV)

With the NCV tab on the tip of the
clamp close to an AC voltage, press
the NCV button, the NCV LED will
light and the beeper will beep. The
closer you get to AC voltage, the
louder the beep. The NCV function is
sensitive enough to detect 24VAC on
thermostats.

Microamps DC

For measuring the ame diode

current in a heater control.

The clamp meter is protected by
a PTC resistor, not a fuse. When an
overload occurs on µADC, reset the
PTC by disconnecting from the circuit
for at least 30 seconds.

Capacitance

For motor-start and motor-run
capacitors. Disconnect the capacitor

from power rst. Short the terminals

to discharge the capacitors.
Disconnect any resistors that might
be between the terminals of the
capacitor.

Auto power off

To extend the life of your battery,
the meter automatically turns off after
approximately 60 minutes.

Hi voltage indicator

In any VAC/VDC range when you
touch a voltage greater than 30V, the
beeper will beep and the red Hi-V LED
will blink. BE CAREFUL!

MAX hold for safety

Before measuring voltage, press
MAX button and keep your eyes on
your test point. Then when you’ve
disconnected, read the display.

Current measurements

The xed jaw is longer than the
moveable jaw to make it easier to select
just one wire from a bundle. With the
jaws closed, separate one wire using
the long xed jaw. Slide it to the corner
where the two jaws meet. Then open the
jaws to let it in. You can select the wire
without having to hold the jaws open.

Temperature

Plug any K-type thermocouple
directly into the meter to measure
temperature. Temperature measurement
will be accurate even in fast changing
environments because of excellent
temperature compensation. One
thermocouple is included. No adapter is
required.

Display oC or oF

Remove back of meter and locate

jumper on lower right corner of PCB

(marked
pins to display oC.

O

C). Place a jumper over the

Field OF calibration

For accuracies of ±1°F calibrate the
meter to a known temperature. A glass
of stabilized ice water is very close to
32°F and is usually very convenient.

1. Connect thermocouple.

2. Select the 200°F range.

3. Remove back case. Hold the battery

in place with a rubber band.

4. Stabilize a large cup of ice water.

5. Immerse the thermocouple probe and

let it stabilize.

6. Adjust VR3 (lower right corner of

PCB) to get close to 32°F then adjust

VR4(above VR3) to get within 0.1°F

of 32°F.

7. To calibrate in OC, close the jumper

that is below VR3.

Using & storing test leads

Because the wire insulation is
silicone, you can use your test leads
in very cold weather and they will stay

exible. They will also take a bump of

a soldering iron without melting.

Snap the probes into the back to
keep them out of the way.

Use the single test probe holder
on clamp to make voltage testing
easy.

For convenient lead storage, wrap
the leads as shown.

Voltage

CAPACITOR

DI SC HA RG E

V = IR

volts = current x resistance

AC Current

Resistance

DC Current <200µADC

A PTC resistor, not a fuse, protects
your clamp meter. When an overload
occurs on µADC, do not apply current
for at least 30 seconds to reset the PTC.

Temperature

Insure the
temperature being
measured is stable.
Maintain good
contact between
the thermocouple
and what’s being
measured.

Capacitance

Selecting ranges

For DC voltage, set the meter to
the VDC parameter instead of VAC
as shown above.

For all ranges and functions

choose a range just above the value

you expect. If display reads “OL”
(overload), select a higher range.
If display shows less than three
numbers, select a lower range for
better resolution.

General specications

Indicators: Low battery. Overrange:

“OL” is displayed.

Environmental: Operating tempera-

ture 32°F to 122°F, storage 0°F
to 140°F with batteries removed,

RH<80%.

Measurement rate: 2.5 times/sec

nominal.

Battery: 9V NEDA 1604; 150 hours

typical with carbon zinc (installed).

Auto power off: Meter automati-

cally turns off after approximately
1 hour.

Temperature coefcient: 0.1 X

(specied accuracy) per °F above
82°F and below 64°F.

Industry specications: IEC/

EN61010-1, IEC/EN61010-2-32,
Cat III (600V for SC66 and SC67)
class 2 and pollution degree 2, in
accordance with IEC-664 indoor
use. UL listed to UL3111. C-Tick

certied.

This instrument complies with
the requirements of the following
European Community Directives:

89/336/EEC (Electromagnetic

Compatibility) and 73/23/EEC (Low

Voltage) as amended by 93/68/EEC

(CE Marking).

Disconnect test leads from voltage

before plugging thermocouple in.

Functional specications

Accuracy specications @ 74°F±8°F, relative humidity less than 75%. Accuracy

specied as ±% of reading ± number of least signicant digits.

Function Range

AAC 200 3%+5 / 0.1 (1) × ×

VAC(2,3)

VDC(2)

µADC(4) 200 1%+1 / 0.1

°F (5) 200°F 1°F / 0.1

MFD (6) 200 3%+5 / 0.1

Hi-V (7)

NCV (8)

Ohms(9)

Continuity

(10)

MAX hold

(11)

Diode test

Accuracy

/resolution

20 3%+5 / 0.01

200 1.2%+3 / 0.1

600 2%+5 / 1

20 0.5%+1 / 0.01

200 0.5%+1 / 0.1

1000°F 1%+1.5°F / 1

Beep

& LED

+24V

200 1%+3 / 0.1

200k 1%+3 / 0.1k

SC66 SC67

×

× ×

× ×

×

× ×

× ×

Beep
&LED

×

××

××

×

××

××

××

Beep

&LED

××

××

Notes to chart on left:

(1) 50-60Hz
(2) Input impedance is 560Kohms on

volts ranges, 10Mohm on millivolts
ranges. All ranges will withstand
600VAC/600VDC.

(3) 50Hz-500Hz.
(4) Protected by PTC (positive tem-

perature coefcient) resistor. If an

overload occurs on microamps DC,
disconnect from circuit for 30 sec­onds so the PTC can reset.

(5) Accuracy 1

1%+1.5OF (-4OF to 750OF);
2%+4OF (-30OF to -4OF, 750OF to
1000OF); all withstand 30V max.

(6) Test frequency 34Hz at <3.5V. Will

withstand up to 500V.

(7) Turns on >30V.
(8) Senses 24VAC to 600VAC.
(9) 0.3VDC typical open circuit voltage.

(3V on 200ohm range). Withstands
up to 500V on any ohms range.

(10) Turns on <100 ohms within 100mS.

Will withstand up to 500V.

(11) Holds highest reading.

O

F (32OF to 120OF);

www.eldpiece.com

v37
