Electric Lawn mower
USER MANUAL
Thank you for purchasing this rotary electric lawn mower.
Before you start using it, please read this user manual carefully and save it for future
use.
TABLE OF CONTENTS
1. GENERAL SAFETY REGULATIONS ..........................................................................................................................4
Important safety notice ...........................................................................................................................................4
Packaging ......................................................................................................................................................................4
User manual ...................................................................................................................................................................4
2. SYMBOLS ..........................................................................................................................................................................5
3. DESCRIPTION (FIG. 1.) ...............................................................................................................................................................6
4. BASIC WORK SAFETY ..................................................................................................................................................7
Other risks ........................................................................................................................................................................7
Before you start using the lawn mower ..........................................................................................................8
Preparing for operation ........................................................................................................................................... 8
Operation ........................................................................................................................................................................8
Maintenance and storage ....................................................................................................................................9
5. ASSEMBLY .......................................................................................................................................................................10
5.1 Handle ....................................................................................................................................................................10

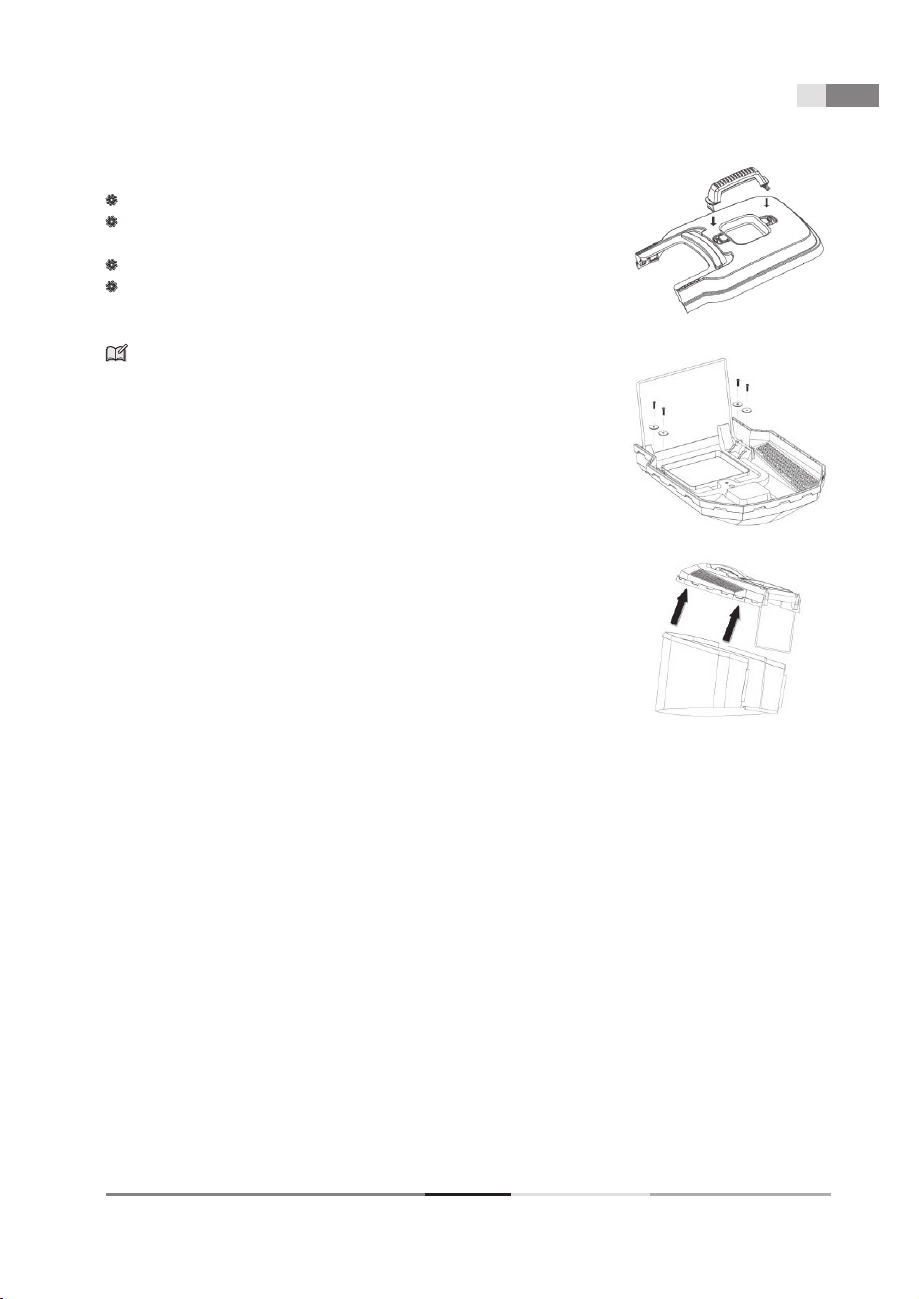

5.2 Assembling and mounting the grass catcher. ..................................................................................11
5.3 Extension cable / securing the power cable .....................................................................................11
6. OPERATION ...................................................................................................................................................................12

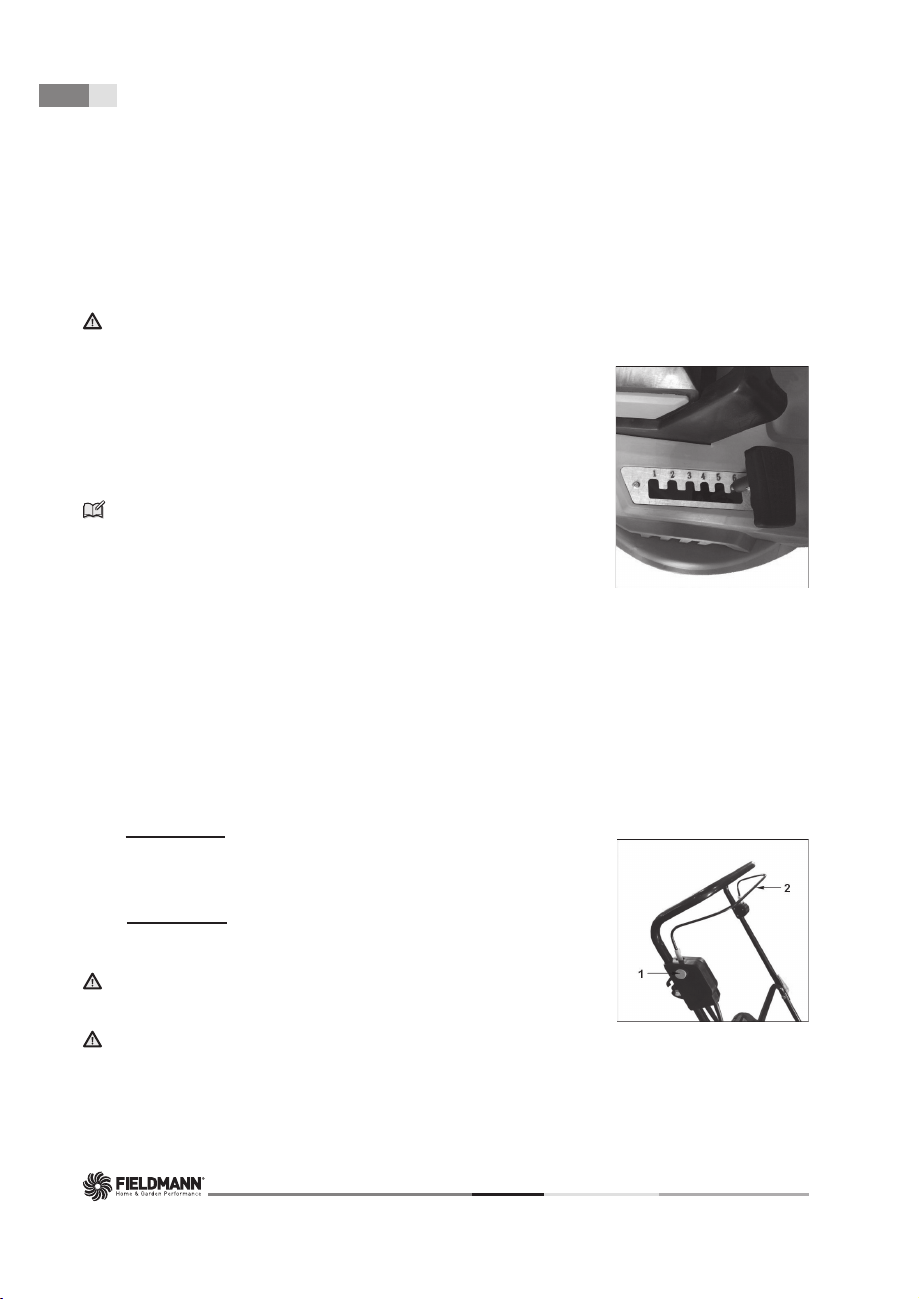

6.1 Setting the mowing height ............................................................................................................................12
6.2 Setting the handle HEIGHT ............................................................................................................................12
6.3 Connecting to the electricity. ......................................................................................................................12
6.4 Turning the lawn mower on/off .................................................................................................................12
7. TECHNICAL SPECIFICATIONS ................................................................................................................................13
8. Troubleshooting ..........................................................................................................................................................14
9. MAINTENANCE ............................................................................................................................................................15
9.1 Blade replacement...........................................................................................................................................15
10. DISPOSAL .......................................................................................................................................................................16
EN
ELECTRIC LAWN MOWER USER MANUAL
Page 3
EN 4
General safety regulations
1. GENERAL SAFETY REGULATIONS
IMPORTANT SAFETY NOTICE
Unpack the product carefully and do not throw away any of the packaging until you have found all the parts
of the product.
Store the product in a dry place out of reach of children.
Read all the warnings and instructions. Not following warnings or instructions may lead to electrical shocks,
fi re and/or serious injuries.
PACKAGING
The product’s packaging prevents damage during transport. This packaging is a resource and can be recycled.
USER MANUAL
Before you start working with the power tool, read the following safety and use instructions. Make sure you know
the operating elements and the correct use of the power tool. Keep the User manual in a safe place where it can
be easily found for future use. Save the original packaging, including the internal packing material, guarantee
card and proof of purchase receipt for at least the time of the guarantee. If you need to transport this power tool,
pack it in the original cardboard box for maximum protection during shipping or transport (e.g. when moving or
when you need to send this power tool to a service centre for repair).
Note: If you hand over this appliance to somebody else make sure you include this user manual. Make
sure you use the appliance properly by following the instructions in the included User manual. The User
manual also contains operating, maintenance, and repair instructions.
The manufacturer takes no responsibility for accidents or damages from not following
the instructions in this manual.
FZR 2046 E
Page 4
2. SYMBOLS
Read the manual with the instructions before using this
machine.
Bystanders must be at a safe distance.
Be careful of the sharp blade edges. The blades continue to
rotate even after the motor is turned off. Before carrying out
maintenance or if the power cable is damaged, disconnect
the plug from the mains.
Symbols
EN
5
Keep the fl exible power cable at a safe distance from the
blade.
The blades will continue rotating even after the
machine is turned off. Before touching any of the
machine's components, wait until they completely stop.
Do not mow grass in the rain and do not leave the lawn
mower uncovered in the rain.
Use ear protection.
Use eye protection.
Use breathing protection.
ELECTRIC LAWN MOWER USER MANUAL
Page 5
EN 6
Description
3. DESCRIPTION (FIG. 1.)
1. Start/stop trigger
2. Power cord socket
3. Top part of the handle
4. Handle fast clamp
5. Bottom part of the handle
6. Transport handle
7. Mowing height adjustment lever
8. Start/stop trigger safety lock
9. Grass catcher cover/rear defl ector
PIC. 1
FZR 2046 E
Page 6
Basic work safety
7
4. BASIC WORK SAFETY
Never use the machine if the power cable is damaged or visibly worn.
If the lawnmower is connected to a power source using a damaged power cable and the place that is
not insulated is touched before the lawnmower is disconnected from the power source, you risk being
electrocuted.
Also, never touch the blades until the machine is disconnected from the power source and until the blades
completely stop.
Make sure that the extension cable never comes into contact with the blades. The blades could damage the
power cable insulation and create a risk of an electric shock when a part of the body touches the exposed
wire when it is live.
Disconnect the machine from the voltage source (i.e. pull the power cable plug out of the mains power
socket):
• If you need to leave the machine without supervision
• If you have to leave the machine unsupervised
• Before every inspection, every cleaning or repairs
• If you hit a foreign body when working with it
• If the machine vibrates excessively.
Read carefully the basics of working safely with the machine and the user's manual.
Recommendation: Only connect the machine to a power source that has a residual current device (RCD) with
a maximum leakage current of 30mA.
If the power cable is damaged, it must be replaced by the manufacturer or by a customer service centre.
This machine must not be operated by anyone with limited physical, sensory or mental abilities (including
children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge
to operate it. These people must be supervised by a competent person or instructed about the basics of work
safety.
If children are near the machine, make sure they do not play with it.
Tingling or numb hands are indications of excessive vibrations.
If this happens, shorten the work cycle, take suffi ciently long breaks, share the work among several people or
if the lawnmower is used for long periods wear special anti-vibration gloves.
An unavoidable consequence of using the lawnmower is the noise when it is running. Therefore, only do noisy
work during dedicated hours, or when this type of activity is normal. Respect quiet times and try to limit the
work to the shortest possible time.
We also recommend that you and persons near the lawnmower wear ear protectors.
EN
OTHER RISKS
Despite our products being designed to meet the valid technical standards and safety directives, there are still
some risks to the user from using the machine:
• Stones and other fragments may fl y out of the mowing deck.
• If the machine operator does not use ear protectors, then they risk subsequent deafness.
• Injured fi ngers during blade maintenance
• Inhaling grass clipping particles
• Electric shock from un-insulated parts.
ELECTRIC LAWN MOWER USER MANUAL
Page 7
EN 8
Basic work safety
This machine must not be operated by those with limited physical, sensory or mental abilities (including
children) or inexperienced persons or persons whose technical knowledge is evidently insuffi cient for
the given task; and these people should only operate the device under the supervision of a person that is
competent for this task or where the person is thoroughly instructed in working safely with the machine.
If children are near the machine, make sure they do not play with it.
ATTENTION! Carefully read the user manual before using this lawn mower. Make sure that you thoroughly
know all the control elements. Following the work safety rules for the machine minimises the risk of fi re,
electric shock or other injuries.
Keep the user manual carefully in case it is needed.
If the machine is incorrectly operated it could cause an injury. The lawnmower could cause serious injury to
the user and those nearby and therefore these work safety rules should always be followed to eliminate this
risk if possible.
The user is responsible for safety when working with the machine. Never use the machine if any of its safety
items are missing or not in full working order.
BEFORE YOU START USING THE LAWN MOWER
Carefully read all the instructions provided in this user manual. Thoroughly get to know the machine's control
elements and the basics for correct use.
Never let children or anyone who you are not certain know the controls and the work safety rules for this
machine operate it on their own. The national legislation may also stipulate a minimum age limit for operating
this type of machine. Please read the laws governing this area in your country.
Never use the lawnmower if people, particularly children or household pets, are moving nearby.
Always remember that the user is fully responsible for injuries or damage to property caused by operating this
machine.
PREPARING FOR OPERATION
When working with the machine wear suitable footwear and long trousers. Never operate the lawnmower
barefooted or in sandals.
Before starting work, inspect the ground and remove any items that could be defl ected by the machine.
ATTENTION! Before every use of the machine, make sure that the blade, its mounting pin and the lawn
mower body in general is not damaged or excessively worn. Always replace a damaged or worn out part, of
which there are sets on the machine, with an entire set to prevent imbalance.
OPERATION
Only operate the machine during daylight or suffi cient artifi cial lighting.
If possible, do not mow wet grass.
Make sure that during work you always have a fi rm support and a secure stance.
Do not run when pushing the mower - walk normally.
The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up
and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope.
Be very careful when changing direction on a slope.
Never use the lawn mower on extremely steep slopes.
FZR 2046 E
Page 8
Basic work safety
If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the
lawnmower, be very careful.
Always stop the blades from turning when transporting the machine or moving over an un-grassed area.
Never use the machine if any covers are damaged or if any of its safety elements are missing such as
defl ectors or grass catchers.
Always start the motor as described in the user manual, and make sure to keep your feet away from the
blades.
Never tilt the machine when starting the motor unless it is really essential to start it. In this case, turn the side
of the lawnmower that is farther away from you upwards.
Never put your hands or feet under the lawnmower, in particular near to the moving parts. Never cover the
grass ejection chute.
Never transport the machine if the motor is still running.
Always stop the motor fi rst and disconnect the cable plug before troubleshooting or emptying the grass
catcher.
• Proceed in the same way before every inspection, cleaning or repair of the machine.
• If you hit a foreign body make sure the lawnmower has not been damaged, and if it has repair the
damage before starting the motor again.
• Or if the machine starts to vibrate more than unusual (immediately check the machine!)
Stop the motor whenever you move away from the machine.
MAINTENANCE AND STORAGE
Always make sure that all nuts, pins and bolts are securely tightened so that the machine operates safely.
Regularly check the grass catcher for damage or excessive wear and tear.
Immediately replace worn out or damaged parts. This will help your lawnmower to operate safely.
When setting adjustable elements, take care not to clamp your fi ngers between the moving blades and the
fi xed part of the machine. Let the motor cool down before storing the lawnmower in an enclosed area.
EN
9
ELECTRIC LAWN MOWER USER MANUAL
Page 9
EN 10
Assembly
5. ASSEMBLY
Assembly is simple if you follow the instructions below:
5.1 HANDLE

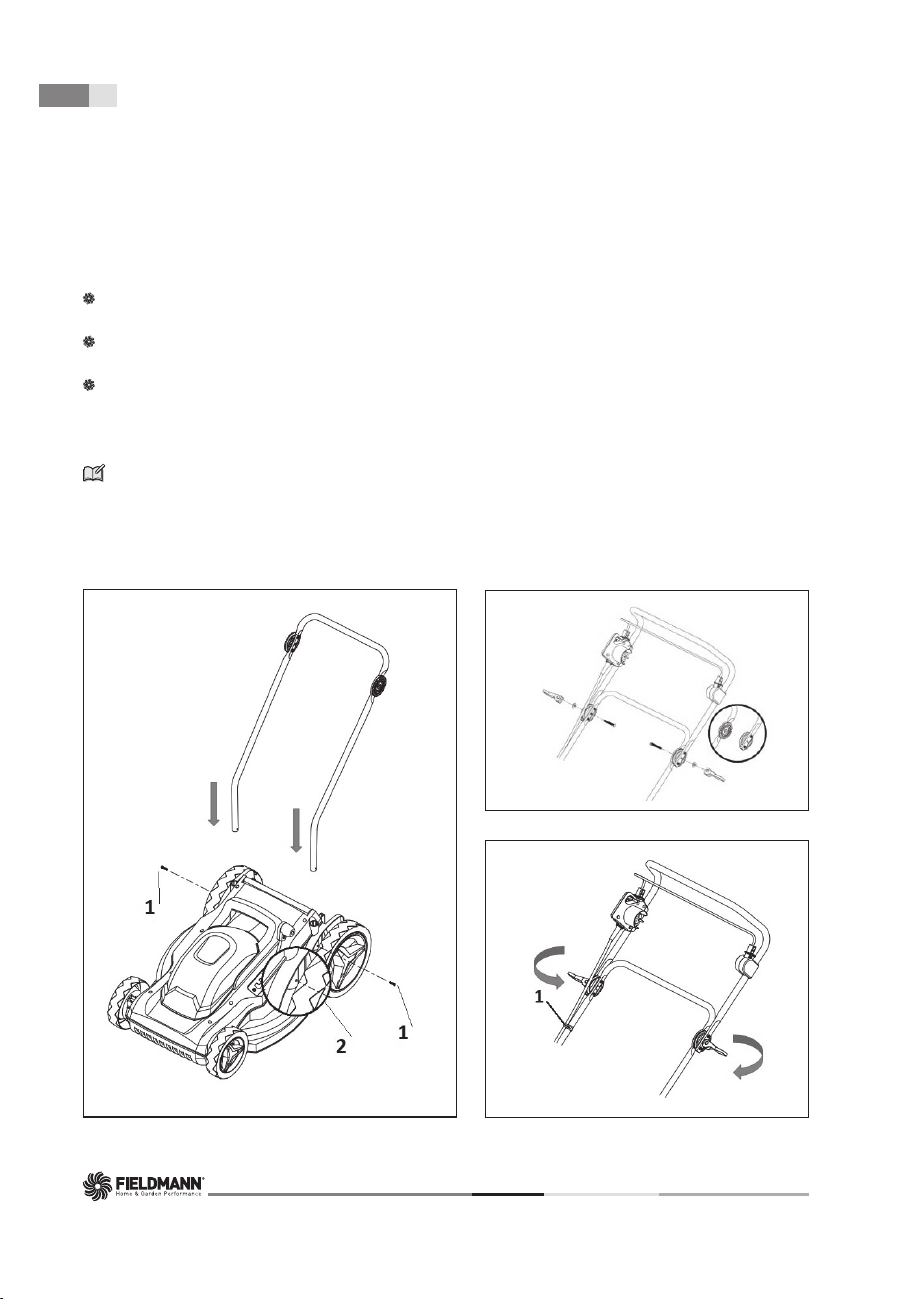

Insert the bottom part of the handle in the mower chassis, see fi g. 2a and secure it with screws 1 from the
mower side, see detail 2.
Attach the top part of the handle to the bottom handle with screws and nut using the fast clamping lever. A
washer must be inserted on the outside under the quick fastening handle’s nut, see fi g. 2b.
The handle thorx allows you to match the handle height to the operator needs. To set a suitable height, secure
the handle with the fast clamping lever, see fi g. 2c.
Fix the main switch cable on the handle with the attached clip, see fi g. 2c 1.
Note:
• Do not over-tighten the quick clamping nuts. The handle must not move and the lever must be easy to
release.
• When the fast clamping levers are released, the handle can be folded for transporting or storing the
mower.
Fig. 2a Fig. 2b
Fig. 2c
FZR 2046 E
Page 10
Assembly
11
EN
5.2 ASSEMBLING AND MOUNTING THE GRASS CATCHER.
Insert the handle into the grass catcher cover. See Fig. 3a.
Fix the frame to the upper plastic cover with the 4 attached bolts and
washers. 3b.
Mount textile part on the cap of catcher and the frame. Fig 3c.
Fitting the grass catcher: Lift the rear cover, see Fig.1, point 9. Keep it lifted
and attach the catcher.
Note: The lawnmower can be used without the grass catcher.
The safety cover in the vertical position then directs the grass clippings.
They are lined up in the following way behind the lawn mower.
5.3 EXTENSION CABLE / SECURING THE POWER CABLE
Insert the lawnmower plug into the socket on the power cable. To prevent the
power cable from disconnecting during operation, guide it through the power
cable holder.
PIC. 3a
PIC. 3b
PIC. 3c
ELECTRIC LAWN MOWER USER MANUAL
Page 11
EN 12
Operation
6. OPERATION
6.1 SETTING THE MOWING HEIGHT
! Before setting the mowing height, always make sure that the lawn mower is turned off and the blade is not
moving.
ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. A rotating blade
can cause injuries.
The lawnmower has central mowing height adjustment with 6 settings from
20 - 70 mm.
Select the mowing height by moving the lever to the required position. (push
the lever outwards, move it to the correct position, push inwards to fasten it.
See Fig. 4.
Note: Lawns of standard grass blends should not be mowed to less
than 4 cm. Lawns should not be cut by more than 1/3 of their height.
6.2 SETTING THE HANDLE HEIGHT
The handle height can be set to your needs.
Release the clamping levers (fi g.1, point 4) on both handle sides.
Set the required height of the handle by moving it up or down. Then secure with the quick clamping levers.
6.3 CONNECTING TO THE ELECTRICITY.
Insert the power cable plug into the power grid (230-240 V, 50 Hz).
Check that there is enough power cable available.
6.4 TURNING THE LAWN MOWER ON/OFF
6.4.1 Turning it on:
Press and hold the safety button, see Fig. 5, point 1, pull the switch lever
to the handle, see Fig. 5, point 2. Release the safety button.
6.4.2 Turning it off:
Release the switching lever, see Fig. 5, point 2
PIC. 5
PIC. 4
ATTENTION: The blade will rotate for several seconds after the lawn
mower is turned off.
ATTENTION: Do not turn the lawn mower off and on in quick
succession.
FZR 2046 E
Page 12
Technical specifi cations
7. TECHNICAL SPECIFICATIONS
Model FZR 2046 E
Power source 230-240 V, 50 Hz
Power input 2000 W
Idling speed 3300 rpm
Coverage width (blade length): 430 mm
Mowing heights 20-70 mm (6 positions)
Grass catcher volume 50 l
Weight when empty: 15.40 Kg
Noise level
LpA (acoustic pressure) 83.6 dB(A) K=3 dB(A)
LwA (acoustic power level) 94.6 dB(A) K= 1.80dB(A)
Guaranteed emission level of acoustic power (LWA max) in accordance with the Noise Level Directive
2000/14:
LwA MAX 96 dB (A)
Vibrations: max. 3.45 m/s² K=1.5 m/s²
13
EN
ELECTRIC LAWN MOWER USER MANUAL
Page 13
EN 14
Troubleshooting
8. TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The handle is not in
the correct position
The mower does not
work.
The mower cuts grass
unequally.
The mower does not
mulch properly.
It is diffi cult to push
the mower.
The handle fi xing screws are not
correctly mounted.
The mower handle joining screws are
not tight.
The extension cable is not connected
to the mower socket.
The extension cable is not connected
to the electric socket.
The control trigger is defective.
The lawn is ragged or bumpy.
The mowing height is not set properly.
Wet grass is stuck on the bottom of
the plate.
The grass is long or the mowing
height is too low.
Adjust the height of the handle and make sure
the screws in the pre-bored holes are mounted
correctly.
Tighten the joining screws.
Connect the cable again and use a cable
limiter to keep the cable near the trigger.
Connect the extension cable to a live socket.
Have the engine control trigger replaced by an
authorized service centre.
Check the mowing area.
Move the fl oat to a higher position.
Wait until the grass is dry before mowing.
Increase the mowing height.
The mower vibrates at
high speeds.
The engine shaft is bent.
The blade is not balanced.
Stop the engine, disconnect the mower
from the electricity and check that it is not
damaged. Repair the mower before starting it
again. If the vibrations continue, call the free
client line.
Balance the blade evenly by grinding each
cutting edge.
FZR 2046 E
Page 14
Maintenance
15
9. MAINTENANCE
ATTENTION! Before removing the grass catcher, always turn off the lawn mower and pull the extension
cable plug out of the power socket.
Note: We recommend regularly carrying out the maintenance below, this will increase the lifetime and
reliability of the machine.
Regularly visually inspect the machine for defects such as a loose blade, blade installed upside down, blade
damage or damaged or excessively worn parts.
Also regularly check that the protective covers and protective elements are not damaged and are properly
placed.
Before using the machine, carry out all necessary repairs and maintenance.
If, despite regular maintenance, the machine does not work, please contact our customer service, the repair
should be carried out by our contractual partner in one of the specialised Fieldmann workshops.
9.1 BLADE REPLACEMENT
Contact an authorised service centre.
Always use original spare parts.
Before inspecting the blade, always disconnect the lawn mower from the electricity and
check that the motor is turned off.
ATTENTION: Remember that the blade still rotates for several seconds after the motor is turned off.
Never attempt to stop the blade. Regularly check that the blade is securely fastened, in good condition and
sharp. If necessary, sharpen or replace it.
EN
If the blade hits an object while mowing, turn the lawnmower off and wait until the blade stops. Then check the
condition of the blade and its fastening bolts.
If these are damaged or lost they must be replaced immediately.
Important: Use protective gloves when working.
Loosen the bolt holding the blade (using the appropriate wrench) by turning anticlockwise, remove the blade and
replace it with a new one. Check that the new blade is installed in the correct direction. Tighten the bolt by turning
it clockwise.
ELECTRIC LAWN MOWER USER MANUAL
Page 15
EN 16
Disposal
10. DISPOSAL
INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS
Dispose of used packaging material at a waste site in your municipality.
DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that used electric or electronic
products must not be added to ordinary municipal waste. Take these products to authorized
collection points for proper disposal, renewal and recycling. Or in some European Union
states or other European countries the products can be returned to the local retailer when
buying an equivalent new product. Disposing of this product correctly helps save valuable
natural resources and prevents damage to the environment by improper waste disposal.
Ask your local authorities or collection facility for more details. In accordance with national
regulations penalties may be imposed for the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the
necessary information. Disposal in other countries outside the European Union. This symbol
is valid in the European Union. If you want to dispose of this product, get the necessary
information from the local council or your retailer.
This appliance meets all the basic requirements of the EU directives.
The text, design and technical specifi cations can be changed without prior notice and we reserve the right to
make these changes.
User manual in the original language.
FZR 2046 E
Page 16
Page 17
Page 18

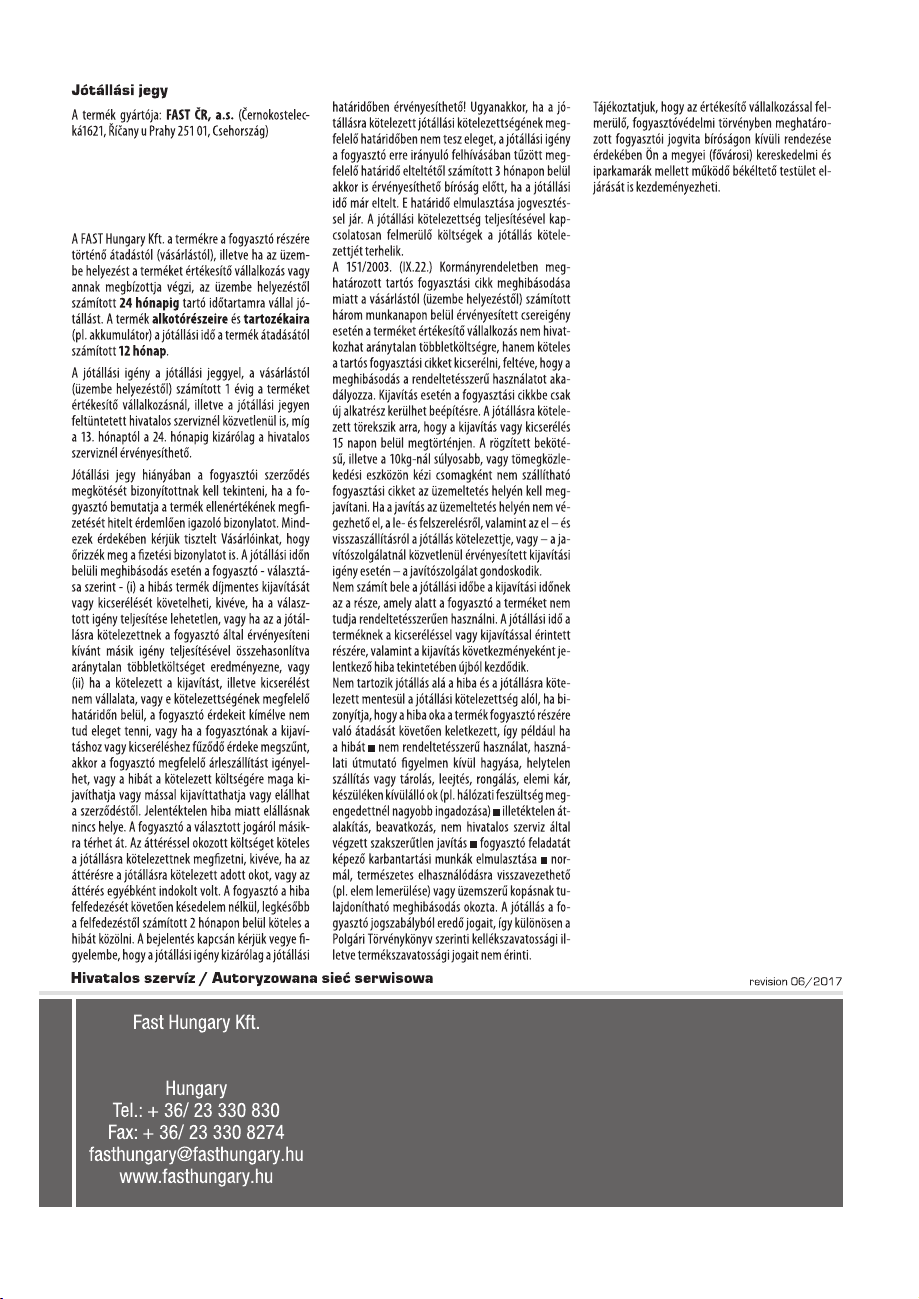

A FAST Hungary Kft. (2310, Szigetszentmiklós,
Kántor u. 10) mint a termék magyarországi im
portőrea jótállási jegyen feltüntetett típusú és gyártási számú készülékre jótállást biztosít a fogyasztók
számára az alábbi feltételek szerint:
-
2310, Szigetszentmiklós
Kántor u. 10
Page 19
Page 20
Loading...
