ELECTRIC LAWNMOWER USER'S MANUAL

FZR 2040-E

Table of Contents

Electric Lawnmower

USER'S MANUAL

Thank you for purchasing this rotary electric lawnmower. Before you start using it, please, carefully read this user's manual and save it for possible future use.

TABLE OF CONTENTS

ILLUSTRATED ATTACHMENT ......................................................................................................................................1

1. GENERAL SAFETY INSTRUCTIONS .........................................................................................................................6

Important safety information ................................................................................................................................6

Packaging ......................................................................................................................................................................6

User's Manual ................................................................................................................................................................6

2. SYMBOLS ..........................................................................................................................................................................7

3. DESCRIPTION (FIG. 1) .................................................................................................................................................8

4. FUNDAMENTALS OF WORK SAFETY .....................................................................................................................9

Other risks ........................................................................................................................................................................9

Before you start using the lawnmower ..........................................................................................................10

Preparing for operation .........................................................................................................................................10

Operation ......................................................................................................................................................................10

Maintenance and storage ..................................................................................................................................11

5. ASSEMBLY .......................................................................................................................................................................12

5.1 Fitting / removing / emptying the grass catcher. .............................................................................12

5.2 Handle .....................................................................................................................................................................12

5.3 Extension cord / securing the power cord ..........................................................................................12

6. OPERATION ...................................................................................................................................................................13

6.1 Setting the mowing height ............................................................................................................................13

6.2 Setting the handle height .............................................................................................................................13

6.3 Connecting to the power grid. ...................................................................................................................13

6.4 Turning the lawnmower on/off (Fig. 2-11) .............................................................................................13

7. TECHNICAL SPECIFICATIONS ................................................................................................................................14

8. MAINTENANCE ............................................................................................................................................................15

8.1 Blade replacement...........................................................................................................................................15

9. CE DECLARATION OF CONFORMITY ...............................................................................................................16

10. DISPOSAL .......................................................................................................................................................................17

ELECTRIC LAWNMOWER USER'S MANUAL

EN 6

General safety instructions

1. GENERAL SAFETY INSTRUCTIONS

IMPORTANT SAFETY NOTICE

Carefully unpack the product and take care not to throw away any part of the packaging before you ﬁ nd all the

parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical

shock, a ﬁ re and/or serious injuries.

PACKAGING

The product is packed in a package that prevents damage during transport. This package is a resource and so can be handed over for recycling.

USER'S MANUAL

Before you start working with the machine, read the following safety and usage instructions. Acquaint yourself with the operating elements and the correct use of the machine. Keep the user's manual in a safe place where it can be easily retrieved for future use. Save the original packaging, including the internal packing material, warranty card and proof of purchase receipt at least for the duration of the warranty. If you need to ship this machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need to send this product for repair to a service centre).

Note: If you hand over the machine to somebody else, do so together with the user's manual. Following the instructions in the included user's manual is a prerequisite for the proper use of the machine. The user's manual also contains operating, maintenance and repair instructions.

The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual.

FZR 2040-E

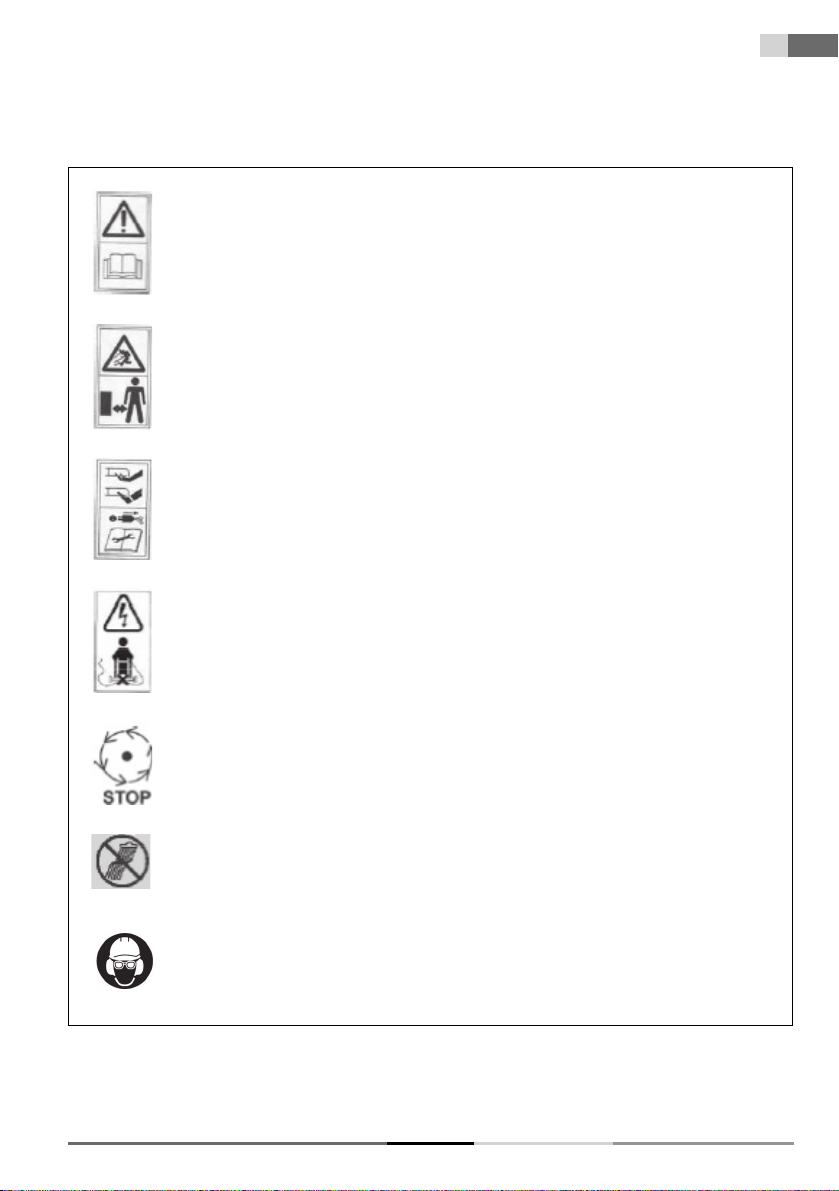

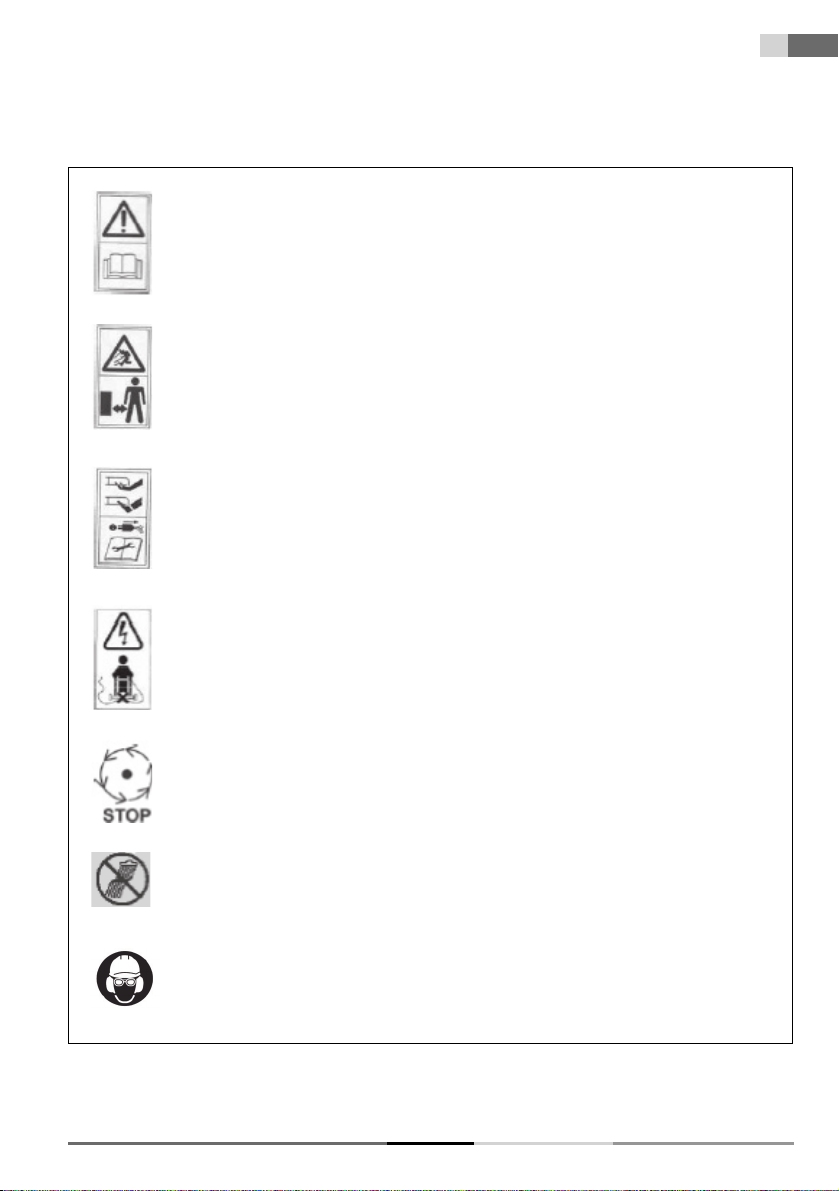

2. SYMBOLS

Read the manual with the instructions before using this machine.

Bystanders must be at a sufﬁ cient distance.

Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cord is damaged, disconnect the power plug from the mains.

Symbols

Keep the ﬂ exible power cord at a sufﬁ cient distance from the blade.

The blades will continue rotating even after the machine is turned off. Before touching any of the machine's components, wait until they come to a complete stop.

Do not mow grass in the rain and do not leave the lawnmower uncovered when it is raining.

Use hearing protection. Use eye protection. Use breathing organ protection.

ELECTRIC LAWNMOWER USER'S MANUAL

EN 8

Description

3. DESCRIPTION (FIG. 1)

1. Top Handle

2. Start lever

3. Start unit

4. Start button

5. Power cord clamp against pulling

6. Power cord hanging hook

7. Thumb nut

8. Bottom part part of the handle

9. Safety cover

10. Mowing height adjustment lever

11. Transport handle

12. Motor cover

13. Lawnmower chassis

14. Wheels

15. Quick coupling fastening nut

16. Grass catcher

17. Full grass catcher indicator

FZR 2040-E

Fundamentals of work safety

4. FUNDAMENTALS OF WORK SAFETY

Never use the machine if the power cord is damaged or visibly worn out. In the event that you connect the lawnmower using a damaged power cord to a power source and then touch

the place that is uninsulated before the lawnmower is disconnected from the power source, you subject yourself to a risk of injury by electrical shock.

Likewise, never touch the blades until the machine is disconnected from the power source and until the

blades come to a complete stop.

Make sure that the extension cord never comes into contact with the blades. The blades could damage the

insulation on the power cord and this would create a risk of injury by electrical shock when a certain part of the body and the exposed wire touch while it is under live current.

Disconnect the machine from the voltage source (i.e. pull the plug on the power cord out of the mains power

socket):

• If you need to leave the machine without supervision

• If you are planning to carry out troubleshooting

• Prior to every inspection, every cleaning or repairs

• If you impact a foreign object when working with it

• If the machine vibrates excessively. Carefully study the fundamentals of work safety with the machine and the user's manual. Recommendation: Connect the machine only to such a power source that is equipped with a residual current

device (RCD) with a maximum leakage current of 30mA. If the power cord is damaged, it must be replaced by the manufacturer or by a customer service centre. This machine must not be operated by persons with limited physical, sensory or mental abilities (including

children). Furthermore, it must not be used by inexperienced persons whose technical knowledge for the

operation of this machine is insufﬁ cient. These persons may operate the machine under the supervision of

a competent person or after being duly instructed about the fundamentals of work safety. If children are moving around in the vicinity of the machine, it is necessary to watch that they do not play with

the machine. A tingling sensation in one's hands or their numbness are indications of excessive vibrations.

If this happens, shorten the work cycle, take sufﬁ ciently long breaks, share the work among several people or

in the event of long term use of the lawnmower, use special anti-vibration gloves when working. An unavoidable associated consequence of using the lawnmower is that it emits noise when it is running.

Therefore, perform noisy work only during dedicated hours, respectively at a time when this type of activity is

normal. Respect quiet times and try to limit the work to the shortest possible duration.

Likewise, we recommend that you and persons in the near vicinity of the lawnmower wear hearing protection.

OTHER RISKS

Despite the fact that our products are designed to meet the valid technical norms and safety directives in

force, there still remain certain risks to the user associated with the operation of the machine:

• Stones and other fragments may ﬂ y out of the area of the mowing deck.

• If the operator of the machine fails to use hearing protection, then they risk subsequent deafness.

• Finger injury during blade maintenance

• Inhalation of grass clipping particles

• Electrical shock when uninsulated parts are touched.

ELECTRIC LAWNMOWER USER'S MANUAL

EN 10

Fundamentals of work safety

This machine must not be operated by persons with limited physical, sensory or mental abilities (including

children) or inexperienced persons or persons whose technical knowledge is evidently insufﬁ cient for the given task; and such people should only operate the device under the supervision of a person that is competent for this task or in the case where such a person is thoroughly instructed about work safety with the machine.

If children are moving around in the vicinity of the machine, it is necessary to watch that they do not play with

the machine.

ATTENTION! Carefully read the user's manual before using this lawnmower. Make sure that you have thoroughly acquainted yourself with all the control elements. Following the work safety rules for the machine minimises the risk of a ﬁ re, injury by electrical shock or mechanical injuries.

Carefully store the user's manual in case it is needed. Incorrect operation of the machine creates a risk of injury. The lawnmower may cause serious injury to the

user and persons located nearby and therefore these work safety rules should be always be followed to eliminate this risk if possible.

In this sense the user is responsible for safety when working with the machine. Likewise, never use the

machine in the event that any of its safety elements are missing or not in full working order.

BEFORE YOU START USING THE LAWNMOWER

Carefully read all the instructions provided in this user's manual. Thoroughly acquaint yourself with the

machine's control elements and the fundamentals for correct use.

Never permit children or persons of whom you are not certain that they are acquainted with the control

elements and the work safety rules for this machine to work with the machine on their own. National legislation may, likewise, stipulate a minimum age limit from which it is permitted to operate this type of machine independently. Please acquaint yourself with the relevant laws governing this area in your country.

Never use the lawnmower in the event that persons, particularly children or household pets, will be freely

moving in its vicinity.

Always keep in mind that potential injuries or damages to property caused by the operation of this machine

are the full responsibility of its user.

PREPARING FOR OPERATION

When working with the machine it is necessary to wear suitable footwear and long pants. Never work with

the lawnmower if you are barefoot or if you are wearing only sandals.

Before starting work, inspect the terrain and remove any objects that could be deﬂ ected by the machine.

ATTENTION! Before every use of the machine, make sure that the blade, its mounting pin and the lawnmower body in general is not damaged or excessively worn out. If you wish to replace a damaged or worn out part, of which there are sets on the machine, always replace the entire set so that your action does not cause imbalance.

OPERATION

Only operate the machine during daylight hours or under sufﬁ cient artiﬁ cial lighting. If possible, do not mow wet grass. Make sure that during work you always have ﬁ rm support and a secure stance.

FZR 2040-E

Fundamentals of work safety

Do not run when pushing the mower but rather walk at a normal pace. The following general rules apply for work with the lawnmower: When mowing vegetation on a slope, one

does not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the

slope. Be very careful whenever you change direction on a slope. Never use the lawnmower on extremely steep slopes. In the event that you need to pull the lawnmower towards yourself while it is running or if you need to travel

backwards with the lawnmower, pay increased attention when doing this. Always stop the blades from running in the event that the machine is being transported anywhere or if you are

travelling over an area not covered by grass. Never use the machine if you ﬁ nd that any covers on it are damaged or if any of its safety elements are

missing such as deﬂ ectors or grass catchers. Always start the motor as is described in the user's manual, while ensuring to keep your feet away from the

blades when performing this task. Never tilt the machine when starting the motor unless it is really essential in order to start it. In such a case,

turn the side of the lawnmower upwards that is farther away from you. Never insert your hands or feet under the lawnmower, in particular near to moving parts. Never cover the

grass ejection chute. Never transport the machine if the motor is still running. Always ﬁ rst stop the motor and pull the plug of the power cord out of the socket; only then is it possible to start

troubleshooting or to empty the grass catcher.

• Proceed in the same way before any inspection, every cleaning or every repair of the machine.

• In the event that you impact a foreign object, check that the lawnmower has not been damaged, and if so, it is necessary to repair this damage before starting the motor again.

• Or if the machine starts to vibrate with unusual intensity (immediately check the machine!)

Stop the motor whenever you move away from the machine.

MAINTENANCE AND STORAGE

Make sure that all nuts, pins and bolts are always securely tightened so as to ensure the safe operation of the

machine. Regularly check the grass catcher for damage or excessive wear and tear. Immediately replace worn out or damaged parts for new ones. This will contribute to the safe operation of

your lawnmower. When setting adjustable elements, take care not to clamp your ﬁ ngers between the moving blades and the

ﬁ xed part of the machine. If you wish to store the lawnmower in an enclosed area, ﬁ rst allow its motor to cool

down.

ELECTRIC LAWNMOWER USER'S MANUAL

EN 12

Assembly

5. ASSEMBLY

Certain parts of the lawnmower were disassembled for transportation purposes. For this reason, you will ﬁ nd 2 thumb nuts, 2 bolts with a square head and 2 cable clamps against pulling packed in plastic bags. The grass ejection ﬂ ap, the grass catcher, the holder and the cover of the grass catcher are in a box. The assembly is simple if you adhere to the following instructions:

5.1 FITTING / REMOVING / EMPTYING THE GRASS CATCHER.

Insert the handle into the grass catcher cover. See Fig. 2-1. Assemble the grass catcher from the left and right halves. See Fig. 2-2. Insert the top grass catcher cover with the ﬁ tted handle into the grass catcher and then turn it. See Fig. 2-3. Connect the top grass catcher cover to the grass catcher. See Fig. 2-4. Place the plate of the ejection chute into the grass catcher. See Fig. 2-5. Lift the cover (9), hold it and mount the grass catcher (16). See Fig. 2-9. Lift the cover (9) and hold it. Remove the grass catcher (16).

Note: To use the lawnmower without grass collection, it may be used without the grass catcher (16). The safety cover (9) in the vertical position then acts to direct the grass clippings. They are lined up in the following way behind the lawnmower.

5.2 HANDLE

Lift the bottom part of the handle (8) and secure it in place using the quick coupling nut (15) on either side.

See Fig. 2-6 and Fig. 2-7.

Using the bolts and the thumb nuts (7), fasten the top part of the handle (1) to the bottom handle (8). See Fig.

2-8.

Note: the handle can be folded for storage purposes. See Fig. 2-6.

5.3 EXTENSION CORD / SECURING THE POWER CORD

Insert the plug of the lawnmower into the socket on the power cord. To prevent the power cord from disconnecting during operation, guide the power cord through the power cord holder. See Fig. 3.

FZR 2040-E

Operation

6. OPERATION

6.1 SETTING THE MOWING HEIGHT

! Before setting the mowing height, always make sure that the lawnmower is turned off and the blade is not moving.

CAUTION: The blade will rotate several seconds after the lawnmower is turned off. A rotating blade may cause injuries.

The lawnmower is equipped with central mowing height adjustment with 11 possible settings: 25 mm, 30 mm, 35mm, 40 mm, 45 mm, 50 mm, 55 mm, 60 mm, 68 mm, 76 mm and 85 mm. Select a mowing height by moving the lever to the required position. (push the lever outwards, move it to the correct position, push inwards to secure it in place. See Fig. 2-10.

Note: Lawns made up of standard grass blends should not be mowed to a height lower than 4 cm. Lawn should not be shortened by more than 1/3 of its height.

6.2 SETTING THE HANDLE HEIGHT

You can set the height of the handle to your needs. Release the clamping levers (15) on both sides of the bottom part of the handle (8). Set the required height of the handle by moving it up or down. Then secure in place again using the quick clamping levers. This setting method allows the handle height to be adjusted from 900 to 1050 mm in three positions.

6.3 CONNECTING TO THE POWER GRID.

Insert the plug on the power cord into the power grid (230-240 V, 50 Hz). Check that there is a sufﬁ cient length of power cord available.

6.4 TURNING THE LAWNMOWER ON/OFF (FIG. 2-11)

6.2.1 Turning it on:

Press and hold the safety button (4) (see Fig. 2-11), then pull the starting lever (2) to the handle. (see Fig. 2-12) Release the safety button (4).

6.2.2 Turning it off : Release the starting lever (2)

CAUTION: The blade will rotate several seconds after the lawnmower is turned off.

CAUTION: Do not turn the lawnmower off and on in quick succession.

ELECTRIC LAWNMOWER USER'S MANUAL

EN 14

Technical speciﬁ cations

7. TECHNICAL SPECIFICATIONS

Model FZR 2040 E Power supply 230-240 V, 50 Hz Power input 1800 W Idling speed 3200-3450 rpm Coverage width (blade length): 420 mm Mowing heights 25-85 mm (11 positions) Grass catcher volume 50 l Weight when empty: 14.80 Kg Noise level according to norm EN ISO 3744 LpA (acoustic pressure) 75.0 dB (A) LwA (acoustic power level) 95.0 dB (A) Guaranteed emission level of acoustic power (LWA max) in accordance with the Noise Level Directive 2000/14: LwA MAX 96 dB (A) Vibrations: < 30 m/s²

FZR 2040-E

Maintenance

8. MAINTENANCE

ATTENTION! Before proceeding to remove the grass catcher, always turn off the lawnmower and pull the plug on the extension cord out of the power socket.

Note: We recommend that you regularly perform the maintenance described below, this will increase the lifetime of the machine and increase its reliability.

Regularly visually inspect the machine for the timely identiﬁ cation of defects such as a loose blade, blade

installed upside down, blade damage or damaged or excessively worn out parts. Likewise, regularly check that the protective covers or protective elements are not damaged and that they are

in their place. Before every use of the machine, perform all necessary repairs and maintenance. In the event that despite regular maintenance the machine does not work, please contact our customer

service, the potential repair should be carried out by our contractual partner in one of the specialised

workshops of the Fieldmann brand.

8.1 BLADE REPLACEMENT

For this task, we recommend that you contact an authorised service centre. Always use original spare parts.

Before inspecting the blade, always disconnect the lawnmower from the electricity grid and check that the motor is turned off.

CAUTION: Remember that the blade still rotates several seconds after the motor is turned off. Never attempt to stop the blade. In regular intervals, check that the blade is securely fastened, in good condition and sharp. If necessary, sharpen or replace it.

In the event that the blade hits an object while mowing, turn the lawnmower off and wait until the blade comes to a stop. Then check the condition of the blade and its fastening bolts. If these are damaged or if they have been lost then they must be replaced without delay. Important: While working use protective gloves. Loosen the two bolts that hold the blade (6 mm Allen key) by turning anticlockwise, remove the blade and replace it with a new one. Check that the new blade is installed in the correct direction. Tighten the plastic nut of the fastening bolt turning clockwise.

ELECTRIC LAWNMOWER USER'S MANUAL

EN 16

CE Declaration of Conformity

9. CE DECLARATION OF CONFORMITY

CE DECLARATION OF CONFORMITY Manufacturer:

FAST ČR, a. s. Černokostelecká 2111, 100 00 Prague 10, Czech Republic Tax ID number: CZ26726548

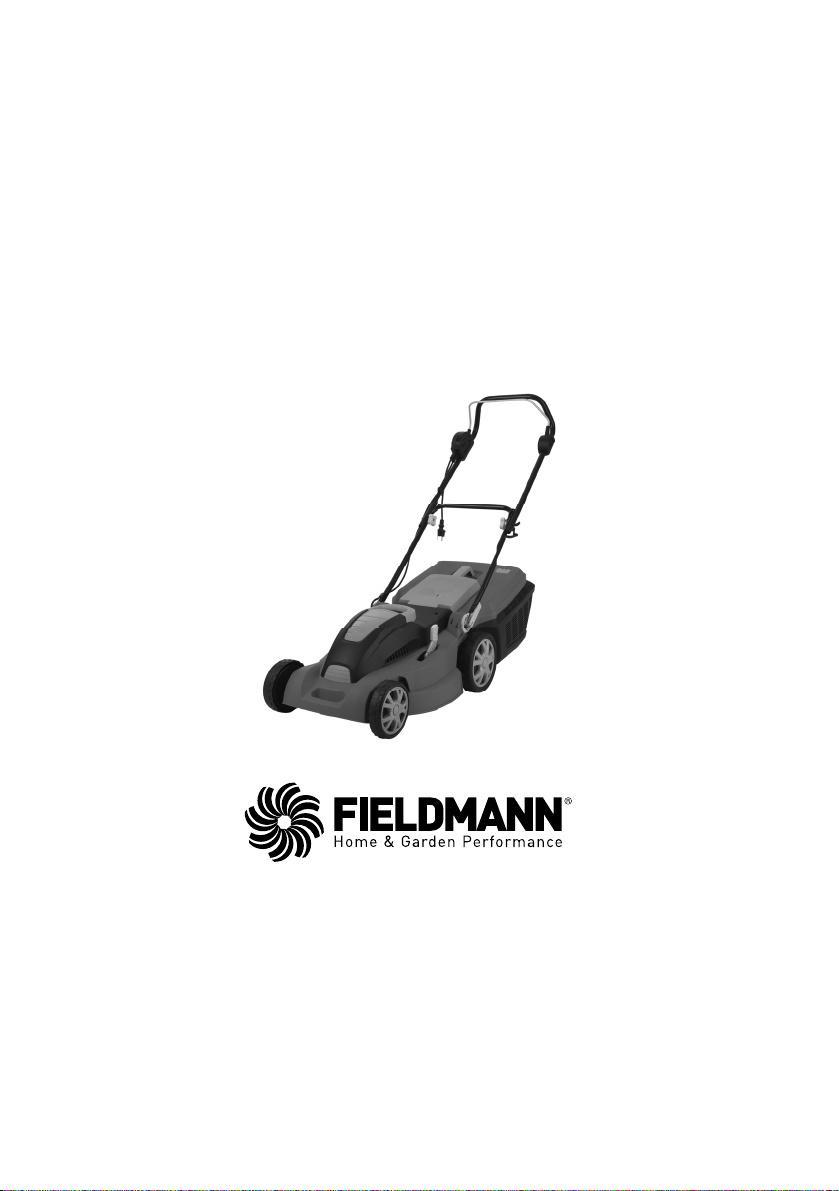

Product/brand: LAWNMOWER / FIELDMANN

Type/model: FZR 2040 E

230 V, 1 800 W, 50 Hz, Class II

This product meets the directives below:

ES Directive No. 2000/14/ES for noise emissions of outdoor equipment ES Council Directive No. 2006/42/ES for machinery ES Directive No. 2004/108/ES for electromagnetic compatibility (EMC) ES Directive No. 2002/95/ES for RoHS

and norms:

EN 60335-1/A15:2011 EN 60335-2-77:2010 EN 62233:2008 EN ISO 11806–1:2011 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-11:2000

CE mark: 14

FAST ČR, a.s. is authorised to act on behalf of the manufacturer.

Place of issue: Prague Name: Ing. Zdeněk Pech Chairman of the Board of Directors

Date of issue: 7. 5. 2014 Signature:

Company headquarters: Černokostelecká 2111, 100 00, Prague 10 Org. ID: 26726548, Tax ID: CZ26726548 Bank details: Komerční banka Prague 1, acc.no. 89309-011/0100

FZR 2040-E

Disposal

10. DISPOSAL

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these products to determined collection points. Or as an alternative in some European Union states or other European countries you may return your products to the local retailer when buying an equivalent new product. Correct disposal of this product helps save valuable natural resources and prevents damage to the environment caused by improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information. Disposal in other countries outside the European Union. This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.

This product meets all the basic requirements of EU directives that apply to it.

Changes in the text, design and technical speciﬁ cations may be made without prior notice and we reserve the right to make such changes.

User s manual in the original language.

ELECTRIC LAWNMOWER USER'S MANUAL

EN 18

Notes

FZR 2040-E

Obsah

Elektrická zahradní sekačka

NÁVOD K OBSLUZE

Děkujeme vám, že jste si zakoupili tuto zahradní elektrickou rotační sekačku. Než ji začnete používat přečtěte si, prosím, pozorně tento návod k obsluze a uschovejte jej pro případ dalšího použití.

OBSAH

OBRAZOVÁ PŘÍLOHA .................................................................................................................................................1

1. VŠEOBECNÉ BEZPEČNOSTNÍ PŘEDPISY .......................................................................................................... 20

Důležitá bezpečnostní upozornění................................................................................................................. 20

Obal ................................................................................................................................................................................ 20

Návod k použití ......................................................................................................................................................... 20

2. SYMBOLY ........................................................................................................................................................................21

3. POPIS (OBR 1) ............................................................................................................................................................ 22

4. ZÁSADY BEZPEČNOSTI PRÁCE ............................................................................................................................ 23

Ostatní rizika ................................................................................................................................................................ 23

Než začnete sekačku používat .........................................................................................................................24

Příprava k provozu ....................................................................................................................................................24

Obsluha ..........................................................................................................................................................................24

Údržba a uskladnění .............................................................................................................................................. 25

5. SESTAVENÍ ...................................................................................................................................................................... 26

5.1 Nasazení / sejmutí / vyprázdnění sběrného koše. .......................................................................... 26

5.2 Madlo ...................................................................................................................................................................... 26

5.3 Prodlužovací kabel / zajištění kabelu .................................................................................................... 26

6. PROVOZ ..........................................................................................................................................................................27

6.1 Nastavení výšky sečení ...................................................................................................................................27

6.2 Nastavení VÝŠKY madla ................................................................................................................................27

6.3 Připojení k elektrické síti. .................................................................................................................................27

6.4 Zapnutí/vypnutí sekačky (Obr. 2-11) ........................................................................................................27

7. TECHNICKÉ ÚDAJE .................................................................................................................................................... 28

8. ÚDRŽBA .......................................................................................................................................................................... 29

8.1 Výměna nože ...................................................................................................................................................... 29

9. CE PROHLÁŠENÍ O SHODĚ ................................................................................................................................... 30

10. LIKVIDACE ......................................................................................................................................................................31

ELEKTRICK Á ZAHRADNÍ SEK AČKA NÁVO D K OBSLUZE

CZ 20

Všeobecné bezpečnostní předpisy

1. VŠEOBECNÉ BEZPEČNOSTNÍ PŘEDPISY

DŮLEŽITÁ BEZPEČNOSTNÍ UPOZORNĚNÍ

Výrobek pečlivě vybalte a dejte pozor, abyste nevyhodili žádnou část obalového materiálu dříve, než najdete

všechny součásti výrobku. Výrobek uchovávejte na suchém místě mimo dosah dětí. Čtěte všechna upozornění a pokyny. Zanedbání při dodržování varovných upozornění a pokynů mohou mít za

následek úraz elektrickým proudem, požár a/nebo těžká poranění.

OBAL

Výrobek je umístěn v obalu bránícím poškozením při transportu. Tento obal je surovinou a lze jej proto odevzdat k recyklaci.

NÁVOD K POUŽITÍ

Než začnete se strojem pracovat, přečtěte si následující bezpečnostní předpisy a pokyny k používání. Seznamte se s obslužnými prvky a správným používáním zařízení. Návod pečlivě uschovejte pro případ pozdější potřeby. Minimálně po dobu záruky doporučujeme uschovat originální obal včetně vnitřního balicího materiálu, pokladní doklad a záruční list. V případě přepravy zabalte stroj zpět do originální krabice od výrobce, zajistíte si tak maximální ochranu výrobku při případném transportu (např. stěhování nebo odeslání do servisního místa).

Poznámka: Předáváte-li stroj dalším osobám, předejte jej společně s návodem. Dodržování přiloženého návodu k obsluze je předpokladem řádného používání stroje. Návod k obsluze obsahuje rovněž pokyny pro obsluhu, údržbu a opravy.

Výrobce nepřebírá odpovědnost za nehody nebo škody vzniklé následkem nedodržování tohoto návodu.

FZR 2040-E

2. SYMBOLY

Před použitím tohoto stroje si přečtěte příručku s pokyny.

Přihlížející osoby musí být v dostatečné vzdálenosti.

Dávejte pozor na ostré čepele. Čepele rotují ještě po vypnutí motoru. Před údržbou nebo při poškození kabelu vyndejte zástrčku z hlavního vedení.

Symboly

Mějte ohebný kabel zdroje napájení v dostatečné vzdálenosti od čepelí.

Čepele pokračují v rotaci i po vypnutí stroje. Před kontaktem se všemi díly stroje čekejte, dokud se úplně nezastaví.

Nesekejte trávu v dešti a neponechávejte sekačku pod širým nebem za deště.

Používejte ochranu sluchu. Používejte ochranu zraku. Používejte ochranu dýchacích orgánů.

ELEKTRICK Á ZAHRADNÍ SEK AČKA NÁVO D K OBSLUZE

CZ 22

Popis

3. POPIS (OBR. 1)

1. Horní madlo

2. Spínací páka

3. Spínací jednotka

4. Spínací tlačítko

5. Zajištění kabelu proti tahu

6. Hák na pověšení kabelu

7. Matice s růžicovou hlavou

8. Spodní část madla

9. Bezpečnostní kryt

10. Páka nastavení výšky sečení

11. Transportní madlo

12. Kryt motoru

13. Šasi sekačky

14. Kola

15. Zajišťovací rychloupínací matice

16. Sběrný koš

17. Indikátor stavu zaplnění koše

FZR 2040-E

Zásady bezpečnosti práce

4. ZÁSADY BEZPEČNOSTI PRÁCE

Zařízení nikdy nepoužívejte v případě, že je poškozený či viditelně opotřebený napájecí kabel. V případě, že sekačku připojíte poškozeným kabelem ke zdroji napětí a poté se dotknete místa, kde je

porušená izolace dříve, než bude sekačka od zdroje napětí odpojena, vystavujete se riziku úrazu elektrickým proudem.

Rovněž se nikdy nedotýkejte nožů, dokud nebude zařízení odpojeno od zdroje napětí, a dokud se nože úplně

nepřestanou otáčet.

Dbejte na to, aby se prodlužovací kabely nikdy nedostaly do kontaktu s noži. Nože by totiž mohly poškodit

izolaci kabelu, a tím by vzniklo riziko úrazu elektrickým proudem při dotyku některé části těla a obnaženého vodiče, bude-li tento pod napětím.

Zařízení odpojte od přívodu napětí (tj. vytáhněte vidlici napájecího kabelu ze síťové zásuvky):

• Pokud musíte nechat zařízení bez dozoru

• Pokud se chystáte odstranit závadu

• Před každou kontrolou, každým čištěním či opravou

• Narazíte-li při sekání na cizí těleso

• Pokud zařízení nadměrně vibruje. Pečlivě si prostudujte zásady bezpečnosti práce se zařízením a návod k obsluze. Doporučení: Zařízení připojujte jen k takovému zdroji napětí, který je vybaven proudovým chráničem (RCD)

s maximální hodnotou unikajícího proudu 30mA. Je-li poškozen napájecí kabel, je nutná jeho výměna výrobcem anebo jeho zákaznickým servisem. Toto zařízení nesmí být obsluhováno osobami s omezenými fyzickými, smyslovými či duševními schopnostmi

(včetně dětí). Dále nesmí být používáno osobami nezkušenými či takovými osobami, jejichž technické

znalosti jsou pro obsluhu tohoto zařízení zjevně nedostatečné. Tyto osoby mohou obsluhovat zařízení pouze

pod dohledem způsobilé osoby, anebo po náležitém poučení o zásadách bezpečnosti práce. Pohybují-li se v blízkosti zařízení děti, je nezbytně nutné dohlížet na to, aby si se zařízením nehrály. Pocit mravenčení v rukou anebo dokonce jejich necitlivost je příznakem nadměrných vibrací.

V takovém případě zkraťte práci, přerušujte ji dostatečně dlouhými přestávkami, rozdělte ji mezi několik lidí

anebo, v případě dlouhodobého používání sekačky, používejte při práci speciální antivibrační rukavice. Nevyhnutelným průvodním jevem používání sekačky je to, že za chodu vydává hluk. Hlučné práce proto

provádějte pouze ve vyhrazených hodinách, respektive v době, která je pro tyto činnosti běžná. Respektujte

dobu klidu a práci se snažte zkrátit na nezbytně nutnou dobu.

Rovněž doporučujeme, abyste Vy i osoby, pohybující se v bezprostřední blízkosti sekačky, byli vybaveni

chrániči sluchu.

OSTATNÍ RIZIKA

Přestože jsou naše výrobky konstruovány tak, aby vyhovovaly platným technickým normám a bezpečnostním

předpisům, přetrvávají ve spojení s obsluhou zařízení pro jeho uživatele některá rizika:

• Z prostoru žacího mechanismu mohou odlétávat kameny nebo jejich úlomky.

• Nebude-li obsluha zařízení při práci používat ochranu sluchu, vystavuje se riziku následného ohluchnutí.

• Poranění prstů při údržbě nože

• Vdechnutí částic odřezků travin

• Zasažení elektrickým proudem při dotyku neizolovaných součástí.

ELEKTRICK Á ZAHRADNÍ SEK AČKA NÁVO D K OBSLUZE

+ 53 hidden pages

Fieldmann FZR 2040-E User Manual [en, cs, pl]

Specifications and Main Features

Frequently Asked Questions

User Manual
