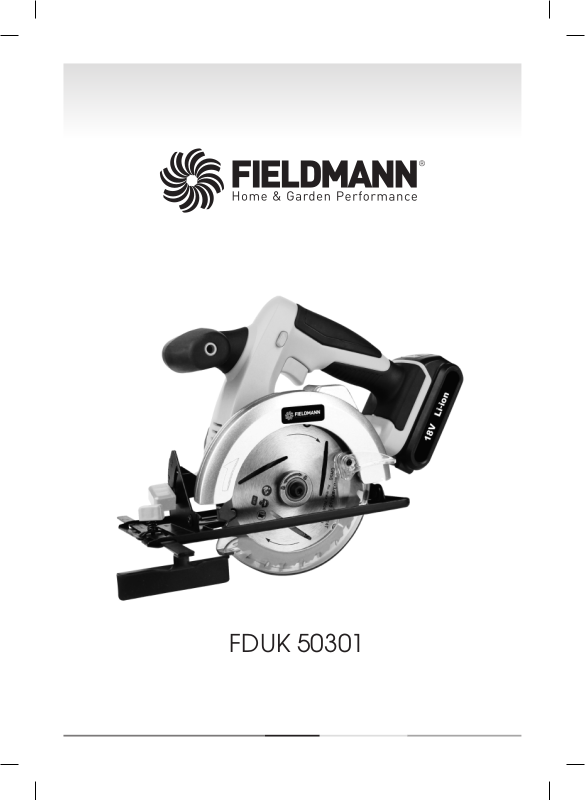

Fieldmann FDUK 50301 User Manual

FDUK 50301

English ...................................................................................................................................................................... 9

Čeština .................................................................................................................................................................... 27

Slovenčina ............................................................................................................................................................. 45

Magyarul ................................................................................................................................................................ 63

Polski ....................................................................................................................................................................... 81

Русский ................................................................................................................................................................ 101

FDUK 50301

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Table of contents

ENTable of contents

Cordless Circular Saw

INSTRUCTION MANUAL

Thank you for your purchase of the Cordless circular saw. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.

TABLE OF CONTENTS

PICTURE ANNEX ................................................................................................................................ 3

GENERAL SAFETY REGULATIONS ........................................................................................... 10

1. Important safety notices Packaging Instructions for use

GENERAL SAFETY INSTRUCTIONS ........................................................................................... 11

SYMBOLS AND PICTOGRAMS ................................................................................................. 15

MACHINE DESCRIPTION AND PACKAGE CONTENT .................................................... 16

SAFETY INSTRUCTIONS ................................................................................................................. 17

USE AND OPERATION .................................................................................................................. 21

ADJUSTMENT AND OPERATION .............................................................................................. 21

CLEANING AND MAINTENANCE ........................................................................................... 23

CLEANING AND MAINTENANCE TIPS ................................................................................. 23

DECLARATION OF CONFORMITY ......................................................................................... 24

10.

TECHNICAL DATA .......................................................................................................................... 25

11.

LIQUIDATION .................................................................................................................................... 26

12.

FDUK 50301

10EN General safety instructions

General safety instructions

1. GENERAL SAFETY INSTRUCTIONS

WARNING! Carefully read the instruction manual before use.

Important safety warnings

Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product. Keep the product in a dry place out of reach of children. Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, ﬁre and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

General safety instructions

ENGeneral safety instructions

2. GENERAL SAFETY INSTRUCTIONS

Carefully read, remember and keep these safety instructions

WARNING! In the use of electric machines and power tools, it is necessary to respect

and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of ﬁre. The term “power tool” in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool. Save all warnings and instructions for future reference.

Workplace

Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite accidents. Store power tools that you don’t currently use. Do not operate power tools in environments with danger of occurrence of a ﬁre or explosion, such as in the presence of ﬂammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep unauthorised persons, especially children, away from the work area while operating a power tool! Distractions can cause you to lose control over the performed activity. In no event leave your power tool unattended. Keep the equipment away from animals.

Electrical Safety

Power tool plugs must match the mains socket outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Undamaged plugs and matching outlets will reduce risk of electric shock. Damaged or fouled supply cables increase the risk of electric shock. If the power cord is damaged, it must be replaced by a new power cord which is available at the authorised service centre or the importer. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cooking ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Never touch the power tool with wet hands. Never wash the power tool under running water or immerse it in water. Never use the supply cable for other than intended purposes. Never use the cord for carrying or pulling the power tool. Never unplug the plug from the outlet by pulling the cable. Keep electric cables away from sharp or hot objects to prevent mechanical damage. The power tool was designed to be powered solely by alternating electric current. Always check if the electric voltage matches the information speciﬁed in the type label of the power tool. Never use power tool with damaged electric cable or plug or which has been dropped or is in any way damaged.

FDUK 50301

12EN General safety instructions

General safety instructions

information speciﬁed in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these

If an extension cord is used, always check whether its technical parameters match the

must be rolled out to prevent overheating of the cord. If a power tool is operated in a damp location or outdoors, its operation is only permitted if connected to an electric circuit protected by a residual current device <30 mA. Use of residual current device (RCD) reduces the risk of electric shock. Hold the power tool by insulated gripping surfaces only as the cutting or drilling tool may contact hidden wiring or its own power cord during operation.

Personal Safety

Be careful, stay alert and watch what you are doing when operating a power tool. Concentrate on your work. Do not use a power tool while you are tired or under the inﬂuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Do not eat, drink and smoke while operating a power tool. Use personal protective equipment. Always wear eye protection. Use protective equipment corresponding to the type of work you are doing. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used in accordance with the working conditions will reduce the risk of personal injury. Prevent unintentional starting. Do not carry the power tool while it is energised or with your ﬁnger on the switch or trigger. Ensure the switch or trigger is in the “off” position before connecting to power source. Carrying power tools with your ﬁnger on the switch or energising power tools that have the switch on may result in serious injuries. Remove any adjusting key or wrench before turning the power tool on. An adjusting wrench or a key left attached to a rotating part of the power tool may result in personal injury. Keep proper footing and balance at all times. Do not overreach. Never overestimate your own capabilities. Never use power tools while you are tired. Dress properly. Wear work clothes. Do not wear loose clothing or jewellery. Keep your hair, clothing, gloves and other part of your body away from moving or hot parts of the power tool. Connect the equipment to dust exhaustion. If the tools are provided for the connection of dust collection or exhaustion devices, ensure these are properly connected and used. Use of such devices can reduce dust-related hazards. Fix the work-piece tightly. Use a cabinet clamp or a cramp to ﬁx the work-piece you are about to machine. Never use power tools if you are under the inﬂuence of alcohol, drugs, medication or other narcotic or addictive substances. This equipment is not intended for use by persons (including children) with limited physical, sensual or mental capacities or lack of experience or knowledge unless they are supervised or instructed about the use of the equipment by a person responsible for their safety. Children must be supervised to make sure they are not playing with the equipment.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

General safety instructions

ENGeneral safety instructions

Power Tool Use and Maintenance

Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell. Do not overload the power tool. The power tool will operate better and safer if it is used at the rate for which it was designed. Use correct power tool which is intended for the given activity. The correct power tool will do the job it was designed for better and safer. Do not use the power tool if it cannot be safely turned on and off using the control switch. Use of such power tool is dangerous. Defective switches must be repaired by a certiﬁed service provider. Disconnect the tool from the power source before making any adjustments, changing accessories or maintenance. Such preventive safety measure prevents the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and unauthorised persons. Power tools can be dangerous in the hands of untrained users. Store the power tools in a dry and safe place. Keep the power tool in good condition. Check the adjustment of moving parts and their mobility. Check for any damage to the protective guards or other parts which could affect safe operation of the power tool. If damaged, have the power tool properly repaired before further use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges facilitate work, reduce the risk of injury and are easier to control. Use of accessories other than those speciﬁed in the instructions for use could result in damage to the power tool and cause injuries. Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool taking into account the working conditions and the work to be performed. Use of the power tool for purposes other than those the power tool was intended for could result in hazardous situations.

Use of Cordless Power Tools

Before inserting the battery, make sure the switch is in the “0-OFF” position. Inserting a battery into a switched-on power tool could result in hazardous situations. Charge batteries only using the chargers prescribed by the manufacturer. Using a charger intended for other battery type could result in its damage and occurrence of ﬁre. Use only batteries intended for particular power tool. Use of different batteries could cause injury or occurrence of ﬁre. If the battery is not used, keep it separately from metal objects such as clamps, keys, bolts and other small metal items which could cause connection of one battery contact with the other. Short-circuiting the battery could result in injury, burns or occurrence of ﬁre.

FDUK 50301

14EN General safety instructions

General safety instructions

from the battery. Avoid contact with such substance and if, nonetheless, any contact occurs wash the affected area under running water. If eyes get into contact with the chemical

Handle the batteries with care. Rough handling could result in leak of chemical substance

substance seek immediately medical aid. Chemical substance from the battery can cause serious injuries.

Service

Do not replace parts of the power tool, do not make any repairs or interfere in any way with the construction of the power tool. Have your power tool repaired by qualiﬁed repair persons. Any repair or modiﬁcation of the product without our company’s authorisation is impermissible (it could cause injury or damage to the user). Always have your power tool repaired in a certiﬁed service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Symbols and pictograms

ENSymbols and pictograms

applicable

3. SYMBOLS AND PICTOGRAMS

The product complies with the standards and regulations.

Read the Instruction Manual attentively prior to use.

Use eyes protectiveequipment

Use earsprotectiove equipment

FDUK 50301

16EN Machine description and package content

Flange wrench

14 -

16EN Machine description and package content

4. MACHINE DESCRIPTION AND PACKAGE CONTENT

Machine Description (see Fig. 1.2)

Switch Handle Guiding handle Bevel adjustment knob Parallel guide adjustment knob Parallel guide Circular-saw blade guide Circular-saw base Blade stud Cutting depth adjustment knob Safety switch Carbon brush cover Allen wrench Flange wrench 2 replacement engine carbon brushes

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 -

9 - 10 - 11 - 12 - 13 - 14 - 15 -

Machine description and package content

4. MACHINE DESCRIPTION AND PACKAGE CONTENT

Machine Description (see Fig. 1.2)

Switch

1 -

Handle

2 -

Guiding handle

3 -

Bevel adjustment knob

4 -

Parallel guide adjustment knob

5 -

Parallel guide

6 -

Circular-saw blade guide

7 -

Circular-saw base

8 -

Blade stud

9 -

Cutting depth adjustment knob

10 -

Safety switch

11 -

Carbon brush cover

12 -

Allen wrench

13 -

Bevel angle measuring rod

16 -

Package Content

Remove the machine carefully from the packaging and check the completeness of the following parts:

Circular saw Parallel guide 1 circular-saw blade Warranty certiﬁcate Operating instructions Allen wrench

If some parts are missing or are damaged, please contact the vendor where you purchased the machine.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Safety instructions

ENSafety instructions

5. SAFETY INSTRUCTIONS

Before use, please read these safety instructions and keep them in a safe place.

ATTENTION! This symbol indicates risk of injury or damage to the equipment. ATTENTION! Upon failure to follow the instructions speciﬁed in this manual, there is a risk

of injury. ATTENTION! Electric circular saw conforms to applicable technical regulations and

standards. ATTENTION! Before putting the circular saw aside, make sure all moving parts have

stopped.

Special Safety Instructions for Operation of the Circular Saw

ATTENTION! Risk of Injury! Turn off the saw and unplug the plug from the outlet before

attempting to install or remove the circular-saw blade. This way you prevent the circular saw from being accidentally started.

The root of the circular-saw blade should always be in tight contact with the cut material. Keep your hands away from the circular-saw blade. Never touch the bottom of the material during cutting. Make sure the circular-saw blade is sharp, undamaged and correctly adjusted. Otherwise, the cutting edge could break and cause damage to the circular saw or operator’s injury. Do not touch the circular-saw blade immediately after cutting. It could be hot. Remove the adjustment key from the saw before starting the work. Some machined materials may contain preservative substances which could be toxic. Avoid inhaling saw-dust while machining such materials. When cutting thin materials, make sure that the cut-off parts do not get into the retractable guard of the saw.

ATTENTION! Wear dust mask and protective goggles while performing dusty work. Wear protective goggles conforming to DIN 58214 standard. If the circular saw is used without eye protection, foreign particles could get lodged in your eyes (such as cuttings or matchwood). This could permanently damage your eyesight. Using protective goggles that do not conform to DIN standard could result in serious injury for the reasons of possible shattering of the protective glass.

ATTENTION! Choose appropriate circular-saw blade for the work you intend to do. Use this circular saw only for cutting wood, wooden materials and soft metals such as aluminium. Other materials could tear, rip or spring up, get hitched on the circular-saw blade or cause other danger.

FDUK 50301

18EN Safety instructions

Safety instructions

- The arrow on the circular-saw blade indicating the running direction must indicate the same direction as the arrow on the circular-saw guard. The teeth of the circular-saw blade must

ATTENTION! Do not use grinding discs

match the running direction of the saw (downwards and forward).

- Keep the circular-saw blade and the clamping surface of the ﬂange clean. The ﬂange of the circular-saw blade must always ﬁt inwards into the rotating dropping guard (towards the circular-saw blade).

- Make sure that all clamping devices and locking devices have been tightened and that no parts shows excessive idle travel.

ATTENTION! Never cut objects while holding them in your hand. ATTENTION! Make sure that the already cut-off parts cannot get into contact with the

circular-saw blade as they may be caught by the circular-saw blade and sprung up.

ATTENTION! Never cut more than one piece of material at the same time. ATTENTION! Be especially careful when cutting large, very small or irregular pieces. ATTENTION! No nails or other foreign objects may be present in the part of the machined

piece to be cut. ATTENTION! No persons are allowed to stay near or behind the circular saw where saw

dust and cuttings are thrown away.

ATTENTION! Do not use the circular saw for cutting ﬁre wood. ATTENTION! Do not attempt to stop the circular-saw blade from rotating by exerting

pressure to its lateral face. ATTENTION! Do not use circular-saw blades which do not conform, in terms of dimensions

and shape, to the requirements of this tool. Before cutting, ﬁx the work-piece ﬁrmly e.g. using clamps (they are not part of the supply).

ATTENTION! Keep your hands away from the cutting area and from the circular-saw blade. Use your other hand to hold the auxiliary handle or the engine cover. If you hold the circular saw with your both hands, they cannot be cut by the circular-saw blade.

ATTENTION! Adjust the cutting depth to at least the thickness of the processed material. ATTENTION! If you carry out work during which the tool could get into contact with hidden

electric wiring or its own cord, hold the power tool by insulated gripping surfaces intended for holding.

ATTENTION! Maintain a ﬁrm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the circular-saw blade but not in line with the circular-saw blade.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Safety instructions

ENSafety instructions

ATTENTION! During longitudinal cutting, always use the longitudinal guide scale or straight guide rail.

ATTENTION! Never use damaged or incorrect washers or clamping bolts. ATTENTION! If the circular-saw blade is pinched or when interrupting a cut for other

reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.

ATTENTION! Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion. A kickback may occur.

ATTENTION! When restarting the saw in a work-piece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material.

ATTENTION! Support large panels to minimize the risk of blade pinching or kickback. ATTENTION! Do not use dull or otherwise damaged blades. ATTENTION! Blade depth and bevel adjusting locking levers must be tight and secure

before making a cut. ATTENTION! Use extra caution especially when making a “plunge cut”, e.g. cut into existing

walls or blind areas.

ATTENTION! Never operate the saw without the blade guard attached.

Lower guard

ATTENTION! Check lower guard for proper closing before each use. ATTENTION! Do not operate the saw if the lower guard does not move freely and close

instantly! Never clamp or tie the lower guard into the open position.

Riving knife

ATTENTION! Check the operation of the lower guard spring. If the guard and the spring are

not operating properly, they must be repaired before use. ATTENTION! Lower guard should be retracted manually only for special cuts such as

“plunge cuts” or “compound cuts”. Raise the lower guard by the lower guard lift lever and as soon as the blade enters the material, the lower guard must be released.

ATTENTION! Always observe that the lower guard is covering the blade before placing saw down on the bench or ﬂoor.

ATTENTION! Use appropriate riving knife for the circular-saw blade used. ATTENTION! Adjust the riving knife as indicated in the instructions for use.

FDUK 50301

20EN Safety instructions

Safety instructions

ATTENTION! In order for the riving knife to work, it must ﬁt into the cut-out in the processed

ATTENTION! Except for plunge cuts, always use the riving knife.

piece.

ATTENTION! Do not operate the saw if the riving knife is bent. ATTENTION! Make sure that the riving knife is so adjusted that the distance between the

riving knife and the blade rim is not greater than 5 mm and the blade rim does not reach out behind the lower edge of the riving knife by more than 5 mm.

ATTENTION! When replacing the circular-saw blade, make sure that the cut width is not smaller than the depth of the riving knife.

Avoid the kickback of the saw.

ATTENTION! Kickback occurs when a force is exerted against the saw blade causing a

quick and unexpected lift up of the wood. Kickback is very dangerous but can be minimised if you identify its causes and avoid them.

The root of the circular-saw blade should always be in tight contact with the cut material Always hold the saw with your both hands. Support the cut parts by large panels. Be careful when cutting long parts which can be bent, twisted or pinch the circular-saw blade. Never cut in the centre of the supported piece of wood. The wood could bend over and pinch the circular-saw blade. Never cut overhead. Do not exert pressure upon the saw. Let the circular-saw blade work at its own rate. Secure the ﬂange using clamps or cramp to avoid vibrations and irregular cuts. Do not let the blade leave the cutting line as it could cause the saw jump out of the kerf. Before cutting, check the wood and remove all bolts, clamps and nails. Replace the circular-saw blade if it is dull. Only use circular-saw blades according to EN 847-1 and never use circular-saw blades made of high speed steel - HSS.

ATTENTION! Wear hearing protection to reduce the risk of impaired hearing! Use protection against dangerous dust inhaling.

ATTENTION! Wear gloves when working with circular-saw blades and roughly machined materials - circular-saw blades should be carried in holders, if possible.

ATTENTION! Use means of protection against noise, dust and vibrations !!! ATTENTION! Keep these safety instructions.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Use and operation | Adjustment and operation

ENUse and operation | Adjustment and operation

6. USE AND OPERATION

The circular saw is supplied with a circular-saw blade intended for making straight cuts in wooden materials. After replacement of the circular-saw blade, you can also cut plastics, thermoplastics, hard plastics, laminate, polyurethane foam boards, mineral wool insulation boards, cement bricks, cellular concrete and products made of non-ferrous metals. The saw is intended for household or hobby use only. Any other use is strictly prohibited.

7. ADJUSTMENT AND OPERATION

Portable circular saw operation

Turn on the saw and allow the blade to reach full speed before starting the cut, i.e. before the blade touches the material. Do not exert too much force upon the saw, give it enough time for cutting. Hold the saw with your both hands using both handles. This is the best way to control the saw. The part being cut automatically applies pressure the retractable guard of the machine. During cutting, push the circular saw evenly and smoothly forward. The part to be cut off must be on the right-hand side of the saw so that the wide part of the base plate is fully supported.

Attaching the parallel guide (see Fig. 3)

The parallel guide /6/ allows cuts parallel to the edge the distance of which does not exceed 10 cm. Loosen the adjustment knob /5/- clockwise direction Insert the parallel guide /6/ into the saw base /8/ . Adjust the parallel guide at the desired distance and tighten the adjustment knob /5/ anticlockwise Unscrew the adjusting screw. Adjust the parallel stop according to the scale taking also into account the circular-saw blade width.

Blade replacement (see Fig. 5)

ATTENTION! Before making a clean cut, perform a testing cut using a material chunk.

ATTENTION! Before the blade replacement, always disconnect the saw from the mains. ATTENTION! Use only sharp and undamaged blades. Cracked or bent blades must be

immediately replaced.

FDUK 50301

22EN Adjustment and operation

Adjustment and operation

Secure the clamping nut using the ﬂange wrench 14 and loosen it using the Allen wrench 13

ATTENTION! Make sure that the spindle diameter matches the blade hole.

anticlockwise. Retract the blade guard and remove the blade stud, washer and ﬂange. Remove the old saw blade and insert a new blade. Make sure the direction of the teeth matches the rotation direction indicated by an arrow on the ﬁxed blade guard. Press down the shaft lock lever. Close the blade guard. Insert the ﬂange, washer and blade stud and tighten ﬁrmly.

Cut depth adjustment (see Fig. 6)

Loosen the adjusting screw /10/ - anticlockwise. Move the base /8/ downwards. Using the scale, adjust the desired cut depth. The upper cutting line must protrude from the material by approx. 2 mm and tighten the adjusting screw /4/ Maximum cut depth is attained by adjusting the bevel at 45°.

Bevel adjustment (see Fig. 7)

Unscrew the adjusting screw /4/. Adjust the desired bevel according to the scale /16/ in the range 0-45°. Tighten the adjusting screw /4/.

Riving knife adjustment

Open the lower blade guard and hold it ﬁrmly. Unscrew the screws. Adjust the riving knife and tighten the screws.

Before switching the tool on

Before switching the machine on, make sure the circular-saw blade is correctly mounted, that all moving parts move freely and that all adjusting screws are ﬁrmly tightened.

Starting and stopping the tool (see Fig. 8)

The tool is equipped with double-acting safety switch: the saw can only be started if you hold the handle ﬁrmly and press both safety switches. After releasing the handle, the saw is automatically switched off to prevent accidental machine operation.

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Adjustment and operation | Cleaning and maintenance tips

ENAdjustment and operation | Cleaning and maintenance tips

Replacement of carbon brushes

ATTENTION! In case of carbon brush seasoning, immediately switch off the saw and

contact the nearest service centre of FAST ČR, a.s. or your nearest vendor.

Use only correct types of carbon brushes. After attaching new carbon brushes, let the saw run on idle for approx. 5 minutes.

8. CLEANING AND MAINTENANCE

Keep the engine vent holes clean and dust-free. If the circular-saw blade is damaged, replace it immediately by a new blade of the same type.

ATTENTION! Before cleaning and maintenance, always unplug the supply cable of the tool from the socket.

The tool requires no special maintenance, just wipe the cover of the tool with a wet cloth on a regular basis. Clean the vent holes on a regular basis. Never clean any part of the tool using a hard, sharp or rough object.

9. CLEANING AND MAINTENANCE TIPS

Store the tool, accessories and instructions for use in the original packaging to ensure you always have all necessary parts and information. If the tool is not used for a long time, do not store it in places with high temperatures. If practicable, store the tool in a place with constant temperature and humidity. Avoid contact of the tool with humidity and water. Follow the instructions speciﬁed in this operating manual

FDUK 50301

Declaration of conformity

10. DECLARATION OF CONFORMITY

Product/Name: CORDLESS CIRCULAR SAW / FIELDMANN

Type/Model: FDUK 50301...........................................................18 V / 3 800rpm / 136 mm

The product complies with the following directives:

The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. The Directive of the European Parliament and the Council No. 2004/108/EC dated 15 December 2004 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive No. 89/336/EEC. The Direc tive of the European Par liament and the Coun cil No. 2006/42/EC da ted 17 May 20 06 on machiner y, and amending Directive No. 95/16/EC. The Directive of the European Parliament and the Council No. 2002/95/EC dated 27 January 2003 on the restriction of the use of certain hazardous substances in electricaland electronic equipment. The Directive of the European Parliament and the Council No. 2005/88/EC dated 14 December 2005 amending Directive No. 2000/14/EC on the harmonisation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.

and standards:

EN60745-1:2009+A11:2010 EN60745-2-5:2010 ZEK 01.4-08 EN55014-1:2006+A1:2009+A2 :2011 EN55014-2:1997+A1:2001+A2 :2008

CE Certification: .............................................................................................................................................................................16

FAST ČR, a.s. is authorised to act on behalf of the manufacturer.

Manufacturer:

FAST ČR, a.s. Černokostelecká 1621,251 01 Praha, Czech Republic Tax ID:: CZ26726548

In Prague, 30 JAN 2016

Name: Zdeněk Pech

Chairman of Board Signature and stamps:

CORDLESS CIRCULAR SAW

OPERATING INSTRUCTIONS

Technical data

11. TECHNICAL DATA

CORDLESS CIRCULAR SAW:

Nominal voltage 18V Speed Protection class II Blade Diameter:

vibration level 1.742 ms-2 , K=1.5ms Declared noise level 91.9dB(A), K=3dB(A)

Instructions Manual - language version only.

Amendments to text and technical parameters are reserved.

Changes in the text, design and technical specifi cations may change without prior notice and we reserve the right to make these changes.keep it from turning as the drill bit rotates.

Troubleshooting

1. The trigger is pressed but the device is not working: For the cordless device to work, you need a sufficiently charged battery. The battery will go flat if you do not use the cordless device for an extended period of time. Try charging the battery. Check that the battery is correctly seated in the charger. The charger will heat up while charging, this is normal.

2. The battery is leaking: At extreme temperatures or when under extreme load, a small amount of leakage may occur. If you happen to touch the fluid, immediately wash it off your skin or clothing with soap and water.

3 800rpm

136 mm

-2

3. The battery is not charging and the light on the charger is not lit: If the battery is not charging, check that it is correctly seated in the charger and check that the indicator light is lit. If it is not lit, check that the power plug of the charger is correctly plugged into the socket. If it is, check the socket's fuse/circuit breaker.

4. The body of the device heats up after extended use: Under normal load the body, trigger and battery will heat up because the energy consumed when drilling generates heat. This is normal. Simply allow the device to cool down for several minutes.

5. The battery heats up during use: Energy drawn from the battery generates heat. It does not damage the battery, heat from drawing energy is normal. If you wish to cool the battery down, allow the device to cool down for a few minutes before continuing with work.

6. The battery heats up while charging: This is normal and is the result of chemical reactions taking place inside the battery during the charging process.

7. The charging unit will heat up while charging: This is normal and is caused by the reduction of voltage from 230V to 18V.

FDUK 50301

26EN Liquidationl

liquidation

12. LIQUIDATION

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING.

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information. Disposal in other countries outside the European Union. Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.

This product fulﬁls all basic requirements of the EU directives that apply to it.

Text, design and technical speciﬁcations can change without prior notice and we reserve the right for their change.

AKUMULÁTOROVÁ KOTOUČOVÁ PILA

NÁVOD K OBSLUZE

Obsah

CZ27

Obsah

Akumulátorová kotoučová pila

NÁVOD K OBSLUZE

Děkujeme vám, že jste si zakoupili tuto akumulátorová kotočovou pilu. Než ji začnete používat, přečtěte si, prosím, uschovejte jej pro případ dalšího použití.

pozorně tento návod k obsluze a

OBSAH

OBRAZOVÁ PŘÍLOHA ..................................................................................................................... 3

VŠEOBECNÉ BEZPEČNOSTNÍ PŘEDPISY .............................................................................. 28

1. Důležitá bezpečnostní upozornění Obal Návod k použití

OBECNÉ BEZPEČNOSTNÍ POKYNY ........................................................................................ 29

SYMBOLY A PIKTOGRAMY ........................................................................................................ 33

POPIS STROJE A OBSAH DODÁVKY ..................................................................................... 34

BEZPEČNOSTNÍ POKYNY ............................................................................................................ 34

POUŽITÍ A PROVOZ ....................................................................................................................... 38

SEŘÍZENÍ A PROVOZ ..................................................................................................................... 38

ČIŠTÉNÍ A ÚDRŽBA ........................................................................................................................ 40

TYPY PRO ČIŠTĚNÍ A ÚDRŽBU .................................................................................................. 40

PROHLÁŠENÍ O SHODĚ ............................................................................................................... 41

10.

TECHNICKÉ ÚDAJE ........................................................................................................................ 42

11.

LIKVIDACE ......................................................................................................................................... 43

12.

FDUK 50301

CZ 28 Všeobecné bezpečnostní předpisy

Všeobecné bezpečnostní předpisy

1. VŠEOBECNÉ BEZPEČNOSTNÍ PŘEDPISY

POZOR! Před použitím si pečlivě přečtěte návod k použití.

Důležitá bezpečnostní upozornění

Výrobek pečlivě vybalte a dejte pozor, abyste nevyhodili žádnou část obalového materiálu dříve, než najdete všechny součásti výrobku. Výrobek uchovávejte na suchém místě mimo dosah dětí. Čtěte všechna upozornění a pokyny. Zanedbání při dodržování varovných upozornění a pokynů mohou mít za následek úraz elektrickým proudem, požár a/nebo těžká poranění.

Obal

Výrobek je umístěn v obalu bránícím poškozením při transportu. Tento obal je surovinou a lze jej proto odevzdat k recyklaci.

Návod k použití

Než začnete se strojem pracovat, přečtěte si následující bezpečnostní předpisy a pokyny k používání. Seznamte se s obslužnými prvky a správným používáním zařízení. Návod pečlivě uschovejte pro případ pozdější potřeby. Minimálně po dobu záruky doporučujeme uschovat originální obal včetně vnitřního balicího materiálu, pokladní doklad a záruční list. V případě přepravy zabalte stroj zpět do originální krabice od výrobce, zajistíte si tak maximální ochranu výrobku při případném transportu (např. stěhování nebo odeslání do servisního místa).

Poznámka: Předáváte-li stroj dalším osobám, předejte jej společně s návodem. Dodržování přiloženého návodu k obsluze je předpokladem řádného používání stroje. Návod k obsluze obsahuje rovněž pokyny pro obsluhu, údržbu a opravy.

Výrobce nepřebírá odpovědnost za nehody nebo škody vzniklé následkem nedodržování tohoto návodu.

AKUMULÁTOROVÁ KOTOUČOVÁ PILA

NÁVOD K OBSLUZE

Obecné bezpečnostní pokyny

CZ29

Obecné bezpečnostní pokyny

2. OBECNÉ BEZPEČNOSTNÍ POKYNY

Tyto bezpečnostní pokyny si pečlivě prostudujte, zapamatujte a uschovejte

UPOZORNĚNÍ! Při používání elektrických strojů a elektrického nářadí je nutno respektovat

a dodržovat následující bezpečnostní pokyny z důvodů ochrany před úrazem elektrickým proudem, zraněním osob a nebezpečím vzniku požáru. Výrazem „elektrické nářadí“ je ve všech níže uvedených pokynech myšleno jak elektrické nářadí napájené ze sítě (napájecím kabelem), tak nářadí napájené z baterií (bez napájecího kabelu). Uschovejte všechna varovaní a pokyny pro příští použití.

Pracovní prostředí

Udržujte pracovní prostor v čistém stavu a dobře osvětlen. Nepořádek a tmavá místa na pracovišti bývají příčinou úrazů. Ukliďte nářadí, které právě nepoužíváte. Nepoužívejte elektrické nářadí v prostředí s nebezpečím vzniku požáru nebo výbuchu, to znamená v místech, kde se vyskytují hořlavé kapaliny, plyny nebo prach. V elektrickém nářadí vzniká na komutátoru jiskření, které může být příčinou vznícení prachu nebo výparů. Při používání el. nářadí zamezte přístupu nepovolaných osob, zejména dětí, do pracovního prostoru! Budete-li vyrušováni, můžete ztratit kontrolu nad prováděnou činností. V žádném případě nenechávejte el. nářadí bez dohledu. Zabraňte zvířatům přístup k zařízení.

Elektrická bezpečnost

Vidlice napájecího kabelu elektrického nářadí musí odpovídat síťové zásuvce. Nikdy jakýmkoliv způsobem neupravujte vidlici. K nářadí, které má na vidlici napájecího kabelu ochranný kolík, nikdy nepoužívejte rozdvojky ani jiné adaptéry. Nepoškozené vidlice a odpovídající zásuvky omezí nebezpečí úrazu elektrickým proudem. Poškozené nebo zamotané napájecí kabely zvyšují nebezpečí úrazu elektrickým proudem. Pokud je síťový kabel poškozen, je nutno jej nahradit novým síťovým kabelem, který je možné získat v autorizovaném servisním středisku nebo u dovozce. Vyvarujte se dotyku těla s uzemněnými předměty, jako např. potrubí, tělesa ústředního topení, sporáky a chladničky. Nebezpečí úrazu elektrickým proudem je větší, je-li vaše tělo spojeno se zemí. Nevystavujte elektrické nářadí dešti, vlhku nebo mokru. Elektrického nářadí se nikdy nedotýkejte mokrýma rukama. Elektrické nářadí nikdy neumývejte pod tekoucí vodou ani ho neponořujte do vody. Nepoužívejte napájecí kabel k jinému účelu, než pro jaký je určen. Nikdy nenoste a netahejte elektrické nářadí za napájecí kabel. Nevytahujte vidlici ze zásuvky tahem za kabel. Zabraňte mechanickému poškození elektrických kabelů ostrými nebo horkými předměty. El. nářadí bylo vyrobeno výlučně pro napájení střídavým el. proudem. Vždy zkontrolujte, že elektrické napětí odpovídá údaji uvedenému na typovém štítku nářadí.

FDUK 50301

CZ 30 Obecné bezpečnostní pokyny

Obecné bezpečnostní pokyny

Nikdy nepracujte s nářadím, které má poškozený el. kabel nebo vidlici, nebo spadlo na zem a je jakýmkoliv způsobem poškozené. V případě použití prodlužovacícho kabelu vždy zkontrolujte, že jeho technické parametry odpovídají údajům uvedeným na typovém štítku nářadí. Je-li elektrické nářadí používáno venku, používejte prodlužovací kabel vhodný pro venkovní použití. Při použití prodlužovacích bubnů je nutné je rozvinout, aby nedocházelo k přehřátí kabelu. Je-li elektrické nářadí používáno ve vlhkých prostorech nebo venku, je povoleno jej používat pouze, pokud je zapojeno do el. obvodu s proudovým chráničem ≤30 mA. Použití el. obvodu s chráničem /RCD/ snižuje riziko úrazu elektrickým proudem. Ruční el. nářadí držte výhradně za izolované plochy určené k uchopení, protože při provozu může dojít ke kontaktu řezacího či vrtacího příslušenství se skrytým vodičem nebo s napájecí šňůrou nářadí.

Bezpečnost osob

Při používání elektrického nářadí buďte pozorní a ostražití, věnujte maximální pozornost činnosti, kterou právě provádíte. Soustřeďte se na práci. Nepracujte s elektrickým nářadím pokud jste unaveni, nebo jste-li pod vlivem drog, alkoholu nebo léků. I chvilková nepozornost při používání elektrického nářadí může vést k vážnému poranění osob. Při práci s el. nářadím nejezte, nepijte a nekuřte. Používejte ochranné pomůcky. Vždy používejte ochranu zraku. Používejte ochranné prostředky odpovídající druhu práce, kterou provádíte. Ochranné pomůcky jako např. respirátor, bezpečnostní obuv s protiskluzovou úpravou, pokrývka hlavy nebo ochrana sluchu používané v souladu s podmínkami práce snižují riziko poranění osob. Vyvarujte se neúmyslného zapnutí nářadí. Nepřenášejte nářadí, které je připojeno k elektrické síti, s prstem na spínači nebo na spoušti. Před připojením k elektrickému napájení se ujistěte, že spínač nebo spoušť jsou v poloze „vypnuto“. Přenášení nářadí s prstem na spínači nebo zapojování vidlice nářadí do zásuvky se zapnutým spínačem může být příčinou vážných ůrazů. Před zapnutím nářadí odstraňte všechny seřizovací klíče a nástroje. Seřizovací klíč nebo nástroj, který zůstane připevněn k otáčející se části elektrického nářadí může být příčinou poranění osob. Vždy udržujte stabilní postoj a rovnováhu. Pracujte jen tam, kam bezpečně dosáhnete. Nikdy nepřeceňujte vlastní sílu. Nepoužívejte elektrické nářadí, jste-li unaveni. Oblékejte se vhodným způsobem. Používejte pracovní oděv. Nenoste volné oděvy ani šperky. Dbejte na to, aby se vaše vlasy, oděv, rukavice nebo jiná část vašeho těla nedostala do přílišné blízkosti rotujících nebo rozpálených částí el.nářadí. Připojte zařízení k odsávání prachu. Jestliže má nářadí možnost připojení zařízení pro zachycování nebo odsávání prachu, zajistěte, aby došlo k jeho řádnému připojení a používání. Použití těchto zařízení může omezit nebezpečí vznikající prachem. Pevně upevněte obrobek. Použijte truhlářskou svěrku nebo svěrák pro upevnění dílu, který budete obrábět.

+ 92 hidden pages

Fieldmann FDUK 50301 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
