Fieldmann FDUB 50601 User Manual

FDUB 50601

Cordless Angle Grinder

cordless angle grinder

CORDLESS ANGLE GRINDER

FDUB 50601

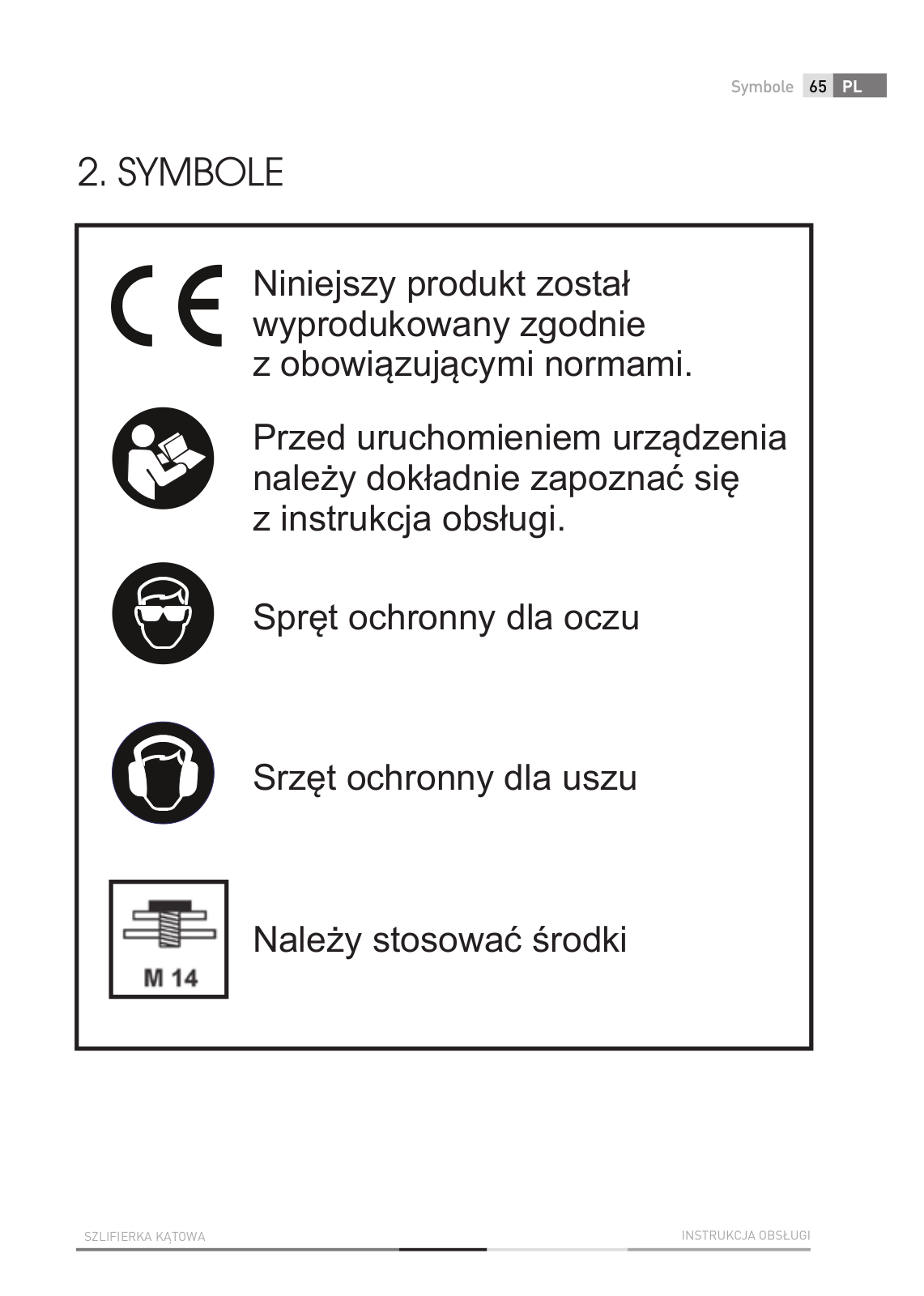

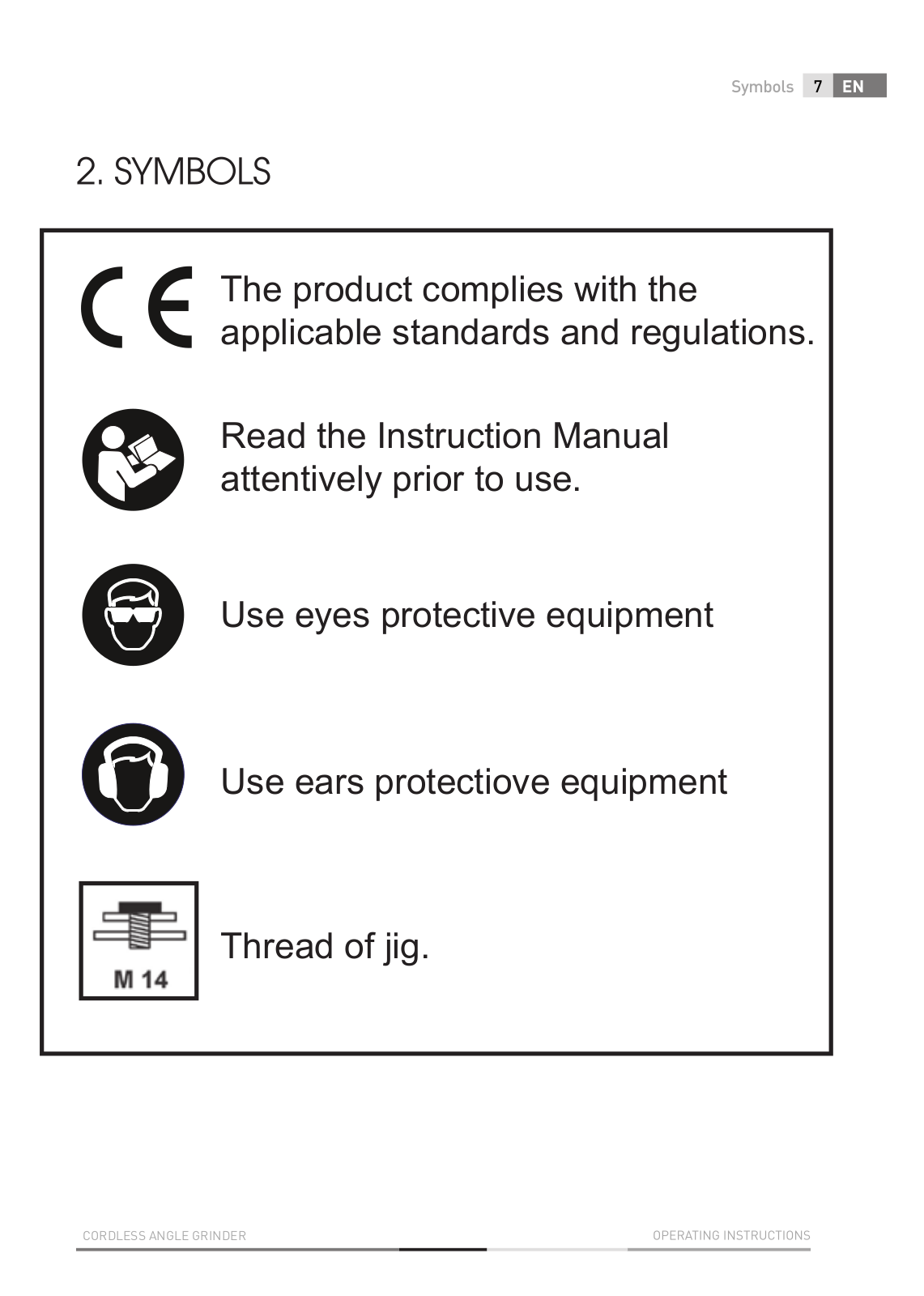

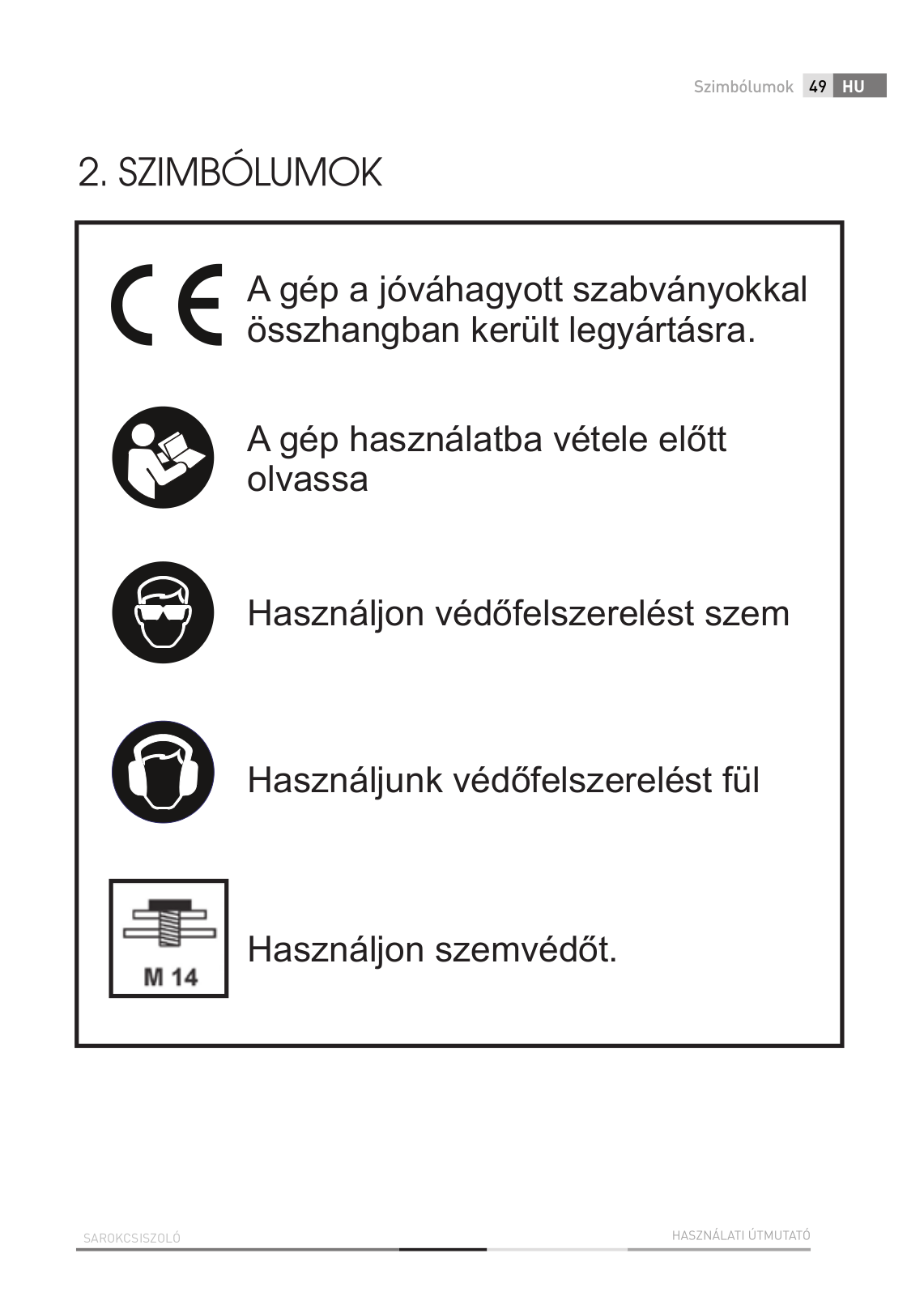

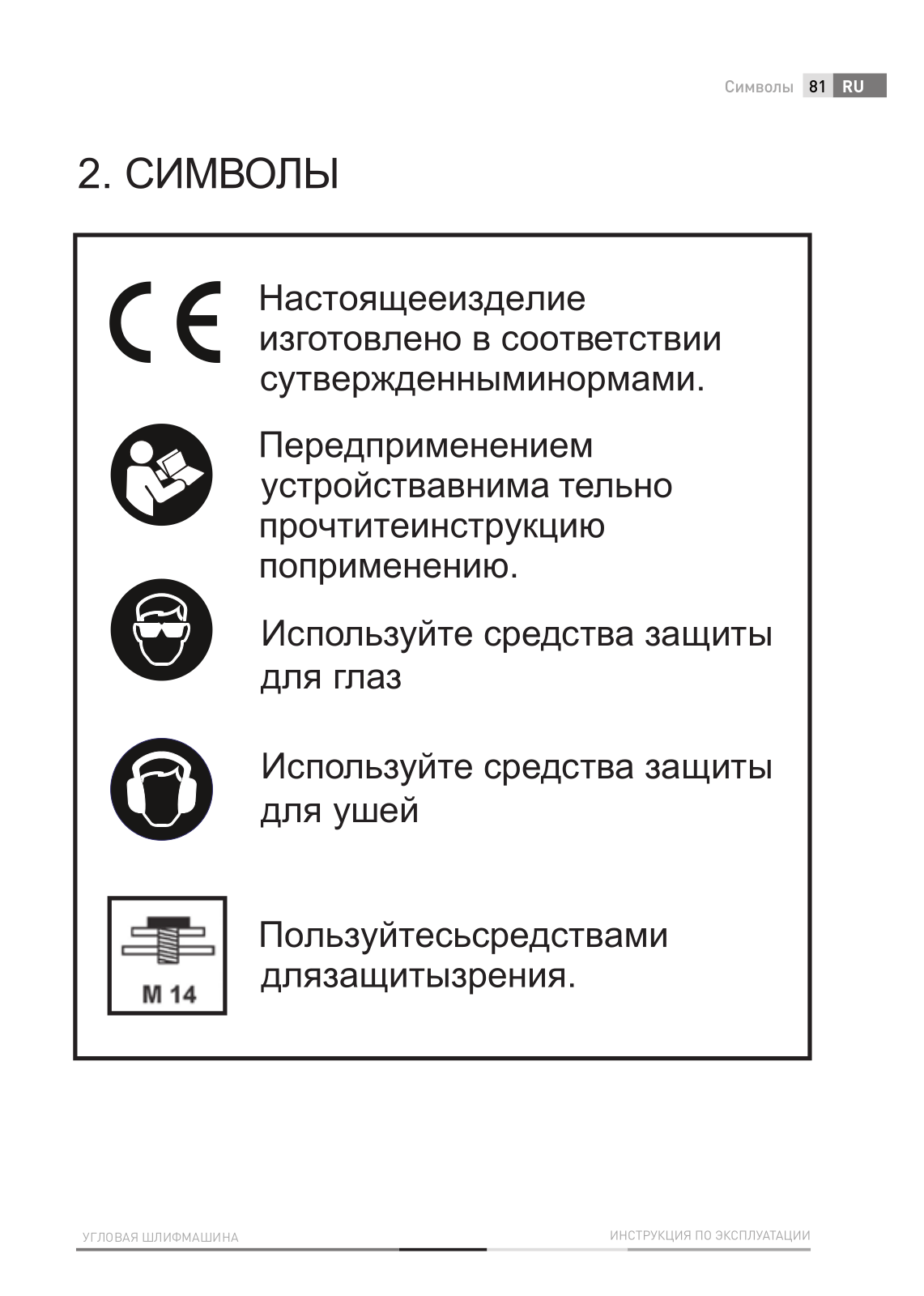

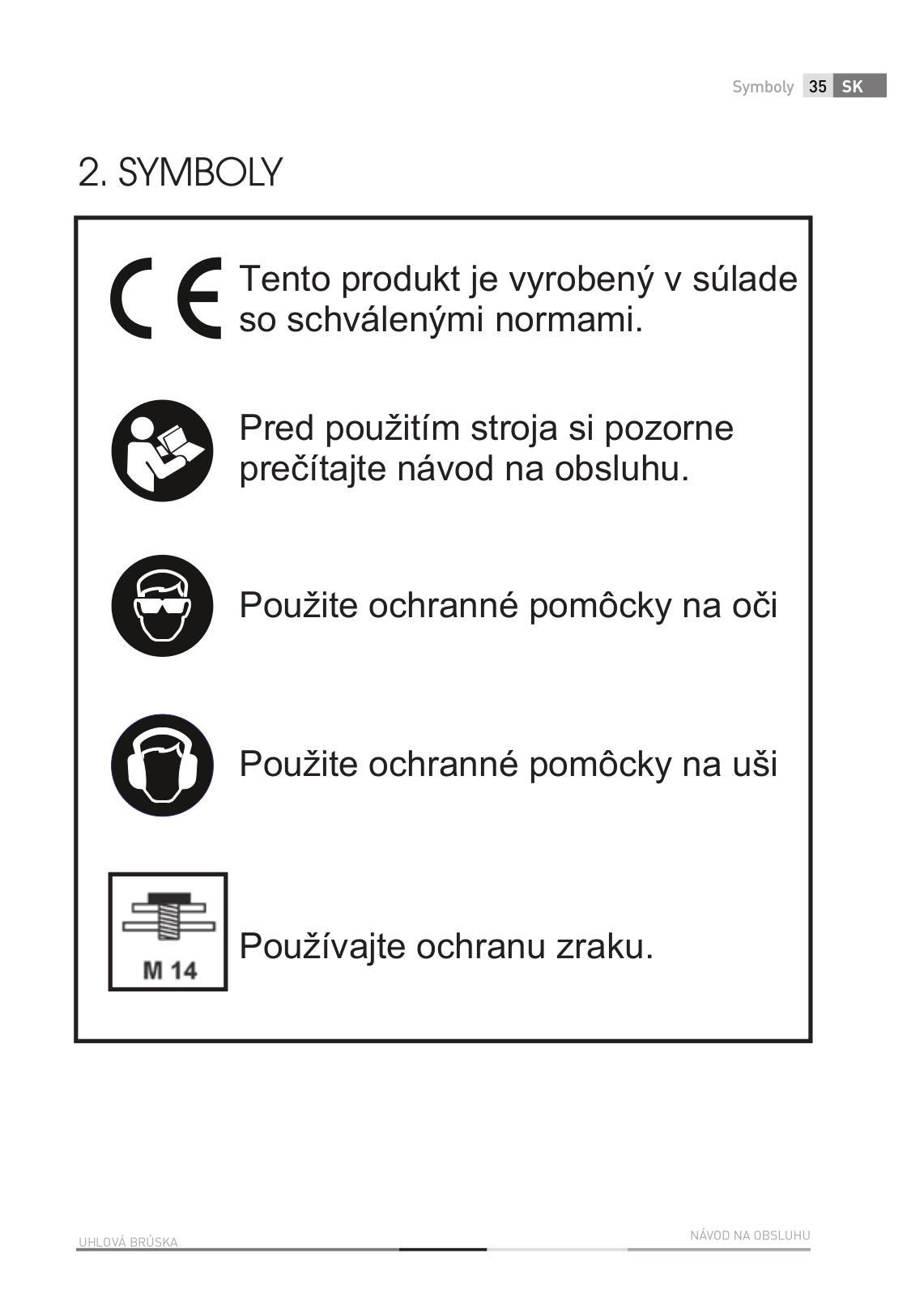

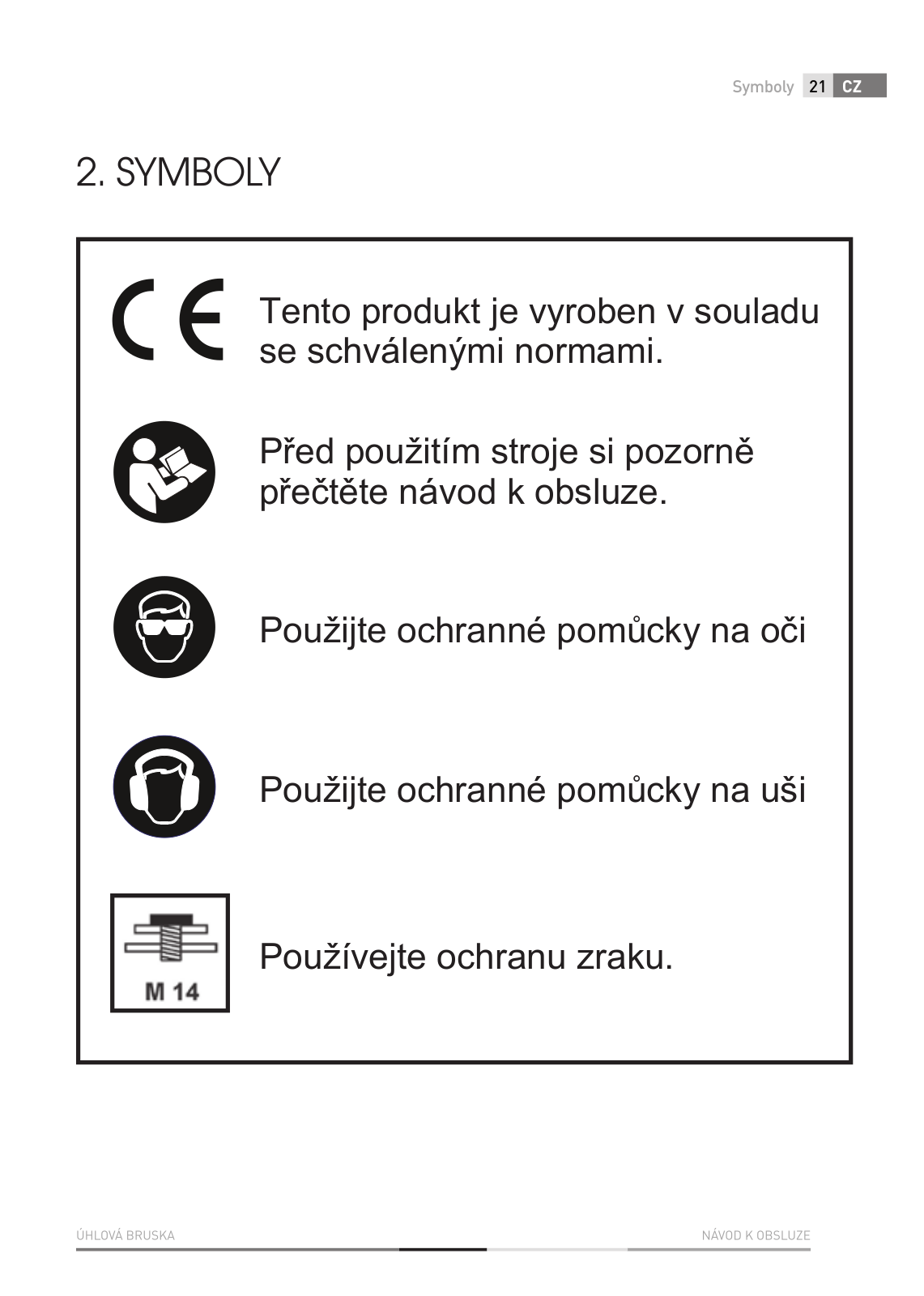

The product complies with the applicable standards and regulations.

Read the Instruction Manual attentively prior to use.

Use eyes protective equipment

Use ears protectiove equipment

Thread of jig.

CORDLESS ANGLE GRINDER

FDUB 50601

CORDLESS ANGLE GRINDER

FDUB 50601

CORDLESS ANGLE GRINDER

FDUB 50601

CORDLESS ANGLE GRINDER

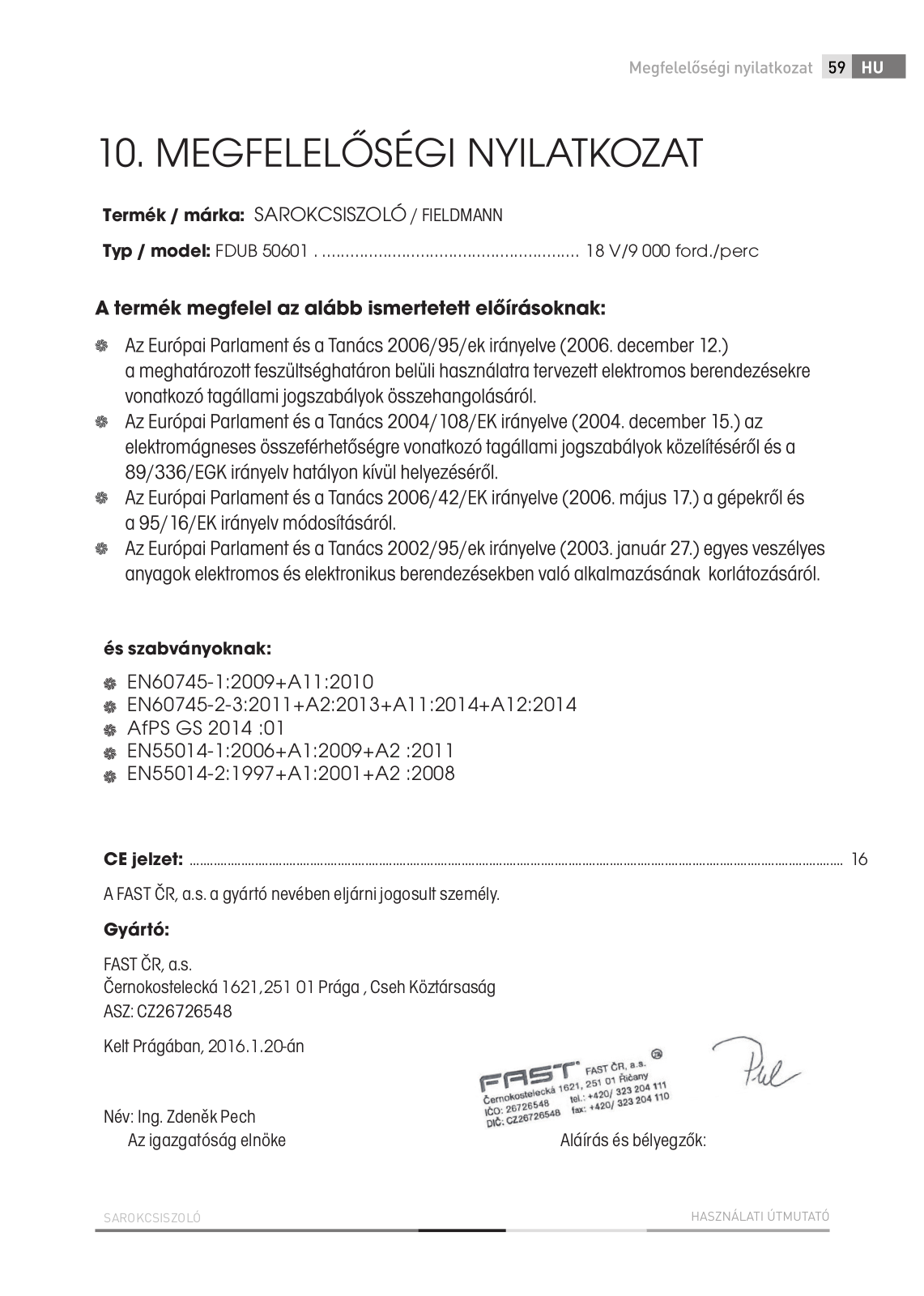

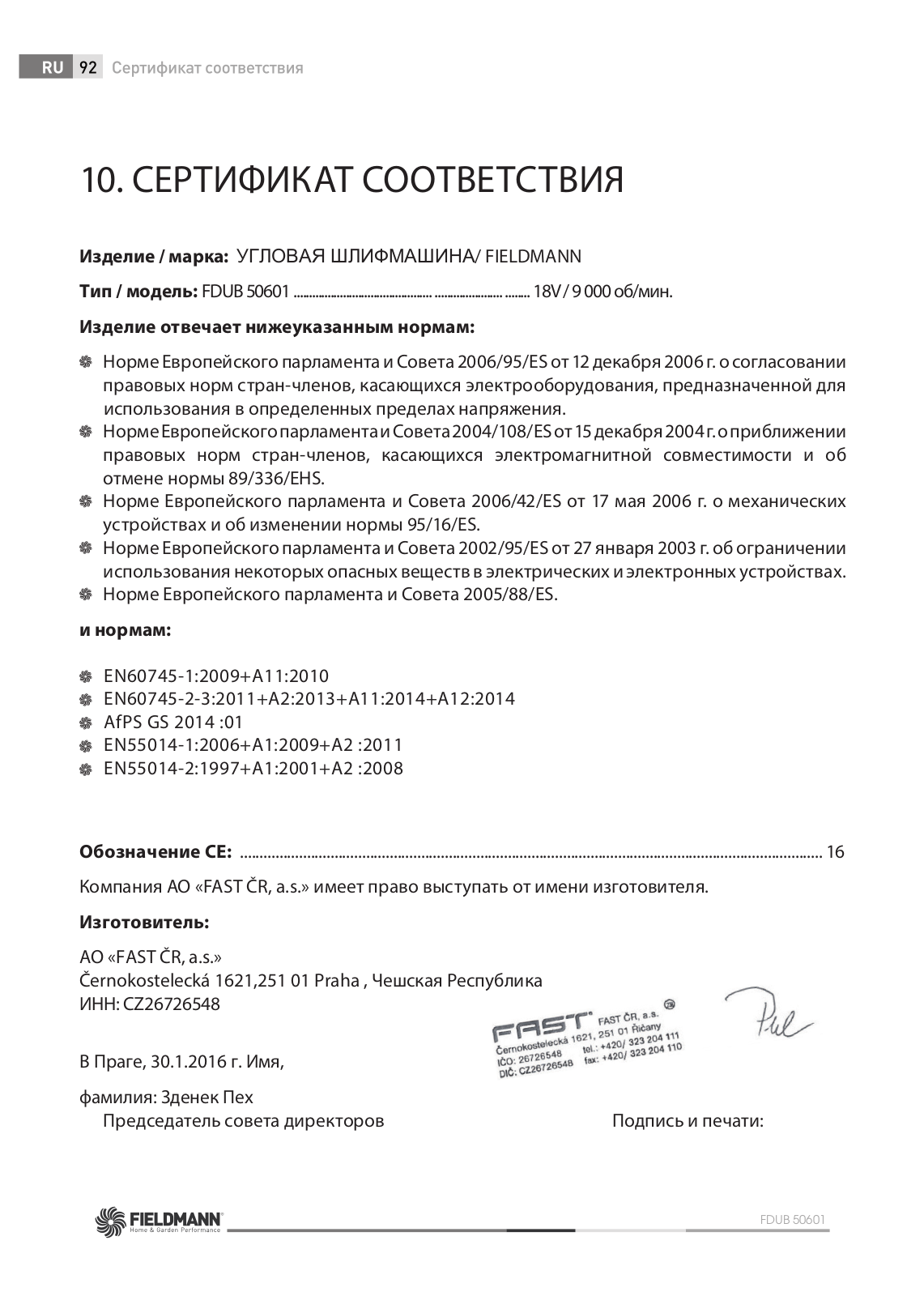

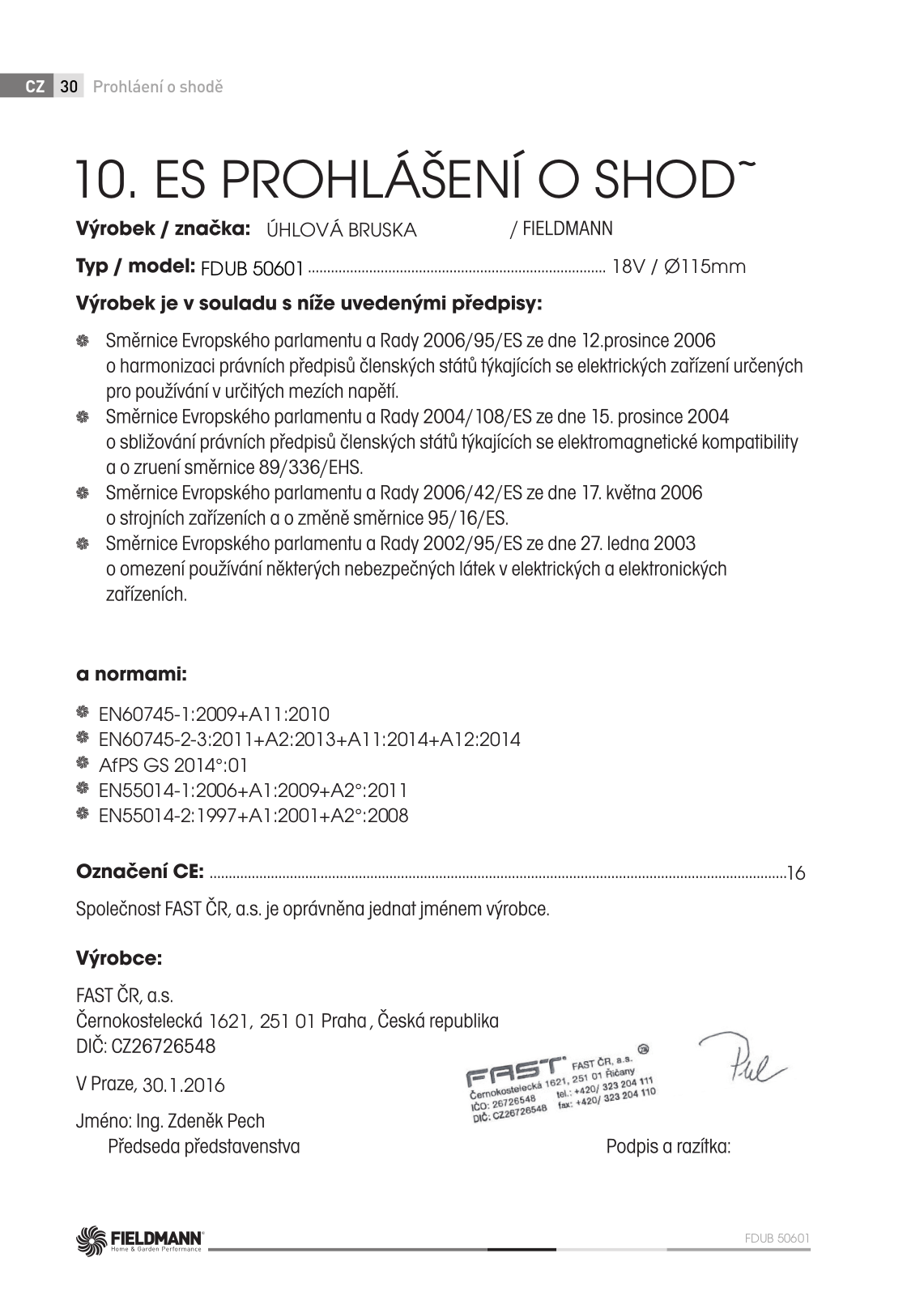

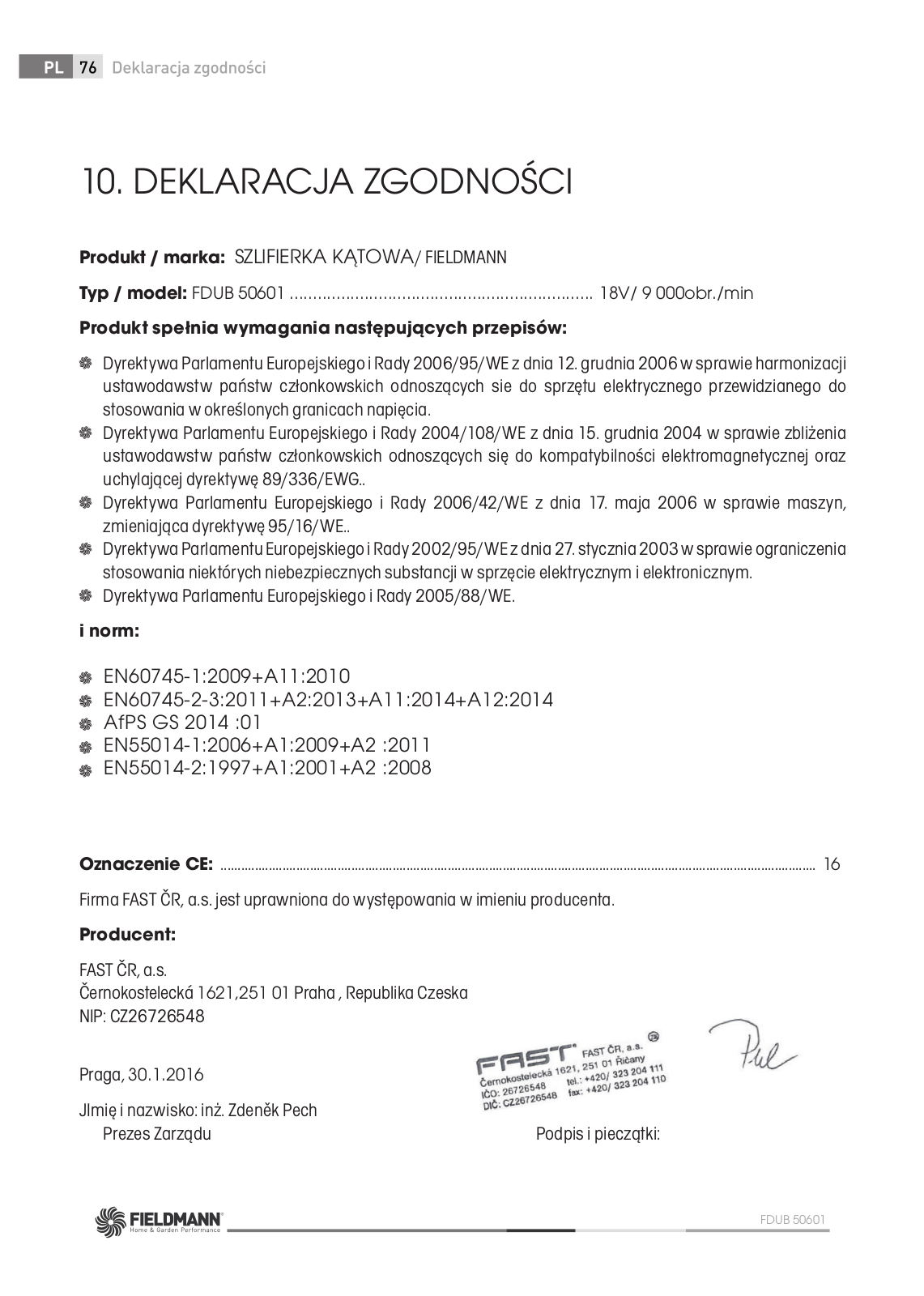

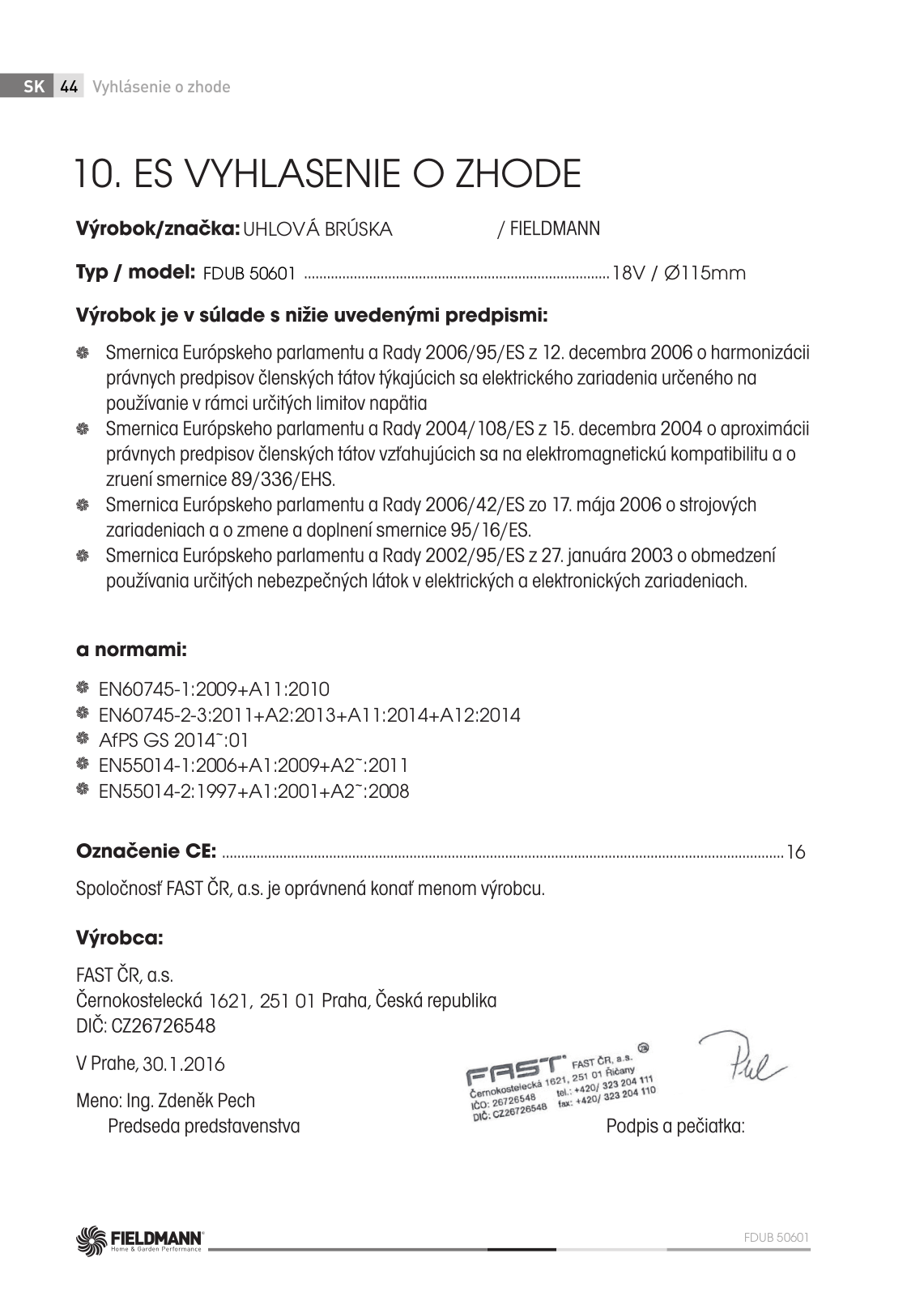

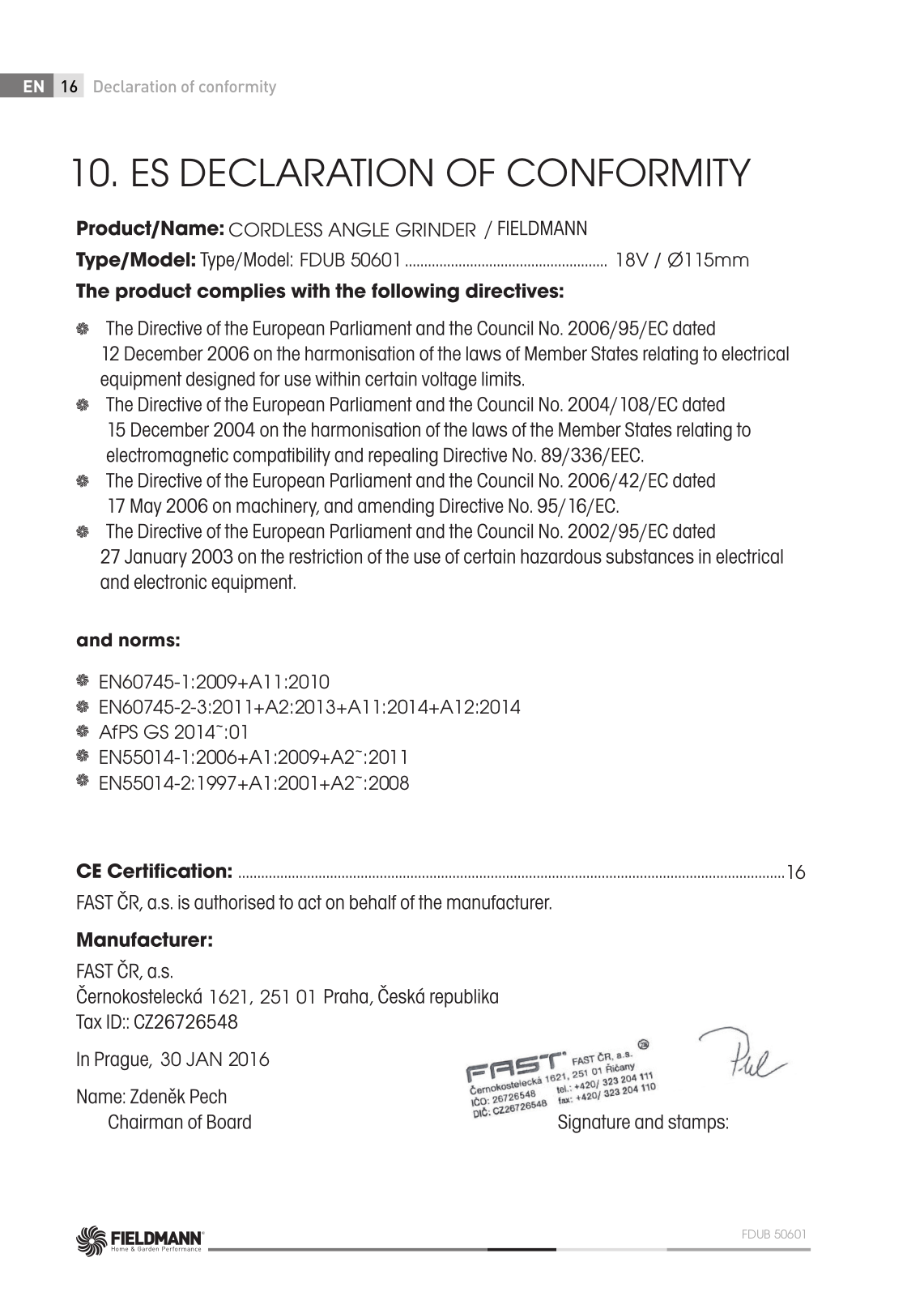

10. ES DECLARATION OF CONFORMITY

CORDLESS ANGLE GRINDER

FDUB 50601 18V / Ø115mm

and norms:

EN60745-1:2009+A11:2010 EN60745-2-3:2011+A2:2013+A11:2014+A12:2014 AfPS GS 2014˜:01 EN55014-1:2006+A1:2009+A2˜:2011 EN55014-2:1997+A1:2001+A2˜:2008

1621, 251 01

30 JAN 2016

FDUB 50601

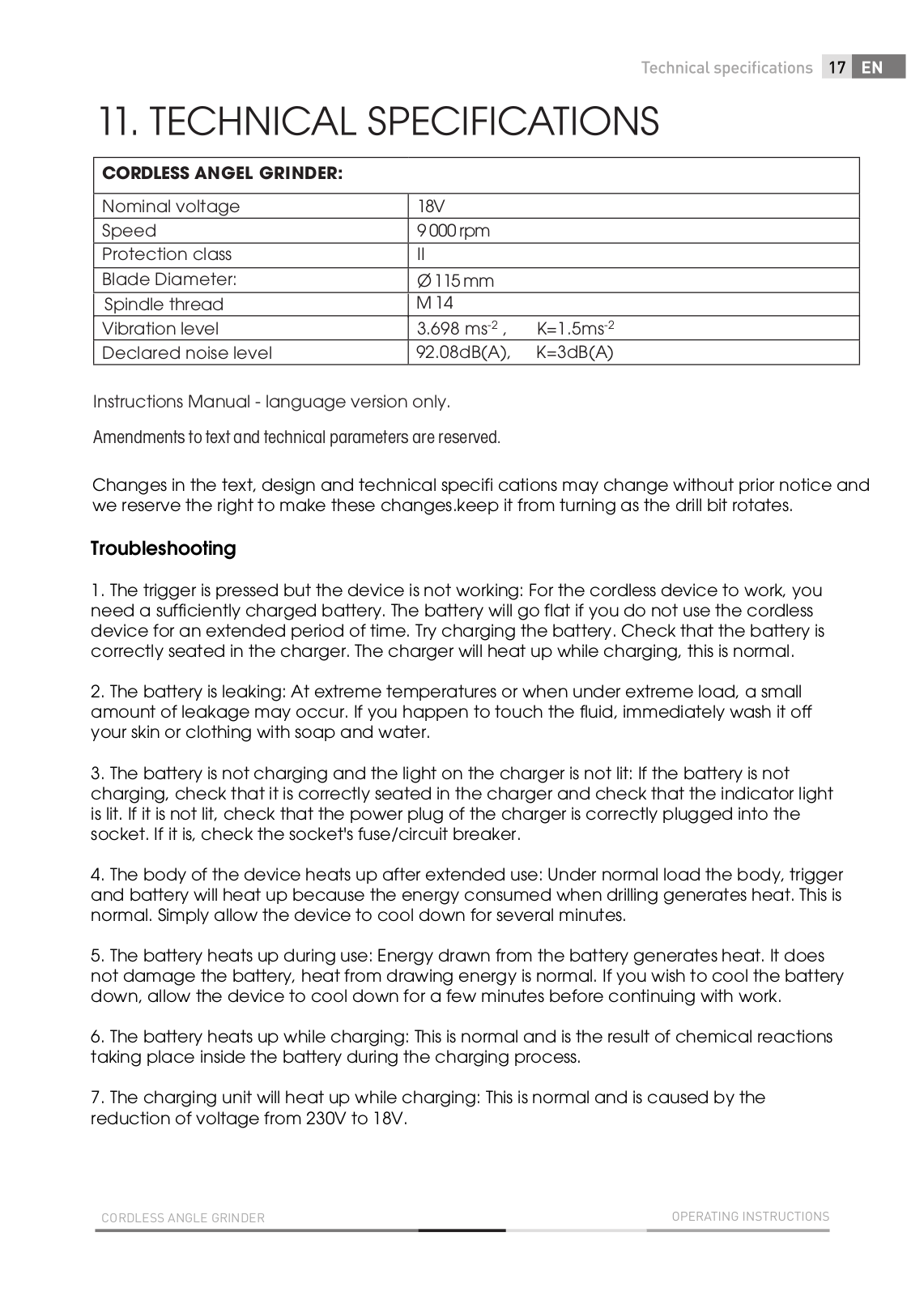

CORDLESS ANGEL GRINDER:

Nominal voltage 18V Speed

9 000 rpm Protection class II Blade Diameter:

Spindle thread Vibration level 3.698 ms-2 , Declared noise level

Ø 115 mm M 14

K=1.5ms

-2

92.08dB(A), K=3dB(A)

Instructions Manual - language version only.

Amendments to text and technical parameters are reserved.

Changes in the text, design and technical specifi cations may change without prior notice and we reserve the right to make these changes.keep it from turning as the drill bit rotates.

Troubleshooting

1. The trigger is pressed but the device is not working: For the cordless device to work, you need a sufficiently charged battery. The battery will go flat if you do not use the cordless device for an extended period of time. Try charging the battery. Check that the battery is correctly seated in the charger. The charger will heat up while charging, this is normal.

2. The battery is leaking: At extreme temperatures or when under extreme load, a small amount of leakage may occur. If you happen to touch the fluid, immediately wash it off your skin or clothing with soap and water.

3. The battery is not charging and the light on the charger is not lit: If the battery is not charging, check that it is correctly seated in the charger and check that the indicator light is lit. If it is not lit, check that the power plug of the charger is correctly plugged into the socket. If it is, check the socket's fuse/circuit breaker.

4. The body of the device heats up after extended use: Under normal load the body, trigger and battery will heat up because the energy consumed when drilling generates heat. This is normal. Simply allow the device to cool down for several minutes.

5. The battery heats up during use: Energy drawn from the battery generates heat. It does not damage the battery, heat from drawing energy is normal. If you wish to cool the battery down, allow the device to cool down for a few minutes before continuing with work.

6. The battery heats up while charging: This is normal and is the result of chemical reactions taking place inside the battery during the charging process.

7. The charging unit will heat up while charging: This is normal and is caused by the reduction of voltage from 230V to 18V.

CORDLESS ANGLE GRINDER
