FIC VI39C User Manual

VI39C

MAINBOARD

MANUAL

DOC No.: M02601
Rev. : A0
Date : 7, 2002
Part No. : 25-12158-00

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard
or other computer components:

n Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

n Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

n Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
mounting brackets.

The above methods prevent static build-up and cause it to be discharged
properly.

Tra demark

All trademarks mentioned in this manual are registered properly of
the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copies retained by the
purchaser for personal archival purposes.

T able of Contents

Table of Contents

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

Chapter 1 Overview

Package Checklist .......................................................................... 1 - 2

The VI39C Mainboard ............................................................... 1 - 3

Main Features................................................................................ 1-4

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support ..................... 1-5

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2- 2

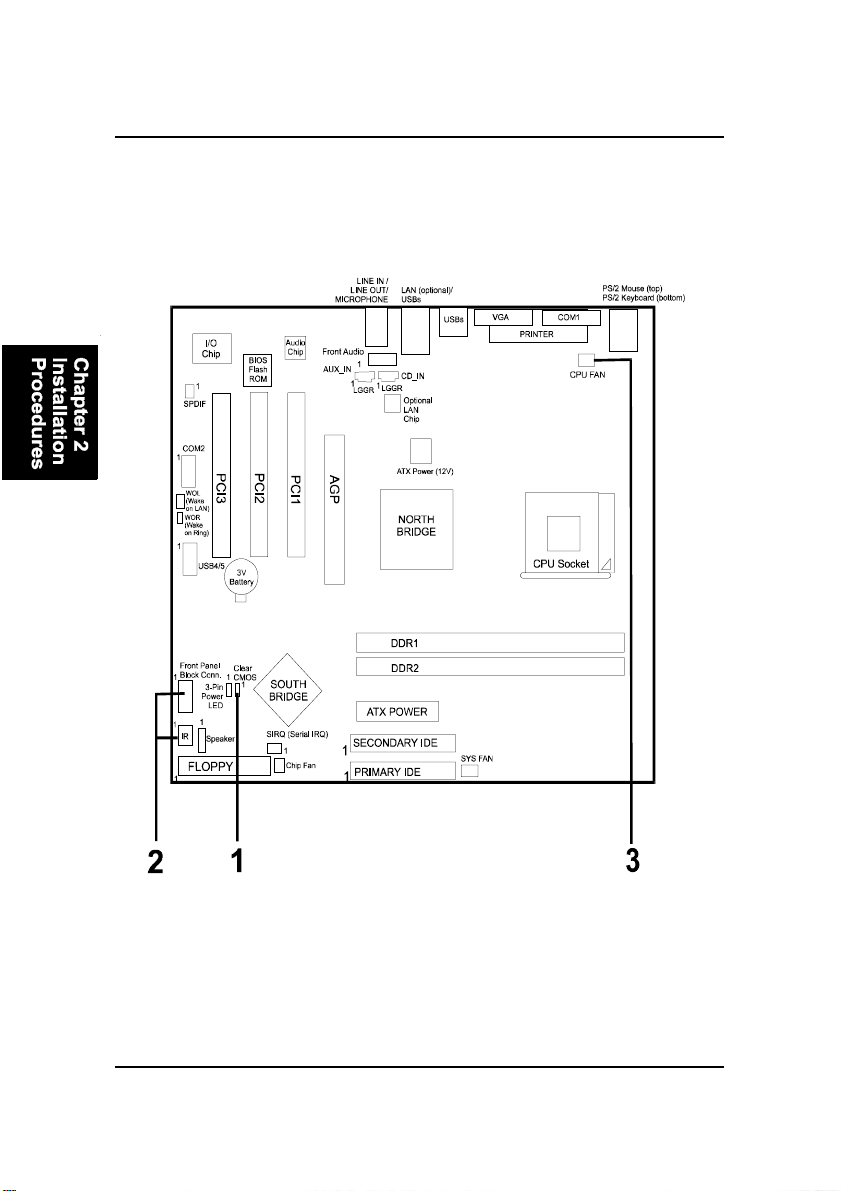

Mainboard Layout .................................................................... 2-2

1). Clear CMOS.................................................................. 2- 3

2). Front Pa nel Block Cable Connection ............................ 2- 3

3). CPU Fa n Installation..................................................... 2 -4

1). Set System Jumpers .................................................................. 2- 4

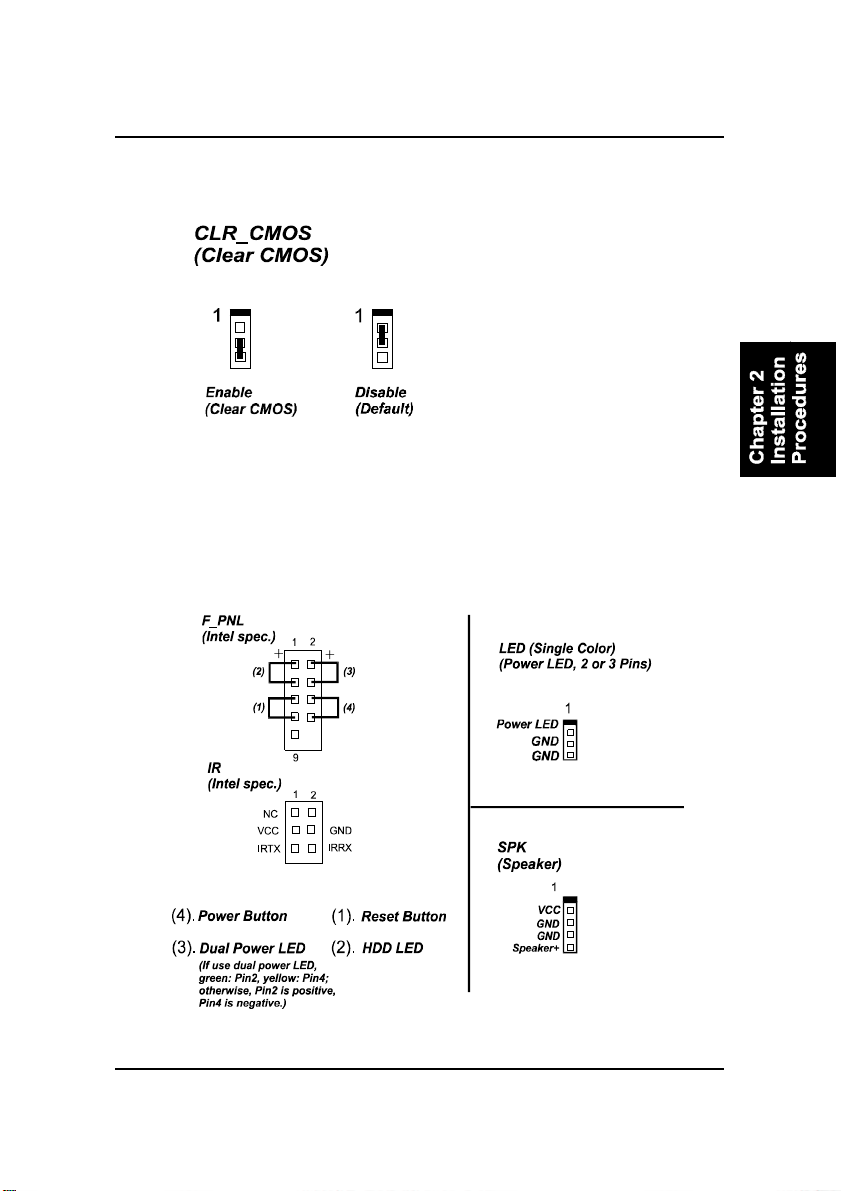

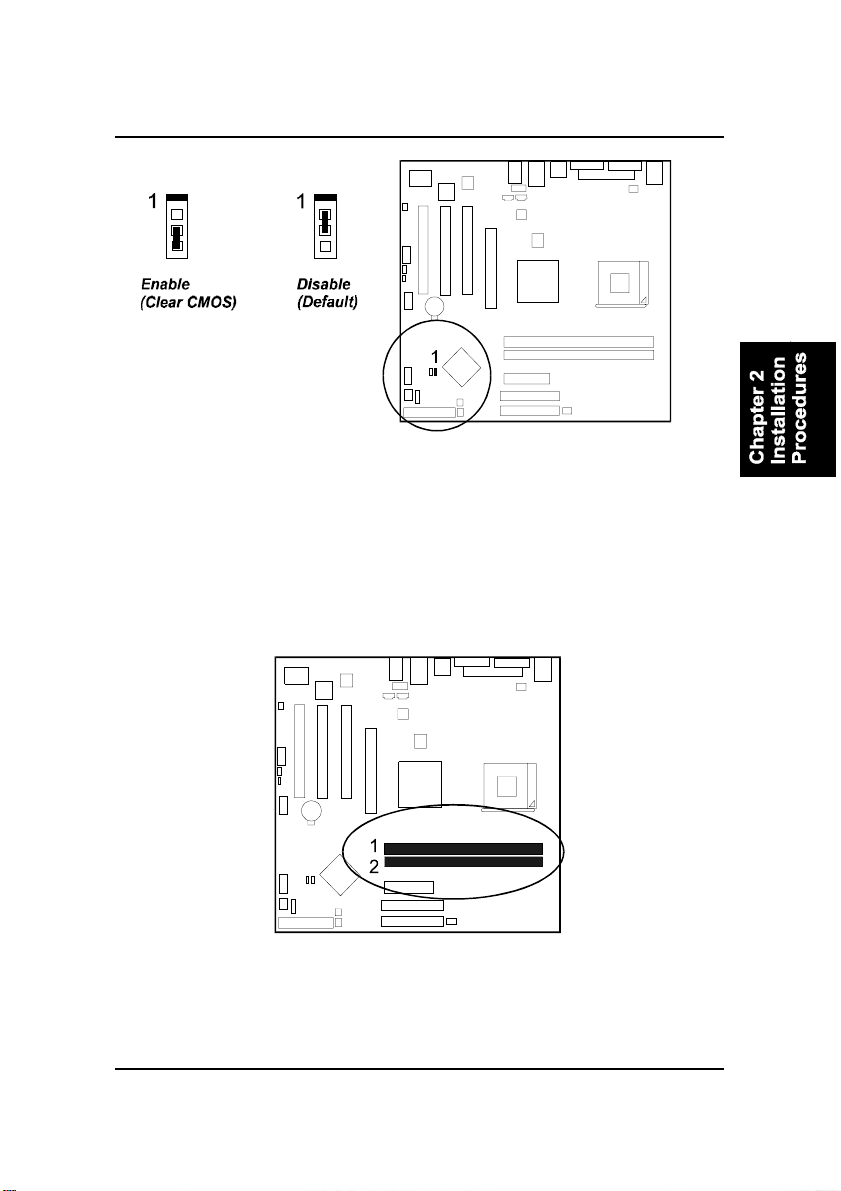

Clear CMOS: CLR_CMOS ................................................. 2 - 4

2). Install Memory Modules .......................................................... 2- 5

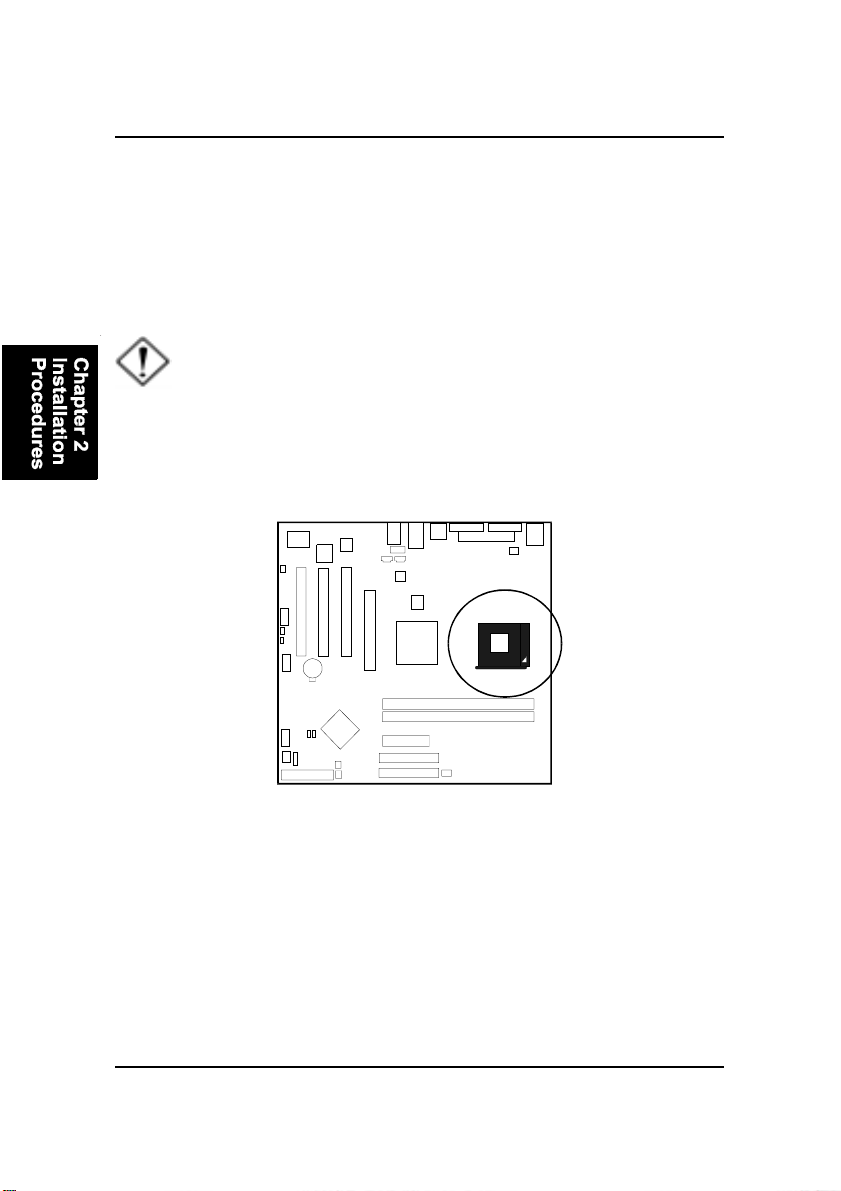

3). Install the CPU .......................................................................... 2 - 6

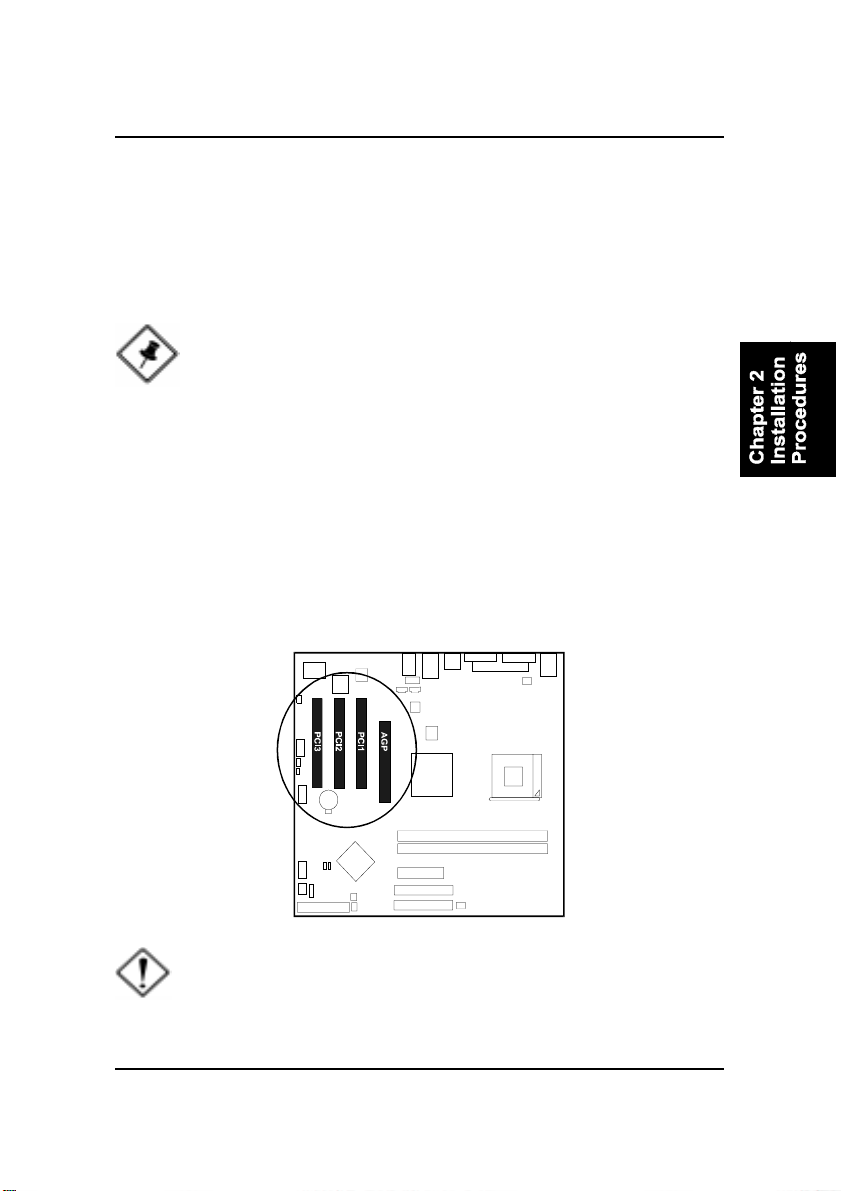

4). Install Expa nsion Cards ............................................................. 2- 7

5). Connect Devices....................................................................... 2 - 9

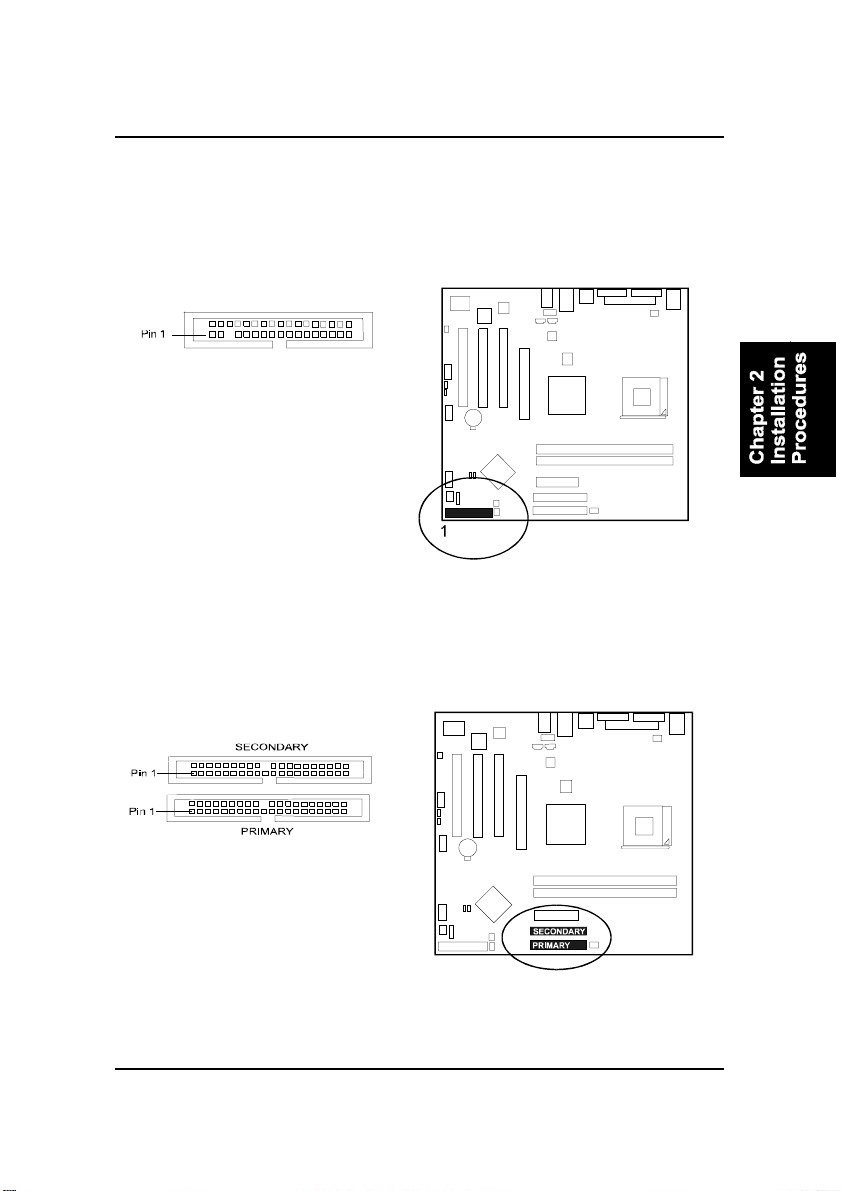

Floppy Diskette Drive Connector ..................................... 2- 9

IDE Device Connectors ..................................................... 2- 9

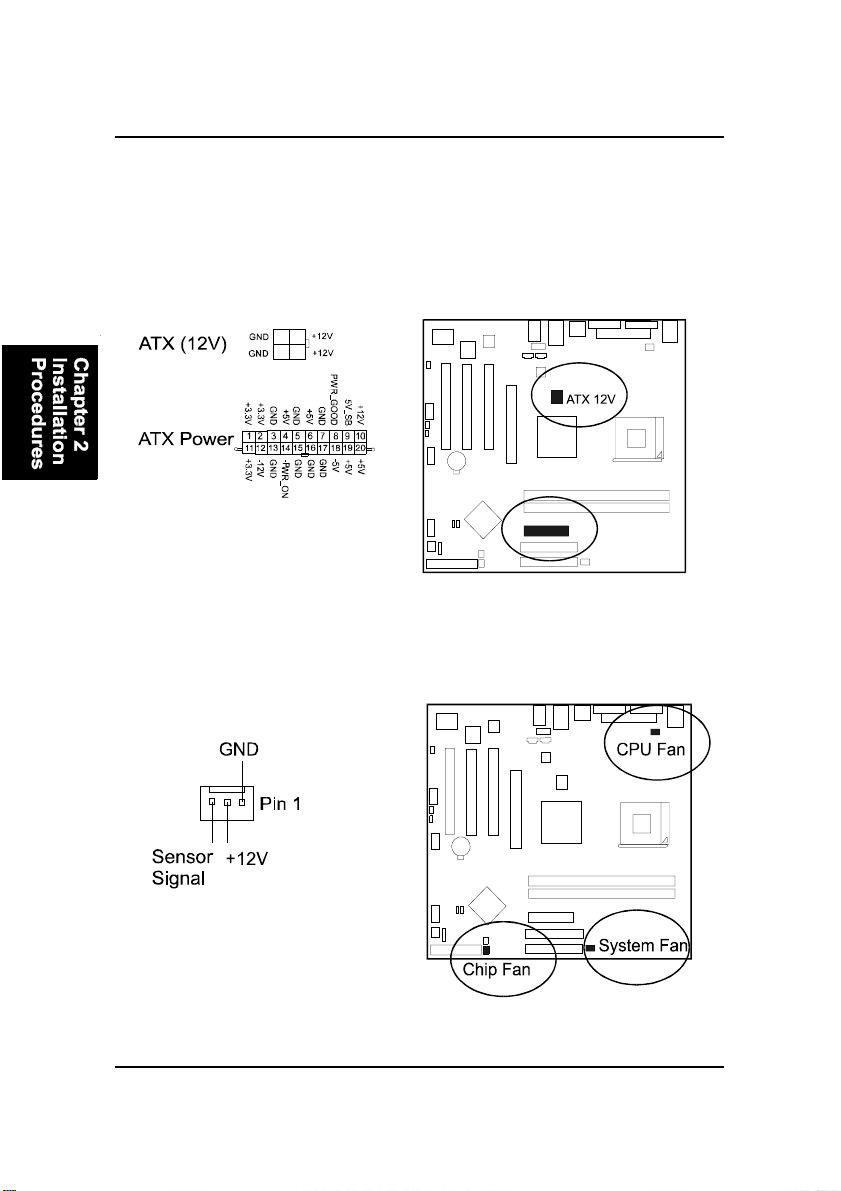

Power Connectors ............................................................. 2-10

Fan Connectors................................................................. 2-10

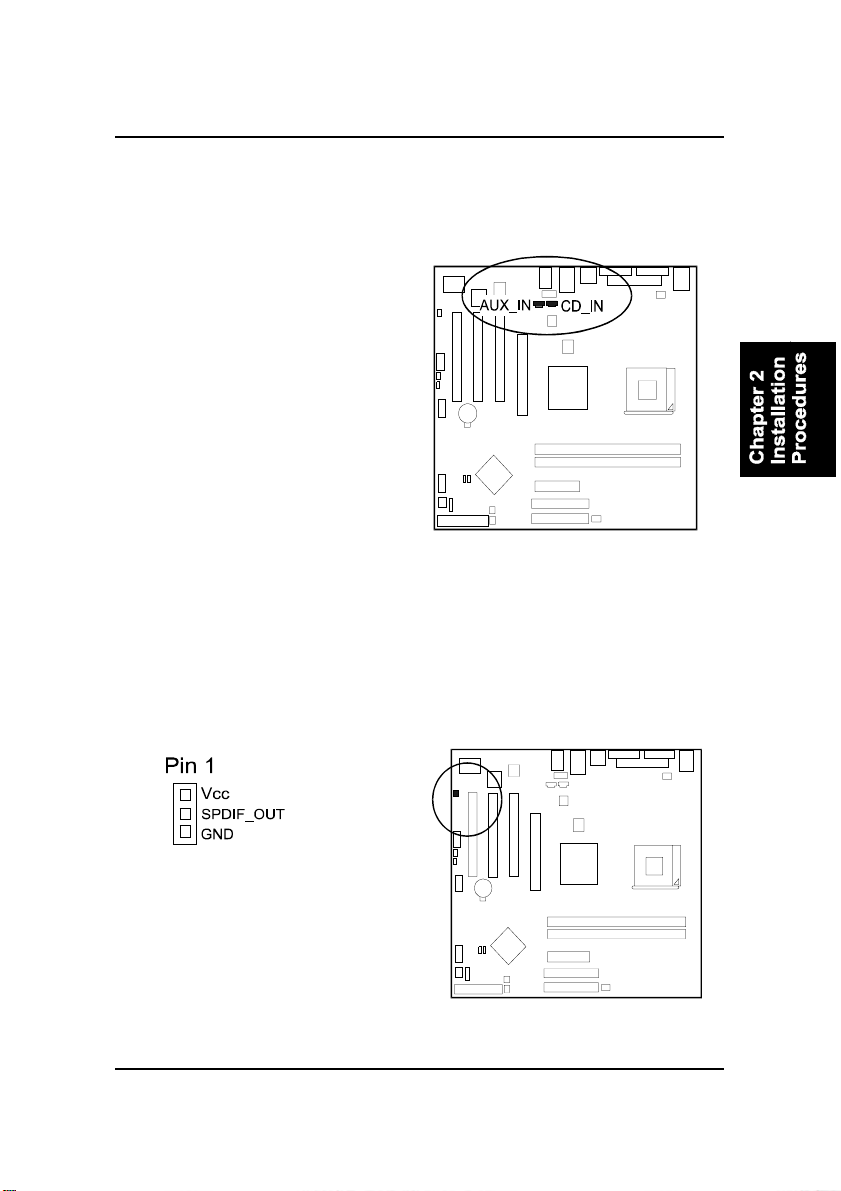

CD Audio-In Connector .................................................... 2-11

SPDIF_OUT Connector .................................................... 2-11

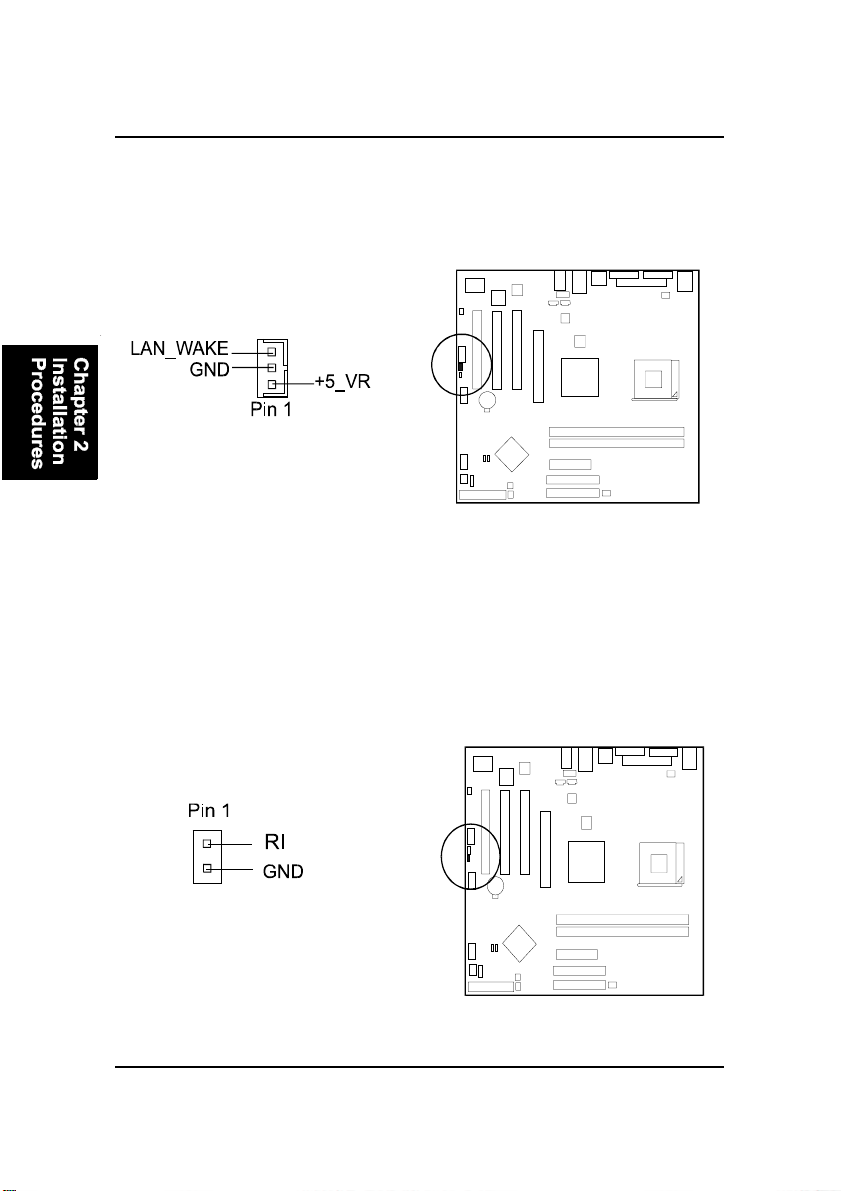

W ake-On-La n Connector................................................... 2-12

W ake-On-Ring Connector................................................. 2-12

i

VI39C Mainboard Manual

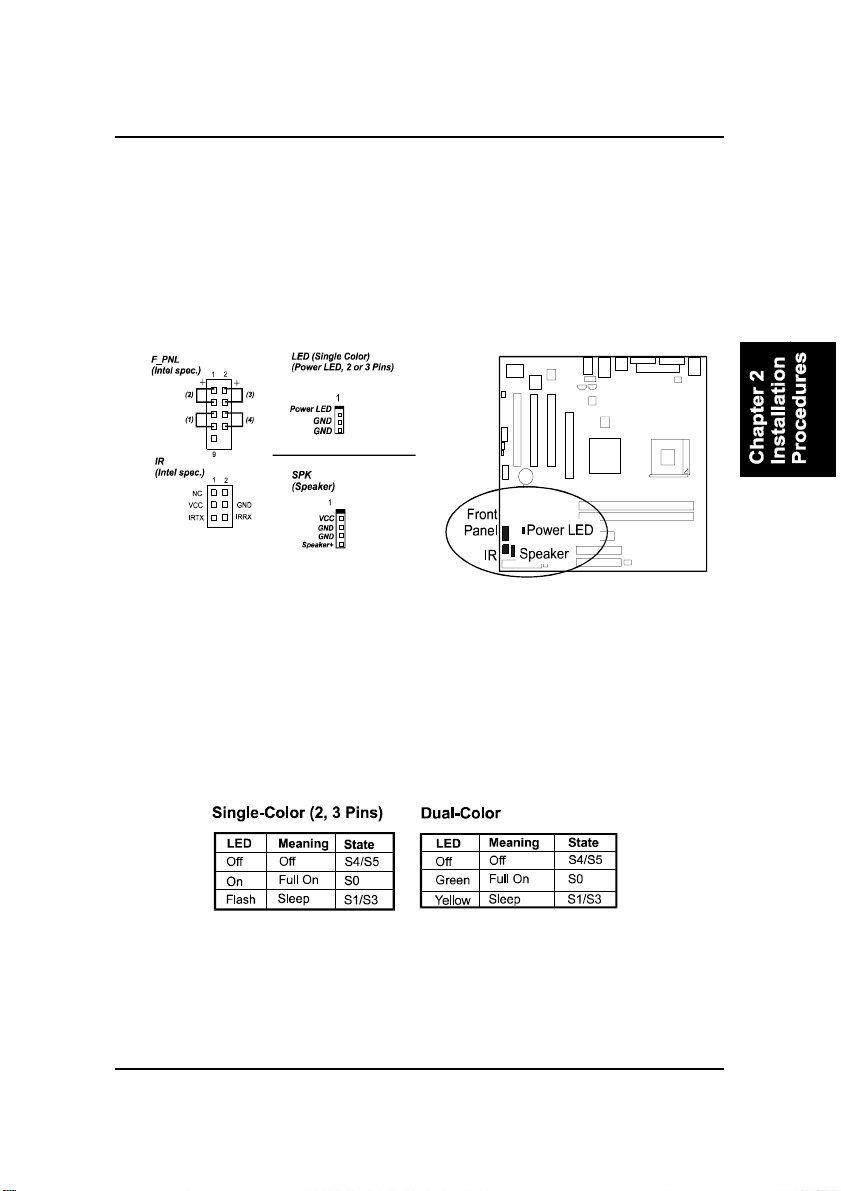

Front Pa nel Block a nd IR Connector.................................. 2-13

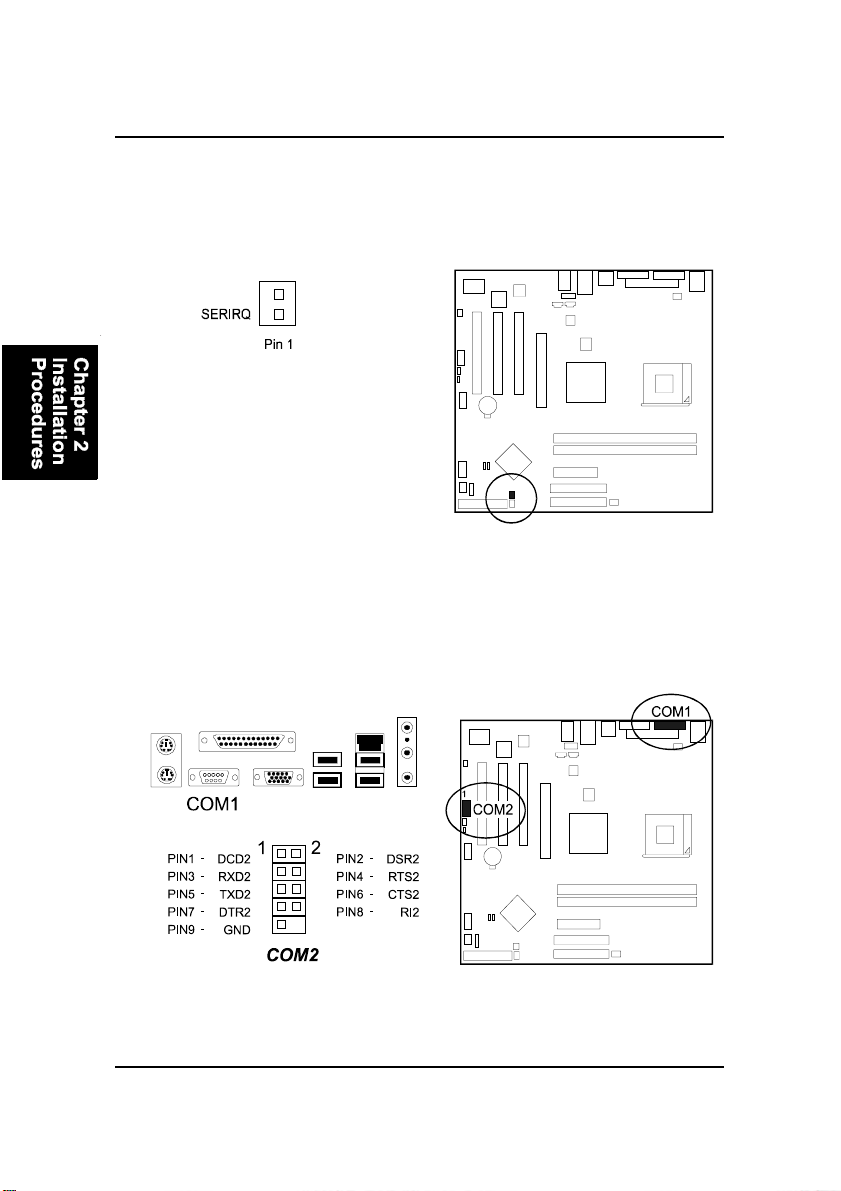

SIRQ Connector ................................................................ 2-14

Serial Port Connectors....................................................... 2-14

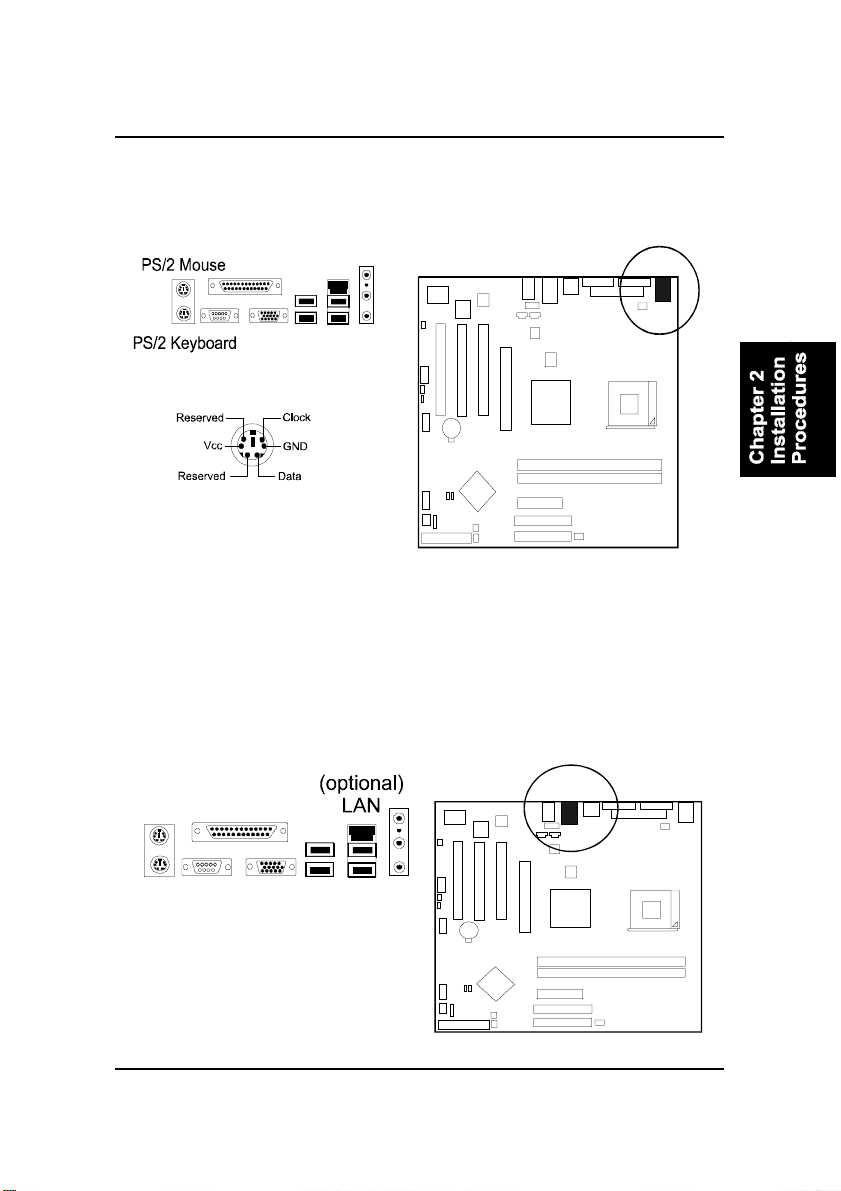

PS/2 Keyboard and Mouse Connector.............................. 2-15

LAN Connector (mfg.optional) ........................................ 2-15

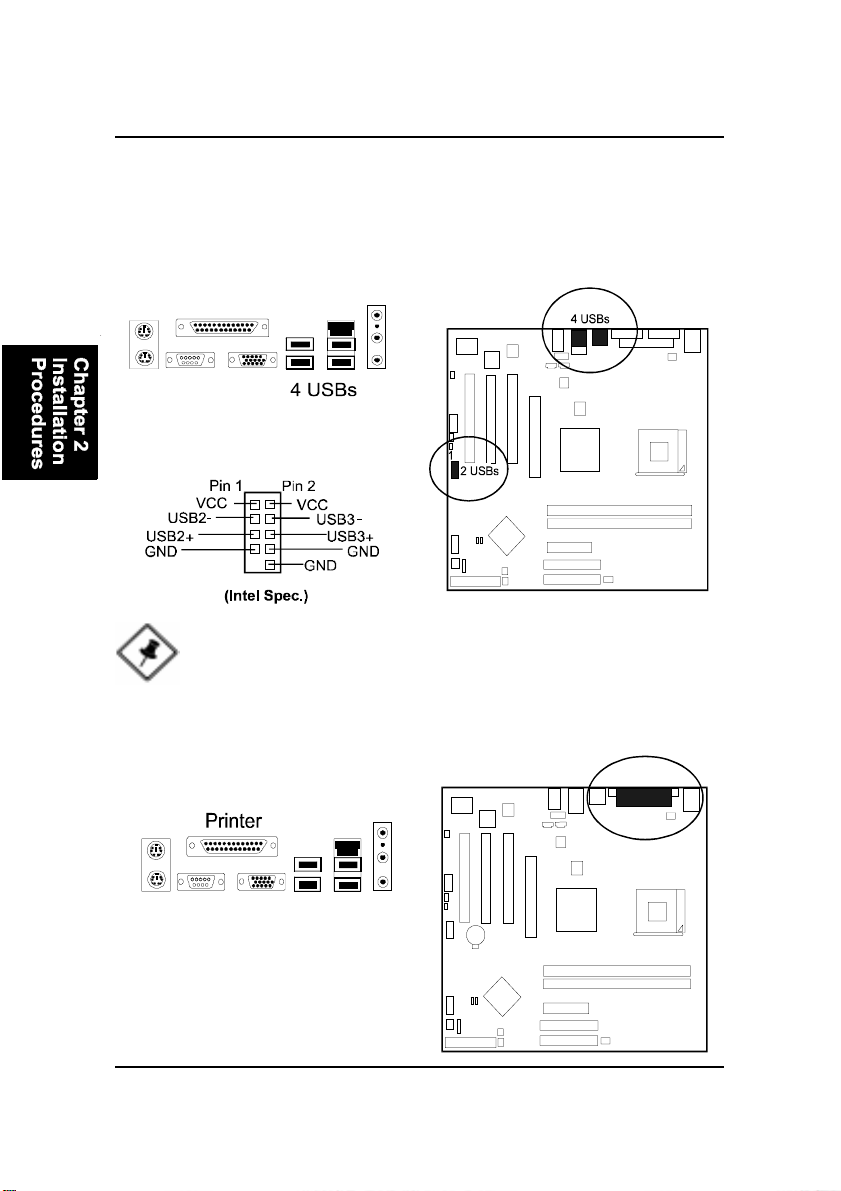

Universal Serial Bus Connectors....................................... 2-16

Printer Connector .............................................................. 2-16

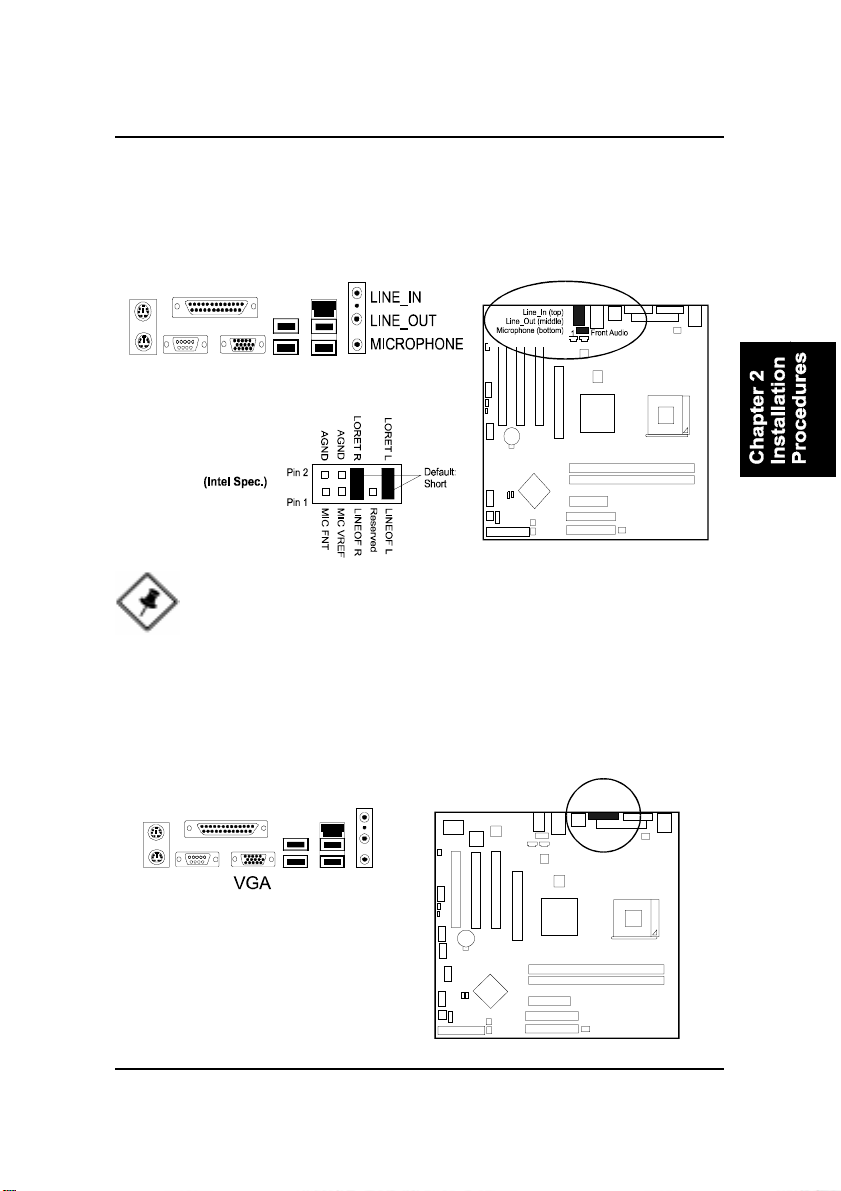

Audio I/O Jacks ................................................................ 2-17

Video Gra phics Accelerator Connector .............................. 2-17

Chapter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3- 1

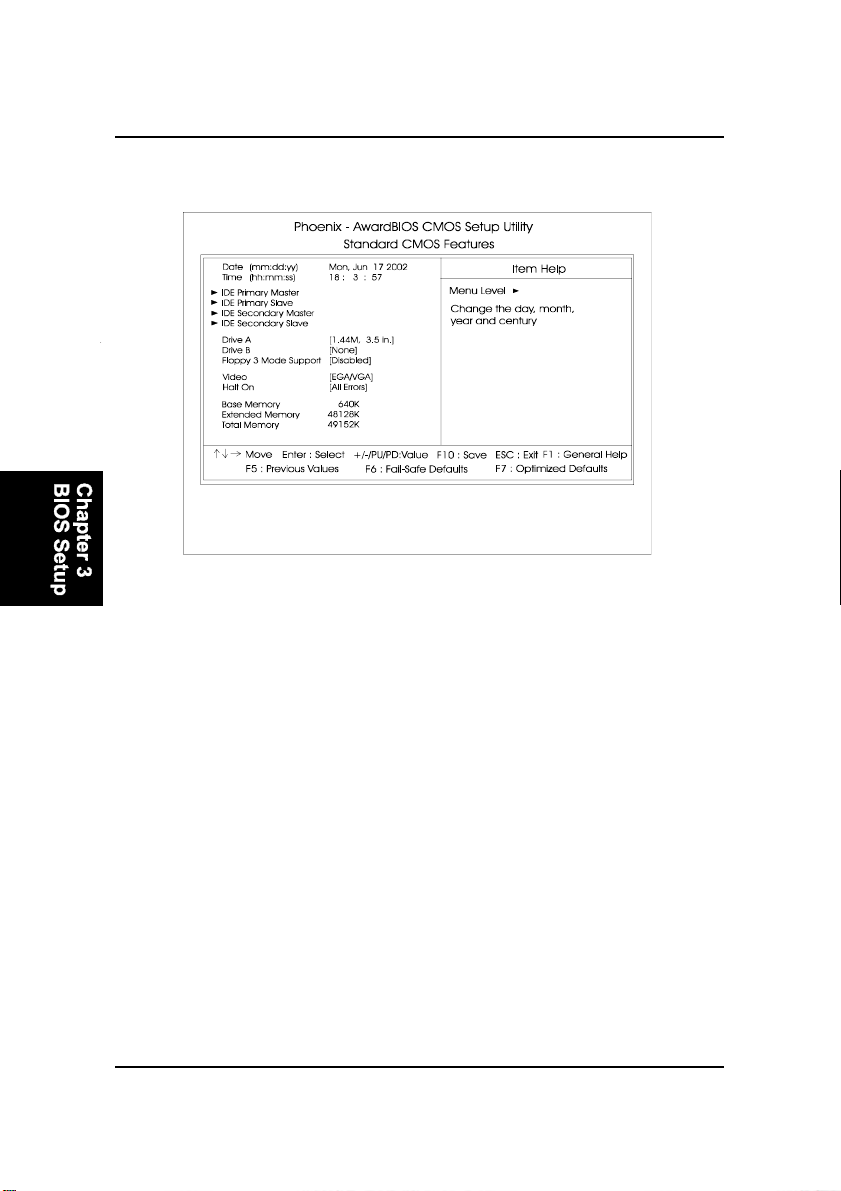

Standard CMOS Setup................................................................... 3- 2

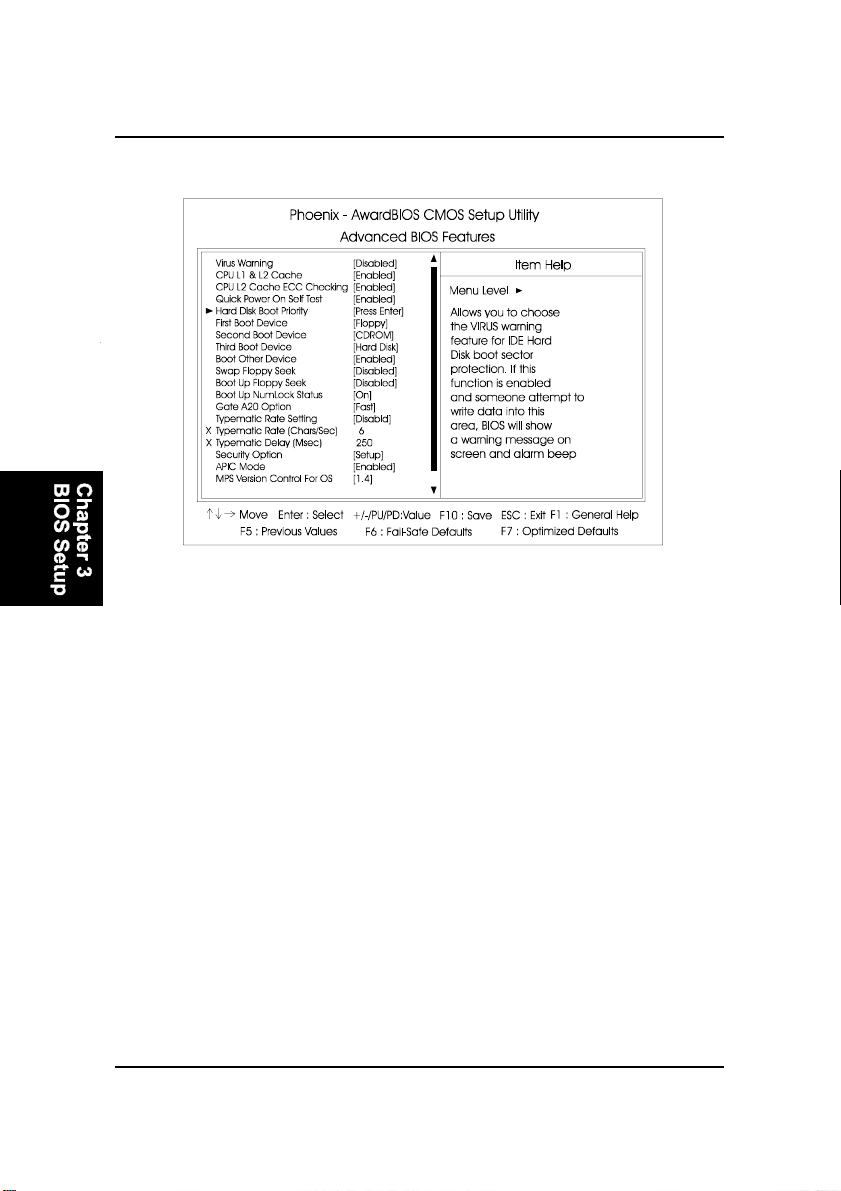

Advanced BIOS Features .............................................................. 3 -4

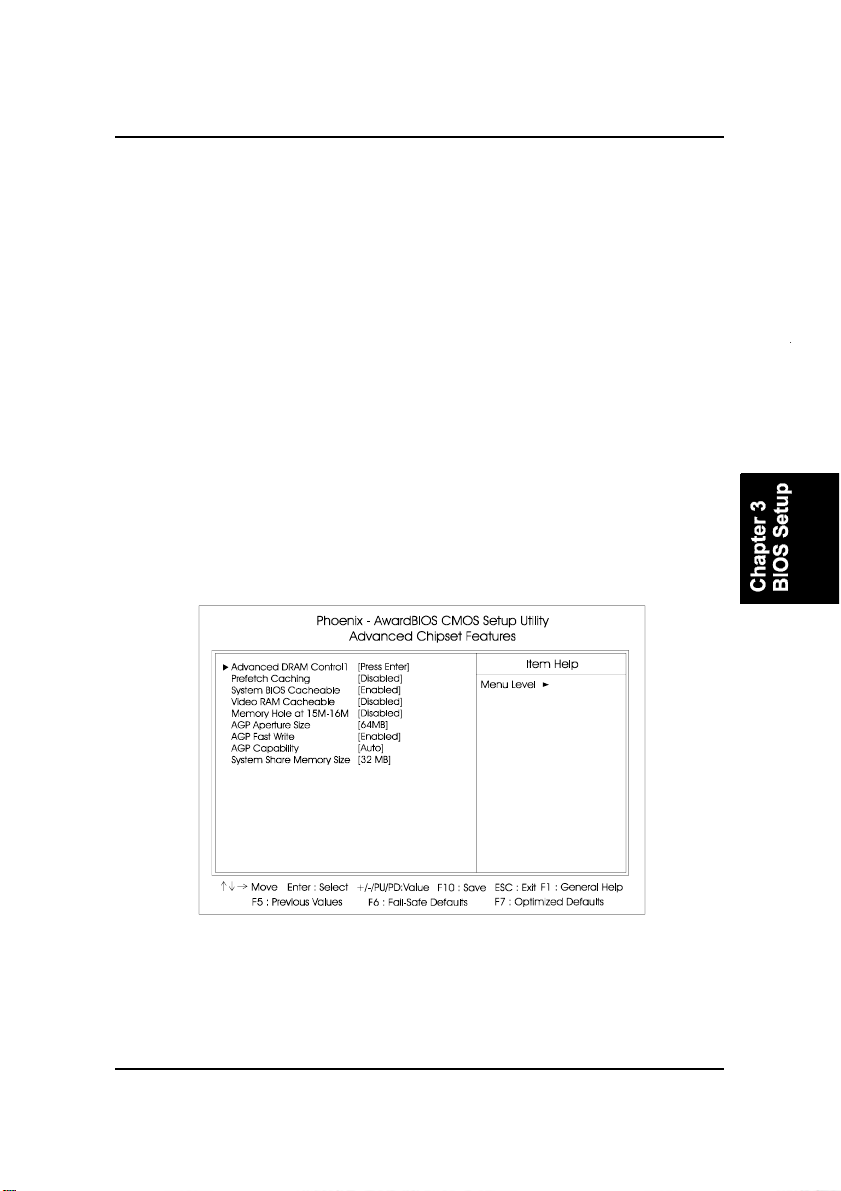

Advanced Chipset Features .......................................................... 3-7

Integrated Peripherals.................................................................... 3 - 9

Power Management Setup ............................................................. 3-12

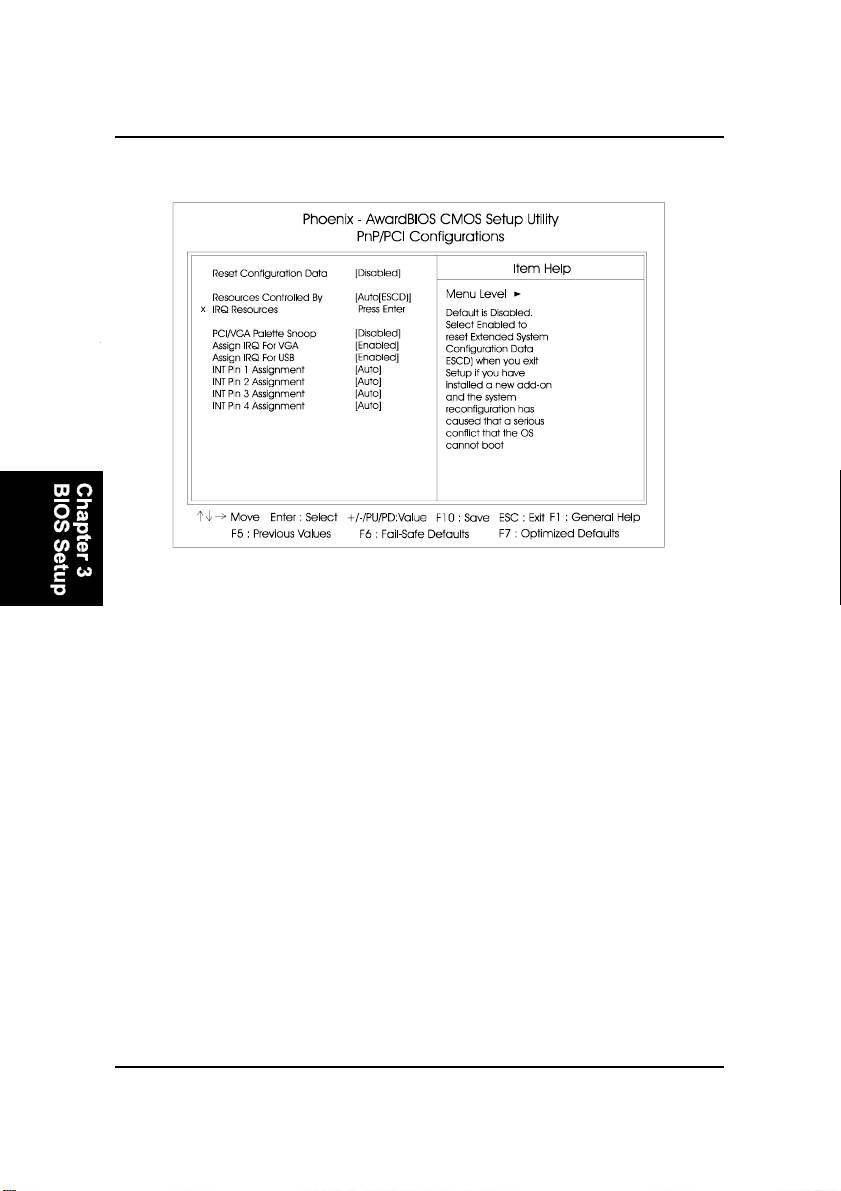

PnP/PCI Configurations................................................................. 3-16

PC Health Status ............................................................................ 3-17

Frequency/Voltage Control............................................................ 3-18

Loa d Fail-Safe Defaults .................................................................. 3-19

Load Opti mized Defaults ................................................................ 3-19

Supervisor/User Password ............................................................ 3-19

Save a nd Exit Setup........................................................................ 3-19

Exit without Saving ........................................................................ 3-19

ii

Overview

Chapter 1

Overview

The Micro ATX, 478-pin FC-PGA2 package, VI39C mainboard supports the
latest generation Intel® P4 level processors that achieve from 1.4 to 2.4 GHz
a nd up being with two DD R DIMM slots f or total 2GB capa city.

The board is built around the new SiS650GX chip that provides integrated
VGA solution for P4 with 400 MHz system bus and DDR266/200 SDRAM.
SiS962L features AT A133 to ensure the high data tra nsfer speeds especi ally
for long sequential transfers required by audio/visual applications. The board
also supports six USB 2.0 ports that allow to connect with advanced USB 2.0
peripheral devices in a more ef ficient way .

Add-on card expansion is provided by 1 AGP 4X/2X and 3 PCI slots. I/O
connections include 2 COM ports (1 connector and 1 pinheader), 1 printer
connector, 1 VGA connector, 1 SPDIF_OUT connector , 1 optional LAN, 1 PS/
2 mouse a nd keyboard connector, 6 USB 2.0 ports (4 ja cks a nd 1 pinhea der) a nd
1 media connector (Line-In, Line-Out*, M ic-In, front audio pinheader).

* The audio features of this mainboar d do not have an amplifier, an a ctive speaker is a
must.

Other key features are Remote On/Off, Auto Power Failure Recovery, inte­grated temperature monitoring and system fan control. Included also is a CD
with enhanced supporting drivers containing a few bundled soft-ware solu­tions.

1 - 1

VI39C Mainboard Manual

Package Checklist

If you discover any item below wa s da maged or lost, plea se conta ct your
vendor.

þ The mainboard þ This user manual
þ One F DD cable þ |Software CD
þ One A TA/100 cable

NOTE: Software driver/utility CD that contains patch files, onboard
video/audio chip drivers, related online help and other useful infor­mation can be found in your mainboard package.

Please install it right after your Windows operating system installa­tion is done.

pears in your monitor. Please select
matically detect which software tools (patch files, drivers) that the
mainboard needs. Press OK button to go through the whole instal­lation procedure in a very straight forward and easy way. It also
provides you with a custom way to select wanted patch files and
software drivers that for onboard chips use. The top menu of the

CD lists all the functions that allowed by this board.

Place the CD in the drive, an operating menu will ap-

Auto Installation

. It will auto-

1 - 2

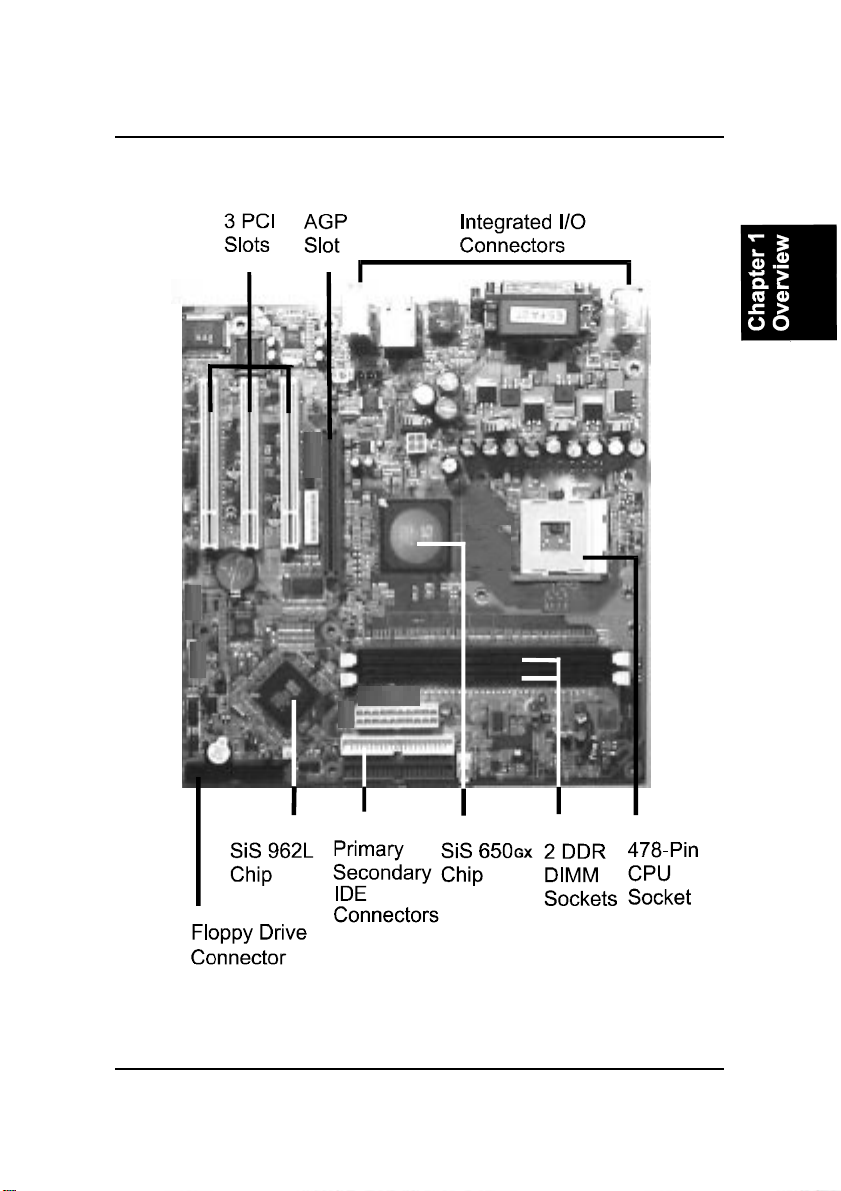

The VI39C Mainboard

Overview

1 - 3

VI39C Mainboard Manual

Main Features



 Easy Installation



||BIOS with support for Plug and Play , auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, Windows 98SE, W indows ME, W indows
||NT , W indows 2000, Windows XP , a nd OS/2.



 Lea ding Edge Chipset



SiS650GX Chipset (650GX + 962L) provides high-performance 2D/3D
graphic engine and video accelerator, advanced hardware acceleration
MPEGI/MPEGII video decorder, a nd memory controller , a nd AGP (2X/4X)
interface.



 Advanced High Performance Memory Controller



Through two DD R DIMM sockets a ccepts up to 2 GB totally with support
DDR266/200 SD RAM.



 Intel P4 Processors Support



Intel P4 478-pin FC-PGA2 package:

1.4 to 2.4 GHz a nd up* (FSB 400)
Celeron 1.7 to 1.9GHz a nd up* (FSB 400) (*: not tested yet)



 AGP a nd PCI Expansion Slots



One AGP Bus expa nsion slot and three PCI Bus expansion slots provided
the room to install a full ra nge of add-on cards.



 Enha nced PCI Bus Ma ster IDE Controller with Ultra DMA 33/66/100/



1 33 Support
Integrated Enhanced PCI Bus Master IDE controller features two dual­cha nnel connectors that up to four Enhanced IDE devices, including CD­ROM a nd T a pe Backup Drives, a s well as Hard Disk Drives supporting the
new Ultra DMA 133 protocol.

1 - 4

Overview



 Super Multi Input/Output (I/O) Support



SiS962L meets PC2001 Requirements, PCI 2.2 Specification, with dual IDE
master/slave controller to off er Ultra DMA 133. It integrated USB 2.0 host
controller to support 6 USB 2.0 ports. To saving power, it supports the
system wake-up from state S1/S3.



 Convenient Rear Pa nel USB Connection Support



Four USB 2.0 ports integrated in the rear I/O pa nel a nd two extra USB 2.0
ports for either front or rear panel connection allow convenient and high­speed Plug and Play connections to the growing number of USB 2.0
complia nt peri pheral devices on the market.

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support



 BIOS Guardia n



BIOS Guardi an ef fectively acts a s a fire-wall against viruse s that can
attack the BIOS while the system is running and by default is en­abled.

WAR NING:

BIOS Guardi an must be disabled bef ore refla sh BIOS.

NOTE:

Please read Page 3-6 for detail information.



 Easy Key



Instead of completing the multi-layered BIOS setup process these
3 Easy Key functions provide dire ct access to Sub-Menu when com­pleting BIOS settings adjustments.

Easy-Keys are as follows:

Ctrl + c: T o enter clock settings menu.
Ctrl + p: To load Performance Default settings and restart.
Ctrl + f: T o loa d Fail-Saf e Default settings a nd restart.

1 - 5

VI39C Mainboard Manual

This Page Left Blank for Note

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

n

Step 1 - Set system jumpers/switches

n

Step 2 - Install memory modules

n

Step 3 - Install the Central Processing Unit (CPU)

n

Step 4 - Install expansion cards
Step 5 - Connect ribbon cables, cabinet wires, and power supply

n
n

Step 6 - Set up BIOS software

n

Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau­tions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

VI39C Mainboard Manual

Quick Reference (from Page 2-2 to 2-4)

Mainboard Layout

* When link to Line_Out ja ck, please use speakers with a mplifier .

2 - 2

Installation Procedures

1). Clear CMOS

2). Front Panel Block Cable Connection

2 - 3

VI39C Mainboard Manual

3). CPU Fan Installation

This connector is linked to the CPU fan. Without sufficient air circulation, the

CPU may overheat resulting in damage to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.

1). Set System Jumpers

Jumpers are used to select the operation modes for your system. Some jump­ers on the board have three metal pins with each pin representing a different
function. A 1 is written besides pin 1 on jumpers with three pins. To set a
jumper, a bla ck cap containing metal contacts is pla ced over the jumper pin/s
according to the required configuration. A jumper is said to be shorted when
the black cap has been placed on one or two of its pins.

NOTE: Users are not encouraged to change the jumper settings
not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.

Clear CMOS: CLR_CMOS

The CMOS RAM is powered by the onboard button cell battery . To clear the
RTC data: (1) Turn of f your computer (2) Place the jumper ca p onto the pinpair
2-3 at least 6 seconds to clear CMOS (3) Place the jumper cap onto the pinpair
1-2 to Normal (4) Turn on your computer until CMOS checksum error appears
(5) Hold down the Delete key when boots (6) Enter the BIOS Setup to re-enter
user preferences.

2 - 4

Installation Procedures

2). Install Memory Modules

1. Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM
in place when the DIMM reaches the slot bottom.

Press the clips with both hands to remove the DIMM.

2 - 5

VI39C Mainboard Manual

3). Install the CPU

The mainboard has built-in Switching Voltage Regulator to support CPU Vcore
autodetection. That is, It has the ability to detect and recognize the CPU
voltage, clock, ratio and enables users to set up the CPU frequency from the
BIOS Setup Screen. Users can adjust the frequency through Frequency /
V oltage Control of the BIOS Setup Screen.

CAUTION:

1. The heatsink and fan you installed must be approved by CPU

|||||manufactories.

2. The mainboard must be placed on a solid place to avoid shaking

|||||while install the heatsink and fan on the board.

3. The heatsink must be contact with the CPU top tightly.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESUL T!

When you install the CPU on this mainboard, please use a power supply that
designed and ma nufactured only for your CPUs use. Your CPU fansink com­bined with its retention module must be completely closed and firmly attached
on the top of the processor.

2 - 6

Installation Procedures

T o install the CPU, do the following:

1 . Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3 . Place the CPU in the socket. Do not force the chip. The CPU should slide

easily into the socket.

4 . Swing the lever to the down position to lock the CPU in place.
5 . Place the cooling fan with heatsink on top of the installed CPU.

NOTE: Users The CPU installing procedures should be:

1. Insert the CPU (with its fansink and retention module) on the
socket.

2. Connect the 20-pin plug of the power supply

3. Connect the 4-pin plug of the power supply.
To remove the processor, please do it in reverse order.

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your
system expansion slots. Expansion cards are printed circuit boards that, when
connected to the mainboard, increase the capabilities of your system. For
example, expansion cards can provide video and sound capabilities. The
mainboard features one AGP and three PCI bus expansion slots.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.

2 - 7

VI39C Mainboard Manual

T o install an expansion card, follow the steps below:

1. Remove the computer chassis cover and select an empty expansion
slot.

2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby.

3 . Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the
expa nsion card, then the other . Use this rocking motion until the a dd–
on card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.

6 . Replace the computer system’s cover.

7 . Setup the BIOS if necessary .

8. Install the necessary software drivers for the expansion card.

2 - 8

Installation Procedures

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon cable must be the same side with the Pin 1.

IDE Device Connectors

These two connectors are used for your IDE hard disk drives, CD drives, LS­120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the
same side with the Pin 1.

2 - 9

VI39C Mainboard Manual

Power Connectors

The 20-pin male block connector is connected to the ATX power supply.The
4-pin male block connector is for the 12V power use. They are linked with your
ATX power supply. The plug from the power supply will only insert in one
orientation because of the different hole sizes. Find the proper orientation and
push down firmly making sure that the pins are aligned.

Fan Connectors

The two connectors, CPU_F AN a nd SYS_F AN, are linked to CPU fa n a nd ca se
fan respectively.

2 - 10

Installation Procedures

CD Audio-In Connectors

The two connectors are used for CD drive audio input.

SPDIF_OUT Connector

The mainboard equipped a 1x3 pinhead. It is used for audio output that with
SPDIF spec. .

2 - 11

VI39C Mainboard Manual

Wake-On-Lan Connector

This 3-pin connector allows the remove servers to manage the system that
installed this mainboard via your network adapter which also supports WOL.
When you install such a LAN card, please read its installation guide for more
information.

Wake-On-Ring Connector

The 2-pin connector allows you to link with your modem card which outputs
a WOR singal; the system can be turned on from the power-off status by a
remote phone call via the modem card.

2 - 12

Installation Procedures

Front Panel Block and IR Connector

This block connector includes the connectors for linking with Power LED (2
pins a nd 3 pins), HDD LED, power/sleep button, power/sleep LED, reset but­ton on the front panel of the system case. Please identify polarities of plug
wires for the case speaker and LEDs. Please ask vendor about this information
when you buy them and install the system by yourself. The plug wires polari­ties of these buttons will not affect the function.

(1) Reset Switch is connected to the reset button. Push this switch to reboot
the system instead of turning the power button off and on.

(2) HDD LED is connected to the IDE device indicator . This LED will blink
when the hard disk drives are activated.

(3) Power /Sleep LED (2-Pin/3-Pin)
Please refer to the tables below for the representations of LED states.

(4) Power Button is connected with power button. Push this switch allows the
system to be turned on and off rather than using the power supply button.

IR is a pinheader that is used f or linking with your ID device to allow transmis­sion of data to another system that also supports the IR feature.

Speaker is a pinheader f or connecting to speaker.

2 - 13

VI39C Mainboard Manual

SIRQ Connector

The 2-pin connector provides with a connection for some add-on cards that
require a serial IRQ linkage to the mainboard for the system operation use.

Serial Port Connectors

COM1 (9-pin D-sub male connector with teal color) and COM2 (9-pin male
connector) allow you to connect with your devices that use serial ports, such
as a seri al mouse or a n external modem.

2 - 14

Installation Procedures

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color a nd PS/2 mouse is green
color) connectors are used for your PS/2 keyboard and PS/2 mouse.

LAN Connector (mfg. optional)

The optional RJ45 LAN jack is used f or the LAN ca ble plug.

2 - 15

VI39C Mainboard Manual

Universal Serial Bus Connectors

These four USB black jacks integrated on the edge of the board are used for
linking with USB 2.0 peripheral devices. This board also provides one USB
pinheader (two extra USB 2.0 ports) f or either linking with some system ca ses.
Please note that your operating system must support USB features.

The figure below is the pin assignment
of the USB4/5 pinheader .

NOTE: The CD in the board package supports Windows XP/2000.
For a user who installs Windows 98SE/ME, please contact your
vender for support.

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your
printer.

2 - 16

Installation Procedures

Audio I/O Jacks

LINE_IN (light blue) allows tape players or other audio sources to be recorded
by your computer or played through the LINE_OUT. LINE_OUT (lime) ca n be
connected to headphones or preferably powered speakers. MIC_IN (pink)
allows microphones to be connected for audio input.

The front audio pin definitions are
shown below:

NOTE: When the front headphone is plugged in, the rear audio
output will be disabled. If you do not use the front audio pinheader,
please keep the pinpair 5-6, 9-10 short as default.

V ideo Graphics Accelerator Connector

This 15-pin female D-sub blue connector is connected to your display moni­tor.

2 - 17

VI39C Mainboard Manual

This Page Left Blank for Note

2 - 18

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that A ward BIOS that contains the ROM
Setup information of your system. (This chip serves as an interface between
the processor and the rest of the mainboard components.) This section ex­plains the information contained in the Setup program and tells you how to
modify the settings according to your system configuration.

CMOS Setup Utility

The Setup utility program allows updates to the mainboard configuration set­tings. The BIOS setup values will be saved in the CMOS. It is executed when
the user changes system configuration; user changes system backup battery;
or the system detects a configuration error and asks the user to run the Setup
program. Use the arrow keys to select and press Enter to run the selected
program.

3 - 1

VI39C Mainboard Manual

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have
one or more option settings. The system BIOS automatically detects memory
size, thus no changes are necessary. Use the arrow keys to highlight the item
a nd then use PgUp or PgDn keys to select the value you want in each item.

Date

T o set the date, highlight the Date field a nd then press Page Up/Page Down
or +/- keys to set the current date. Follow the month, day and year format.

Time

T o set the time, highlight the Time field a nd then press Page Up/Page Down
or +/- keys to set the current time. Follow the hour, minute, and second
format.

3 - 2

BIOS Setup

Hard Disks

This field records the specifications for all non-SCSI hard drives installed
in the system. The onboard PCI IDE connectors provide Pri mary a nd Sec­ondary channels for connecting up to four IDE hard disks or other IDE
devices. Each channel can support up to two hard disks, the first of which
is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number of hard disk.
Precomp: The cylinder number at which the disk drive

changes the write current.

La nding Zone: The cylinder number that the disk drive heads

(read/write) are seated when the disk drive is
parked.

Sector: The sector number of each track defined on the

hard disk.

Drive A / Drive B

This field records the types of floppy drives installed in the system. To
enter the configuration value for a particular drive, highlight its corre­sponding field a nd then select the drive type using the left- or right-arrow
key.

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.2MB
in a 3.5 inch diskette.

Video

Set this field to the type of video display card installed in the system.

Halt On

This field determines which types of errors will cause the system to halt.

3 - 3

VI39C Mainboard Manual

Advanced BIOS Features

Virus Warning

This feature starts the virus scan tool to detect if boot virus in boot sector
of the first hard disk drive when booting up.
The options are: Enabled, Disabled.

CPU L1 & L2 Cache

When enabled, improves the system performance. Disable this item when
testing or trouble-shooting. The options are: Enabled, Disabled.

CPU L2 Cache ECC Checking

When enabled, it activates the CPU L2 cache check and error correction.
The options are: Enabled, Disabled.

Quick Power On Self Test

When enabled, allows the BIOS to bypass the extensive memory test.
The options are: Enabled, Disabled.

Hard Disk Boot Priority

This feature will auto detect all hard disks of bootable device on the sys­tem. It also allows users to select hard disk device booting priority.

3 - 4

BIOS Setup

First/Second/Third Boot Device

This feature allows user to select the boot device priority . The options are:
Floppy , LS120, Hard Disk, CD ROM, ZIP100, USB-FDD, USB-ZIP , USB­CDROM, USB-HDD, LAN, Disabled.

Boot Other Device

This feature allows user to select the boot device priority.
The options are: Enabled, Disabled.

Swa p Floppy Drive

Allows you to switch the order in which the operating system accesses
the floppy drives during boot up. Full Screen LOGO Show
It decides whether or not the full screen logo is shown during system
booting up. The options are: Enabled, Disabled.

Boot Up Floppy Seek

When enabled, a ssigns the BIOS to perform floppy diskette drive tests by
issuing the time-consuming seek commands.
The options are: Enabled, Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock
Function when the system boots up. The options are: On, Off.

Gate A20 Option

When set at Fast, allows a faster access response under Protected mode.
The options are: Fast, Normal.

Typematic Rate Setting

The term typematic means that when a keyboard key is held down, the
character is repeatedly entered until the key is released.
The options are: Disa bled, Ena bled.

Type matic Rate (Chars/Sec)

This feature is available only if the a bove item , Typematic Rate Setting, is
set at Enabled. Sets the rate of a character repeat when the key is held
down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.

3 - 5

VI39C Mainboard Manual

Type matic Delay (Msec)

This feature is available only if the item, Typematic Rate Setting, is set at
Enabled. Sets the delay ti me bef ore a character is repeated.
The options are: 250, 500, 750, 1000 millisecond.

Security Option

Allows to set the security level of the system.The options: Setup, System.

APIC Mode

Allows you to decide if the system enters the APIC (Advanced Program­mable Interrupt Controller) mode or not f or more IRQs ca n be released.
The options are: Enabled, Disabled.

MPS V ersion Control For OS

When two CPUs onboard (not this board) this feature allows you to select
MPS (Multi-Processor Spec.) version control for OS when logo test ex­ecutes. The options are: 1.1, 1.4.

OS Select For DRAM > 64MB

If your operating system (OS) is OS/2, select the option OS2. Otherwise,
stay with the default setting Non-OS2.The options are: Non-OS2, OS2.

HDD S.M.A.R.T. Ca pability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technol­ogy which allows your hard disk drive to report any read/write errors and
issues a warning with LDCM installed. The options: Disa bled, Enabled.

Video BIOS Shadow

Enabling this feature will copy the video BIOS to shadow RAM, it will
improve the system performance.
The options are: Enabled, Disabled.

BIOS Guardian

It allows the system to prevent computer viruses. Users will need to dis­able it to update BIOS. The options are: Ena bled, Disa bled.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.

3 - 6

BIOS Guardian and Reflash BIOS

BIOS Guardian by default is enabled, thus effectively acts as a fire­wall against viruses that can attack the BIOS while the system is
running. It must be disabled before refla sh BIOS.

The steps below show you how to off and on BIOS Guardian when
reflash BIOS:

1. Press Del key while booting. Go to CMOS Setup Utility menu.

2. Go to Advanced BIOS Features submenu.

3. Set the feature BIOS Guardi a n at Disa bled.

4. Save the setting and exit. The system restarts.

5. POST screen holds. A me ssage a bout BIOS Guardian shows.

6. Press Space bar.

7. Reflash BIOS. Restart the system after complete it.

8. POST screen holds. A me ssage a bout BIOS Guardian shows.

9. Press G key. The feature BIOS Guardi a n will be enabled again.

Advanced Chipset Features

BIOS Setup

Advanced DRAM Control 1

System Performa nce

This feature decides data access mode to system memory.
The options are: Safe Mode, Normal Mode, Fast Mode, Turbo Mode, Ultra
Mode.

3 - 7

VI39C Mainboard Manual

CAS Latency Time

This feature allows user to select the CAS latency time, when any SDRAM
DIMM installed. The options are: 2T, 2.5T, 3T.

DRAM Addr/Cmd Rate

This item allows users to set Address Time After command.
The options are: AUT O Mode, 1T, 2T.

Prefetch Caching

The feature allows you to enable or disable the function of PCI slave
prefetch caching.The options are: Disa bled, Ena bled.

System BIOS Ca cheable

Setting at Enabled will allow the caching of the BIOS ROM F0000H-FFFFFH,
resulting in better system performance. It may cause system error when
some programd try to access the memory area.
The options are: Disabled, Enabled.

Video RAM Cacheable

When enabled, allows the video RAM area to be cacheable.
The options are: Enabled, Disabled.

Memory Hole At 15M-16M

When set at Enabled, the memory hole at 15MB address will be relocated
to the 15M-16MB address range of the ISA or PCI cycle when the CPU
accesses the 15M-16MB address area. When set at Disabled, the memory
hole at 15MB address will be treated as a DRAM cycle when the CPU
accesses the 15M-16MB a ddress area. The options are: Disa bled, Ena bled.

AGP Aperture Size

It decides the mapped size in system me mory f or AGP graphics data.
The options are: 4MB, 8MB, 16MB, 32MB, 64MB, 128MB, 256MB.

AGP Fast Write

This feature allows you to disabled AGP fa st write mode.
The options are: Disa bled, Ena bled.

3 - 8

AGP Ca pability

This feature allows you to select the installed AGP card mode.
The options are: Auto, 2X, 4X.

System Share Memory Size

It allows user to select the frame buff er size of V G A share memory .
The options are: Disa bled, 8MB, 16MB, 32MB.

Integrated Peripherals

BIOS Setup

SIS OnChip IDE Device

Internal PCI/IDE

It allows you to select the onboard primary/secondary PCI IDE.
The options are: Disa bled, Primary , Secondary , Both.

DE Primary Ma ster/Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE
hard drive (master/slave) mode. The options are: Auto, Mode 0, Mode 1,
Mode 2, Mode 3, Mode 4.

3 - 9

VI39C Mainboard Manual

IDE Secondary Ma ster/Slave PIO

Allows a n automatic or a ma nual configuration of the PCI secondary IDE
hard drive (master/slave) mode. The options are: Auto, Mode 0, Mode 1,
Mode 2, Mode 3, Mode 4.

Primary Master/Slave UltraDMA

Allows an automatic configuration of the PCI primary IDE hard drive
(master/slave) mode if Ultra DMA is supported both on the motherboard
and the hard disk. The options are: Auto, Disabled.

Secondary Ma ster/Slave UltraDMA

Allows a n automatic configuration of the PCI secondary IDE hard drive
(master/slave) mode if Ultra DMA is supported both on the motherboard
a nd the hard disk. The options are: Auto, Disabled.

IDE Burst Mode

Allows you to disable the IDE burst mode.
The options are: Enabled, Disabled.

SIS OnChip PCI Device

SIS USB Controller

Disable this option if you are not using the onboard USB feature.
The options are: Disa bled, Ena bled.

USB Keyboard Support

When a USB keyboard is installed, please set at Enabled.
The options are: Disabled, Enabled.

SIS AC97 AUDIO

Allows you to disable the onboard SIS AC97 audio function.
The options are: Enabled, Disabled.

SIS 10/100M ETHERNET

Allows you to disable the onboard SIS 10/100 ethernet function.
The options are: Enabled, Disabled.

SIS Lan Boot ROM

Allows you to enable or disable the onboard Lan boot ROM.
The options are: Enabled, Disabled.

3 - 10

BIOS Setup

Onboard SuperIO Device

Onboard F DC Controller

When enabled, the floppy diskette drive (FDD) controller is activated.
The options are: Enabled, Disabled.

Onboard Serial Port 1/2

If the serial port 1/2 uses the onboard I/O controller , you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: Disa bled, 3F8/IRQ4, 2F8/IRQ3,
3E8/IRQ4, 2E8/IRQ3, Auto.

UART Mode Select

Allows you to select the IR modes if the serial port 2 is used a s an IR port.
Set at Standard, if you use COM2 as the serial port, instead as an IR port.
The options are: Normal, IrDA, ASKIR.

UR2 Duplex Mode

Allows you to select the IR modes.
The options are: Full, Half.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses
the onboard I/O controller.
The options are: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it
supports. The options are: SPP , ECP, EPP , EPP+ECP .

ECP Mode Use DMA

This feature allows you to select Direct Memory Access (DMA) channel.
The options are: 1, 3.

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk in
block mode. The options are: Enabled, Disa bled.

3 - 11

VI39C Mainboard Manual

Init Display First

When you install a n AGP VGA card a nd a PCI VGA card on the board, this
feature allows you to select the first initiation of the monitor display from
which card. The options are: PCI Slot, AGP.

Power Management Setup

ACPI function

This item allows you to disable the ACPI function.
The options are: Enabled, Disabled.

ACPI Suspend T ype

This item allows you to select suspend mode when the system in ACPI
mode.

3 - 12

BIOS Setup

Power Man agement

This item allows you to adjust the power management features.
Select User Define f or configuring your own power ma nagement features.
Min Saving initiates all predefined timers in their minimum values. Max
Saving, on the other hand, initiates maximum values.
The options are: User Define, Min Saving, Max Saving.

Suspend Mode

When disabled, the system will not enter Suspend mode. The specified
time option defines the idle time the system takes before it enters Suspend
mode. The options are: Disable, 1, 2, 4, 8, 10, 20, 30, 40 M in, 1 Hour .

Video Off Option

This feature provides the selections of the video display power saving
mode. The options are: Always On; Suspend -> Off; Susp, Stby -> Off;
All Modes-> Off.

Video Off Method

The option Blank Screen allows the BIOS to blank off screen display by
turning off the red-green-blue signals. The option V/H SYNC+Blank al­lows the BIOS to blank off screen display by turning off the V-Sync and H­Sync signals sent from add-on VGA card. The option DPMS Supported
allows the BIOS to blank off screen display by your add-on VGA card
which supports DPMS (Display Power M anagement Signaling function).
The options are: Bla nk Screen, V/H SYNC+Bla nk, DPMS Supported.

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modem IRQ#.
The options are: NA, 3, 4, 5, 7, 9, 10, 1 1.

HDD Of f After

The option lets the BIOS turn the HDD motor off when system is in Sus­pend mode. Selecting 1 Min..15 Min allows you define the HDD idle time
before the HDD enters the Power Saving Mode.
The options 1 Min..15 M in will not work concurrently. When HDD is in the
Power Saving Mode, a ny access to the HDD will wake the HDD up.
The options are: Disa ble, 1 M in..15 Min.

3 - 13

VI39C Mainboard Manual

Power Button Override

The selection Delay 4 Sec. will allow the syste m shut down after 4 seconds
after the power button is pressed. The selection Instant-Off will allow the
system shut down immediately once the power button is pressed.
The settings are: Delay 4 Sec, Instant-Off.

Power State Resume Control

This feature allows you to set the system back to which power status of
the system when the system power is resumed.
The settings are: Allways Of f, Always On, Keep Pre-State.

PM Wake Up Events

IRQ[3-7,9-15], NMI

Enable this feature will keep the system not in the Suspend mode when
IRQ3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, NMI.
The options are: Enabled, Disabled.

IRQ 8 Break Suspend

Enable this feature will make IRQ8 to resume the system from Suspend
mode. The options are: Enabled, Disabled.

RING/LAN Wa ke Up Control

An incoming call via modem/MAC awakes the system from its soft-off
mode. The options are Disa bled, Enabled.

PCIPME Power Up Control

When set at Enabled, a Power M anagement Event (PME) come from PCI
device will make the system from soft-off state.
The options are Disabled, Enabled.

USB Port Wa ke Up Control

When set at Enabled, it allows USB keyboard to activate the system from
ACPI S3 power saving mode. The options are Disa bled, Enabled.

Power Up by Alarm

Enabling it will make the syste m power on when real time clock (R TC) alarm
happens. The options are: Enabled, Disabled.

3 - 14

BIOS Setup

Month Alarm/Day of Month Alarm/T ime (hh:mm:ss) Alarm

This feature allows you to set the time of the alarm starts when the feature
of Power Up by Alarm is set to be Enabled.

Reload Global Timer

Primary IDE

When the primary master/slave HDD is working, the system timer will be
reloaded and the system will not be into the suspend mode.
The options are: Disabled , Enabled.

Secondary IDE

When the secondary master/slave HDD is working, the system timer will
be reloaded and the system will not be into the suspend mode.
The options are: Disabled, Enabled.

F DD, COM, LPT Port

When FDD, COM, or LPT is working, the system timer will be reloaded and
the system will not be into the suspend mode.
The options are: Disabled, Enabled.

PCI PIRQ[A-D]#

When the PCI PIRQ[A-D]# has been alerted, the system timer will be re­loaded and the system will not be into the suspend mode.
The options are: Disabled, Enabled.

3 - 15

VI39C Mainboard Manual

PnP/PCI Configurations

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)
when you exit Setup if you have installed a new add-on card and the
system reconfiguration has caused such a serious conflict that the operat­ing system can not boot. The options are: Disabled, Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con­flict, select Manual. The options are: Auto (ESCD), Manual.
If the manual options, after the featrue IRQ Resources being pressed,
IRQ- Assigned T o are: PCI Device, Reserved. When resource s were con­trolled manually, assign each system interrupt a type, depending on each
device type to use the interrupt.

PCI/V GA Palette Snoop

Set this feature to be enabled if any ISA adapter card installed in the
system requires the VGA palette snoop function.
The options are: Disabled, Enabled.

3 - 16

BIOS Setup

Assign IRQ For V GA

If your PCI VGA card devices do not need an IRQ, select Disabled; there­fore, an IRQ can be released for the system use.
The options are: Enabled, Disabled.

Assign IRQ For USB

If your USB devices do not need a n IRQ, select Disa bled; therefore, a n IRQ
can be released for the system use.
The options are: Enabled, Disabled.

INT Pin 1/2/3/4/5/6/7/8 Assignment

This feature allows you to assign the PCI IRQ numbers for PCI slots.
Selecting the default, Auto, allows the PCI controller to automatically allo­cate the IRQ numbers. The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

PC Health Status

VCORE / 3.3V / +5V / +12V / CPU Temperature / SYSTEM Tempera­ture / CPU FA N / SYSTEM F AN

These items allow end users and technicians to monitor data provided by
the BIOS on this mainboard. It is not user-configurable.

3 - 17

VI39C Mainboard Manual

Frequency/Voltage Control

CPU Clock Ratio

This feature allows you to set the frequency mulitplier for CPU host clock.

Auto Detect DIMM/PCI Clk

When enabled, BIOS will detect the PCI slot and DIMM slot. If no any
device in, BIOS will auto disable its clock.
The options are: Enabled, Disabled.

Spread Spectrum

This feature is used to activate spread spectrum feature.
The options are: Disa bled, Ena bled.

CPU Host/SDRAM/PCI Clock

This feature allows you to select the combinations of CPU frequency,
inslot SDRAM frequency , a nd PCI clock. The default setting, Default, will
detect this combination automatically. If you set a unappropriate option
which leads to a booting problem, keep pressing the Insert key until the
display appears will solve it. The options lists all combinations that pro­vided by the system BIOS.

3 - 18

BIOS Setup

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer boots, if
the computer will not boot. These settings do not give optimal performance.

Load Optimized Defaults

This submenu is selected for default settings which provide the best system
performance.

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard
CMOS Setup. You will be prompted to create your own password. T ype your
password up to eight chara cters and press Enter. You will be asked to confirm
the password. Type the password again and pre ss Enter. To disable password,
press Enter twice when you are prompted to enter a password. A message
appears, confirming the password is disabled.

Under the BIOS Feature Setup, if Setup is selected under the Security Option
field and the Supervisor/User Password is enabled, you will be prompted
password every time you try to enter the CMOS Setup Utility. If System is
selected and the Supervisor/User Password is enabled, you will be requested
to enter the Password every time when you reboot the system or enter the
CMOS Setup utility.

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main
menu. Move cursor to Save and Exit Setup or press F10 and then press Y to
change the CMOS Setup. If you did not change anything, press Esc again or
move cursor to Exit Without Saving and press Y to retain the Setup settings.
The following message will appear at the center of the screen to allow you to
save data to CMOS a nd exit the setup utility: SAVE to CMOS and EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of the
screen to allow you to exit the setup utility without saving CMOS modifica­tions: Quit Without Saving (Y/N)?

3 - 19

VI39C Mainboard Manual

This Page Left Blank for Note

3 - 20
