FIC VI35L User Manual

VI35L

MAINBOARD

MANUAL

DOC No.: M03104
Rev. |: A0
Date |:2, 2003
Part No. |: 25-11128-00

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESUL T!

Observe the following basic precautions when handling the motherboard
or other computer components:

 Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

 Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

 Avoid contacting the components on a dd-on cards, motherboards,

and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
mounting brackets.

The above methods prevent static build-up and cause it to be discharged
properly.

Trademark

All trademarks mentioned in this manual are registered properly of
the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except f or copie s retained by the
purchaser for personal archival purposes.

T able of Contents

Table of Contents

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

Chapter 1 Overview

Package Checklist .......................................................................... 1-2

The VI35L Mainboard ............................................................... 1-3

Main Features................................................................................ 1-4

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2

Mainboard Layout .................................................................... 2-2

(1). Clear CMOS, Clear Password, BIOS W rite Protect ...... 2-3

(2). Front Panel Block Ca ble Connection ........................... 2-3

(3). CPU Fan Installation.................................................... 2-4

1). Set System Jumper .................................................................... 2 - 4

Clear CMOS: CLR_CMOS ................................................. 2-4

Clear Password: CLR_PWD............................................... 2-4

BIOS W rite Protect: BIOS_P.............................................. 2-5

2). Install Memory Modules .......................................................... 2- 6

3). Install the CPU .......................................................................... 2-6

4). Install Expa nsion Cards ............................................................. 2-7

5). Connect Devices ....................................................................... 2- 8

Floppy Drive Connector .................................................... 2- 8

IDE Device Connectors ..................................................... 2-9

Power Connectors ............................................................. 2- 9

System Case Alarm Connector (mfg. optional).................. 2-10

CD Audio-In Connectors................................................... 2-10

Front Pa nel Block, IR, a nd Speaker Connector

.......................................................................................... 2-10

Fan Connectors................................................................. 2-12

Wake-On-Lan Connector................................................... 2-12

Wake-On-Ring Connector................................................. 2-13

SPDIF Out Connector ....................................................... 2-13

i

VI35L Mainboard Ma nual

Serial IRQ Connector......................................................... 2-14

PS/2 Keyboard and Mouse Connector.............................. 2-14

Universal Serial Bus Connectors....................................... 2-14

Serial Port Connector ........................................................ 2-15

Printer Connector .............................................................. 2-16

Audio I/O Jacks ................................................................ 2-16

LAN Connector................................................................. 2-17

Game/MIDI Connector ...................................................... 2-17

CRT Monitor Connector.................................................... 2-18

Chapter 3 BIOS Setup

Main Features Setup...................................................................... 3-1

Advanced Features Setup ............................................................. 3-3

Onboard device Configuration.................................................. 3- 5

I/O device Configuration........................................................... 3-6

Hardware Monitor ..................................................................... 3-7

Power Features Setup .................................................................... 3-8

Boot Features Setup ...................................................................... 3-9

Exit Features Setup ........................................................................ 3-10

ii

Overview

Chapter 1

Overview

The Micro ATX, 478-pin FC-PGA2 package, mainboard supports the latest
generation Intel® P4 level processors that a chieve from 1.4 to 2.8 GHz be ing
with two DD R DIMM slots for total 2GB ca pacity .

The board is built around the new SiS651 chip that provides integrated
video solution for P4 with FSB533/400a nd DDR333/DD R266/DDR200 SDRAM.
SiS962L feature s AT A133 to ensure the high data tra nsfer speeds especi ally
for long sequential transfers required by audio/visual applications. The board
also supports six USB 2.0 ports that allow to connect with advanced USB 2.0
peripheral devices in a more ef ficient way .

Add-on card expansion is provided by 1 AGP 2X/4X and 3 PCI slots. I/O
connections include 1 COM port, 1 printer connector, 1 CRT connector, 1
SPDIF_OUT connector, 1 LAN, 1 PS/2 mouse a nd keyboard connector , 6 USB

2.0 ports a nd 1 media connector (Line-In, Line-Out*, M ic-In, Ga me/MIDI).

* The audio features of this mainboar d do not have an a mplifier, an active spea ker is a
must.

Other key features are Remote On/Off, Auto Power Failure Recovery, inte­grated temperature monitoring and system fan control. Included also is a CD
with enhanced supporting drivers containing a few bundled soft-ware solu­tions.

1 - 1

VI35L Mainboard Ma nual

Package Checklist

If you discover any item below was damaged or lost, please contact your
vendor.

; The mainboard ; This user manual
; One FDD cable ; |Software CD
; One A T A/100 cable ; |I/O shilding

NOTE: lst Utilities CD that contains patch files, onboard video/au­dio chip drivers, related online help and other useful information
can be found in your mainboard package.

Please install it right after your Windows operating system installa­tion is done.Place your lst Utilities CD in the drive, an operating

menu will appears in your monitor. Please select Auto Installation.
It will automatically detect which software tools (patch files, drivers)
that the mainboard needs. Press OK button to go through the whole
installation procedure in a very straight forward and easy way. It
also provides you with a custom way to select wanted patch files
and software drivers that for onboard chips use. The top menu of

the lst Utilities CD lists all the functions that allowed by this board.

1 - 2

NOTE: About the USB 2.0 driver .
if you use-

Windows XP + Sevice Pack 1: it offers the driver.
Windows XP: download it from Microsoft web site.
Windows 2000/98SE/ME:

driver in lst Utilities CD, please manually installed it.

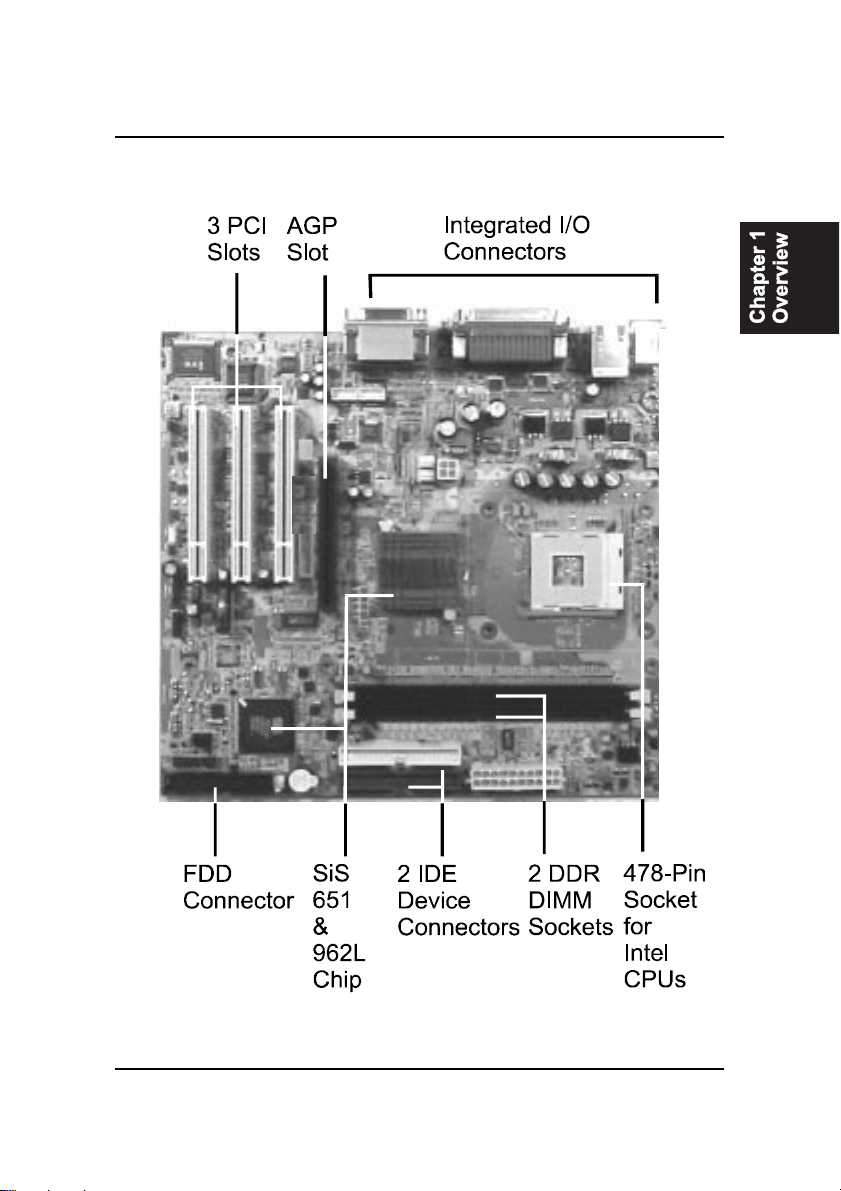

The VI35L Mainboard

Overview

1 - 3

VI35L Mainboard Ma nual

Main Features



 Easy Installation



||BIOS with support for Plug and Play , auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, Windows 98SE, W indows ME, W indows
||NT , W indows 2000, Windows XP , a nd OS/2.



 Leading Edge Chipset



SiS651 Chipset (651 + 962L) provides high-perf orma nce 2D/3D gra phic
engine and video accelerator, advanced hardware acceleration MPEGI/
MPEGII video decorder, a nd memory controller , a nd AGP (2X/4X) interface.



 Advanced High Performa nce Memory Controller



Through two DD R DIMM sockets a ccepts up to 2 GB totally with support
lightenning-fast DD R333/DDR266/DDR200 SDRAM .



 Intel P4 Processors Support



Intel P4 478-pin FC-PGA2 package:

1.4 to 2.5 GHz a nd up* (FSB 400) / 1.73 to 2.8 GHz a nd up* (FSB 533)
Celeron 1.7 to 2.2 GHz and up* (FSB 400) (*: not tested yet)



 AGP a nd PCI Expa nsion Slots



One AGP Bus expa nsion slot and three PCI Bus expansion slots provided
the room to install a full ra nge of add-on cards.



 Enhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100/



133 Support
Integrated Enhanced PCI Bus Master IDE controller features two dual­cha nnel connectors that up to four Enhanced IDE devices, including CD­ROM and Ta pe Backup Drives, as well as Hard Disk Drives supporting the
new Ultra DMA 133 protocol.

1 - 4

Overview



 Super Multi Input/Output (I/O) Support



SiS962L integrates the functionalities of AC97 interfa ce, the Ethernet MAC,
the dual USB controllers, the IDE master/slave controllers, the PCI-to­LPC bridge, I/O advanced programmable interrupt controller and legacy
power ma nagement. It utilizes a n universal interfa ce supporting the asyn­chronous I/O of the X86 compatible CPUs, such as PIII, K7, P4.



 Convenient USB 2.0 Connection Support



Two USB 2.0 jacks integrated in the rear I/O panel and two USB 2.0
pinheaders (4 ports) for either front or rear panel connection allow
convenient and high-speed Plug and Play connections to the growing
number of USB complia nt peri pheral devices on the market.

1 - 5

VI35L Mainboard Ma nual

The Page Left Blank for Note

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

Step 1 - Set system jumpers
Step 2 - Install memory modules
Step 3 - Install the Central Processing Unit (CPU)
Step 4 - Install expansion cards
Step 5 - Connect ribbon cables, cabinet wires, and power supply
Step 6 - Set up BIOS software
Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau­tions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

VI35L Mainboard Ma nual

Quick Reference (from Page 2-2 to 2-4)

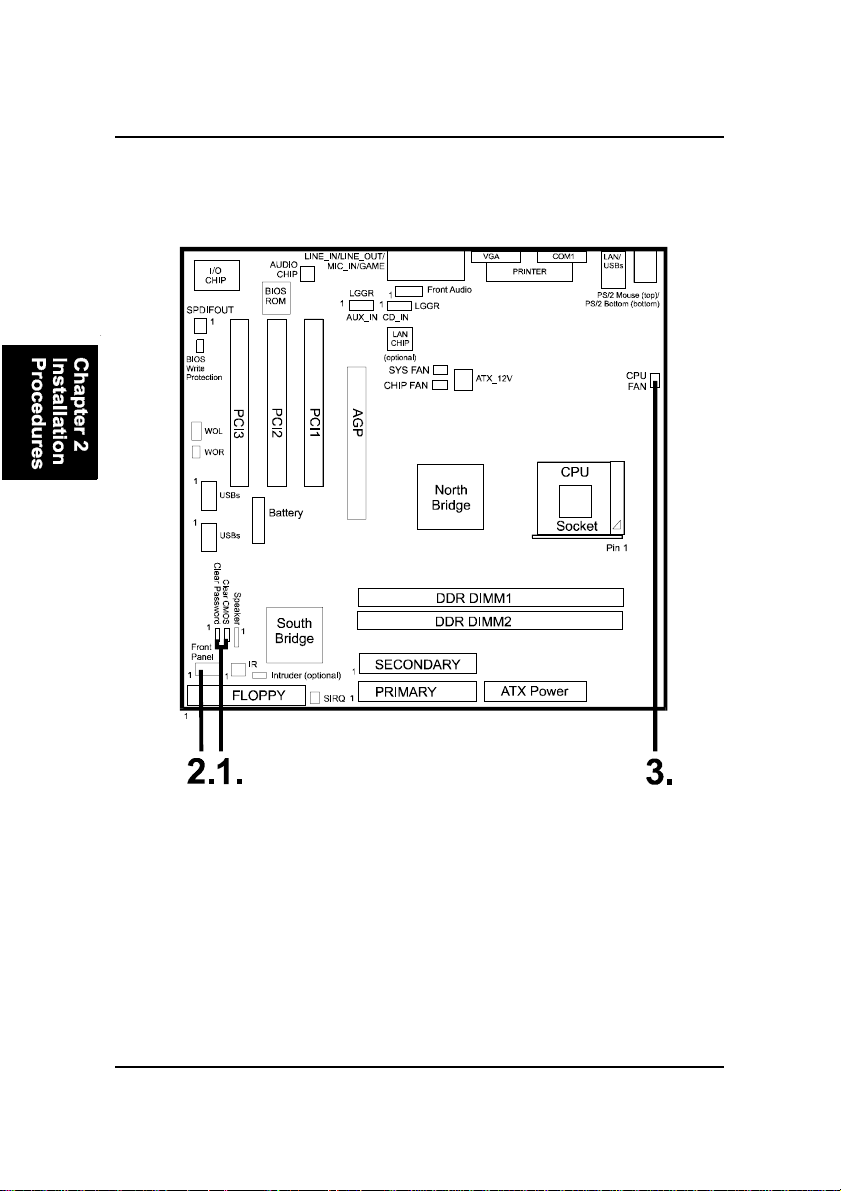

Mainboard Layout

* When link to Line_Out ja ck, please use a speaker that with amplifier .
* Connector Serial IRQ is for system integration use.

2 - 2

Installation Procedures

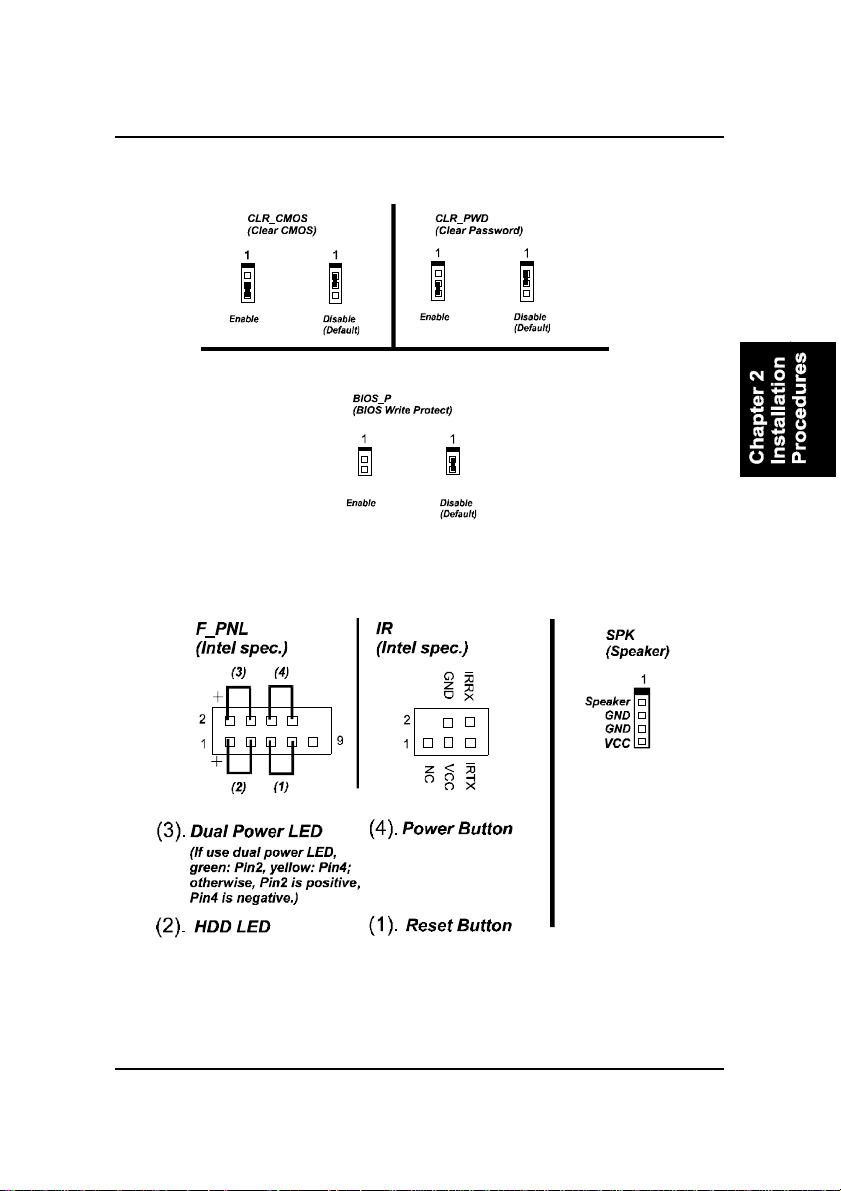

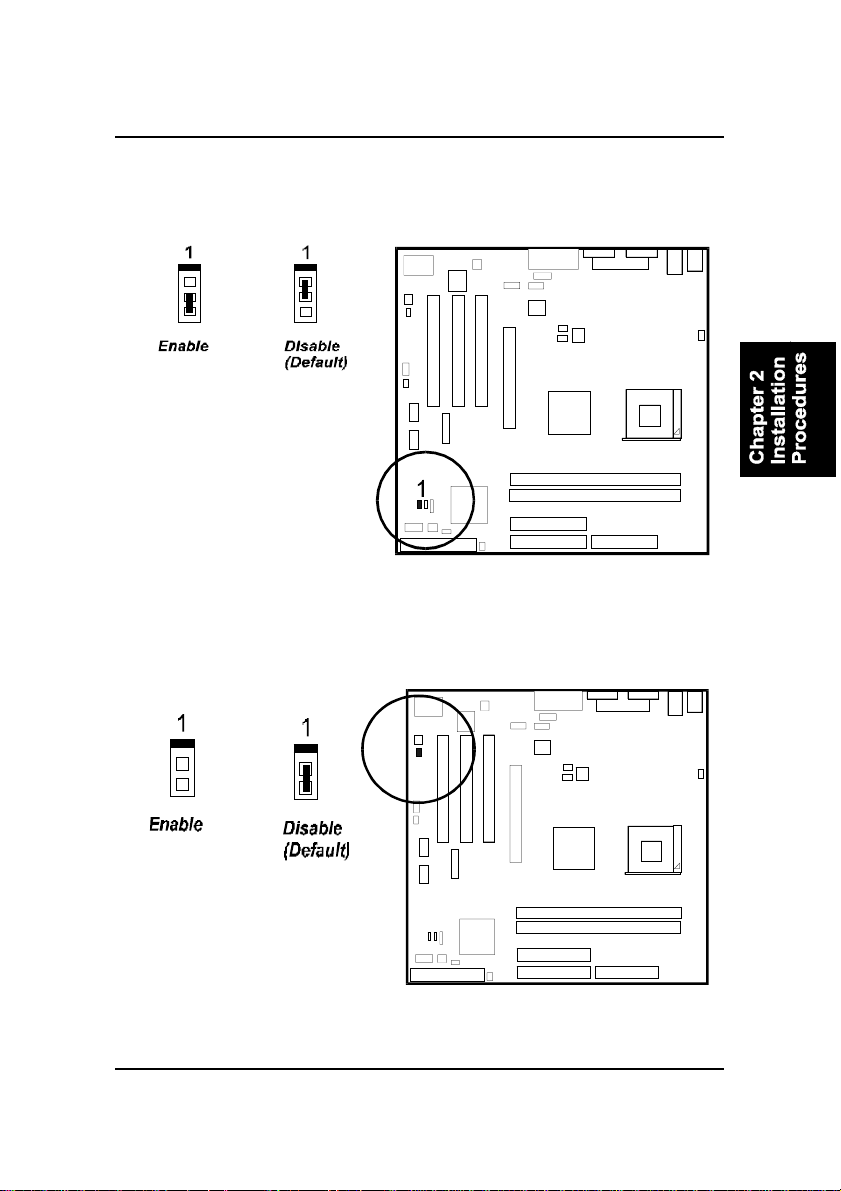

(1). Clear CMOS, Clear Pa ssword, BIOS Write Prote ct

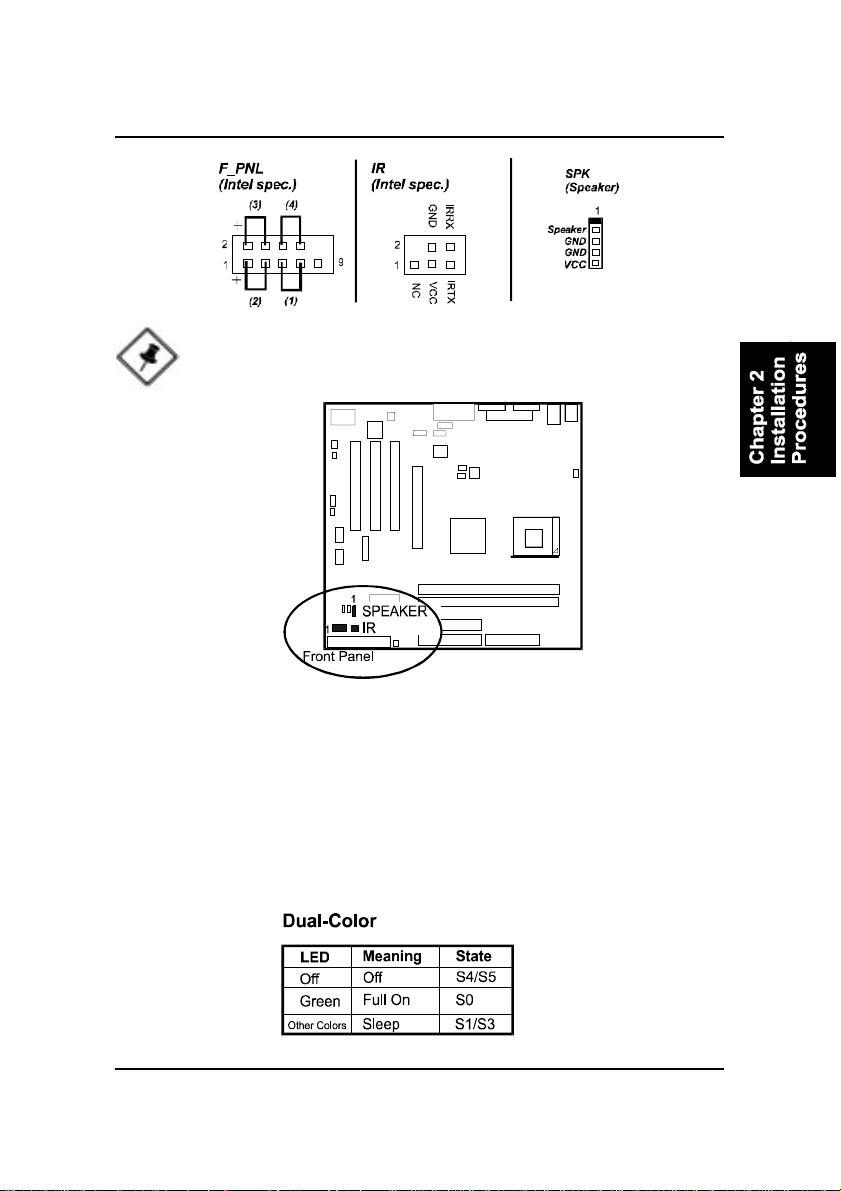

(2). Front Panel Block Ca ble Connection

2 - 3

VI35L Mainboard Ma nual

(3). CPU Fan Installation

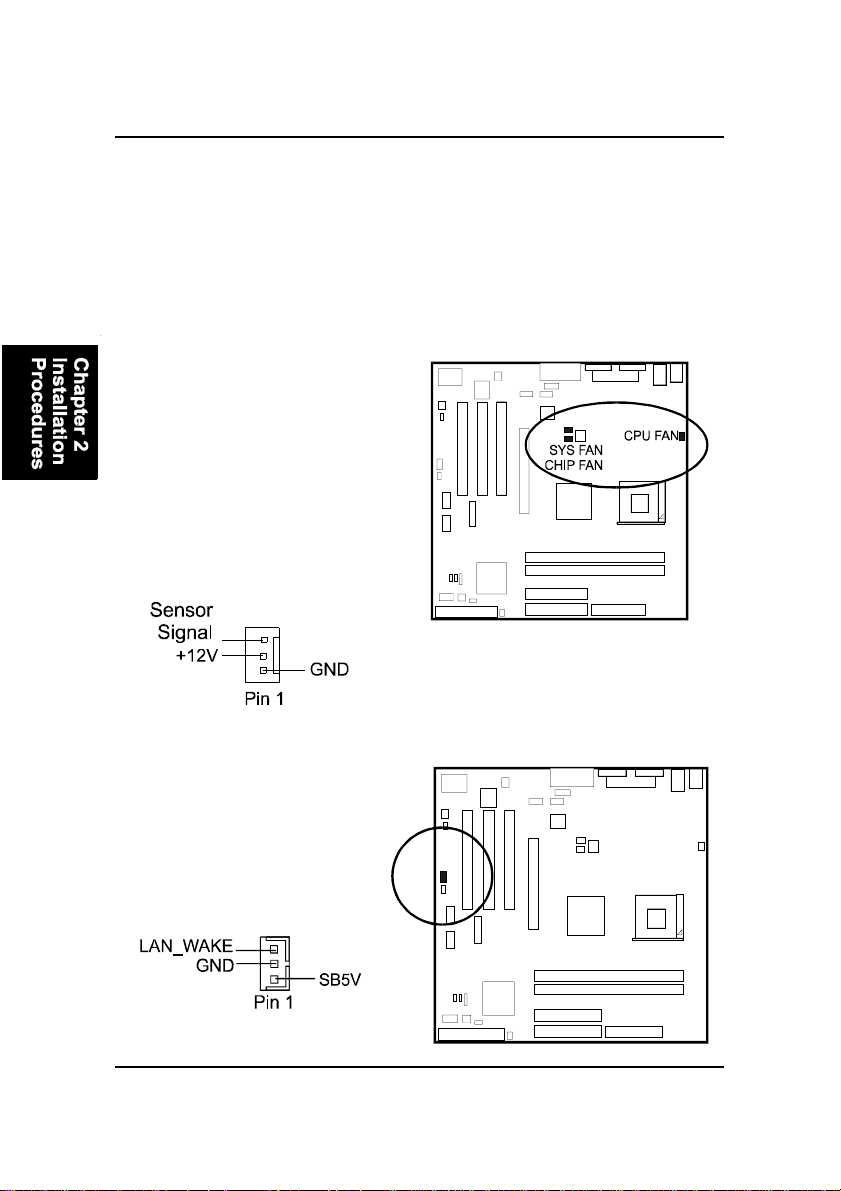

This connector is linked to the CPU fa n. Without suf ficient air circulation, the CPU

may overheat resulting in damage to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.

1). Set System Jumper

Clear CMOS: CLR_CMOS

(1) Turn off your computer
(2) Place the jumper cap onto the pinpair 2-3 at least 6 seconds to clear CMOS
(3) Place the jumper ca p onto the pinpair 1-2 to Normal
(4) Turn on your computer until CMOS checksum error appears
(5) Hold down the Delete key when boots
(6) Enter the BIOS Setup to re-enter user preferences.

Clear Password: CLR_PWD

(1) Turn off your computer
(2) Move the jumper cap pinpair 2-3
(3) Turn on your computer
(4) Hold down the Delete key during bootup a nd enter BIOS Setup to clear it.

2 - 4

Installation Procedures

(5) Turn off your computer
(6) Move the jumper cap pinpair 1-2 to disa ble this function
(7) Turn on your computer for the new settings to take effect.

BIOS Write Protect: BIOS_P

The board provides users with a jumper for BIOS write protect. To short the
jumper will allow users to write BIOS ROM. T o open it will prevent BIOS from
writing.

2 - 5

VI35L Mainboard Ma nual

2). Install Memory Modules

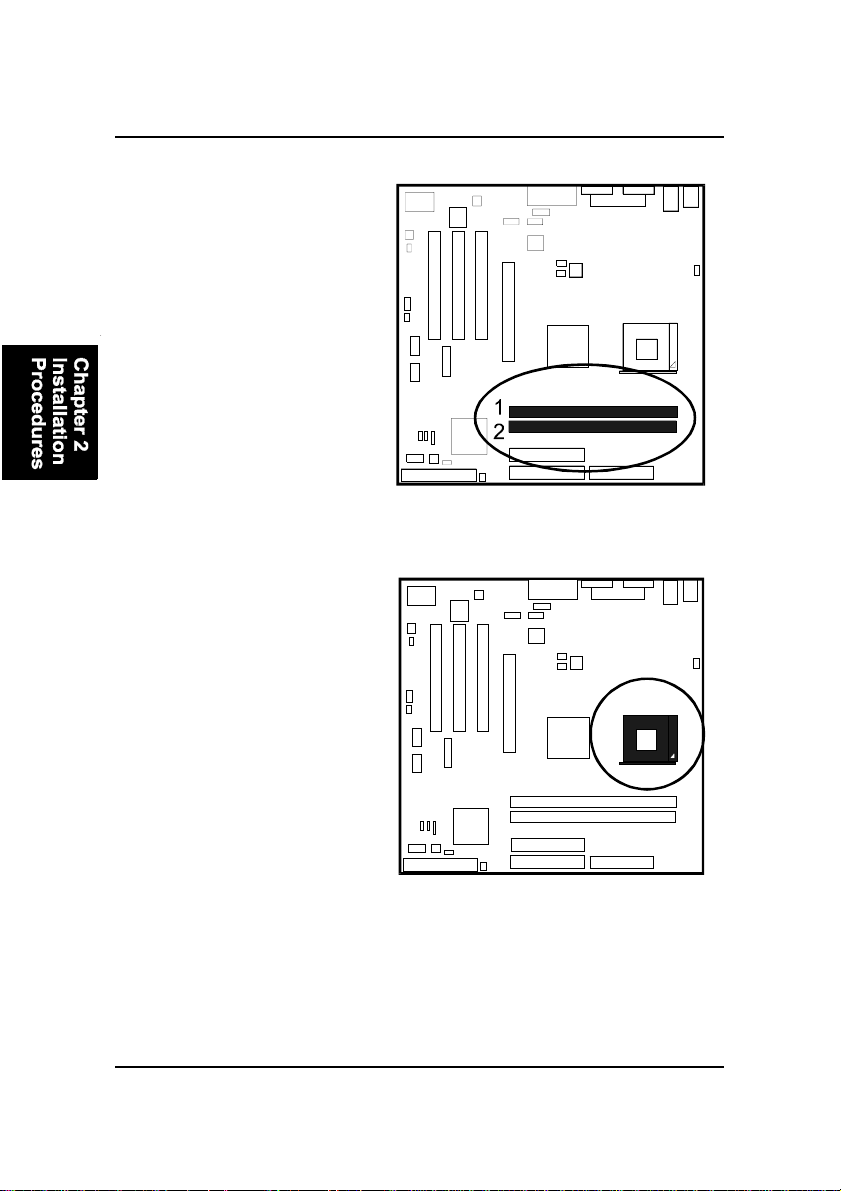

1. Locate the DD R DIMM slots
on the mainboard.

2 . Install the DDR DIMM
straight down into the slot
using both hands.

3. The clip on both ends of the
slot will close up to hold the
DIMM in pla ce when the
DIMM reaches the slot
|bottom.

Press the clips with both hands to remove the DIMM.

3). Install the CPU

The mainboard has built-in
Switching Voltage Regulator to
support CPU Vcore autodetection.
That is, it has the ability to detect
a nd recognize the CPU voltage,
clock a nd ratio.

When you install your CPU on this
mainboard, please use a power
supply that designed an
ma nufa ctured only for CPU use.
Y our CPU fa nsink combined with
its retention module must be completely closed a nd firmly atta ched on the top
of the processor.

T o install the CPU, do the following:

1 . Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

2 - 6

Installation Procedures

3 . Place the CPU in the socket. Do not f orce the chip. The CPU should slide

easily into the socket.
4 . Swing the lever to the down position to lock the CPU in place.
5 . Place the cooling fan with heatsink on top of the installed CPU.

NOTE: Users The CPU installing procedures should be:

1. Insert the CPU (with its fansink and retention module) on the
socket.

2. Connect the 4-pin plug of the power supply.

3. Connect the 20-pin plug of the power supply
To remove the processor, please do it in reverse order.

4). Install Expansion Cards

This section describes how to
connect an expansion card to one
of your system expansion slots.
Expa nsion cards are printed
circuit boards that, when
connected to the mainboard,
increase the capabilities of your
system. For example, expa nsion
cards can provide video and sound
capa bilities. The mainboard

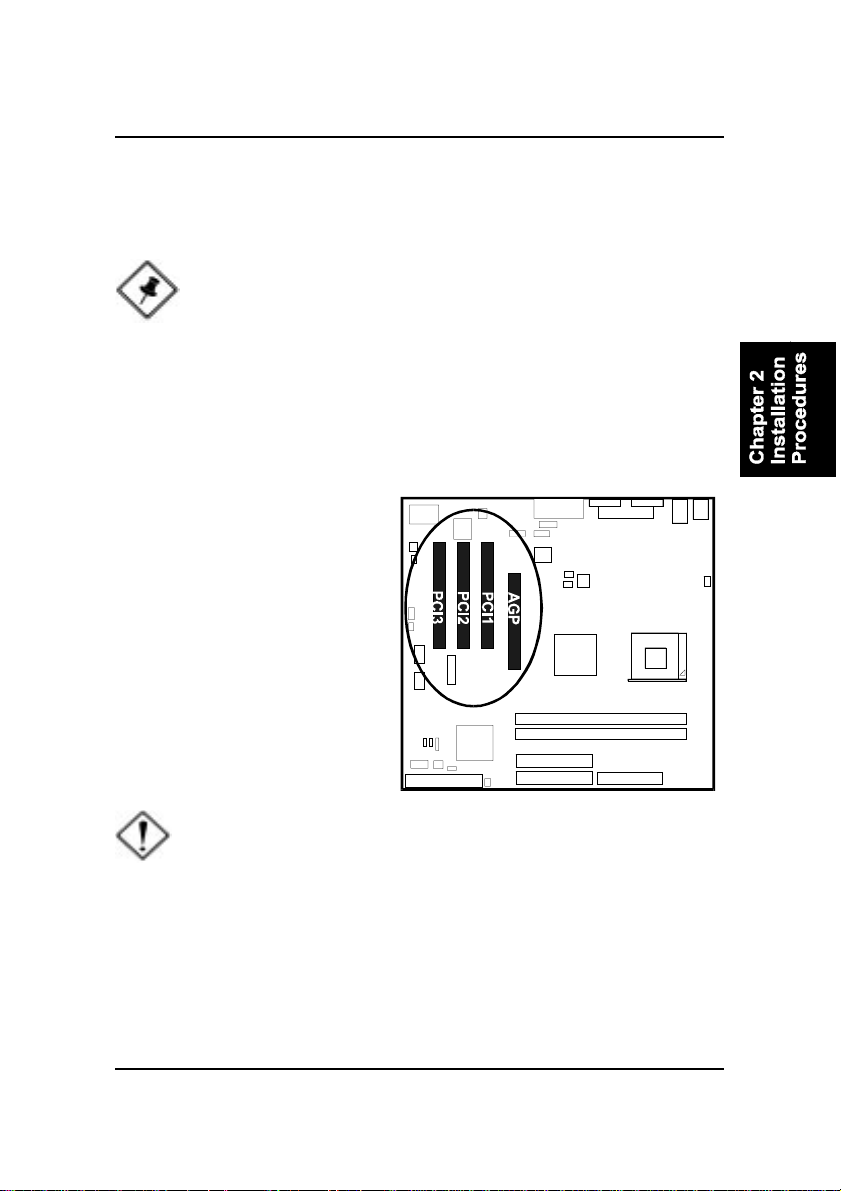

features one AGP and three
PCI bus expa nsion slots.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.

T o install an expansion card, follow the steps below:

1. Remove the computer chassis cover and select an empty expansion
slot.

2 - 7

VI35L Mainboard Ma nual

2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby.

3 . Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the
expa nsion card, then the other . Use this rocking” motion until the a dd
on card is firmly seated inside the expa nsion slot.

5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.

6. Replace the computer system cover.

7 . Setup the BIOS if necessary .

8. Install the necessary software drivers for the expansion card.

5). Connect Devices

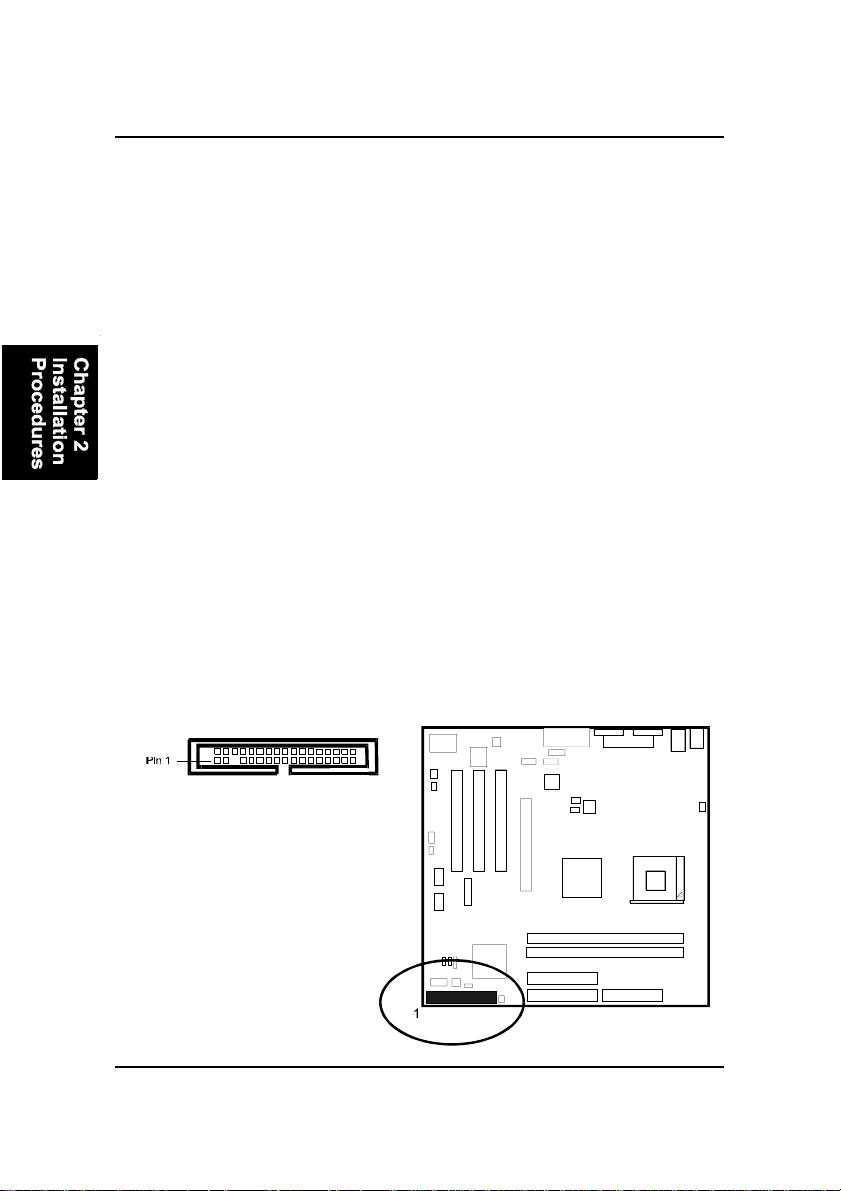

Floppy Drive Connector

This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon ca ble must be the same side with the Pin 1.

2 - 8

Installation Procedures

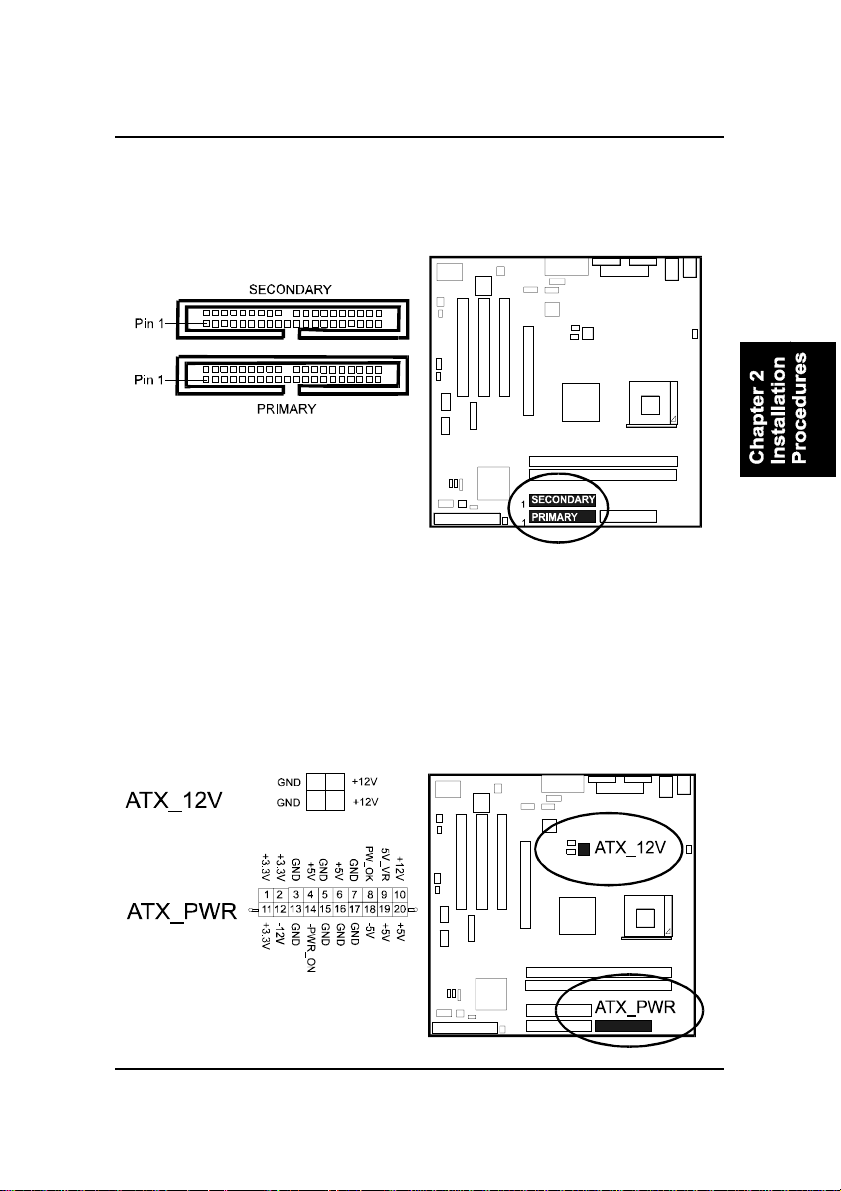

IDE Device Connectors

These two connectors are used for your IDE hard disk drives, CD drives, LS­120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the
same side with the Pin 1.

Power Connectors

The 20-pin male block connector is connected to the ATX power supply. The
4-pin male block connector is for the 12V power use. The connectors are linked
with your ATX power supply. The plug from the power supply will only insert
in one orientation because of the different hole sizes. Find the proper orienta­tion and push down firmly making sure that the pins are aligned.

2 - 9

VI35L Mainboard Ma nual

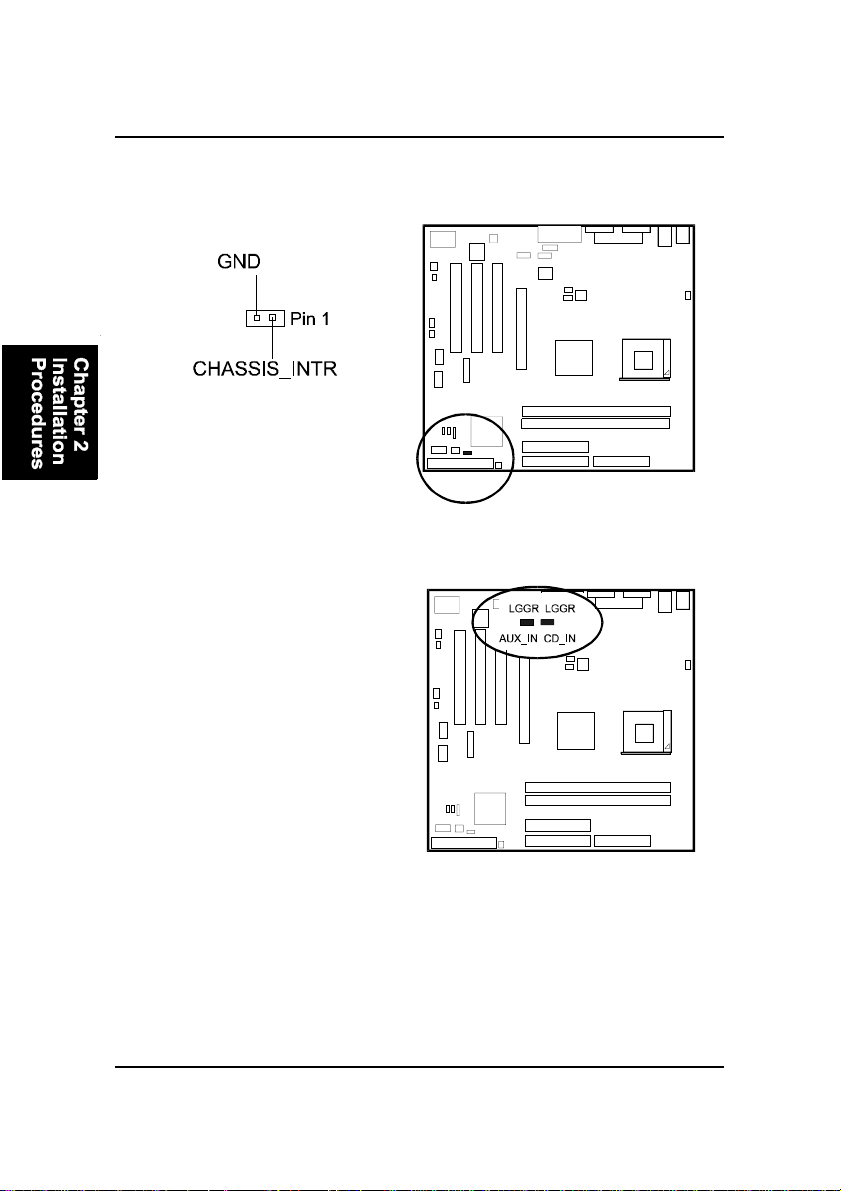

System Case Alarm Connector (mfg. optional)

This 3-pin connector is used for some system integration use. If the system
chassis is open, the alarm sounds.

CD Audio-In Connectors

The connectors, CD_IN and AUX_IN, are for CD-ROM drive audio analog
input use.

Front Panel Block, Power LED, IR, and Speaker Connector

This block connector includes the connectors for linking with Power LED,
HDD LED, power button, power/sleep/message waiting button, reset buttonon
the front panel of the system case. Please identify polarities of plug wires for
the case speaker and LEDs. Please ask vendor about this information when
you buy them and install the system by yourself. The plug wires polarities of
these buttons will not affect the function.

2 - 10

Installation Procedures

NOTE: Users that want to use IR port must set BIOS feature UART
Mode Select to set COM2 at IrDA or ASKIR mode depending re-

quest.

(1) Reset Switch is connected to the reset button. Push this switch to reboot
the system instead of turning the power button off and on.

(2) HDD LED is connected to the IDE device indicator . This LED will blink
when the hard disk drives are activated.

(3) Power /Sleep LED

Please refer to the table below for the representations of LED states.

2 - 11

VI35L Mainboard Ma nual

(4) Power Button is connected with power button. Push this switch allows the
system to be turned on and off rather than using the power supply button.

IR is a pinheader that is used f or linking with your ID device to allow transmis­sion of data to another system that also supports the IR feature.

Speaker is connected with the case speaker.

Fan Connectors

The two connectors, CPU_F AN,
SYS_F AN are linked to the CPU fa n,
case fa n, respectively . CHIP_FAN
can be used either with the case fan
or North Bridge chi p fa n.
For preventing the system and chip
from overheat damage, the fans on
this board will keep running when
the system in suspend mode.

Wake-On-Lan Connector

This 3-pin connector allows the
remove servers to manage the system
that installed this mainboard via
your network adapter which also
supports WOL.

2 - 12

Installation Procedures

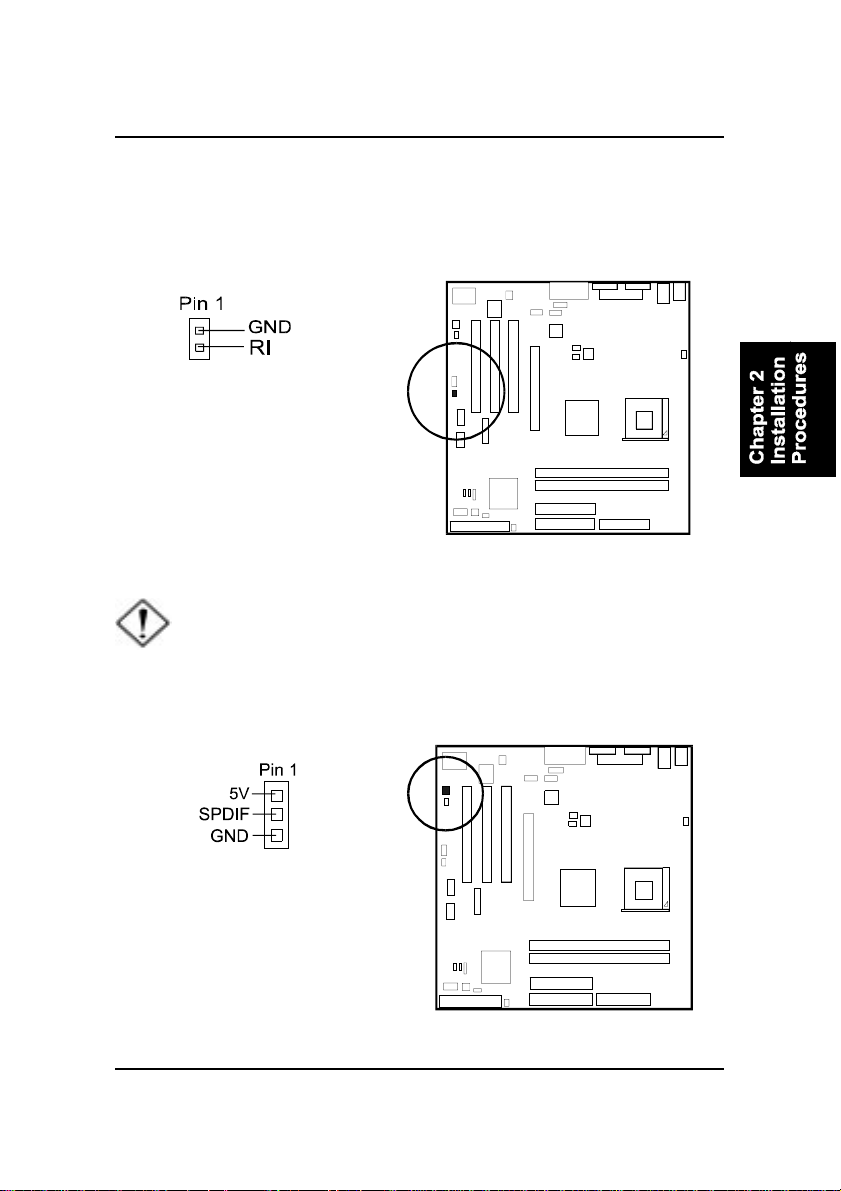

Wake-On-Ring Connector

The 2-pin connector allows you to link with your modem card which outputs
a WOR singal; the system can be turned on from the power-off status by a
remote phone call via the modem card.

CAUTION: Improper orientation of SPDIF connection may cause
damage of your device.

SPDIF Out Connector

The mainboard equipped one 1x3 pinhea der . It is used for SPDIF digital audio
output.

2 - 13

VI35L Mainboard Ma nual

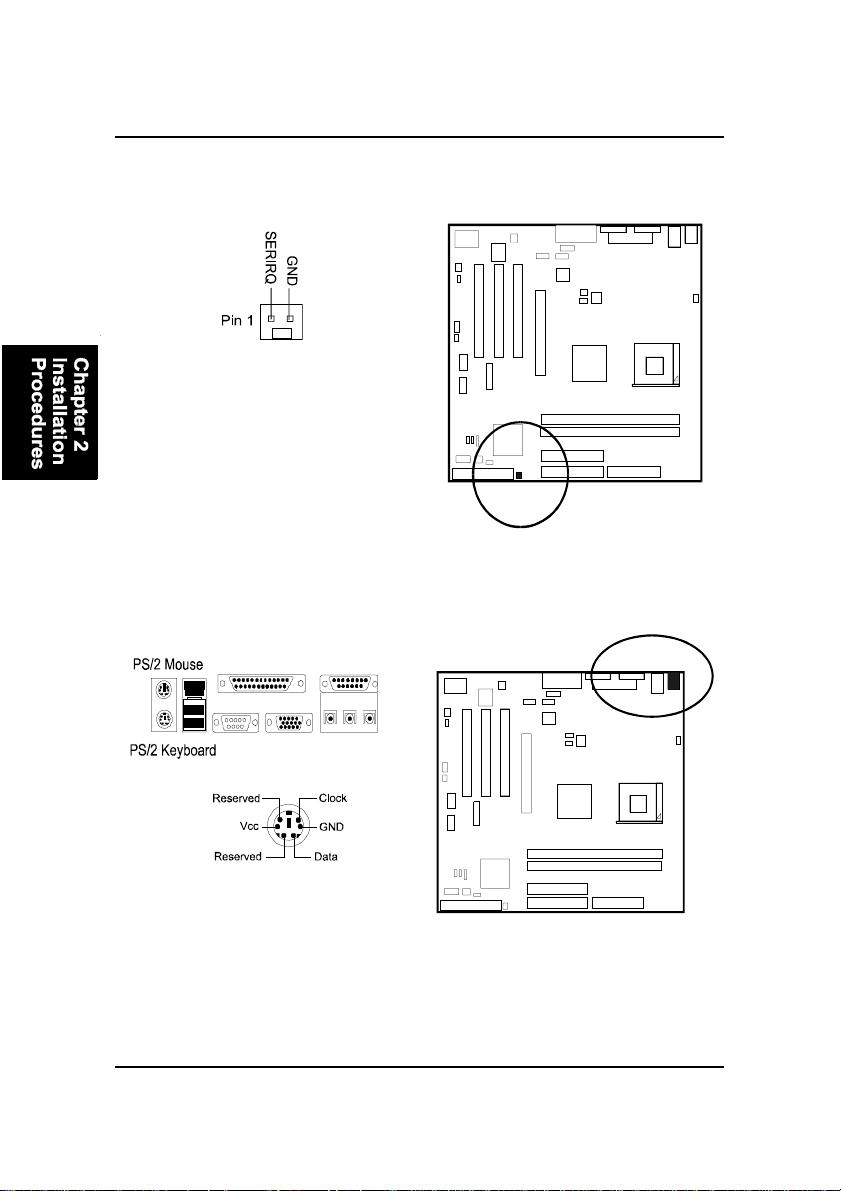

Serial IRQ Connector

This 2-pin connector is used for some system integration use.

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color a nd PS/2 mouse is green
color) connectors are used for your PS/2 keyboard and PS/2 mouse.

Universal Serial Bus Connectors

These two black jacks integrated on the edge of the board are used for linking
with USB peripheral devices. This board also provides four extra USB ports
for either linking with front or rear USB sockets of system cases. Please note
that your operating system must support USB features.

2 - 14

Installation Procedures

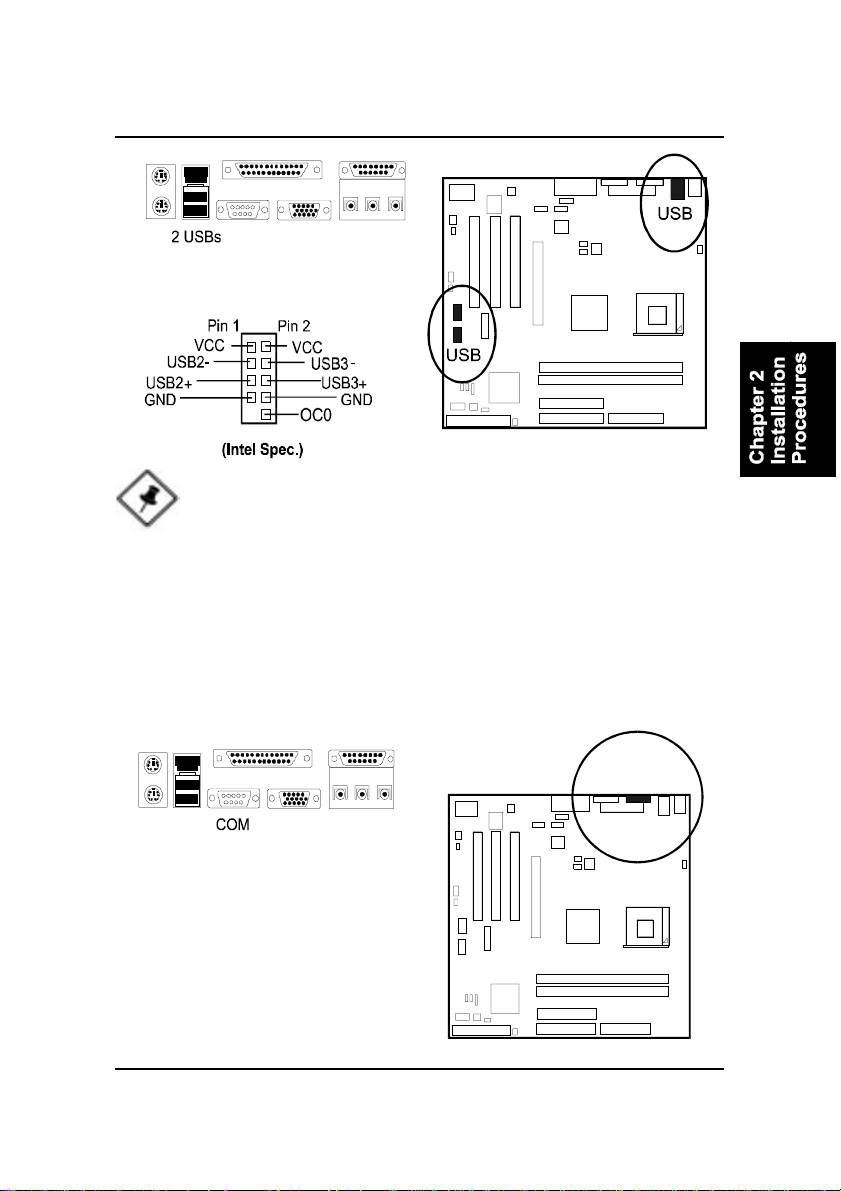

The figure below is the pin assignment
of 4 USB pinheaders.

NOTE: About the USB 2.0 driver .
if you use-

Windows XP + Sevice Pack 1: it offers the driver.
Windows XP: download it from Microsoft web site.
Windows 2000/98SE/ME:

driver in lst Utilities CD, please manually installed it.

Serial Port Connector

COM (9-pin D-sub male connector with teal color) allows you to connect with
your device that use serial port, such a s a seri al mouse or an external modem.

2 - 15

VI35L Mainboard Ma nual

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your
printer.

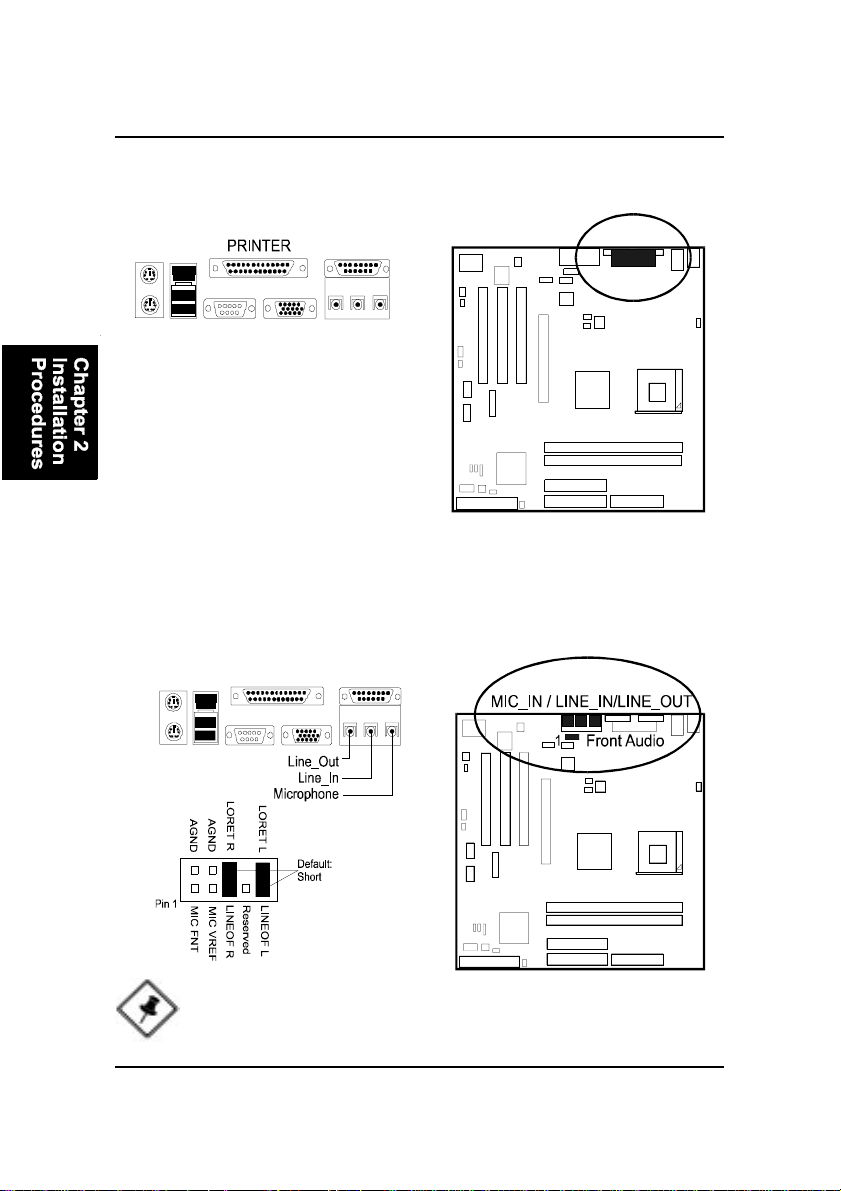

Audio I/O Jacks

LINE_OUT (lime) can be connected to headphones or preferably powered
speakers. LINE_IN (light blue) allows tape players or other audio sources to
be recorded by your computer or played through the LINE_OUT. MIC_IN
(pink) allows microphones to be connected for voice input. The mainboard
offers a front panel audio pinhea der (Intel spec.). Its pin definitions were pre­sented far below left.

2 - 16

NOTE: If you do not use front audio pinheader, please keep the
pinpair 5-6, 9-10 short as default; also, when the front headphone
is plugged in, the rear audio output will be disabled.

Installation Procedures

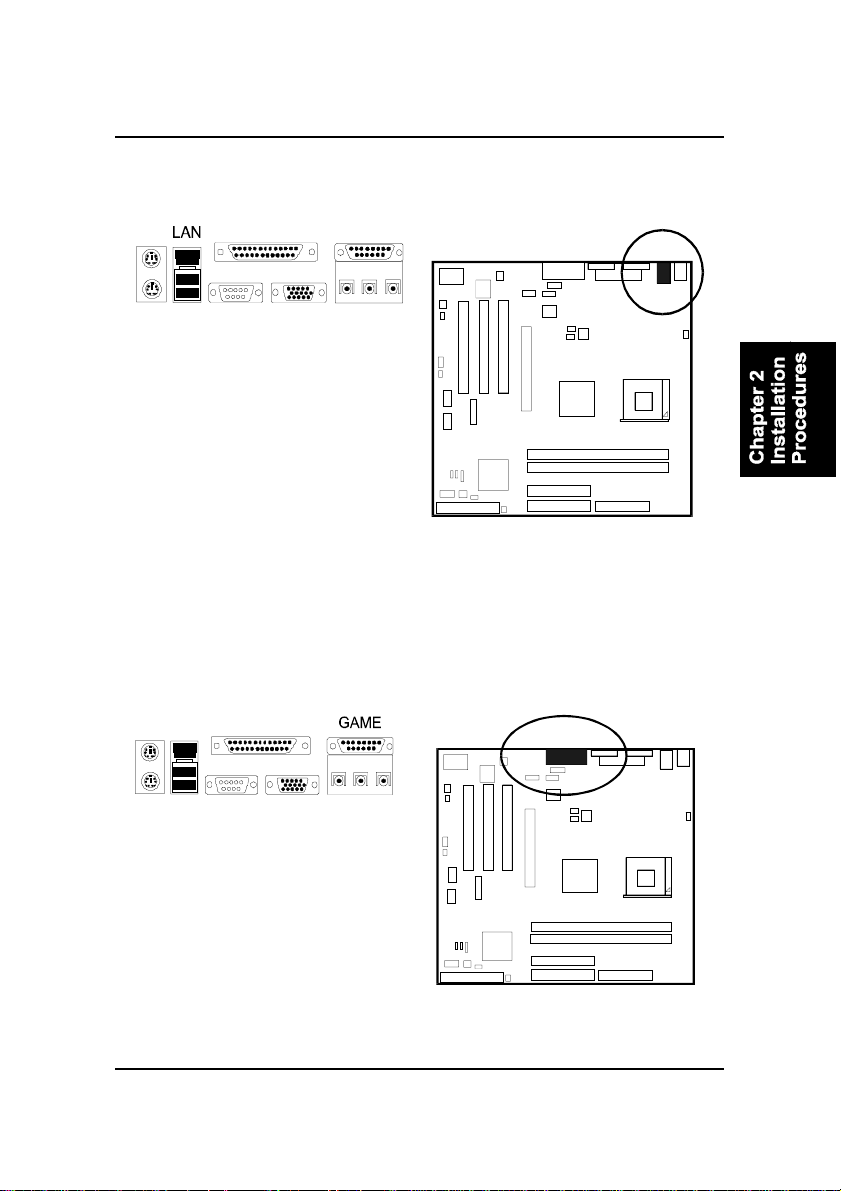

LAN Connector

The LAN jack is used f or the network ca ble plug.

Game/MIDI Connector

This 15-pin female gold-colored connector allows you to connect game
joysticks or game pads. Connect MIDI devices for playing or editing audio.

2 - 17

VI35L Mainboard Ma nual

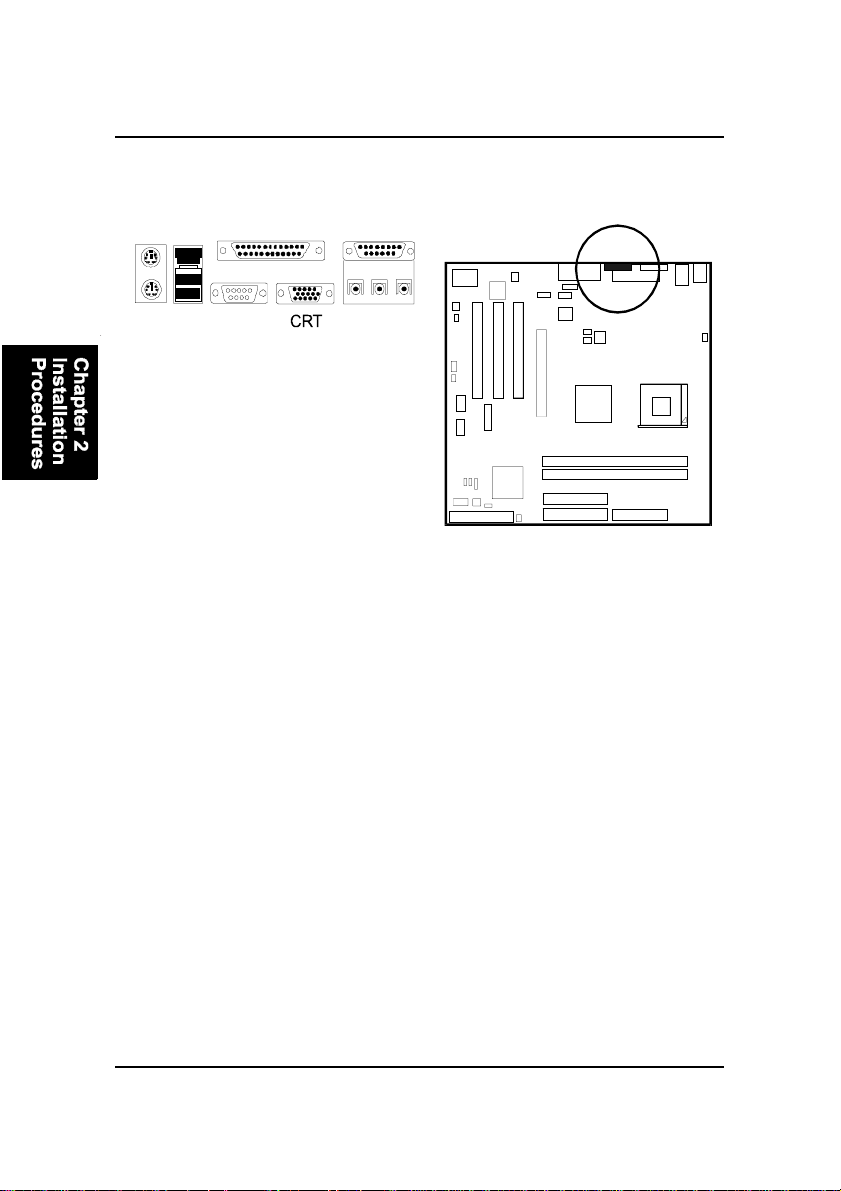

CRT Monitor Connector

This 15-pin female D-sub blue connector is connected to your CR T monitor .

2 - 18

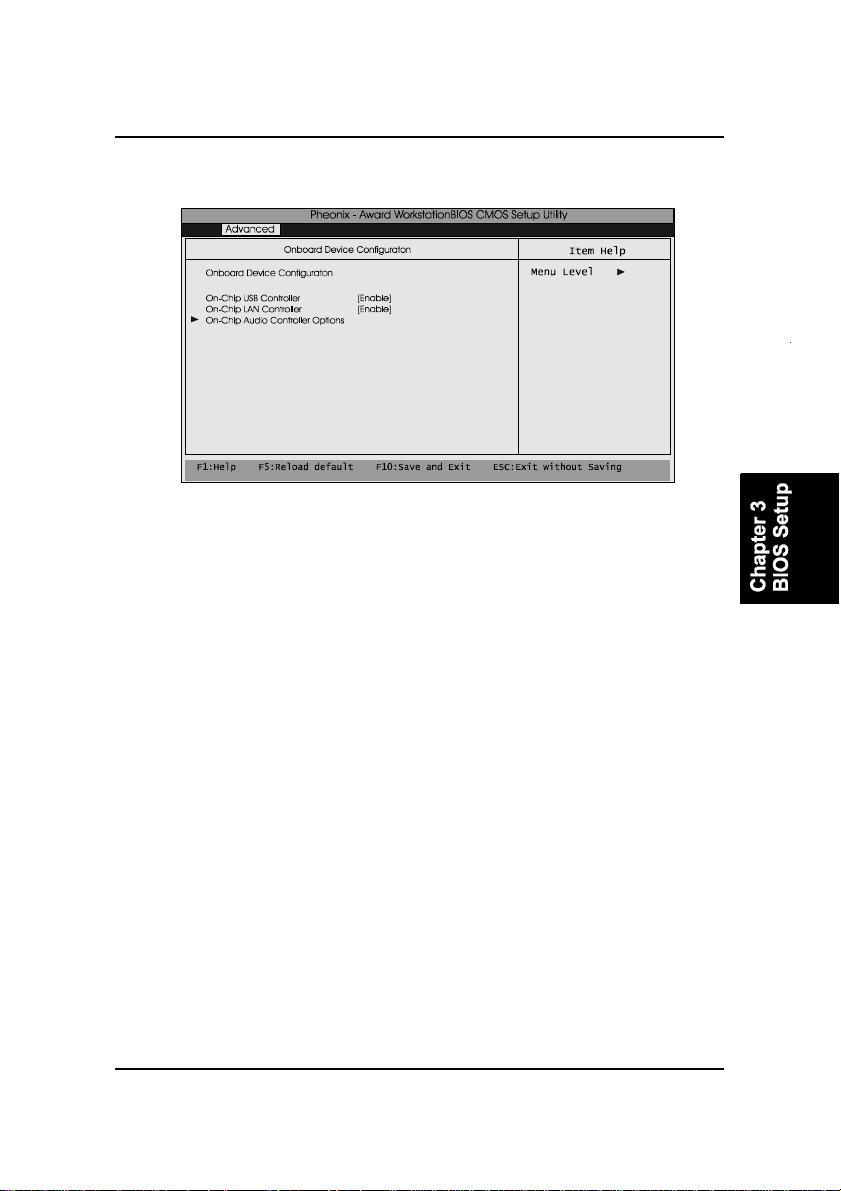

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that BIOS that contains the ROM Setup
information of your system. (This chip serves as an interface between the
processor and the rest of the mainboard components.) This section explains
the information contained in the Setup program and tells you how to modify
the settings according to your system configuration.

The Setup utility program allows updates to the mainboard configuration set­tings. The BIOS setup values will be saved in the CMOS. It is executed when
the user changes system configuration; user changes system backup battery;
or the system detects a configuration error and asks the user to run the Setup
program. Use the arrow keys to select and press Enter to run the selected
program.

WARNING: While booting, press Delete key will allows users to
enter setting menus that for end users. Press F9 key will enter
menus that for manufacturer use only. End users are not encour­aged to configure attributes under this mode.

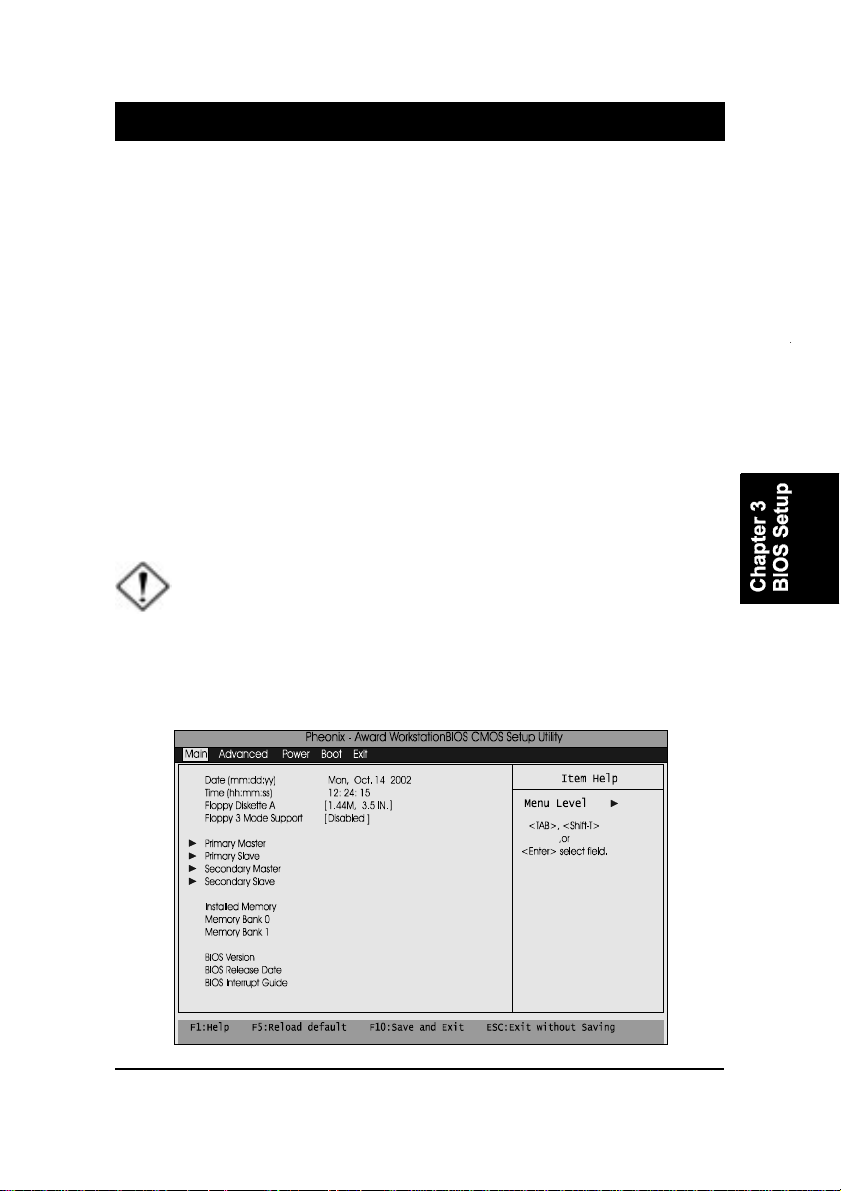

Main Features Setup

3 - 1

VI35L Mainboard Ma nual

The CMOS Setup screen is displayed above. Ea ch item may have one or more
option settings. The system BIOS automatically detects memory size, thus no
cha nges are necessary . Use the arrow keys to highlight the ite m a nd then press
Enter key to select the value you wa nt in ea ch ite m .

Date

T o set the date, highlight the Date field and then press TA B keys to select
items and +/- keys to set the current date. Follow the month, day and year
format.

Time

T o set the ti me, highlight the Time field and then pre ss TAB keys to select
items and +/- keys to set the current time. Follow the hour, minute, and
second format.

Hard Disks

This field records the specifications for all non-SCSI hard drives installed
in the system. The onboard PCI IDE connectors provide Primary and Sec­ondary channels for connecting up to four IDE hard disks or other IDE
devices. Each channel can support up to two hard disks, the first of which
is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number of hard disk.
Precomp: The cylinder number at which the disk drive

changes the write current.

La nding Zone: The cylinder number that the disk drive hea ds

(read/write) are seated when the disk drive is
parked.

Sector: The sector number of each track defined on the

hard disk.

Floppy Diskette A

This field records the types of floppy drives installed in the system. To
enter the configuration value for a particular drive, highlight its corre­sponding field and then select the drive type using the +/- key.

3 - 2

BIOS Setup

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.44
MB in a 3.5 inch diskette.

Installed Memory/Memory Ba nk

These three items tell users the information about the installed memory
modules, type, and sizes.

BIOS Version/BIOS Relese Date/BIOS Implement Guide

These three items tell users the information about the BIOS of the com­puter system.

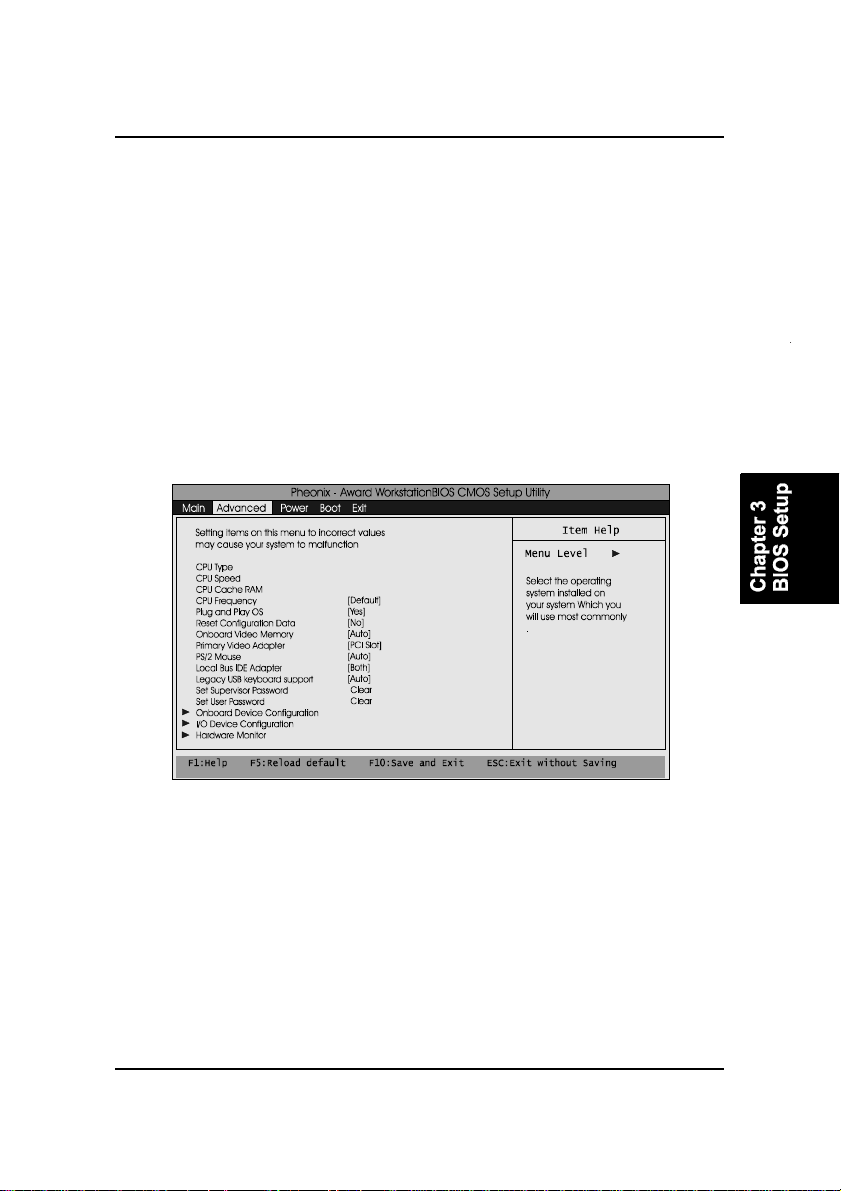

Advanced Features Setup

CPU T ype/CPU Speed/CPU Cache RAM

The three items present the working data about the installed CPU.

CPU Frequency

The feature allows users to cha nge the CPU running frequency to 133 MHz
or 100 MHz. The CPU frequency will run hardware default 100 MHz if the
user set it as Default. The options are: Default, 100 MHz, 133 MHz.

Plug and Play OS

The item is set at Yes when you use Plug and Play operating system.
The options are: No, Yes.

3 - 3

VI35L Mainboard Ma nual

Reset Configuration Data

Enabling it to reset the syste m Extended System Configuration Data (ESCD)
when you exit Setup if you have installed a new add-on card and the
system reconfiguration has caused such a serious conflict that the operat­ing system can not boot. The options are: No, Yes.

Onboard Video Memory

It allows user to select the frame buff er size of V G A share memory .
The options are: Auto, 8MB, 16MB, 32MB.

Primary Video Adapter

The feature allows users to select which display device full on first if two
display device onboard.The options are: PCI Slot, AGP/Onboard.

PS/2 Mouse

The feature allows users to select Auto to auto detect PS/2 mouse. Select
Disabled prevents any installed PS/2 mouse from functioning and free up
IRQ 12. The options are: Disabled, Ena bled, Auto.

Local Bus IDE Ad apter

The feature allows users to select or disable the IDE controller function.
If disabled, the IDE device will not be detected.
The options are: Disa bled, Primary , Secondary , Both.

Legacy USB keyboard Support

The features allows users to decide which way that the attached USB
keyboard was supported under legacy mode of operating system. When
set at Auto, the BIOS will detect if a USB keyboard be ing connected while
booting; if it is, BIOS will accept it under legacy mode, if not, the BIOS will
not release the related resourece.The options are: Auto, Ena bled, Disabled.

Set Supervisor Password/Set User Pa ssword

The two features allow users to set the supervisor/user password. To set
supervisor password is a must. To set user password is not allowed if
supervisor password is clean. It is common to set both passwords.

Once it is set, the option will become Set automatically. Its default value is
Clear. The options are: Clear , Set

3 - 4

Onboard Device Configuration

On-Chip USB Controller

Disable this option if you are not using the onboard USB feature.
The options are: Disa bled, Ena bled.

On-Chip LAN Controller

Allows you to enable or disa ble the optional LAN function.
The options are: Enabled, Disabled.

BIOS Setup

On-Chip Audio Controller Options

The three items below allows you to set on-chip audio controller options.

Audio Codec

Allows you to disable the onboard audio codec function.
The options are: Auto, Disabled.

Ga me Port Address

This feature allows you to select the game port address or disable it.
The options are: Disa bled, 201, 209.

Midi Port Addre ss

This feature allows you to select the Midi port address or disa ble it.
The options are: Disa bled, 330, 300.

3 - 5

VI35L Mainboard Ma nual

I/O Device Configuration

Serial Port A

Allows you to disable the COM1 port when it is needed to do so.
The options are: Enabled, Disabled.

Onboard Serial Port 1

If the serial port 1 uses the onboard I/O controller, you can modify your
serial port parameters.
The options are: Disa bled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3.

IR Controller

If you wa nt to use IR port, set at IrDA or ASKIR; otherwise, stay at
Disable to use COM2 as a serial port.
The options are: Disa ble, IrDA, ASKIR.

IR Duplex Mode

If IR Controller is set at IrDA or ASKIR, this item will allow you to select IR
duplex mode.
The options are: Half, Full.

Parallel Port

Allows you to disable the parallel port when it is needed to do so.
The options are: Enabled, Disabled.

3 - 6

BIOS Setup

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses
the onboard I/O controller.
The options are: Disa bled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it
supports. The options are: SPP, EPP, ECP, EPP+ECP .

Hardware Monitor

CPU T emperature / Current CPU F AN Speed / Current SYS F AN Speed

These items allow end users and technicians to monitor data provided by
the BIOS on this mainboard. It is not user-configurable.

3 - 7

VI35L Mainboard Ma nual

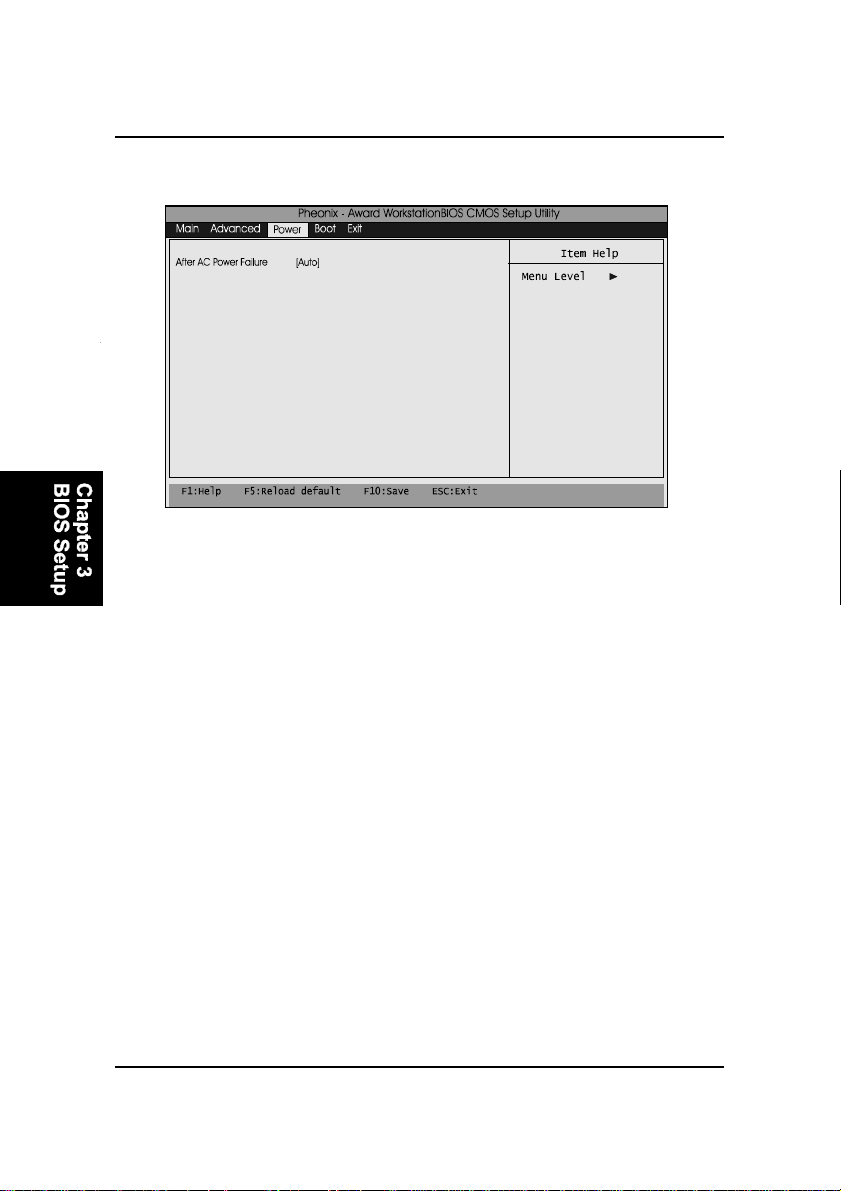

Power Features Setup

After AC Power Failure

When the system is shut down owing to the power failure, the system will
not be back to power on by itself. This feature allows you to set the
system back to which power status of the system when the system power
is resumed. The system always be back to off if set at Stay Off. It always
will be back to on. It will be back to on.
The options are Auto, Power On, Stay Of f.

3 - 8

BIOS Setup

Boot Features Setup

Boot-time Diagnostic Screen

This feature allows to be enabled for troubleshooting or other reason.
The options are Disa bled, Ena bled.

Quick Boot Mode

This feature allows users to disable the quick boot mode f or troubleshoot­ing or other reason. The options are Disabled, Enabled.

Boot Device Priority

This feature will auto detect all hard disks of bootable device on the sys­tem. It also allows users to select the device booting priority .

First/Second/Third/Fourth Boot Device

This feature allows user to select the boot device priority.
The options are: Floppy , LS120, Hard Disk, CD ROM, ZIP100, USB-FDD,
USB-ZIP , USB-CD ROM, USB-HDD, PCI LAN, Disa bled.

Hard Disk Boot Priority

This feature allows user to select the hard disk boot priority .

3 - 9

VI35L Mainboard Ma nual

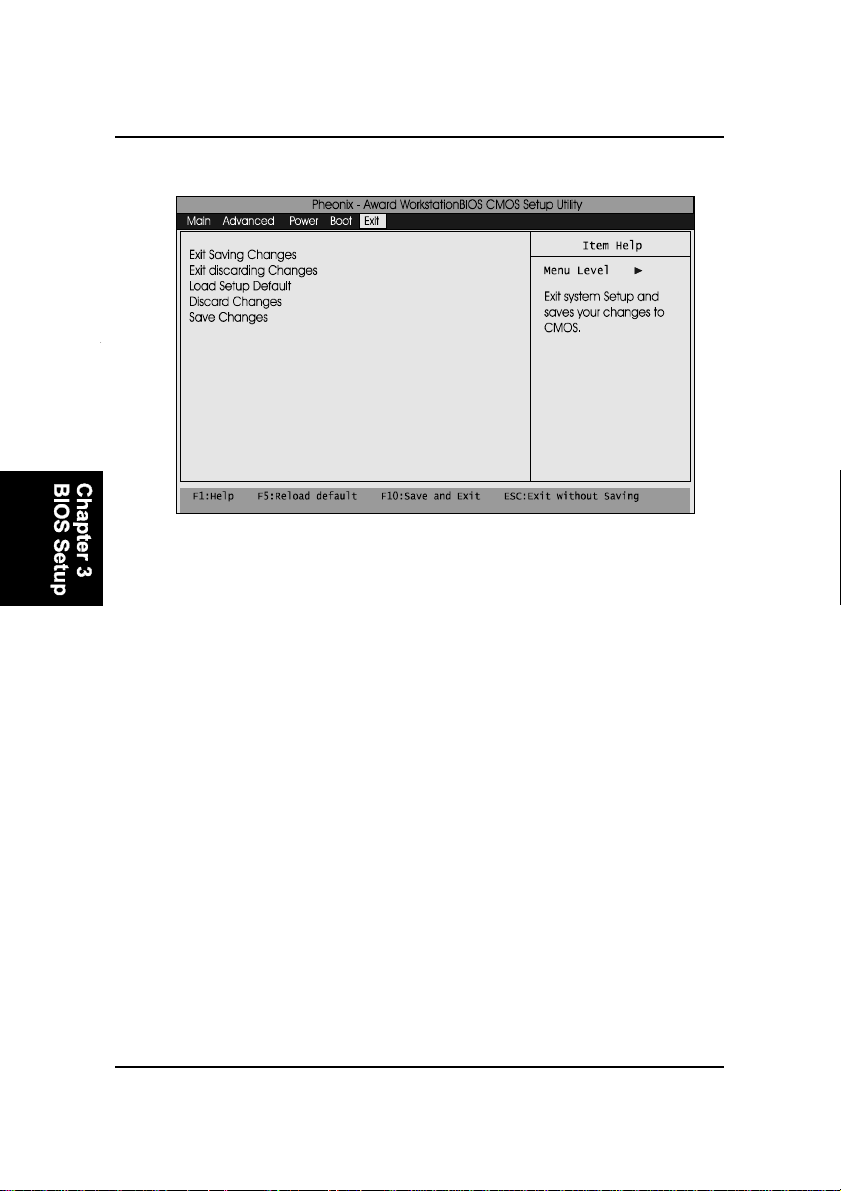

Exit Features Setup

Exit Saving Changes

After you have made changes under Setup, press Esc to return to the main
menu. Move highlight bar to this item a nd press Enter key, then press Y to
change the CMOS Setup.

Exit discarding Changes

Select this feature to allow you to exit the setup utility without saving
CMOS modifications.

Load Setup Defaults

This item is selected to place all manufacturing default settings. These
settings do not give optimal performance.

Discarding Changes

This feature allows you to discard the current CMOS modifications.

Saving Changes

This feature allows you to save the current CMOS modifications.

3 - 10
