Scan the code to watch the video.
Watch the video tutorial before configuring the device.
Support
If you need help configuring the FIBARO Swipe, take advantage of our guides and technical
manuals available at: http://manuals.fibaro.com
2
Page 3
Package Contents
Manuals and Warranty Micro-USB Cable
Holder FIBARO Swipe
3
Page 4

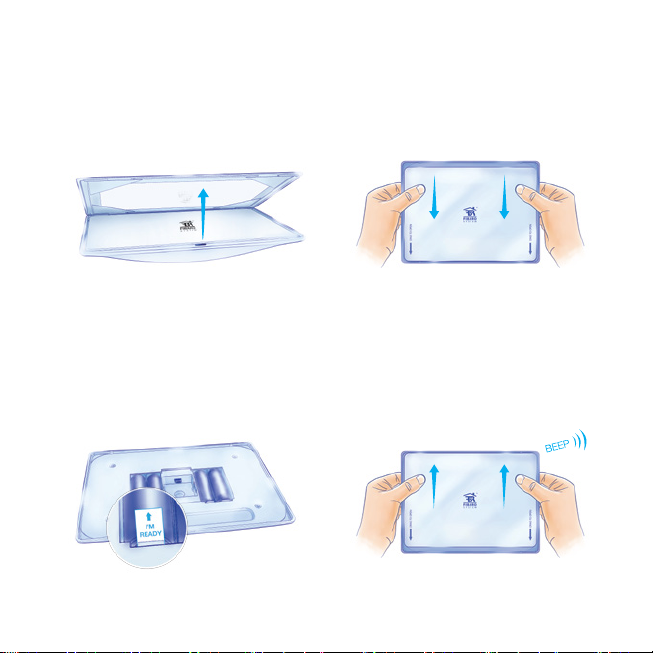

Step 1. Detach the frame Step 2. Slide out the plate
Detach the front magnetic frame using the
gap in the bottom of the housing.
Slide the detection plate down to remove it
from the housing.
Step 3. Engage the batteries Step 4. Insert the plate
Pull out the paper stripe protecting the
batteries.
Insert the detection plate back in the
housing by sliding it up. The device will
confirm powering up with an acoustic signal.
4
Page 5

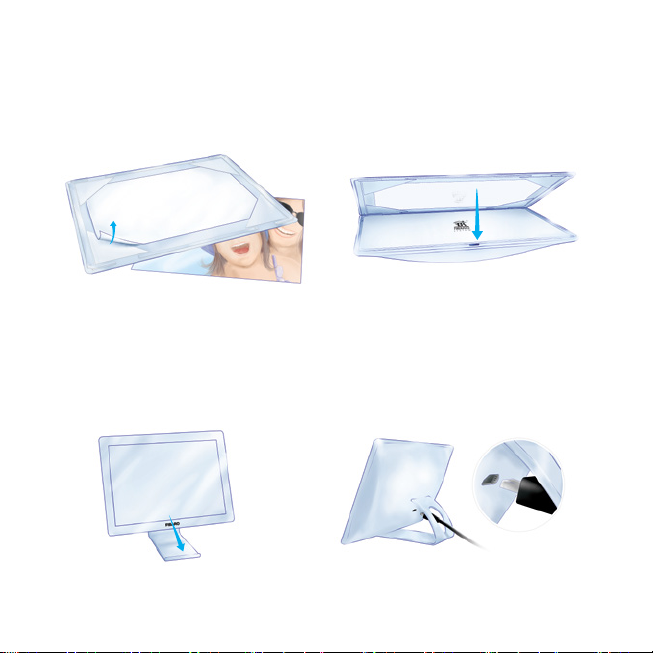

Step 5. Replace the picture Step 6. Attach the frame
You can replace the existing photo with
your favorite one at this point.
Attach the front magnetic frame.
Step 7. Place on the holder
Place the assembled device on its holder.
Step 8. Plug the USB cable
Connect the power supply via the USB
cable for the configuration process.
5
Page 6

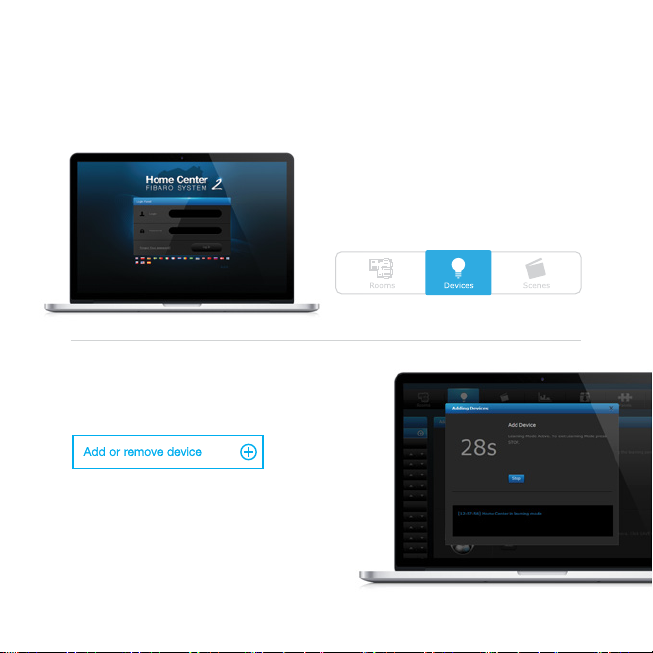

Adding the device
The device must be in the direct range of the
Z-Wave controller during the adding process.
Step 2
Select the “Add or remove device” option from
the left side menu.
Click „Add” to start adding a new device
(learning mode).
Follow the instructions on the next page.
Step 1
Login to the Home Center controller and
select “Devices” from the main menu.
6
Page 7
Adding the device

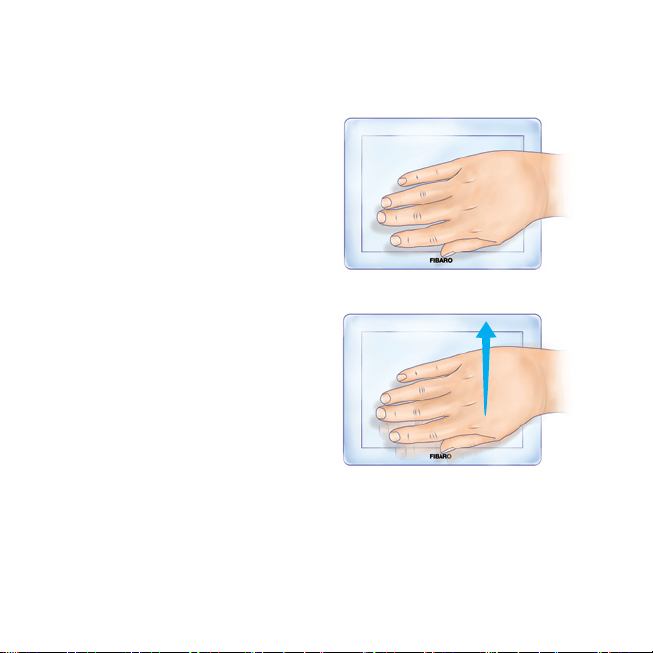

Step 3
Move and hold your hand close to the
center of the pad for around 4 seconds.
Step 4
A loud sound sequence will confirm
entering the menu, keep holding your hand.
Step 5
After hearing two short beeps, take
your hand away and swipe up to
confirm selection.
Step 6
Wait for the device to be added to
the system.
7
Page 8

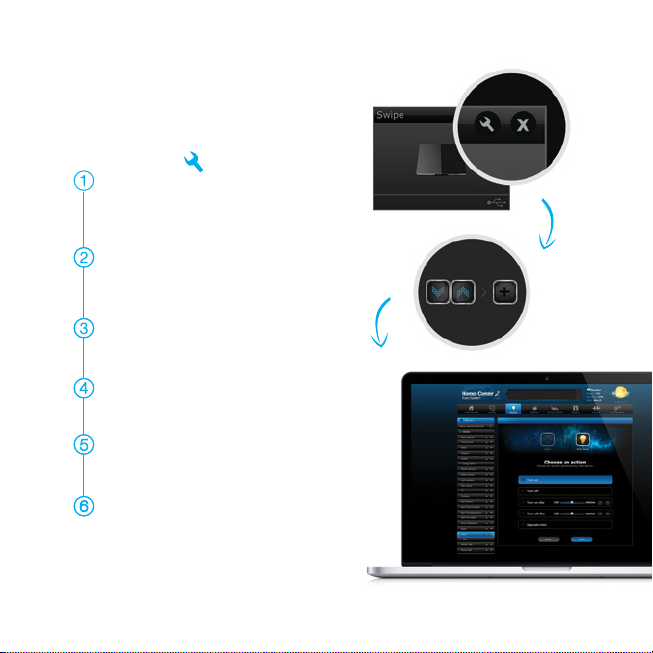

Gestures configuration
After the device is added, you can
proceed with its configuration in the
Home Center interface.
Click the icon in the top right
corner of the FIBARO Swipe window.
Select a gesture to which you want
to assign reaction and click the
plus icon (New Reaction).
Select the device you want to control.
From the available options select the
reaction of the controlled device and
complete the setup by clicking "Save".
TIP: Configuration of sequences is described
later in this manual.
8
Page 9
Gesture sequences configuration
Sequence configuration is just as simple as
gesture configuration.
Click the icon in the top right
corner of the FIBARO Swipe window
in the Home Center interface.
Drag and drop two or three gestures
to create a desired sequence.
Confirm the selection by clicking
“Confirm new sequence”.
Wake up the Swipe according to the
instructions on page 11 (section Menu).
Click the plus icon (New Reaction)
next to the newly created sequence.
Select the device you want to control.
From the available options select the
reaction of the controlled device and
complete the setup by clicking "Save".
9
Page 10

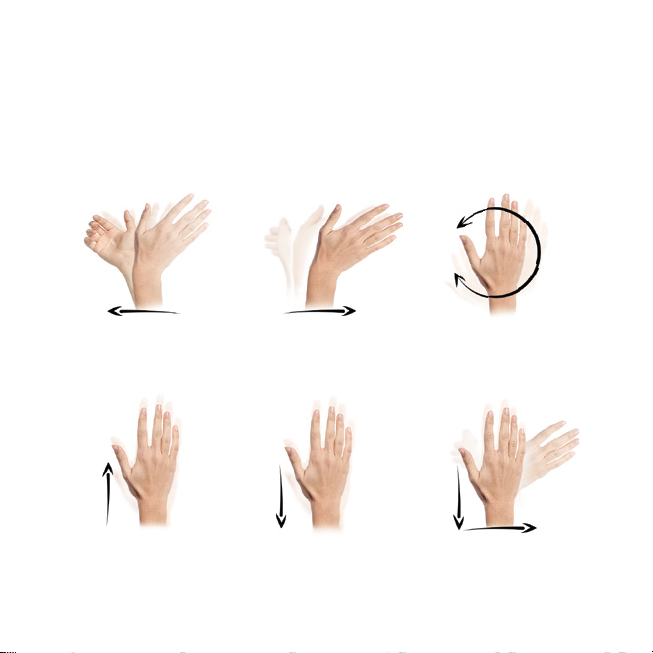

Gestures and sequences
FIBARO Swipe supports 6 gestures (up, down, left, right, clockwise, counter-clockwise) and
combinations of gestures, called sequences. Sequences can be made of two or three
gestures. Every sequence must be unique and cannot contain circular gestures. Additionally,
two identical gestures may not be used next to each other. See examples below.
Left Right
10
Circular
SequenceUp Down
Page 11
Acoustic signals
FIBARO Swipe is equipped with a buzzer, which signals detected gestures, menu position and
status of the device. Validity of every detected gesture or sequence is signalled by:
2 short beeps - gesture/sequence is valid
1 long beep - gesture/sequence is invalid
Intermittent tone - during a circular gesture.
Powering modes
FIBARO Swipe can operate on either USB power supply or batteries.
The device is always active.
After a few seconds of inactivity,
the device enters the Standby
Mode to preserve battery life.
The device immediately responds to gestures.
Exit the Standby Mode before performing a
gesture. Place your hand close to the center
of the pad until a high pitched beep sounds.
Menu
Menu allows to perform Z-Wave network actions. In order to enter and navigate the menu:
1. Move and hold your hand close to the center of the pad.
2. Loud sound sequence will confirm entering the menu, keep holding your hand.
3. Wait for the buzzer to indicate the desired menu position:
• 1 short beep - wake up the device
• 2 short beeps - learning mode (add/remove)
• 3 short beeps - reset the device
4. Take your hand away and swipe up to confirm selection.
TIP: In battery mode, before entering the menu, a high pitched beep will signal exiting
the Standby Mode.
