Fiat 500C 2012 User Manual

2012 USER GUIDE

The driver’s primary responsibility is the safe operation of the

vehicle. Driving while distracted can result in loss of vehicle

control, resulting in a collision and personal injury. Chrysler

Group LLC strongly recommends that the driver use extreme

caution when using any device or feature that may take their

attention off the road. Use of any electrical devices such as cell

phones, computers, portable radios, vehicle navigation or other

devices by the driver while the vehicle is moving is dangerous

and could lead to a serious collision. Texting while driving is also

dangerous and should never be done while the vehicle is moving.

If you nd yourself unable to devote your full attention to

vehicle operation, pull off the road to a safe location and stop

your vehicle. Some States or Provinces prohibit the use of

cellular telephones or texting while driving. It is always

the driver’s responsibility to comply with all local laws.

IMPORTANT: This User Guide is intended to familiarize you

with the important features of your vehicle. The DVD enclosed

contains your Owner’s Manual, Navigation/Media Center

Manuals, Warranty Booklets, Tire Warranty and 24-Hour Towing

Assistance (new vehicles purchased in the U.S.) or Roadside

Assistance (new vehicles purchased in Canada) in electronic

format. We hope you nd it useful. Replacement DVD kits may

be purchased by visiting www.techauthority.com. FIAT is a

registered trademark of FIAT Group Marketing & Corporate

Communication SpA, used under license by Chrysler Group LLC.

Copyright 2011 Chrysler Group LLC.

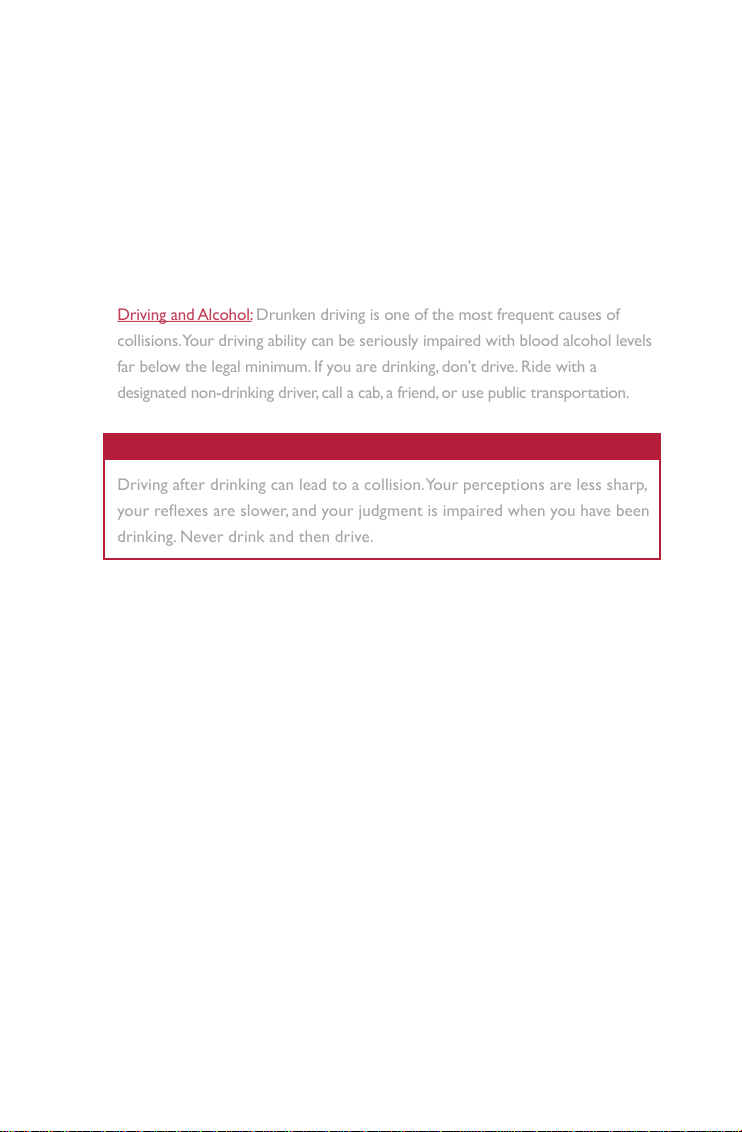

Driving and Alcohol: Drunken driving is one of the most frequent causes of

collisions. Your driving ability can be seriously impaired with blood alcohol levels

far below the legal minimum. If you are drinking, don’t drive. Ride with a

designated non-drinking driver, call a cab, a friend, or use public transportation.

Driving after drinking can lead to a collision. Your perceptions are less sharp,

your reexes are slower, and your judgment is impaired when you have been

drinking. Never drink and then drive.

If you are the rst registered retail owner of your vehicle,

you may obtain a complimentary printed copy of the

Owner’s Manual, Navigation/Media Center Manuals or

Warranty Booklet by calling 1-888-242-6342 (U.S.) or

1-800-387-1143 (Canada) or by contacting your dealer.

TABLE OF CONTENTS

INTRODUCTION/WELCOME

Welcome From Fiat

.............2

CONTROLS AT A GLANCE

Driver Cockpit
Instrument Cluster

...............4

.............6

GETTING STARTED

Key Fob
Theft Alarm
Power Door Locks
Seat Belt
Supplemental Restraint System (SRS) —

Air Bags
Child Restraints
Front Seats
Rear Seats
Tilt Steering Column
Heated Seats

...................8

.................8

.............8

...................9

...................9

...............10

.................12

..................14

............14

................15

OPERATING YOUR VEHICLE

Turn Signal/Lights/High Beam Lever
Wiper/Washer Lever
Speed Control
PowerWindows
Manual Climate Controls
Automatic Temperature Controls

(ATC)

....................21

Rear Park Assist
Sport Mode
ManualTransmission
Power Sunroof
Power Convertible Top Operation
Wind Buffeting
Cold Weather Operation (Engine Block

Heater)

.................22

...................25

............17

................18

...............19

..........20

...............21

.............22

...............22

...............24

.....16

.....23

ELECTRONICS

YourVehicle's Sound System
AM/FM RadioWith CD Player And Sirius

XM™ Satellite Radio
BLUE&ME™ Hands-Free

Communication
iPod®/USB/MP3 Control
ElectronicVehicle Information

Center (EVIC)

...............29

................35

.........26

............28

..........34

Programmable Features
Trip Button
Power Outlet

.................36

...........35

................37

UTILITY

Trailer Towing
RecreationalTowing (Behind

Motorhome, Etc.)

................38

..............38

WHAT TO DO IN EMERGENCIES

24-Hour Roadside Assistance
Instrument ClusterWarning Lights
IfYour Engine Overheats
Jacking And Tire Changing
TIREFIT Kit
Jump-Starting Procedure
Shift Lever Override
Towing A DisabledVehicle
Enhanced Accident Response System
Freeing A StuckVehicle
Event Data Recorder (EDR)

.................49

........39

.....39

..........42

..........43

..........53

.............56

..........56

....57

...........58

.........59

MAINTAINING YOUR VEHICLE

Opening The Hood
Engine Compartment
Fluids And Capacities
Maintenance Chart
Fuses

....................65

Tire Pressures
Wheel And Wheel Trim Care
Exterior Bulbs

.............60

............61

............62

.............63

................66

....... 67

................67

CONSUMER ASSISTANCE

Fiat Customer Center
Assistance ForThe Hearing Impaired
Publications Ordering
Reporting Safety Defects In The 50 United

States And Washington,D.C.

............68

... 68

............68

.........69

MOPAR ACCESSORIES

Authentic Accessories By MOPAR®.....70

INDEX

.................. 71

FAQ(HowTo?)

Frequently Asked Questions

.........73

1

INTRODUCTION/WELCOME

WELCOME FROM FIAT

Congratulations on selecting your new FIAT vehicle. Be assured that it represents precision
workmanship,distinctive styling, and high quality - all essentials that are traditional to our vehicles.

Your new FIAT vehicle has characteristics to enhance the driver's control under some driving
conditions.These are to assist the driver and are never a substitute for attentive driving.They can
never take the driver's place. Always drive carefully.

Your new vehicle has many features for the comfort and convenience of you and your passengers.
Some of these should not be used when driving because they take your eyes from the road or
your attention from driving.Never text while driving or take your eyes more than momentarily off
the road.

This guide illustrates and describes the operation of features and equipment that are either
standard or optional on this vehicle.This guide may also include a description of features and
equipment that are no longer available or were not ordered on this vehicle. Please disregard any
features and equipment described in this guide that are not available on this vehicle. Chrysler
Group LLC reserves the right to make changes in design and specifications and/or make additions
to or improvements to its products without imposing any obligation upon itself to install them on
products previously manufactured.

This User Guide has been prepared to help you quickly become acquainted with the important
features of your vehicle. It contains most things you will need to operate and maintain the vehicle,
including emergency information.

The DVD includes a computer application containing detailed owner's information which can be
viewed on a personal computer or MAC computer.The multimedia DVD also includes videos
which can be played on any standard DVD player (including the Media Center Touch-Screen
Radios).Additional DVD operational information is located on the back of the DVD sleeve.

For complete owner information, refer to your Owner's Manual on the DVD in the owner’s kit
provided at the time of new vehicle purchase. For your convenience, the information contained on
the DVD may also be printed and saved for future reference.

We are committed to protecting our environment and natural resources. By converting from
paper to electronic delivery for the majority of the user information for your vehicle, together we
greatly reduce the demand for tree-based products and lessen the stress on our environment.

2

INTRODUCTION/WELCOME

Vehicles Sold In Canada

With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be
deleted and the name Chrysler Canada Inc. used in substitution therefore.

WARNING!

• Pedals that cannot move freely can cause loss of vehicle control and increase the risk

of serious personal injury.

• Always make sure that objects cannot fall into the driver foot well while the vehicle

is moving.Objects can become trapped under the brake pedal and accelerator pedal
causing a loss of vehicle control.

• Failure to properly follow floor mat installation or mounting can cause interference

with the brake pedal and accelerator pedal operation causing loss of control of the
vehicle.

• Never use the ‘PARK’ position as a substitute for the parking brake.Always apply the

parking brake fully when parked to guard against vehicle movement and possible
injury or damage.

• Refer to your Owner's Manual on the DVD for further details.

USE OF AFTERMARKET PRODUCTS (ELECTRONICS)

The use of aftermarket devices including cell phones, MP3 players, GPS systems,or chargers may
affect the performance of on-board wireless features including Keyless Enter-N-Go and Remote
Start range. If you are experiencing difficulties with any of your wireless features, try disconnecting
your aftermarket devices to see if the situation improves. If your symptoms persist, please see an
authorized dealer.

FIAT is a registered trademark of FIAT Group Marketing & Corporate Communication SpA, used
under license by Chrysler Group LLC.

COPYRIGHT ©2011 Chrysler Group LLC

3

CONTROLS AT A GLANCE

DRIVER COCKPIT

4

CONTROLS AT A GLANCE

K. Driver Power Window Switch

L. Speed Control pg. 18

M. Hood Release

N. BLUE&ME™ Hands-Free Communication

pg. 29

O. Door Handle/Power Door Locks

P. Power Mirror Switches

G. SWITCH PANEL

A. Turn Signal/Lights Lever pg.16

− Sport Function pg. 22

B. Instrument Cluster pg.6

− Hazard Switch

C. Electronic Vehicle Information Center (EVIC)

Display pg. 35

− Rear Defrost
H. Climate Controls pg. 20

D. ElectronicVehicle Information Center (EVIC)

Controls pg.35

I. Passenger Power Window Switch

J. Transmission Gear Selector

E. Wiper/Washer Lever pg. 17

F. Audio System pg. 28

5

CONTROLS AT A GLANCE

INSTRUMENT CLUSTER

Warning Lights

- Low Fuel Warning Light

- Charging System Light

- Oil Pressure Warning Light

- Anti-Lock Brake (ABS) Light

- Air BagWarning Light

- EngineTemperatureWarning Light

- Seat Belt Reminder Light

- Malfunction Indicator Light (MIL)

- Power Steering System Warning Light

- GenericWarning Light

BRAKE

(See page 39 for more information.)

6

- Brake Warning Light

- Tire Pressure Monitoring System (TPMS) Light

- ElectronicThrottle Control (ETC) Light

- Automatic Gearbox Failure

Indicators

CONTROLS AT A GLANCE

- Turn Signal Indicators

- High Beam Indicator

- Front Fog Light Indicator

- Park/Headlight ON Indicator

- Electronic Speed Control SET Indicator

- DoorAjar Indicator

- Electronic Stability Control (ESC) OFF Indicator

- Electronic Stability Control (ESC) Activation/Malfunction Indicator

7

GETTING STARTED

KEY FOB

Locking and Unlocking the Doors/Liftgate

• Press the LOCK button once to lock all the

doors and the liftgate. Press the UNLOCK
button once to unlock the driver’s door only
and twice within five seconds to unlock all the
doors and liftgate.

Opening the Liftgate

• Press the LIFTGATE button for approximately two seconds to unlock the liftgate.

• To open the liftgate, press the liftgate release handle located on the underside of the license

plate bar and pull the liftgate open with one fluid motion.

WARNING!

Leaving unattended children in a vehicle is dangerous for a number of reasons.A child
or others could be severely injured or killed. Children should be warned not to touch
the parking brake, brake pedal, or the shift lever.Do not leave the key in the ignition. A
child could operate power windows,other controls, or move the vehicle.

THEFT ALARM

To Arm

• Press the Key Fob LOCK button or lock the doors by pushing the inside door handle while the

door is open.

To Disarm

• Press the Key Fob UNLOCK button and turn the ignition to the ON/RUN position.

POWER DOOR LOCKS

• The vehicles power door locks are activated by moving the inside door handles.

• Push or pull the door handle to lock or unlock the doors and liftgate.

8

GETTING STARTED

SEAT BELT

• Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• Position the lap belt across your thighs, below your abdomen.To remove slack in the lap portion,

pull up a bit on the shoulder belt.To loosen the lap belt if it is too tight, tilt the latch plate and
pull on the lap belt.A snug belt reduces the risk of sliding under the belt in a collision.

• Position the shoulder belt on your chest so that it is comfortable and not resting on your neck.

The retractor will withdraw any slack in the belt.

• A shoulder belt placed behind you will not protect you from injury during a collision.You are

more likely to hit your head in a collision if you do not wear your shoulder belt.The lap and
shoulder belt are meant to be used together.

• A belt that is too loose will not protect you properly. In a sudden stop you could move too far

forward,increasing the possibility of injury.Wear your seat belt snugly.

• A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the

belt system periodically, checking for cuts, frays,or loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.Seat belt assemblies must be replaced
after a collision if they have been damaged (bent retractor, torn webbing,etc.).

• The seat belts for both front seating positions are equipped with pretensioning devices that are

designed to remove slack from the seat belt in the event of a collision.

• A deployed pretensioner or a deployed air bag must be replaced immediately.

WARNING!

In a collision,you and your passengers can suffer much greater injuries if you are not
buckled up properly.You can strike the interior of your vehicle or other passengers,or
you can be thrown out of the vehicle.Always be sure you and others in your vehicle
are buckled up properly.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS

• This vehicle has Advanced FrontAir Bags for both the driver and right front passenger as a

supplement to the seat belt restraint system.The Advanced FrontAir Bags will not deploy in
every type of collision.

• Advanced Front Air Bags are designed to provide additional protection by supplementing the

seat belts in certain frontal collisions depending on the severity and type of collision.Advanced
Front Air Bags are not expected to reduce the risk of injury in rear, side,or rollover collisions.

• This vehicle is equipped with Supplemental Side Air Bag Inflatable Cur tains to protect the driver,

front and rear passengers sitting next to a window.

• This vehicle is equipped with Supplemental Seat-Mounted SideAir Bags to provide enhanced

protection to help protect an occupant during a side impact.

• This vehicle is equipped with Supplemental Driver Side Knee Air Bag to provide enhanced

protection and work together with the Driver Advanced Front Air Bag during a frontal impact.

• If theAir Bag Warning Light

have the vehicle serviced by an authorized service center immediately.

is not on during starting, stays on, or turns on while driving,

9

GETTING STARTED

• Refer to the Owner's Manual on the DVD for further details regarding the Supplemental

Restraint System (SRS).

WARNING!

• Relying on the air bags alone could lead to more severe injuries in a collision.The air

bags work with your seat belt to restrain you properly.In some collisions, the air bags
won't deploy at all.Always wear your seat belts even though you have air bags.

• Being too close to the steering wheel or instrument panel during Advanced Front

Air Bag deployment could cause serious injury, including death.Air bags need room
to inflate. Sit back,comfortably extending your arms to reach the steering wheel or
instrument panel.

• Supplemental Side Air Bag Inflatable Curtains and Supplemental Seat-Mounted Side

Air Bags need room to inflate. Do not lean against the door or window. Sit upright in
the center of the seat.

• Being too close to the Supplemental SideAir Bag Inflatable Curtain and/or

Seat-Mounted SideAir Bag during deployment could cause you to be severely
injured or killed.

• Do not drive your vehicle after the air bags have deployed.If you are involved in

another collision, the air bags will not be in place to protect you.

• After any collision, the vehicle should be taken to an authorized dealer immediately.

CHILD RESTRAINTS

• Children 12 years and under should ride properly buckled up in a rear seat, if available.

According to crash statistics, children are safer when properly restrained in the rear seats rather
than in the front.

• Every state in the United States and all Canadian provinces require that small children ride in

proper restraint systems.This is the law,and you can be prosecuted for ignoring it.

Installing The LATCH - Compatible Child Restraint System

• Your vehicle's second row passenger seats are equipped with the child restraint anchorage

system called LATCH, which stands for Lower Anchors andTether for CHildren.LATCH child
restraint anchorage systems are installed in both rear seating positions.

• NEVER install compatible child seats so that two seats share a common lower anchorage.

10

GETTING STARTED

• Loosen the child seat adjusters on the lower

straps and tether straps so that you can attach
the hook or connector to the lower and
tether anchorages more easily.

• Attach the lower hooks or connectors over the top of the anchorage bars, pushing aside the

seat cover material.The rear seat lower anchorages are round bars, located at the rear of the
seat cushion where it meets the seatback.The rear seat lower anchors can be readily identified
by the symbol
when you lean into the rear seat to install the child restraint.

• The tether strap should be routed under the center of the head restraint and attached to the

tether anchor on the rear of the seatback.

located on the seatback directly above the anchorages and are just visible

• Tighten all three straps as you push the child

restraint rearward and downward into the
seat.

11

GETTING STARTED

Installing the Child Restraint Using the Vehicle Seat Belts

• To install a child restraint, first pull enough of the seat belt webbing from the retractor to route

it through the belt path of the child restraint, and then slide the latch plate into the buckle.

• Next, extract all the seat belt webbing out of the retractor and then allow the belt to retract

into the retractor.Finally, pull on any excess webbing to tighten the lap portion around the child
restraint.Any seat belt system will loosen with time, so check the belt occasionally,and pull it
tight if necessary.

• Once you have completed securing the child restraint with the seat belt, secure the top tether

strap.The tether strap should be routed under the center of the head restraint.

WARNING!

• In a collision,an unrestrained child, even a tiny baby, can become a projectile inside

the vehicle.The force required to hold even an infant on your lap could become so
great that you could not hold the child, no matter how strong you are.The child and
others could be badly injured.Any child riding in your vehicle should be in a proper
restraint for the child's size.

• Improper installation of a child restraint to the anchorages can lead to failure of an

infant or child restraint.The child could be severely injured or killed.Follow the
manufacturer’s directions exactly when installing an infant or child restraint.

• An incorrectly anchored tether strap could lead to increased head motion and

possible injury to the child. Use only the anchor positions directly behind the child
seat to secure a child restraint top tether strap.

• Rearward-facing child seats must never be used in the front seat of a vehicle with a

front passenger air bag.An air bag deployment could cause severe injury or death to
infants in this position.

FRONT SEATS

Manual Seat Adjustment

12

Forward/Rearward

• Lift up on the adjusting handle,located at the

front of the seat near the floor,and release at
the desired position.

EZ Entry Seats

GETTING STARTED

Recliner

• To recline the seatback, lift up the recline lever,

located on the inboard side of the seat,lean
back until the desired position has been
reached,and release the lever.

Seat Height

• The driver’s seat height can be raised or

lowered by using a lever, located on the
outboard side of the seat.Pump the lever
upward to raise the seat height, or pump the
lever downward to lower the seat height.

• Pull forward on the lever,located on the side

of the seatback,to dump the seatback forward
and slide the seat forward.This allows for
easier access to the rear seat.

• The driver seat has a memory feature.After

using the EZ Entry function, the seat back and
adjuster will re-lock into the original position at
which the seat was previously adjusted to.

WARNING!

Adjusting a seat while the vehicle is moving is dangerous.The sudden movement of the
seat could cause you to lose control.The seat belt might not be properly adjusted,and
you could be severely injured or killed.Only adjust a seat while the vehicle is parked.

13

GETTING STARTED

REAR SEATS

TILT STEERING COLUMN

Folding Rear Seatback

• To fold each rear seatback, push down on the

button located on the upper outboard side of
the seat and fold the seatback flat.

NOTE: Be sure that the front seats are fully
upright and positioned forward.This will allow
the rear seatback to fold down easily.

• The tilt lever is located on the steering

column, below the turn signal lever.

• Push down on the lever to unlock the steering

column.

• With one hand firmly on the steering wheel,

move the steering column up or down as
desired.

• Pull upward on the lever to lock the column

firmly in place.

WARNING!

Do not adjust the steering column while driving.Adjusting the steering column while
driving or driving with the steering column unlocked could cause the driver to lose
control of the vehicle. Be sure the steering column is locked before driving your vehicle.
Failure to follow this warning may result in severe injury or death.

14

GETTING STARTED

HEATED SEATS

Front Heated Seats

• The controls for the front heated seats are

located on the center instrument panel area.

• Press the switch once to turn on the heated

seat. Press the switch a second time to turn off
theheatedseat.

WARNING!

• Persons who are unable to feel pain to the skin because of advanced age, chronic

illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other
physical conditions must exercise care when using the seat heater. It may cause burns
even at low temperatures, especially if used for long periods of time.

• Do not place anything on the seat that insulates against heat,such as a blanket or

cushion.This may cause the seat heater to overheat. Sitting in a seat that has been
overheated could cause serious burns due to the increased surface temperature of
the seat.

15

OPERATING YOURVEHICLE

TURN SIGNAL/LIGHTS/HIGH BEAM LEVER

Turn Signal/Lane Change Assist

• Tap the lever up or down once and the turn signal (right or left) will flash briefly to indicate a

lane change and automatically turn off.

Headlights/Parking Lights

• The ignition switch must be in the ON/RUN position for the headlights to operate.

• Rotate the end of the lever to the first detent for parking lights and headlight operation.

High Beams

• Push the lever forward to activate the high beams.

• A high beam symbol will illuminate in the cluster to indicate the high beams are on.

NOTE: For safe driving, turn off the high beams when oncoming traffic is present to prevent
headlight glare and as a courtesy to other motorists.

Flash To Pass

• Pull the lever toward you to activate the high beams.The high beams will remain on until the

lever is released.

Headlight Delay (Follow Me Home)

• Within two minutes from when the engine is turned off and the ignition key is in the

OFF/LOCK position or removed, pull the turn signal lever toward the steering wheel.

• Each movement of the lever toward the steering wheel will increase the illumination period by

30 seconds,up to a maximum of 210 seconds.

16

OPERATING YOURVEHICLE

Fog Lights

WIPER/WASHER LEVER

• Push the fog light button, located on the

climate controls, once to turn on the fog lights.

• Push the button a second time to turn the fog

lights off.

Front Wipers

Intermittent, Low and High Operation

• Move the lever downward to the first detent for intermittent wiper operation, the second

detent for low wiper operation and to the third detent for high wiper operation.

Mist

• Move the lever upward and release when a single wipe is desired.

NOTE: The mist feature does not activate the washer pump; therefore, no washer fluid will be
sprayed on the windshield.The wash function must be activated in order to spray the windshield
with washer fluid.

17

OPERATING YOURVEHICLE

Washer Operation

• Pull the lever toward you and hold for as long as spray is desired.

Rear Wiper

Rear Wiper Operation

• Rotate the end of the lever to activate the rear wiper.

Rear Washer Operation

• Push the lever forward and hold for as long as spray is desired.

SPEED CONTROL

• The speed control switches are located on the

steering wheel.

Cruise ON/OFF

• Push the ON/OFF button to activate the

Speed Control.

• CRUISE READY

instrument cluster to indicate the Speed
Control is on.

• Push the ON/OFF button a second time to

turn the system off.

will appear on the

Set

• With the Speed Control on,push and release the SET – button to set a desired speed.

Accel/Decel

• Once a speed is set,pushing the RES + button once or the SET – button once will increase or

decrease the set speed approximately 1 mph (2 km/h).

• Push and hold the RES + button to accelerate in 5mph (8 km/h) increments or push and hold

the SET – button to decelerate in 5mph (8 km/h) increments; release the button to save the
new set speed.

Resume

• To resume a previously selected set speed in memory, push the RES + button and release.

Cancel

• Push the CANCEL button, or apply the brakes to cancel the set speed and maintain the set

speed memory.

• Push the ON/OFF button to turn the system off and erase the set speed memory.

18

OPERATING YOURVEHICLE

WARNING!

• Leaving the Electronic Speed Control system on when not in use is dangerous.You

could accidentally set the system or cause it to go faster than you want.You could
lose control and have a collision.Always leave the Electronic Speed Control system
off when you are not using it.

• Electronic Speed Control can be dangerous where the system cannot maintain a

constant speed.Your vehicle could go too fast for the conditions, and you could lose
control.A collision could be the result. Do not use Electronic Speed Control in heavy
traffic or on roads that are winding, icy, snow-covered or slippery.

POWER WINDOWS

• Power windows can be operated with the

ignition in the ON/RUN position and for two
minutes after the key has been removed.

• The controls for the power windows are

located on either side of the gear lever.

• Both windows have anAuto Down feature.

Push the switch down past the detent and
release to fully lower the window.

• Pull the switch upward to close the window.

19

OPERATING YOURVEHICLE

MANUAL CLIMATE CONTROLS

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging,turn the recirculation off.

• Recirculation is not allowed in defrost,floor, defrost/floor (mix) modes.

•

•

– Air intake from outside

– Internal air recirculation

Heated Mirrors

• The mirrors are heated to melt frost or ice.This feature is activated whenever you turn on the

rear window defroster.

20

OPERATING YOURVEHICLE

AUTOMATIC TEMPERATURE CONTROLS (ATC)

Automatic Operation

• Push theAUTO button.

• Select the desired temperature by pushing the temperature control buttons.

• The system will maintain the set temperature automatically.

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging,turn the air recirculation button off.

Heated Mirrors

• The mirrors are heated to melt frost or ice.This feature is activated whenever you turn on the

rear window defroster.

REAR PARK ASSIST

• If an object is detected behind the rear bumper while the vehicle is in REVERSE,a chime will

sound.The chime rate will change depending on the distance of the object, getting faster as the
object gets closer to the bumper.The chime will become continuous when the distance
between the vehicle and the obstacle is less than 12 inches (30 cm).

• When the Instrument Cluster reads either“Clean Sensor” or “Blinded”, clean off the bumper

sensors to see if the condition is corrected.

21

OPERATING YOURVEHICLE

SPORT MODE

• The Sport mode increases steering feedback to the driver with slight increases in effort and

throttle pedal-to-engine response. Changes to the transmission shift schedules for more
aggressive shifting will occur on automatic transmission versions.

• Sport driving mode is useful while driving on winding roads where more steering precision is

desired.

• Press the SPORT button, located above the

climate controls, to activate the Sport mode.

Manual Transmission

• Once activated,a SPORT message will be

displayed in the instrument cluster.

• Momentarily release the accelerator pedal.

• Press the accelerator pedal again to activate.

Automatic Transmission

• Once activated,a SPORT message will be

displayed in the instrument cluster.

• Press the SPORT button again to return to the

standard driving mode.

MANUAL TRANSMISSION

• Never shift into REVERSE until the vehicle has come to a complete stop.

POWER SUNROOF

• The power sunroof roof switch is located in the overhead console.

To Open

• Press and hold the power sunroof switch rearward for approximately two seconds and the

sunroof will stop at the vented position. Press the switch a second time and hold for
approximately one second and release, the sunroof will open fully, then stop automatically.This is
called “Express Open”.During Express Open operation,any movement of the sunroof switch
will stop the sunroof.

To Close

• With the sunroof in the full open position,pull the power sunroof button and hold it for

approximately one second, the sunroof will return to the vented position. Pull the switch a
second time and hold for approximately two seconds to completely close the sunroof.

Pinch Protect Override

• If a known obstruction (ice, debris, etc.) prevents the sunroof from closing, press the switch

forward and hold for two seconds after the reversal occurs.This allows the sunroof to move
toward the closed position.

NOTE: Pinch protection is disabled while the switch is pressed.

22

OPERATING YOURVEHICLE

Sun Shade

• For vehicles equipped with either a power sunroof or a fixed glass roof, there is a sun shade that

can be open or closed.To open the sun shade press the tab and move the shade to a full open
position.

WARNING!

• Never leave children in a vehicle with the key in the ignition switch. Occupants,

particularly unattended children,can become entrapped by the power sunroof while
operating the power sunroof switch. Such entrapment may result in serious injury or
death.

• In a collision,there is a greater risk of being thrown from a vehicle with an open

sunroof.You could also be seriously injured or killed.Always fasten your seat belt
properly and make sure all passengers are properly secured.

• Do not allow small children to operate the sunroof.Never allow your fingers, other

body parts, or any object to project through the sunroof opening. Injury may result.

POWER CONVERTIBLE TOP OPERATION

• The power top buttons will operate when the

ignition switch is turned to the ON/RUN or
ACC position and when in the power
accessory delay.

• The power top buttons are located on the

overhead console.

Lowering

• Press the top open button once for the

partially open position.

• Press the top open button a second time to

fully open the convertible top.

Raising

• From the convertible top fully open position, press the top close button once for the partially

open position.

• Press the top close button a second time to partially close the convertible top.

• Press and hold the close button to fully close convertible top.

NOTE: Rail lubrication is recommended every 2000 cycles,or if scratching noises due to dust are
present. Use Berulub FR 43 grease.

23

OPERATING YOURVEHICLE

Wind Stop

• The Wind Stop installs in the backseat area of the vehicle.The Wind Stop will not interfere with

power top operation.Therefore,it can remain installed when the top is up.

CAUTION!

Failure to follow these cautions may cause interior water damage, stains or mildew on
the top material:

• Avoid high-pressure car washes, as they can damage the top material.Also, increased

water pressure may force water past the weather strips.

• Remove any standing water from the top and dry the surface before opening it.

Operating the top, opening a door or lowering a window while the top is wet may
allow water to drip into the vehicles interior.

• Use care when washing the vehicle,water pressure directed at the weather strip

seals may cause water to leak into the vehicles interior.

WARNING!

The convertible top does not provide the structural protection that a reinforced metal
roof does and the fabric top cannot be expected to prevent the ejection of the
occupants in a collision.Therefore, it is important that all occupants wear their seat
belts at all times. Death or serious injuries could occur if you are ejected from the
vehicle during a collision.

WIND BUFFETING

• Wind buffeting can be described as a helicopter-type percussion sound. If buffeting occurs with

the windows down, or top down (convertible models),adjust one or both windows up or down
slightly.

24

OPERATING YOURVEHICLE

COLD WEATHER OPERATION (Engine Block Heater)

Engine Block Heater

• To prevent possible engine damage while starting at low temperatures, this vehicle will inhibit

engine cranking when the ambient temperature is less than –22° F (–30° C) and the oil
temperature sensor reading indicates an engine block heater has not been used.An
externally-powered electric engine block heater is available as optional equipment or from your
authorized dealer.

• The message "plug in engine heater" will be displayed in the instrument cluster when the

ambient temperature is below 5° F (–15° C) at the time the engine is shut off as a reminder to
avoid possible crank delays at the next cold start.

If Engine Fails To Start

CAUTION!

• Use of the recommended SAE 5W-30 oil and adhering to the prescribed oil change

intervals is important to prevent engine damage and ensure satisfactory starting in
cold conditions.

• Do not attempt to push or tow your vehicle to get it started.Vehicles equipped with

an automatic transmission cannot be started this way. Unburned fuel could enter the
catalytic converter and once the engine has started, ignite and damage the converter
and vehicle.

• To prevent damage to the starter, do not continuously crank the engine for more

than 15 seconds at a time.Wait 10 to 15 seconds before trying again.

WARNING!

Never pour fuel or other flammable liquids into the throttle body air inlet opening in
an attempt to start the vehicle.This could result in a flash fire causing serious personal
injury.

25

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM

26

ELECTRONICS

27

ELECTRONICS

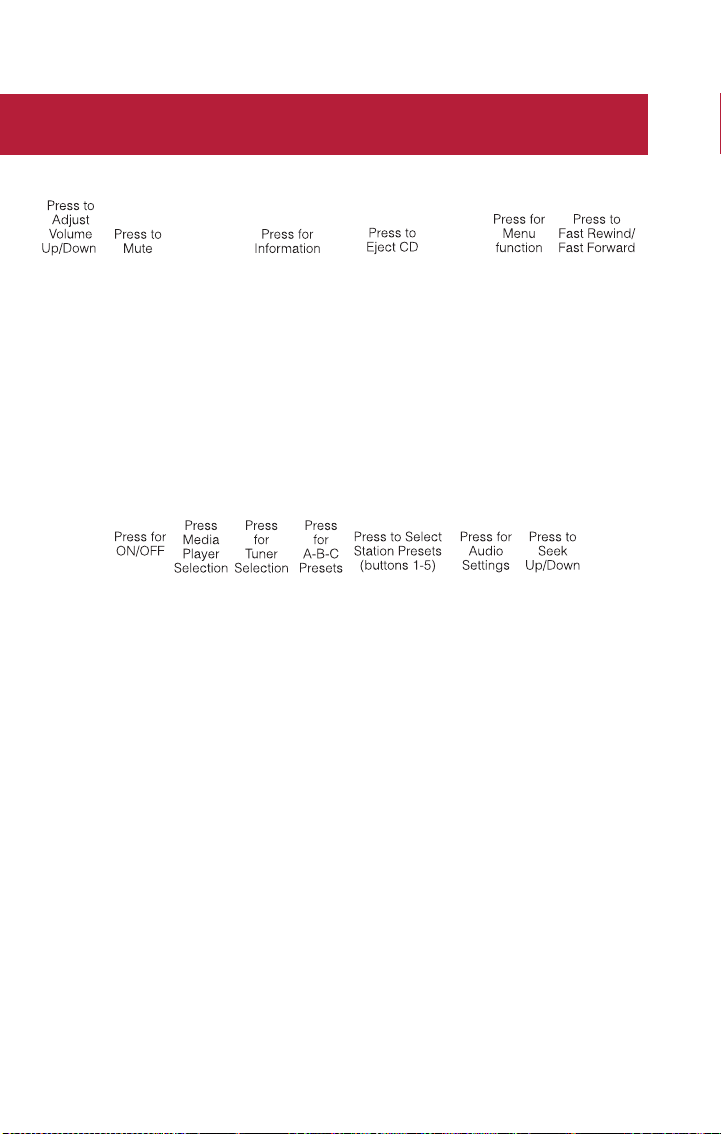

AM/FM RADIO WITH CD PLAYER AND SIRIUS XM™ SATELLITE RADIO

Seek Up/Down Buttons

• Press the right or left arrows to seek through radio stations in AM or FM bands. Seek through

tracks in CD.

• Hold either button to bypass stations without stopping.

Tune Up/Down Buttons

• Press the up or down arrows to manually search through radio stations in AM or FM bands. Fast

Forward or Fast Rewind through a CD track.

Audio Settings

• Press theAUDIO button, then press the up and down arrows to select BASS,TREBLE,

BALANCE and FADE.To adjust a setting, use the right and left arrows.

TUNER

• Press theTuner button to select between AM, FM, SAT (Sirius XM™ Satellite Radio) modes.

Info

• Press the Info button to view Song,Artist,Album,Genre,Playlist,Folder information (if available)

in CD, Media Player and Sirius XM™ Satellite Radio (if so equipped).Also, the Info button to
toggles RDS information in FM mode.

28

ELECTRONICS

MENU

• Press the MENU button and one of the following options will appear on the Radio display.Use

the up and down arrows to scroll through the options; use the left and right arrows to change a
selection setting.

• SpeechVolume • SiriusTelephone Number

• Aux Audio Offset • System Reset

• Radio Off • SpeedVolume

• Sat ID • OnVolume Limit

Clock Setting

• The time is set using the Electronic Vehicle Information Center (EVIC) Display.

• With the Date and Time shown in the EVIC display,press the MENU ESC button to enter the

menu mode.

• Press the plus or minus buttons until "Set Time" is displayed and press the MENU ESC button

again.

• Press the MENU ESC button;“hours” will flash on the display.

• Press the plus or minus buttons to adjust the hours.

• When setting the hour is complete, briefly press the MENU ESC button and “minutes” will flash

in the display.Press the plus or minus buttons to adjust the minutes.

• When setting the time is complete, press and hold the MENU ESC button.

Station Presets

• To store a tuned station, find the station to store by either pressing the right and left arrow

(Seek) buttons or by pressing up or down arrow (Manual Tune) buttons.

• Once the station is found, press and hold one of the PRESET buttons, until you hear a

confirmation beep (Preset Saved will be shown in the radio display).A total of 15 FM,10 AM
and 15 Sirius XM™ Satellite Radio stations can be preset by pressing theA-B-C button.

A-B-C Button

• Press theA-B-C button to choose between the presets stored in the AM, FM or SAT modes.

The mode (AM, FM, SAT), station preset (A, B, C) and preset button number (P 1-5) will be
displayed in the middle of the radio display.

BLUE&ME™ Hands-Free Communication

• FIAT’sWindows Mobile™ based BLUE&ME™ Hands-Free Communication is a personal

telematics system that incorporates communication and entertainment applications that are
expressly designed for use in your car.

• The BLUE&ME™ Hands-Free Communication package installed in your car is equipped with

integral hands-free kit, message reader,and media player. BLUE&ME™ is designed to support the
future installation of additional services.

29

ELECTRONICS

• The BLUE&ME™ Hands-Free Communication package features integrated voice recognition,

steering wheel controls and a multifunction electronic display that allows you to use your
Bluetooth
road.You can even keep your phone in a pocket or a bag.You are not required to train the voice
recognition system to recognize your voice.The system is “speaker independent” and performs
equally well for different users.

Steering Wheel Buttons

Front Steering Wheel Buttons

• The operations of the front BLUE&ME™ SteeringWheel buttons, located on the front left of

the steering wheel, are as follows:

Button

PHONE/MAIN Launch BLUE&ME™ Main Menu

®

wireless technology enabled mobile phone without having to take your eyes off the

1 – MUTE/ESC
2 – PHONE/MAIN
3 – PHONE HANG UP
4 –VOICE RECOGNITION (VR)

Short press function (less than
1 second)

Dial the number displayed on the display
that was accessed haptically from the
phonebook or the recent calls list
Accept an incoming phone call
Switch between two ongoing phone
conversations (call waiting)
Dial the name/number on the display
that was selected/entered by voice
recognition

Long press function
(more than 1 second)

–

30

ELECTRONICS

Button

MUTE/ESC Cancel voice recognition

VOICE RECOGNITION
(VR)

PHONE HANG UP Reject an incoming call and end a phone

PRESET UP/OK (left side
back of steering wheel)

SCAN UP/SCAN
DOWN (left side back
of steering wheel

Short press function (less than
1 second)

Cancel a voice announcement
Interrupt message reading
Exit BLUE&ME™ Main Menu
Exit the sub-menu and return to the
previous menu option
Exit current menu option without
storing settings
Turn the microphone on/off during a
phone conversation
Mute the ring tone of an incoming call
Media player Pause on/off
Activate voice recognition
Interrupt voice announcement to
provide a new voice command

call in progress
End an active call and switch to a call
waiting (on hold)
Confirm manually selected menu option
Switch phone conversation from the
hands-free phone to your mobile phone
and vice versa
Select displayed message
Scroll BLUE&ME™ menu items
Scroll through media player tracks
Scroll inbox messages

Long press function
(more than 1 second)

–

Repeat the last utterance
in a voice interaction

–

–

–

Steering Wheel Audio Controls

• The right hand control on the rear of the steering wheel is a rocker type switch with a

pushbutton in the center. Press the switch up for Volume +. Press the switch down for Volume –.
The button in the center is the SRC button used to change audio sources (e.g.AM, FM, CD,
Media Player).

• The left hand control on the rear of the steering wheel is also a rocker type switch with a

pushbutton in the center. Press the top of the switch to Scan Up. Press the bottom of the switch
to Scan Down.The button in the center is the PRESET UP/OK button.

BLUE&ME™ Hands-Free Communication

• To use the hands-free feature, you need a Bluetooth®wireless technology enabled mobile

phone.This hands-free feature gives you the possibility of interacting vocally with your mobile
phone while driving, even if your mobile device does not feature this capability.You can also
interact with your mobile phone manually and visually using the steering wheel controls and the
instrument panel EVIC display.

• To get started with BLUE&ME™ hands-free feature with voice recognition,you have to simply

pair your Bluetooth

®

wireless technology enabled mobile phone with the system.

31

ELECTRONICS

Pair Your Mobile Phone

• Press theVR steering wheel button and say “Settings” then, at the end of the BLUE&ME™

message say “Pairing”.

• The system will show the phone pairing PIN number on the EVIC display. For the next two

steps, consult your mobile phone owner’s manual about Bluetooth
phone.

• On your mobile phone, search for devices equipped with Bluetooth

setting on your mobile phone might be called Discover or New Device). In this list you will find
BLUE&ME™ (name identifying the BLUE&ME™ system on your car):select it.

• When prompted by the mobile phone, enter the PIN number shown on the instrument panel

display using your mobile phone keypad.If pairing is successful,the system will say“Connecting”
and at the end the display will show as confirmation message, the ID of the paired mobile
phone.

• It is essential to wait until you see this confirmation message on the display. Pressing the

PHONE/MAIN button on the steering wheel or the MUTE/ESC button before the message is
displayed may cancel the pairing process.If the pairing process fails, an error message will be
displayed:in this event repeat the pairing procedure.

• At first pairing, BLUE&ME™ will say“Welcome” immediately after connecting.This message will

no longer be heard when your phone automatically connects to the BLUE&ME™ system on
future ignition cycles.

• BLUE&ME™ will ask if you would like to copy your paired phone phonebook to BLUE&ME™. It

is recommended to copy it.To start copying the phonebook say “Yes”,otherwise say “No”.

• For certain mobile phones the phonebook is not copied automatically, in this case you must

transfer the phonebook contacts using your mobile phone keypad.If BLUE&ME™ asks you to
do this,then perform this procedure following the instructions specific to your mobile phone
and press the PHONE/MAIN button on the steering wheel when you have finished.

Making a Phone Call

• Assume that“John Smith” is one of the contacts stored in your phonebook.

• To call John Smith, proceed as follows:

• Press the steering wheel button PHONE/MAIN and pronounce “Call John Smith”.

• If the name is recognized, the system will display the recognized contact’s information on the

display screen.

• If there is just one phone number for John Smith in your phonebook, the system will ask if you

would like to call John Smith.To start the call say “Yes”, otherwise say “No”.

• If John Smith has several phone numbers,the system will ask which phone number you would

like to call (e.g.:“Call John Smith (at) Work or (at) Home?”).Answer with the type of required
phone number (e.g.: “(at) Home”).

®

pairing procedures for your

®

wireless technology (the

32

ELECTRONICS

• If John Smith has several phone numbers but the “location” (i.e.: the type of phone number like

work, home, etc.) is missing,the system will display the selected contact and a list of related
phone numbers on the instrument cluster display.The hands-free phone system will ask if you
would like to call the phone number displayed.To respond with “yes”, say “Yes”, otherwise say
“No”. If this is the correct contact but the wrong number,say“Forward” or “Backward” to
navigate to the phone number you’d like to call.To call the displayed phone number,pronounce
“Call”.You can also scroll through the phone number list manually by pressing the buttons on the
back of the steering wheel until you find the required number.Then,press the PRESET UP/OK
button on the rear of the steering wheel to start the call.

• To end the phone call, press the PHONE HANG UP button on the steering wheel.

• Refer to the BLUE&ME™ User's Manual on the DVD for more details.

Media Player

• With the BLUE&ME™ media player you can play,via the car sound system, the digital audio files

stored on a USB device by simply connecting it to the USB port located in the glove box of the
car.

• The MEDIA PLAYER menu enables the following:

• Display tracks stored on your USB stick/iPod

• Play audio files stored on your USB stick/iPod

How To Connect The USB Stick/iPod

• To connect your USB stick/iPod

• Copy tracks on your USB stick/iPod

®

®

to BLUE&ME™,proceed as follows:

®

for audio files and.wpl and.m3u for playlists).

• USB devices without USB wire:just connect the USB stick/iPod

lead) to the USB port on the car.

®

• USB stick/iPod

with USB wire: use the wire to connect the USB stick/iPod®to the USB port

on the car.

• Turn the ignition key to ON. BLUE&ME™ will start automatically to play your digital tracks

selecting them from the library built at the moment the USB stick/iPod

• If AUTOPLAY is set to“ON”, BLUE&ME™ will star t playback automatically.

®

• Refer to the iPod

/USB/MP3 CONTROL section in this manual and the BLUE&ME™ User's

Manual on the DVD for more details.

®

.

®

.

To BLUE&ME™

(BLUE&ME™ recognizes.wma,.mp3 and.wav,.aac formats

®

(directly or by an extension

®

is connected.

WARNING!

Operating certain parts of this system while driving can distract your attention away
from the road, and possibly cause an accident or other serious consequences; for this
reason certain functions shall be disabled by the BLUE&ME™ system until driving
conditions are secure and, if required,only when the car is stopped.

33

ELECTRONICS

iPod®/USB/MP3 CONTROL

• The USB port located within the glove box,

allows you to plug an iPod

®

or USB device into

the vehicle's sound system.

• To hear audio from devices connected to this

port from a non-touch-screen radio, press the
MEDIA button on the radio faceplate.

• When connected to this feature:

®

• The iPod

• The iPod

or USB device audio can be played on the vehicle’s sound system.

®

can be controlled using the radio buttons to Play, Browse, and List the iPod®or

external devices contents. Refer to the BLUE&ME™ Manual on the DVD for details.

®

• The iPod

battery charges when plugged into the USB port (if supported by the specific

audio device).

®

• Compatible iPod

devices may also be controllable using voice commands. Refer to the

BLUE&ME™ Manual on the DVD for details.

NOTE:

• The USB port supports certain Mini,Classic,Nano,Touch, and iPhone

®

devices.The USB port
also supports playing music from compatible external USB Mass Storage Class memory devices.
For supported audio file formats, refer to the USB Port section on the Owner's Manual on the
DVD. Some iPod

®

software versions may not fully support the USB port features.Please visit

Apple’s website for iPod®software updates.

WARNING!

Do not plug in or remove the iPod®or external device while driving. Failure to follow
this warning could result in a collision.

34

ELECTRONICS

ELECTRONIC VEHICLE INFORMATION CENTER (EVIC)

• The EVIC features a driver interactive display

that is located in the instrument cluster.
Pressing the controls on the right side of the
Instrument Cluster allows the driver to select
vehicle information and Personal Settings. For
additional information, refer to Programmable
Features in this guide.

• Press the MENU ESC button to enter the

menu mode.

• Press the plus or minus buttons to scroll through the menu settings.

• Once the menu setting is shown in the EVIC display press the MENU ESC button to access the

setting and use the plus or minus buttons to change the current setting. Press the MENU ESC
button a second time to save the setting and return to menu screen.

PROGRAMMABLE FEATURES

Electronic Vehicle Information Center (EVIC)

• The EVIC can be used to program the following Personal Settings. Press and release the MENU

ESC button until menu is displayed, then press the plus or minus buttons to scroll through the
settings.

• Once the menu setting is shown in the EVIC display press the MENU ESC button to access the

setting and use the plus or minus buttons to change the current setting.The menu includes the
following functions:

• Dimmer • Language

• Speed Beep • BuzzerVolume

• TripBData • Button Volume

• SetTime • Belt Buzzer

• Set Date • Hill Star t Assist

• See Radio • Daytime Running Lamps

• Autoclose • Exit Menu

• Units

35

ELECTRONICS

TRIP BUTTON

• The Trip button is located on the end of the

wiper lever to the right of the steering
column.The trip button can be used to display
and reset the following functions:

• Range

• Distance Travelled

• Average Consumption

• Instant Consumption

• Average Speed

• Travel Time

• Short press (less than 1 second) to display different functions.

• Long press (more than 1 second) to reset and start a new trip.

New Trip

• A new trip can be reset or restarted by:

• “Manual” resetting by the user, by pressing the Trip button;

• “Automatically” resetting,when the“Trip distance” reaches 9999.9 miles or when the“Travel

time” reaches 99.59 (99 hours and 59 minutes);

• After disconnecting/reconnecting the battery.

Trip A

• Shows the total distance traveled forTrip A since the last reset.

Trip B

• Shows the total distance traveled forTrip B since the last reset.

Start Of Trip Procedure

• With the ignition key on,press and hold the TRIP button for over one second to resetTrip A or

Trip B.

Exit Trip

• The Trip function is over when all the values have been displayed or holding the MENU ESC

button for longer than one second.

• Briefly press the MENU ESC button to go back to the menu screen or press and hold the

MENU ESC (approximately one second) to go back to the main screen without storing settings.

36

ELECTRONICS

POWER OUTLET

• There is a standard 12Volt (13 Amp) power

outlet, located in the floor console, for added
convenience.This power outlet can power
mobile phones,electronics and other low
power devices.

NOTE:

• Do not exceed the maximum power of 160 Watts (13Amps) at 12Volts. If the 160 Watt

(13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the

power outlet as this will damage the outlet and blow the fuse. Improper use of the power
outlet can cause damage not covered by your new vehicle warranty.

37

UTILITY

TRAILER TOWING

• Trailer towing with this vehicle is not recommended.

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)

Towing This Vehicle Behind Another Vehicle

Towing Condition

Flat Tow

DollyTow

On Trailer ALL OK OK

NOTE: Vehicles equipped with manual transmissions may be recreationally towed (flat towed) at
any legal highway speed,for any distance, if the manual transmission is in NEUTRAL.

NOTE: This vehicle may be towed on a flatbed or vehicle trailer provided all four wheels are
OFF the ground.

• Do not flat tow any vehicle equipped with a automatic transmission. Damage to the

drivetrain will result. If these vehicles require towing, make sure all drive wheels are
OFF the ground.

• Towing this vehicle in violation of the above requirements can cause severe

transmission damage. Damage from improper towing is not covered under the New
Vehicle LimitedWarranty.

Wheels OFF

the Ground

NONE

Front OK OK

Rear NO NO

Manual Transmission Automatic Transmission

• Transmission in

NEUTRAL

CAUTION!

NO

38

WHAT TO DO IN EMERGENCIES

24-HOUR ROADSIDE ASSISTANCE

• If your FIAT 500 requires jump start assistance,out of gas/fuel delivery, tire service, lockout

service or towing due to a defect covered under the Basic LimitedWarranty,dial toll-free
1-888-242-6342. See yourWarranty booklet for further details.

• Provide your name, vehicle identification number and license plate number.

• Provide your location, including telephone number,from which you are calling.

• Briefly describe the nature of the problem and answer a few simple questions.

• You will be given the name of the service provider and an estimated time of arrival. If you feel

you are in an“unsafe situation”,please let us know.With your consent,we will contact local
police or safety authorities.

INSTRUMENT CLUSTER WARNING LIGHTS

- Generic Warning Light

• The GenericWarning Light will illuminate if any of the following conditions occur: Engine Oil

Pressure Sensor Failure, External Light Failure, Fuel Cut-Off Intervention,Fuel Cut-Off Not
Available,Parking Sensor Failure.

- Power Steering System Warning

• If the“POWER STEERING SYSTEM OVER TEMP” message and icon are displayed in the EVIC

display, it indicates that extreme steering maneuvers have occurred, which caused an over
temperature condition in the power steering system.You will lose power steering assistance
momentarily until the over temperature condition no longer exists. Once driving conditions are
safe,pull over and let the vehicle idle.After approximately five minutes, the system will cool and
return to normal operation.

- Automatic Gearbox Failure

• This light will illuminate when there is an automatic transmission fault.

• Have the vehicle serviced by an authorized service center immediately.

- Engine Temperature Warning Light

• This light warns of an overheated engine condition.

• If the light turns on or flashes continuously while driving, safely pull over and stop the vehicle.If

the A/C system is on, turn it off.Also,shift the transmission into NEUTRAL and idle the vehicle.
If the temperature reading does not return to normal,turn the engine off immediately.

• We recommend that you do not operate the vehicle or engine damage will occur. Have the

vehicle serviced immediately.

WARNING!

A hot engine cooling system is dangerous.You or others could be badly burned by
steam or boiling coolant.You may want to call an authorized service center for service if
your vehicle overheats.

39

WHAT TO DO IN EMERGENCIES

- Electronic Throttle Control (ETC) Light

• This light informs you of a problem with the ElectronicThrottle Control (ETC) system.

• If a problem is detected,the light will come on while the engine is running. Cycle the ignition

when the vehicle has completely stopped and the shift lever is placed in the PARK position;the
light should turn off.

• If the light remains lit with the engine running, your vehicle will usually be drivable;however, see

an authorized service center immediately. If the light is flashing when the engine is running,
immediate service is required and you may experience reduced performance, an elevated/rough
idle or engine stall and your vehicle may require towing.

- Electronic Stability Control (ESC) OFF Indicator Light

• This light indicates the Electronic Stability Control system (ESC) has been turned off by the

driver.

- Electronic Stability Control (ESC) Activation / Malfunction Indicator Light

• The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on for four

seconds when the ignition switch is turned to the ON/RUN position. If the “ESC
Activation/Malfunction Indicator Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this light remains on, see your authorized
dealer as soon as possible to have the problem diagnosed and corrected.

NOTE:

• The “ESC Off Indicator Light” and the “ESC Activation/Malfunction Indicator Light” come on

momentarily each time the ignition switch is turned to ON/RUN.

• Each time the ignition is turned to ON/RUN, the ESC system will be ON even if it was turned

off previously.

- Tire Pressure Monitoring System (TPMS) Light

• Each tire, including the spare (if provided),should be checked monthly, when cold and inflated to

the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire
inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should determine the proper tire inflation
pressure for those tires.)

• As an added safety feature,your vehicle has been equipped with aTire Pressure Monitoring

System (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
significantly under-inflated.Accordingly,when the low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s
handling and stopping ability.

• IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE, ADJUST THE

AIR PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE SHOWN ON THE VEHICLE
PLACARD OR TIRE INFLATION PRESSURE LABEL LOCATED ON THE DRIVER'S
DOOR. NOTE: AFTER INFLATION, THE VEHICLE MAY NEED TO BE DRIVEN FOR 20
MINUTES BEFORE THE FLASHING LIGHT WILL TURN OFF.

40

WHAT TO DO IN EMERGENCIES

• Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s

responsibility to maintain correct tire pressure, even if under-inflation has not reached the level
to trigger illumination of theTPMS low tire pressure telltale.

• Your vehicle has also been equipped with aTPMS malfunction indicator to indicate when the

system is not operating properly.The TPMS malfunction indicator is combined with the low tire
pressure telltale.When the system detects a malfunction,the telltale will flash for approximately
one minute and then remain continuously illuminated.This sequence will continue each time the
vehicle is restarted as long as the malfunction exists.

• When the malfunction indicator is illuminated,the system may not be able to detect or signal

low tire pressure as intended.TPMS malfunctions may occur for a variety of reasons,including
the installation of replacement or alternate tires or wheels on the vehicle that prevent theTPMS
from functioning properly.Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle,to ensure that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly.

NOTE: Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air temperature
change. Keep this in mind when checking tire pressure inside a garage, especially in theWinter.
Example: If garage temperature is 68°F (20°C) and the outside temperature is 32°F (0°C), then
the cold tire inflation pressure should be increased by 3 psi (21 kPa), which equals 1 psi (7 kPa) for
every 12°F (7°C) for this outside temperature condition.

CAUTION!

The TPMS has been optimized for the original equipment tires and wheels.TPMS
pressures and warning have been established for the tire size equipped on your vehicle.
Undesirable system operation or sensor damage may result when using replacement
equipment that is not of the same size, type,and/or style.Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can, or balance beads if your vehicle is
equipped with aTPMS, as damage to the sensors may result.

BRAKE

• The Brake Warning light illuminates when there is either a system malfunction or the parking

• Please have your vehicle serviced immediately.

- Brake Warning Light

brake is applied. If the light is on and the parking brake is not applied, it indicates a possible brake
hydraulic malfunction, brake booster problem or an Anti-Lock Brake System problem.

WARNING!

Driving a vehicle with the red brake light on is dangerous. Part of the brake system may
have failed. It will take longer to stop the vehicle.You could have a collision. Have the
vehicle checked immediately.

41

WHAT TO DO IN EMERGENCIES

- Malfunction Indicator Light (MIL)

• Certain conditions, such as a loose or missing gas cap,poor fuel quality,etc.,may illuminate the

MIL after engine start.The vehicle should be serviced if the light stays on through several typical
driving cycles.In most situations, the vehicle will drive normally and not require towing.

• If the MIL flashes when the engine is running,serious conditions may exist that could lead to

immediate loss of power or severe catalytic converter damage.We recommend you do not
operate the vehicle. Have the vehicle serviced immediately.

- Charging System Light

• This light shows the status of the electrical charging system.If the charging system light remains

on, it means that the vehicle is experiencing a problem with the charging system.

• We recommend you do not continue driving if the charging system light is on.Have the vehicle

serviced immediately.

- Oil Pressure Warning Light

• This light indicates low engine oil pressure.If the light turns on while driving, stop the vehicle and

shut off the engine as soon as possible.A chime will sound for four minutes when this light turns
on.

• We recommend you do not operate the vehicle or engine damage will occur. Have the vehicle

serviced immediately.

- Anti-Lock Brake (ABS) Light

• This light monitors the Anti-Lock Brake System (ABS).

• If the light is not on during starting, stays on, or turns on while driving, we recommend you drive

to the nearest service center and have the vehicle serviced immediately.

- Air Bag Warning Light

• If the light is not on during starting, stays on, or turns on while driving, have the vehicle serviced

by an authorized service center immediately.

IF YOUR ENGINE OVERHEATS

• In any of the following situations,you can reduce the potential for overheating by taking the

appropriate action.

• On the highways — slow down.

• In city traffic — while stopped,shift transmission into NEUTRAL,but do not increase engine

idle speed.

NOTE: There are steps that you can take to slow down an impending overheat condition:

• If your air conditioner (A/C) is on, turn it off.TheA/C system adds heat to the engine cooling

system and turning the A/C off can help remove this heat.

• You can also turn theTemperature control to maximum heat, the Mode control to floor and the

Fan control to high.This allows the heater core to act as a supplement to the radiator and aids in
removing heat from the engine cooling system.

• If the temperature reading does not return to normal,turn the engine off immediately.

42

WHAT TO DO IN EMERGENCIES

• We recommend that you do not operate the vehicle or engine damage will occur. Have the

vehicle serviced immediately.

CAUTION!

Driving with a hot cooling system could damage your vehicle. If the temperature gauge
reads hot, pull over and stop the vehicle. Idle the vehicle with the air conditioner turned
off until the pointer drops back into the normal range. If the pointer remains on hot,
turn the engine off immediately and call for service.

WARNING!

You or others can be badly burned by hot engine coolant (antifreeze) or steam from
your radiator.If you see or hear steam coming from under the hood, do not open the
hood until the radiator has had time to cool. Never try to open a cooling system
pressure cap when the radiator or coolant bottle is hot.

JACKING AND TIRE CHANGING

Jack Location

• Your vehicle may be equipped with a temporary spare tire.The jack and jack-handle are stowed

in a bag under the front driver’s seat.

43

WHAT TO DO IN EMERGENCIES

Spare Tire Removal

• The spare tire is stowed to the underbody below the cargo area.

1. Remove the plug located in the rear cargo
area.

2. Fit the wrench tool over the drive nut. Use
the wrench to rotate the nut
counterclockwise until the spare is on the
ground with enough slack in the cable to allow
you to pull the tire out from under the
vehicle.

44

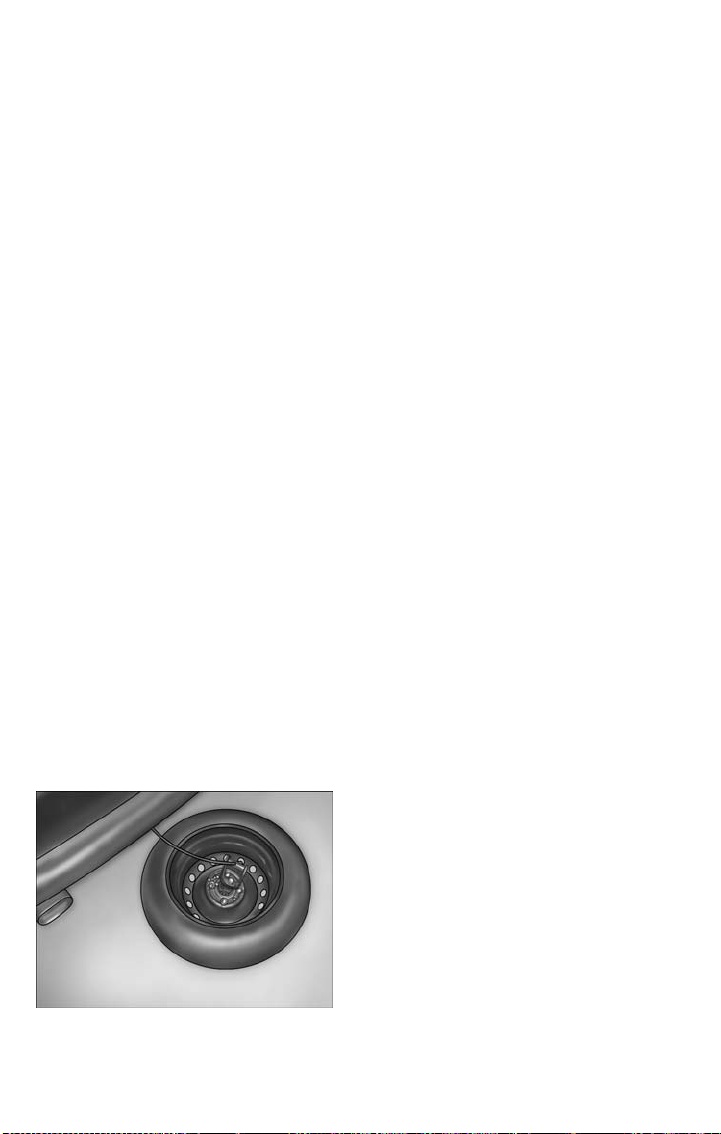

3. Pull the spare tire out from under the vehicle.

WHAT TO DO IN EMERGENCIES

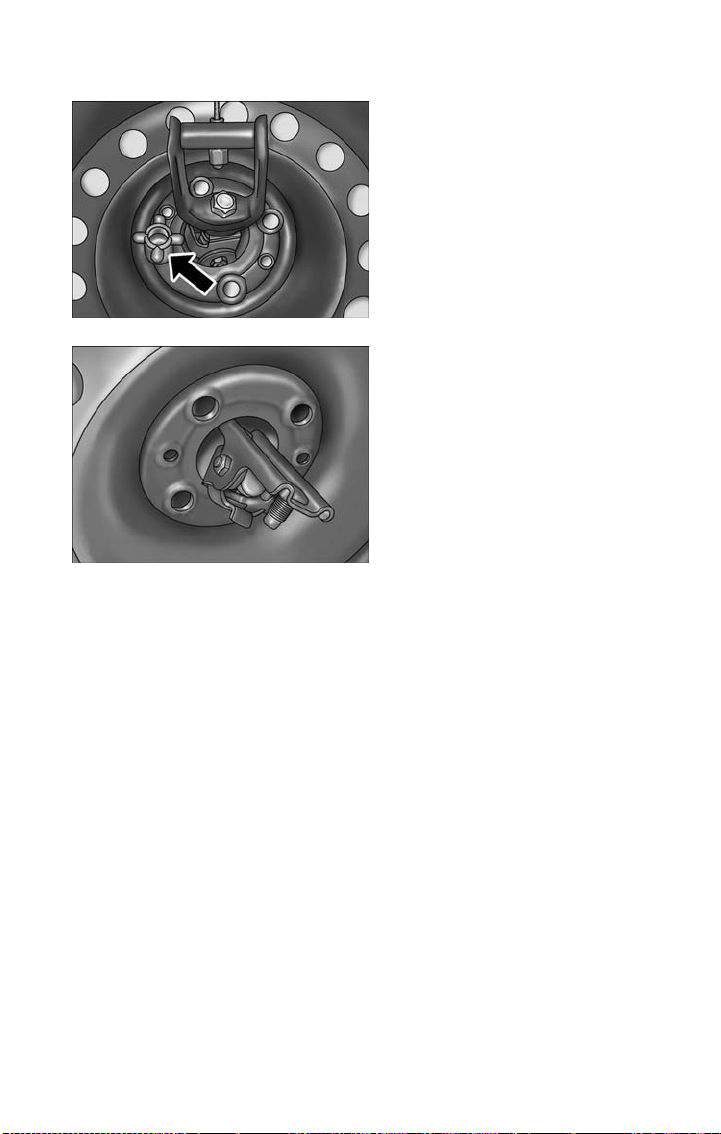

4. When the spare is clear, remove the knob or
plastic molded nut by rotating it
counter-clockwise.

5. Tilt the retainer at the end of the cable and
pull it through the center of the wheel.

Preparations For Jacking

1. Park the vehicle on a firm level surface, avoiding ice or slippery areas.

2. Turn on the Hazard Warning flashers.

3. Set the parking brake.

4. Place the shift lever in PARK (automatic transmission) or REVERSE (manual transmission).

5. Turn Off the ignition.

Block both the front and rear of the wheel
diagonally opposite the jacking position. For
example, if changing the right front tire, block the
left rear wheel.

NOTE: Passengers should not remain in the
vehicle while the vehicle is being jacked.

45

WHAT TO DO IN EMERGENCIES

Jacking Instructions

NOTE: Refer to the“Compact Spare Tire”

section of the“Tires-General Information” under
“Starting And Operating” for information about
the spare tire, it's use, and operation.

1. Remove the scissors jack and tool bag from
under the driver's seat.

2. Loosen, but do not remove, the wheel bolts
by turning them to the left one turn while the
wheel is still on the ground.

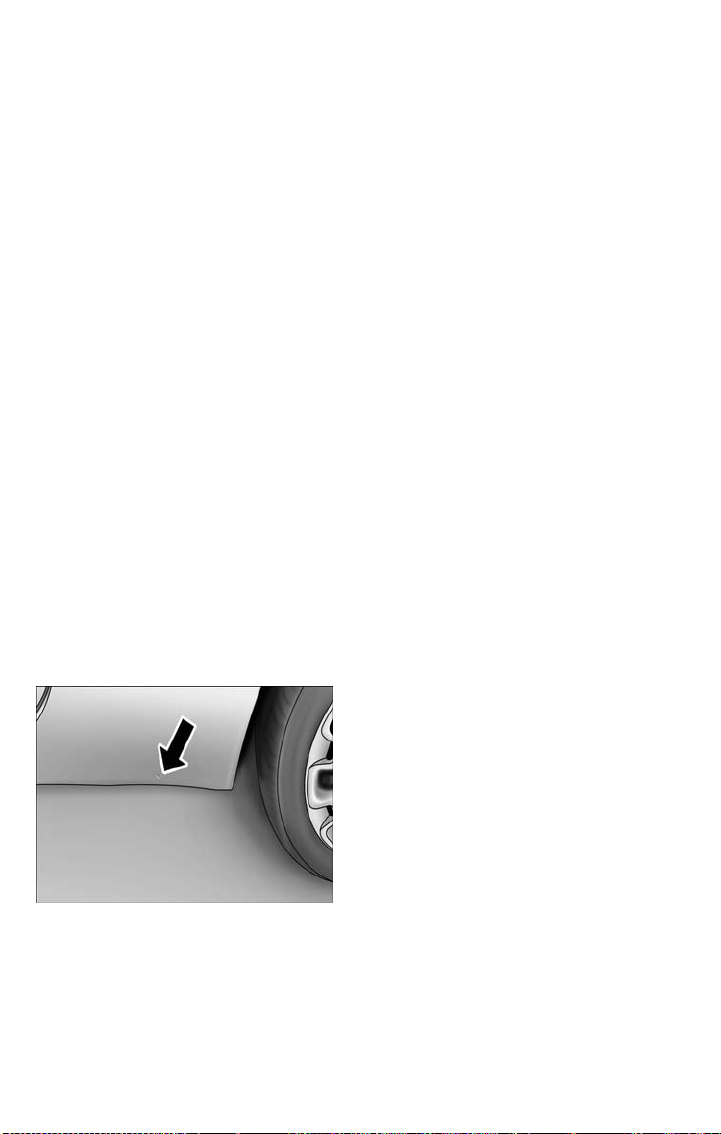

NOTE: There are front and rear jacking locations on each side of the body (as indicated by the
triangular lift point symbol on the sill molding).

Do not raise the vehicle until you are sure the
jack is securely engaged.

3. Turn the jack screw to the left until the jack
can be placed under the jacking location. Once
the jack is positioned, turn the jack screw to
the right until the jack head is properly
engaged with the lift area closest to the wheel
to be changed.

46

WHAT TO DO IN EMERGENCIES

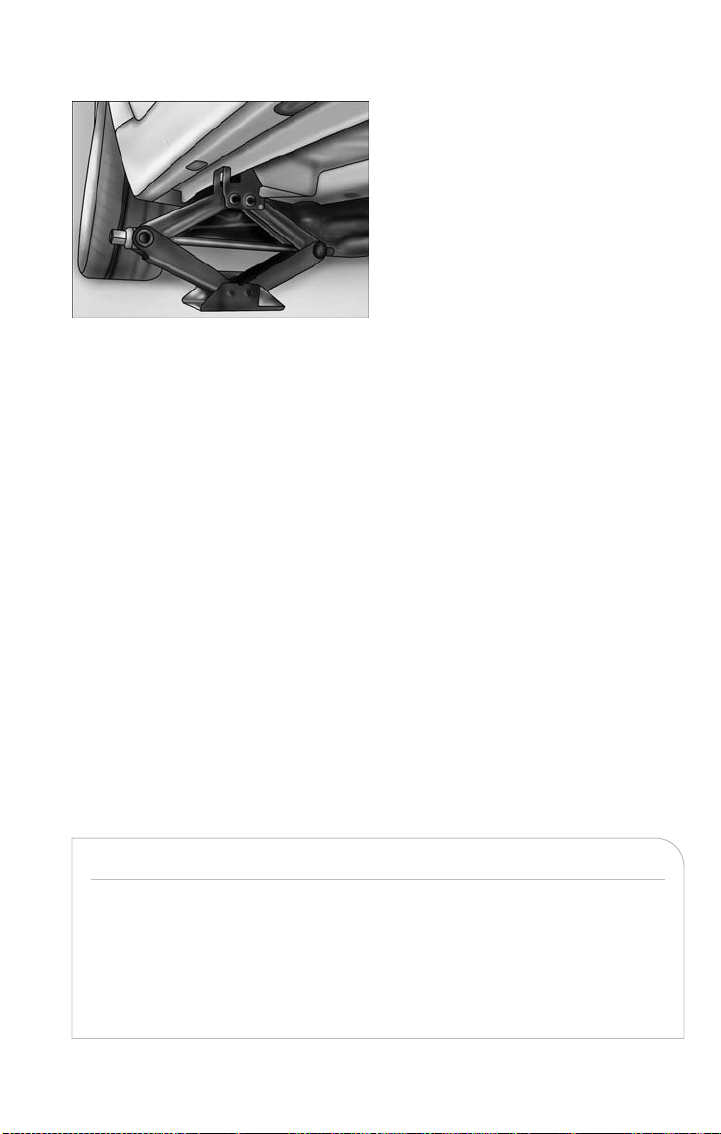

4. Using the swivel wrench,raise the vehicle by
turning the jack screw to the right.Raise the
vehicle only until the tire just clears the
surface and enough clearance is obtained to
install the spare tire. Minimum tire lift provides
maximum stability.

5. Remove the wheel bolts and pull the wheel
off the hub. For vehicles equipped with
aluminum wheels,the center caps must be
removed to remove the wheel bolts.

NOTE: The wheel cover is held on the wheel by the wheel bolts.When reinstalling the original
wheel, properly align the wheel cover to the valve stem, place the wheel cover onto the wheel,
then install the wheel bolts.

6. Install the spare wheel and wheel bolts with the cone shaped end of the bolts toward the
wheel. Lightly tighten the bolts.To avoid the risk of forcing the vehicle off the jack, do not tighten
the bolts fully until the vehicle has been lowered.

7. Lower the vehicle by turning the jack screw to the left.

8. Finish tightening the bolts. Push down on the wrench while tightening the wheel bolts.Alternate
bolts until each bolt has been tightened twice.The correct wheel bolt torque is 63 ft lbs
(85 N·m) for steel wheel and 75 ft lbs (100 N·m) for aluminum wheels. If you doubt that you
have tightened the bolts correctly, have them checked with a torque wrench by your authorized
dealer or service station.

9. Disassemble the jack and tools and place them in the bag.Stow it under the driver's seat and
secure the bag to the floor with the straps attached to the floor of the vehicle.

10. Place the deflated (flat) tire in the cargo area. Have the tire repaired or replaced as soon as

possible.

11. Check the spare tire pressure as soon as possible. Correct the tire pressure as required.

Spare Tire Stowage

Reverse instructions of the spare removal section.

Rotate the jack wrench tool on the winch drive nut clockwise until effort becomes heavy and an
audible click is heard indicating the spare is properly stowed.

CAUTION!

• The winch mechanism is designed for use with the jack wrench extension tool only.

Use of air wrench or power tool may damage the winch.

• Do not attempt to raise the vehicle by jacking on locations other than those

indicated in the Jacking Instructions for this vehicle.

• Be sure to mount the spare tire with the valve stem facing outward.The vehicle

could be damaged if the spare tire is mounted incorrectly.

47

WHAT TO DO IN EMERGENCIES

WARNING!

• Do not attempt to change a tire on the side of the vehicle close to moving traffic.

Pull far enough off the road to avoid the danger of being hit when operating the jack
or changing the wheel.

• Being under a jacked-up vehicle is dangerous.The vehicle could slip off the jack and

fall on you.You could be crushed. Never put any par t of your body under a vehicle
that is on a jack.

• Never start or run the engine while the vehicle is on a jack. If you need to get under

a raised vehicle, take it to a service center where it can be raised on a lift.

• The jack is designed to be used as a tool for changing tires only.The jack should not

be used to lift the vehicle for service purposes.The vehicle should be jacked on a
firm level surface only.Avoid ice or slippery areas.

• Carefully follow these tire changing warnings to help prevent personal injury or

damage to your vehicle:

• Always park on a firm,level surface as far from the edge of the roadway as possible

before raising the vehicle.

• Turn on the Hazard Warning flashers.

• Block the wheel diagonally opposite the wheel to be raised.

• Set the parking brake firmly and set an automatic transmission in PARK;a manual

transmission in REVERSE.

• Never start or run the engine with the vehicle on a jack.

• Do not let anyone sit in the vehicle when it is on a jack.

• Do not get under the vehicle when it is on a jack.

• Only use the jack in the positions indicated and for lifting this vehicle during a tire

change.

• If working on or near a roadway, be extremely careful of motor traffic.

• To assure that spare tires, flat or inflated,are securely stowed, spares must be stowed

with the valve stem facing the ground.

• Raising the vehicle higher than necessary can make the vehicle less stable. It could slip

off the jack and hurt someone near it.Raise the vehicle only enough to remove the
tire.

• To avoid the risk of forcing the vehicle off the jack, do not fully tighten the wheel

bolts until the vehicle has been lowered. Failure to follow this warning may result in
personal injury.

• To avoid possible personal injury,handle the wheel covers with care to avoid contact

with any sharp edges.

• A loose tire or jack thrown forward in a collision or hard stop could endanger the

occupants of the vehicle.Always stow the jack parts and the spare tire in the places
provided.

48

WHAT TO DO IN EMERGENCIES

TIREFIT KIT

• Small punctures up to 1/4 in (6 mm) in the tire tread can be sealed withTIREFIT. Foreign objects

(e.g., screws or nails) should not be removed from the tire.TIREFIT can be used in outside
temperatures down to approximately -4°F (-20°C).

• This kit will provide a temporary tire seal, allowing you to drive your vehicle up to 100 miles

(160 km) with a maximum speed of 55 mph (88 km/h).

TIREFIT Storage

• Your vehicle may be equipped with aTIREFIT kit.TheTIREFIT kit is located under the front

driver’s seat.

TIREFIT Kit Components And Operation

1. Sealant Bottle

2. Deflation Button

3. Pressure Gauge

4. Power Button

5. Mode Select Knob

6. Sealant Hose (Clear)

7. Air Pump Hose (Black)

8. Power Plug

Using The Mode Select Knob And Hoses

• Your TIREFIT kit is equipped with the following symbols to indicate the air or sealant mode.

Selecting Air Mode

• Turn the Mode Select Knob (5) to this position for air pump operation only. Use the BlackAir

Pump Hose (7) when selecting this mode.

Selecting Sealant Mode

• Turn the Mode Select Knob (5) to this position to inject theTIREFIT Sealant and to inflate the

tire. Use the Sealant Hose (clear hose) (6) when selecting this mode.

Using The Power Button

• Push and release the Power Button (4) once to turn On theTIREFIT kit. Push and release the

Power Button (4) again to turn Off the TIREFIT kit.

Using The Deflation Button

• Press the Deflation Button (2) to reduce the air pressure in the tire if it becomes over-inflated.

TIREFIT Usage Precautions

• Replace the TIREFIT Sealant Bottle (1) and Sealant Hose (6) prior to the expiration date

(printed on the bottle label) to assure optimum operation of the system.Refer to“Sealing a Tire
with TIREFIT” section (F)“Sealant Bottle and Hose Replacement”.

• The Sealant Bottle (1) and Sealant Hose (6) are a one tire application use.After each use, always

replace these components immediately at an authorized dealer.

49

WHAT TO DO IN EMERGENCIES

• When theTIREFIT sealant is in a liquid form, clean water, and a damp cloth will remove the

material from the vehicle or tire and wheel components. Once the sealant dries, it can easily be
peeled off and properly discarded.

• For optimum performance, make sure the valve stem on the wheel is free of debris before

connecting the TIREFIT kit.

• You can use the TIREFIT air pump to inflate bicycle tires.The kit also comes with two needles,

located in the Accessory Storage Compartment (on the bottom of the air pump) for inflating
sport balls, rafts, or similar inflatable items.However, use only theAir Pump Hose (7) and make
sure the Mode Select Knob (5) is in theAir Mode when inflating such items to avoid injecting
sealant into them.The TIREFIT Sealant is only intended to seal punctures less than
diameter in the tread of your vehicle.

• Do not lift or carry theTIREFIT kit by the hoses.

Sealing A Tire With TIREFIT

(A) Whenever You Stop To Use TIREFIT:

1. Pull over to a safe location and turn on the vehicle’s HazardWarning flashers.

2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that is near to

the ground.This will allow theTIREFIT Hoses (6) and (7) to reach the valve stem and keep the
TIREFIT kit flat on the ground.This will provide the best positioning of the kit when injecting the
sealant into the deflated tire and running the air pump. Move the vehicle as necessary to place
the valve stem in this position before proceeding.

3. Place the transmission in PARK (auto transmission) or in Gear (manual transmission) and turn

Off the ignition.

4. Set the parking brake.

(B) Setting Up To Use TIREFIT:

1. Turn the Mode Select Knob (5) to the Sealant Mode position.

2. Uncoil the Sealant Hose (6) and then remove the cap from the fitting at the end of the hose.

3. Place theTIREFIT kit flat on the ground next to the deflated tire.

4. Remove the cap from the valve stem and then screw the fitting at the end of the Sealant Hose

(6) onto the valve stem.

5. Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt power outlet.

NOTE: Do not remove foreign objects (e.g.,screws or nails) from the tire.

(C) Injecting TIREFIT Sealant Into The Deflated Tire:

• Always start the engine before turning ON theTIREFIT kit.

NOTE: Manual transmission vehicles must have the parking brake engaged and the shift lever in
NEUTRAL.

• After pressing the Power Button (4), the sealant (white fluid) will flow from the Sealant Bottle

(1) through the Sealant Hose (6) and into the tire.

NOTE: Sealant may leak out through the puncture in the tire.

1

∕4in (6 mm)

50

WHAT TO DO IN EMERGENCIES

If the sealant (white fluid) does not flow within0–10seconds through the Sealant Hose (6):

1. Press the Power Button (4) to turn Off theTIREFIT kit. Disconnect the Sealant Hose (6) from
the valve stem. Make sure the valve stem is free of debris. Reconnect the Sealant Hose (6) to
the valve stem. Check that the Mode Select Knob (5) is in the Sealant Mode position and not
Air Mode. Press the Power Button (4) to turn On theTIREFIT kit.

2. Connect the Power Plug (8) to a different 12Volt power outlet in your vehicle or another
vehicle, if available.Make sure the engine is running before turning ON the TIREFIT kit.

3. The Sealant Bottle (1) may be empty due to previous use. Call for assistance.

NOTE: If the Mode Select Knob (5) is on Air Mode and the pump is operating, air will dispense
from theAir Pump Hose (7) only,not the Sealant Hose (6).

If the sealant (white fluid) does flow through the Sealant Hose (6):

1. Continue to operate the pump until sealant is no longer flowing through hose (typically takes
30 - 70 seconds).As the sealant flows through the Sealant Hose (6), the Pressure Gauge (3) can
read as high as 70 psi (5 Bar).The Pressure Gauge (3) will decrease quickly from approximately
70 psi (5 Bar) to the actual tire pressure when the Sealant Bottle (1) is empty.

2. The pump will start to inject air into the tire immediately after the Sealant Bottle (1) is empty.
Continue to operate the pump and inflate the tire to the pressure indicated on the tire
pressure label on the driver-side latch pillar (recommended pressure). Check the tire pressure
by looking at the Pressure Gauge (3).

If the tire does not inflate to at least 26 psi (1.8 Bar) pressure within 15 minutes:

• The tire is too badly damaged. Do not attempt to drive the vehicle further. Call for assistance.

NOTE: If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure
to the recommended inflation pressure before continuing.

If the tire inflates to the recommended pressure or is at least 26 psi (1.8 Bar) pressure within
15 minutes:

1. Press the Power Button (4) to turn off theTIREFIT kit.

2. Remove the Speed Limit sticker from the top of the Sealant Bottle (1) and place the sticker on
the instrument panel.

3. Immediately disconnect the Sealant Hose (6) from the valve stem, reinstall the cap on the fitting
at the end of the hose,and place the TIREFIT kit in the vehicle storage location. Quickly proceed
to (D)“DriveVehicle”.

(D) Drive Vehicle:

Immediately after injecting sealant and inflating the tire, drive the vehicle 5 miles (8 km) or
10 minutes to ensure distribution of theTIREFIT Sealant within the tire. Do not exceed 55 mph
(88 km/h).

(E) After Driving:

Pull over to a safe location.Refer to“WheneverYou Stop to Use TIREFIT” before continuing.

1. Turn the Mode Select Knob (5) to the Air Mode position.

2. Uncoil the power plug and insert the plug into the vehicle's 12 Volt power outlet.

3. Uncoil theAir Pump Hose (7) (black in color) and screw the fitting at the end of hose (7) onto
the valve stem.

51

WHAT TO DO IN EMERGENCIES

4. Check the pressure in the tire by reading the Pressure Gauge (3).

If tire pressure is less than 19 psi (1.3 Bar) , the tire is too badly damaged.Do not attempt to
drive the vehicle further.Call for assistance.

If the tire pressure is 19 psi (1.3 bar) or higher:

1. Press the Power Button (4) to turn onTIREFIT and inflate the tire to the pressure indicated on
the tire and loading information label on the driver-side door opening.

NOTE: If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure
to the recommended inflation pressure before continuing.

2. Disconnect the TIREFIT kit from the valve stem, reinstall the cap on the valve stem and unplug
from 12Volt outlet.

3. Place theTIREFIT kit in its proper storage area in the vehicle.

4. Have the tire inspected and repaired or replaced at the earliest opportunity at an authorized
dealer or tire service center.

5. Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized dealer as soon
as possible. Refer to“(F) Sealant Bottle and Hose Replacement.”

NOTE: When having the tire serviced, advise the authorized dealer or service center that the
tire has been sealed using the TIREFIT service kit.

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (6) (clear in color).

2. Locate the round Sealant Bottle release button in the recessed area under the sealant bottle.

3. Press the Sealant Bottle release button.The Sealant Bottle (1) will pop up. Remove the bottle
and dispose of it accordingly.

4. Clean any remaining sealant from the TIREFIT housing.

5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the
hose slot in the front of the housing.Press the bottle into the housing.An audible click will be
heard indicating the bottle is locked into place.

6. Verify that the cap is installed on the fitting at the end of the Sealant Hose (6) and return the
hose to its storage area (located on the bottom of the air pump).

7. Return the TIREFIT kit to its storage location in the vehicle.

CAUTION!

• The metal end fitting from Power Plug (8) may get hot after use, so it should be

handled carefully.

• Failure to reinstall the cap on the fitting at the end of the Sealant Hose (6) can result

in sealant contacting your skin, clothing, and the vehicle’s interior. It can also result in
sealant contacting internalTIREFIT kit components which may cause permanent
damage to the kit.

52

WHAT TO DO IN EMERGENCIES

WARNING!

• Do not attempt to seal a tire on the side of the vehicle closest to traffic. Pull far

enough off the road to avoid the danger of being hit when using the TIREFIT kit.

• Do not useTIREFIT or drive the vehicle under the following circumstances:

− If the puncture in the tire tread is approximately 1/4 in.(6 mm) or larger.

− If the tire has any sidewall damage.

− If the tire has any damage from driving with extremely low tire pressure.

− If the tire has any damage from driving on a flat tire.

− If the wheel has any damage.

− If you are unsure of the condition of the tire or the wheel.

• KeepTIREFIT away from open flames or heat source.

• A looseTIREFIT kit thrown forward in a collision or hard stop could endanger the

occupants of the vehicle.Always stow the TIREFIT kit in the place provided. Failure to
follow these warnings can result in injuries that are serious or fatal to you,your
passengers, and others around you.

• Take care not to allow the contents ofTIREFIT to come in contact with hair,eyes,or

clothing.TIREFIT is harmful if inhaled, swallowed, or absorbed through the skin. It
causes skin,eye, and respiratory irritation.Flush immediately with plenty of water if
there is any contact with eyes or skin. Change clothing as soon as possible, if there is
any contact with clothing.

• TIREFIT Sealant solution contains latex. In case of an allergic reaction or rash,consult

a physician immediately. KeepTIREFIT out of reach of children.If swallowed, rinse
mouth immediately with plenty of water and drink plenty of water. Do not induce
vomiting! Consult a physician immediately.

• TIREFIT is not a permanent flat tire repair.Have the tire inspected and repaired or

replaced after using TIREFIT.Do not exceed 55 mph (88 km/h) until the tire is
repaired or replaced. Failure to follow this warning can result in injuries that are
serious or fatal to you,your passengers, and others around you.

JUMP-STARTING PROCEDURE

• If your vehicle has a discharged battery, it can be jump-started using a set of jumper cables and a

battery in another vehicle or by using a portable battery booster pack. Jump-star ting can be
dangerous if done improperly so please follow the procedures in this section carefully.

NOTE: When using a portable battery booster pack,follow the manufacturer’s operating
instructions and precautions.

53

WHAT TO DO IN EMERGENCIES

Preparations For Jump-Start

• The battery in your vehicle is located on the left side of the engine compartment.

1. Set the parking brake, shift the automatic
transmission into PARK and turn the ignition
to OFF/LOCK.

2. Turn off the heater, radio,and all unnecessary
electrical accessories.

3. If using another vehicle to jump-start the
battery,park the vehicle within the jumper
cables reach, set the parking brake and make
sure the ignition is OFF.

Jump-Starting Procedure

1. Connect the positive (+) end of the jumper cable to the positive (+) post of the discharged

vehicle.

2. Connect the opposite end of the positive (+) jumper cable to the positive (+) postofthe

booster battery.

3. Connect the negative end (-) of the jumper cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-) jumper cable to a good engine ground (exposed

metal part of the discharged vehicle’s engine) away from the battery and the fuel injection
system.

5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes,
and then start the engine in the vehicle with the discharged battery. Once the engine is started,
remove the jumper cables in the reverse sequence:

6. Disconnect the negative (-) jumper cable from the engine ground (-) of the vehicle with the
discharged battery.

7. Disconnect the negative end (-) of the jumper cable from the negative (-) post of the booster
battery.

8. Disconnect the opposite end of the positive (+) jumper cable from the positive (+) postofthe
booster battery.

9. Disconnect the positive (+) end of the jumper cable from the positive (+) post of the
discharged vehicle.

• If frequent jump-starting is required to start your vehicle, you should have the battery and

charging system inspected at your authorized dealer.

54

WHAT TO DO IN EMERGENCIES

CAUTION!

• Accessories that can be plugged into the vehicle power outlets draw power from

the vehicle’s battery, even when not in use (i.e., cellular phones, etc.). Eventually,if
plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade
battery life and/or prevent the engine from starting.

• Do not use a portable battery booster pack or any other booster source with a

system voltage greater than 12Volts or damage to the battery,starter motor,
alternator or electrical system may occur.

• Failure to follow these procedures could result in damage to the charging system of

the booster vehicle or the discharged vehicle.

WARNING!

• Do not attempt jump-starting if the battery is frozen. It could rupture or explode

and cause personal injury.

• Take care to avoid the radiator cooling fan whenever the hood is raised.It can start

anytime the ignition switch is ON.You can be injured by moving fan blades.

• Remove any metal jewelry such as watch bands or bracelets that might make an

inadvertent electrical contact.You could be seriously injured.

• Batteries contain sulfuric acid that can burn your skin or eyes and generate hydrogen

gas which is flammable and explosive. Keep open flames or sparks away from the
battery.

• Do not allow vehicles to touch each other as this could establish a ground

connection and personal injury could result.

• Failure to follow this procedure could result in personal injury or property damage

due to battery explosion.

• Do not connect the cable to the negative post (-) of the discharged battery.The

resulting electrical spark could cause the battery to explode and could result in
personal injury.

55

WHAT TO DO IN EMERGENCIES

SHIFT LEVER OVERRIDE

If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use
the following procedure to temporarily move the shift lever:

• Firmly set the parking brake.

• Remove the shift lever override access cover located on the right side of the shift lever housing.

• Turn the ignition switch to the ON/RUN

position without starting the engine.

• Press and maintain firm pressure on the brake

pedal.

• Using a small screwdriver or similar tool,push

and hold the override release lever in.

• Move the shift lever into the NEUTRAL

position.

• The vehicle may then be started in NEUTRAL.

• Reinstall the shift lever override access cover.

TOWING A DISABLED VEHICLE

With Ignition Key

Automatic Transmission

• Vehicle can be towed with the front wheels elevated.

• Vehicle can be towed on a flatbed truck (all wheels off the ground).

Manual Transmission

• Vehicle can be flat towed (all four wheels on the ground) with the transmission in NEUTRAL.

• Vehicle can be towed with the front wheels elevated.

• Vehicle can be towed on a flatbed truck (all wheels off the ground).

All Transmissions

• If it is necessary to use the accessories while being towed (wipers, defrosters, etc.), the key must

be in the ON/RUN position.Make certain the transmission remains in NEUTRAL.

Without The Ignition Key

• Special care must be taken when the vehicle is towed with the ignition in the OFF/LOCK

position.A dolly should be used under the front wheels if the rear wheels are raised. Proper
towing equipment is necessary to prevent damage to the vehicle.

56

WHAT TO DO IN EMERGENCIES

• Battery power is required to release the brake/transmission interlock system (automatic

transmission only).There is a removable plug in the right side of the shift lever housing that
allows you to insert your finger to override the system.The ignition key must be in the
ON/RUN position to use the override lever.

CAUTION!

• Failure to follow these towing methods can cause severe transmission damage.Such

damage is not covered by the NewVehicle LimitedWarranty.

• DO NOT flat tow any vehicle equipped with an automatic transmission. Damage to

the drivetrain will result.

• If the vehicle being towed requires steering, the ignition switch must be in the

ON/RUN position.

• Do not attempt to use sling-type equipment when towing.When securing the

vehicle to a flatbed truck, do not attach to front or rear suspension components.
Damage to your vehicle may result from improper towing.

ENHANCED ACCIDENT RESPONSE SYSTEM

• In the event of an impact causing airbag deployment, if the communication network remains

intact, and the power remains intact,depending on the nature of the event the ORC will
determine whether to have the Enhanced Accident Response System perform the following
functions:

• Cut off fuel to the engine.

• Flash hazard lights as long as the battery has power or until the ignition key is turned off.

• Turn on the interior lights, which remain on as long as the battery has power or until the

ignition key is removed.

• Unlock the doors automatically.

• After the event occurs, when the system is active, the message "Fuel Cutoff See Handbook" is

displayed.

• Carefully check the vehicle for fuel leaks in the engine compartment and on the ground near

the engine compartment and fuel tank before resetting the system and starting the engine.

NOTE: In order to start the engine and move the vehicle to a safe location after an impact, the
System Reset Procedure must be completed.

57

WHAT TO DO IN EMERGENCIES

System Reset Procedure

• After an impact causing airbag deployment, the left and right turn signal lights,located in the

instrument panel cluster, will both be blinking, until the ignition is turned off.

• In order to move your vehicle to the side of the road you must follow the system reset

procedure.

Customer Action Customer Will See

1.Turn ignition OFF. (Turn Signal Switch
Must be placed in Neutral State).

2.Turn ignition ON. Left Turn Light is OFF. Right Turn Light BLINKS.

3.Turn Right Turn Signal Switch ON. Right Turn Light is ON SOLID. Left Turn Light BLINKS.

4.Turn Left Turn Signal Switch ON. Left Turn Light is ON SOLID.Right Turn Light BLINKS.

5.Turn Right Turn Signal Switch ON. Right Turn Light is ON SOLID. Left Turn Light BLINKS.

6.Turn Left Turn Signal Switch ON. Left Turn Light is ON SOLID.Right Turn Light is ON

7.Turn Left Turn Signal Switch OFF.
(Turn Signal Switch Must be placed in
Neutral State).

8.Turn ignition OFF. System is now reset and the engine may be started.

9.Turn Hazard Flashers OFF
(Manually).

• If a reset procedure step is not completed within 45 seconds, then the turn signal lights will turn

off and the reset procedure must be performed again in order to be successful.

FREEING A STUCK VEHICLE

• If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a rocking motion.

Turn your steering wheel right and left to clear the area around the front wheels.Then shift
back and forth between DRIVE/1st gear and REVERSE.Using minimal accelerator pedal
pressure to maintain the rocking motion, without spinning the wheels, is most effective.

NOTE: If your vehicle is equipped with Traction Control or Electronic Stability Control (ESC),
turn the system OFF before attempting to “rock” the vehicle.

SOLID.
Left Turn Light is OFF. Right Turn Light is OFF.

CAUTION!

• Racing the engine or spinning the wheels may lead to transmission overheating and

failure.Allow the engine to idle with the shift lever in NEUTRAL for at least one
minute after every five rocking-motion cycles.This will minimize overheating and
reduce the risk of transmission failure during prolonged efforts to free a stuck
vehicle.

• When “rocking” a stuck vehicle by moving between DRIVE/1st and REVERSE,do not

spin the wheels faster than 15 mph (24 km/h), or drivetrain damage may result.

• Revving the engine or spinning the wheels too fast may lead to transmission

overheating and failure. It can also damage the tires. Do not spin the wheels above
30 mph (48 km/h) while in gear (no transmission shifting occurring).

58

WHAT TO DO IN EMERGENCIES

WARNING!

Fast spinning tires can be dangerous.Forces generated by excessive wheel speeds may
cause damage, or even failure, of the axle and tires.A tire could explode and injure
someone. Do not spin your vehicle's wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stopping when you are stuck and do not
let anyone near a spinning wheel,no matter what the speed.

EVENT DATA RECORDER (EDR)

• This vehicle is equipped with an event data recorder (EDR).The main purpose of an EDR is to

record,in certain crash or near crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s systems performed.The EDR
is designed to record data related to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less.The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal;and,

• How fast the vehicle was traveling.

• These data can help provide a better understanding of the circumstances in which crashes and

injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data
are recorded by the EDR under normal driving conditions and no personal data (e.g.name, gender,
age, and crash location) are recorded. However, other parties, such as law enforcement,could
combine the EDR data with the type of personally identifying data routinely acquired during a
crash investigation.

• To read data recorded by an EDR,special equipment is required, and access to the vehicle or the

EDR is needed. In addition to the vehicle manufacturer, other parties such as law enforcement,
that have the special equipment, can read the information if they have access to the vehicle or
the EDR.

59

MAINTAININGYOURVEHICLE

OPENING THE HOOD

• Pull the release lever located below the

instrument panel and in front of the driver’s
door.

• Raise the hood and locate the safety latch in

the middle of the hood opening.

• Move the safety latch while lifting the hood at

the same time.

• Insert the support rod into the slot on the

hood.

• To close the hood, remove the support rod

and place it in the retaining clip,then lower the
hood slowly.

WARNING!

Be sure the hood is fully latched before driving your vehicle. If the hood is not fully
latched, it could open when the vehicle is in motion and block your vision. Failure to
follow this warning could result in serious injury or death.

60

MAINTAININGYOURVEHICLE

ENGINE COMPARTMENT

1.4L Engine

61

MAINTAININGYOURVEHICLE

FLUIDS AND CAPACITIES

Component Fluid, Lubricant, or Genuine Part Capacities

Engine Coolant 1.4L with
ManualTransmission

Engine Coolant 1.4L with
Automatic Transmission

Engine Oil with Filter 1.4L API Certified SAE 5W-30 Engine

Engine Oil Filter MOPAR

Fuel Selection 1.4L 87 Octane Acceptable – 91 Octane

ManualTransmission MOPAR

Automatic Transmission MOPAR
Brake Master Cylinder MOPAR

Spark Plugs DCPR7E-N-10 Gap 0.040 in

Convertible Top Rails Berulub FR 43 —

®

MOPAR

Antifreeze/Engine
Coolant 10Year/150,000 Mile
Formula OAT (Organic Additive
Technology) or equivalent meeting
the requirements of Chrysler
Material Standard MS-12106.

®

MOPAR

Antifreeze/Engine
Coolant 10Year/150,000 Mile
Formula OAT (Organic Additive
Technology) or equivalent meeting
the requirements of Chrysler
Material Standard MS-12106.

Oil, meeting the requirements of
Chrysler material standard
MS-6395.

®

Engine Oil Filter or

equivalent.

Recommended

®

Transmission Fluid

C635 DDCT/MTX

®

AW-1Transmission Fluid —

®

DOT 3, SAE J1703 should
be used.If DOT 3,SAE J1703 brake
fluid is not available, then DOT 4 is
acceptable. Use only recommended
brake fluids or equivalent.

(1.02 mm)

4.6 Quarts (4.4 Liters)

5.8 Quarts (5.5 Liters)

4 Quarts (4.0 Liters)

10.5 Gallons (40 Liters)
(Approximate)

—

—

—

—

62

MAINTAININGYOURVEHICLE

X

X(*) X X

13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000

Or Kilometers:

Change the engine oil and filter. X(*) X(*) X(*) X(*) X X X XXXXXX

X(*)X(*)X(*)X(*)XXXXXXXXX

Rotate the tires,rotate at the first sign of irregular wear, even if it

occurs before scheduled maintenance.

If using your vehicle for any of the following:dusty or off-road condi-

tions. Inspect the engine air cleaner filter;replace if necessary.

Inspect the brake linings; replace if necessary. X(*) X(*) X X X X

8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000

Miles:

OrMonths:6 121824303642 48 54 60 66 72 78

MAINTENANCE CHART

X(*) X(*) X X X X

and tear items - brakes (rotors,pads,linings and drums), wiper blades,and clutch discs or modular clutch assembly (as equipped) - covered only for

Clean and lube sun roof tracks. X(*) X(*) X X X X

Check and adjust hand brake. X(*) X X

Replace the spark plugs X(*) X X

Inspect and replace PCV valve if necessary. X

Flush and replace the engine coolant at 60 months or 104,000 miles

(169,000 km) whichever comes first.XFlush and replace the engine coolant at 104,000 miles (169,000 km)

Replace the engine air cleaner filter. X(*) X X

Inspect the exhaust system. X(*) X(*) X X X X

Inspect the front suspension,tie rod ends and boot seals for cracks

or leaks and all parts for damage,wear,improper looseness or end

Inspect the CV joints. X(*) X(*) X X X X

Replace cabin filter. X(*) X(*) X X X X

play; replace if necessar y.

or 60 months whichever comes first.

• (*) The Maintenance Program covers the cost of normal service maintenance items, oil service and inspections above as well as specific normal wear

3 years or 36,000 miles on the odometer. See your Warranty Information book, section 6 - Maintenance Program for full details.

• Refer to the Owner's Manual on the DVD for the complete maintenance schedule.

63

MAINTAININGYOURVEHICLE

Maintenance Record

Odometer Date Signature,Authorized Service Center

8,000 Miles(*)
(13,000 km) or
6 Months

16,000 Miles(*)
(26,000 km) or
12 Months

24,000 Miles(*)
(39,000 km) or
18 Months

32,000 Miles(*)
(52,000 km) or
24 Months

40,000 Miles
(65,000 km) or
30 Months

48,000 Miles
(78,000 km) or
36 Months

56,000 Miles
(91,000 km) or
42 Months

64,000 Miles
(104,000 km)
or 48 Months

72,000 Miles
(117,000 km)
or 54 Months

80,000 Miles
(130,000 km)
or 60 Months

88,000 Miles
(143,000 km)
or 66 Months

96,000 Miles
(156,000 km)
or 72 Months

104,000 Miles
(169,000 km)
or 78 Months

• (*) The Maintenance Program covers the cost of normal service maintenance items, oil service

and inspections above as well as specific normal wear and tear items - brakes (rotors, pads,
linings and drums), wiper blades, and clutch discs or modular clutch assembly (as equipped) ­covered only for 3 years or 36,000 miles on the odometer. See yourWarranty Information
book,section6-Maintenance Program for full details.

64

MAINTAININGYOURVEHICLE

FUSES

Interior Fuses

• The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver's

side under the instrument panel.

Cavity

1 F12 7.5 Amp Brown Right Low Beam

2

3 F53 5 Amp Tan Instrument Panel Node
4 F38 20 Amp Yellow Central Door Locking

5

6 F43 20 Amp Yellow Bi-Directional Washer
7 F48 20 Amp Yellow Passenger PowerWindow
8 F13 7.5 Amp Brown Left Low Beam,Headlamp Leveling
9 F50 7.5 Amp Brown Airbag

10

11

12

13 F31 5 Amp Tan Ignition, Climate Control
14 F47 20 Amp Yellow Driver Power Window

Underhood Fuses

• A second fuse panel is located on the drivers side of the engine compartment, next to the

battery.To access the fuses, press the release tabs and remove the cover.

• The ID number of the electrical component corresponding to each fuse can be found on the

back of the cover.

Cavity Maxi Fuse Mini Fuse Description

F01 60Amp Blue Body Controller
F02 20 AmpYellow Audio Amplifier
F03 20 AmpYellow Ignition Switch
F04 40Amp Orange Anti-Lock Brake Pump
F05 70 Amp Tan Electric Power Steering
F06 20 AmpYellow Radiator Fan - Single Speed
F06 30Amp Green Radiator Fan - Low Speed
F07 40Amp Orange Radiator Fan - High Speed
F08 30Amp Green Blower Motor
F09 10 Amp Red Powertrain
F10 10 Amp Red Horn

Vehicle Fuse

Number

F32 5 Amp Tan Front and Rear Ceiling Lights Trunk

F36 10Amp Red Diagnostic Socket,Car Radio,

F51 5 Amp Tan Car Radio Switch, Climate Control

F37 5 Amp Tan Stop Light Switch, Instrument Panel

F49 5 Amp Tan Exterior Mirror, GPS, Electric Mirror,

Mini Fuse Description

and Door Courtesy Lights

Climate Control System

System, Stop Light,Clutch

Node

Parking Sensor

65

MAINTAININGYOURVEHICLE

Cavity Maxi Fuse Mini Fuse Description

F11 15Amp Blue Powertrain
F11 10 Amp Red Powertrain (Multiair – If Equipped)
F14 5 Amp Tan High beam (Shutter)
F15 15Amp Blue Cigar Lighter
F16 7.5 Amp Brown Transmission
F17 25 Amp White Powertrain (Multiair – If Equipped)
F17 15Amp Blue Powertrain
F18 15Amp Blue Powertrain
F18 5 Amp Tan Powertrain (Multiair – If Equipped)
F19 7.5 Amp Brown Air Conditioning
F20 15Amp Blue Heated Seats – If Equipped
F21 15Amp Blue Fuel Pump
F23 20 AmpYellow Anti-Lock BrakeValves
F24 7.5 Amp Brown Stability Control System
F30 15Amp Blue Fog Lamps
F82 30 Amp Green Sunroof/ConvertibleTop
F84 10 Amp Red Transmission
F85 15Amp Blue Rear Defroster, Heated Mirrors
F87 5 Amp Tan Lights
F90 5 Amp Tan Heated Mirrors

TIRE PRESSURES

• Check the inflation pressure of each tire, including the spare tire, at least monthly and inflate to

the recommended pressure for your vehicle.

• The tire pressures recommended for your vehicle are found on the “Tire and Loading

Information” label located on the driver’s side door opening.

66

NOTE: Refer to the Owner's Manual on the

DVD for more information regarding tire
warnings and instructions.

MAINTAININGYOURVEHICLE

WARNING!

• Overloading of your tires is dangerous. Overloading can cause tire failure, affect

vehicle handling,and increase your stopping distance. Use tires of the recommended
load capacity for your vehicle. Never overload them.

• Improperly inflated tires are dangerous and can cause collisions. Under-inflation is

the leading cause of tire failure and may result in severe cracking,component
separation, or “blow out”. Over-inflation reduces a tire’s ability to cushion shock.
Objects on the road and chuck holes can cause damage that results in tire failure.
Unequal tire pressures can cause steering problems.You could lose control of your
vehicle. Over-inflated or under-inflated tires can affect vehicle handling and can fail
suddenly, resulting in loss of vehicle control.

WHEEL AND WHEEL TRIM CARE

• All wheels and wheel trim,especially aluminum and chrome plated wheels, should be cleaned

regularly with a mild soap and water to prevent corrosion.

• To remove heavy soil and/or excessive brake dust, use a wheel cleaner or select a non-abrasive,

non-acidic cleaner.

CAUTION!

Do not use scouring pads, steel wool,a bristle brush,or metal polishes. Do not use
oven cleaner.These products may damage the wheel's protective finish.Avoid
automatic car washes that use acidic solutions or harsh brushes that may damage the
wheel's protective finish.

EXTERIOR BULBS

LIGHT BULBS – Exterior Bulb Number

High Beam Headlight HI R2
Low Beam Headlight HI R2
Front Park/Daytime W21/5W
FrontTurn Signals WY21W
Side Turn Signals W5W
Brake Lights P21W/5W
Backup Lights W16W
Interior Cargo Light C5W
Fog Lights H11
Center High Mount Stop Light (CHMSL) W5W

67

CONSUMER ASSISTANCE

FIAT CUSTOMER CENTER

P.O.Box 21–8004

Auburn Hills,MI 48321–8004

Phone: [phone]

ASSISTANCE FOR THE HEARING IMPAIRED

• To assist customers who have hearing difficulties, the manufacturer has installed specialTDD

(Telecommunication Devices for the Deaf) equipment at its customer center.Any hearing or
speech impaired customer,who has access to a TDD or a conventional teletypewriter (TTY) in
the United States, can communicate with the manufacturer by dialing 1–800–380–CHRY.
Canadian residents with hearing difficulties that require assistance can use the special needs
relay service offered by Bell Canada. For TTY teletypewriter users, dial 711 and forVoice callers,
dial 1–800–855–0511 to connect with a Bell Relay Service operator.

WARNING!

Engine exhaust, some of its constituents, and certain vehicle components contain, or
emit, chemicals known to the State of California to cause cancer and birth defects,or
other reproductive harm. In addition, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemicals known to the State of
California to cause cancer and birth defects, or other reproductive harm.

PUBLICATIONS ORDERING

• If you are the first registered retail owner of your vehicle, you may obtain one free printed

copy of the Owner's Manual,Warranty Booklet or Radio Manuals on your DVD by calling
1–888–242–6342 (U.S.) or 1–800–387–1143 (Canada) or by contacting your dealer.

• Replacement User Guide kits or DVDs or, if you prefer,additional printed copies of the Owner's

Manual,Warranty Booklet or Radio Manuals may be purchased by visiting
www.techauthority.com or by calling 1–800–890–4038 (U.S.) or 1–800–387–1143 (Canada).
Visa, Master Card,American Express and Discover orders are accepted.If you prefer mailing
your order,please call the above numbers for an order form.

NOTE: A street address is required when ordering manuals (no P.O. Boxes).

68

CONSUMER ASSISTANCE

REPORTING SAFETY DEFECTS IN THE 50 UNITED STATES AND WASHINGTON, D.C.

• If you believe that your vehicle has a defect that could cause a collision or cause injury or death,

you should immediately inform the National Highway Traffic SafetyAdministration (NHTSA) in
addition to notifying the manufacturer.

• If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety

defect exists in a group of vehicles,it may order a recall and remedy campaign.However,
NHTSA cannot become involved in individual problems between you,your authorized dealer,
and the manufacturer.

• To contact NHTSA, you may either call the Auto Safety Hotline toll free at 1–888–327–4236

(TTY: 1–800–424– 9153), or go to http://www.safercar.gov;or write to:Administrator,NHTSA,
1200 New Jersey Avenue,SE.,West Building,Washington, D.C. 20590.You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

In Canada

• If you believe that your vehicle has a safety defect, you should contact the Customer Service

Department immediately. Canadian customers who wish to report a safety defect to the
Canadian government should contactTransport Canada, MotorVehicle Defect Investigations and
Recalls at 1-800-333-0510 or go to http://www.tc.gc.ca/roadsafety/

• French Canadian customers who wish to report a safety defect to the Canadian government

should contactTransport Canada, MotorVehicle Defect Investigations and Recalls at
1-800-333-0510 or go to http://www.tc.gc.ca/securiteroutiere/

69

MOPAR ACCESSORIES

AUTHENTIC ACCESSORIES BY MOPAR

• The following highlights just some of the many Authentic FIATAccessories by Mopar featuring a

fit, finish, and functionality specifically for your FIAT 500.

• In choosingAuthentic Accessories you gain far more than expressive style, premium protection,

or extreme entertainment, you also benefit from enhancing your vehicle with accessories that
have been thoroughly tested and factory-approved.

• For the full line ofAuthentic FIAT Accessories by Mopar, visit your local FIAT dealership or

online at mopar.com.

EXTERIOR:

• Chrome Hood Spear • Chrome Exhaust Tip • Front End Cover

• Chrome Mirror Cover • Side Window Air Deflectors • Molded Splash Guards

• Chrome Lower Grill and

Fog Light Surrounds

• Chrome Fuel Door • Wheel Pocket Inserts • Locking Fuel Cap

INTERIOR:

• Door Sill Guards • InteriorAppliques • Premium Carpet Floor Mats

• Chrome Shift Knob • Key Covers • Slush Mats

• Instrument Panel Graphics • Roadside Safety Kit • Cargo Organizer

ELECTRONICS:

• GPSTracking System(s) • Remote Star t • Sound System Upgrades

• Portable Navigation Systems • Wi-Fi • Interior/Ambient Lighting

• Rear Park Distance Sensors • iPod Connection Kit

• Body Side Molding •Vehicle Cover

®

CARRIERS:

• Roof Rack • Bike Carrier • Canoe Carrier

• Snowboard/Ski Carrier • Luggage Carrier • Hitch-mount Bike Carrier

70

INDEX

Air Conditioning ..............20

Airbag ...................9

Airbag Light ................42

Anti-Lock Brake System (ABS) ......42

Arming Theft System (Security Alarm) . . . 8
Automatic Temperature Control (ATC) . . 21
Automatic Transmission

Fluid Type ................62

Battery

Charging System Light .........42

Jump Starting ..............53

Belts,Seat..................9

BLUE&ME™ Hands-Free

Communication ..............29

Brake Fluid ................62

Brake System

Warning Light ..............41

Bulb Replacement .............67

Changing A FlatTire ............43

Charging System Light ...........42

Check Engine Light (Malfunction Indicator

Light) ...................42

Child Restraint ..............10

Child Restraint TetherAnchors ......10

ClimateControl..............20

Clock Setting ...............29

Cooling System

Coolant Capacity ............62

Cruise Control (Speed Control) .....18

Cruise Light ................18

Customer Assistance ...........68

Defects, Reporting .............69

Defroster,RearWindow..........20

Defroster,Windshield ...........20

Disarming,Theft System ..........8

Electronic Speed Control

(Cruise Control) .............18

Electronic Throttle Control Warning

Light ....................40

ElectronicVehicle Information Center

(EVIC)...................35

Electronics

YourVehicle's Sound System ......26

Emergency,In Case of

Jacking .................43

Jump Starting ..............53

Towing .................56

Engine

Compartment .............61

Fails to Start ..............25

Flooded, Starting ............25

Malfunction Indicator (Check Engine) . 42

Oil Selection ..............62

Overheating ..............42

Enhanced Accident Response Feature . . . 57

Exterior Lights ...............67

Flooded Engine Star ting ..........25

Fluid Capacities ..............62

Fluids ...................62

Folding Rear Seat .............14

Freeing A StuckVehicle ..........58

FrontHeatedSeats ............15

Fuel

Specifications ..............62

Gear Select Lever Override ........56

Hands-Free Communication -

BLUE&ME™ ...............29

Headlights

High Beam ...............16

HeatedMirrors ............20,21

HeatedSeats ...............15

High Beam/Low Beam Select (Dimmer)

Switch ...................16

Hood Release ...............60

Instrument Cluster .............6

Indicators ................7

trument ClusterWarning Lights . . . 6,39

Ins

IntermittentWipers (Delay Wipers) ....17

Introduction ................2

®

Control ...............33

iPod

®

/USB/MP3Control .........34

iPod

Jack Location ...............43

JackOperation .............43,46

Jacking Instructions ............46

71

INDEX

Jump Starting ...............53

KeyFob...................8

Lane ChangeAssist ............16

LATCH (Lower Anchors andTether for

CHildren) .................10

Lights

Engine Temperature Warning ......39

Turn Signal ...............16

Warning (Instrument Cluster

Description) ...............6

Maintenance Record ...........64

Maintenance Schedule ...........63

Malfunction Indicator Light

(Check Engine) ..............42

ManualTransmission ............22

Mirrors

Heated ...............20,21

®

MOPAR

Oil Pressure Light .............42

Oil, Engine

Outlet

Overheating, Engine ............42

Placard,Tire and Loading Information . . . 66
Power

Preparation for Jacking ...........45

Programmable Electronic Features ....35

RearSeat,Folding .............14

RecreationalTowing ............38

Replacement Bulbs ............67

Restraints, Child ..............10

SeatBelts ..................9

Seats ...................12

Accessories ...........70

Capacity ................62

Power .................37

Outlet (Auxiliary Electrical Outlet) . . . 37

Sunroof .................22

Adjustment ...............12

Heated .................15

RearFolding ..............14

Setting the Clock .............29

ShiftLeverOverride ...........56

Signals,Turn ................16

SparkPlugs ................62

Speed Control (Cruise Control) .....18

SportMode ................22

Starting

ColdWeather .............25

Engine Fails to Start ...........25

Steering

Tilt Column ...............14

SteeringWheel Audio Controls ......31

StoreRadioPresets ............29

Stuck, Freeing ...............58

SunRoof .................22

Supplemental Restraint System - Airbag . . 9

Theft Alarm (Security Alarm) ........8

TheftSystemArming ............8

Theft System Disarming ..........8

Tilt Steering Column ...........14

TIREFIT ..................49

Tires

Air Pressure ..............66

Changing ................43

Jacking .................43

PressureWarning Light .........40

Towing ..................38

24-Hour Towing Assistance .......39

DisabledVehicle .............56

Recreational ..............38

Trailer Towing ...............38

Transmission

Fluid ..................62

Turn Signals ................16

USBPort ................33,34

Washer

Rear ..................18

Washers,Windshield ...........17

Wind Buffeting ..............24

Windshield Washers ............17

Windshield Wipers ............17

Wiper,Rear ................18

72

FREQUENTLY ASKED QUESTIONS

GETTING STARTED

• How do I install my LATCH Equipped Child Seat? pg. 10

• How do I fold down my rear seat? pg.14

ELECTRONICS

• How do I set the clock on my radio? pg.29

• How do I set the presets on my radio? pg.29

• How do I connect my portable media player/iPod/MP3? pg. 34

• How do I pair my cell phone via Bluetooth

System? pg.29

WHAT TO DO IN EMERGENCIES

• What do I do if my TPMS warning light is blinking? pg.40

• How do I change a flat tire? pg.43

• How do I Jump-Start my vehicle? pg. 53

MAINTAINING YOUR VEHICLE

• Where is my Fuse Block located? pg.65

• What type of oil do I use? pg.62

• How often should I change my engine’s oil? pg. 63

• What should my tire pressure be set at? pg. 66

®

with the Uconnect™ Hands-Free Voice Activation

FAQ (How To?)

73

NOTES

74

NOTES

75

NOTES

76
