FIAT 500 2013 User Manual

INTRODUCTION

Congratulations on selecting your new Fiat vehicle. Be
assured that it represents precision workmanship, dis­tinctive styling, and high quality - all essentials that are
traditional to our vehicles.

This Owner’s Manual has been prepared with the assis­tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instruc­tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.

The enclosed Warranty Information lists the services that
Fiat offers to its customers:

•

the Warranty Certificate with terms and conditions for
maintaining its validity

•

the range of additional services available to Fiat
customers

NOTE: After reviewing the owner information, it
should be stored in the vehicle for convenient referenc­ing and remain with the vehicle when sold.

When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech­nicians and genuine parts, and cares about your satisfac­tion.

1

HOW TO USE THIS MANUAL

Consult the Table of Contents to determine which section
contains the information you desire.

Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment.

The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:

1

2

WARNINGS AND CAUTIONS

This Owner’s Manual contains WARNINGS against op-
erating procedures that could result in a collision or
bodily injury. It also contains CAUTIONS against proce­dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.

1

VEHICLE IDENTIFICATION NUMBER

The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the vehicle
registration and title.

Vehicle Identification Number

1

VEHICLE MODIFICATIONS/ALTERATIONS

WARNING!

Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a accident resulting in serious injury or
death.

1

A WORD ABOUT YOUR KEYS

The key fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key (metal bladed key for
mechanical backup). To use the mechanical key simply
press the mechanical key release button.

The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys. Ask your
authorized dealer for these numbers and keep them in a
safe place.

Ignition Key Removal

1. Place the shift lever in PARK (if equipped with an
automatic transmission).

2. Turn the ignition switch to the Accessory position.

3. Rotate the key to the OFF/LOCK position.

4. Remove the key from the ignition switch lock cylinder.

Mechanical Key Release Button

1

WARNING!

•

Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win­dows, other controls, or move the vehicle.

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

CAUTION!

An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.

Ignition Switch Positions

1 — STOP (OFF/LOCK) 3 — AVV (START)
2 — MAR (ACC/ON/RUN)

2

Locking Doors With A Key

You can insert the key with either side up. To lock the
door, turn the key to the right. To unlock the door, turn
the key to the left. Refer to “Body Lubrication” in
“Maintaining Your Vehicle” for maintenance
information.

Key-In-Ignition Reminder

Opening the driver’s door when the key is in the ignition
and the ignition switch position is OFF/LOCK, sounds a
signal to remove the key.

3

SENTRY KEYT

The Sentry Keyt Immobilizer System prevents unauthor­ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro­grammed to the vehicle can be used to start and operate
the vehicle.

NOTE: A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.

If the Vehicle Security Light is on after the key on, it
indicates that there is a problem with the electronics.

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec­onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.

CAUTION!

•

Always remove the Sentry Keyt from the vehicle
and lock all doors when leaving the vehicle unat­tended.

•

The Sentry Keyt Immobilizer system is not com­patible with some after-market remote starting
systems. Use of these systems may result in ve­hicle starting problems and loss of security
protection.

All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.

1

Replacement Keys

NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Keyt has been programmed to a vehicle, it
cannot be programmed to any other vehicle.

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
This PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro­gramming procedure. This procedure consists of pro­gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.

NOTE: When having the Sentry Keyt Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.

General Information

The Sentry Keyt system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

•

This device may not cause harmful interference.

•

This device must accept any interference that may be
received, including interference that may cause unde­sired operation.

NOTE: Changes or modifications not expressly ap­proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

2

REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED

This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit­ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system.

NOTE: The line of transmission must not be blocked
with metal objects.

To Unlock The Doors And Liftgate

Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice
within five seconds to unlock all doors and liftgate. The
turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will also turn on.

Remote Key Unlock, Driver Door/All First Press

This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:

•

For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand­ing Your Instrument Panel” for further information.

Remote Keyless Entry With Mechanical Key Release

Button

1

•

For vehicles not equipped with the EVIC, perform the
following steps:

1. Press and hold the LOCK button on a programmed
RKE transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the UNLOCK button
while still holding the LOCK button.

2. Release both buttons at the same time.
Test the feature while outside of the vehicle by pressing

the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the LOCK position and the
key removed.

Repeat these steps if you want to return this feature to its
previous setting.

NOTE: Pressing the LOCK button on the RKE transmit­ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.

To Lock The Doors And Liftgate

Press and release the LOCK button on the RKE transmit­ter to lock all doors and liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the
signal.

Programming Additional Transmitters

Refer to Sentry Keyt “Customer Key Programming.”
If you do not have a programmed RKE transmitter,

contact your authorized dealer for details.

2

General Information

This device complies with Part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be
received including interference that may cause undesired
operation.

NOTE: Changes or modifications not expressly ap­proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:

1. Weak battery in the RKE transmitter. The expected life
of a battery is five years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.

Transmitter Battery Replacement

NOTE: Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate

The recommended replacement battery is CR2032.

3

1. Press the mechanical key release button and release
the mechanical key and access the battery case screw
located on the side of the Key Fob.

2. Rotate the screw using a small screwdriver.

Mechanical Key Release Button

4

3. Take out the battery case and remove and replace the
battery observing its polarity.

4. Refit the battery case inside the key and lock it by
turning the screw.

5

DOOR LOCKS

The door locks can be manually locked or unlocked from
inside the vehicle by using the door handle. If the door
handle is pushed (red lock indicator showing) when the
door is closed, the door will lock.

WARNING!

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

•

For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.

•

When leaving the vehicle, always remove the key
from the ignition and lock your vehicle. Do not
leave unattended children in the vehicle or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal in­juries or death.

Door Lock Handle

1

CAUTION!

An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.

Power Door Locks

A power door lock switch is incorporated into the door
handle. Push or pull the handle to lock or unlock the
doors and liftgate. If the door handle is pushed (red lock
indicator showing) when the door is closed, the door will
lock.

NOTE: To prevent locking the key in the vehicle, the
power door lock switch will not operate when the key is
in the ignition and either front door is open. A chime will
sound as a reminder to remove the key.

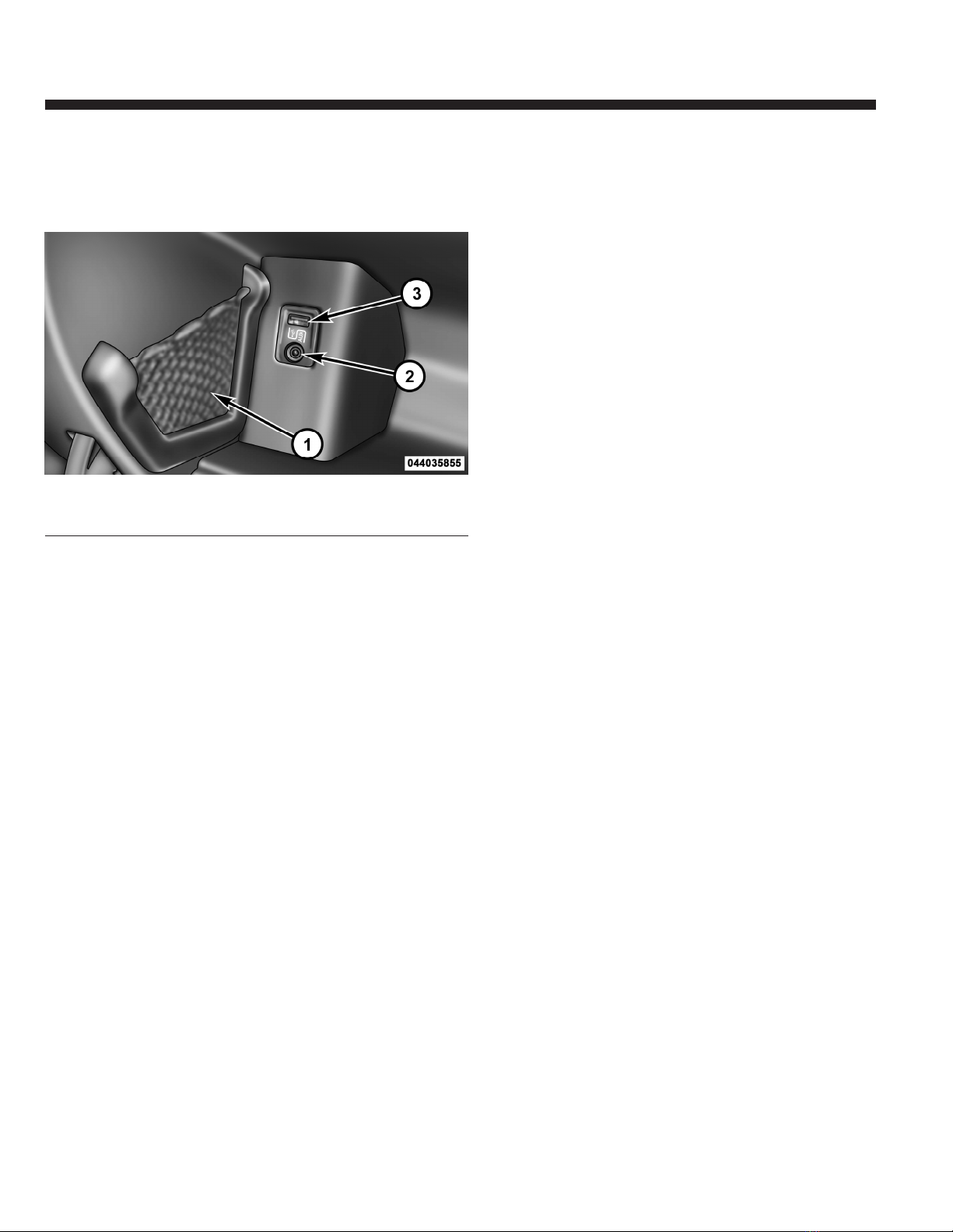

Driver Power Door Lock Handle

2

Automatic Door Locks — If Equipped

The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:

1. The Auto Lock feature is enabled.

2. All doors are closed.

3. The vehicle speed is above 12 mph (20 km/h).

4. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.

Automatic Door Locks Programming

The Auto Close feature can be enabled or disabled with
the Electronic Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center (EVIC) — If
Equipped/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel” for
further information.

3

POWER WINDOWS
Power Window Switches

There are single window controls located on the shifter
bezel below the climate controls, which operate the
driver and passenger door windows. The window con­trols will operate when the ignition switch is in the
ON/RUN position.

WARNING!

Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power window switches. Such
entrapment may result in serious injury or death.

Power Window Switches

1

Auto-Down — If Equipped

The driver’s door window switch may have an Auto­Down feature. Push the window switch past the first
detent, release, and the window will go down automati­cally. To cancel the Auto-Down movement, operate the
switch in either the up or down direction and release the
switch.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur­rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting or open any window.

2

LIFTGATE

To unlock the liftgate, use the Remote Keyless Entry
(RKE) transmitter or by activating the power door lock
switches located on the front door handles.

To open the liftgate, squeeze the liftgate release handle
and pull the liftgate open with one fluid motion.

WARNING!

•

Driving with the liftgate open can allow poison­ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.

•

If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
Do not use the recirculation mode.

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera­ture, it may be necessary to assist the props when
opening the liftgate in cold weather.

Liftgate Handle

1

OCCUPANT RESTRAINTS

Some of the most important safety features in your
vehicle are the restraint systems:

•

Three-point lap and shoulder belts for all seating
positions

•

Advanced Front Airbags for driver and front passen­ger

•

Supplemental Driver Side Knee Airbag

•

Supplemental Side Airbag Inflatable Curtains (SABIC)
for the driver and passengers seated next to a window

•

Supplemental Seat-Mounted Side Airbags (SAB)

•

Knee bolsters/blockers for front seat occupants

•

Front seat belts incorporate pretensioners that may
enhance occupant protection by managing occupant
energy during an impact event

•

All seat belt systems (except the driver’s) include
Automatic Locking Retractors (ALRs), which lock the
seat belt webbing into position by extending the belt
all the way out and then adjusting the belt to the
desired length to restrain a child seat or secure a large
item in a seat — if equipped

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.

If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems. For more information
on LATCH, see Lower Anchors and Tether for CHildren
(LATCH).

1

Here are some simple steps you can take to minimize the
risk of harm from a deploying airbag:

1. Children 12 years old and under should always ride

buckled up in a rear seat.

WARNING!

Infants in rear facing child restraints should never
ride in the front seat of a vehicle with a passenger
Advanced Front Airbag. An airbag deployment can
cause severe injury or death to infants in that position.

Children that are not big enough to wear the vehicle seat
belt properly (see section on Child Restraints) should be
secured in the rear seat in child restraints or belt­positioning booster seats. Older children who do not use
child restraints or belt-positioning booster seats should

ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
their arm.

If a child from 1 to 12 years old (not in a rear facing child
seat) must ride in the front passenger seat, move the seat
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”)

You should read the instructions provided with your
child restraint to make sure that you are using it properly.

2. All occupants should always wear their lap and

shoulder belts properly.

3. The driver and front passenger seats should be
moved back as far as practical to allow the Advanced
Front Airbags room to inflate.

2

4. Do not lean against the door or window. Your vehicle
has Supplemental Side Airbag Inflatable Curtains
(SABIC) or Supplemental Seat-Mounted Side Airbags
(SAB), and deployment occurs, the SABIC and SAB
airbags will inflate forcefully into the space between
you and the door.

5. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under (If You Need Assistance(.

WARNING!

•

Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions, the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.

•

Being too close to the steering wheel or instrument
panel during Advanced Front Airbag deployment
could cause serious injury, including death. Air­bags need room to inflate. Sit back, comfortably
extending your arms to reach the steering wheel or
instrument panel.

•

Side airbags also need room to inflate. Do not lean
against the door or window. Sit upright in the
center of the seat.

3

WARNING!

In an accident, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.

Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause an accident that includes you. This can happen
far away from home or on your own street.

Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in an accident.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibility

of ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.

Lap/Shoulder Belts

All the seating positions in your vehicle are equipped
with combination lap/shoulder belts.

The belt webbing retractor is designed to lock during
very sudden stops or accidents. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. However in a collision, the belt will
lock and reduce the risk of you striking the inside of the
vehicle or being thrown out.

4

WARNING!

•

It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In an accident, people riding
in these areas are more likely to be seriously
injured or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

•

Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of an accident the
best.

(Continued)

WARNING! (Continued)

•

Wearing your belt in the wrong place could make
your injuries in an accident much worse. You
might suffer internal injuries, or you could even
slide out of part of the belt. Follow these instruc­tions to wear your seat belt safely and to keep your
passengers safe, too.

•

Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

5

2. The seat belt latch plate is along side the pillar near the
back of your seat. Grasp the latch plate and pull out the
belt. Slide the latch plate up the webbing as far as
necessary to allow the belt to go around your lap.

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”

Pulling Out The Latch Plate

Inserting Latch Plate Into Buckle

6

WARNING!

•

A belt that is buckled into the wrong buckle will
not protect you properly. The lap portion could
ride too high on your body, possibly causing
internal injuries. Always buckle your belt into the
buckle nearest you.

•

A belt that is too loose will not protect you
properly. In a sudden stop you could move too far
forward, increasing the possibility of injury. Wear
your seat belt snugly.

(Continued)

WARNING! (Continued)

•

A belt that is worn under your arm is dangerous.
Your body could strike the inside surfaces of the
vehicle in an accident, increasing head and neck
injury. A belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the belt over your shoulder so that
your strongest bones will take the force in a
collision.

•

A shoulder belt placed behind you will not protect
you from injury during an accident. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.

7

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in an accident.

WARNING!

•

A lap belt worn too high can increase the risk of
internal injury in an accident. The belt forces
won’t be at the strong hip and pelvic bones, but
across your abdomen. Always wear the lap belt as
low as possible and keep it snug.

•

A twisted belt will not protect you properly. In a
collision, it could even cut into you. Be sure the
belt is straight. If you can’t straighten a belt in
your vehicle, take it to your authorized dealer
immediately and have it fixed.

5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.

Positioning Lap Belt

8

6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.

WARNING!

A frayed or torn belt could rip apart in an accident
and leave you with no protection. Inspect the belt
system periodically, checking for cuts, frays, or loose
parts. Damaged parts must be replaced immediately.
Do not disassemble or modify the system. Seat belt
assemblies must be replaced after an accident if they
have been damaged (bent retractor, torn webbing,
etc.).

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted lap/
shoulder belt.

1. Position the latch plate as close as possible to the
anchor point.

2. At about 6 to 12 in (15 to 30 cm) above the latch plate,
grasp and twist the belt webbing 180 degrees to create a
fold that begins immediately above the latch plate.

3. Slide the latch plate upward over the folded webbing.
The folded webbing must enter the slot at the top of the
latch plate.

4. Continue to slide the latch plate up until it clears the
folded webbing.

9

Seat Belts In Passenger Seating Positions

The seat belts in the passenger seating positions are
equipped with an Automatic Locking Retractor (ALR)
which are used to secure a child restraint system. For
additional information refer to “Installing Child Re­straints Using The Vehicle Seat Belt” under the “Child
Restraints” section. The chart below defines the type of
feature for each seating position.

Driver Passenger

First Row N/A ALR

Second Row ALR ALR

•

N/A — Not Applicable

•

ALR — Automatic Locking Retractor

If the passenger seating position is equipped with an
ALR and is being used for normal usage:

Only pull the belt webbing out far enough to comfortably
wrap around the occupants mid-section so as to not

activate the ALR. If the ALR is activated you will hear a
ratcheting sound as the belt retracts. Allow the webbing
to retract completely in this case and then carefully pull
out only the amount of webbing necessary to comfort­ably wrap around the occupants mid-section. Slide the
latch plate into the buckle until you hear a 9click.9

Automatic Locking Retractor Mode (ALR) — If
Equipped

In this mode, the shoulder belt is automatically pre­locked. The belt will still retract to remove any slack in
the shoulder belt. The Automatic Locking Mode is avail­able on all passenger-seating positions with a combina­tion lap/shoulder belt. Use the Automatic Locking Mode
anytime a child safety seat is installed in a seating
position that has a belt with this feature. Children
12 years old and under should always be properly
restrained in the rear seat.

10

How To Engage The Automatic Locking Mode

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.

3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the Automatic Locking Mode.

How To Disengage The Automatic Locking Mode

Unbuckle the combination lap/shoulder belt and allow it
to retract completely to disengage the Automatic Locking
Mode and activate the vehicle sensitive (emergency)
locking mode.

WARNING!

•

The belt and retractor assembly must be replaced
if the seat belt assembly Automatic Locking Re­tractor (ALR) feature or any other seat belt func­tion is not working properly when checked ac­cording to the procedures in the Service Manual.

•

Failure to replace the belt and retractor assembly
could increase the risk of injury in collisions.

Seat Belt Pretensioners

The seat belts for both front seating positions are
equipped with pretensioning devices that are designed to
remove slack from the seat belt in the event of an
accident. These devices may improve the performance of
the seat belt by assuring that the belt is tight about the
occupant early in an accident. Pretensioners work for all
size occupants, including those in child restraints.

11

NOTE: These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.

The pretensioners are triggered by the Occupant Re­straint Controller (ORC). Like the airbags, the pretension­ers are single use items. A deployed pretensioner or a
deployed airbag must be replaced immediately.

Energy Management Feature

This vehicle has a safety belt system with an Energy
Management feature in the front seating positions to help
further reduce the risk of injury in the event of a head-on
accident. This safety belt system has a retractor assembly
that is designed to release webbing in a controlled
manner. This feature is designed to help reduce the belt
force acting on the occupant’s chest.

Enhanced Seat Belt Use Reminder System
(BeltAlertT)

BeltAlertt is a feature intended to remind the driver and
front passenger (if equipped with front passenger
BeltAlertt) to fasten their seatbelts. This feature is active
whenever the ignition is on. At ignition on, if the driver
or front seat passenger is unbelted, the Seat Belt Re­minder Light will turn on (solid) and remain on for
6 seconds or until both front seatbelts are fastened.
BeltAlertt warning sequence triggers within 10 seconds
of the vehicle speed over 6 mph (10 km/h), or immedi­ately of the vehicle speed over 12 mph (20 km/h), by
blinking the Seat Belt Reminder Light and sounding an
intermittent chime for 96 seconds or until the respective
seatbelts are fastened. Once the sequence starts, it will
continue until the respective seatbelts are fastened or the
vehicle ignition is turned off. After the sequence com­pletes, the Seatbelt Reminder Light remains illuminated
(solid) and the chime stops, until the respective seatbelts

12

are fastened. In reverse gear, if the driver or front seat
passenger is unbelted, the Seat Belt Reminder Light will
turn on (solid) and remain on until both front seatbelts
are fastened. The driver should instruct all other occu­pants to fasten their seatbelts.

The front passenger seat BeltAlertt is not active when the
front passenger seat is unoccupied. BeltAlertt may be
triggered when an animal or heavy object is on the front
passenger seat or when the seat is folded flat (if
equipped). It is recommended that pets be restrained in
the rear seat in pet harnesses or pet carriers that are
secured by seat belts, and cargo is properly stowed.

BeltAlertt Programming

BeltAlertt can be disabled by your authorized dealer.
Vehicle owners are not able to disable BeltAlertt.
BeltAlertt can be enabled by performing the following

procedure:

NOTE: After entering the Menu, an action must be
taken within 45 seconds or the Menu will disappear.

1. Turn ignition to the ON/RUN or START position.

2. Press the appropriate Customer Programmable But­tons located on the Instrument Cluster as follows.

3. Press the MENU Button (bottom button). The Menu
items will appear on the display.

4. Press the UP or DOWN Button (top or middle button).
The “Belt Buzzer” item will appear on the display.

5. Press the MENU Button (bottom button). The “Belt
Buzzer: OFF” item will display.

6. 6. Press the UP or DOWN Button (top or middle
button). The “Belt Buzzer: ON” item will display.

7. Press the MENU Button (top button). The “Belt
Buzzer: ON” item will be saved and removed from the
Menu List.

13

BeltAlertt can be disabled again by your authorized
dealer. Vehicle owners are not able to disable BeltAlertt.

Seat Belt Extender

If a seat belt is too short, even when fully extended, and
when the adjustable upper shoulder belt anchorage (if
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex­tender and store it.

WARNING!

Using a seat belt extender when not needed can
increase the risk of injury in an accident. Only use
when the seat belt is not long enough when it is worn
low and snug, and in the recommended seating
positions. Remove and store the extender when not
needed.

Seat Belts And Pregnant Women

We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.

Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is an accident.

14

Supplemental Restraint System (SRS) — Airbags

This vehicle has Advanced Front Airbags for both the
driver and front passenger as a supplement to the seat
belt restraint systems. The driver’s Advanced Front Air­bag is mounted in the center of the steering wheel. The
passenger’s Advanced Front Airbag is mounted in the
instrument panel, above the glove compartment. The
words SRS AIRBAG are embossed on the airbag covers.
In addition, the vehicle is equipped with a Supplemental
Driver Side Knee Airbag mounted in the instrument
panel below the steering column.

NOTE: These airbags are certified to the Federal regu­lations for Advanced Airbags.

Advanced Front Airbag And Knee Bolster Locations

1 — Driver And Passenger Ad­vanced Front Airbags

3 — Supplemental Driver Side
Knee Airbag

2 — Knee Bolster

15

The Advanced Front Airbags are designed to allow the
airbags to have different inflation levels based on the
severity and type of collision.

This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation level of theAdvanced Front Airbags based upon
seat position.

This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation level of
the Advanced Front Airbags.

This vehicle is equipped with Supplemental Side Airbag
Inflatable Curtains (SABIC) to protect the driver, front,
and rear passengers sitting next to a window. The SABIC
are located above the side windows. The trim covering
the SABIC is labeled SRS AIRBAG.

This vehicle is equipped with Supplemental Seat­Mounted Side Airbags (SAB). The SAB are marked with
an airbag label sewn into the outboard side of the front
seats.

NOTE:

•

Airbag covers may not be obvious in the interior trim;
but they will open during airbag deployment.

•

After any accident, the vehicle should be taken to an
authorized dealer immediately.

Airbag System Components

Your vehicle may be equipped with the following airbag
system components:

•

Occupant Restraint Controller (ORC)

•

Airbag Warning Light

•

Steering Wheel and Column

•

Instrument Panel

16

•

Supplemental Driver Side Knee Airbag

•

Knee Impact Bolster

•

Driver Advanced Front Airbag

•

Passenger Advanced Front Airbag

•

Supplemental Seat-Mounted Side Airbags (SAB)

•

Supplemental Side Airbag Inflatable Curtains (SABIC)

•

Front and Side Impact Sensors

•

Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors

Advanced Front Airbag Features

The Advanced Front Airbag system provides output
appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from the front impact
sensors.

WARNING!

•

No objects should be placed over or near the
airbag on the instrument panel, because any such
objects could cause harm if the vehicle is in a
collision severe enough to cause the airbag to
inflate.

•

Do not put anything on or around the airbag covers
or attempt to open them manually. You may dam­age the airbags and you could be injured because
the airbags may no longer be functional. The
protective covers for the airbag cushions are de­signed to open only when the airbags are inflating.

•

Do not drill, cut or tamper with the knee bolster in
any way.

•

Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.

17

Supplemental Seat-Mounted Side Airbags (SAB)

Supplemental Seat-Mounted Side Airbags (SAB) provide
enhanced protection to help protect an occupant during a
side impact. The SAB are marked with an airbag label
sewn into the outboard side of the front seats.

When the airbag deploys, it opens the seam between the
front and side of the seat’s trim cover. Each airbag
deploys independently, that is a left side impact deploys
the left airbag only and a right-side impact deploys only
the right airbag.

Supplemental Side Airbag Inflatable Curtain
(SABIC)

Supplemental Side Airbag Inflatable Curtains (SABIC)
may offer side-impact protection to front and rear seat
outboard occupants in addition to that provided by the
body structure. Each airbag features inflated chambers
placed adjacent to the head of each outboard occupant
that reduce the potential for side-impact head injuries.
The SABIC deploy downward, covering both windows
on the impact side.

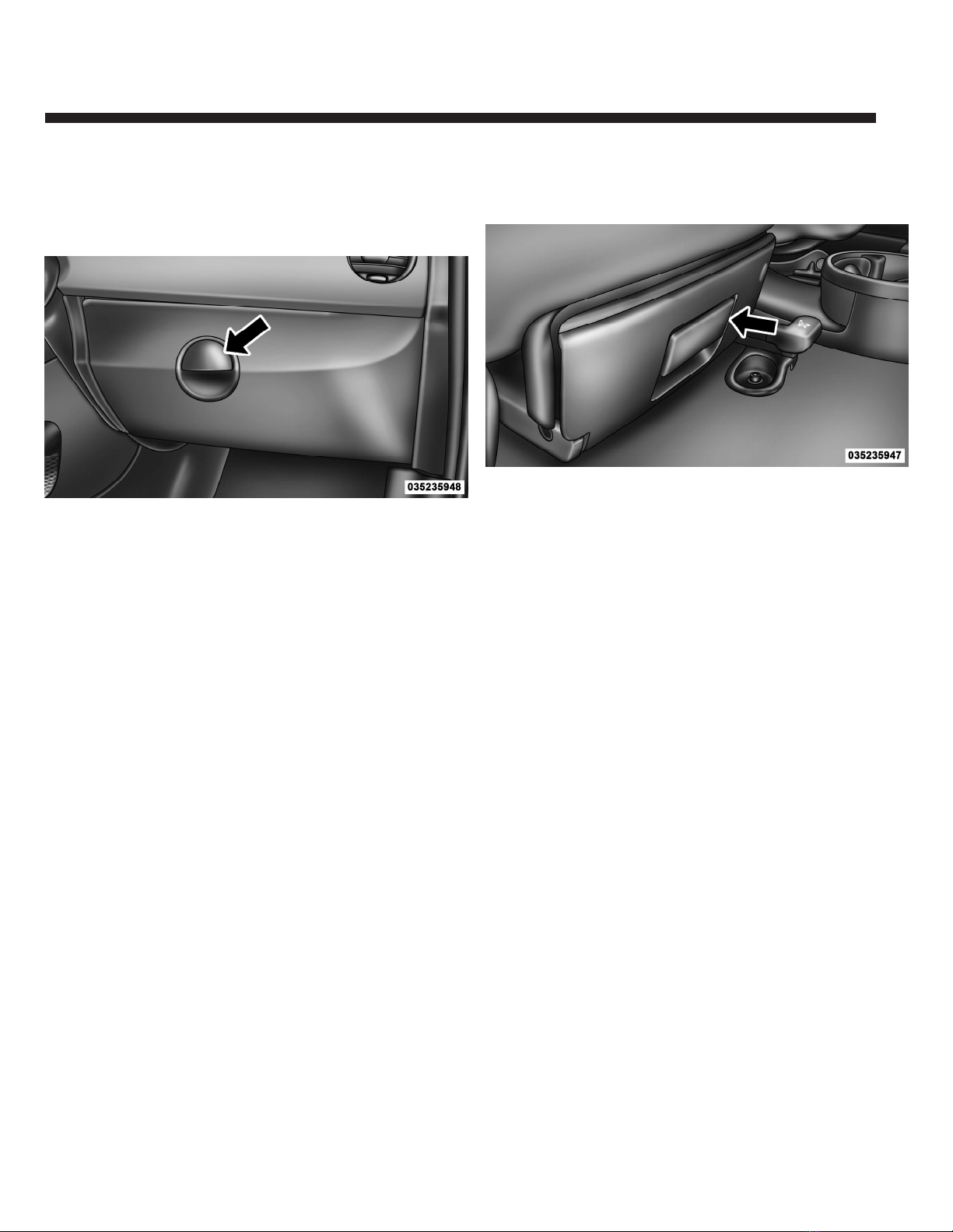

Supplemental Seat-Mounted Side Airbag (SAB) Label

18

NOTE: Airbag covers may not be obvious in the interior
trim; but they will open during airbag deployment.

The system includes side impact sensors that are cali­brated to deploy the SAB and SABIC during impacts that
require airbag occupant protection.

WARNING!

•

Your vehicle is equipped with left and right
SABIC, do not stack luggage or other cargo up
high enough to block the location of the SABIC.
The area where the side curtain airbag is located
should remain free from any obstructions.

•

Do not use accessory seat covers or place objects
between you and the SAB; the performance could
be adversely affected and/or objects could be
pushed into you, causing serious injury.

•

Your vehicle is equipped with SABIC airbags, do
not have any accessory items installed which will
alter the roof, including adding a sunroof to your
vehicle. Do not add roof racks that require perma­nent attachments (bolts or screws) for installation
on the vehicle roof. Do not drill into the roof of the
vehicle for any reason.

Supplemental Side Airbag Inflatable Curtains (SABIC)

Label Location

19

Supplemental Driver Side Knee Airbag

The Supplemental Driver Side Knee Airbag provides
enhanced protection and works together with the Driver
Advanced Front Airbag during a frontal impact.

Knee Impact Bolster

The Knee Impact Bolster helps protect the knees of the
passenger side front passenger by positioning the pas­senger for the best interaction with the Advanced Front
Airbags.

Along with seat belts and pretensioners, Advanced Front
Airbags work with the Supplemental Driver Side Knee
Airbag and the passenger side knee bolster to provide
improved protection for the driver and front passenger.
SAB and SABIC also work with seat belts to improve
occupant protection.

Airbag Deployment Sensors And Controls

Occupant Restraint Controller (ORC)

The ORC is part of a Federally regulated safety system
required for this vehicle.

The ORC determines if deployment of the front and/or
side airbags in a frontal or side collision is required.
Based on the impact sensors signals, a central electronic
ORC deploys the Advanced Front Airbags, Supplemental
Driver Side Knee Airbag, Supplemental Side Airbag
Inflatable Curtain (SABIC), Supplemental Seat-Mounted
Side Airbags (SAB), and front seat belt pretensioners, as
required, depending on the severity and type of impact.

Advanced Front Airbags and Supplemental Driver Side
Knee Airbag are designed to provide additional protec­tion by supplementing the seat belts in certain frontal
collisions depending on the severity and type of collision.
Advanced Front Airbags are not expected to reduce the
risk of injury in rear, or side collisions.

20

The Advanced Front Airbags and Supplemental Driver
Side Knee Airbag will not deploy in all frontal collisions,
including some that may produce substantial vehicle
damage — for example, some pole collisions, truck
underrides, and angle offset collisions. On the other
hand, depending on the type and location of impact,
Advanced Front Airbags may deploy in crashes with
little vehicle front-end damage but that produce a severe
initial deceleration.

The side airbags will not deploy in all side collisions. Side
airbag deployment will depend on the severity and type
of collision.

Because airbag sensors measure vehicle deceleration over
time, vehicle speed and damage by themselves are not
good indicators of whether or not an airbag should have
deployed.

Seat belts are necessary for your protection in all acci­dents, and also are needed to help keep you in position,
away from an inflating airbag.

The ORC monitors the readiness of the electronic parts of
the airbag system whenever the ignition switch is in the
ON/RUN or START position. If the key is in the OFF/
LOCK position, or not in the ignition, the airbag system
is not on and the airbags will not inflate.

The ORC contains a backup power supply system that
may deploy the airbags even if the battery loses power or
it becomes disconnected prior to deployment.

Also, the ORC turns on the Airbag Warning
Light in the instrument panel for approxi­mately four to eight seconds for a self-check

when the ignition is first turned on. After the
self-check, the Airbag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it

21

turns on the Airbag Warning Light, either momentarily
or continuously. A single chime will sound if the light
comes on again after initial startup.

It also includes diagnostics that will illuminate the instru­ment cluster Airbag Warning Light if a malfunction is
noted that could affect the airbag system. The diagnostics
also record the nature of the malfunction.

WARNING!

Ignoring the Airbag Warning Light in your instru­ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on as a bulb check when the ignition is first turned
on, stays on after you start the vehicle, or if it comes
on as you drive, have an authorized dealer service the
airbag system immediately.

Driver And Passenger Advanced Front Airbag
Inflator Units

The Driver and Passenger Advanced Front Airbag Infla­tor Units are located in the center of the steering wheel
and the right side of the instrument panel. When the
ORC detects a collision requiring the Advanced Front
Airbags, it signals the inflator units. A large quantity of
non-toxic gas is generated to inflate the Advanced Front
Airbags. Different airbag inflation rates are possible,
based on the collision type and severity. The steering
wheel hub trim cover and the upper right side of the
instrument panel separate and fold out of the way as the
airbags inflate to their full size. The airbags fully inflate in
about 50 to 70 milliseconds. This is about half of the time
it takes to blink your eyes. The airbags then quickly
deflate while helping to restrain the driver and front
passenger.

22

The Advanced Front Airbag gas is vented through the
vent holes in the sides of the airbag. In this way, the
airbags do not interfere with your control of the vehicle.

Supplemental Driver Side Knee Airbag Inflator
Unit

The Supplemental Driver Side Knee Airbag unit is lo­cated in the instrument panel trim beneath the steering
column. When the ORC detects a collision requiring the
airbag, it signals the inflator units. A large quantity of
non-toxic gas is generated to inflate the Supplemental
Driver Side Knee Airbag. The trim cover separates and
folds out of the way allowing the airbag to inflate to the
full size. The airbag fully inflates in about 15 to 20
milliseconds. The Supplemental Driver Side Knee Airbag
gas is vented through small vent holes in the side of
airbag.

Supplemental Seat-Mounted Side Airbag (SAB)
Inflator Units

The Supplemental Seat-Mounted Side Airbags (SAB) are
designed to activate only in certain side collisions.

The ORC determines if a side collision requires the side
airbags to inflate based on the severity and type of
collision.

Based on the severity and type of collision, the side
airbag inflator on the crash side of the vehicle may be
triggered, releasing a quantity of non-toxic gas. The
inflating SAB exits through the seat seam into the space
between the occupant and the door. The SAB fully inflate
in about 10 milliseconds. The side airbag moves at a very
high speed and with such a high force, that it could injure
you if you are not seated properly, or if items are
positioned in the area where the side airbag inflates. This
especially applies to children.

23

Supplemental Side Airbag Inflatable Curtain
(SABIC) Inflator Units

During collisions where the impact is confined to a
particular area of the side of the vehicle, the ORC may
deploy the Supplemental Side Airbag Inflatable Curtain
(SABIC), depending on the severity and type of collision.
In these events, the ORC will deploy the SABIC only on
the impact side of the vehicle.

A quantity of non-toxic gas is generated to inflate the side
curtain airbag. The inflating side curtain airbag pushes
the outside edge of the headliner out of the way and
covers the window. The airbag inflates in about 30
milliseconds (about one-quarter of the time that it takes
to blink your eyes) with enough force to injure you if you

are not belted and seated properly, or if items are
positioned in the area where the side curtain airbag
inflates. This especially applies to children. The side
curtain airbag is about 3-1/2 in (9 cm) thick when it is
inflated.

Because airbag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an airbag should have deployed.

Front And Side Impact Sensors

In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.

24

Enhanced Accident Response System

In the event of an impact causing airbag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow­ing functions:

•

Cut off fuel to the engine.

•

Flash hazard lights as long as the battery has power or
until the ignition key is turned off.

•

Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.

•

Unlock the doors automatically.

After the event occurs, when the system is active, the
message 9Fuel Cutoff See Handbook9 is displayed.

Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com­partment and fuel tank before resetting the system and
starting the engine.

System Reset Procedure

After an impact causing airbag deployment, the left and
right turn signal lights, located in the instrument panel
cluster, will both be blinking, until the ignition is turned
off.

25

Customer Action Customer Will See

1. Turn ignition OFF. (Turn Signal Switch Must be
placed in Neutral State).

2. Turn ignition ON. Left Turn Light is OFF. Right Turn Light BLINKS.

3. Turn Right Turn Signal Switch ON. Right Turn Light is ON SOLID. Left Turn Light BLINKS.

4. Turn Left Turn Signal Switch ON. Left Turn Light is ON SOLID. Right Turn Light BLINKS.

5. Turn Right Turn Signal Switch ON. Right Turn Light is ON SOLID. Left Turn Light BLINKS.

6. Turn Left Turn Signal Switch ON. Left Turn Light is ON SOLID. Right Turn Light is ON
SOLID.

7. Turn Left Turn Signal Switch OFF. (Turn Signal

Switch Must be placed in Neutral State).

Left Turn Light is OFF. Right Turn Light is OFF.

8. Turn ignition OFF. System is now reset and the engine may be started.

9. Turn Hazard Flashers OFF (Manually).

If a reset procedure step is not completed within 45 sec­onds, then the turn signal lights will turn off and the reset
procedure must be performed again in order to be
successful.

If A Deployment Occurs

The front airbags are designed to deflate immediately
after deployment.

26

NOTE: Front and/or side airbags will not deploy in all
collisions. This does not mean something is wrong with
the airbag system.

If you do have a collision, which deploys the airbags, any
or all of the following may occur:

•

The nylon airbag material may sometimes cause abra­sions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.

•

As the airbags deflate, you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the non-toxic gas used for

airbag inflation. These airborne particles may irritate
the skin, eyes, nose, or throat. If you have skin or eye
irritation, rinse the area with cool water. For nose or
throat irritation, move to fresh air. If the irritation
continues, see your doctor. If these particles settle on
your clothing, follow the garment manufacturer’s in­structions for cleaning.

Do not drive your vehicle after the airbags have de­ployed. If you are involved in another collision, the
airbags will not be in place to protect you.

WARNING!

Deployed airbags, and seat belt pretensioners cannot
protect you in another collision. Have the airbags,
seat belt pretensioners, and the front seat belt retrac­tor assemblies replaced by an authorized dealer im­mediately. Also, have the Occupant Restraint Con­troller (ORC) system serviced as well.

27

Maintaining Your Airbag System

WARNING!

•

Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or add aftermarket side steps or running boards.

•

It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has an airbag system.

(Continued)

WARNING! (Continued)

•

Do not attempt to modify any part of your airbag
system. The airbag may inflate accidentally or may
not function properly if modifications are made.
Take your vehicle to an authorized dealer for any
airbag system service. If your seat including your
trim cover and cushion needs to be serviced in any
way (including removal or loosening/tightening of
seat attachment bolts), take the vehicle to your
authorized dealer. Only manufacturer approved
seat accessories may be used. If it is necessary to
modify the airbag system for persons with dis­abilities, contact your authorized dealer.

28

Airbag Warning Light

You will want to have the airbags ready to
inflate for your protection in a collision. The
Airbag Warning Light monitors the internal

circuits and interconnecting wiring associated
with airbag system electrical components. While the
airbag system is designed to be maintenance free, if any
of the following occurs, have an authorized dealer ser­vice the airbag system immediately.

•

The Airbag Warning Light does not come on during
the four to eight seconds when the ignition switch is
first turned to the ON/RUN position.

•

The Airbag Warning Light remains on after the four to
eight-second interval.

•

The Airbag Warning Light comes on intermittently or
remains on while driving.

NOTE: If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint

Controller (ORC) may also be disabled. The airbags may
not be ready to inflate for your protection. Promptly
check the fuse block for blown fuses. Refer to the label
located on the inside of the fuse block cover for the
proper airbag fuses. See your authorized dealer if the
fuse is good.

Event Data Recorder (EDR)

This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per­formed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle
is designed to record such data as:

•

How various systems in your vehicle were operating;

29

•

Whether or not the driver and passenger safety belts
were buckled/fastened;

•

How far (if at all) the driver was depressing the
accelerator and/or brake pedal; and,

•

How fast the vehicle was traveling.

These data can help provide a better understanding of
the circumstances in which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no per­sonal data (e.g. name, gender, age, and crash location) are
recorded. However, other parties, such as law enforce­ment, could combine the EDR data with the type of
personally identifying data routinely acquired during a
crash investigation.

To read data recorded by an EDR, special equipment is
required, and access to the vehicle or the EDR is needed.
In addition to the vehicle manufacturer, other parties

such as law enforcement, that have the special equip­ment, can read the information if they have access to the
vehicle or the EDR.

Child Restraints

Everyone in your vehicle needs to be buckled up at all
times, including babies and children. Every state in the
United States and all Canadian provinces require that
small children ride in proper restraint systems. This is the
law, and you can be prosecuted for ignoring it.

Children 12 years and younger should ride properly
buckled up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats, rather than in the front.

There are different sizes and types of restraints for children
from newborn size to the child almost large enough for an
adult safety belt. Always check the child seat owner’s
manual to ensure you have the correct seat for your child.
Use the restraint that is correct for your child.

30

WARNING!

In a collision, an unrestrained child, even a tiny baby,
can become a projectile inside the vehicle. The force
required to hold even an infant on your lap could
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.

Infants And Child Restraints

•

Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing infant
carriers and convertible child seats. Both types of child
restraints are held in the vehicle by the lap/shoulder
belt or the LATCH child restraint anchorage system.

Refer to 9LATCH — Child Seat Anchorage System
(Lower Anchors and Tether for CHildren)9.

•

The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). Convertible child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
younger than one year old. Both types of child re­straints are held in the vehicle by the lap/ shoulder
belt or the LATCH child restraint anchorage system.
Refer to the “LATCH – Child Seat Anchorage System
(Lower Anchors and Tether for CHildren)” in this
section.

31

WARNING!

Rearward-facing child seats must never be used in
the front seat of a vehicle with a front passenger
airbag. An airbag deployment could cause severe
injury or death to infants in this position.

Children Too Large For Booster Seats

Children who are large enough to wear the shoulder belt
comfortably and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback should use the lap/shoulder belt in a rear seat.

•

Make sure that the child is upright in the seat.

•

The lap portion should be low on the hips and as snug
as possible.

•

Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.

•

If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.

Here are some tips on getting the most out of your child
restraint:

•

Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. Chrysler Group LLC also recommends that
you make sure that you can install the child restraint in
the vehicle where you will use it, before you buy it.

•

The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.

•

Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.

32

NOTE: For additional information, refer to
www.seatcheck.org or call 1–866–SEATCHECK.
Canadian residents, should refer to Transport
Canada’s website for additional information.
http://www.tc.gc.ca/roadsafety/safedrivers/childsafety/
index.htm

Rear Facing Child Seat

A rear facing child seat should be used only in the rear
passenger side position. The passenger seat can be locked
forward in a position to allow securing a rear facing child
seat in the rear seat behind it. For further information on
locking the passenger seat, refer to “Seats” in “Under­standing The Features Of Your Vehicle”.

Older Children and Child Restraints

•

Children who weigh more than 20 lbs (9 kg) and who
are older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible
child seats used in the forward-facing direction are for

children who weigh 20 to 40 lbs (9 to 18 kg) and who
are older than one year. These child seats are also held
in the vehicle by the lap/shoulder belt or the LATCH
child restraint anchorage system. Refer to 9LATCH —
Child Seat Anchorage System (Lower Anchors and
Tether for CHildren)9.

•

The belt-positioning booster seat is for children weigh­ing more than 40 lbs (18 kg), but who are still too small
to fit the vehicle’s seat belts properly. If the child
cannot sit with knees bent over the vehicle’s cushion
while the child’s back is against the seatback; they
should use a Belt Positioning Booster Seat. The child
and booster seat are held in the vehicle by the lap/
shoulder belt.

33

WARNING!

•

Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex­actly when installing an infant or child restraint.

•

A rearward-facing child restraint should only be
used in a rear seat. A rearward-facing child re­straint in the front seat may be struck by a deploy­ing passenger airbag which may cause severe or
fatal injury to the infant.

Lower Anchors and Tether for CHildren (LATCH)

Your vehicle is equipped with the child restraint anchor­age system called LATCH, which stands for Lower
Anchors and Tether for CHildren. The LATCH system
provides for the installation of the child restraint without
using the vehicle seat belt, instead securing the child

restraint using lower anchorages and upper tether straps
from the child restraint to the vehicle structure.

LATCH-compatible child restraint systems are now avail­able. However, because the lower anchorages are to be
introduced over a period of years, child restraint systems
having attachments for those anchorages will continue to
have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
connection to the top tether anchorages have been avail­able for some time. For some older child restraints, many
child restraint manufacturers offer add-on tether strap
kits or retrofit kits. You are urged to take advantage of all
the available attachments provided with your child re­straint in any vehicle.

Child seats with fixed lower attachments must be in­stalled in the outboard positions only. If you are installing
LATCH-compatible child restraints in adjacent rear seat­ing positions, you can use the LATCH anchors or the

34

vehicle’s seat belt for the outboard position. If your child
restraints are not LATCH-compatible, you can only in­stall the child restraints using the vehicle’s seat belts.
Please refer to “Installing the Child Restraint System” for
typical installation instructions.

WARNING!

You should never install LATCH-compatible child
seats so that two seats share a common anchorage. If
installing seats in adjacent seating positions, or if
your child restraints are not LATCH-compatible, in­stall the restraints using the vehicle’s seat belts.

Installing The LATCH – Compatible Child
Restraint System

We urge you to carefully follow the directions of the
manufacturer when installing your child restraint. Not all
child restraint systems will be installed as described here.

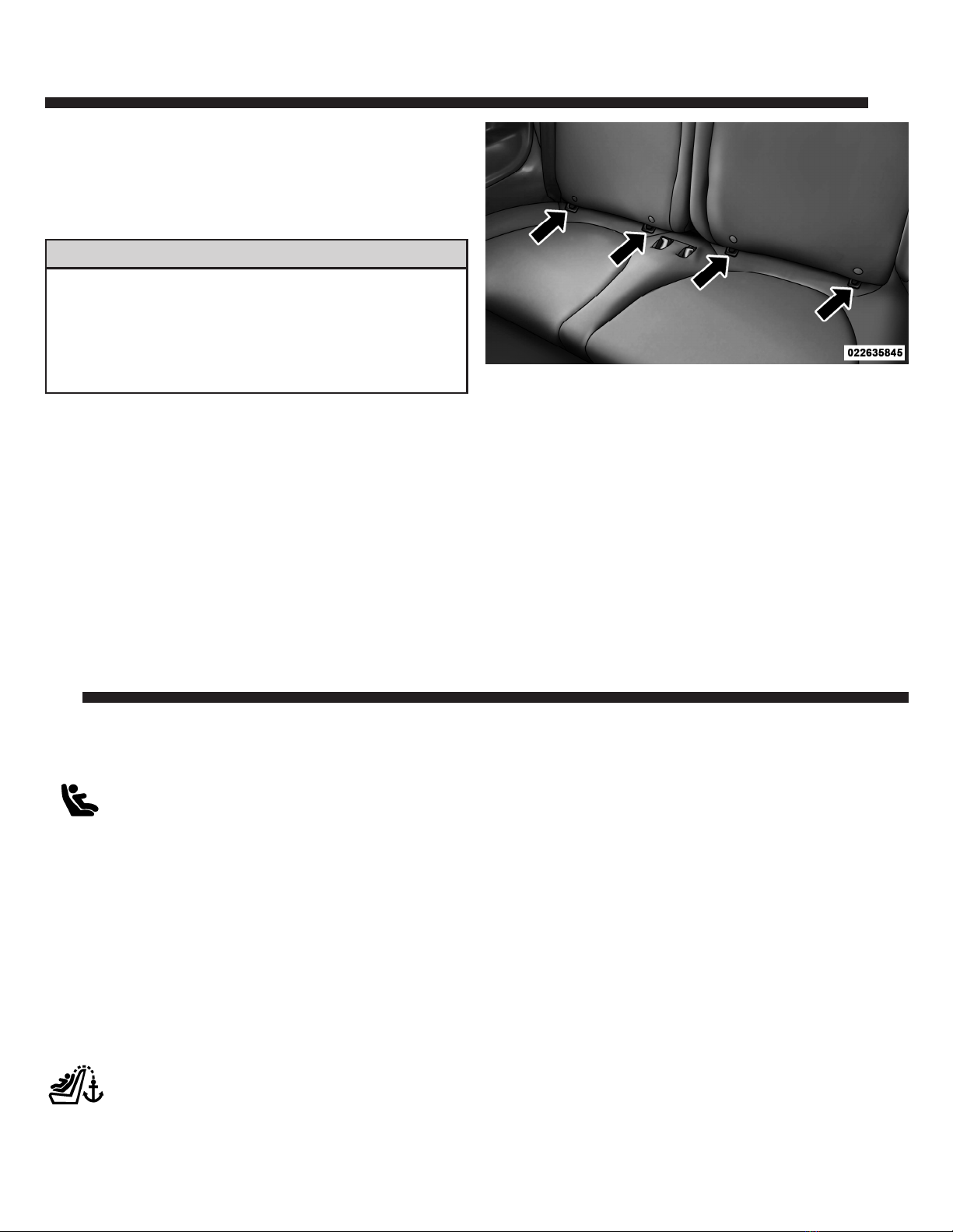

Rear Seat LATCH Anchorages

35

Again, carefully follow the installation instructions that
are provided with the child restraint system.

The lower anchorages are round bars, part of

the seat and body structure, and are readily

visible. In addition, there are tether strap an-

chorages behind each rear seating position,
located in the rear surface of the seat back.

These are round bars, located at the rear of the seat
cushion where it meets the seat back, and just visible
when you lean into the rear seat to install the child
restraint. You will easily feel them if you run your finger
along the intersection of the surfaces

The lower strap hooks are passed over the top of each
bar, pushing aside the seat cover material

Many, but not all restraint systems will be

equipped with separate straps on each side,

with each having a hook or connector for

attachment to the lower anchorage and a means of
adjusting the tension in the strap. Forward-facing toddler
restraints and some rear-facing infant restraints will also
be equipped with a tether strap, a hook for attachment to
the tether strap anchorage and a means of adjusting the
tension of the strap.

You will first loosen the child seat adjusters on the lower
straps and on the tether strap so that you can more easily
attach the hook or connectors to the vehicle anchorages.
Next, attach the lower hooks or connectors over the top
of the seat cover material. Then attach the tether strap to
the anchorage directly behind the seat where you are
placing the child restraint, being careful to route the
tether strap to provide the most direct path between the
anchor and the child restraint, preferably between the
head restraint posts underneath the head restraint. Fi­nally, tighten all three straps as you push the child

36

restraint rearward and downward into the seat, remov­ing slack in the straps according to the child restraint
manufacturer’s instructions.

NOTE:

•

Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove the
slack in the strap.

•

When using the LATCH attaching system to install a
child restraint, please ensure that all seat belts not
being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint. This
should stow the seat belt out of the reach of an
inquisitive child. Remind all children in the vehicle
that the seat belts are not toys and that they should not
play with them. In addition, never leave unattended
children in the vehicle.

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

Installing Child Restraints Using The Vehicle Seat
Belt

The seat belts in the passenger seating positions are
equipped with an Automatic Locking Retractor (ALR) to
secure a Child Restraint System (CRS). These types of
seat belts are designed to keep the lap portion of the seat
belt tight around the child restraint so that it is not
necessary to use a locking clip. The ALR will make a
ratcheting noise if you extract the entire belt from the
retractor and then allow the belt to retract into the
retractor. For additional information on ALR, refer to

37

“Automatic Locking Mode” description under “Seat
Belts In Passenger Seating Positions” section. The chart
below defines the seating positions with an Automatic
Locking Retractor (ALR) or a cinching latch plate.

Driver Passenger

CRS Lock CRS Lock

First Row N/A ALR

Second Row ALR ALR

Installing a Child Restraint with an ALR:

1. To install a child restraint with ALR, first, pull enough
of the seat belt webbing from the retractor to route it
through the belt path of the child restraint. Slide the latch
plate into the buckle until you hear a “click.” Next,
extract all the seat belt webbing out of the retractor and
then allow the belt to retract into the retractor. As the belt
retracts, you will hear a ratcheting sound. This indicates
the safety belt is now in the Automatic Locking mode.

2. Finally, pull on any excess webbing to tighten the lap
portion around the child restraint. Any seat belt system
will loosen with time, so check the belt occasionally, and
pull it tight if necessary.

•

In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
from the buckle and twist the short buckle-end belt
several times to shorten it. Insert the latch plate into
the buckle with the release button facing out.

•

If the belt still can’t be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the buckle
around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.

38

To attach a child restraint tether strap:

•

Route the tether strap to provide the most direct path
for the strap between the anchor and the child seat,
routing it under the head restraint.

•

If necessary, move the seat forward to provide better
access to the tether anchor.

•

Attach the tether strap hook of the child restraint to the
tether anchor and remove slack in the tether strap
according to the child restraint manufacturer’s
instructions.

NOTE: Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.

WARNING!

An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor position directly behind
the child seat to secure a child restraint top tether
strap.

Tether Straps Routed To Tether Anchors

39

Transporting Pets

Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or could injure a passenger during panic braking
or in an accident.

Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.

40

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.

Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri­mental and should be avoided.

The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades refer to
“Maintenance Procedures” in “Maintaining Your Ve­hicle”. NON-DETERGENT OR STRAIGHT MINERAL
OILS MUST NEVER BE USED.

A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered a normal part of the break-in and not inter­preted as an indication of difficulty.

1

SAFETY TIPS
Transporting Passengers

NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.

WARNING!

•

Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

•

It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri­ously injured or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.

WARNING! (Continued)

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

Exhaust Gas

WARNING!

Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow these safety tips:

Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.

1

If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.

If you are required to drive with the trunk/liftgate open,
make sure that all windows are closed and the climate
control BLOWER switch is set at high speed. DO NOT
use the recirculation mode.

The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.

Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com­plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,

inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.

Safety Checks You Should Make Inside The
Vehicle

Seat Belts

Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.

Airbag Warning Light

The light should come on and remain on for four to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your

2

authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho­rized dealer.

Defroster

Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.

Floor Mat Safety Information

Always use floor mats designed to fit the foot well of
your vehicle. Use only floor mats that leave the pedal
area unobstructed and that are firmly secured so that
they cannot slip out of position and interfere with the
pedals or impair safe operation of your vehicle in other
ways.

WARNING!

Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per­sonal injury.

•

Always make sure that floor mats are properly
attached to the floor mat fasteners.

•

Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and inter­fering with the pedals or the ability to control the
vehicle.

•

Never put floor mats or other floor coverings on
top of already installed floor mats. Additional
floor mats and other coverings will reduce the size
of the pedal area and interfere with the pedals.

(Continued)

3

WARNING! (Continued)

•

Check mounting of mats on a regular basis. Al­ways properly reinstall and secure floor mats that
have been removed for cleaning.

•

Always make sure that objects cannot fall into the
driver foot well while the vehicle is moving.
Objects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.

•

If required, mounting posts must be properly
installed, if not equipped from the factory.

Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.

Periodic Safety Checks You Should Make Outside
The Vehicle

Tires

Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.

Lights

Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.

4

Door Latches

Check for positive closing, latching, and locking.

Fluid Leaks

Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.

5

MIRRORS
Inside Day/Night Mirror

The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center
on the view through the rear window.

Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).

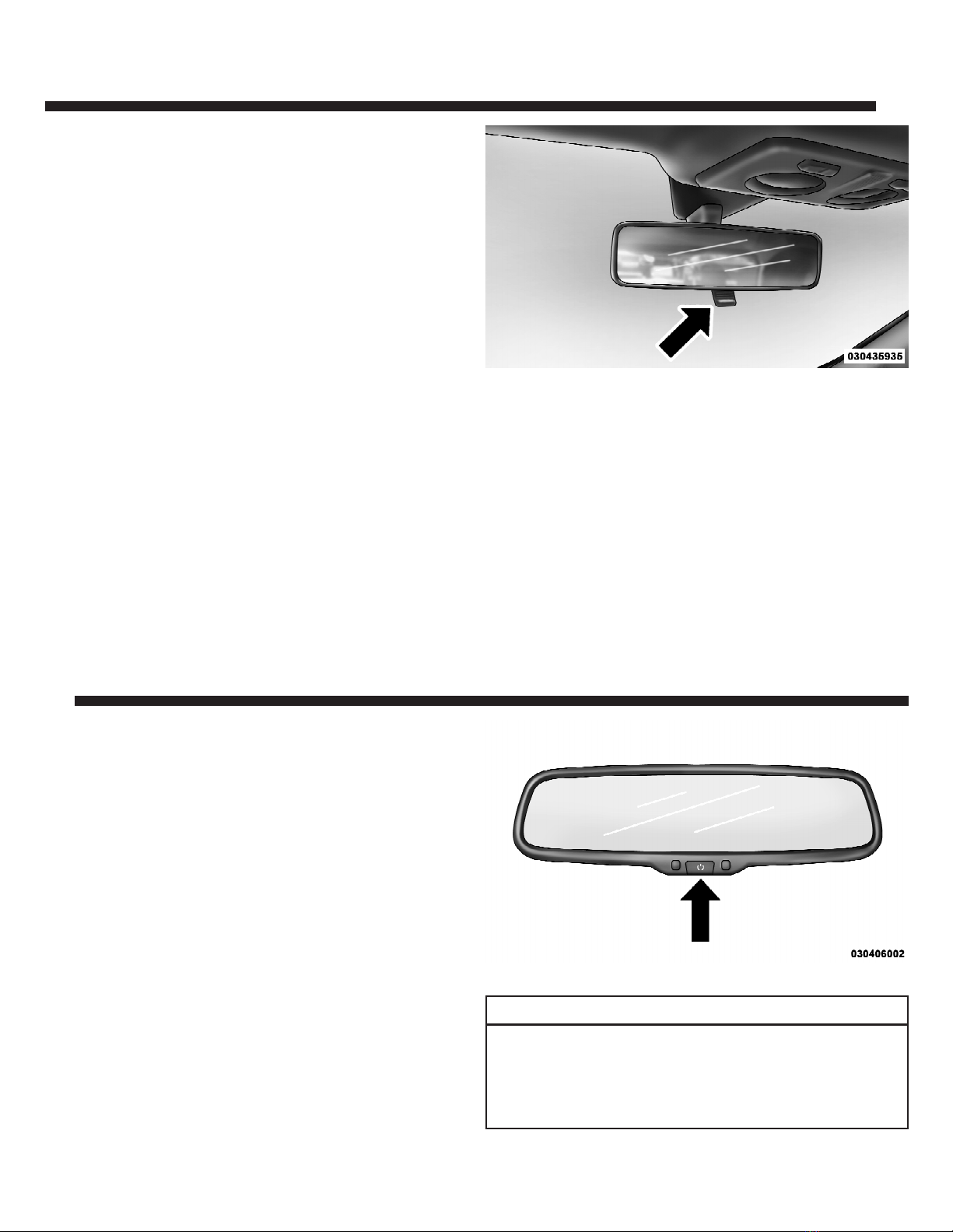

Adjusting Rearview Mirror

1

Automatic Dimming Mirror — If Equipped

This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. Alight
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

Automatic Dimming Mirror

2

Power Mirrors

The power mirror controls are located on the driver’s
door trim panel.

The power mirror controls consist of mirror select switch
and a four-way mirror control switch. To adjust a mirror,
press the mirror select switch to either the L (left) or R
(right) to select the mirror you need to adjust.

Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.

WARNING!

Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side convex mirror.

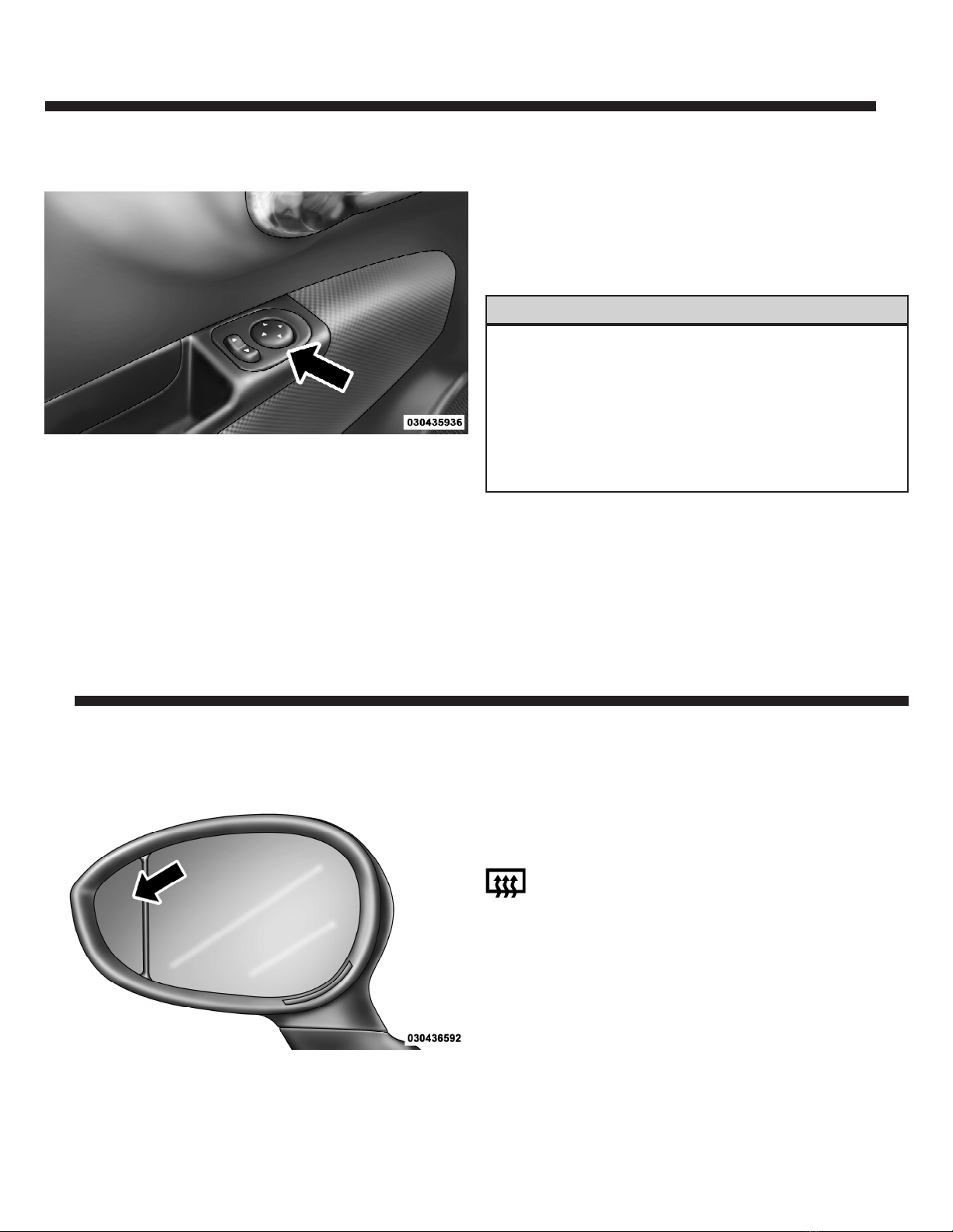

Power Mirror Switches

3

Spotter Mirror — If Equipped

Some models are equipped with a driver’s side spotter
mirror. The spotter mirror allows for a greater range of
visibility on the drivers side of the vehicle.

Folding Mirrors

The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, normal
and full rearward.

Heated Mirrors

These mirrors are heated to melt frost or ice. This

feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features Of Your Vehicle” for fur­ther information.

Spotter Mirror

4

Sun Visors

The driver and passenger sun visors are located on the
headliner, near the front windshield. The sun visor can be
rotated downward or up against the door glass.

Courtesy Mirrors

The passenger side sun visor comes equipped with a
courtesy mirror.

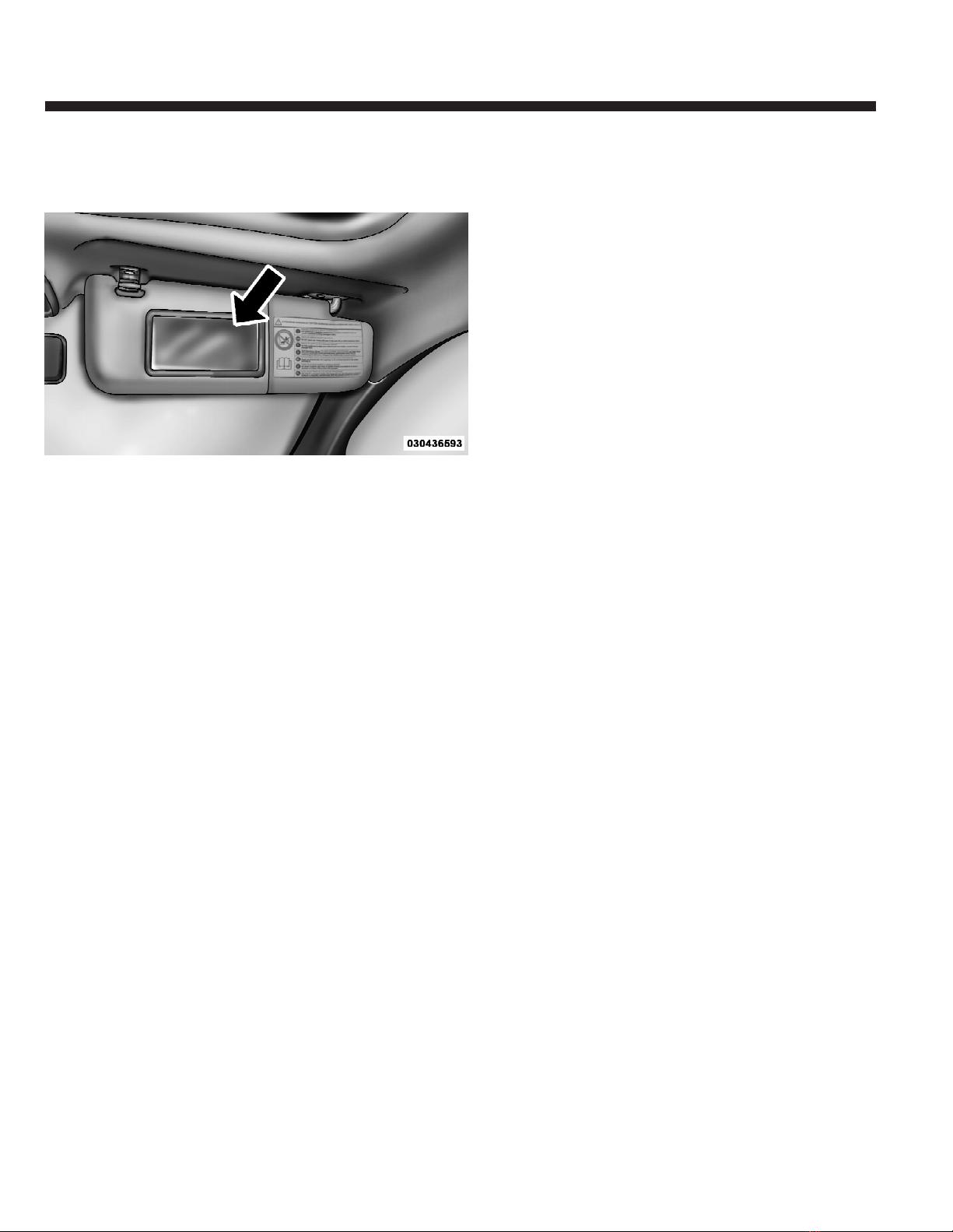

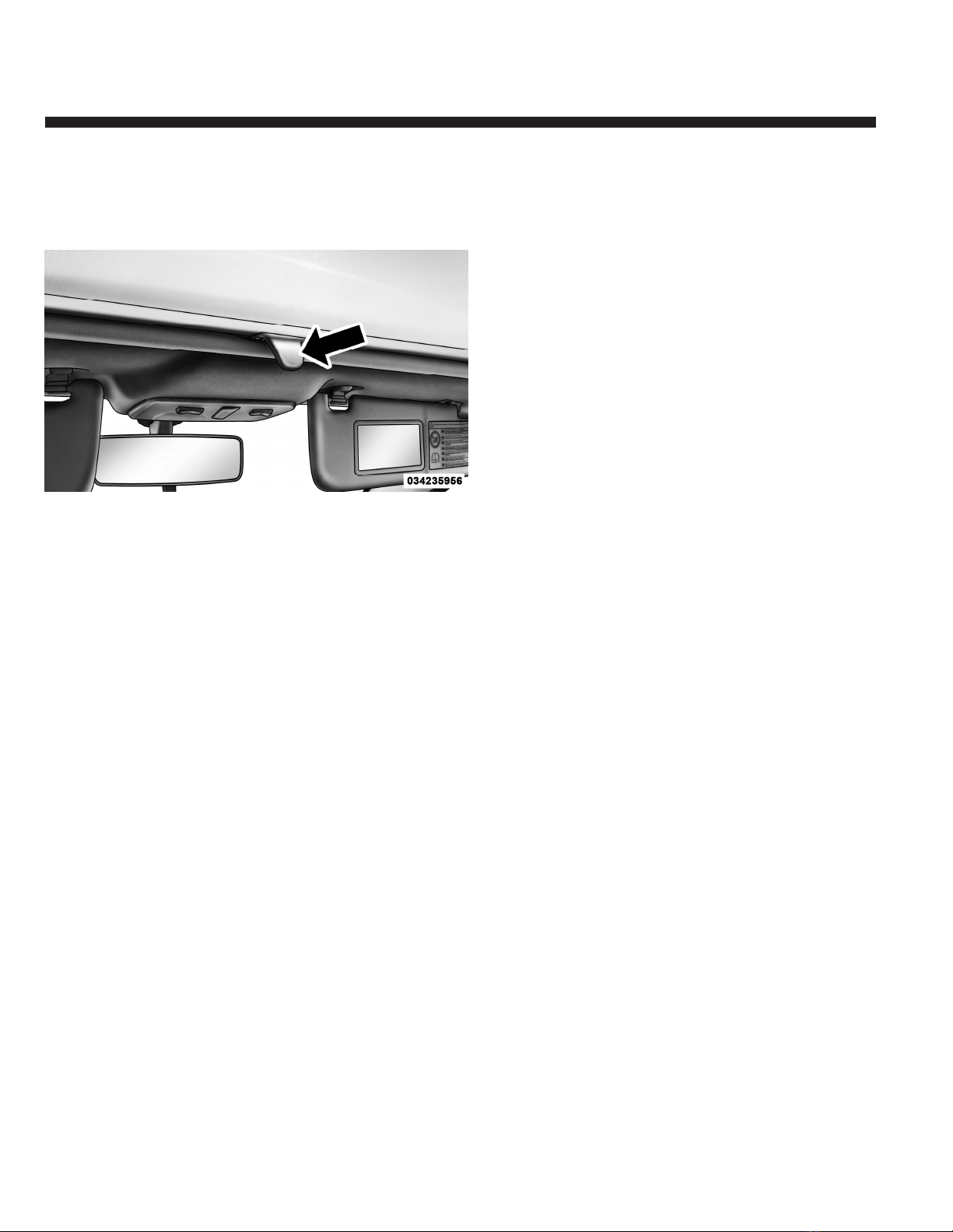

Sun Visor (Driver’s Side)

5

HANDS-FREE PHONE — IF EQUIPPED
Overview

Windows Mobile™-based Fiat Blue&Me™ is a personal
telematic system enabling to use communication and
entertainment applications expressly designed for use in
the car.

The Blue&Me™ system installed on your car is equipped
with hands-free kit, message reader and media player,
and it is preset for future installation of additional
services.

The Blue&Me™ system, fully integral with voice com­mands, buttons on the steering wheel and multifunction
display messages, gives you the possibility of interacting
with your Bluetootht wireless technology mobile phone
(even if you keep it in your pocket or bag) without
having to take your eyes off the road or removing your
hands from the steering wheel. To use voice commands
you are not required to train the voice recognition system

to recognize your voice. This implies that the system is
nearly equally performing with different persons, i.e.: the
voice recognition system is of the “speaker independent”
type.

With this system you can also play your favorite music
stored on USB device and select tracks and playback
modes with both voice commands or buttons on the
steering wheel.

This device complies with Part 15 of the FCC rules
subject to the following two conditions:

•

This device may not cause harmful interference.

•

This device must accept all interference received,
including interference that may cause undesired
operation.

1

The Hands-Free Kit

The basic characteristic of this hands-free kit is voice
recognition with Bluetootht wireless technology. With
this system you can make and receive calls safely and
securely using either voice commands or buttons on the
steering wheel under whatever driving condition with­out having to take your eyes off the road or removing
your hands from the steering wheel, as required by
current law regulations.

Bluetootht wireless technology enables wireless connec­tion between your mobile phone and the hands-free kit
installed on your car.

To use the hands-free kit, you need a Bluetootht wireless
technology enabled mobile phone. This hands-free kit
gives you the possibility of interacting vocally with your
mobile phone while driving, even if your mobile device
does not feature this capability. You can also interact with

your mobile phone manually and visually using the
steering wheel controls and the instrument panel multi­function display.

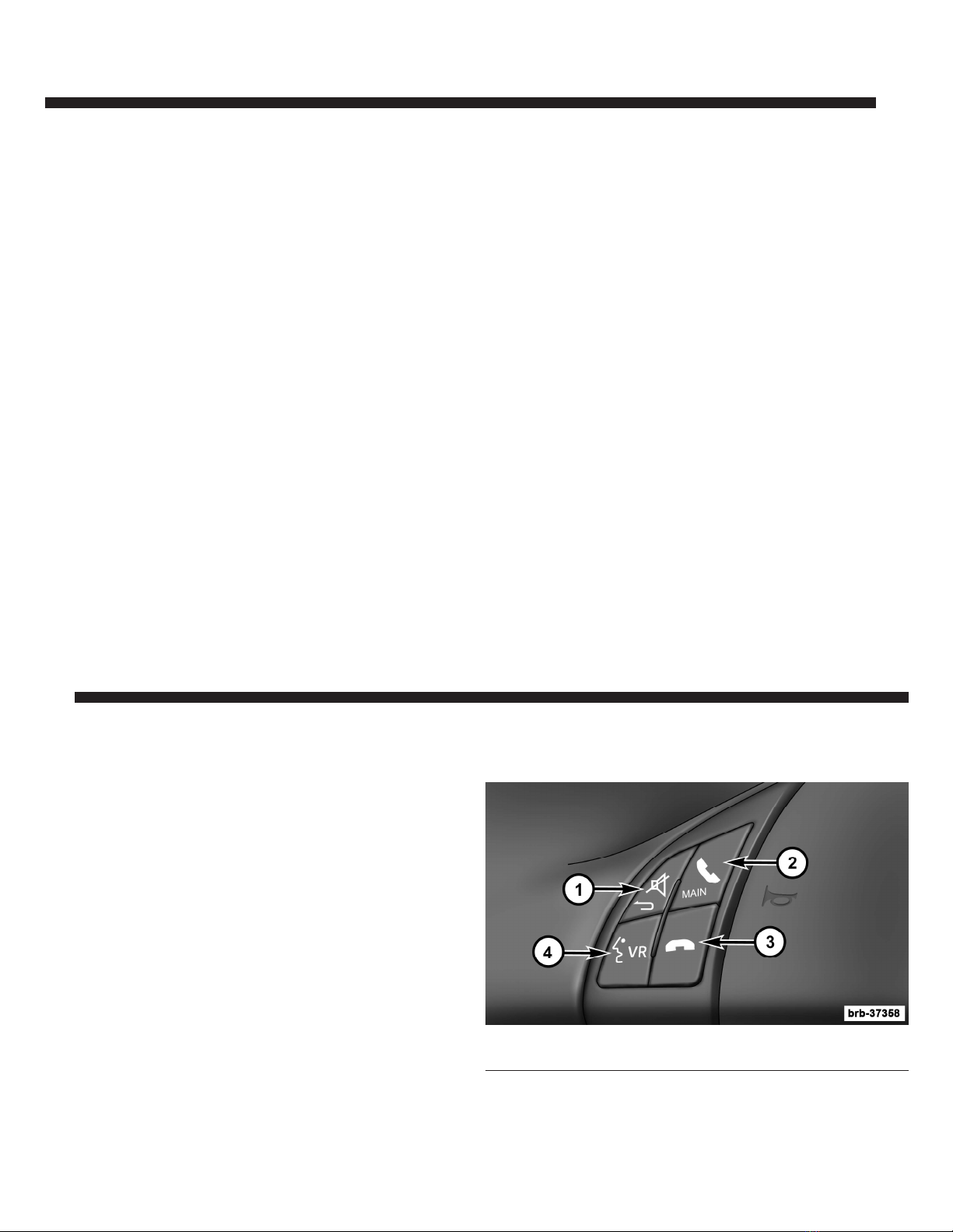

1 — Mute/ESC 2 — Phone/Main
4 — Windows Icon/VR 3 — Phone Hang Up

2

For further details on the mobile phones supported by
Blue&Me™, refer to section Blue&Me™ SUPPORTED
MOBILE PHONES.

To get started with Blue&Me™ hands-free kit with voice
recognition, you have to simply pair your Bluetootht
wireless technology enabled mobile phone with the sys­tem.

Pairing is an operation that has to be made only once.

NOTE:

•

During the mobile phone pairing procedure,
Blue&Me™ attempts to detect a phone equipped with
Bluetootht wireless technology within range and then
establishes the connection using a Personal Identifica­tion Number (PIN).

•

Once your phone is paired, you have the option to
transfer your mobile phone contacts to the hands-free
kit, to make a phone call either by using the contacts

list or directly pronouncing the phone number, to
answer a call and also to answer another incoming
phone call.

•

To interact with Blue&Me™ you can use either buttons
on the steering wheel and voice commands. With
voice recognition, you can perform system function by
speaking voice commands, also identified as “key­words”. When the system recognizes a keyword, it
will respond with the appropriate action. Voice recog­nition is an easy and convenient way to use Blue™.

All the system functions are available within the
Blue&Me™ Main Menu. When the car is not moving, you
can scroll through the complete menu using either but­tons on the steering wheel and voice commands. When
you are travelling, you can interact with Blue&Me™
using buttons on the steering wheel or voice commands
relevant only to phone functions (LAST CALLS and
PHONEBOOK ) and media player. To activate settings
when travelling you can only use voice commands.

3

The hands-free kit enables the following operations:

•

Contact Calling By Voice — you can call a contact in
your mobile phone phonebook using your voice. You
can also call a contact in your phonebook by scanning
through the entries on the multifunction display. (To
use this option you have to transfer your mobile phone
contacts to the hands-free kit phonebook).

•

Digit Dialing By Voice — you can dial a phone
number by pressing the windows icon button (VR
button) on the steering wheel and speaking the digits
to be dialed.

•

To Call The SMS Text Sender — call directly the last
SMS text sender or the sender of a message received
and stored yet in the Blue&Me™ inbox.

•

To Answer A Call — you can answer an incoming call
by pressing the MAIN/Phone button on the steering
wheel.

•

Conference Call — you can call another contact while
you are engaged in a phone conversation (with
Bluetootht phones supporting this option).

•

Call Waiting — while engaged in a phone conversa­tion, you can receive notification of another incoming
phone call, answer the other incoming phone call, and
switch between two ongoing phone conversations.
(Call waiting is only supported by a subset of compat­ible mobile phones).

•

Refusing Incoming Call Or Ending A Call — you can
refuse an incoming call or end a current call by
pressing the Phone Hang-up button on the steering
wheel.

After you place your mobile phone in the car environ­ment and create a pairing relationship with Blue&Me™,
you can make phone calls by speaking keywords or
pressing buttons on the steering wheel. When using the

4

hands-free phone, the audio output of a phone conver­sation is heard through your car sound speakers.

Message Reader

The Blue&Me™ message reader enables automatic read­ing, through the car sound system, of the SMS texts you
receive on your Bluetootht wireless technology mobile
phone that are received when the phone is paired and
connected to Blue&Me™ system. It does not provide
access to messages that were received before you entered
the car and connected with the Blue&Me™ system. The
message reader will also interpret any abbreviation and
emoticon contained in the SMS text.

NOTE: Not all mobile phones support the SMS text
message reader function or automatic phonebook trans­fer via Bluetootht. Consult www.ciafiat.com for further
information on the list of compatible mobile phones.

Message reader functions are managed by the control
buttons on the steering wheel or by the Blue&Me™ voice
commands.

The Blue&Me™ message reader enables the following
operations:

•

To display on the instrument panel multifunction
display a visual notification signal indicating that you
have received a new SMS text on your Bluetootht
wireless technology mobile phone, with sender’s
number/name; Blue&Me™ will also ask whether to
read you the message that has been received.

•

To manage the list of SMS texts received on your
Blue&Me™ paired mobile phone.

•

To read the messages received and stored. Messages
can be read multiple times.

•

To call the SMS text sender using the buttons on the
steering wheel or voice commands.

5

•

To delete individual messages or the entire inbox
using the buttons on the steering wheel or voice
commands.

The Blue&Me™ system can also recognize and read
abbreviations, if any (e.g. “ILUVU” will be read like “I
love you”) and interpret the most usual emoticons (e.g. :-)
will be read like “Smile”), adopted nowadays to write
SMS texts.

Media Player

With the Blue&Me™ media player you can play, via the
car sound system, the digital audio files stored on a USB
device by simply connecting it to the USB port located in
the glove box of the car.

In this way, while you are driving you can play your
favorite personal music collections.

•

iPodt Player — see dedicated paragraph under Media
Player Functions.

The media player enables the following operations:

•

Digital Audio Playback — you can play all your
digital audio files (.mp3,.wma,.wav,.aac) or play a
customized playlist (.m3u or.wpl format).

•

Audio File Selection By Category — you can play all
audio files of a certain category, e.g.: album, artist or
genre.

•

Playback Options — while playing tracks you can
select the following options: Play, Stop, Next track,
Previous track, Shuffle and Loop track.

NOTE:

•

The media player does not support audio files com­pressed with other formats and DRM (Digital Right
Management) protected audio files. Non-supported
audio files that may be present on the USB device will
be ignored.

6

•

To use the media player, you have to simply connect
(directly or by an extension lead) your USB device to
the car USB port. Turning the ignition key to ON,
Blue&Me™ will start building your media library. At
the end of this operation you can surf the whole
library and scroll its categories as required using the
buttons on the steering wheel or voice commands.
Blue&Me™ will then play your selection via the car
sound system.

WARNING!

•

Operating certain parts of this system while driv­ing can distract your attention away from the road,
and possibly cause an accident or other serious
consequences; for this reason certain functions
shall be disabled by the Blue&Me™ system until
driving conditions are secure and, if required, only
when the car is stopped.

(Continued)

WARNING! (Continued)

•

Read and Follow Instructions: before using your
system, read and follow all instructions and safety
information provided in this end user manual
(“User’s Guide”). Not following precautions
found in this User’s Guide can lead to an accident
or other serious consequences.

•

Keep User’s Guide in the car: when kept in the car,
the User’s Guide will be a ready reference for you
and other users unfamiliar with the system. Please
make certain that before using the system for the
first time, all persons have access to the User’s
Guide and read its instructions and safety infor­mation carefully.

7

SEATS

Seats are a part of the Occupant Restraint System of the
vehicle.

WARNING!

•

It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

Front Seats Forward/Rearward Adjustment

The adjusting bar is located at the front of the seats, near
the floor.

While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.

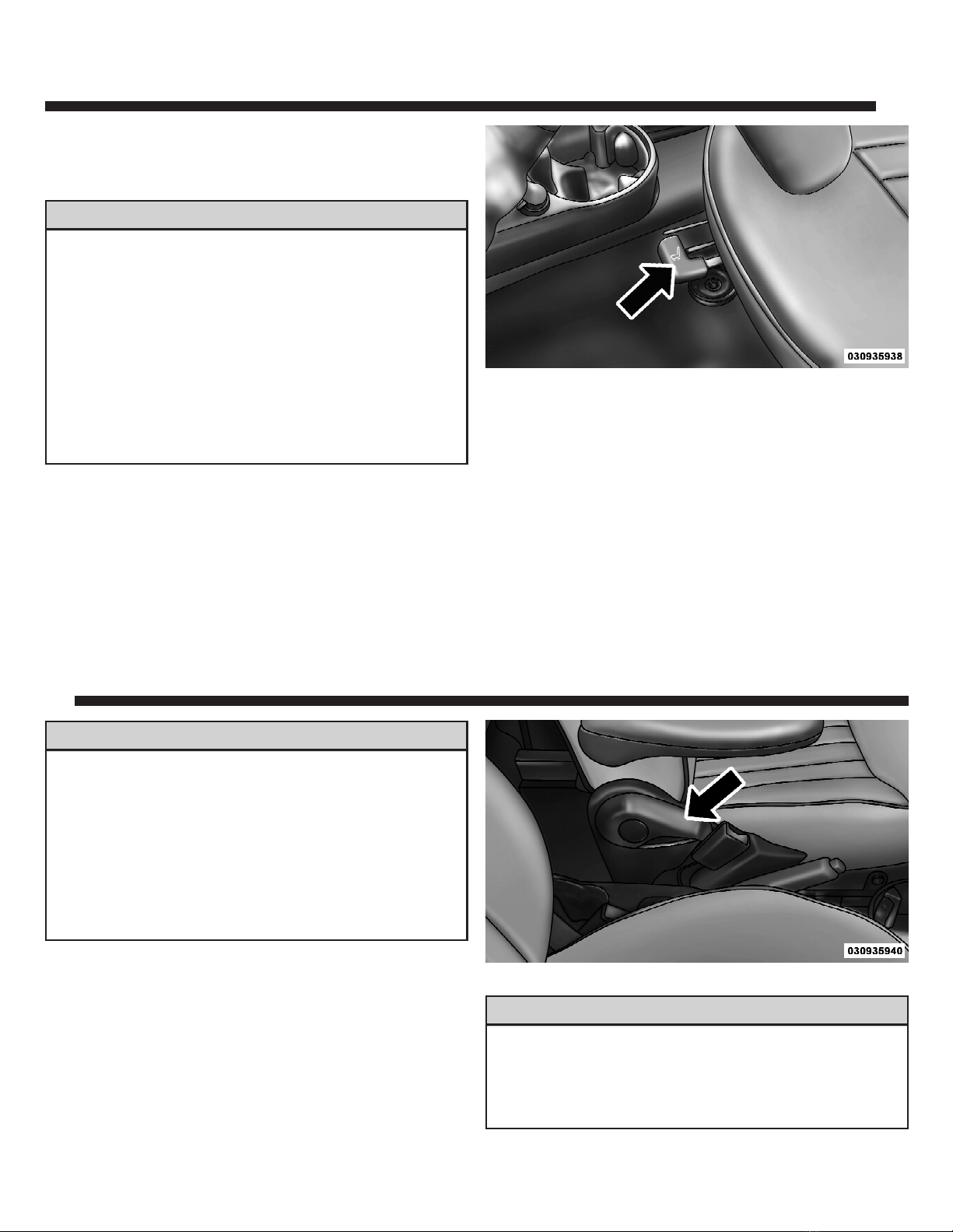

Adjusting Bar

1

WARNING!

•

Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

•

Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.

Recline Adjustment

The recline adjustment lever is located on the inboard
side of the seat. To recline the seatback, lift up the recline
lever, lean back until the desired position has been
reached, and release the lever.

WARNING!

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.

Recline Lever

2

Seat Height Adjustment

The driver’s seat height can be raised or lowered by
using a lever, located on the outboard side of the seat.
Pump the lever upward to raise the seat height, or pump
the lever downward to lower the seat height.

EZ Entry Feature

The driver and front passenger seats have an EZ entry
feature for rear seat passengers. Pull forward on the
release lever, located on the outboard side of the seatback,
dump the seatback forward, then slide the seat forward
to allow access in and out of the rear seat.

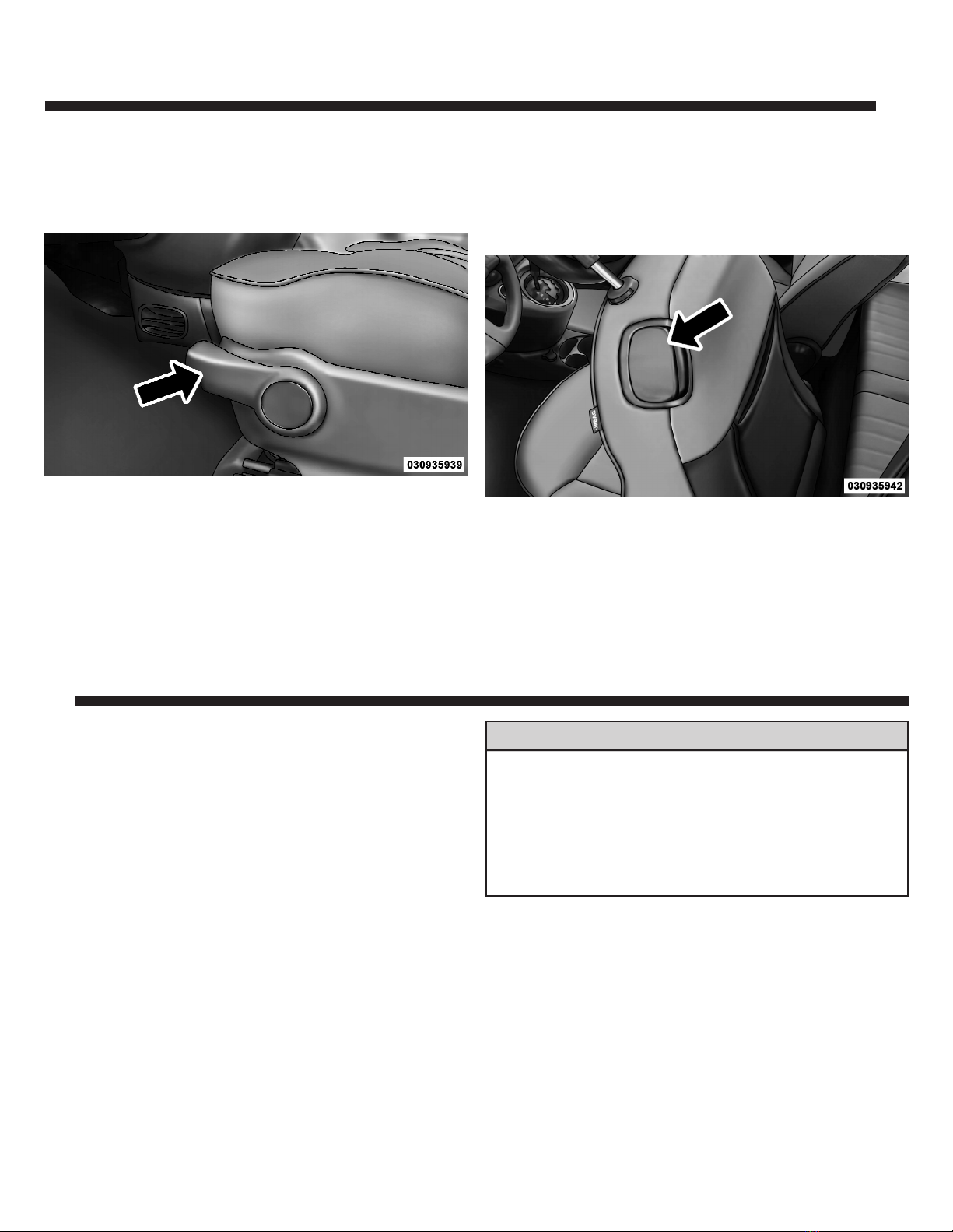

Height Adjuster

EZ Entry Lever

3

Lift the seatback upright and push the seat rearward to
its locked position once the rear passengers are seated.

Memory Feature

The drivers seat also has a memory feature. After using
the EZ entry function, the seatback and the adjuster will
re-lock into the position it was originally adjusted to.

Head Restraints

Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear
impact. Head restraints should be adjusted so that the top
of the head restraint is located above the top of your ear.

WARNING!

The head restraints for all occupants must be properly
adjusted before operating the vehicle or occupying a
seat. Head restraints should never be adjusted while
the vehicle is in motion. Driving a vehicle with the
head restraints improperly adjusted or removed could
cause serious injury or death in the event of an accident.

Active Head Restraints — Front Seats

The front driver and passenger seats are equipped with
Active Head Restraints (AHR). In the event of a rear
impact the AHRs will automatically extend forward
minimizing the gap between the back of the occupant’s
head and the AHR.

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.

4

The AHRs will automatically return to their normal
position following a rear impact. If the AHRs do not
return to their normal position, see your authorized
dealer immediately.

NOTE: The head restraints should only be removed by
qualified technicians, for service purposes only. If either
of the head restraints require removal, see your autho­rized dealer.

WARNING!

Do not place items over the top of the Active Head
Restraint, such as coats, seat covers or portable DVD
players. These items may interfere with the operation
of the Active Head Restraint in the event of a
collision and could result in serious injury or death.

Rear Head Restraints

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for information on tether routing.

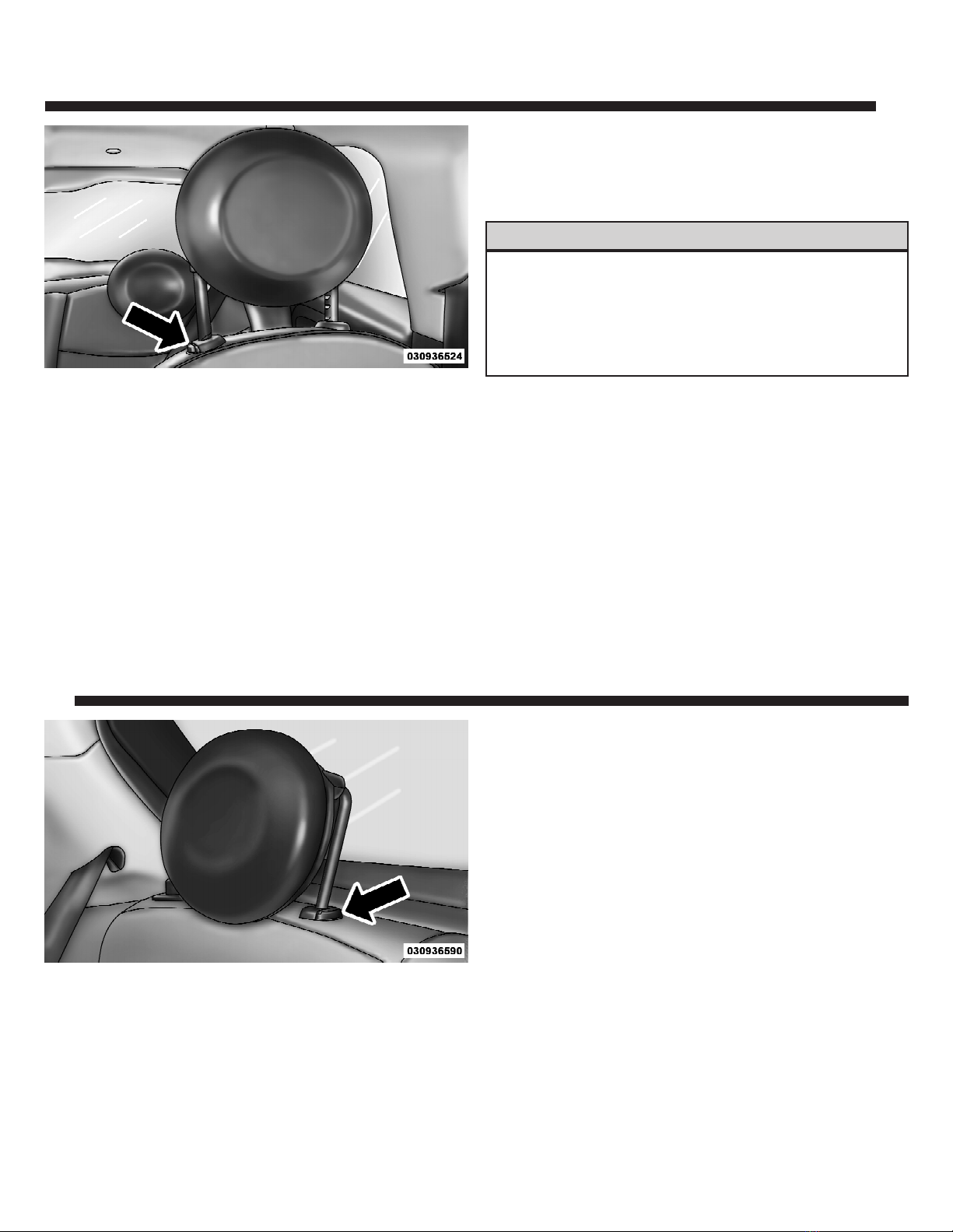

Push Button

5

Rear Head Restraint

6

TO OPEN AND CLOSE THE HOOD

To open the hood, two latches must be released.

1. Pull the bottom of the RED hood release lever, located
on the left kick panel, rearward.

2. Rotate the safety catch under the front edge of the
hood, near the center, and raise the hood.

Lift the hood prop rod that clips to the right side (left side
when standing in front of the hood) of the engine
compartment. Place the hood prop rod in the hole of
hood hinge to secure the hood in the open position.

In hot climates, the prop rod may be hot. Pick up the prop
rod at the foam on the end of the prop rod.

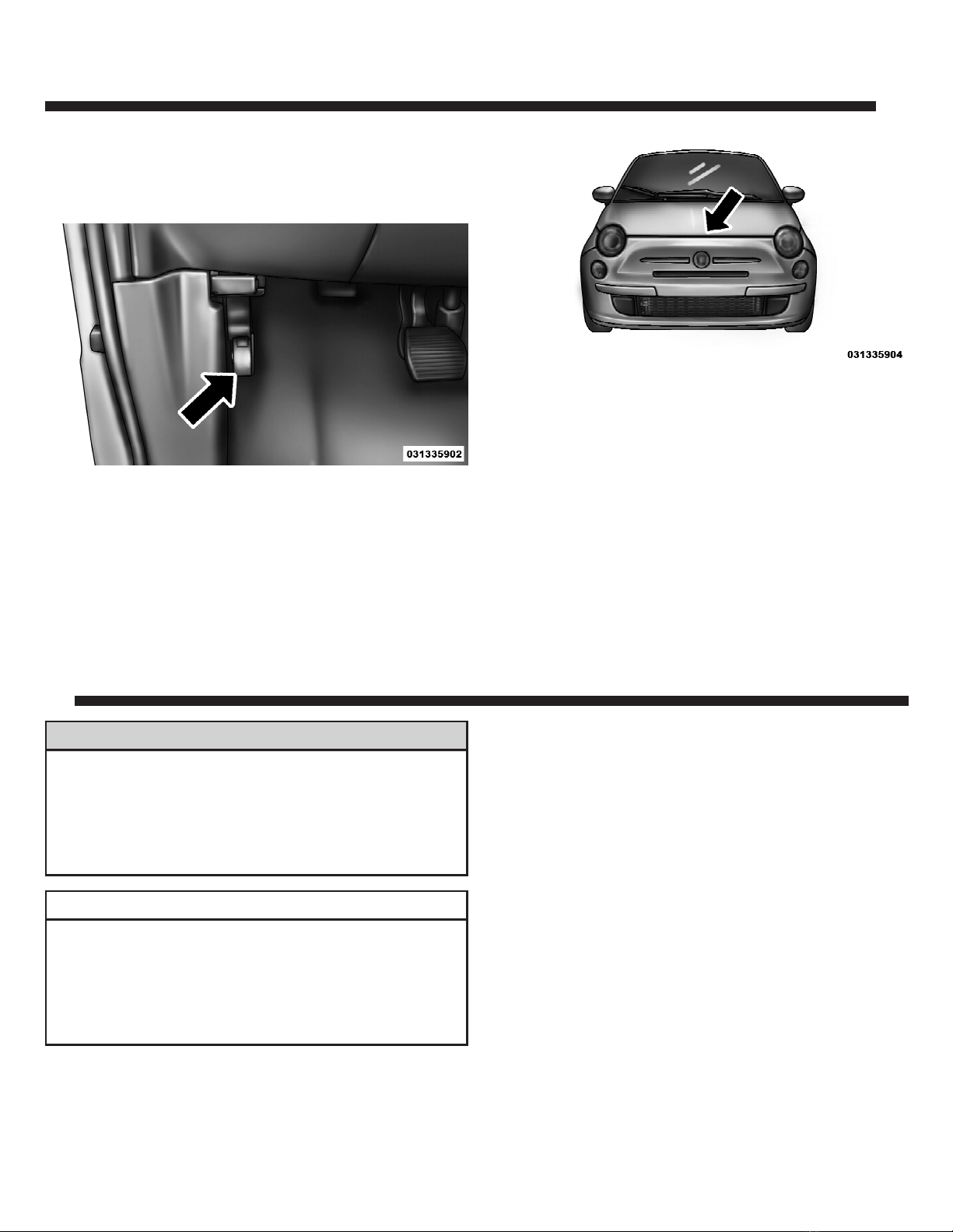

Hood Release Lever

Safety Latch Location

1

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approxi­mately 8 in (20 cm) and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.

2

LIGHTS
Multifunction Lever

The multifunction lever, located on the left side of the
steering wheel, controls the operation of the headlights,
headlight beam selection, passing light and turn signals.

NOTE: The external lights can only be turned on with
the ignition in the ON/RUN position.

Headlights

Rotate the end of the multifunction lever up­ward to the first detent for headlight operation.

NOTE: When the headlights are turned on, the Daytime
Running Lights will be deactivated.

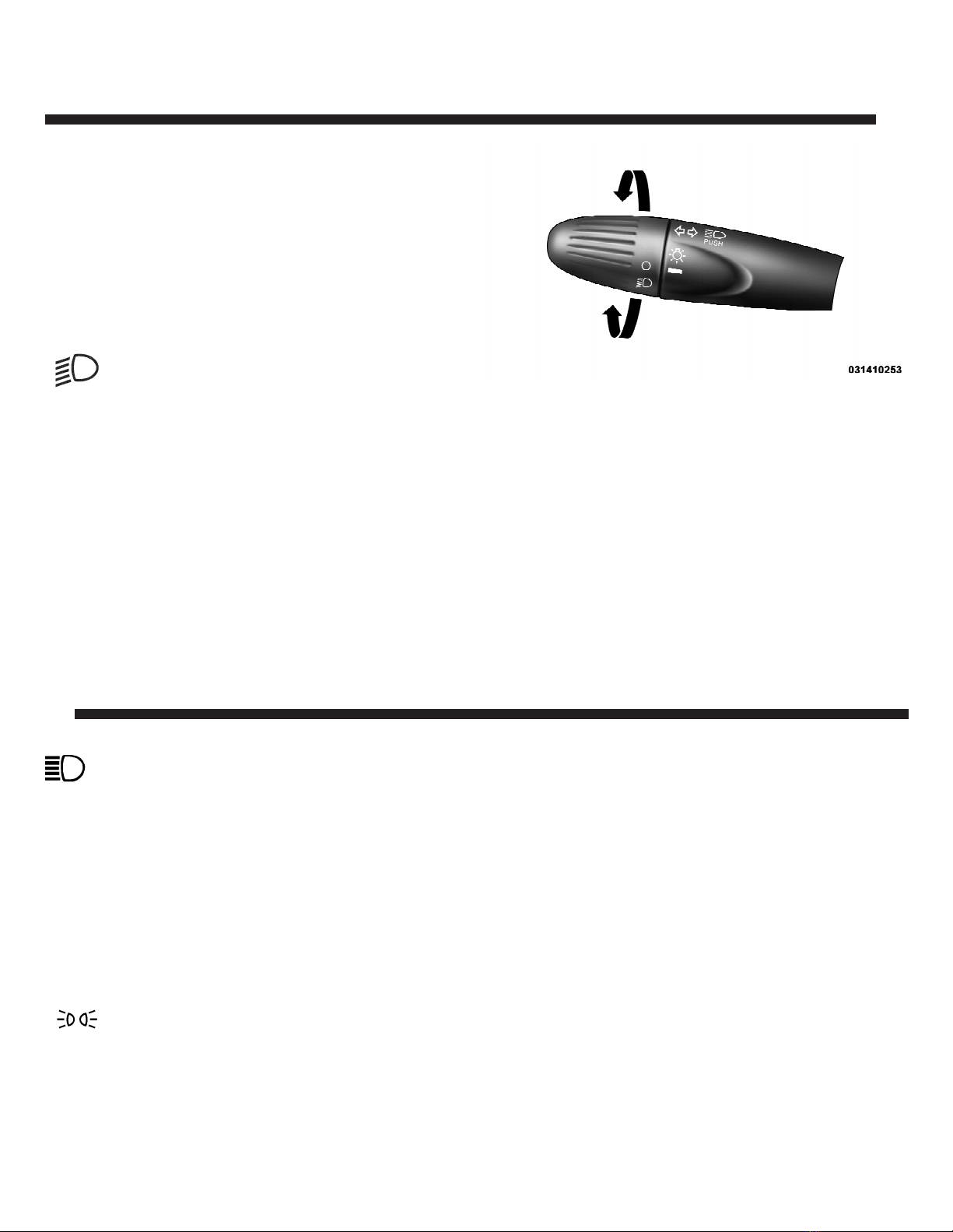

Headlight Operation

1

High Beams

With the low beams activated, push the multifunc-

tion lever towards the instrument panel to turn on
the high beams. Pull the multifunction lever toward the
steering wheel to turn off the high beams.

Flash-To-Pass

You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer­ing wheel. This will turn on the high beams until the
lever is released.

Parking Lights

To turn on the parking lights, remove the key
or turn the ignition to OFF/LOCK position and
turn on the headlights.

Daytime Running Lights — If Equipped

To activate the Daytime Running Lights (DRL), rotate the
end of the multifunction lever to the O symbol.

NOTE: The low beams and side/taillights will not be on
with DRL.

The DRL function can be turned on or off using the
display menus. Refer to “Electronic Vehicle Information
Center (EVIC)” in “Understanding Your Instrument
Panel” for further information.

Turn Signals

Push the multifunction lever upward to signal a right
turn or downward to signal a left turn. The correspond­ing indicator in the instrument cluster will blink to
indicate the operation of the turn signal.

2

NOTE: The indicators will automatically turn off when
the turn has been completed and the steering wheel is
returned to a straight position.

Lane Change Assist

Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.

Follow Me Home/Headlight Delay

When this feature is selected the driver can choose to
have the headlights remain on for a preset period of time.

Activation

Remove the key or turn the ignition to the OFF/LOCK
position, and pull the multifunction lever toward the
steering wheel, within two minutes. Each time the lever
is pulled, the activation of the lights will be extended by
30 seconds. The activation of the lights can be extended to
a maximum of 210 seconds.

Deactivation

Pull the multifunction lever toward the steering wheel
and hold it for more than two seconds.

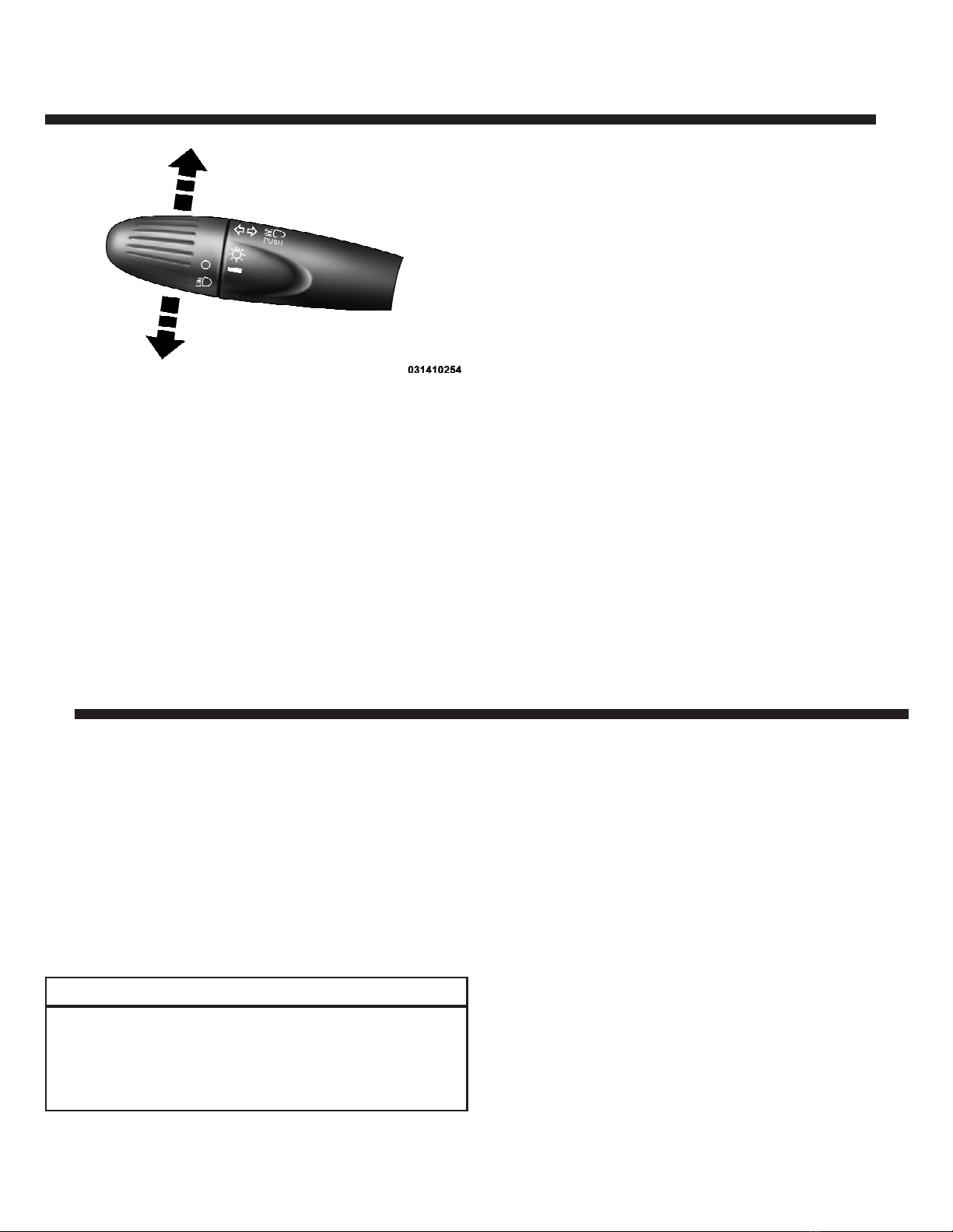

Turn Signal Operation

3

Interior Lights

The map/reading light can be set to three different
positions:

•

Press the switch to the right; the light is always on

•

Press the switch to the left; the light is always off

•

Center position, or neutral; the lights are turned on
and off when the doors are opened or closed.

NOTE: On some models only the drivers door will turn
the interior lights on and off.

CAUTION!

Before getting out of the vehicle be sure that the
switch is in the center position or that the lights are
off. Make sure that the interior lights are off when
the doors are closed to avoid draining the battery.

Interior Light Timing (Center Position)

There are three different modes of operation that can be
activated in this position:

•

When one door is opened, a three minute timer is
activated.

•

When the key is removed from the ignition (within
two minutes of being turned off), a 10 second timer is
activated.

•

When the doors are unlocked (either with the Key Fob
or with the key in the driver’s door), a 10 second timer
is activated.

4

Interior Light Timing (Off Position)

There are two modes of operation in this position:

•

When all doors are closed, a three minute timer is
activated.

NOTE: The timer is deactivated when the key is moved
into the ON/RUN position.

•

When the doors are locked (either with the Key Fob or
with the key in the driver’s door), the lights will turn
off.

Front Fog Lights — If Equipped

The fog light switch is located on the center stack of the
instrument panel, just below the radio.

Press the switch once to turn the front fog lights on. Press
the switch a second time to turn the front fog lights off.

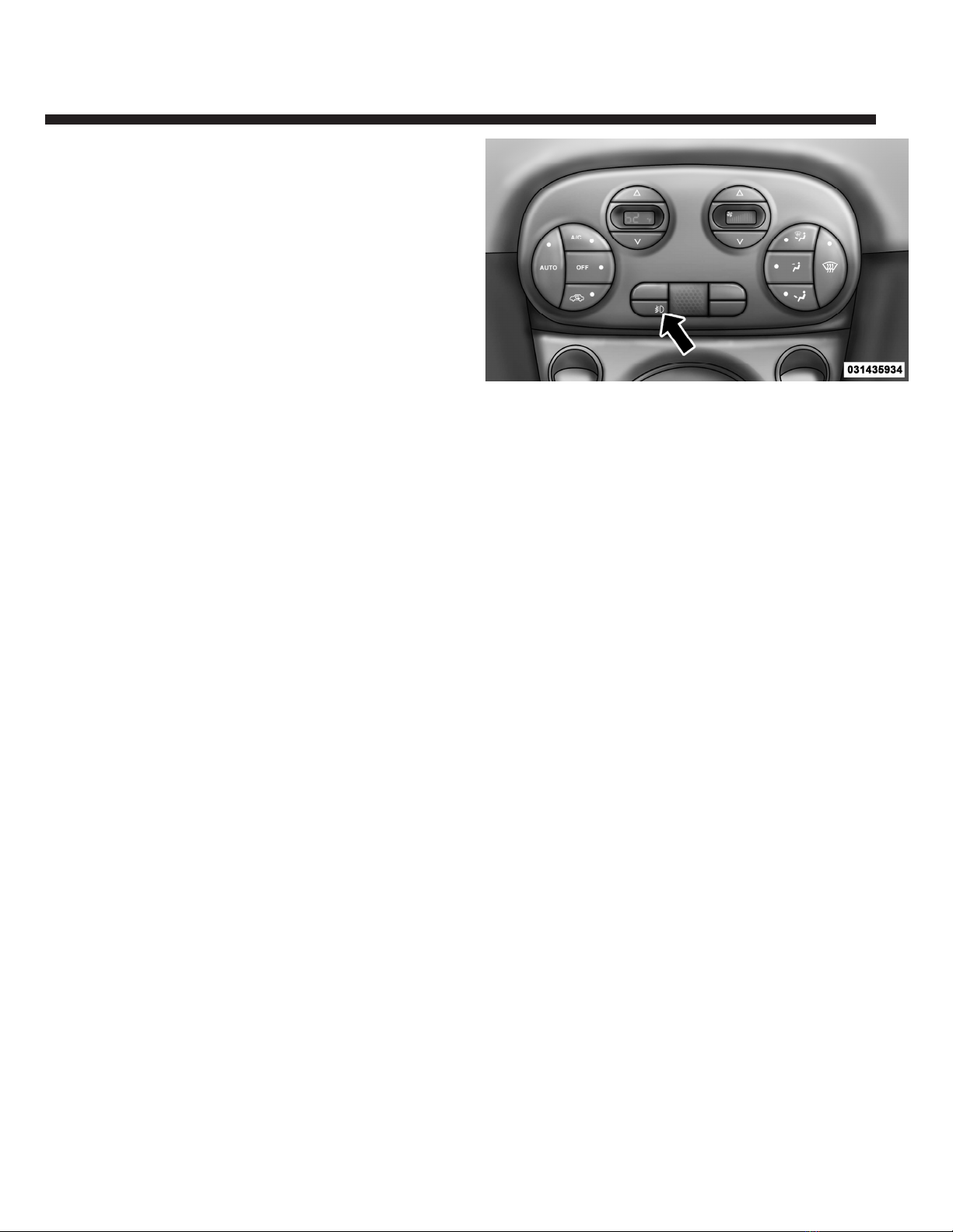

Fog Light Switch

5

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer lever is located on the
right side of the steering column.

NOTE: The windshield wipers/washers will only oper­ate with the ignition in the ON/RUN position.

Front Windshield Wiper Operation

There are five different modes of operation for the front
windshield wipers. The windshield wiper lever can be
raised or lowered to access these modes:

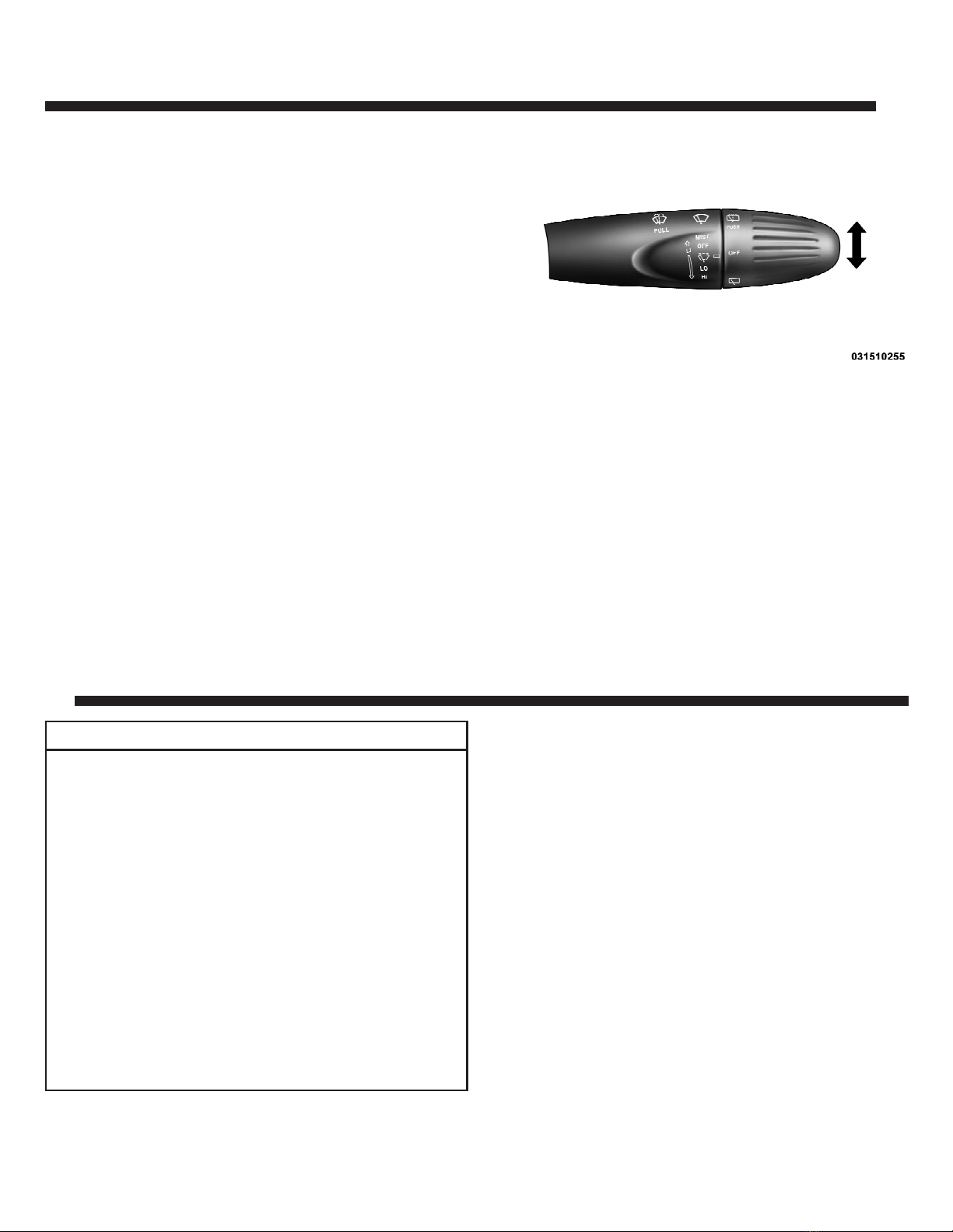

Windshield Wiper Operation

1

CAUTION!

•

Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.

•

In cold weather, always turn off the wiper switch
and allow the wipers to return to the “Park”
position before turning off the engine. If the wiper
switch is left on and the wipers freeze to the
windshield, damage to the wiper motor may occur
when the vehicle is restarted.

•

Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.

Windshield Wiper Off

This is the normal position of the wiper lever.

Intermittent Wiper Operation

Push the lever downward to the first detent. The wipers
will operate intermittently.

NOTE: The Intermittent function only has one detent
but wiper delay will vary with changes in vehicle speed.
As vehicle speed increases the delay time will decrease.

Low Speed

Push the lever downward to the second detent. The
wipers will operate at low speed.

High Speed

Push the lever downward to the third detent. The wipers
will operate at high speed.

Manual High Speed/Mist

Push the lever upward from the off position. The wipers
will operate at high speed to clear off road mist or spray

2

from a passing vehicle. This operation will continue until
the lever is released. When the lever is released, the
wipers will return to the off position and automatically
shut off.

Front Windshield Washer Operation

Pull the windshield wiper/washer lever toward the
steering wheel to activate the washers and a single wipe
of the windshield. Pull and hold the lever for more then
a half second and the wipers will activate automatically
for three cycles after the lever is released.

Rear Windshield Wiper

Rotate the end of the windshield wiper/washer lever
upward to the first detent past the intermittent settings
for intermittent wipe operation. With the front wind­shield wiper active, rotate the end of the windshield
wiper/washer lever upward. The rear wiper will operate
in the same mode as the front windshield wipers, but at
half the frequency. When the transmission is shifted into

REVERSE, the rear wiper will automatically operate at
Low Speed and return to normal operation when the
transmission is shifted out of REVERSE.

NOTE: The windshield wipers/washers will only oper­ate with the ignition in the ON position.

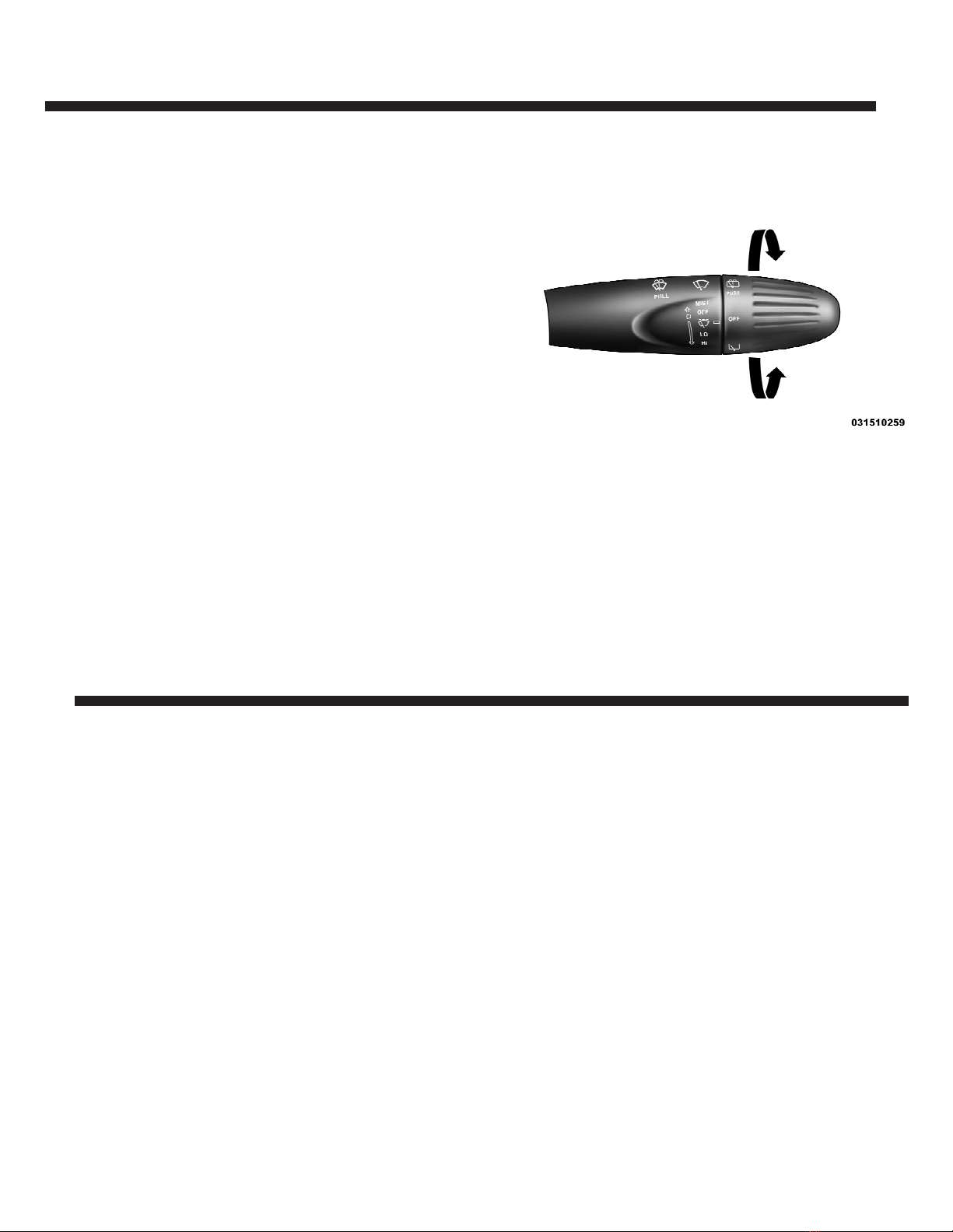

Rear Wiper Operation

3

Rear Windshield Washer Operation

Push the windshield wiper/washer lever toward the
instrument panel to activate the rear washer and a single
wipe of the rear window. Push and hold the lever for
more than a half second and the wipers will activate
automatically for three cycles after the lever is released.

4

TILT STEERING COLUMN — IF EQUIPPED

This feature allows you to tilt the steering column
upward or downward. The tilt control lever is located on
the left-side of the steering column, below the turn signal
controls.

Push down on the lever to unlock the column. With one
hand firmly on the steering wheel, move the steering
column up or down as desired. Push the lever up to lock
the column firmly in place.

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv­ing with the steering column unlocked, could cause
the driver to lose control of the vehicle. Be sure the
steering column is locked before driving your ve­hicle. Failure to follow this warning may result in
serious injury or death.

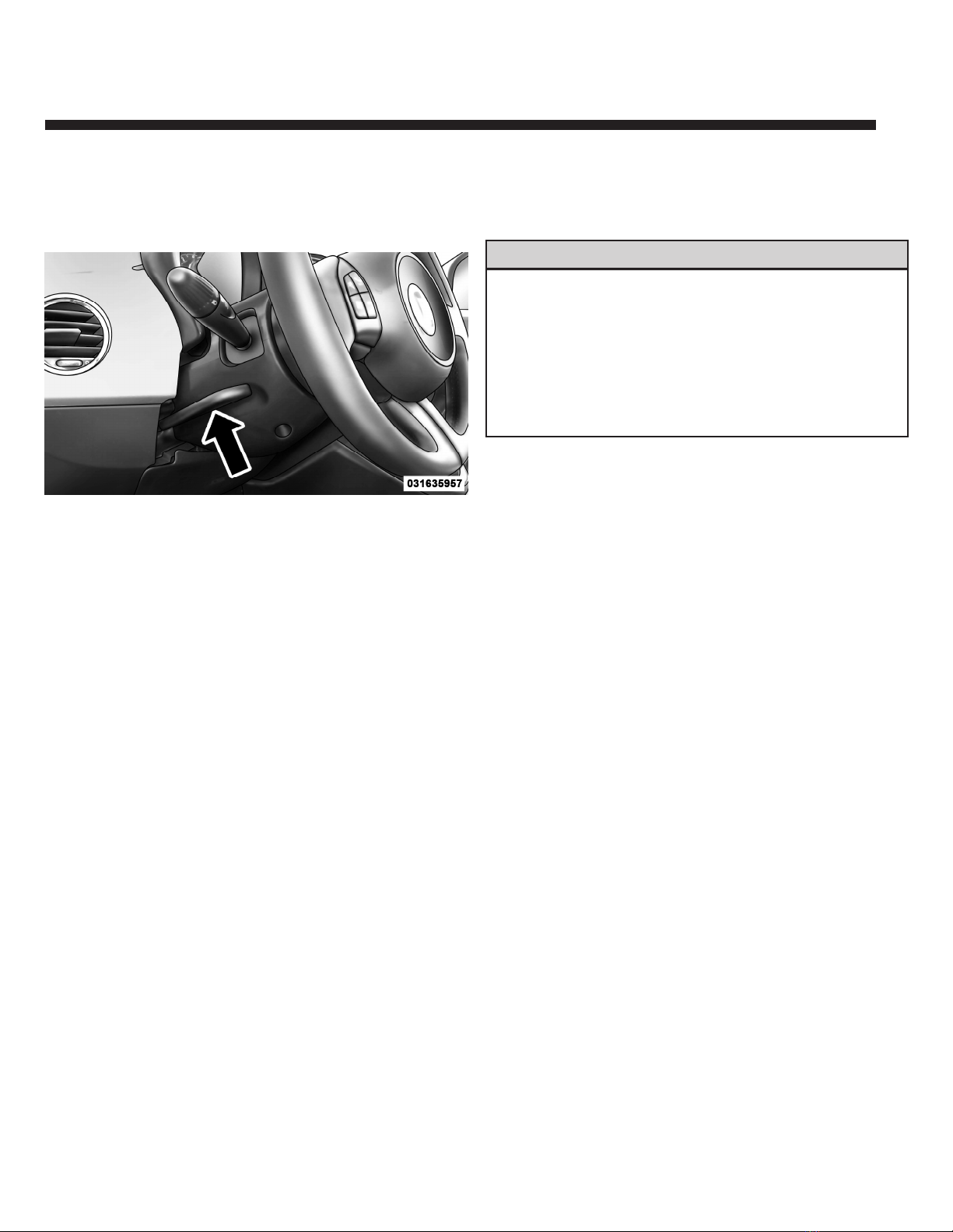

Tilt Control Lever

1

ELECTRONIC SPEED CONTROL

When engaged, the Electronic Speed Control takes over
accelerator operations at speeds greater than 25 mph
(40 km/h).

The Electronic Speed Control buttons are located on the
right side of the steering wheel.

NOTE: In order to ensure proper operation, the Elec­tronic Speed Control system has been designed to shut
down if multiple Speed Control functions are operated at
the same time. If this occurs, the Electronic Speed Control
system can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.

To Activate

Push the ON/OFF button. The Cruise Indicator light in
the instrument cluster will illuminate. To turn the system
off, push the ON/OFF button a second time. The Cruise
Indicator light will turn off. The system should be turned
off when not in use.

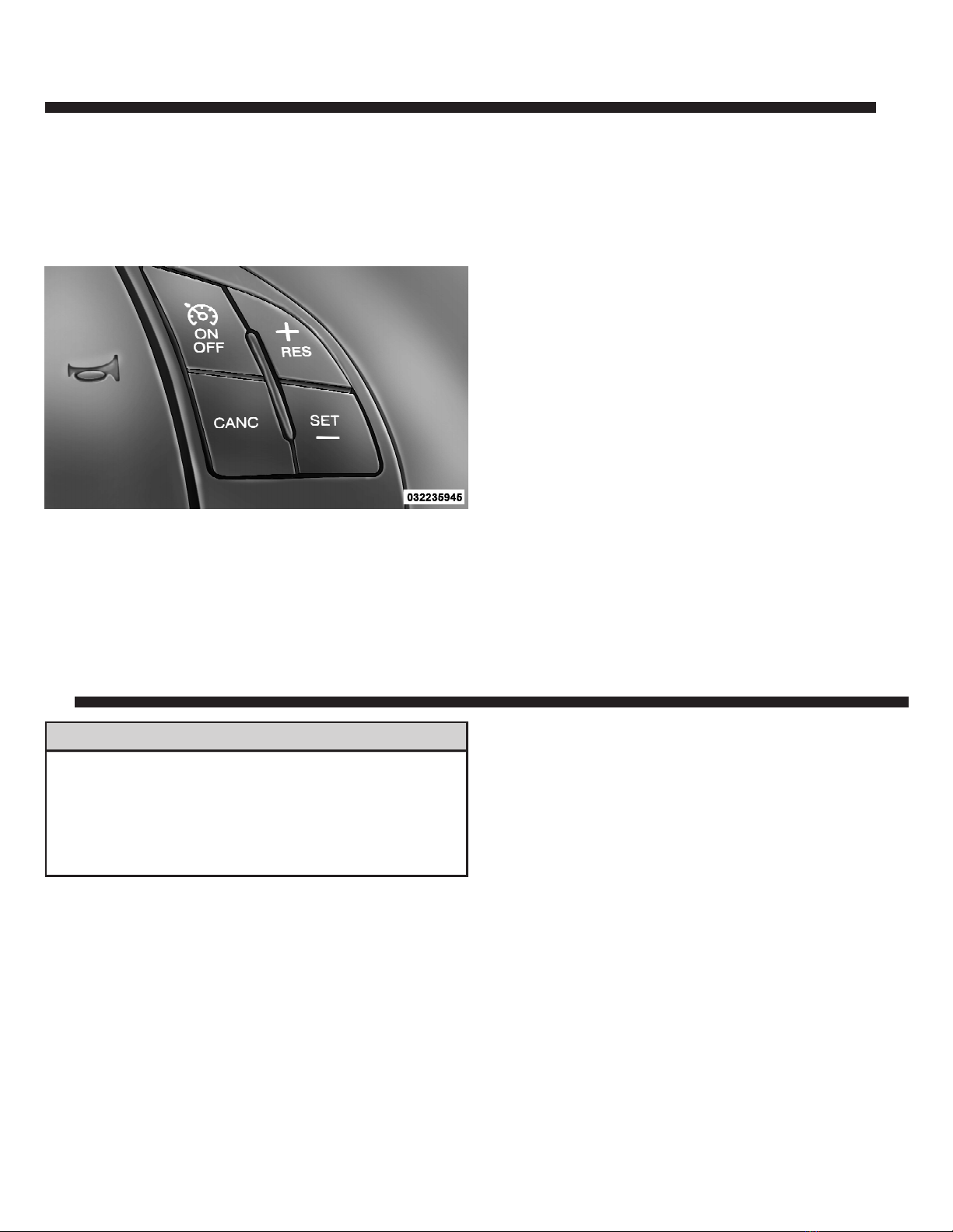

Speed Control Buttons

1

WARNING!

Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you are not using it.

To Set A Desired Speed

Turn the Electronic Speed Control ON. When the vehicle
has reached the desired speed, press the SET (-) button
and release. Release the accelerator and the vehicle will
operate at the selected speed.

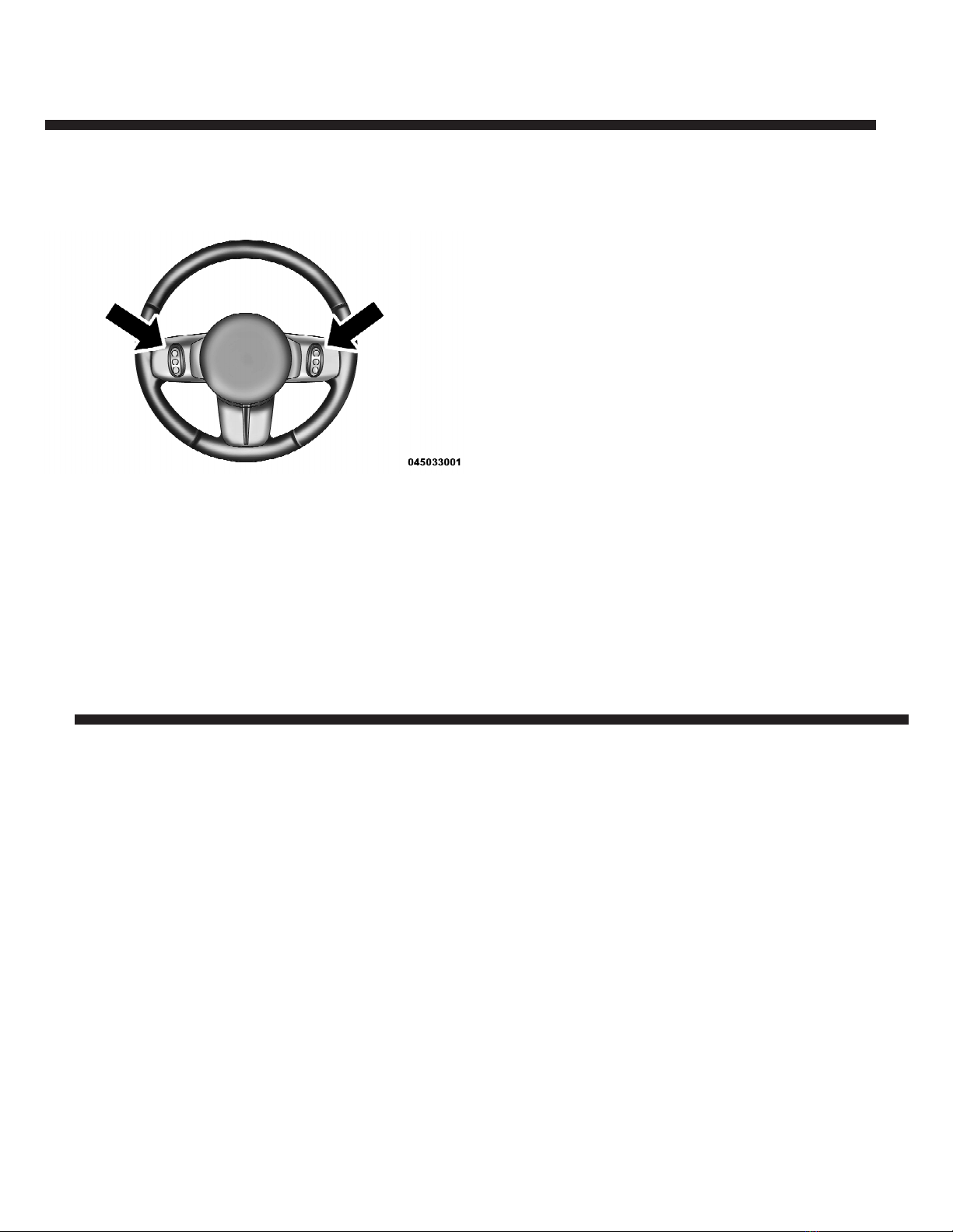

NOTE: The vehicle should be traveling at a steady
speed and on level ground before pressing the SET
button.

To Deactivate

A soft tap on the brake pedal, pushing the CANC button,
or normal brake pressure while slowing the vehicle will
deactivate Electronic Speed Control without erasing the
set speed memory. Pressing the ON/OFF button or
turning the ignition switch OFF erases the set speed
memory.

To Resume Speed

To resume a previously set speed, push the RES (+)
button and release. Resume can be used at any speed
above 20 mph (32 km/h).

To Vary The Speed Setting

When the Electronic Speed Control is set, you can in­crease speed by pushing the RES (+) button. If the button
is continually pressed, the set speed will continue to
increase until the button is released, then the new set
speed will be established.

2

Pressing the RES (+) button once will result in a 1 mph
(2 km/h) increase in set speed. Each subsequent tap of
the button results in an increase of 1 mph (2 km/h).

To decrease speed while the Electronic Speed Control is
set, push the SET (-) button. If the button is continually
held in the SET (-) position, the set speed will continue to
decrease until the button is released. Release the button
when the desired speed is reached, and the new set speed
will be established.

Pressing the SET (-) button once will result in a 1 mph
(2 km/h) decrease in set speed. Each subsequent tap of
the button results in a decrease of 1 mph (2 km/h).

To Accelerate For Passing

Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.

Using Electronic Speed Control On Hills

The transmission may downshift on hills to maintain the
vehicle set speed.

NOTE: The Electronic Speed Control system maintains
speed up and down hills. A slight speed change on
moderate hills is normal.

On steep hills, a greater speed loss or gain may occur so
it may be preferable to drive without Electronic Speed
Control.

WARNING!

Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve­hicle could go too fast for the conditions, and you
could lose control and have an accident. Do not use
Electronic Speed Control in heavy traffic or on roads
that are winding, icy, snow-covered or slippery.

3

REAR PARK ASSIST — IF EQUIPPED

The Rear Park Assist system provides an audible indica­tion of the distance between the rear fascia/bumper and
a detected obstacle when backing up, e.g. during a
parking maneuver. Refer to the “Park Assist System
Usage Precautions” for the limitations of this system and
recommendations.

Rear Park Assist is automatically activated when the
transmission is placed into REVERSE. As the distance
from an obstacle behind the vehicle decreases, the au­dible alert becomes more frequent.

Rear Park Assist Sensors

The four Rear Park Assist sensors, located in the rear
fascia/bumper, monitor the area behind the vehicle that
is within the sensors’ field of view. The sensors can detect
obstacles, in the horizontal direction, from approximately
12 in (30 cm) up to 55 in (140 cm) from the center of the
rear fascia/bumper and up to 24 in (60 cm) from the

corners of the rear fascia/bumper, depending on the
location, type and orientation of the obstacle.

If several obstacles are detected, the rear park assist
system indicates the nearest obstacle.

The minimum height of a detectable obstacle corre­sponds to the maximum height of an obstacle that would
clear the underside of the car during the parking
maneuver.

Rear Park Assist Alerts

If an obstacle is behind the vehicle when REVERSE gear
is engaged, an audible alert is activated.

The tones emitted by the loudspeaker inform the driver
that the vehicle is approaching an obstacle. The pauses
between the tones are directly proportional to the dis­tance from the obstacle. Pulses emitted in quick succes­sion indicate the presence of a very close obstacle. A
continuous tone indicates that the obstacle is less than
12 in (30 cm) away.

1

Audible And Visual Signals Supplied By The Rear Park Assist System.

SIGNAL MEANING INDICATION

Obstacle Distance

An obstacle is present within the

system field of view

Audible signal (dashboard loud­speaker)

• Sound pulses emitted at a rate
that increase as the distance de­creases.

• Emits continuous tone at 12 in
(30 cm)

• Adjustable volume level. (Refer to
“Menu Functions” for further infor­mation).

Failure Sensor or System failures

Visual Signal (instrument panel)

• Icon appears on display.

• Message is displayed on multi-

function display (where provided).

2

While audible signals are emitted, the audio system is not
muted.

The audible signal is cut out immediately if the distance
increases. The tone cycle remains constant if the distance
measured by the inner sensors is constant. If this condi­tion occurs for the external sensors, the signal is cut off
after 3 seconds (stopping warnings during maneuvers
parallel to walls).

Failure Indications

A malfunction of the Rear Park Assist sensors or system
is indicated, during REVERSE gear engagement, by the
instrument panel warning icon.

The warning icon is illuminated and a message
is displayed on the multifunction display (if
equipped). Refer to “Instrument Cluster De­scriptions” in “Understanding Your Instrument

Panel” for further information.

The sensors and wiring are tested continuously when the
ignition is in the ON/RUN position. Failures are indi­cated immediately if they occur when the system is ON.

Even if the system is able to identify that a specific sensor
is in failure condition, the instrument cluster display
shall indicate that the rear park assist system is unavail­able, without reference to the sensor in failure condition.
If even a single sensor fails, the entire system must be
disabled. The system is turned off automatically.

Cleaning The Rear Park Assist System

Clean the Rear Park Assist sensors with water, car wash
soap and a soft cloth. Do not use rough or hard cloths. In
washing stations, clean sensors quickly keeping the va­por jet/high pressure washing nozzles at least 4 in
(10 cm) from the sensors. Do not scratch or poke the
sensors. Otherwise, you could damage the sensors.

3

Park Assist System Usage Precautions

NOTE:

•

Ensure that the rear bumper is free of snow, ice, mud,
dirt and debris to keep the Rear Park Assist system
operating properly.

•

Jackhammers, large trucks, and other vibrations could
affect the performance of Rear Park Assist.

•

Clean the Rear Park Assist sensors regularly, taking
care not to scratch or damage them. The sensors must
not be covered with ice, snow, slush, mud, dirt or
debris. Failure to do so can result in the system not
working properly. The Rear Park Assist system might
not detect an obstacle behind the fascia/bumper, or it
could provide a false indication that an obstacle is
behind the fascia/bumper.

•

Objects such as bicycle carriers, etc., must not be
placed within 12 in (30 cm) from the rear fascia/

bumper while driving the vehicle. Failure to do so can
result in the system misinterpreting a close object as a
sensor problem, causing a failure indication to be
displayed in the instrument cluster.

CAUTION!

•

Rear Park Assist is only a parking aid and it is
unable to recognize every obstacle, including
small obstacles. Parking curbs might be temporar­ily detected or not detected at all. Obstacles lo­cated above or below the sensors will not be
detected when they are in close proximity.

•

The vehicle must be driven slowly when using
Rear Park Assist in order to be able to stop in time
when an obstacle is detected. It is recommended
that the driver looks over his/her shoulder when
using Rear Park Assist.

4

WARNING!

•

Drivers must be careful when backing up even
when using the Rear Park Assist system. Always
check carefully behind your vehicle, look behind
you, and be sure to check for pedestrians, animals,
other vehicles, obstructions, and blind spots be­fore backing up. You are responsible for safety and
must continue to pay attention to your surround­ings. Failure to do so can result in serious injury or
death.

(Continued)

WARNING! (Continued)

•

Before using the Rear Park Assist System, it is
strongly recommended that the ball mount and
hitch ball assembly is disconnected from the ve­hicle when the vehicle is not used for towing.
Failure to do so can result in injury or damage to
vehicles or obstacles because the hitch ball will be
much closer to the obstacle than the rear fascia
when the warning display turns on the single
flashing arc and sounds the continuous tone. Also,
the sensors could detect the ball mount and hitch
ball assembly, depending on its size and shape,
giving a false indication that an obstacle is behind
the vehicle.

5

POWER SUNROOF — IF EQUIPPED

The power sunroof roof switch is located in the overhead
console.

WARNING!

•

Never leave children in a vehicle with the key in
the ignition switch. Occupants, particularly unat­tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.

•

In a collision, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.

•

Do not allow small children to operate the sun­roof. Never allow your fingers, other body parts, or
any object to project through the sunroof opening.
Injury may result.

Power Sunroof Switch

1

To Open

Press the power sunroof switch rearward and the sunroof
will stop at the vented position. Press the switch a second
time and release and the sunroof will open fully, then
stop automatically. This is called “Express Open”. During
Express Open operation, any movement of the sunroof
switch will stop the sunroof.

To Close

With the sunroof in the full open position, press the
sunroof button and the sunroof will return to the vented
position. Press the switch a second time to completely
close the sunroof.

Pinch Protect Override

If a known obstruction (ice, debris, etc.) prevents the
sunroof from closing, press the switch forward and hold
for two seconds after the reversal occurs. This allows the
sunroof to move toward the closed position.

NOTE: Pinch protection is disabled while the switch is
pressed.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur­rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.

2

Sun Shade — If Equipped

For vehicles equipped with either a power sunroof or a
fixed glass roof, there is a sun shade that can be open or
closed. To open the sun shade press the tab and move the
shade to a full open position.

Manual Sun Shade

3

ELECTRICAL POWER OUTLETS

There is a standard 12 Volt (13 Amp) power outlet,
located in the floor console, for added convenience. This
power outlet can power mobile phones, electronics and
other low power devices.

Power is available when the ignition switch is in the
ON/RUN or START position. Insert the cigar lighter or
accessory plug into the outlet for use. To preserve the
heating element, do not hold the lighter in the heating
position.

CAUTION!

•

Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded, the fuse protecting the
system will need to be replaced.

•

Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your warranty.

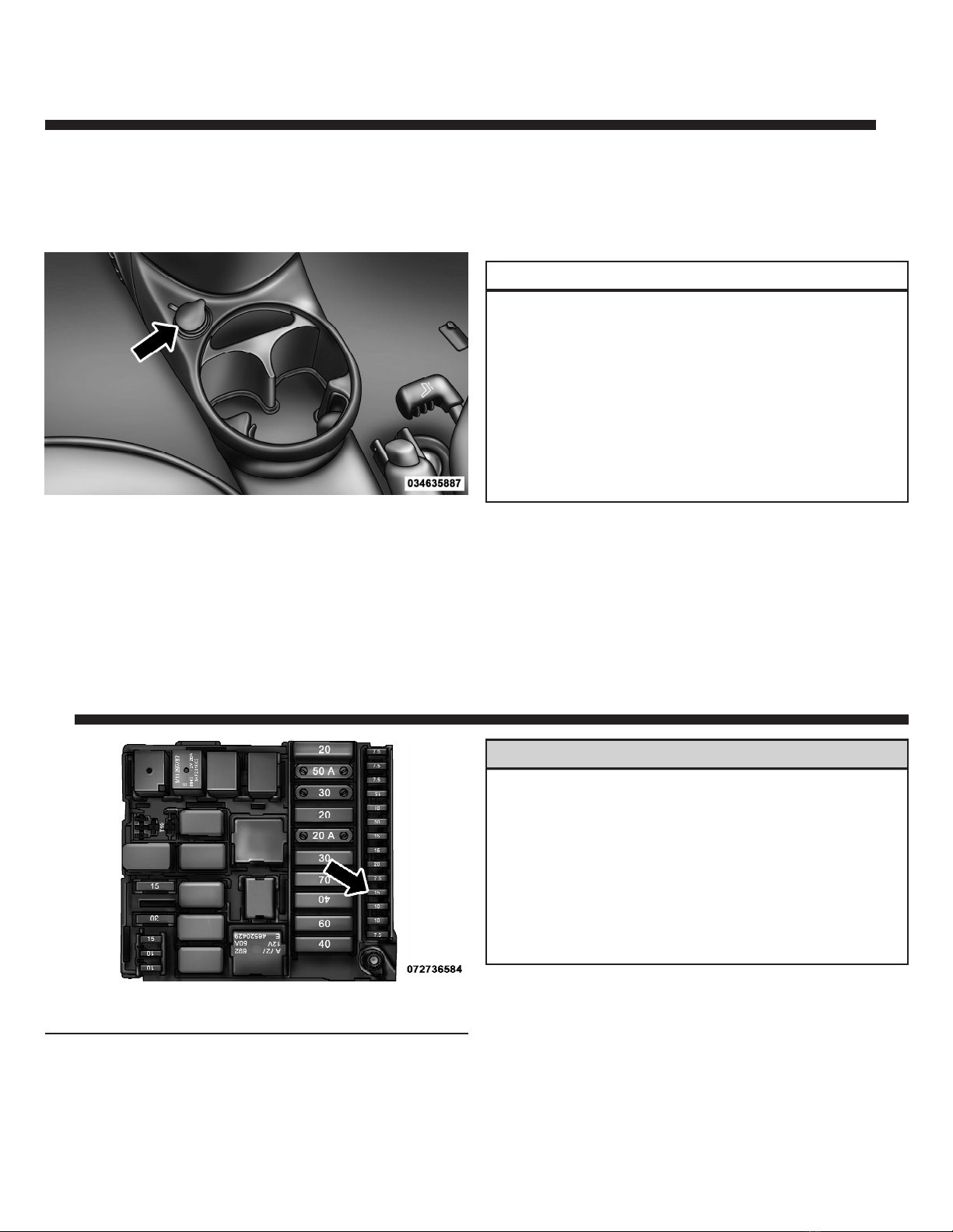

Power Outlet

1

WARNING!

To avoid serious injury or death:

•

Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.

•

Do not touch with wet hands.

•

Close the lid when not in use and while driving
the vehicle.

•

If this outlet is mishandled, it may cause an
electric shock and failure.

Power Outlet Fuse Location Underhood

F15 Fuse 15 A Blue Cigar Lighter Front Console

2

CAUTION!

•

Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.

•

Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter­mittently and with great caution.

•

After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

3

CIGAR LIGHTER — IF EQUIPPED

WARNING!

When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter with
care. Always check that the cigar lighter has turned
off.

1

CUPHOLDERS

For the driver and front passenger, cupholders are lo­cated on the floor console between the front seats.

For rear passengers, there are cupholders located on the
floor between the front driver and passenger seats.

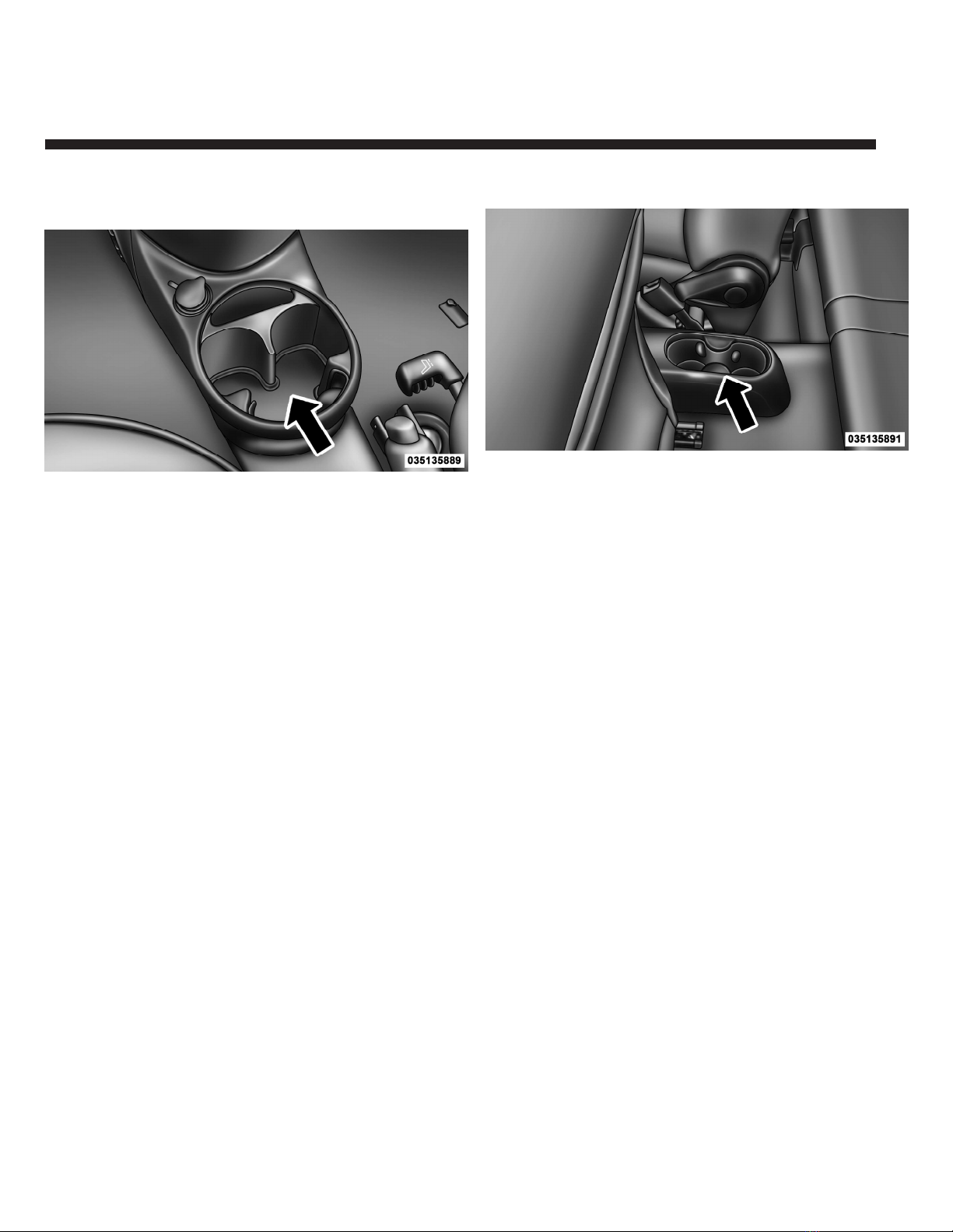

Front Cupholders

Rear Cupholders

1

STORAGE
Glove Box Compartment

The glove box is located on the right side of the instru­ment panel. Pull outward on the door latch to open the
glove box. Push the glove box door upward to close it.

Passenger Seat Storage — If Equipped

Some models may be equipped with storage under the
front passenger seat. Pull outward on the latch to open
the storage compartment.

Glove Box Compartment

Passenger Seat Storage

1

CARGO AREA FEATURES

The rear seatbacks have a fold down feature to allow
increased cargo capacity.

Push down the release button, located at the outboard
top of the seatback and move the seatback to its folded­down position to provide a flat load floor cargo area.
When returning the seatback to its upright position, push
rearward until the seatback is properly latched.

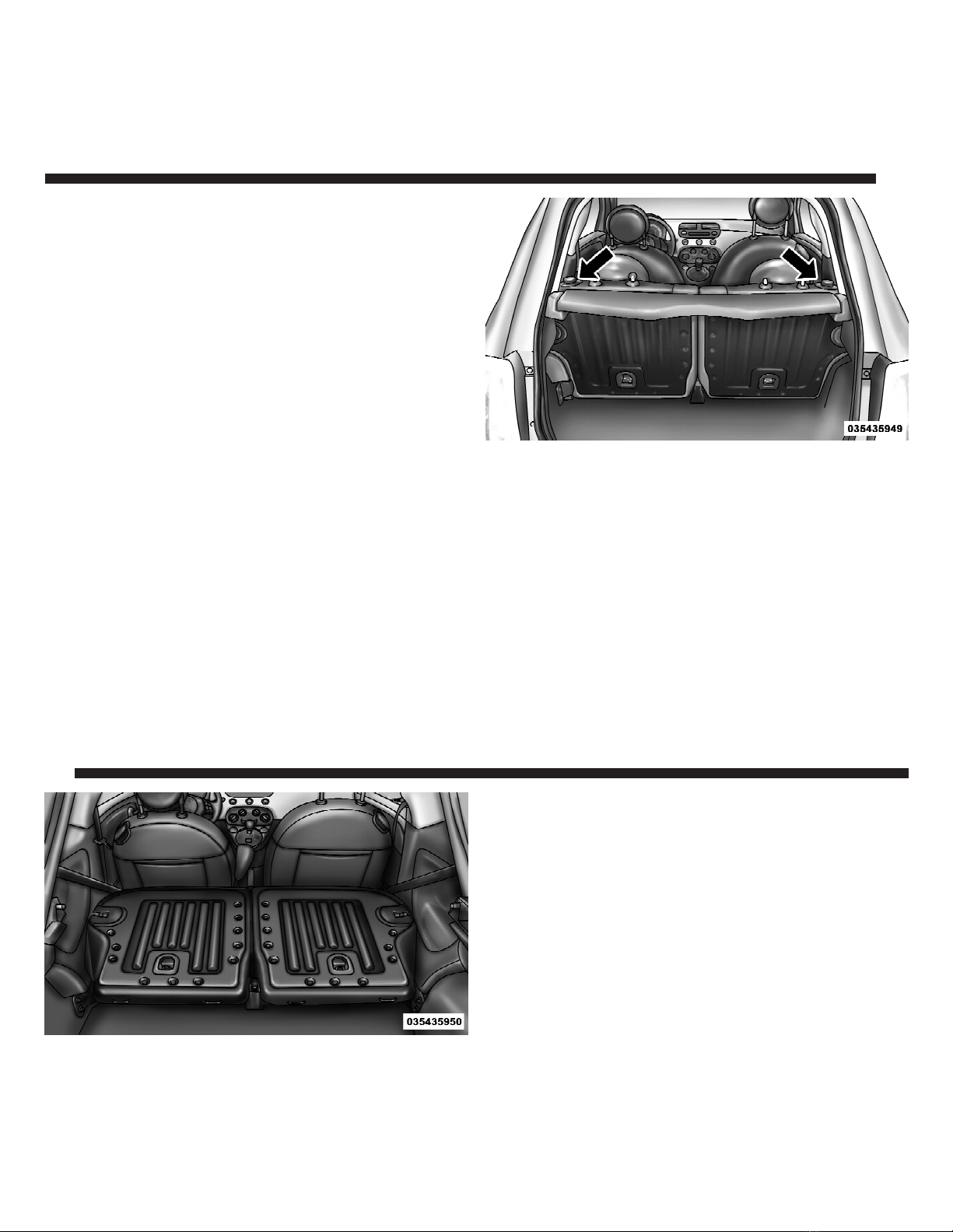

Rear Seat Release Buttons

1

2

Folded Rear Seats

REAR WINDOW FEATURES
Rear Window Defroster

The rear window defroster button is located in the

center of the instrument panel, below the radio.
Press this button to turn on the rear window defroster.
An indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 20 minutes.
To manually shut the defroster off, push the button a
second time.

NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:

(Continued)

CAUTION! (Continued)

•

Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.

•

Do not use scrapers, sharp instruments, or abra­sive window cleaners on the interior surface of the
window.

•

Keep all objects a safe distance from the window.

1

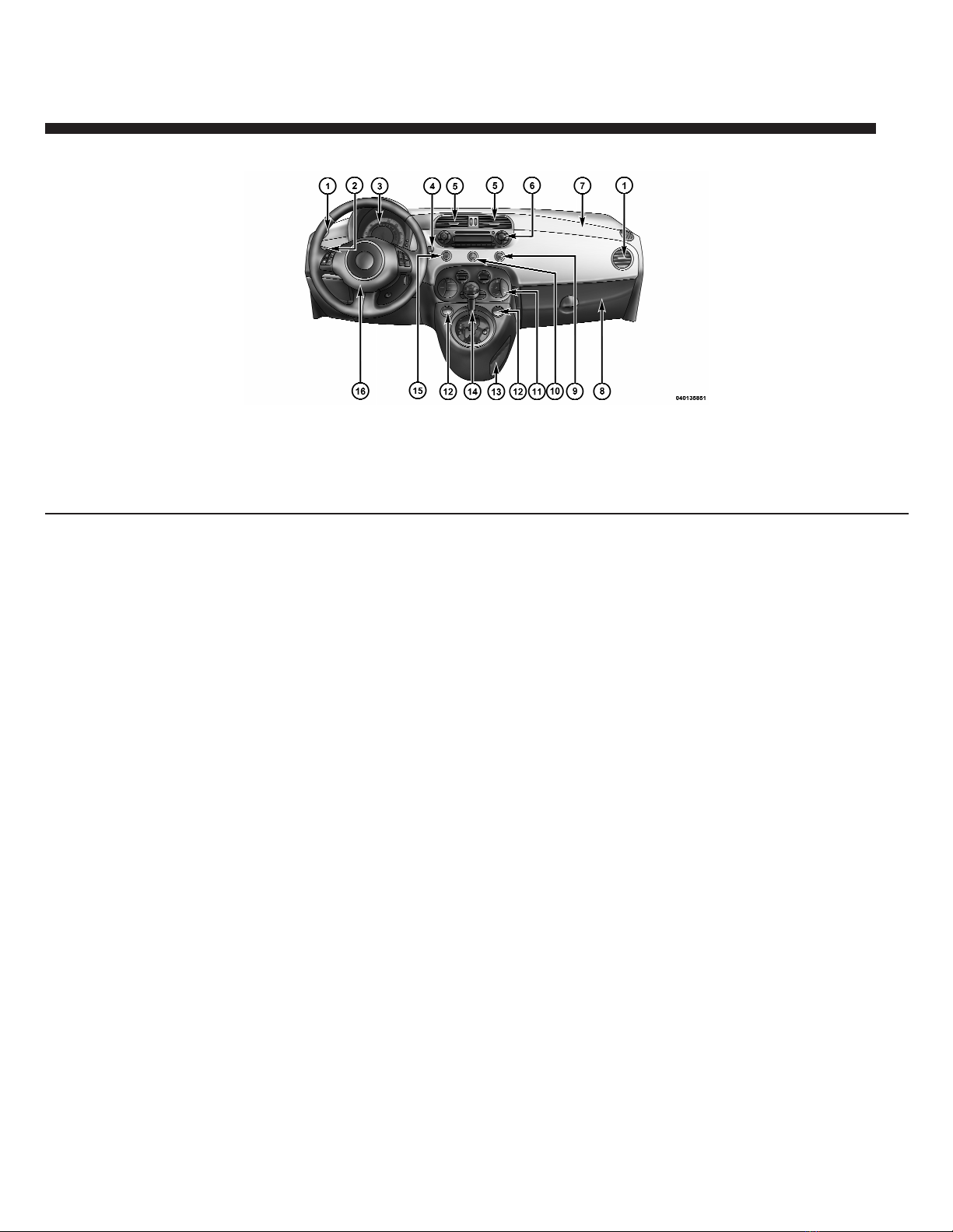

INSTRUMENT PANEL FEATURES

1 — Side Vent 7 — Passenger Air Bag 13 — Storage Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Shift Lever
3 — Instrument Cluster And Warning Lights 9 — Rear Defrost Button 15 — Sport Button
4 — Windshield Wiper, Washer, Trip Computer 10 — Hazard Button 16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls/Storage Compartment
6 — Storage Compartment/Radio 12 — Power Windows Control

1

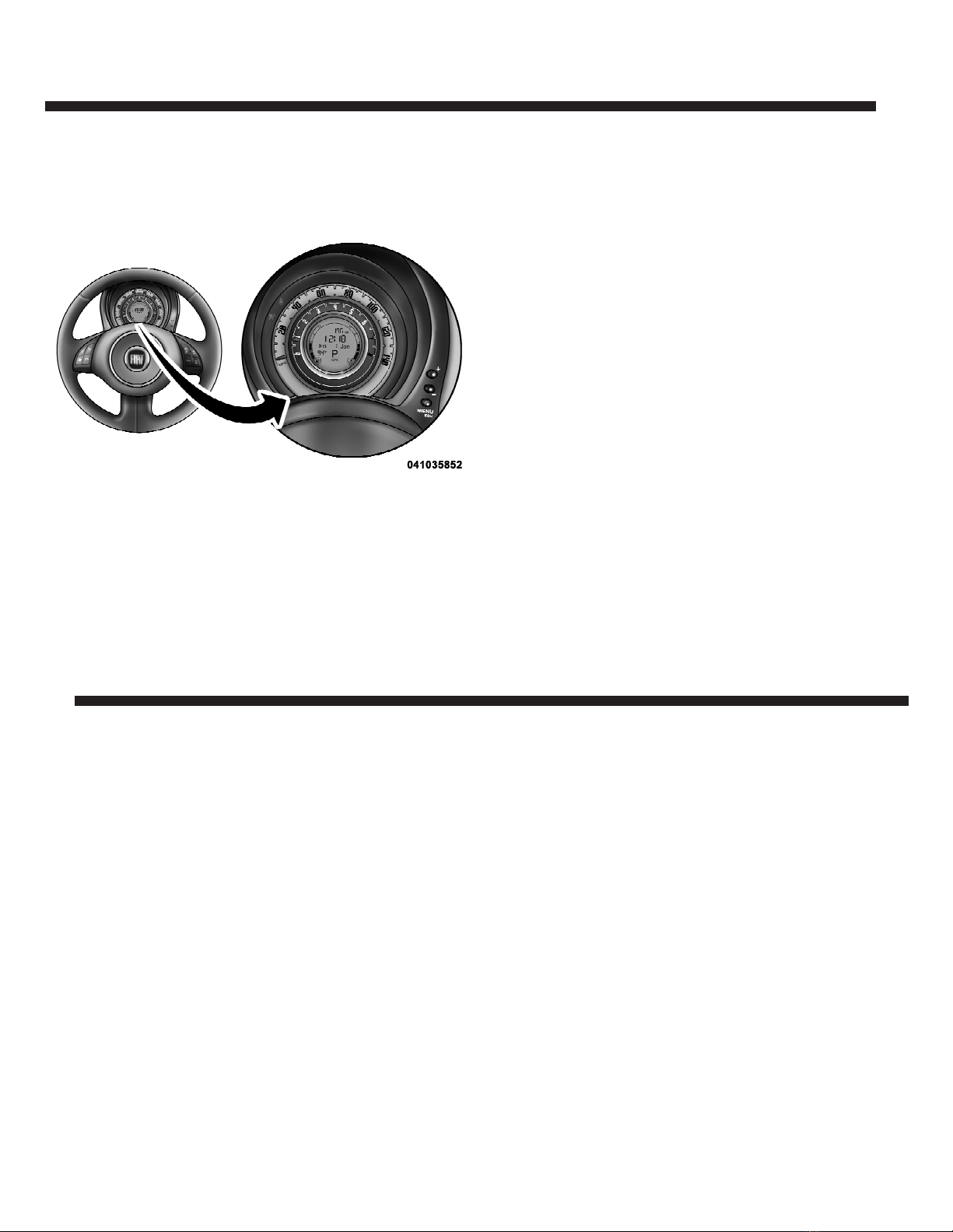

INSTRUMENT CLUSTER

1

INSTRUMENT CLUSTER DESCRIPTIONS

1. Glow Plug Light — If Equipped

The Glow Plug light will flash during engine oil

viscosity sensor measurement in cold weather.
During this measurement (up to 10 seconds), the starter
will be disabled. If the measured oil viscosity is OK, the
light will go out and the engine will be allowed to crank.
If the measured oil viscosity is too high, engine cranking
will be disabled and the light will blink repeatedly until
the oil temperature is raised, preferably by an externally­powered electric engine block heater (available from
your authorized dealer).

The message 9Plug In Engine Heater9, will be displayed
in the instrument cluster when the ambient temperature
is below 5°F (-15°C) at the time the engine is shut off as
a reminder to avoid possible crank delays at the next cold
start.

2. Rear Defrost Button

Press and release this button to turn on the rear

window defroster. This indicator will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after 10 minutes.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:

•

Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.

•

Do not use scrapers, sharp instruments, or abra­sive window cleaners on the interior surface of the
window.

(Continued)

1

CAUTION! (Continued)

•

Keep all objects a safe distance from the window.

3. Front Fog Light Indicator — If Equipped

This indicator will illuminate when the front fog
lights are on.

4. Low Fuel Light

When the fuel level reaches approximately 1.0 gal­lon (3.8L) this light will turn on, and remain on
until fuel is added.

5. High Beam Indicator

This light indicates that the headlights are on high
beam. Pull the turn signal lever toward the steer-

ing wheel to switch the headlights to low beam.

6. Position Light Indicator / Follow Me Home
(Headlight Delay) Indicator — If Equipped

This indicator will illuminate when the park
lights or headlights are turned on. If the Follow
Me Home feature is activated this indicator

will illuminate and the EVIC will show how
long the function remains active. For further information,
refer to “Follow Me Home” in “Understanding The
Features of Your Vehicle”.

7. Turn Signal Indicators

The arrows will flash in unison with the exterior
turn signal, when using the turn signal lever.

8. Generic Warning Light

The Generic Warning Light will illuminate if

any of the following conditions occur: Engine

Oil Pressure Sensor Failure, External Light Fail-

ure, Fuel Cut-Off Intervention, Fuel Cut-Off
Not Available, Parking Sensor Failure.

2

9. Airbag Warning Light

This light will turn on for four seconds as a
bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on

during starting, stays on, or turns on while
driving, then have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.

10. Cruise Indicator — If Equipped

This indicator shows that the Speed Control

system is ON.

11. Seat Belt Reminder Light

When the ignition switch is first turned to ON/
RUN, this light will turn on if the driver’s seat belt
is unbuckled, a chime will sound. When driving, if

the driver’s seat belt remains unbuckled, the Seat Belt

Reminder Light will illuminate and the chime will sound.
Refer to “Occupant Restraints” in “Things To Know
Before Starting Your Vehicle” for further information.

12. Charging System Light

This light shows the status of the electrical charg-

ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho­rized dealer.

If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.

3

13. Power Steering System Warning

This light is used to manage the electrical
warning of the EPS (Power Steering System).
Refer to “Power Steering” in “Starting and
Operating” for further information.

14. Electronic Throttle Control (ETC) Light

This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on

while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the NEUTRAL position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable; however,
see an authorized dealer for service as soon as possible. If
the light is flashing when the engine is running, imme­diate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on

when the ignition is first turned to ON/RUN and remain
on briefly as a bulb check. If the light does not come on
during starting, have the system checked by an autho­rized dealer.

15. Tire Pressure Monitoring Telltale Light

Each tire, including the spare (if provided),
should be checked monthly, when cold and
inflated to the inflation pressure recommended

by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.)

As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.

4

Accordingly, when the low tire pressure telltale illumi­nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.

Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.

Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously

illuminated. This sequence will continue upon subse­quent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the sys­tem may not be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur for a variety
of reasons, including the installation of replacement or
alternate tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow the TPMS
to continue to function properly.

5

CAUTION!

The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera­tion or sensor damage may result when using re­placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can, or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.

16. Automatic Gearbox Failure

This light will illuminate when there is an
automatic transmission fault.

17. Oil Pressure Warning Light

This light indicates low engine oil pressure. The

light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns
on.

Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.

18. Malfunction Indicator Light (MIL)

The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system, called OBD, that

monitors engine and automatic transmission con­trol systems. The light will illuminate when the key is in
the ON/RUN position, before engine start. If the bulb
does not come on when turning the key from OFF/LOCK
to ON/RUN, have the condition checked promptly.

6

Certain conditions such as a loose or missing gas cap,
poor fuel quality, etc., may illuminate the MIL after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations, the vehicle will drive normally and will
not require towing.

CAUTION!

Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage and
power loss will soon occur. Immediate service is
required.

WARNING!

A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants or wood or cardboard, etc. This could
result in death or serious injury to the driver, occu­pants or others.

19. Engine Temperature Warning Light

This light warns of an overheated engine condi­tion. The engine coolant temperature indicator
will illuminate and a single chime will sound after

reaching a set threshold.
If the light turns on while driving, safely pull over and

stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve­hicle. If the temperature reading does not return to

7

normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for further information.

20. Brake Warning Light

This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on, it may

indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the brake system reservoir.

If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake

booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop.

The dual brake system provides a reserve braking capac­ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.

The light will remain on until the cause is corrected.
If brake failure is indicated, immediate repair is neces-

sary.

WARNING!

Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to stop the vehicle. You could have
a collision. Have the vehicle checked immediately.

8

Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.

Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF/LOCK position
to the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn
off unless the parking brake is applied or a brake fault is
detected. If the light does not illuminate, have the light
inspected by an authorized dealer.

The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN posi­tion.

NOTE: This light shows only that the parking brake is
applied. It does not show the degree of brake application.

21. Electronic Stability Control (ESC) OFF Indicator
Light — If Equipped

This light indicates the Electronic Stability Con­trol system (ESC) has been turned off by the
driver.

22. Electronic Stability Control (ESC) Activation /
Malfunction Indicator Light — If Equipped

The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
for four seconds when the ignition switch is

turned to the ON/RUN position. If the “ESC
Activation/Malfunction Indicator Light” comes on con­tinuously with the engine running, a malfunction has
been detected in the ESC system. If this light remains on,
see your authorized dealer as soon as possible to have the
problem diagnosed and corrected.

9

NOTE:

•

The “ESC Off Indicator Light” and the “ESC
Activation/Malfunction Indicator Light” come on mo­mentarily each time the ignition switch is turned to
ON/RUN.

•

Each time the ignition is turned to ON/RUN, the ESC
system will be ON even if it was turned off previously.

23. Anti-Lock Brake (ABS) Light

This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.

If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.

If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.

24. Door Ajar

This light will turn on to indicate that one or

more door or the trunk may be ajar.

25. Vehicle Security Light — If Equipped

This light will flash at a fast rate for approxi-

mately 15 seconds, when the vehicle security

alarm is arming, and then will flash slowly

until the vehicle is disarmed.

10

26. Temperature Gauge

The temperature digital scale shows engine coolant tem­perature. Any reading within the normal range indicates
that the engine cooling system is operating satisfactorily.

The gauge pointer will likely indicate a higher tempera­ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.

CAUTION!

Driving with a hot engine cooling system could
damage your vehicle. If all the segments of tempera­ture gauge are lit pull over and stop the vehicle. Idle
the vehicle with the air conditioner turned off until
the pointer drops back into the normal range. If you
hear continuous chimes, turn the engine off immedi­ately, and call an authorized dealership for service.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer­ship for service if your vehicle overheats. If you
decide to look under the hood yourself, see “Main­taining Your Vehicle”. Follow the warnings under the
Cooling System Pressure Cap paragraph.

27. Odometer / Trip Odometer / Electronic Vehicle
Information Center (EVIC) Display Area

This display indicates the total distance the vehicle has
been driven.

NOTE:

•

U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
odometer needs to be repaired or serviced, the repair

11

technician should leave the odometer reading the same
as it was before the repair or service. If s/he cannot do
so, then the odometer must be set at zero, and a sticker
must be placed in the door jamb stating what the
mileage was before the repair or service. It is a good idea
for you to make a record of the odometer reading before
the repair/service, so that you can be sure that it is
properly reset, or that the door jamb sticker is accurate if
the odometer must be reset at zero.

•

If the vehicle is equipped with the optional Electronic
Vehicle Information Center (EVIC) in the instrument
cluster, all warnings including “door” and “gate” and
“Change Engine Oil” will only be displayed in the
EVIC display. For additional information, refer to
“Electronic Vehicle Information Center (EVIC) — If
Equipped”.

When the appropriate conditions exist, this display
shows the EVIC messages.

Refer to the Electronic Vehicle Information Center (EVIC)
for further information.

28. Fuel Gauge / Fuel Door Reminder

The fuel door reminder indicates that the fuel filler door is
located on the right side of the vehicle. When the ignition
switch is in the ON/RUN position, the digital scale will
show the level of fuel remaining in the fuel tank.

NOTE: The fuel gauge and range will not immediately
update accurately when refueling with the engine on.

29. Tachometer

The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.

30. Speedometer

The Speedometer shows the vehicle speed in miles per
hour and/or kilometers per hour (mph/kph).

12

ELECTRONIC VEHICLE INFORMATION CENTER (EVIC)

The Electronic Vehicle Information Center (EVIC) fea­tures a driver-interactive display that is located in the
instrument cluster.

The EVIC consists of the following:

•

System Status

•

Vehicle Information Warning Message Displays

•

Personal Settings (Customer-Programmable Features)

•

Outside Temperature Display

•

Trip Computer Functions

EVIC Control Buttons

Press the MENU ESC button briefly to access the menu
and/or go to next screen or to confirm the required menu
option. Press and hold the MENU ESC button (approxi­mately one seconds) to return to the main screen.

Press the + button to scroll upward through the dis­played menu and the related options or to increase the
displayed value.

Press the – button to scroll downward through the
displayed menu and the related options or to decrease
the value displayed.

Electronic Vehicle Information Center (EVIC) Display

1

NOTE: Buttons + and – activate different functions
according to the following situations:

•

To scroll the menu options upwards and downwards;

•

To increase or decrease values during settings.

NOTE: When opening one of the front doors, the EVIC
display will turn on for a few seconds the clock and the
km or mi covered (for versions/markets, where
provided).

Electronic Vehicle Information Center (EVIC)
Setup Menu

The menu comprises a series of functions arranged in a
cycle which can be selected by pressing the + and –
buttons to access the different options and settings
(setup).

The setup menu can be activated by pressing the MENU
ESC button. Single presses on buttons + or – will scroll
through the setup menu options. The menu includes the
following functions:

•

Speed Beep

•

Trip B Data

•

Set Time

•

Set Date

•

See Radio

•

Speed Display

•

Autoclose

•

Units

•

Language

•

Buzzer Volume

2

•

Button Volume

•

Hill Start

•

Daylights (D.R.L.)

•

Exit Menu

Selecting An Option Of The Main Menu Without
Submenu:

•

Briefly press the MENU ESC button to select the main
menu option to set;

•

Press the + or – button (by single presses) to select the
new setting;

•

Briefly press the MENU ESC button to store the new
setting and go back to the main menu option previ­ously selected.

Selecting An Option Of The Main Menu With
Submenu:

•

Briefly press the MENU ESC button to display the first
submenu option;

•

Press the + or – button (by single presses) to scroll all
the submenu options;

•

Briefly press the MENU ESC button to select the
displayed submenu option and to open the relevant
setup menu;

•

Press the + or – button (by single presses) to select the
new setting for this submenu option;

•

Briefly press the MENU ESC button to store the new
setting and to go back to the previously selected
submenu option.

3

•

Press and hold the MENU ESC button to return to the
main menu (short hold) or the main screen (longer
hold).

Change Engine Oil Indicator System

Change Engine Oil

Your vehicle is equipped with an engine oil change
indicator system. The “Change Engine Oil” message will
flash in the EVIC display for approximately 10 seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.

Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and

release the MENU/ESC button. To reset the oil change
indicator system (after performing the scheduled main­tenance) refer to the following procedure.

1. Turn the ignition switch to the ON position (Do not
start the engine).

2. Fully depress the accelerator pedal, slowly, three times
within 10 seconds.

3. Turn the ignition switch to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.

Trip Computer

The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa­tion such as and trip information, range, fuel consump­tion, average speed and travel time).

4

Trip Functions

Both trip functions are resettable (reset — start of new
trip).

“Trip A” can be used to display the figures relating to:

•

Trip distance A

•

Average consumption

•

Instant consumption A

•

Average speed A

•

Travel time A (driving time).

“Trip B” can be used to display the figures relating to:

1. Trip distance B

2. Instant consumption B

3. Average speed B

4. Travel time B (driving time).

NOTE: “Trip B” functions may be excluded (see “Trip B
on”). “Range” and “Instantaneous consumption” cannot
be reset.

Values Displayed

Range

This indicates the distance which may be travelled with
the fuel in the tank assuming that driving conditions will
not change. The message “----” will appear on the display
in the following cases:

•

Value lower than 30 miles (or 50 km)

•

The car is parked with the engine running for a long
time.

NOTE: The range depends on several factors: driving
style, type of route (freeway, residential, mountain roads,
etc…), conditions of use of the car (load, tire pressure,
etc…). Trip planning must take into account the above
notes.

5

Distance Travelled

This value shows the distance covered since the last reset

Average Consumption

This value shows the approximate average consumption
since the last reset.

Instant Consumption

This indicates the fuel consumption. The value is con­stantly updated. The message “----” will appear on the
display if the car is parked with the engine running.

Average Speed

This value shows the car average speed as a function of
the overall time elapsed since the last reset

Travel Time

This value shows the time elapsed since the last reset.

Trip Button

The Trip button is located on the right steering column
stalk, can be used to display and to reset the previously
described values:

•

Short button press to display the different values;

•

Long button press to reset and then start a new trip.

New Trip

Reset can be:

•

“Manual” resetting by the user, by pressing the rel­evant button;

•

“Automatic” resetting, when the “Trip distance”
reaches 9999.9 miles or when the “Travel time” reaches

99.59 (99 hours and 59 minutes);

•

After disconnecting/reconnecting the battery.

NOTE:

•

The reset operation in the presence of the screens

6

concerning the “Trip A” makes it possible to reset only
the information associated with this function.

•

The reset operation in the presence of the screens
concerning the “Trip B” makes it possible to reset only
the information associated with this function.

Start Of Trip Procedure

With ignition key on, press and hold the TRIP button for
over one seconds to reset.

Exit Trip

The TRIP function is over when all the values have been
displayed or holding the MENU ESC button for longer
than one second.

Personal Settings (Customer-Programmable
Features)

Dimmer

The EVIC display is provided with a light sensor capable
of detecting environmental light conditions and adjust­ing the brightness of the instruments accordingly.

NOTE: The brightness of the instrument panel may
change while travelling following an event causing
switching from “day” to “night” conditions (or vice
versa) in the passenger compartment (e.g. in a tunnel, on
avenues in shadows, under bridges, etc.).

To adjust the brightness, proceed as follows:

•

Press the + or – button to set the required brightness
level;

7

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC
(approximately one seconds) to go back to the main
screen without storing settings.

Speed Beep (Speed Limit)

With this function it is possible to set the car speed limit
(mph or km/h); when this limit is exceeded the driver is
immediately alerted.

To set the speed limit, proceed as follows:

•

Briefly press the MENU ESC button, the display will
show the message (Speed Beep);

•

Press the + or – button to select speed limit activation
(On) or deactivation (Off);

•

When the function is activated (On) pressing the + or
– buttons select the speed limit and press MENU ESC

to confirm selection.

NOTE: Selection is possible between 20 and 125 mph
(30 and 200 km/h), or depending on the selected unit.
The setting will increase/decrease by five units each time
the +/– button is pressed. Press and hold the +/– button to
increase/decrease the setting rapidly. Complete the set­ting by briefly pressing the button when you approach
the required setting.

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

To cancel the setting, proceed as follows:

•

Briefly press the MENU ESC button (On) will flash on
the display;

•

Press the – button (Off) will flash on the display;

8

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

Trip B Data (Trip B On)

Through this option it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.

For further information see “Trip Computer”.
For activation / deactivation, proceed as follows:

•

Briefly press the MENU ESC button (On) or (Off) will
flash on the display (according to previous setting);

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

Set Time (Clock)

This function may be used to set the clock through two
sub-menu items: “Time” and “Mode”.

Proceed as follows:

•

Briefly press the MENU ESC button, the display will
show the two sub-menu items“Time” and “Mode”;

•

Press the + or – button to navigate the two sub-menu
items;

•

Select the required option and then press the MENU
ESC button;

•

When accessing the “Time” sub-menu item: briefly
press the MENU ESC button, “hours” will flash on the
display;

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button, “minutes” will
flash on the display;

9

•

Press the + or – button for setting.

NOTE:

•

The setting will increase or decrease by one unit each
time the + or – button is pressed. Press and hold the
button to increase/decrease the setting rapidly. Com­plete the setting by briefly pressing the button when
you approach the required setting.

•

Briefly press the MENU ESC button to return to the
“Time” sub-function.

•

When accessing the “Mode” submenu: briefly press
the MENU ESC button, the previously set display
format will flash on the display;

•

Press the + or – button to select “24h” or “12h”.

When you have made the required settings, briefly press
the MENU ESC button to go back to the Time, Mode

sub-menu screen or press and hold the MENU ESC
button (approximately one seconds) to go back to the
main screen without storing settings.

•

Press and hold the MENU ESC button to go back to
the main screen or main menu (settings are stored).

Set Date

This function may be used to set the date (day - month ­year).

To change the date proceed as follows:

•

Briefly press the MENU ESC button “year” will flash
on the display;

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button “month” will
flash on the display;

•

Press the + or – button for setting;

10

•

Briefly press the MENU ESC button “day” will flash
on the display;

•

Press the + or – button for setting.

NOTE: The setting will increase or decrease by one unit
each time the + or – button is pressed. Press and hold the
+ or – button to increase/decrease the setting rapidly.

Complete the setting by briefly pressing the button when
you approach the required setting.

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

See Radio (Repeat Audio Information)

With this function active the EVIC display shows infor­mation relevant to the sound system.

•

Radio: tuned radio station frequency, automatic tuning
activation or AutoSTore;

•

CD audio, CD MP3: track number;

To activate (On) or to deactivate (Off) sound system info
displaying proceed as follows:

•

Briefly press the MENU ESC button (On) or (Off) will
flash on the display (according to previous setting);

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

If the radio has Blue&Me™, refer to the appropriate
Blue&Me™ User’s Manual for further information.

Autoclose (Automatic Door Lock Operation With
Car Running)

When activated (On), this function locks automatically
the doors when the car speed exceeds 12 mph (20 km/h).

11

Proceed as follows to switch this function on or off:

•

Briefly press the MENU ESC button (On) or (Off) will
flash on the display (according to previous setting);

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the button (approxi­mately one seconds) to go back to the main screen
without storing settings.

Units (Set Units)

This function may be used to set the measurement unit in
three submenus: “Distances”, “Fuel Economy” and
“Temperature”.

To set the required unit proceed as follows:

•

Briefly press the MENU ESC button to display the
three sub-menus;

•

Press the + or – button to navigate the three sub­menus;

•

Select the required sub-menu and then briefly press
the MENU ESC button;

•

When accessing the “Distance” submenu: briefly press
the MENU ESC button either “km” or “mi” will
appear on the display (according to the previous
setting);

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to return to the
sub-menu;

•

When accessing the “Fuel Economy” submenu: briefly
press the MENU ESC button either “km/l ”, “l/
100km” or “mpg” will appear on the display (accord­ing to the previous setting).

12

If the distance unit set is “mi” the fuel economy unit will
be displayed in “mpg”.

If the distance unit set is “km” the fuel economy unit will
be displayed in km/l or l/100km.

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to return to the
sub-menu;

•

When accessing the “Temperature” submenu: briefly
press the MENU ESC button either “°C” or “°F” will
appear on the display according to the previous set­ting;

•

Press the + or – button for setting.

When you have made the required settings, briefly press
the MENU ESC button to go back to the sub-menu screen

or press and hold the MENU ESC button (approximately
one seconds) to go back to the main screen without
storing settings.

•

Press and hold the MENU ESC button to go back to
the main screen or main menu.

Language (Selecting The Language)

The messages can be displayed in the following lan­guages: Italian, English, German, Portuguese, Spanish,
French, Dutch, Polish.

To set the required language proceed as follows:

•

Briefly press the MENU ESC button, the previously
set “language” will flash on the display;

•

Press the + or – button for setting;

13

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)

With this function the volume of the buzzer accompany­ing any failure/warning indication can be adjusted ac­cording to 8 levels.

To adjust the volume proceed as follows:

•

Briefly press the MENU ESC button; the previously
set volume “level” will flash on the display;

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

Button Volume (Button Volume Adjustment)

This function may be used to adjust the volume of the
beep accompanying the buttons MENU ESC , + or – can
be adjusted according to 8 levels.

To adjust the volume proceed as follows:

•

Briefly press the MENU ESC button; the previously
set volume “level” will flash on the display;

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC button
(approximately one seconds) to go back to the main
screen without storing settings.

Belt Buzzer (Buzzer Activation For S.B.R.
Indication)

This function will only be displayed after a FIAT Dealer­ship has deactivated the S.B.R. system.

14

Hill Start Assist

This function is used when starting a vehicle from a stop
on a hill by maintaining the same level of brake pressure
the driver applied for a short period of time after the foot
has been removed from the brake pedal.

Proceed as follows to switch this function on or off:

•

Briefly press the MENU ESC button (On) or (Off) will
flash on the display (according to previous setting);

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press and hold the button (approxi­mately one seconds) to go back to the main screen
without storing settings.

Daytime Running Lamps (D.R.L.)

This function may be used to activate / deactivate the
Daytime Running Lamps.

Proceed as follows to switch this function on or off:

•

Briefly press the MENU ESC button to display the
three sub-menus;

•

Briefly press the MENU ESC button (On) or (Off) will
flash on the display (according to previous setting);

•

Press the + or – button for setting;

•

Briefly press the MENU ESC button to go back to the
menu screen or press the button for long to go back to
the main screen without storing settings;

•

Press and hold the MENU ESC button to go back to
the main screen or main menu.

Exit Menu

This function closes the initial menu screen.
Briefly press the MENU ESC button to go back to the

main screen.

15

Press the – button to return to the first menu option
(Speed Beep).

Press the + button to return to the last menu option
(Daylights).

16

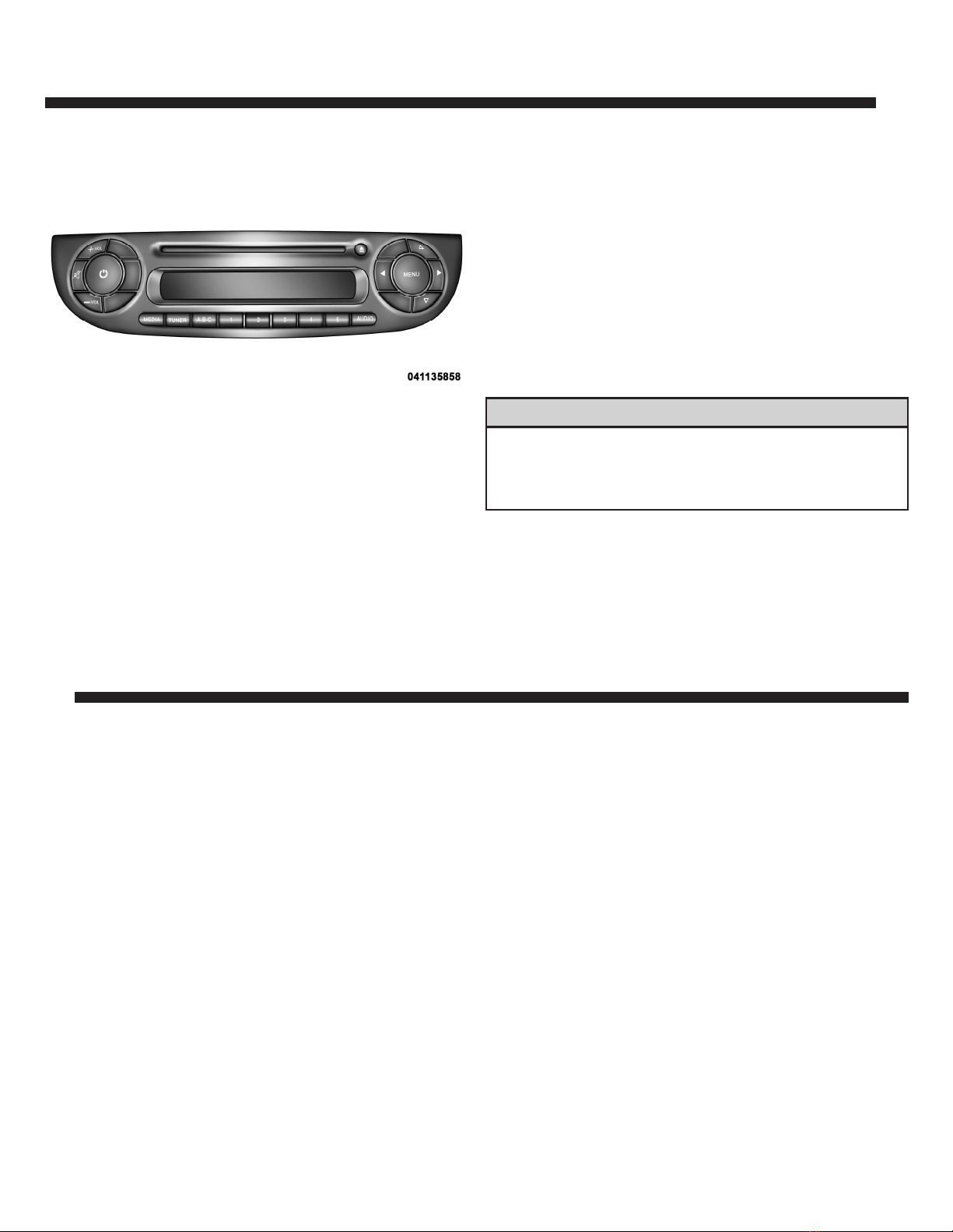

SALES CODE (RAB) RADIO

Introduction

The radio has been designed according to the specifica­tions of the passenger compartment, with a personalized
design perfectly meeting the style of the dashboard.

If the radio has Blue&Me™, refer to the appropriate
Blue&Me™ User’s Manual for further information.

The instructions for use are given below and we recom­mend you to read them carefully.

Suggestions

Road Safety

Please, learn how to use all different radio functions (e.g.
store stations) before beginning to drive.

Reception Conditions

Reception conditions change constantly while driving.
Reception may be interfered with by the presence of
mountains, buildings or bridges, or when you are far
away from the broadcaster.

WARNING!

High volume can be a risk for the driver and for other
people in road traffic. Always adjust the volume so
that you can still hear background noises.

1

Care And Maintenance

Clean the cover with a soft antistatic cloth only. Cleaning
and polishing products could damage the surface.

CDs

The presence of dirt, scratches or distortions on the CDs
could cause skipping while it is playing and poor sound
quality. For optimal playback conditions, follow these
guidelines:

•

only use branded CDs:

•

clean every CD thoroughly removing any fingermarks
or dust using a soft cloth. Hold CDs by the outside and
clean them from the middle outwards;

•

never use chemicals (e.g. antistatics or thinners or
sprays) for cleaning as they could damage the surface
of the CDs;

•

after listening to them place CDs back in their boxes to
avoid them from being damaged;

•

do not expose CDs to direct sunlight, high tempera­tures or moisture for long periods;

•

do not stick labels on the CD surface or write on the
recorded surface with pencils or pens;

•

do not use CDs that are very scratched, flawed,
distorted, etc. Using discs like these will result in
malfunctions or damage to the player;

•

the use of original CD media is required for the best
quality audio production. Correct operation is not
guaranteed when CD-R/RW media are used that were
not correctly burned and/or with a maximum capacity
above 650 Mb;

•

do not use commercially available protective sheets for
CDs or discs, with stabilizers, etc. as they could get
stuck in the internal mechanism and damage the disc;

•

if a copy-protected CD is used, it may take a few
seconds before the system starts to play it. The CD

2

player cannot be guaranteed to play all protected
discs. The fact that the CD is protected from being
copied is often shown in very small letters or is
difficult to read on the actual CD cover where it may
be, for example, “COPY CONTROL”, “COPY PRO­TECTED”, “THIS CD CANNOT BE PLAYED ON A
PC/MAC”.

•

the CD player is capable of reading most compression
systems currently in use, following the development
of these systems, the reading of all compression for­mats is not guaranteed.

Technical Specifications

The complete system consists of:

•

two 165 mm diameter midwoofer speakers, one
speaker in each of the front doors;

•

two 22 mm diameter tweeter speakers, one speaker in
each of the front pillars;

•

two 100 mm diameter full range speakers, one speaker
in each of the rear side panels;

•

antenna on the car roof;

•

radio with CD /MP3 player.

With Bose Premium audio system (if equipped):

•

two 165 mm diameter midwoofer speakers;

•

two 11 mm tweeter speakers in the front pillars;

•

two 100 mm full range speakers, one speaker in each
of the rear side panels;

•

a subwoofer under the right front seat;

•

an amplifier in the trunk on the right-hand side panel;

•

antenna on the car roof;

•

radio with CD MP3 player.

3

Quick Guide

Radio Controls

BUTTON GENERAL FUNC-

TIONS

MODE

On Short button

press

Off Long button

press

TUNER AM, FM, SAT (if

equipped) source
selection

Short repeated
button press

A-B-C Cycles A, B, C pre-

sets for AM, FM,
SAT (if equipped)

Short repeated
button press

MEDIA CD/AUX/Media

Player (if equipped
and present) source
selection

Short repeated
button press

BUTTON GENERAL

FUNCTIONS

MODE

(Mute/

Pause Button)

Volume
activation/
deactivation
(Mute/Pause)

Short button
press

AUDIO Audio adjust-

ments: low tones
(BASS), high
tones (TREBLE),
lh/rh balance
(BALANCE),
front/rear bal­ance (FADER)

Menu activation:
short button
press Adjust­ment type selec­tion: buttons

or

press Adjust­ment of values:
buttons

or

(Informa-

tion Button)

Song, Artist, Al­bum, Genre,
Playlist, Folder
information (if

4

available) in CD,
Media Player
and Satellite (if
so equipped)
Toggles RDS in­formation in FM

MENU Advanced func-

tions adjustment

Menu activation:
short button
press Adjust­ment type selec­tion: buttons

or

press Adjust­ment of values:
buttons

or

+Vol/–Vol Volume adjust-

ment

Button + press:
volume increase
Button – press:
volume decrease

BUTTON RADIO FUNC-

TIONS

MODE

Radio Station Search:

•

Automatic Search

•

Manual Search

Automatic search:
buttons

or

press (long

press for fast for­ward) Manual
search: buttons

or press

(long press for
fast forward)

1 2 3 4 5 Current radio station

storing

Long button press
for memory pre­set 1 to 5 respec­tively

Stored station recall Short button

press for memory
preset 1 to 5 re­spectively

5

BUTTON CD FUNC-

TIONS

MODE

CD ejection Short button

press

Previous/next
track play

Short button
press

or

CD track fast
forward/rewind

Long buttons

or

Previous/next
folder play (for
CD-MP3)

Short button
press or

General Information

The radio offers the following functions:

Radio Section

•

PLL tuning with FM/AM/MW frequency bands;

•

RDS (Radio Data System)

•

automatic/manual station tuning;

•

FM Multipath detector;

•

manual storing of 25 stations (base radio) and 40
stations (if equipped with Satellite): 15 on FM band (5
on FMA, 5 on FMB, 5 on FMC), 10 on AM band (5 on
AMA, 5 on AMB), 15 on Satellite Band - if equipped (5
on SATA, 5 on SATB, 5 on SATC);

•

SPEED VOLUME function: Customer selectable auto­matic volume adjustment depending on the car speed;

•

automatic Stereo/Mono selection.

CD Section

•

Track selection (forward/backward);

•

Fast forward/rewind through tracks;

6

•

CD Display function: display of track number and on
mp3 discs (song title, artist) and time elapsed since
start of the track;

•

Audio CD, CD-R and CD-RW playing.

WARNING!

On multimedia CDs, besides audio tracks, there are
data tracks too. Playing this type of CD could cause
hissing at a volume that could jeopardize road safety
as well as causing damage to the final stages and the
speakers.

CD/MP3 Section

•

MP3-Info function (ID3-TAG);

•

Folder selection (previous/next);

•

Track selection (forward/backward);

•

Fast forward/rewind through tracks;

•

MP3 Display function: display of folder name, ID3­TAG information, (time elapsed since the start of the
track, name of the file);

•

Playing audio or data CD, CD-R and CD-RW.

Audio Section

•

Mute/Pause function;

•

Soft Mute Function;

•

Loudness Function;

•

Graphic 7 band equalizer (if equipped);

•

Separate bass/treble tone adjustment;

•

Right/left channel balancing.

•

Front/Rear fader

7

Functions And Adjustments

Turning The Car Radio On

The car radio comes on when the ON/OFF button is
pressed briefly.

When the car radio is turned on and the on volume limit
is on, the volume is limited to a setting of 5 if it had been
set higher when previously used.

Turning The Car Radio Off

Press and hold (approximately 2 seconds) the ON/
OFF button to turn the radio off.

Selecting The Radio Functions

By pressing the TUNER button briefly and repeatedly,
the following audio sources can be selected cyclically:

−

AM, FM and Satellite Bands (if equipped)

Selecting The CD Function

By briefly pressing the MEDIA button, the CD audio
source can be selected (only with a CD loaded).

Audio Source Memory Function

If another radio function is selected while listening to a
CD (e.g. the radio), playing is interrupted and is resumed
from the same point when returning to the CD mode.

If another function is selected while listening to the radio,
the last station selected is tuned into when returning to
the Radio mode.

Volume Adjustment

To adjust the volume press the buttons +Vol or –Vol to
increase/decrease the volume.

Mute/Pause Function

Press the button briefly to activate the MUTE
function. The volume will gradually decrease and the

8

wording “TUNER Mute” will be shown on the display
(in radio mode) or “CD Pause” (in CD mode).

Press the button again to deactivate the MUTE
function. The volume will gradually increase until it

reaches the previously set level.
When the volume level is changed using the dedicated

controls, the Mute function is deactivated and the vol­ume is adjusted to the new level selected.

Audio Adjustment

The functions that can be selected from the audio menu
change depending on the context: AM/FM/MEDIA/
SATELLITE.

Press the AUDIO button briefly to change the Audio
functions. After the AUDIO button is first pressed, the
display will show the bass level value for the source
activated at that time (e.g. in FM mode the display will
show the wording “FM Bass +2”).

Use the buttons

or to scroll through the Menu

functions. To change the setting of the selected function,
use the

or buttons.

The current status of the selected function appears on the
display.

The functions managed by the Audio Menu are:

•

BASS (bass adjustment);

•

TREBLE (treble adjustment);

•

BALANCE (right/left balance adjustment);

•

FADER (front/rear balance adjustment);

•

LOUDNESS (LOUDNESS function activation/
deactivation);

•

EQUALIZER — if equipped (activation and selection
of factory equalization adjustments);

9

•

USER EQUALIZER — if equipped (customized equal­ization adjustment).

Tone Adjustment

Proceed as follows:

•

Press AUDIO Button,

•

Use the button or to select “Bass” or “Treble”
in the AUDIO menu;

•

press the or button or to increase/decrease
the bass or treble adjustments.

By pressing the

or buttons briefly, the levels

will change progressively. By pressing them down longer,
the levels will change quickly.

Balance Adjustment

Proceed as follows:

•

Press AUDIO Button,

•

Use the button or to set “Balance” in the
AUDIO menu;

•

press the button to increase the sound from the
right speakers or the

button to increase the sound

from the left speakers.

By pressing the

or buttons briefly, the levels

will change progressively. By pressing them down longer,
the levels will change quickly.

Select the value “0” to set the right and left audio outputs
at the same level.

Fader Adjustment

Proceed as follows:

•

Press AUDIO Button,

•

Use the button or to set “Fader” in the
AUDIO menu;

10

•

press the button to increase the sound coming
from the rear speakers or the

button to increase

the sound coming from the front speakers.

By pressing the

or buttons briefly, the levels

will change progressively. By pressing them down longer,
the levels will change quickly.

Select the value “0” to set the right and left audio outputs
at the same level.

Loudness Function — If Equipped

The Loudness function improves the volume of the
sound while listening at low volumes, increasing the bass
and treble.

To activate/deactivate this function, select the “Loud­ness” setting in the AUDIO menu. The condition of the
function (on or off) is shown on the display for a few
seconds by the wording “Loudness On” or “Loudness
Off”.

Preset/User*/Classic/Rock/Jazz Functions — If
Equipped

The built-in equalizer can be activated/deactivated.
When the equalizer function is off, the audio settings can
only be changed by adjusting the “Bass” and “Treble”
settings, whereas when the function is on, the acoustic
curves can be adjusted. To deactivate the equalizer, select
the “EQ Preset” function in the audio menu.

To activate the equalizer, use the AUDIO button or to
select one of the adjustments:

•

“EQ User” (adjustment of 7 equalizer bands that can
be changed by the user);

•

“Classic” (equalizer preset for optimal classic music
sound);

•

“Rock” (equalizer preset for optimal rock and pop
music sound);

•

“Jazz” (equalizer preset for optimal jazz music sound).

11

When one of the equalizer adjustments is activated the
wording “EQ” lights up.

*User EQ Settings Function — If Equipped

To set a personalized equalizer adjustment:

•

Press AUDIO button

•

Use the or buttons to set EQ function

•

Use or buttons to select 9EQ User9

•

Press MENU button to start adjusting equalizer

•

On the display appears a 7 bar graph, in which each
bar represents a frequency. Select the bar to be ad­justed by using the or buttons. The selected

bar will start to flash and it can be adjusted using
or .

•

To store the setting, press the MENU or AUDIO
buttons

Menu

MENU Button Functions

Press the MENU button briefly to activate the Menu
function.

Use the buttons

or to scroll through the menu

functions. To change the setting of the selected function,
use the

or buttons.

The current status of the selected function appears on the
display.

The functions managed by the Menu are:

•

Speech Volume

•

Aux Audio Offset

•

Radio Off

•

Sat ID

•

Sirius Telephone Number

12

•

System Reset

•

Speed Volume

•

On Volume Limit

Press the MENU button again to exit the Menu function.

Speed Volume Function — If Equipped

This function automatically adapts the volume level to
the speed of the car, turning up the volume when the
speed increases to maintain the ratio with the noise level
inside the passenger compartment. To activate/
deactivate the function, use the buttons. The wording
“Speed volume” appears on the display, followed by the
current status of the function:

•

Off: function deactivated

•

Low: function activated (low sensitivity)

•

High: function activated (high sensitivity).

On Volume Limit

This function makes it possible to activate/deactivate the
maximum volume limit when turning the radio on.

The display shows the function status:

•

“On volume limit: on” – when the radio is turned on
the volume level will be:

−

if the volume level is equal to or higher than the
maximum value, the radio will come on at the maxi­mum volume;

−

if the volume level is between the minimum and
maximum values, the radio will come on at the same
volume as before it was switched off;

−

if the volume level is equal to or lower than the
minimum value, the radio will come on at the mini­mum volume.

13

•

“On volume limit: off” – the radio will come on at the
same volume as before it was switched off. The
volume level can be between 0 and 40.

Use the buttons / to change the setting.

NOTE:

•

Using the Menu it is only possible to adjust the
activation/deactivation of the function and not the
minimum or maximum volume value.

•

If the battery charge is too low, the volume cannot be
adjusted between the minimum and the maximum
level.

Radio Off Function

This function makes it possible to set the radio switching
off mode by choosing between two methods.

The chosen mode appears on the display:

•

“Radio off: 00 min”: the radio turns off in connection
with the ignition key; the radio is turned automatically
off as soon as the key is turned to the STOP position;

•

“Radio off: 20 min”: the radio turns off independently
from the ignition key; the radio remains on for a
maximum period of 20 minutes after the key has been
turned to the STOP position.

System Reset Function

This function is used to restore all settings to the factory
values. The options are:

•

NO: no restore intervention;

•

YES: the default parameters will be restored. During
such operation, the wording “Resetting” appears on
the display. At the end of the operation, the source
does not change and the previous situation will be
displayed.

14

Radio

(Tuner) Introduction

When the car radio is turned on, the last function that
was selected before turning it off (Radio, CD,CD MP3,
AUX) is activated.

To select the Radio function when another audio source is
being listened to, briefly press the TUNER button.

Once the Radio mode has been activated, the display will
show the name (RDS stations only) or the frequency of
the selected radio station, the frequency band selected
(e.g. FMA) and the preset button number (e.g. P1).

Frequency Band Selection

With the Radio mode active, press the FM or AM tuner
button briefly and repeatedly to select the desired recep­tion band.

Each time the button is pressed the following bands are
selected cyclically:

•

AM, FM or SAT (if equipped)

Each band is highlighted by the corresponding wordings
on the display. The last station selected on the respective
frequency band will be tuned into.

Preset Buttons

The buttons numbered from 1 to 5 are used to set the
following pre-selections:

•

15 in the FM band (5 in FMA, 5 in FMB, 5 in FMC;

•

10 in the AM band (5 in AMA, 5 in AMB).

•

15 in SAT (if so equipped) (5 SATA, 5 SATB, 5 SATC)

To listen to a preset station, select the desired frequency
band and then press briefly the corresponding preset
button (from 1 to 5).

15

By pressing the preset button for more than 2 seconds,
the tuned station will be stored. Pressing the A-B-C
button will change between the preset memory group in
the current frequency band.

Automatic Tuning

Briefly press the or button to start the auto­matic tuning search for the next station that can be

received in the selected direction.
If the button

or is pressed for longer, the rapid

search is started. When the button is released, the tuner
will stop on the next station that can be received.

Manual Tuning

This is used to manually search for stations in the
preselected band.

Select the desired frequency band and then press briefly
and repeatedly the button

or to start the search

in the desired direction. If the button or is
pressed longer, the fast search starts and then stops when

the button is released.

Stereophonic Broadcasters

If the incoming signal is weak, the reproduction is
automatically switched from Stereo to Mono.

SIRIUS Satellite Radio — If Equipped

Satellite Radio Antenna — If Equipped

The antenna for the satellite radio is mounted on the roof
of the vehicle. Do not place items on the roof around the
roof top antenna location. Objects placed within the line
of sight of the antenna will cause decreased performance.
Larger luggage items should be placed as far from the
antenna as possible. Do not place items directly on or
above the antenna.

16

SIRIUS Satellite Radio

With over 130 channels, SIRIUS Satellite Radio brings
you more of what you love. Get 69 channels of 100%
commercial-free music, plus all of your favorite sports,
news, talk and entertainment. Hear every NFL game,
every NASCAR race, college sports and more. The big­gest and most compelling names in talk with Howard
Stern and Martha Stewart, laugh-out-loud comedy with
Jamie Foxx’s The Foxxhole and Blue Collar Comedy, plus
kids’ programming, world-class news, local traffic and
weather. All of this with crystal clear, coast-to-coast
coverage. Everything worth listening to is now on
SIRIUS. A one-year SIRIUS Satellite Radio subscription is
included. SIRIUS XM and all related marks and logos are
trademarks of SIRIUS XM Radio Inc. and its subsidiaries.
SIRIUS Radio requires a subscription, sold separately
after trial subscription included with vehicle purchase.
Prices and programming are provided by SIRIUS and are
subject to change. Subscriptions governed by Terms &

Conditions available at sirius.com/service terms. SIRIUS
Radio U.S. service only available to those at least 18 years
of age in the 48 contiguous United States, D.C., and PR.
Service available in Canada; see www.siriuscanada.ca.

SIRIUS Satellite Radio Program Types

Program Types can be selected by pressing the or

buttons. The Program Type will change to the next

category and the radio will then tune to first station in
that program type. Pressing

or buttons will

tune to only the stations in that program type.
Pressing the

or buttons until 9All9 is displayed

will allow normal tuning to all stations.
The Program Types available are: All, Pop, Rock,

Electronic/Dance, Hip-Hop/R&B, Country, Christian,
Jazz/Standards, Classical, Latin/World, Sports, Enter­tainment, Talk, News, NPR, Comedy, Family & Health,
Religion, Traffic/Weather.

17

You can find SIRIUS’ current terms and conditions at
http://www.sirius.com.

Re-Subscribe To SIRIUS Satellite Radio

New vehicle purchasers or lessees will receive a free
limited time subscription to SIRIUS Satellite Radio with
your radio. Following expiration of the free services, it
will be necessary to access the information on the Sub­scription Information screen in order to re-subscribe.
Press the UP/DOWN button to scroll through the Menu
Functions, and the Left/Right button to change the
selected Set-up Menu function.

Write down the SIRIUS ID numbers for your receiver. To
reactivate your service, either call the number listed on
the display or visit the provider online.

CAUTION!

Neither SIRIUS nor FIAT is responsible for any
errors in accuracies in the SIRIUS data services or its
use in vehicles.

SIRIUS XM and all related marks and logos are trade­marks of SIRIUS XM Radio Inc. and its subsidiaries.
SIRIUS Radio requires a subscription, sold separately
after trial subscription included with vehicle purchase.
Prices and programming are provided by SIRIUS and are
subject to change. Subscriptions governed by Terms &
Conditions available at sirius.com/service terms. SIRIUS
Radio U.S. service only available to those at least 18 years
of age in the 48 contiguous United States, D.C., & PR.
Visit www.sirius.com

18

Sirius Subscription Issues When Replacing A
Sirius Radio

When a radio needs to be replaced, the dealer will need
the Sirius information to order a new radio (even if the
Sirius subscription has lapsed). The ESN number con­tains 12 digits.

The following are instructions for retrieving the ESN
from FIAT 500 NAFTA model radios:

To retrieve the Electronic Serial Number of Sirius Satellite
Receiver Module tune to Channel 0. Make sure that when
the order is placed, the ESN are correct. If any of the ESN
numbers are not entered correctly, then the Sirius sub­scription will not be able to be transferred to the new
radio and will not be active when installed in the
customer’s vehicle.

CD Player

Introduction

This chapter describes the variants regarding the opera­tion of the CD player only: as far as the operation of the
radio is concerned, refer to the description in the “Func­tions and Adjustments” chapter.

CD Player Selection

To activate the CD player built into the equipment,
proceed as follows:

•

load a CD with the equipment switched on: the first
track will start to play;

or

•

if a CD has already been loaded, turn on the car radio
and then briefly press the MEDIA button to select the
“CD” function mode: the last track listened to will
start to play.

19

It is advisable to use original CDs to ensure optimal
playing. If CD-R/RWs are used, we recommend using
good quality media that are burned at the slowest speed
possible.

CD Loading/Ejecting

To load the CD, insert it gently into the slot to activate the
motorized loading system, which will position it cor­rectly.

The CD can be loaded with radio off and the ignition key
turned to ON/RUN: in this case the radio will remain off.
When the radio is turned on, the last source listened to
before being switched off, will be activated.

When a CD is inserted the display will show the symbol
“CD” and the wording “CD Reading”. They will remain
displayed for the whole time required for the radio to
read the CD. When this time has elapsed the radio
automatically starts playing the first track.

Press the

button, with the radio turned on, to

activate the motorized CD ejection system. After ejection,
the last audio source listened to before playing the CD
will be heard.

If the CD is not removed from the radio, it will automati­cally be reloaded about 20 seconds later but will not
resume playing until the 9MEDIA9 button is pressed to
select the CD mode. The radio will switch to the last
source prior to CD mode.

The CD cannot be ejected if the radio is off.

Possible Error Messages

If the loaded CD cannot be read (e.g. a CD ROM has been
inserted or the CD is inserted the wrong way round or
there is reading error) the display shows the wording
“CD Disc error”.

The CD will then be ejected and the audio source
activated before the CD mode selection will be heard.

20

A CD which cannot be read will not be ejected until these
functions are over. At the end, with the CD mode
activated, the display will show the wording “CD Disc
error” for a few seconds and then the CD will be ejected.

Display Information

When the CD player is operating, on the display appear
information with the following meaning:

•

“Track 5”: indicates the CD track number;

•

“03:42”: indicates the time elapsed since the start of the
track (if the relevant Menu function is activated).

Track Selection

Briefly press the button to play the previous CD
track and the

button to play the next track. The

tracks are selected cyclically: the first track is selected
after the last track and vice versa.

If the track has been played for more than 3 seconds,
pressing the

button the track starts again from the

beginning. In this case, if you want to play the previous
track, press the

button twice consecutively.

Track Fast Forward/Rewind

Keep the button pressed down to fast forward the
selected track and keep the

button pressed down to

fast rewind the track. The fast forward/rewind will stop
once the button is released.

Pause Function

To pause the CD player, press the button. The
wording “CD Pause” appears on the display.

To resume listening to the track, press the

button

again.

CD MP3 Player

Introduction

This chapter describes the variants regarding the opera­tion of the CD MP3 player.

21

NOTE: Layer-3 audio decoding technology licensed
from Fraunhofer IIS and Thomson multimedia.

MP3 Mode

In addition to playing regular audio CDs, the radio is also
enabled to play CDROMs on which compressed audio
files have been recorded in an MP3 format.

To guarantee optimal reproduction it is advisable to use
good quality CDs burned at the lowest speed possible.

The files on an MP3 CD are structured in folders that
create lists of all the folders containing MP3 tracks
(folders or subfolders are all on the same level); the
folders that do not contain MP3 tracks cannot be selected.

The specifications and operating conditions for playing
MP3 files are the following:

•

the CD-ROMs used should be burned in accordance
with ISO standard 9660;

•

the music files should have extension “.mp3” or
“.wma”: files with a different extension will not be
reproduced;

•

The sampling frequencies that can be reproduced are:

44.1 kHz, stereo (from 96 to 320 kbit/s) – 22.05 kHz,
mono or stereo (from 32 to 80 kbit/s);

•

tracks with a variable bit-rate can be reproduced.

NOTE:

The track names must not include the following
characters: spaces, ‘ (apostrophes), ( and ) (open and close
brackets). During the burning of a MP3 CD, make sure that
the names of the files do not contain these characters; if not,
the radio will not be able to play the tracks involved.

Selecting MP3 Sessions With Hybrid Discs

If a hybrid disc is inserted (Mixed Mode, Enhanced,
CD-Extra) also containing MP3 files, the radio automati­cally starts playing the audio session. It is possible to
move to the MP3 session while playing by keeping the
CD button pressed for more than 2 seconds.

22

NOTE: When the function is activated the radio may
take a few seconds to start playing. While checking the
disc the display will show “CD Reading”. If no MP3 files
are detected, the radio will resume playing the audio
session from the point where it was interrupted.

Display Information

ID3–Tag Information Display

In addition to the information relating to the time
elapsed, folder name and file name, the radio is also
capable of displaying ID3_TAG information relating to
Title track, Artist and Author.

When one of the ID3-TAG pieces of information is chosen
to be displayed (Title, Artist, Album) and this informa­tion has not been recorded for the track played, the text
9UNKNOWN9 will be displayed for that field.

Selection Of Next/Previous Folder

Press the button to select a next folder or the button

to select the previous folder. The display will show

the number of the folder.
The folders are selected cyclically: the first folder is

selected after the last folder and vice versa.
If no other folder/track is selected in the next 2 seconds,

the first track on the new folder will be played.
If the last track in the folder at that moment selected is

played, the next folder will be played.

Structure Of The Folders

The radio with MP3 player:

•

recognizes only the folders that effectively contain
MP3 format files;

•

if the MP3 files on a CD-ROM are structured in “sub­folders”, their structure is compressed to a single level
structure, where the “sub-folders” are taken to the level
of the main folders.

23

Troubleshooting

General

Sound Volume Low

The Fader function should be adjusted to the values “F”
(front) only to prevent the reduction in radio output
power and the cancelling of the volume if the Fader level
adjustment is equal to R+9.

Source can not be selected

Nothing has been loaded. Load the CD or the MP3 CD to
listened to.

CD Player

The CD does not play

The CD is dirty. Clean the CD.
The CD is scratched. Try using another CD.

The CD can not be loaded

A CD is already loaded. Press the

button and

remove the CD.

MP3 File Reading

Track skips while playing MP3 files

The CD is scratched or dirty.

The duration of the MP3 tracks is not correctly
displayed.

In some cases (due to the recording mode) the duration of
the MP3 tracks can be displayed incorrectly.

Operating Instructions — Hands-Free Phone (If
Equipped)

Refer to the appropriate Blue&Me™ User’s Manual for
further information.

24

iPodT/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED

This feature allows an iPodt or external USB device to be
plugged into the USB port, located in the glove compart­ment.

Refer to the appropriate Blue&Me™ radio User’s Manual
for iPodt or external USB device support capability.

1 — iPodt or External USB Device Holder
2 — Cable Jack
3 — USB Connector

1

STEERING WHEEL AUDIO CONTROLS

The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.

The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.

Pressing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
CD/AUX/Media Player, etc.) and can also be used to
select/enter an item while scrolling through menu.

The left-hand control is a rocker-type switch with a
pushbutton in the center. The function of the left-hand
control is different depending on which mode you are in.

The following describes the left-hand control operation in
each mode.

Remote Sound System Controls (Back View Of Steering

Wheel)

1

Radio Operation

Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.

The button located in the center of the left-hand control
will tune to the next preset station that you have pro­grammed in the radio preset pushbutton.

CD Player Operation

Pressing the top of the switch once will go to the next
track on the CD. Pressing the bottom of the switch once
will go to the beginning of the current track, or to the
beginning of the previous track if it is within one second
after the current track begins to play.

If you press the switch up or down twice, it plays the
second track; three times, it will play the third, etc.

Operating Instructions — Hands-Free Phone (If
Equipped)

Refer to the appropriate Blue&Me™ User’s Manual for
further information.

2
