Fhiaba FI36BILO, FI30BIRO, FI30BILO, FK36BIRS, FI36BIRO User manual
...
Fridge
User manual
Réfrigérateur
Mode d’emploi
Frigorífico
Manual de usuario
INDEX
1
IMPORTANT DIRECTIONS FOR SAFETY AND THE ENVIRONMENT
1.1
For your safety.................................................................................................................................................................
1.2
Important information when using the appliance..................................................................................................
1.3
Caring for the environment..........................................................................................................................................
1.4
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)..........................
2
INSTALLATION
2.1
Installation.........................................................................................................................................................................
2.2
Connection to the water system.................................................................................................................................
2.3
Connection to the electrical power supply..............................................................................................................
3
BEFORE STARTING
3.1
Know your Fhiaba...........................................................................................................................................................
3.2
Main components............................................................................................................................................................
3.3
Electronic Control............................................................................................................................................................
3.4
Main control panel (1T, 0T and 0H models)..............................................................................................................
3.5
Fresco control panel (1T models)...............................................................................................................................
3.6
Main control panel (0F models)....................................................................................................................................
4
APPLIANCE SWITCHING ON AND OFF
4.1
Switching on and o.......................................................................................................................................................
4.2
How to adjust the temperature for dierent requirements................................................................................
4.3
Ice Maker Activation (optional).....................................................................................................................................
4.4
Information and malfunction messages on the display.......................................................................................
EN
4
4
4
5
5
5
5
5
6
6
6
7
9
9
10
10
11
11
11
12
12
5
SETTINGS AND SPECIAL FUNCTIONS
5.1
Customization and language settings........................................................................................................................
5.2
Special functions activated through the Menu.......................................................................................................
5.3
Basic settings of the Menu...........................................................................................................................................
6
INTERNAL LAYOUT
6.1
Internal Layout (positioning, adjustment, removal)...............................................................................................1717
7
ACTIVATION AND USE OF THE ICE MAKER
7.1
Activation and use of the Ice Maker............................................................................................................................
7.2
Water Filter (not 0F model)...........................................................................................................................................
7.3
Water filter for freezer column ice maker................................................................................................................
8
LIGHTING
8.1
Lighting...............................................................................................................................................................................2020
9
FOOD PRESERVATION
9.1
General directions...........................................................................................................................................................
9.2
How to maintain good food quality.............................................................................................................................
10
RECOMMENDED TIMES FOR FOOD PRESERVATION
10.1
Recommended times for Food Preservation..........................................................................................................2222
11
CARE AND CLEANING
11.1
Care and Cleaning...........................................................................................................................................................
11.2
Condenser cleaning........................................................................................................................................................
11.3
Internal cleaning.............................................................................................................................................................
12
12
13
15
18
18
19
19
20
20
21
23
23
23
24
12
TROUBLESHOOTING GUIDE
12.1
Troubleshooting Guide...................................................................................................................................................
12.2
Malfunction messages appearing on the display..................................................................................................
13
FHIABA ACCESS MENU MAP
13.1
Functions...........................................................................................................................................................................
13.2
Setting................................................................................................................................................................................
2
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
24
24
26
27
27
28
3
1. IMPORTANT DIRECTIONS FOR SAFETY AND THE ENVIRONMENT 2. INSTALLATION
EN
1.1 For your safety
> If this appliance is replacing an existing appliance
which must be removed or disposed of, make sure
that it does not become a dangerous trap for children
by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at
the end of the lifespan of the new appliance.
> This appliance is designed to refrigerate beverages
and foods and is intended for domestic use.
> The appliance must be installed by following the
instructions in the Installation Guide, particular care
should be taken not to obstruct the vent openings of
the appliance and of the built-in units.
> The appliance features a concentrated lighting sy-
stem with LED lamps. Do not stare into these lamps
when they are on to avoid possible eyesight damage.
This warning is also contained on the label attached
to the inside of the refrigerator door.
> When the freezer is functioning do not touch the
inner surfaces in stainless steel with wet or damp
hands, since skin may stick to the very cold surfaces.
> Do not use any type of electrical equipment inside
of the food conservation compartments.
> When positioning the shelves, do not place fingers
in the shelf slide guides.
> Do not position containers of flammable liquids
near the appliance.
> Completely switch o the appliance and unplug the
power supply cable during cleaning operations. If the
plug is not easily reached, it is a good idea to turn
o the breaker or remove the fuse that controls the
socket that the appliance is connected to.
> The packaging parts can be dangerous for children:
do not allow children to play with the plastic bags,
plastic film or Styrofoam.
> Any repairs must be performed by a qualified Fhia-
ba Service technician.
> This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or lack of experience and knowledge unless they
have been given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure
that they do not play with the appliance.
> Do not damage the appliance refrigerant circuit pi-
pes.
> Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
> If the power cord of this appliance is damaged, it
must be replaced by the manufacturer, customer
service
or a similarly qualified person. Improper installations
and repairs may put the user at considerable risk.
> Repairs may be performed by the manufacturer,
customer service or a similarly qualified person only.
1.2 Important information when using
the appliance
> Never use electrical appliances inside the applian-
ce (e.g. heater, electric ice maker, etc.). Explosion hazard!
> Never defrost or clean the appliance with a steam
cleaner! The steam may penetrate electrical parts
and cause a short-circuit. Risk of electric shock!
> Do not use pointed and sharp-edged implements
to remove frost or layers of ice. You could damage
the refrigerant tubes. Leaking refrigerant may cause
eye injuries or ignite.
> Do not store products which contain flammable
propellants (e.g. spray cans) or explosive substances
in the appliance. Explosion hazard!
> Do not stand on or lean heavily against base of ap-
pliance, drawers or doors, etc.
> Before cleaning the appliance, pull out the power
cord plug or switch o the fuse. Do not pull out the
power cord plug by tugging on the power cord.
> Store high-percentage alcohol tightly closed and
standing up.
>Keep plastic parts and the door seal free of oil and
grease. Otherwise, parts and door seal will become
porous.
> Never cover or block the ventilation openings for
the appliance.
Symboles utilisés dans le manuel:
Note
conseils pour une correcte utilisation de
l’appareil
Important
Indications afin d’éviter tout
endommagement de l’appareil
Attention
indications afin d’éviter toute lésion aux
personnes
1.3 Caring for the environment
> Pay special attention to correct disposal procedu-
re for all the packaging materials.
> The appliance must not be disposed of with urban
waste. Contact local waste disposal centres for on
how to dispose of recyclable waste.
> Prior to disposal, cut the power supply cord and
make it impossible to close the door.
> During disposal, avoid damage to the refrigeration
circuit.
> The appliance does not contain hazardous sub-
stances for the atmospheric ozone layer, neither in
the refrigeration circuit nor in the insulation.
1.4 Cleaning, sanitization and maintenance of the ice and/or water dispenser (if
present)
Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the
water dispensed.
> When using the appliance for the first time and
every time the filter is changed, it is recommended
to let the water flow in the circuit using the “Manual Cleaning” and discard the ice produced in the
first 24 hours.
> If the water dispenser has not been used for
more than 4/5 days, it is advisable to clean the
circuit and run o the first litre of water.
> Reposition the removable water dispenser (if
present), ensuring your hands are hygienically
clean.
> Clean the ice bucket or drawer regularly but
using only drinking water.
> The filter must be changed when indicated on the
control panel or when the ice/water dispenser has
not been used for more than 30 days.
> With each filter replacement, sanitise the ice
and/or water distribution system using a food grade disinfectant (with sodium hypochlorite), which
does not alter the characteristics of the materials.
Rinse with at least 2 litres of water before use.
> Only original spare parts supplied by the manu-
facturer should be used when replacing components in the ice and water dispenser.
> Any work on the appliance must be carried out
by a qualified technician or the After-sales Service.
2.1 Installation
Make sure that installation is performed correctly,
adhering to all directions in the specific installation
manual provided with the appliance.
Attention
Do not use extension cords and/or
multiple adapters for the power supply
connection.
2.2 Connection to the water system
The models provided with Ice Maker require a connection to the domestic water supply system. This
can be executed through the 1/4” water line (copper
or polyethylene)to the house water supply.
The system pressure must be between from 8 psi
to 75 psi (between 0.5 bar and 5 bar).
Dierent pressures can cause malfunctions or leaks in the water system.
The appliance should be supplied only with drinkable water.
4
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
5
3. BEFORE STARTING2. INSTALLATION
EN
Attention
The appliance should be supplied only
with drinkable water.
Attention
Make sure that installation is performed
correctly, according to all of the directions in the specific installation manual
provided with the appliance.
Attention
Do not attempt to use a locally sourced
garden hose threaded adapter or braided supply line. It will strip the threads
on the appliance water connection solenoid.
2.3 Connection to the electrical power
supply
The appliance operates at 115 V AC, 60 Hz and is
equipped with a power supply cord with a 3-prong
grounded plug, which must be connected to a corresponding 3-prong (15 Amp) grounding-type wall
receptacle.
3.1 Know your Fhiaba
Congratulations for having purchased your new
Fhiaba: from now on you can use our innovative conservation system, which will allow you to keep all of
your food in the best way possible.
This manual will answer most of your questions
about the product’s features. Should you require further information, please check our website
> call us: 1-855-4-FHIABA (1-855-434-4222)
> write us an e-mail at fhiaba@adcoservice.com
> our website www.fhiaba.com
Important
Before calling, write down the model type
and serial number which are available on
the warranty certificate and on the rating
plate, and any messages which may have
appeared on the display.

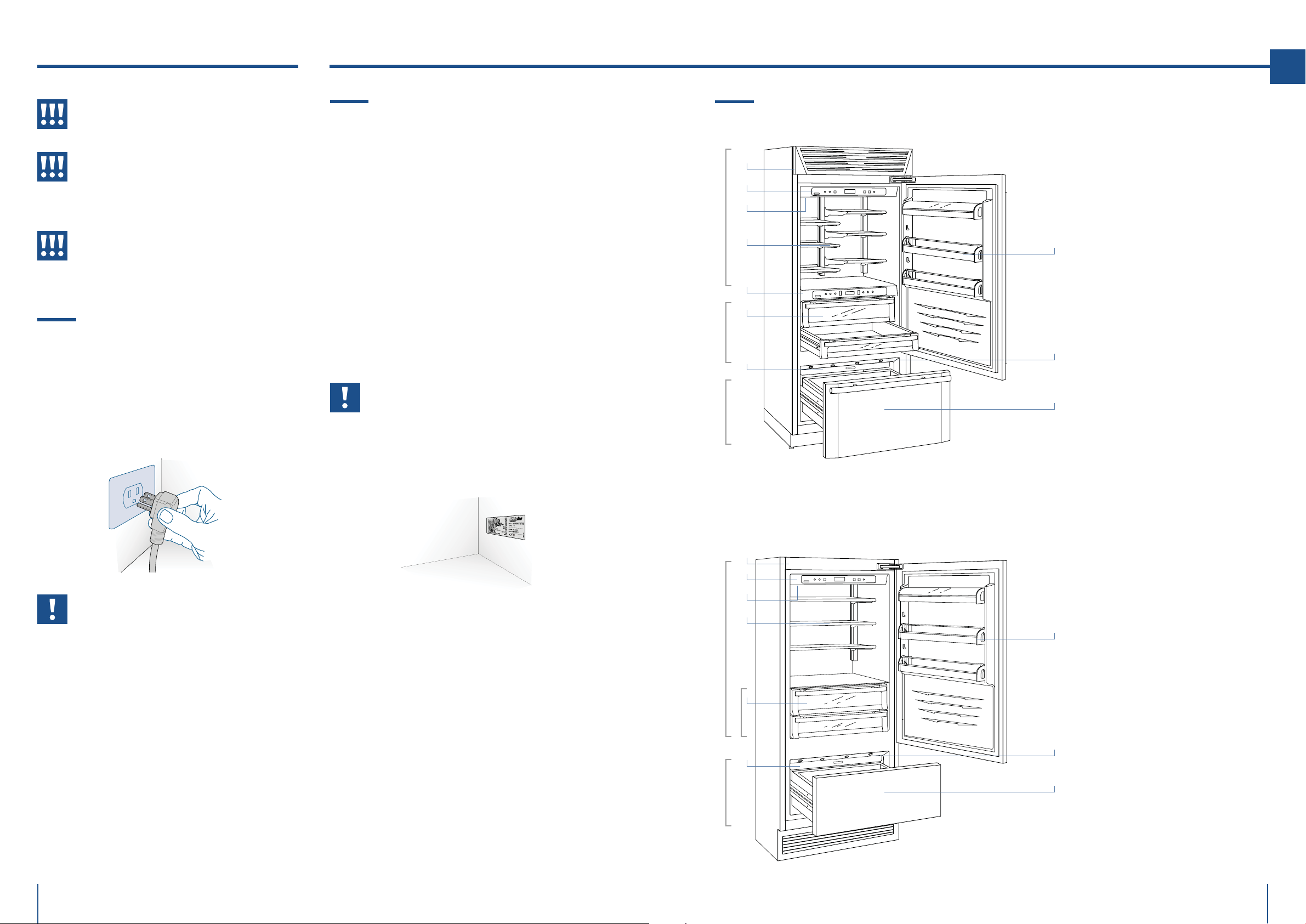

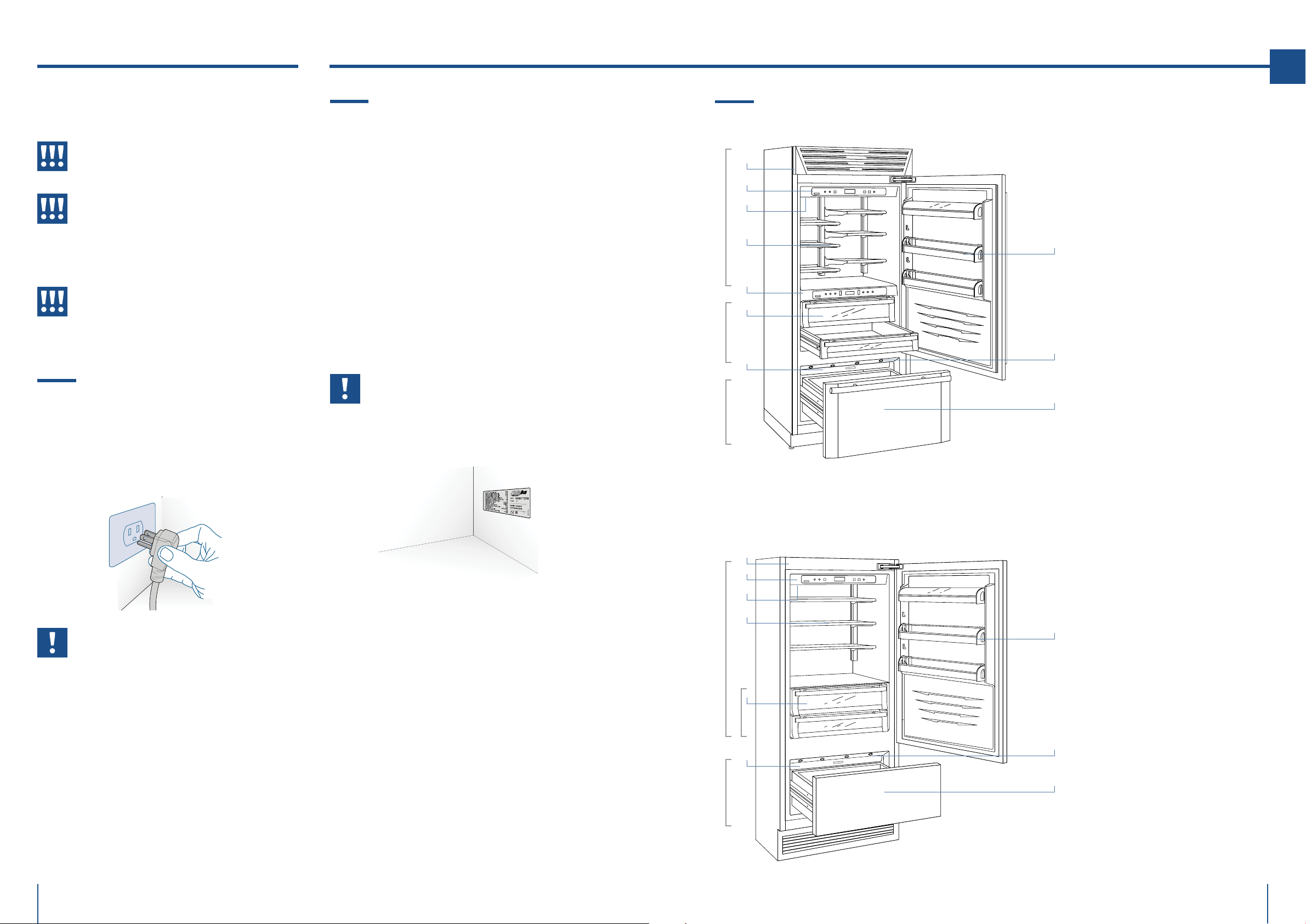

3.2 Main components
1
2
3
Fridge
4
5
6
7
TriMode Crisper - FrescoTriMode
8
9
10
1T Models
1 Stainless steel structure
with aluminum trim
2 Control panel
3 Water Filter (*)
4 Patented shelf
positioning system
5 Control panel,
Fresco area
6 Fresco drawer with
controlled humidity
7 Automatic icemaker (*)
8 Spacious door shelves
9 Led lighting
10 Frezer compartment
that can be transformed
into a refrigerator
or Crisper-Fresco
compartment (TriMode
function)
Important
Do not use extension cords and/or
multiple adapters for the power supply
connection.
Fridge
Low Temp
1
2
3
4
7
5
8
6
9
(*) on some models
0T / Brilliance Models
6
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
7
3. BEFORE STARTING
1
2
3
1 Stainless steel structure
with aluminum trim
2 Control panel
EN
3.3 Electronic Control
The innovative electronic control system designed by Fhiaba maintains constant temperature in multiple
compartments and displays it on the control panel. It also allows user interaction making it possible to
personalize settings of various functions and to alert the user with sound and/or visual messages should
any malfunction occur in the appliance.
Fridge
TriMode
4
7
3 Water Filter (*)
3.4 Main control panel (1T, 0T and 0H models)
4 Patented shelf
positioning system
5
8
6
5 Low Temp drawer
6 Automatic icemaker (*)
7 Spacious door shelves
1
8 Led lighting
9
2
UNIT
FRI
DGE
1234 5 67 98
Unit
Fridge
Switches the appliance (all compartments) between ON and STAND BY (press for three seconds).
Allows switching ON and OFF of only the refrigerator compartment (press for three seconds).
ENTER
I
CE
MAKER
9 Frezer compartment
that can be transformed
3
Menu Allows access to the appliance function menu
into a refrigerator
0H Models
or Crisper-Fresco
compartment (TriMode
function)
(*) on some models
4
5
Up/down
Fridge
Display
Using the Up and Down buttons, it is possible to change the set temperature of the refrigerator and navigate through the interactive menu.
It shows the temperature of the refrigerator and freezer compartments, the date and time,
Menu functions and visual messages.
Fridge
Low Temp Low Temp
1
2
4
5
2
7
7
1
4
Freezer
6
6
7
8
9
Up/Down
Freezer
(TriMode)
Enter Confirms activation or deactivation of the selections made in the Menu.
Ice maker Allows activating or deactivating the automatic ice production.
Alarm
By selecting Up/Down the preset temperature can be changed according to the selected
function mode (freezer, refrigerator, Fresco)and navigate through the interactive menu.
Blinks to signal user alerts such as door left open, also in combination with a sound signal
which can be deactivated by pressing the button.
0FR Models - Fridge 0FZ Models - Freezer
8
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
9
3. BEFORE STARTING 4. APPLIANCE SWITCHING ON AND OFF
EN
3.5 Fresco control panel (1T models)
CR
I
SPER
10 11 12
11 Display Shows the temperature of the Fresco compartment.
12
13
Up/Down
Crisper Allows switching on and off of only the Fresco compartment (press for three seconds).
Using the Up and Down buttons, it is possible to change the temperature set for the Fresco
compartment.
3.6 Main control panel (0F models)
UNIT
123 4 567
1 Unit Switches the appliance (all compartments) between ON and STAND BY (press for three seconds).
2 Menu Allows access to the appliance function menu
3
4
5
6
7
Up/down
Fridge
Display
Up/Down
Freezer
Enter Confirms activation or deactivation of the selections made in the Menu.
Alarm
Using the Up and Down buttons, it is possible to change the set temperature of the refrigerator
and navigate through the interactive menu.
It shows the temperature of the refrigerator and freezer compartments, the date and time, Menu
functions and visual messages.
By selecting Up/Down the preset temperature and navigate through the interactive menu.
Blinks to signal user alerts such as door left open, also in combination with a sound signal which
can be deactivated by pressing the button.
ENTE
R
4.1 Switching on and o
First startup
When the appliance is connected to the electrical
power supply but has not yet been switched on,
the display shows the message
This is a safety message to warn that the appliance is connected to the mains, and all the panel buttons are off.
To switch on all the appliance compartments,
press the Unit
When the appliance is first switched on is reccomended to wait at least 12 hours without opening
the doors and before placing any food inside the
unit.
During such period deactivated any error message by pressing the Alarm button.
Switching off the Refrigerator
and Fresco compartments
Press Fridge or Crisper button for three seconds.
Switching off the TriMode compartment
Can only be switched off by switching off the
whole unit.
Press Unit for three seconds.
Restarting
Use the same buttons to restart.
The freezer compartment always stays on and
cannot be switched off except by completely
switching off the appliance by pressing the Unit
button for three seconds.
Switching off for long periods
During long absence periods it is recommended
to switch off the refrigerator by pressing the Unit
button for three seconds and disconnecting the
electrical plug or the breaker controlling the socket.
Completely empty the refrigerator, clean and dry
it and leave the doors and drawers partially open
to prevent unpleasant odors.
If at the first startup the Standby message
does not appear, but another message appears, it means that the appliance has already
started the cooling process. If this is the case,
deactivate any possible sound signal by pressing the Alarm button
wait until the set temperature is reached.
button for three seconds.
.
, close the door and
During the first startup, it will not be possible
to use the Menu to modify the factory settings
until the preset temperature has been reached.
Each time the appliance is switched on it goes
trough a self-diagnosis procedure lasting three minutes before completely starting up.
If only the refrigerator compartment or the
Crisper-Fresco compartment is switched o,
the specific fan will continue to operate to
prevent the formation of unpleasant odors
and mold.
Before switching o the appliance for a long
period of time, remove all of the items inside
and leave the doors and drawers open to prevent the formation of unpleasant odors and
mold.
4.2 How to adjust the temperature for
dierent requirements
Each model has been carefully tested before leaving the factory and is adjusted in such a way to
ensure high performance and low consumption.
Usually, it is not necessary to modify the settings.
Nevertheless, according to special needs, it is
possible to modify the set temperatures as follows:
Refrigeration Compartment
From +1°C to +7°C (from 34°F to 46°F), the recommended preset temperature is +4°C (39°F).
To adjust the temperature use the Up/Down but-
. Upon touching these buttons the newly set
tons
temperature will appear in the display. To modify
this temperature, use the buttons until reaching
the desired temperature.
Vano Crisper - Fresco (sui modelli 1T)
From -2°C to +2°C (from 28°F to 36°F), the recommended preset temperature is 0°C (32°F).
To adjust the temperature use the Up/Down but-
. Upon touching these buttons the newly set
tons
temperature will appear in the display. To modify
this temperature, use the buttons until reaching
the desired temperature.
Freezer Compartment (TriMode)
From -13°C to -23°C (from 9°F to -11°F), the recommended temperature is preset at -18° (0°F).
To adjust the temperature use the Up/Down but-
. Upon touching these buttons the newly set
tons
temperature will appear in the display. To modify
this temperature, use the buttons until reaching
the desired temperature.
10
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
11
5. SETTINGS AND SPECIAL FUNCTIONS
EN
In case the compartment is used as refrigerator
or Crisper-Fresco compartment (TriMode function) the recommended and preset temperatures will correspond to those indicated for the respective compartments.
The temperature shown can vary slightly in
respect to the set temperature following frequent openings of the doors or insertion of
room temperature foods or large quantities
of foods.
6 to 12 hours are necessary to reach the selected temperature.
4.3 Ice Maker Activation (optional)
The Ice Maker button located on the main control panel permits activation of the automatic icemaker.
The button is illuminated when the icemaker is
functioning.
A prewash of the water circuit should be performed before activating the Ice Maker for the first
time. To do this touch at the same time buttons
Enter
After a few minutes the Ice Maker can be activated.
For freezer models 0F
and Ice Maker .
...
Important
Do not activate the Ice Maker unless
the appliance is connected to the water
mains.
4.4 Information and malfunction messages on the display
An integrated control system provides information through light signals or text messages visualized on the display.
The information signal is always visualized with
a fixed text message, while a malfunction signal
is visualized with blinking text. The sound signal
that accompanies some malfunction signals can
be deactivated by pressing the Alarm button
on the main control panel.
The list of malfunction signals is located at the
back of this manual.
5.1 Customization and language settings
FRIDGE
UNIT
To prevent an inadvertent change to the settings the keypad is automatically locked after
a certain period of time.
To re-activate the Menu function, press simultaneously the Menu button and the Down
button for at least three seconds.
The key lock can be disabled through the specific function in the Settings menu.
It is possible to customized the functions of your
Fhiaba to adapt it to diverse usage needs, resetting the main parameters (Settings) or activating
special functions (Functions).
Functions are visualized on the main display by
pressing the Menu button
The Up/Down buttons
lable functions, which can be selected by pressing the Enter button
the current functioning status.
Using the Up/Down buttons
to scroll through the selected function, activating
or deactivating by pressing the Enter button
Once the function is confirmed, the display will
automatically visualize the main menu to select
other functions.
At any time it is possible to return to the previous
selection through the FhiabaAccess button
The language of the messages appearing on the
display can be changed by operating as follows:
Enter the Menu by pressing the Menu button
select Settings via the Up/Down buttons
confirm via Enter
function and the desired language.
. Then select the Language
.
permit scrolling the avai-
. The display visualizes
, it is also possible
.
and
5.2 Special functions activated through
the Menu
To use special functions, select the Menu button
and use the Up/Down button to access the
menu, confirming the selection Functions.
Shopping Fridge
The function lowers the refrigerator temperature to +2°C (35.6°F) for 12 hours, permitting more
rapid cooling of food that has just been placed
in. Once the 12 hours have expired, the function
deactivates automatically, returning to the previously set temperature. It is possible to program
a timed activation of the function. After a prolonged interruption of electrical current, it is necessary to reactivate the function.
How to activate
How to deactivate
How to program timed activation
It is possible to program the function with a delay
of 1 to 12 hours.
The various Shopping Modes help prepare the
cooling, Fridge and TriMode compartments
for the introduction of a heat load which can
consist of fresh food or other items which
.
Vacation Fridge
This function (recommended in case of prolonged
absences since it allows considerable energy savings) brings the TriMode compartment temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be
may have warmed during transport. The
more quickly an item can be cooled or frozen
the better it will be preserved.
This mode can also be eective at maintaining compartment temperatures while entertaining when higher than average door and
drawer openings are anticipated.
manually deactivated upon re-entry after a period of absence.
This function remains active even if during the
period of absence there is a prolonged interruption of electrical power.
How to activate
How to deactivate upon re-entry
How to program the duration
It is possible to program a period from 1 to 90
days.
Shopping TriMode
This function must be activated at least 24 hours
before inserting room temperature items into the
freezer, or several hours before placing into the
freezer previously frozen items which have been
subject to a slight temperature rise. This function
is automatically deactivated when the programmed time period expires. It is possible o program
timed activation of the function.
If interrupted by a prolonged interruption of the
electrical power, it is necessary to reactivate the
function.
How to activate
How to deactivate
How to program timed activation
It is possible to program the function with a delay
of 1 to 12 hours.
12
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
13
5. SETTINGS AND SPECIAL FUNCTIONS
EN
Vacation TriMode
This function (recommended in case of prolonged
absences since it allows considerable energy savings) brings the TriMode compartment temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be
manually deactivated upon re-entry after a period of absence.
This function remains active even if during the
period of absence there is a prolonged interruption of electrical power.
How to activate
How to deactivate upon re-entry
How to program the duration
It is possible to program a period from 1 to 90
days.
Ice Maker (optional)
The IceMaker function permits selecting the size
of the ice cubes, by choosing between Large
(base setting) or Medium, and activation of the
SuperIce function, which increases the quantity
of produced ice.
The SuperIce function deactivates automatically
after 24 hours.
How to set large size ice cubes
How to set medium size ice cubes
How to activate the SuperIce function
How to deactivate
How to check the status of the filter
It displays days and liters left before filter expiration.
Reset Filter
The Reset Filter function sets to zero the time
left before the filter needs to be replaced. It is
necessary to set the meter to zero each time the
cartridge is replaced. As an alternative press for
5 seconds the Enter button
How to set the filtered water meter to zero
Bypass Filter
This function is to be activated when it is not
necessary to filter the water, because excellent
quality water is already available from the home
water system.
Repeat the operation until the water is clean.
Correctly position the ice tray or another suitable container under the IceMaker to collect
water, then close the drawer. At the end of the
operation, wash the tray.
5.3 Basic settings of the Menu
Select the Menu button and used the Up/Down
button
TriMode Options
The freezer compartment can, if required, be converted to the refrigeration o Fresco operating mode.
How to set the Fridge function
How to set the Fresco function
How to revert to the Freezer function
to select Settings .
Bottle Cooler
This function can be activated when it is necessary to cool off beverages quickly, by placing them
inside the freezer compartment.
It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal temperature has been reached. After removing the beverages, deactivate the sound signal
by pressing the Alarm button
How to activate
How to deactivate
How to program the duration
.
Sabbath Mode (Optional)
The function makes it possible to comply to certain religious observances requiring that the
operation of the appliance is not affected by the
opening or closing of the doors (the thermostatic
control, the inner lighting and the ice maker are
deactivated).
How to activate
How to deactivate
Water Filter
The View Status function permits visualizing the
time left before the filter needs to be replaced.
How to activate filter Bypass
How to deactivate filter Bypass
Manual Clean, Water Filter
If ice production has been disabled or unused for
a long period it is recommended to perform a Manual Clean function to flush out water which has
sat in the system during this period.
Before proceeding it is important to turn off the
ice maker by pressing button
How to manually clean the filter
.
Default Setting
This oers the possibility to reset default factory
settings and cancels any previous changes.
How to reset default settings
Important
If the default settings are restored, the default mode of the TriMode compartment is
freezer mode. If it was previously being
used in refrigerator or Fresco mode be sure
to set it back to your desired setting.
14
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
15
5. SETTINGS AND SPECIAL FUNCTIONS
6. INTERNAL LAYOUT
EN
DATE
Set date
The display will show the date in the format
dd:mm:yy (day:month:year), the day will blink. Use
the Up/Down buttons
firm with Enter
the year is confirmed the date will be set.
How to set the date
Show date
Using this function it is possible to deactivate/activate the date visualization on the display.
How to activate the date
How to deactivate the date
to modify the setting, con-
to go on to the next setting; once
How to set the display to 24 h
Show Time
Through this function it is possible to activate/deactivate the constant visualization of the time.
How to activate the permanent time
How to deactivate
LANGUAGE
The function allows selection of the language for
the display messages.
Italian
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
Keypad lock
Through this function it is possible to activate/deactivate the keypad lock.
How to activate
keypad lock
How to deactivate
keypad lock

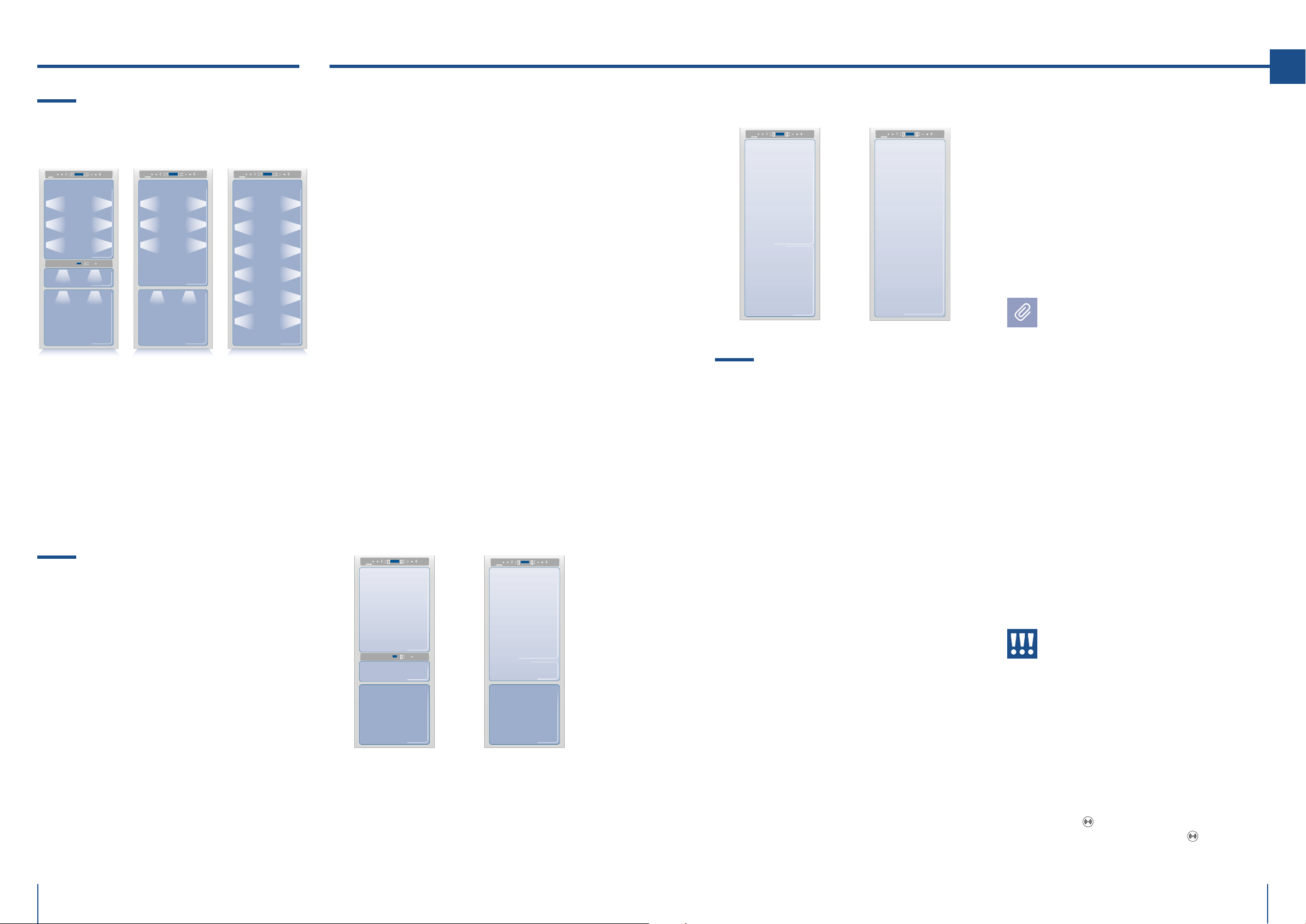

6.1 Internal Layout (positioning, adjustment, removal)
Fresco Drawer
1T / 0T / 0H models
Fixed to the slide guides with two thumbscrews.
> to remove the drawer, unscrew the thumbscrews
and remove the drawer.
TriMode Drawer
modelli 1T / 0T / 0H
The upper TriMode can be removed using the same
method used for the Fresco drawer
> to remove the inner TriMode drawer unscrew the
thumbscrews.
When replacing the drawers, make certain the
back of the drawers engage under the clips on the
slide guides.
TIME
Set time
The display shows the hours and minutes in the format hh:mm and with hh: blinking. Use the Up/Down
buttons
pressing Enter
Once the minutes are confirmed, the time will be
set.
How to set the time
Set 12/24
This function selects the display at 12 or 24 h.
How to set the display to 12 h
to modify the setting and then confirm by
to go on to the next setting.
English
French
German
Spanish
SET °C/°F
This function permits visualizing the temperature
in Centigrade or Fahrenheit degrees. Normally, the
appliance is set for visualization in centigrade degrees.
Ice Tray
Located in the upper drawer of the freezer compartment
> after removal, make sure to reposition it correctly.
Warning
Do not place hands or fingers near the Icemaker when in function.
16
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
17
7. ACTIVATION AND USE OF THE ICE MAKER
EN

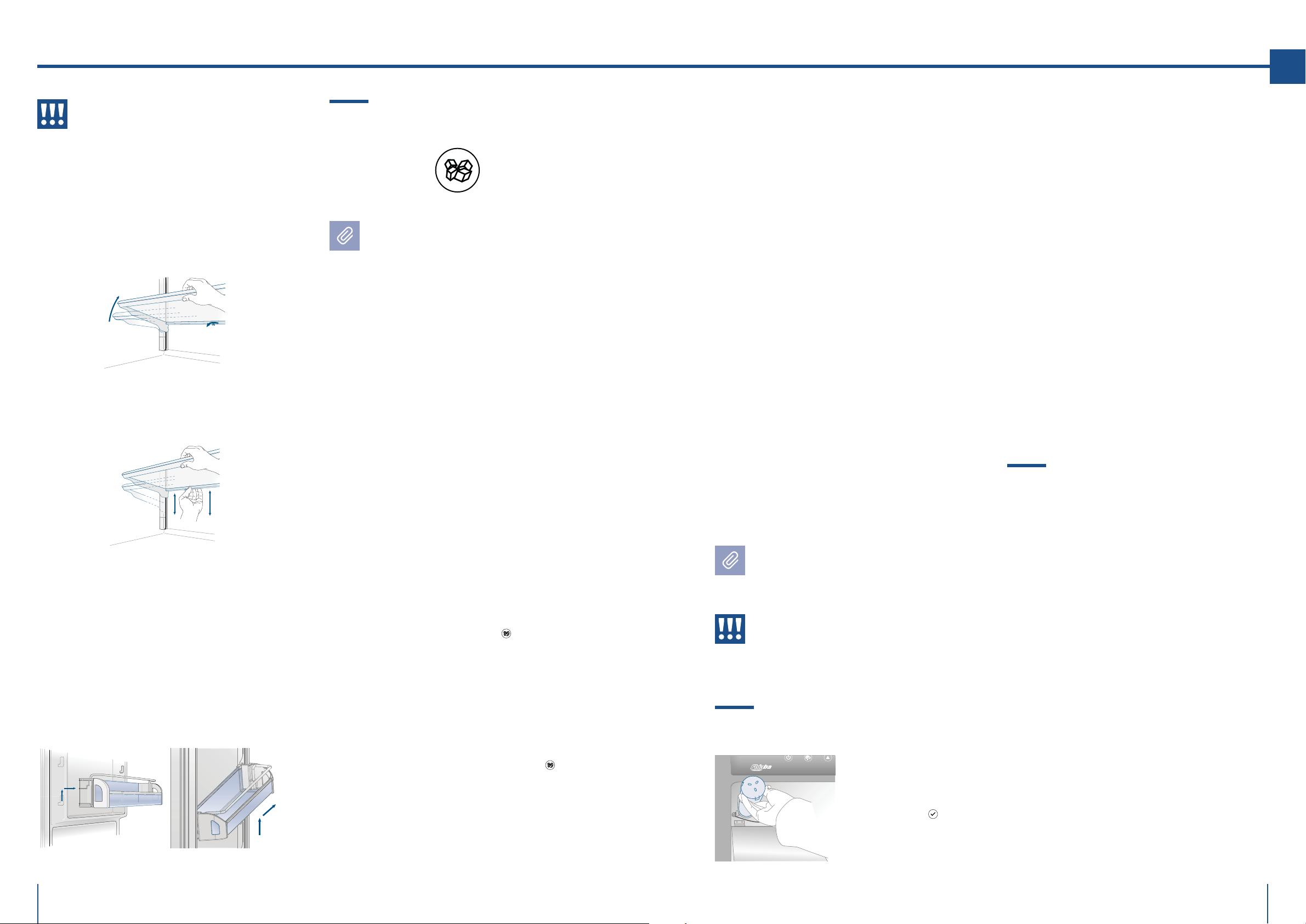

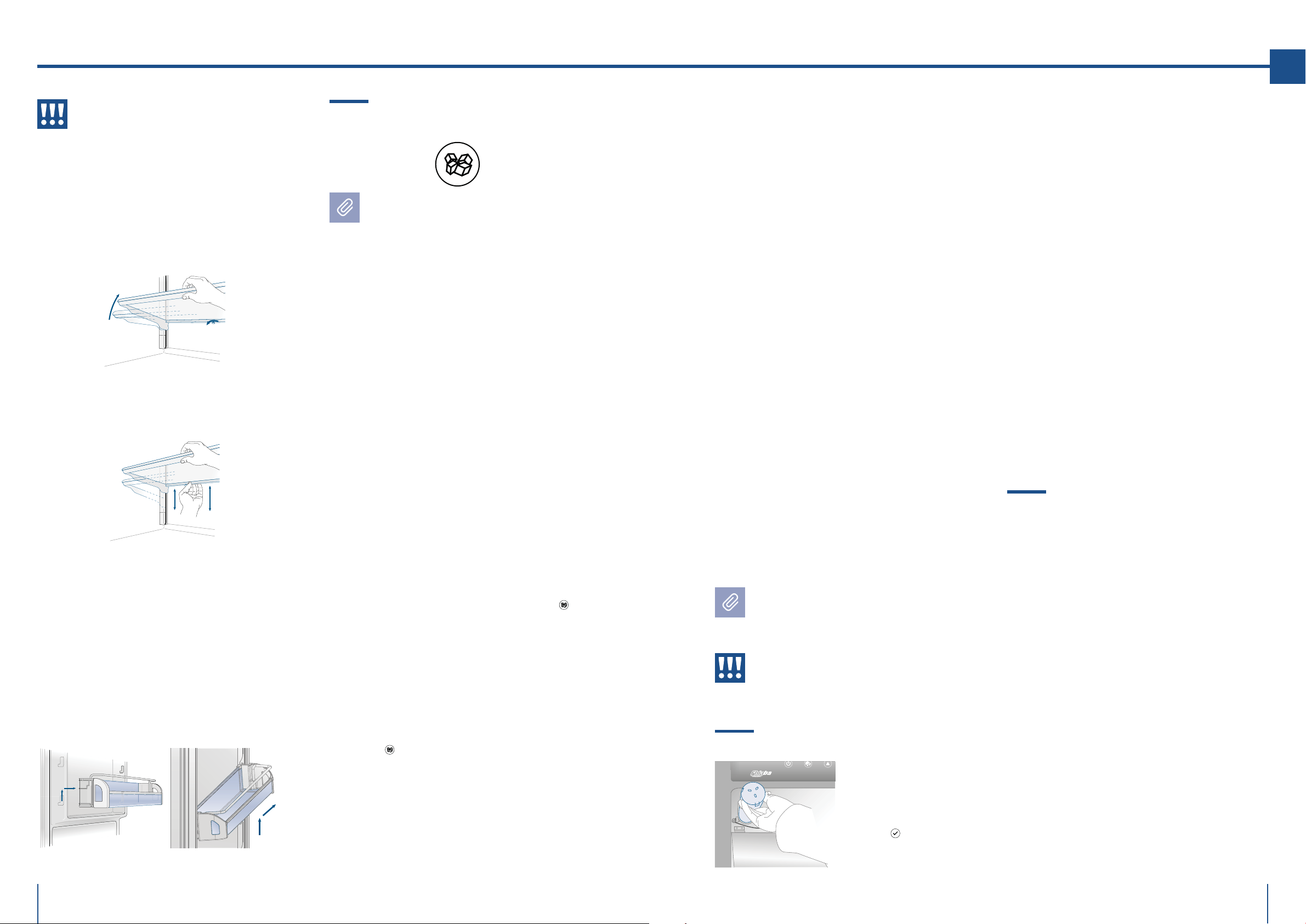

Shelves
The shelves are sliding and can be easily re-positioned by the user as follows:
> release the locking knob by turning i anti-clockwise
> lift or lower the shelf to the desired position
> re-tighten the locking knob
> to remove a shelf it is necessary to slide it up to
the top
Door Shelves
1T / 0T / 0H models
The door shelves can be easily removed for cleaning
> Hold the door shelf at the sides and push it upwards
to release it from its seat, then pull it outwards.
> Reverse the procedure to reinstall.
1T / 0T / 0H models 0F models
2
1
2
1
7.1 Activation and use of the Ice Maker
Notes
> If the ice is not used frequently is advisable
to empty the ice bin once every 8-10 days.
It is normal that some ice cubes stick to one
another. If the ice is not frequently used, the
older cubes can become opaque, and will
have a strange flavour and become smaller.
> The Icemaker automatically deactivates if
the Vacation function is activated.
When the Icemaker is started for the first
time, it is recommended to dispose of the first
full bin of ice.
> If the equipment has been switched o for
a month or more, it is recommended to perform a water cleaning cycle.
> The ice maker will only produce ice with the
TriMode compartment set to Freezer Mode.
The ice maker will continue to operate even
when the ice bin is not in position
To activate the Ice Maker after installation of the appliance, press the Icemaker button
Please note that 12 to 24 hours are necessary before
ice production may begin.
The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours.
The yield depends on the temperature set in the
freezer, the room temperature and the frequency of
door opening.
If the appliance is operating without being connected
to the water system, make sure that the Icemaker is
deactivated by pressing the button
The Ice Maker produces ice until the ice tray is full
and will automatically stop once the maximum level
is reached.
With the SuperIce function, it is possible to increase
the quantity of ice produced a 24 hours, while the Set
Cube Size function permits selection of the size of
the produced ice cubes.
Do the ice cubes have an unusual odour?
Ice is a porous material which can absorb odours
from the environment. Ice cubes which have been in
the ice cube container for a long time may absorb
odours, stick together and slowly become smaller.
We recommend that old ice cubes not be used.
Other means of preventing odors:
.
.
> The ice cube container should be cleaned occa-
sionally with warm water. Make sure that you switch
o the ice maker before clearing the container. Rinse
out and wipe dry.
> Check the contents of the freezer for spoiled or out-
of-date food. All odorous foods should be wrapped
thoroughly or stored in airtight containers to prevent
the build-up of odors.
> The water filter may have to be replaced in some
models.
> In some cases the quality of the water connection
in the house should be checked.
Operating noises
Quite normal noises
> Grumbling: refrigerating unit is running. Fan in the
recirculating air system is running.
> Bubbling, humming or gurgling noises: refrigerant
is flowing through the tubes.
> Clicking: motor is switching on or o. Solenoid
valve on the water connection is opening/closing.
> Rumbling: ice cubes are falling into the ice cube
container.
> Note:
the appliance is powered by two independent
compressors. It is therefore normal to always
have one of two compressors in operation.
Warning
Do not place any bottles or food for rapid
cooling in the ice cube container. The ice
maker may become blocked and be damaged.
7.2 Water Filter (not 0F model)
The Water Filter makes available high-quality water for the production of ice cubes. It provides up
to 3000 liters of water for a maximum time of 12
months.
Reset water filter in the
settings menu or by pressing the Enter button
for 5 seconds.
When the filter is nearly expired the message “Replace Filter” will appear on the display.
Filter Replacement
The filter is located inside the refrigerator compartment, above the top glass panel. Prior to changing
the filter, switch o the Ice Maker by pressing the
IceMaker button.
Open the top glass panel and carefully rotate the
filter cartridge for a quarter rotation in a counter
clockwise direction until it detaches from its housing. It is normal for a small quantity of water to
come out. Remove the cap of the new cartridge and
insert it into the housing by gently rotating it for
a quarter rotation in a clockwise direction until it
locks into place.
Then enter the Fhiaba Access Menu and set “Manual Clean” function. At the end of the cleaning cycle
remove the water from the ice tray and wipe it dry.
7.3 Water filter for freezer column
ice maker
Freezer columns equipped with automatic ice-makers include an externally mounted water filter kit.
The water filter manifold and waterline connections
must be installed in conjunction with the fridge as
the waterline connecting the back of the appliance
to the filter kit must be in place before installing the
unit.
The filter kit should be installed in an accessible location (such as an adjacent cabinet) to allow for the
water filter cartridge to be changed annually.
If you choose not to use the water filter (such as
connecting the appliance to an already filtered water source) then it is suggested to also set the “Bypass filter” function to ‘ON’ to avoid receiving reminders to change the filter (that you are not using).
For more details and how to access this function
setting, follow instructions on page 17 of the included instruction manual: “How to activate filter
Bypass”.
18
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
19
8. LIGHTING 9. FOOD PRESERVATION
EN
8.1 Lighting
1T 0T / 0H 0F
I
N
E
E
F
N
U
T
I
D
I
E
C
U
T
I
N
I
R
F
D
I
E
T
N
MA
E
R
E
G
E
K
R
C
S
I
R
R
E
P
R
C
R
E
T
K
MA
R
E
G
E
N
F
U
R
D
I
T
I
I
C
N
E
E
R
T
K
M
E
A
R
E
G
E
To provide optimum interior lighting, LED strips illuminate the refrigerator compartment from the top
and sets of LED lights directly illuminate dierent areas of the refrigerator compartment, of the CrisperFresco drawers and the freezer drawer.
In case of malfunction and/or wearing out of the
lighting system, the repair should be carried out by a
qualified Fhiaba Service technician.
9.1 General directions
Your Fhiaba is designed to ensure precise, constant
temperatures and appropriate humidity levels in all
compartments.
In addition, the double refrigeration ensures that frozen foods and ice do not absorb the odor of fresh
foods and that the humidity in the refrigerator does
not freeze and build up frost.
Nevertheless, to properly preserve all of your foods,
it is not enough to have an excellent refrigerator. It
is also necessary to know the rules for correct food
preservation.
Do bear in mind that all foods will inevitably change
their characteristics over the passage of time. This
change begins long before the food is consumed,
since foods contain micro organisms which multiply and can cause deterioration. This process occurs
more rapidly due to improper handling, preservation
temperatures and humidity levels.
It is therefore recommended to follow the directions
presented below which will permit using your refrigerator/freezer in the most eective and safe manner to keep your foods in the best way for as long as
possible.
Bear in mind that the Crisper-Fresco area is the area
for preserving the most delicate fresh foods, since it
ensures constant average temperature near freezing.
Periodically check that all foods are in a perfect
state of preservation. It is usually quite clear when
a food item is deteriorated, due to mold, unpleasant
odor and unpleasant aspect. Nevertheless, there are
cases in which these conditions are not so evident. If
you believe that a food item was kept for an excessive period of time and may be deteriorated, do not
consume this item or even taste it, even if it seems to
still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness.
When in doubt, throw the food away.
1T 0T
Fridge
Low Temp
TriMode
I
N
E
E
C
R
E
T
MAK
E
R
C
E
Fridge
TriMode
I
MAK
E
T
N
R
E
R
E
C
R
P
S
I
R
E
N
U
F
T
I
I
R
G
D
E
from +1° to +7 °C
(from 34°F to 46°F)
Crisper - Fresco
from -2°C to +2 °C
(from 28°F to 36°F)
from -13° to -23 °C
(from 9°F to -11°F)
U
T
I
N
R
F
G
D
I
E
from +1° to +7 °C
(from 34°F to 46°F)
from -13° to -23 °C
(from 9°F to -11°F)
0H 0F
E
C
Fridge
Low Temp
I
T
N
M
E
A
R
E
K
R
E
U
T
I
N
from -13° to -23 °C
(from 9°F to -11°F)
R
F
G
D
I
E
Freezer
E
C
I
N
T
MA
E
R
E
K
R
E
N
U
F
T
I
I
R
G
D
E
from +1° to +7 °C
(from 34°F to 46°F)
9.2 How to maintain good food quality
When buying groceries
Always take the following precautions:
> Place any packages of raw meat, fish or poultry in
plastic bags so that they do not drip on other foods.
> Purchase meat, poultry and fish last. Do not leave
your groceries in a warm car after shopping. Keep a
freezer bag in your car and use it in case of very high
temperatures or long trips.
> Check the production dates and “best before” times
on foods to be sure that they are fresh.
> Be very careful when buying fresh foods, and only
buy a quantity that can be consumed during your
planned preservation period.
> When possible, let warm foods adjust to room tem-
perature for at least two hours before placing them
in the refrigerator, unless you have activated the
Shopping function before.
When placing foods in
Check the refrigeration temperature of the various
compartments on the control panel:
> The refrigerator temperature must be 7°C (46°F)
or lower and the freezer temperature must be -18°C
(0°F)
> Follow the recommendations regarding the pres-
ervation times and temperatures indicated in the tables to follow.
> Keep raw meat, fish and poultry separate from oth-
er foods and avoid any possible drippings.
When placing foods in
> When placing in the refrigerator your meat, fish or
poultry, leave these in their original packaging, unless the packaging is ripped or punctured. Repeated
handling could introduce bacteria into these foods.
> To keep food in the freezer is a good idea to use
freezer containers.
> Label and date the packages
> Be careful to correctly position the food items on
the shelves in a way that does not obstruct the air
circulation vents inside the compartment.
Notes
When a high level of humidity is present either in the environment or in the foods placed
in the Fresco drawers, the bottom of the
Fresco compartment might be covered with
some water or ice (if the temperature is set
between 0°C and -2C°).
Such condition is normal and it is due to the
high humidity levels of the Fresco compartment; high humidity together with low temperatures is what guarantees a longer preservation of foods.
Water or ice can disappear on its own if the
air humidity level should lower; it is also possible to remove the water with a towel. If a
thin layer of ice has formed, set the temperature of the Fresco compartment to +2°C and
after one day remove the water with a towel.
If the layer of ice is thicker, it might be necessary to shut o the Fresco compartment for
one day in order to melt it.
Warning
After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if
the temperature has raised above normal
levels. In addition to this the display will
show for one minute the highest temperature detected inside the compartments,
to allow the user to decide how to better
use the food items.
After one minute the display will resume
normal operation, while the Alarm button
will continue to blink.
Press the Alarm button
to display the
highest recorded temperatures.
20
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
21
10. RECOMMENDED TIMES FOR FOOD PRESERVATION 11. CARE AND CLEANING
EN
FRESH FOODS PRESERVATION AREA TIME
Raw meats
Large cuts Fresco Compartment 4 days
Beef steaks, poultry and wild game Fresco Compartment 3 days
Ground meat Fresco Compartment 1-2 days
Carpaccio Fresco Compartment Immediately
Cooked meat
Boiled meat and roasted meat Refrigerator Compartment 2 days
Meat sauce Refrigerator Compartment 6 days
Fish
Raw and cooked fish Fresco Compartment 2 days
Other
Soups and broths Refrigerator Compartment 2 days
Pasta Refrigerator Compartment 2 days
Opened cold cuts Fresco Compartment 3 days
Fresh cheeses Fresco Compartment 2-3 days
Well sealed aged cheeses Refrigerator Compartment
Eggs (fresh and unwashed) Refrigerator Compartment 2 weeks
Opened cans Refrigerator Compartment 2-3 days
Raw vegetables (in perforated bags) Fresco Compartment 1 week
FROZEN FOODS PRESERVATION AREA TIME
Beef, veal, lamb and goat meat Freezer Compartment (steaks) 6-12 months
Beef, veal, lamb and goat meat Freezer Compartment (Meat with bone) 4-6 months
Ground beef Freezer Compartment 1-2 months
Pork Freezer Compartment (Without bones) 4-6 months
Pork Freezer Compartment (With bones) 2-3 months
Ground pork Freezer Compartment 1-2 months
Several
months
FROZEN FOODS PRESERVATION AREA TIME
Whole chicken and turkey Freezer Compartment 8-12 months
Goose, duck and pheasant Freezer Compartment 4-8 months
Fish Freezer Compartment 1-2 months
Shellfish Freezer Compartment 2-3 months
Cooked food Freezer Compartment 1-2 months
Vegetables Freezer Compartment 8-12 months
Fruit Freezer Compartment 6-12 months
Desserts and cakes Freezer Compartment 2-3 months
11.1 Care and Cleaning
To clean the parts made of steel use a microfiber
cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel’s satin finish.
Every now and then, to polish the steel, wipe with a
slightly damp microfiber cloth.
Do not use the sponge on aluminium parts, such as
the handles and the profiles of the glass shelves.
You should use special care to keep the ventilation
openings in the appliance or in the cabinet that houses it free of obstructions.
Scrupulously follow the detailed directions
that can be found in the provided kit and never use abrasive or metallic products which
could scratch and damage the satin finishing
on the appliance permanently.
Before performing any sort of cleaning, disconnect the appliance from the electrical
power supply.
Make sure you do not damage the refrigerant
circuit in any way.
Warning
The use of chlorine-based detergents or
similar that contains it should be avoided
(bleach, hypochlorite, etc).
11.2 Condenser cleaning
A ventilation grille is located either at the top of the
appliance or at the bottom according to the model
type.
To clean it use a vacuum cleaner with a soft brush
attachment at maximum power, sweeping it along
the vent slits. In case of a significant dust build up,
the ventilation grille can be removed to allow a more
accurate cleaning of the filter.
Every 6 months the display shows the message
“Check Cond”, clean the condenser and press for 5
seconds the Enter
Operate as follows:
> Switch o the appliance by pressing the Unit but-
ton
on the main control panel for approx 3 sec-
onds.
> Wait approx 30 minutes, until the finned condenser
cools down to room temperature.

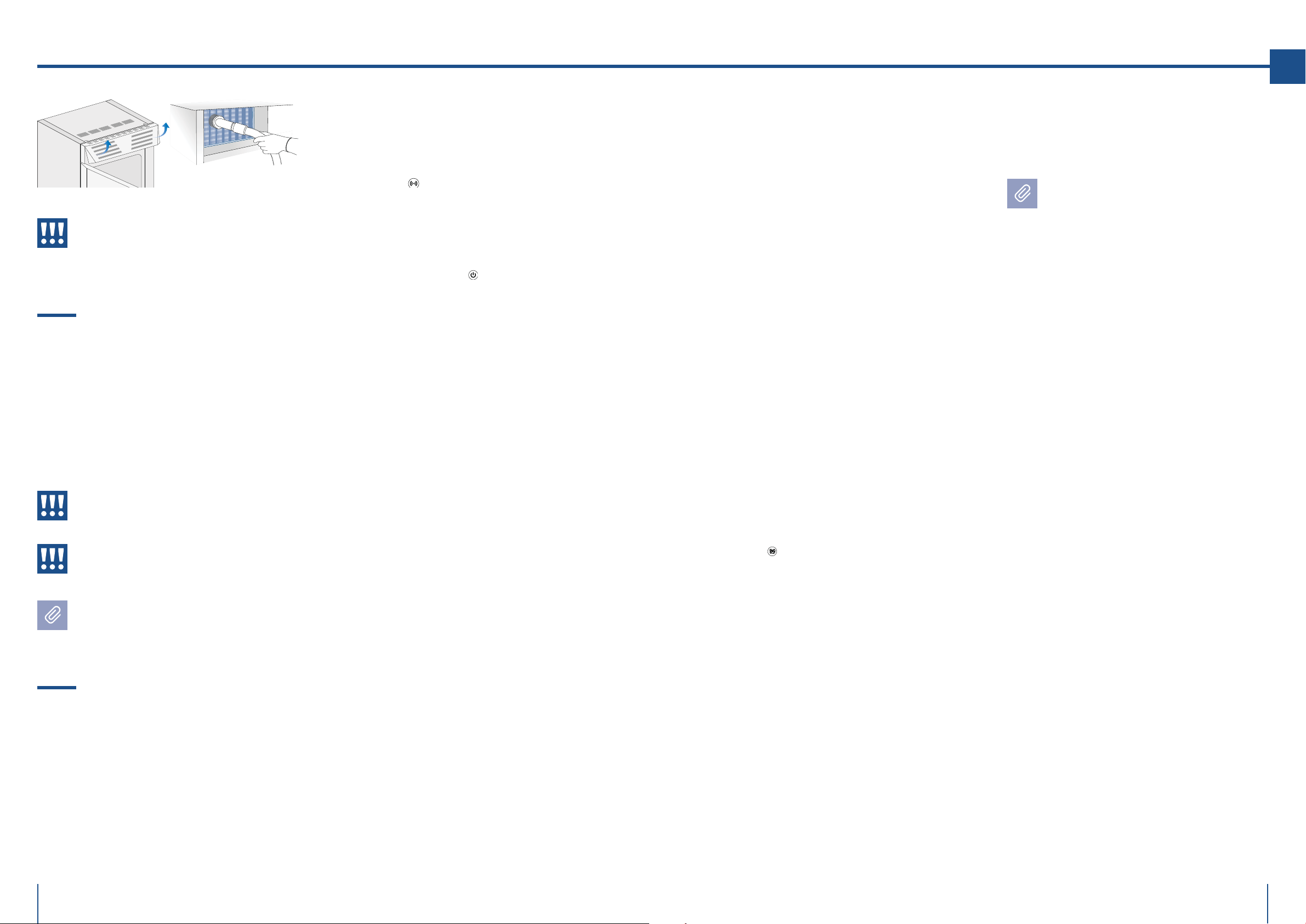

> On models with ventilation at the base remove
the grille at the bottom (magnetically attached) and
take it o. On models with ventilation lift the grille as
shown in the picture.
> Thoroughly clean the grille and the foam filter, by
means of a vacuum cleaner and the soft brush attachment.
> Clean it thoroughly from any dust build up as
shown in the picture, taking care not to damage it.
> Start up the appliance again, by pressing the Unit
button
on the main
button to reset.
Meat leftovers Freezer Compartment 2-3 months
22
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
23
11. CARE AND CLEANING
12.TROUBLESHOOTING GUIDE
EN
Warning
The edges of the condenser are sharp,
therefore use adequate protection for the
hands and arms when cleaning the condenser.
11.3 Internal cleaning
Clean the internal and removable parts by washing them with a solution of lukewarm water, a small
amount of dishwashing detergent.
Rinse and dry right away.
Do not use mechanical devices or other methods to
speed up defrosting.
Warning
Do not use water on the electrical parts,
lights and control panel.
Warning
The use of chlorine-based detergents or
similar that contains it should be avoided
(bleach, hypochlorite, etc).
Do not bring cold glass parts into contact with
boiling water.
Do not wash any parts of the refrigerator in a
dishwashing machine since this could damage or irreparably deform the parts.
12.1 Troubleshooting guide
If you notice malfunctions in your appliance, use this
guide before calling for service: this guide can help
you personally resolve the problem or could provide
important information to be conveyed to the service
technician to ensure rapid and eective repair.
Malfunction message
A malfunction is usually indicated by a message on
the display.
Problems that cannot be solved by the user are signaled through a malfunction code.
The refrigerator or the freezer does not work
Is the appliance connected to the electrical power
supply?
Is electrical power available at the electricity socket?
Is the Unit button
Is the unit in ‘Demo’ Mode?
The refrigerator or the freezer is warmer than usual
Does the display show a malfunction code?
Is the temperature adjusted correctly?
Were the doors or drawers open for a long period of
time?
Were large quantities of food recently inserted?
Is the unit in ‘Demo’ Mode?
The appliance remains in function for a long time
period
Bear in mind that during very hot weather and with
very high temperatures in the room it is normal that
the compressor remains on for prolonged periods of
time.
Were the doors or drawers open for a long period of
time?
Were large quantities of food recently inserted?
Check that the doors are closed and that the food or
containers do not obstruct the perfect closure of the
door.
Is one or more compartments in Shopping Mode?
activated?
Ice or frost build up inside the refrigerator
or freezer
Did you leave the doors open for a long period of
time?
Do the doors close perfectly?
If the doors do not close perfectly, contact your installer.
In case of frost or ice build up in the Crisper-Fresco
compartment, due to frequent and prolonged opening of the doors, deactivate the Crisper-Fresco function via the button on the control panel. Wait until the
frost or ice melt, then remove the drawer and dry the
sides and bottom of the compartment.
Unpleasant odors inside the refrigerator
Clean the appliance completely according to the instructions.
Hermetically cover all the food. Do not conserve food
for prolonged periods of time.
The doors are dicult to open
The appliance is designed to ensure a fully hermetic
closure. When the door is closed, a vacuum condition
can occur: in this case it is necessary to wait a few
seconds until the pressure balances before opening
the door.
Appliance is cooling but lights and display are not
working
Check to see if the appliance was accidently placed
into Sabbath Mode
The Ice Maker does not work
Make sure that the Ice Maker is on (Icemaker button
on).
To switch on the Ice Maker press the button.
Make sure that the appliance is connected to the water supply.
The Ice Maker does not produce sucient amounts
of ice
On average, the Ice Maker produces approximately
10 cubes of ice every two and half hours.
Contact a plumber or a water treatment expert to
make sure that the problem is not due to the water
supply.
If the unit you purchased was used as a
showroom model it may be in a special energy-saving mode called Demo Mode where
the appliance appears to be operating (lights
work and false temperatures are displayed)
but no cooling actually takes place. If you
suspect your appliance is in Demo Mode
please contact your point of purchase for assistance with disabling this feature.
24
If you hear unusual noises
It is normal to hear noises from the ventilators or
compressors during operation or during the defrost
phase.
Noise could be more marked depending on the position of the appliance and the surrounding environment.
Condensation inside and outside of the refrigerator
If the climate is very humid, the formation of condensation is normal.Opening the door or drawers for
prolonged periods of time can contribute to the formation of condensation.
In any case, make sure that the doors are always
perfectly closed.
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
The ice cubes freeze into one block
If the ice is not used frequently, it is possible that
blocks of ice may form. It is recommended to remove
the block of ice cubes and then let the Ice Maker fill
the ice tray again.
The ice has an unusual flavour or colour
When the Ice Maker is started for the first time, it
is recommended to empty the first full tray of ice
cubes.
If the refrigerator was switched o for more than
one month or if the cartridge was not changed for
more than six months, it could be necessary to replace the filter cartridge.
www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
25
Loading...
