USER MANUAL: Wine Cellars
MODE D’EMPLOI: Cave à Vins
EN
FR
1
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
Index
Important instructions for safety and the environment
For your safety
Respect for the environment
Installation
Installation
Connection to the electrical mains
Before starting
Getting to know the appliance
Main features
Main components
Electronic Control
Main control panel
Turning the appliance on and off
Turning on and off
How to adjust the temperature to suit various needs
Information and malfunction signals on the display
Settings and Special Functions

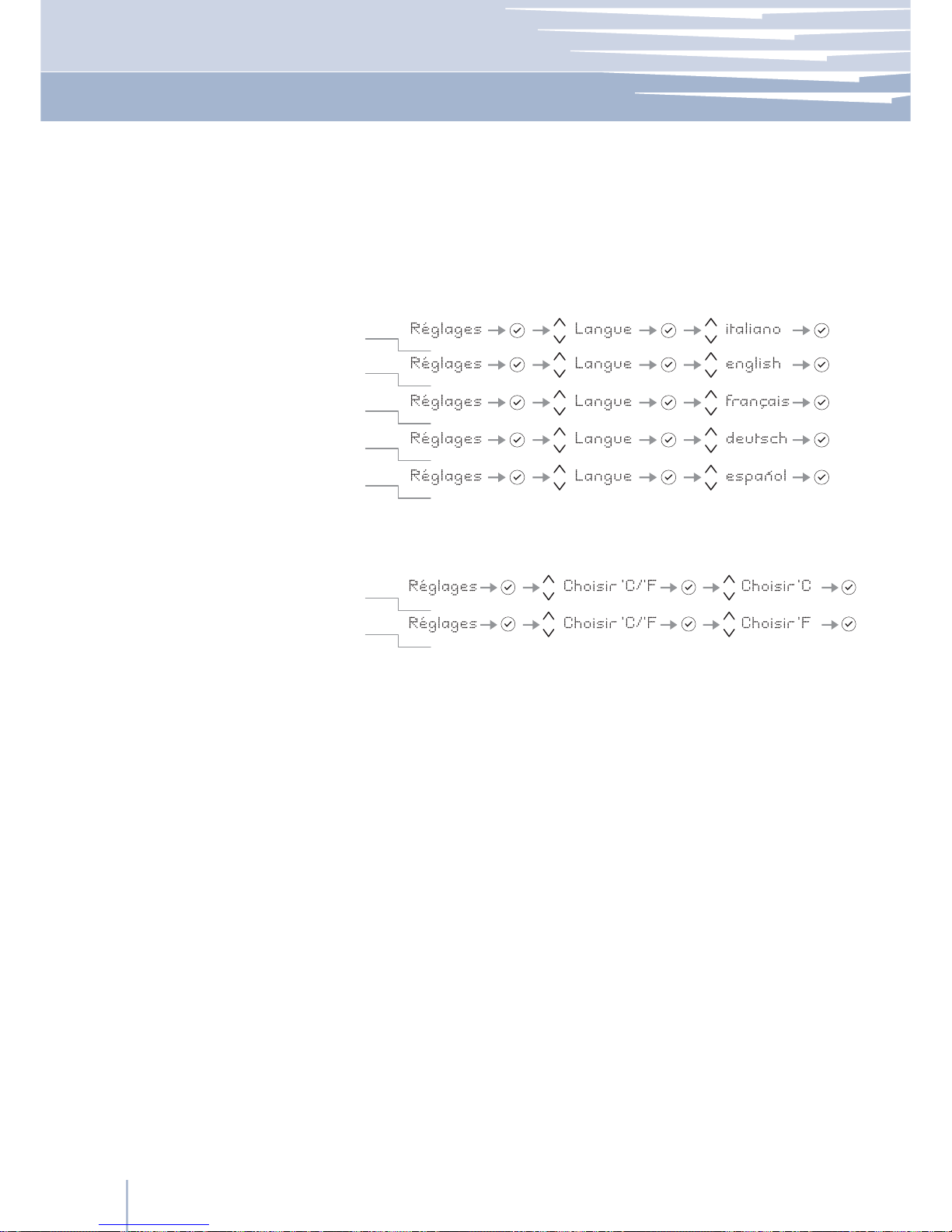

Customization and Language Settings
Special functions activated through the Fhiaba Access Menu
Basic settings of the Fhiaba Access Menu
Internal Layout

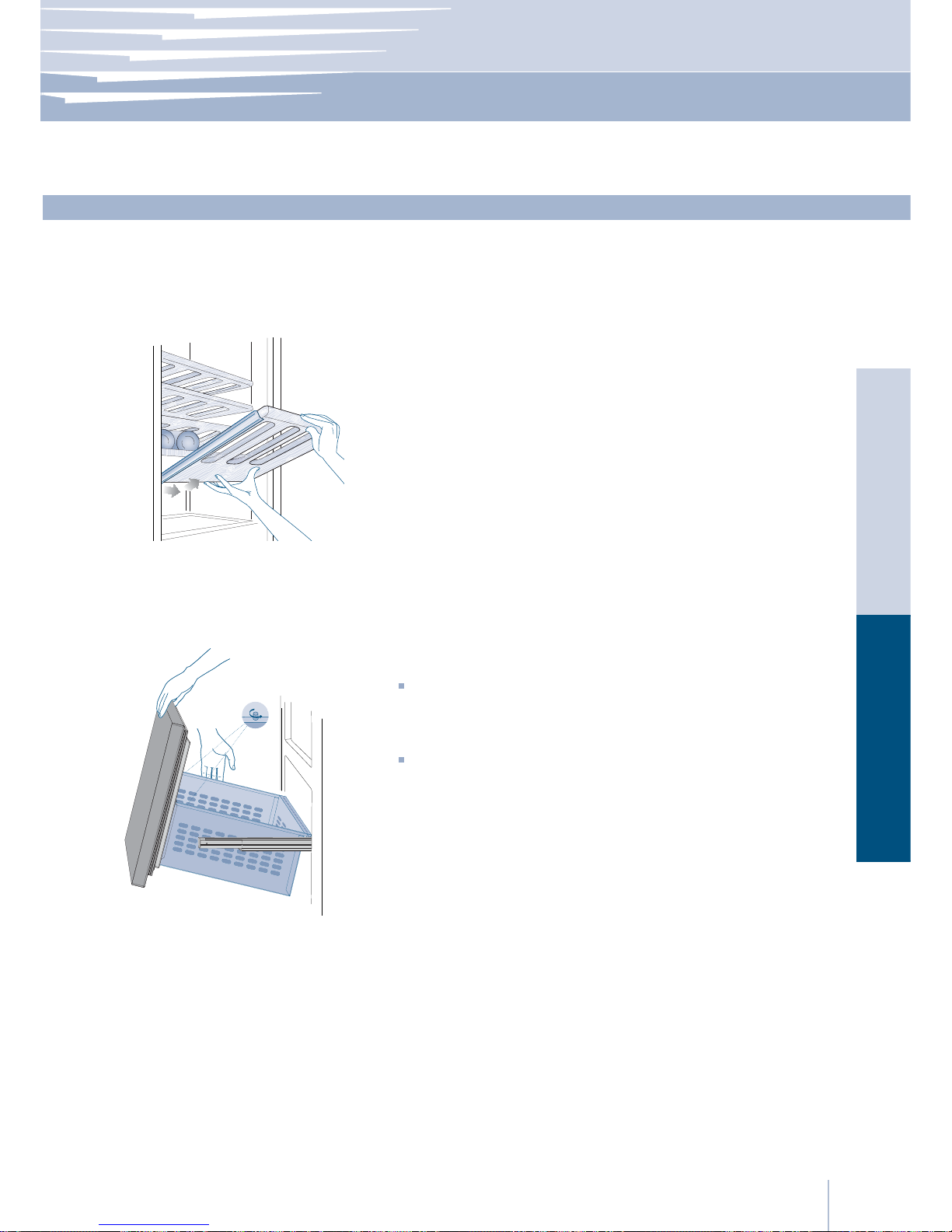

Internal Layout (positioning, adjustment, removal)
Lighting
Lighting

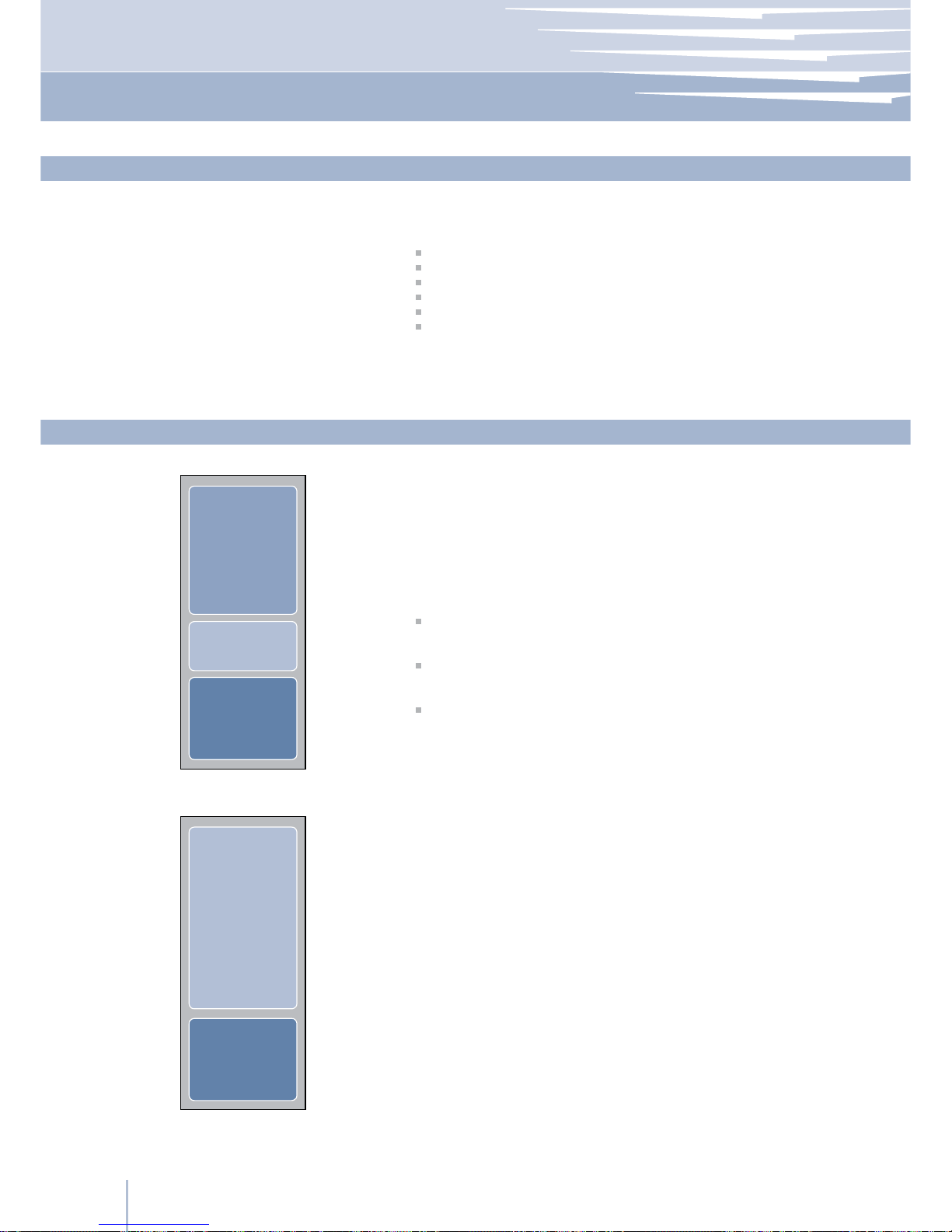

Use of the TriMode compartment
Use of the TriMode compartment
TriMode compartment
Conservation of wines
General directions
Wine conservation temperature
Time of conservation
Consumption temperature
Position of bottles

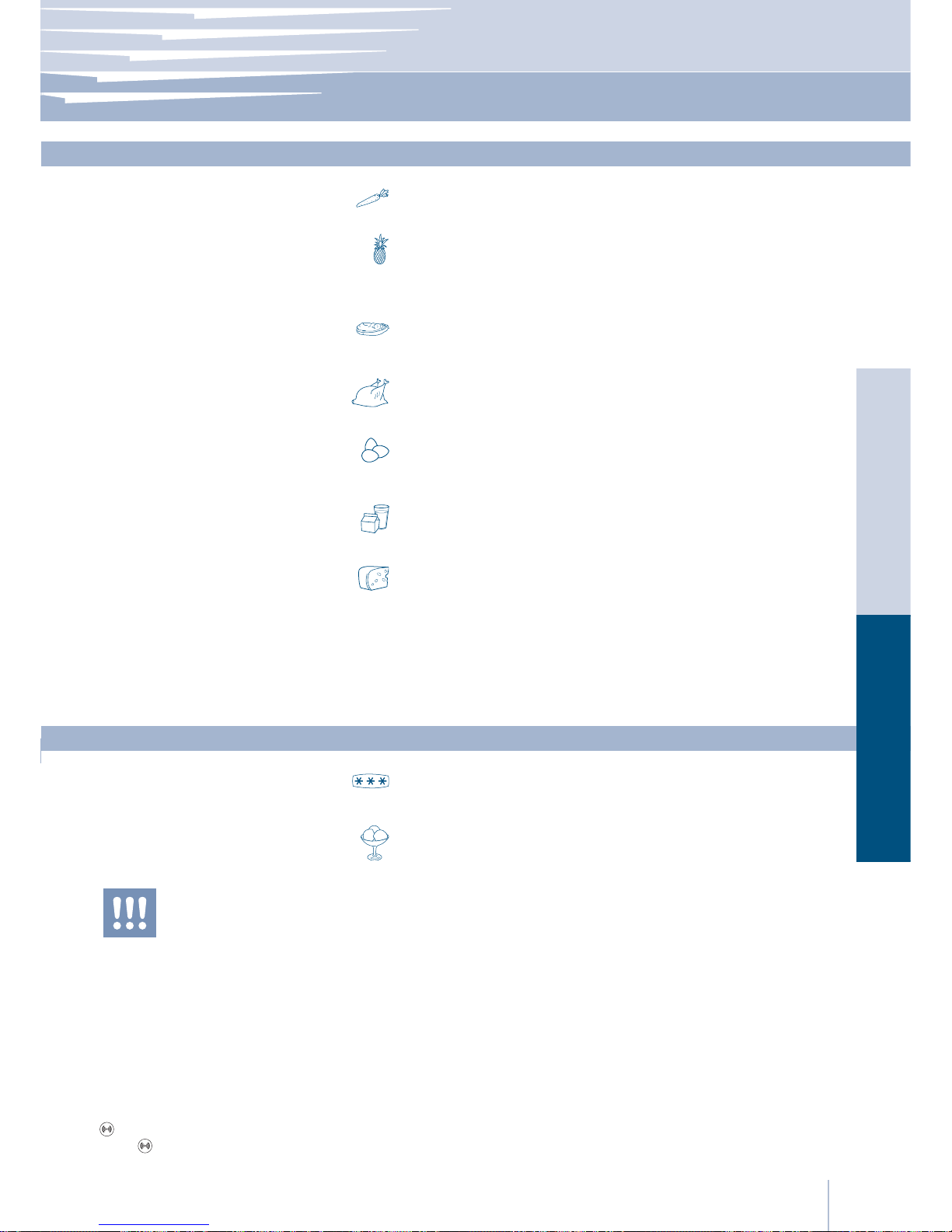

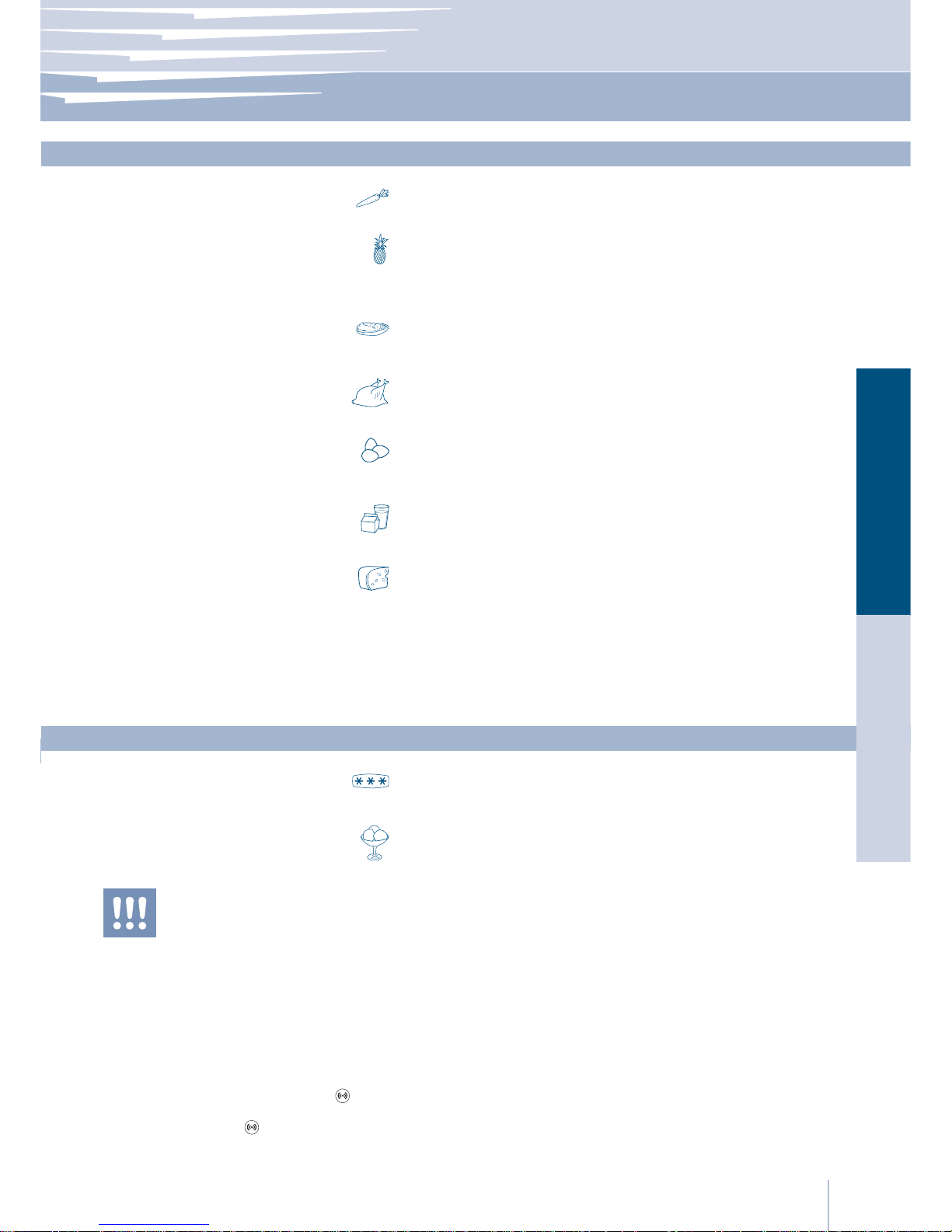

Food Conservation
Recommendations for conserving fresh food
Recommendations for conserving frozen food
Recommended times for food conservation
Care and Cleaning
Care and Cleaning

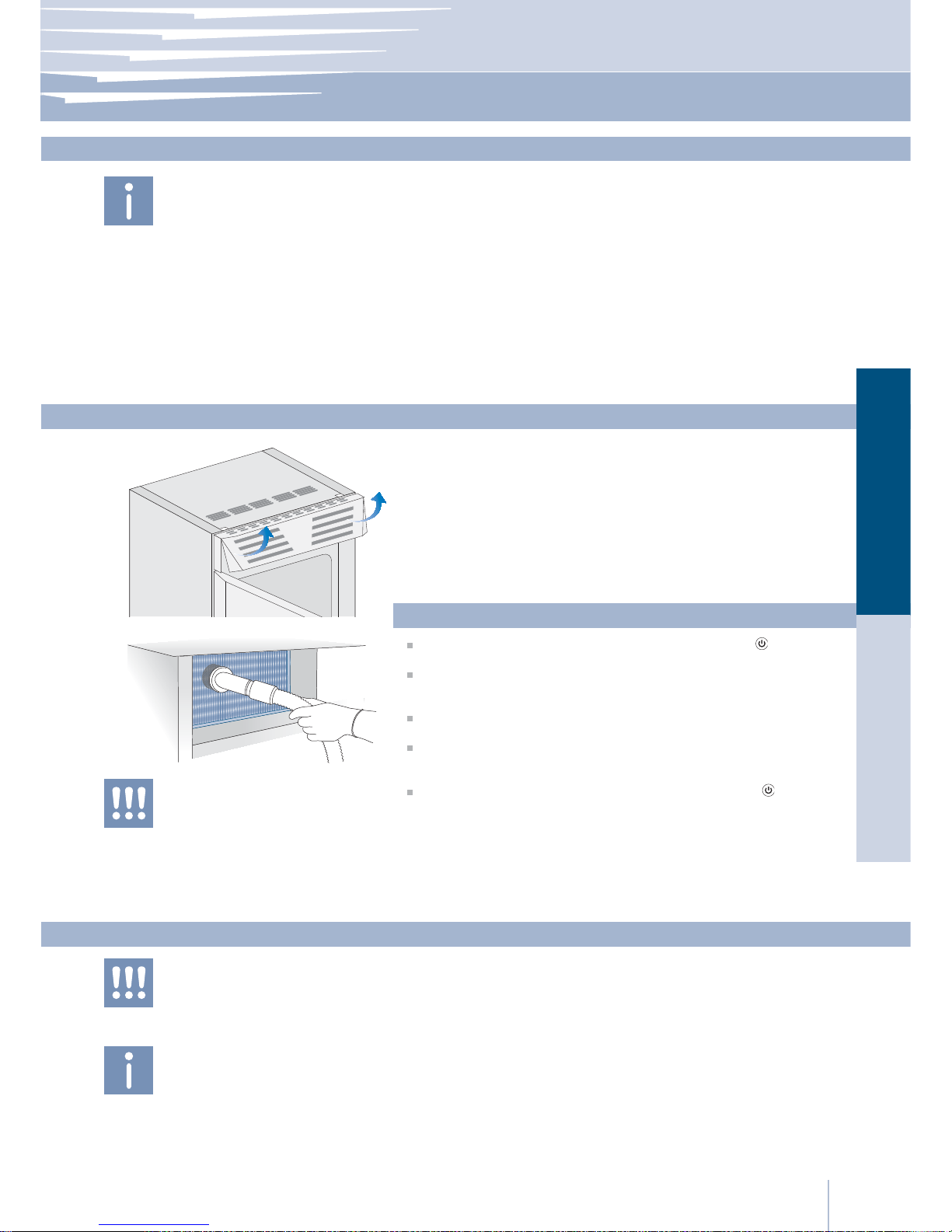

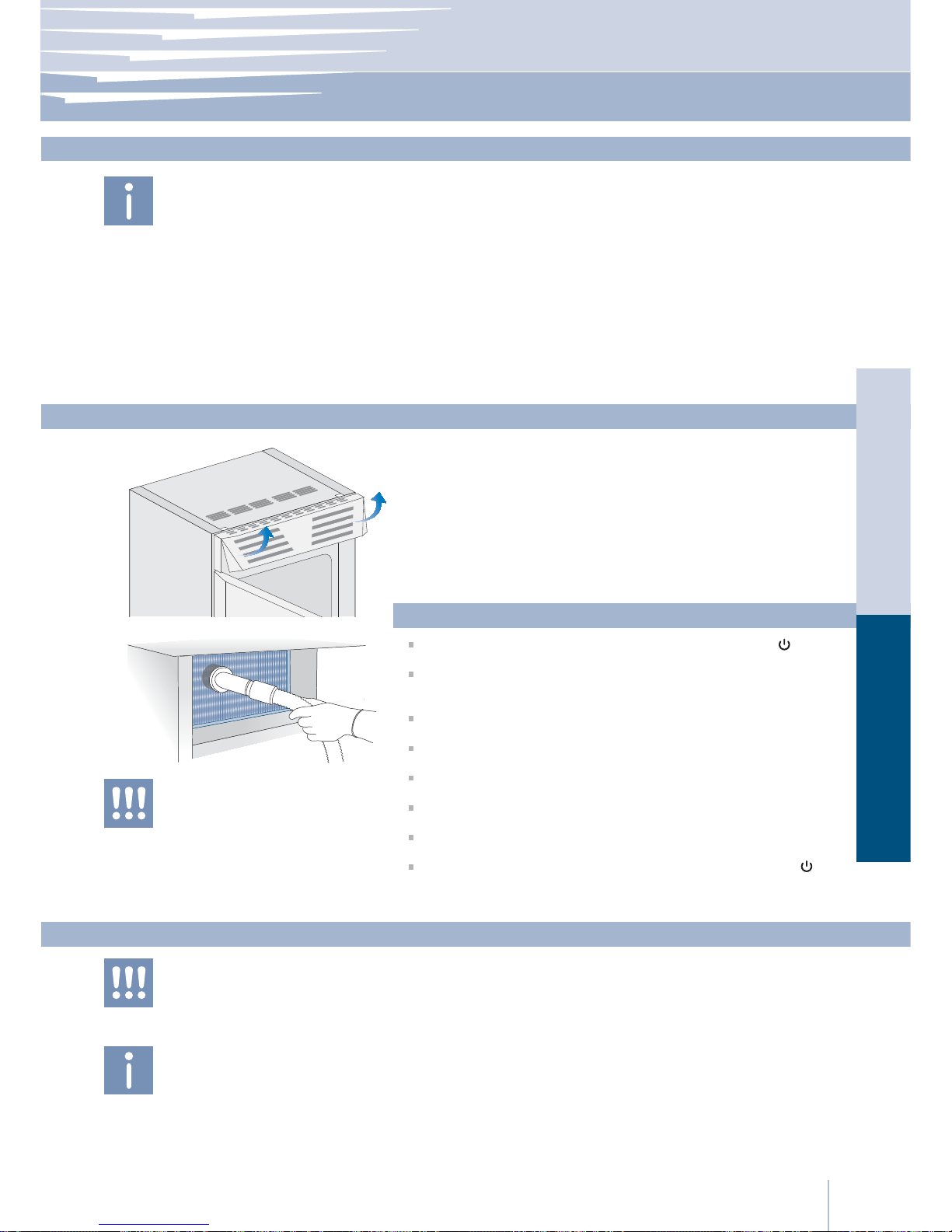

Condenser cleaning
Internal cleaning
Troubleshooting guide
Troubleshooting guide
Malfunction indications appearing on the display
Prior to calling Service
Prior to calling Service
Fhiaba Access Menu Map
Functions
Settings
1
1.1
1.2
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
4.3
5
5.1
5.2
5.3
6
6.1
7
7.1
8
8.1
8.2
9
9.1
9.2
9.3
9.4
9.5
10
10.1
10.2
11
12
12.1
12.2
12.3
13
13.1
13.2
14
14.1
15
15.1
15.2
Page
2
3
4
8
10
15
16
17
18
21
22
23
24
26
27
2
1
1.1
B09001301
Product tested in accordante with EN62471
Risk Group 2
PRUDENZA:
NON FISSARE LA LAMPADA IN FUNZIONE.
PUÒ ESSERE DANNOSO PER GLI OCCHI.
CAUTION:
DO NOT STARE AT OPERATING LAMP.
MAY BE HARMFUL TO THE EYES.
www.fhiaba.com ∙ www.thevettagroup.com
Notes
Suggestions for proper use
of the appliance
For your safety
Important
Instruction to prevent damage
to the appliance
Warning
Instructions for preventing
personal injury
Important instructions for safety and the environment
If this appliance is replacing an existing appliance which must be
removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the
end of the lifespan of the new appliance.
This appliance is designed to refrigerate beverages and foods and
is destined for domestic use.
The appliance must be installed by following the instructions in the
Installation Guide, particular care should be taken not to obstruct the
vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED
lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.
This warning is also contained on the label attached to the inside of
the refrigerator door.
When the freezer is functioning do not touch the inner surfaces in
stainless steel with wet or damp hands, since skin may stick to the
very cold surfaces.
Do not use any type of electrical equipment inside of the food
conservation compartments.
When positioning the shelves, do not place fingers in the shelf slide guides.
Do not position containers of flammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply
cable during cleaning operations. If the plug is not easily reached, it
is a good idea to disconnect the omnipolar switch that controls the
socket that the appliance is connected to.
The packaging parts can be dangerous for children: do not allow
children to play with the plastic bags, plastic film or Styrofoam.
Any repairs must be performed by a qualified Fhiaba Service
technician.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a flam-
mable propellant in this appliance.
3
2.1
2.2
2
1.2
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais

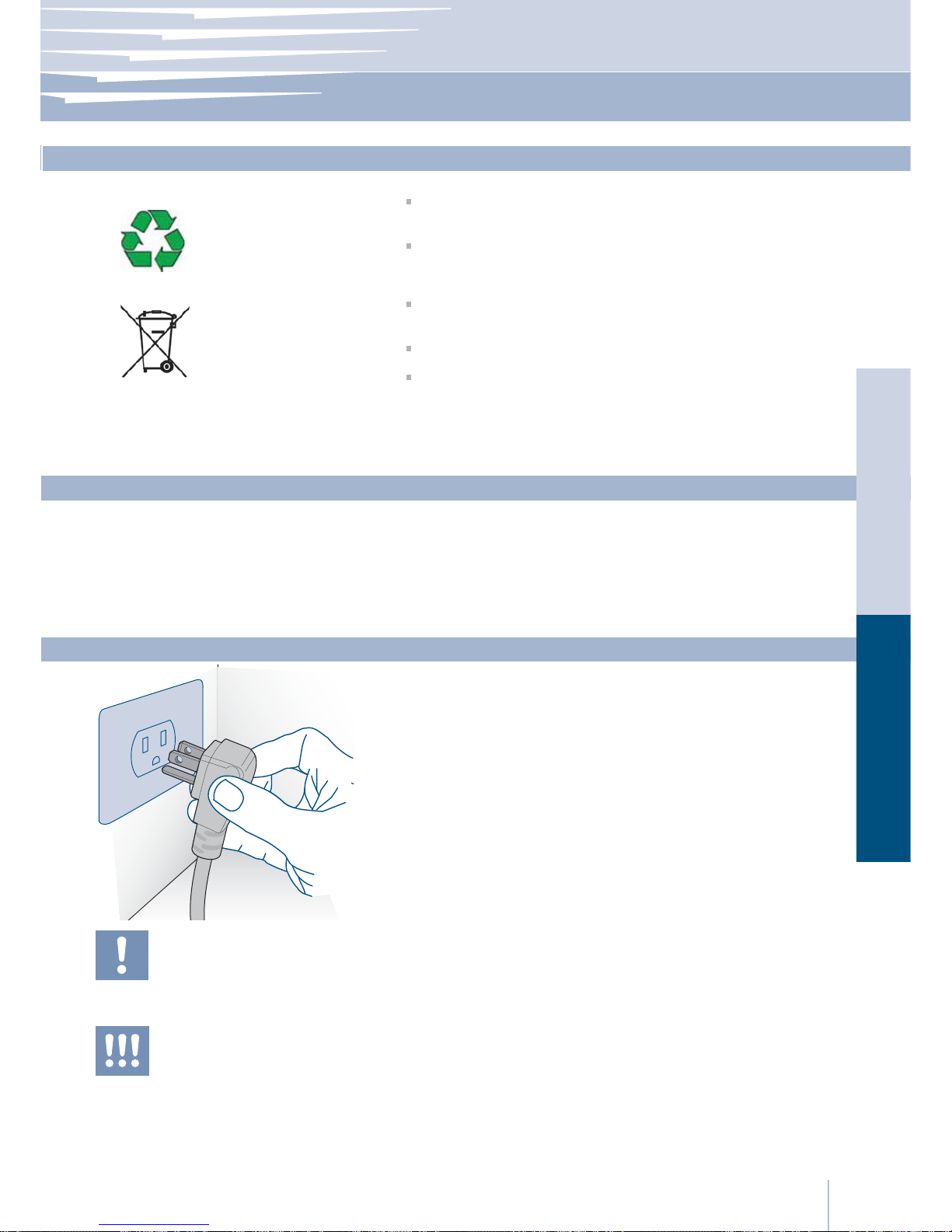

Make sure you dispose properly of all packing materials.
The appliance must not be disposed of with urban waste. Contact
local waste disposal authorities for information on the disposal of recyclable waste.
For disposal, cut the power supply cord and make it impossible to
close the door.
During disposal, avoid damage to the refrigeration circuit.
Neither the refrigeration circuit nor the insulation contain substances
that are hazardous to the ozone layer
Respect for the environment
Make sure that installation is performed correctly, adhering to all of
the instructions in the specific installation guide provided with the appliance.
Installation
Connection to the electrical mains
The appliance operates at 115 V AC, 60 Hz and is equipped with
a power supply cord with a 3-prong grounded plug, which must be
connected to a corresponding 3-prong (15 Amp) grounding-type
wall receptacle.
Do not use extension cords and/or multiple
adapters for the power supply connection.
Installation
If energy is supplied through an alternative energy power source (solar, geothermal, etc..) or if
home automation systems are installed, it is necessary to install the Alternative Energy Kit to integrate the unit into the power grid.
4
3
3.1
3.2
www.fhiaba.com ∙ www.thevettagroup.com
Before starting
Know your appliance
Main features
Exclusive design by Giugiaro
The Fhiaba triple refrigeration system and the separation of
internal compartments ensure perfect conditions for conservation of various types of wines
The electronic control guarantees constant temperature
and humidity levels set by the user
The double compressor allows separate management of
the set temperature and humidity for the Wine Cellar, Cantina and TriMode compartments
The TriMode compartment may operate in three different
modes: as a freezer, as a refrigerator or as a cooler compartment
Free-standing or built-in installation
An interactive menu (Fhiaba Access Menu) permits personalized management of appliance functions and the display of messages on operation
Optimization of consumption during vacation periods
Surfaces in stainless steel both inside and outside, with fine
aluminium trim
Patented hinge system that permits automatic door
closing
TriMode drawers with Soft self-closing system
Localized lighting system with LEDs
Anti-tipping system with brackets for wall mounting.
Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation system, which will allow you to keep all of your food in the
best way possible.
This manual will answer most of your questions about the
product’s features. Should you require further information,
please check our website
www.fhiaba.com
or write us an e-mail at
fhiaba@adcoservice.com

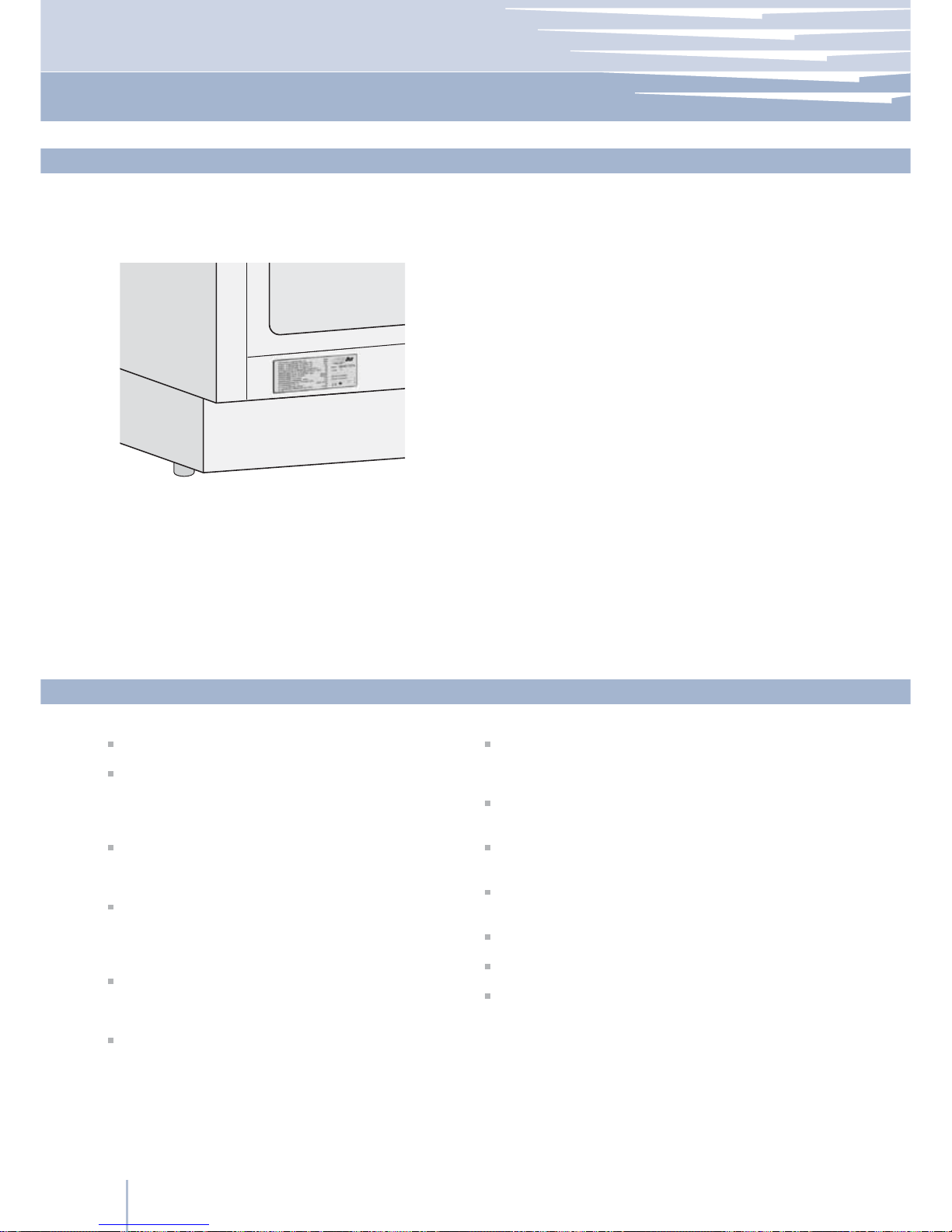

Before calling, write down the model type and serial
number which are available on the warranty certificate
and on the rating plate located on the bottom left-hand
corner of the appliance, behind the bottom drawer and
any messages which may have appeared on the display.
1-855-4-FHIABA (1-855-434-4222)
5
3
3.3
1
1
7
8
8
9
9
10
10
11
11
12
12
2
2
3
3
5
4
5
6
6
7
Cantina
TriMode
TriMode
Wine Cellar
Wine Cellar
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais

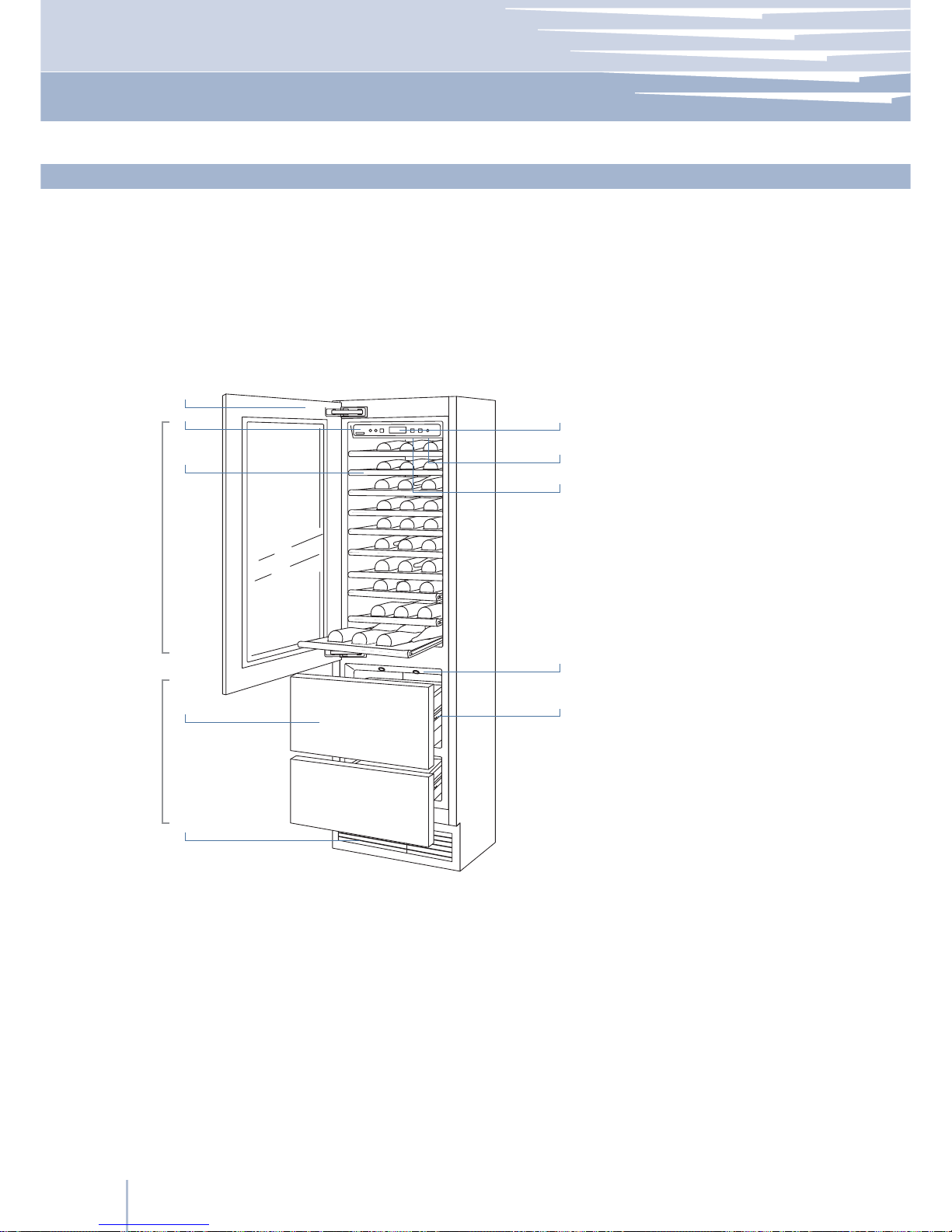

Before starting

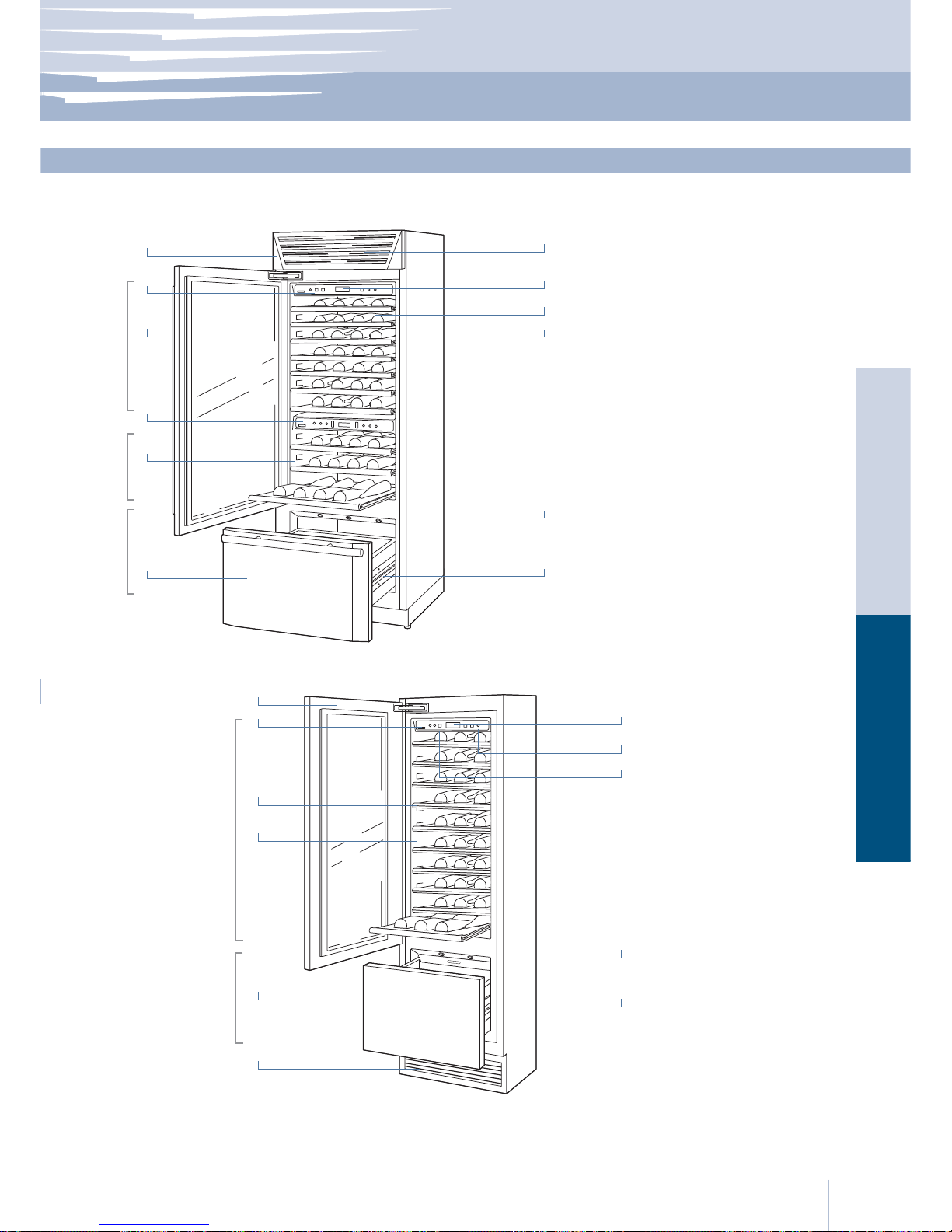

Main components
One drawer Wine Cellar
1 Structure in stainless steel
with aluminium trim
2 Cantina and TriMode
control panels with Menu
3 Sliding bottle shelves,
mounted on wheels for
easy extraction
4 Cantina area control panel
5 Wine Cellar
6 Frezer compartment that
can be transformed into a
refrigerator or Crisper-Fresco
compartment
(TriMode function)
7 Double refrigeration system
8 Temperature display
9 Acoustic signals
10 Vacation function
(in Menu Menu)
11 Innovative lighting
12 Automatic door and
drawer closure
1T Models
0T Models
6
3.3
1
7
6
8
9
10
2
3
4
5
3
TriMode Wine Cellar
www.fhiaba.com ∙ www.thevettagroup.com
Before starting
Main components
Two drawer Wine Cellar
1 Structure in stainless steel
with aluminium trim
2 Cantina and TriMode
control panels with Menu
3 Sliding bottle shelves,
mounted on wheels for
easy extraction
4 TriMode drawers, may be
used as freezer, refrigerator
or cooler
5 Double refrigeration system
6 Temperature display
7 Acoustic signals
8 Vacation function
(in Menu Menu)
9 Innovative lighting
10 Automatic door and
drawer closure
0H Models
7
3
3.5
3.4
12 34 5 67 98
ALAR
M
ENTER
WI
NE CELL
AR
UNIT
LI
GH
T
1
Unit
2
Wine Cellar
3
Menu
4
Up/down
Wine Cellar
5
Display
6
Up/Down
(TriMode)
7
Enter
8
Alarm
9
Light
10 11 12 13
CANTINA
HUM
I
DITY
10
Display
12
13
Cantina
Humidity
11
Up/Down
Cantina
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
Before starting
Electronic Control
The innovative electronic control system designed by Fhiaba maintains constant temperature on the three compartments
and visualizes it on the control panel display.
It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/
or visual messages should occur any malfunction in the appliance.

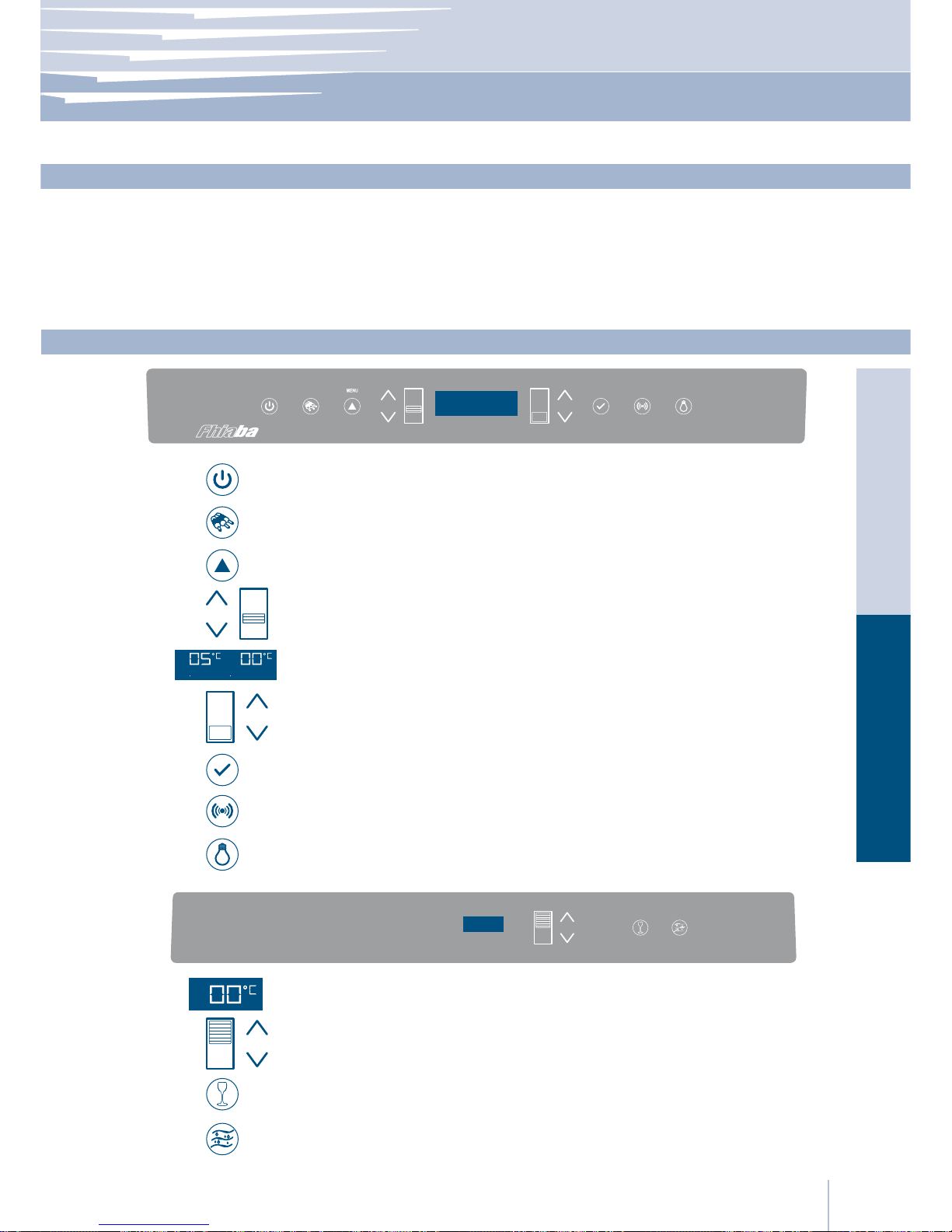

Main control panel
Allows complete shutdown and start-up of the appliance
(press for three seconds).
Allows switching on and off only the Wine Cellar compartment (press
for three seconds).
Allows access to the appliance functions menu.
Displays the temperature of the Wine Cellar and TriMode compartments, the date and time, Menu functions and visual messages.
By selecting Up/Down the preset temperature can be changed according to the selected function mode (freezer, refrigerator, CrisperFresco).
Confirms activation or deactivation of the selections made in the Fhiaba Access Menu.
Blinks to signal possible malfunctioning, also through an acoustic signal which can be deactivated by pressing the key.
Allows illumination of the Wine Cellar and Cantina compartments
also when the door is closed. Once activated, the light of the top
compartment will automatically shut off after 6 hours.
Using the Up and Down buttons, it is possible to change the set temperature of the refrigerator and scroll through the interactive menu.
Shows the temperature of the Cantina compartment.
Allows switching on and off only the Cantina compartment (press for
three seconds).
Allows adjustment of humidity in the Cantina and Wine Cellar compartments to three levels: High (HI), Medium (A) and Low (LO).
Using the Up and Down keys, it is possible to change the set temperature for the Cantina compartment.
8
4
4.1
www.fhiaba.com ∙ www.thevettagroup.com
Turning the appliance on and off
To prevent accidental modification of settings,
the keypad locks automatically after a certain
period of time and the display shows the message “keypad locked”. To re-activate it, simultaneously press the keys Menu and Up/Down
(Down) for three seconds.
At the first start-up, if the message Standby does
not appear, it means that the appliance has already started the cooling process. If this is the
case, deactivate any possible acoustic signals
by pressing the Alarm key
, close the door and
wait until the set temperature is reached.
During the first start-up, you will not be able to use
the Menu Menu to modify factory settings until the
default temperature has been reached. It is however possible to set the time and date immediately; these parameters are required to activate
some of the special functions.
If only the Cantina or Cantina compartment is
turned off, the corresponding fan will continue
to run independently to prevent the formation of
unpleasant odours and mould.
When the appliance is connected to the electrical power supply but
has not yet been turned on, the display shows the message
This is a safety message to warn that power is supplied to the appliance, while all of the keys on the panel are off.
To swutch on all the appliance compartments, press the Unit button
or three seconds.
First start-up
Once you have turned on all of the compartments of the appliance,
you can turn off only the wine cellar compartment by pressing the relevant key for three seconds.
The TriMode compartment is always on and cannot be turned off except by completely turning off the appliance.
To shut down the unit completely for cleaning or maintenance, press
the Unit key
for three seconds.
Also take the plug out of the socket and turn off the omnipolar switch
that powers it.
After you have completely shut down the appliance and unplugged it,
empty it of all its contents clean it and dry it.
Leave the doors and the drawers ajar to prevent the formation of unpleasant odours.
Turning off the Wine Cellar compartment
Turning the Wine Cellar compartment on again
Complete shutdown
Lengthy shutdown periods
Turning on and off
Press again for three seconds the relevant key.
9
4
4.4
4.2
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
An integrated control system provides information through luminous
signals or text messages shown on the display.
The information signal is always displayed with a steady text message,
while a malfunction signal is shown with blinking text.
The acoustic signal that accompanies some malfunction signals can be
deactivated by pressing the Alarm key
on the main control panel.
The list of malfunction signals is located in the back of this manual.
Turning on the appliance
To adjust the temperature in the various compartments, use the up/
down key
for that compartment (see chapter 3.5).
If the “keypad locked” message appear, simultaneously press the
keys Menu
and Up/Down (Down) for 3 seconds.
Wines compartment
TriMode compartment
Each model has been carefully tested before leaving the factory and
is adjusted so as to ensure high performance and low consumption.
The ideal temperature for wine conservation does however depend
on the types of wine you want to conserve, the method of conservation (Wine Cellar for conservation and consumption, or Cantina for
the conservation and aging of prized bottles).
It also varies according to personal taste.
Please refer to the guide on wine conservation included further ahead
in this manual.
As needed, you can reset the temperatures as follows:
Cantina Compartment:
from +10° C to +18° C (from 50° F to 64,4° F).
The default temperature is +12° C (53.6° F).
Wine Cellar compartment:
from +4° C to +12° C (from 39.2° F to 53.6° F).
The default temperature is +10° C (50° F).
The TriMode compartment is default set to freezer mode but it can
also be set to run as a refrigerator or cooler compartment.
Instructions for conversion are provided in the paragraph on special
functions and settings.
As needed, you can reset the temperatures as follows:
Freezer compartment: from -15° C to -22° C (from 5° F to -7.6° F).
The default temperature, which is recommended, is -18° (0° F)
Refrigerator compartment: from +2° C to +8° C (from 35.6° F to 46.4° F).
The default temperature, which is recommended, is +5° C (41° F).
Cooler compartment: from -2° C to +2° C (from 28.4° F to 35.6° F),
The default temperature, which is recommended, is 0° C (32° F).
The displayed temperature may vary slightly
with respect to the set temperature if the doors
are continuously opened or insertion of room
temperature food or large quantities of food.
It takes 6 to 12 hours to reach the selected
temperature.
Information and malfunction signals on the display
How to adjust the temperature for suit various needs
If the “keypad locked” message appear, simultaneously press the keys Menu
and Up/
Down (Down)
for 3 seconds.
10
5
5.1
5.2
FRIDGE
U
NIT
www.fhiaba.com ∙ www.thevettagroup.com

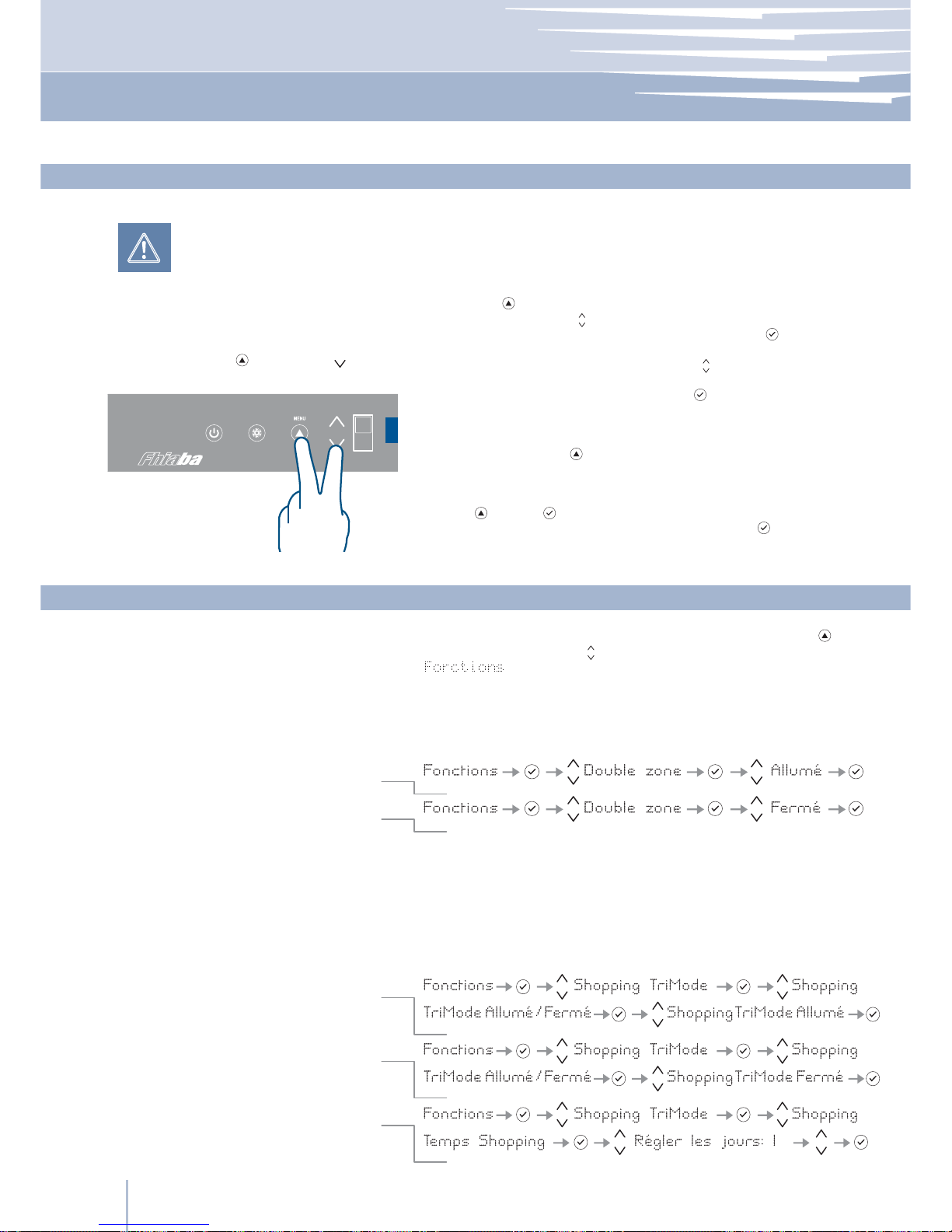

Settings and Special Functions
To prevent accidental modification of settings,
the keypad locks automatically after a certain
period of time and the display shows the message “keypad locked”.
To re-activate it, simultaneously press the keys
Menu
and Up/Down (Down) for at least
three seconds.
Customization and Language Settings
Special functions activated through the Menu
It is possible to customized the functions of your Fhiaba to adapt it to diverse usage needs, resetting the main parameters (Settings) or activating
special functions (Functions).
Functions are visualized on the main display by pressing the Menu button
.
The Up/Down buttons
permit scrolling the available functions, which
can be selected by pressing the Enter button . The display visualizes the
current functioning status.
Using the Up/Down buttons
, it is also possible to scroll through the select-
ed function, activating or deactivating by pressing the Enter button .
Once the function is confirmed, the display will automatically visualize the
main menu to select other functions.
At any time it is possible to return to the previous selection through
the Menu button .
The language of the messages appearing on the display can be changed
by operating as follows:
Enter the Menu by pressing the Menu button select Settings via the Up/
Down buttons
and confirm via Enter .
Then select the Language function and the desired language.
This function can be activated only on models featuring a wine cellar without internal separator. It allows to differentiate the temperature in the upper part of the cellar (warmer and therefore better suited to keep red
wines) from the temperature in the lower part (colder and therefore better
suited to keep white wines).
This function must be activated at least 24 hours before inserting room
temperature items into the freezer, or several hours before placing into
the freezer previously frozen items which have been subject to a slight
temperature rise. This function is automatically deactivated when the
programmed time period expires.
It is possible o program timed activation of the function.
After a prolonged interruption of the electrical power, it is necessary to
reactivate the function.
To use special functions, select the Menu key
and use the Up/Down
key
to access the menu, confirming the selection
.
How to activate
How to activate
How to deactivate
How to deactivate
How to program timed activation
Shopping TriMode
Dual Zone
11
5
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
Settings and Special Functions

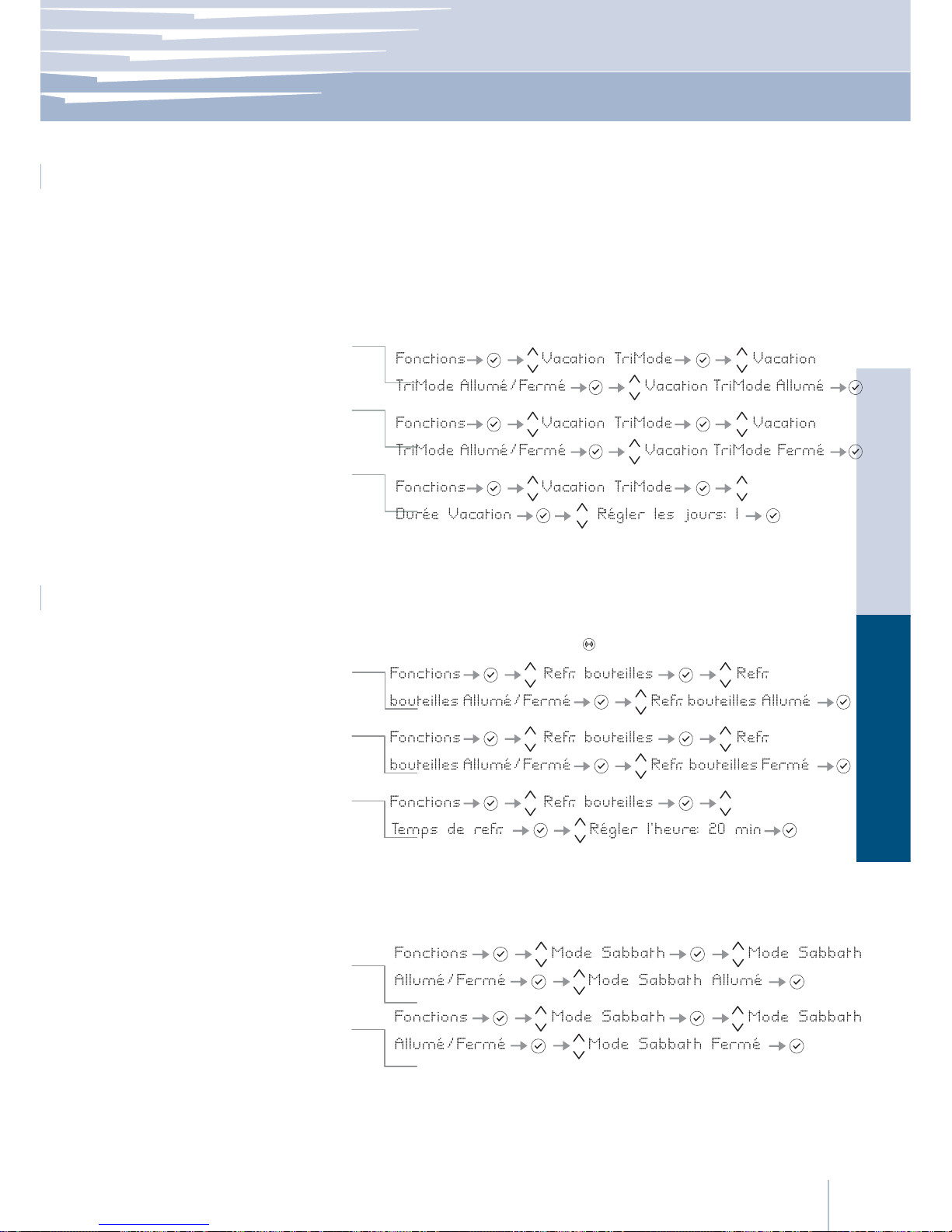

This function (recommended in case of prolonged absences since it allows
considerable energy savings) brings the Tri-Mode compartment temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be manually deactivated
upon re-entry after a period of absence.
This function remains active even if during the period of absence there is a
prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
This function can be activated when it is necessary to cool off beverages
quickly, by placing them inside the freezer compartment.
It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal temperature has been reached.
After removing the beverages, deactivate the sound signal by pressing the
Alarm button
.
Bottle Cooler
How to activate
How to deactivate upon re-entry
How to program the duration
How to activate
How to deactivate
How to program the duration
Vacation TriMode
The function makes it possible to comply to certain religious observances
requiring that the operation of the appliance is not affected by the opening or closing of the doors (the thermostatic control, the inner lighting and
the ice maker are deactivated).
Sabbath Mode (Optional)
How to activate
How to deactivate
12
5
5.3
www.fhiaba.com ∙ www.thevettagroup.com
Settings and Special Functions

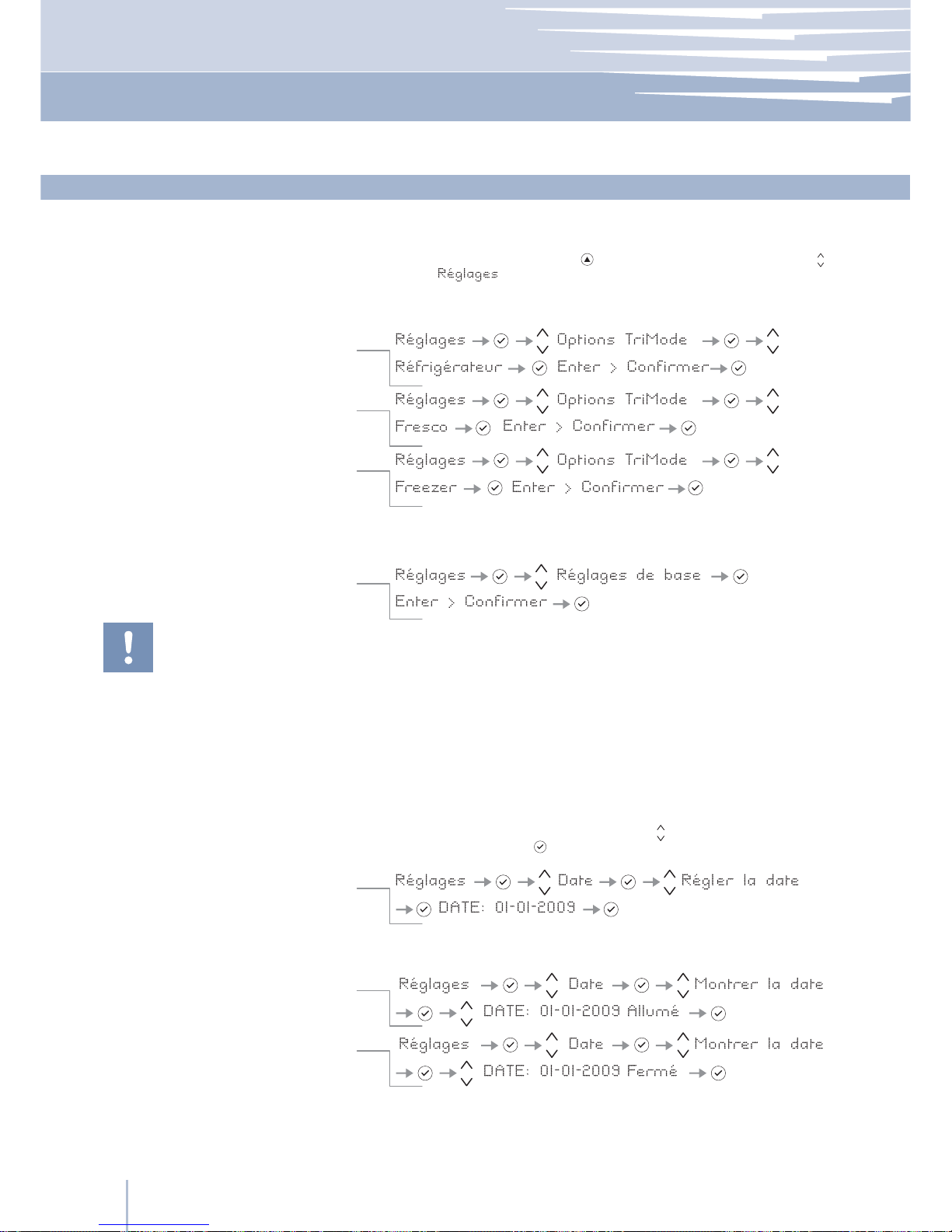

Basic settings of the Menu
This offers the possibility to reset default factory settings and cancels
any previous changes.
Default Setting
How to reset default settings
Using this function it is possible to deactivate/activate the date visualization on the display.
Show Date
How to activate the date
How to deactivate the date
The display will visualize the date in the format dd:mm:yy (day:month:year),
the day will blink. Use the Up/Down buttons
to modify the setting, confirm with Enter to go on to the next setting; once the year is confirmed
the date will be set.
Date
Set Date
How to set the date
Select the Menu button
and used the Up/Down button
to select .
The freezer compartment can, if required, be converted to the refrigeration o Crisper-Fresco operating mode.
TriMode Options
How to set the Fridge function
How to set the Crisper-Fresco function
How to revert to the Freezer function
ATTENTION: If the default settings are restored, it is
necessary to reactivate the choice of operation of
the TriMode compartment in case it was previously
set as Fridge or Fresco.
13
5
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
Settings and Special Functions

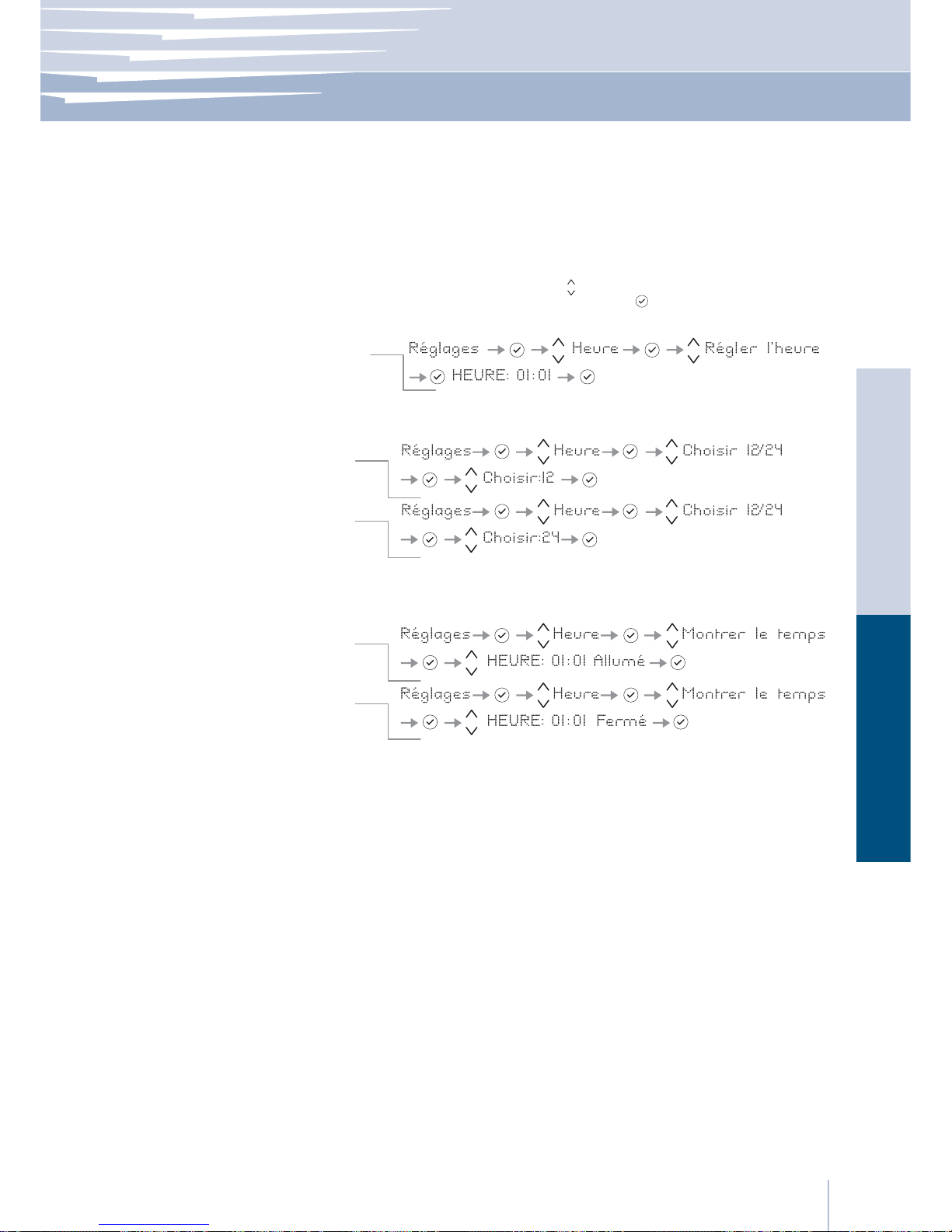

This function selects the display at 12 or 24 h.Set 12/24
How to set the display to 12 h
How to set the display to 24 h
Through this function it is possible to activate/deactivate the constant
visualization of the time.
Show Time
How to activate the permanent time
How to deactivate
The display visualizes the hours and minutes in the format hh:mm and
with hh: blinking. Use the Up/Down buttons
to modify the setting and
then confirm by pressing Enter to go on to the next setting.
Once the minutes are confirmed, the time will be set.
Time
Set Time
How to set the time
14
5
www.fhiaba.com ∙ www.thevettagroup.com
Settings and Special Functions
This function permits visualizing the temperature in Centigrade or
Fahrenheit degrees. Normally, the appliance is set for visualization in
centigrade degrees.
Set °C/°F
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
The function allows selection of the language for the display messages.Language
Italian
English
French
German
Spanish
15
6
6.1
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
Internal Layout

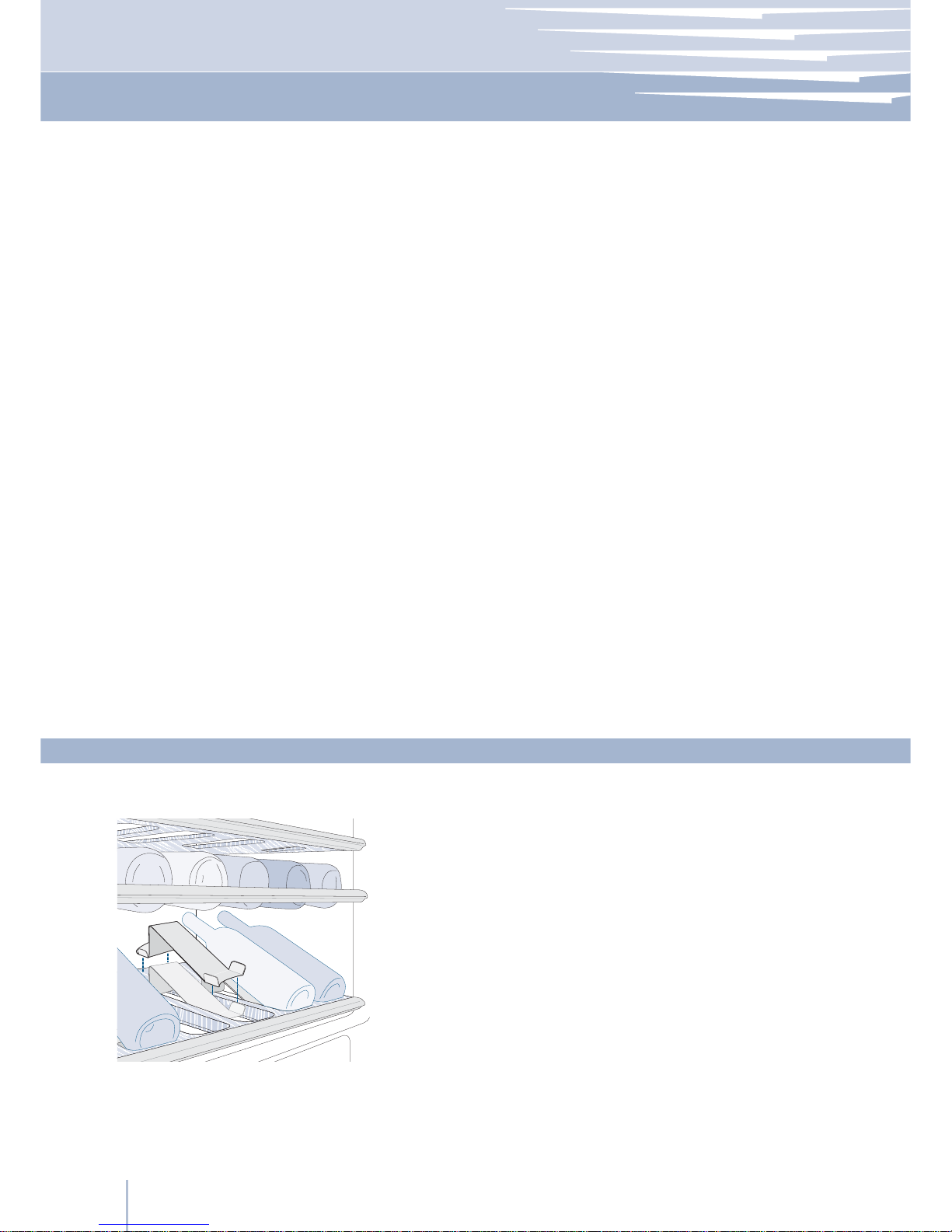

The shelves can be easily removed for cleaning.
Remove the bottles, completely extract the shelf, tilt it upward
until the wheels are free of their seat and extract it.
Wine shelf
TriMode drawer
Internal Layout (positioning, adjustment, removal)
Fixed to the slide guides with two locking nuts
to remove the drawer, unscrew the locking nuts and remove the
drawer.
to remove the inner TriMode drawer unscrew the locking nuts.
16
7
7.1
www.fhiaba.com ∙ www.thevettagroup.com
Lighting
Lighting

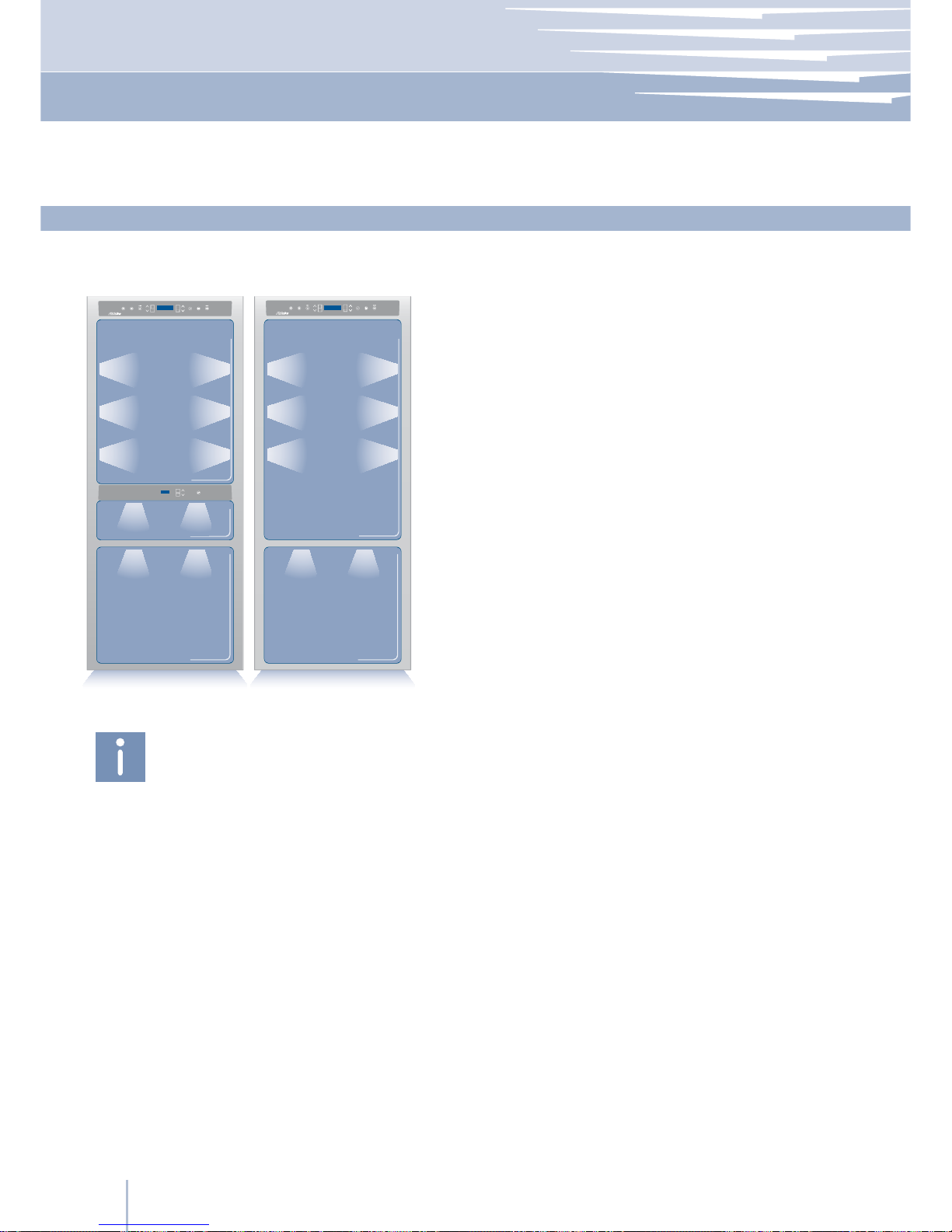

To provide optimum interior lighting, LED strips illuminate the refrigerator compartment from the top and sets of LED lights directly illuminate
different areas of the refrigerator compartment, of the Crisper-Fresco
drawers and the freezer drawer.
In case of malfunction and/or failure of the lighting system, you should
contact an authorized Fhiaba Service Agent.
Once activated, the light of the top compartment
will automatically shut off after 6 hours.
17
8
8.1
8.2
www.fhiaba.com ∙ www.thevettagroup.com
EnglishFrançais
Use of the TriMode compartment
Use of the TriMode compartment
The TriMode compartment, used in conjunction with the Cantina and
Wine Cellar compartment, allows great flexibility in the use of the appliance.
Some possible uses:
Liquors, such as vodka, gin, tequila, schnapps, limoncello and the
glasses to serve them
Rapid cooling of beverages, by activating the bottle cooler func-
tion
Storage of large amounts of ice.
As expansion of the Cantina or of the Wine Cellar
For refrigeration of beer and soft drinks
For storage of cold dishes and snacks.
For conservation of ham, salmon
gourmet preparations.
It comes without saying that, the compartment can be used in a
traditional manner. Suggestions and instructions are provided to
offer you best conservation of your food over time in complete
safety.
Freezer mode
Refrigerator mode
Cooler mode
To fully use the capacity of the TriMode compartment:
remove the drawer
remove the top drawer
install the supports delivered with the units (on request)
TriMode compartment
18
9
9.1
9.2
Cantina
Wine Cellar
Wine Cellar
TriMode
TriMode
www.fhiaba.com ∙ www.thevettagroup.com
As is known, wine can be stored for long periods of time if this is done
under the following conditions:
Suitable temperature without appreciable variations over time
Controlled level of humidity
Protection from light
Absence of noise and vibrations
Absence of odours
Bottle kept horizontal.
All of these conditions are fully met in the Fhiaba Wine Cellar.
The space offered by the Cantina and Wine Cellar compartments,
which can be expanded as necessary by using the TriMode compartment as a wine cellar, allows conservation of your best wines at three
different temperatures.
The three compartments are initially set to the following temperatures:
Cantina compartment
+12° C (53.6° F) - adjustable from +4° C to +18° C (from 39,2° F to 64,4° F)
Wine Cellar compartment
+10° C (50° F) - adjustable from +4° C to +18° C (from 39,2° F to 64,4° F)
TriMode drawer
-18° (0° F) - adjustable from -15° C to -22° C (from 5° F to -7.6° F)
(freezer mode)
To transform the TriMode compartment into a wine cellar space, you
must access the Menu menu, set it as a refrigerator compartment, and
adjust it to a temperature between +4° C and +8° C (from 39.2° F to
46.4° F).
All the temperatures can be modified according to the characteristics
of the wines and personal preferences. However, you should attempt
to keep the temperature as constant as possible over time.
Rapid and large-scale temperature variations can in fact cause dilation of the liquid and early aging of the wine.
You should also avoid very low temperatures (below 4° C - 39.2° F )
which may lead to the formation of deposits and damage the aesthetic qualities of the wine.
All the compartments offer optimal conditions and take into account
all these needs. It should however be noted that the Cantina compartment, in particular, is thermostatically controlled in a very precise manner and ensures the utmost care and attention over time of your most
prized bottles.
General directions
Conservation temperature
Conservation of wines
Models with Wine Cellar and Cantina
Models with Wine Cellar
Loading...
