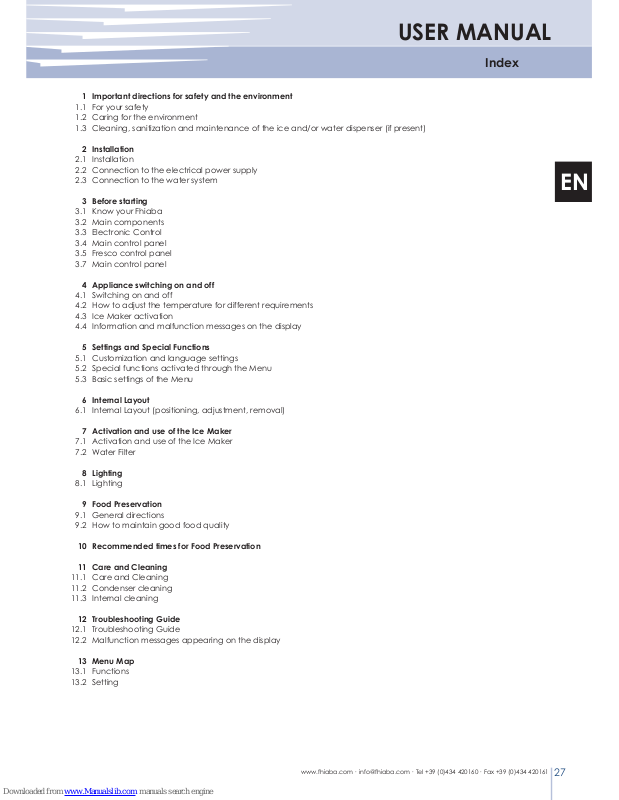

Index

Important directions for safety and the environment

For your safety
Caring for the environment
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)

Installation

Installation
Connection to the electrical power supply
Connection to the water system

Before starting

Know your Fhiaba
Main components
Electronic Control
Main control panel
Fresco control panel
Main control panel

Appliance switching on and off

Switching on and off
How to adjust the temperature for different requirements
Ice Maker activation
Information and malfunction messages on the display

Settings and Special Functions

Customization and language settings
Special functions activated through the Menu
Basic settings of the Menu

Internal Layout

Internal Layout (positioning, adjustment, removal)

Activation and use of the Ice Maker

Activation and use of the Ice Maker
Water Filter

Lighting

Lighting

Food Preservation

General directions
How to maintain good food quality

Recommended times for Food Preservation

Care and Cleaning

Care and Cleaning
Condenser cleaning
Internal cleaning

Troubleshooting Guide

Troubleshooting Guide
Malfunction messages appearing on the display

Menu Map

Functions
Setting

USER MANUAL

2828

1

1.1

1.2

1.3

B09001301

Product tested in accordante with EN62471

Risk Group 2

PRUDENZA:

NON FISSARE LA LAMPADA IN FUNZIONE.

PUÒ ESSERE DANNOSO PER GLI OCCHI.

CAUTION:

DO NOT STARE AT OPERATING LAMP.

MAY BE HARMFUL TO THE EYES.

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

Pay special attention to correct disposal procedure for

all the packaging materials.

The appliance must not be disposed of with urban waste.
Contact local waste disposal centres for on how to dispose
of recyclable waste.

Prior to disposal, cut the power supply cord and make it
impossible to close the door.

During disposal, avoid damage to the refrigeration cir­cuit.

The appliance does not contain hazardous substances for
the atmospheric ozone layer, neither in the refrigeration circuit
nor in the insulation.

Notes

Recommendations for correct use of the
appliance

For your safety

Caring for the environment

Important

Directions for avoiding appliance damage

Warning

Indications for avoiding injury
to people

Important directions for safety and the environment

Failure to follow the instructions regarding sanitizing can
compromise the hygienic safety of the water dispensed.

When using the appliance for the rst time and every

time the lter is changed, it is recommended to let the wa­ter ow in the circuit using the “Manual Cleaning” and
discard the ice produced in the rst 24 hours.

If the water dispenser has not been used for more than
4/5 days, it is advisable to clean the circuit and run off the

rst litre of water.

Reposition the removable water dispenser (if present),
ensuring your hands are hygienically clean.

Clean the ice bucket or drawer regularly but using only
drinking water.

The lter must be changed when indicated on the con­trol panel or when the ice/water dispenser has not been
used for more than 30 days.

With each lter replacement, sanitise the ice and/or wa­ter distribution system using a food grade disinfectant (with
sodium hypochlorite), which does not alter the characte­ristics of the materials. Rinse with at least 2 litres of water
before use.

Only original spare parts supplied by the manufacturer
should be used when replacing components in the ice and
water dispenser.

Any work on the appliance must be carried out by a

qualied technician or the After-sales Service.

Cleaning, sanitization and maintenance of
the ice and/or water dispenser (if present)

If this appliance is replacing an existing appliance which
must be removed or disposed of, make sure that it does not
become a dangerous trap for children by cutting its power
supply cable and rendering it impossible to close the door.
Use the same caution at the end of the lifespan of the new
appliance.

This appliance is designed to refrigerate beverages and
foods and is intended for domestic use.

The appliance must be installed by following the instruc­tions in the Installation Guide, particular care should be
taken not to obstruct the vent openings of the appliance
and of the built-in units.

The appliance features a concentrated lighting system
with LED lamps. Do not stare into these lamps when they
are on to avoid possible eyesight damage.
This warning is also contained on the label attached to
the inside of the refrigerator door.

When the freezer is functioning do not touch the inner
surfaces in stainless steel with wet or damp hands, since
skin may stick to the very cold surfaces.

Do not use any type of electrical equipment inside of the
food conservation compartments.

When positioning the shelves, do not place fingers in the
shelf slide guides.

Do not position containers of ammable liquids near the

appliance.

Completely switch off the appliance and unplug the
power supply cable during cleaning operations. If the plug
is not easily reached, it is a good idea to turn off the break­er or remove the fuse that controls the socket that the ap­pliance is connected to.

The packaging parts can be dangerous for children: do

not allow children to play with the plastic bags, plastic lm

or Styrofoam.

Any repairs must be performed by a qualified Fhiaba
Service technician.

This appliance is not intended for use by persons (including
children) with reduced physical, sensory or lack of experience
and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person re­sponsible for their safety. Children should be supervised to en­sure that they do not play with the appliance.

Do not damage the appliance refrigerant circuit pipes.

Do not store explosive substances such as aerosol cans with

a ammable propellant in this appliance.

29

2-3

2.1

2.2

2.3

3.1

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

EN

Make sure that installation is performed correctly, adhering

to all directions in the specic installation manual provided

with the appliance.

Installation

Connection to the electrical power supply

The appliance is equipped with a Schuko type 16A plug
and must be connected to the electrical power supply
through a corresponding Schuko socket.
Do not use extension cords and/or multiple adapters for
the power supply connection.

Do not use extension cords and/or mul­tiple adapters for the power supply con­nection.

Installation

Connection to the water system

The models provided with Ice Maker require a connection
to the domestic water supply system. This can be executed

through the provided water hose with 3/4” threading.

The system pressure must be between 0.05 MPa and 0.5
MPa (between 0.5 Bar and 5 Bar).
Differents pressures can cause malfunctions or leaks in the
water system. The appliance should be supplied only with
drinkable water.

The appliance should be supplied only with
drinkable water.

Make sure that installation is performed correctly,
according to all of the directions in the specic in­stallation manual provided with the appliance.

Do not attempt to use a locally sourced garden
hose threaded adapter or braided supply line. It
will strip the threads on the appliance water con­nection solenoid.

Know your Fhiaba

If energy is supplied through an alternative energy
power source (solar, geothermal, etc..) or if home
automation systems are installed, it is necessary to
install the Alternative Energy Kit to integrate the unit
into the power grid.

Before calling, write down the model type and se­rial number which are available on the warranty
certificate and on the rating plate located on the
bottom left-hand corner of the appliance, behind
the bottom drawer.

Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation sys­tem, which will allow you to keep all of your food in the
best way possible.

This manual will answer most of your questions about the
product’s features. Should you require further information,
please

call us [phone]

write us an e-mail at [e-mail].

check our website www.fhiaba.com

30

3

3.2

1

8

9

10

2

3

4

5

6

7

TriMode

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

Before starting

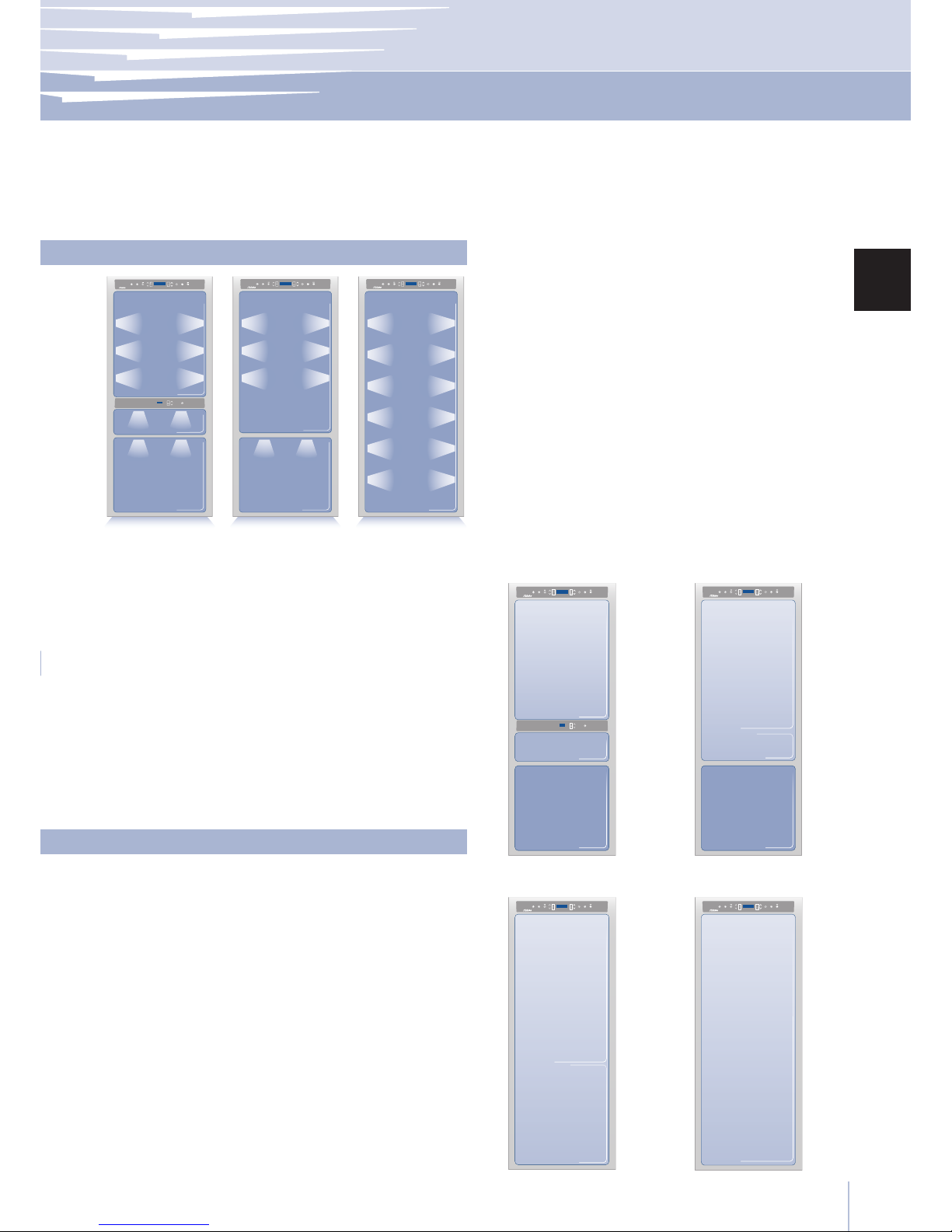

Main components

1 Stainless steel structure with

aluminum trim

2 Control panel

3 Water Filter

4 Patented shelf positioning

system

5 Control panel, Fresco area

6 Fresco compartment with

controlled humidity

7 Automatic icemaker

8 Spacious door shelves

9 Led lighting

10 Freezer compartment

that can be transformed
into a refrigerator or Fresco
compartment

(TriMode function)

1T Models

Fridge

Fresco

31

3

1

7

8

9

2

3

4

5

6

Low Temp

TriMode

1

7

8

9

2

3

4

5

6

Low Temp

TriMode

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

EN

Before starting

0H Models

Fridge

1 Stainless steel structure with

aluminum trim

2 Control panel

3 Water Filter

4 Patented shelf positioning

system

5 “Low Temp” drawer

6 Automatic icemaker

7 Spacious door shelves

8 Led lighting

9 Freezer compartment that

can be transformed into
a refrigerator or Fresco
compartment

(TriMode function)

0T Models

Fridge

32

3

1

5

2

3

4

Low Temp

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

Before starting

1 Stainless steel structure with

aluminum trim

2 Control panel

3 Patented shelf positioning

system

4 “Low Temp” drawer

5 Spacious door shelves

0FR Models

33

3

3

4

1

2

5

Freezer

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

EN

Before starting

1 Stainless steel structure with

aluminum trim

2 Control panel

3 Patented shelf positioning

system

4 Automatic icemaker

5 Spacious door shelves

0FZ Models

34

3

3.4

3.5

3.3

123456798

ICE MAKER

ENTER

FRIDGE

UNIT

1

Unit

2

Fridge

3

Menu

4

Up/down
Fridge

5

Display

6

Up/Down
Freezer
(TriMode)

7

Enter

8

Ice maker

9

Alarm

CRISPER

10 11 12

11

Display

13

Crisper

12

Up/Down

www.fhiaba.com ∙ [e-mail] ∙ Tel [phone] ∙ Fax [phone]

The innovative electronic control system designed by Fhiaba maintains constant temperature on the compartments and
visualizes it on the control panel display.
It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/
or visual messages should occur any malfunction in the appliance.

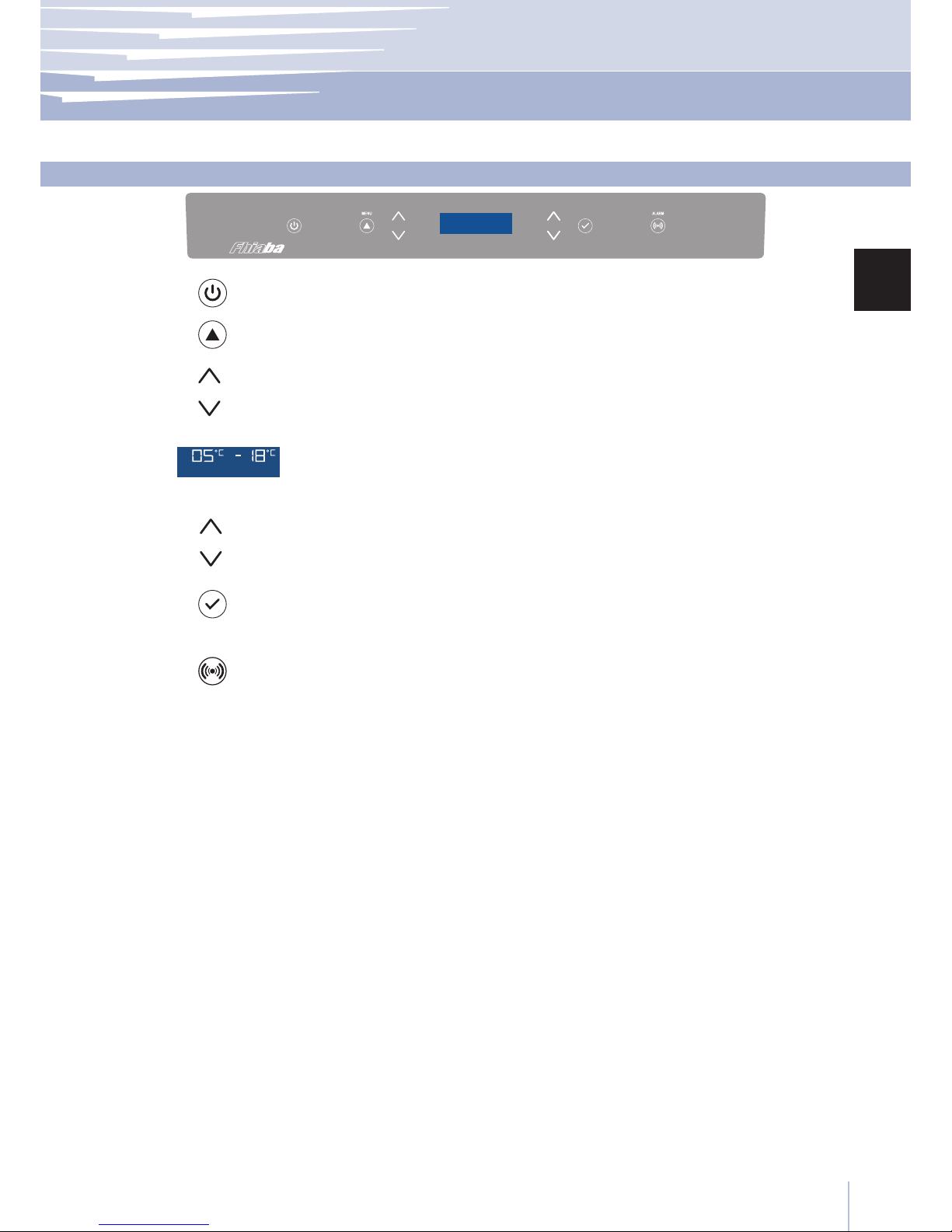

Main control panel (1T, 0T and 0H models)

Fresco control panel (1T models)

Switches the appliance (all compartments) between ON and STAND BY
(press for three seconds).

Allows switching ON and OFF of only the refrigerator compartment
(press for three seconds).

Allows access to the appliance function menu

It shows the temperature of the refrigerator and freezer compartments,
the date and time, Menu functions and visual messages.

By selecting Up/Down the preset temperature can be changed ac­cording to the selected function mode (freezer, refrigerator, Fresco)

and navigate through the interactive menu.

Confirms activation or deactivation of the selections made in the
Menu.

Allows activating or deactivating the automatic ice production.

Blinks to signal user alerts such as door left open, also in combination with
a sound signal which can be deactivated by pressing the button.

Using the Up and Down buttons, it is possible to change the set tempera

-

ture of the refrigerator and navigate through the interactive menu.

Shows the temperature of the Fresco compartment.

Allows switching on and off of only the Fresco compartment (press
for three seconds).

Using the Up and Down buttons, it is possible to change the tempera­ture set for the Fresco compartment.

Before starting

Main components
