Page 1

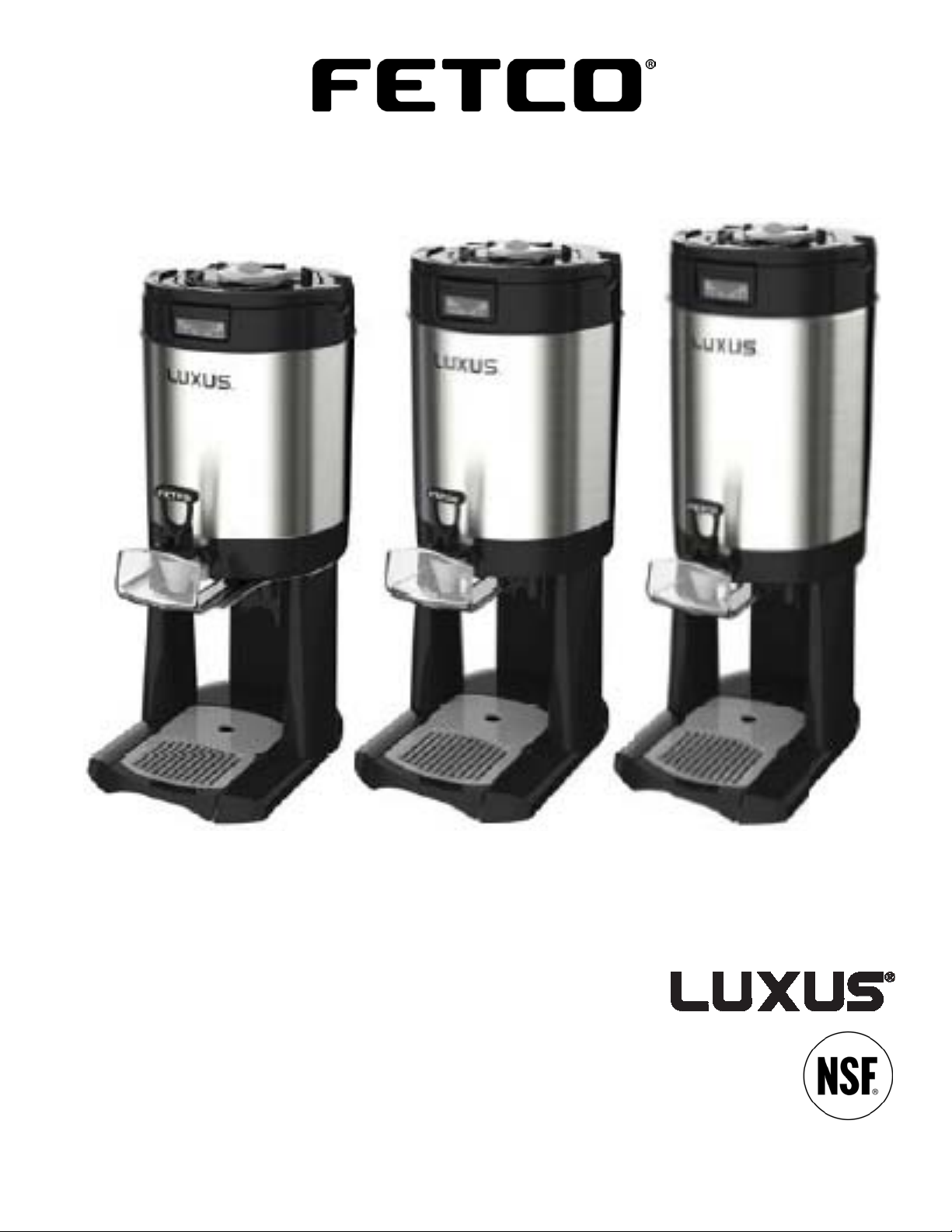

LUXUS® L4D & L4S Thermal Dispensers

User’s Guide

L4D-10 L4D-15 L4D-20

1 gallon 1½ gallon 2 gallon

PATENTED PATENTS: www.fetco.com/patents P157 March 2017

Page 2

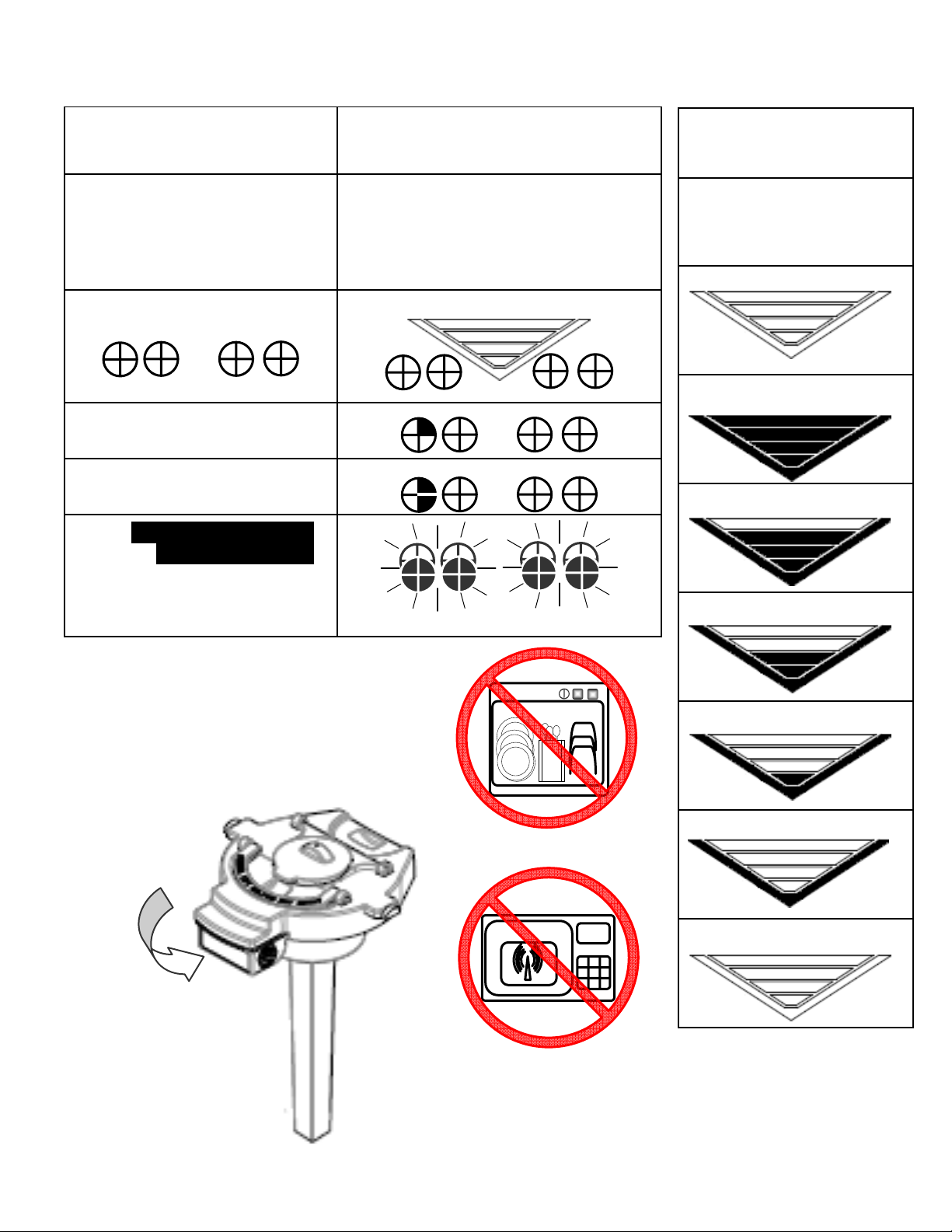

BREW FUNNEL DISPLAY

FFrreesshhnneessss TTiimmeer

Quad icons, each divided into

quarter hours segments—The

four icons represent a time

range of four hours

BLANK: Empty—Ready To Brew

1-15…minute time range

16-30…minute time range

…Some displays are

omitted for clarity

Slowly pulsing display:

…more than 4 hours

Time is reset when dispenser is completely emptied, when funnel is removed, or when enough liquid is added to increase the volume by at least one level

FUNNEL DISPLAY

r®

FFEETTCCOO iinnddiiccaattoorr ffuunnnneell

Blank indicator funnel display is

shown, dispenser is “Ready” for

brewing

…Active On & Off…

NO DISHWASHER

NO MICROWAVE

Clean and dry funnel

by hand only

VVoolluummee IInnddiiccaattoor

Lower “VEE”+ four upper

bars represent 20%

increments of fill level of

the dispenser

”READY” TO BREW”

Fifth Level-FULL

Fourth Level=80%filled

Third Level= 60% filled

Second Level=40% filled

First Level=20% filled

DISPENSER EMPTY

Page 3

 Do not submerge  Brew funnel must be removed for

 Removing the funnel resets timer.  To extend battery life, remove the

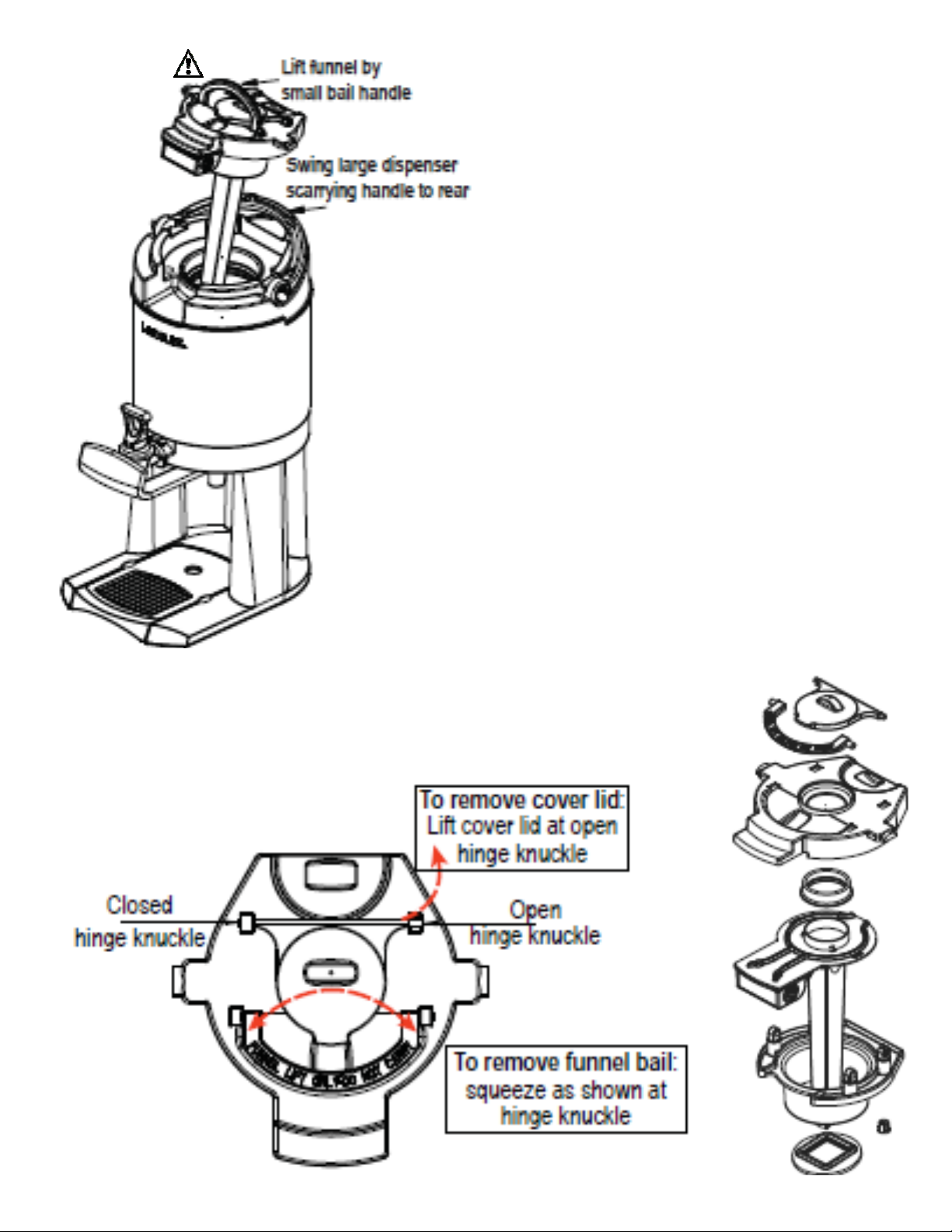

 TO ACCESS BREW FUNNEL  Remove both plug and bail handle  -Snap cover out at OPEN hinge knuckle  -Squeeze funnel bail inward at knuckles

TO REMOVE FUNNEL ASSEMBLY

NOTE: NEVER carry dispenser by the bail handle

-Swing large carrying handle to rear

-Lift funnel by small bail handle

Important Notice: To maintain proper operation of the funnel display, clean the funnel stem daily under running water with detergent and sponge, or non-abrasive pad or towel.

manual filling of dispenser.

funnel when not in use. (Battery cannot be replaced.)

to remove

Maintaining The L4 Funnel

Page 4

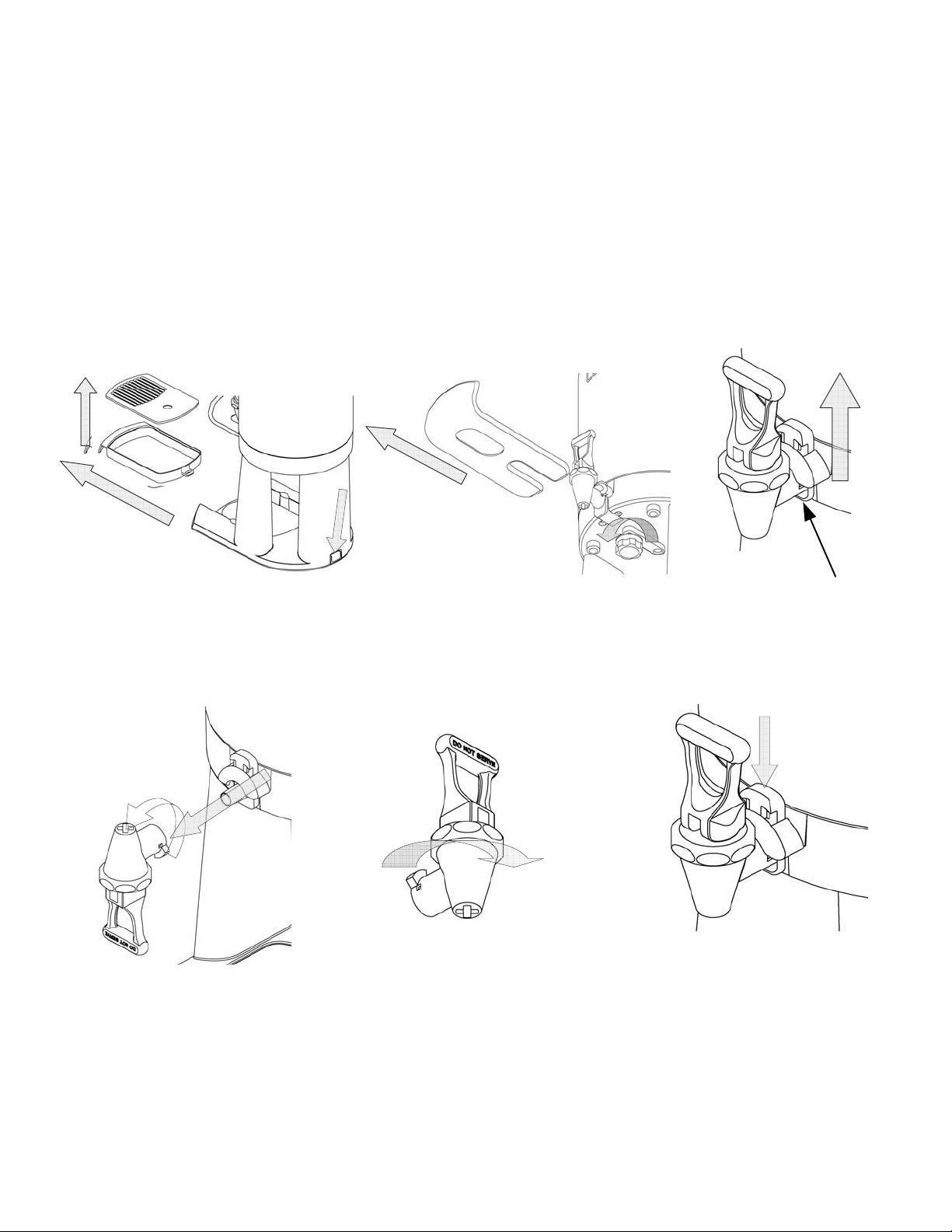

Accessing Dispenser Parts

REMOVING THE DRIP TRAY REMOVING THE FAUCET GUARD REMOVING THE FAUCET

1) Unscrew knob approximately four turns

2) Slide faucet guard out.

knob

Slide drip tray out Ålatch release Press faucet release latch up.

and pull it out

replace seat cup to lock faucet into place--!!Click!!

Rotate faucet 180°

Unscrew faucet upper Reverse procedure to re-install

assembly to clean or faucet. Press release latch down

Page 5

IMPORTANT SAFEGUARDS f To prevent overflows, make sure the dispenser is completely

empty before brewing.

f Always remove the funnel for manual filling of the dispenser. f Use only the large handle to lift or carry the dispenser.

f NEVER use the small funnel bail to lift or carry the dispenser f Do not use the faucet guard to pull or lift the dispenser. f Do not submerge the brew funnel f Do not use bleach or cleaners containing chlorides. f Do not use solvent based cleaner or polish on this equipment f Never use a cleaner on any food equipment that contains the

solvent diethylene glycol butyl ether (DGBE) .

f Use only non-metallic pads and non-abrasive cleaning pads. f DO NOT USE A BRUSH INSIDE THE DISPENSER

CLEANING AND MAINTENANCE

Detailed instructions are available on our web site, www.fetco.com.

Daily:

Important Notice: To maintain proper operation of the funnel display, clean the funnel stem daily under running water with detergent and a non-abrasive sponge or towel. DO NOT SUBMERGE FUNNEL OR DISPENSER.

f Use any commercial beverage urn cleaner to clean the inside of the

dispenser. Follow the cleaner manufacturer’s instructions. Make sure to thoroughly rinse the dispenser after cleaning.

f Wash the drip tray and other plastic parts with dish detergent.

Avoid abrasives.

f To sanitize the dispenser before filling, brew a batch of water only

(no coffee) into the dispenser and allow it to rest for 10 minutes.

Weekly, or as needed: f Remove the faucet upper assembly and inspect the seat cup for

wear. Clean or replace if necessary.

Page 6

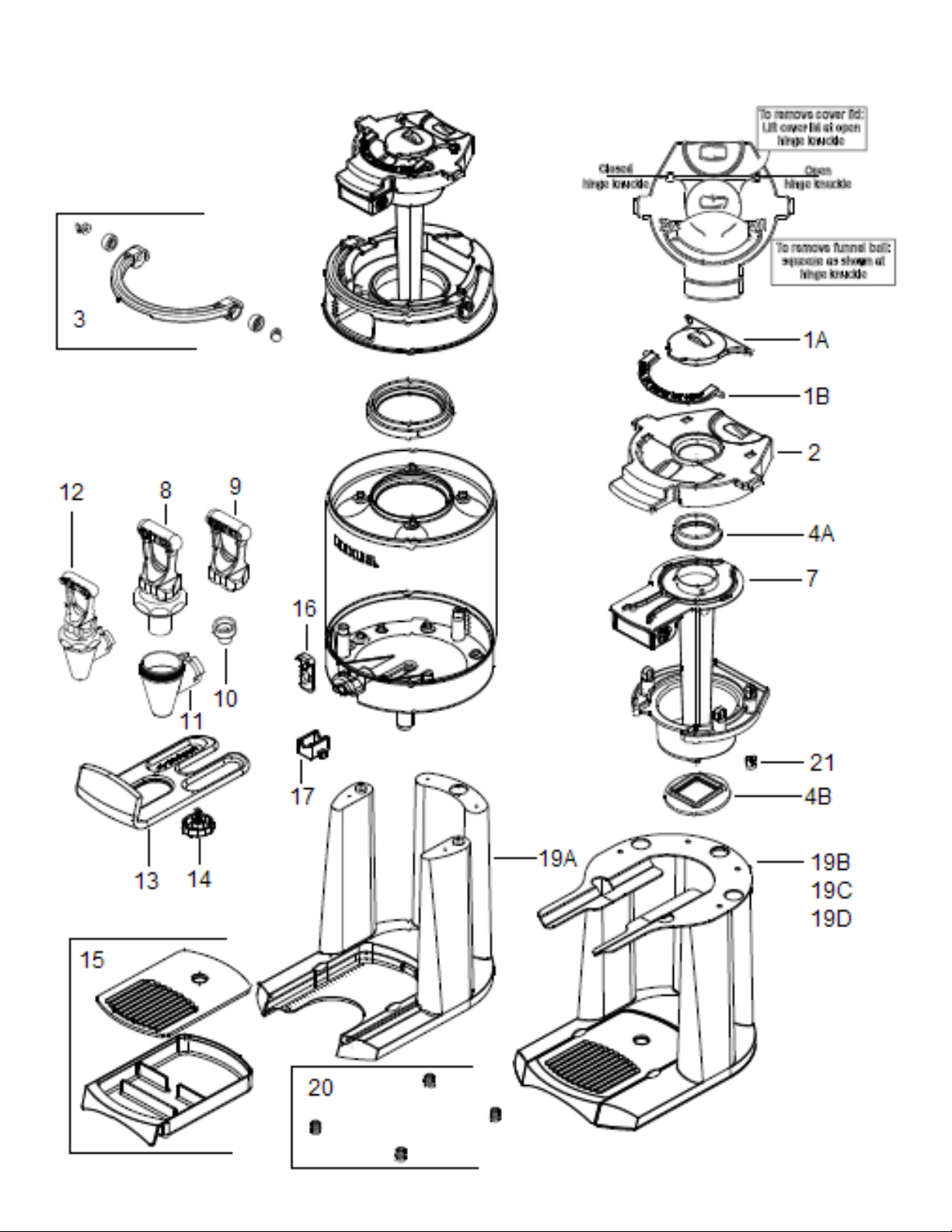

Replacement Parts

Page 7

Dispenser Model Number

(

# Description L4D10 & L4S10 L4D15 & L4S15 L4D20 & L4S20

1A Cover Lid-Gray [GR]

1023.00277.00GR 1023.00277.00GR 1023.00277.00GR

1B Funnel Bail Handle

2 Funnel Top Cover

3 Handle With Hardware 4A Top Gasket 4B Bottom Gasket 4C Neck Gasket

5 Cover/ Funnel Assembly

6 Top L4D

7 Indicator Funnel

Faucet Upper Assembly

(Standard-Black) Faucet Upper Assembly

Oran Faucet Upper Assembly

Green Handle Faucet Upper Assembly

Blue Handle

9 Faucet Handle, Black

Faucet Handle, Red

“HOT WATER”

10 Faucet Seat Cup 11 Faucet Body Assembly

Faucet Assembly

Com

13 Faucet Guard

Knob & Washer

For Faucet Guard)

15 Drip Tray Assembly 16 Faucet Lock 17 Insert, Bottom

18 Bottom L4D 19A Stand Assy.L4D 19B Stand Assy.L4S Single 19C Stand Assy.L4S Twin 19D Stand Assy.L4S Triple

20 Anti-Slip Foot (Qty-4)

21 Funnel Plug (Qty-4)

e Handle“DECAFF”

lete

1023.00278.00 1023.00278.00 1023.00278.00

1023.00283.00 1023.00279.00 1023.00279.00

1000.00111.00 1000.00112.00 1000.00112.00

1029.00014.00 1029.00016.00 1029.00016.00

1029.00013.00 1029.00015.00 1029.00015.00

1024.00070.00 1024.00070.00 1024.00070.00

1109.00109.00 1109.00109.00 1109.00109.00

1023.00286.00 1023.00282.00 1023.00282.00

1102.00142.00 1102.00149.00 1102.00149.00

1071.00020.00 1071.00020.00 1071.00020.00

1071.00030.00 1071.00030.00 1071.00030.00

1071.00031.00 1071.00031.00 1071.00031.00

1071.00032.00 1071.00032.00 1071.00032.00

1071.00022.00 1071.00022.00 1071.00022.00

1071.00040.00 1071.00040.00 1071.00040.00

1071.00013.00 1071.00013.00 1071.00013.00

1000.00012.00 1000.00012.00 1000.00012.00

1102.00055.00 1102.00055.00 1102.00055.00

1023.00076.00 1023.00055.00 1023.00055.00

1000.00010.00 1000.00010.00 1000.00010.00

1000.00013.00 1000.00014.00 1000.00014.00

1023.00069.00 1023.00069.00 1023.00069.00

1023.00083.00 1023.00067.00 1023.00067.00

1102.00363.00 1102.00361.00 1102.00361.00

1000.00015.00 1000.00016.00 1000.00016.00 147 148 149

150 151 152

1024.00069.00 1024.00069.00 1024.00069.00

1029.00010.00 1029.00010.00 1029.00010.00

Page 8

How the FETCO electronic beverage dispenser indicator funnel operates.

The FETCO electronic beverage dispenser indicator funnel works on contact with liquid. The stem of the funnel has six gold contacts evenly spaced from the bottom to the top: five level sensing contacts and one “common” contact (the lowest). Liquid immersion connects “makes” the electronic connection between the gold contacts. Pure gold is used because it is an excellent conductor, is inert and completely safe for all food.

The top of the funnel has a liquid crystal display (LCD) icons that display the age and level of the contents of the dispenser. Very sophisticated electronics measure the contents inside the dispenser and refreshes the LCD display.

The LCD icons time display begins when the gold contacts are immersed. The contacts have a “pause” in reading and updating the LCD icon that is purposely programmed to accommodate naturally occurring sloshing of the dispenser contents. The LCD icon display is digitally updated approximately 2 times per minute.

About the FETCO electronic beverage dispenser indicator funnel

The FETCO electronic beverage dispenser indicator funnel information LCD icons are informative and attractive;-yet unobtrusive enough so to not be distracting to guests.

The FETCO indicating funnel was developed to replace the old-styled clear sight-tubes used in commercial coffee urns and dispensers. The old-style sight-tubes are easily broken, always dirty, and cool the contents from heat loss due to heat convection.

Extensive research and development produced the FETCO electronic beverage dispenser indicator funnel sold today. It is designed to be attractive, reliable, durable, simple to operate and understand, and to be safe for food service. Customer input guided the extensive development of the funnels operation method and appearance.

FETCO owns multiple patents for the electronic beverage dispenser indicator funnel. [WWW.fetco.com/patents]
