Page 1
Solenoid valves VZWF, force pilot operated, NPT
Page 2
Solenoid valves VZWF, force pilot operated, NPT
Key features and overview
Function
Normally closed solenoid valve
with diaphragm and forced lifting.
When the solenoid is energised,
the differential pressure from the
secondary side of the diaphragm is
reduced via the servo hole. The
effective differential pressure lifts
General Application Design Advantages
-N- Connecting thread
1/4 NPT … 2 NPT
-M- Flow rate Kv
1.8 … 28 m3/h
the diaphragm away from the valve
seat. If there is no differential
pressure, the diaphragm is lifted
directly by the solenoid. The valve
opens and closes without a differ
ential pressure between the inlet
and outlet.
Suitable for closed applications
such as cooling or filling systems
Vacuum
Liquid gas
Bottling systems
Diaphragm valves
Forced lifting of the valve
diaphragm
2/2-way valve, normally closed
Choice of sealing materials for
different fields of applications
Medium pressure 0 bar or higher
-H- Note
The valves are suitable for vacuum
with Pabs 100 mbar. Please
ensure the direction of flow corres
ponds to the direction of the arrow.
Version Type Process valve connection Nominal size (DN) Process valve nominal
pressure (PN)
VZWF-… 1/4 NPT 13.5 40 4
3/8 NPT 13.5
1/2 NPT 13.5
3/4 NPT 27.5
1 NPT 27.5
VZWF-… 1 1/4 NPT 40 40 8
1 1/2 NPT 40
2 NPT 50
è Page/Internet
2
è
Subject to change – 2017/02
Page 3
Solenoid valves VZWF, force pilot operated, NPT
Type codes
VZWF – B – L – M22C – N14 – 135 – V – 2AP4 – 10 – R1
Type
VZWF Solenoid valve, force pilot operated
Product version
– Standard
B Optimised function
Type of directional control valve
L In-line valve
Valve function
M22C 2/2-way valve, normally closed
Process valve connection
N14 1/4 NPT
N38 3/8 NPT
N12 1/2 NPT
N34 3/4 NPT
N1 1 NPT
N114 1 1/4 NPT
N112 1 1/2 NPT
N2 2 NPT
Nominal size (DN)
135 13.5 mm
275 27.5 mm
400 40 mm
500 50 mm
Sealing material
– Standard (NBR)
E EPDM
V FPM
Nominal operating voltage
1 24 V DC
2A 110 V AC/50-60 Hz
3A 230 V AC/50-60 Hz
Electrical connection
P4 Plug socket, 3-pin
Medium pressure
6 Max. 6 bar
10 Max. 10 bar
Corrosion protection
– Standard (brass)
R1 Stainless steel
2017/02 – Subject to change
è
3
Page 4
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1/4 NPT … 1 NPT
Function
-M- Flow rate Kv
1.8 … 11 m3/h
-N- Connecting thread
1/4 NPT … 1 NPT
General technical data
Process valve connection 1/4 NPT 3/8 NPT 1/2 NPT 3/4 NPT 1 NPT
Nominal size (DN) 13.5 13.5 13.5 27.5 27.5
Valve function 2/2-way, single solenoid, closed
Design Diaphragm valve, force pilot operated
Type of mounting In-line installation
Actuation type Electric
Manual override None
Mounting position Solenoid vertical
Sealing principle Soft
Direction of flow Non-reversible
Max. viscosity [mm2/s] 22
Protection class IP 65
Product weight [g] 1000 1500
4
è
Subject to change – 2017/02
Page 5
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1/4 NPT … 1 NPT
Operating and environmental conditions
Process valve connection 1/4 NPT 3/8 NPT 1/2 NPT 3/4 NPT 1 NPT
Switching time on [ms] 130 275
Switching time off [ms] 180 290
Standard nominal flow rate [l/min] 1920 2350 2660 8020 11750
Flow rate [m3/h] 1.8 2.2 2.5 7.5 11
Process valve nominal pressure (PN) 40
Differential pressure [bar] 0
Medium pressure
Medium Compressed air in accordance with ISO 85731:2010 [7:–:–]
Ambient temperature [°C] –10 … +35 °C
Temperature of medium [°C] –10 … +80 °C
Leak rate to EN 12266-1 A
Corrosion resistance class
1)
CRC
Stainless steel
1) Corrosion resistance class CRC 3 to Festo standard FN 940070
High corrosion stress. Outdoor exposure under moderate corrosive conditions. External visible parts with primarily functional requirements for the surface and which are in direct contact with a normal industrial
environment.
2) The valves are suitable for vacuum with Pabs 100 mbar. Please ensure the direction of flow corresponds to the direction of the arrow.
2)
[bar] 0 … 10 0 … 6
Inert gases
Mineral oil
Water
Neutral liquids
Further media upon request
3
Materials
Solenoid valves Material number
Housing Brass casting CW617N
Stainless steel casting 1.4581
Screws High-alloy stainless steel 1.4301
Seals NBR –
FPM –
EPDM –
Note on materials Contains PWIS (paint-wetting impairment substances)
RoHS-compliant
2017/02 – Subject to change
è
5
Page 6
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1/4 NPT … 1 NPT
Electrical data
VZWF- … 1 VZWF- … 2A VZWF- … 3A
Electrical connection Plug to EN 175301-803 type A, square design
CE mark as per EU Pressure Equipment Directive – Yes Yes
Coil characteristics Direct current DC [V] 24 – –
Alternating current AC [V] – 110 230
[W] 11 – –
Switching power [VA] – 19 18
Holding power [VA] – 16 15
[Hz] – 50, 60 50, 60
Permissible voltage fluctuations [%] _10

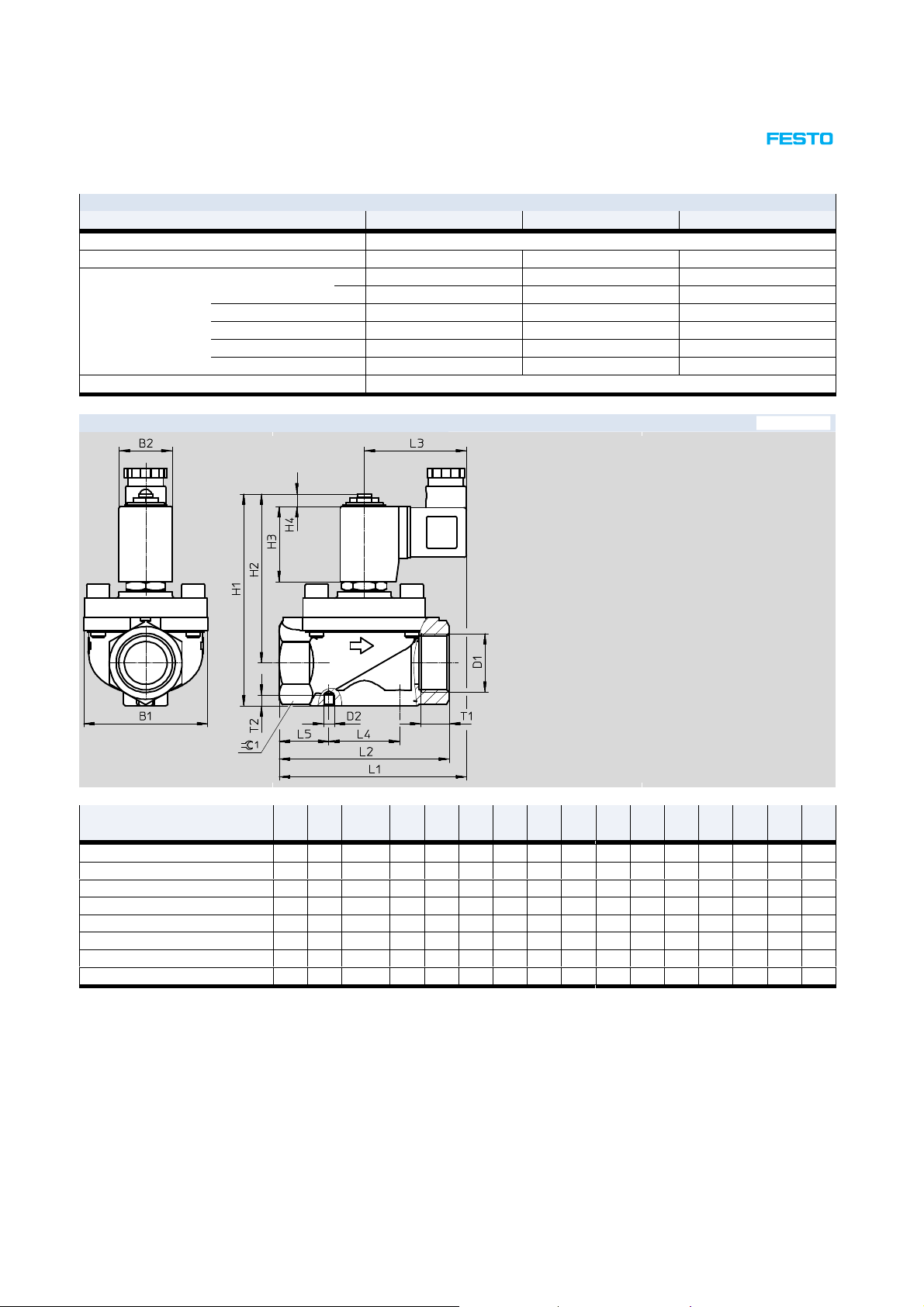

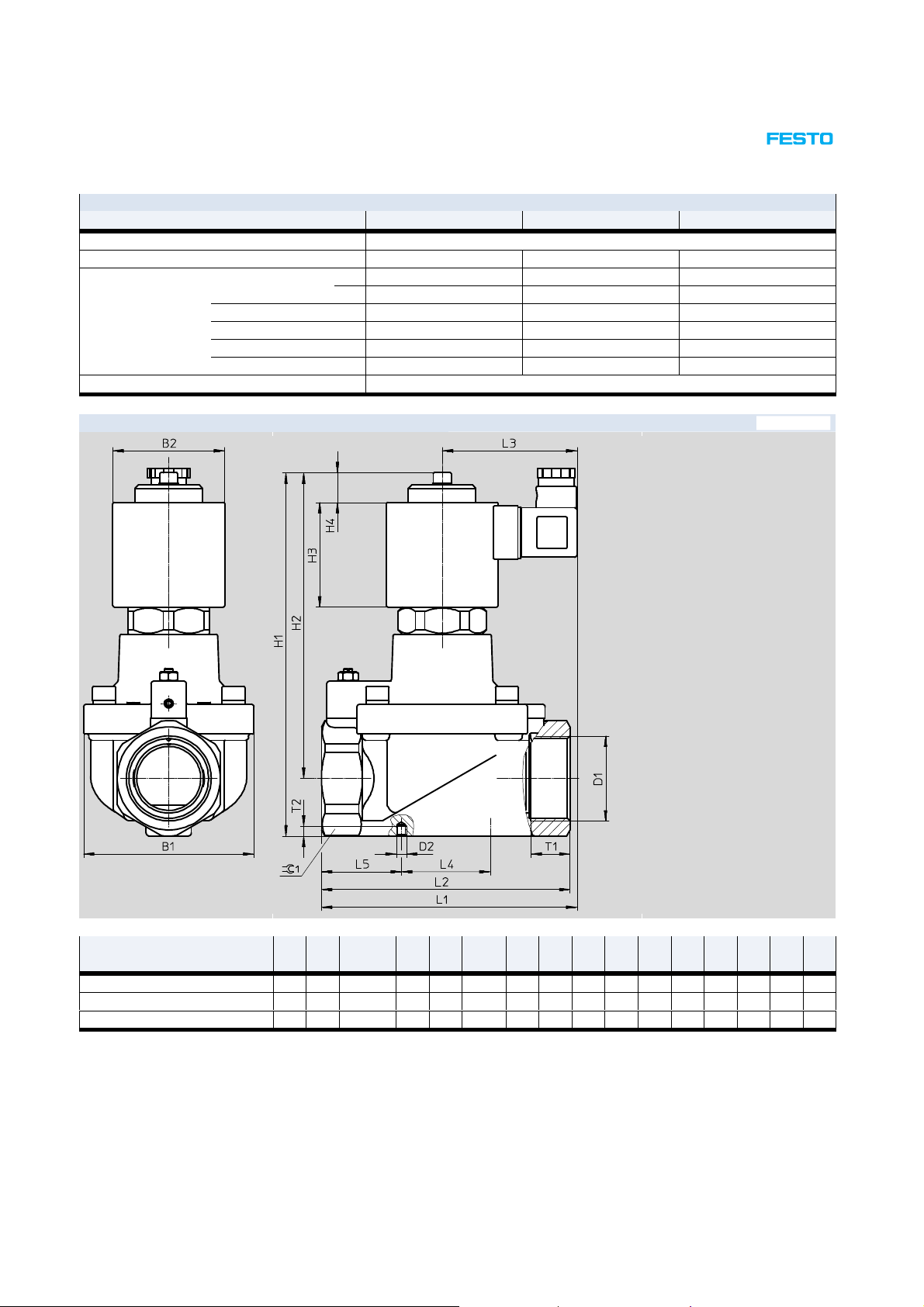

Dimensions Download CAD data è
B1 B2 D1 D2 H1 H2 H3 H4 L1 L2 L3 L4 L5 T1 T2 ß
VZWF-B-L-M22C-N14-135-… 48 30 1/4 NPT M4 101 86 42 7 92 67 58 25 21 12 4 27
VZWF-B-L-M22C-N14-135-…-R1 44 30 1/4 NPT M4 101 86 42 7 94 67 58 25 21 12 4 27
VZWF-B-L-M22C-N38-135-… 48 30 3/8 NPT M4 101 86 42 7 92 67 58 25 21 12 4 27
VZWF-B-L-M22C-N38-135-…-R1 44 30 3/8 NPT M4 101 86 42 7 94 67 58 25 21 12 4 27
VZWF-B-L-M22C-N12-135-… 48 30 1/2 NPT M4 101 86 42 7 92 67 58 25 21 12 4 27
VZWF-B-L-M22C-N12-135-…-R1 44 30 1/2 NPT M4 101 86 42 7 94 67 58 25 21 12 4 27
VZWF-B-L-M22C-N34-275-… 70 30 3/4 NPT M6 120 96 42 7 106 96 58 40 28 16 6 41
VZWF-B-L-M22C-N1-275-… 70 30 1 NPT M6 120 96 42 7 106 96 58 40 28 16 6 41
6
è
Subject to change – 2017/02
Page 7
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1/4 NPT … 1 NPT

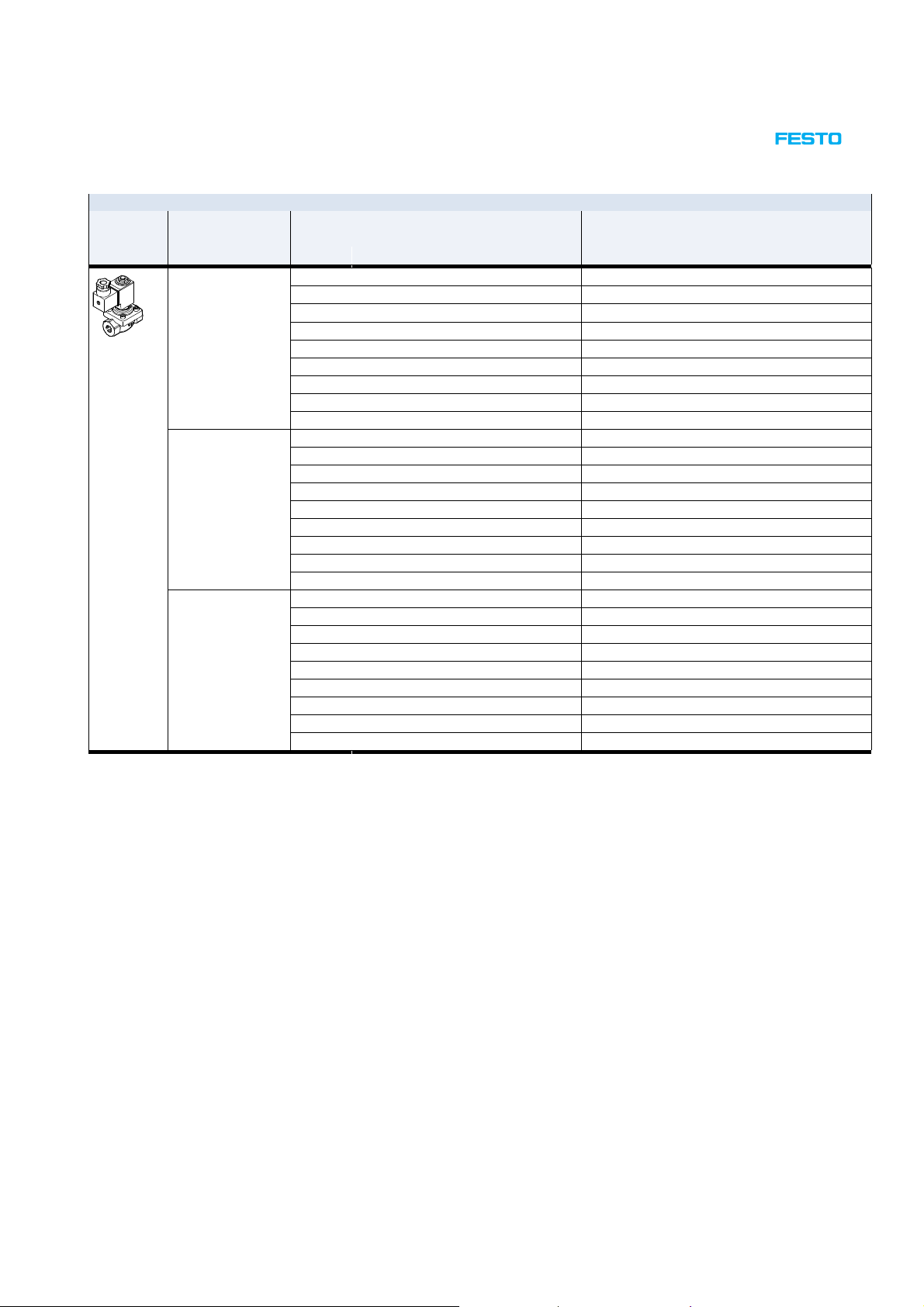

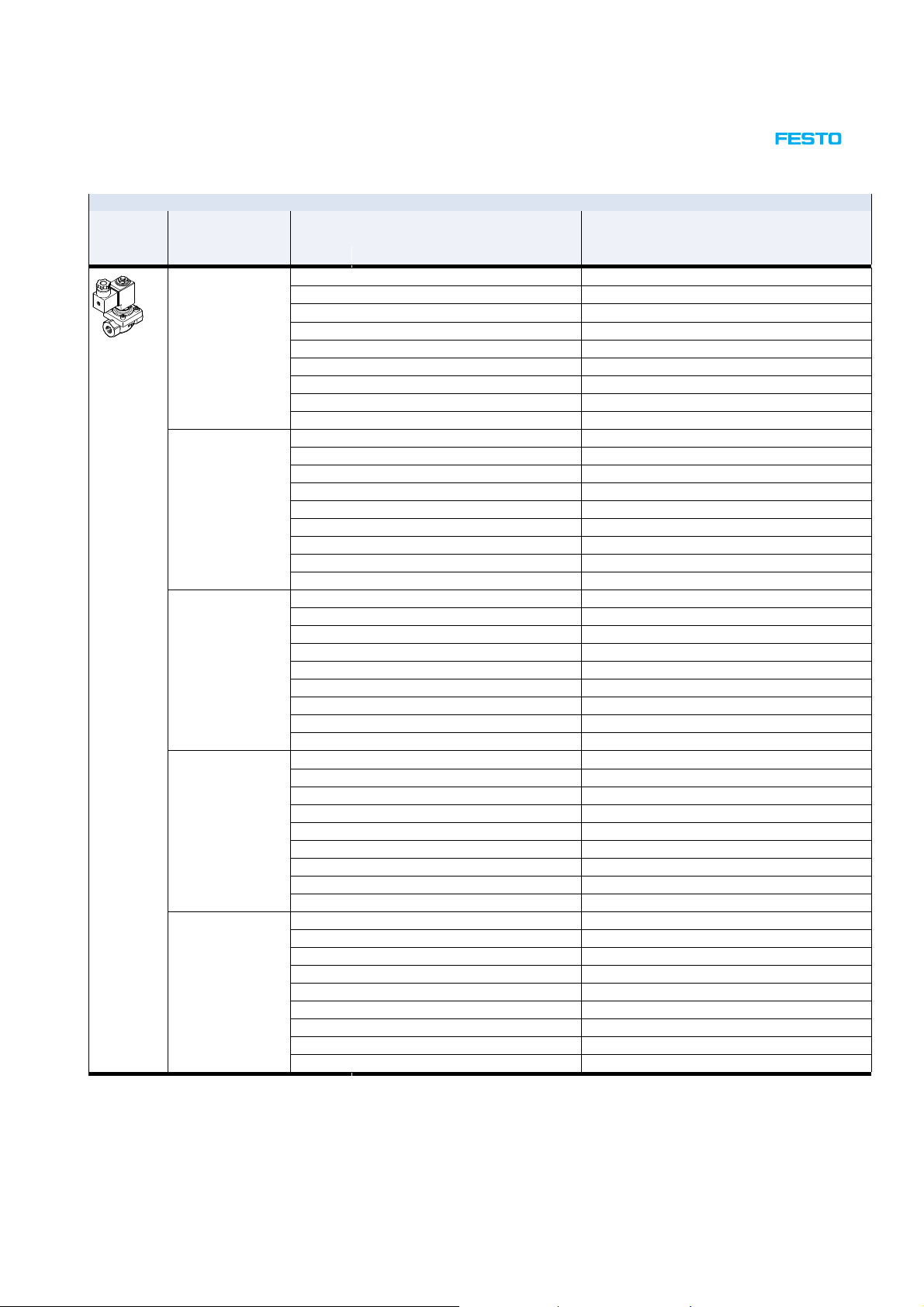

Ordering data – Solenoid valve VZWF
Process valve
connection
1/4 NPT 1492174 VZWF-B-L-M22C-N14-135-E-1P4-10 1492166 VZWF-B-L-M22C-N14-135-1P4-10-R1
3/8 NPT 1492175 VZWF-B-L-M22C-N38-135-E-1P4-10 1492167 VZWF-B-L-M22C-N38-135-1P4-10-R1
1/2 NPT 1492176 VZWF-B-L-M22C-N12-135-E-1P4-10 1492168 VZWF-B-L-M22C-N12-135-1P4-10-R1
3/4 NPT 1492385 VZWF-B-L-M22C-N34-275-V-3AP4-6 1492169 VZWF-B-L-M22C-N34-275-1P4-6-R1
1 NPT 1492162 VZWF-B-L-M22C-N1-275-1P4-6 1492170 VZWF-B-L-M22C-N1-275-1P4-6-R1
Brass housing Stainless steel casting housing
Part No. Type Part No. Type
1492158 VZWF-B-L-M22C-N14-135-1P4-10 1492182 VZWF-B-L-M22C-N14-135-E-1P4-10-R1
1492254 VZWF-B-L-M22C-N14-135-2AP4-10 1492390 VZWF-B-L-M22C-N14-135-V-3AP4-10-R1
1492350 VZWF-B-L-M22C-N14-135-3AP4-10 1492198 VZWF-B-L-M22C-N14-135-V-1P4-10-R1
1492270 VZWF-B-L-M22C-N14-135-E-2AP4-10 1492262 VZWF-B-L-M22C-N14-135-2AP4-10-R1
1492286 VZWF-B-L-M22C-N14-135-V-2AP4-10 1492278 VZWF-B-L-M22C-N14-135-E-2AP4-10-R1
1492366 VZWF-B-L-M22C-N14-135-E-3AP4-10 1492294 VZWF-B-L-M22C-N14-135-V-2AP4-10-R1
1492190 VZWF-B-L-M22C-N14-135-V-1P4-10 1492358 VZWF-B-L-M22C-N14-135-3AP4-10-R1
1492382 VZWF-B-L-M22C-N14-135-V-3AP4-10 1492374 VZWF-B-L-M22C-N14-135-E-3AP4-10-R1
1492159 VZWF-B-L-M22C-N38-135-1P4-10 1492183 VZWF-B-L-M22C-N38-135-E-1P4-10-R1
1492255 VZWF-B-L-M22C-N38-135-2AP4-10 1492391 VZWF-B-L-M22C-N38-135-V-3AP4-10-R1
1492351 VZWF-B-L-M22C-N38-135-3AP4-10 1492199 VZWF-B-L-M22C-N38-135-V-1P4-10-R1
1492191 VZWF-B-L-M22C-N38-135-V-1P4-10 1492263 VZWF-B-L-M22C-N38-135-2AP4-10-R1
1492271 VZWF-B-L-M22C-N38-135-E-2AP4-10 1492279 VZWF-B-L-M22C-N38-135-E-2AP4-10-R1
1492287 VZWF-B-L-M22C-N38-135-V-2AP4-10 1492295 VZWF-B-L-M22C-N38-135-V-2AP4-10-R1
1492367 VZWF-B-L-M22C-N38-135-E-3AP4-10 1492359 VZWF-B-L-M22C-N38-135-3AP4-10-R1
1492383 VZWF-B-L-M22C-N38-135-V-3AP4-10 1492375 VZWF-B-L-M22C-N38-135-E-3AP4-10-R1
1492256 VZWF-B-L-M22C-N12-135-2AP4-10 1492184 VZWF-B-L-M22C-N12-135-E-1P4-10-R1
1492352 VZWF-B-L-M22C-N12-135-3AP4-10 1492392 VZWF-B-L-M22C-N12-135-V-3AP4-10-R1
1492192 VZWF-B-L-M22C-N12-135-V-1P4-10 1492200 VZWF-B-L-M22C-N12-135-V-1P4-10-R1
1492272 VZWF-B-L-M22C-N12-135-E-2AP4-10 1492264 VZWF-B-L-M22C-N12-135-2AP4-10-R1
1492288 VZWF-B-L-M22C-N12-135-V-2AP4-10 1492280 VZWF-B-L-M22C-N12-135-E-2AP4-10-R1
1492368 VZWF-B-L-M22C-N12-135-E-3AP4-10 1492296 VZWF-B-L-M22C-N12-135-V-2AP4-10-R1
1492384 VZWF-B-L-M22C-N12-135-V-3AP4-10 1492360 VZWF-B-L-M22C-N12-135-3AP4-10-R1
1492160 VZWF-B-L-M22C-N12-135-1P4-10 1492376 VZWF-B-L-M22C-N12-135-E-3AP4-10-R1
1492161 VZWF-B-L-M22C-N34-275-1P4-6 1492185 VZWF-B-L-M22C-N34-275-E-1P4-6-R1
1492257 VZWF-B-L-M22C-N34-275-2AP4-6 1492393 VZWF-B-L-M22C-N34-275-V-3AP4-6-R1
1492353 VZWF-B-L-M22C-N34-275-3AP4-6 1492201 VZWF-B-L-M22C-N34-275-V-1P4-6-R1
1492177 VZWF-B-L-M22C-N34-275-E-1P4-6 1492265 VZWF-B-L-M22C-N34-275-2AP4-6-R1
1492193 VZWF-B-L-M22C-N34-275-V-1P4-6 1492281 VZWF-B-L-M22C-N34-275-E-2AP4-6-R1
1492273 VZWF-B-L-M22C-N34-275-E-2AP4-6 1492297 VZWF-B-L-M22C-N34-275-V-2AP4-6-R1
1492289 VZWF-B-L-M22C-N34-275-V-2AP4-6 1492361 VZWF-B-L-M22C-N34-275-3AP4-6-R1
1492369 VZWF-B-L-M22C-N34-275-E-3AP4-6 1492377 VZWF-B-L-M22C-N34-275-E-3AP4-6-R1
1492258 VZWF-B-L-M22C-N1-275-2AP4-6 1492186 VZWF-B-L-M22C-N1-275-E-1P4-6-R1
1492354 VZWF-B-L-M22C-N1-275-3AP4-6 1492394 VZWF-B-L-M22C-N1-275-V-3AP4-6-R1
1492178 VZWF-B-L-M22C-N1-275-E-1P4-6 1492202 VZWF-B-L-M22C-N1-275-V-1P4-6-R1
1492274 VZWF-B-L-M22C-N1-275-E-2AP4-6 1492266 VZWF-B-L-M22C-N1-275-2AP4-6-R1
1492370 VZWF-B-L-M22C-N1-275-E-3AP4-6 1492282 VZWF-B-L-M22C-N1-275-E-2AP4-6-R1
1492194 VZWF-B-L-M22C-N1-275-V-1P4-6 1492298 VZWF-B-L-M22C-N1-275-V-2AP4-6-R1
1492290 VZWF-B-L-M22C-N1-275-V-2AP4-6 1492362 VZWF-B-L-M22C-N1-275-3AP4-6-R1
1492386 VZWF-B-L-M22C-N1-275-V-3AP4-6 1492378 VZWF-B-L-M22C-N1-275-E-3AP4-6-R1
2017/02 – Subject to change
è
7
Page 8
Solenoid valves VZWF, force pilot operated, NPT

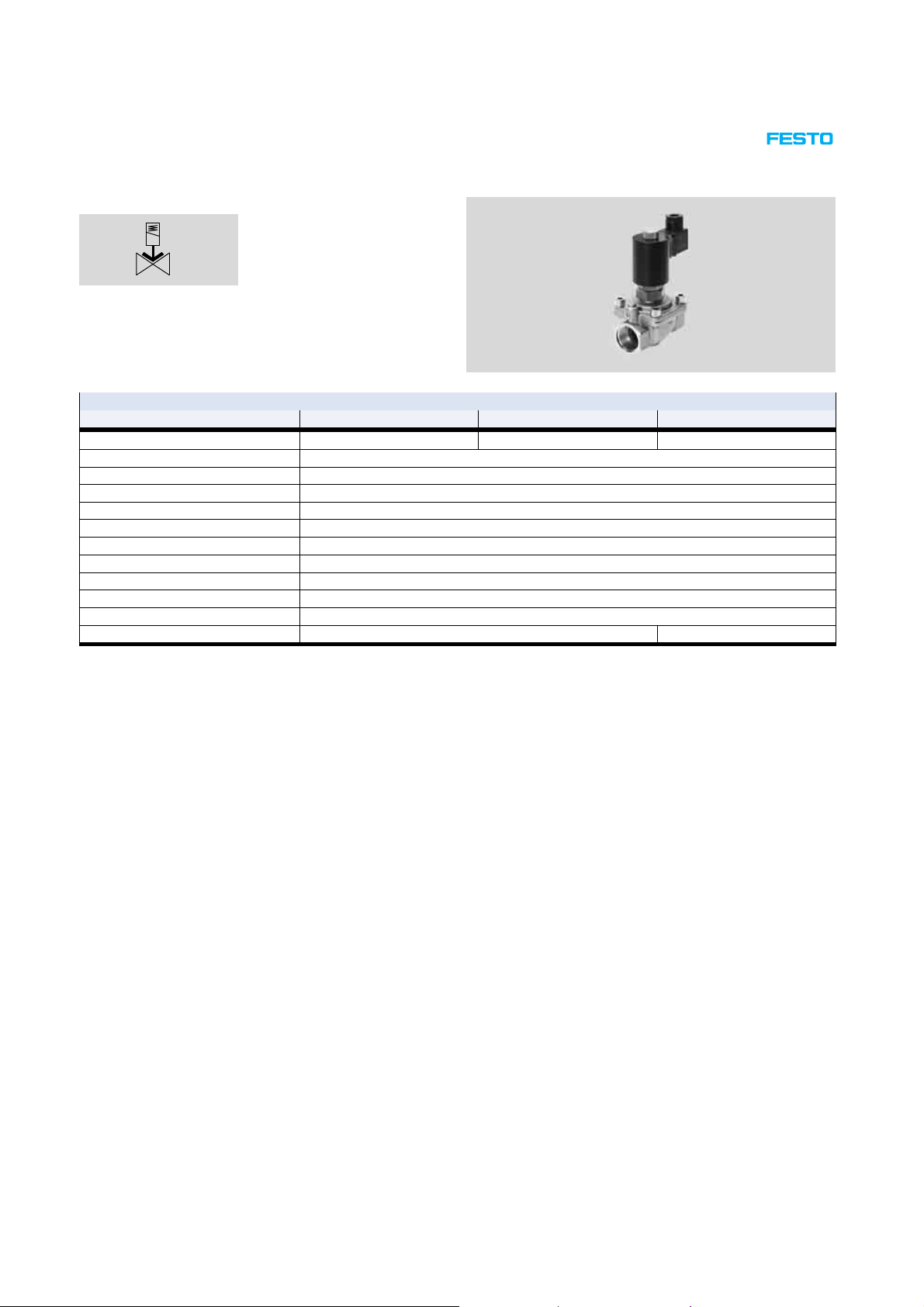

Technical data – Connecting thread 1 1/4 NPT … 2 NPT
Function
-M- Flow rate Kv
20 … 28 m3/h
-N- Connecting thread
1 1/4 NPT … 2 NPT
General technical data
Process valve connection 1 1/4 NPT 1 1/2 NPT 2 NPT
Nominal size (DN) 40 40 50
Valve function 2/2-way, single solenoid, closed
Design Diaphragm valve, force pilot operated
Type of mounting In-line installation
Actuation type Electric
Manual override None
Mounting position Solenoid vertical
Sealing principle Soft
Direction of flow Non-reversible
Max. viscosity [mm2/s] 22
Protection class IP 65
Product weight [g] 4500 6500
8
è
Subject to change – 2017/02
Page 9
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1 1/4 NPT … 2 NPT
Operating and environmental conditions
Process valve connection 1 1/4 NPT 1 1/2 NPT 2 NPT
Switching time on [ms] 620 1220
Switching time off [ms] 1140 2140
Standard nominal flow rate [l/min] 21370 23500 29900
Flow rate [m3/h] 20 22.5 28
Process valve nominal pressure (PN) 40
Differential pressure [bar] 0
Medium pressure
Medium Compressed air in accordance with ISO 85731:2010 [7:–:–]
Ambient temperature [°C] –10 … +35 °C
Temperature of medium [°C] –10 … +80 °C
Leak rate to EN 12266-1 A
Corrosion resistance class
1)
CRC
Stainless steel
1) Corrosion resistance class CRC 3 to Festo standard FN 940070
High corrosion stress. Outdoor exposure under moderate corrosive conditions. External visible parts with primarily functional requirements for the surface and which are in direct contact with a normal industrial
environment.
2) The valves are suitable for vacuum with Pabs 100 mbar. Please ensure the direction of flow corresponds to the direction of the arrow.
2)
[bar] 0 … 10 0 … 6
Inert gases
Mineral oil
Water
Neutral liquids
Further media upon request
3
Materials
Solenoid valves Material number
Housing Brass casting CW617N
Stainless steel casting 1.4581
Screws High-alloy stainless steel 1.4301
Seals NBR –
FPM –
EPDM –
Note on materials Contains PWIS (paint-wetting impairment substances)
RoHS-compliant
2017/02 – Subject to change
è
9
Page 10
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1 1/4 NPT … 2 NPT
Electrical data
VZWF- … 1 VZWF- … 2A VZWF- … 3A
Electrical connection Plug to EN 175301-803 type A, square design
CE mark as per EU Pressure Equipment Directive – Yes Yes
Coil characteristics Direct current DC [V] 24 – –
Alternating current AC [V] – 110 230
[W] 30 – –
Switching power [VA] – 30 30
Holding power [VA] – 30 30
[Hz] – 50, 60 50, 60
Permissible voltage fluctuations [%] _10
Dimensions Download CAD data è
B1 B2 D1 D2 H1 H2 H3 H4 L1 L2 L3 L4 L5 T1 T2 ß
VZWF-L-M22C-N114-400-… 96 63 1 1/4 NPT – 205 173 59 17 148 14 0 76 – – 22 – 58
VZWF-L-M22C-N112-400-… 96 63 1 1/2 NPT – 205 173 59 17 148 14 0 76 – – 22 – 58
VZWF-L-M22C-N2-500-… 112 63 2 NPT M6 218 179 59 17 159 168 76 60 55 25 6 70
10
è
Subject to change – 2017/02
Page 11
Solenoid valves VZWF, force pilot operated, NPT
Technical data – Connecting thread 1 1/4 NPT … 2 NPT
Ordering data – Solenoid valve VZWF
Process valve
connection
1 1/4 NPT 1492387 VZWF-L-M22C-N114-400-V-3AP4-10 1492171 VZWF-L-M22C-N114-400-1P4-10-R1
1 1/2 NPT 1492388 VZWF-L-M22C-N112-400-V-3AP4-10 1492172 VZWF-L-M22C-N112-400-1P4-10-R1
2 NPT 1492165 VZWF-L-M22C-N2-500-1P4-6 1492173 VZWF-L-M22C-N2-500-1P4-6-R1
Brass housing Stainless steel casting housing
Part No. Type Part No. Type
1492163 VZWF-L-M22C-N114-400-1P4-10 1492187 VZWF-L-M22C-N114-400-E-1P4-10-R1
1492259 VZWF-L-M22C-N114-400-2AP4-10 1492395 VZWF-L-M22C-N114-400-V-3AP4-10-R1
1492355 VZWF-L-M22C-N114-400-3AP4-10 1492203 VZWF-L-M22C-N114-400-V-1P4-10-R1
1492179 VZWF-L-M22C-N114-400-E-1P4-10 1492267 VZWF-L-M22C-N114-400-2AP4-10-R1
1492195 VZWF-L-M22C-N114-400-V-1P4-10 1492283 VZWF-L-M22C-N114-400-E-2AP4-10-R1
1492275 VZWF-L-M22C-N114-400-E-2AP4-10 1492299 VZWF-L-M22C-N114-400-V-2AP4-10-R1
1492291 VZWF-L-M22C-N114-400-V-2AP4-10 1492363 VZWF-L-M22C-N114-400-3AP4-10-R1
1492371 VZWF-L-M22C-N114-400-E-3AP4-10 1492379 VZWF-L-M22C-N114-400-E-3AP4-10-R1
1492164 VZWF-L-M22C-N112-400-1P4-10 1492188 VZWF-L-M22C-N112-400-E-1P4-10-R1
1492260 VZWF-L-M22C-N112-400-2AP4-10 1492396 VZWF-L-M22C-N112-400-V-3AP4-10-R1
1492356 VZWF-L-M22C-N112-400-3AP4-10 1492204 VZWF-L-M22C-N112-400-V-1P4-10-R1
1492180 VZWF-L-M22C-N112-400-E-1P4-10 1492268 VZWF-L-M22C-N112-400-2AP4-10-R1
1492196 VZWF-L-M22C-N112-400-V-1P4-10 1492284 VZWF-L-M22C-N112-400-E-2AP4-10-R1
1492276 VZWF-L-M22C-N112-400-E-2AP4-10 1492300 VZWF-L-M22C-N112-400-V-2AP4-10-R1
1492292 VZWF-L-M22C-N112-400-V-2AP4-10 1492364 VZWF-L-M22C-N112-400-3AP4-10-R1
1492372 VZWF-L-M22C-N112-400-E-3AP4-10 1492380 VZWF-L-M22C-N112-400-E-3AP4-10-R1
1492261 VZWF-L-M22C-N2-500-2AP4-6 1492189 VZWF-L-M22C-N2-500-E-1P4-6-R1
1492357 VZWF-L-M22C-N2-500-3AP4-6 1492397 VZWF-L-M22C-N2-500-V-3AP4-6-R1
1492181 VZWF-L-M22C-N2-500-E-1P4-6 1492205 VZWF-L-M22C-N2-500-V-1P4-6-R1
1492277 VZWF-L-M22C-N2-500-E-2AP4-6 1492269 VZWF-L-M22C-N2-500-2AP4-6-R1
1492373 VZWF-L-M22C-N2-500-E-3AP4-6 1492365 VZWF-L-M22C-N2-500-3AP4-6-R1
1492197 VZWF-L-M22C-N2-500-V-1P4-6 1492301 VZWF-L-M22C-N2-500-V-2AP4-6-R1
1492293 VZWF-L-M22C-N2-500-V-2AP4-6 1492285 VZWF-L-M22C-N2-500-E-2AP4-6-R1
1492389 VZWF-L-M22C-N2-500-V-3AP4-6 1492381 VZWF-L-M22C-N2-500-E-3AP4-6-R1
2017/02 – Subject to change
è
11
Loading...
