Page 1
Pinch valves VZQA
Page 2
Pinch valves VZQA
Features

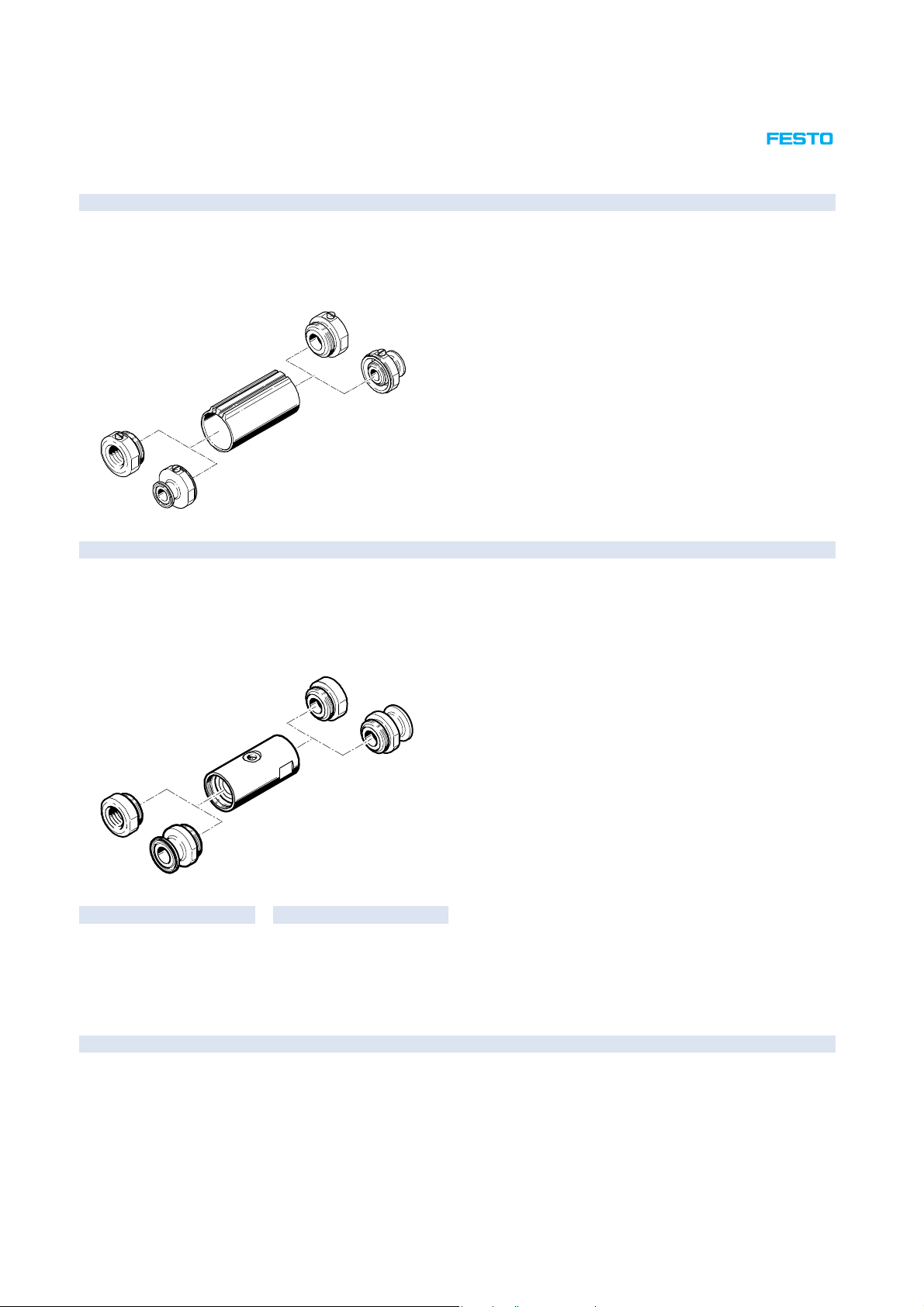

VZQA-C-M22C function
The pinch valve is a 2/2-way valve for controlling material flows. It is closed in
normal position. The shut-off element is a tubular pinch valve sleeve made
from elastomer. The sleeve opens when the valve is pressurised, releasing the
material flow. When pressure is no longer applied, a spring will close the
3
1
2
5
VZQA-C-M22U function
The pinch valve is a 2/2-way valve for controlling material flows. It is open in
normal position. The shut-off element is a tubular pinch valve sleeve made
from elastomer. The sleeve closes when the valve is pressurised, completely
shutting off the material flow. When pressure is no longer applied, the
normally closed valve will open due to the inherent stress of the pinch valve
3
1
2
4
4
normally open valve. The valve can be used with liquid and gaseous media.
The free passage when the valve is opened ensures minimum flow resistance
and prevents the valve becoming blocked or clogged.
1 Body, normally closed
2 Process valve connection 1
G female thread, NPT female thread
3 Process valve connection 2
G female thread, NPT female thread
4 Process valve connection 1
Clamp to DIN 32676, series A or clamp to ASME-BPE, type A
5 Process valve connection 2
Clamp to DIN 32676, series A or clamp to ASME-BPE, type A
sleeve or the pressure of the medium. The valve can be used to shut off liquid
and dusty media, solids (granulate) and mixtures of substances. The free
passage when the valve is opened ensures minimum flow resistance and
prevents the valve becoming blocked or clogged.
1 Body, normally open
2 Process valve connection 1
G female thread, NPT female thread
3 Process valve connection 2
G female thread, NPT female thread
4 Process valve connection 1
Clamp to DIN 32676, series A or clamp to ASME-BPE, type A
5 Process valve connection 2
Clamp to DIN 32676, series A or clamp to ASME-BPE, type A
5
Application Design
The valve can be used to control
liquid and dusty media, solids and
material mixtures.
Areas of application
The pinch valve may only be used in systems where a damaged or leaking seal
cartridge cannot pose a hazard to people or property. The media circuit must
be sized for the set pilot pressure. The designer and operator of the system
are responsible for ensuring the product is suitable for the system as well as
2
Easy-to-clean housing
(clean design)
Open or closed in normal position
Pinch valve sleeve made from
elastomer
è
for ensuring that the seal cartridge material is resistant to the medium used.
Appropriate tests are generally required to assess the suitability. The risks
associated with a leaking seal cartridge and the corresponding consequences
must be taken into account when planning the system.
Subject to change – 2017/06
Page 3
Pinch valves VZQA

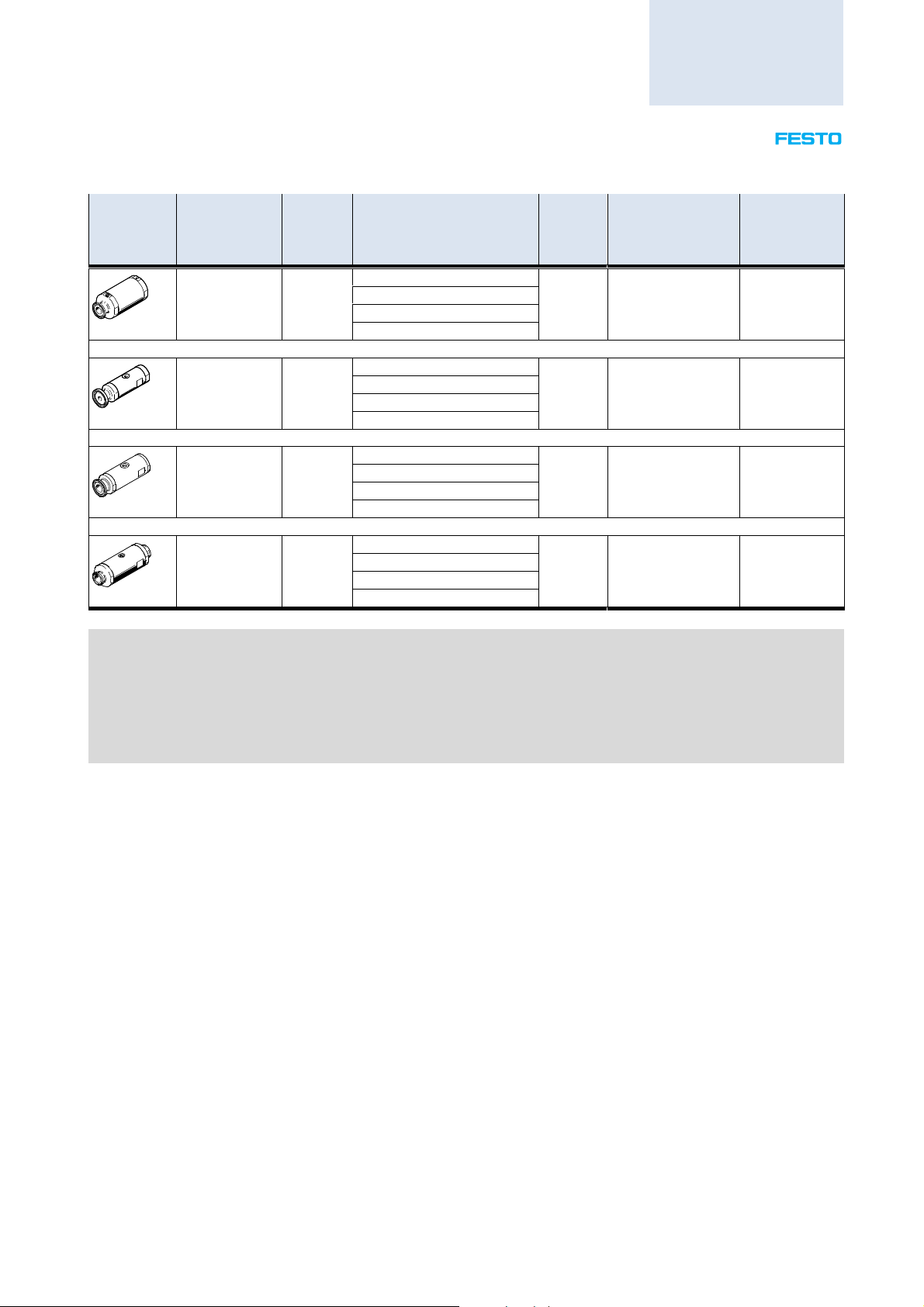

Product range overview
-V- New
Feature Type Nominal
width DN
VZQA-C-M22C-… 15 G1/2 5 M5 / 5 mm 5
VZQA-C-M22U-… 6 G1/4 0. 7 M5 / 4.5 mm 8
VZQA-C-M22U-… 15 G1/2 5 G1/8 / 5 mm 8
VZQA-C-M22U-… 25 G1 18 G1/8 / 6 mm 8
Process valve connection Flow rate Pilot air port 12 /
max. permissible thread
length
[m3/h]
1/2 NPT
Clamp to DIN 32676, series A
Clamp to ASME-BPE, type A
1/4 NPT
Clamp to DIN 32676, series A
Clamp to ASME-BPE, type A
1/2 NPT
Clamp to DIN 32676, series A
Clamp to ASME-BPE, type A
1 NPT
Clamp to DIN 32676, series A
Clamp to ASME-BPE, type A
è Page/Internet
-H- Note
The hermetic separation between the media circuit and control circuit is no
longer guaranteed if wear causes the pinch valve sleeve to leak. The flow
medium can then get into the control circuit, from where it can escape. Any
potential hazard (e.g. due to aggressive or hot media) must be ruled out. The
compressed air supply to the control valve must be protected against the
ingress of the flow medium using a suitable check valve, or a suitable protec
tion against return flow must be integrated in the pilot line in the immediate
vicinity of the media valve. Pilot medium can get into the media circuit if the
pinch valve sleeve fails. The media circuit must therefore be sized for the set
pilot pressure. Any potential hazard must be ruled out.
2017/06 – Subject to change
è
3
Page 4
-V- New
Pinch valves VZQA
Type codes
Type
VZQA Pinch valve, pneumatically actuated
Product version
C Easy-to-clean design
Valve function
M22C 2/2-way valve, normally closed
M22U 2/2-way valve, normally open
Nominal width DN
6 6 mm
15 15 mm
25 25 mm
VZQA – C – M22U – 6 – G G – V4 V4 N – 4 – E
Connection type 1
G G female thread
T NPT female thread
S1 Clamp to ASME-BPE, type A
S5 Clamp to DIN 32676, series A
S12 Clamp to ASME-BPE, type B
Connection type 2
G G female thread
T NPT female thread
S1 Clamp to ASME-BPE, type A
S5 Clamp to DIN 32676, series A
S12 Clamp to ASME-BPE, type B
Housing material
AL Aluminium
V2 Stainless steel
V4 Stainless steel
Housing cover material
AL Aluminium
V4 Stainless steel
POM Polyoxymethylene
Shut-off element material
E EPDM
N NBR
S1 Silicone
Pressure range of media
4 0 … 4 bar
6 0 … 6 bar
Sensing type
– None
E End positions
4
è
Subject to change – 2017/06
Page 5
Pinch valves VZQA

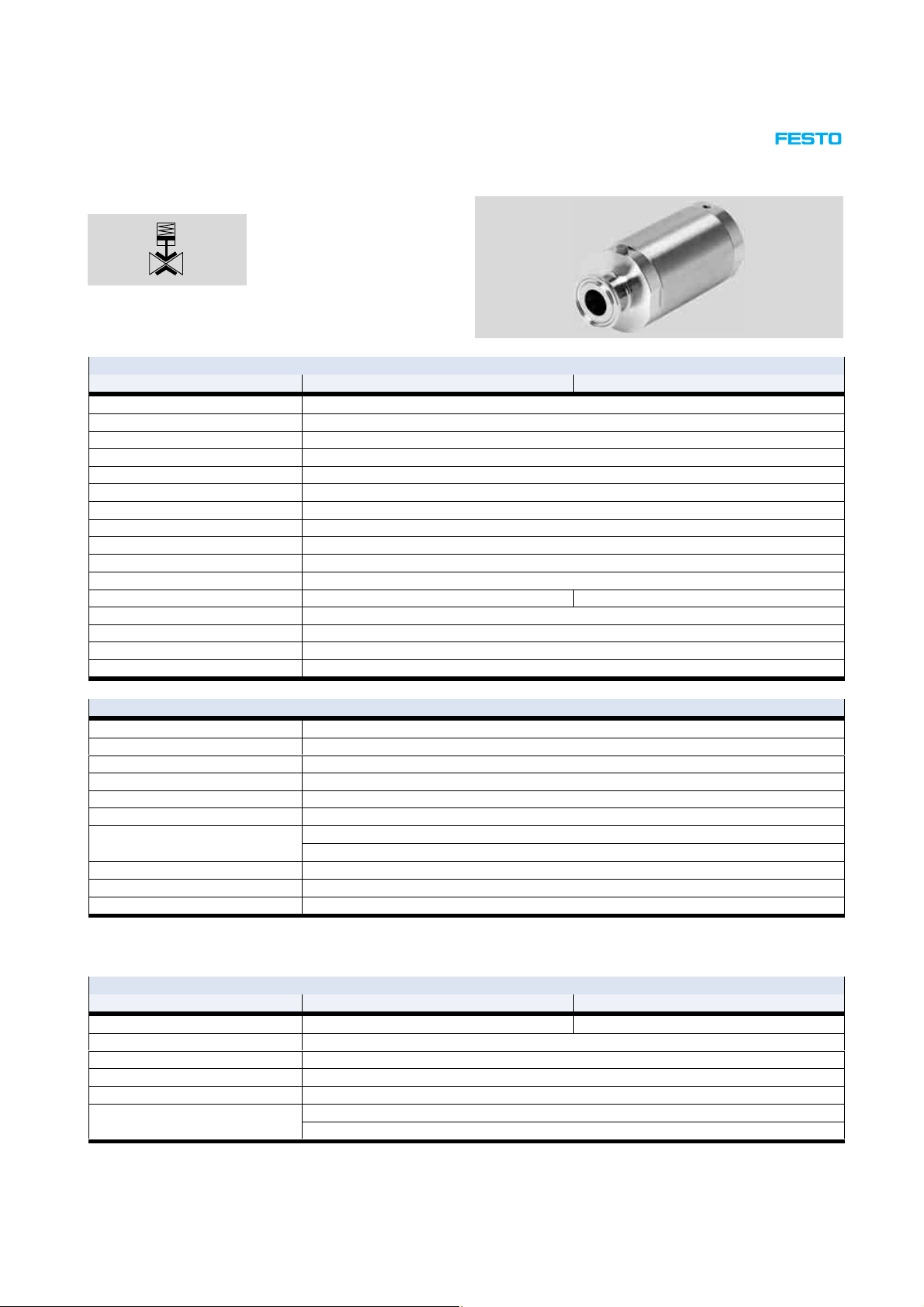

Technical data M22C
Function
General technical data
VZQA-C-M22C-… -15-GG-… -15-S5S5-…
Nominal width DN 15
Nominal pressure of process valve PN 10
Design Pinch valve, pneumatically actuated
Type of actuation Pneumatic
Sealing principle Soft
Mounting position Any
Valve function 2/2-way, closed, monostable
Direction of flow Reversible
Reset method Mechanical spring
Type of piloting Externally actuated
Type of mounting In-line installation
Process valve connection G1/2 Clamp to DIN 32676, series A
Auxiliary pilot air port 12 M5
Switching time on [ms] 150
Switching time off [ms] 250
Flow rate Kv [m3/h] 5
Operating and environmental conditions
Pilot pressure [bar] 3.5 … 6
Burst pressure [bar] 16
Max. viscosity [mm2/s] 4000
Ambient temperature [°C] –5 … +60
Storage temperature [°C] 6 … 8
Medium pressure [bar] 0 … 6
Medium Compressed air to ISO 8573-1:2010 [-:-:1]
Water
Temperature of medium [°C] –5 … +100
Pilot medium Compressed air to ISO 8573-1:2010 [7:4:1]
Suitable for use in the food industry
1) Additional information p è Certificates.
Materials
VZQA-C-M22C-… V2V4E ALV4E
Housing High-alloy stainless steel Wrought aluminium alloy
Housing cover High-alloy stainless steel
Bowl PA6
Seals FPM
Shut-off element EPDM
Note on materials Contains paint-wetting impairment substances
1)
As per manufacturer's declaration
RoHS compliant
2017/06 – Subject to change
è
5
Page 6
Pinch valves VZQA
Technical data M22C

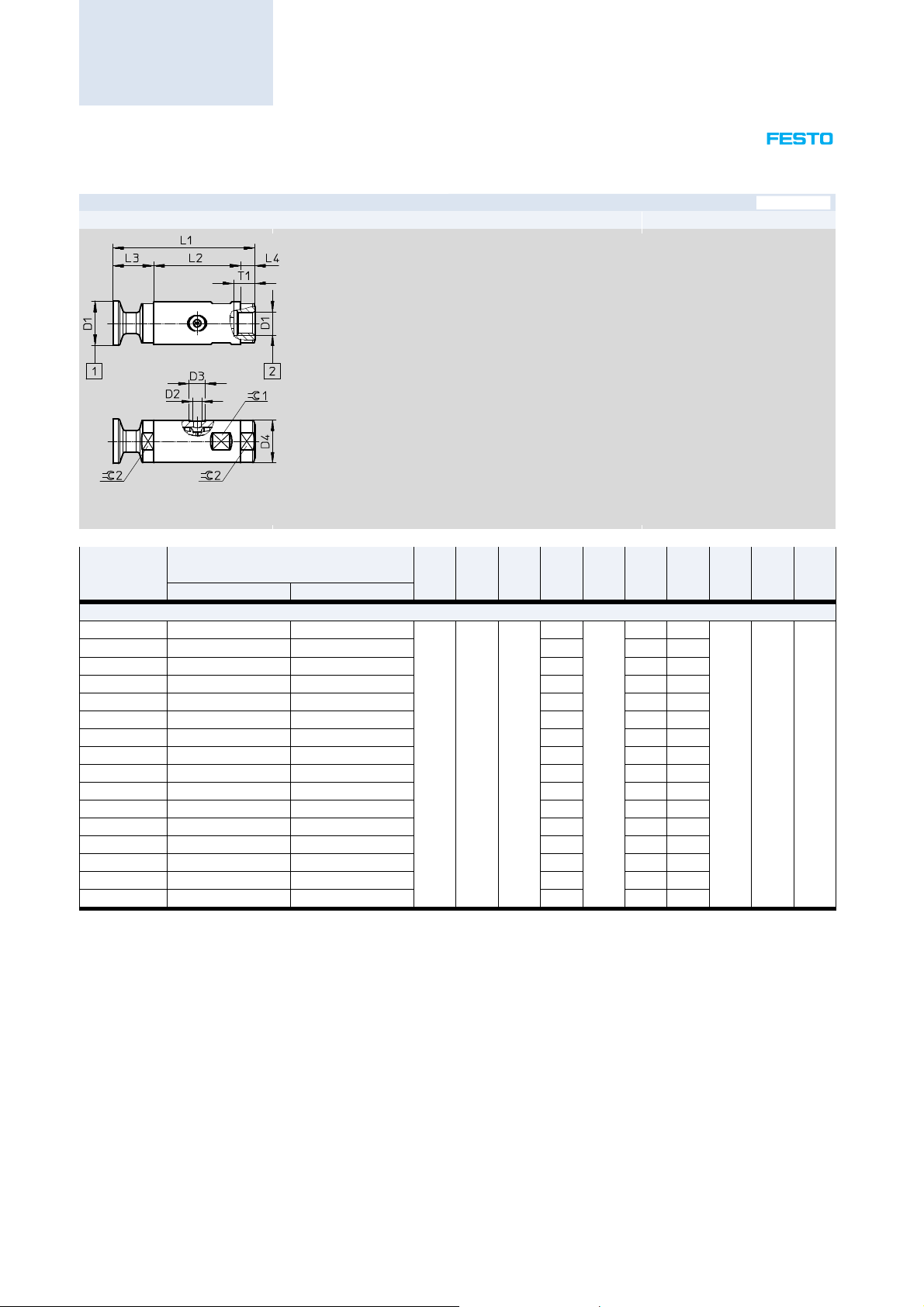

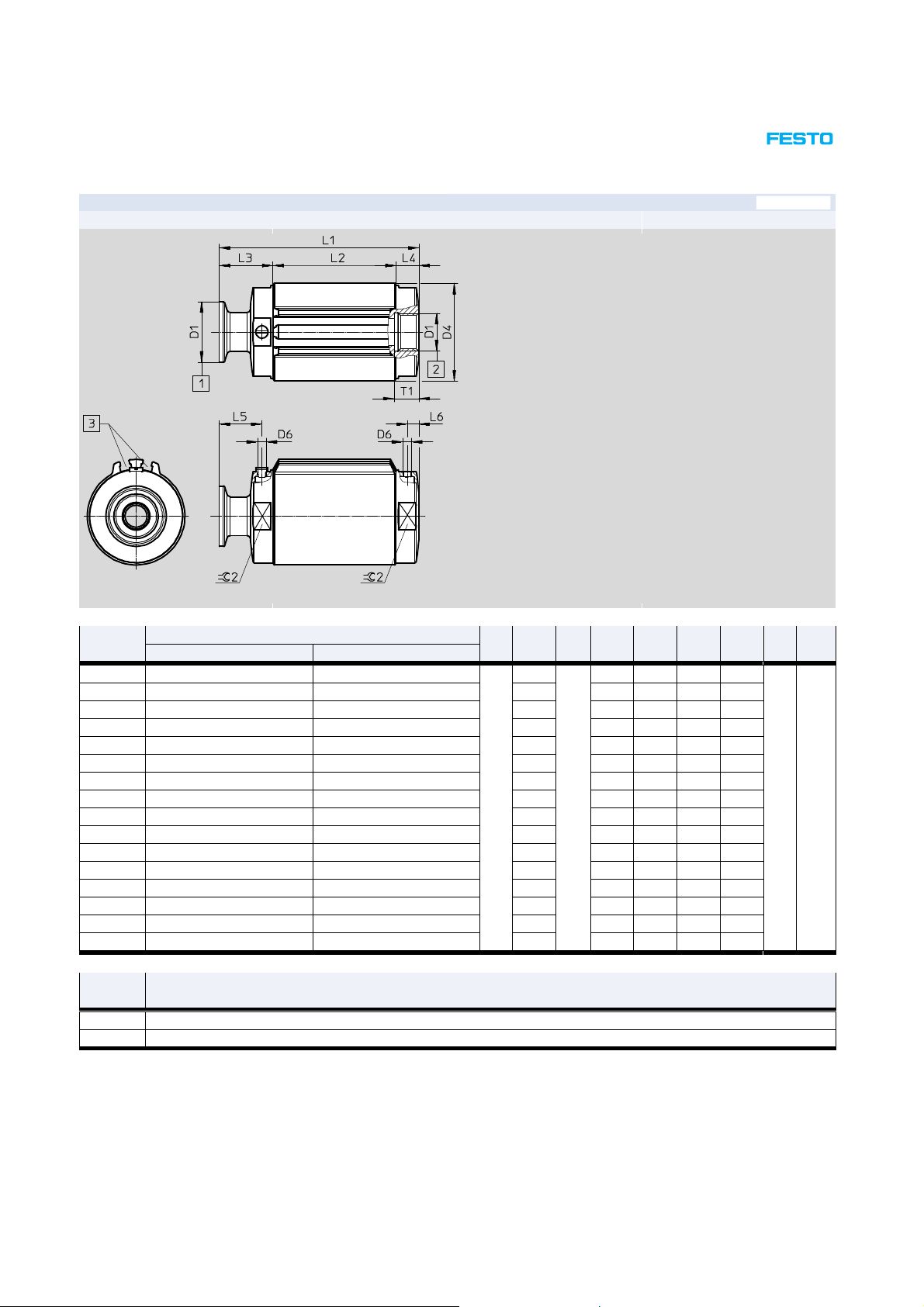

Dimensions Download CAD data è Illustration of port 1: clamp to DIN 32676, series A, port 2: G1/2
1 Port 1
2 Port 2
3 Sensor slot
Variant D1 D6 L1 L2 L3 L4 L5 L6 T1 ß 2
Port 1 Port 2
…-GG-…
…-TT-…
…-GT-… G1/2 1/2 NPT 95
…-TG-… 1/2 NPT G1/2 95
…-S1S1-… ASME-BPE, type A ASME-BPE, type A 130
…-S1G-… ASME-BPE, type A G1/2 112.5
…-S1T-… ASME-BPE, type A 1/2 NPT 112.5
…-GS1-… G1/2 ASME-BPE, type A 112.5
…-TS1-… 1/2 NPT ASME-BPE, ty pe A 112.5
…-S1S5-… ASME-BPE, type A DIN 32676, series A 130
…-S5S1-… DIN 32676, series A ASME-BPE, series A 130
…-S5S5-… DIN 32676, series A DIN 32676, series A 130
…-S5G-… DIN 32676, series A G1/2 112.5
…-S5T-… DIN 32676, series A 1/2 NPT 112.5
…-GS5-… G1/2 DIN 32676, series A 112.5
…-TS5-… 1/2 NPT DIN 32676, series A 112.5
Housing
material
V2V4E 52.4
ALV4E 55
G1/2
1/2 NPT
G1/2
1/2 NPT
95
95 12.8 12.8 6.8 6.8
M5
D4
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
30.3 30.3 24 24
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
69.5
12.8 12.8 6.8 6.8
30.3 30.3 24 24
30.3 30.3 24 24
30.3 30.3 24 24
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
12.8 12.8 6.8 6.8
14 50
6
è
Subject to change – 2017/06
Page 7
Pinch valves VZQA
Technical data M22C

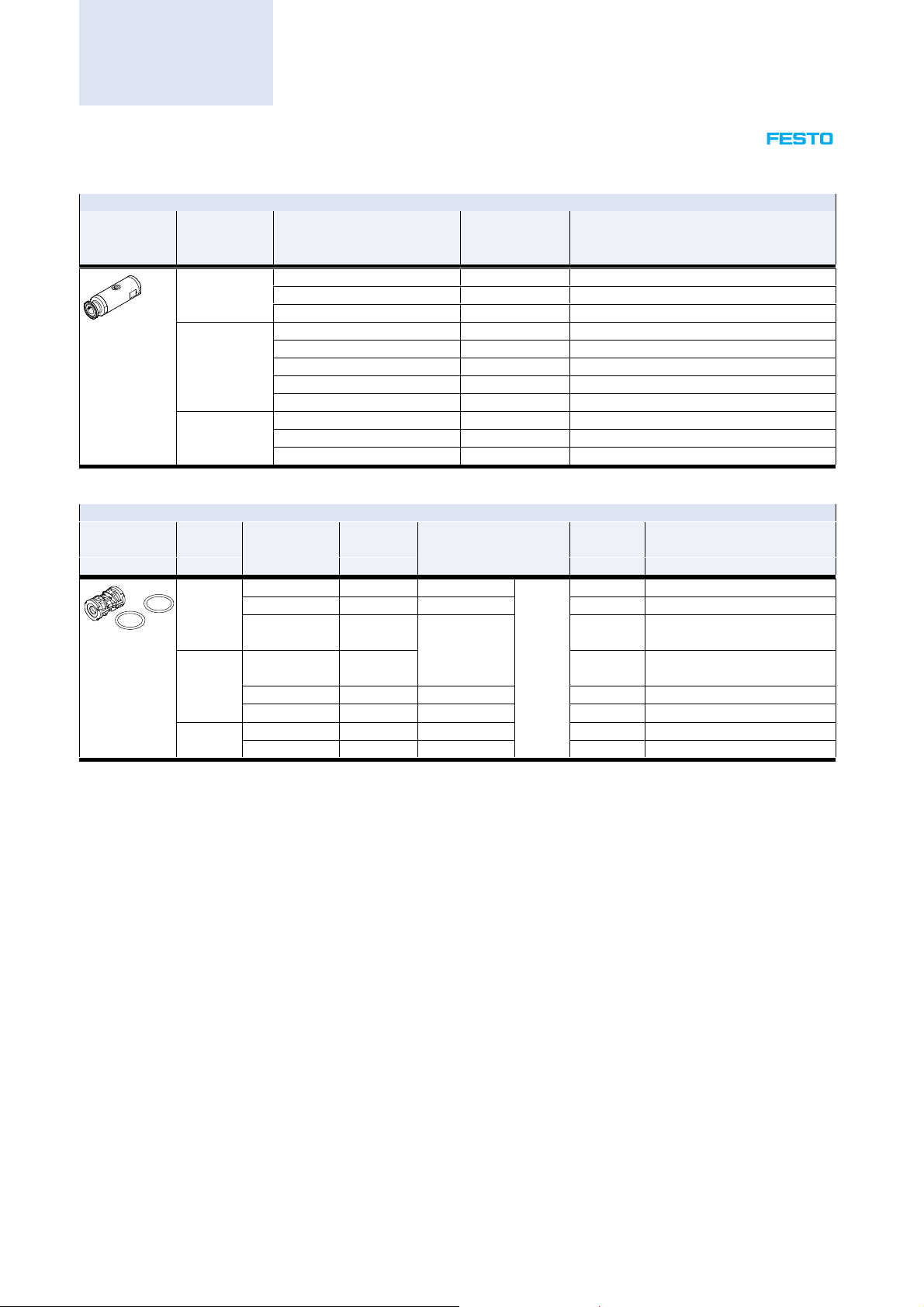

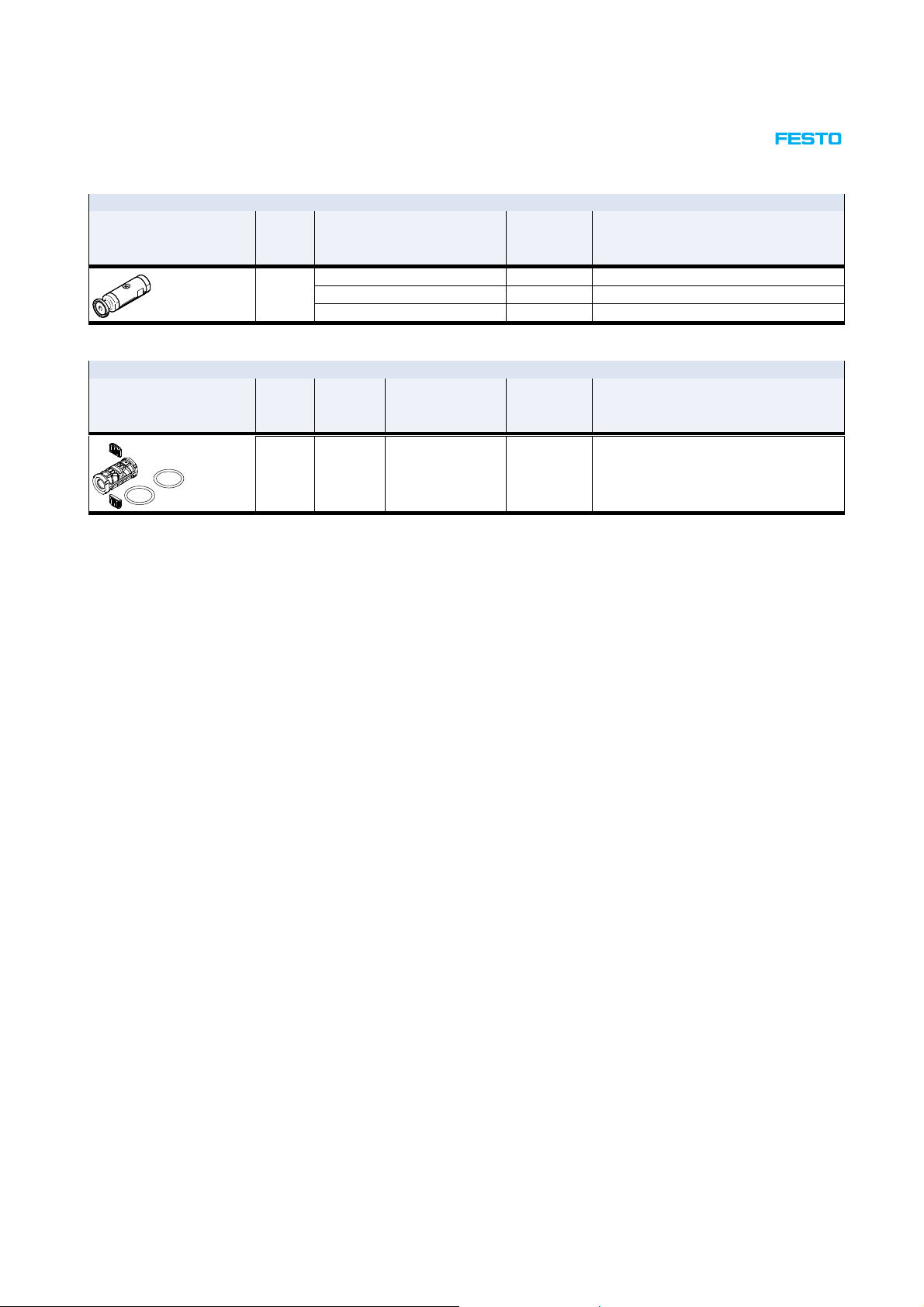

Ordering data
Pinch valves Nominal
width DN
15 Clamp to DIN 32676, series A 666 3412424 VZQA-C-M22C-15-S5S5-V2V4E-6
Ordering data
Seal cartridge Nominal
width DN
15 6 … 8 EPDM RoHS compliant 3418619 VAVC-Q2-M22C-15-E
Process valve connection Weight Part No. Type
[g]
Clamp to DIN 32676, series A 607 3412425 VZQA-C-M22C-15-S5S5-ALV4E-6-E
G1/2 536 3412426 VZQA-C-M22C-15-GG-V2V4E-6
Storage
temperature
[°C]
Information on
materials, shut-off
element
Note on
materials
Part No. Type
2017/06 – Subject to change
è
7
Page 8
-V- New
Pinch valves VZQA

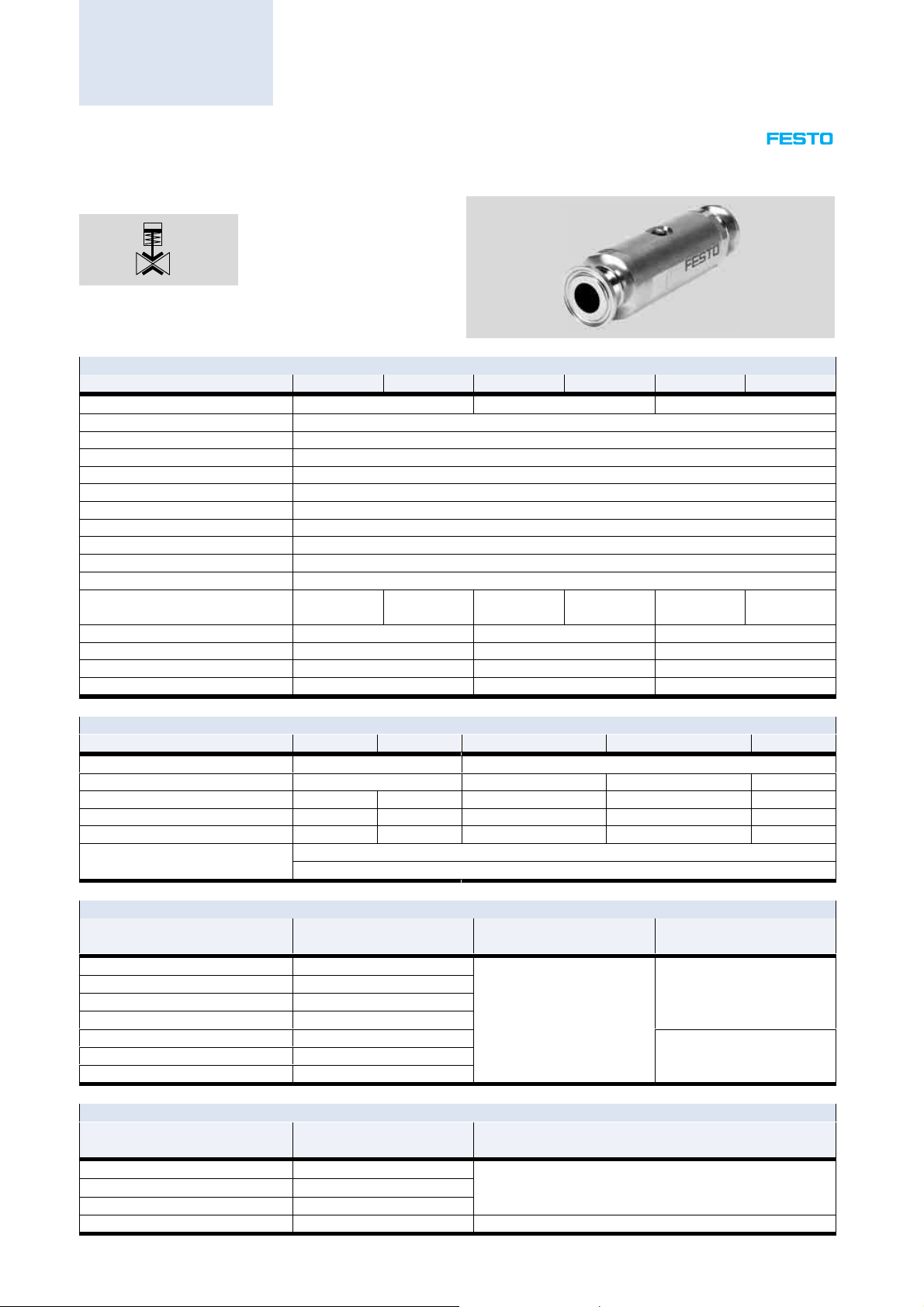

Technical data M22U
Function
General technical data
VZQA-C-M22U-… -6-GG-… -6-S5S5-… -15-GG-… -15-S5S5-… -25-GG-… -25-S5S5-…
Nominal width DN 6 15 25
Nominal pressure of process valve PN 10
Design Pinch valve, pneumatically actuated
Type of actuation Pneumatic
Sealing principle Soft
Mounting position Any
Valve function 2/2-way, open, monostable
Direction of flow Reversible
Reset method Rebound resilience
Type of piloting Externally actuated
Type of mounting In-line installation
Process valve connection G1/4 Clamp to DIN
32676, series A
Auxiliary pilot air port 12 M5 G1/8 G1/8
Switching time on [ms] 125 250 250
Switching time off [ms] 125 250 250
Flow rate Kv [m3/h] 0. 7 5 18
G1/2 Clamp to DIN
32676, series A
G1 Clamp to DIN
32676, series A
Materials
VZQA-C-M22U-… V4V4E V4V4N ALALE ALV4N ALPOMN
Housing High-alloy stainless steel Wrought aluminium alloy
Housing cover High-alloy stainless steel Wrought aluminium alloy High-alloy stainless steel POM
Bowl PA6 PA6 PA6 PA6 PA6
Seals FPM FPM FPM FPM FPM
Shut-off element EPDM NBR EPDM NBR NBR
Note on materials Contains paint-wetting impairment substances
RoHS compliant
Shut-off element
VZQA-C-M22U-… Temperature of medium
[°C]
…-N-… –5 … +60 –5 … +60 6 … 8
…-V4E-… –5 … +100
…-ALE-… –5 … +100
…-POME-… –5 … +80
…-V4S1-… –5 … +150 0 … 25
…-ALS1-… –5 … +150
…-POMS1-… –5 … +80
Shut-off element
VZQA-C-M22U-… Material Differential pressure
…6/15/25-N-… NBR 2.5
…6/15/25-E-… EPDM
…6/15-S1-… Silicone
…25-S1-… Silicone 3
Ambient temperature
[°C]
[bar]
Storage temperature
[°C]
8
è
Subject to change – 2017/06
Page 9
-V- New
Pinch valves VZQA
Technical data M22U
Operating and environmental conditions
Overload pressure [bar] 7.8
Pilot pressure [bar] 1 … 6.5
Differential pressure [bar] 2.5
Burst pressure [bar] 16
Max. viscosity [mm2/s] 4000
Ambient temperature [°C] –5 … +60
Storage temperature [°C] 6 … 8
Medium pressure [bar] 0 … 4
VZQA-C-M22U-… -6-GG-… -6-S5S5-…
Medium
V4V4E Compressed air to ISO 8573-1:2010 [-:-:1], water Compressed air to ISO 8573-1:2010 [-:-:1], water
ALV4N Compressed air to ISO 8573-1:2010 [-:-:-] –
Temperature of medium [°C]
V4V4E –5 … +100 –5 … +100
ALV4N –5 … +60 –
Pilot medium
V4V4E Compressed air to ISO 8573-1:2010 [7:4:1] Compressed air to ISO 8573-1:2010 [7:4:1]
ALV4N Compressed air to ISO 8573-1:2010 [7:4:4] –
Suitable for use in the food industry
V4V4E As per manufacturer's declaration As per manufacturer's declaration
1)
VZQA-C-M22U-… -15-GG-… -15-S5S5-…
Medium
V4V4E Compressed air to ISO 8573-1:2010 [-:-:1], water Compressed air to ISO 8573-1:2010 [-:-:1], water
V4V4N Compressed air to ISO 8573-1:2010 [-:-:-] –
ALV4N Compressed air to ISO 8573-1:2010 [-:-:-] –
ALPOMN Compressed air to ISO 8573-1:2010 [-:-:-] –
Temperature of medium [°C]
V4V4E –5 … +100 –5 … +100
V4V4N –5 … +60 –
ALV4N –5 … +60 –
ALPOMN –5 … +60 –
Pilot medium
V4V4E Compressed air to ISO 8573-1:2010 [7:4:1] Compressed air to ISO 8573-1:2010 [7:4:1]
V4V4N Compressed air to ISO 8573-1:2010 [7:4:4] –
ALV4N Compressed air to ISO 8573-1:2010 [7:4:4] –
ALPOMN Compressed air to ISO 8573-1:2010 [7:4:4] –
Suitable for use in the food industry
V4V4E As per manufacturer's declaration As per manufacturer's declaration
VZQA-C-M22U-… -25-GG-… -25-S5S5-…
Medium
V4V4E Compressed air to ISO 8573-1:2010 [-:-:1], water Compressed air to ISO 8573-1:2010 [-:-:1], water
ALALE Compressed air to ISO 8573-1:2010 [-:-:1], water –
Temperature of medium [°C]
V4V4E –5 … +100 –5 … +100
ALALE –5 … +100 –
Pilot medium
V4V4E Compressed air to ISO 8573-1:2010 [7:4:1] Compressed air to ISO 8573-1:2010 [7:4:1]
ALALE Compressed air to ISO 8573-1:2010 [7:4:1] –
Suitable for use in the food industry
V4V4E As per manufacturer's declaration As per manufacturer's declaration
ALALE As per manufacturer's declaration –
1)
1)
1) Additional information p è Certificates.
2017/06 – Subject to change
è
9
Page 10
-V- New
Pinch valves VZQA
Technical data M22U
Dimensions Download CAD data è Illustration of port 1: clamp to DIN 32676, series A, port 2: G1/2
1 Port 1
2 Port 2
Variant D1 D2 D3D4L1 L2 L3 L4 T1 ß 1 ß 2
Port 1 Port 2
Nominal width DN6
…-GG-…
…-TT-…
…-GT-…
…-TG-…
…-S1S1-…
…-S1G-…
…-S1T-…
…-GS1-…
…-TS1-…
…-S1S5-…
…-S5S1-…
…-S5S5-…
…-S5G-…
…-S5T-…
…-GS5-…
…-TS5-… 1/4 NPT DIN 32676, series A 80
G1/4
1/4 NPT
G1/4
1/4 NPT
ASME-BPE, type A
ASME-BPE, type A
ASME-BPE, type A
G1/4
1/4 NPT
ASME-BPE, type A
DIN 32676, series A
DIN 32676, series A
DIN 32676, series A
DIN 32676, series A
G1/4
G1/4
1/4 NPT
1/4 NPT
G1/4
ASME-BPE, type A
G1/4
1/4 NPT
ASME-BPE, type A
ASME-BPE, type A
DIN 32676, series A
ASME-BPE, type A
DIN 32676, series A
G1/4
1/4 NPT
DIN 32676, series A
M5 9 24
65
65 8 8
65 8 8
65 8 8
95 23 23
80 23 8
80 23 8
80 8 23
80 8 23
95 23 23
95 23 23
95 23 23
80 23 8
80 23 8
80 8 23
8 8
49
8 23
12 22 22
10
è
Subject to change – 2017/06
Page 11
-V- New
Pinch valves VZQA
Technical data M22U
Variant D1 D2 D3D4L1 L2 L3 L4 T1 ß 1 ß 2
Port 1 Port 2
Nominal width DN15
…-GG-…
…-TT-…
…-GT-…
…-TG-…
…-S1S1-…
…-S1G-…
…-S1T-…
…-GS1-…
…-TS1-…
…-S1S5-…
…-S5S1-…
…-S5S5-…
…-S5G-…
…-S5T-…
…-GS5-…
…-TS5-… 1/2 NPT DIN 32676, series A 112.5
G1/2
1/2 NPT
G1/2
1/2 NPT
ASME-BPE, type A
ASME-BPE, type A
ASME-BPE, type A
G1/2
1/2 NPT
ASME-BPE, type A
DIN 32676, series A
DIN 32676, series A
DIN 32676, series A
DIN 32676, series A
G1/2
G1/2
1/2 NPT
1/2 NPT
G1/2
ASME-BPE, type A
G1/2
1/2 NPT
ASME-BPE, type A
ASME-BPE, type A
DIN 32676, series A
ASME-BPE, type A
DIN 32676, series A
G1/2
1/2 NPT
DIN 32676, series A
G1/8 15 38
95
95 7 7
95 7 7
95 7 7
130 24.5 24.5
112.5 24.5 7
112.5 24.5 7
112.5 7 24.5
112.5 7 24.5
130 24.5 24.5
130 24.5 24.5
130 24.5 24.5
112.5 24.5 7
112.5 24.5 7
112.5 7 24.5
7 7
81
7 24.5
14 36 36
…-…-V4POM-… – –
…-…-ALPOM-… – –
Nominal width DN25
…-GG-…
…-TT-…
…-GT-…
…-TG-…
…-S1S1-…
…-S1G-…
…-S1T-…
…-GS1-…
…-TS1-…
…-S1S5-…
…-S5S1-…
…-S5S5-…
…-S5G-…
…-S5T-…
…-GS5-…
…-TS5-… 1 NPT DIN 32676, series A 147.5
…-…-V4POM-… – –
…-…-ALPOM-… – –
G1
1 NPT
G1
1 NPT
ASME-BPE, type A
ASME-BPE, type A
ASME-BPE, type A
G1
1 NPT
ASME-BPE, type A
DIN 32676, series A
DIN 32676, series A
DIN 32676, series A
DIN 32676, series A
G1
G1
1 NPT
1 NPT
G1
ASME-BPE, type A
G1
1 NPT
ASME-BPE, type A
ASME-BPE, type A
DIN 32676, series A
ASME-BPE, type A
DIN 32676, series A
G1
1 NPT
DIN 32676, series A
G1/8 15 38 100 81 7 12 14 36 36
130
130 10.5 10.5
130 10.5 10.5
130 10.5 10.5
165 28 28
147.5 28 10.5
147.5 28 10.5
G1/8 15 58
G1/8 15 58 14 0 109 15.5 15.5 18 55 55
147.5 10.5 28
147.5 10.5 28
165 28 28
165 28 28
165 28 28
147.5 28 10.5
147.5 28 10.5
147.5 10.5 28
109
10.5 10.5
18 55 55
10.5 28
2017/06 – Subject to change
è
11
Page 12
-V- New
Pinch valves VZQA
Technical data M22U
Ordering data
Pinch valves Nominal width DN Process valve connection Weight
[g]
6 G1/4 157 2931678 VZQA-C-M22U-6-GG-V4V4E-4
G1/4 105.5 2931679 VZQA-C-M22U-6-GG-ALV4N-4
Clamp to DIN 32676, series A 215 2931681 VZQA-C-M22U-6-S5S5-V4V4E-4
15 G1/2 431 3022829 VZQA-C-M22U-15-GG-V4V4E-4
G1/2 431 3022830 VZQA-C-M22U-15-GG-V4V4N-4
G1/2 265 3022831 VZQA-C-M22U-15-GG-ALV4N-4
G1/2 158 3022832 VZQA-C-M22U-15-GG-ALPOMN-4
Clamp to DIN 32676, series A 559 3022833 VZQA-C-M22U-15-S5S5-V4V4E-4
25 G1 1178 3968922 VZQA-C-M22U-25-GG-V4V4E-4
G1 480 3968923 VZQA-C-M22U-25-GG-ALALE-4
Clamp to DIN 32676, series A 1474 3968924 VZQA-C-M22U-25-S5S5-V4V4E-4
Part No. Type
Ordering data
Seal cartridge Nominal
width DN
6 NBR 6 … 8 – RoHS-
15 VMQ (silicone) 0 … 25
25 NBR 6 … 8 – – 3970092 VAVC-Q2-M22U-25-N
1) See supplementary material information.
Additional information p è Certificates.
2) See declaration of conformity
Information on
materials, shut-off
element
EPDM 6 … 8 –
VMQ (silicone) 0 … 25 Contains PWIS
EPDM 6 … 8 –
NBR 6 … 8 – – 3019151 VAVC-Q2-M22U-15-N
EPDM 6 … 8 – – 3970093 VAVC-Q2-M22U-25-E
Storage
temperature
[°C]
Note on materials Food-safe Part No. Type
– 2392881 VAVC-Q2-M22U-6-N
compliant
(paint-wetting
impairment
substances)
1)
2)
2)
1)
2392882 VAVC-Q2-M22U-6-E
2392883 VAVC-Q2-M22U-6-S1
3019144 VAVC-Q2-M22U-15-S1
3019148 VAVC-Q2-M22U-15-E
12
è
Subject to change – 2017/06
Page 13
-V- New
Pinch valves VZQA
Ordering data – Modular product system
Ordering table
VZQA-C-… M22C M22U Conditions Code Entry
code
0M Module no. 3174282 2037881
Product type Pinch valve VZQA VZQA
Version Easy-to-clean design -C -C
Valve function 2/2-way valve, normally closed – -M22C
– 2/2-way valve, normally open
Nominal diameter DN – 6 -6
15 -15
– 25 -25
Process valve connection type 1 G female thread -G
Clamp to ASME-BPE, type A 1 4 6 -S1
Clamp to DIN 32676, series A 1 -S5
NPT female thread -T
Clamp to ASME-BPE, type B 1 3 6 7 -S12
Process valve connection type 2 G female thread G
Clamp to ASME-BPE, type A 1 4 6 S1
Clamp to DIN 32676, series A 1 S5
NPT female thread T
Clamp to ASME-BPE, type B 1 3 6 7 -S12
Housing material Aluminium -AL
Stainless steel
– -V2
(chrome-nickel, austenitic)
– Stainless steel
(chrome-nickel-molybdenum,
austenitic)
Housing cover material Aluminium AL
– Polyoxymethylene 3 POM
Stainless steel (chrome-nickel-molybdenum, austenitic) V4
Shut-off element material EPDM E
– NBR N
– Silicone 4 S1
Pressure range of media [bar] – 0 … 4 -4
0 … 6 – -6
0O Sensing type None –
End positions – 2 5 -E
1 S1, S5, S12 Only in combination with housing cover material V4 (stainless steel)
2 E Only in combination with valve function M22C
3 POM, S12 Not in combination with nominal diameter DN6
4 S1 Not in combination with nominal diameter DN25
5 E Not in combination with housing material V2 (stainless steel)
6 S1, S12 Not in combination with nominal diameter DN25 and valve function M22C
7 S12 Not in combination with nominal diameter DN15
-M22U
-V4
Mandatory data
M
Options
O
Transfer order code
VZQA – C – – – – – –
2017/06 – Subject to change
è
13
Loading...
