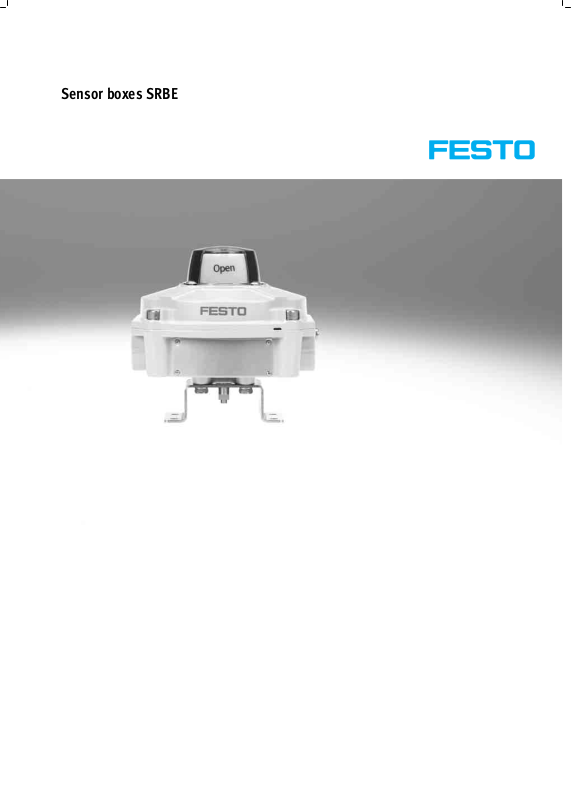

Sensor boxes SRBE

Page 2

-V- New

Sensor boxes SRBE

Key features and product range overview

Function

Sensor boxes SRBE are used for electrical feedback and control of the position of process valves actuated using pneumatic quarter turn actuators. They are suit able for use in potentially explosive environments. They can be mounted quickly

Innovative Flexible Design

 Pre-assembled mounting adapter

for ease of installation

 The trip cams can be set easily

without additional tools

 Sturdy, corrosion-resistant design,

ideal for use in harsh operating conditions

 Clearly visible 3D position indicator

allows rapid detection of the current position of the quarter turn actuator

 Worldwide certifications (ATEX,

IECEX, cCSAus, INMETRO) for use in potentially explosive environments

 The type of protection of the

flameproof enclosure enables installation without safety barriers or NAMUR amplifier in potentially explosive environments

 Weather-tight housing for outdoor

applications too

 Mechanical, inductive or magnetic

switch variants for virtually all ranges of application

 Two cable inputs for common power

supply for the sensor box and solenoid valve as standard

and easily on quarter turn actuators with a connection pattern to VDI/VDE 3845 using mounting adapters.

 Sturdy aluminium housing with two

cable inputs

 Captive stainless steel screws on

the housing cover

 Pre-assembled stainless steel

mounting adapter 80x30 H20 for ease of mounting on standard actuators to VDI/VDE 3845

 3D OPEN/CLOSED position indic

ator

 Mechanical, inductive or magnetic

switch variants

 Number of switches: 2  IP67, NEMA 4/4x  ATEX, IECEX, cCSAus, INMETRO  SIL 2 to IEC 61508

Subject to change – 2016/03

Page 3

Sensor boxes SRBE

Key features and product range overview

Product range overview

-V- New

Measuring principle Type EX certifications Operating voltage

range

Electromechanical

Magnetic reed

Inductive

SRBE-…-MW-22A-1W-…-EX ATEX, IECEX, INMETRO 0 … 250 V AC SRBE-…-MW-22A-1W-…-C1 cCSAus SRBE-…-MW-22A-2W-…-EX ATEX, IECEX, INMETRO 0 … 250 V AC SRBE-…-MW-22A-2W-…-C1 cCSAus SRBE-…-R-2A-1W-…-EX ATEX, IECEX, INMETRO 0 … 240 V AC SRBE-…-R-2A-1W-…-C1 cCSAus SRBE-…-N-20N-ZC-…-EX ATEX, IECEX, INMETRO SRBE-…-N-20N-ZC-…-C1 cCSAus SRBE-…-N-1-P-…-EX ATEX, IECEX, INMETRO SRBE-…-N-1-P-…-C1 cCSAus SRBE-…-N-1-N-…-EX ATEX, IECEX, INMETRO SRBE-…-N-1-N-…-C1 cCSAus SRBE-…-N-1-ZU-…-EX ATEX, IECEX, INMETRO SRBE-…-N-1-ZU-…-C1 cCSAus

0 … 30 V DC

8.2 V DC NAMUR N/C contact

10 … 30 V DC PNP N/O contact

10 … 30 V DC NPN N/O contact

5 … 60 V DC Contactless, 2-wire N/O contact

Switching output Switching element

function

Contacting

Toggle switch, single-pole (SPDT) Toggle switch, double-pole (DPDT) Toggle switch, single-pole (SPDT)

2016/03 – Subject to change

Page 4

-V- New

Sensor boxes SRBE

Peripherals overview

Accessories Brief description è Page/Internet 1 Mounting adapter

DARQ-K-X1-A1-F05-20-R1

2 Mounting adapter

DARQ-K-X1-A1-F05-30-R1

3 Mounting adapter

DARQ-K-X1-A2-F05-30-R1

 Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern

30 x 80 mm, shaft height 20 mm

 Included in the scope of delivery of the sensor box and pre-assembled  Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern

30 x 80 mm, shaft height 30 mm

 Can be ordered separately as an accessory  Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern

30 x 130 mm, shaft height 30 mm

 Can be ordered separately as an accessory

Subject to change – 2016/03

Page 5

Sensor boxes SRBE

Type codes SRBE

Type

SRBE Limit switch attachment

Design

C Sensor box

Mechanical interface

A3 Mounting adapter, hole pattern

30 x 80 mm, shaft height 20 mm

Display type

YR Position indicator yellow/red

Measuring range

90 0 … 90°

-V- New

SRBE — C — A3 — YR — 90 — N — 1 — N — C2 — N12 — EX

Sensor principle

N Proximity sensors, inductive R Reed with contact MW Floating contact, changeover switch

Nominal operating voltage

2A 110 V AC, 50-60 Hz 20N 8.2 V DC, NAMUR 22A 250 V AC 1 24 V DC

Electrical output

N NPN P PNP 1W 1-pin toggle switch 2W 2-pin toggle switch ZC 2-wire N/C contact ZU 2-wire N/O contact

Electrical connection

C2 Screw terminal

Connecting thread

M20 M20 N12 ½ NPT

EU certification

C1 CSA mark (Canada) EX EX certification (ATEX)

2016/03 – Subject to change

Page 6

-V- New

Mounting kits DARQ

Type codes DARQ

Type

DARQ Mounting adapter

Function

K Mounting kit

Designation

X1 Sensor box version with short shaft

Actuator outlet

A1 Hole pattern 30 x 80 mm A2 Hole pattern 30 x 130 mm

Adapter or reducing outlet

F05 Hole pattern F05

DARQ — K — X1 — A1 — F05 — 20 — R1

Length

20 20 mm 30 30 mm

Corrosion protection

R1 Stainless steel

Subject to change – 2016/03

Page 7

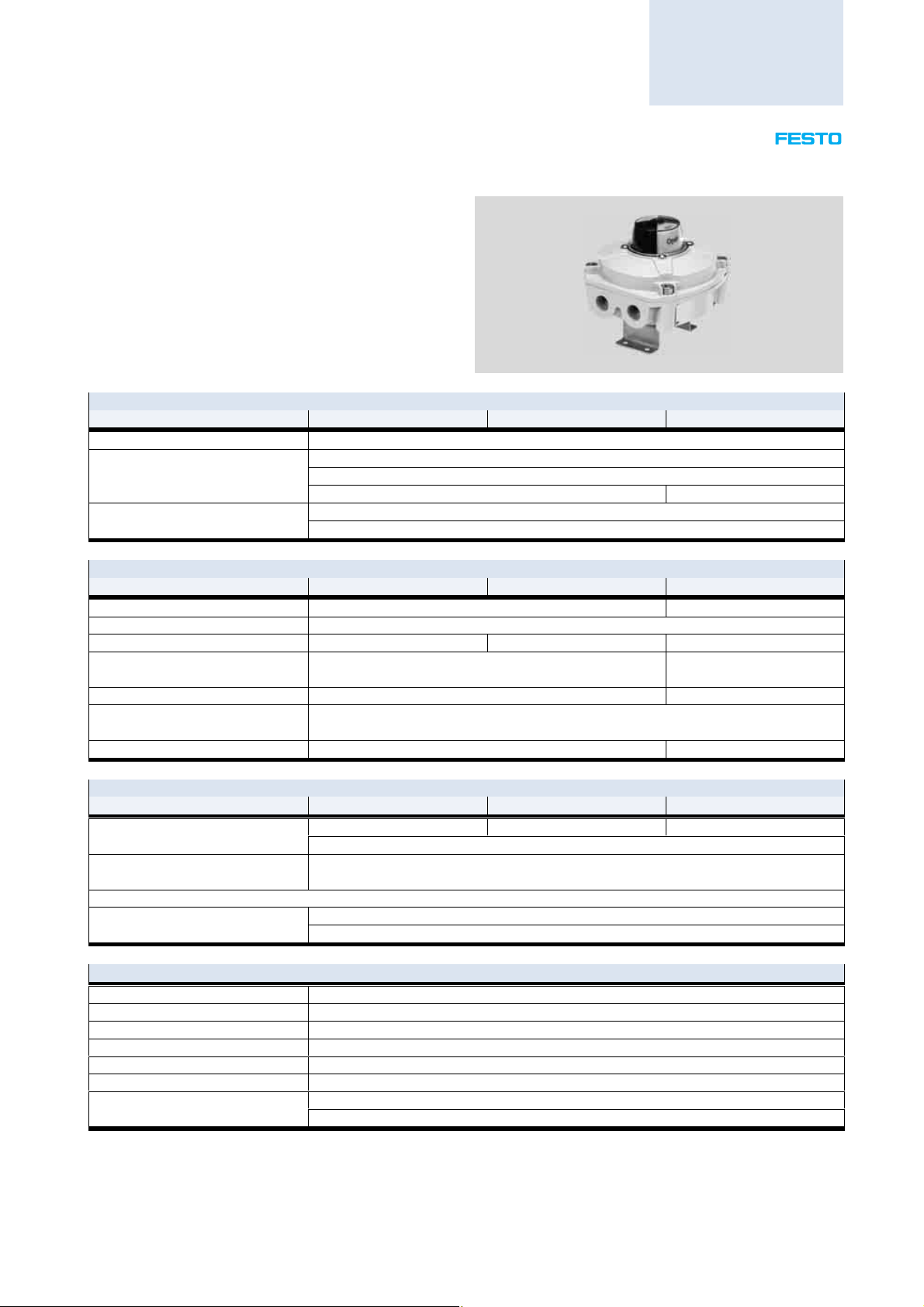

Sensor boxes SRBE, electromechanical and magnetic reed

Technical data

 Measuring principle:

electromagnetic or magnetic reed

 Switching element function: toggle

switch, single-pole (SPDT) and double-pole (DPDT)

 For DC and AC voltage  Pre-assembled mounting adapter

80 x 30 H20

General technical data

Type SRBE-… -MW-…-1W -MW-…-2W -R

Setting range for angle acquisition [°] 0 … 90 Based on standard ISO 5211

VDI/VDE 3845 – EN 60947-5-2

Type of mounting On flange to ISO 5211

With mounting bracket

-V- New

Electrical data

Type SRBE-… -MW-…-1W -MW-…-2W -R

Measuring principle Mechanical/electrical Magnetic reed Switching output Contacting Switching element function Toggle switch, single-pole Toggle switch, double-pole Toggle switch, single-pole Operating voltage range Alternating current AC Max. output current AC [mA] 3000 (at 250 V) 416 (at 240 V) Operating voltage range Direct current DC Max. output current DC [mA] 6000 (at 30 V) 3000 (at 30 V)

Electromechanical components

Type SRBE-… -MW-…-1W -MW-…-2W -R

Electrical connection 10-pin 14-pin 10-pin

Nominal conductor cross section that can be connected

Cable connector M20x1.5 for …C2M20…

Materials

Housing Epoxy-coated die-cast aluminium Shaft High-alloy stainless steel Screws High-alloy stainless steel Mounting bracket High-alloy stainless steel Seals NBR Pointer PC Note on materials RoHS compliant

[V] 0 … 250 0 … 240

[V] 0 … 30

Screw terminal

[mm2] 0.25 … 2.5

½ NPT for …C2N12…

Contains paint-wetting impairment substances

2016/03 – Subject to change

Page 8

-V- New

Sensor boxes SRBE, electromechanical and magnetic reed

Technical data

Operating and environmental conditions

Type SRBE-… -MW-…-1W -MW-…-2W -R

Ambient temperature [°C] –20 … +60 Storage temperature [°C] –20 … +60 Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 CE marking To EU Low Voltage Directive Safety integrity level (SIL) SIL 2

EX (ATEX, IECEX, INMETRO certifications) -MW-…-1W -MW-…-2W -R Degree of protection IP67 CE marking To EU Explosion Protection Directive (ATEX) ATEX category for gas II 2G ATEX category for dust II 2D Explosion ambient temperature –20 … +60 Type of ignition protection for gas Ex d IIC T6 Gb Type of ignition protection for dust Ex tb IIIC T75°C Db Ex tb IIIC T61°C Db Explosion protection certification outside the EU

EPL Db (IEC-EX) EPL Db (BR) EPL Gb (IEC-EX) EPL Gb (BR)

C1 (cCSAus certification) -MW-…-1W -MW-…-2W -R Degree of protection IP67

NEMA 4/4X

Type of ignition protection for gas AEx d IIB T5 Gb

Ex d IIB T5 Gb – Aex nA IIC T5 Gc – Ex nA IIC T5 Gc

Type of ignition protection for dust AEx tb IIIC T108°C Db

Ex tb IIIC T108°C Db Explosion protection certification outside the EU

1) For information about the applicability of the component see the manufacturer’s EC declaration of conformity at: p è User documentation. If the component is subject to restrictions on usage in residential, office or commercial environments or small businesses, further measures to reduce the emitted interference may be necessary.

Class I, Div. 1 (CA) Class I, Div. 1 (US) – Class I, Div. 2 (CA) – Class I, Div. 2 (US) Class II, Div. 1 (CA) Class II, Div. 1 (US) Class III (CA) Class III (US) EPL Db (CA) EPL Db (US) EPL Gb (CA) EPL Gb (US) – EPL Gc (CA) – EPL Gc (US)

Subject to change – 2016/03

Page 9

-V- New

Sensor boxes SRBE, electromechanical and magnetic reed

Technical data

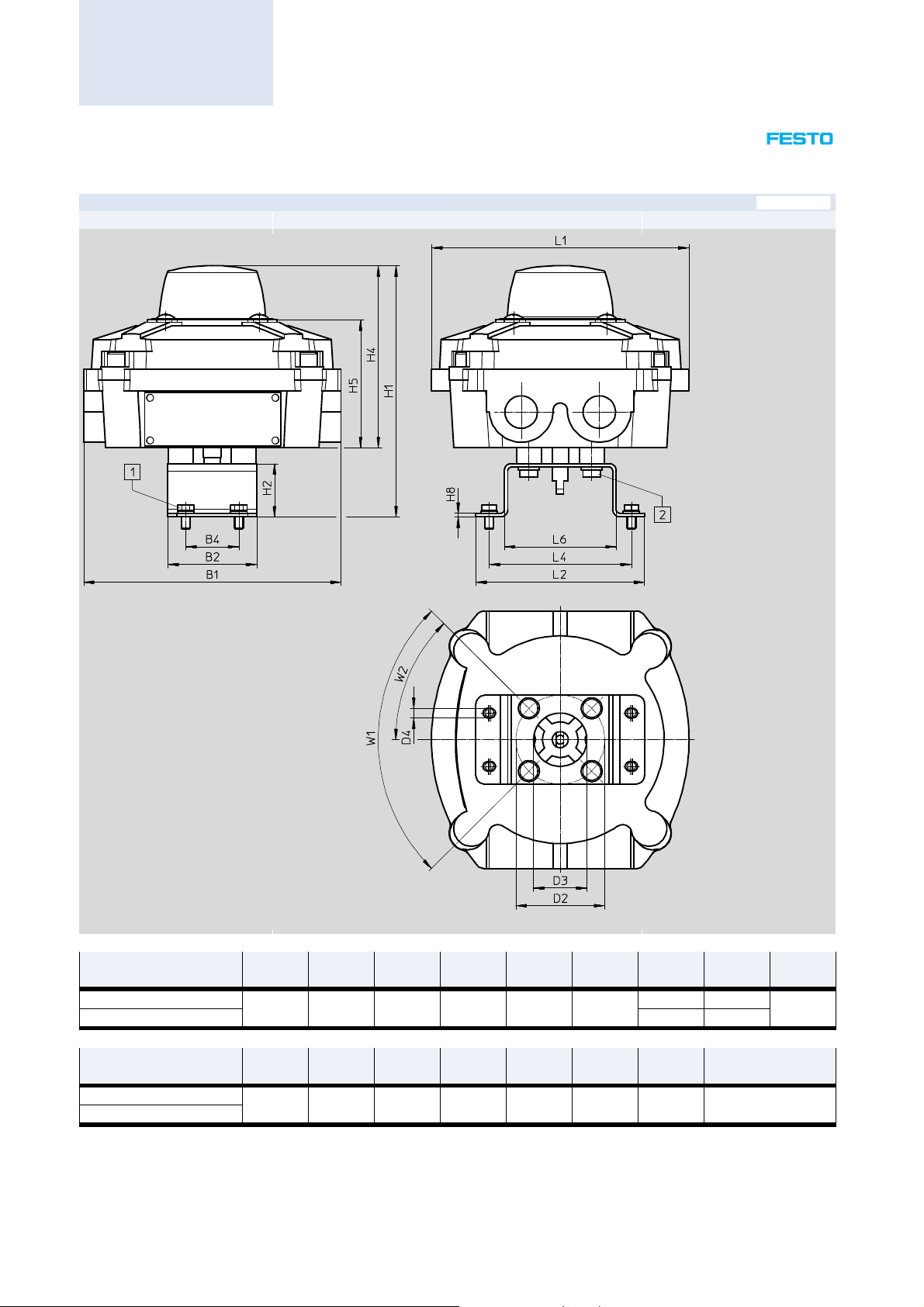

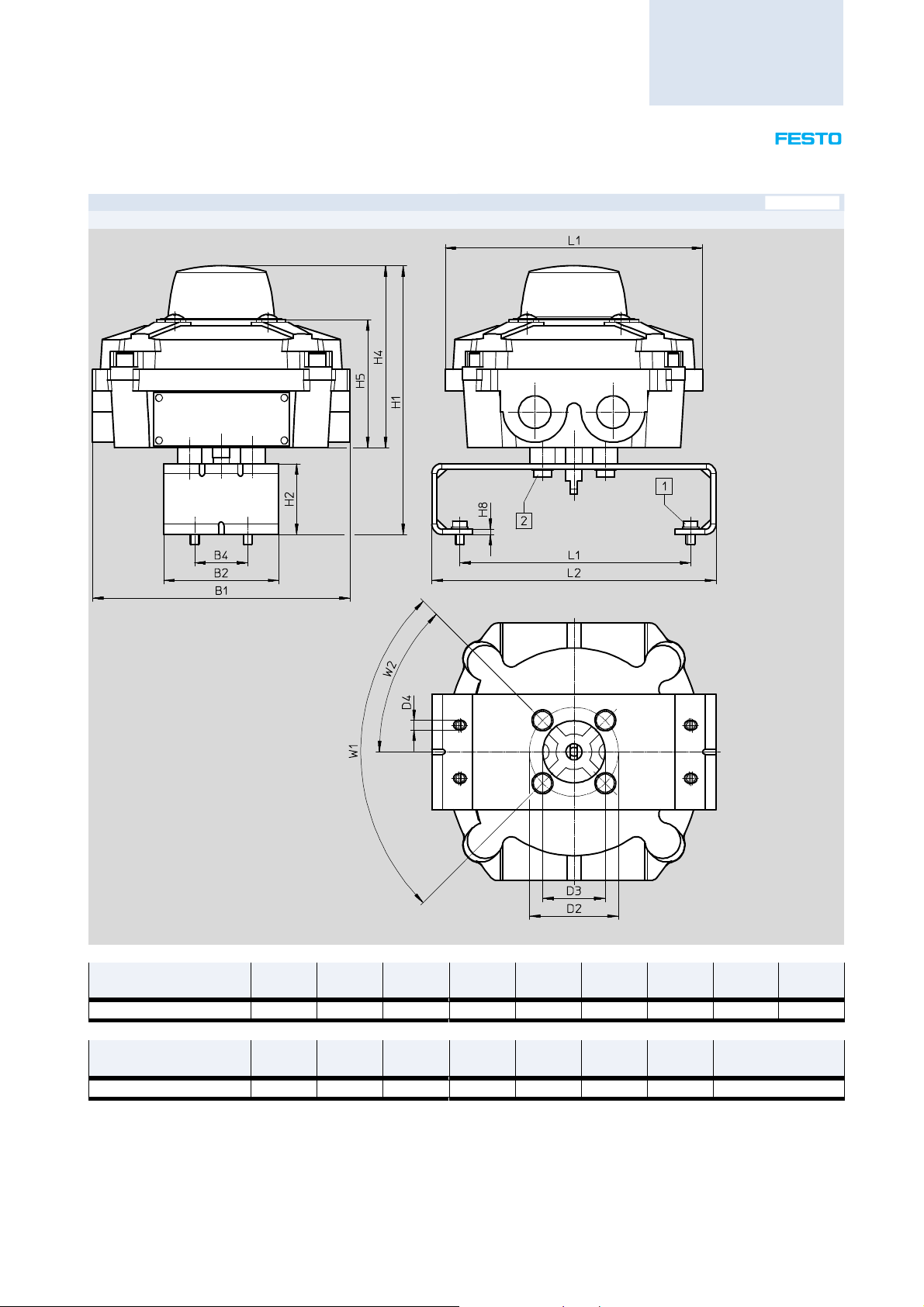

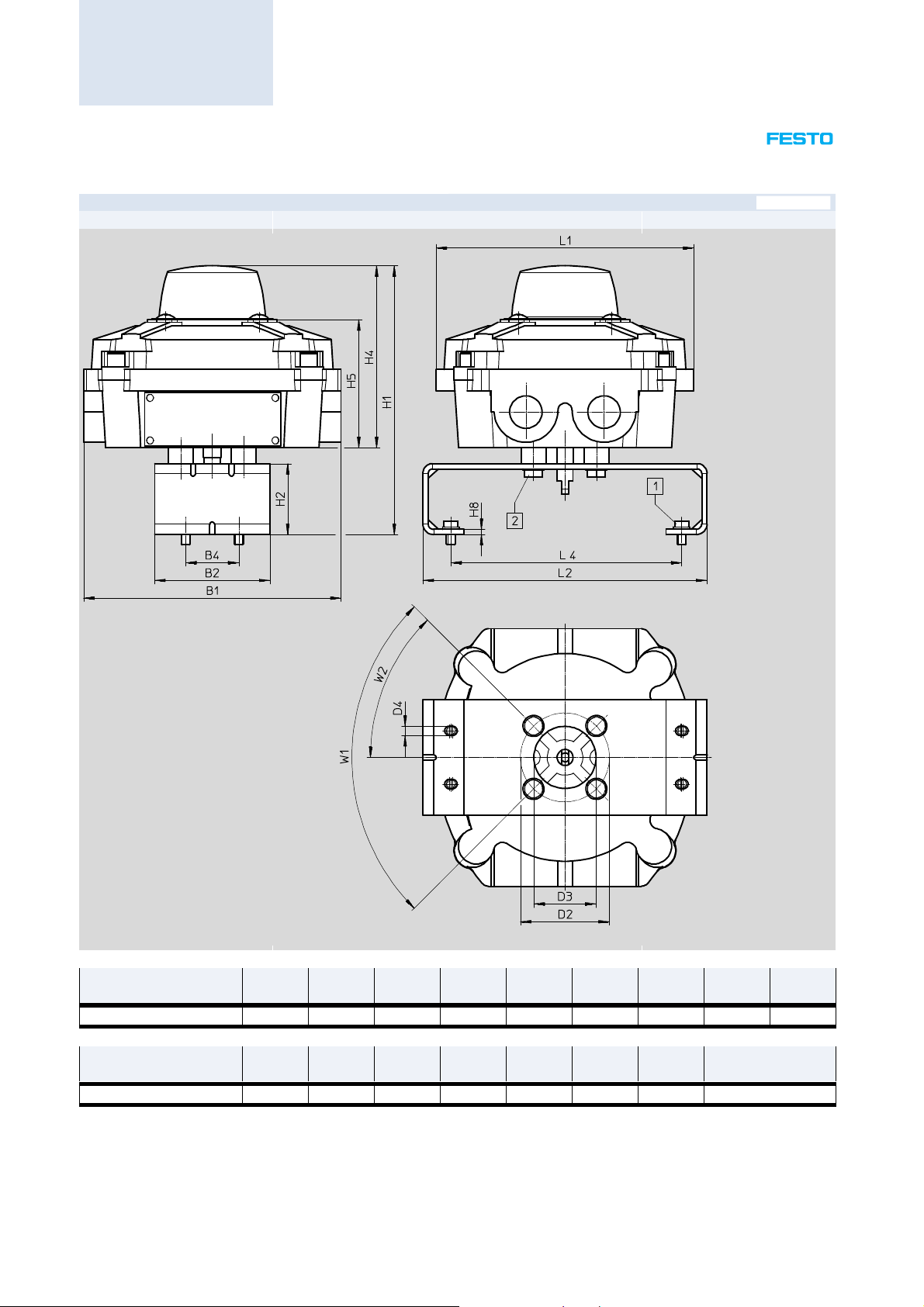

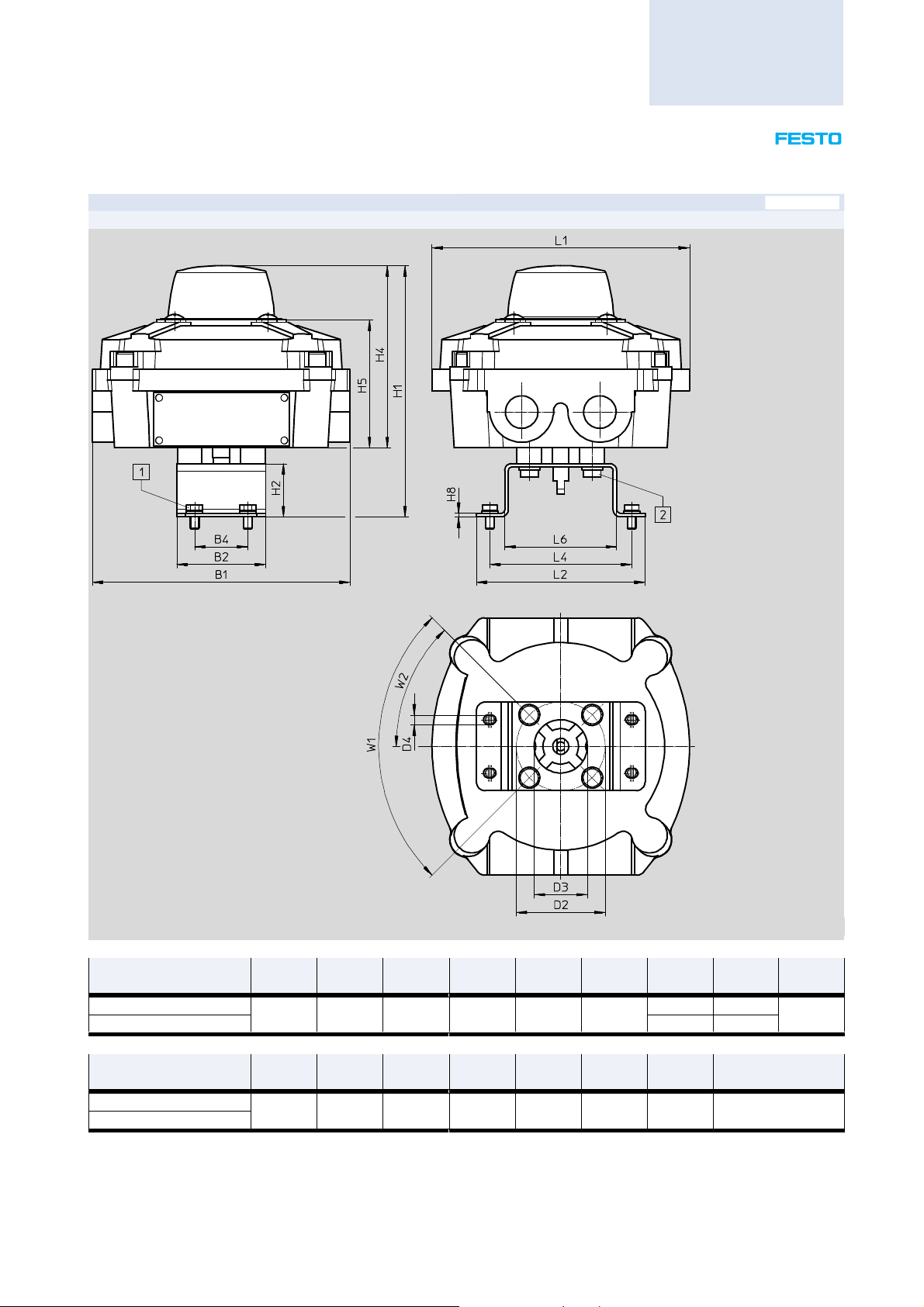

Dimensions Download CAD data è SRBE

1 Screw DIN 933 M5x8 2 Screw DIN 933 M6x10

Type B1 B2 B4 D2



With DARQ-K-X1-A1-F05-20-R1 With DARQ-K-X1-A1-F05-30-R1

Type H5 H8 L1 L2 L4 L6 W1 W2

With DARQ-K-X1-A1-F05-20-R1 With DARQ-K-X1-A1-F05-30-R1

2016/03 – Subject to change

145 50 30 50 30 5.5

72 2 145 95 80 63 90° 45°



H1 H2 H4

141.5 30

151.5 40

102.5

Page 10

-V- New

Sensor boxes SRBE, electromechanical and magnetic reed

Technical data

Dimensions Download CAD data è SRBE

1 Screw DIN 933 M5x8 2 Screw DIN 933 M6x10

Type B1 B2 B4 D2



With DARQ-K-X1-A2-F05-30-R1 145 65 30 50 35 5.4 151.5 40 102.5

Type H5 H8 L1 L2 L4 L6 W1 W2

With DARQ-K-X1-A2-F05-30-R1 72 3 14 5 160 130 63 90° 45°



H1 H2 H4

Subject to change – 2016/03

Page 11

Sensor boxes SRBE, electromechanical and magnetic reed

Technical data

Ordering data

Brief description Dimensions

Mounting adapter [mm]

Sensor box including pre-assembled mounting adapter

30 x 80, H: 20 1700 3471008 SRBE-CA3-YR90-MW-22A-1W-C2N12-EX

Weight

[g]

Part No. Type

3471009 SRBE-CA3-YR90-MW-22A-1W-C2M20-EX 3471010 SRBE-CA3-YR90-MW-22A-2W-C2N12-EX 3471011 SRBE-CA3-YR90-MW-22A-2W-C2M20-EX 3471020 SRBE-CA3-YR90-R-2A-1W-C2N12-EX 3471021 SRBE-CA3-YR90-R-2A-1W-C2M20-EX 3998917 SRBE-CA3-YR90-MW-22A-1W-C2N12-C1 3998918 SRBE-CA3-YR90-MW-22A-2W-C2N12-C1 3998923 SRBE-CA3-YR90-R-2A-1W-C2N12-C1

-V- New

2016/03 – Subject to change

Page 12

-V- New

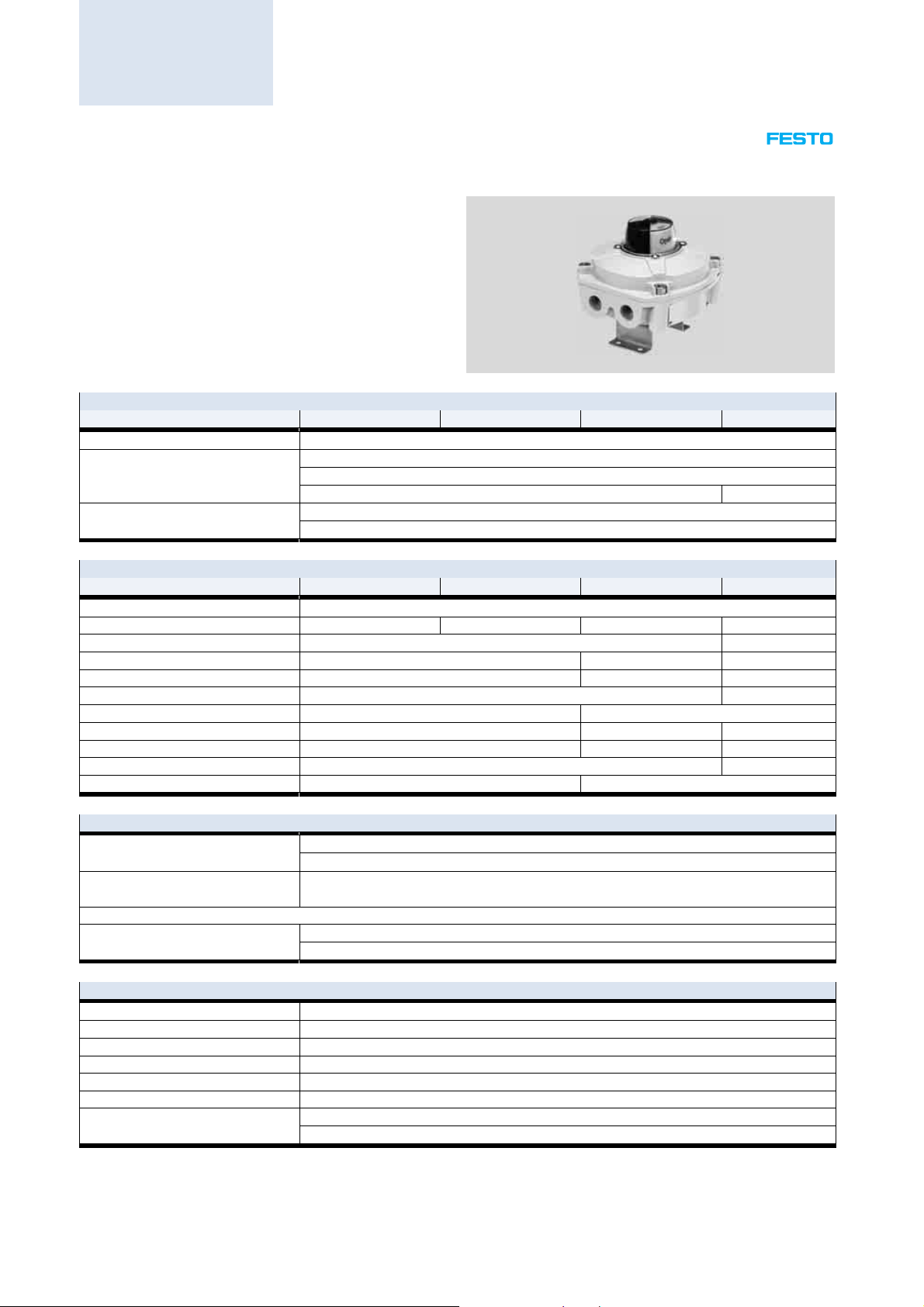

Sensor boxes SRBE, inductive

Technical data

 Inductive measuring principle  Switching outputs PNP, NPN, 2-wire

DC, NAMUR

 Pre-assembled mounting adapter

80 x 30 H20

General technical data

Type SRBE-… -1-P -1-N -1-ZU -20N

Setting range for angle detection [°] 0 … 90 Based on standard ISO 5211

VDI/VDE 3845 EN 60947-5-2 EN 60947-5-6

Type of mounting On flange to ISO 5211

With mounting bracket

Electrical data

Type SRBE-… -1-P -1-N -1-ZU -20N

Measuring principle Inductive Switching output PNP NPN Non-contacting, 2-wire NAMUR Switching element function N/O contact N/C contact Operating voltage range [V DC] 10 … 30 5 … 60 8.2 Voltage drop [V]  3  5 – Max. output current [mA] 100 3 Idle current [mA]  15 – Residual current [mA] 0 … 0.5 0 … 1 – Minimum load current [mA] – 4 – Reverse polarity protection For all electrical connections – Protection against short circuit Pulsed –

Electromechanical components

Electrical connection 10-pin

Screw terminal Nominal conductor cross section that can be connected

Cable connector M20x1.5 for …C2M20…

Materials

[mm2] 0.25 … 2.5

½ NPT for …C2N12…

Contains paint-wetting impairment substances

Subject to change – 2016/03

Page 13

-V- New

Sensor boxes SRBE, inductive

Technical data

Operating and environmental conditions

Type SRBE-…

Ambient temperature [°C] –20 … +60 Storage temperature [°C] –20 … +60 CE marking To EU EMC Directive Approval certificate RCM mark Shock resistance Shock test with severity level 2 according to FN 942017-5 and EN 60068-2-27 Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Safety integrity level (SIL) SIL 2

EX (ATEX, IECEX, INMETRO certifications) -1-ZU Degree of protection IP67 CE marking As per EU Explosion Protection Directive (ATEX) ATEX category for gas II 2G ATEX category for dust II 2D Explosion ambient temperature –20 … +60 Type of ignition protection for gas Ex d IIC T6 Gb Type of ignition protection for dust Ex tb IIIC T61°C Db Ex tb IIIC T75°C Db Explosion protection certification outside the EU

EPL Db (IEC-EX) EPL Db (BR) EPL Gb (IEC-EX) EPL Gb (BR)

C1 (cCSAus certification) Degree of protection IP67

NEMA 4/4X

Type of ignition protection for gas AEx d IIB T5 Gb

Ex d IIB T5 Gb Aex nA IIC T5 Gc Ex nA IIC T5 Gc

Type of ignition protection for dust AEx tb IIIC T108°C Db

Ex tb IIIC T108°C Db Explosion protection certification outside the EU

Class I, Div. 1 (CA) Class I, Div. 1 (US) Class I, Div. 2 (CA) Class I, Div. 2 (US) Class II, Div. 1 (CA) Class II, Div. 1 (US) Class III (CA) Class III (US) EPL Db (CA) EPL Db (US) EPL Gb (CA) EPL Gb (US) EPL Gc (CA) EPL Gc (US)

2016/03 – Subject to change

Page 14

-V- New

Sensor boxes SRBE, inductive

Technical data

Dimensions Download CAD data è SRBE

1 Screw DIN 933 M5x8 2 Screw DIN 933 M6x10

Type B1 B2 B4 D2



With DARQ-K-X1-A1-F05-20-R1 With DARQ-K-X1-A1-F05-30-R1

Type H5 H8 L1 L2 L4 L6 W1 W2

With DARQ-K-X1-A1-F05-20-R1 With DARQ-K-X1-A1-F05-30-R1

145 50 30 50 30 5.5

72 2 145 95 80 63 90° 45°



H1 H2 H4

141.5 30

151.5 40

Subject to change – 2016/03

102.5

Page 15

-V- New

Sensor boxes SRBE, inductive

Technical data

Dimensions Download CAD data è SRBE

1 Screw DIN 933 M5x8 2 Screw DIN 933 M6x10

Type B1 B2 B4 D2



With DARQ-K-X1-A2-F05-30-R1 145 65 30 50 35 5.4 151.5 40 102.5

Type H5 H8 L1 L2 L4 L6 W1 W2

With DARQ-K-X1-A2-F05-30-R1 72 3 14 5 160 130 63 90° 45°

2016/03 – Subject to change



H1 H2 H4

Page 16

-V- New

Sensor boxes SRBE, inductive

Technical data

Ordering data

Brief description Dimensions

Sensor box including pre-assembled mounting adapter

Weight Mounting adapter [mm]

30 x 80, H: 20 1700 3471012 SRBE-CA3-YR90-N-20N-ZC-C2N12-EX

[g]

Part No. Type

3471013 SRBE-CA3-YR90-N-20N-ZC-C2M20-EX 3471014 SRBE-CA3-YR90-N-1-P-C2N12-EX 3471015 SRBE-CA3-YR90-N-1-P-C2M20-EX 3471016 SRBE-CA3-YR90-N-1-N-C2N12-EX 3471017 SRBE-CA3-YR90-N-1-N-C2M20-EX 3471018 SRBE-CA3-YR90-N-1-ZU-C2N12-EX 3471019 SRBE-CA3-YR90-N-1-ZU-C2M20-EX 3998919 SRBE-CA3-YR90-N-20N-ZC-C2N12-C1 3998920 SRBE-CA3-YR90-N-1-P-C2N12-C1 3998921 SRBE-CA3-YR90-N-1-N-C2N12-C1 3998922 SRBE-CA3-YR90-N-1-ZU-C2N12-C1

Subject to change – 2016/03

Page 17

-V- New

Sensor boxes SRBE

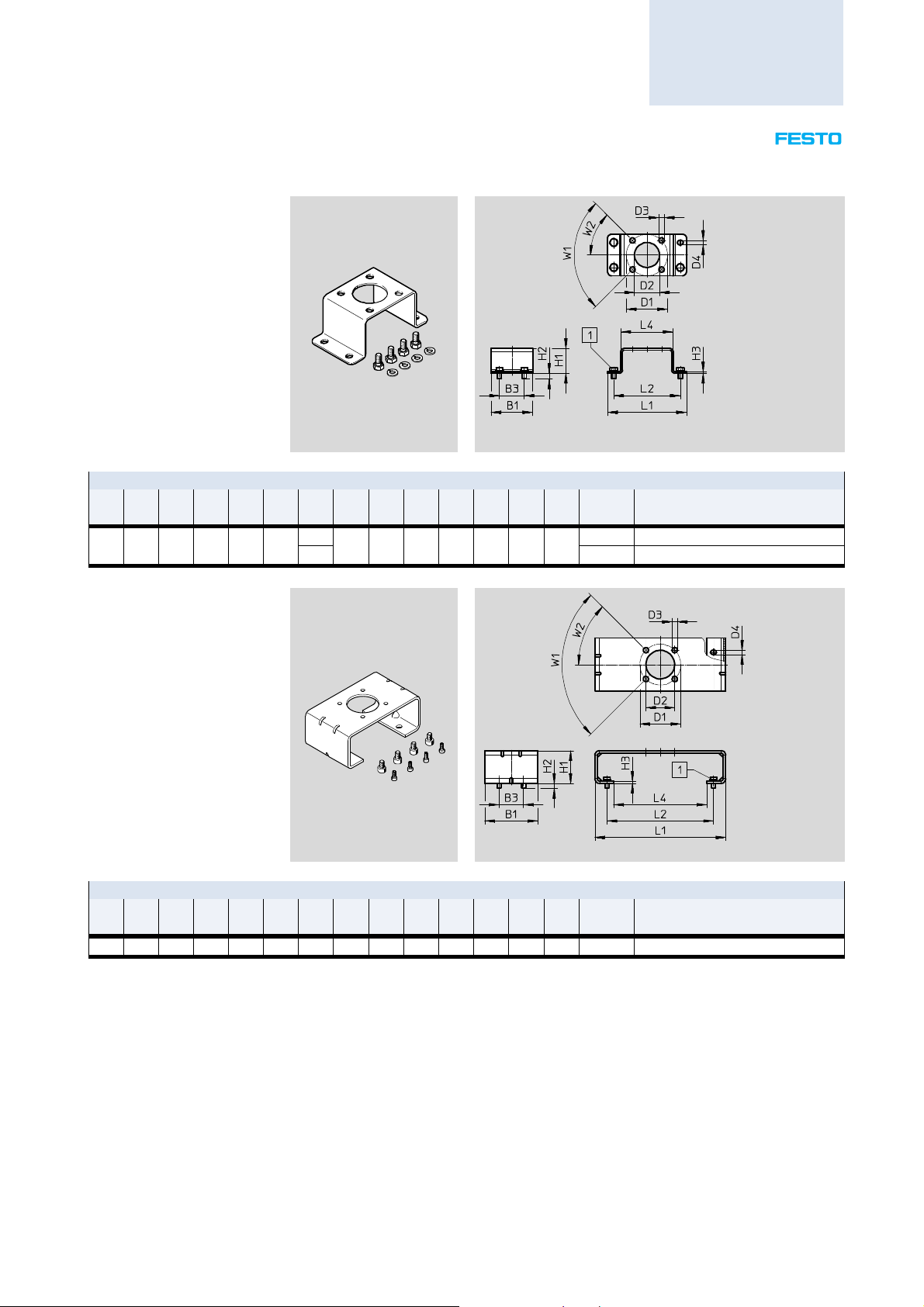

Accessories

Mounting adapter DARQ-K-X1-A1-…  Mounting adapter for mounting on

standard actuators to VDI/VDE 3845

 Mounting screws included in the

scope of delivery

 Size 30 x 80  Material:

High-alloy stainless steel

 Contains paint-wetting impairment

substances, RoHS compliant

1 Screw DIN 933 M5x8

Dimensions and ordering data

B1 B3 D1 D2 D3 D4 H1 H2 H3 L1 L2 L4 W1 W2 Weight Part No. Type

    [g]

50 30 50 30 6.5 5.5 30 6.8 2 95 80 63 90° 45° 350 3636269 DARQ-K-X1-A1-F05-20-R1

40 380 3636270 DARQ-K-X1-A1-F05-30-R1

Mounting adapter DARQ-K-X1-A2-…  Mounting adapter for mounting on

standard actuators to VDI/VDE 3845

 Mounting screws included in the

scope of delivery

 Size 30 x 130  Material:

High-alloy stainless steel

 Contains paint-wetting impairment

substances, RoHS compliant

1 Screw DIN 933 M5x8

Dimensions and ordering data

B1 B3 D1 D2 D3 D4 H1 H2 H3 L1 L2 L4 W1 W2 Weight Part No. Type

    [g]

65 30 50 35 6.5 5.4 40 5.8 3 16 0 130 114 90° 45° 460 3886114 DARQ-K-X1-A2-F05-30-R1
