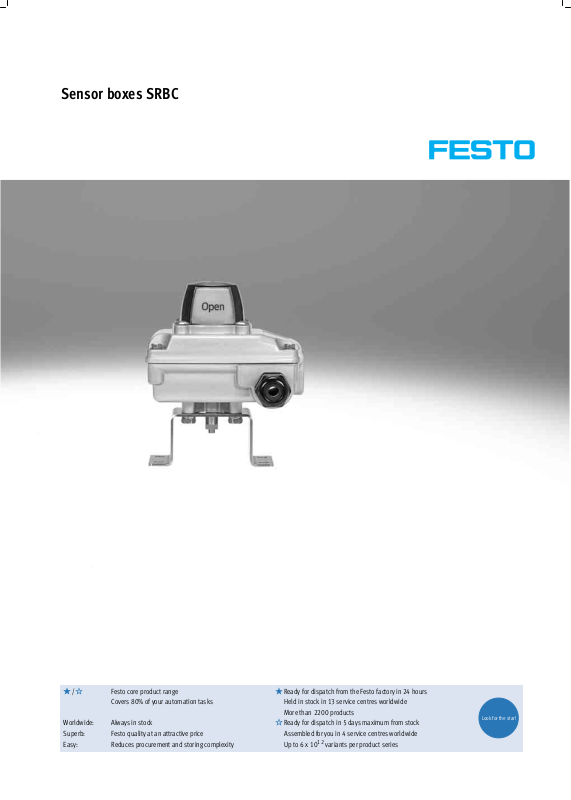

Page 1
Sensor boxes SRBC
q/w Festo core product range
Covers 80% of your automation tasks
Worldwide: Always in stock
Superb: Festo quality at an attractive price
Easy: Reduces procurement and storing complexity
qReady for dispatch from the Festo factory in 24 hours
Held in stock in 13 service centres worldwide
More than 2200 products
wReady for dispatch in 5 days maximum from stock
Assembled for you in 4 service centres worldwide
Up to 6 x 1012 variants per product series
Look for the star!
Page 2
-V- New
Sensor boxes SRBC
Key features and product range overview
Function
Sensor boxes SRBC are used for electrical feedback and control of the position
of process valves actuated using pneumatic quarter turn actuators. They can be
mounted quickly and easily on quarter turn actuators with a hole pattern to
Innovative Flexible Design
Pre-assembled mounting adapter
for ease of installation
The trip cams can be set easily
without additional tools
Sturdy, corrosion-resistant design,
ideal for use in harsh operating
conditions
Clearly visible 3D position indicator
allows rapid detection of the
current position of the quarter turn
actuator
Weather-tight housing for outdoor
applications too
Mechanical, inductive or magnetic
switch variants for virtually all
ranges of application
Intrinsically safe variants for use in
potentially explosive areas
Two cable inputs for common power
supply for the sensor box and
solenoid valve as standard
VDI/VDE 3845 using mounting adapters. The sturdy design of the sensor box
SRBC is ideal for the harsh conditions in process automation.
Sturdy aluminium housing with two
cable inputs M20x1.5
Captive stainless steel screws on
the housing cover
Pre-assembled stainless steel
mounting adapter 80x30 H20 for
ease of mounting on standard
drives as per VDI/VDE 3845
Cable connector and blanking plug
included in the scope of delivery
3D OPEN/CLOSED position indic
ator
Mechanical, inductive or magnetic
switch variants
Number of switches: 2
IP67, NEMA 4/4x
cCSAus Listed, General Purpose
ATEX ia version
SIL 2 to IEC 61508
Product range overview
Measuring principle Type Operating voltage range Switching output Switching element function
Electromechanical SRBC-…-MW-22A-1W- 0…250 V AC
0…30 V DC
Magnetic reed SRBC-…-R-2A-1W- 0…120 V AC
0…175 V DC
Inductive SRBC-…-N-20N-ZC- 8.2 V DC NAMUR N/C contact
Inductive SRBC-…-N-20N-ZC-…-EX4 8.2 V DC NAMUR N/C contact
Inductive SRBC-…-N-1-P- 10…30 V DC PNP N/O contact
Inductive SRBC-…-N-1-N- 10…30 V DC NPN N/O contact
Inductive SRBC-…-N-1-ZU- 5…60 V DC Contactless, 2-wire N/O contact
Contacting Toggle switch,
single-pole (SPDT)
Contacting Toggle switch,
single-pole (SPDT)
2
è
Subject to change – 2017/02
Page 3
Sensor boxes SRBC
Peripherals overview
5
4
-V- New
3
2
1

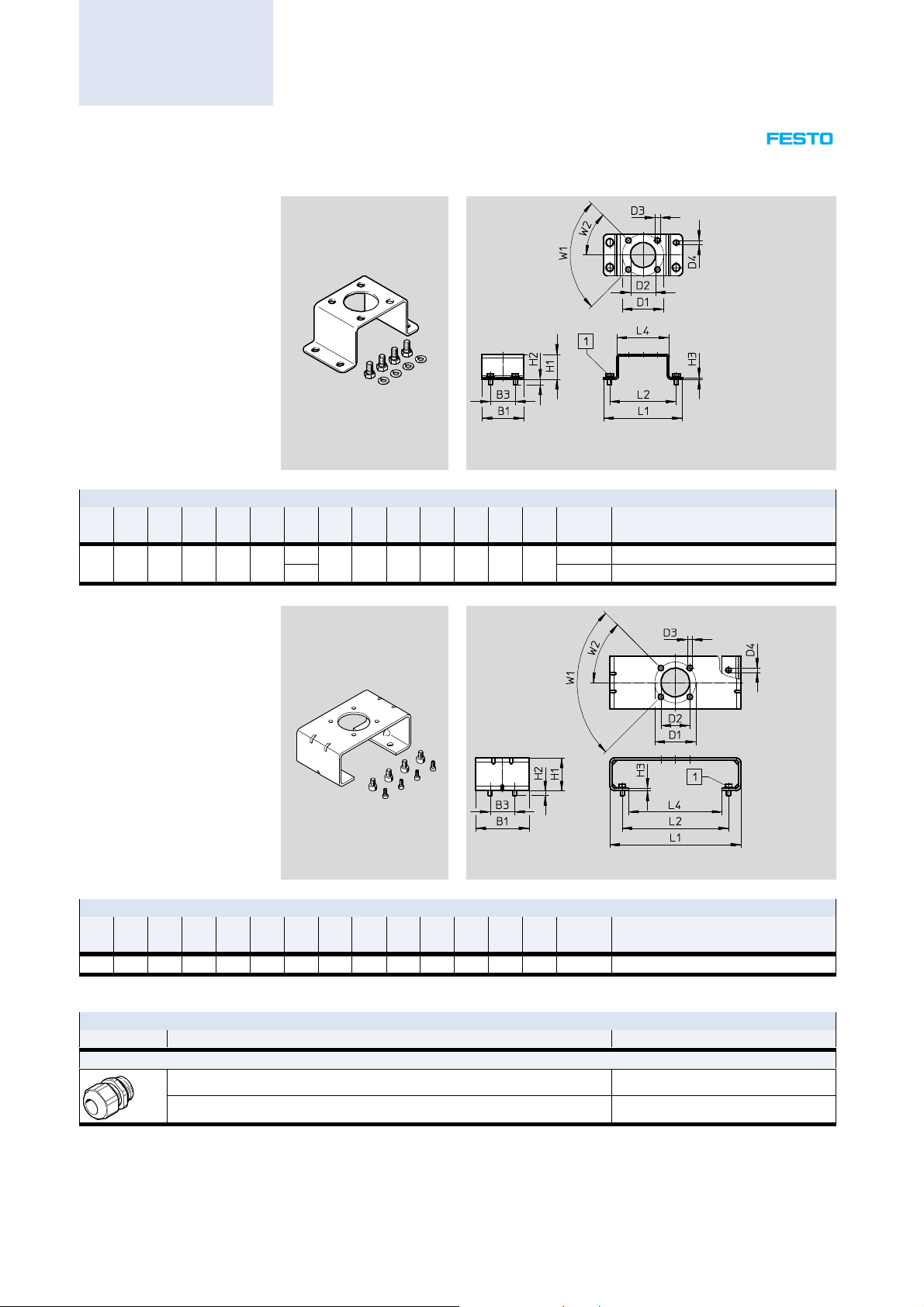

Accessories Brief description è Page/Internet
1 Mounting adapter
DARQ-K-X1-A1-F05-20-R1
2 Mounting adapter
DARQ-K-X1-A1-F05-30-R1
3 Mounting adapter
DARQ-K-X1-A2-F05-30-R1
4 Cable connector
NETC-P-M20-P4
5 Cable connector
NETC-M-M20-P4
Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern
30 x 80 mm, shaft height 20 mm
Included in the scope of delivery of the sensor box and pre-assembled
Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern
30 x 80 mm, shaft height 30 mm
Can be ordered separately as an accessory
Mounting adapter for mounting sensor boxes on quarter turn actuators with hole pattern
30 x 130 mm, shaft height 30 mm
Can be ordered separately as an accessory
Polymer cable connector M20x1.5
Included in the scope of delivery of the sensor box
Metal cable connector M20x1.5
Can be ordered separately as an accessory
16
16
16
16
16
2017/02 – Subject to change
è
3
Page 4
-V- New
Sensor boxes SRBC
Type codes SRBC
Type
SRBC Limit switch attachment
Design
C Sensor box
Mechanical interface
A3 Mounting adapter, hole pattern 30 x 80 mm,
shaft height 20 mm
Display type
YR Position indicator yellow/red
Measuring range
90 0 … 90°
SRBC — C — A3 — YR — 90 — N — 1 — N — C2 — P20 —
Sensor principle
N Proximity sensors, inductive
R Reed with contact
MW Floating contact, changeover switch
Nominal operating voltage
2A 110 V AC, 50-60 Hz
20N 8.2 V DC, NAMUR
22A 250 V AC
1 24 V DC
Electrical output
N NPN
P PNP
1W 1-pin toggle switch
ZC 2-wire N/C contact
ZU 2-wire N/O contact
Electrical connection
C2 Screw terminal
Cable connector
P20 M20x1.5, polymer
EU certification
– None
EX4 II2GD
4
è
Subject to change – 2017/02
Page 5
Mounting kits DARQ
Type codes DARQ
Type
DARQ Mounting adapter
Function
K Mounting kit
Designation
X1 Sensor box version with short shaft
Drive outlet
A1 Hole pattern 30 x 80 mm
A2 Hole pattern 30 x 130 mm
Adapter or reducing outlet
F05 Hole pattern F05
-V- New
DARQ — K — X1 — A1 — F05 — 20 — R1
Length
20 20 mm
30 30 mm
Corrosion protection
R1 Stainless steel
2017/02 – Subject to change
è
5
Page 6
-V- New

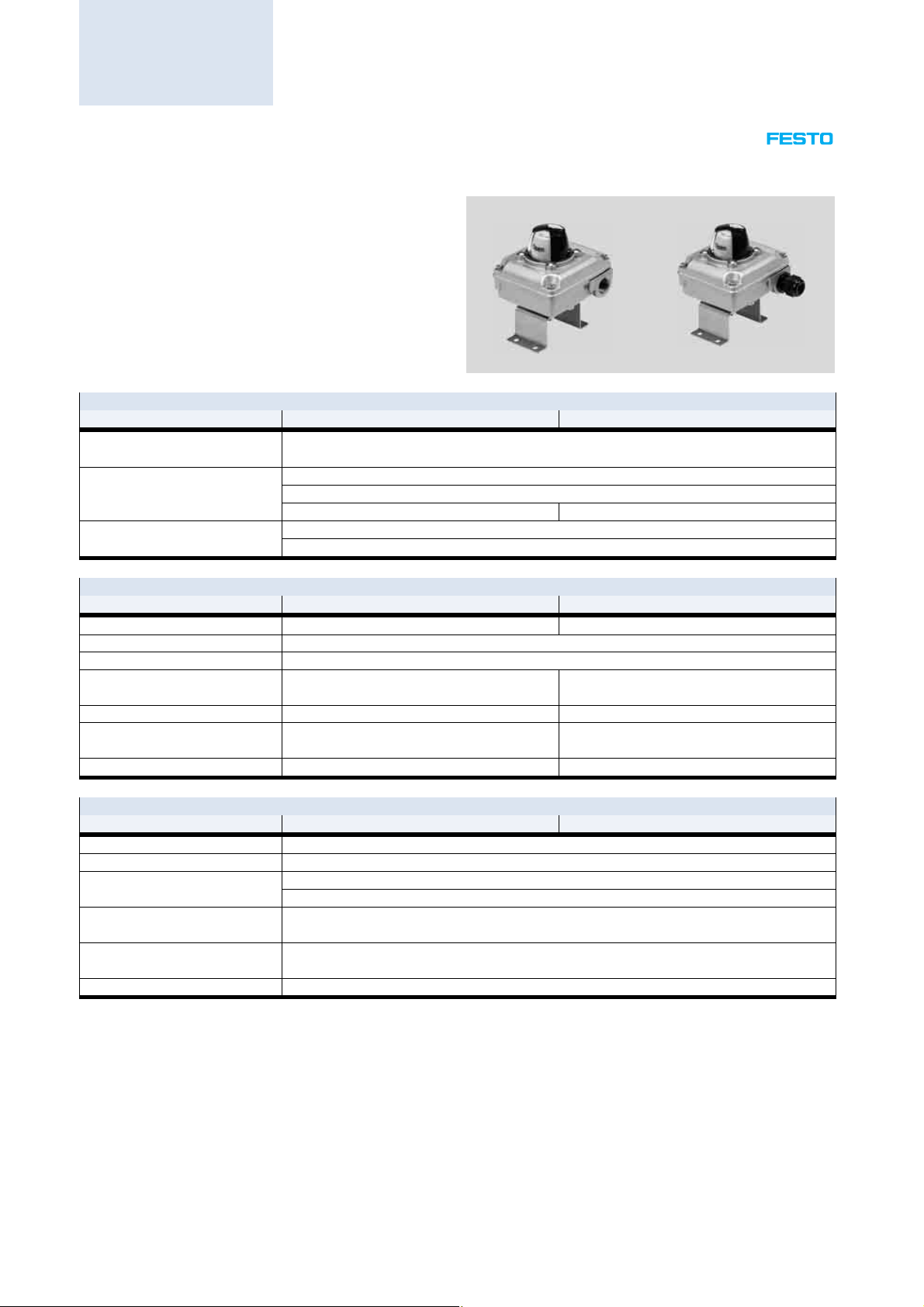

Sensor boxes SRBC, electromechanical and magnetic reed
Technical data
Measuring principle: electromag
netic or magnetic reed
Switching element function: toggle
switch, single-pole (SPDT)
For DC and AC voltage
General technical data
Type SRBC-… -MW -R
Setting range for angle
detection
Based on standard ISO 5211
Type of mounting On flange to ISO 5211
Electrical characteristic data
Type SRBC-… -MW -R
Measuring principle Mechanical/electrical Magnetic reed
Switching output Contacting
Switching element function Toggle switch, single-pole
Operating voltage range
Alternating current AC
Max. output current AC [mA] 3000 (at 250 V) 250 (at 120 V)
Operating voltage range
Direct current DC
Max. output current DC [mA] 3000 (at 30 V) 250 (at 175 V)
Pre-assembled mounting adapter
80 x 30 H20
Cable connector and blanking plug
included in the scope of delivery
[°] 0 … 90
VDI/VDE 3845
– EN 60947-5-2
With mounting bracket
[V] 0 … 250 0 … 120
[V] 0 … 30 0 … 175
Electromechanical components
Type SRBC-… -MW -R
Cable connector M20x1.5
Permissible cable diameter [mm] 5 … 13
Electrical connection 10-pin
Screw terminal
Nominal conductor cross
section that can be connected
Information on materials, cable
connection
Information on materials, blanking plug PA
[mm2] 0.25 … 2.5
PA
6
è
Subject to change – 2017/02
Page 7
Sensor boxes SRBC, electromechanical and magnetic reed
Technical data
Operating and environmental conditions
Ambient temperature [°C] –20 … +80
Storage temperature [°C] –20 … +80
Degree of protection IP67
NEMA 4/4X
Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
CE marking
(see declaration of conformity)
Approval certificate c CSA us (OL)
Safety integrity level (SIL) SIL 2
1) Additional information p è Certificates.
Materials
Housing Die-cast aluminium
Shaft High-alloy stainless steel
Screws High-alloy stainless steel
Seals NBR
Pointer PC
Note on materials RoHS compliant
1)
To EU Low Voltage Directive
Contains paint-wetting impairment substances
-V- New
2017/02 – Subject to change
è
7
Page 8
-V- New
Sensor boxes SRBC, electromechanical and magnetic reed
Technical data

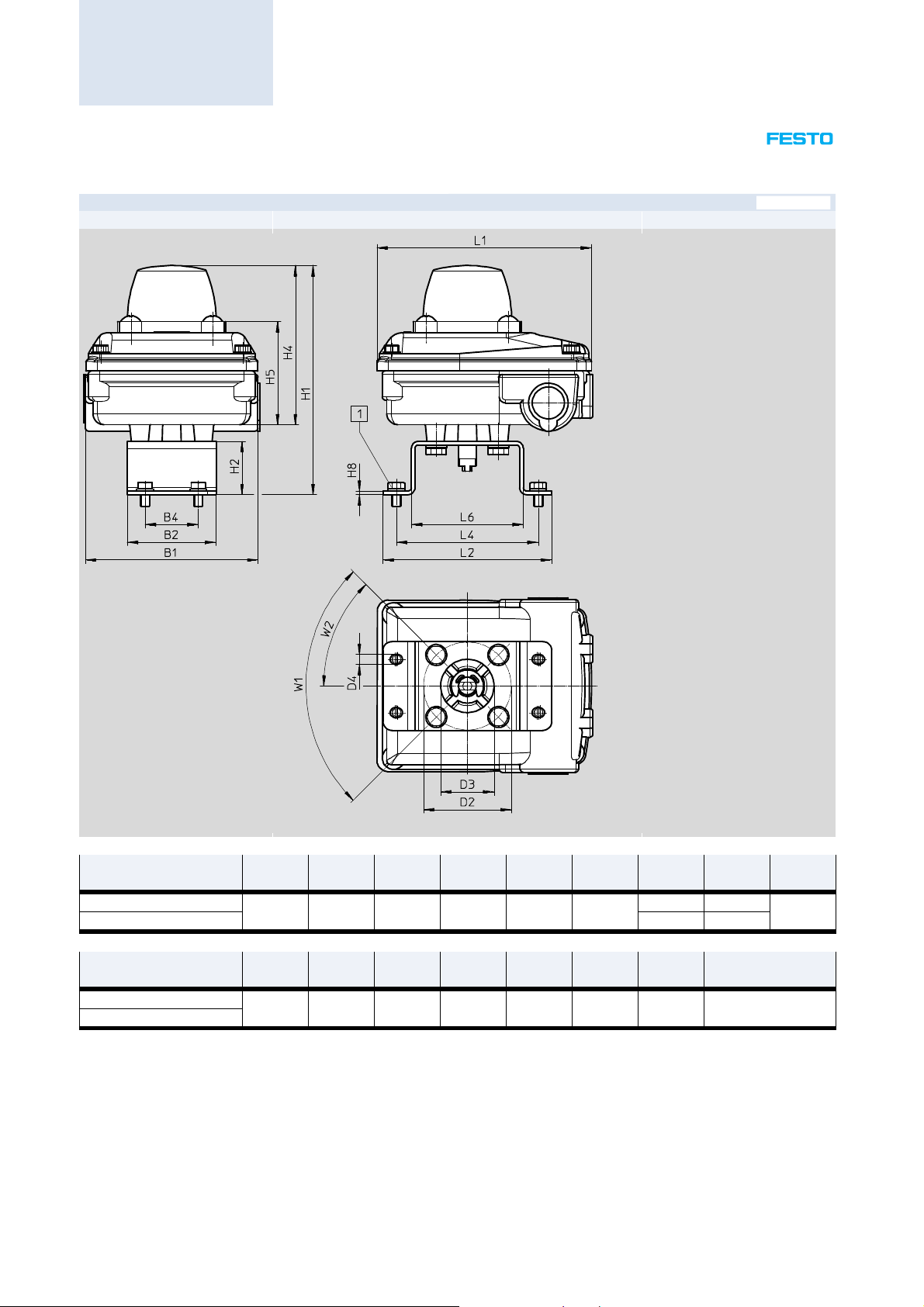

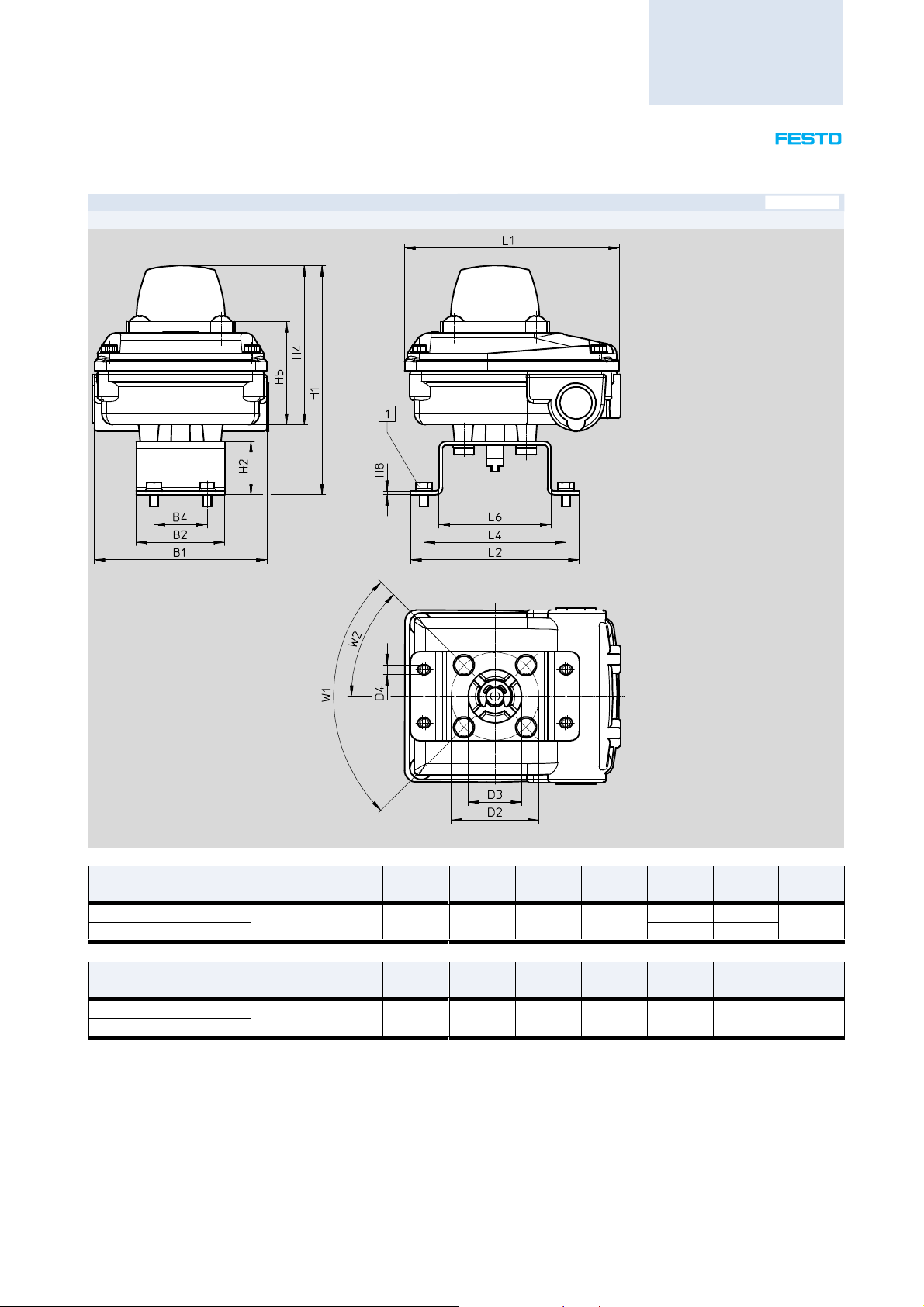

Dimensions Download CAD data è SRBC
1 Screw DIN 933 M5x8
Type B1 B2 B4 D2
With DARQ-K-X1-A1-F05-20-R1
With DARQ-K-X1-A1-F05-30-R1
Type H5 H8 L1 L2 L4 L6 W1 W2
With DARQ-K-X1-A1-F05-20-R1
With DARQ-K-X1-A1-F05-30-R1
8
98 50 30 50 30 5.5
58.2 2 120 95 80 63 90° 45°
è
D3
D4
H1 H2 H4
129 30
139 40
Subject to change – 2017/02
90
Page 9
-V- New
Sensor boxes SRBC, electromechanical and magnetic reed
Technical data

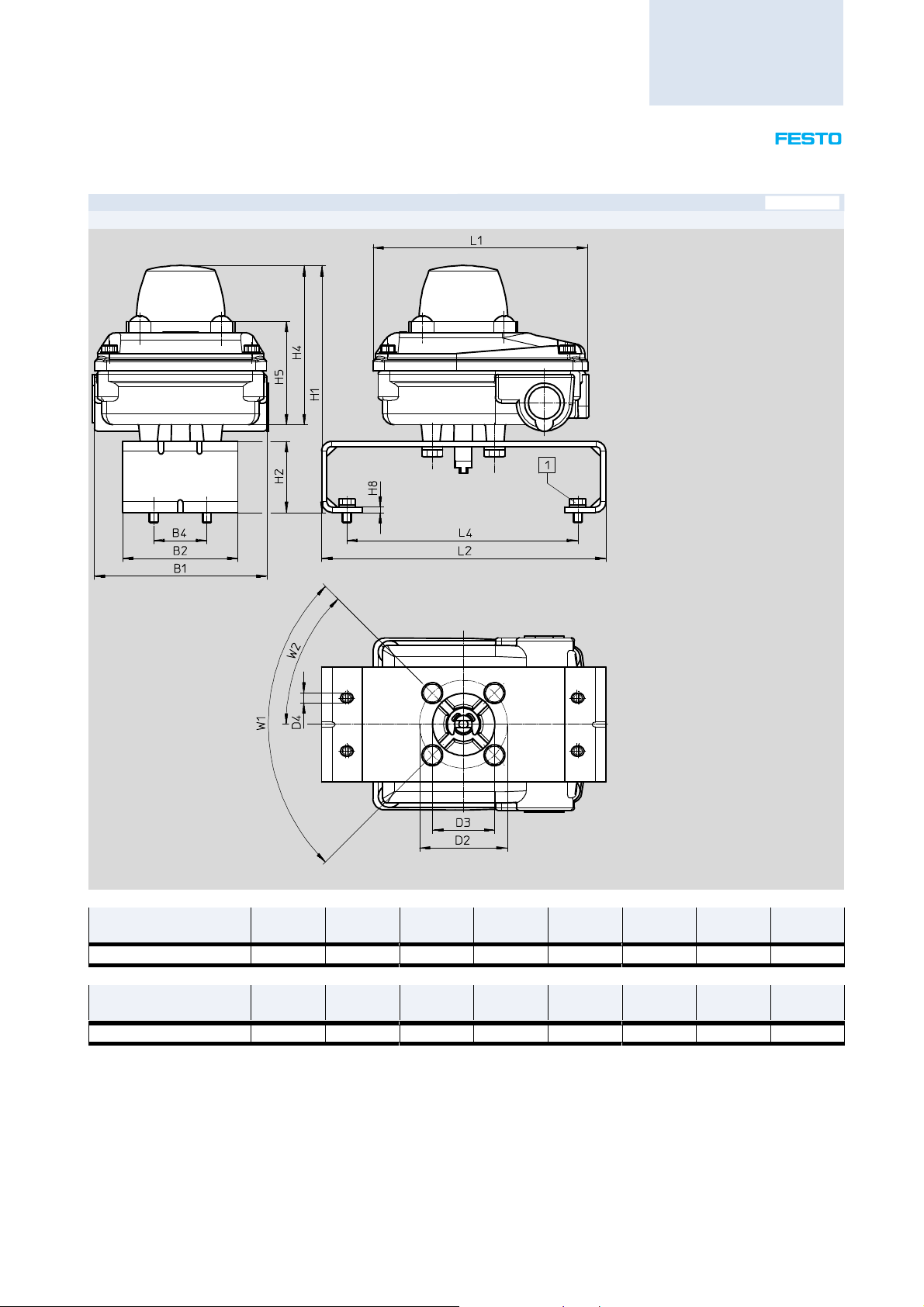

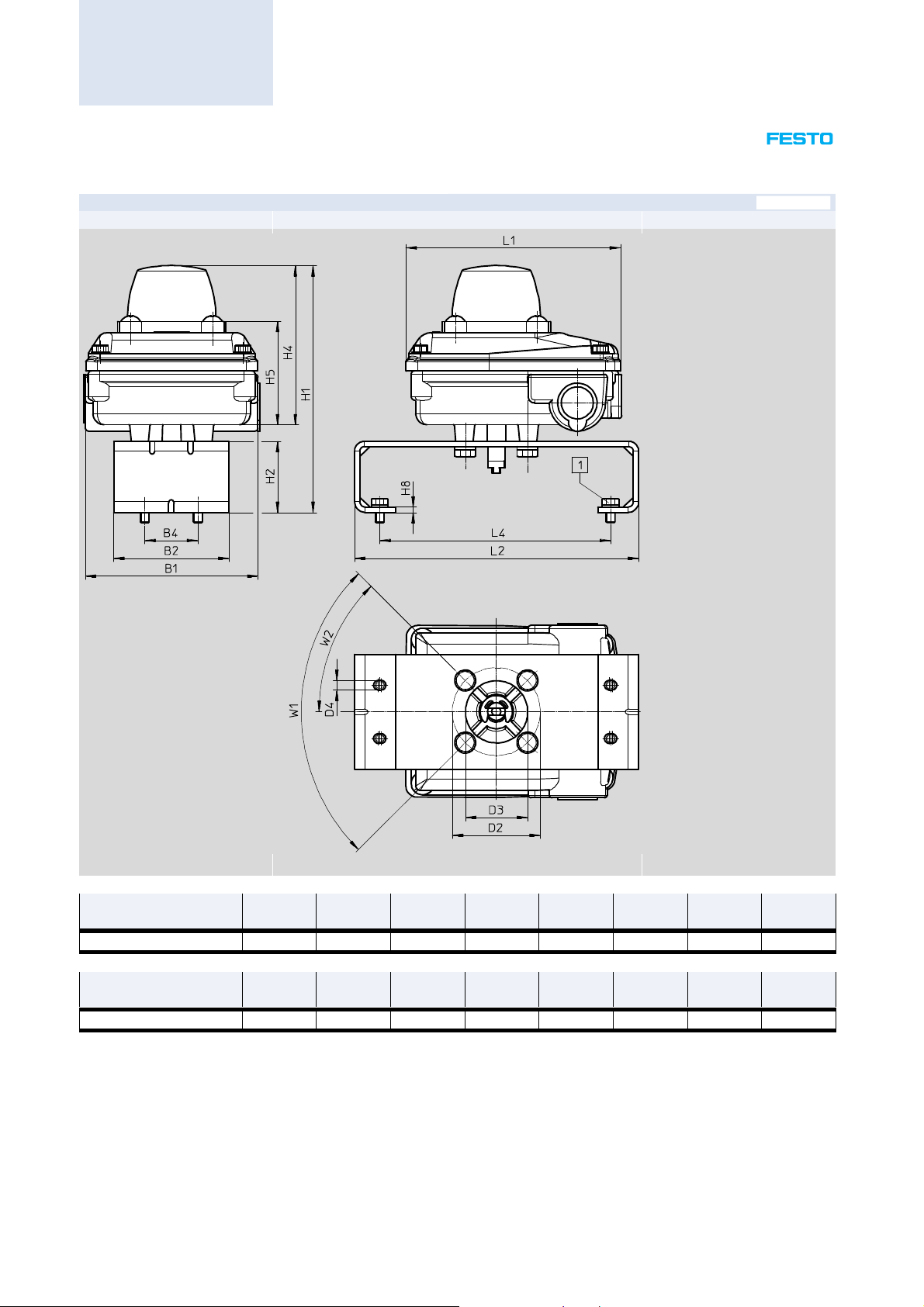

Dimensions Download CAD data è
SRBC
1 Screw DIN 933 M5x8
Type B1 B2 B4 D2
With DARQ-K-X1-A2-F05-30-R1 98 65 30 50 35 5.4 139 40
Type H4 H5 H8 L1 L2 L4 W1 W2
With DARQ-K-X1-A2-F05-30-R1 90 58.2 3 120 160 130 90° 45°
2017/02 – Subject to change
è
D3
D4
H1 H2
9
Page 10
-V- New
Sensor boxes SRBC, electromechanical and magnetic reed
Technical data
qCore product range

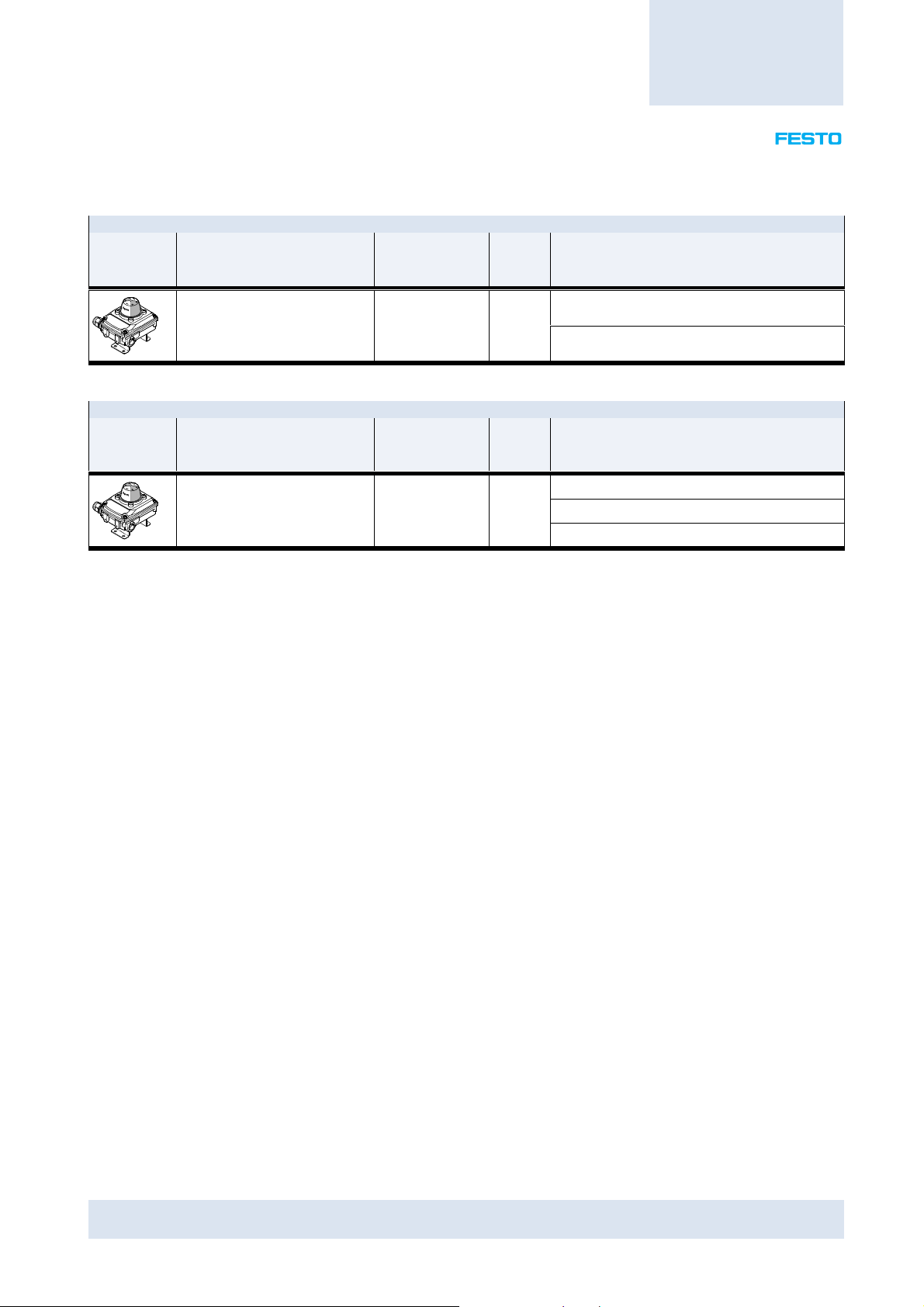

Ordering data
Ordering data
Brief description Dimensions
Mounting adapter
[mm]
Sensor box including pre-assembled
mounting adapter; cable connector and
blanking plug included in the scope of
delivery
Brief description Dimensions
Sensor box including pre-assembled
mounting adapter; cable connector and
blanking plug included in the scope of
delivery
30 x 80, H: 20 800 q3482805 SRBC-CA3-YR90-MW-22A-1W-C2P20
Mounting adapter
[mm]
30 x 80, H: 20 800 3482811 SRBC-CA3-YR90-R-2A-1W-C2P20
Weight
[g]
Weight
[g]
Part No. Type
Part No. Type
Festo core product range qReady for dispatch from the Festo factory in 24 hours
wReady for dispatch in 5 days maximum from stock
10
è
Subject to change – 2017/02
Page 11

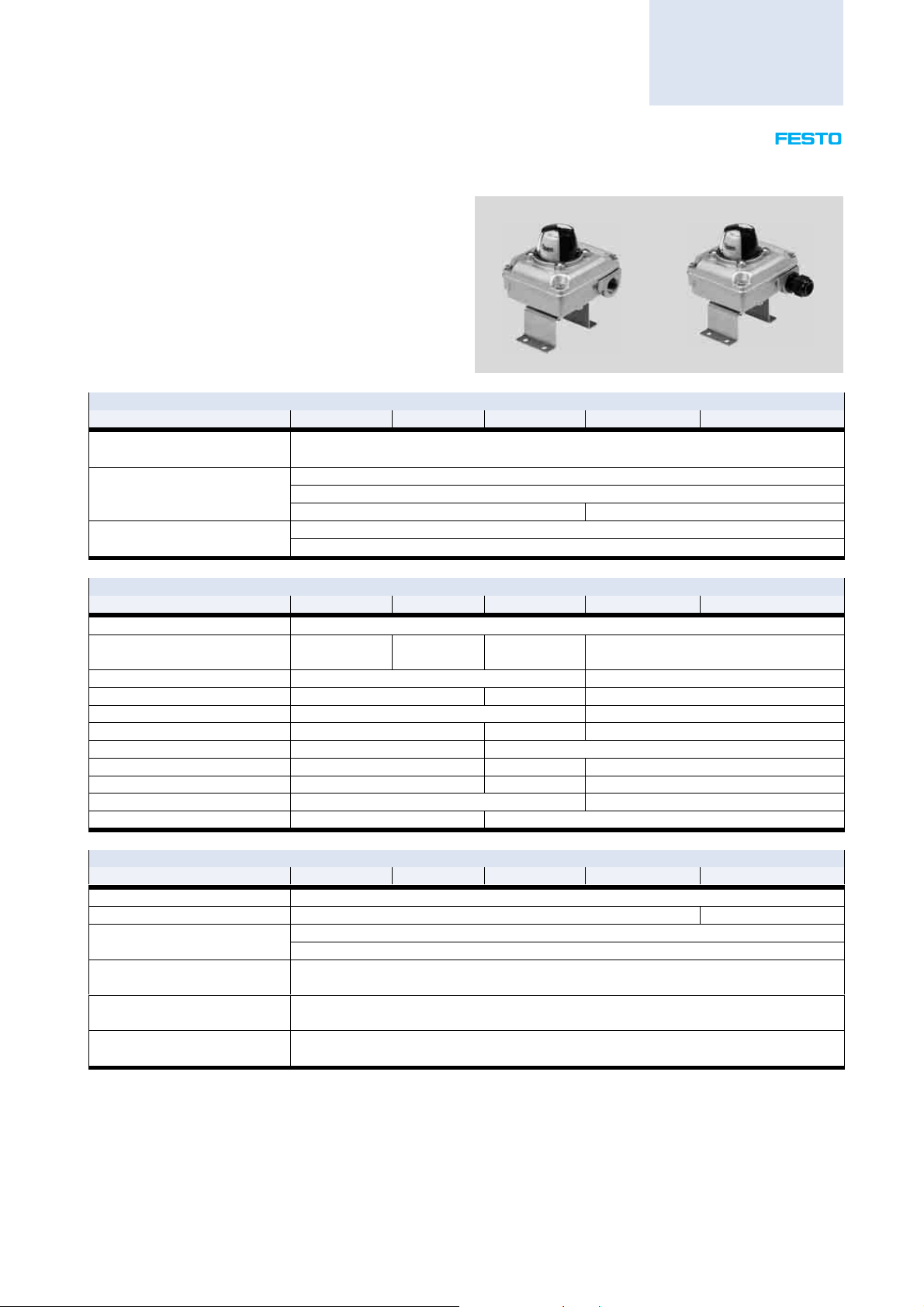

Sensor boxes SRBC, inductive
Technical data
-V- New
Inductive measuring principle
Switching outputs PNP, NPN, 2-wire
DC, NAMUR
General technical data
Type SRBC-… -1-P -1-N -1-ZU -20N -20N-…-EX4
Setting range for angle
acquisition
Based on standard ISO 5211
Type of mounting On flange to ISO 5211
Electrical characteristic data
Type SRBC-… -1-P -1-N -1-ZU -20N -20N-…-EX4
Measuring principle Inductive
Switching output PNP NPN Non-contacting,
Switching element function N/O contact N/C contact
Operating voltage range [V DC] 10 … 30 5 … 60 8.2
Max. output current DC [mA] 100 3
Voltage drop [V] 3 5 –
Idle current [mA] 15 –
Residual current [mA] 0. 5 0…1 –
Minimum load current [mA] – 4 –
Reverse polarity protection For all electrical connections –
Protection against short circuit Pulsed –
Pre-assembled mounting adapter
80 x 30 H20
Cable connector and blanking plug
included in the scope of delivery
[°] 0 … 90
VDI/VDE 3845
EN 60947-5-2 EN 60947-5-6
With mounting bracket
NAMUR
2-wire
Electromechanical components
Type SRBC-… -1-P -1-N -1-ZU -20N -20N-…-EX4
Cable connector M20x1.5
Permissible cable diameter [mm] 5 … 13 5.5 … 13
Electrical connection 10-pin
Screw terminal
Nominal conductor cross
section that can be connected
Information on materials,
cable connection
Information on materials,
blanking plug
2017/02 – Subject to change
[mm2] 0.25 … 2.5
PA
PA
è
11
Page 12
-V- New
Sensor boxes SRBC, inductive
Technical data
Operating and environmental conditions
Type SRBC-… -1-P -1-N -1-ZU -20N -20N-…-EX4
Ambient temperature [°C] –20 … +70 –20 … +80 –20 … +70
Storage temperature [°C] –20 … +70 –20 … +80 –20 … +70
Degree of protection IP67
NEMA 4/4X
Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
CE marking
(see declaration of conformity)
Approval certificate c CSA us (OL) –
ATEX category for gas – II 2G
ATEX category for dust – II 2D
Type of ignition protection for gas – c X
Type of ignition protection for dust – c X
Explosion ambient
temperature
Safety integrity level (SIL) SIL 2
[°C] – –20 … +70
To EU EMC Directive
RCM mark
1)
To EU Explosion Protection
Directive (ATEX)
1) For information about the applicability of the component see the manufacturer’s EC declaration of conformity at: p è User documentation.
If the component is subject to restrictions on usage in residential, office or commercial environments or small businesses, further measures to reduce the emitted interference may be necessary.
Materials
Housing Die-cast aluminium
Shaft High-alloy stainless steel
Screws High-alloy stainless steel
Seals NBR
Pointer PC
Note on materials RoHS compliant
Contains paint-wetting impairment substances
12
è
Subject to change – 2017/02
Page 13
-V- New
Sensor boxes SRBC, inductive
Technical data
Dimensions Download CAD data è SRBC
1 Screw DIN 933 M5x8
Type B1 B2 B4 D2
With DARQ-K-X1-A1-F05-20-R1
With DARQ-K-X1-A1-F05-30-R1
Type H5 H8 L1 L2 L4 L6 W1 W2
With DARQ-K-X1-A1-F05-20-R1
With DARQ-K-X1-A1-F05-30-R1
2017/02 – Subject to change
98 50 30 50 30 5.5
58.2 2 120 95 80 63 90° 45°
è
D3
D4
H1 H2 H4
129 30
139 40
90
13
Page 14
-V- New
Sensor boxes SRBC, inductive
Technical data
Dimensions Download CAD data è
SRBC
1 Screw DIN 933 M5x8
Type B1 B2 B4 D2
With DARQ-K-X1-A2-F05-30-R1 98 65 30 50 35 5.4 139 40
Type H4 H5 H8 L1 L2 L4 W1 W2
With DARQ-K-X1-A2-F05-30-R1 90 58.2 3 120 160 130 90° 45°
14
è
D3
D4
H1 H2
Subject to change – 2017/02
Page 15
Sensor boxes SRBC, inductive
Technical data
qCore product range
Ordering data
Brief description Dimensions
Sensor box including pre-assembled
mounting adapter; cable connector and
blanking plug included in the scope of
delivery
Ordering data
Brief description Dimensions
Sensor box including pre-assembled
mounting adapter; cable connector and
blanking plug included in the scope of
delivery
-V- New
Weight
Mounting adapter
[mm]
30 x 80, H: 20 800 q3482807 SRBC-CA3-YR90-N-20N-ZC-C2P20-EX4
Mounting adapter
[mm]
30 x 80, H: 20 800 3482806 SRBC-CA3-YR90-N-20N-ZC-C2P20
[g]
Weight
[g]
Part No. Type
q3482808 SRBC-CA3-YR90-N-1-P-C2P20
Part No. Type
3482809 SRBC-CA3-YR90-N-1-N-C2P20
3482810 SRBC-CA3-YR90-N-1-ZU-C2P20
Festo core product range qReady for dispatch from the Festo factory in 24 hours
wReady for dispatch in 5 days maximum from stock
2017/02 – Subject to change
è
15
Page 16
-V- New
Sensor boxes SRBC
Accessories
Mounting adapter DARQ-K-X1-A1-…
Mounting adapter for mounting on
standard drives as per VDI/VDE 3845
Mounting screws included in the
scope of delivery
Size 30 x 80
Material:
High-alloy stainless steel
Contains paint-wetting impairment
substances, RoHS compliant
1 Screw DIN 933 M5x8
Dimensions and ordering data
B1 B3 D1 D2 D3 D4 H1 H2 H3 L1 L2 L4 W1 W2 Weight Part No. Type
[g]
50 30 50 30 6.5 5.5 30 6.8 2 95 80 63 90° 45° 350 3636269 DARQ-K-X1-A1-F05-20-R1
40 380 3636270 DARQ-K-X1-A1-F05-30-R1
Mounting adapter DARQ-K-X1-A2-…
Mounting adapter for mounting on
standard drives as per VDI/VDE 3845
Mounting screws included in the
scope of delivery
Size 30 x 130
Material:
High-alloy stainless steel
Contains paint-wetting impairment
substances, RoHS compliant
1 Screw DIN 933 M5x8
Dimensions and ordering data
B1 B3 D1 D2 D3 D4 H1 H2 H3 L1 L2 L4 W1 W2 Weight Part No. Type
[g]
65 30 50 35 6.5 5.4 40 5.8 3 160 130 114 90° 45° 460 3886114 DARQ-K-X1-A2-F05-30-R1
Ordering data
Description Part No. Type
Cable connector NETC
M20x1.5 made from polymer 568278 NETC-P-M20-P4
16
M20x1.5 made from metal 568279 NETC-M-M20-P4
è
Subject to change – 2017/02
Loading...
