OVEM

Vacuum generator

Instructions| Operating

8109413

8109413 2019-03g [8109415]

Translation of the original instructions

2 Festo — OVEM — 2019-03g

Table of contents

1 About this document................................................................................................... 5

1.1 Applicable documents.................................................................................................. 5

2 Safety........................................................................................................................... 5

2.1 Safety instructions........................................................................................................ 5

2.2 Intended use................................................................................................................ 5

2.3 UL certification............................................................................................................. 5

3 Further information..................................................................................................... 6

4 Service..........................................................................................................................6

5 Product overview......................................................................................................... 7

5.1 Product design............................................................................................................. 7

5.1.1 Product variants......................................................................................................8

5.1.2 Display components............................................................................................... 10

5.2 Function....................................................................................................................... 14

5.2.1 Switching functions................................................................................................ 14

5.2.2 Valve controller.......................................................................................................16

5.2.3 Air saving function.................................................................................................. 17

5.2.4 Optimisation of the transport time..........................................................................18

5.2.5 Monitoring and diagnostics.................................................................................... 18

5.2.6 Measured variables................................................................................................ 19

5.2.7 Teach function (teach-in)........................................................................................ 20

5.2.8 Operating statuses and menu structure..................................................................21

6 Assembly..................................................................................................................... 25

7 Installation.................................................................................................................. 28

7.1 Pneumatic installation.................................................................................................. 28

7.2 Electrical installation.................................................................................................... 29

8 Commissioning............................................................................................................ 31

8.1 Commissioning vacuum generator............................................................................... 31

8.2 Set the intensity of the ejector pulse............................................................................ 31

9 Operation and use....................................................................................................... 32

9.1 Setting the ejector pulse duration................................................................................ 32

9.2 Configuring switching outputs...................................................................................... 33

9.3 Setting the switching characteristics of a switching output........................................... 33

9.4 Set diagnostic message channel.................................................................................. 34

9.5 Teach-in switching points............................................................................................. 35

9.6 Deleting minimum or maximum pressure value............................................................ 35

9.7 Setting critical limits for the evacuation and air supply times........................................36

9.8 Teaching evacuation and air supply time...................................................................... 36

9.9 Displaying evacuation and air supply times.................................................................. 37

9.10 Deleting evacuation and air supply times..................................................................... 37

9.11 Electrical manual override............................................................................................ 38

3Festo — OVEM — 2019-03g

9.12 Mechanical manual override..........................................................................................38

9.13 Activating security code.................................................................................................39

9.14 Switching air saving function on or off...........................................................................39

9.15 Restore factory settings.................................................................................................40

10 Maintenance and care.................................................................................................. 40

11 Error messages and fault clearance............................................................................. 41

11.1 Diagnostic levels........................................................................................................... 41

11.2 Error messages and error codes.................................................................................... 42

11.3 Malfunctions..................................................................................................................43

12 Disassembly.................................................................................................................45

13 Disposal........................................................................................................................45

14 Technical data.............................................................................................................. 45

4 Festo — OVEM — 2019-03g

About this document

1 About this document

1.1 Applicable documents

All available documents for the product èwww.festo.com/pk.

Document Product Contents

Instruction manual Manifold rail OABM-P Assembly

Tab. 1 Applicable documents

2 Safety

2.1 Safety instructions

– The product may only be used in its original status without unauthorised modifications. – Only use the product if it is in perfect technical condition. – Use the product only inside buildings. – Take into consideration the ambient conditions at the location of use. – The product is intended for use in industrial environments. This product can generate high fre-

quency malfunctions, which may make it necessary to implement interference suppression meas-

ures in residential areas. – Observe the specifications on the product labelling. – Comply with all applicable national and international regulations. – Observe the local regulations for environmentally friendly disposal.

2.2 Intended use

The intended use of the product is to generate a vacuum.

2.3 UL certification

In combination with the UL inspection mark on the product, the information in this section must also be observed in order to comply with the certification conditions of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL approval information

Product category code QUYX (USA)

QUYX7 (Canada)

File number E322346

Standards taken into account UL 61010-1

C22.2 No. 61010-1

UL symbol

5Festo — OVEM — 2019-03g

Further information

The unit shall be supplied by a power source which fulfils the requirements on a limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on a Limited Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or IEC/EN/UL/CSA 62368-1 or a Class 2 circuit in accordance to NEC or CEC.

3 Further information

– Accessories èwww.festo.com/catalogue. – Spare parts èwww.festo.com/spareparts.

4 Service

Contact your regional Festo contact person if you have technical questions èwww.festo.com.

6 Festo — OVEM — 2019-03g

Product overview

5 Product overview

5.1 Product design

Solenoid valve ejector pulse (eject)

Vacuum solenoid valve

Mechanical manual override of the solenoid

valves

Compressed air connection (1)

Exhaust port / silencer (3)

Vacuum connection (6)

Housing with mounting holes

Fig. 1 Operating elements and connections

Filter housing with display window only with OVEM-...-B/-BN

Slide for changing the filter

Filter housing with display window

Flow control screw for adjusting the ejector pulse

Vacuum sensor with LCD display and operating keys

Electrical connection

Size OVEM-...-C

7Festo — OVEM — 2019-03g

Product overview

5.1.1 Product variants

Product variant Code Meaning

Vacuum generator OVEM Vacuum generator with vacuum solenoid valve ON/OFF

and electric manual override

Nominal width laval nozzle

-05 0.45mm

-07 0.7mm

-10 0.95mm

-14 1.4mm

-20 2.0mm

-30 3.0mm

-H high negative pressureVacuum type

-L high suction volume

Housing size / width

-B 20 mm wide, ISO standard

-BN 20 mm wide, NPT

-C 36 mm wide, ISO standard

Pneumatic connections

all ports with QS push-in fittings (-B-QS/-C-QS)-QS

all ports with QS push-in fittings inch (-BN-QS)

-QO

Supply / vacuum port with QS push-in fittings, exhaust port with open silencer (-B-QO/-C-QO)

Supply / vacuum port with QS push-in fittings inch, exhaust port with open silencer (-BN-QO)

all ports with G female thread (-B-GN/-C-GN)-GN

all ports with NPT female thread (-BN-GN)

-GO

Supply / vacuum port with G female thread, exhaust port with open silencer (-B-GO/-C-GO)

Supply / vacuum port with NPT female thread, exhaust port with open silencer (-BN-GO)

-PL

prepared for common supply manifold, vacuum and exhaust port with QS push-in fittings (-B-PL/-C-PL)

prepared for common supply manifold, vacuum and exhaust port with QS push-in fittings inch (-BN-PL)

-PO prepared for common supply manifold, vacuum port with QS push-in fittings, exhaust port with open silencer (-B-PO/-C-PO)

8 Festo — OVEM — 2019-03g

Product overview

Product variant Code Meaning

Pneumatic connections -PO prepared for common supply manifold, vacuum port

with QS push-in fittings inch, exhaust port with open silencer (-BN-PO)

Normal position of the vacuum generator

-ON NO, normally open (vacuum generation)

-OE NO, normally open (vacuum generation) with ejector pulse

-CN NC, normally closed (no vacuum generation)

-CE NC, normally closed (no vacuum generation) with ejector pulse

Electrical connection -N M12 plug (5-pin)

Vacuum sensor

-1PD 1 switching output PNP, 2 switching inputs PNP, with display

-2P 2 switching outputs PNP

-2N 2 switching outputs NPN

-PU 1 switching output PNP, 1 analogue output 0…10V

-PI 1 switching output PNP, 1 analogue output 4…20mA

Alternative vacuum display

- bar (-B), InHg (-BN)

-B bar

-W InH20

-H InHg

Tab. 3 Overview of variants

9Festo — OVEM — 2019-03g

Product overview

5.1.2 Display components

Display segment switching output Out A

Display segment switching output Out B (except OVEM-...-1PD)

Display segment switching input In A1 (except OVEM-...-1PD)

4-digit alphanumeric display

Toolbar for functions

Segment bar right: graphic display of the current status of the digital inputs or valve status

B pushbutton

A pushbutton

EDIT button

Segment bar left: graphic display of the current pressure value related to the maximum measured value of the measuring range

Fig. 2 LCD display and operating keys

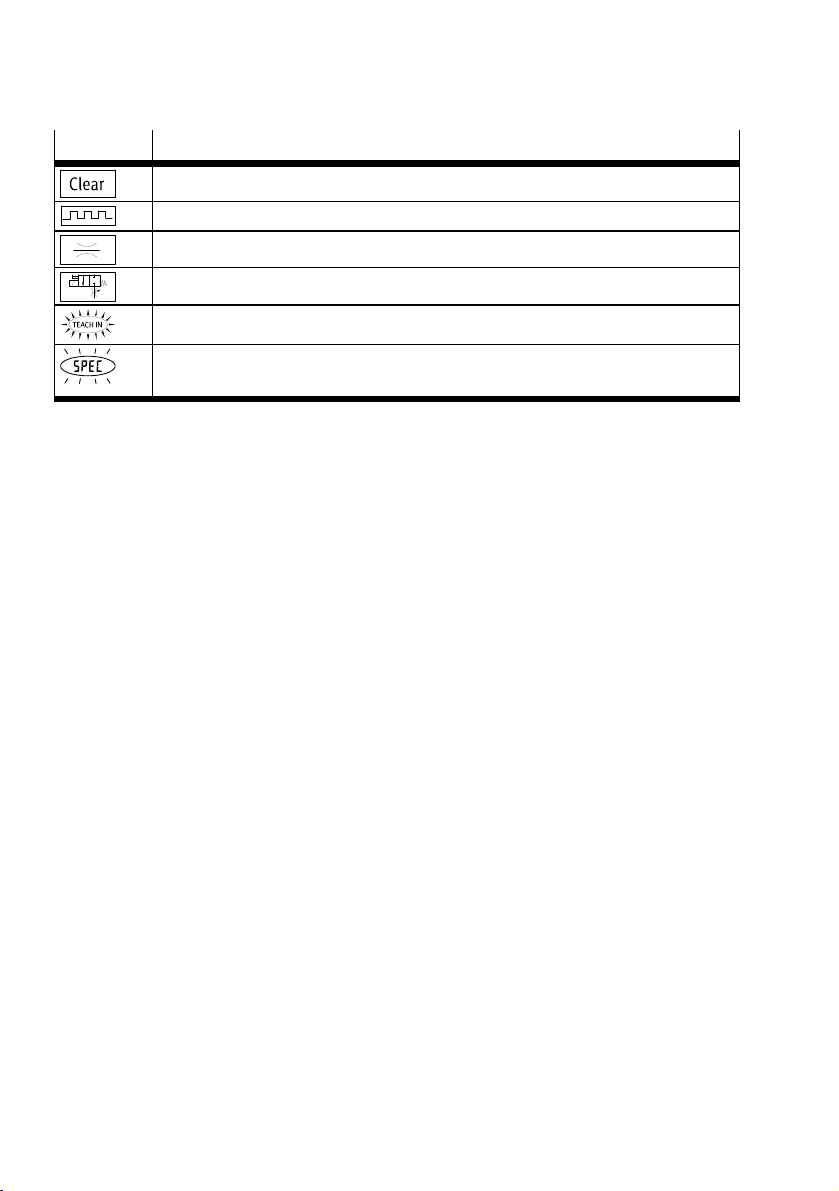

Symbol Description

Threshold value comparator selected

"[SP]" Switching point

10 Festo — OVEM — 2019-03g

Product overview

Symbol Description

Window comparator selected

"[SP]" + "[min]" lower switching point

"[SP]" + "[max]" upper switching point

"[HY]" Hysteresis

"[NO]"/"[NC]" Switching logic NO contact (normally open) / NC contact (normally closed)

"[TeachIn]" Teach function (teach-in) active

"[Option]" Air-saving function active

"[Lock]" Security code active

Segments display the following: – current status of the digital inputs – current valve status

è Tab. 5 OVEM-...-2P/-2N/PU/PI: additional displays of segment bars –

Examples and

è Tab. 6 OVEM-...-1PD: additional displays of segment bars – Examples

Tab. 4 Symbols in display

Display Description

Segment L10 is illuminated Vacuum solenoid valve is switched.

Segment L14 is illuminated Ejector pulse solenoid valve is switched.

Segment L17 + "[A]" illuminated and

Minimum pressure value display

"[min]" flashing

Segment L17 + "[A]" illuminated and

Maximum pressure value display

"[max]" flashing

Segment L18 + "[B]" are on and "[msec]" +

Duration of ejector pulse

"[_|¯¯|_]" are flashing

11Festo — OVEM — 2019-03g

Product overview

Display Description

Segments L1, L3, L4, L5 illuminated and Diagnostics of evacuation and air supply

times

"[msec]" + "[_|¯]" + "[min]" flashing Display of minimum evacuation time

"[msec]" + "[_|¯]" + "[max]" flashing Display of maximum evacuation time

"[msec]" + "[¯|_]" + "[min]" flashing Display of minimum air supply time

"[msec]" + "[¯|_]" + "[max]" flashing Display of maximum air supply time

"[msec]" + "[_|¯]" + "[SP]" + "[max]" flashing

"[msec]" + "[¯|_]" + "[SP]" + "[max]" flashing

Segments L1, L2, L5, L6 on and display "<ON>" - "[optional]" flashing

Display/Setting of evacuation time critical limit

Display/setting the air supply time critical limit

Setting of air-saving function (EDIT mode) "<ON>": air-saving function active "<OFF>": air-saving function not active

Segments L1, L2, L5, L6 on and "[Lock]" flashing

Setting the security code (1...9999) <OFF>: security code is not active

Segment L10 + "[B]" on + display "<FORC>" additional function of the electrical manual

override via operating buttons Vacuum solenoid valve switched

Segment L14 + "[B]" on + display "<FORC>" additional function of the electrical manual

override via operating buttons Ejector pulse solenoid valve (Eject) switched

Tab. 5 OVEM-...-2P/-2N/PU/PI: additional displays of segment bars – Examples

Display Description

Segment L10 is illuminated Vacuum solenoid valve is switched.

12 Festo — OVEM — 2019-03g

Product overview

Display Description

Segment L12 is illuminated Ejector pulse solenoid valve is

switched.

Segment L16 is illuminated digital switching input DI 1 (suction) is

set.

Segment L18 is illuminated digital switching input DI2 (ejection) is

set.

Segment L17 + "[A]" illuminated and

Minimum pressure value display

"[min]" flashing

Segment L17 + "[A]" illuminated and

Maximum pressure value display

"[max]" flashing

Segments L1, L3, L4, L5 illuminated and

Diagnostics of evacuation and air supply times

"[msec]" + "[_|¯]" + "[min]" flashing Display of minimum evacuation time

"[msec]" + "[_|¯]" + "[max]" flashing Display of maximum evacuation time

"[msec]" + "[¯|_]" + "[min]" flashing Display of minimum air supply time

"[msec]" + "[¯|_]" + "[max]" flashing Display of maximum air supply time

"[msec]" + "[_|¯]" + "[SP]" + "[max]" flashing

"[msec]" + "[¯|_]" + "[SP]" + "[max]" flashing

Segments L1, L2, L5, L6 on and display "<ON>" - "[optional]" flashing

Display/Setting of evacuation time critical limit

Display/setting the air supply time critical limit

Setting of air-saving function (EDIT mode) "<ON>": air-saving function active "<OFF>": air-saving function not active

Segments L1, L2, L5, L6 on and "[Lock]" flashing

Setting the security code (1...9999) <OFF>: security code is not active

13Festo — OVEM — 2019-03g

Product overview

Display Description

Segment L10 + "[B]" on + display "<FORC>"

additional function of the electrical manual override via operating buttons. Vacuum solenoid valve switched

Segment L12 + "[B]" illuminated + display "<FORC>"

additional function of the electrical manual override via operating buttons. Ejector pulse solenoid valve (Eject) switched

Tab. 6 OVEM-...-1PD: additional displays of segment bars – Examples

5.2 Function

Function overview

The OVEM is a vacuum suction nozzle with digital transmission of setpoint and actual value as well as diagnostics and parameterisation options. It is configured with the operating keys. Diagnostic messages are shown on the display.

Function OVEM-...

-2P/2N /PU/PI

Control of the compressed air supply with 2 valve functions

è 5.2.2 Valve controller

x x

Air saving function è 5.2.3 Air saving function x x

Electrical and mechanical manual override

è 9.11 Electrical manual override and è 9.12 Mechanical manual override

Monitoring of the vacuum build-up by integrated pressure sensor and

x x

advanced monitoring functionsè 5.2.5 Monitoring and diagnostics

Auto-drop function:

x Generation of an automatic eject pulse for accelerated vacuum purging and safe set-down è 5.2.2 Valve controller

Generation of an eject pulse via a control signal at the digital switching

- x

input (ejection) DI2

Tab. 7 Function overview

OVEM-...

-1PD

5.2.1 Switching functions

The switching outputs can be configured via the switching functions. The switching logic of the switching outputs can be configured as normally open (NO) or normally closed (NC). The switching mode of the switching outputs can be set as threshold value or window comparator.

14 Festo — OVEM — 2019-03g

Product overview

With active air saving function, the switching mode is set as the threshold value comparator by switching output A.

Threshold value comparator Normally open (NO) Normally closed (NC)

Switching function: – 1 switching point (SP1) TEACH mode1): – 2 teach points (TP1, TP2) – SP1 = ½ (TP1+TP2)

1) TP1 = minimum pressure value, TP2 = maximum pressure value, independent of the Teach sequence

Tab. 8 Threshold value comparator: setting of switching point SP1 and hysteresis HY

Window comparator Normally open (NO) Normally closed (NC)

Switching function: – 2 switching points (SP1,

SP2) TEACH mode1): – 2 teach points (TP1, TP2)

1) TP1 = minimum pressure value, TP2 = maximum pressure value, independent of the Teach sequence

Tab. 9 Window comparator: setting of switching points SP1, SP2 and hysteresis HY

Code Switching output A Switching output B Switching inputs

-1PD - 2switching inputs

-2P Switching output positive

Switching output positive switching pressure sensor outputA

switching pressure sensor

1switching input positive

switching outputB or diagnostic message channel

-PI Analogue output 4…20mA vacuum

-PU

Analogue output 0…10V vacuum

-2N Switching output negative

switching pressure sensor outputA

Switching output negative switching pressure sensor outputB or diagnostic mes-

1switching input negative switching

sage channel

Tab. 10 Switching output and switching input variants

15Festo — OVEM — 2019-03g

Product overview

5.2.2 Valve controller

Control of the ejector pulse

– Auto-drop function (except for OVEM-...-1PD)

The ejector pulse is generated after the “Suction” signal change. The duration of the ejector pulse can be setè 9.1 Setting the ejector pulse duration.

– Signal-controlled ejector pulse (only OVEM-...-1PD)

The ejector pulse is generated via a control signal at the digital switching input (ejection) DI2. The ejector pulse can also be used to blow dust off the workpiece surface. The duration of the ejector pulse can be set via the duration of the control signal at the digital switching input (ejector) DI2. Depending on the input signal, the vacuum solenoid valve or the ejector pulse solenoid valve is controlled.

16 Festo — OVEM — 2019-03g

Product overview

Control signal at the digital switching input (suction) DI1

Control signal at the digital switching input (ejection) DI2 (only OVEM-...-1PD)

Switching position of vacuum solenoid

Switching position of ejector pulse solenoid valve

Vacuum connection (2)

tab

Duration of ejector pulse

valve

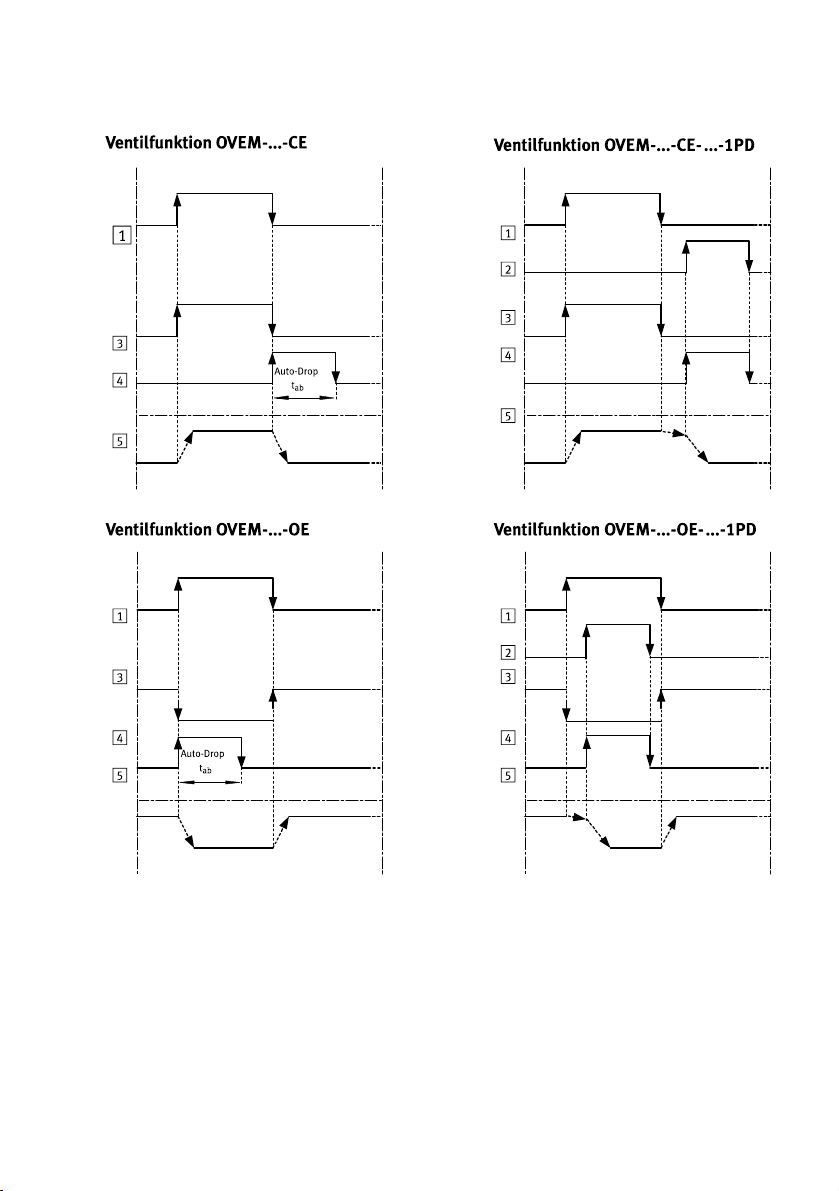

Fig. 3 Valve control switching behaviour

5.2.3 Air saving function

The air saving function reduces air consumption during the evacuation phase.

17Festo — OVEM — 2019-03g

Product overview

Hysteresis

Threshold value “Switch off suction” =

Threshold value “Switch on suction”

Ejector pulse

switching point SP1

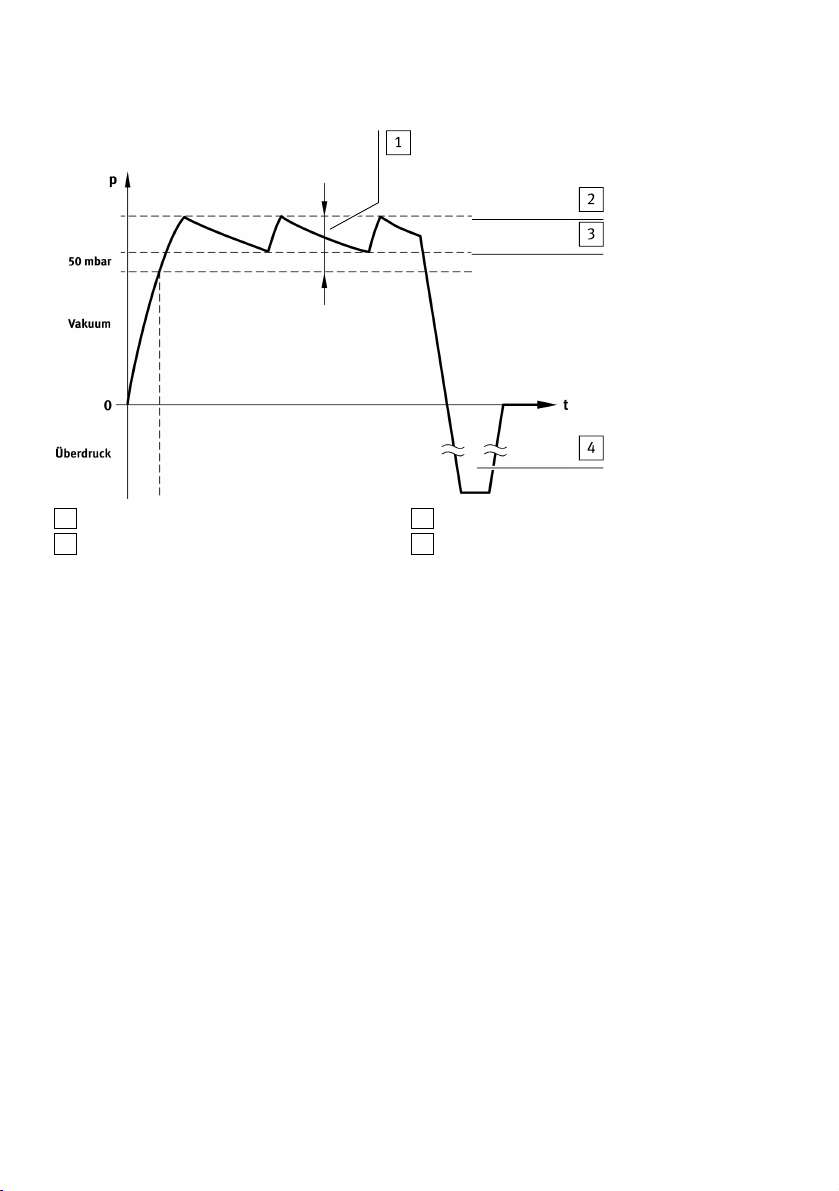

Fig. 4 Mode of operation of the air saving function

If the pressure value has reached switching point SP1 2, vacuum generation is deactivated. An internal check valve prevents reduction of the vacuum. Vacuum can still be reduced slowly due to leakage in the overall system (e.g.due to rough workpiece surfaces). To reduce energy consumption, vacuum generation is not switched on until it falls below the lower threshold value 3. The air saving function is activated in the factory. If air-permeable workpieces are transported, the vacuum is reduced more quickly, which would cause the vacuum generation to switch unnecessarily often. In this case, it makes sense to deactivate the air saving function è 9.14 Switching air saving function on or off.

5.2.4 Optimisation of the transport time

The transport time can be optimised for variants with 2 switching outputs (OVEM-...-2P/-2N/-PU/-PI) by using switching output Out B. The vacuum required for the transport is controlled by switching output Out A. To optimise the transport time, the workpiece can e.g. be gripped by the usable vacuum while the vacuum is building up. The minimum usable vacuum required is monitored by switching output Out B.

5.2.5 Monitoring and diagnostics

The vacuum generator has monitoring functions that enable early detection of malfunctions or faults during operation. – Monitoring of process parameters (pressure value at the vacuum connection, switching points,

switching outputs and switching inputs, evacuation time tE, air supply time tB and critical limits)

– Diagnostic messages è 11.1 Diagnostic levels – Fault detection è 11 Error messages and fault clearance

18 Festo — OVEM — 2019-03g

Product overview

The diagnostic messages are shown in the display. Switching output Out B can also be set as a diagnostic message channel (dI 1 or dI 2) for variants with 2 switching outputs (OVEM-...-2P/-2N)è 9.4 Set diagnostic message channel. The monitoring functions are activated at the factory (except for monitoring of the evacuation and air supply times). The time monitoring can be activated through setting of the critical limits for evacuation time and air supply timeè 9.7 Setting critical limits for the evacuation and air supply times.

5.2.6 Measured variables

Pressure value (vacuum)

The pressure value (vacuum) is continuously measured between the vacuum connection and filter.

With the OVEM-...-20/30-C the pressure value (vacuum) is continuously monitored between the filter and the check valve.

The minimum and maximum measured pressure values are saved. If the operating voltage of the vacuum suction nozzle is switched off, the values are lost.

Cycle time

A cycle covers the time from the start of evacuation through ejection to the start of the new evacuation.

Evacuation time and air supply time

The evacuation time tE is measured from the start of evacuation until switching point SP1 of the switching output is reached. The air supply time tB is measured from the start of air supply to the time at which the pressure value (vacuum) falls below −50mbar.

19Festo — OVEM — 2019-03g

Product overview

Switching point SP1

Reset point RSP1

Evacuation time

Air supply time

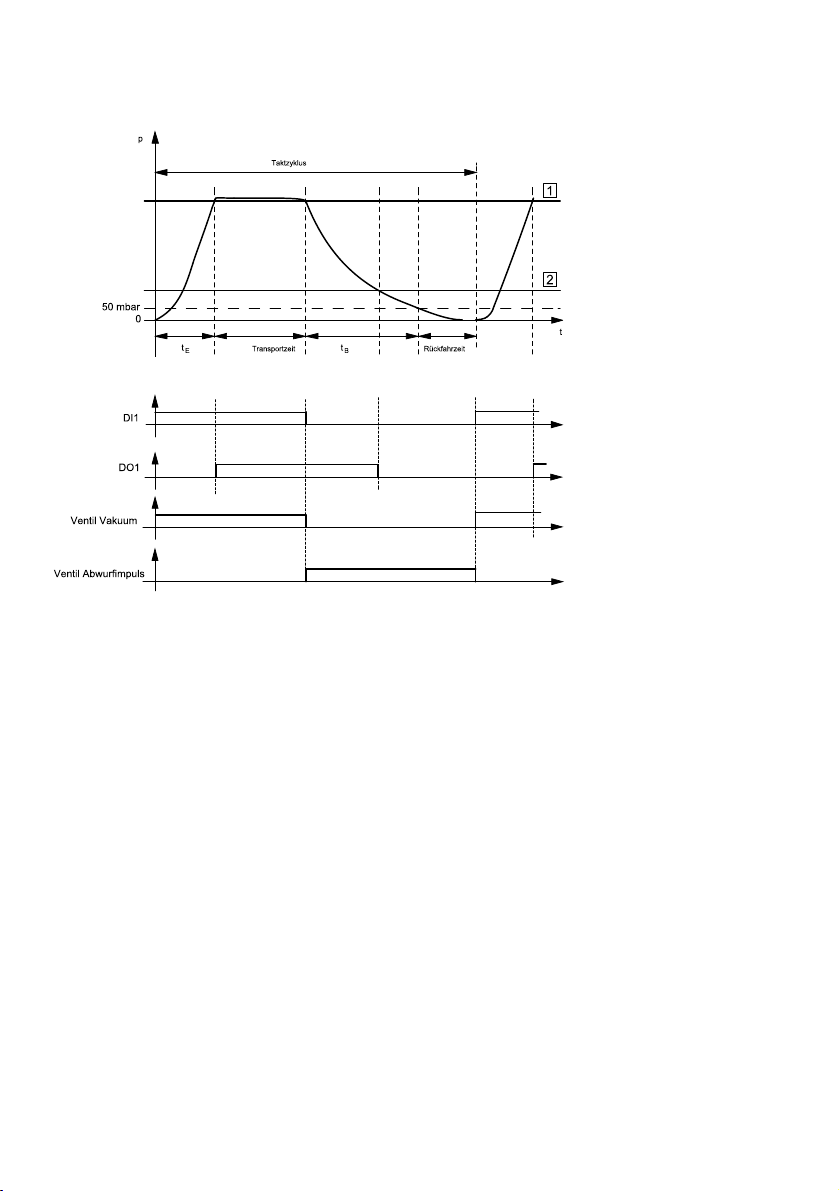

Fig. 5 Cycle time - example for Out A (air save)

The displayed sequence of the switching statuses and control signals applies to all product variants except OVEM-...-1PD. Sequence for OVEM-...-1PD è Fig.3

5.2.7 Teach function (teach-in)

The Teach function enables configuration of the switching points and time monitoring during run time.

Static teach-in

Depending on the Teach command, one switching point (SP) or 2 switching points (SP1, SP2) are determined from 2 teach-in points. The switching points are determined statically, that is, the measurement value remains constant during the entire teach-in procedure. The air save function is deactivated for the duration of the teach-in procedure.

Dynamic teach-in

Setpoint values are calculated within the teach-in procedure from a time period. The procedure is used to determine evacuation and air supply times. After the start of the teach-in, time tE and tB are measured at every cycle. The times are averaged over multiple cycle times. At the end of the teach-in, a function reserve of 100%is added to the averaged values.

20 Festo — OVEM — 2019-03g

Product overview

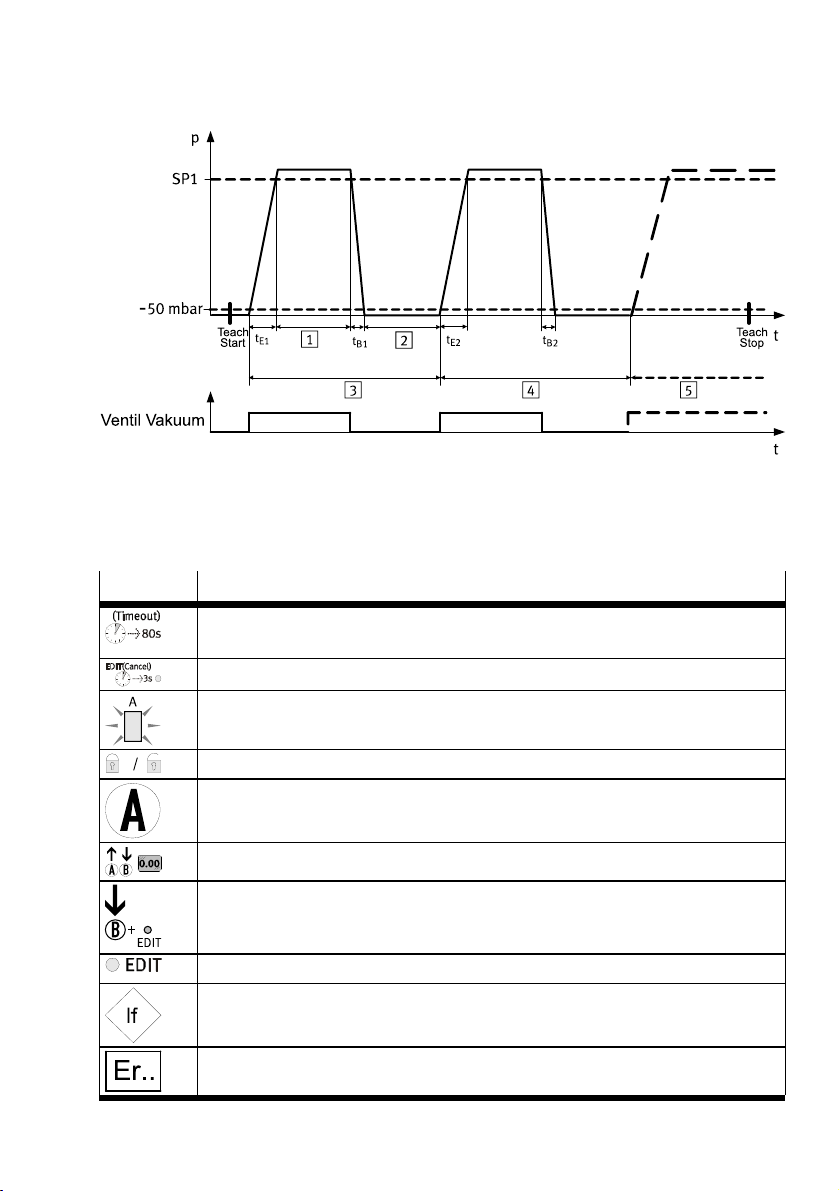

Fig. 6

5.2.8 Operating statuses and menu structure

Meaning of symbols for representing the menu structure

Symbol Meaning

automatic return to the RUN mode when the monitoring time has expired (here 80 seconds)

Press EDIT button for 3 seconds: manual return to RUN mode

Symbol on the display flashes (here display segment switching output Out A)

Input blocked / not blocked

press individual pushbutton (here A-pushbutton)

Press A or B-pushbutton, set value

Press pushbutton simultaneously (here: B-key and EDIT button)

Press EDIT button

Branching

Error display

21Festo — OVEM — 2019-03g

Product overview

Symbol Meaning

Reset values

Cycle

Vacuum solenoid valve switched

Ejector pulse solenoid valve switched

Teach point is accepted

Special menu (SPEC) is active (setting air saving function, security code, max. evacuation and max. air supply time)

Tab. 11 Meaning of symbols for representing the menu structure

RUN mode

– Basic status after the operating voltage is applied – Display of the current measured value (relative pressure) – Display of the signal statuses of the solenoid valves – Display of the selected inputs and outputs

22 Festo — OVEM — 2019-03g

Product overview

SHOW mode

– Display of the current settings – Display and deletion of the minimum and maximum pressure values – Display and deletion of the minimum and maximum evacuation and air supply time – Display of diagnostic messages

Submenu only available with OVEM-...-2P/-2N/-PU/-PI

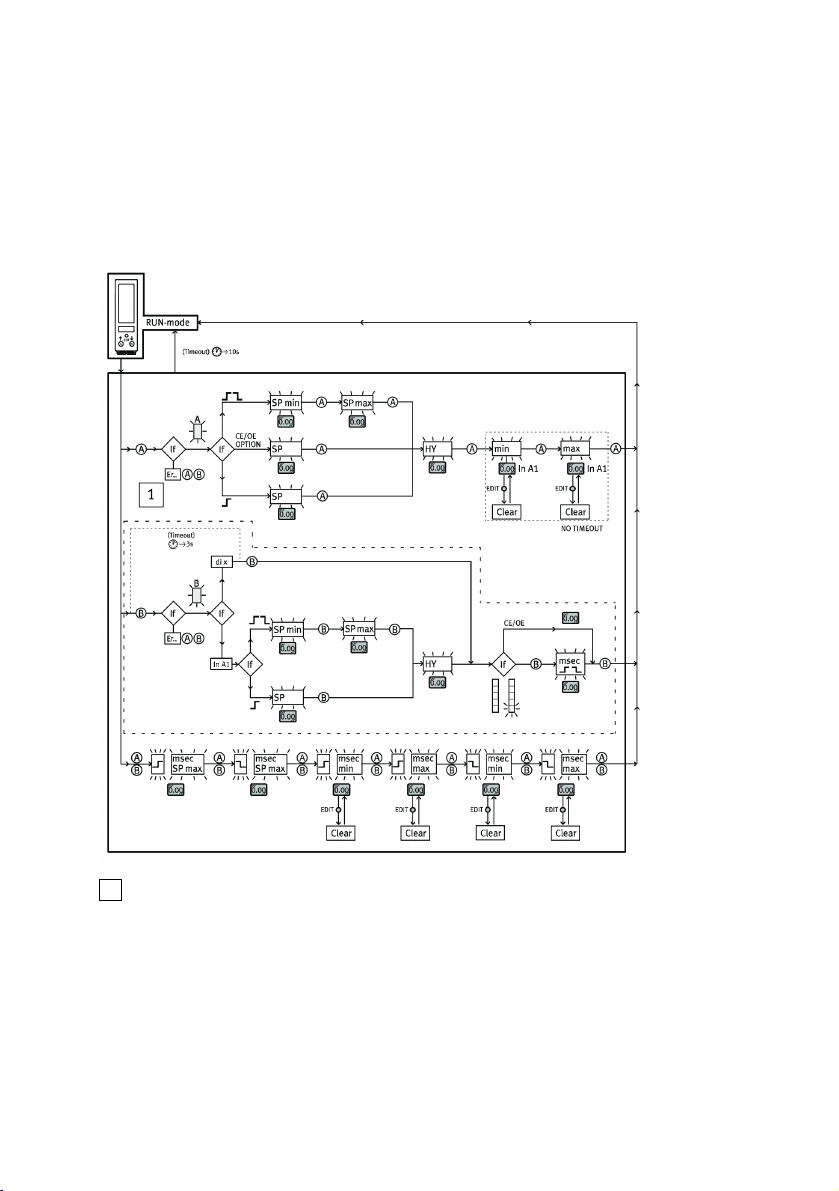

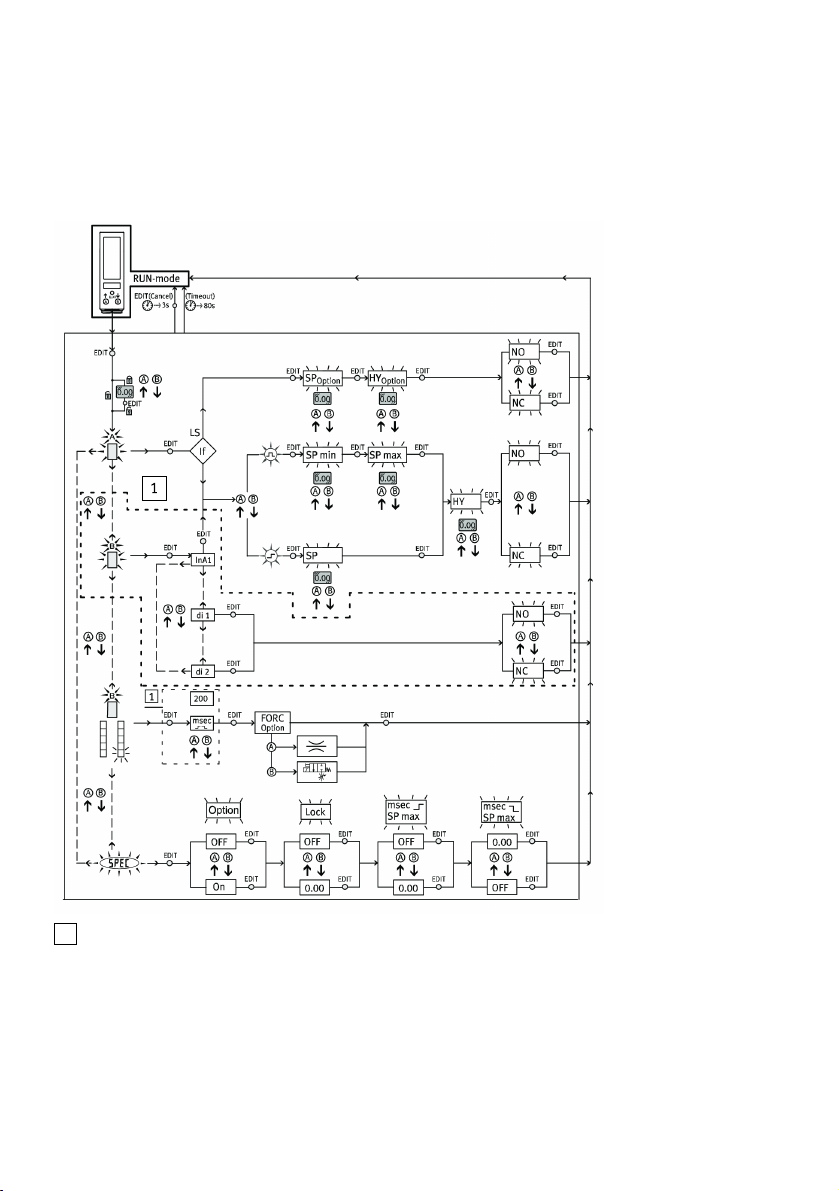

Fig. 7 Menu structure for SHOW mode

23Festo — OVEM — 2019-03g

Product overview

EDIT mode

– Setting of parameters – Operation of the electrical manual override (FORC)

Submenu only available for OVEM-...-CE/-OE

Fig. 8 EDIT mode menu structure

24 Festo — OVEM — 2019-03g

Assembly

TEACH mode

– Acceptance of the current measured value to determine switching points

Submenu only available with OVEM-...-2P/-2N

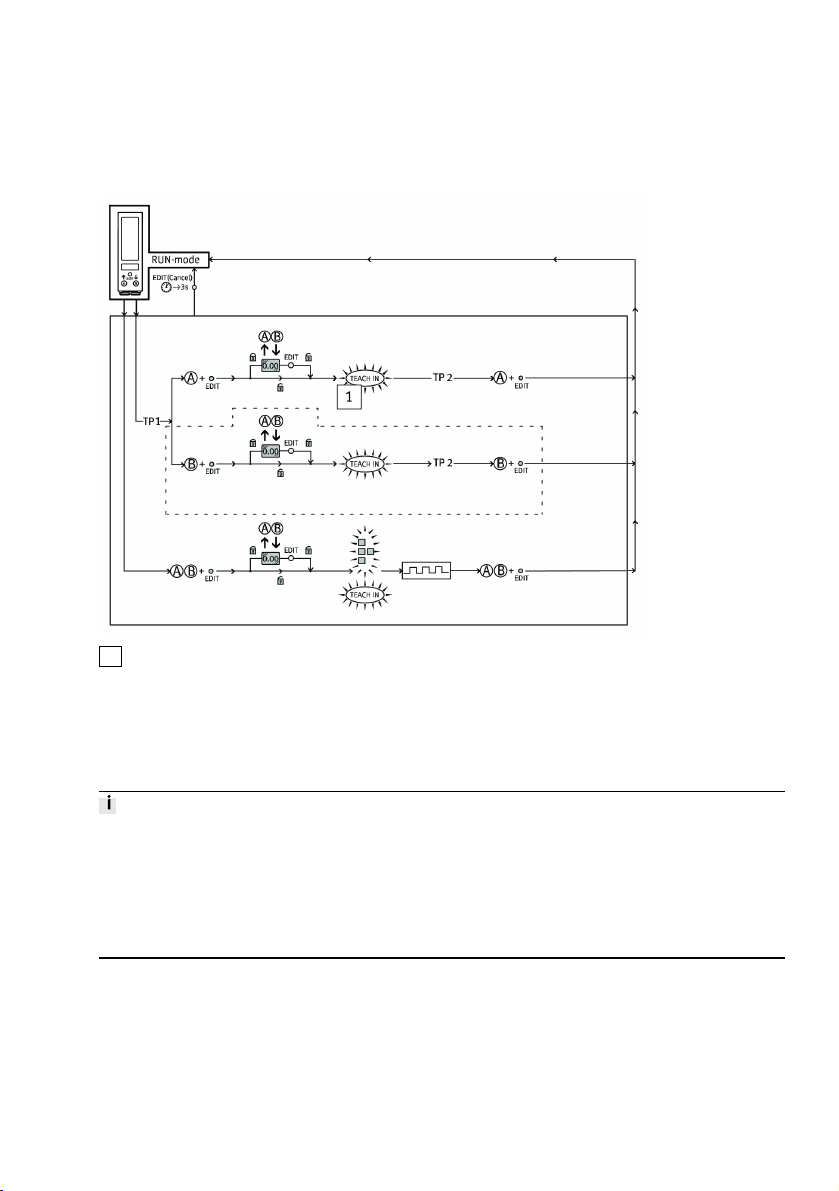

Fig. 9 TEACH mode menu structure

6 Assembly

An unfavourable mounting position can impair the function of the product.

• Install the vacuum generator so condensation from the compressed air lines cannot accumulate in the device.

• Install the vacuum generator so that it cannot be heated above the maximum permissible operating temperature (plan for possible convection).

• Install the vacuum generator so that the exhaust can flow without hindrance.

25Festo — OVEM — 2019-03g

Assembly

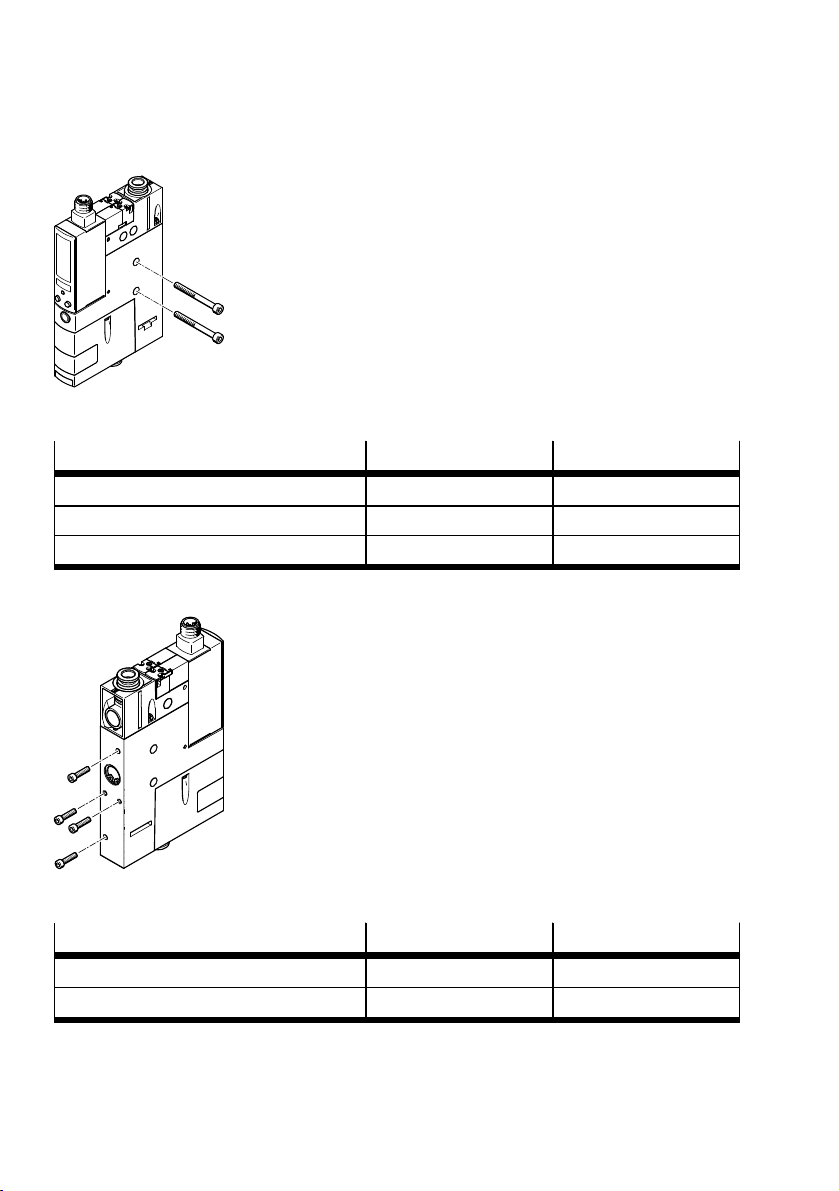

Direct mounting

Fig. 10 Direct mounting on the side

Variant Screws Tightening torque

OVEM-...-05/-07/-10-...-B/-BN M5 max. 2.5Nm

OVEM-...-14/-20-...-B/-BN M4 max. 2.5Nm

OVEM-...-20/-30-...-C M6 max. 2.5Nm

Tab. 12 Size and tightening torque of the screws with direct mounting on the side

Fig. 11 Direct mounting on the back

Variant Screw Tightening torque

OVEM-...-05/-07/-10/-14/-20-...-B/-BN M3 max. 0.8Nm

OVEM-...-20/-30-...-C M4 max. 0.8Nm

Tab. 13 Size and tightening torque of the screws with direct mounting on the back

26 Festo — OVEM — 2019-03g

Assembly

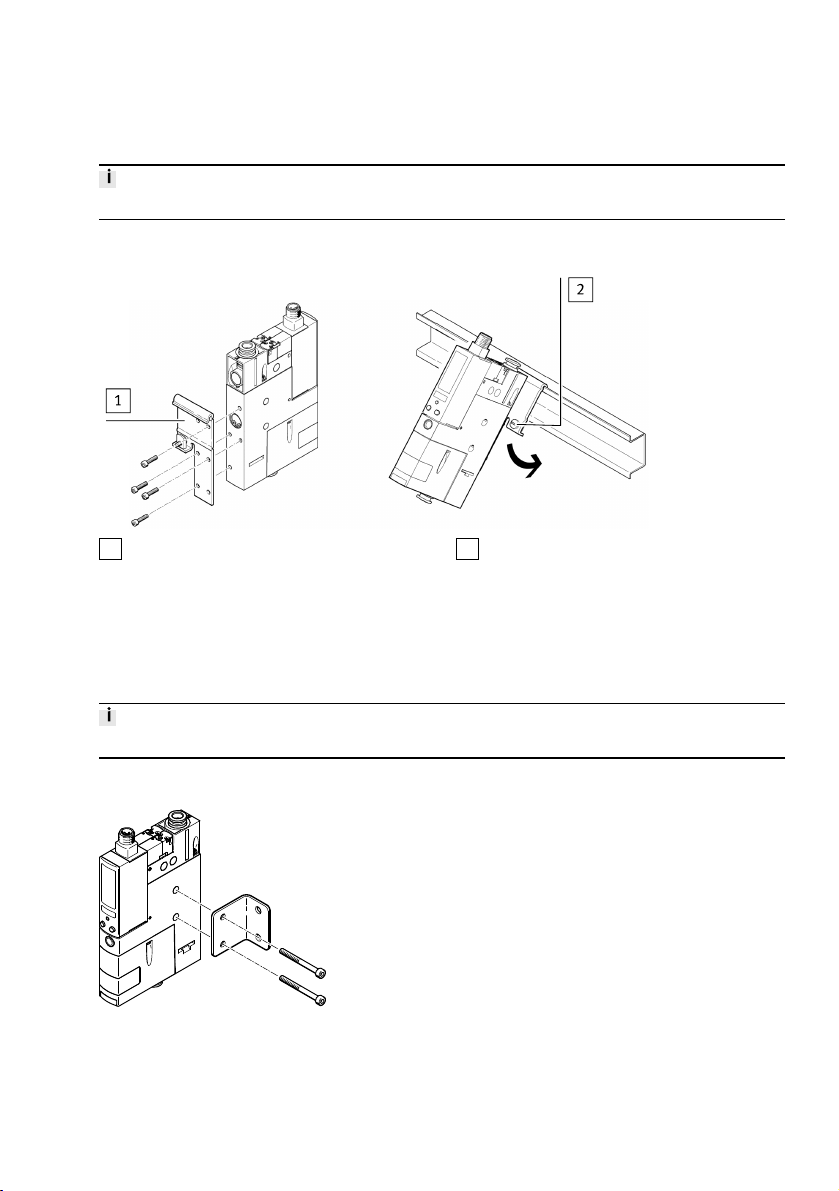

H-rail mounting

Type of mounting permissible only for sizes OVEM-...-05/-07/-10/-14/-20-...-B/-BN

H-rail mounting accessories èwww.festo.com/catalogue

H-rail mounting

Screw

Fig. 12 H-rail mounting

1. Mount mounting plate on H-rail mounting 1.

2. Attach Hang OVEM with H-rail mounting in the H-rail and press in the direction of the arrow.

3. Secure to the H-rail with screw 2.

Mounting via mounting bracket

Type of mounting permissible only for sizes OVEM-...-05/-07/-10/-14/-20-...-B/-BN

Accessories for mounting bracket èwww.festo.com/catalogue

Fig. 13 Mounting with mounting bracket

27Festo — OVEM — 2019-03g

Installation

Variant Screws Tightening torque

OVEM-...-05/-07/-10-...-B/-BN M5 max. 2.5Nm

OVEM-...-14/-20-...-B/-BN M4 max. 2.5Nm

Tab. 14 Size and tightening torque of the screws with direct mounting with mounting bracket

Mounting on common supply manifold

Mounting is possible on a common supply manifold with a maximum of 8 places for OVEM-...-B/-BN. Mounting is possible on a common supply manifold with a maximum of 4 places for OVEM-...-C. Assembly instructions for common supply manifold OABM-P èwww.festo.com/sp

7 Installation

7.1 Pneumatic installation

Variant Circuit symbol Variant Circuit symbol

OVEM-...-QO-CN OVEM-...-GO-CN

OVEM-...-QS-CN OVEM-...-GN-CN

OVEM-...-QO-ON OVEM-...-GO-ON

OVEM-...-QS-ON OVEM-...-GN-ON

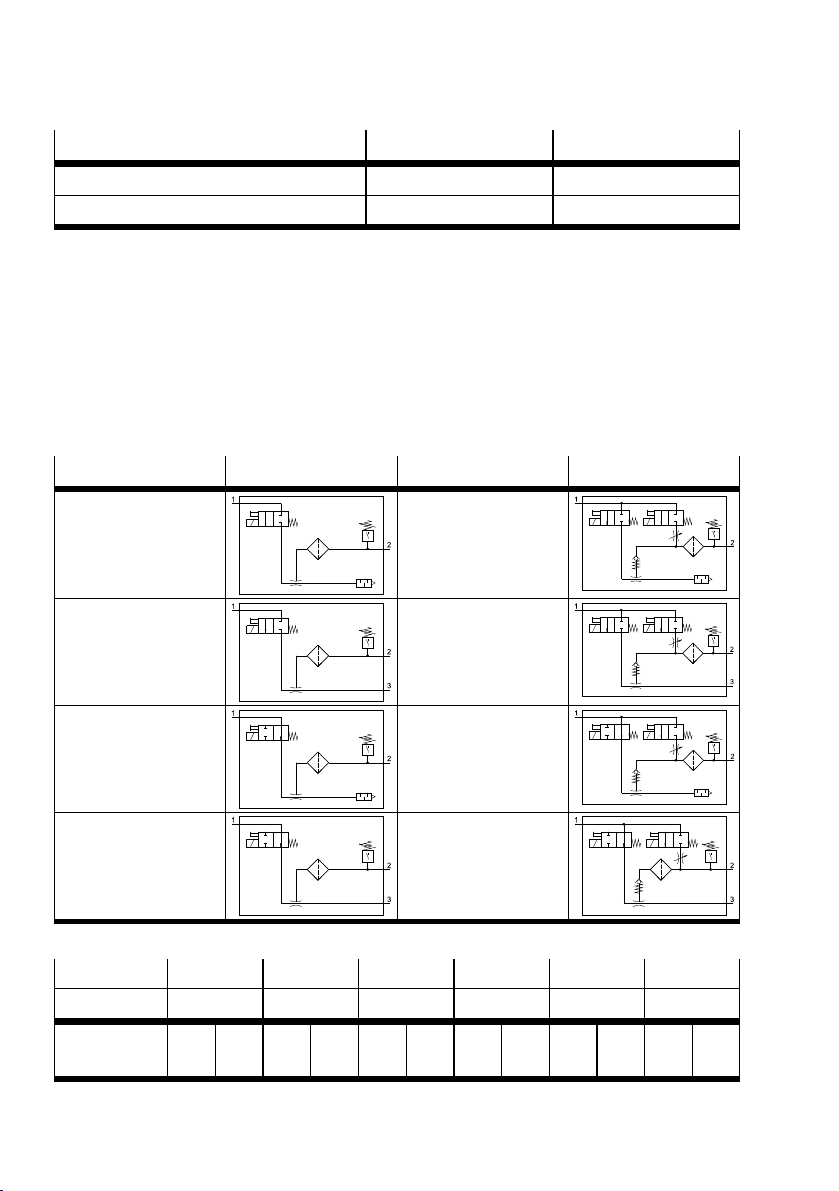

Tab. 15 Circuit symbols, pneumatic

OVEM-... -05-...-GN -07-...-GN -10-...-GN -14-...-GN -20-...-GN -30-...-GN

-05-...-GO -07-...-GO -10-...-GO -14-...-GO -20-...-GO -30-...-GO

Tube length [m]

< 0.5 < 2 < 0.5 < 2 < 0.5 < 2 < 0.5 < 2 < 0.5 < 2 < 0.5 < 2

OVEM-...-QO-CE OVEM-...-GO-CE

OVEM-...-QS-CE OVEM-...-GN-CE

OVEM-...-QO-OE OVEM-...-GO-OE

OVEM-...-QS-OE OVEM-...-GN-OE

28 Festo — OVEM — 2019-03g

Installation

OVEM-... -05-...-GN -07-...-GN -10-...-GN -14-...-GN -20-...-GN -30-...-GN

-05-...-GO -07-...-GO -10-...-GO -14-...-GO -20-...-GO -30-...-GO

Min. internal diameter of tubing [mm]

- Supply port 1 2 1.5 2 2 3 3 4 4 5 6 7

- Vacuum port 2 3 3 4 4 5 5.5 6 6 7 9 11

- Exhaust port 2 3 3 4 4 5 5.5 6 6 7 9 11

Tab. 16 Minimum inside diameter of the connection tubes for connections with G-female thread

Notes on the pneumatic connection

– Maximum permissible tube length 2 m – OVEM-...-GN/-GO: minimum inside diameter of the connection tubes

è Tab. 16 Minimum inside diameter of the connection tubes for connections with G-female thread.

– Do not seal exhaust port. – OVEM-...-07/-10/-14/-20/-30: If necessary, lengthen silencers with a silencer extension

èwww.festo.com/catalogue.

– Recommendation: Use type PUN tubes èwww.festo.com/catalogue.

7.2 Electrical installation

WARNING!

Risk of injury due to electric shock.

• For the electrical power supply, use only PELV circuits in accordance with IEC 60204-1/EN 60204-1 (Protective Extra-Low Voltage, PELV).

• Observe the general requirements of IEC 60204-1/EN60204-1 for PELV circuits.

• Only use voltage sources that ensure a reliable electric separation from the mains network in accordance with IEC 60204-1/EN 60204-1.

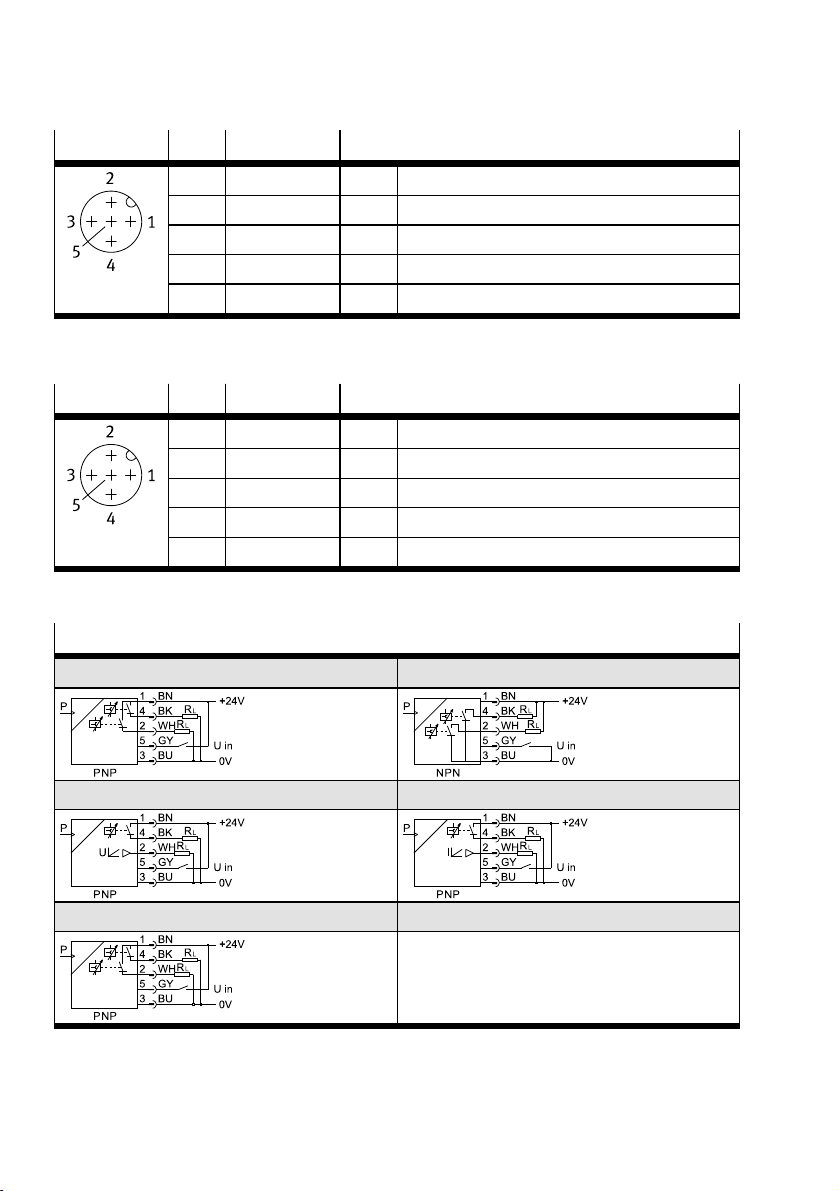

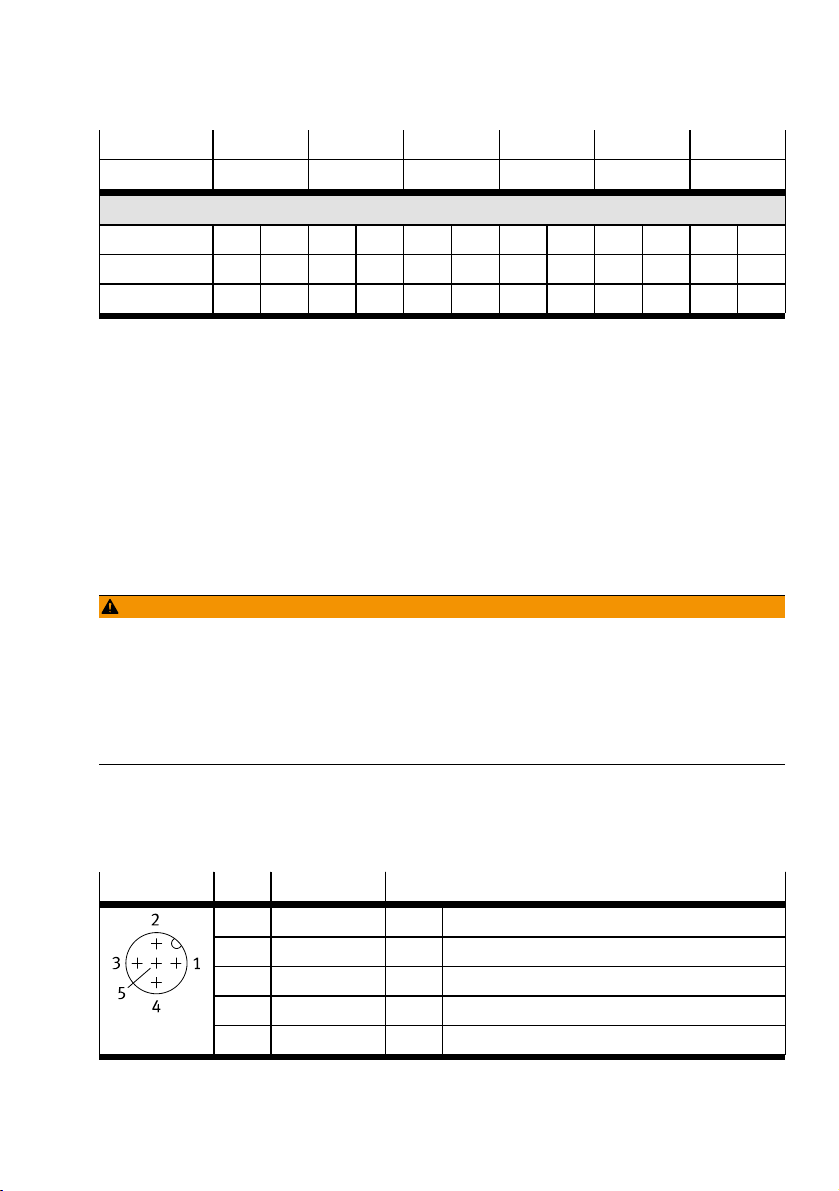

• Connect the vacuum generator to the electrical connection. – 5-pin plug, M12x1 – Maximum tightening torque plug connector M12: 0.5Nm – Maximum permissible cable length: 20m

Plug Pin Wire colour1)Function

1 brown (BN) L+ +24V

2 white (WH) DO2 digital output Out B

3 blue (BU) L- 0V

4 black (BK) DO1 digital output Out A/Out A (air-save)

5 grey (GY) DI1 digital switching input (suction)

1) When using the connecting cable as per accessories

2) The workpiece is placed on the trailing edge of the "Suction" control signal.

Tab. 17 Pin allocation OVEM-...-2P/-2N

29Festo — OVEM — 2019-03g

Installation

Plug Pin Wire colour1)Function

1 brown (BN) L+ +24V

2 white (WH) AO1 analogue output Out B

3 blue (BU) L- 0V

4 black (BK) DO1 digital output Out A/Out A (air-save)

5 grey (GY) DI1 digital switching input (suction)

1) When using the connecting cable as per accessories

2) The workpiece is placed on the trailing edge of the "Suction" control signal.

Tab. 18 Pin allocation OVEM ... PU/PI

Plug Pin Wire colour1)Function

1 brown (BN) L+ +24V

2 white (WH) DO1 digital output Out A/Out A (air-save)

3 blue (BU) L- 0V

4 black (BK) DI2 digital switching input (ejection) (PNP)

5 grey (GY) DI1 digital switching input (suction)

1) When using the connecting cable as per accessories

Tab. 19 Pin allocation OVEM-...-1PD

Circuit diagrams

OVEM-...-2P OVEM-...-2N

OVEM-...-PU OVEM-...-PI

OVEM-...-1PD

Tab. 20 Circuit diagrams for vacuum generator

30 Festo — OVEM — 2019-03g

Commissioning

8 Commissioning

Commissioning by qualified personnel.

8.1 Commissioning vacuum generator

At initial commissioning, the vacuum generator is placed in operation with the factory settings è Tab. 21 Factory settings.

Requirement

Vacuum generator is fully mounted and connected chapter è 6 Assembly.

Checking operating conditions

• Check operating conditions and limit values è 14 Technical data.

Commissioning vacuum generator OVEM-...-OE

1. Apply operating pressure to supply port (1).

Negative pressure is generated at the vacuum connection (2).

2. Switch on the operating voltage.

The current pressure is displayed and the vacuum generator is ready for operation.

Commissioning vacuum generator OVEM-...-CE

1. Apply operating pressure to supply port (1).

2. Switch on the operating voltage.

3. Activate suction: apply input signal to pin 5.

Negative pressure is generated at the vacuum connection (2). The current pressure is dis-

played and the vacuum generator is ready for operation. Changing the operating pressure changes the power of the negative pressure at the vacuum connection. This adjusts the vacuum at the suction gripper. Functions and parameters can be specified: – manually at the device – by teach-in

8.2 Set the intensity of the ejector pulse

Fig. 14

31Festo — OVEM — 2019-03g

Operation and use

Requirement

– Vacuum generator is in operation

Processing

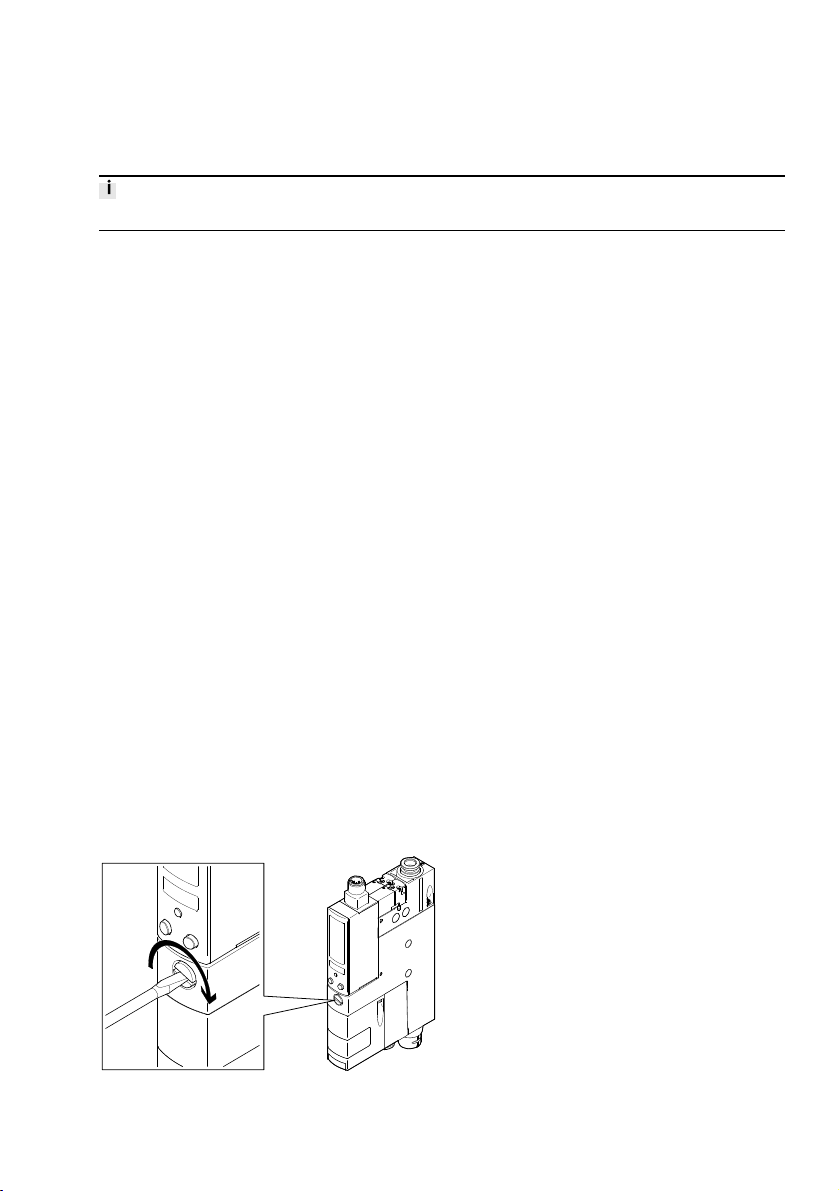

1. Screw in the flow control screw completely The channel for the ejector pulse is closed. An ejector pulse is not generated.

2. Switch on vacuum generation. Negative pressure is generated at the vacuum connection (2).

3. Switch off vacuum generation.

4. Unscrew flow control screw slightly. An automatic ejector pulse is generated. If an automatic ejector pulse is not generated, oper-

ate the mechanical manual override of the ejector pulse solenoid valve.

5. Screw the flow control screw out or in to adjust the ejector pulse to the required intensity.

Setting the ejector pulse duration è 9.1 Setting the ejector pulse duration

9 Operation and use

Additional information on operating statuses and menu structure è 5.2.8 Operating statuses and menu structure

9.1 Setting the ejector pulse duration

Requirements

– RUN mode is active. – Security code is not active.

Processing

1. Press the EDIT button. [A] flashes and EDIT mode is active.

2. Press B pushbutton. [B] + segment L18 flash.

3. Press the EDIT button. [msec], [_|¯] and [¯|_] flash.

4. Set time (in ms) with the A button and the B button. To deactivate the ejector pulse, set to OFF.

5. Press and hold the EDIT button for 3 seconds. RUN mode is active.

When large suction grippers are used, a vacuum independent of the device may be built up for physical reasons. The result is that the workpiece may not be released from the suction gripper, even if the ejector pulse is set to a sufficiently long duration.

32 Festo — OVEM — 2019-03g

Operation and use

9.2 Configuring switching outputs

Display settings of the switching outputs

The process for displaying the settings of the switching outputs Out A (A-pushbutton) and Out B (Bpushbutton) is basically identical. In addition, the configuration of the switching output and the duration of the ejector pulse is displayed for switching output Out B. The process is described below using switching output Out A as an example.

Requirement

– RUN mode is active.

Processing

1. Press the A pushbutton. SHOW mode is active. The error number is displayed in case of errors.

2. Press the A pushbutton. The following settings will be displayed:

– switching function (threshold value comparator or window comparator) – Switching points [SP] or [SP] [min]. – Switching characteristic [NO/NC]

3. Press the A pushbutton. Only with Window comparator switching function: switching point [SP], [max] is displayed.

– Press the A pushbutton. – Hysteresis [HY] is displayed.

4. Press the A pushbutton. Minimum pressure value is displayed.

5. Press the A pushbutton. Maximum pressure value is displayed.

6. Press the A pushbutton. RUN mode is active.

9.3 Setting the switching characteristics of a switching output

The process for setting the switching outputs Out A (A-pushbutton) and Out B (B-pushbutton) is basically identical. The switching output Out B must also be defined as switching output In A1, because Out B can also be configured as a diagnostic message channel è 9.4 Set diagnostic message channel. The process is described below using switching output Out A as an example.

Requirements

– RUN mode is active. – Switching output Out B is defined as switching output In A1. – Security code is not active.

33Festo — OVEM — 2019-03g

Operation and use

Processing

1. Press the EDIT button. [A] flashes. EDIT mode is active.

2. Press B pushbutton. [B] flashes.

3. Press the EDIT button. Display <InA1>

4. Press the EDIT button. The currently set switching function flashes (threshold value comparator or window compar-

ator).

5. Set switching function using the A or B pushbutton.

6. Press the EDIT button. [SP] flashes (threshold value comparator) or [SP], [min] flashes (window comparator).

7. Set switching point (SP or SPmin) with the A or B pushbutton.

8. Press the EDIT button. Only with switching function window comparator: [SP], [max] flashes.

– Set switching point (SPmax) with the A or B pushbutton. – Press the EDIT button.

è[HY] flashes.

9. Set hysteresis [HY] with the A or B pushbutton.

10. Press the EDIT button. [NO] or [NC] flashes.

11. Set the switching characteristic [NO/NC] with the A or B pushbutton.

12. Press the EDIT button. RUN mode is active.

9.4 Set diagnostic message channel

If switching output Out B is set as diagnostic message channel (dl 1 or dl 2), switching output Out B can no longer be used as switching output In A1.

Requirements

– RUN mode is active. – Security code is not active.

Processing

1. Press the EDIT button. [A] flashes. EDIT mode is active.

2. Press B pushbutton. [B] flashes.

3. Press the EDIT button. If Out B is defined as switching output, <InA1> is displayed.

4. Set the diagnostic message channel (dI 1 or dI 2) using the A or B pushbutton.

34 Festo — OVEM — 2019-03g

Operation and use

5. Press the EDIT button. [NO] or [NC] flashes.

6. Set the switching characteristic [NO/NC] with the A or B pushbutton.

7. Press the EDIT button. RUN mode is active.

9.5 Teach-in switching points

The air saving function is automatically deactivated during teach-in. If the pressure differential between the teach points is too low, teach-in will not work.

The process is the same for teach-in of switching outputs Out A (A pushbutton) and Out B (B pushbutton). The process is described below using switching output Out A as an example.

Requirements

– RUN mode is active. – Switching function is set. – Security code is not active.

Processing

Object gripped or object not gripped – the sequence is freely selectable.

1. Set the vacuum for the first teach point.

2. Press the A pushbutton and the EDIT button simultaneously. – TEACH mode is active.

– Air saving function is deactivated. – Measured value will then be taken as first teach point (TP1). – [A] and [TeachIn] flash.

3. Set the vacuum for the second teach point (TP2).

4. Press the A pushbutton and the EDIT button simultaneously. – Measured value is taken as second teach point (TP2).

– Switching points (SP or SPmin and SPmax) are valid. – Air saving function is activated. – RUN mode is active.

The hysteresis is adjusted to the teach-in values. Set hysteresis (è 9.2 Configuring switching outputs). Recommendation: check the teach-in values in a test run.

9.6 Deleting minimum or maximum pressure value

Requirements

– RUN mode is active.

35Festo — OVEM — 2019-03g

Operation and use

Processing

1. Press the A pushbutton. SHOW mode is active.

If there are errors, the error numbers are shown.

2. Repeatedly press the A pushbutton until the minimum pressure value is displayed.

3. Press the A pushbutton to see the next value.

Press the EDIT button to delete the minimum pressure value.

The minimum pressure value is deleted.

4. Press the A pushbutton. Maximum pressure value is displayed.

5. Press the A pushbutton to return to RUN mode.

Press the EDIT button to delete the maximum pressure value.

The maximum pressure value is deleted.

6. Press the A pushbutton. RUN mode is active.

9.7 Setting critical limits for the evacuation and air supply times

Requirements

– EDIT mode is active and [Out A] flashes. – Security code is not active.

Processing

1. Press the A pushbutton. Display <SPEC>

2. Press the EDIT button. [Option] flashes.

3. Press the EDIT button. [Lock] flashes.

4. Press the EDIT button. [msec] + [¯|_] + [SP] + [max] flash.

5. Set the maximum evacuation time using the A pushbutton and B pushbutton.

[OFF]: evacuation time monitoring is not active.

6. Press the EDIT button. [msec] + [SP] + [max] and [¯|_] flash.

7. Set the maximum air supply time using the A pushbutton and B pushbutton.

[OFF]: air supply time monitoring is not active.

8. Press the EDIT button. RUN mode is active.

9.8 Teaching evacuation and air supply time

Requirements

– RUN mode is active. – Security code is not active. – Switching function is set.

36 Festo — OVEM — 2019-03g

Operation and use

Processing

1. Press the A and B pushbuttons and EDIT button simultaneously. – TEACH mode is active.

– [TeachIn] and the diagnostics segments flash.

2. Measure at least one clock cycle.

An average is calculated from the measured cycles. The more cycles are run the better the value. The teach-in values are applied with a function reserve of100%.

3. Press the A pushbutton, B pushbutton and EDIT button. RUN mode is active.

If the switching points or the intensity of the ejector pulse are changed,teach-in the evacuation and air supply times again. Recommendation: check the teach-in values in a test run.

9.9 Displaying evacuation and air supply times

Requirement

– RUN mode is active.

Processing

1. Press A and B pushbuttons simultaneously. – SHOW mode is active.

– Evacuation time critical limit is displayed.

2. Press A and B pushbuttons simultaneously. Air supply critical limit is displayed.

3. Press A and B pushbuttons simultaneously. Minimum evacuation time is displayed.

4. Press A and B pushbuttons simultaneously. Maximum evacuation time is displayed.

5. Press A and B pushbuttons simultaneously. Minimum air supply time is displayed.

6. Press A and B pushbuttons simultaneously. Maximum air supply time is displayed.

7. Press A and B pushbuttons simultaneously. RUN mode is active.

9.10 Deleting evacuation and air supply times

Requirements

– SHOW mode is active. – Minimum evacuation time is displayed.

37Festo — OVEM — 2019-03g

Operation and use

Processing

1. Press the A and B pushbuttons simultaneously to display the next value. Press the EDIT button to delete the displayed value.

2. Press A and B pushbuttons simultaneously.

RUN mode is active.

9.11 Electrical manual override

Requirements

– RUN mode is active. – Security code is not active.

Processing

1. Press the EDIT button.

– [A] flashes.

– EDIT mode is active.

2. Press B pushbutton.

[B] flashes + segment L18 illuminated.

3. Press the EDIT button.

[msec], [_|¯] and [¯|_] flash. The duration of the ejector pulse is displayed.

4. Press the EDIT button.

<FORC> display. Electrical manual override is active.

5. Switch solenoid valves. – Vacuum solenoid valve: press A pushbutton. – Ejector pulse solenoid valve: press B pushbutton.

6. Press the EDIT button to exit the submenu.

RUN mode is active.

9.12 Mechanical manual override

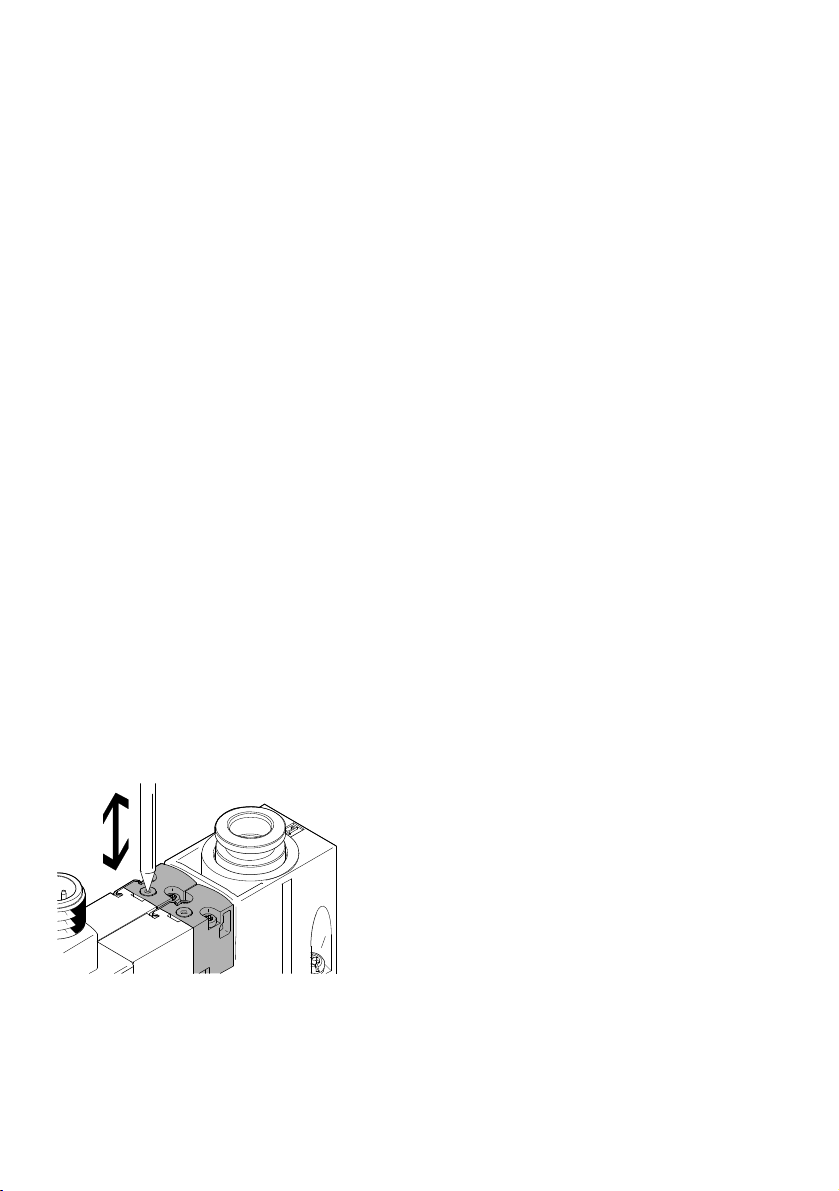

Both solenoid valves can be manually switched with the manual override.

Fig. 15

1. Press in the plunger of the manual override with a blunt pin.

The solenoid valve switches.

38 Festo — OVEM — 2019-03g

Operation and use

2. Remove pin. The plunger of the manual override is automatically reset. The solenoid valve returns to the

initial position.

9.13 Activating security code

A security code can be set and activated to prevent changes by unauthorised persons. – Factory setting: "OFF" – The security code is reset when factory settings are restored.

Requirements

– RUN mode is active. – Security code is not active.

Processing

1. Press the EDIT button. – [A] flashes.

– EDIT mode is active.

2. Press the A pushbutton. Display <SPEC>

3. Press the EDIT button. [Option] flashes.

4. Press the EDIT button. [Lock] flashes.

5. Set the security code with the A and B pushbuttons.

[OFF]: security code is not active.

6. Press and hold the EDIT button for 3 seconds. RUN mode is active.

9.14 Switching air saving function on or off

Requirements

– EDIT mode is active and [Out A] flashes. – Security code is not active.

Processing

1. Press the A pushbutton. Display <SPEC>

2. Press the EDIT button. [Option] flashes.

3. Switch the air saving function on or off using the A or B pushbutton.

– [ON]: air saving function active. – [OFF]: air-saving function not active.

4. Press and hold the EDIT button for 3 seconds. RUN mode is active.

39Festo — OVEM — 2019-03g

Maintenance and care

9.15 Restore factory settings

Restoring the factory settings resets the parameters, configuration and security code to the delivery status. è Tab. 21 Factory settings The current settings are lost.

1. Switch off operating voltage.

2. Press and hold the A-pushbutton + B-pushbutton + EDIT button.

3. Switch on the operating voltage. Display <CLEA>

4. Release A-pushbutton + B-pushbutton + EDIT button. The factory settings are restored.

Factory settings

Parameter OVEM-...-H OVEM-...-L

Switching mode of the electrical output Threshold value comparator

Switching logic of the electrical output NO (normally open)

Air saving function Active

Security code OFF

SP1 [bar] -0.7 -0.4Out A (air save)

Hysteresis [bar] 0.25

Out A

Out B

Duration of ejector

pulse

1) parameter not available for OVEM-...-1PD

Tab. 21 Factory settings

SP1 [bar] -0.7 -0.4

SP2 [bar] -0.97 -0.67

Hysteresis [bar] 0.25 0.1

SP1 [bar] -0.5 -0.2

SP2 [bar] -0.71 -0.41

Hysteresis [bar] 0.2 0.1

[ms] 200

10 Maintenance and care

Clean device

1. Switch off energy sources:

– Operating voltage – Compressed air

2. Clean device with non-abrasive cleaning agents.

3. Check air filter through the display window for dirt.

40 Festo — OVEM — 2019-03g

Error messages and fault clearance

Replace air filter

The air filter cannot be replaced in the vacuum generator OVEM-...-20/-30-C

Gate valve

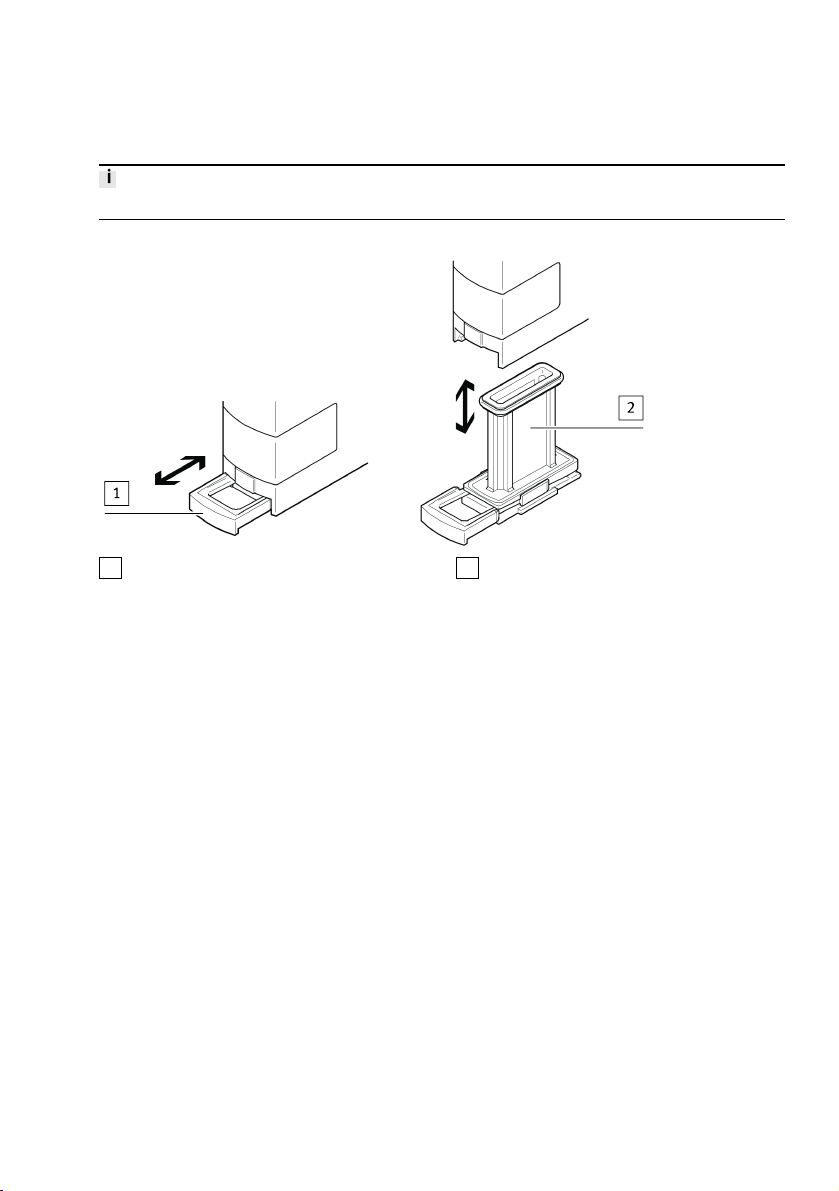

Fig. 16 Remove/install air filter

1. Exhaust the vacuum generator.

2. Carefully pull gate valve 1 out to the first detent. The gate valve must stay in this position on the

filter.

3. Pull filter 2 out. Clean with white spirit.

4. Push filter into the housing.

5. Push in gate valve. The gate valve pushes the filter into the vacuum generator.

Filter

11 Error messages and fault clearance

The diagnostic messages are shown as error code on the display. For variants with 2 switching outputs (OVEM-...-2P/-2N) one of the two logical channels of the switching output Out B can also be used as a diagnostic message channelè 9.4 Set diagnostic message channel. The diagnostic message channel can be configured as a normally open contact (NO) or a normally closed contact (NC).

11.1 Diagnostic levels

There are 4 diagnostic levels. The backlight of the display shows red for messages of diagnostic levels 1 to 3.

41Festo — OVEM — 2019-03g

Error messages and fault clearance

Diagnostic level

0 no message Device is OK.

1 logical channel dI 1 is active no restriction in function yet but operating parameters

2 logical channel dI 1 or dI 2 is

3 logical channel dI 1 or dI 2 is

Tab. 22 Diagnostic levels for switching output Out B and display If the evacuation and air supply time is to be monitored, set the critical limits for the evacuation and

air supply time è 9.14 Switching air saving function on or off.

Diagnostic message channel Description

are deteriorating

It still functions but with restrictions (e.g.higher power

active

consumption). Emergency operation, maintenance urgently required.

No longer functions correctly. All controllable outputs of the device are inactive.

11.2 Error messages and error codes

Display Dia-

gnostic level

Er01 3 Hardware errors in device – Replace device.

Er17 3 Supply voltage is too high or too low

Er20 2 permissible device temperature

Er21 2 Short-circuit Out A – Check output for overload.

Er32 2 OVEM-...-1PD:

Er33 2 except for OVEM-...-1PD:

Description Remedy

– Check supply voltage.

(error)

– Keep device away from heat

exceeded

Vacuum solenoid valve does not switch or does not switch correctly

Solenoid valve does not switch or does not switch correctly. Plunger does not move; current through solenoid coil is too low; short circuit in solenoid coil

sources.

– Check installation.

– Press mechanical manual override

several times. – Check supply voltage. – Replace device.

– Press mechanical manual override

several times. – Check supply voltage. – Replace device.

42 Festo — OVEM — 2019-03g

Error messages and fault clearance

Display Dia-

gnostic level

Er33 2 OVEM-...-1PD:

Er34 1 Evacuation time exceeded in 2 of 5

Er35 2 Evacuation time exceeded by a factor

Er36 1 Air supply time exceeded in 2 of 5

Er37 2 Air supply time exceeded in 2 of 5

Er38 2 Switching frequency of air saving func-

Er39 2

Er40 2 Supply voltage too high (warning)

Er41 2 Supply voltage too low (warning)

Tab. 23 Error messages, error codes, diagnostic levels and error description

Description Remedy

– Press mechanical manual override Ejector pulse solenoid valve does not switch or does not switch correctly

cycles

of two in 2 of 5 cycles

cycles

tion > 1 Hz (warning)

SP1 for Out A not reached after 10 s – Check for leakage.

Switch-back threshold below specification (active air saving function and threshold value comparator)

upper trigger level above or lower trigger level below specification (window comparator)

several times. – Check supply voltage. – Replace device.

– Check for leakage.

– Check for leakage. – Extend air supply time. – Check throttle setting.

– Check for leakage.

– Check compressed air supply.

– Check switching thresholds. – Check settings for Out A. – Check compressed air supply.

– Check supply voltage.

11.3 Malfunctions

Malfunction Possible cause Remedy

Workpiece not released from suction gripper

device-independent vacuum between workpiece and suction gripper, ejector pulse not activated or not sufficiently dimensioned

– Activate ejector

– Increase duration

pulse when lifting the suction gripper.

and intensity of ejector pulse.

43Festo — OVEM — 2019-03g

Error messages and fault clearance

Malfunction Possible cause Remedy

Workpiece not released from suction gripper

Tube dimensioned incorrectly – Replace tubing

(tubing dimensions

è 7.1 Pneumatic

installation).

Flow control screw closed – Open flow control

screw.

Switching output does not react in accordance with the settings

Short circuit or overload at the output

– Eliminate short cir-

cuit/overload.

Device defective – Replace device.

No display

Operating voltage faulty – Apply permissible

operating voltage

è 7.2 Electrical

installation.

electrical connections swapped – Connect device cor-

rectly

è 7.1 Pneumatic

installation.

Device defective – Replace device.

Incomplete display Display defective – Replace device.

Pressure indicator incorrect pneumatic connections swapped – Connect device cor-

rectly

è 7.1 Pneumatic

installation.

Settings cannot be edited, "[Lock]" is displayed

Security code active – Enter the security

code

è 9.13 Activating

security code.

"[min]" + "[max]" flash simultaneously

Display + "[min]" + "[max]" flash simultaneously

Display flashes and error code appears

"[Option]" flashes Air-save function deactivated

Diagnostic level1 active – è 11.1 Diagnostic

levels

Diagnostic level2 active – è 11.1 Diagnostic

levels

Diagnostic level3 active – è 11.1 Diagnostic

levels

– Check for leakage.

because outside the critical limit

Tab. 24 Malfunctions

44 Festo — OVEM — 2019-03g

Disassembly

12 Disassembly

1. Switch off energy sources: – Operating voltage – Compressed air

2. Disconnect pneumatic and electrical connections from the device.

3. Loosen mountings and remove device.

13 Disposal

ENVIRONMENT!

Send the packaging and product for environmentally sound recycling in accordance with the current regulations èwww.festo.com/sp.

14 Technical data

OVEM-... -05 -07/-10 -14/-20-B/-BN-20/-30-C

General

CE marking (Declaration of conformity

èwww.festo.com/sp)

Characteristic values

Operating pressure OVEM-...-QS/-GN/-PL

Operating pressure OVEM-...-QO/-GO/-PO

Pressure measuring range

Overload pressure at vacuum port

Ready-state delay [ms] £ 500

Dead time (evacuation and ejection)

[bar] 2 … 6

[bar] 2 … 8

[bar] –1 … 0

[bar] £ 5

[ms] < 10 £ 20 £ 35 £ 60

In accordance with EU EMC Directive

c UL us - Listed (OL)Approvals

RCM compliance mark

45Festo — OVEM — 2019-03g

Technical data

OVEM-... -05 -07/-10 -14/-20-B/-BN-20/-30-C

Electronics

Nominal operating

[VDC] 24 ± 15 %

voltage

Max. output current

[mA] 100

(per switching output)

Voltage drop (for all

[V] £ 1.5

switching outputs)

Idle current [mA] < 70

Coil characteristics 24

[W] 0.3 V DC - low current phase

Coil characteristics 24

[W] 2.55 V DC - high current phase

Time until current

[ms] 80 reduction

Capacitive load maxim-

[mF] £ 100 um DC

Overload protection Available

Inductive protective cir-

adapted to MZ, MY, ME coils

cuit

Insulation voltage [V] 50

Surge resistance [kV] 0.8

Max. current consumption

OVEM-...-2P/-2N [mA] 270

OVEM-...-PI/-PU [mA] 180

OVEM-...-1PD [mA] 170

Accuracy [% FS] ± 3

Hysteresis [% FS] ± 0.1

Short circuit current

Yes

rating

Reverse polarity pro-

For all electrical connections

tection

46 Festo — OVEM — 2019-03g

Technical data

OVEM-... -05 -07/-10 -14/-20-B/-BN-20/-30-C

Display/operation

Threshold value setting

[bar] –0.999 … 0

range

Hysteresis setting

[bar] –0.9 … 0

range

Setting range ejector

[ms] 20 … 9999 40 … 9999

pulse duration

Environment

Ambient temperature [°C] 0 … 50

Temperature of medi-um[°C] 0 … 50

Degree of contamina-

tion

Operating medium Compressed air to ISO8573-1:2010 [7:4:4]

Note on the operating

Lubricated operation not possible

medium

Note on materials RoHS-compliant

Shock resistance (in

30g acceleration with 11ms duration (half-sine) accordance with IEC 60068/EN60068)

Vibration resistance (in accordance with EN

10…60 Hz: 0.35 mm /

60…150 Hz: 5 g 60068-2)

Protection class III

Degree of protection IP 65

Relative humidity [%] 5 … 85

Interference emission as per EN 61000-6-4

Immunity to interfer-

as per EN 61000-6-2 ence

Maximum permissible

[m] 20

signal line length

Materials

Information on seal

NBR HNBR materials

47Festo — OVEM — 2019-03g

Technical data

OVEM-... -05 -07/-10 -14/-20-B/-BN-20/-30-C

Information on housing

Die-cast aluminium, PA reinforced Wrought alu-

materials

Information on plug

Nickel-plated brass

housing material

1) degree of protection has not been evaluated by UL

Tab. 25 Technical data

minium alloy

48 Festo — OVEM — 2019-03g

Reproduction, distribution or sale of this document or communication of its contents to others without express authorization is prohibited. Offenders will be liable for damages. All rights reserved in the event that a patent, utility model or design patent is registered.

Phone: +49 711 347-0

Fax: +49 711 347-2144

e-mail: service_international@festo.com

Internet: www.festo.com

Festo OVEM Series Instructions & Operating

Specifications and Main Features

Frequently Asked Questions

User Manual

About this document

1.1 Applicable documents

2 Safety

2.1 Safety instructions

2.2 Intended use

2.3 UL certification

Further information

4 Service

Product overview

5.1 Product design

5.1.1 Product variants

5.1.2 Display components

5.2 Function

5.2.1 Switching functions

5.2.2 Valve controller

5.2.3 Air saving function

5.2.4 Optimisation of the transport time

5.2.5 Monitoring and diagnostics

5.2.6 Measured variables

5.2.7 Teach function (teach-in)

5.2.8 Operating statuses and menu structure

Assembly

Installation

7.1 Pneumatic installation

7.2 Electrical installation

Commissioning

8.1 Commissioning vacuum generator

8.2 Set the intensity of the ejector pulse

Operation and use

Setting the ejector pulse duration è 9.1 Setting the ejector pulse duration

9.2 Configuring switching outputs

9.3 Setting the switching characteristics of a switching output

9.4 Set diagnostic message channel

9.5 Teach-in switching points

9.6 Deleting minimum or maximum pressure value

9.7 Setting critical limits for the evacuation and air supply times

9.8 Teaching evacuation and air supply time

9.9 Displaying evacuation and air supply times

9.10 Deleting evacuation and air supply times

9.11 Electrical manual override

9.12 Mechanical manual override

9.13 Activating security code

9.14 Switching air saving function on or off

Maintenance and care

9.15 Restore factory settings

Error messages and fault clearance

11.1 Diagnostic levels

11.2 Error messages and error codes

11.3 Malfunctions

Disassembly

13 Disposal

14 Technical data
