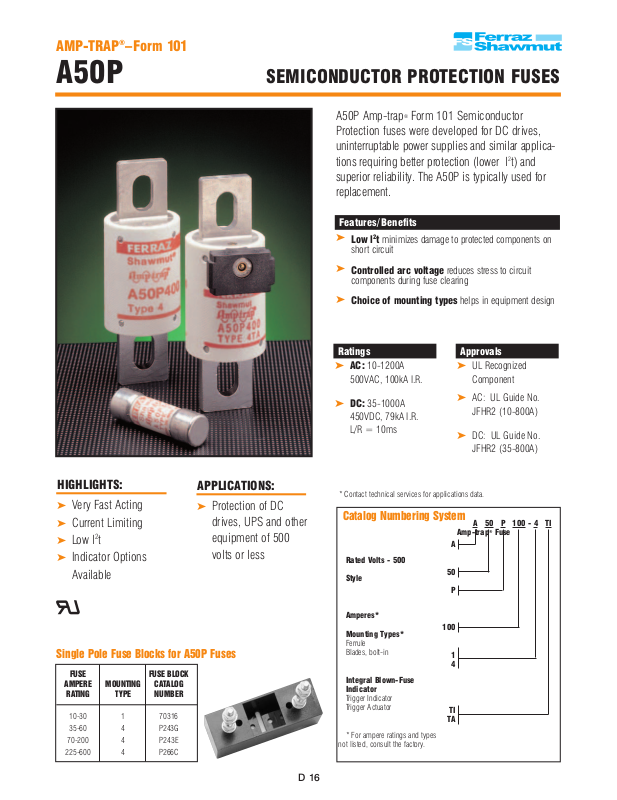

AMP-TRAP®–Form 101

A50P SEMICONDUCTOR PROTECTION FUSES

A50P Amp-trap
Protection fuses were developed for DC drives,
uninterruptable power supplies and similar applica­tions requiring better protection (lower l2t) and
superior reliability. The A50P is typically used for
replacement.

Features/Benefits

➤

Low l2t minimizes damage to protected components on
short circuit

➤

Controlled arc voltage reduces stress to circuit
components during fuse clearing

➤

Choice of mounting types helps in equipment design

®

Form 101 Semiconductor

HIGHLIGHTS:

➤ Very Fast Acting
➤ Current Limiting
➤ Low l
➤ Indicator Options

2

t

APPLICATIONS:

➤ Protection of DC

drives, UPS and other
equipment of 500
volts or less

Available

Single Pole Fuse Blocks for A50P Fuses

FUSE FUSE BLOCK

AMPERE MOUNTING CATALOG

RATING TYPE NUMBER

10-30
35-60 4 P243G

70-200 4 P243E

225-600 4 P266C

1 70316

Ratings

➤ AC: 10-1200A

Approvals

➤ UL Recognized

500VAC, 100kA I.R.

➤ DC: 35-1000A

➤ AC: UL Guide No.

450VDC, 79kA I.R.
L/R = 10ms

* Contact technical services for applications data.

➤ DC: UL Guide No.

Catalog Numbering System

Amp-trap®Fuse

A

Rated Volts - 500

Style

Amperes*

Mounting Types*

Ferrule
Blades, bolt-in

Integral Blown-Fuse
Indicator

Trigger Indicator
Trigger Actuator

* For ampere ratings and types

not listed, consult the factory.

50

100

T

P

1
4

TI

A

Component

JFHR2 (10-800A)

JFHR2 (35-800A)

A 50 P 100 - 4 TI

D 16

AMP-TRAP®–Form 101

A50P SEMICONDUCTOR PROTECTION FUSES

Standard Fuse Ampere Ratings, Catalog Numbers

AMPERE CATALOG OUTLINE AMPERE CATALOG OUTLINE AMPERE CATALOG OUTLINE

RATING NUMBER FIG. RATING NUMBER FIG. RATING NUMBER FIG.

10 A50P10-1 1 175 A50P175-4 3 450 A50P450-4 3
15 A50P15-1 1 175 A50P175-4TI 3 450 A50P450-4TI 3
20 A50P20-1 1 200 A50P200-4 3 500 A50P500-4 3
25 A50P25-1 1 200 A50P200-4TA 4 500 A50P500-4TI 3
30 A50P30--1 1 200 A50P200-4TI 3 600 A50P600-4 3
35 A50P35-4 2 225 A50P225-4 3 600 A50P600-4TA 4
40 A50P40-4 2 250 A50P250-4 3 600 A50P600-4TI 3

50 A50P50-4 2 250 A50P250-4TA 4 700 A50P700-4 5
60 A50P60-4 2 250 A50P250-4TI 3 700 A50P700-4TA 6
70 A50P70-4 3 275 A50P275-4 3 700 A50P700-4TI 5
80 A50P80-4 3 300 A50P300-4 3 800 A50P800-4 5

90 A50P90-4 3 300 A50P300-4TA 4 800 A50P800-4TA 6
100 A50P100-4 3 300 A50P300-4TI 3 800 A50P800-4TI 5
100 A50P100-4TI 3 325 A50P325-4 3 900 A50P900-4 3

125 A50P125-4 3 350 A50P350-4 3 1000 A50P1000-4 3
125 A50P125-4TA 4 350 A50P350-4TI 3 1000 A50P1000-4TI 3
125 A50P125-4TI 3 400 A50P400-4 3 1200 A50P1200-4 3
150 A50P150-4 3 400 A50P400-4TA 4 1200 A50P1200-4TI 3
150 A50P150-4TI 3 400 A50P400-4TI 3

D

For ampere ratings and styles not listed, call Technical Services.

Figure 1

Figure 3

Figure 2

D

Figure 5

17

***
***

0.63 2.38 0.44

(16.0) (60.5) (11.1)

Dimensions

OUTLINE MOUNTING FIG. DIMENSIONS - INCHES (mm)

REF. TYPE A B C D E F G H

A50P10 to 30

A50P35 to 60 1DS* 1 2.25 0.81 - - - - - -

A50P35 to 60 4 2 3.19 0.81 1.63 2.50 2.25 0.34 0.72 0.13

A50P70 to 100 4 3 3.63 1.00 2.13 2.94 2.81 0.31 0.75 0.13

A50P125 to 200 4, 4TA** 3, 4** 3.63 1.22 2.13 2.94 2.81 0.31 1.00 0.19

A50P225 to 400 4, 4TA** 3, 4** 4.34 1.50 2.09 3.41 2.78 0.41 1.00 0.25

A50P450 to 600 4, 4TA** 3, 4** 4.47 2.00 2.22 3.53 2.91 0.41 1.50 0.25

A50P700 to 800 4, 4TA** 5, 6** 6.47 2.50 2.22 4.63 4.31 0.53 2.00 0.38

A50P900 to 1200 4 3 6.97 3.00 3.22 4.97

* Use with 60306J fuse block.
** Optional Trigger Actuator (TA)
*** Mounting hole is round, diameter F.

1 1 2.00 0.56 - - - - - -

(50.8) (14.2) - - - - - -

(57.2) (20.6) - - - - - -

(81.0) (20.6) (41.4) (63.5) (57.2) 8.6) (18.3) (3.3)

(92.2) (25.4) (54.1) (74.7) (71.4) (7.9) (19.1) (3.3)

(92.2) (31.0) (54.1) (74.7) (71.4) (7.9) (25.4) (4.8)

(110) (38.1) (53.1) (86.6) (70.6) (10.4) (25.4) (6.4)

(114) (50.8) (56.4) (89.7) (73.9) (10.4) (38.1) (6.4)

(164) (63.5) (56.4) (118) (109) (13.5) (50.8) (9.7)

(177) (76.2) (81.8) (126)

Figure 4

igure 6
