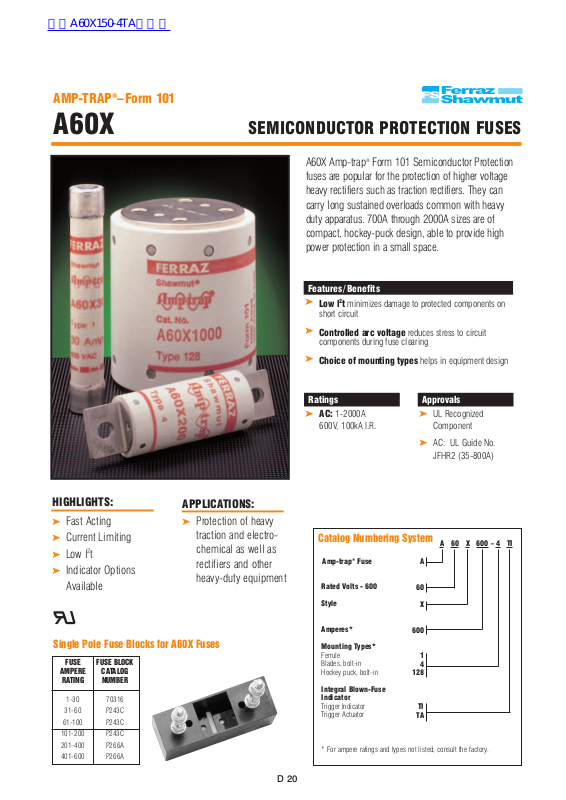

Page 1
D 20
➤ AC: 1-2000A
600V, 100kA I.R.
Ratings
A60X Amp-trap
®
Form 101 Semiconductor Protection
fuses are popular for the protection of higher voltage
heavy rectifiers such as traction rectifiers. They can
carry long sustained overloads common with heavy
duty apparatus. 700A through 2000A sizes are of
compact, hockey-puck design, able to provide high
power protection in a small space.
➤ UL Recognized
Component
➤ AC: UL Guide No.
JFHR2 (35-800A)
Approvals
HIGHLIGHTS:
➤ Fast Acting
➤ Current Limiting
➤ Low l
2
t
➤ Indicator Options
Available
APPLICATIONS:
➤ Protection of heavy
traction and electrochemical as well as
rectifiers and other
heavy-duty equipment
FUSE FUSE BLOCK
AMPERE CATALOG
RATING NUMBER
1-30
70316
31-60
P243C
61-100 P243C
101-200
P243C
201-400
P266A
401-600 P266A
Single Pole Fuse Blocks for A60X Fuses
A 60 X 600 - 4 TI
Amp-trap®Fuse
Rated V
olts - 600
Style
Amperes
*
Mounting Types*
Ferrule
Blades, bolt-in
Hockey puck, bolt-in
Integral Blown-Fuse
Indicator
T
rigger Indicator
T
rigger Actuator
* For amper
e ratings and types not listed, consult the factory
.
Catalog Numbering System
A
60
X
600
1
4
128
TI
TA
Features/Benefits
➤
Low l2t minimizes damage to protected components on
short circuit
➤
Controlled arc voltage reduces stress to circuit
components during fuse clearing
➤
Choice of mounting types helps in equipment design
AMP-TRAP®–Form 101
A60X SEMICONDUCTOR PROTECTION FUSES
查询A60X150-4TA供应商
Page 2
D
D
21
AMPERE CATALOG OUTLINE AMPERE CATALOG OUTLINE AMPERE CATALOG OUTLINE
RATING NUMBER FIG. RATING NUMBER FIG. RATING NUMBER FIG.
Standard Fuse Ampere Ratings, Catalog Numbers
For ampere ratings and styles not listed, call Technical Services.
OUTLINE
MOUNTING
FIG.
DIMENSIONS - INCHES (mm)
T
AP
REF. TYPE A B C D E F G H
A60X1 to 30 1 1 5.00 .81 - - - - - - -
(127) (20.6) - - - - - - -
A60X35 to 60
4
2
4.38
.81
2.78
3.69
3.44
.34 .72 .13 -
(111) (20.6) (70.6) (93.7) (87.4) (8.6) (18.3) (3.3) -
A60X70 to 100
4, 4TI*, 4TA
3, 4* 4.41 1.00 2.91 3.72 3.59 .31 .75 .13 -
(112)
(25.4)
(73.9)
(94.5)
(91.2) (7.9) (19.1) (3.3) -
A60X125 to 200 4, 4TI*, 4TA 3, 4* 4.41 1.22 2.91 3.72 3.59 .31 1.00 .19 -
(112) (31.0) (73.9) (94.5) (91.2) (7.9) (25.4) (4.8) -
A60X225 to 400 4, 4TI*, 4TA 3, 4* 5.13 1.50 2.88 4.19 3.56 .41 1.00 .25 -
(130) (38.1) (73.2) (106) (90.4) (10.4) (25.4) (6.4) -
A60X450 to 600 4, 4TI*, 4TA 3, 4* 5.13 2.00 2.88 4.06 3.69 .41 1.50 .25 -
(130) (50.8) (73.2) (103) (93.7) (10.4) (38.1) (6.4) -
A60X700 to 800 4, 4TA* 5, 6* 7.25 2.50 3.00 5.94 4.56 .53 2.00 .38 -
(184) (63.5) (76.2) (151) (116) (13.5) (50.8) (9.7) -
A60X700 to 800
128
7
4.00
3.00
3.75
2.50
1.50 - - - 3/8-24-1/2 Deep
(102) (76.2) (95.3) (63.5) (38.1) - - - -
A60X1000 to 1200
128 8 4.00 3.50 3.75 3.00 1.50 1.50 - - 3/8-24-1/2 Deep
(102)
(88.9)
(95.3)
(76.2) (38.1) (38.1) - - -
A60X1500 to 2000 128 8 4.00 4.50 3.75 3.75 1.50 1.50 - - 1/2-20-1/2 Deep
(102) (114) (95.3) (95.3) (38.1) (38.1) - - -
* Optional T
rigger Actuator (TA)
Figure 1
Figure 3
Figure 2
Figure 5
F
igure 8
Figure 6
F
igure 7
Figure 4
AMP-TRAP®–Form 101
A60X SEMICONDUCTOR PROTECTION FUSES
400
400
400
450
450
500
500
500
600
600
600
700
700
800
800
800
1000
1200
1500
1600
1800
2000
A60X400-4
A60X400-4TA
A60X400-4TI
A60X450-4
A60X450-4TA
A60X500-4
A60X500-4TA
A60X500-4TI
A60X600-4
A60X600-4TA
A60X600-4TI
A60X700-4
A60X700-128
A60X800-4
A60X800-4TA
A60X800-128
A60X1000-128
A60X1200-128
A60X1500-128
A60X1600-128
A60X1800-128
A60X2000-128
3
4
3
3
4
3
4
3
3
4
3
5
7
5
6
7
8
8
8
8
8
8
A60X80-4TA
A60X90-4
A60X100-4
A60X100-4TA
A60X100-4TI
A60X125-4
A60X125-4TA
A60X150-4
A60X150-4TA
A60X175-4
A60X200-4
A60X200-4TA
A60X200-4TI
A60X225-4
A60X250-4
A60X250-4TA
A60X250-4TI
A60X300-4
A60X300-4TA
A60X300-4TI
A60X350-4
A60X350-4TA
4
3
3
4
3
3
4
3
4
3
3
4
3
3
3
4
3
3
4
3
3
4
80
90
100
100
100
125
125
150
150
175
200
200
200
225
250
250
250
300
300
300
350
350
1
2
3
4
5
6
7
8
10
12
15
20
25
30
35
40
45
50
55
60
70
80
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
A60X1-1
A60X2-1
A60X3-1
A60X4-1
A60X5-1
A60X6-1
A60X7-1
A60X8-1
A60X10-1
A60X12-1
A60X15-1
A60X20-1
A60X25-1
A60X30-1
A60X35-4
A60X40-4
A60X45-4
A60X50-4
A60X55-4
A60X60-4
A60X70-4
A60X80-4
Dimensions
Page 3
D 22
Time in Seconds
Current in Amperes
Available Current in RMS Symmetrical Amperes
Maximum Instantaneous Peak Let-Thru Amperes
Peak Let-Thru Current Data – A60X60 to 2000, 600 Volts AC
A60X1 to 2000
AMP-TRAP®–Form 101
A60X SEMICONDUCTOR PROTECTION FUSES
Melting Time – Current Data, 600V Fuses
Page 4
D
D
23
Watts Loss at Rated Current
I2t Data – 600 Volts AC, 100kA
I2t DA
TA
FUSE CLEARING AT 600V
AMPERE
MELTING
1 FUSE 2 FUSES IN
RATING (FIG. A) SERIES (FIG. B)
(A2s) (A2s) (A2s)
1 .06 .11 .09
2 .22 .45 .36
3 .50 1.0 .80
4 .90
1.8
1.4
5 1.4 2.8 2.2
6 2.0 4.0 3.2
7 2.7 5.4 4.3
8 3.6 7.1 5.7
10 16 40 30
12 22 64 48
15
35 100 70
20 60 170 130
25 95 275 210
30 140 400 290
35 270 1,800 1,200
40 350 2,400 1,600
45 450 3,000 2,000
50
550
3,600
2,400
60 800 5,400 3,600
70 4,000 13,000 9,800
80
5,300
17,000 13,000
90 6,700 22,000 16,000
100 8,300 27,000 20,000
125 13,000 42,000 31,000
150 19,000 60,000 45,000
175 25,000 80,000 61,000
200
33,000
110,000
80,000
225 42,000 140,000 100,000
250
52,000
170,000 125,000
300
75,000 240,000 180,000
350 100,000 340,000 240,000
400 130,000 490,000 320,000
450 170,000 620,000 400,000
500 210,000 770,000 500,000
600 300,000 1,100,000 720,000
700
430,000
1,700,000
1,000,000
800 560,000 2,250,000 1,400,000
1,000
875,000
3,500,000 2,200,000
1,200 1,250,000 5,000,000 3,100,000
1,500
2,000,000 7,900,000 4,900,000
1,600 2,200,000 9,000,000 5,600,000
1,800 2,800,000 11,000,000 7,100,000
2,000 3,500,000 14,000,000 8,900,000
L
oad
600 VAC
Fault
F
ig. A
L
oad
600 VAC
F
ault
F
ig. B
Percent Rated Current
Correction Factor for Watts Loss
Watts Loss vs. % Rated Current (Types 1 & 4)
P
ercent Rated Current
Correction Factor for Watts Loss
Watts Loss vs. % Rated Current (Type 128)
*Type 4 **Type 128
AMP-TRAP®–Form 101
A60X SEMICONDUCTOR PROTECTION FUSES
AMPERE WATTS AMPERE WATTS
AMPERE WATTS
RATING LOSS (w) RATING LOSS (w) RATING LOSS (w)
10 3.8 100 11 700* 57
15 4.5 125 12 700** 52
20 4.0 150 14 800* 67
2
5 7.3 175 16 800** 59
30 8.7 200 19 1000 72
35 5.2 225 21 1200 86
40 6.3 300 29 1500 107
50 7.4 350 35 1600 117
60 9.1 400 37 1800 133
70 7.6 450 42 2000 148
80 8.9 500 47 2500 183
90 9.7 600 56
