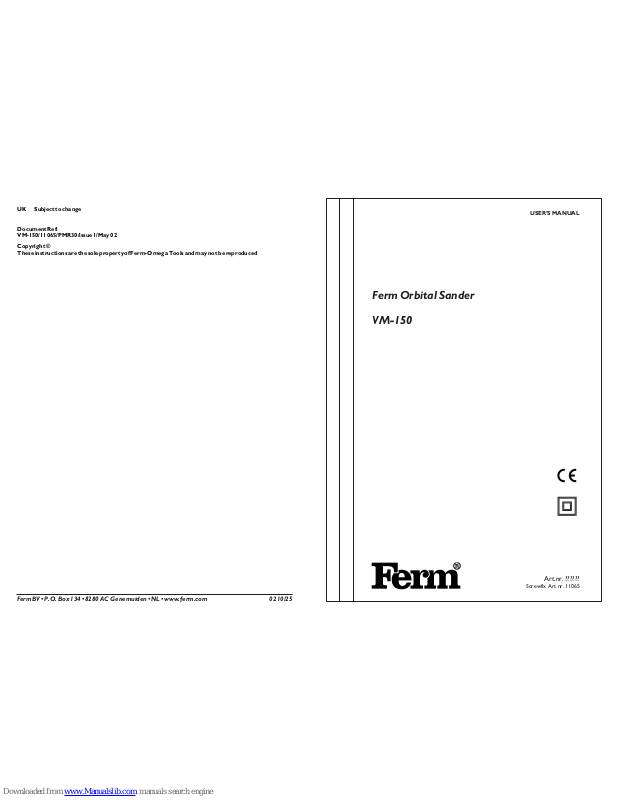

Ferm VM-150 User Manual
Ferm BV • P.O. Box 134 • 8280 AC Genemuiden • NL • www.ferm.com 0210/25
Ferm Orbital Sander
VM-150
USER’S MANUAL
Art.nr. ??????
Screwfix Art.nr. 11065
UK Subject to change
Document Ref:
VM-150/11065/PMR30/issue 1/May 02
Copyright ©
These instructions are the sole property of Ferm-Omega Tools and may not be reproduced
FERM ORBITAL SANDER VM-150
USERS MANUAL
TECHNICAL SPECIFICATIONS
PRODUCT INFORMATION
1. On/off switch
2. Dust exhauster adaptor
3. Dust collection opening
4. Paper clamp
5. Sand sole
6. Handle ( behind)
7. Blocking switch
8. Handle ( front)
SAFETY INSTRUCTIONS
The following pictograms are used in these instructions
for use:
Denotes risk of personal injury, loss of life or
damage to the tool in case of non-observance of the
instructions in this manual.
Denotes risk of electric shock.
Carefully read this manual before using the machine.
Make sure that you know how the machine functions and
how to operate it. Maintain the machine in accordance
with the instructions to make sure it functions properly.
Keep this manual and the enclosed documentation with
the machine.
Ferm products are manufactured to high quality standards they are safe and fit for purpose at time of sale, but
all tools can be dangerous if the correct precautions are
not taken. Always follow these instructions, do not carry
out the operation until you are sure you can do so in safety. Remember to consider the work environment for
safe operation as well as safety for tool use.
Warning! When using electric tools, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock and personal injury. Read all
these instructions before attempting to operate this product.
Save these instructions for future reference.
PERSONAL SAFETY
Use Personal Protection Safety Equipment
Protect eyes with safety glasses or goggles note: the use
of safety protective eyewear without the CE mark can
lead to serious injury if the lens breaks. A suitable dust
mask should be worn if cutting, drilling or sanding is
dusty, in particular chipboard or MDF.
Approved safety footwear and headgear should worn as
appropriate, for example on building works or when
heavy weights are involved. Wear suitable gloves and
apron to protect against sparks/debris. Wear earplugs
or ear defenders.
Dress properly
Do not wear loose clothing or jewellery. It can get caught
in moving parts. Non-skid footwear is recommended
when working out doors. Wear protective hair covering
to contain long hair.
Stay alert
Watch what you are doing Use common sense. Do not
operate tools when tired or after taking alcohol or prescription/ non-prescription drugs.
6
7
8
1
2
3
4
5
Voltage | 230 V~
Frequency | 50 Hz
Power input | 135 W
No load speed | 10000/min
Sand Paper dimensions | 187 x 90 mm
Weight | 1.4 kg
Lpa (sound pressure) | 75 dB(A)
Vibration value | 4 m/s
2
2 Ferm Ferm 7
EXPLODED VIEW
SPARE PARTS LIST VM-150
REF NR DESCRIPTION FERM NR
5 BASE PLATE 406763
6 ROTOR 406764
7 STATOR 406765
8 CARBON BRUSH 406766
9 CIRCUIT BOARD 406767
13 SWITCH 406768
