SERVICE MANUAL
Champion™ 600
(This is the model name for warranty claims)
p/n 233-0100-000 (120V)
ATTENTION:
WARRANTY SERVICE PROCEDURES
The Champion 600 Amplifier is not available for warranty field service. However; any
Champion 600 that is presented for warranty service should be tested for bad tubes. If the
defect is due to a failed tube, and the tube warranty has expired, the consumer/dealer will
be responsible for tube replacement costs. If the tube warranty has not expired contact
FMIC Customer Service for replacement tubes. If the defect is not tube related please
contact FMIC Customer Service to arrange for a replacement amplifier.
Fender Musical Instruments Corporation, 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250
Issued: October, 2006
Page 2
2
Champion™ 600
(This is the model name for warranty claims)
June, 2007
IMPORTANT NOTICE
• Copyright © 2006 FMIC. All rights reserved. All
information contained herein is CONFIDENTIAL
and PROPRIETARY and is the property of
Fender® Musical Instruments Corporation. It is
not to be sold or assigned to another party and is
disclosed solely for use by Fender Authorized
Service Centers for purposes of product service
and maintenance. All information is not to be disclosed to others without the expressed permission
of Fender® Musical Instruments Corporation. All
PARTS LIST CODES
The description codes used in the itemized Parts Lists are defined below:
CAPACITOR
CAP AE = Aluminum Electrolytic
CAP CA = Ceramic Axial
CAP CD = Ceramic Disk
CAP CR = Ceramic Radial
CAP MPF = Metalized Polyester Film
CAP MY = Mylar
CAP PFF = Polyester Film/Foil
RESISTOR
RES CC = Carbon Comp
RES CF = Carbon Film
RES FP = Flame Proof
RES MF = Metal Film
RES MOX = Metal Oxide
RES WW = Wire Wound
CODES
CODES
specifications are subject to change without notice. This information and any copies produced
electronically or otherwise must be surrendered
upon demand of Fender® Musical Instruments
Corporation.
• Parts marked with two asterisks (
required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements.
DO NOT USE A SUBSTITUTE!
HARDWARE
BLX = Black Oxide
CR = Chrome Plated
HWH = Hex Washer Head
M = Machine Screw
NI = Nickel Plated
OHP = Oval Head Phillips
PB = Particle Board
PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
SMA = Sheet Metal "A" Point
SMB = Sheet Metal "B" Point
SS = Stainless Steel
TF = Thread Forming
ZI = Zinc Plated
CODES
**) indicate the
Page 3
Champion™ 600
(This is the model name for warranty claims)
SPECIFICATIONS
Model Name: Champion 600
Release Number: PR 722
Part Numbers CHAMPION 600 120V 233-0100-000
CHAMPION 600 120V DS 233-0100-900
CHAMPION 600 110V TW DS 233-0101-900
CHAMPION 600 240V AUS DS 233-0103-900
CHAMPION 600 230V UK DS 233-0104-900
CHAMPION 600 230V ARG DS 233-0105-900
CHAMPION 600 230V EUR DS 233-0106-900
CHAMPION 600 100V JPN DS 233-0107-900
CHAMPION 600 220V ROK DS 233-0109-900
Power Requirement: 25 W
Fuses: F 1A, 250V for 100V versions
F 1A, 250V for 120V versions
F 500mA, 250V for 240V versions
F 500 mA, 250V for 230V versions
Input Sensitivity: 25 mV (volume at maximum for full power
Power Output: 5W RMS into 4 ohms @ < 5%THD, 1000Hz
Impedances Input: >1M Ohms
Speaker Complement: 6” , 4 ohm
Dimensions Height: 11 in (28 cm)
Width: 12 in (12 cm)
Depth: 7.5 in (19 cm)
Weight: 15 lbs (7 kg)
Product specifications are subject to change without notice
3
Page 4
SERVICE NOTES
CHASSIS REMOVAL is accomplished by first
1.
removing the two (2) screws from the control
panel then the two screws on the side of the
cabinet. Remove the four (4) screws from the
4
Champion™ 600
(This is the model name for warranty claims)
back panel and unplug the speaker. The chassis can now slide out, giving access to the
electronics.
Page 5
0073904000
1
0073905000 **XFMR Power Champion 600
1
0073906000 XFMR Output Champion 600
1
0073907000 Knob Volume Champion 600
1
0073908000 Handle Champion 600
1
2
0073909000 Jack Input Champion 600
1
0073910000 Jack Output Champion 600
1
0073911000 Switch Power Champion 600
0073912000 Potentiometer 1MA Champion 600
1
0073913000 Light Pilot ASSY Champion 600
1
0073914000 Cabinet Glides Cabinet Champion 600
4
1 0994024000
0994024000
1
0020789000
1
0020786000
1
Champion™ 600
(This is the model name for warranty claims)
PARTS LIST
Speaker 6” Champion 600
T1
T2
J1, J2
J3
S1
R13
Tube 6V6 STR391 V1
Tube 12AX7WC/7025 Russian V2
**Fuse QA 20mm X 5mm 250V 1A F1 100V & 120V Versions
**Fuse QA 20mm X 5mm 250V 500ma F1 230V & 240V Versions
5
* Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY section above.
shaded Unique Fender® part. Order directly from the FMIC Parts Department.
shaded + * Access to this part or assembly is controlled. Please contact the FMIC Customer Service Department.
** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.
shaded + ** Both a unique Fender® part and a Safety Requirement part as defined above.
Page 6
6
Champion™ 600
(This is the model name for warranty claims)

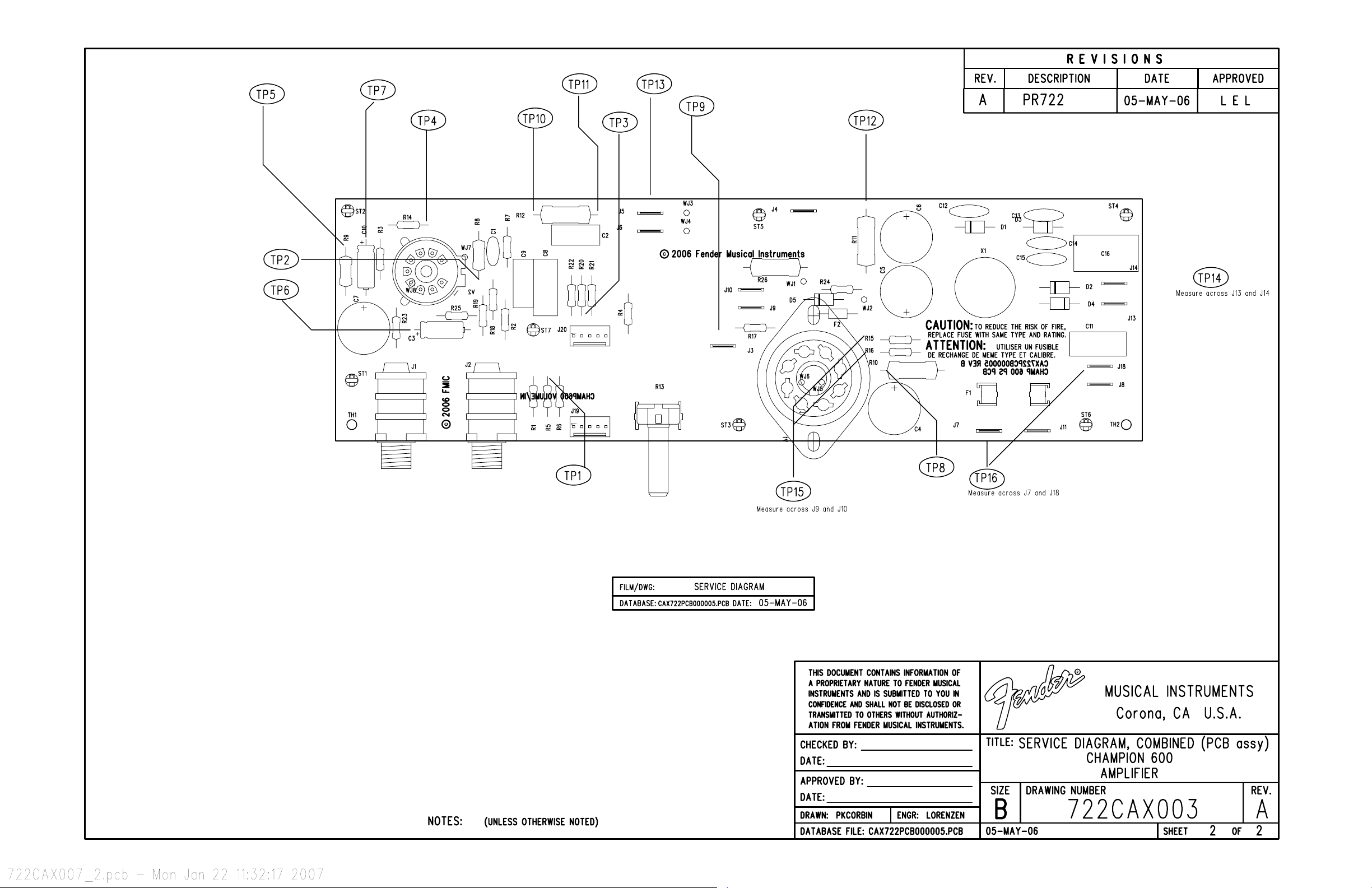

Service Diagram List
Service Diagram (Schematic) ............Champion™ 600 PC
Page 7
Page 8
