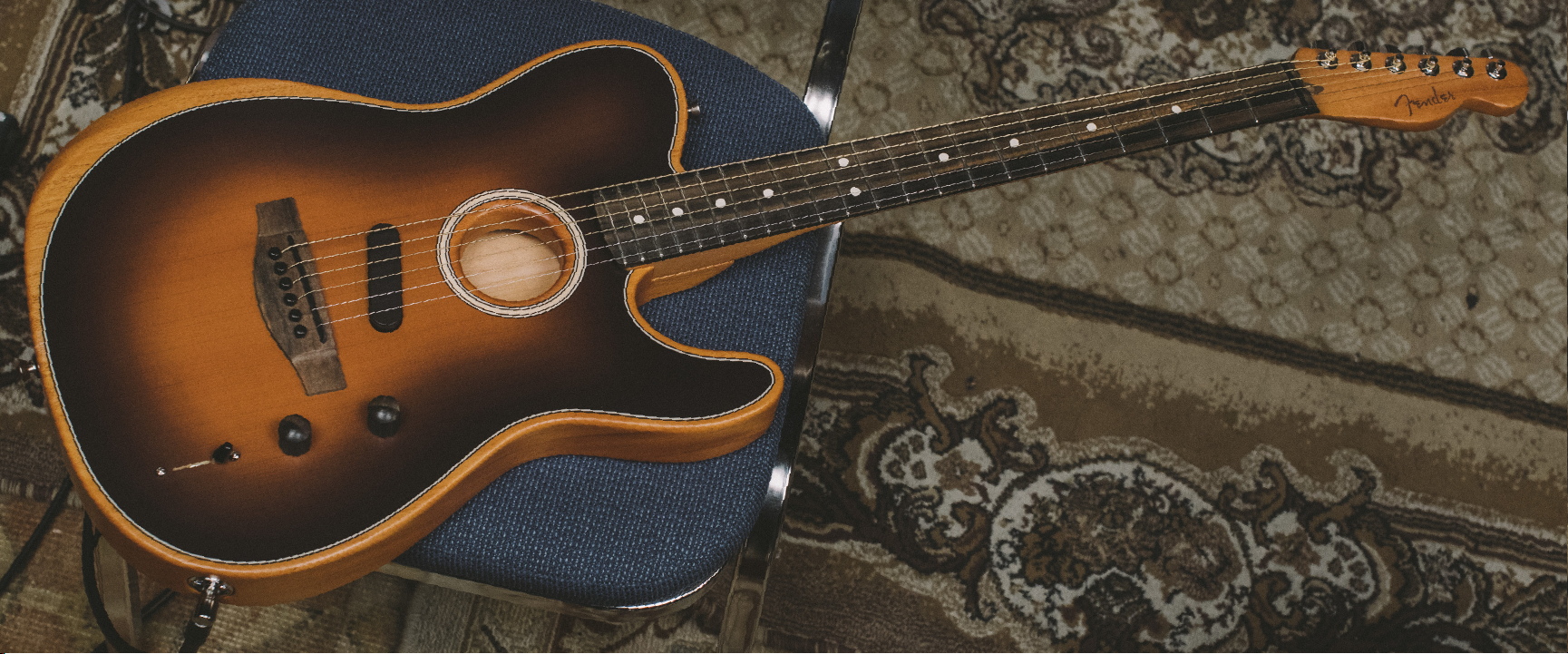

The American Acoustason ic Series Telecaster represents the next era in Fender
craftsmanship and innovation. From acoustic shape-shif ting to electric rhythm
tones, this powerful guitar delivers new sonic expression from the studio to the
stage. Powered by a Fender and Fishman®-designed Acoustic Engine, your
Acoustasonic Telecaster delivers a curated collectio n of acoustic and electric
voices never heard before in a single instrument.
01
Page 3
Forearm Contour Stringed Instrument
Resonance System (SIRS)
Position
1 2 3
4 5
Volume Knob
Controls the overall output of the guitar.
The Acoustasonic body f eatures an inset top with an integrated forearm contour
and our patent-pending Stringed Instrument Resonance System (SIRS)—
designed to produce a great tone when unplugged. Inside the guitar, three
pickup systems work together to create the Fender and Fishman-designed
Acoustic Engine – a mix of classic analog and future technologies that deliver
an unparalleled collection of voices.
Voice Selector
Selects one of five discrete “voice pairs.”
Mod Knob
Selects and/ or blends bet wee n ‘A’ & ‘B’ voices.
0302
Page 4
The Acoustasonic Telecaster offers five discreet voice pairs – a curated
collection of acoustic and electric voices that can be played solo or blended
via the Mod Knob to create infinite combinations. Position 5 is with the Voice
Selector closest to the neck; Position 1 is furthest away. The ‘A’ voice is with the
Mod Knob fully counter-clockwise; the ‘B’ voice is fully clockwise.
POSITION 5:
A: Sitka Spruce/Rosewood Dreadnought
Deep bass meets strident trebles for a traditional acoustic voice. Great for big bold strumming.
B: Alpine Spruce/Rosewood Auditorium
Tighter and brighter for a more modern/pop sound and a detailed midrange perfect for strumming
or fingerstyle.
POSITION 3:
A: Sitka Spruce/Brazilian Rosewood Dreadnought
Rich and earthy with complex overtones.
B: Adds body pickup to the above voice
(up to a predetermined maximum blend)
All of the above plus a percussive top and enhanced harmonics that pop.
POSITION 2:
A: Sitka Spruce/Mahogany Dreadnought
Full-bodied, no nonsense acoustic that’s earthy and articulate with a wide dynamic range.
B: Blends electric pickup to the above voice
(predetermined semi-clean voice)
A rich acoustic rhythm sound meets Fender’s electric tone – when you really want to drive the band.
POSITION 4:
A: Engelmann Spruce/Maple Small-Body
Intimate, parlor-inspired voice that’s articulate and bright, best for delicate playing.
B: Sitka Spruce/Mahogany Dreadnought
Full midrange with a deep bass voice that works well for rootsy strumming or fingerstyle.
POSITION 1:
A: Fender Electric Clean
Yo u wo n’ t be li e ve y ou r ac ou s ti c gu it ar c a n do t hi s.
B: Fender Electric Fat/Semi-Clean
Yo u re al ly w on ’t b e li ev e yo ur a c ou st ic g ui ta r c an d o th is .
0504
Page 5
Page 6

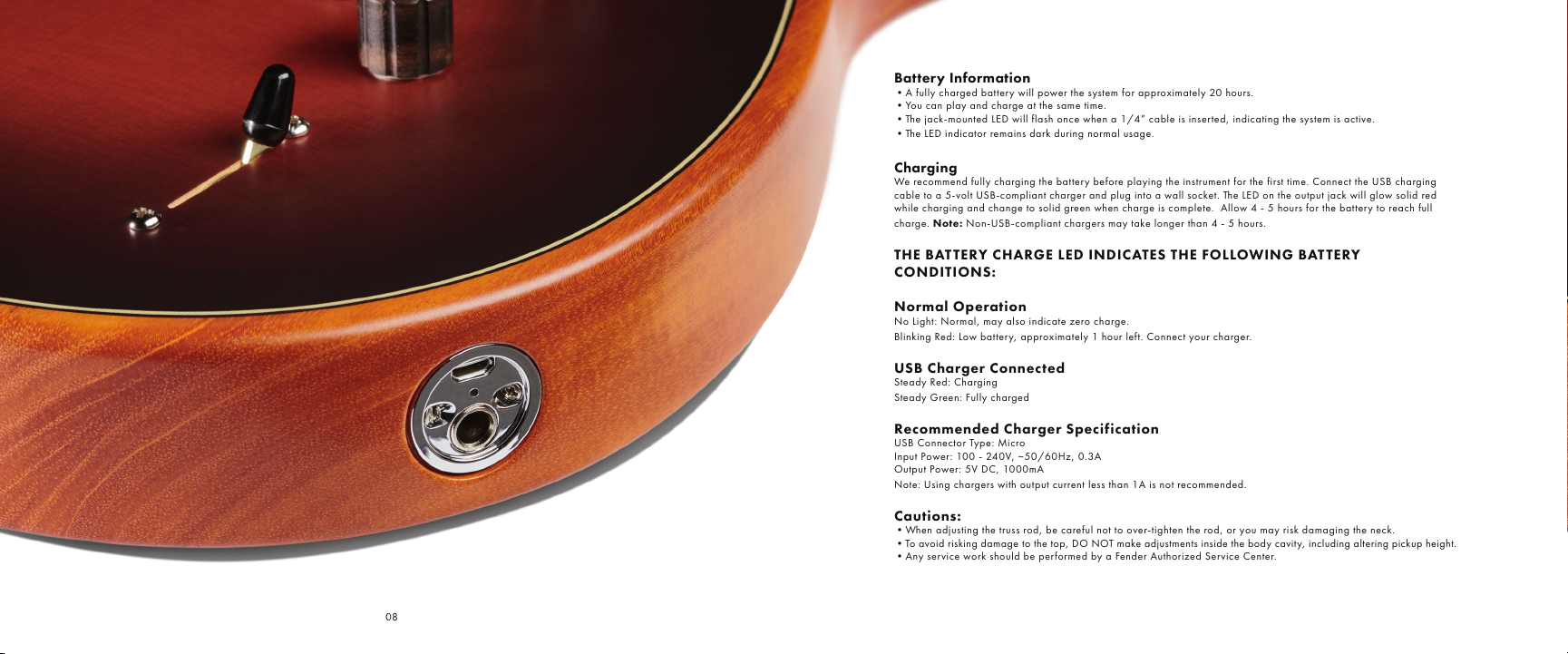

Battery Information
•A fully charged battery will power the system for approximately 20 hours.
•You can play and charge at the same time.
•The jack-mounted LED will flash once when a 1/4” cable is inserted, indicating the system is active.
•The LED indicator remains dark during normal usage.
Charging
We r ecomm end full y cha rging the batt ery befor e pla ying the inst rument f or th e first time. Conn ect the U SB ch argin g
cab le to a 5-vol t US B-com plian t ch arger and plug int o a w all s ocket. The LED on t he ou tput jac k wil l gl ow so lid r ed
whi le charging and c hang e to solid gree n whe n ch arge is c omple te. Allo w 4 - 5 ho urs for the b atte ry t o rea ch fu ll
charge. Note: No n-USB -comp lian t cha rgers may take longer t han 4 - 5 hours.
THE BATTERY CHARGE LED INDICATES THE FOLLOWING BATTERY
CONDITIONS:
Normal Operation
No Light: Normal, may also indicate zero charge.
Bli nking Red: L ow ba tter y, a pproximat ely 1 hour lef t. Conne ct yo ur charger.
USB Charger Connected
Steady Red: Charging
Ste ady Green: Fully char ged
Recommended Charger Specification
USB Connector Type: Micro
Inp ut Po wer: 100 - 240V, ~50 /60Hz , 0. 3A
Output Power: 5V DC, 1000mA
Note: Using chargers with output current less than 1A is not recommended.
Cautions:
•When adjusting the truss rod, be careful not to over-tighten the rod, or you may risk damaging the neck.
•To avoid risking damage to the top, DO NOT make adjustments inside the body cavity, including altering pickup height.
•Any service work should be performed by a Fender Authorized Service Center.
