Fellowes 500 User Manual

Heavy Duty Electric Comb Binder
Please read these instructions before use.
E
F S
Lea estas instrucciones antes del usarlo.
ENGLISH
E
Comb opening lever
Paper entry
Adjustable edge guide
Foot pedal
CAPABILITIES
Punching Capacity
Paper sheets
70 - 80g / 20lb 30 sheet
Transparent covers
100-200 micron / 4 - 8 Mil. 4 sheet 200+ micron / 8+ Mil. 3 sheet
Other standard covers
160-270g / 40 - 60lb 4 sheet 270+g / 60+ lb 3 sheet
Binding Capacity
Max binding comb size 2”
Max document (80g / 20lb) approx. 500 sheets
Back margin adjustment
Document measure
Waste tray
Punch selection
Technical Data
Paper dimensions A4, A5, US letter, US cover Punching slots 21 Releasable dies 21 dies (1 - 21) Adjustable back margin 5 positions - (.09” - 0.25”) Slot pitch 14.28 mm / 9/16” Adjustable edge guide Yes Waste tray capacity approx. 1800 sheets Net weight 17 kg / 37lb Dimensions (WxDxH) 9.75” x 15.75” x 15.75” Voltage 120V 60Hz Motor wattage 120W 2.0 Amps
IMPORTANT SAFETY INSTRUCTIONS - KEEP FOR FUTURE USE
When punching;
- always ensure the machine is on a stable surface
- test punch scrap sheets and set the machine before punching final documents
- remove staples and other metal articles prior to punching
- never exceed the machines quoted performance
The machine is for indoor use only. Keep the machine away from heat and water sources. Never attempt to open or otherwise repair the machine. When binding;
- Keep the machine away from heat and water sources.
- Never attempt to open or otherwise repair the machine.
- The machine is for indoor use only. Plug the machine into an easily accessible socket.
2
- Note – this machine has a thermal cut-out device which activates when the machine is overheated during use. It will automatically reset when the machine is safe to operate.
Need Help?
Let our experts help you with a solution.
Customer Service...
Always call Fellowes before contacting your place of purchase (see the rear cover for contact details.
www.fellowes.com
SOCKET

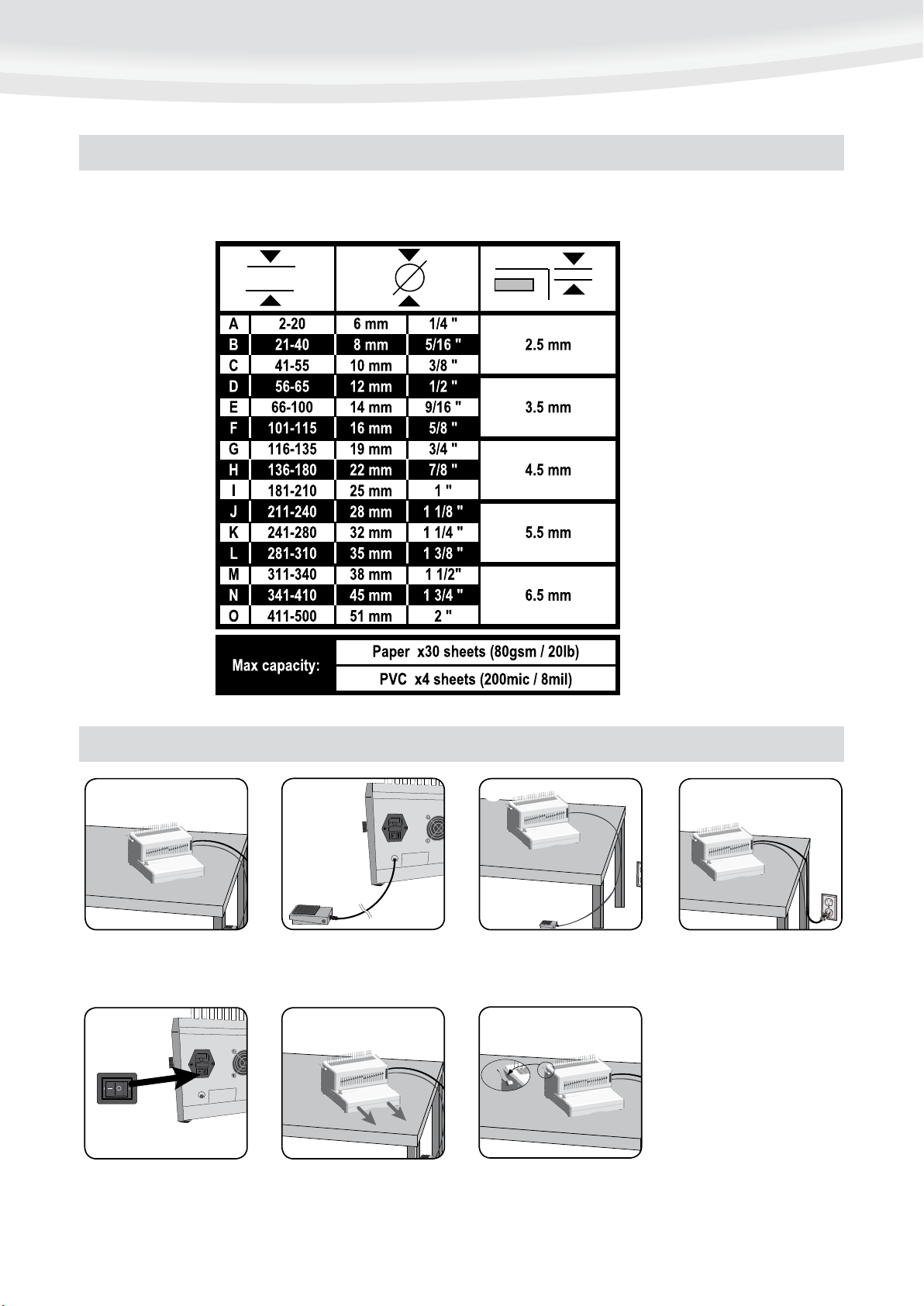

COMB DIAMETER & DOCUMENT SIZES
SOCKET
Comb diameter sizes
To select the correct size comb diameter for a document use the document measure card as printed on the machine.
SET UP
Ensure the machine is on a stable surface.
5
Switch the power on (located at the rear of the machine).
2
Plug the foot pedal into the socket located on the rear of the machine.
6
Check the waste tray is empty and correctly fitted.
3
Place the foot pedal on the floor.
7
Ensure the comb opening lever is pushed backwards.
41
Plug the machine into an easily accessible main socket.
3
BEFORE YOU BIND
1
Select the correct comb diameter using the document measure.
2 4
Select the correct punch profile for the sheet size. Select releasable dies as appropriate.
5 6 7
Insert the plastic comb into the opening mechanism. Pull comb­opening lever forward to open
Press the foot pedal to test punch scrap sheets to check edge guide setting.
the comb.
3
To cancel a punch, pull the pin forward. Test punch a sheet.
Load punched sheets directly onto the open comb.
Select the correct back margin depth for the number of sheets.
8
Empty waste tray regularly ­ideally after each use.
BINDING A DOCUMENT
Front
Cover
Back
Cover
Press the foot pedal to punch front and back covers first.
21 4
MAX 30
(20lb /
80gsm)
Press the foot pedal to punch sheets in small batches that do not overload the machine or the user.
3
Load punched sheets directly onto the opened comb. Starting with the front of the document.
When all punched sheets are loaded onto the comb, push the comb lever backwards to close the comb and remove the bound document.
CORRECTING A BOUND DOCUMENT
Additional sheets may be added or removed at any time by opening and then closing the comb as previously described.
4
REMOVAL OF WASTE CLIPPINGS
The tray should be emptied after every 50 operations to ensure no blockages occur.
TROUBLESHOOTING
This machine is fitted with a fuse, located between the main switch and main socket on the rear of the machine. To replace the fuse;
• Isolate the machine from the main supply.
• Open the fuse holder with a screwdriver blade. The holder contains two fuses, the loose fuse is a spare.
• Insert a new fuse in the holder and replace the holder in to the machine.
NOTE: Always use the recommended fuse (120W / 2A) and DO NOT replace it with one of a different rating.
Problem
No power
Not punching
Punched holes are not central
Machine will not punch
Punch holes are not parallel to edge
Partial holes
Missing holes
Damaged hole edges
Cause
Machine is not switched on
Thermal cut-out switch has activated
Edge guide not set
Blockage
Debris is stuck below dies
Sheets not correctly aligned to punch pattern
Selectable dies are not selected to punch
Possibly overloading the machine
Solution
Switch on machine at rear next to plug inlet and at the socket
Allow machine to cool down for 30-60 minutes.
Adjust edge guide until hole pattern is correct
Check waste tray is empty. Check for blockage to paper entry
Take stiff cardboard and slide into the paper entry. Move the cardboard sideways to release any stray clippings into the waste tray
Adjust edge guide and test punch scrap sheets until correct
Check the current dies are selected to punch holes. To select a die, push selector switch down at the front
Punch plastic covers with paper sheets. Reduce number of sheets being punched
WORLDWIDE WARRANTY
Fellowes warrants all parts of the binder to be free of defects in material and workmanship for 1 year from the date of purchase by the original consumer. If any part is found to be defective during warranty period, your sale and exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorized repair. Any implied warranty, including that of merchantability or fitness for particular purpose, is hereby limited in duration
to the appropriate warranty period set forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This war­ranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty, please contact Fellowes or your dealer.
5
