Dear Customer,

Thank you for buying a Fellowes Commercial Shredder. We have made many improvements in our commercial shredder since its introduction in 1982. We are confident that it offers you the greatest value for your money in its product category today. We hope it meets – or even exceeds – your expectations.

To ensure years of safe, efficient use, please read these few pages about your new shredder. If this manual doesn’t answer all your questions or if you wish to comment on this product, we welcome your call or letter.

Sincerely,

James Fellowes

Chairman & CEO

Contents

Product Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2

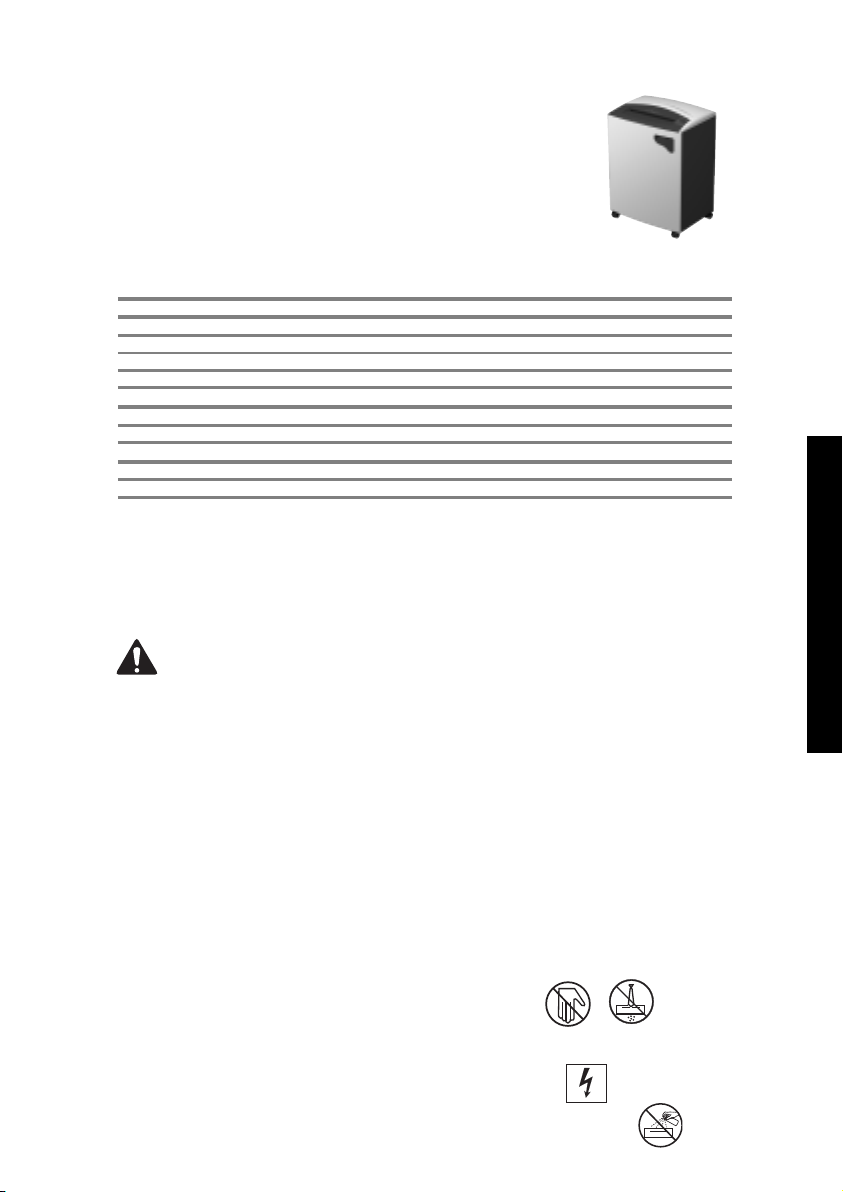

Product Profile

This product is built to shred paper, staples, CDs, DVDs, small paper clips and credit cards. It is not built to shred adhesive labels, transparencies, newspaper, cardboard, large paper clips, or plastic (other than credit cards). Attempting to shred items not intended for this shredder may cause damage.





Strip-Cut

Confetti-cut





380-2

380C-2



Paper





Sheet capacity*

26-28 sheets

14-16 sheets

Paper shred size

7/32” / 5,8 mm

5/32 X 1-1/8” / 3,9 x 30 mm

Maximum paper width

15” / 380 mm

15” / 380 mm

Recommended daily capacity

14,000 sheets

7,000 sheets

Credit cards





Credit card capacity

1

1

Recommended daily capacity

150

150

CDs/DVDs





CD/DVD capacity

1

1

Recommended daily capacity

150

150

*Based on 8-1/2 x 11” (75 g/20 lb.) paper with shredder operating at rated voltage; heavier paper, high humidity, or other than rated voltage may reduce sheet capacity.

NOTE: These products have met international standards for motor temperature rise: Independent product testing agencies approved each model at the midpoint of its sheet-per-pass limit. In the tests, the agencies also varied the available voltage 10% below and 6% above its normal range, stopping shredding only to empty the basket.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

While setting up shredder

Check shredder for damage or defects; some paper particles in the basket are normal due to product testing and does not indicate a defect.

If the cord is damaged do not replace cord or use the machine. Return machine for a replacement.

Avoid touching exposed blades on underside of confetti-cut shredder head.

Plug power cord in an outlet that can easily be reached. The plug is the primary electrical disconnect.

Make sure the electrical rating listed on the serial label (located near the power cord on the back of the shredder) matches the available electric power.

Do not place shredder near or over a heat or water source.

Secure shredder to wall with hardware provided in order to meet UL 60950 stability requirements.

While operating shredder

Keep hands and hanging objects (jewelry, ties, loose clothing, long hair, etc.) away from paper entry.

• Keep children and pets away from the shredder.

When not in use

Always turn off and unplug shredder.

Unplug before emptying basket.

Do not open shredder head: Danger of electric shock. Opening shredder head will void the warranty.

NOTE: Do not use flammable synthetic oil, petroleum-based products or aerosols of any kind on or near product at any time.

ENGLISH

3

ENGLISH

Set-Up

Open the cabinet door and pull the waste basket (D) completely out of the cabinet.

Put plastic waste bag in basket (sample bags provided). Allow bag edges to overhang. Contact Fellowes to order more bags (part # 36055).

Slide the waste basket into the cabinet and shut the cabinet door (A).

Plug the power cord into a convenient outlet.

Store this use and care manual in slot (M) inside cabinet door (A).

Operation

Control Switches

I

J

K

Control Switch (H)

I

AUTOMATIC















Turns on the automatic-start









sensor and the green Ready

F







light.





O

OFF















Turns off the automatic-start









sensor and the green Ready









light.

G





R

REVERSE







Runs shredder in reverse









Hmode. Press and hold to activate.

Manual Forward Button (F)

Runs shredder when button is held down.

Troubleshooting Lights

Ready Light (G)

Paper Jam (I)

Basket Full (J)

Door Ajar (K)

(Green)

(Red)

(Red)

(Red)

Shredder is in auto-

Shredder is jammed

Waste basket is full or

Cabinet door is open.

matic start mode.

(e.g., too much paper

paper has collected





fed at one time).

under cutting cylin-







ders.



For convenience and energy savings, your shredder is equipped with an automatic-start sensor (P). This means that when the control switch (H) is in the automatic [I] position, the shredder will start running when you put paper into it and stop a few seconds after the paper has passed through.

CAUTION: The automatic-start sensor cannot tell the difference between paper and other objects. This feature can also be a hazard. Always turn off the shredder when it is not in

use. Unplug the shredder if it will not be used for an extended period.

To shred paper

Press the automatic [I] button. The green ready light (G) should turn on.

Feed paper straight into paper entry (B) releasing when the shredder begins shredding.

To shred CDs or DVDs

Hold CD or DVD at the edge and feed one at a time, straight into CD entry (E), releasing when shredding begins. Shredder will stop when media has passed through entry. The media will be shred into small

particles.

CAUTION: Do not hold CD or DVD with finger through the center ring while feeding into shredder.

4

To empty waste basket

If basket full light (J) is on, follow these steps until light turns off.

Press manual forward button (F) to finish shredding any paper in the paper entry.

Press the off [O] button.

Open the cabinet door (A) and pull out the waste basket (D).

Remove the full bag and replace with a new bag.

Slide the waste basket (D) into the cabinet and shut the cabinet door (A).

To clear a paper jam

If paper jam light (I) is on, follow these steps until light turns off.

Check the waste basket (D) and empty the bag if full.

Press and hold the reverse [R] button to back paper out of the paper entry (B). Try pulling gently on the paper to remove it from the shredder.

Alternate between forward and reverse, as needed, until the jam clears:

Press and hold the manual forward button (F) for a few seconds.

Press and hold the reverse [R] button for a few seconds.

Continue alternating between forward and reverse until the jam clears.

CAUTION: The shredder may be damaged if you alternate too rapidly between forward and reverse.

Unplug shredder, open cabinet door (A) and remove wastebasket (D).

Carefully clear any paper shreds that have collected on under side of paper entry (B).

CAUTION: Model 380C-2 (confetti cut model) has exposed blades on underside of paper entry. Use care when removing paper shreds.

Maintenance

Empty waste basket regularly to ensure the smooth functioning of the cutting cylinders. The shredder will not operate when the basket is full.

Oil confetti-cut model (380C-2) regularly to ensure proper operation.

If used at or near daily capacity, apply oil every time you empty the basket.

Use Fellowes Powershred Lubricant #35250 or other non-aerosol vegetable-based oil in a longnozzle container (sample oil provided).

CAUTION: Do not use flammable synthetic oil, petroleum-based products, or aerosol lubricants of any kind.

To oil the cutting cylinders

• Lift paper entry flap (N) and apply oil over full width of cutting cylinders through the paper entry (B).

Press and hold the manual forward button (F) for at least 3 seconds.

Press and hold the reverse [R] button for at least 3 seconds.

Repeat the forward/reverse sequence 3 or more times.

Store oil bottle in slot (L) inside cabinet door (A).

ENGLISH

5
