1 Functional description
The MWD BP is a radar motion detector with direction identification, which has been especially designed for
applications in the area of industrial gate- and barrier systems. In some cases, the operational parameters may also
be adjusted with an infrared remote control.
Motion detection is done according to the Doppler’s principle. The sensor sends out 24 GHz microwaves. These
microwaves are reflected by objects in motion and thus their frequency changes. The sensor receives these altered
frequencies and analyses them. Thus, each motion within the detection range is recorded, analyzed by a logic and
transmitted to the gate- resp. barrier control by connecting potential-free change-over contacts.
Range of application:
Entry-/access recognition for the drive of industrial gate- and barrier systems
Special features:
• Insensitive to fluctuations of temperature and humidity
• Distinction vehicles/persons
• Suppression of cross traffic
• Object tracking for slow objects
• Reversible and cutoff direction logic
• Adjustable sensitivity
• Application specific parameter profiles
• Two channel with individual parameter setting
• Two potential-free relay contacts
• Large supply voltage range - AC or DC
• Adjustment of operational parameters by key buttons or infrared remote control and 7-segment display
• Compact plastic housing
• IP 65 housing
• Easy and fast installation with mounting bracket
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 5/13
2 Installation
2.1 Place of installation
The device is centrally mounted above the area to be monitored. Both wall- and ceiling mounting are possible. The
maximum mounting height is 7m.
2.2 Hints for planning and installation:
• The device has to be mounted vibrationless.
• In order to avoid incorrect release, there must not be any objects in motion within the radiation field.
• There must not be any fluorescent tubes within the radiation field of the detector.
• It should be avoided that t he radiation fields of two motion detectors overlap, since this may lead to incorrect
releases.
• Do not install behind objects, building coverings or elements.
• If the mo tion detector is exposed to rain or snow, it should be adjusted to directional recognition.
• If conductive floors are used and the radiation direction is almost vertical, incorrect releases may be caused
by reflections.
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 6/13
3 Parameter Entry
3.1 Open Parameter Entry
a) Remote Control MWD RC
Symbol Key
1.
2a.
1..4
or
Keypress
i
i-Button
value 1..4 short
short
Channel 2: displayed address + 1
Description Action
Channel 1: displayed address
Direct confirmation
of device address
Actual device address is displayed
with blinking digit and decimal point
Display first parameter name
Display
Example
Ñ1.Ò
L.
Volume +
2b.
Volume -
3b. On/Off short
b) Buttons on Motion Detector MWD BP
The left button is functionally assigned to the On/Off-button
Right button is equivalent to the Volume +- button
Key
1. Right or Left short
2. Right short
3. Left short
short
Keypress
Select address value
Indirect confirmation
of device address
.
Description Action
Channel 1: displayed address
Channel 2: displayed address + 1
Select address value
Confirmation
of device address
on remote control MWD RC.
Increment or decrement value.
Changed values doesn’t blink !
Display first parameter name
Actual device address is displayed
with blinking digit and decimal point
Increment or decrement value.
Changed values doesn’t blink !
Display first parameter name
3.2 Change Parameter
Before changing parameter values you have to open the parameter entry as described above.
a) Remote Control MWD RC
Symbol Key
Keypress
Description Action
2.
F
L.
Display
Example
Ñ1.Ò
2.
L.
Display
Example
Volume +
1.
Volume -
2. On/Off short
Volume +
3.
Volume -
4a. On/Off short
or
4b. On/Off long
5. On/Off short
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
short
(long)
short
(long)
Change parameter name
(long: quick selection)
Return to display
parameter value
Change parameter value
(long: quick selection)
Undo changes
Save new parameter value
Return to display
parameter name
Display parameter name with character and decimal point.
Actual parameter value is displayed
without decimal point.
Display changed parameter value
with blinking decimal point.
Display actual parameter value again
(without decimal point)
Decimal point expires after successful saving.
Display parameter name with character and decimal point.
d.
P.
2.Ò
0.Ò
d.
1
1
2
Instruction Manual Radar Motion Detector MWD BP 7/13
b) Buttons on Motion Detector MWD BP
Key
1. Right
2. Left short
3. Right
4a. Left short
or
4b. Left long
5. Left short
Keypress
short
(long)
short
(long)
Description Action
Change parameter name
(long: quick selection)
Return to display
actual parameter value
Change parameter value
(long: quick selection)
Undo changes
Save new parameter value
Return to display
parameter name
Display parameter name with character and decimal point.
Actual parameter value is displayed
without decimal point.
Display changed parameter value
with blinking decimal point.
Display actual parameter value again
(without decimal point).
Decimal point expires after successful saving.
Display parameter name with character and decimal point.
Display
Example
d.
1
2.Ò
1
2
d.
3.3 Close Parameter Entry
a) Remote Control MWD RC
Symbol Key
1. On/Off long
Keypress
Description Action
Close parameter entry
from standard parameter menu
service parameter menu
display off
Display
Example
b) Button on Motion Detector MWD BP
Key
1. Left long
c) automatic
60 s after last keypress on the remote control or directly on the motion detector parameter entry is closed automatically.
Keypress
Description Action
Close parameter entry
from standard parameter menu
service parameter menu
display off
Display
Example
3.4 Show Service Parameter
To display the Service Parameter you have first to open the parameter entry as described in chapter 3.1 .
Service Parameter names are displayed with blinking character and static decimal point.
Menu navigation is conform to the navigation of standard parameter.
a) Remote Control MWD RC
Symbol Key
1. F+ or F- - long
b) Button on Motion Detector MWD BP
The left button is functionally assigned to the On/Off-button on remote control MWD RC.
The right button is equivalent to the Volume +- button.
Button
1. Left and Right long
Keypress
Keypress
Description Action
Activate service parameter from
standard parameter menu
Description Action
Activate service parameter from
standard parameter menu
Display first service parameter name
Display first service parameter name
Display
Example
ÑA.
Display
Example
ÑA.
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 8/13
4 Standard Parameter List
Parameter Name
Sensitivity Level
direction
human detection
vehicle detection
Cross traffic suppression
Object tracking
relay function
7-Segment Di splay
Parameter
Name
L.
d.
h.
u.
C.
O.
r.
Value Range
1..9,
A..F
0..2
0..3
0..3
0..3
0..3
0..4
Parameter Definition
1 = low
:
7 = middle
:
9 *
:
F = high
0 = off
1 = approaching *
2 = departure
0 = off *
1 = low
:
3 = high
0 = off *
1 = low
:
3 = high
0 = off *
1 = low
:
3 = high
0 = off *
1 = low
:
3 = high
0 = off
1 = channel 1 * (for channel 1)
2 = channel 2 * (for channel 2)
3 = channel 1 OR channel 2
4 = channel 1 AND channel 2
0 = 0s *
1..F = 0.2s .. 3.0s (value x 0.2s)
0 = 0s
1 = 0.2s (value x 0.2s)
2 = 0.4s *
3..F = 0.6s .. 3.0s
0 = normally de-energized *
1 = normally energized
0 = parameter changed after profile setting (only dis played ! )
1 = Profile No 1: initiate
2..9 = Profile No. 2..9
Factory Setting *
* factory setting
output on delay time
output off delay Time
relay operating mode
Profiles
t.
T.
o.
P.
0..F
0..F
0..1
0..9
Note:
Resetting to factory values can be effected by parameter name “profile” with parameter value “1”. Alternatively
press both keys while switching power supply on.
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 9/13
5 Service Parameter List
Parameter
device Address
miscellaneous Settings
firmware information
* factory setting
** Key operation is always available in the first 15 minutes after power on regardless of the parameter setting. If the display of the relay
output is deactivated, only the decimal point is commonly used to show the relay status of both channels.
7-Segment Di splay
Parameter
Name
A.
S.
i. -
Value Range
1..9,
b..d
0..3
1 = 1 *
: (only odd address)
d = 13
0 = all off **
1 = key operation on, display relay output off
2 = only display relay status off **
3 = key operation and display relay output on *
show Firmware-Version on display:
- manually, with „
- automatically, with „i“-Button one character per second
Parameter Definition
“-Button for each character
6 Profiles
Profile No.
Channel 1 2 1 2 1 2 1 21212121212
1234 56789
Sensitivity
Level
Direction
Human
Detection
Vehicle
Detection
Detection
Cross
Traffic
Suppr.
Object
Tracking
On delay
Off delay
Assign-
Relay
ments
(Logic)
Working
Principle
Remarks
Ch1 = Channel 1 Ch2 = Channel 2
AP = normally de-energized RP = normally energized appr. = approaching direction
999999999
appr. appr. appr. appr. appr. appr. appr. appr. appr.
- - - = 2- - - = 2- - -
- - --= 2- --= 2- -
- - - - -= 2- - -= 2-
- - - - --= 2- --= 2
---------
400 ms 400 ms 400 ms 400 ms 400 ms 400 ms 400 ms 400 ms 400 ms
Ch1 Ch2 Ch1 - Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2
AP AP AP AP AP AP RP RP RP
Factory
Setting:
additional
parameter
(e.g. device
address =1)
will be
initialized
too.
Channel 2:
Relay output
off
same as
Factory
Setting
without
initializing
additional
parameter
Channel 1 :
only persons
Channel 2 :
only vehicles
Channel 1 :
all objects
Channel 2 :
cross traffic
suppression
Channel 1 :
all objects
Channel 2 :
slow motion
object
tracking
Profile No. 4,
but with RP
Profile No. 5,
but with RP
Profile No. 6,
but with RP
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 10/13
7 Notes
- The MWD BP is a 2 channel device. While opening parameter entry first the odd address used to open chan-
nel 1 will displayed. The following even device address activates channel 2.
- In factory settings relay 1 with change over contacts is assigned to channel 1 (display „
normally open contact is assigned to channel 2 (display „
parameter entry.
- Only the odd device address of channel 1 can be changed. The address of channel 2 results from the following
even address.
- Common parameter (e.g. firmware info, profiles...) can be displayed/changed with eve n or odd device ad-
dress.
| |.“). It is possible to change relay assignments via
|
.“) and relay 2 with

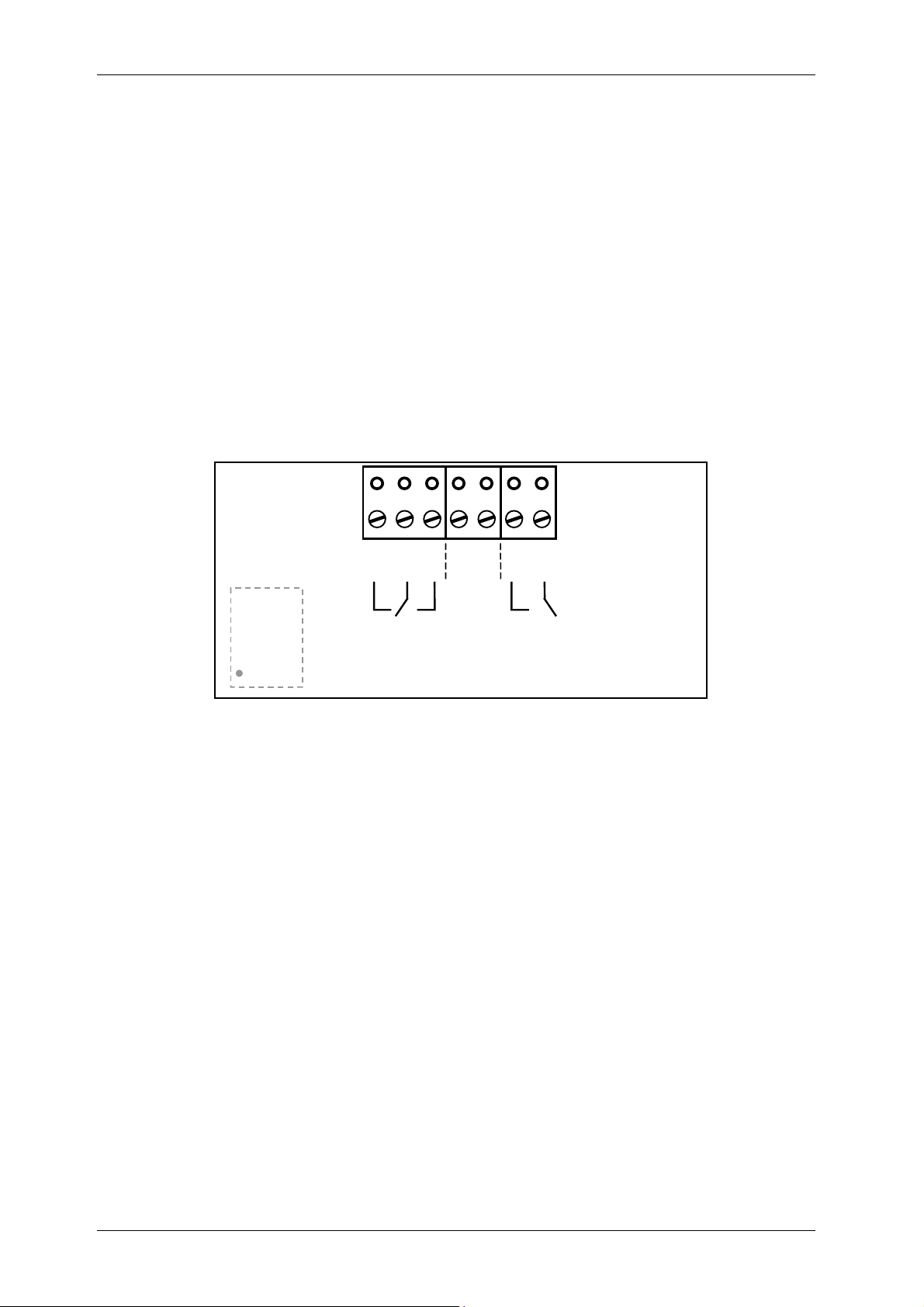

8 Connections
2 3
1
X1
4
6
5
7
8
9 Technical data
Dimensions
Protective system
Power supply
Power consumption
Admissible working temperature
Storing temperature
Air moisture
Transmit frequency
Output power (EIRP)
NC
Com1NO
1
Backside view, Contact status for power off
GND 24V
1
135x65x130mm (BxHxT)
IP 65
12-27 V AC / 12-30 V DC
typ. 1,0 W, max. 2,4 W
-20 °C .. +60 °C
-30 °C .. +75 °C
< 95 % not condensing
typ. 24,125 GHz
typ. 40 mW, max. 100 mW
NO2Com
2
Output relay
max. switching load 1 A / 30 V AC/DC (resistive load)
min. switching load 1 mA / 5 V DC
Use external protective wiring for inductive load !
Maximum mounting height
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
7 m
Instruction Manual Radar Motion Detector MWD BP 11/13
10 Type Approval
10.1 Europe (CE)
When used according to regulation, this radio equipment conforms with the basic requirements of article 3 and the
other relevant provisions of the R&TTE guideline1999/5/EC dated March 99.
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 12/13
10.2 USA (FCC) / Canada (IC)
FCC ID: PJMMWDBP
IC: 6633A-MWDBP
This device complies with part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications made to this equipment not expressly approved by FEIG ELECTRONIC
GmbH may void the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the li mits for a Class B digital device, purs uant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Instruction Manual Radar Motion Detector MWD BP 13/13
11 Safety instructions
• This device shall only be used for the purpose intended by the manufacturer.
• The operating instructions have to be handed out to each user and accessible at any time.
• Improper changes and spare parts resp. special features which are not sold or recommended by the manufac-
turer of the device may cause fires, electric shock and i njuries. Such measures therefore lead to nonliability of
the manufacturer and no guarantee will be given.
• For this device, the indemnity contract applies in the version valid at the time of purchase. W e exclude liabil-
ity for improper or wrong manual or automatic adjustment of parameters resp. improper use of the appliance.
• Repair work should only be carried out by the manufacturer.
• Connection, initiation, maintenance, measuring and adjustment of the motion detector should only be carried
out by electrical engineers with accident prevention skills.
• When handling appliances which get into contact with electric current, VDE-rules have to be observed - espe-
cially VDE 0100, VDE 0550/0551, VDE 0700, VDE 0711, VDE 0860, VDE 0105 as well as the fire – and
accident prevention standard VBG4.
• Please switch off current supply prior to opening the device and make sure that it remains off.
• If an indicator lamp goes out, this is not a proof that the device is without electricity and disconnected from
power supply. All work that is carried out at the device as well as installation has to be carried out in conformance with the national electric regulations and the local rules.
• The user has to make sure that the appliance is mounted and connected according to the technical rules of the
country of installation as well as other regio nal regulations. This applies especially to cable dimensioning,
protection, earthing, cutoff, disconnection, isolation supervision and excess current cut-out.
• Low-voltage operation is not allowed at the relay outputs.
• According to machine rule 89/392/EWG, appendix IV, the device may not be used as a safety component. In
facilities with a high danger potential, additional safety devices are necessary !
• The hard gold alloy of the relay contacts is destroyed if switching currents of more than 100 mA are used.
Relays with such pre-damaged contacts may only switch currents of more than 100 mA reliably!
• If the place of operation is located in direct proximity to foil gates, suitable measures have to be taken to
branch off the electrostatic charging of the gate foil.
Manual MWD BP.doc as 07/21/2006 FEIG ELECTRONIC GmbH
Loading...
