RECON V2
MODEL FSV1131-02
USER MANUAL
Revision A 12/10/2018
Shenzhen Fatshark Co., Ltd
Headset Operation
Battery Charging: The battery in the headset is a standard 18650
2600mAh Li-ion cell, and can be charged with built-in charger by
connecting a micro USB power supply to the headset.
Brightness and Contrast: Slide the 5-way button left and right or
forward and back for contrast and brightness adjustment.
Channel Selection: Short press channel Up(CH+)/ Down(CH-) button
to incrementally increase/decrease the channels. Long press and
release the Up(CH+) button to change band; long press and release the
Up(CH-) button to do auto scan active channel.
DVR Recording: Vertically depress the 5-way button and listen for the
short beep to start and stop recording video from the live feed. Longpress the 5-way button to enter the DVR menu and browse/play content.
This DVR has no auto save recording file function, need to manually
stop recording to save file.

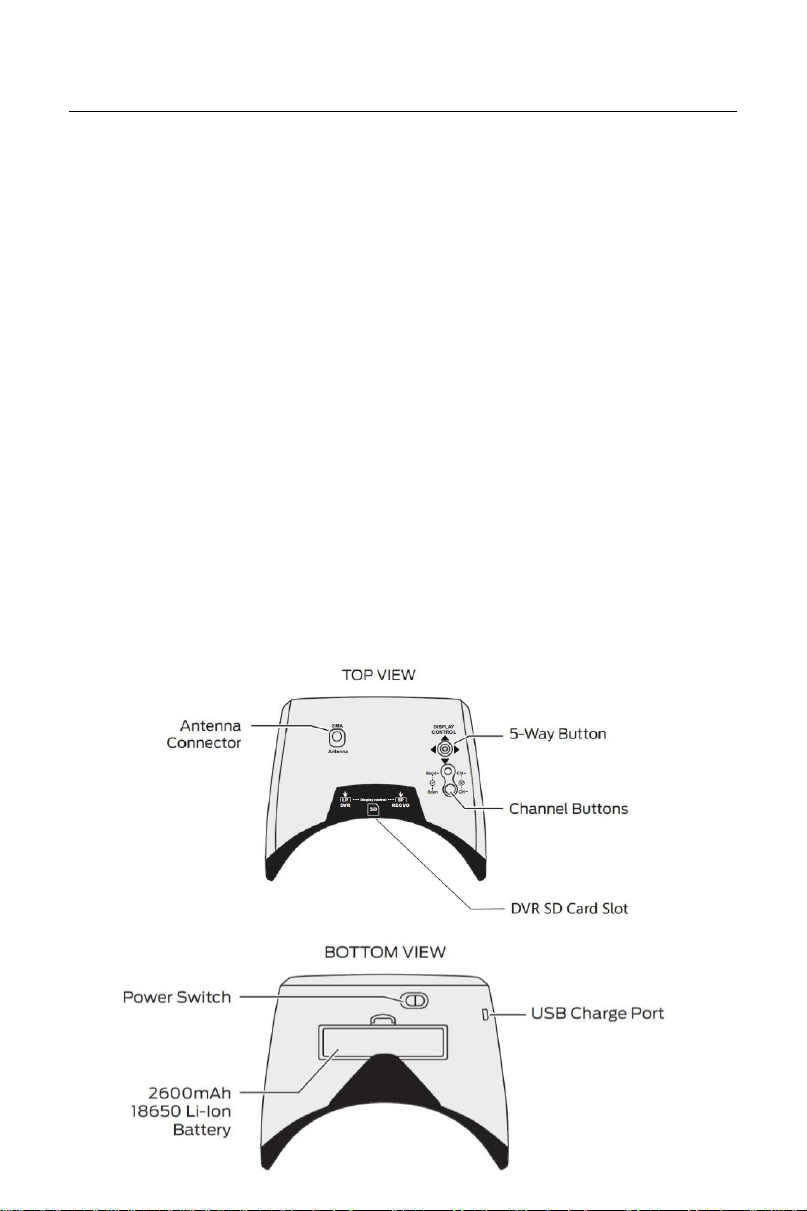

Control Diagram:
Shenzhen Fatshark Co., Ltd

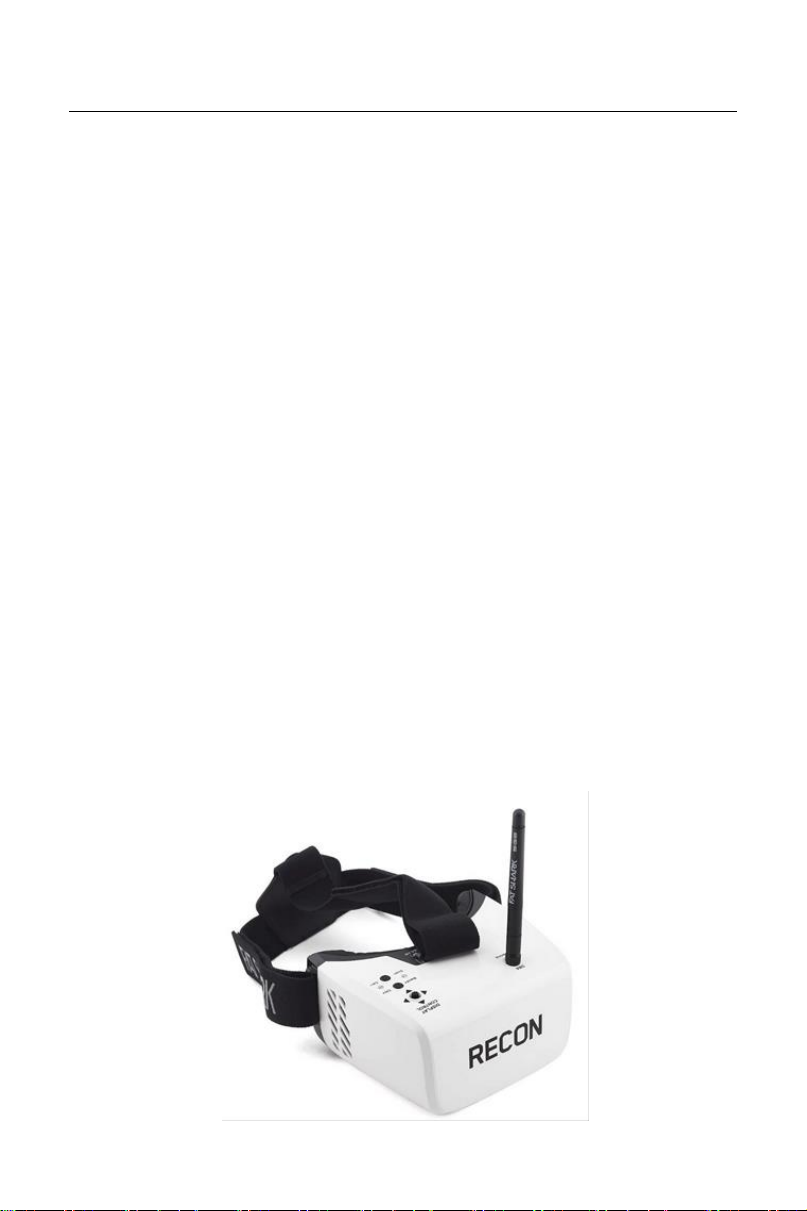

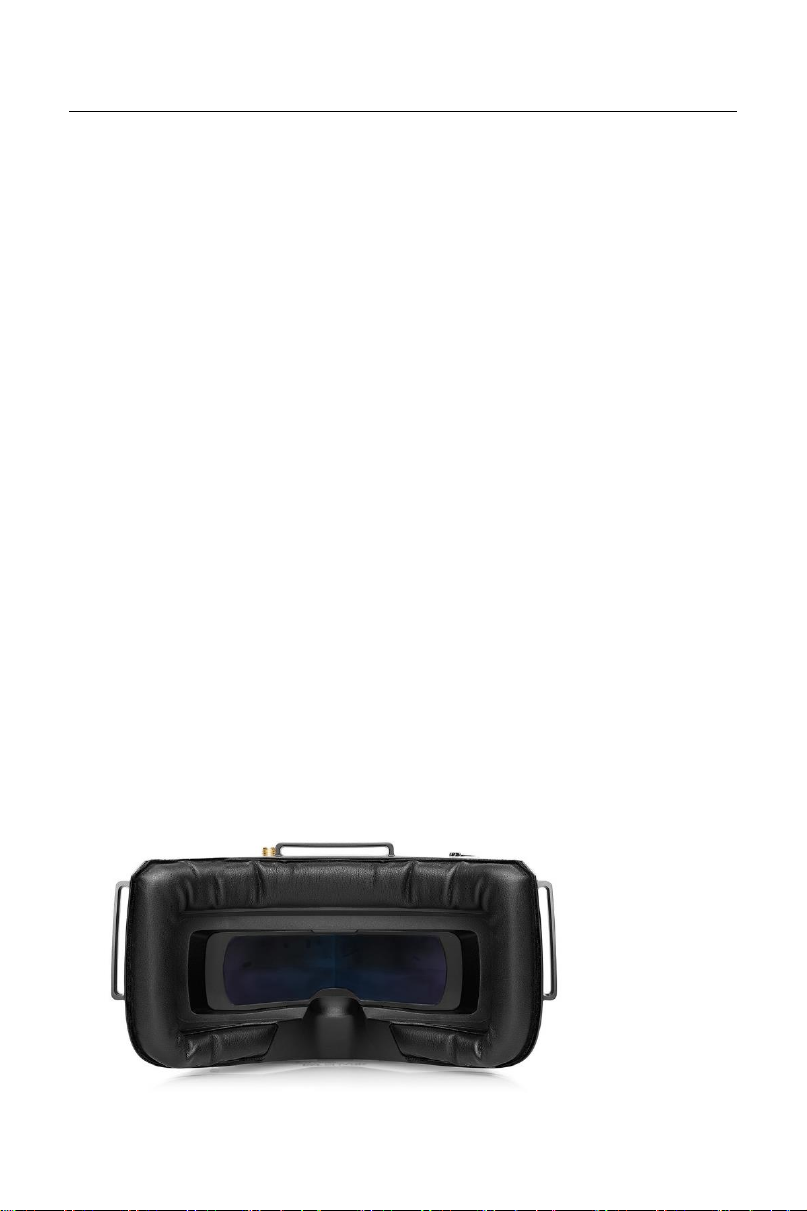

Version 2 of the popular and affordable Recon FPV goggles are here!
Fat Shark has now added an onboard DVR to the Recon V2 goggles
so you can always be able to save your flight footage.
The Recon V2 goggles are a simple, affordable solution to ultra-
immersive FPV. With an integrated four band, 32-channel receiver and
simple USB charging, the Recon puts ease-of-use first and lets pilots
focus on the full FPV experience without worrying about extra charging
cables or accessory components.
Use the integrated channel scanner to pick up the strongest nearby
feed or manually change channels and band through the simple and
intuitive controls. An onboard OSD shows video signal strength, battery
lifetime and channel selection.
A great value goggle, perfect for beginners, or as a backup to your
more expensive goggles.
Shenzhen Fatshark Co., Ltd
Features
Extremely comfortable with 3-way head strap.
Convenient DVR recording with OSD.
Compact design makes it easier to travel with than other panel
viewer goggles.
Panel viewer with no strain on eyes.
Channel scanner built-in.
On-board OSD shows Video Signal Strength (RSSI), battery
level, and frequency.
Specifications
Battery: 18680 Li-ion with USB micro charge port
DVR: Yes, Micro SD card (Card not included)
Resolution: WQVGA
Field of View: 55°
Receiver: 32 channel 5.8GHz with scanner or manual buttons
Dimensions: 150x120x80mm
Weight: 363g (without antenna)
