Fat Shark |
1 |
RC Vision Systems |
DOMINATOR HD3
MODEL FSV1076
USER MANUAL
Revision A 11/01/2016
For more product information, please visit: www.fatshark.com
All Rights Reserved
Fat Shark |
2 |
RC Vision Systems |
|
Contents |
|
Product Contents........................................................................................................ |
|
3 |
Controls Diagram ....................................................................................................... |
|
4 |
Headset Operation ..................................................................................................... |
|
5 |
Controls .................................................................................................................. |
|
5 |
DVR Operation ....................................................................................................... |
|
5 |
AV Cable Pinout ..................................................................................................... |
|
6 |
HDMI Input ............................................................................................................. |
|
6 |
Powering Options ....................................................................................................... |
|
6 |
ezUHF TX/JR Module............................................................................................. |
|
6 |
Futaba Radio.......................................................................................................... |
|
6 |
Base Station ........................................................................................................... |
|
6 |
1800mA Battery Pack............................................................................................. |
|
7 |
Battery Charging ........................................................................................................ |
|
7 |
Accessories................................................................................................................ |
|
8 |
Trinity Head Tracker............................................................................................... |
|
8 |
Receiver Modules (1.3G/2.4G/5.8G) ...................................................................... |
8 |
|

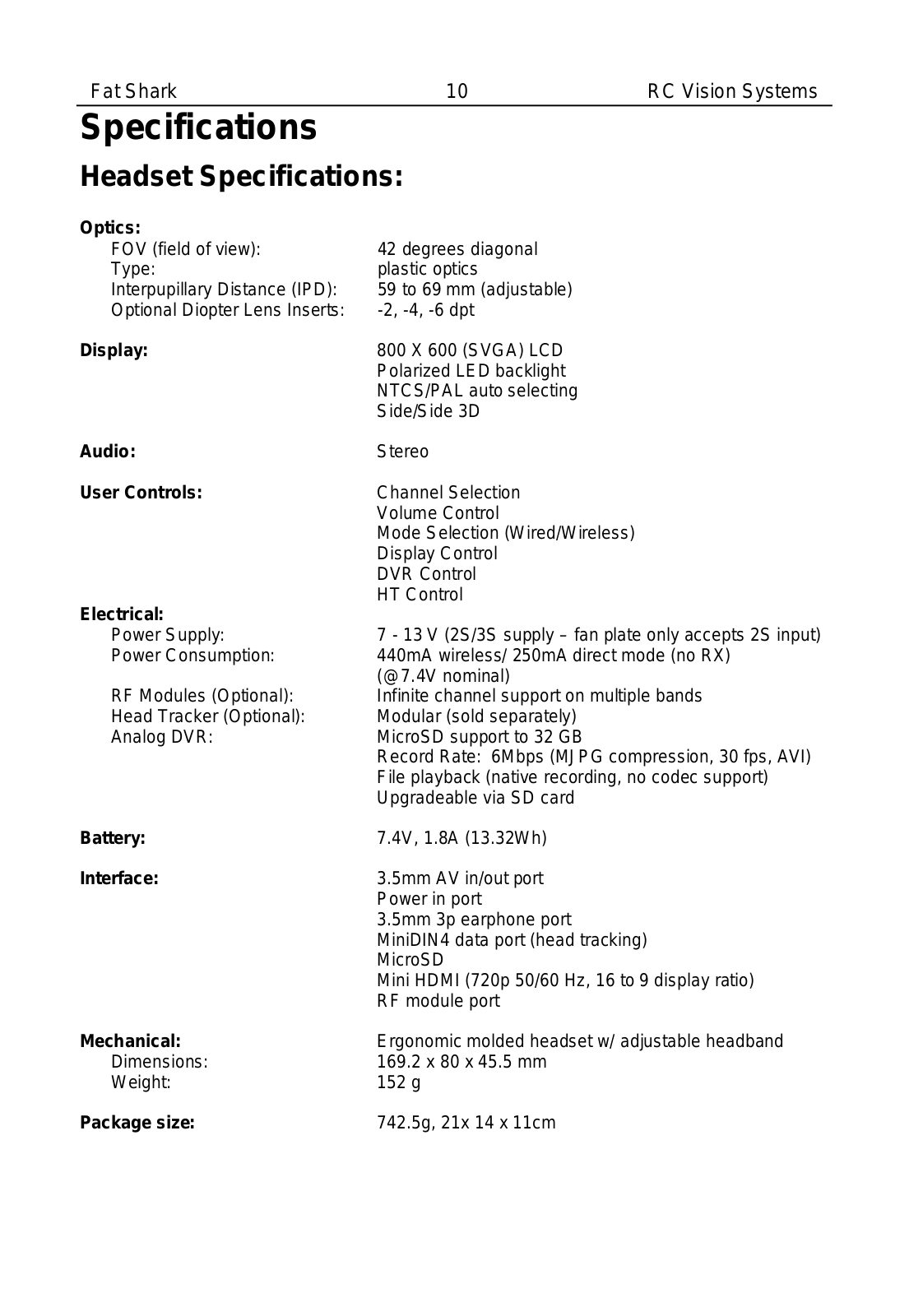

Specifications ........................................................................................................... |
|
10 |

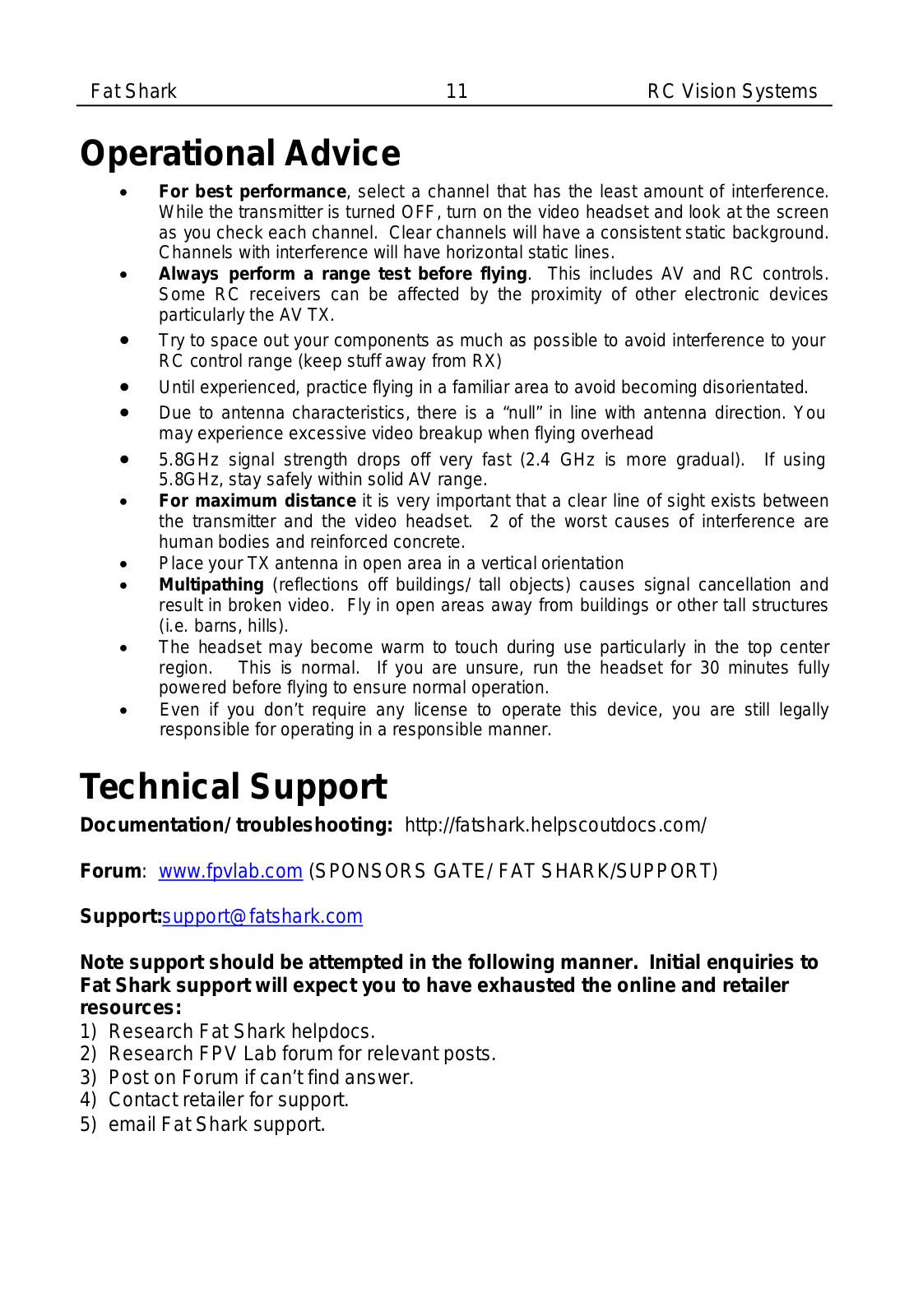

Operational Advice ................................................................................................... |
|
11 |
Technical Support .................................................................................................... |
|
11 |
Warranty................................................................................................................... |
|
12 |
Introduction
Congratulations on purchasing the Fat Shark DominatorHD3 modular SVGA FPV goggles with integrated DVR for analog recording. To ensure your continued enjoyment, please take the time to read through this operating manual thoroughly before using.
Product Compatibility
The DominatorHD3 has been designed to adhere to established video standards and is compatible with any product also adhering to accepted video standards. Due to the high number of different manufacturers and variation in quality, it’s impossible to for us to have tested with every product combination and some troubleshooting may be required if mix/matching components. The Dominator HD3 has been thoroughly tested with ImmersionRC gear. For best results and no compatibility issues, Fat Shark recommends ImmersionRC gear for your accessory products.
IMPORTANT!!!! Product Warning!!!!!
DO NOT LEAVE HEADSET EXPOSED TO DIRECT SUNLIGHT. SUNLIGHT WILL MAGNIFY THROUGH THEOPTICS AND BURN HOLES IN THE LCD COLOR FILTER (appears as white open areas).
THIS WILL NOT BE COVERED BY WARRANTY. KEEP GOGGLES IN PROTECTIVE CASE WHEN NOT IN USE.
Fat Shark |
3 |
RC Vision Systems |
Product Contents
Carry Case
DominatorHD3 Headset w/ Face Plate
7.4V, 1800mAh Li-po USB Battery w/ LED Indicator
AV Cable (2003)
Quick Start Manual
Fat Shark |
4 |
RC Vision Systems |
Controls Diagram
Head
Tracker
DVR |
Brightness(left/right) |
start/stop/playback |
Contrast(forward/back) |
control |
2D or 3D Mode(vertical) |
Volume Level |
Channel Selection |
|
|
IPD Adjusters |
|
Rec |
Receiver on/off |
Indicator |
(Power to Rx module) |
PS/2 Data Port |
Earphone Jack |
(Head Tracker) |
|
|
Mini HDMI |
|
port |
DVR Micro SD Card Slot |
|
for Analog Recording |
|
(no HD recording) |
|
