Fat Shark FSV1132 User Manual
Fat Shark 1
Scout
MODEL FSV1132
USER MANUAL
Revision D 05/21/2019
For more product information, please visit:
www.fatshark.com
All Rights Reserved
Fat Shark 2
Contents
Introduction ................................................................................................................................................... 2
Product Compatibility ................................................................................................................................... 3
Product Contents .......................................................................................................................................... 3
Scout Headset Overview ............................................................................................................................... 4
Modes ............................................................................................................................................................ 5
Powered Off: ............................................................................................................................................ 5
RX Input: ................................................................................................................................................. 5
Options Menu........................................................................................................................................... 5
AV/Aux Input: ......................................................................................................................................... 5
DVR: ........................................................................................................................................................ 5
Detailed Inputs .............................................................................................................................................. 5
Power Button ........................................................................................................................................... 6
Band Button ............................................................................................................................................. 6
Channel Button ....................................................................................................................................... 6
5-Way Button: in flight mode .................................................................................................................. 6
5-Way Button: in option menu ................................................................................................................ 6
5-Way Button: for DVR playback ........................................................................................................... 7
Initial Setup ................................................................................................................................................... 7
Detailed Operation ........................................................................................................................................ 8

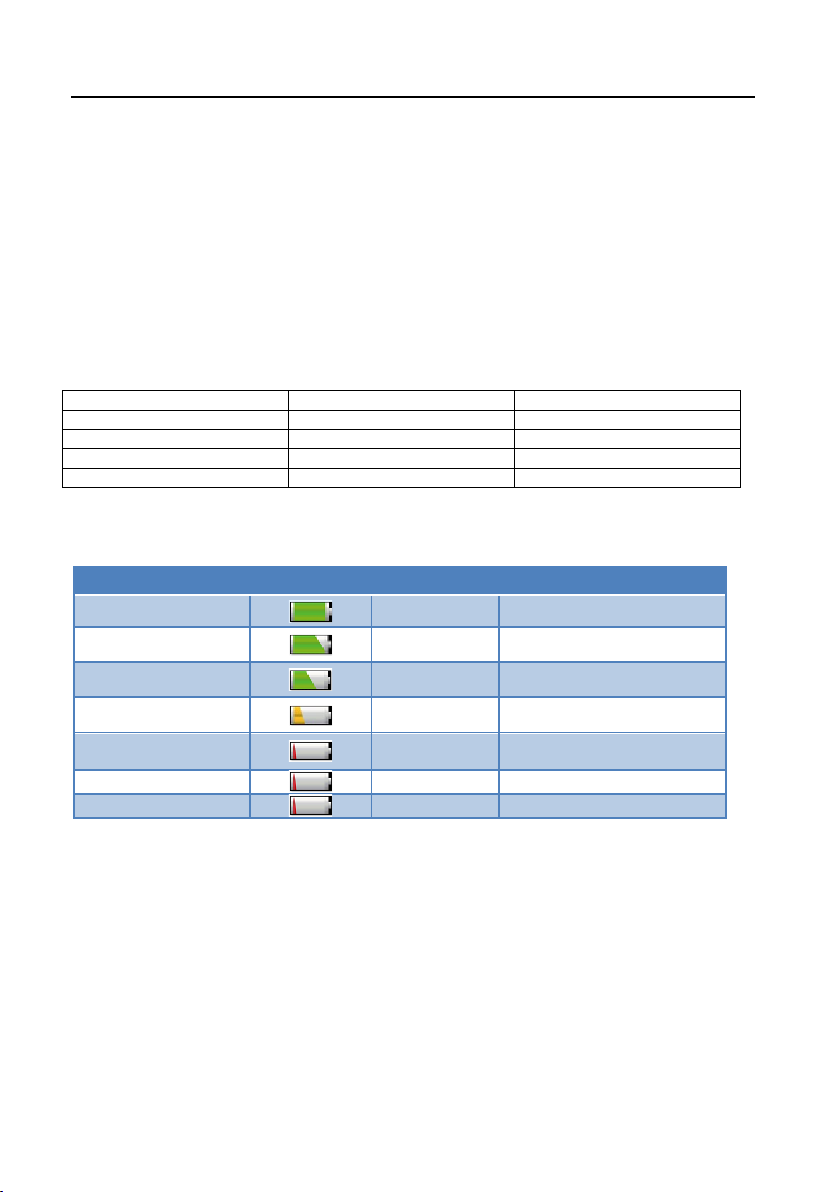

Power Management ................................................................................................................................. 8
General Lithium Polymer safety and handling instructions: ................................................................... 9
Flight OSD and Controls ............................................................................................................................ 10

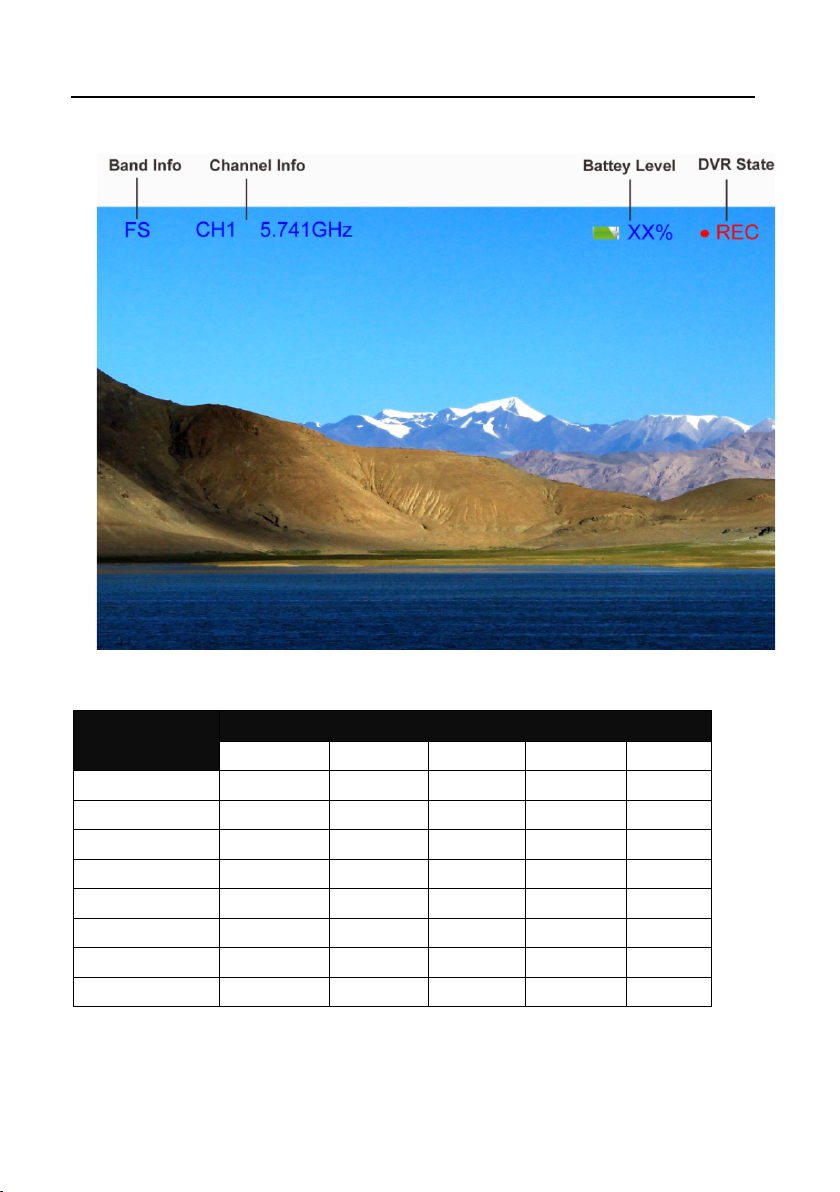

The OSD ................................................................................................................................................ 10
Changing Bands and RX Channels ........................................................................................................ 11
Adjusting Brightness and Contrast ........................................................................................................ 11
Using an AV or Aux input ..................................................................................................................... 11
DVR Operation ........................................................................................................................................... 12

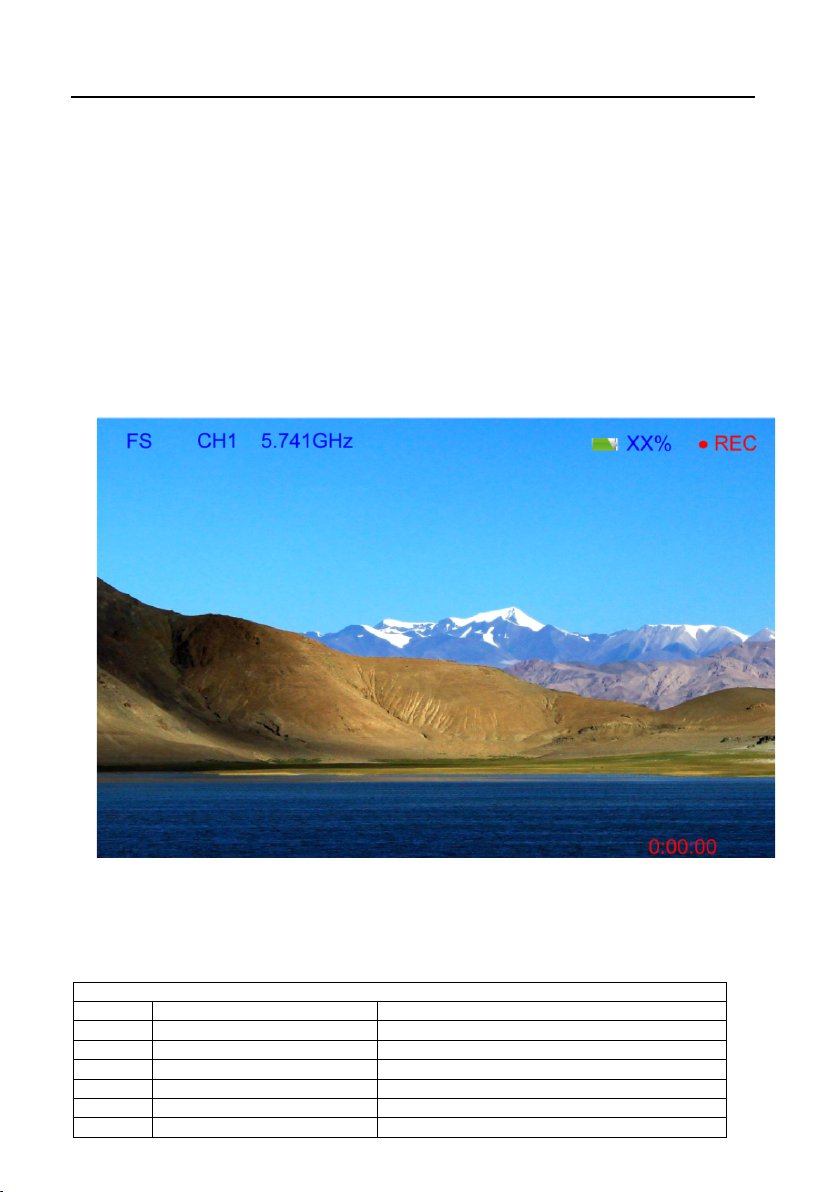

Basic DVR functions ............................................................................................................................. 12
Video Format ......................................................................................................................................... 12
Supported Formats ................................................................................................................................. 13

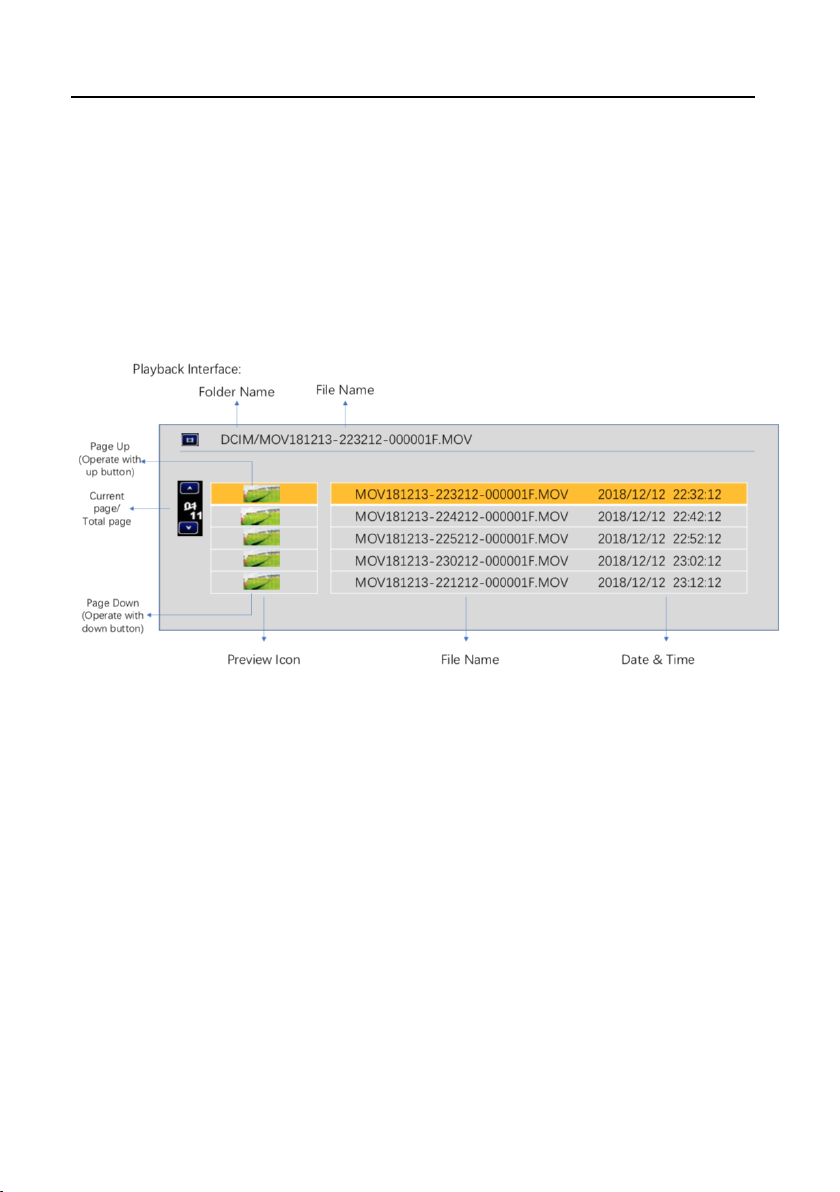

Playback ................................................................................................................................................. 13
Advanced Features ................................................................................................................................. 13
Options Menu.............................................................................................................................................. 15
DVR ...................................................................................................................................................... 15
Source .................................................................................................................................................... 15
Band ....................................................................................................................................................... 15
Display .................................................................................................................................................. 15
Device .................................................................................................................................................... 15
General ................................................................................................................................................... 15
Specifications .............................................................................................................................................. 16
Operational Advice ..................................................................................................................................... 17
Technical Support ....................................................................................................................................... 17
Trouble Shooting ........................................................................................ Error! Bookmark not defined.
Warranty ..................................................................................................................................................... 17
Fat Shark 3
Introduction
Congratulations on purchasing the Fat Shark Scout FPV Headset. The Scout is a goggle packed with the
latest technology including a built-in diversity receiver, a 60 FPS PowerPlay DVR, and everything
necessary for amazing flights. To ensure your get the most out of your experience, please take the time to
read through this operating manual thoroughly before using.
Product Compatibility
The Scout has been designed and tested to work with a wide variety of currently available NTSC and
PAL analog transmitters as well as display video directly from an audio visual or auxiliary source. Due to
the high number of different manufacturers and potential variation in quality it’s impossible to for us to
have tested with every product combination of transmitter and camera and some troubleshooting may be
required if mixing components.
Product Contents
Scout Headset
Omni Antenna
Omni Antenna LED Ring
5G8 Patch Antenna (built-in headset)
18650 2600mAh Battery
(built-in headset)
Fat Shark 4
Scout Headset Overview
Fat Shark 5
Modes
Scout is a multi-function device and has multiple different modes depending on what the user is
trying to accomplish. The modes are powered off, RF input, the options menu, AV/Aux input, and
DVR playback.
Powered Off:
The device is off. This allows the user to leave the Scout without draining the battery. While the
device is off, the user is also able to change the battery or recharge the headset via the USB port.
To turn on the headset, press and hold the power button. You should hear a beep and the LED
indicator should turn red for 3 seconds.
RX Input:
When the device is initially powered on, it will enter RX input mode and will default to the last
channel selected by the user. The screen will turn on and the configurable start-up display will
show the Band, the Chanel, the battery life. The antenna LED will also display your channel color
if in the Race Band mode. You are ready to fly!
Options Menu
The Scout has a wide array of adjustable options and deeper features that are accessed through the
menu system. To enter the options menu, press and hold the center of the 5-way button. The highlevel menu will come up on the screen. The arrows are used to navigate through the options. To
exit the menu, press and hold the center again.
AV/Aux Input:
There are times, like races, when you might want to use the AV or auxiliary video inputs rather
than an RX input. To get into auxiliary input mode, you enter the menu and select source -> the
input source you want to use. In order to go back to RX input, go back into the menu and select RX
as the source.
DVR:
One of the new features in the Scout is the 60FPS PowerPlay DVR. The DVR records on an SD
card and can be accessed in the options menu. The DVR allows playback right in the Scout headset
allowing for a review of a great flight or quick recovery of a lost quad.
Fat Shark 6
Detailed Inputs
There are several user inputs on the device, the power button, the band and channel buttons, and
the rocker switch.
Power Button:
Short Press (less than 0.5 seconds)
Cause the LED to indicate currently battery life when the headset is turned off
! Long Press (hold for 2 seconds or more)
! Turn on when the unit is powered off
! Turn off when the unit is powered on
Band Button: active when the headset is on
Short Press (less than 0.5 seconds)
! Increments the current RX channel by 1 and will go back to channel 1 if currently on channel
8
Long Press (hold for 2 seconds or more)
! Cycles through the RX Bands (FS, Race, Band E, Band B, Band A)
Channel Button: active when the headset is on
Short Press (less than 0.5 seconds)
! Decrements the current RX channel by 1 and will go back to channel 8 if currently on
channel 1
Long Press (hold for 2 seconds or more)
! Does an automatic channel scan in the current band and will automatically select the channel
with the strongest RX signal
5-Way Button: in flight mode
Short Press on the Center (Enter button)
! Starts and stops the DVR recording when in manual DVR mode
Long Press on the Center
! Enter and exit the options menu
Up/Down on the joystick:
! Adjust display brightness up or down in 10% increments
Left/Right on the joystick:
! Adjust display contrast ratio up or down in 10% increments
5-Way Button: in option menu
Short Press on the Center
! Select the highlighted option
Long Press on the Center
! Exit the options menu
