Fatshark 1 RC Vision Systems
DOMINATOR
USER MANUAL
Revision A 07/07/2011
For more product information, please visit:
All Rights Reserved
www.fatshark.com
Fatshark 2 RC Vision Systems
Product contents ......................................................................................... 3
Controls Diagram ........................................................................................ 4
Headset Operation ...................................................................................... 5
Controls ................................................................................................... 5
AV Cable Pinout ...................................................................................... 5
Powering options......................................................................................... 6
Futaba Radio ........................................................................................... 6
Base Station ............................................................................................ 6
Battery ..................................................................................................... 6
Accessories ................................................................................................. 7
Head tracker ............................................................................................ 7
Internal receiver (2.4G/5.8G)................................................................... 8
Diopter lens.............................................................................................. 9
Battery and Charger ................................................................................ 9
Specifications ............................................................................................ 10
Operational advice .................................................................................... 11
Trouble shooting.................................................................................... 12
Warranty.................................................................................................... 12
Contents
Introduction
Congratulations on purchasing the Fat Shark Dominator VGA FPV video
goggles. To ensure your continued enjoyment, please take the time to read
through this operating manual thoroughly before using.
Product Compatibility
The Dominator has been designed to adhere to established video standards
and is compatible with any product also adhering to accepted video
standards. Due to the high number of different manufacturers and variation
in quality, it’s impossible to for us to have tested with every product
combination and some troubleshooting may be required if mix/matching
components. The Dominator has been thoroughly tested with ImmersionRC
gear. For best results and no compatibility issues, Fat Shark recommends
ImmersionRC gear for your accessory products.
IMPORTANT!!!! Product Warning!!!!!
DO NOT LEAVE HEADSET EXPOSED TO DIREC
T
SUNLIGHT. SUNLIGHT WILL MAGNIFY THROUGH THE
OPTICS AND BURN HOLES IN THE LCD COLOR FILTER
(appears as white open areas) .
THIS WILL NOT BE COVERED BY WARRANTY. KEEP
GOGGLES IN PROTECTIVE CASE WHEN NOT IN USE
Fatshark 3 RC Vision Systems
Product contents
Carry case
Dominator headset
Data cable
AV cable
DC power cable
Manual
Fatshark 4 RC Vision Systems
Controls Diagram
Fatshark 5 RC Vision Systems
Headset Operation
Controls
Brightness/contrast control: pressing left and right increases/decreases
display contrast. Press forward/back increases/decreases brightness.
Channel select: Pressing channel up/down buttons will cause the channel to
incrementally increase/decrease. Audio beep on channel change. A long
beep sounds on channel top and bottom limits.
Because 2.4G and 5.8G receiver modules share same channel control but
have different channel settings, refer to following channel mapping chart:
Headset channel 5G8 channel 2G4 channel
11 1
22 2
33 N/A
44 3
55 N/A
66 N/A
77 N/A
87 4
Low battery warning: Audio warning if input voltage drops below 6.8V
Volume control: each press of button increments volume up or down.
Standard earphones can be used with the Dominator.
Head tracker: See section under accessories
RX power switch: The RX module power is independently controlled via this
switch. If a module is inserted, but desired video source is via the AV cable;
the RX module needs to be turned off to avoid image conflict.
AV Cable Pinout
Ground Video AudR AuL
RCA Connector: Yellow: Video, White: Audio Left, Red: Audio Right
Recording Video
Connect AV cable to AV out port on right side of headset. Connect recordin
g
device to cables and set up as per manufacturer directions.
Note: Cables pins are not all the same (see above chart), be sure to connec
t
to headset using the included cable.
Fatshark 6 RC Vision Systems
Powering options
If multiple power sources are supplied at same time (i.e. Futaba radio
and head strap battery) the headset will draw power from the highest
voltage.
Futaba Radio
The Dominator can be powered off a
Futaba radio via the Data Cable.
Note: Best to upgrade the Futaba
radio to a 3S 2200mAh radio lipo
pack for this type of connection as
the headset will cause extra drain on
the transmitter battery pack. A
normal NiMh radio battery will not
have sufficient battery life for safe
flying.
Base Station
Use the AV cable to connect
the video/audio.
AV cable has Y splitter with
male and female DC head to
share power with the external
RX supply (up to 13V).
Battery
The Dominator can be
independently powered via an
external battery pack (see
accessories for 1000mAh 7.4V lipo
pack with specially molded case
for sitting in head strap pocket).
Note that the battery will only
supply power if no other higher
voltages sources are connected.
Fatshark 7 RC Vision Systems
Setup
The head tracker can be configured to output the pan/tilt signals on channels
5 – 8 of the student PPM stream. To enter the setup menu, hold down the
head tracker button before applying power to the headset (release button
immediately after powering).
The head tracker will beep and enter menu mode and beep according to the
following chart. Press the HT button a 2
nd
time during the pause after the
menu choice beep code to select. Head tracker will automatically exit menu
after a selection has been made and begin operating.
Beep code Mode
1 short beep Pan/tilt on CH 5/6 (factory default)
2 short beep Pan/tilt on CH 5/7
3 short beep Pan/tilt on CH 5/8
4 short beep Pan/tilt on CH 6/7
5 short beep Pan/tilt on CH 6/8
6 short beep Pan/tilt on CH 7/8
1 long beep Reverses pan/tilt servo direction
Loops back to top if no selection made
Accessories
Head tracker
The Fat Shark Dominator head tracker is an advanced 3 axis head tracker
that uses gyro sensor for smooth motion detection and accelerometer and
compass sensor for error correction.
Insertion
Fatshark 8 RC Vision Systems
Futaba Radio setup.
Note: Head tracker only works with higher end Futaba radios that support
selective student channel mixing. Connect Data cable and turn on radio.
- Enter TRAINER menu and assign desired head tracking channels to
FUNC (must be set on FUNC). Default is CH 5//6.
- Individual servo direction can be set in REVERSE menu (reverse
not available for 7C users, must reverse direction in HT menu).
Head Tracker Operation
- Head tracker will automatically start tracking upon powering up headset.
- Look forward and level then press the Head Tracker button to center (note,
on 1
st
press HT may drift off momentarily during calibration cycle, hold head
steady until camera returns to center).
- Repressing the HT button during use re-centers the camera position.
- External interference (from RC controller, other devices) may temporarily
cause errant readings in the magnetic sensor and cause drift. If error
between camera and direction your head occurs, hold your head steady in
one position and head tracker will autocorrect to that position.
After auto correction, continue to use normally.
Head Tracker Center Hold Function
To pause and hold head tracker in center position; hold down the HT button
for 4 seconds (4 seconds to pause, 4 seconds to reactivate).

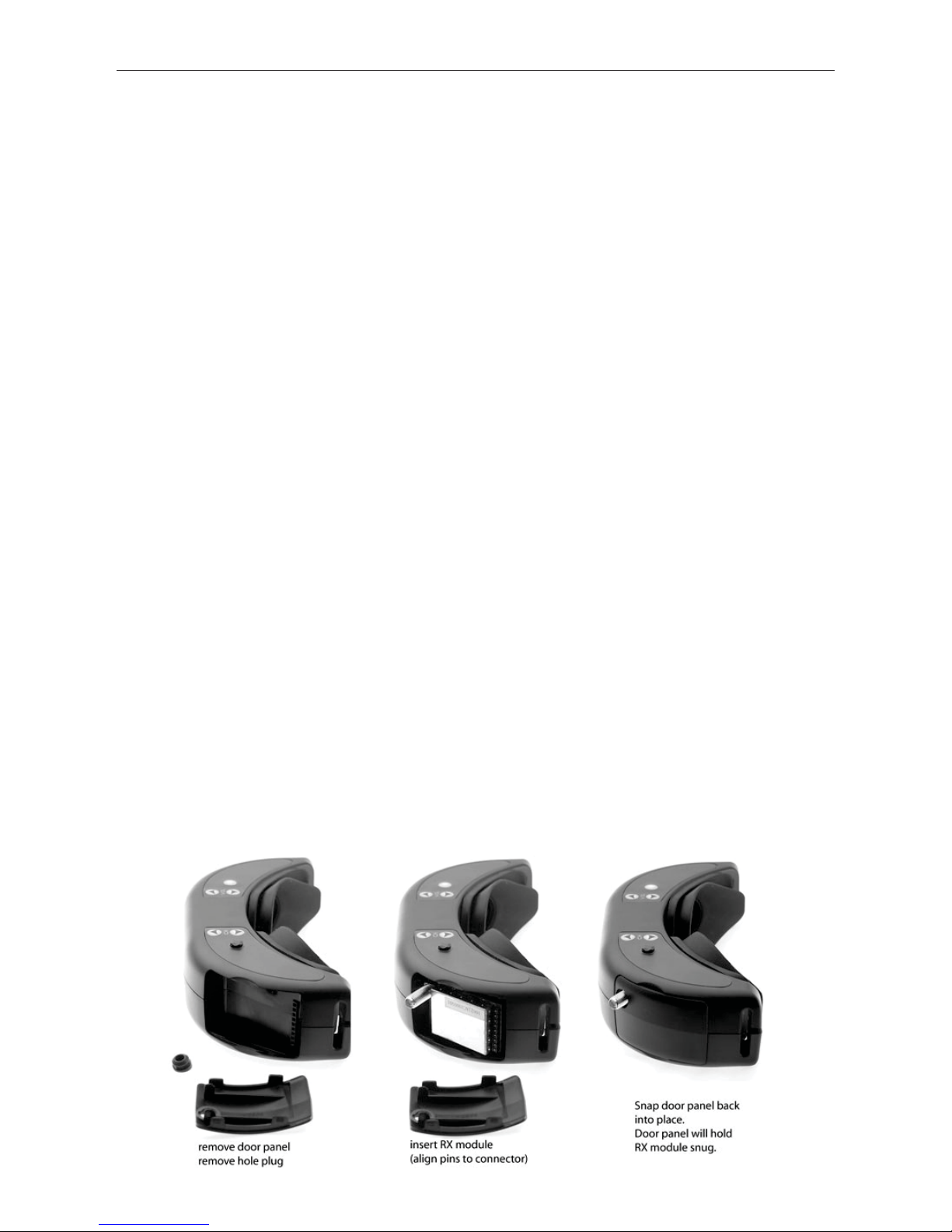

Internal receiver (2.4G/5.8G)
Insertion
Fatshark 9 RC Vision Systems
Diopter lens
For near sighted users, diopter
lens insert sets are available that
include -2, -4 and -6 dpt. See
below insert instructions. Lens
orientation not critical.
Battery and Charger
The 1000mAh 7.4V lithium polymer
battery pack can power the headset
for up to 4hrs in direct mode and
2.5hrs in wireless mode. Internal
safety circuit monitors charging and
prevents accidental over drain. The
molded curved ends hold the battery
snug in the head strap pocket.
Charging Instructions
When the charger is plugged in with
no battery attached, the LED will be
GREEN. When you connect the
battery the LED will turn RED
(charging). When fully charged, the
LED will turn back to GREEN. The charger will automatically stop charging
when the battery is fully charged. Do not leave plugged in while unattended.
DO NOT LEAVE BATTERY ATTACHED TO CHARGER WHEN
CHARGER IS NOT PLUGGED IN.
Frequency chart
Note: Dominator uses Airwaves brand modules. Fat Shark only guarantees
compatibility with transmitters using Airwaves brand modules.
Dominator is compatible with ImmersionRC transmitters.
2.4Ghz 5.8Ghz
CH1: 2414 Mhz CH2: 2432 Mhz
CH3: 2450 Mhz CH4: 2458 Mhz
CH1: 5740 MHz CH2: 5760 MHz
CH3: 5780 MHz CH4: 5800 Mhz
CH5: 5820 MHz CH6: 5840 Mhz
CH7: 5860 MHz
Fatshark 10 RC Vision Systems
Specifications
Optics:
· FOV 30 degrees diagonal
· Interpupillary (IPD) distance: 63.5mm (fixed)
· Image size: 45" @ 7'
· Optional diopter lens inserts available in -2, -4, -6 dpt
Audio:
· Stereo
User Controls:
· Channel selection
· Contrast/brightness
· Volume adjustment
· Head tracker reset/menu control
Electrical:
· Power supply, 7-13V (2S/3S supply)
· Power consumption: 200/370mA (direct/wireless)
System: NTSC/PAL auto select
Mechanical:
· Ergonomic molded shape.
· Rubber eye cups for ambient light reduction.
· Weight: 163g
· Adjustable headband
Display
· Two full color micro VFA LCD's (640 X 480 lines)
· Glass optics
· Polarized LED backlight
· Resolution 922,000 pixels per eye
Receiver
· 2.4 Ghz, 4ch (modular, optional)
· 5.8Ghz 7ch (modular, optional)
Interface
· Wireless module docking bay
· Head tracker docking bay
· 3.5mm 4p AVin/out port
· Power in port
· 3.5mm 3p Earphone port
· PS/2 head tracker port
Fatshark 11 RC Vision Systems
· For best performance, select a channel that has the least amount
of interference. While the transmitter is turned OFF, turn on the
video headset and look at the screen as you check each channel.
Clear channels will have a consistent static background. Channels
with interference will have horizontal static lines.
· Always perform a range test before flying. This includes AV and
RC controls. Some RC receivers can be affected by the proximity
of other electronic devices particularly the AV TX.
· Try to space out your components as much as possible to avoid
interference to your RC control range (keep stuff away from RX)
· Do not use 2.4Ghz AV with 2.4Ghz RC controllers.
· Your 2.4Ghz TX will not affect the RC control of other RC users
(however, their controllers will affect your AV reception).
· Be aware of other 2.4Ghz RC users. If they turn their RC radio
nearby, they may knock out your image.
· Until experienced, practice flying in a familiar area to avoid
becoming disorientated.
· Due to antenna characteristics, there is a “null” in line with antenna
direction. You may experience excessive video breakup when flying
overhead
· 5.8Ghz signal strength drops off very fast (2.4Ghz is more gradual).
If using 5.8Ghz, stay safely within solid AV range.
· For maximum distance it is very important that a clear line of sight
exists between the transmitter and the video headset. 2 of the worst
causes of interference are human bodies and reinforced concrete.
· Place your TX antenna in open area in a vertical orientation
· Multipathing (reflections off buildings/ tall objects) causes signal
cancellation and result in broken video. Fly in open areas away
from buildings or other tall structures (i.e. barns, hills).
· The headset may become warm to touch during use particularly in
the top center region. This is normal. If you are unsure, run the
headset for 30 minutes fully powered before flying to ensure normal
operation.
· 5.8Ghz AV with 2.4Ghz RC controllers: 2.4Ghz may cause
harmonic interference on Ch2 – Ch7 of the 5.8Ghz AV (Ch1 not
affected). The headset has been equipped with a high pass filter
that will allow the system to work with CE certified 2.4Ghz RC
controllers. However, the filtering may be insufficient to remove
noise from overpowered non CE certified controllers.
If you experience interference from your RC radio, change the AV
channel to channel 1.
· Although you don’t require any license to operate this device, you
are still legally responsible for operating in a responsible manner.
Operational advice
Fatshark 12 RC Vision Systems
Trouble shooting
Observation Possible cause/solution
No image, display is
completely dark
- No power supplied. Check power
connections.
No image, display is
glowing dark grey
- If using wireless module, turn on RX power
on bottom of headset.
- If using AV in cable, check video source.
- Ensure TX is on and camera connections
solid
Lots of interference lines
(horizontal lines) with
2.4Ghz receiver
- Choose a cleaner channel.
- Change to 5.8Ghz AV
- Check correct frequency antenna is used
Lots of interference lines
(horizontal lines) when
using 5.8Ghz receiver
Check to see if cause is harmonic interference
from 2.4Ghz RC controller (turn radio on/off).
- Use CH1 on TX/headset (Ch1 not affected
by 2.4Ghz)
- check correct frequency antenna is used
Head tracker not working - Ensure module pins are aligned correctly
into headset socket
- Review controller manual for correct settings
- Check servos are plugged into
correspondingly selected channels
Short range - Ensure correct antenna are installed
- Check for other sources of interference
- Ensure transmitter has clear LOS to
headset. Test in wide open area, away from
any obstructions
Short range (con’t) - Ensure that a compatible antenna is
installed. 2.4Ghz must use a 2.4Ghz antenna
and 5.8Ghz must use a 5.8Ghz antenna
- do not use other manufacture antenna, they
may be dual band or may be reverse SMA (no
center pin to connect to receiver)
White dots on LCD
display
You were careless and left goggles exposed
to sun. Sun burnt off LCD color filter.
Lens fogs up Cooler optical lens are heated by your humid
face causing condensation. Pre warm
goggles by wearing on head.
The system can be exchanged for a new unit within 7 days for any
manufacturing defects if returned in new condition. The video headset
will be warranted for repair for 2 years if no signs of excessive use.
Buyer will be responsible for shipping costs. If beyond the warranty
period we will provide repair services.
Warranty
Loading...
