Studio 900
Welcome to the world of the Fatar Studio Series Keyboard Controllers.
Congratulations on purchasing the ST-900, one of the finest master keyboard
controllers in the world today. The action is a result of many years of design and
engineering to bring the musician a: keyboard mechanism that feels as close to an
acoustic piano as possible.
The Studio-900 is the perfect choice for a musician looking for a simple yet
versatile keyboard controller to produce quality results for the live or studio
environment
TECHNICAL CHARACTERISTICS:
* 88 weighted keys with hammer action
* One zone
* Velocity Sensitive
* Pitch Bend Wheel and Programmable Wheel
* Two Parallel MIDI Outputs
* Sustain Input Jack
"Volume Input Jack
* Program change, MIDI Channel, Transpose, Programmable wheel (Volume, Pan,
Aftertouch, Pitch, Modulation) etc.
* External Adapter 9V DC 500ma included
CONNECTIONS:

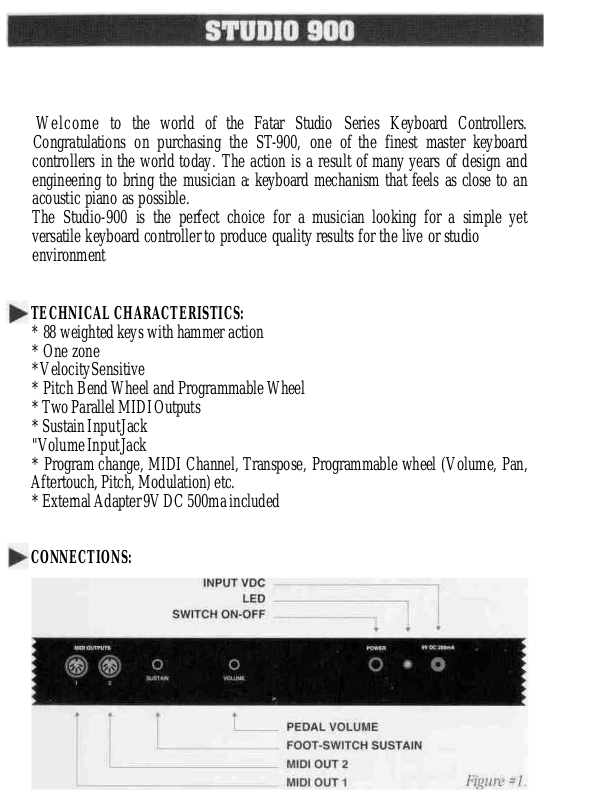

1) Connect the AC adapter cable to the power input jack, in the back of the
controller, located next to the power switch. See Figure #1.
Make sure that the AC adapter corresponds to the correct voltage output. The
Studio 900 will accept an adapter that has a rating of 9V DC with a positive polarity
tip and has a minimum current of 200 ma.
2) Connect MIDI cable from the ST-900 s MIDI outputs, (each output can handle up
to four synthesizers, modules, or effect devices) to the MIDI input on your sound
sources. Set your sound sources to the desired
MIDI
channels
by
the
ST-900.
Each
channel would normally be assigned to a different sound or effect. Since the ST900 has only one zone, you can only program one of the l6 channels at a time.
Make sure that your sound source is properly assigned to the channel you are
sending on.
To select a base channel hold the [CHANNEL[ switch and enter the channel number
(1 through 16) by depressing the appropriate black numbered key (0-9). The
function switch must be released after the black number keys. At this point the ST900 is sending on that channel.
Program change:
A program change command allows you to change the sound on your sound
source from the ST-900. The program change will be sent on whichever MIDI
channel the ST-900 is currently set. Program changes are numbered 1 through 128.
You may notice, depending on the sound source, that a program change of 1 will
show up on your sound source as 0. This is not a problem, since MIDI is not
completely standard between manufacturers. Thank the heavens that there are only
a few anomalies like this between the manufacturers.
To issue a program change, hold the [PROGRAM] switch and enter the desired
number on the numbered black keys with the appropriate program number or use
the [INC]/ [DEC] (increment/ decrement) keys. If a number greater than 128 is
entered, it will wrap around to the beginning.
Bank change:
Some sound sources today, especially found on computer sound cards, have a
feature called bank select. The MIDI specification calls for bank numbers 1 through
16384. Once you have selected your bank you are able to select a program change
(1 through 128).
