3SLAV User’s Manual
Item Checklist
Before you begin installing your motherboard, please make
sure that the following materials have been shipped:
This mainboard comes in a sturdy cardboard shipping
carton, which should contain the following items:
• The main board.
• This user manual.
• One Floppy disk drive cable.
• One Ultra DMA/66 IDE cable.
• One Serial port cable.
• Software utilities.
If you discover damaged or missing items, please contact your
retailer.
User’s manual Version: 1.2
Release Date: May 2000
2
3SLAV User’s Manual
CONTENTS
Introduction ........................................................... 5
1-1 Introduction ......................................................................................5
1-2 Specifications ..................................................................................5
1-3 Block Diagram ..................................................................................8
1-4 Main Board Layout with Default Setting .............................................9
1-5 Static Electricity Precautions ..........................................................10
Installation Procedures ....................................... 11
2-1 Setting System Jumpers ................................................................ 11
2-2 System Memory (DIMM) ................................................................. 14
2-3 Central Processing Unit (CPU) ........................................................ 15
2-4 Expansion Cards.............................................................................15

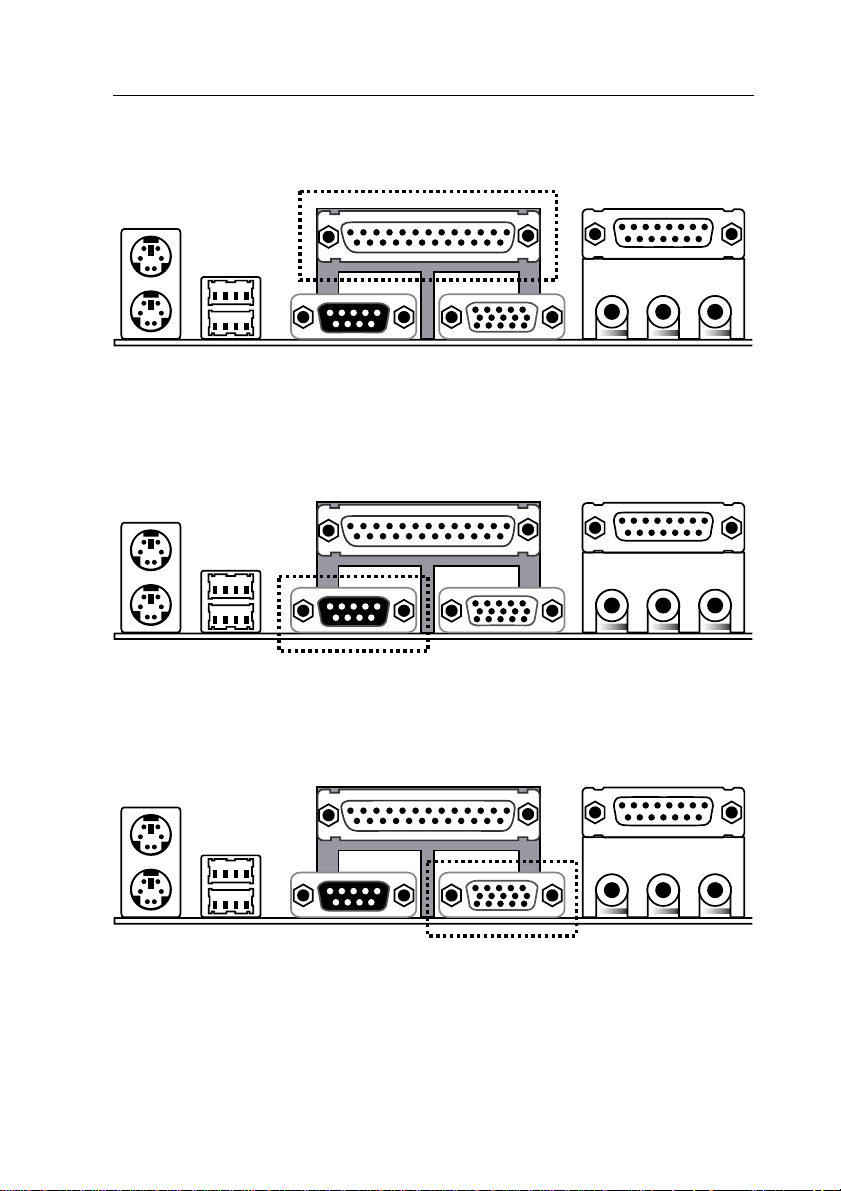

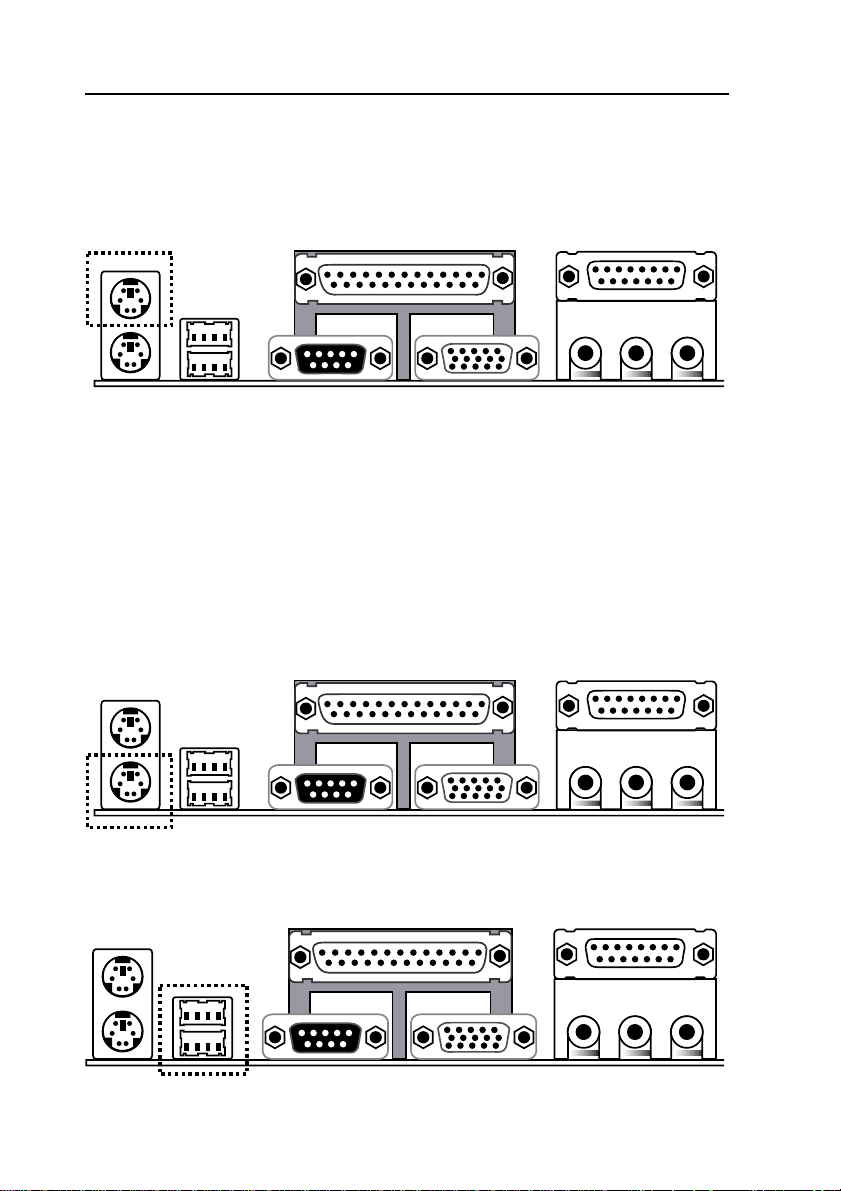

2-5 External Connectors........................................................................ 16
2-6 Power Connection Procedures ........................................................23
AWARD BIOS Setup.......................................... 24
3-1 Introduction .....................................................................................24

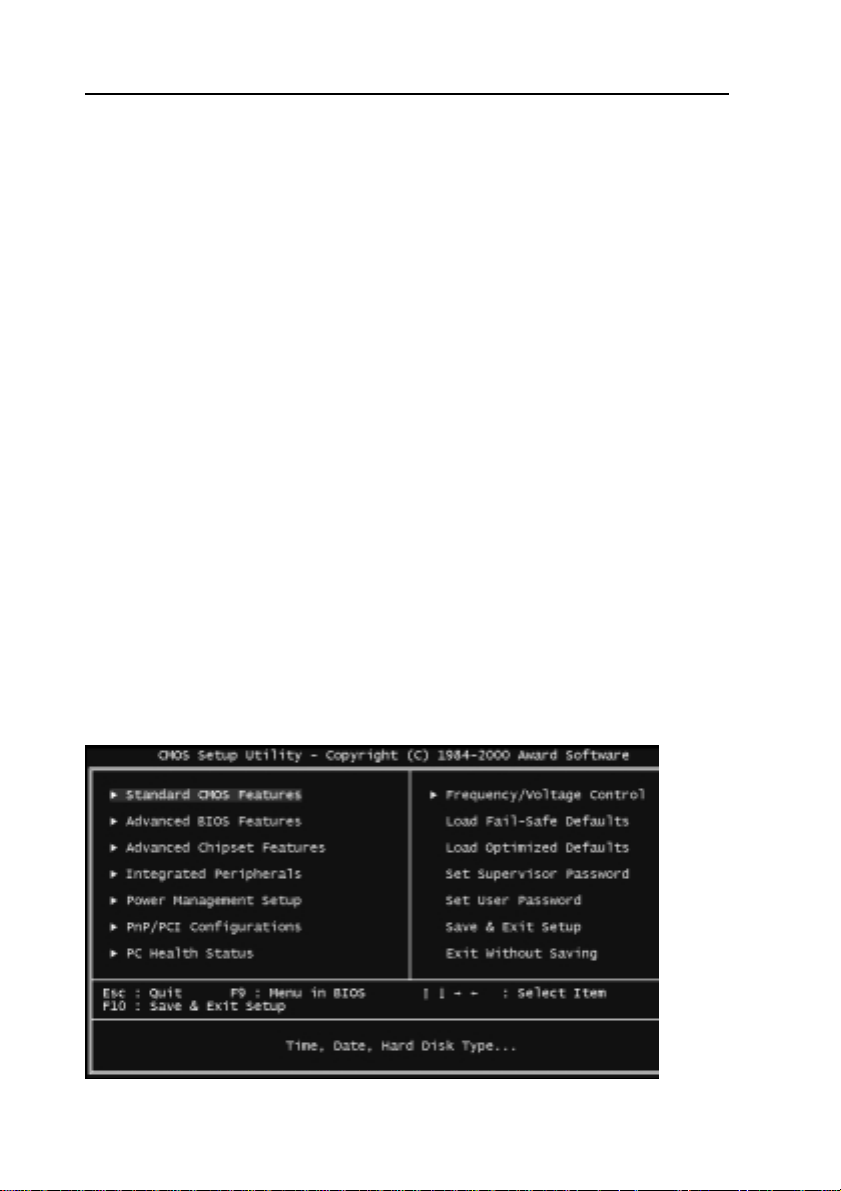

3-2 Main Menu ...................................................................................... 26

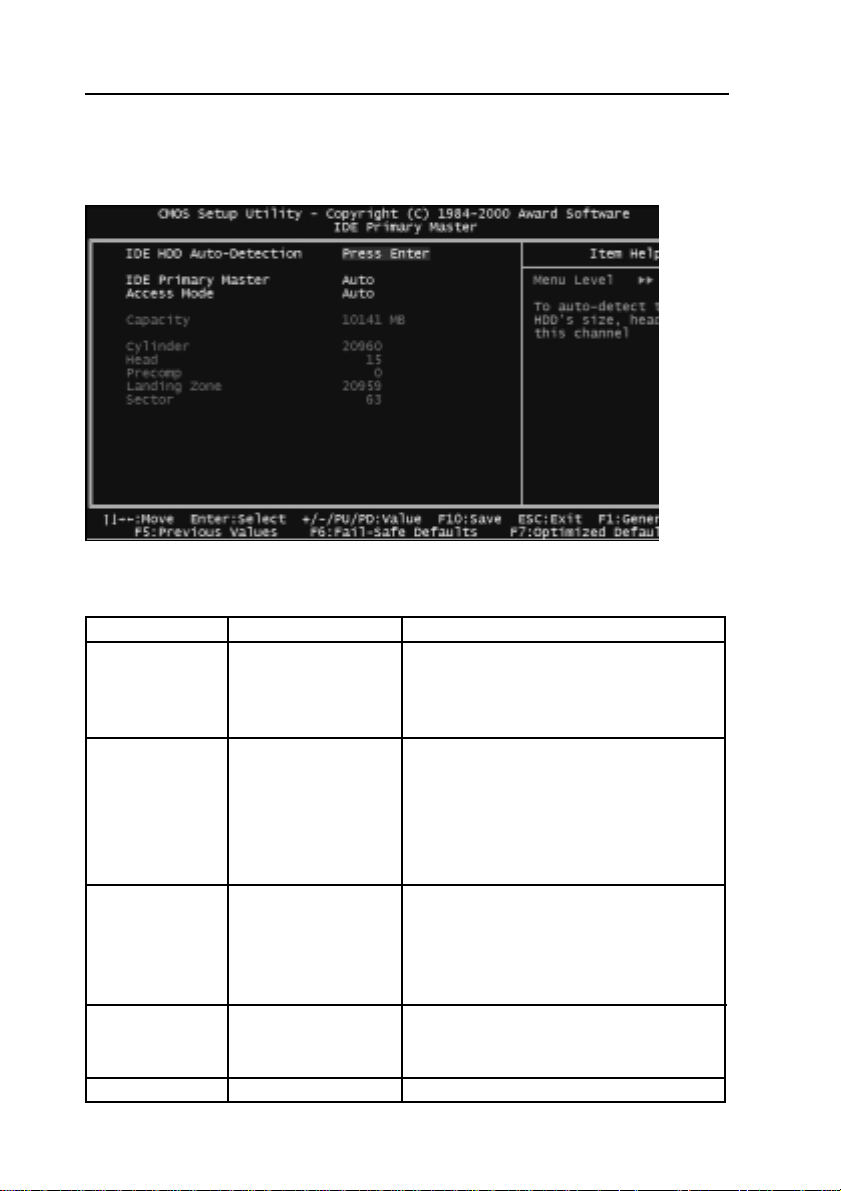

3-3 Standard CMOS Setup.................................................................... 28

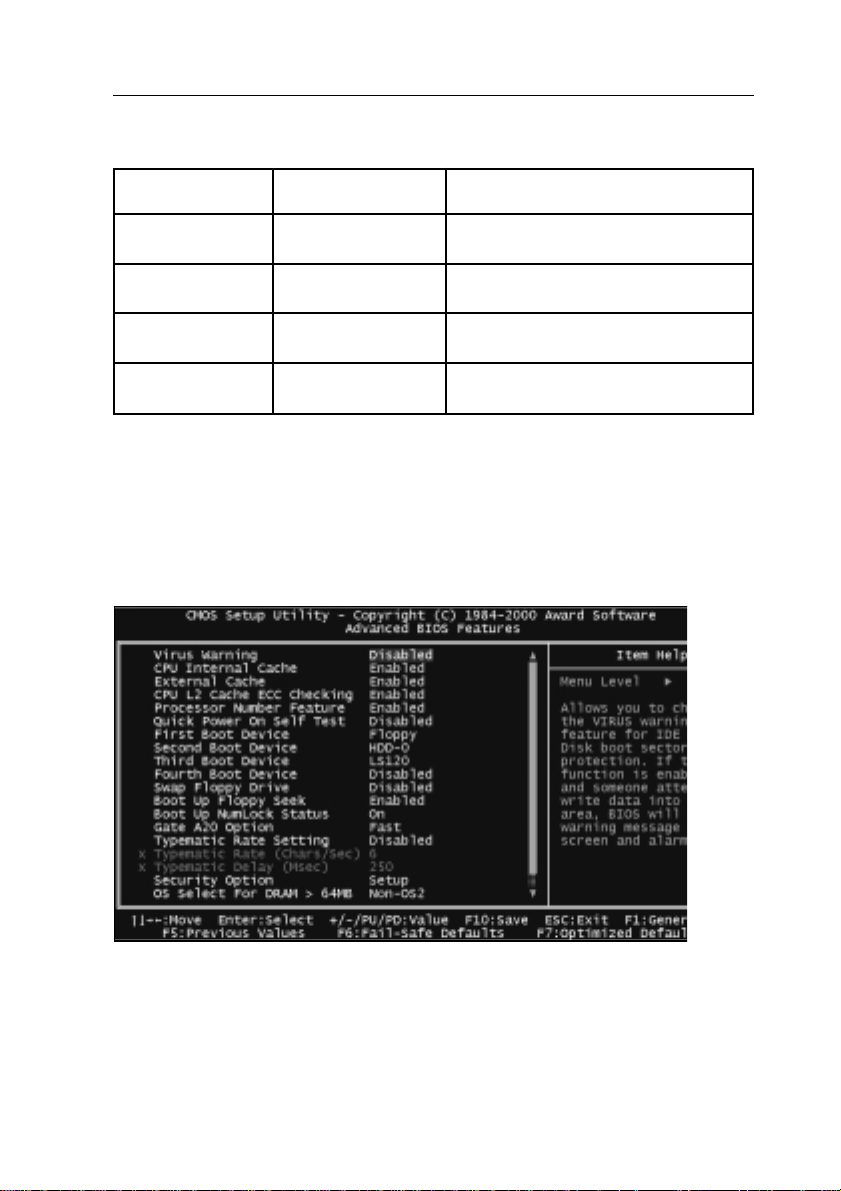

3-4 Advanced BIOS Features ................................................................ 31

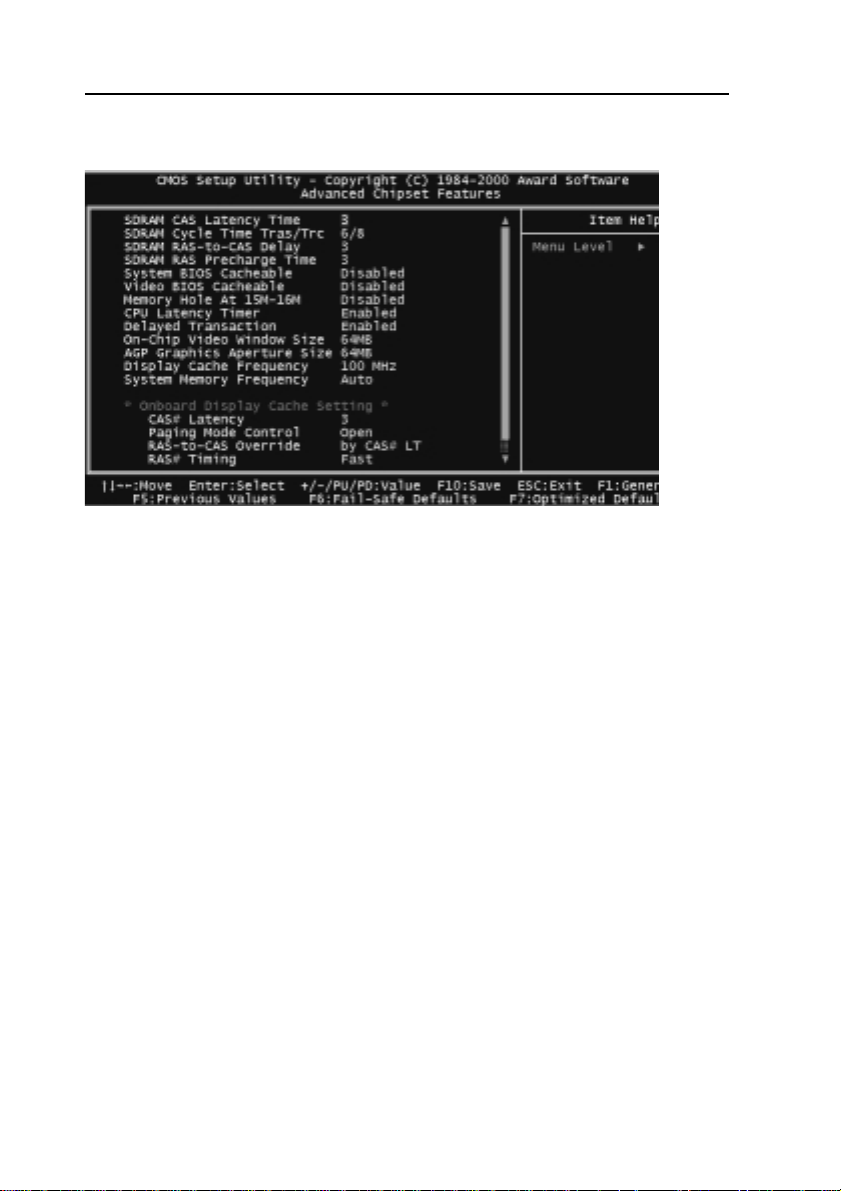

3-5 Advanced Chipset Features/Integrated Peripherals.......................... 34

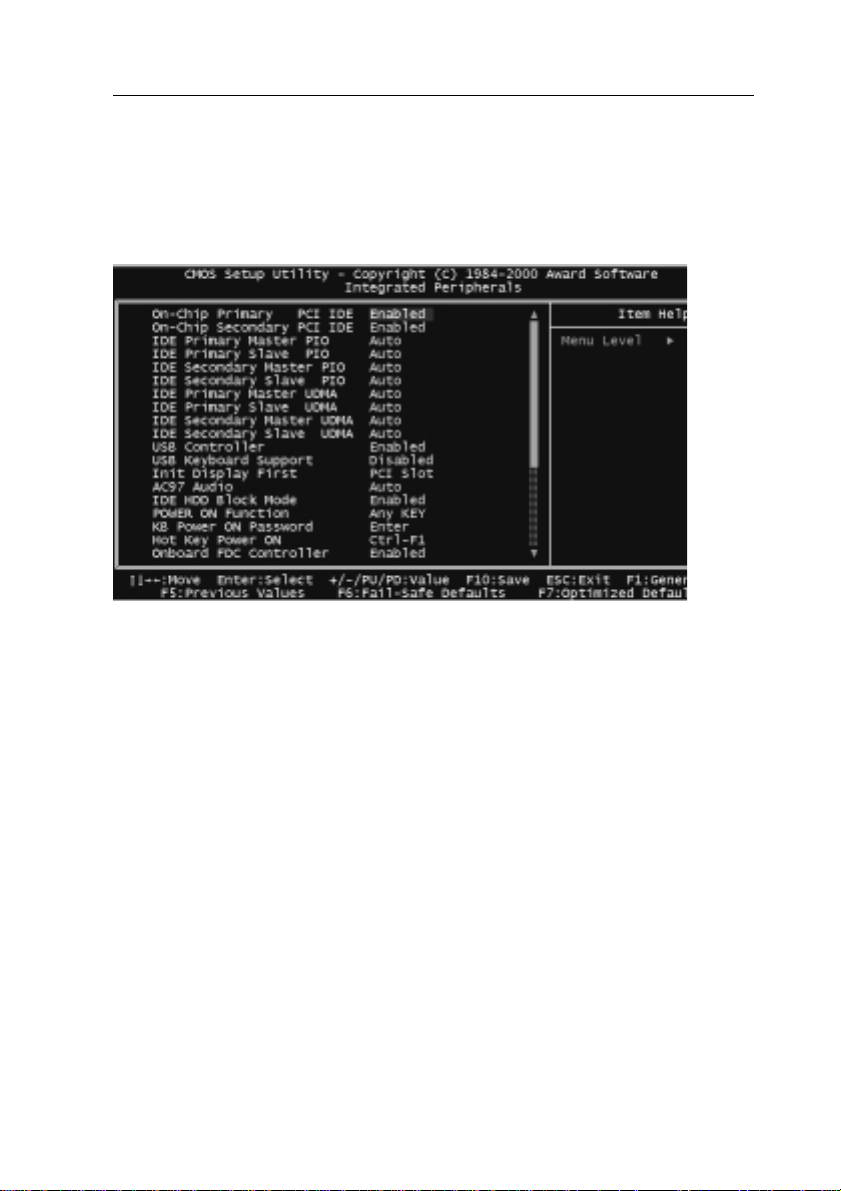

3-6 Integrated Peripherals ..................................................................... 37

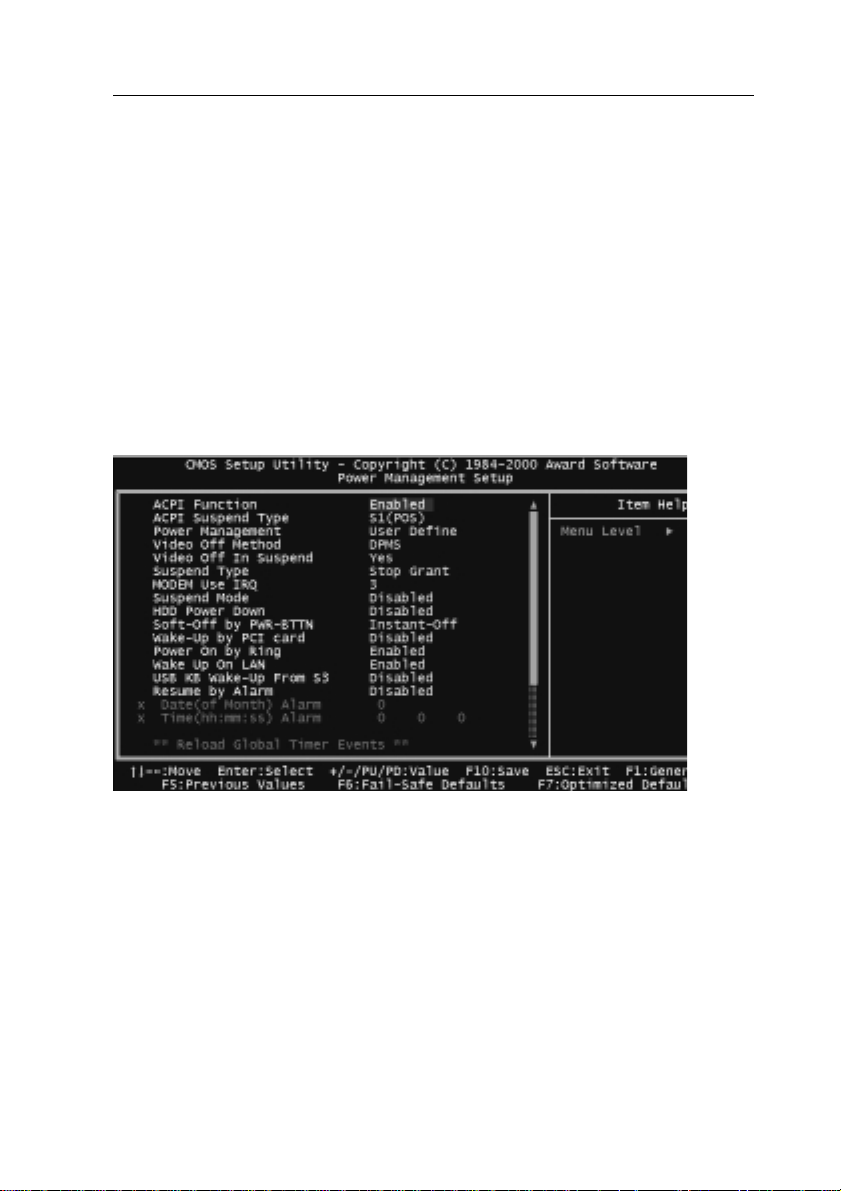

3-7 Power Management Setup. .............................................................41
3-8 PnP/PCI Configuration Setup........................................................... 44

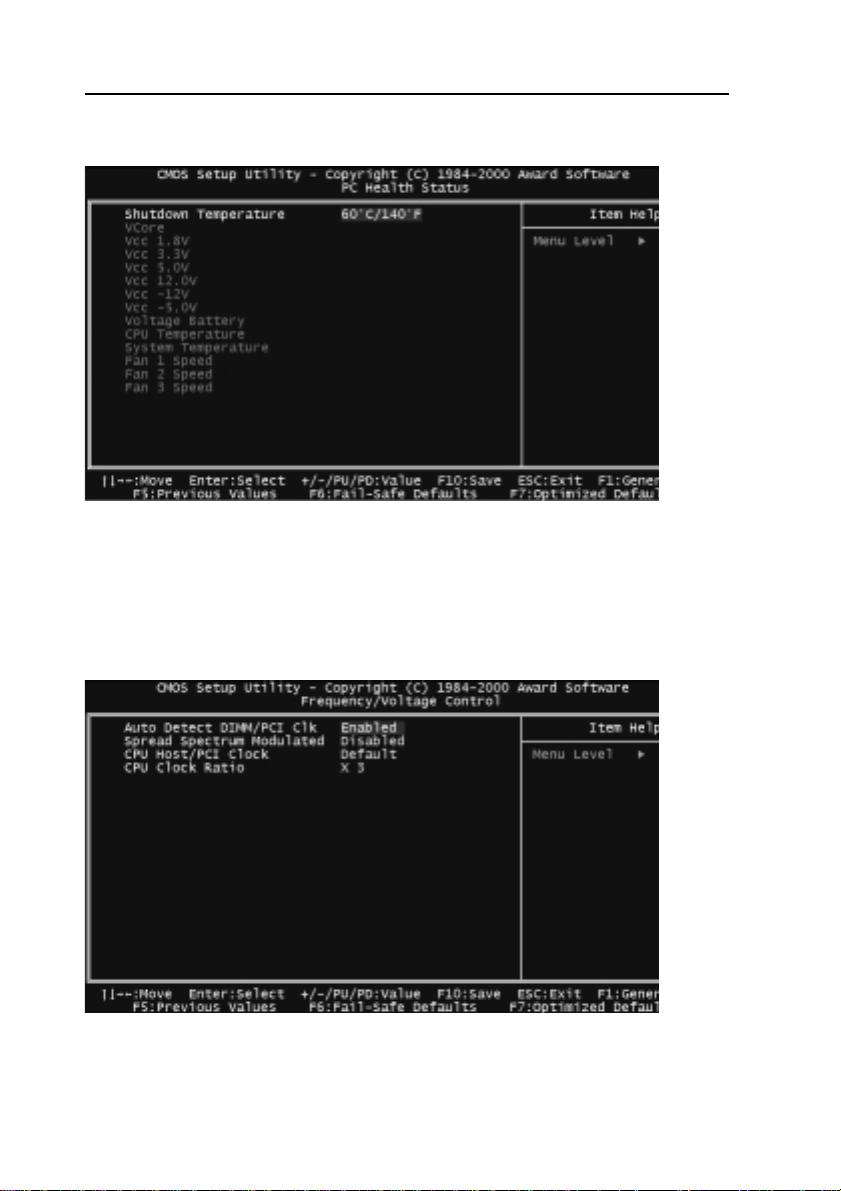

3-9 PC Health Status ............................................................................ 46
3-10 Frequency Control .........................................................................46
3
3SLAV User’s Manual
3-1 1 Defaults Menu ...............................................................................47

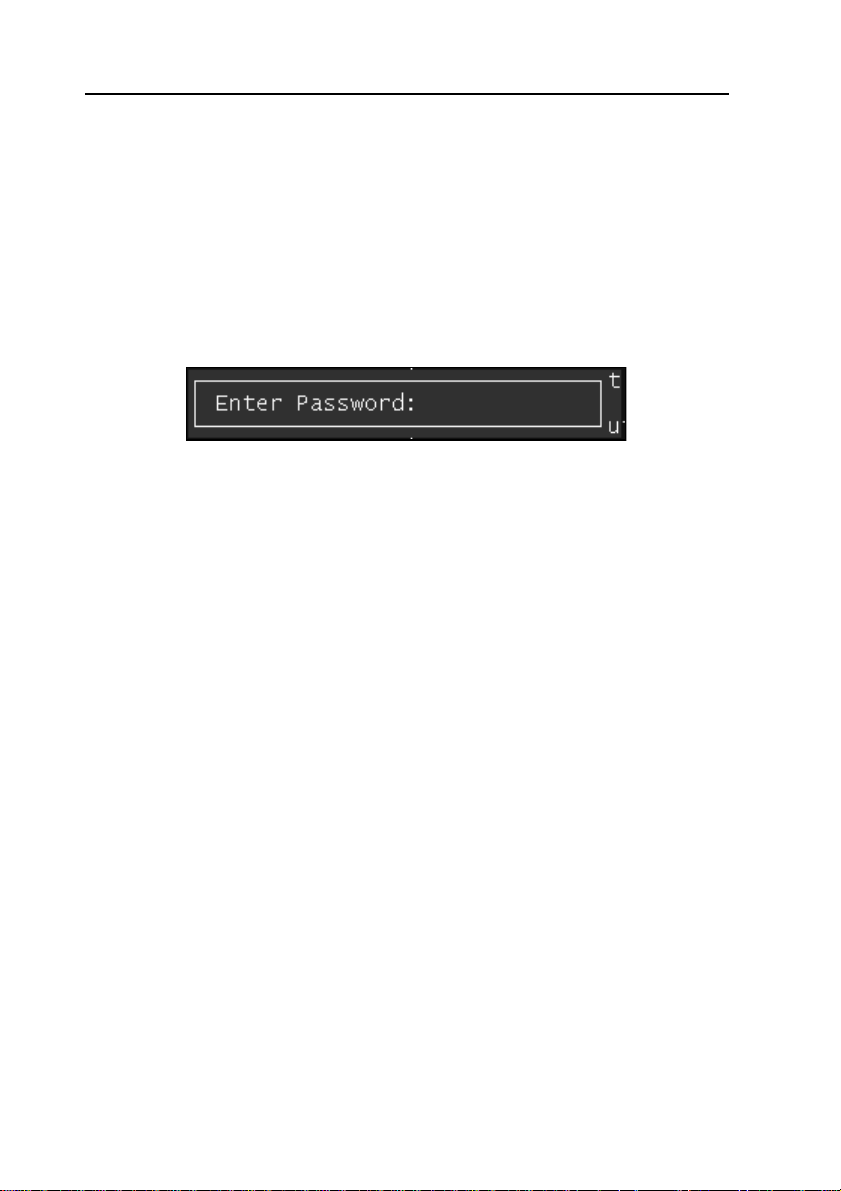

3-12 Password Setting ..........................................................................48
3-13 Exit Selecting................................................................................ 49

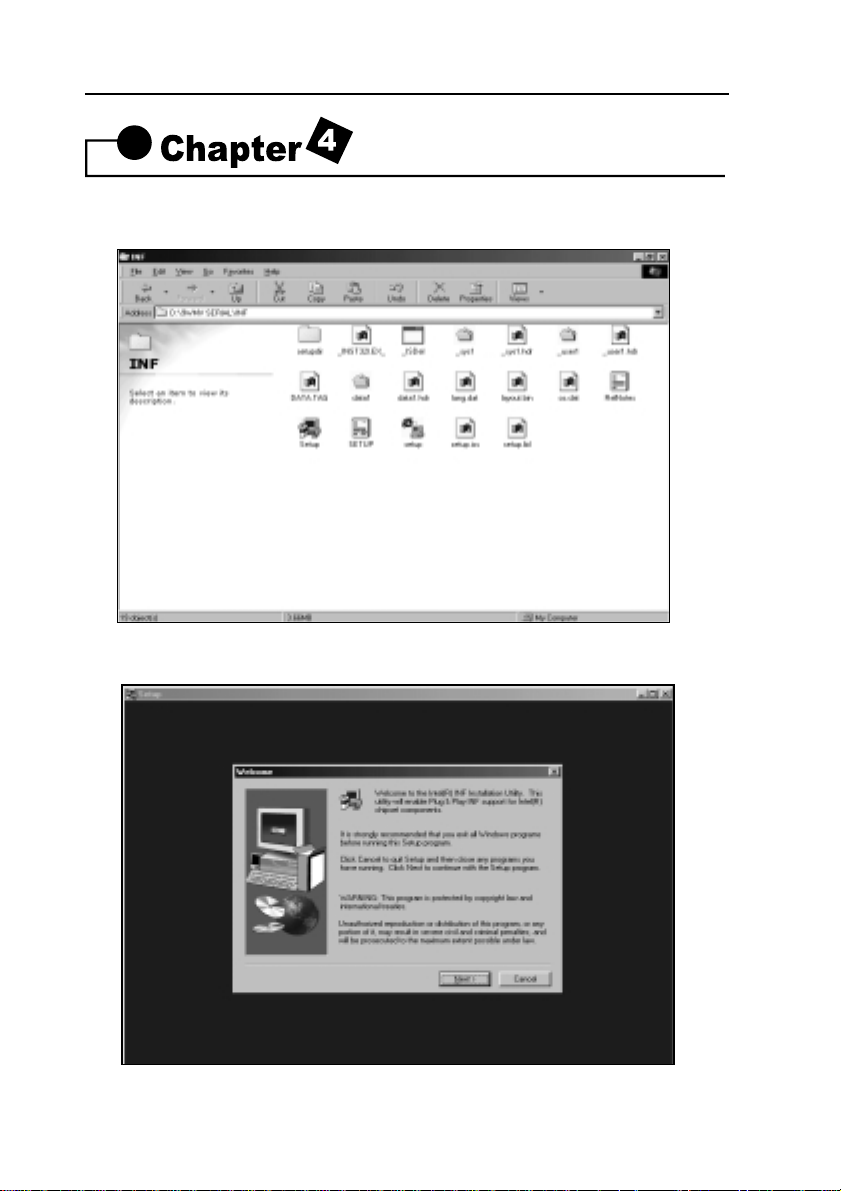

Software Driver Install......................................... 5 0
4-1 UPDA TED PRODUCT INFORMATION .............................................50

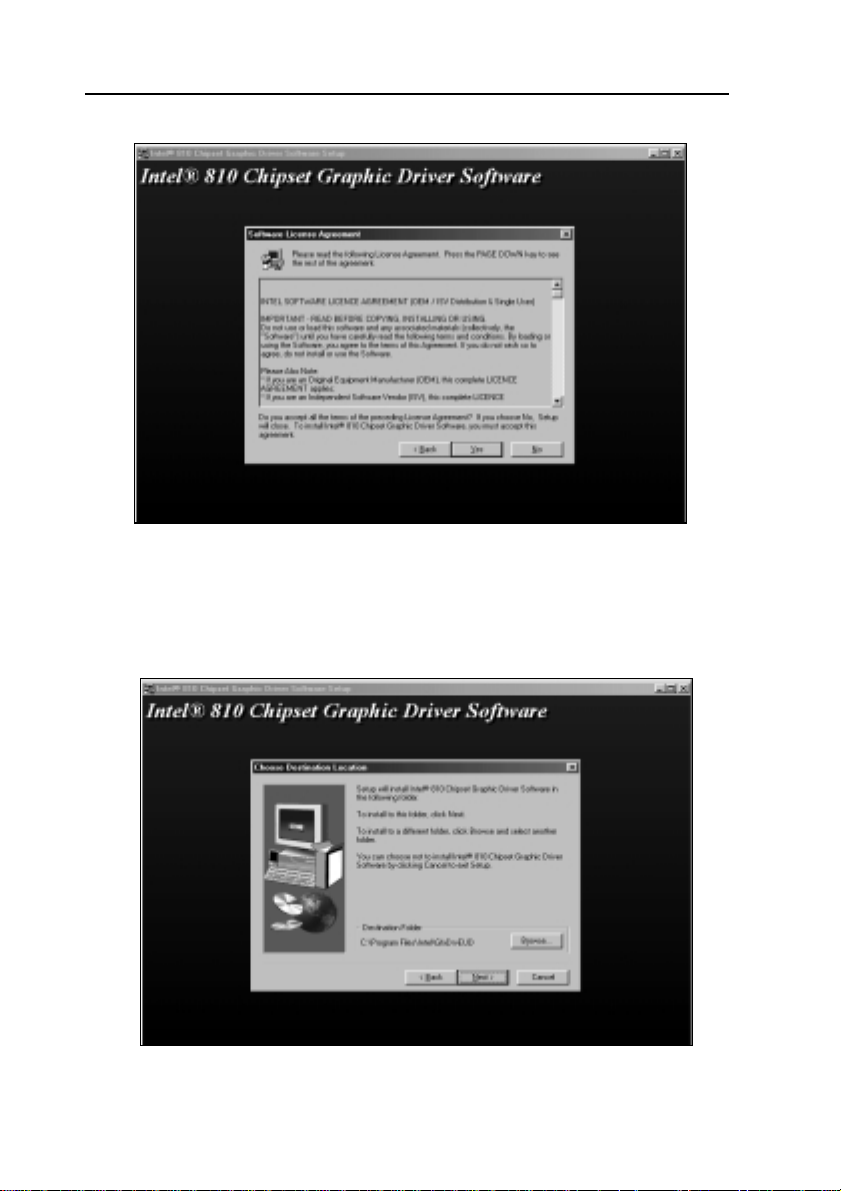

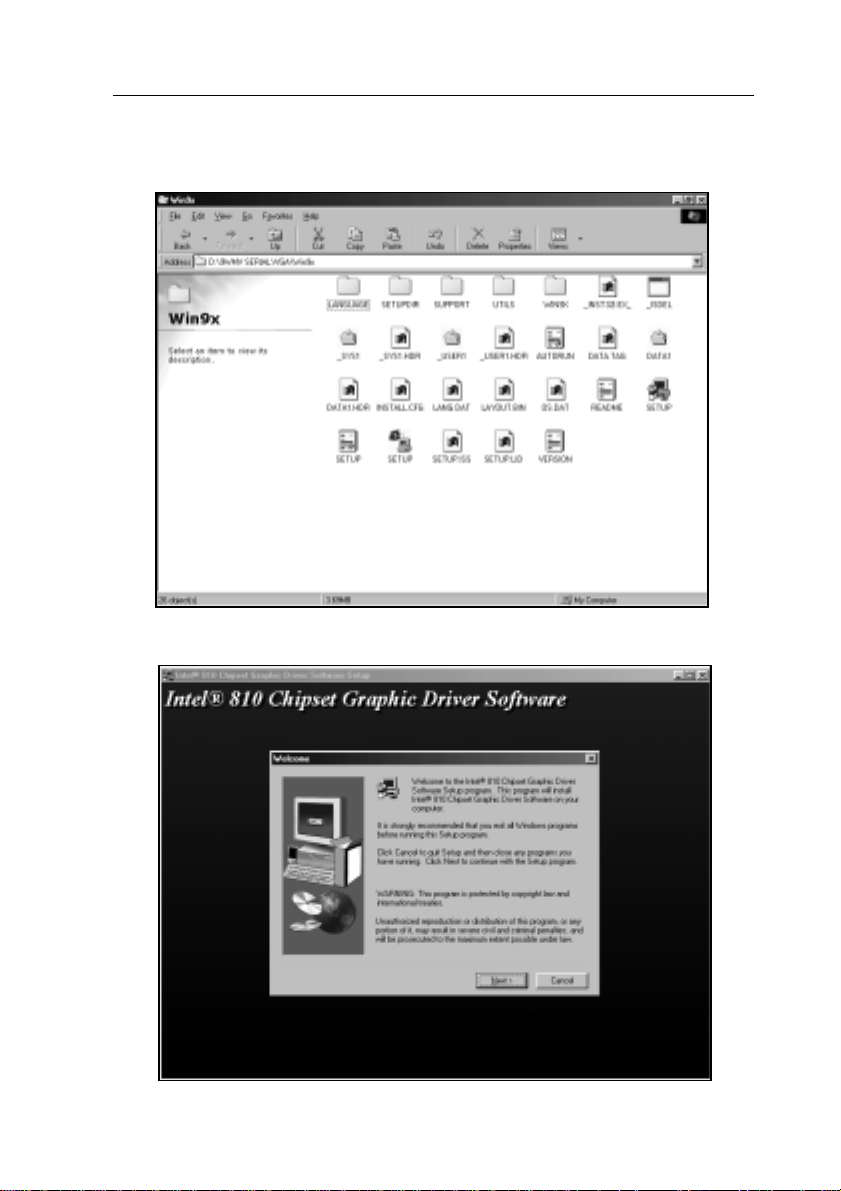

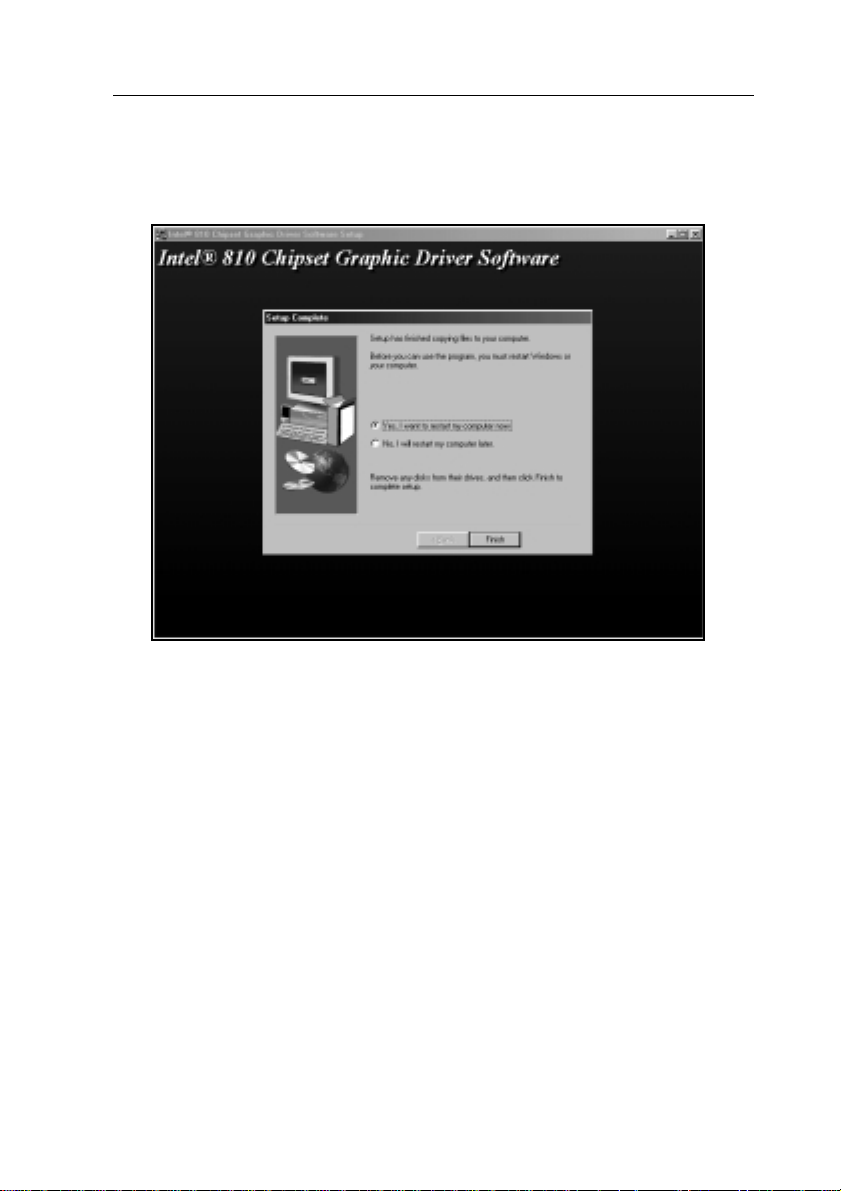

4-2 Install Graphics Driver .....................................................................53

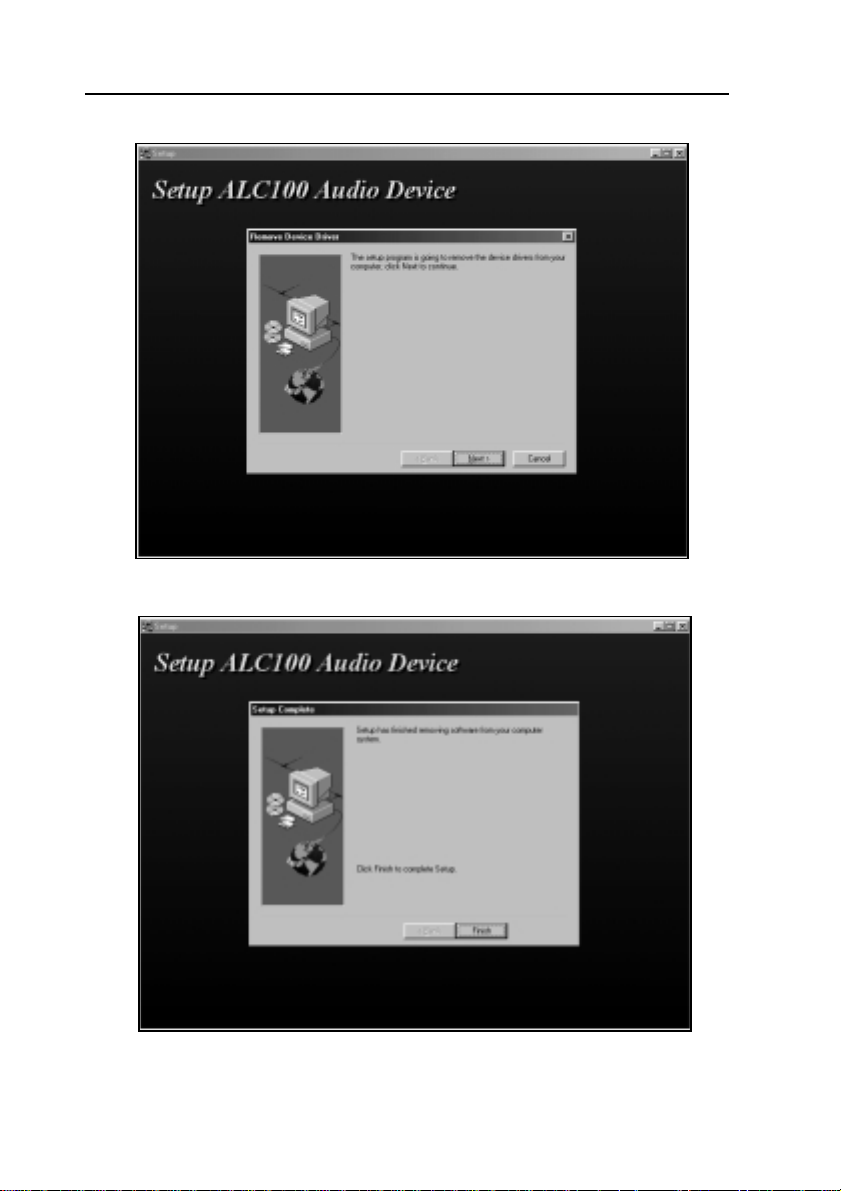

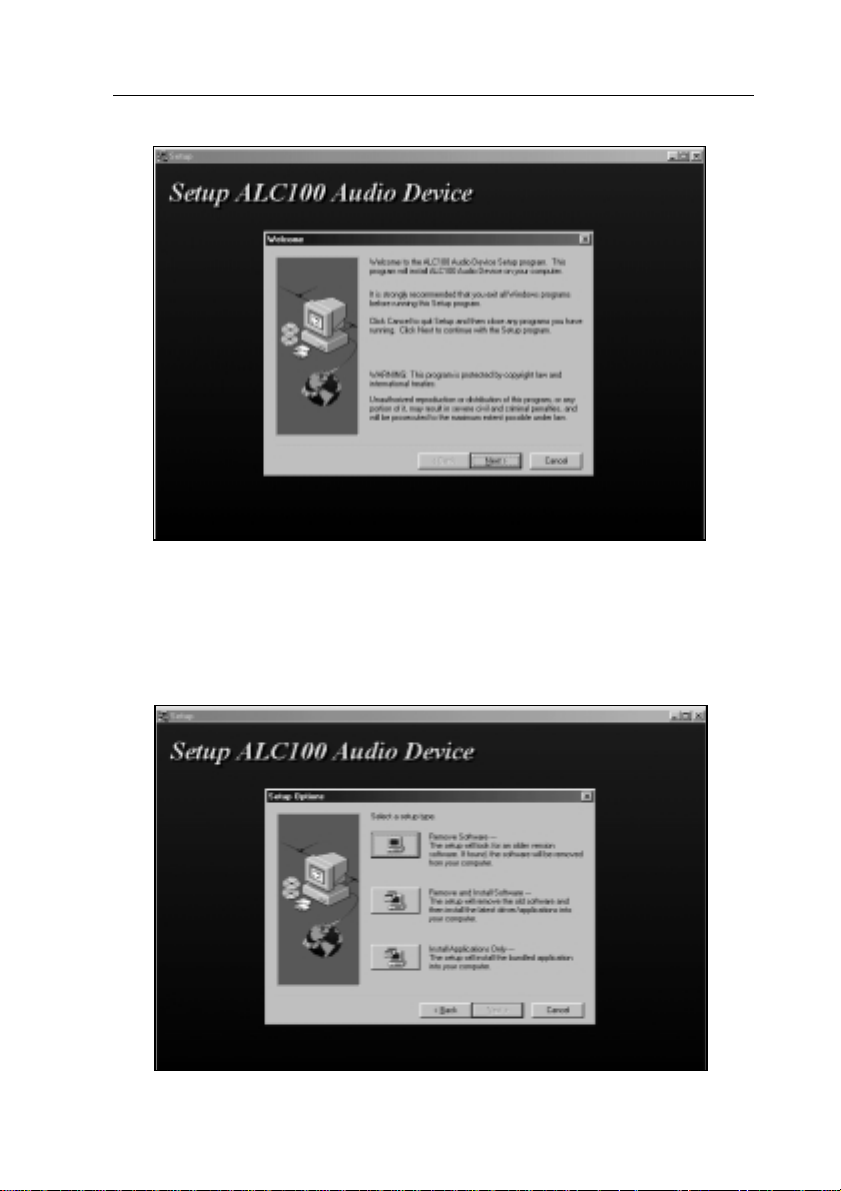

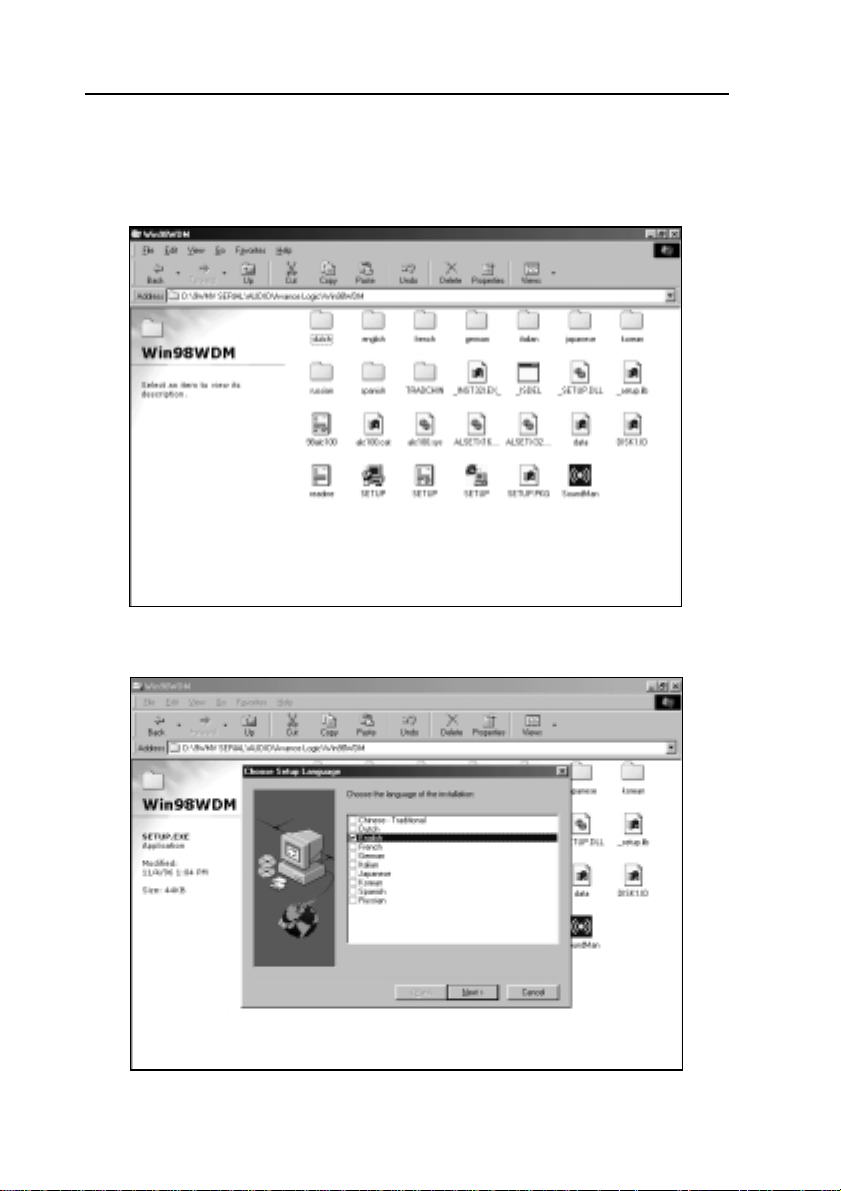

4-3 Install Audio Driver........................................................................... 56

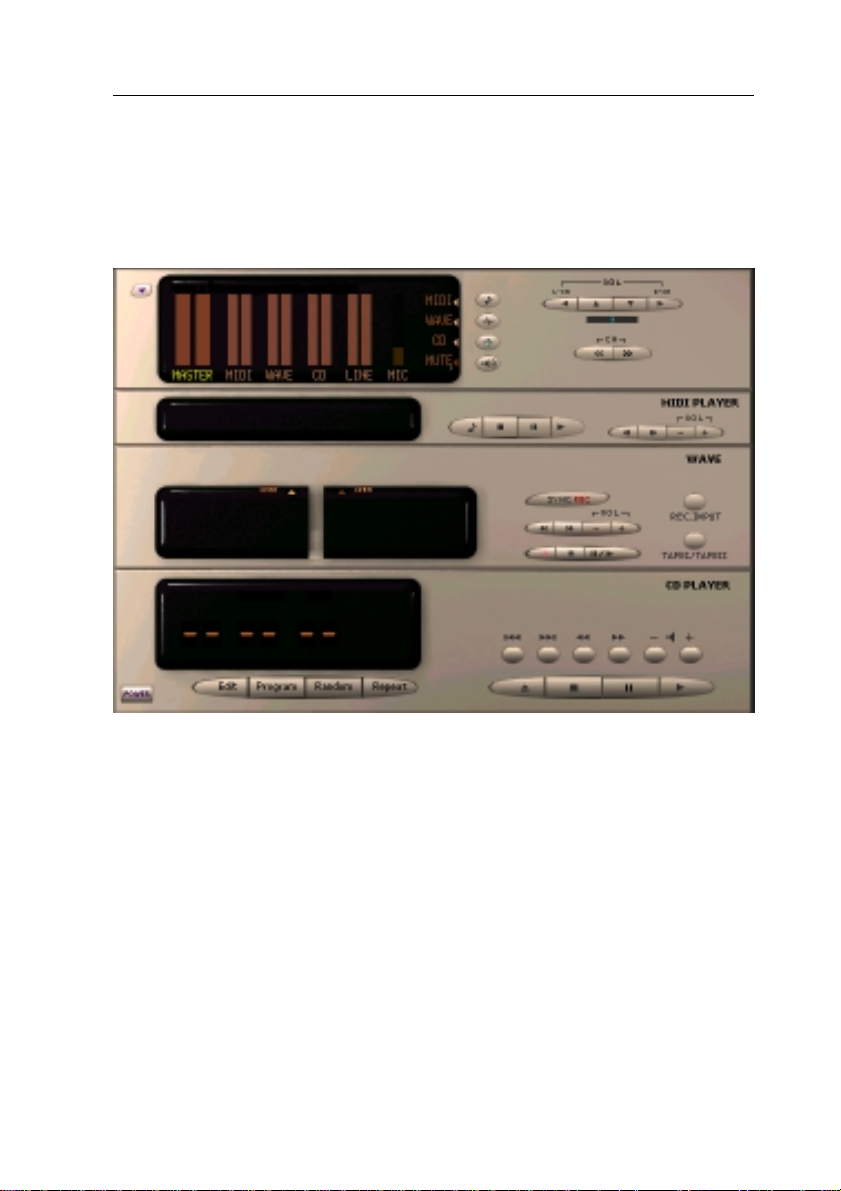

4-4 ALC100 ALSRACK Application .......................................................59
Anti-Virus software installation ............................ 6 3

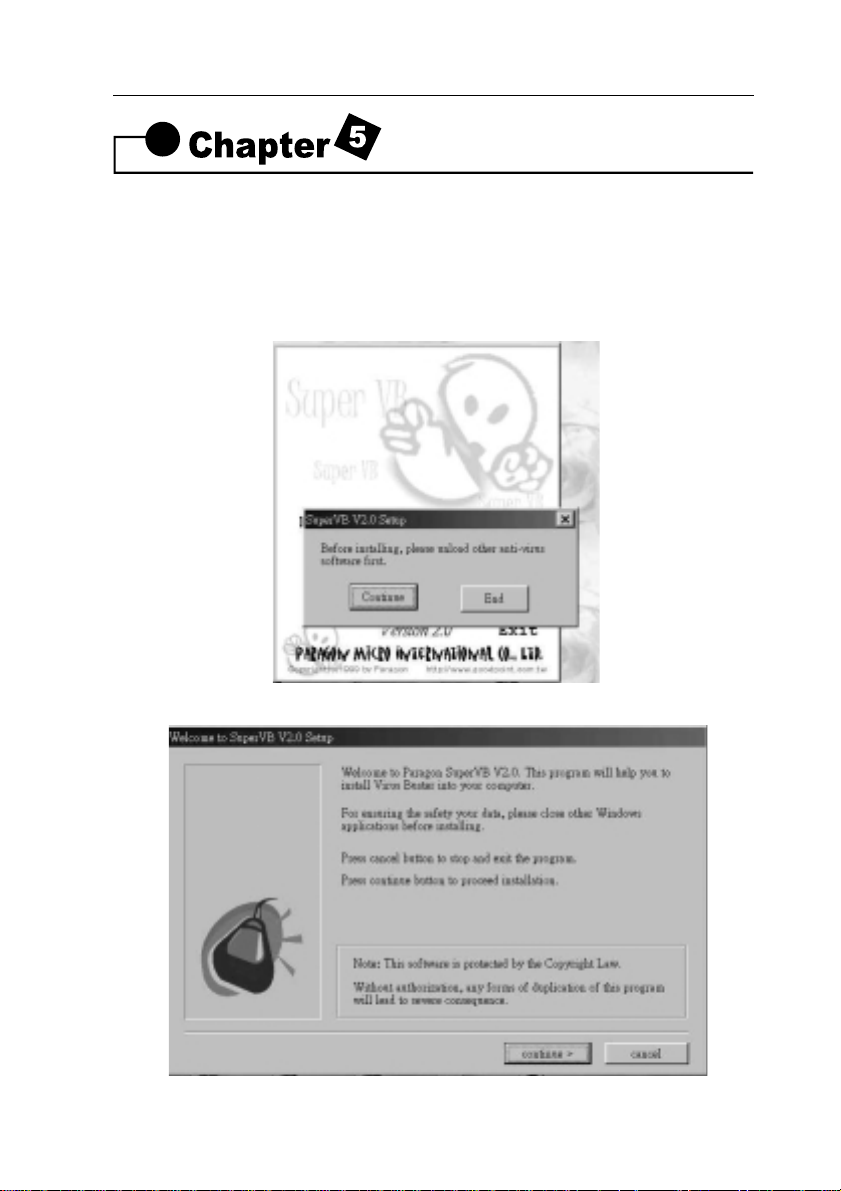

5-1 Anti-Virus software installation ........................................................63
4
3SLAV User’s Manual
Introduction
1-1 Introduction
The motherboard is a high-performance, low-cost motherboard which supports the Intel PIII FC-PGA and Socket 370 microprocessor. System memory
bank supports 3 DIMM socket. Memory up to 768MB 100MHZ & *133MHZ
SDRAM.
On-board include 4X AGP, ATX power, Super I/O, 2 Ultra DMA33/66 EIDE
interfaces, 2 USB ports, 1 4X AGP Expansion Slot,5 PCI Expansion slots,
and 1 AMR Slot.
1-2 Specifications
CPU
- Pentium III®/CeleronTM Processor.
- Celeron TM Socket 370 PPGA packaged Processor.
- 2 nd level Cache Depend on CPU.
- Coppermine Socket 370 FCPGA packaged Processor.
- Support Up 1GHz Processor Cooling FAN Spec.
- VIA Cyrix Processor (Joshua)
Chipset
- INTEL FW82815 Graphics and memory controller Hub(GMCH).
- INTEL FW82801AA I/O Controller Hub(ICH).
Clock Generator
- Supports 66 / 100 / 133 MHz FSB.
( "*" means frequency can be adjusted, and subject to different
configuration )
Memory
- 3 x 168-pin DIMM Sockets.
- Supports 100MHZ & 133MHZ SDRAM 32MB~768MB.
- In- Supports only 3.3V SDRAM DIMM.
5
3SLAV User’s Manual
VGA
- Integrated 2D/3D graphics chip(GMCH).
- Integrated 24-bit 230MHz RAMDAC.
- Support 4MB max Display Cache at AIMM Card.
- 2D graphics Up 1600x1200 in 8-bit Color at 85 Hz Refresh.
- H/W Motion Compensation Assistance for S/W MPEG2 Decode.
- Software DVD at 30fps.
Audio
- Supports AC97 CODEC (Avance Logic ALC100).
- Supports earphones, two channel speaker mode.
- MPU-401 Game/MIDI port and Sound blaster®16 compatible.
- Avance Logic. Sound Effects Utility Support Four Surround
Mode and KaraOK Mode.
I/O Controller
- ITE 8712F Low Pin Count(LPC) interface.
Expansion Slot
- Five 32-bit PCI slots support Master mode.PCI Rev 2.2
Compliant.
- One AGP Slot support 1x 2x 4x Data Rate.
- One AMR Slot.
I/O Interface
6
- PCI Bus master IDE interface on board with two connectors
support 4 IDE devices in 2 channel, the PCI IDE Controller
supports PIO Mode 0 to Mode 4, Bus master IDE DMA Mode 2
and Ultra DMA 33/66.
- On board super Multi-I/O chip that support 2 serial port with
16550 Fast UART compatible, 1 parallel port with EPP and
ECP capabilities, and a floppy disk drive interface.
- On board support PS/2 mouse Connector.
- On board support PS/2 Keyboard Connector.
- On board 2 USB ports.
- On board IrDA connector.
- Floppy port supports 2 FDD with 360K, 720K,1.2M,1.44M and
2.88M bytes ,Supports LS-120 floppy disk device.
Other Function
- Support Modem Ring Power On.
- Supports Keyboard, and WOL (Wake On LAN).
- CPU Work Clock auto detection by BIOS.
Power Supply
- On board 3V, 5V and 12V 20-pin ATX power connector.
- Use switching regulator to support CPU core voltage.
- CPU Core voltage auto detection.
Hardware Monitor
- CPU/Power Supply/Chassis Fan Revolution detecting.
- CPU Fan Control.
- System Voltage Detect.
- Display Actual Current Voltage.
BIOS
- Licensed AWARD BIOS, 4M bit Firmware Hub.
- ACPI ready for PC98/Windows 98.
- System BIOS supports ACPI function and Green feature function,
DMI, Plug and Play Flash ROM.
Form factor
- ATX Form Factor.
- Dimensions 305mm x 200mm, 4 layers PCB.
3SLAV User’s Manual
Drivers
- Intel® 815 Chipset Graphics Drivers.
- INF Update Utilities.
- AC97 audio sound drivers.
- Virus Protection Applications.
- DirectX 7.0.
7
3SLAV User’s Manual

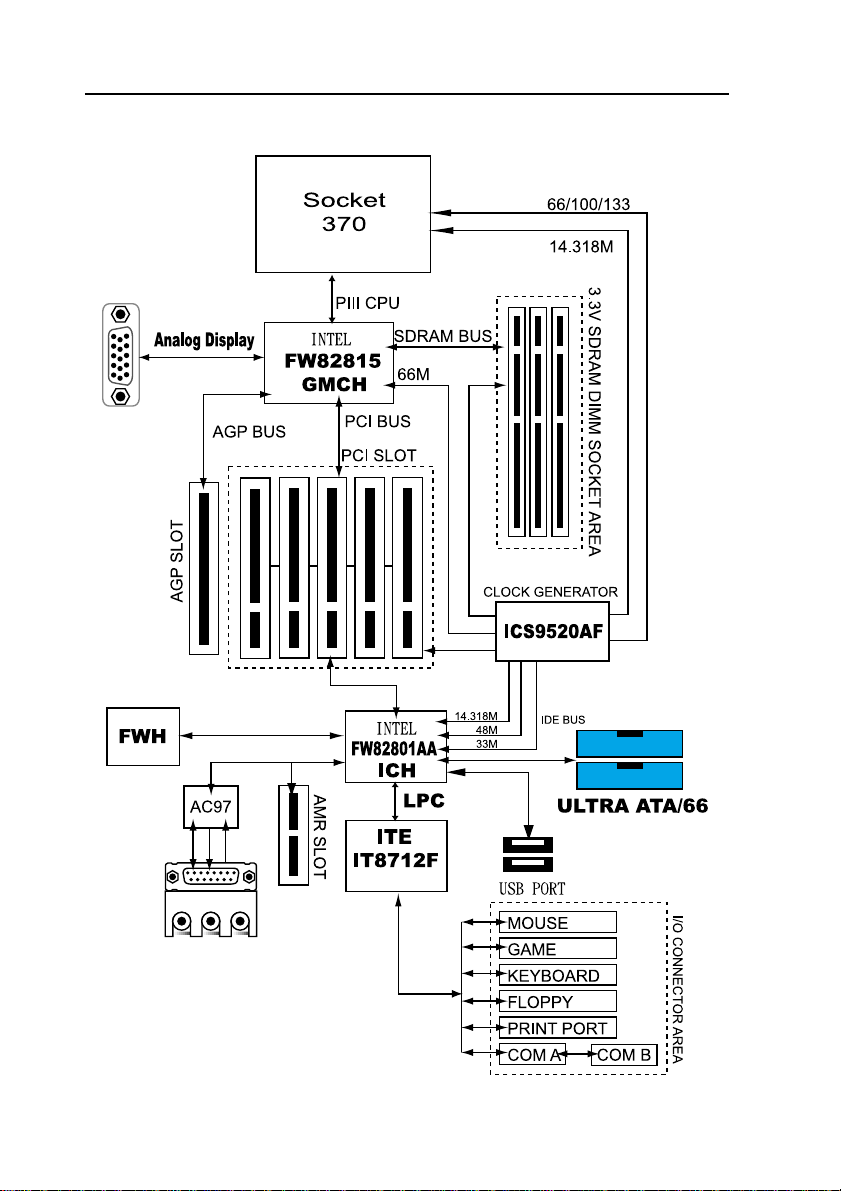

1-3 Block Diagram
8
3SLAV User’s Manual

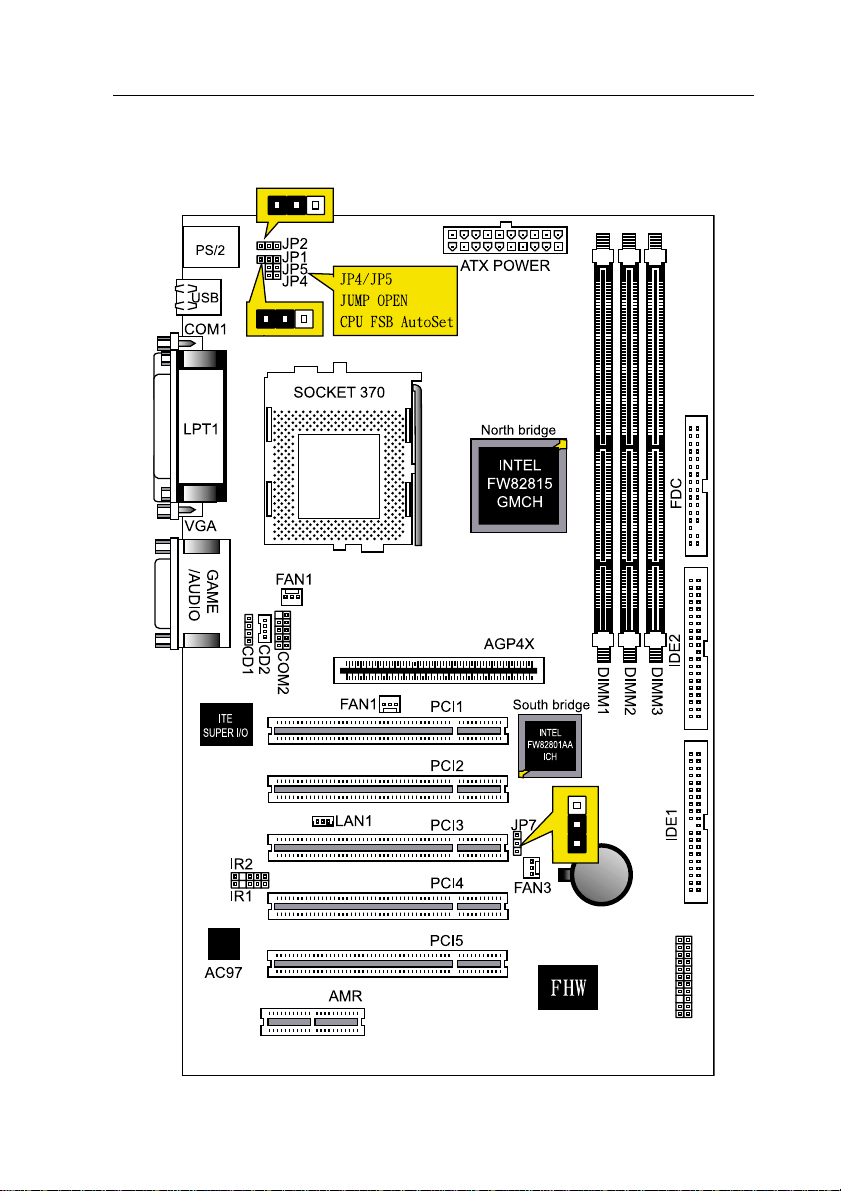

1-4 Main Board Layout with Default Setting System default support PIII(100/133MHz FSB) and Celeron CPU
9
3SLAV User’s Manual
1-5 Static Electricity Precautions
Static electricity can easily damage your motherboard.
Observing a few basic precautions can help you safeguard against damage that could result in expensive repairs. Follow the measures below to
protect your equipment from static discharge:
Keep the motherboard and other system components in their antistatic
packaging until you are ready to install them.
Touch a grounded surface before you remove any system component from
its protective antistatic packaging. A grounded surface within easy reach
is the expansion slot covers at the rear of the system case. or any other
unpainted portion of the system chassis.
During configuration and installation, touch a ground surface frequently to
discharge any static electric charge that may build up in your body. Another option is to wear a grounding wrist strap.
When handling a motherboard or an adapter card, avoid touching its
components. Handle the motherboard and adapter cards either by the edges
or by the mounting bracket that attaches to the slot opening in the case.
10
3SLAV User’s Manual
Installation Procedures
The mainboard has some user-adjustable jumpers on the board that allow
you to configure your system to suit your requirements. This chapter contains information on the various jumper settings on your mainboard.
To set up your computer, you must complete the following steps:
1. Setting system jumpers.
2. Install RAM modules.
3. Install CPU & FAN.
4. Connect ribbon cables, cabinet wires, and power supply.
5. Set up BIOS.
6. Set up system drivers and utility.
2-1 Setting System Jumpers

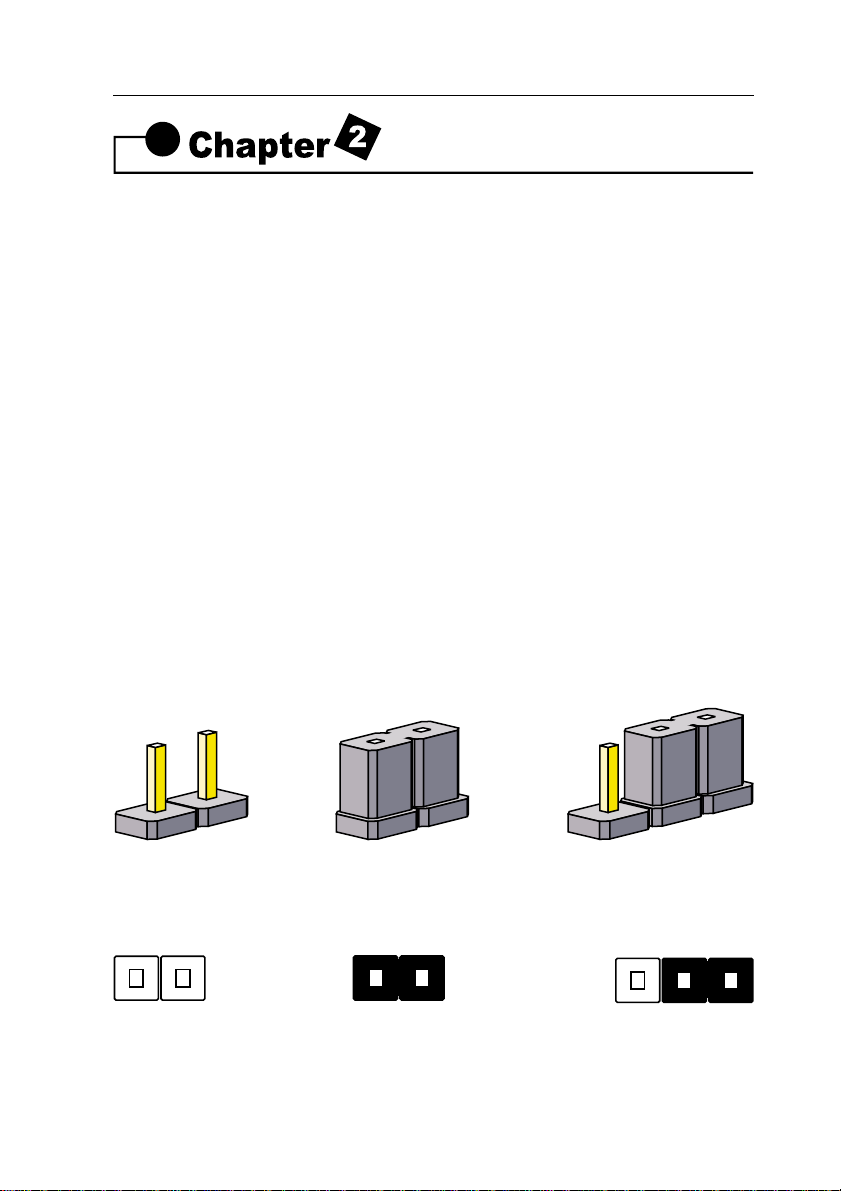

You may configure your motherboard to match the needs of your applications by setting jumpers. A jumper is the simplest kind of electrical switch.
It consists of two metal pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect them. T o "close" a jumper ,
you connect the pins with the clip. To "open" a jumper, you remove the
clip. Sometimes a jumper will have three pins, labeled 1, 2, 3. In this case
you would connect either pin 1 and 2 or 2 and 3.
OPEN CLOSED CLOSED 2-3
The jumper settings are schematically depicted in this manual as follows:
123
A pair of needle-nose pliers may be helpful when working with jumpers.
11
3SLAV User’s Manual
Note: When you open the jumper, attach the plastic jumper cap to one of
the pins so you won't lose it.
Warning: Always completely disconnect the power cord from your board
whenever you are working on it. Do not make connections while the power is
on because sensitive electronic components can be damaged by the sudden rush of power.
Always ground yourself to remove any static charge before touching the
board. Modem electronic devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all electronic components on
a static-dissipative surface or in a static-shielded bag when they are not in
the chassis.

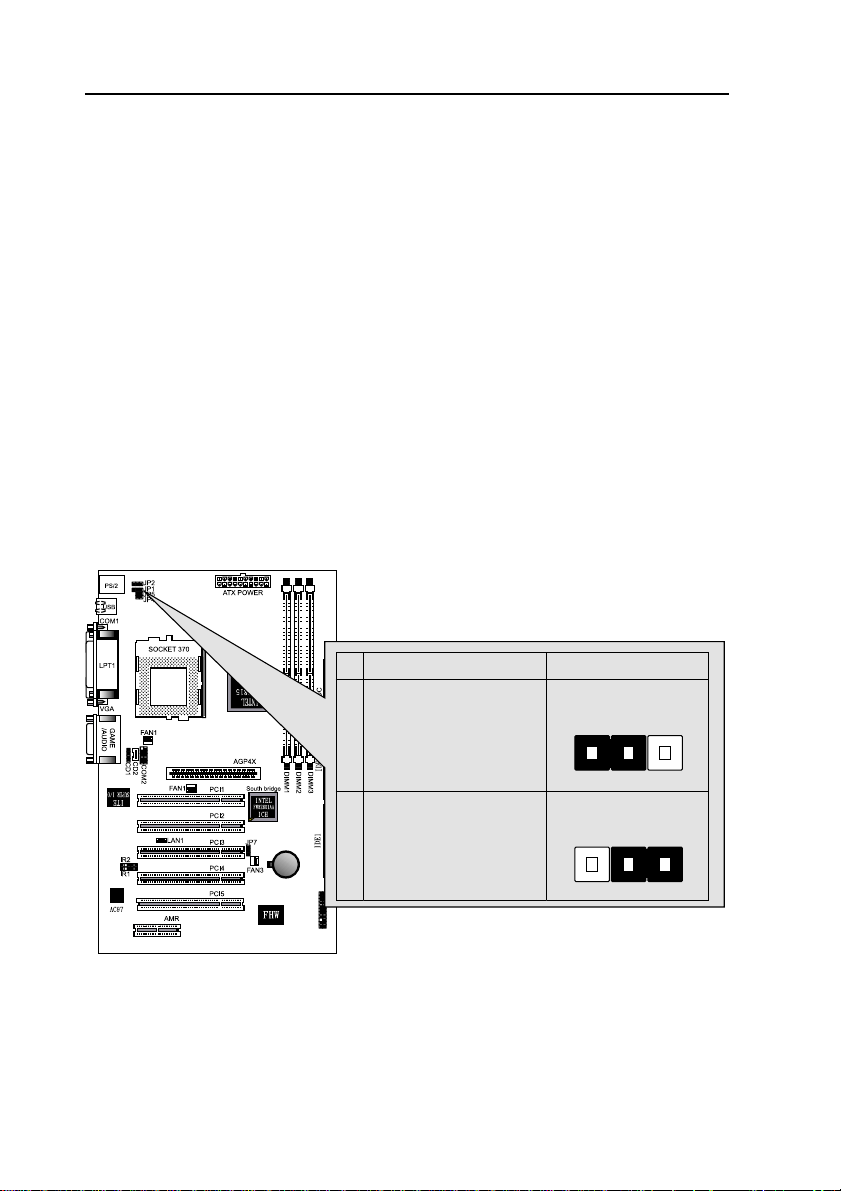

CPU Type Settings:(JP1)
The Motherboard supports Intel PIII/Socket 370/FCPGA CPUs and Cyrix
(JOSHUA) CPUs. Setting the jumper according to the CPU type. you are
going to install on the motherboard.
12
States JP1
Support intel Serial
CPU
1
[Default]
Support VIA Cyrix
Serial
CPU Only.
2
[JOSHUA]
123
123
3SLAV User’s Manual

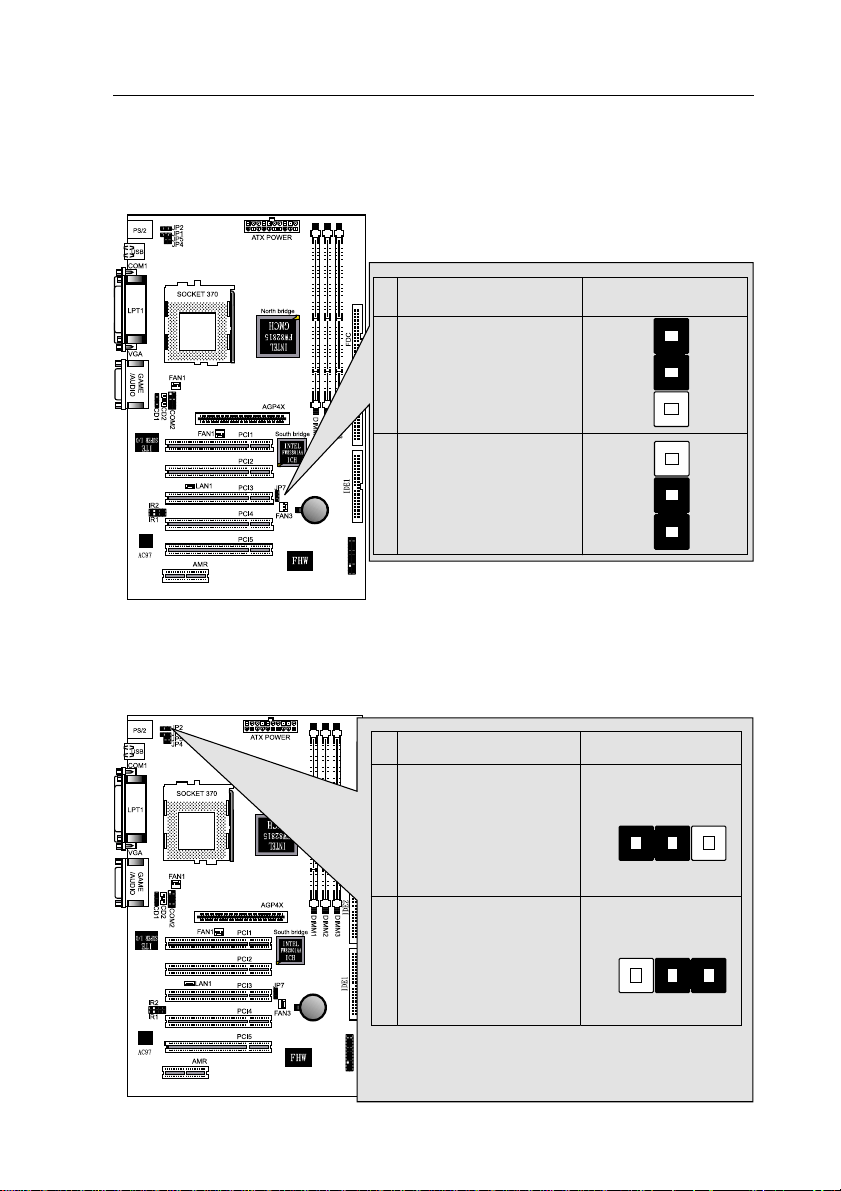

Clear CMOS:(JP7)
To clear the data stored in the CMOS, always turn off the computer first,
then remove this jumper to 2-3 pin to clear the CMOS. The jumper should
be set to 1-2 pin (3V battery back up) before turn on the computer.
States JP7
Clear CMOS
1
123
Normal[Default]
2
123
Keyboard Power On Selection(JP2)
The keyboard power on selection function. If your ATX power supply can
supports 700mA 5V standby current (with keyboard require).you can use
this function.
States
Disable [Default]
1
Enable this function
2
JP2
1
1
2
2
3
If your A TX power supply not support
700mA 5V standby current.Don’t enable
this function.
3
13
3SLAV User’s Manual

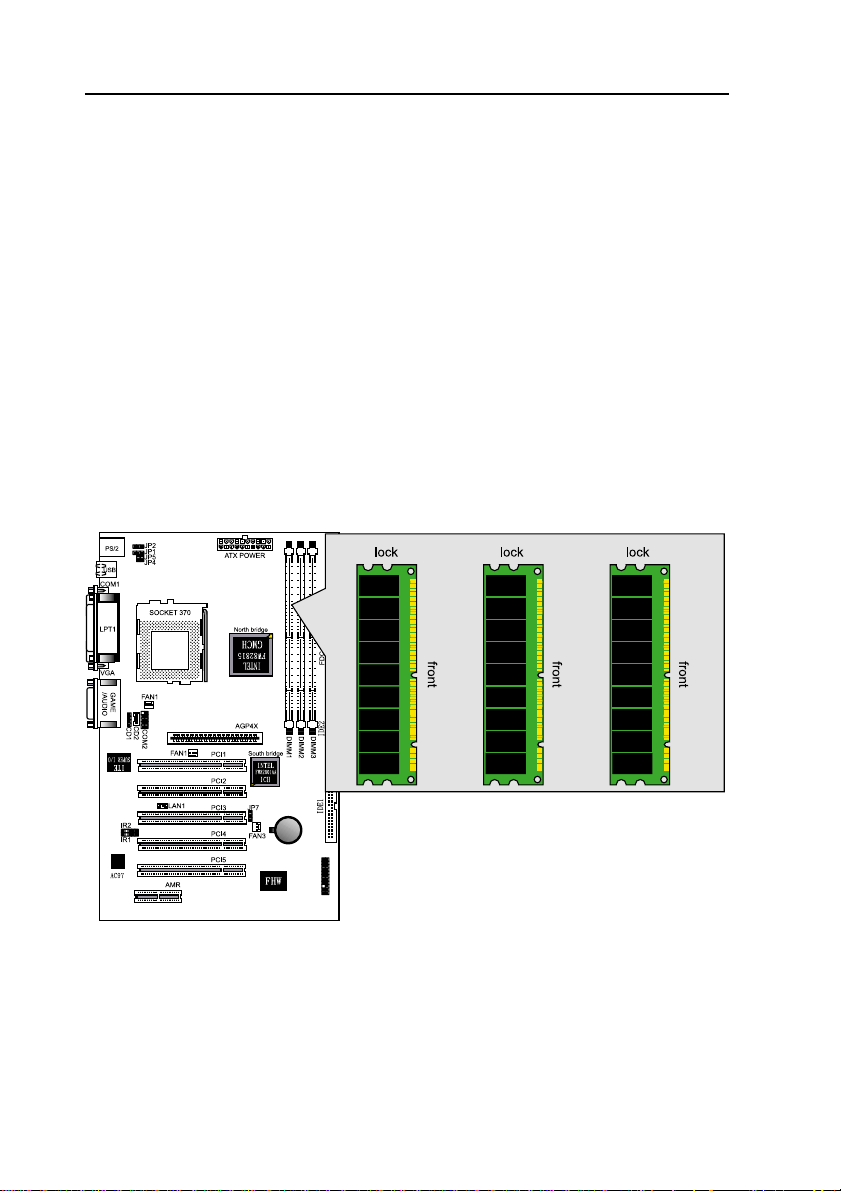

2-2 System Memory (DIMM)
The motherboard supports up to 768MB 100/133MHz SDRAM. No hardware or BIOS setup is required after adding or removing the system memory.
Note:
1. The motherboard uses only Dual Inline Memory Modules (DIMMs).
Sockets are available for 3.3Volt (power level) Synchronous Dynamic
Random Access Memory (SDRAM).
2. The 100/133 MHz compliant SDRAM must be used because of the
strict timing issues involved under this speed.
Installing system Memory
Insert the DIMM module(s) as shown. Because the number of pins are
different on each side of the breaks, the module will be fitted only in the
orientation shown. The DIMM must be 3.3V for this motherboard.
14
3SLAV User’s Manual
2-3 Central Processing Unit (CPU)
The Motherboard provides a ZIF Socket 370. The CPU that came with the
motherboard should have a fan attached to it to prevent overheating. If this
in not the case, then purchase a fan before you turn on your system. Be
sure that there is sufficient air circulation across the processor heat sink,
or the processor could overheat and damage both the processor and the
motherboard.
To install a CPU, first turn off your system and remove its cover . Locate the
ZIF socket and open it by first pulling the lever sideways away from the
socket then upwards to a 90-degree angle. Insert the CPU with the correct
orientation as shown. The notched corner should point towards the end of
the lever. Because the CPU has a corner pin for two of the four corners,
the CPU will only be fitted in the orientation as shown. The picture is for
reference only: you should have a CPU fan that covers the top side of the
CPU. With the added weight of the CPU fan, no force is required to insert
the CPU. Once completely inserted, close the socket’s lever while holding
down the CPU.
2-4 Expansion Cards
Always unplug the power supply when adding or removing expansion cards
or other system components. Failure to do so may cause severe damage
to both your motherboard and expansion cards.
Expansion Card Installation Procedure The Motherboard has 5 PCI Expansion slots. Y ou may install up to 5 PCI cards on this motherboard. To install
the PCI cards , please follow the following procedure:
1. Read the documentation for your expansion card and make any necessary hardware or software settings for you expansion card, such as
jumpers or switches.
2. Remove your computer system cover and the bracket plate with screw
on the slot you intend to use. Keep the bracket for possible future use.
3. Carefully align the card connectors and press firmly.
4. Secure the card on the slot with the screw you removed above.
5. Replace the computer system cover.
6. Setup the BIOS if necessary.
7. Install the necessary software drivers for your expansion card.
15
3SLAV User’s Manual
2-5 External Connectors
1.PS/2 Mouse Connector:
The motherboard provides a mini-DIN mouse connector, which supports a
PS/2 style mouse.
2.PS/2 Keyboard Connector:
This connector is for a standard keyboard using a PS/2 plug (mini DIN). This
connector will not allow standard A T (large DIN) keyboard plugs. You may
use a DIN to mini DIN adapter on standard AT keyboards. In some
applications, the keyboard is not present, the standard BIOS will report an
error or failure during the Power-On Self T est (POST) after resetting the PC.
Y ou may select "All, But Keyboard" under the "Halt On" in "Standard CMOS
SETUP" of BIOS SETUP.
This allows the system non-keyboard operation without the system halting
during the POST.
3.Universal Serial BUS (USB) Ports 1 & 2:
There are two USB ports on this motherboard for connecting USB devices.
16
3SLAV User’s Manual
4.Parallel Port Connector:
Normally, the parallel port is used to connect the system to a printer.
5.Serial Port COM1 connector:
The COM1 port is ready for a mouse or other serial devices. A second serial
port is available using a serial port bracket connected from the motherboard
to an expansion slot opening.
6.Display connector:
This connector is for output to a VGA-compatible device, commonly used
for conventional CRT displays.
17
3SLAV User’s Manual

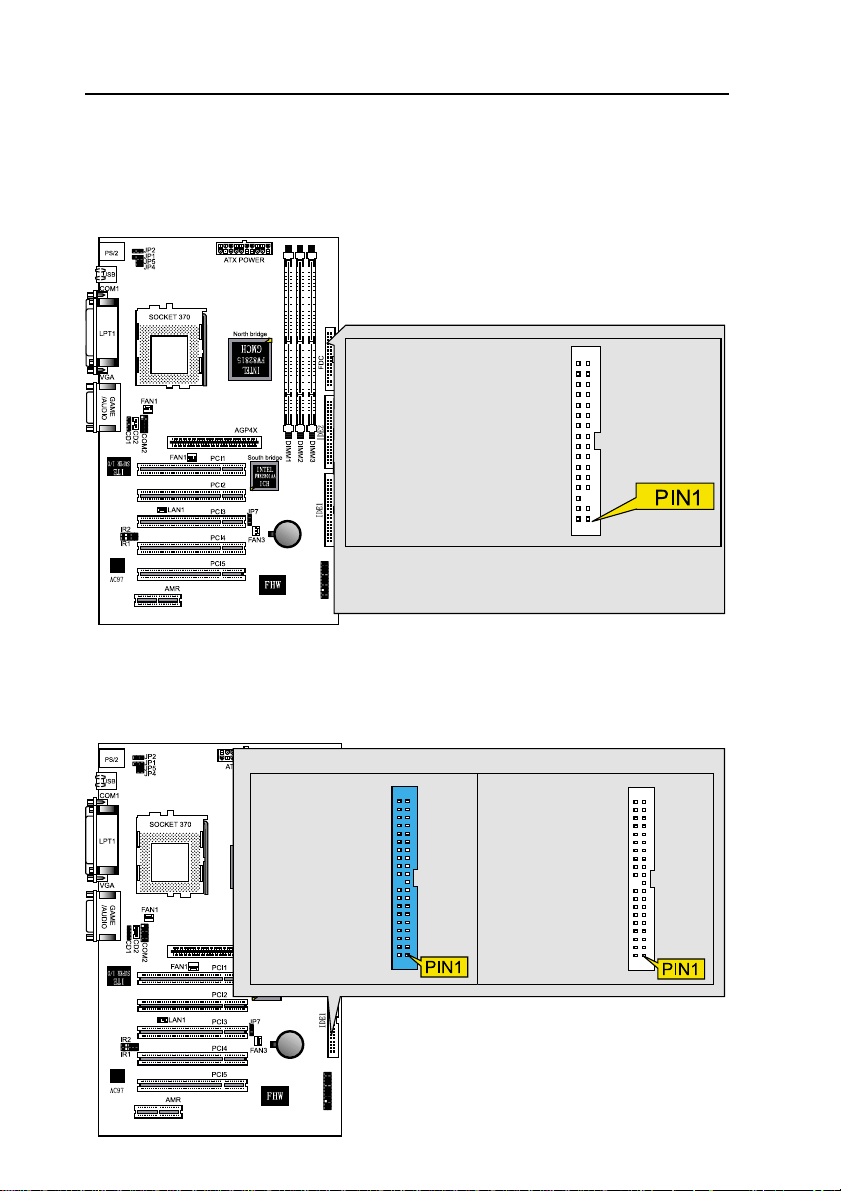

7.Floppy Disk Drive Connector(FDC)
Y ou can attach up to two floppy drives to the motherboard. After connecting
the single end to the board, connect the two plugs on the other end to the
floppy drives. The drive A: should be connected on the end and the drive B:
in the middle.
Floppy Disk Drive
Connector
Color: White
Note: Orient the red marking on the floppy
ribbon cable to pin1
Note: Pin 5 is removed to prevent the users inserting the Floppy Disk Drive
in the wrong orientation when using ribbon cables with pin 5 plugged.
8.Primary/Secondary IDE Connectors(IDE1 and IDE2)
Primary IDE Connectors
Color:Blue
18
Secondary IDE
Connectors
Color:Withe
3SLAV User’s Manual
The motherboard supports up to fure IDE devices, including CD-ROM drives,
tape backup drives, Hard Disk Drives, and other IDE devices. After connecting the single end to the board, connect the two plugs at the other end to
your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode by setting its jumper accordingly. Please refer to
your hard disk documentation for the jumper settings. (Pin 20 is removed to
prevent the users inserting the IDE devices in the wrong orientation when
using ribbon cables with pin 20 plugged).
Note: Ultra DMA/66 IDE devices must use an 80-wire IDE cable or else
devices will automatically be limited to Ultra DMA/33 mode.

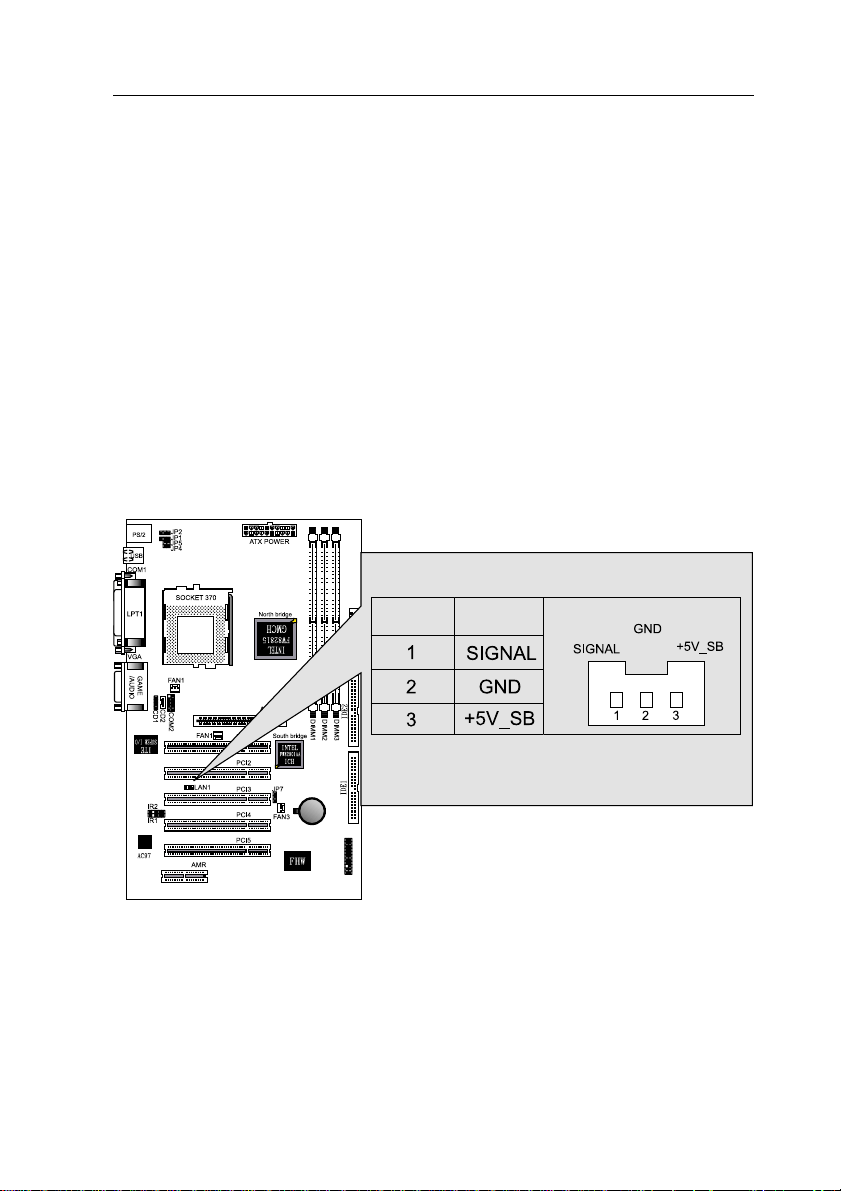

9.Wake-On-LAN(WOL)connectors(J2)
The Wake-On-LAN connectors connect to a LAN card respectively with a
Wake-On-LAN output. The connectors power up the system when a wakeup
packet or signal is received through the LAN card.
Wake-On-Lan(WOL) connectors
PIN
FUNCTION
19
3SLAV User’s Manual

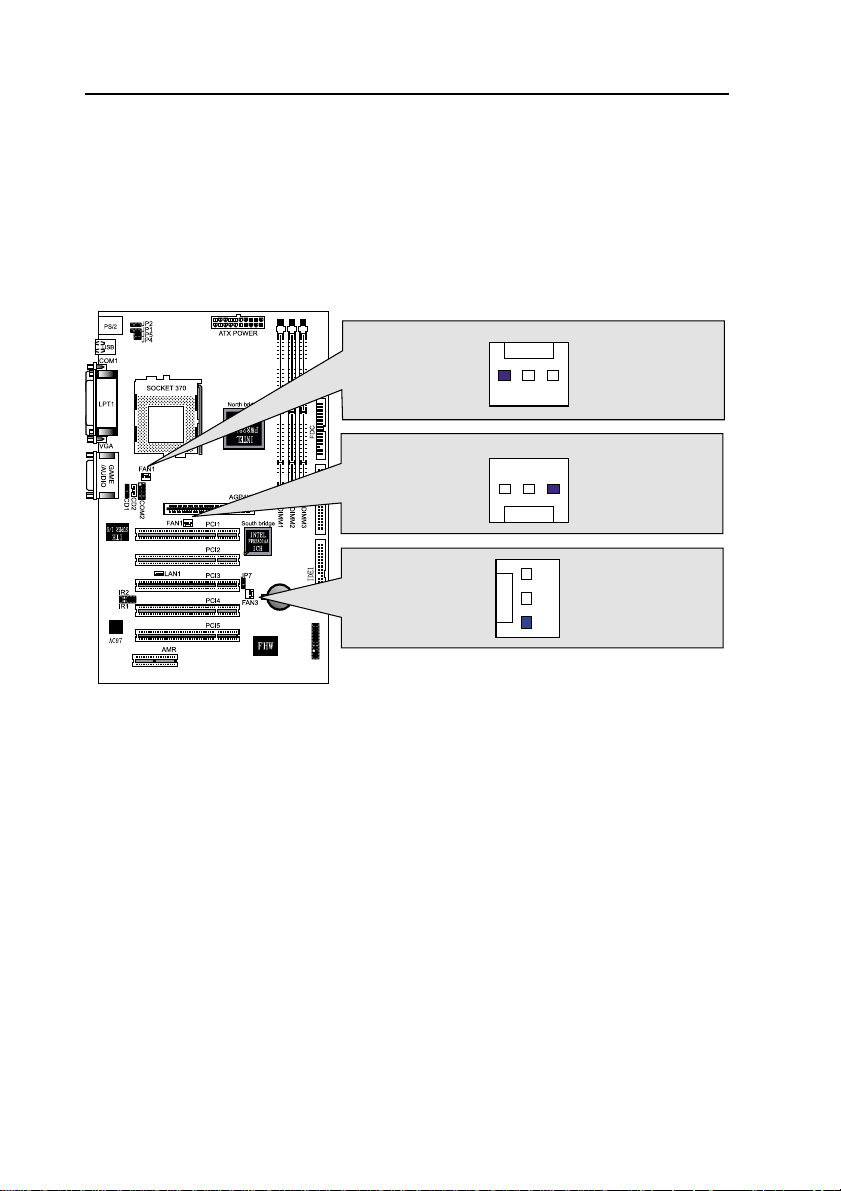

10.CPU/Chassis Fan Connectors(FAN1 and F AN2 and F AN3)
This motherboard provides CPU, Power, and Chassis fan connectors. Orientate the fan so that the heat sink fins allow airflow to go across the onboard
heat sink(s) instead of the expansion slots. Depending on the fan
manufacturer, the wiring and plug may be different. The red wire should be
positive, while the black should be ground. Connect the fan plug to the board
taking into consideration the polarity of the connector.
1 SENSOR
CPU FAN
AGP FAN
OTHER FAN
+12V
2
3 GND
1 SENSOR
+12V
2
3 GND
GND
3
+12V
2
1
SENSOR
Note: The CPU and motherboard will overheat if there is no airflow across
the CPU and onboard heatsink. Damage may occur to the motherboard and
the CPU fan if these pins are incorrectly used. These are not jumpers, do
not place jumper caps over these pins.
20
3SLAV User’s Manual

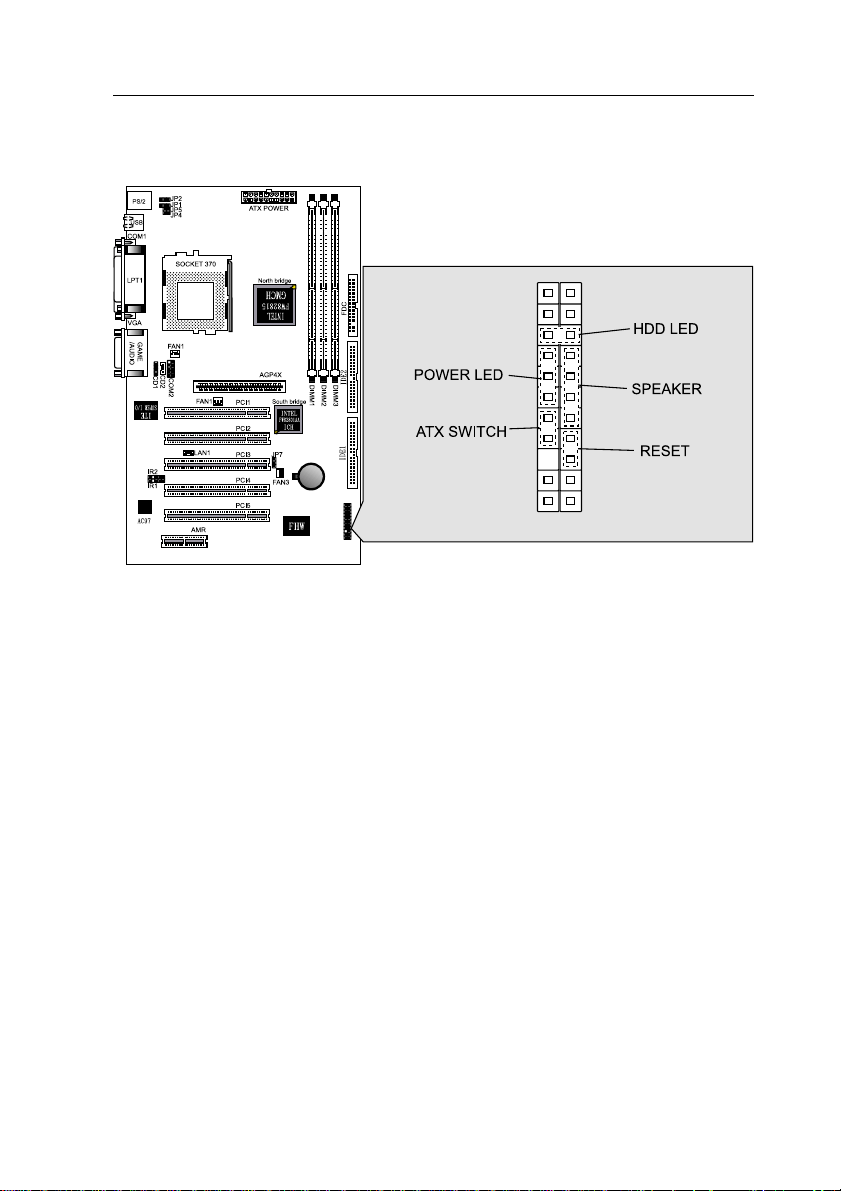

System Panel Connectors (J3)
Refer to the following figure for item 11 to 15.
+
+
+
+
11.Power LED Lead
This indicates the status of the system power is turned "ON' or "OFF" The
LED will light when the system power is turned on and will go off when the
system power is turned off.
12.System Warning Speaker Connector
This 4-pin connector connects to the case-mounted speaker.
13.ATX Power Switch Lead
The system power is controlled by a momentary switch connected to this
lead. Pressing the button once will switch the system between ON and
SOFT OFF. Pushing the switch while in the ON mode for more than 4 seconds will turn the system off. The Power LED shows the status of the system power.
14.HDD LED Lead
This connector supplies power to the cabinet IDE activity LED. Read and
write activity by devices connected to the Primary or Secondary IDE connectors will cause the LED to Light up.
15.Reset Switch Lead
This 2-pin connector connects to the case-mounted reset switch for rebooting
your computer without having to turn off your power switch. This is a preferred method of rebooting to extend the life of the system power supply.
21
3SLAV User’s Manual

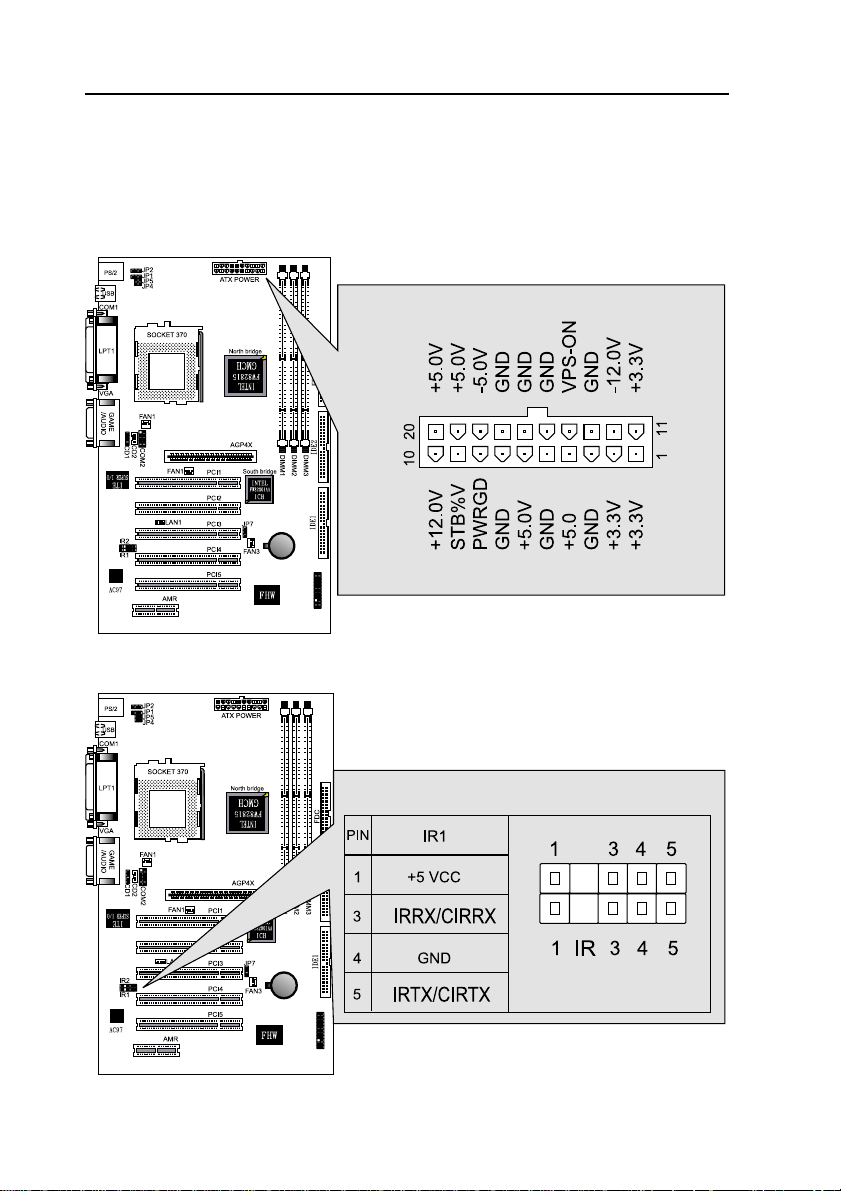

16.A TX Power Connector:
This connector connects to an A TX power supply. The plugfrom the power
supply will only insert in one orientation because of the different hole sizes.
Find the proper orientation and push down firmly making sure that the pins
are aligned.
17.IR Pin Header:IR1
22
CIR
3SLAV User’s Manual
2-6 Power Connection Procedures
After all connections are made, close the system case cover.
Be sure that all switches are OFF.
Connect the power supply cord to the power supply located on the back
of your system case according to your system user manual.
Connect the power cord to a power outlet that is equipped with a surge
protector.
You may then turn ON your devices in the following order:
(1) Your monitor
(2) External SCSI devices (starting with the last device on the chain)
(3) Y our system power For A TX power supplies, you need to switch ON
the power supply if a switch is provided as well as press the ATX
power switch on the front of the case.
The power LED on the front panel of the system case will light. For A TX
power supplies, the power LED will light when the A TX power switch is
pressed. The system will then run power-On tests. While the tests are
running, additional messages will appear on the screen. If you do not see
anything within 30 seconds from the time you turn on the power, the
system may have failed a power-on test. Check your jumper settings and
connections again or call your retailer for assistance.
During power-ON, hold down <Delete> to enter BIOS setup.
Follow the instructions in chapter 3 BIOS Setup
To power of f you computer , you must first exit or shut down your operating system before switching OFF the power switch. For ATX power
supplies, you can press the ATX power switch after exiting or shutting
down your operating system. If you use Windows 95/98, click the start
button, click shut down, and then click Shut down the computer. The
power supply should turn OFF after Windows shuts down. For A TX power
supplies, the message "Y ou can now safely turn OFF your computer" will
not appear when shutting down the computer.
23
3SLAV User’s Manual
AWARD BIOS Setup
3-1 Introduction
This manual discusses AwardTM Setup program built into the ROM BIOS.
The Setup program allows users to modify the basic system configuration.
This special information is then stored in battery-backed RAM so that it
retains the Setup information when the power is turned off.
The AwardBIOSTM installed in your computer system's ROM (Read Only
Memory) is a custom version of an industry standard BIOS. This means
that it supports Intel/Cyrix/AMD processors in a standard IBM-A T compatible input/output system. The BIOS provides critical low-level support for
standard devices such as disk drives and serial and parallel ports.
The AwardBIOSTM has been customized by adding important, but nonstandard, features such as virus and password protection as well as special
support for detailed fine-tuning of the chipset controlling the entire system.
The rest of this manual is intended to guide you through the process of
configuring your system using Setup.
Starting Setup
The AwardBIOSTM is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the CMOS
and begins the process of checking out the system and configuring it. When
it finishes, the BIOS will seek an operating system on one of the disks and
then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of
two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears briefly
at the bottom of the screen during the POST (Power On Self-Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to enter
Setup, restart the system to try again by turning it OFF then ON or pressing
the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press
the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...
24
3SLAV User’s Manual
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to
select, use the PageUp and PageDown keys to change entries, press
<F1> for help and press <Esc> to quit. The following table provides more
detail about how to navigate in the Setup program using the keyboard.
Key Function
Up Arrow Move to the previous item
Down Arrow Move to the next item
Left Arrow Move to the item on the left (menu bar)
Right Arrow Move to the item on the right (menu bar)
Esc Main Menu: Quit without saving changes
Submenus: Exit Current page to the next higher level menu
Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -
- Exit current page and return to Main Menu
F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F6 key Load the fail-safe defaults from BIOS default table
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit
Navigating through the menu bar
Use the left and right arrow keys to choose the menu you want to be in.
To display a sub menu, use the arrow keys to move the cursor to the sub
menu you want. Then press <Enter>. A ">" pointer marks all sub menus.
Getting Help
Press F1 to pop up a small help window that describes the appropriate keys
to use and the possible selections for the highlighted item. To exit the Help
Window press <Esc> or the F1 key again.
25
3SLAV User’s Manual
In Case of Problems
If, after making and saving system changes with Setup, you discover that
your computer no longer is able to boot, the AwardBIOSTM supports an
override to the CMOS settings which resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand.
To this end, we strongly recommend that you avoid making any changes to
the chipset defaults. These defaults have been carefully chosen by both
Award and your systems manufacturer to provide the absolute maximum
performance and reliability. Even a seemingly small change to the chipset
setup has the potential for causing you to use the override.
A Final Note About Setup
Not all systems have the same Setup. While the basic look and function of
the Setup program remains the same for all systems, individual motherboard
and chipset combinations require custom configurations. For example, you
may find that your Setup main menu has a different number of entries from
the main menu displayed in this manual. These are simply features not
supported (or not user configurable) on your system.
The final appearance of the Setup program also depends on the Original
Equipment Manufacturer (OEM) who built your system. If your OEM has
decided that certain items should only be available to their technicians,
those items may very well be removed from the Setup program.
3-2 Main Menu
26
3SLAV User’s Manual
Once you enter the AwardBIOSTM CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select among
the items and press <Enter> to accept and enter the sub-menu.
Note that a brief description of each highlighted selection appears at the
bottom of the screen.
Setup Items
The main menu includes the following main setup categories. Recall that
some systems may not include all entries.
Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize
your system's performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
.

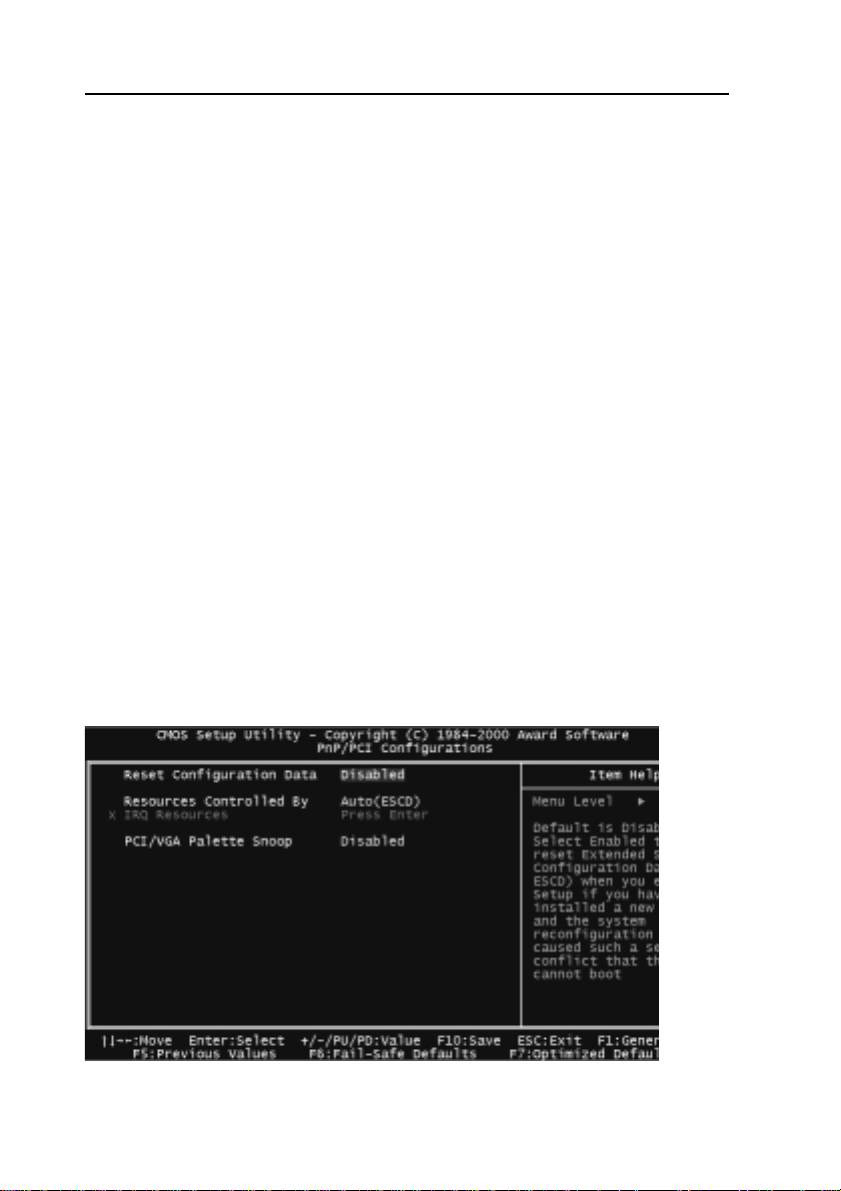

PnP / PCI Configuration
This entry appears if your system supports PnP / PCI.
Frequency/Control
Use this menu to specify your settings for frequency/control.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate.
27
3SLAV User’s Manual
Load Optimized Defaults
Use this menu to load the BIOS default values that are factory settings for
optimal performance system operations. While Award has designed the
custom BIOS to maximize performance, the factory has the right to change
these defaults to meet their needs.
Set Password
Use this menu to set Passwords.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Save
Abandon all CMOS value changes and exit setup.
3-3 Standard CMOS Setup
The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys
to select the value you want in each item.
28
3SLAV User’s Manual
Main Menu Selections
This table shows the selections that you can make on the Main Menu
Item
Date
Time
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
T otal Memory
Options
Month DD YYYY
HH : MM : SS
Options are in its sub
menu
(described in T able 3)
Options are in its sub
menu
(described in T able 3)
Options are in its sub
menu
(described in T able 3)
Options are in its sub
menu
(described in T able 3)
None
360K, 5.25 in
1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
EGA/VGA
CGA 40
CGA 80
MONO
All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key
N/A
N/A
N/A
Description
Set the system date. Note
that the ‘Day’ automatically
changes when you set the
date
Set the system time
Press <Enter> to enter the
sub menu of detailed options
Press <Enter> to enter the
sub menu of detailed options
Press <Enter> to enter the
sub menu of detailed options
Press <Enter> to enter the
sub menu of detailed options
Select the type of floppy disk
drive installed in your system
Select the default video device
Select the situation in which
you want the BIOS to stop
the POST process and notify you
Displays the amount of conventional memory detected
during boot up
Displays the amount of extended memory detected
during boot up
Displays the total memory
available in the system
29
3SLAV User’s Manual
IDE Adapters
The IDE adapters control the hard disk drive. Use a separate sub menu to
configure each hard disk drive.
IDE Primary Master sub menu
Use the legend keys to navigate through this menu and exit to the main
menu.
Item
IDE HDD Autodetection
Options
Press Enter
Description
Press Enter to auto-detect the HDD
on this channel.If detection is
successful, it fills the remaining fields
on this menu.
IDE Primary
Master
None
Auto
Manual
Selecting ‘manual’ lets you set the
remaining fields on this screen. Se-
lects the type of fixed disk. “User
Type” will let you select the number
of cylinders, heads, etc. Note:
PRECOMP=65535 means NONE !
Capacity
Auto Display your
disk drive size
Disk drive capacity (Approximated).
Note that this size is usually slightly
greater than the size of a formatted
disk given by a disk checking
program.
Access Mode
Normal
LBA
Choose the access mode for this
hard disk
Large
Auto
30
3SLAV User’s Manual
The following options are selectable only if the 'IDE Primary Master' item is
set to 'Manual'
Cylinder
Head
Precomp
Landing zone
Sector
3-4 Advanced BIOS Features
This section allows you to configure your system for basic operation. Y o u
have the opportunity to select the system's default speed, boot-up sequence,
keyboard operation, shadowing and security.
Min = 0
Max = 65535
Min = 0
Max = 255
Min = 0
Max = 65535
Min = 0
Max = 65535
Min = 0
Max = 255
Set the number of cylinders for
this hard disk.
Set the number of read/write
heads
**** Warning: Setting a value of
65535 means no hard disk
****
Number of sectors per track
Virus Warning
Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempt to write
data into this area, BIOS will show a warning message on screen and alarm
beep.
31
3SLAV User’s Manual
Enabled Activates automatically when the system boots up causing a
warning message to appear when anything attempts to access
the boot sector or hard disk partition table.
Disabled No warning message will appear when anything attempts to
access the boot sector or hard disk partition table.
CPU Internal Cache/External Cache
These two categories speed up memory access. However, it depends on
CPU/chipset design.
Enabled Enable cache
Disabled Disable cache
CPU L2 Cache ECC Checking
This item allows you to enable/disable CPU L2 Cache ECC checking.
The choice: Enabled, Disabled.
Processor Number Feature
The item is used to Enabled/Disabled the Processor Number Feature.
The choice: Enabled, Disabled.
Quick Power On Self T est
This category speeds up Power On Self T est (POST) after you power up the
computer. If it is set to Enable, BIOS will shorten or skip some check items
during POST.
Enabled Enable quick POST
Disabled Normal POST
First/Second/Third/Other Boot Device
The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.
The Choice: Floppy, LS/ZIP, HDD, SCSI, CDROM, Disabled.
Swap Floppy Drive
If the system has two floppy drives, you can swap the logical drive name
assignments.
The choice: Enabled/Disabled.
Boot Up Floppy Seek
Seeks disk drives during boot up. Disabling speeds boot up.
The choice: Enabled/Disabled.
32
3SLAV User’s Manual
Boot Up NumLock Status
Select power on state for NumLock.
The choice: Enabled/Disabled.
Typematic Rate Setting
Key strokes repeat at a rate determined by the keyboard controller. When
enabled, the typematic rate and typematic delay can be selected.
The choice: Enabled/Disabled.
T ypematic Rate (Chars/Sec)
Sets the number of times a second to repeat a key stroke when you hold
the key down.
The choice: 6, 8, 10, 12, 15, 20, 24, 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat the
keystroke.
The choice: 250, 500, 750, 1000.
Security Option
Select whether the password is required every time the system boots or
only when you enter setup.
System The system will not boot and access to Setup will be denied if the
correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be denied if the
correct password is not entered at the prompt.
Note:T o disable security, select PASSWORD SETTING at Main Menu and
then you will be asked to enter password. Do not type anything and just
press <Enter>, it will disable security. Once the security is disabled, the
system will boot and you can enter Setup freely.
OS Select For DRAM > 64MB
Select the operating system that is running with greater than 64MB of RAM
on the system.
The choice: Non-OS2, OS2.
Report No FDD For Win 95
Whether report no FDD for Win 95 or not.
The choice: Y es, No.
33
3SLAV User’s Manual
3-5 Advanced Chipset Features/Integrated Peripherals
This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache.
It also coordinates communications between the conventional ISA bus and
the PCI bus. It must be stated that these items should never need to be
altered. The default settings have been chosen because they provide the
best operating conditions for your system. The only time you might consider making any changes would be if you discovered that data was being
lost while using your system
The first chipset settings deal with CPU access to dynamic random access
memory (DRAM). The default timings have been carefully chosen and should
only be altered if data is being lost. Such a scenario might well occur if your
system had mixed speed DRAM chips installed so that greater delays may
be required to preserve the integrity of the data held in the slower memory
chips.
SDRAM CAS Latency Time
When synchronous DRAM is installed, the number of clock cycles of CAS
latency depends on the DRAM timing.
The Choice: 2, 3
34
3SLAV User’s Manual
SDRAM Cycle Time T ras/T rc
Select the number of SCLKs for an access cycle.
The Choice: 5/7, 6/8.
SDRAM Address Setup Time
This item controls the Address Setup to the SDRAM timing.
The Choice: 1, 2.
SDRAM RAS-to-CAS Delay
SDRAM RAS-to-CAS Delay is an important parameter that affects SDRAM
performance. If the system fails to boot up, please set this item to 3.
The Choice: 2, 3.
SDRAM RAS Precharge Time
The RAS Precharge means the timing to inactive RAS and the timing for
DRAM to do precharge before next RAS can be issued. RAS is the address
latch control signal of DRAM row address. The default setting is 3 clocks.
The Choice: 2, 3.
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program
writes to this memory area, a system error may result.
The choice: Enabled, Disabled.
Video BIOS Cacheable
Select Enabled allows caching of the video BIOS , resulting in better system performance. However, if any program writes to this memory area, a
system error may result.
The Choice: Enabled, Disabled.
Memory Hole At 15M-16M
Y ou can reserve this area of system memory for ISA adapter ROM. When
this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their
memory requirements.
The Choice: Enabled, Disabled.
Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support delay
35
3SLAV User’s Manual
transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.
The Choice: Enabled, Disabled.
On-Chip Video Window Size
Select the on-chip video window size for VGA drive use.
The Choice: 32MB, 64MB, Disabled.
AGP Aperture Size (MB)
Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics
memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. See www.agpforum.org for AGP
information.
The choice: 32, 64.
System Memory Frequency
Select the system memory frequency for DIMM clock use.
The choice:Auto,100,133
Onboard Display Cache Setting
The item is used to Enabled/Disabled Initial Display Cache.
The Choice: Enabled, Disabled.
CAS # Latency
Select the local memory clock periods.
The Choice: 2, 3
Paging Mode Control
Select the paging mode control.
The Choice: Fast, Slow.
RAS-to-CAS Override
Select the display cache clock periods control.
The Choice: Fast, Slow.
This item controls RAS# active to Protegra, and refresh to RAS# active
delay ( in local memory clocks).
The Choice: Fast, Slow.
36
3SLAV User’s Manual
RAS# Precharge Timing
This item controls RAS# precharge (in local memory clocks).
The choice: Fast, Slow.
3-6 Integrated Peripherals
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support
for two IDE channels. Select Enabled to activate each channel separately.
The choice: Enabled, Disabled.
IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode
(0-4) for each of the four IDE devices that the onboard IDE interface supports.
Modes 0 through 4 provide successively increased performance. In Auto
mode, the system automatically determines the best mode for each device.
The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.
IDE Primary/Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95
OSR2 or a third-party IDE bus master driver). If your hard drive and your
system software both support Ultra DMA/33, select Auto to enable BIOS
support.
The Choice: Auto, Disabled.
37
3SLAV User’s Manual
USB Controller
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have USB peripherals.
The choice: Enabled, Disabled.
USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard.
The choice: Enabled, Disabled.
Init Display First
This item allows you to decide to active whether PCI Slot or on-chip VGA
first
The choice: PCI Slot, Onboard .
AC97 Audio /Modem
This item allows you to decide to enable/disable the 815 chipset family to
support AC97 Audio/Modem.
The choice: Auto, Disabled.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple
sector read/write. If your IDE hard drive supports block mode (most new
drives do), select Enabled for automatic detection of the optimal number of
block read/writes per sector the drive can support.
The choice: Enabled, Disabled
POWER ON Function
This item is used to select Wake on Keyboard/Mouse mode.
Any Key: This function allows you wake up the system by clicking any key.
Button Only: Disable Wake on KB/MS function. You can boot up your
system by power button only.
Keyboard 98: If selecting this option, you can boot up the system by power
button and the wake? Key on Keyboard 98 .
Password: Disable the function of power button and let the system can only
be powered on through the preset keys (like a password).
Hot Key: If selecting this option, you also need to specify the hot key from
Keyboard Power On item.
Mouse Left: This function allows you wake up the system by clicking left
mouse button twice successively.
38
3SLAV User’s Manual
Mouse Right: This function allows you wake up the system by clicking right
mouse button twice successively.
The Choice: Keyboard 98,Password,Hot KEY, Mouse Move, Mouse Click,
Any KEY, BUTTON ONLY.
KB Power ON Password
You can specify 1-5 keys as a password.
The choice: Enter
Hot Key Power ON
If you select Hot Key option in power On Function Item, you need to specify
a hot key here.
The Choice:Ctrl-F1-Ctrl-F12
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you install and-in FDC or the
system has no floppy drive, select Disabled in this field.
The choice: Enabled, Disabled.
Onboard Serial Port 1/Port 2
Select an address and corresponding interrupt for the first and second serial
ports.
The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.
UART Mode Select
This item is configurable only if the "Onboard UART 2" is enabled. This
allows you to specify the mode of serial port 2.
ASKIR - Select this setting if you installed an Infrared module via IrDA con-
nector (refer to section 2.3 "Connectors"). This ASKIR setting allows infrared serial communication at a maximum baud rate of 56K
baud.
HPSIR - Select this setting if you installed an Infrared module in your sys-
tem via IrDA connector (refer to section 2.3 "Connectors"). The
HPSIR setting allows infrared serial communication at a maximum
baud rate of1 15K baud.
FIR - Select this setting if you installed an Infrared module via IrDA connec-
tor (refer to section 2.3 "Connectors"). This FIR (Fast IR) setting
allows infrared serial communication at a maximum baud rate of
4M baud.
39
3SLAV User’s Manual
Normal - Sets serial port 2 to operate in normal mode. This is the default
setting.
The choice: Normal,SCR,IrDA,ASKIR.
UR2 Duplex Mode
This item is used to select UR2 Duplex Mode.
The Choice: Half, Full
Onboard Parallel Port
This item controls the onboard parallel port address and interrupt.
The choice: 378/IRQ7, 278/IRQ5,3BC/IRQ7, Disable.
Parallel Port Mode
This item lets you set the parallel port mode. The mode options are SPP
(Standard and Bidirection Parallel Port), EPP (Enhanced Parallel Port) and
ECP (Extended Parallel Port). SPP is the IBM AT and PS/2 compatible
mode. EPP enhances the parallel port throughput by directly writing/reading
data to/from parallel port without latch. ECP supports DMA and RLE (Run
Length Encoded) compression and decompression.
The choice: SPP, EPP, ECP,ECP+EPP.
ECP Mode Use DMA
This item lets you set the DMA channel of ECP mode.
The Choice:1,3.
PWRON After PWR Fail
A traditional ATX system should remain at power of f stage when AC power
resumes from power failure. This design is inconvenient for a network server
or workstation, without an UPS, that needs to keep power-on. This item is
used to solve this problem. Selecting On lets the system can automatically
power-on after AC power resumes; in the other hand, the system will poweroff if you select Off. If Former-Sts option is selected, the system will poweron or power-off based on the original state.
The Choice: off, on, Former-sts.
Game Port Address
This item is used to assign an address for the Game port.
The Choice: Disable, 201, 209.
40
3SLAV User’s Manual
Midi Port Address
This item is used to assign an address for the MIDI port.
The Choice: 330, 300, Disable.
Midi Port IRQ
This item is used to assign an IRQ for the MIDI port.
The Choice:10, 5.
3-7 Power Management Setup.
The Power Management Setup allows you to configure you system to most
effectively save energy while operating in a manner consistent with your own
style of computer use.
ACPI Function
This item allows you to enable/disable the Advanced Configuration and Power
Management (ACPI).
The choice: Enabled, Disabled.
Power Management
This category allows you to select the type (or degree) of power saving and
41
3SLAV User’s Manual
is directly related to the following modes:
1. HDD Power Down
2. Doze Mode
3. Suspend Mode
There are four selections for Power Management, three of which have fixed
mode settings.
Disable (default) No power management. Disables all four modes
Min. Power Saving Minimum power management. Doze Mode = 1 hr.
Standby Mode = 1 hr., Suspend Mode = 1 hr., and
HDD Power Down = 15 min.
Max. Power Saving Maximum power management -- ONL Y A VAILABLE
FOR SL CPU's. Doze Mode = 1 min., Standby Mode
= 1 min., Suspend Mode = 1 min., and HDD Power
Down = 1 min.
User Defined Allows you to set each mode individually. When not
disabled, each of the ranges are from 1 min. to 1 hr.
except for HDD Power Down which ranges from 1 min.
to 15 min. and disable.
Video Off Method
This determines the manner in which the monitor is blanked.
V/H SYNC+Blank This selection will cause the system to turn off the ver-
tical and horizontal synchronization ports and write
blanks to the video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Initial display power management signaling.
Video Off In Suspend
This determines the manner in which the monitor is blanked.
The choice: Yes, No.
Suspend Type
Select the Suspend Type.
The choice: PWRON Suspend, Stop Grant.
MODEM Use IRQ
This determines the IRQ in which the MODEM can use.
The choice: 3, 4, 5, 7, 9, 10, 11, NA.
42
3SLAV User’s Manual
Suspend Mode
When enabled and after the set time of system inactivity, all devices except
the CPU will be shut off.
The choice: Enabled, Disabled.
HDD Power Down
When enabled and after the set time of system inactivity, the hard disk drive
will be powered down while all other devices remain active.
The choice: Enabled, Disabled.
Soft-Off by PWR-BTTN
Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has "hung."
The choice: Delay 4 Sec, Instant-Off.
Wake-Up by PCI Card
This option lets you specify enable or disable PCI Card Wake-up function.
The choice: Enabled, Disabled.
Power On by Ring
This option lets you specify enable or disable Power On by Ring function.
The choice: Enabled, Disabled.
Wake Up On LAN
This option lets you specify enable or disable LAN Wake Up function.
The choice: Enabled, Disabled.
Resume by Alarm
This option lets you enable or disable the RTC Wake Up function.
The choice: Enabled, Disabled.
Date(of Month)Alarm
This item is displayed when you enable the Wake On RTC Timer option.
Here you can specify what date you want to wake up the system. For
Example, setting to 15 will wake up the system on the 15th day of every
month.
The choice:0-31
Time( hh: mm: ss )Alarm
This item is displayed when you enable the Wake ON RTC Timer option.
43
3SLAV User’s Manual
Here you can specify what time you want to wake up the system.
The choice:hh:0-23,mm:0-59,ss:0-59.
PM Events
PM events are I/O events whose occurrence can prevent the system from
entering a power saving mode or can awaken the system from such a mode.
In effect, the system remains alert for anything which occurs to a device
which is configured as Enabled , even when the system is in a power down
mode.
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
PCI PIRQ[A-D] #
3-8 PnP/PCI Configuration Setup
This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate at
speeds nearing the speed the CPU itself uses when communicating with its
own special components. This section covers some very technical items
and it is strongly recommended that only experienced users should make
any changes to the default settings.
44
3SLAV User’s Manual
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended
System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a
serious conflict that the operating system can not boot.
The choice: Enabled, Disabled .
Resource controlled by
The Award Plug and Play BIOS has the capacity to automatically configure
all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows95/98. If you set this field to "manual" choose
specific resources by going into each of the sub menu that follows this field
(a sub menu is preceded by a ">").
The choice: Auto(ESCD), Manual.
IRQ Resources
When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.
IRQ3/4/5/7/9/10/11/12/14/15 assigned to
This item allows you to determine the IRQ assigned to the ISA bus and is
not available to any PCI slot. Legacy ISA for devices compliant with the
original PC AT bus specification, PCI/ISA PnP for devices compliant with
the Plug and Play standard whether designed for PCI or ISA bus architecture.
The Choice: PCI Device,Reserved.
PCI/VGA Palette Snoop
Leave this field at Disabled.
Choices are Enabled, Disabled.
45
3SLAV User’s Manual
3-9 PC Health Status
The PC Health Status provides fan rotations ,Voltages ,and temperature of
the system. Choose "PC Health Status" from the Main Menu and a screen
with a list of items appears.
3-10 Frequency Control
46
3SLAV User’s Manual
Auto Detect
This item allows you to enable/disable auto detect DIMM/PCI Clock.
The choice: Enabled, Disabled.
Spread Spectrum Modulated
This item allows you to enable/disable the spread spectrum modulate.
The choice: Enabled, Disabled.
Host CPU/DIMM/PCI Clock
This item allows you to select the CPU,DIMM and PCI Frequency.
The choice:Default,66/100/33,68/102/34,75/1 12/137,100/100/33,103/103/34,
124/124/41,133/133/44,140/140/46,150/150/50,133/100/33,140/
105/35,150/112/37MHz
CPU Clock Ratio
This item allows you to select The CPU ratio.
The choice:3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8.
3-11 Defaults Menu
Selecting "Defaults" from the main menu shows you two options which are
described below
Load Fail-Safe Defaults
When you press <Enter> on this item you get a confirmation dialog box with
a message similar to:
Load Fail-Safe Defaults (Y/N) ? N
Pressing 'Y' loads the BIOS default values for the most stable, minimal-
performance system operations.
Load Optimized Defaults
When you press <Enter> on this item you get a confirmation dialog box with
a message similar to:
Load Optimized Defaults (Y/N) ? N
Pressing 'Y' loads the default values that are factory settings for optimal
performance system operations.
47
3SLAV User’s Manual
3-12 Password Setting
Set supervisor/ user password
Y ou can set either supervisor or user password, or both of then. The dif ferences between are:
supervisor password : can enter and change the options of the setup menus.
user password : just can only enter but do not have the right to change the
options of the setup menus. When you select this function,
the following message will appear at the center of the screen
to assist you in creating a password.
Type the password, up to eight characters in length, and press <Enter>.
The password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to abort
the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to enter
the password. A message will confirm the password will be disabled. Once
the password is disabled, the system will boot and you can enter Setup
freely.
P ASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every
time you try to enter Setup. This prevents an unauthorized person from
changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the BIOS to
request a password every time your system is rebooted. This would prevent
unauthorized use of your computer.
You determine when the password is required within the BIOS Features
Setup Menu and its Security option (see Section 3). If the Security option is
set to "System", the password will be required both at boot and at entry to
Setup. If set to "Setup", prompting only occurs when trying to enter Setup.
48
3SLAV User’s Manual
3-13 Exit Selecting
Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)? Y
Pressing "Y" stores the selections made in the menus in CMOS - a special
section of memory that stays on after you turn your system off. The next
time you boot your computer, the BIOS configures your system according
to the Setup selections stored in CMOS. After saving the values the system
is restarted again.
Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and restarts
your computer.
49
3SLAV User’s Manual
Software Driver Install
4-1 UPDATED PRODUCT INFORMATION
1.Enter the INF subdirectory and double-click SETUP.EXE.
2.Click “Next” at the Welcome screen.
50
3SLAV User’s Manual

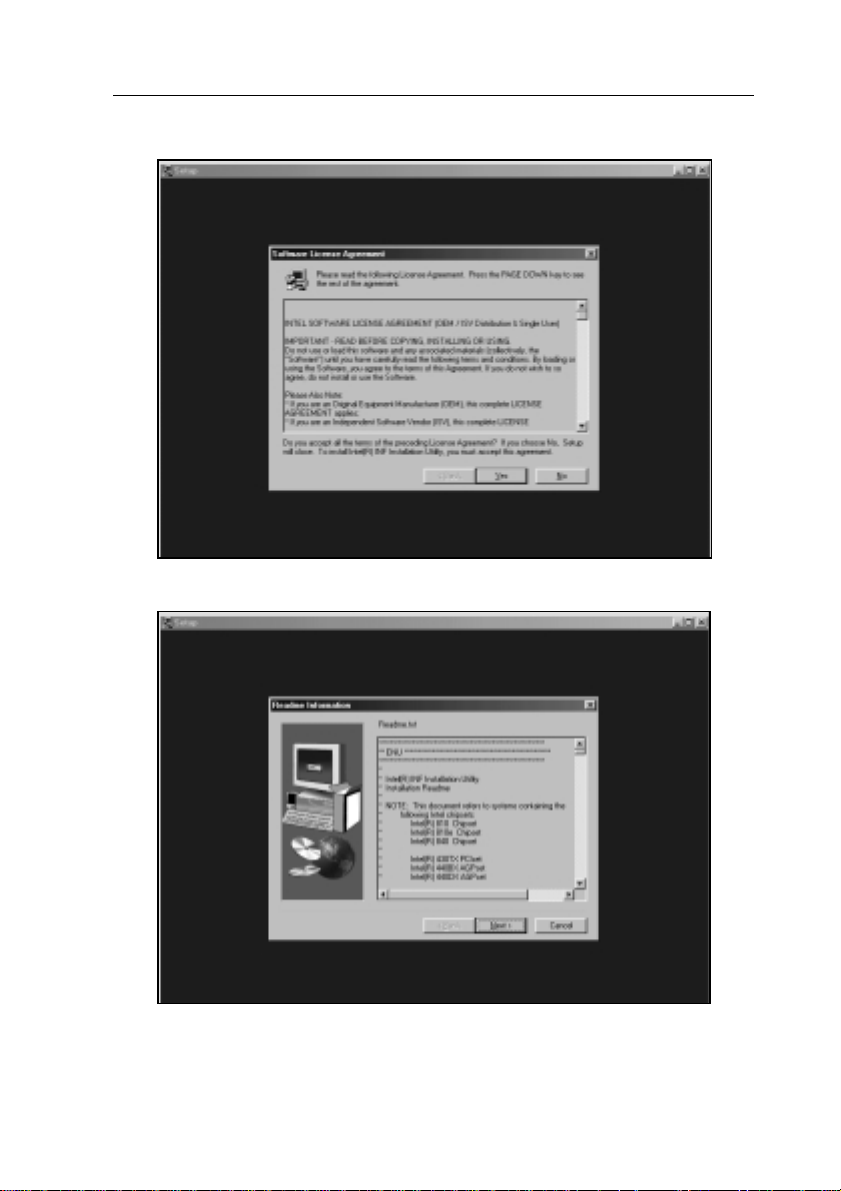

3.Read the license agreement and click “Y es” to continue.
4.Read readme.txt information and click “NEXT” to continue
51
3SLAV User’s Manual

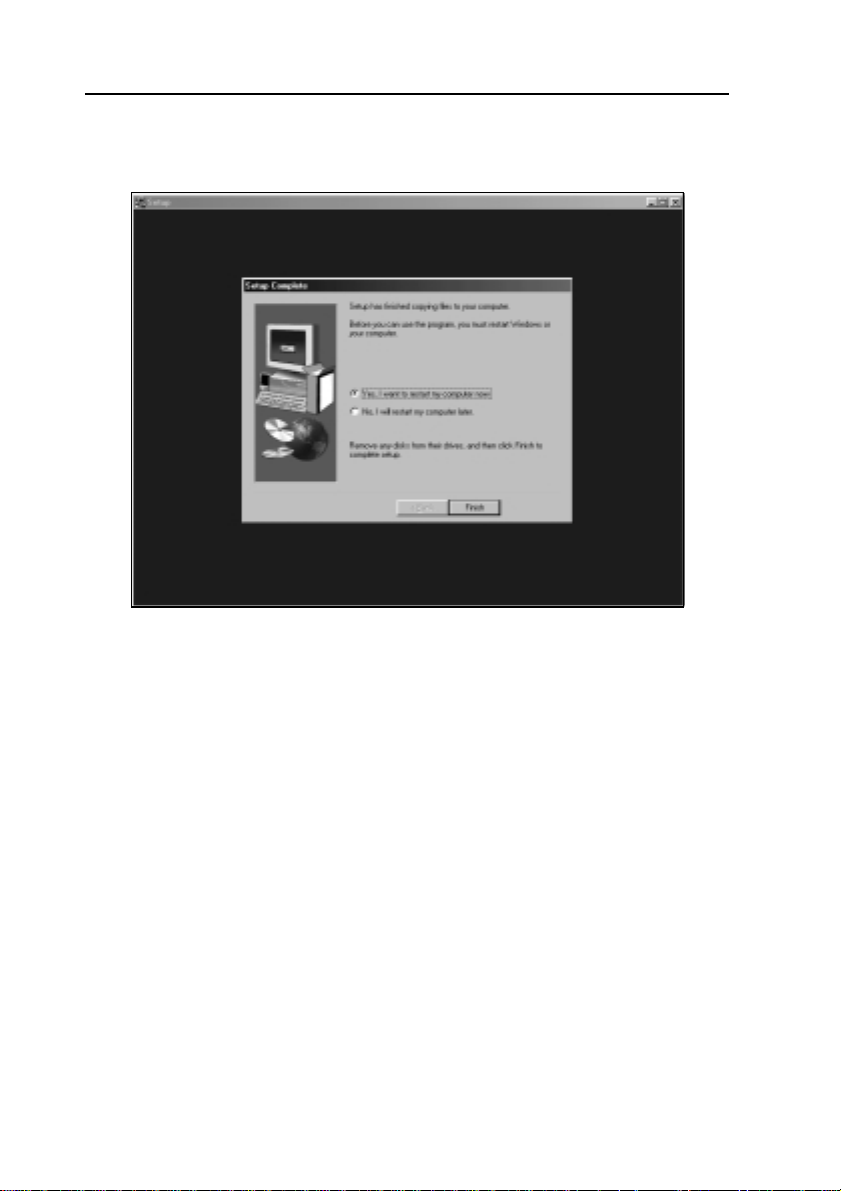

5.The driver files will now be installed. When finished installing, choose the
“Y es” to reboot option and click “Finish” to restart your computer . The driver
should now be loaded.
52
3SLAV User’s Manual
4-2 Install Graphics Driver
1.Enter the graphics subdirectory and double-click SETUP.EXE.
2.Click “Next” at the Welcome screen.
53
3SLAV User’s Manual
3.Read the license agreement and click “Yes” to continue.
4.This screen indicates the directory where the End User Diagnostic Utility
files will be stored. NOTE: the graphics driver is not installed here (it is
installed in the appropriate Windows system directories), just the EUD
utility files. If you wish to change the directory where the EUD will be
stored, click “Browse” and change the directory. Click “Next” to continue.
54
3SLAV User’s Manual
5.The driver files will now be installed. When finished installing, choose the
“Y es” to reboot option and click “Finish” to restart your computer . The driver
should now be loaded. T o determine if the driver has been loaded correctly,
refer to the “Verifying Installation” section, below.
55
3SLAV User’s Manual
4-3 Install Audio Driver
1.To remove an existing driver/application and install with the latest Driver/
application, please run SETUP.EXE file (inlcuded in the “ Win98WDM
subdirectory”) ,double-click SETUP.EXE.
2.Choose Language and Click “Next” to continue.
56
3SLAV User’s Manual
3.Click “Next” at the Welcome screen.
4.In selecting a setup type, please choose “Remove and Install Software..”
and click on” Next ”. When asked with “ Do you want to install the bundled
application?” Select “Yes, I do.” to install ALSRACK Player or “No, I don’t.
” if not. Click on “Next” and the program will install both the driver and
application automatically.
57

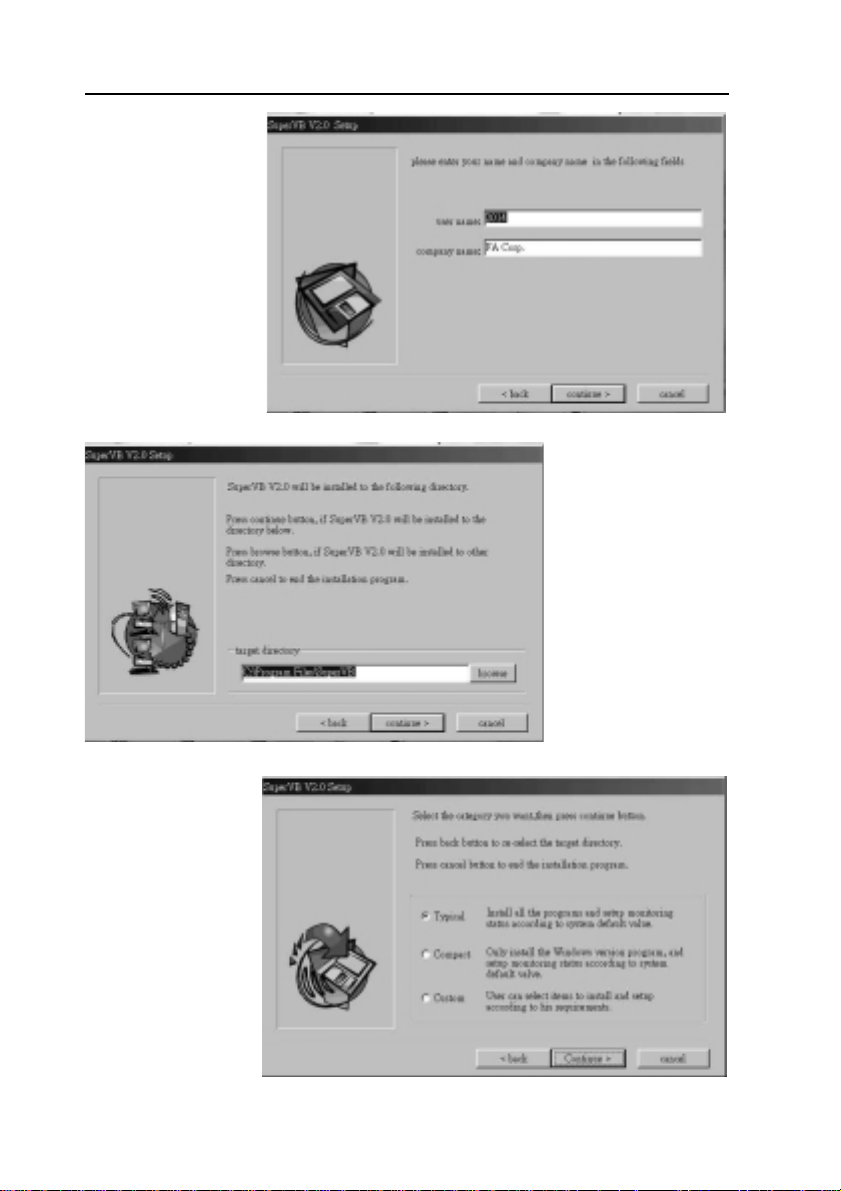

3SLAV User’s Manual
58
3SLAV User’s Manual
4-4 ALC100 ALSRACK Application
1. Structure and components:
The ALSRACK consists of a MIXER control panel, MIDI panel, WA VE panel,
and CD panel.
1.1 To enable or disable a panel:
Clicking the mouse button on the MIDI, WAVE, or CD in MIXER control
panel will cause the corresponding panel to disappear, another click will
cause the corresponding panel to re-appear.
1.2 To change a channel:
Click channel LEFT or RIGHT button to change to the channel you want.
1.3 To activate volume and balance control:
Change to the channel you want (see 1.2), then click up or down arrow
buttons to change the volume, or click balance LEFT or RIGHT arrow buttons to change balance.
59
3SLAV User’s Manual
1.4 To mute system:
Change to the channel you want, then click MUTE check mark to disable
sound,click again to re-enable sound.
2. MIDI panel
2.1 To open or close a MIDI file:
Click the button of the MIDI sign on the MIDI panel, choose OPEN to open
a MIDI file, or choose CLOSE to close a file.
2.2 Auto repeat and show information:
Click the button of the MIDI sign on MIDI panel. Clicking on AUTO REPEA T or SHOW INFORMATION will enable or disable the selection. When
AUTO REPEA T is selected, the MIDI file will be played again when it reaches
the end.
When SHOW INFORMA TION is selected, the MIDI window will open and
the information from the MIDI file will appear on the MIDI window. When a
MIDI file is opened, you can also click the MIDI window to show the information of that file.
2.3 Other operations:
When a MIDI file is opened, you can click PLA Y to play it, or click PAUSE,
STOP, FF or RW to manipulate the selection. Y ou can also use the volume
control buttons on the MIDI panel to control the volume directly.
3. WAVE panel
3.1 Select TAPE I or TAPE II to playback:
There are two T APE boxes on the WAVE panel. TAPE I can only play wave
files. TAPE II can play and record wave files. There is one set of control
buttons on the right of WAVE panel. When Tape I is selected,the control
buttons will take effect for TAPE I. When Tape II is selected,the control
buttons will work for TAPE II. Click the button TAPEI/TAPEII to select between TAPEI or TAPEII, or push the button TAPEI PLAYBACK on TAPE I
box to select T APE I, while pushing the button TAPEII REC/PLAY on TAPE
II box to select T APEII.
Note: When you want to playback a wave file, you need to select T APE I/
T APE II first.
60
3SLAV User’s Manual
3.2 Open a wave file to play:
Push the OPEN button, select OPEN on the menu, select a wave file to
play. When the wave file is opened, the TAPE containing the file is automatically selected, just push the PLA Y button to play it.
3.3 Record a wave file:
Push the button REC.INPUT to select the input media (Line in, MIDI,Audio
CD, or MIC), then push the the button OPEN on T APE II and select NEW
to create a new wave file. The TAPEII indicator will be red to show it is
waiting to record. Play the source media, and push recording button on
T APEII to begin recording. When finished recording, push the record button (now it is
a red square) to stop. After finished, save the file as the name you specified.
3.4 Full-duplex:
For sound card supporting full-duplex, T APEI and TAPEII can work at the
same time. This means while T APEI is playing, TAPEII can record, or while
TAPEII is recording, TAPEI can play.
When using full-duplex, the control buttons work like this: Playback button
and stop button only take effect for TAPEI, record button works only for
TAPEII. Push record button once to begin recording, and push it again to
stop recording.
3.5 Synchronous recording (record and play simultaneously):
After selecting an INPUT media and new wave file for recording, push
button SYNC.REC to begin a synchronous recording. The mixer will automatically play the source file and begin recording at the same time.
4. CD
4.1 EDIT and Program:
Push EDIT to select which tracks (selections on the CD) to play and add it
to the Playlist. Then click the Program button to play the selected tracks.
4.2 Random play:
The Random button plays tracks in a random order.
4.3 Repeat:
T o repeat one track of a CD, select the track and push the repeat button one
time.
61
3SLAV User’s Manual
A single repeat signal will appear in the CD player window.
To repeat the full CD, push the repeat button 2 times.
A full repeat signal will appear in the CD player windows.
62
3SLAV User’s Manual
Anti-Virus software
installation
5-1 Anti-Virus software installation
Put CD title driver into CD ROM, then choose "Anti-Virus software" on the
main menu, follow each instruction on the screen as the followings.
63
3SLAV User’s Manual
64
Loading...
