HELMET OPERATOR’S MANUAL

*Showing FAST Ballistic High Cut with Lux Liner and Worm-Dial.

WITH LUX LINER

Page 2

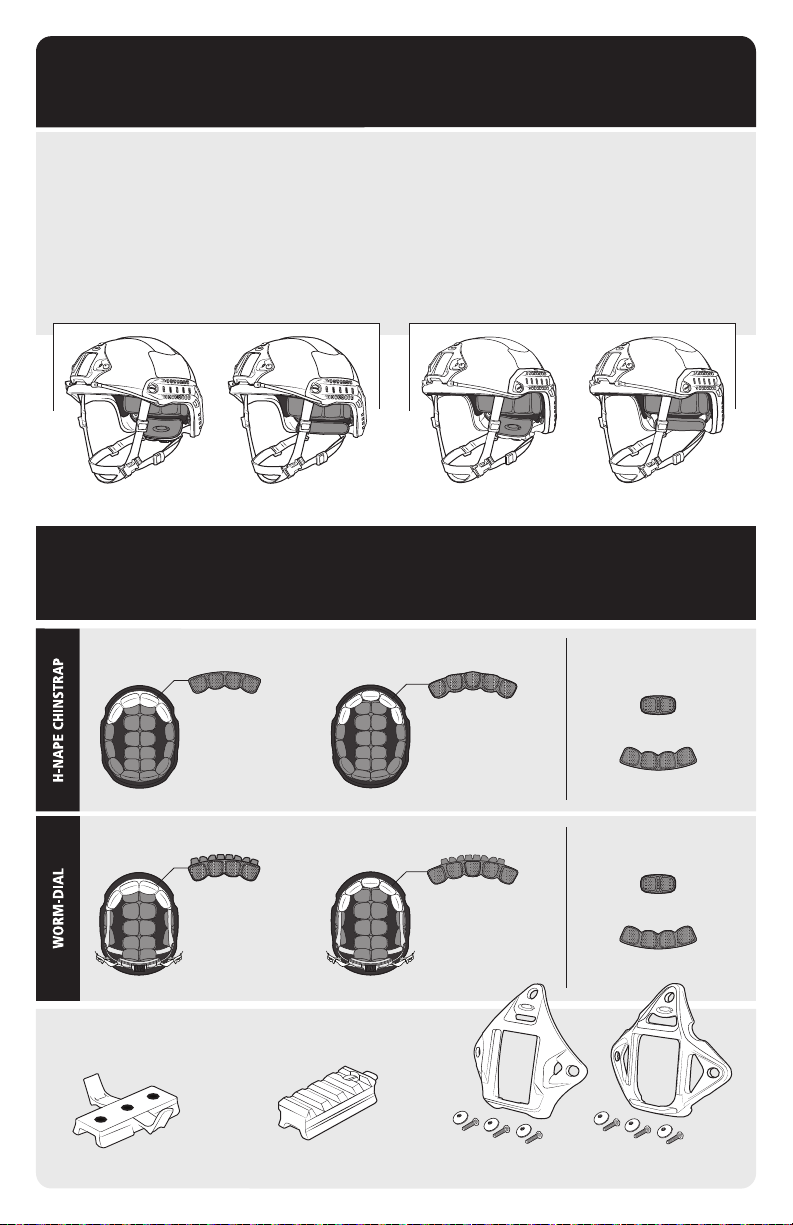

HELMET VERSIONS

FAST HELMETS

This manual is specific to the following helmet models: FAST Ballistic High Cut, and FAST Ballistic Maritime, with pre-installed Lux Liner (H-Nape or Worm-Dial Versions).

FAST Ballistic High Cut Helmet with Worm-Dial and Lux Liner is used for reference drawings throughout this Operator’s Manual. If there are any procedure discrepancies due to other helmet / Lux Liner / Chinstrap versions they will be specifically noted.

FAST BALLISTIC HIGH CUT HELMET FAST BALLISTIC MARITIME HELMET

WORM-DIAL H-NAPE CHINSTRAP

PRE-INSTALLED LUX LINER KIT:

Pads are shipped in the standard configuration with nine installed pads. Pads can be placed in a variety of alternate positions to achieve optimal comfort.

S/M

KIT INCLUDES:

(1) Impact Liner

(1) H-Nape Chinstrap

(2) Thick x4 Pads (2) Thin x2 Pads (5) Thick x2 Pads

KIT INCLUDES:

(1) Impact Liner

(1) Worm-Dial Fitband

(1) Thick x4 Pad w/ Tabs (2) Thin x2 Pads (5) Thick x2 Pads (1) Thick x4 Pad

M/L

L/XL

KIT INCLUDES:

(1) Impact Liner (1) H-Nape Chinstrap

(1) Thick x5 Pad (2) Thin x2 Pads (5) Thick x2 Pads (1) Thick x4 Pad

KIT INCLUDES:

(1) Impact Liner (1) Worm-Dial Fitband

(1) Thick x5 Pad w/ Tabs (2) Thin x2 Pads (5) Thick x2 Pads (1) Thick x4 Pad

ADDITIONAL PADS

(Also Included)

(1) Thin x2 Pad

(1) Thin x4 Pad

ADDITIONAL PADS

(Also Included)

(1) Thin x2 Pad

(1) Thin x4 Pad

ALL HELMET VERSIONS INCLUDE:

(1) WING-LOC ADAPTER (1) PICATINNY ADAPTER VAS SHROUD / SKELETON SHROUD (Optional)

Page 3

TABLE OF CONTENTS

HELMET COMPONENTS

SIZING GUIDE

PRO SETUP

7-8

9-15

16-22

CHINSTRAP OPERATION

ACCESSORY INTEGRATION

COUNTERWEIGHT & HELMET COVER VAS SHROUD FAST SIDE RAILS (ARCs) EXTERIOR VELCRO SIDE COVERS & GUNSIGHT MANDIBLE COMMs HEADSET

MAINTENANCE SCHEDULE

REPLACEMENT KITS REPLACEMENT WORM-DIAL FITBAND COMFORT PADS REPLACEMENT CHINSTRAP & LUX LINER REPLACEMENT EXTERIOR VELCRO REPLACEMENT VAS SHROUD REPLACEMENT FAST SIDE RAILS

WARNING & WARRANTY

OPERATOR NOTES

Page 4

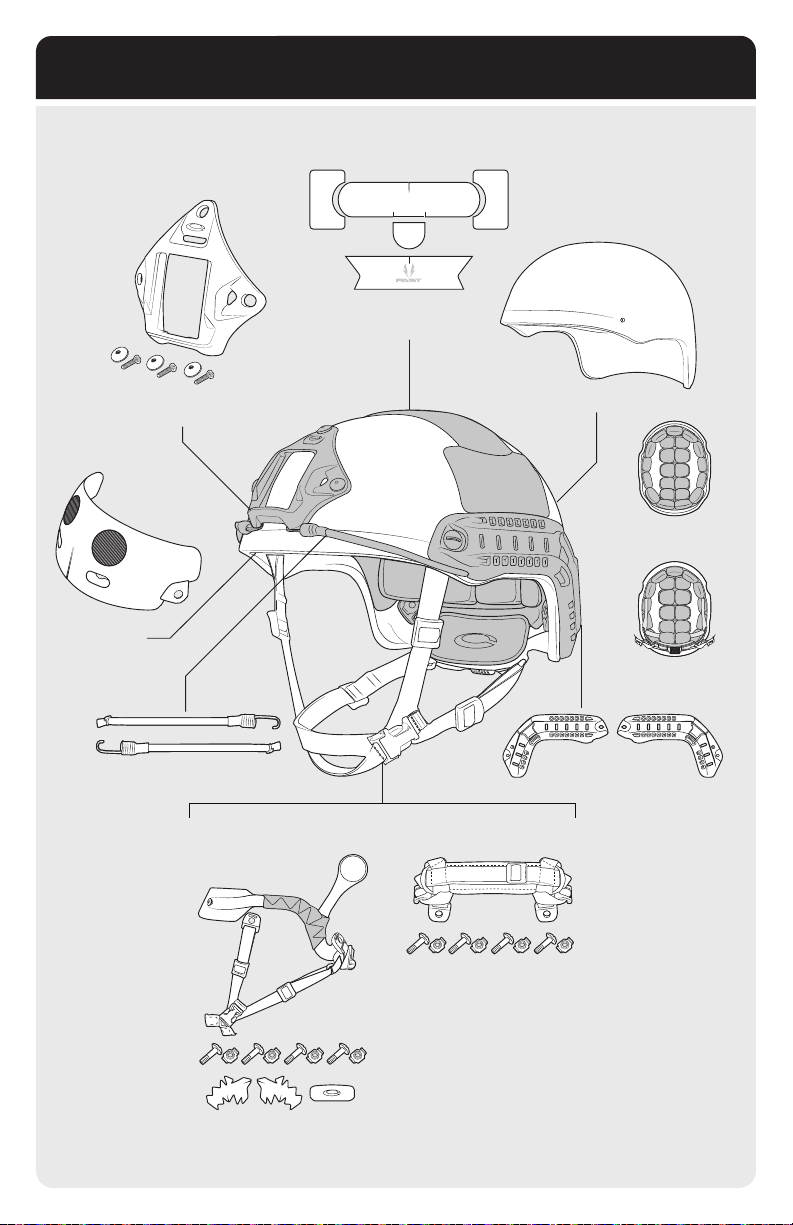

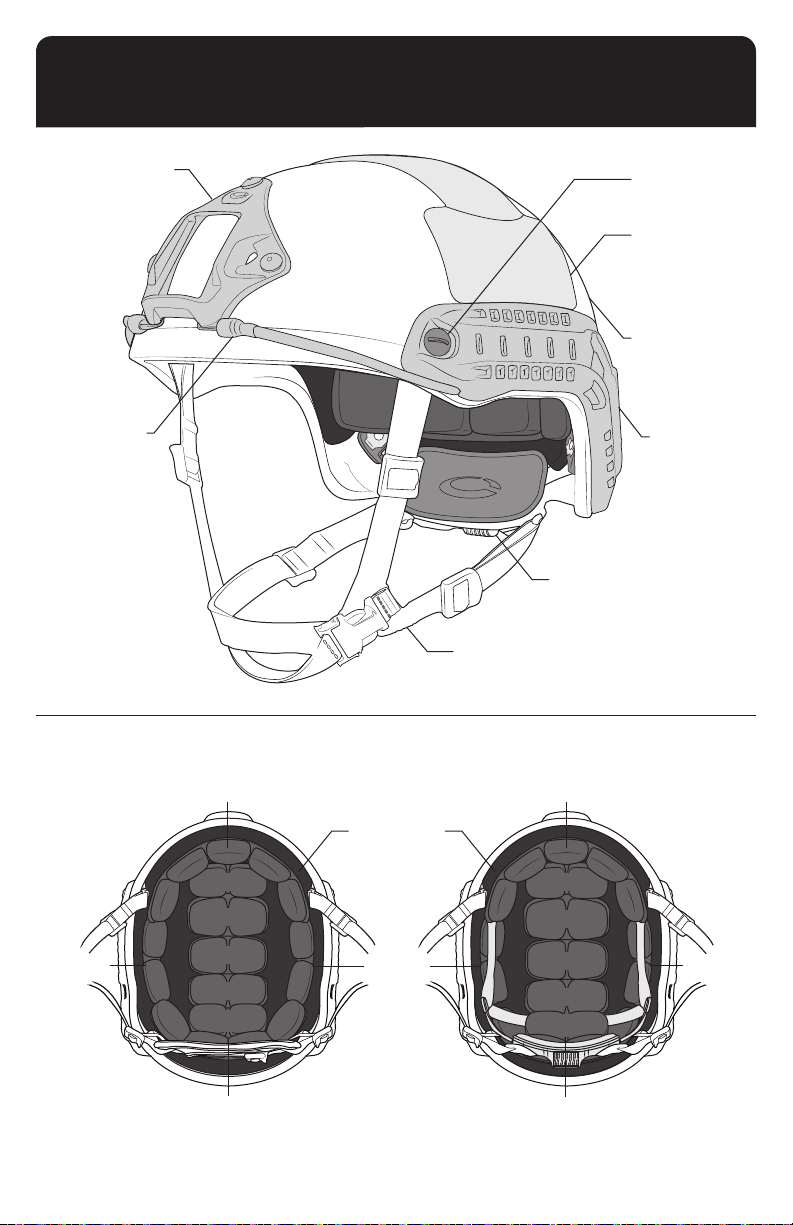

HELMET COMPONENTS

VAS Shroud

*Optional

Bungee

PAD CONFIGURATION:

(Row Quantity Depends on Lux Liner Size)

x4 or x5 Front Pad

Ballistic Screws & T-Nuts

Exterior Velcro

Helmet Shell

FAST Side Rail (ARC)

Lux Liner

(Showing Worm-Dial Version)

Integrated Retention System

(LED Version Available)

Note: LED = Left Eye Dominant

(Row Quantity Depends on Lux Liner Size)

x4 or x5 Front Pad

Side Pad

(5) Top Pads

Rear Pad

H-NAPE CHINSTRAP

Impact Liner

Side Pad

(5) Top Pads

Rear Pad

WORM-DIAL FITBAND

Side Pad

Page 5

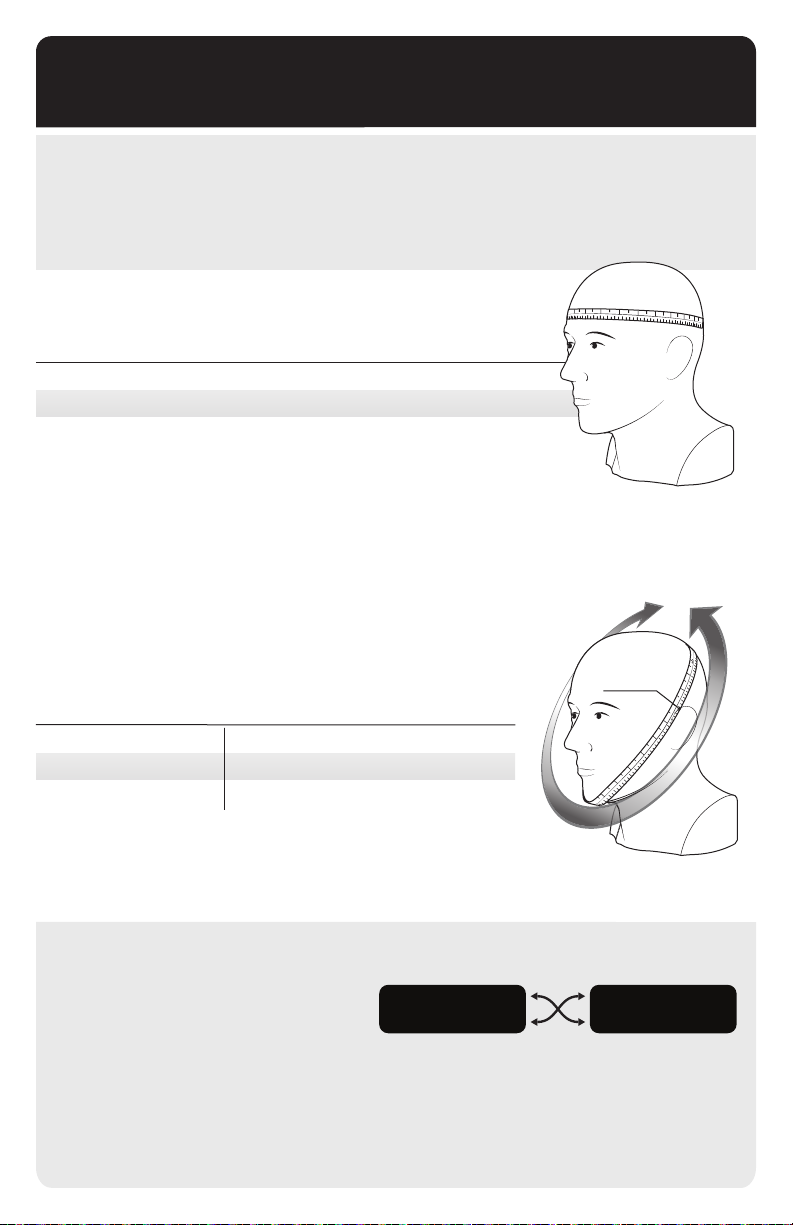

SIZING GUIDE

FAST helmets have been designed from the ground up to t the largest group of users in helmet sizes

that most closely match their heads. However, there is still a small percentage of users that will not

t our standard sizing congurations. Please use the sizing guide below to determine your helmet size and your chinstrap size. If you require a non-standard chinstrap/helmet conguration, custom

solutions are available.

HELMET SIZING GUIDE

FAST HELMET SIZE

Head Circumference (cm)

Head Circumference (in)

Head Size (US)

S/M

53 - 56

20⁄ - 22

up to 7

M/L

56 - 59

22 - 23¼

up to 7⁄

L/XL

59 - 62

23¼ - 24⁄

up to 7⁄

62 - 64.5

24⁄- 25⁄

up to 8⁄

CHINSTRAP SIZING GUIDE

ince people have different shaped heads, helmet size (the size of the top of your head) is not always proportional of your face). H-Nape chinstrap is one size fits all.

to the chinstrap size (the size

XXL

FAST HELMET SIZE WORM-DIAL FITBAND SIZE (in)

S/M

M/L

L/XL

MEDIUM

LARGE

X-LARGE

24.5-27.5

26-29

27.5-30.5

CUSTOM FIT COMBINATIONS

Your FAST Helmet can be custom fit with an alternate

chinstrap size upon ordering or a replacement chinstrap can be purchased separately.

S/M HELMET WITH

LARGE CHINSTRAP

RUN MEASURING TAPE ALONG FRONT EDGE OF EAR

L/XL HELMET

WITH

MEDIUM CHINSTRAP

Page 6

PRO SETUP

FAST Helmets were designed for professionals who expect the most from their equipment. Just like fine-tuning the suspension on a racecar or sighting in a fire-arm, the helmet must be set up properly before use to function correctly. If you do not follow these instructions, your helmet will not function in

accordance with stated performance.

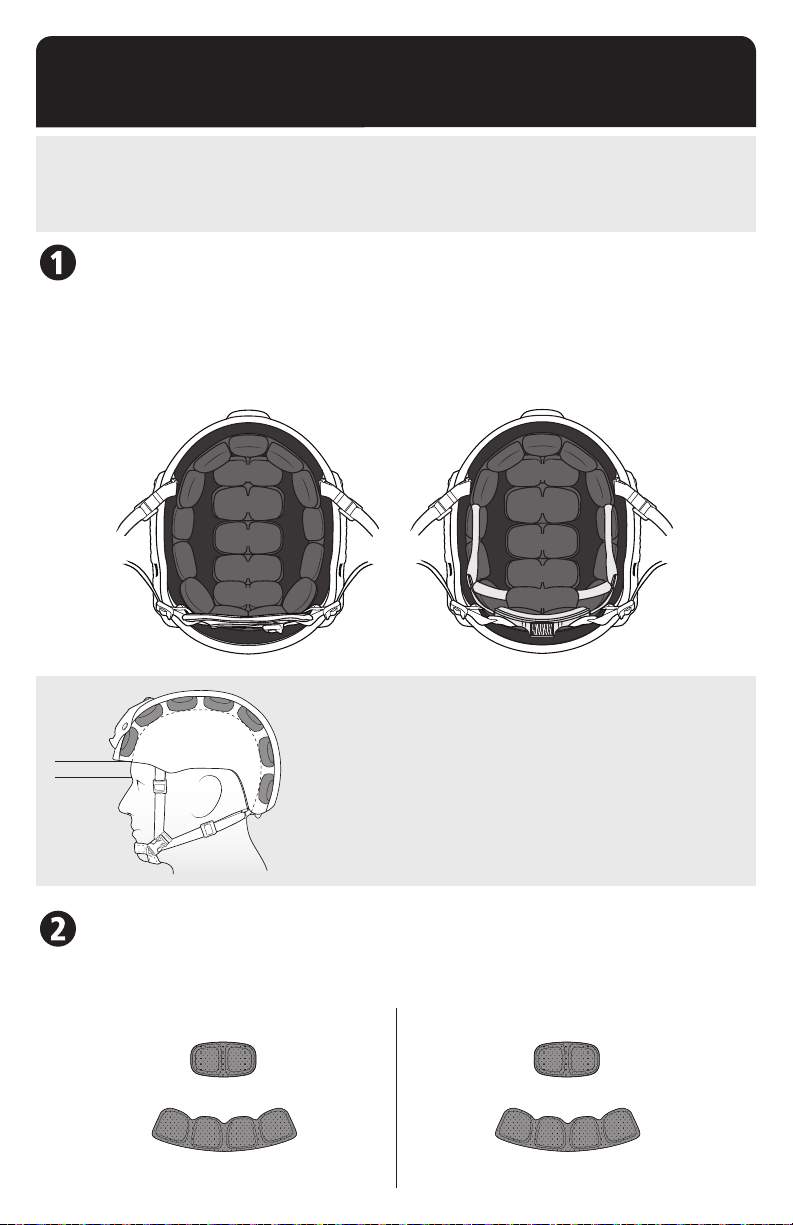

ADJUST THE TOP PADS

• Put the helmet on. All Lux Liner Pads come pre-installed in the helmet.

Worm-Dial Fitband Users:

Turn the Worm-Dial to loosen the Fitband so that all of the helmet weight is resting on top of your head. With the Fitband loose, check how high / low the helmet is sitting.

• All Users: Forehead pad should be above and not resting on the bony ridge of your eyebrows.

(5) Top Pads

HEIGHT ADJUSTMENT

• The distance from the top of the eyebrow to the bottom front of

0.5”-1”

the Lux Liner Impact Layer should be approximately 0.5”- 1”.

There should also be enough room around your ears for COMMs hearing protection.

• If the helmet sits at an uncomfortable angle, adjust the top

pads or try using the Additional Pads provided in different combinations (see step two “Additional Pads” for more detail)

ADDITIONAL PADS

• If the helmet feels tight or uncomfortable, adjust the Top Pads,

Additional Thin x2 or x4 Pad(s) try different combinations until helmet feels comfortable.

H-NAPE USERS

and swap Thick x2 Pads out for

WORM-DIAL USERS

(1) Thin x2 Pad

(1) Thin x4 Pad

(1) Thin x2 Pad

(1) Thin x4 Pad

Page 7

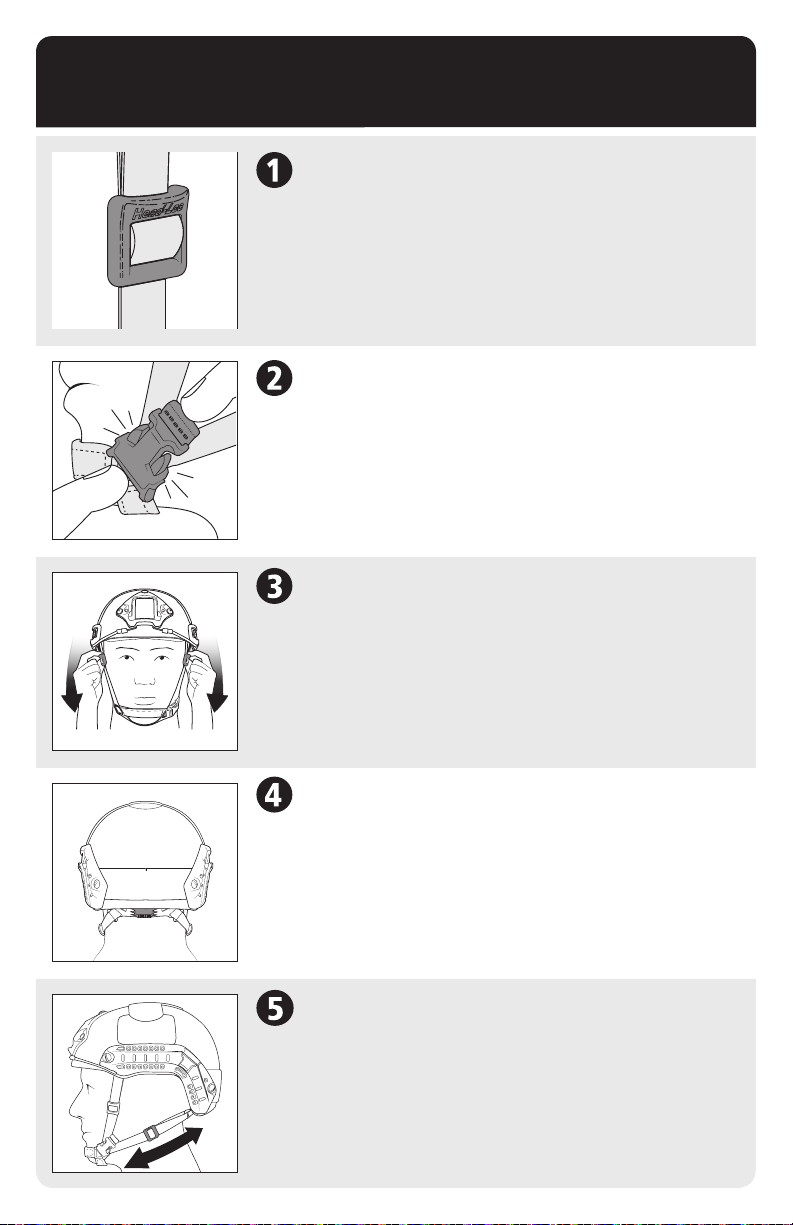

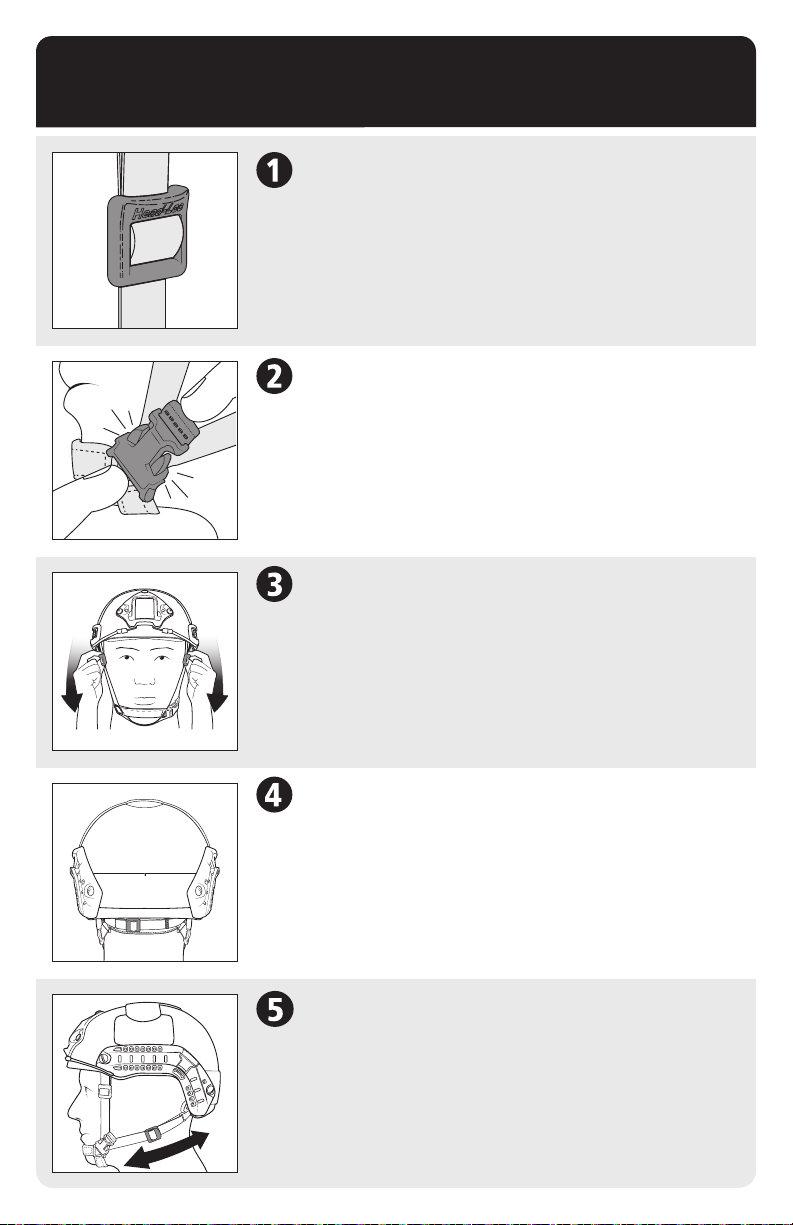

WORM-DIAL FIBAND OPERATION

LOOSEN HEAD-LOC SLIDERS

• With the helmet off, loosen all (4) Head-Loc Sliders by sliding

them away from the chincup.

CONNECT CHINSTRAP BUCKLE

• Place the helmet on your head and connect the low profile

chinstrap buckle. This is easiest when placing your index fingers behind each side of the buckle as shown.

TIGHTEN FRONT STRAPS

• With both hands, pull the two Front Head-Loc Sliders on the

webbing straps that come from the front temples of the helmet toward your chin until snug.

Head-Loc

Slider

ADJUST WORM DIAL

• Turn the Worm-Dial Adjustment to tighten the tband until it

is comfortably snug.

TIGHTEN BACK STRAPS

• With both hands, pull the two Rear Head-Loc

lower webbing straps toward your chin until snug.

Note: The technique works best if you only hold the plastic sliders and don’t touch the webbing.

Sliders on the

Page 8

H-NAPE CHINSTRAP OPERATION

LOOSEN HEAD-LOC SLIDERS

• With the helmet off, loosen all (4) Head-Loc Sliders by sliding

them away from the chincup.

CONNECT CHINSTRAP BUCKLE

• Place the helmet on your head and connect the low profile

chinstrap buckle. This is easiest when placing your index fingers behind each side of the buckle as shown.

TIGHTEN FRONT STRAPS

• Tighten the front straps by pulling the Head-Loc Sliders toward your chin.

This is easiest when holding either side of the slider with your thumb and middle finger while using your index finger in the top recess.

Head-Loc

Slider

ADJUST NAPE PAD

• Position comfortably (as low as possible) on the back of your

head. Pull Head-Loc Slider with your right hand.

TIGHTEN BACK STRAPS

• With both hands, pull the two Rear Head-Loc

lower webbing straps toward your chin until snug.

Note: The technique works best if you only hold the plastic sliders and don’t touch the webbing.

Sliders on the

Page 9

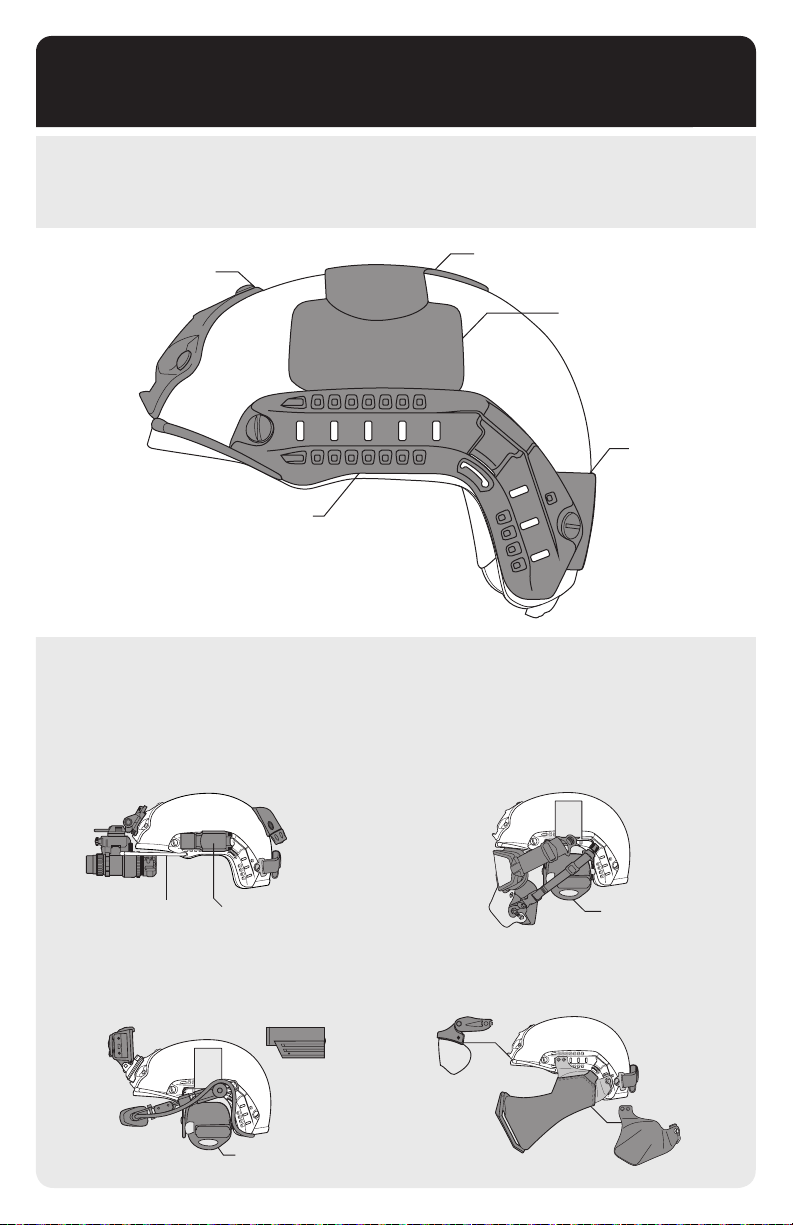

ACCESSORY INTEGRATION

There are three ways of attaching accessories to the FAST Helmet. The Ops-Core VAS Shroud, FAST Side Rails (ARCs), and Exterior Velcro. These three components provide convenient and secure ways to quickly

attach and

detach various accessories to different positions, and allow for personalized customization.

VAS Shroud

FAST Side Rail (ARC)

Top Exterior Velcro

Side Exterior Velcro

Rear Exterior Velcro

RECOMMENDED CONFIGURATIONS

There are numerous accessories that can be attached to your FAST Helmet to be used in a variety of

situations. Below are some recommended congurations.

NIGHT OPERATIONS AIRBORNE OPERATIONS

IFF Strobe

Counterweight

NVGs

Bungee

IR Illuminator

MISSION DOCUMENTATION

Video Camera

HMD

Video

Camera

COMMs Headset

Goggles

O2 Mask

BREACHING / ATV

Ballistic

Visor

Ballistic

Mandible

COMMs Headset

Counterweight

Side Armor

Page 10

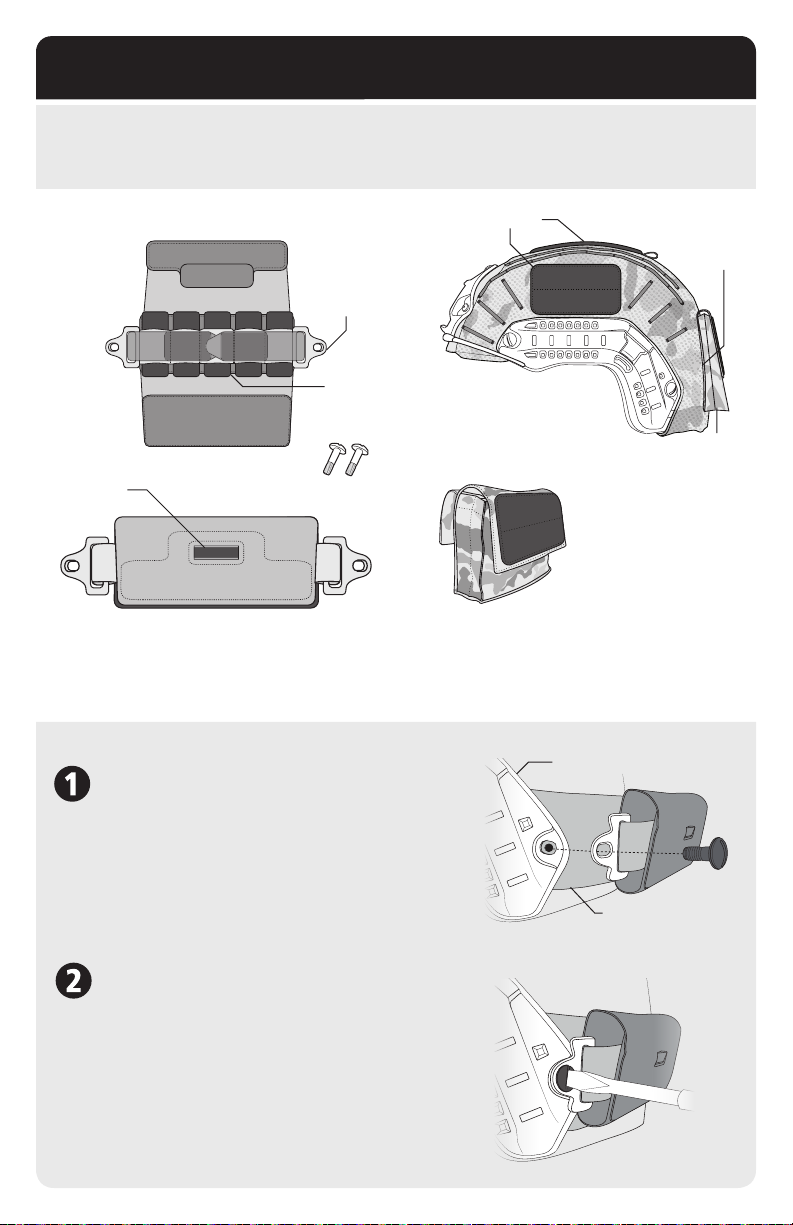

COUNTERWEIGHT & HELMET COVER

The Counterweight Kit reduces neck fatigue on long missions with night vision goggles or other accessories that add weight to the front of the helmet. The Helmet Cover provides a variety of camouage options for

different environments.

(Open View)

Anchor for

Side Rail

Lead

Weight

Window for Mini Glow Stick

(Closed View)

(2) 24mm Screws

COUNTERWEIGHT KIT

The Counterweight Kit Includes (1) Counterweight Pack with (5) Lead Weights and (2) 24mm Screws.

COUNTERWEIGHT ATTACHMENT

REMOVE REAR SCREWS

Remove screws and T-nuts at back of FAST Side Rails.

Align the anchor of Counterweight to the holes on the

rear of the FAST Side Rail. The Rear Exterior Velcro will hold Counterweight in place. Use your ngers to loosely

attach a screw to the Counterweight and FAST Helmet. Be sure to place screw through Counterweight Anchor, Side Rail, Helmet Shell, and Chinstrap Anchor. Repeat for the opposite side.

Velcro

Detachable Rear Pouch Fits ANVIS Battery Pack

Goggle

Retention

Flap

Rear Pouch

HELMET COVER

The Helmet Cover protects the shell outer surface while still providing the functionalities of the FAST platform.

FAST

Side Rail

Rear

Exterior Velcro

SECURE COUNTERWEIGHT

Use a screwdriver to tighten all screws from the outside

of the Counterweight, making sure the Counterweight is

securely fastened to the rear of the FAST Helmet.

Note: Adding weight to helmet increases risk of neck strain and injury. Only add counterweight when absolutely necessary to balance loads on front of helmet.

Page 11

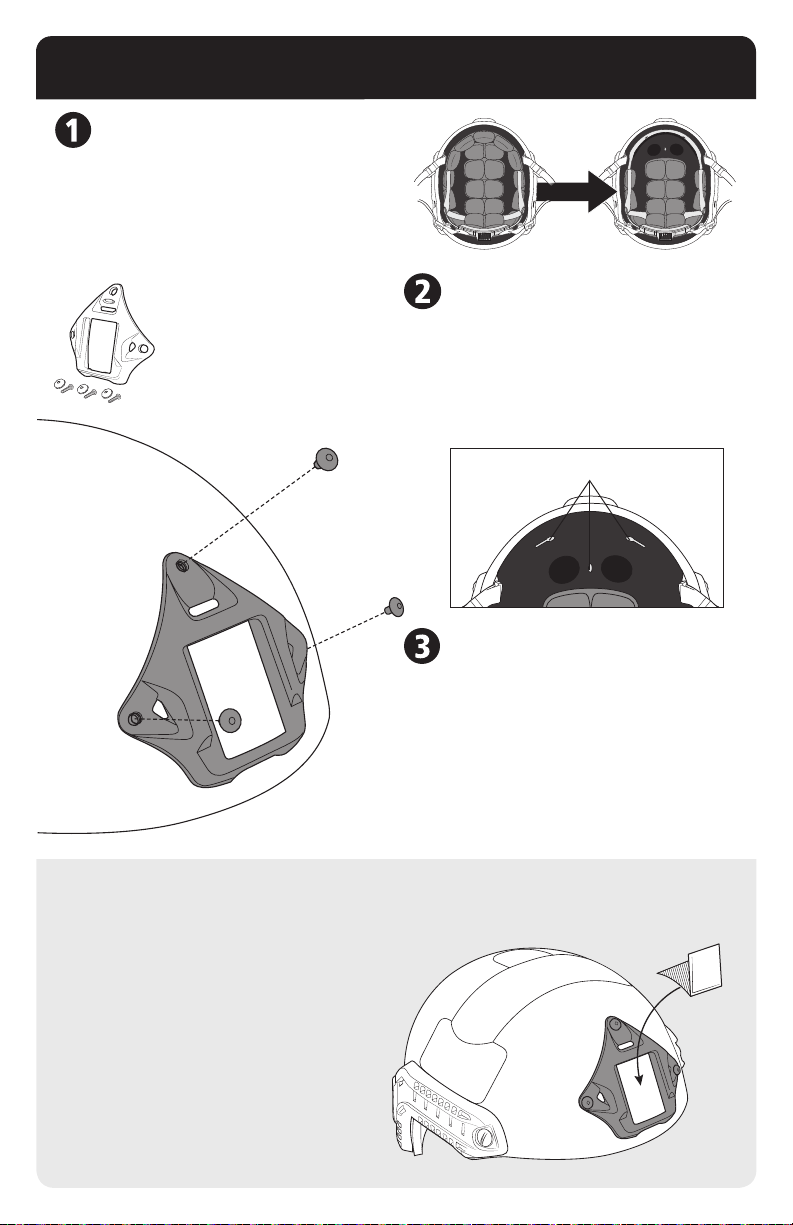

VAS SHROUD

The VAS Shroud provides a front mounting option for

video cameras, visors, illuminators, and night vision

goggles (NVG’s).

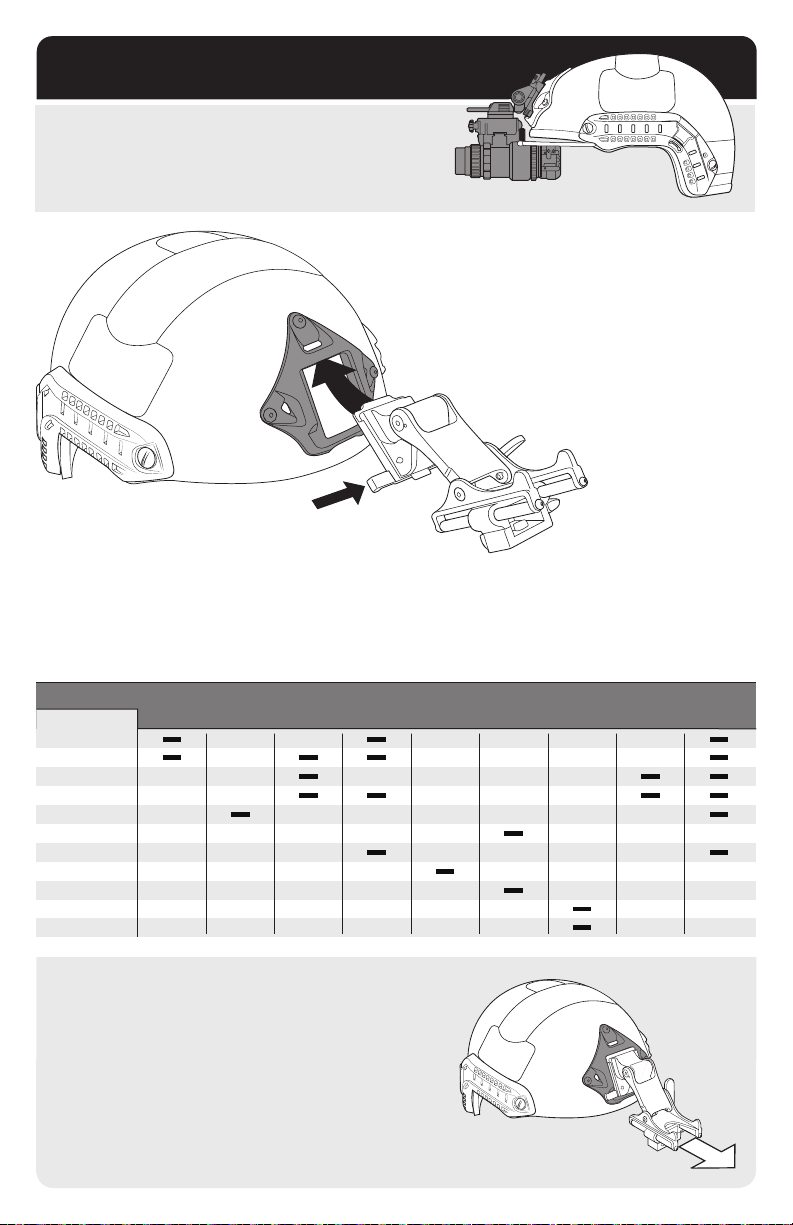

ATTACH NVG MOUNTING ARM

Insert and anchor the top of the NVG Mounting Arm underneath the top of the bracket as shown. While pressing the arm’s release trigger, push down to snap and lock the arm in place.

VAS SHROUD COMPATIBILITY

Helmet Compatability

Fits the standard MARSOC / WARCOM 3-hole NVG mount pattern

NVG & Mount Arm Compatability

The Ops-Core VAS Shroud is compatible with the following combinations of night vision goggle and mount arm styles:

MOUNT ARM

NVG STYLE

PVS-7B/7D

PVS-14

PVS-15

PVS-18

PVS-21

PVS-23

PVS-7A/7C

LUCIE NVG

F5050

F4949

ANVS-6/9

US ARMY STANDARD #A3256368

WILCOX L4 G21M

#28300G21M

WILCOX

L4 G24

#28300G24

WILCOX

L4 G25

#28300G25

WILCOX L4 G29M

#28300G29M

WILCOX

L4 G01

#56500G01

WILCOX

L4 G02

#56500G02

NOROTOS

INVG

#1820010

NOROTOS

#1840010

AKA2

PULL TEST

Before attaching any NVG’s to the mount, give it a sturdy tug in all directions to ensure it is properly secured.

Page 12

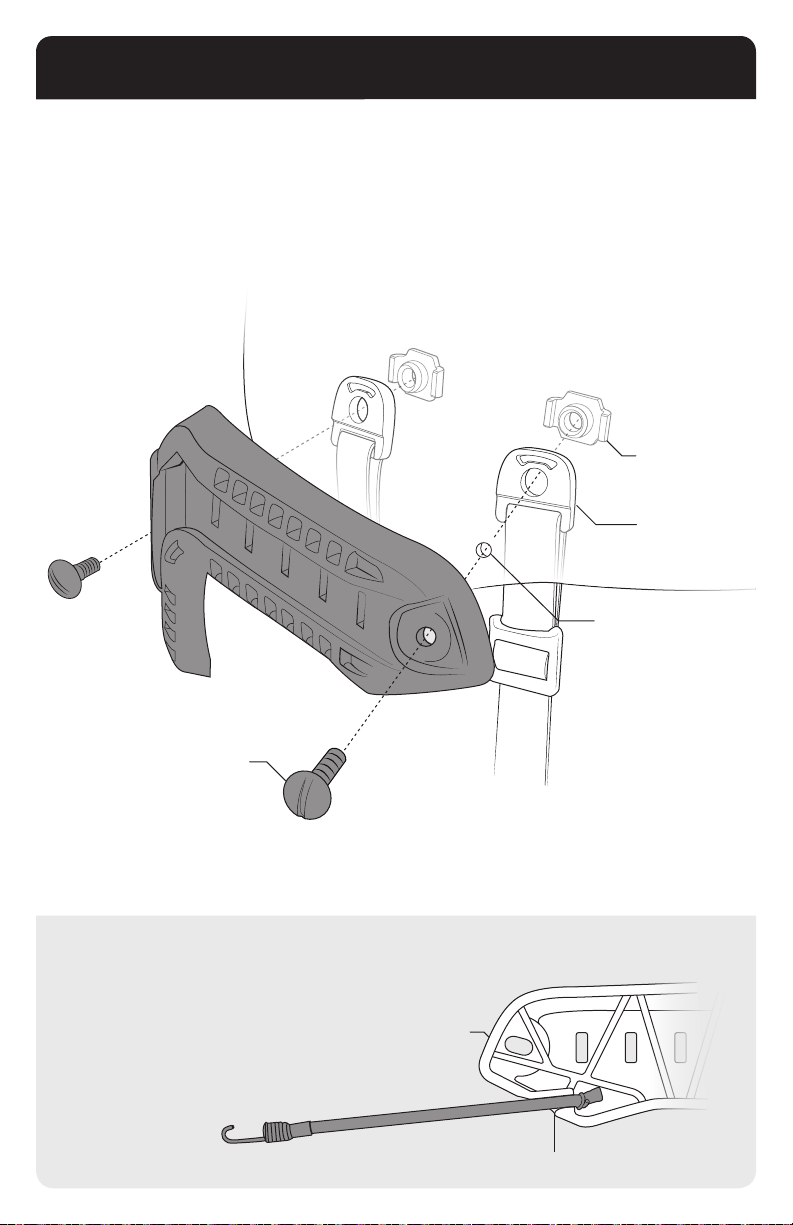

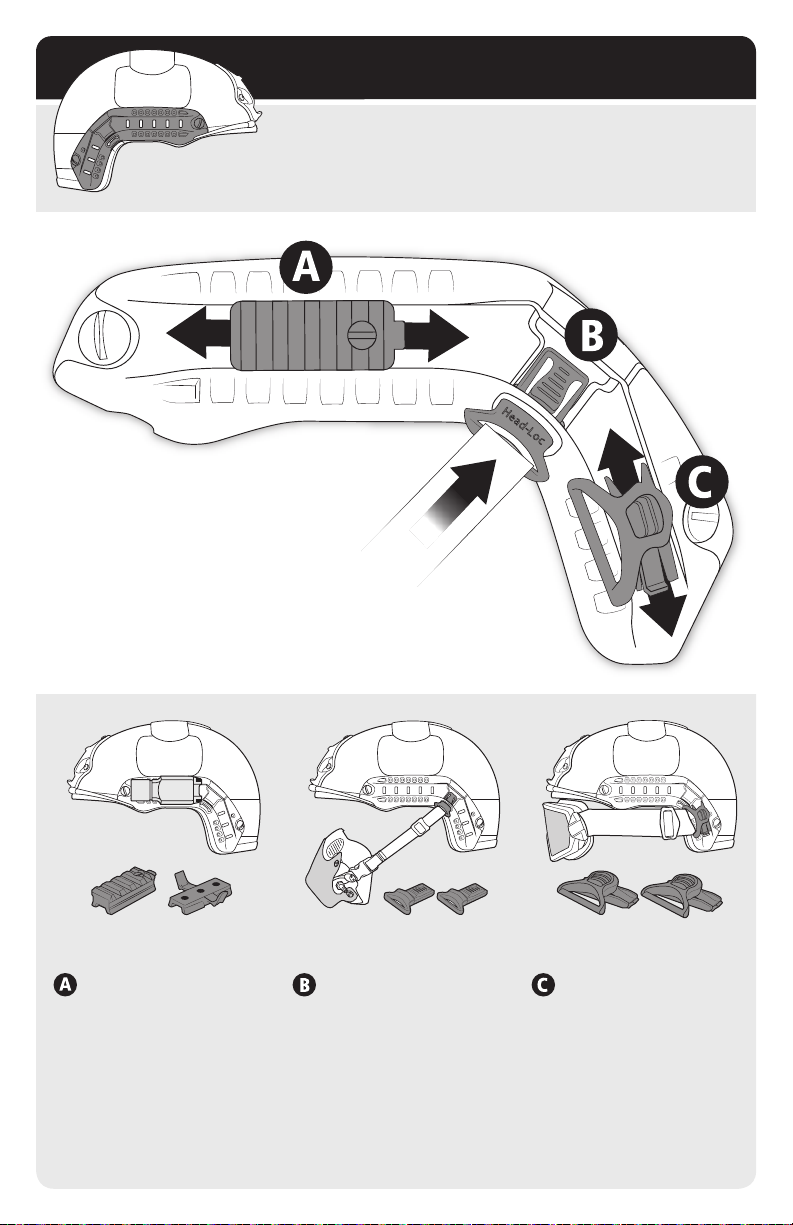

FAST SIDE RAILS (ARCs)

4-Position FAST Side Rails (ARCs) are mounted to the sides of the helmet to allow for quick yet secure donning or dofng of various

headborne accessories.

ARC ADAPTERS

The three adapters shown on this FAST Side Rail are commonly used for attaching accessories to the FAST

Helmets: Picatinny Adapter (A), O2 Single Strap Kit (B), and 36mm Goggle Swivel Clip Kit (C).

Picatinny

Adapter

Wing-Loc

Adapter

TOP RAIL

Top Rail can accommodate

Picatinny Adapters, which

connect devices compatible

with 1911 Picatinny Rail, and Wing-Loc Adapters,

which provide a base to mount a variety of headborne accessories.

O2 Strap Kit 36mm Goggle Swivel Clips

RAIL CORNER BACK RAIL

Rail corner allows for

instant and secure snap-in attachment of Para-Flite and Carleton O2 masks with O2 Single Strap Kit.

Goggle Swivel Clips,

attached to your choice

of goggles, can quickly clip into the back rail

while allowing freedom of rotation.

Page 13

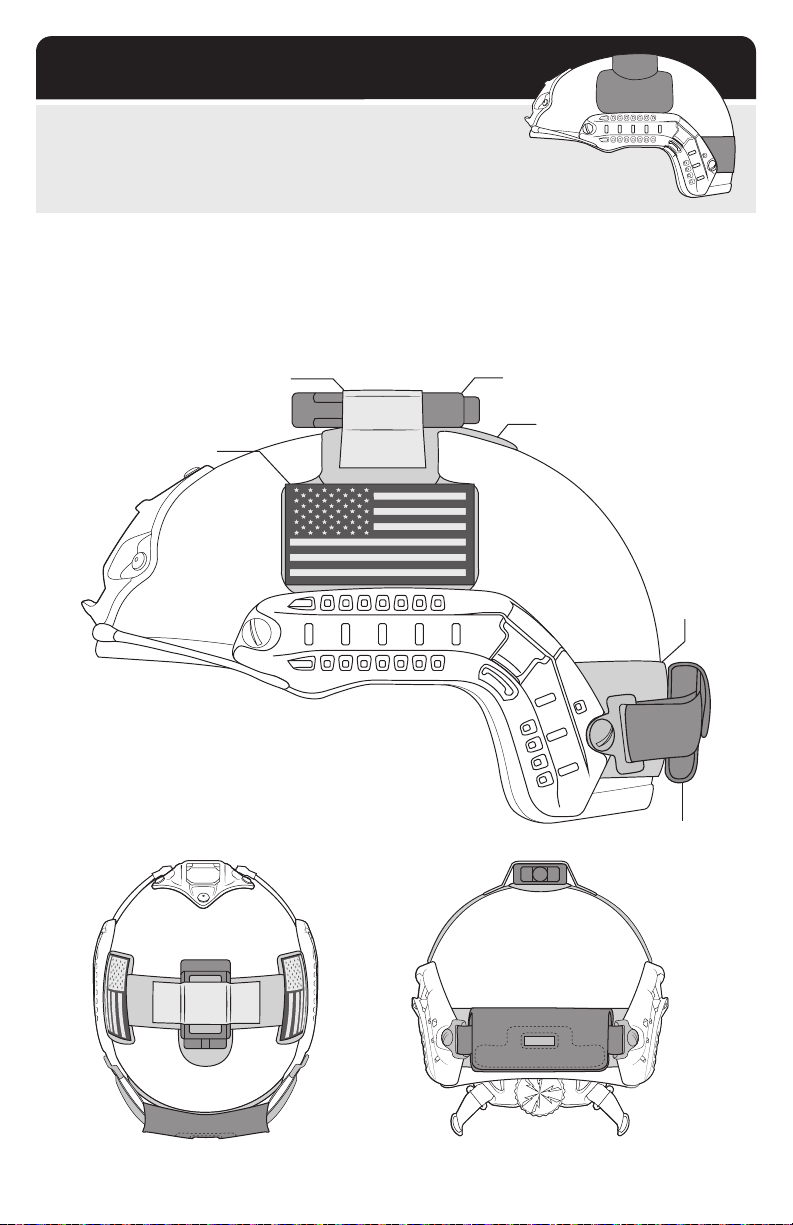

EXTERIOR VELCRO

Exterior loop Velcro is attached at the top, sides, and rear of the FAST Helmet. The loop Velcro allows for easy mounting of accessories.

VELCRO ATTACHMENT

Apply hooked Velcro to the bottom of a device. Place device on top of the looped Velcro that is already attached to the FAST Helmet. Cover top of device with additional hook Velcro to secure it into place. Simply remove the device by pulling it away from the looped Velcro.

Note: Additional hook Velcro not included.

Additional Velcro IR Strobe

Top Exterior Velcro

Identity Patch

Rear

Exterior

Velcro

TOP VIEW REAR VIEW

Counterweight

Page 14

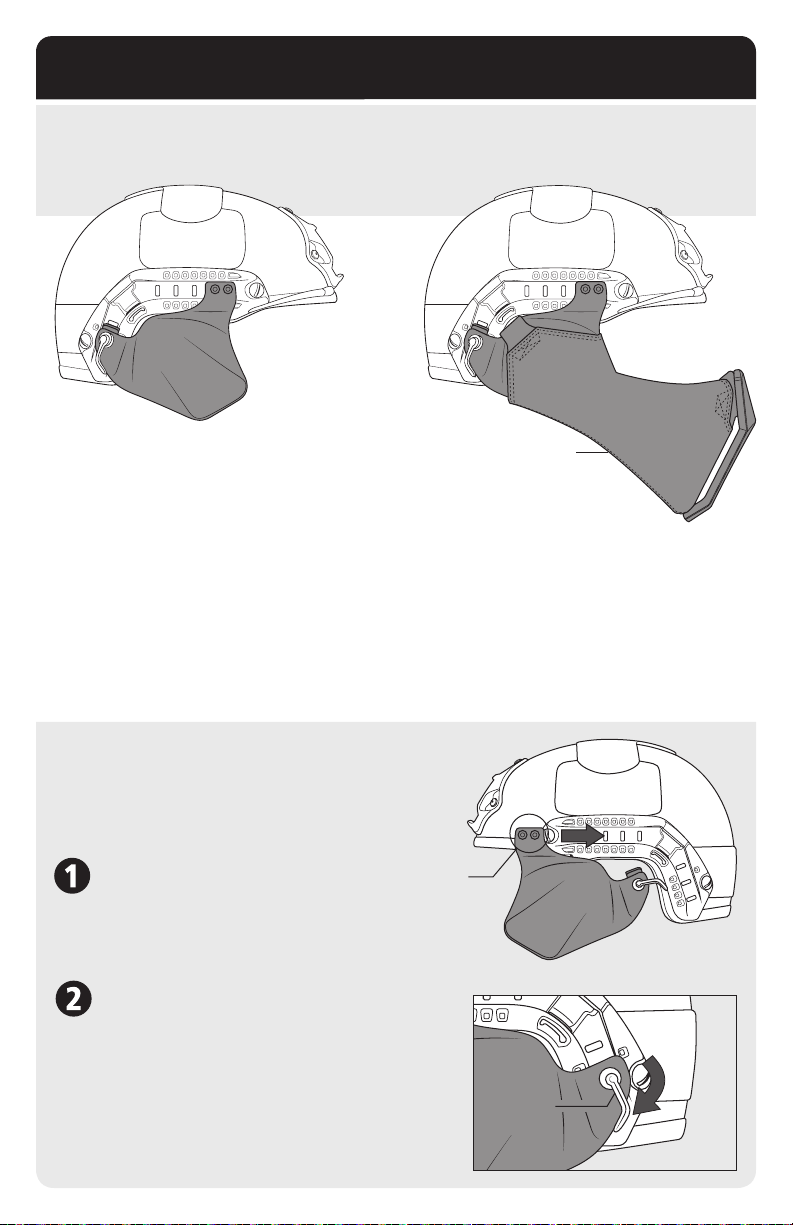

SIDE COVERS & GUNSIGHT MANDIBLE

The Up-Armor Side Covers and Gunsight Mandible are accessories that provide additional head coverage that allows a user to quickly adjust the degree of protection to match different threat levels.

Edge Profile Clears Rifle / Cheek Weld

UP-ARMOR SIDE COVERS

Up-Armor Side Covers are available in Ballistic and Non-Ballistic versions. Both versions feature a durable carbon ber exterior. The Non-Ballistic

version provides environmental protection, while the Ballistic version is made from the same type of materials as the FAST Ballistic helmet. *

* Note: Detailed threat performance specications are available at www.ops-core.com

Frame flexes for

Rifle / Cheek Weld

GUNSIGHT MANDIBLE

The mandible uses a combination of soft armor and support frame technology to provide lower

face protection. It is designed to fold in half to conveniently t into a rucksack. The exibility allows a close cheek weld and causes minimum

interference with sighting shoulder weapons.

ATTACHMENT

The Up-Armor Side Covers, and Mandible attach to the FAST Side Rails. Attachment is tool-less and takes less than a minute. Follow the Up-Armor Side Cover

instructions below for attaching Mandible.

Front

SLIDE FRONT SHOE IN PLACE

Slide the Front Shoe of the Side Cover into the front of the top FAST Side Rail (ARC) as shown.

LOCK SIDE COVERS IN PLACE

Snap the back of the Side Cover into the rear FAST Side Rail (ARC) and turn the Cam-Loc Handle downward to lock into place.

Shoe

Cam-Loc Handle

Page 15

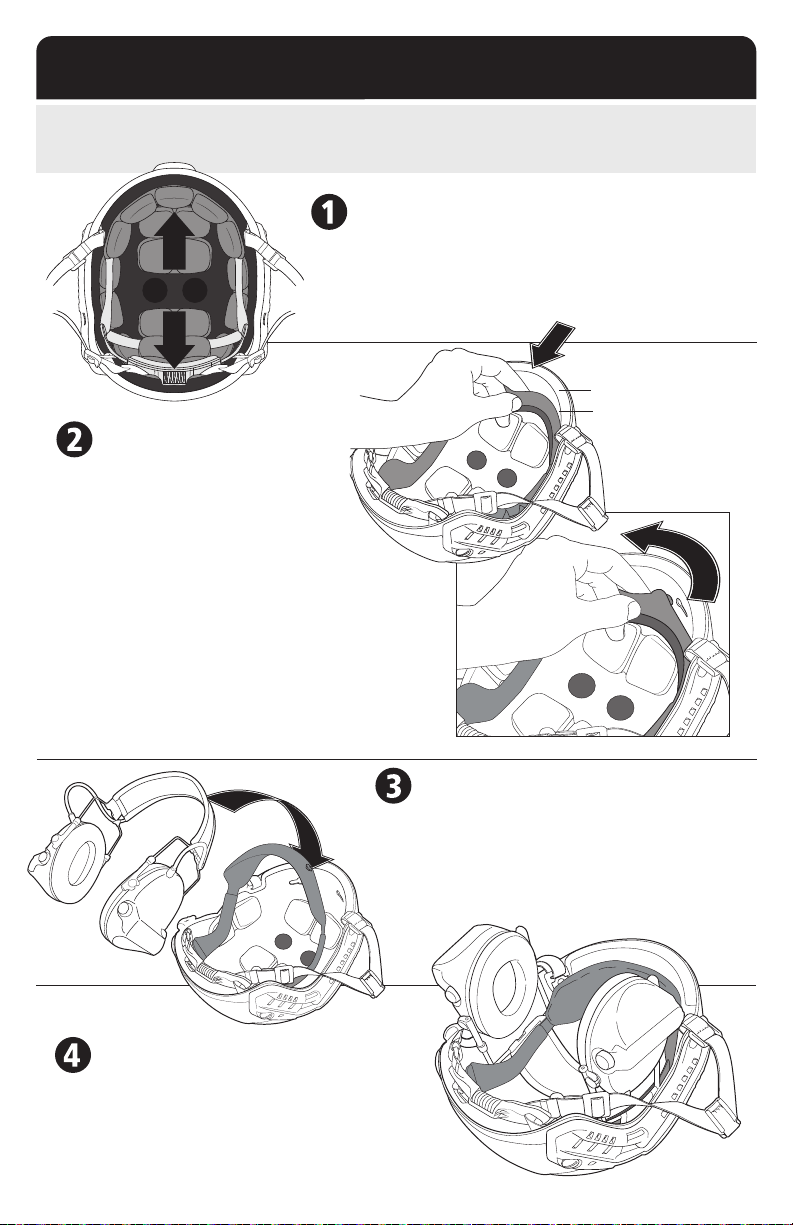

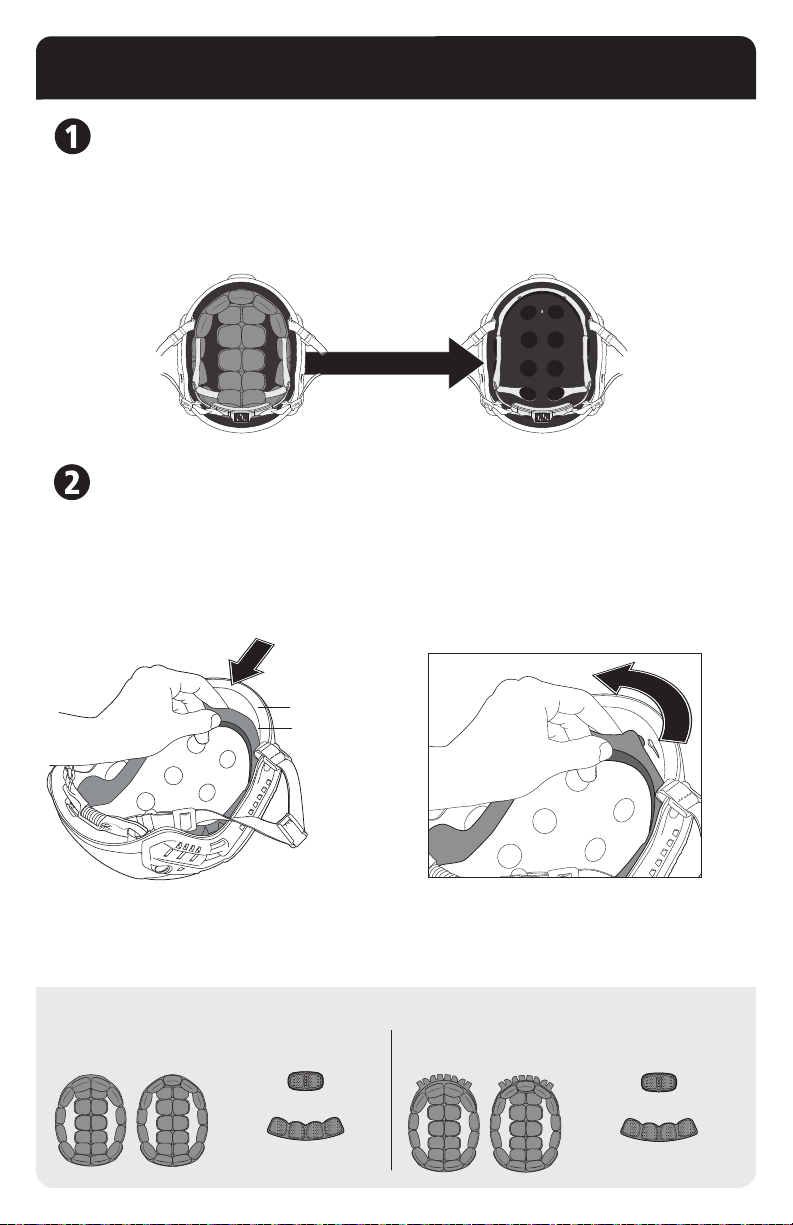

COMMs HEADSET

The Lux Liner system is compatible with a variety

Instructions for use with headband style COMMs is below.

of COMMs headsets and hearing protection devices.

RELOCATE TOP PADS

Remove the center top pad, and position the top pads in the helmet so there is enough space for the headband of the headset to sit in between them.

Note: H-Nape users can disregard the remaining instructions.

DETACH FITBAND

Remove the 4 or 5 Row Front Pad from

the Fitband (the front row pad is held onto

the Fitband with small Velcro Tabs). Place your index nger behind the front center of

the Fitband and carefully bend away from the

Impact Liner as shown. Pinch the Fitband and use your thumb to slide the pad sideways ½” towards the center of the helmet along the Impact

Liner. Repeat on both sides until the pad is released

from the key slots. Detach back of Fitband by simply peeling it away from the Velcro Circles it is attached to.

Note: Do not pull the Front Fitband away from the Impact Liner or you may break the Key Slots.

Impact Liner

Front of Fitband

INSERT HEADSET HEADBAND

Flip the Fitband away from the front of the Impact Liner and slide the headset headband around it as

shown. This will position the headset’s headband on

the outside of the helmet Fitband so that it does not create a pressure point when you tighten the

Worm-Dial.

REATTACH FITBAND

Reattach the Fitband to the key-slots in the front Impact

Liner by bending the pad in the center and pushing on

the rivets (one at a time) with your thumb while at the

same time sliding them toward the sides of the helmet.

Reattach the Front 4 or 5 Row Pad.

Page 16

MAINTENANCE SCHEDULE

RECOMMENDED MAINTENANCE: ALL USERS

• Clean the helmet with a mild detergent and water.*

• Check that the chinstrap screws are tight using a athead screwdriver.

• Clean the Velcro for dust and dirt by using air pressure.

• Visually check the Shroud and FAST Side Rails for signs of breakage.

• Visually check the Lux Liner’s Impact Liner for signs of breakage.

• Check that the Worm-Dial or H-Nape Chinstrap works properly.

• Check that the chinstrap does not have any damage and that the buckle latches and releases

properly.

*The whole helmet can be rinsed in fresh water.

Note: If any defects are found, the damaged components should be replaced

before use.

RECOMMENDED MAINTENANCE: ACTIVE DUTY

(Defined as soldiers who use their helmet 1440 hours/year or more)

• Replace Worm-Dial Fitband Comfort Pads every 100 days or once/year.

• Replace Worm-Dial Fitband, or H-Nape Chinstrap, Hardware, and Lux Liner after 2 years.

• Replace Exterior Velcro and repaint shell after 4 years.

• Replace other components if damaged / worn out as needed.

RECOMMENDED MAINTENANCE: NATIONAL GUARD

• Replace all items on as-needed basis and based on inspection.

• Replace Exterior Velcro and repaint the shell after 4 years.

Page 17

REPLACEMENT KITS

Exterior

Velcro

Front

EPP Pad

VAS

Shroud Kit

Bungees Kit

Worm-Dial Fitband

Chinstrap & Hardware

Repaint Helmet Shell

(or) H-Nape

Chinstrap & Hardware

Lux Liner Kit

(H-Nape Chinstrap)

Lux Liner Kit (Worm-Dial)

FAST Side Rails (ARCs)

Worm-Dial Fitband Comfort Pads

Page 18

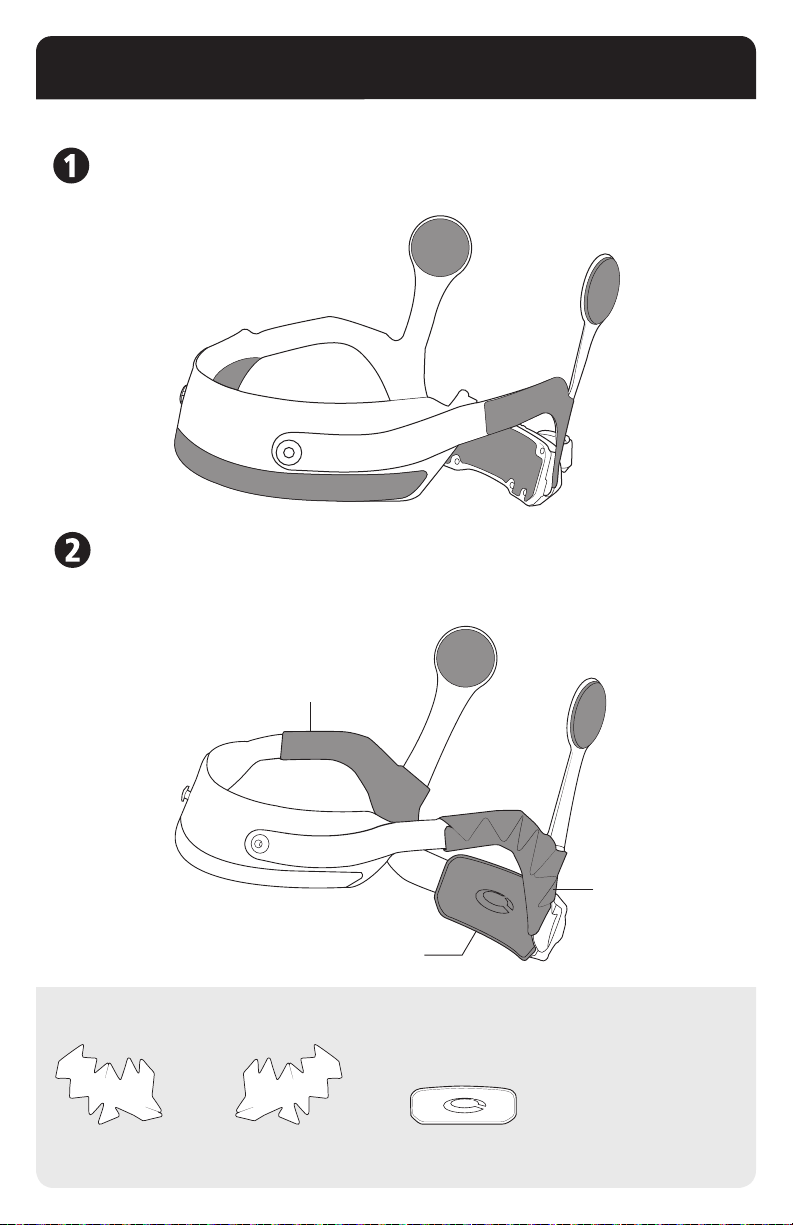

REPLACEMENT FITBAND COMFORT PADS

Note: H-Nape Chinstrap users can disregard this page.

REMOVE OLD COMFORT PADS

Simply peel off all old comfort pads from the tband. A tband with all comfort pads removed should look like the image below.

COMFORT PAD INSTALLATION

Attach the new comfort pads based on the instructions that came with the “Replacement Fitband

Comfort Pads Installation Instructions” manual.

Velcro Circles

Attach to Impact Liner

Right Side Comfort Pad

Nape Comfort Pad

KIT INCLUDES THE FOLLOWING COMFORT PADS:

Left Side

Comfort Pad

Right Side

Comfort Pad

Left Side

Comfort Pad

Nape

Comfort Pad

Page 19

REPLACEMENT CHINSTRAP & LUX LINER

REMOVE LUX LINER PADS

Remove all Lux Liner Pads from the Lux Liner’s Impact Liner. Pads are attached to the Lux Liner by Velcro Circles. Front row 4x or 5x pad for Worm-Dial version is held onto the Fitband by Velcro Circles and Tabs. It can be easily removed by peeling away from the Impact Liner.

H-Nape Chinstrap version can be easily replaced by unscrewing hardware, removing old H-Nape Chinstrap and installing new Chinstrap.

All Pads RemovedAll Pads Attached

REMOVE OLD WORM-DIAL FITBAND FROM LUX LINER

Place your index nger behind the front center of the Worm-Dial Fitband and carefully bend away from the Impact Liner as shown. Pinch the Fitband and use your thumb to slide the pad sideways ½” towards the center of the helmet along the Impact Liner. Repeat on both sides until the pad is released from the key slots. Detach back of Fitband by simply peeling it away from the Velcro Circles it is

attached to.

Note: Do not pull the Front Fitband away from the Impact Liner or you may break the Key Slots.

Impact Liner

Front of Fitband

Insert the new Worm-Dial Fitband into the Key-Slots of the front Impact Liner by bending the Fitband in the center and pushing on the rivets (one at a time) with your thumb while at the same time sliding them toward the sides of the helmet. Then attach Lux Liner Pads.

LUX LINER REPLACEMENT PAD KIT INCLUDES THE FOLLOWING PADS:

H-NAPE PADS

S/M M/L & L/XL

ADDITIONAL PADS

(Also Included)

(1) Thin x2 Pad

(1) Thin x4 Pad

WORM-DIAL PADS

S/M M/L & L/XL

ADDITIONAL PADS

(Also Included)

(1) Thin x2 Pad

(1) Thin x4 Pad

Page 20

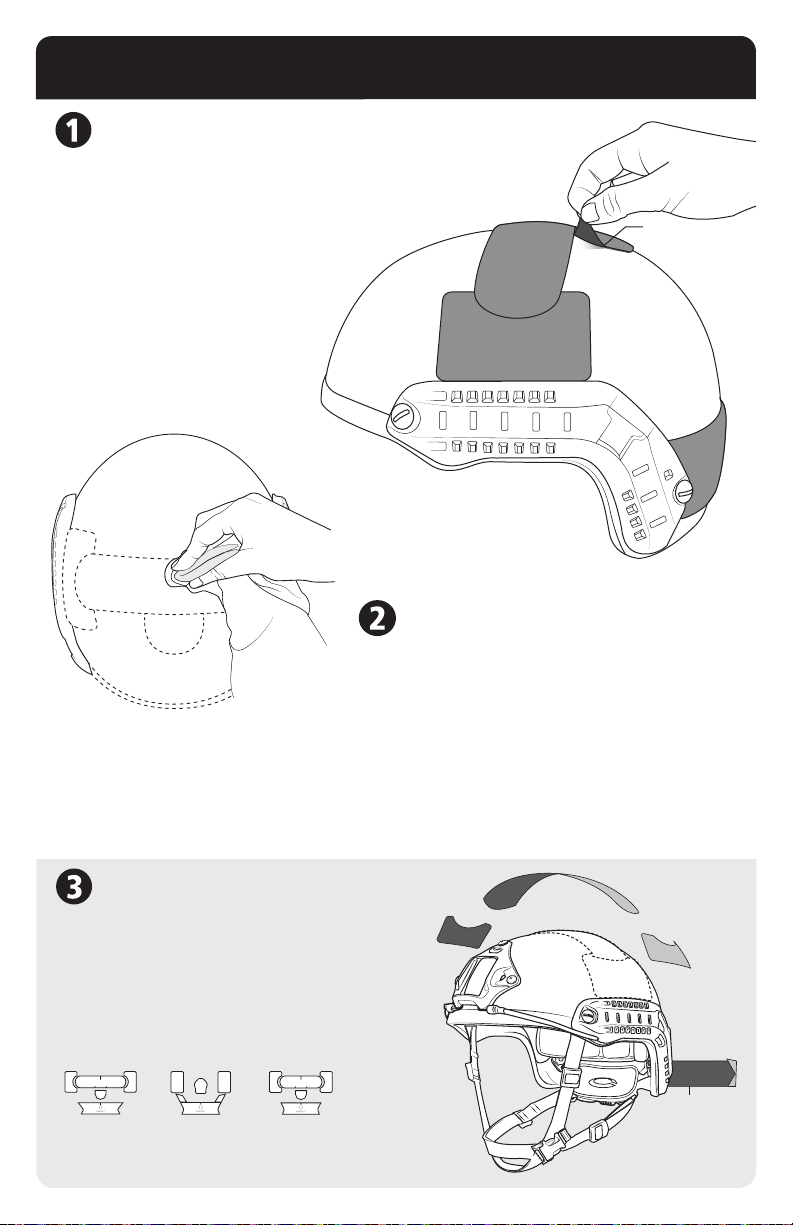

REPLACEMENT EXTERIOR VELCRO

CAREFULLY REMOVE OLD VELCRO

Note: It may be easier to remove Velcro by heating the helmet shell to 70c using a hair dryer. Do not heat helmet above 70c or helmet will be seriously damaged.

Using your ngers, carefully peel the Velcro away from the helmet shell. DO NOT BRISKLY RIP THE VELCRO OFF! Continue this process

by slowly pulling it back until all Velcro is

removed.

CLEAN THE HELMET SHELL

To remove excess adhesive from old Velcro and to ensure optimal adhesion of new Velcro, gently rub affected areas with a clean towel and Isopropyl Rubbing Alcohol. Do not use harsh chemicals. If traces of adhesive remain, you can use Goo Gone

with alcohol again after use. Allow the helmet to dry before

attempting to place new Velcro onto the shell’s surface.

to remove stubborn residue. Wipe the area

Slowly Peel Back

PLACEMENT PREPARATION

Using the diagram to the right, carefully align Velcro pieces to their proper positions. Test t all pieces before removing backing. Adhesive on this Velcro is pressure

sensitive. Once in place it needs to be pressed down

rmly. Please allow up to 24 hours for adhesive to reach

maximum bonding strength.

KITS INCLUDE THE FOLLOWING REPLACEMENT PARTS:

FAST High Cut

Kit A Kit B

FAST Maritime

Top Exterior

Velcro

Side Exterior Velcro

Rear

Exterior Velcro

Page 21

REPLACEMENT VAS SHROUD

PAD REMOVAL

Before replacing the VAS Shroud, the Lux Liner’s Front Row Pad must be removed along with the rst top pad as shown. If your helmet has a WormDial Fitband, the tband must rst be detached from the Impact Liner. See page 19, step 2 for tband detachment instructions.

Remove the old Shroud. Align the Shroud

Replacement kit includes

(

) Vas Shroud, (3) Screws

and (

) T-nuts.

with the existing 3-hole pattern on the front of your helmet. Insert a T-nut through the Shroud’s top hole from the front (outside) of the helmet shell and use your ngers to

loosely attach a screw from the inside of

helmet shell (access holes in the Lux Liner’s Impact Liner). Repeat for remaining two

holes.

VAS Shroud Access

Finish by using a screwdriver to tighten all 3 screws from the inside of the

Impact Liner, making sure the Shroud is securely fastened to the helmet. Reattach Worm-Dial Fitband and Front Row Pad.

Note: Tighten screws by hand until

secured. Do not over tighten, this

will cause deformation to helmet shell and compromise helmet’s ballistic capabilities.

BUMPER INSTALLATION

The optional foam backer is included to stick on the back of the mount arm plate. This backer can reduce wiggle or vibration

between the shroud, mount arm, and helmet.

Page 22

REPLACEMENT FAST SIDE RAILS

Align the new FAST Side Rails with the existing Chinstrap Holes on your FAST helmet. Loosely assemble the FAST Side Rails, Helmet Chinstrap Anchors, and new hardware by following the diagram below. Repeat for opposite side of helmet. Once all components are loosely assembled,

nish by using a screwdriver to tighten the two front screws. instructions on pages 6-7.

Leave rear screws loose before executing

T-Nut

Chinstrap Anchor

Front Shell Hole

Screw

BUNGEE INSTALLATION

Insert the bungee ends into the FAST Side Rail’s Bungee

Retention Slot before assembly.

Side Rail (Inside Shown)

Bungee Retention Slot

Page 23

7.62

5.56

WARNING

DOES NOT PROTECT

against 7.62 and

5.56 rounds

This helmet provides LIMITED protection for the head and does not offer any protection against neck, spinal, or certain types of brain injuries including those caused by rotational forces. Some hazards can exceed this helmet’s ability to provide protection and could cause severe head, brain, or spinal injuries including paralysis or death.

Remember: the higher the impact velocity, the greater the chance of injury / death. Common sense is the best defense.

NOT INTENDED

for motor

vehicle use

DOES NOT PROTECT

from extreme

hazards

SAFETY CHECKLIST:

Inspect the helmet before each use. Make sure the shell, liner pads, plastic hardware, stitching, chinstrap, and t system components are not damaged, cracked, deformed, loose or showing signs of excessive wear. Do not remove or alter the front, top, or back impact pads. Do not apply paint, solvents, or like products as they could degrade helmet integrity and resulting performance. Replace your helmet if it is subjected to a signicant impact since the shell and/or liner pads could be damaged

without showing any obvious signs of a problem. These instructions must be followed by all persons using or maintaining this helmet in order for it to perform as designed. Failure

to do so could result in equipment malfunction, serious injury or death.

WARRANTY

The FAST helmet shell is warranted for (5) years from date of purchase against material defects and/or faulty workmanship.

All other liner components including the Worm-Dial, head-band, pads, and chinstrap retention system are warranted for (1) year from date of purchase against material defects and/or faulty workmanship.

This warranty is in lieu of all other warranties, expressed, implied, or statutory, and is strictly limited to the terms hereof: Ops-Core specically disclaims any warranty of merchantability or of usefulness for a particular purpose.

The defective product must be returned to Ops-Core with proof of purchase and information describing the nature of the problem.

It is expressly agreed that the Purchaser’s sole and exclusive remedy for breach of the above warranty, for any tortious conduct of Ops-Core, or for any other cause of action, shall be the repair, replacement, or credit, at Ops-Core’s discretion, of any components or parts thereof, that after examination by Ops-Core are proven to be defective.

If it is determined by Ops-Core that the product’s failure was due to accident, abuse, misuse, neglect, improper maintenance, or

normal wear and tear, the product is not covered in this warranty.

Ops-Core shall be released from all obligations under this warranty in the event repairs or modications are made to any of the

parts by persons other than its own service personnel.

No agent, employee or representative of Ops-Core may bind Ops-Core to any afrmation, representation or modication of the

warranty concerning the goods sold under this contract.

Exclusion of Consequential Damages – Purchaser specically understands and agrees that under no circumstances will Ops-Core be liable to Purchaser for economic, special, incidental, or consequential damages or losses of any kind whatsoever, including but not limited to, loss of anticipated prots and any other loss caused by reason of non-operation of the goods. This exclusion is applicable to claims for breach of warranty, tortious conduct or any other cause of action against Ops-Core.

Page 24

OPERATOR NOTES

MADE IN USA
