INSTRUCTION MANUAL

FM741B

VACUUM CLEANER



Contents

IMPORTANT SAFETY INSTRUCTIONS

1

NAME OF EACH PART

3

PREPARATION BEFORE USE

4

USING THE VACUUM CLEANER

6

USING THE ATTACHMENTS

8

EMPTYING THE DUST COMPARTMENT

9

CLEANING THE FILTERS

10

CLEARING BLOCKAGES IN THE



SUCTION HOSE AND CLEANING THE

11

AGITATOR ASSEMBLY



REPLACEMENT INSTRUCTIONS

12

TROUBLESHOOTING

16

REPLACEMENT PARTS

16

LIMITED WARRANTY

17

HOUSEHOLD USE ONLY

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THIS VACUUM CLEANER

WARNING - To reduce the risk of fire, electric shock or injury:

1.Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet when not in use and before servicing.

2.Do not use outdoors or on wet surfaces.

3.Do not allow vacuum cleaner to be used as a toy. Close attention is necessary

when used by or near children or infirmed persons.

4.Use only as described in this manual. Use only the manufacturer's recommended attachments.

5.Do not use with a damaged cord or plug. If the vacuum cleaner is not working

as it should, or if it has been dropped, damaged, left outdoors or dropped into water, return to FANTOM at 94 Main Mill Street, Door 16, Plattsburgh, NY 12901.

6.Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.

7.Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8.Do not handle the plug or the vacuum cleaner with wet hands.

9.Do not put any objects into the openings. Do not use with any opening blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10.Keep hair, loose clothing, fingers and all the parts of your body away from openings and moving parts.

11.Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

12.Do not use without dust compartment and filters in place.

13.Turn off all controls before unplugging.

14.Use extra care when cleaning on stairs.

15.Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.

1

Rev. 09/03B



16.Do not touch the agitator while it is spinning.

17.Do not place any heavy items on top of the vacuum cleaner.

18.Do not step on the hose or pull it too strongly.

19.Do not pick up items such as pieces of waste paper or cloth which look as though they may cause the hose to become blocked.

20.Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21.Store the vacuum cleaner away from excessive humidity.

22.When carrying the vacuum cleaner, hold it by the carrying handle.

23.Before servicing the vacuum cleaner, allow all internal metal parts to cool first.

24.Always place foot on handle release when adjusting the handle position

of the vacuum cleaner.

25. If the supply cord of this appliance is damaged, it must only be replaced by FANTOM, because special purpose tools are required.

SAVE THESE INSTRUCTIONS

This vacuum cleaner is intended for household use only.

Note to user concerning attachment plug:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

2

Cord Storage Hooks

NAMES OF EACH PART

FRONT

REAR

Handle

Release

Button C

Carrying Handle

Duster Knob

Suction

Power Cord

Hose A

Release

Plug

Plug shown in figure

Button A

may differ from actual

Release

plug attached to unit

Button B

for your area.

ON/OFF Switch

Dust

Compartment

Hose

Holder

Filter

Suction

Cover

Hose B



Power Cord

Crevice Tool

Wand

Upholstery Tool &

Dusting Brush

Headlight

Set the ON/OFF switch to " ON " to light the headlight.

Handle Release

Lever

Holder



Rug/Floor (Tools)



Mount



SELECTOR



Cleaning Utensil

WARNING:

Operate vacuum cleaner only at the voltage specified on name plate.

3

PREPARATIONS BEFORE USE

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

Attaching the handle

Set the vacuum cleaner

lnsert the handle

1 to the upright position.

2 as shown in the illustration.



Handle

Attaching the suction hose A & attachments

Suction Hose A

Wand

Hose Cuff

Suction Inlet

Crevice Tool

Upholstery Tool

& Dusting Brush

4

PREPARATIONS BEFORE USE

WINDING THE POWER CORD

Hook the power cord over 1 the clip which is located on

the upper cord storage hook as shown.

Plug Side

Wind the power cord around the cord 2 storage hooks.

Secure the power cord plug on the power cord.

Cord Storage

Hooks

Clip

RELEASING THE POWER CORD

1 Rotate the upper cord storage hook downward.

Upper Cord

Storage Hook

Return the hook to the

2 upright position before

attempting to rewind the

power cord.

INSERTING THE POWER CORD PLUG

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

5

USING THE VACUUM CLEANER

ON/OFF SWITCH

Start or stop vacuum cleaner by pushing

on the switch.

ON/OFF Switch

OFF ON

ADJUSTING THE HANDLE

The handle of this vacuum cleaner can be set to one of three positions -Upright, Normal, Parallel. Place your foot

on handle release lever as shown and pull back on the handle until it releases from its upright position.

Handle Release Lever

Upright position

The handle is normally locked in this position for storage or when using the attachments.

Push the handle forward until it locks.

Normal position

This position is used for normal cleaning.

Handle Release Lever

Parallel position

This position is used for cleaning under

furniture.

6

USING THE VACUUM CLEANER

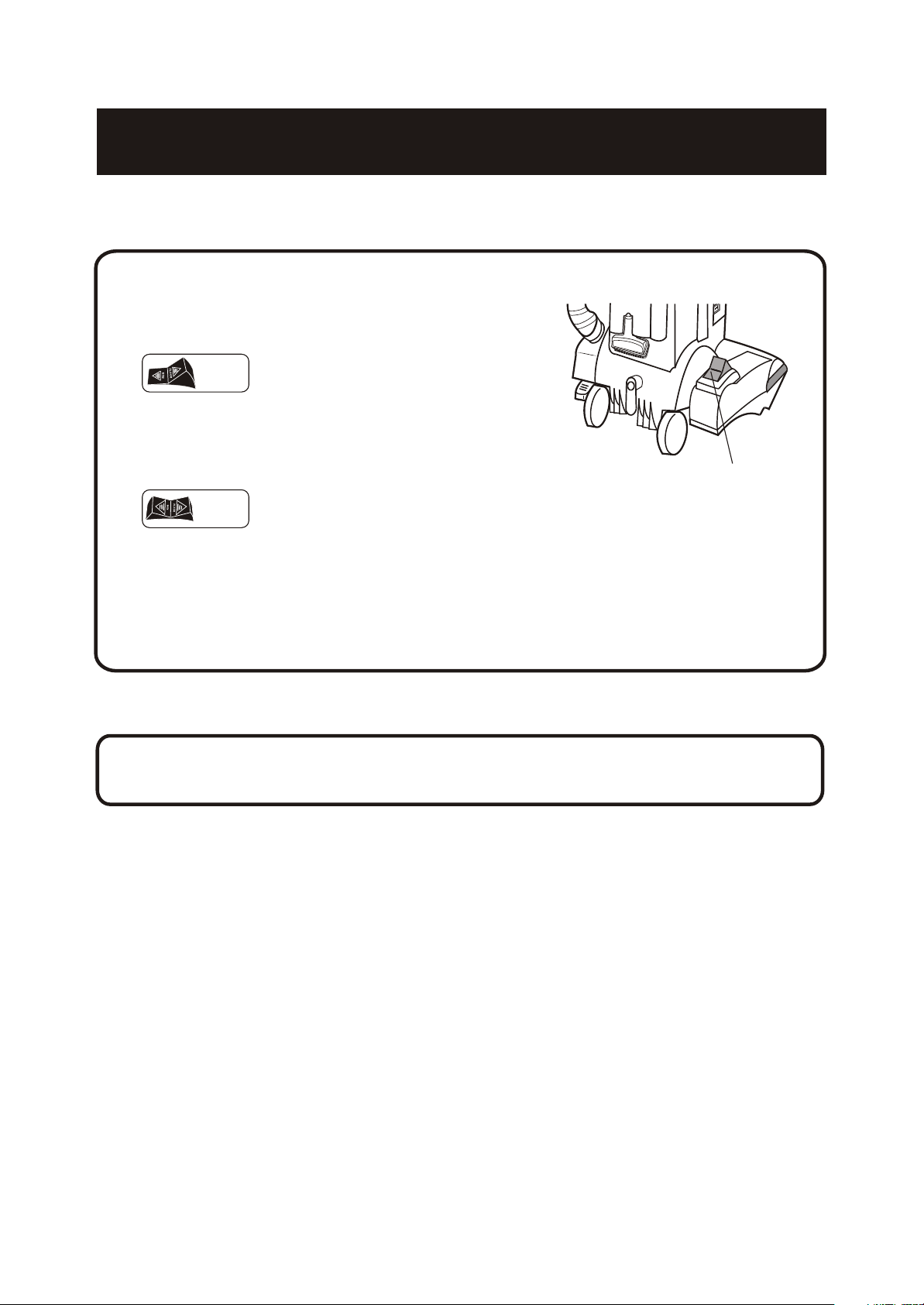

RUG/FLOOR (TOOLS)SELECTOR

The RUG/FLOOR(TOOLS)selector should only be adjusted while the vacuum cleaner is turned on and in the upright position.

1





RUG

When cleaning a rug or carpet,first











turn the ON/OFF switch to the ON









position,and then set the RUG/









FLOOR(TOOLS)selector to the









RUG position.

2





FLOOR

When cleaning a bare floor or when using









one of the attachments,set the RUG/FLOOR







(TOOLS)selector to the FLOOR position.

Rug/Floor (Tools)

SELECTOR

Caution: Do not change the setting of the RUG/FLOOR(TOOLS)selector while the vacuum cleaner is turned off.

EDGE CLEANING

This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges near baseboards and stationary furniture.

7

USING THE ATTACHMENTS

Caution: When using one of the attachments during cleaning,set the vacuum cleaner to the upright position.

Remove the attachments from the 1 vacuum cleaner.

Press the release button C to 2 disconnect the handle from the

vacuum cleaner.

Caution:

Wand

Crevice Tool

Release

Button C

When removing the attachments, pull them in the directions shown in the illustration.Pulling them in the wrong direction or pulling them forcefully may cause damage to the attachment clamp.

Attach the attachments on the handle or

Attachment Clamp



3 the suction hose B.

Upholstery

Dusting

Attach the attachments as shown below.

Wand

Tool

Brush

Crevice Tool



Handle





Suction Hose A

















Caution: Before using the suction hose B,

































Suction Hose B





please make sure the handle is

















reattached on the body.

Hook the hose holder onto the holder mount.

Caution:

Before using the attachments, please make sure the hose is hooked on the holder mount.

Upholstery tool & Dusting brush

Hose

Holder

To detach the dusting brush from the upholstery tool: Press the

Holder Mount

Groove



tabs on the brush downward to remove it.



To reattach the dusting brush to the upholstery tool: Insert

the front of the upholstery tool under the hook on the front of the dusting brush. Press down on the back of the upholstery tool to snap it into place under the dusting brush tabs.

Tabs

When you have finished using the attachments,replace them in their original positions as shown on page 4.

8

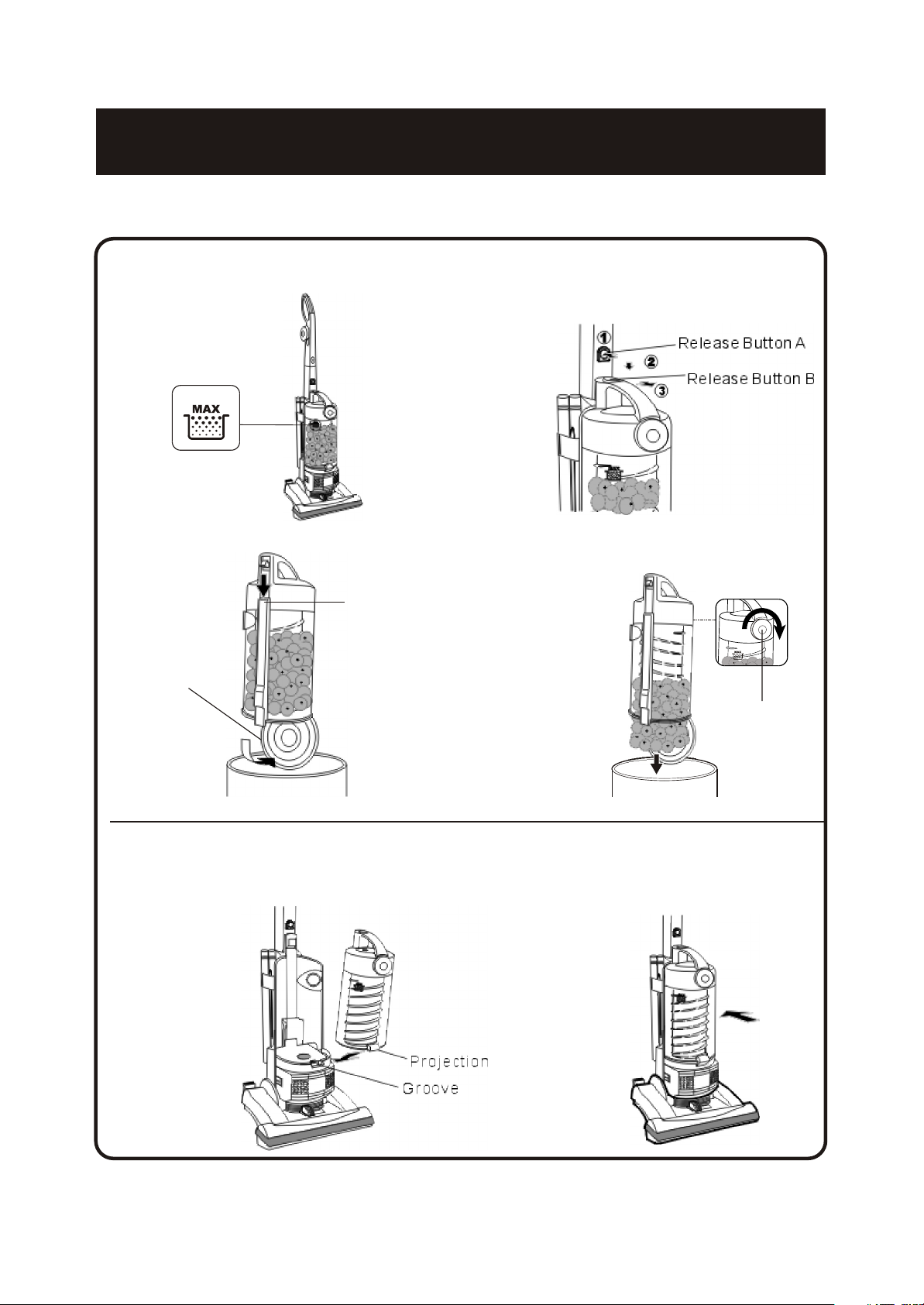

EMPTYING THE DUST COMPARTMENT

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect the

power cord from the wall outlet before cleaning.

1 Empty the dust compartment when contents reach the MAX mark.

2 Press the release button A meanwhile press the release button B to remove the dust compartment.

MAX mark

Press the release lever to open the

Turn the duster handle several times in the

3 trapdoor.

4 direction shown to empty the dust







compartment.





Release Lever









Trapdoor

Duster Handle

Reattaching the Dust Compartment

Close the trapdoor and insert the projection on the

Push the dust compartment into

1 dust compartment into the groove on the main body.

2 the main body as shown to



reattach.

9

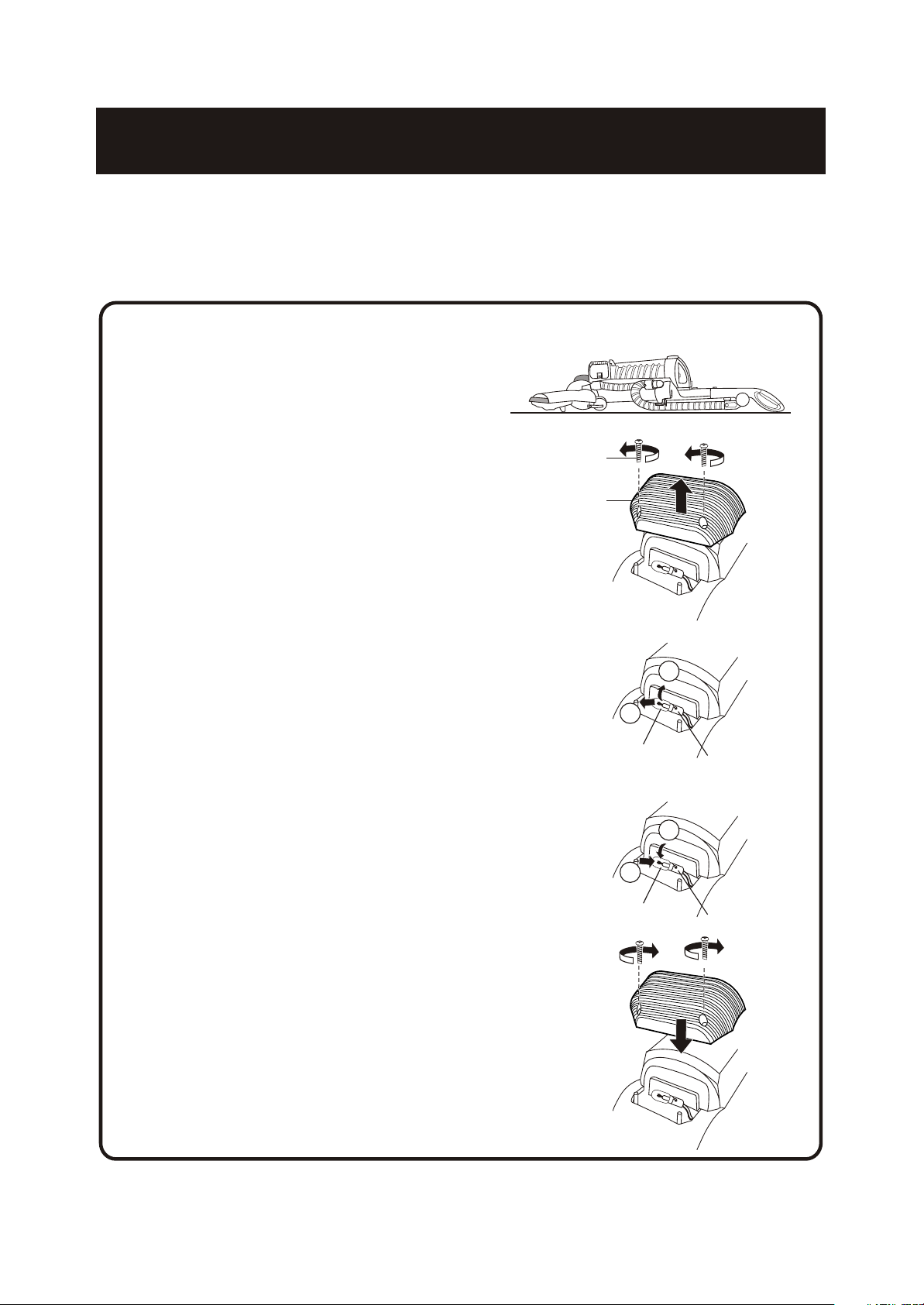

CLEANING THE FILTERS

1 Remove the dust compartment.(refer to page 9)

Set the dust compartment to the parallel 2 position.Open the trapdoor,then push the

release button E and pull out the main filter.

The main filter and prefilter will be removed at the same time.

Caution: Do not push the release

button E at the upright position. As this may drop or damage the main filter and prefilter.

Release Button E

3

Clean the main filter and prefilter with a soft-bristled brush (not included) and 3 rinse with cold water. Allow both items to dry completely for 24 hours.

Caution:

Do not use a hard-bristled brush to clean filters. This may result in damage to the filters.

Do not attempt to dry with a hair dryer or by placing in a clothes dryer.Hot air may cause the filters to warp.

Cleaning Utensil

To maintain optimum suction power, the dust filter fins should be kept clean of dirt. Clean the filter fins free of dirt with the forked end of cleaning utensil as shown.









Cleaning Utensil











Reattaching the filters

Hold onto the main filter and insert into



Insert the main filter into the

1 prefilter as shown.

2 the dust compartment.









Align the ribs of the main filter to match







Prefilter

the shape of the opening in the dust







compartment and press firmly to insert.







Dust Compartment

Hole

Main Filter

Ribs

3 Close the trapdoor.

NOTE: We recommend replacing the main filter every three (3) to six (6) months, depending on the amount of use

10

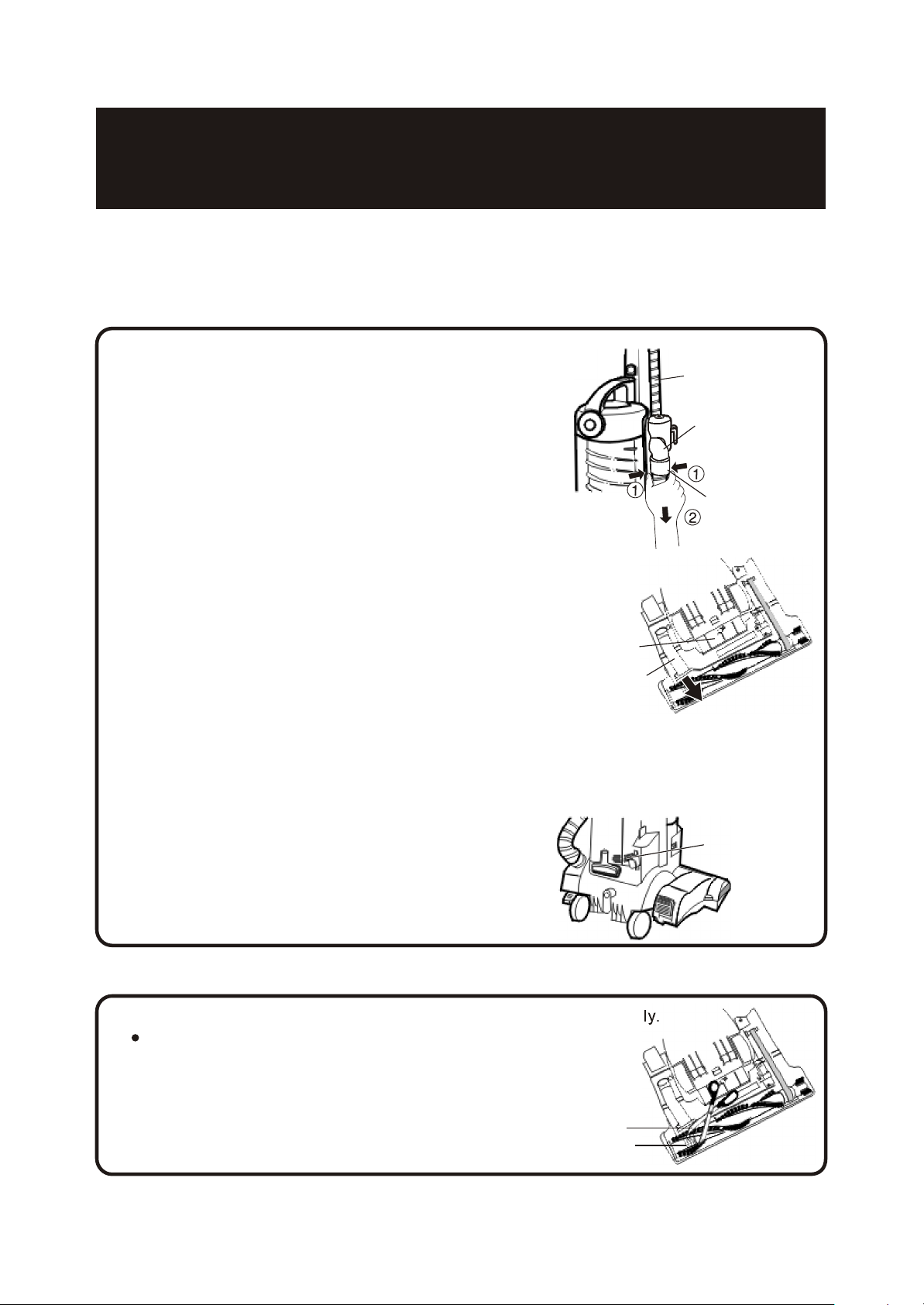

CLEARING BLOCKAGES AND CLEANING THE AGITATOR ASSEMBLY

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect the power cord from the wall outlet before clearing any blockages in the suction hose and cleaning the agitator assembly.

Cleaning blockages

Cleaning blockages in the suction hose A, B

1 Set the vacuum cleaner to the upright position.

Remove the hose cuff from the suction inlet and

2 then remove any blockages from the hose.

3 Reattach the hose cuff to the suction inlet,and then operate the vacuum cleaner to check that

the blockage has been properly cleared.If the hose is still blocked,the suction force will be weak.

Suction Hose A

Hose Cuff

Suction Inlet

Cleaning blockages in the nozzle head

1 Remove the bottom plate(refer to page 14)

Nozzle Head

Nozzle Pipe

2 Remove any blockages from the nozzle head.

3 Reattach the bottom plate to the nozzle head, and then operate the vacuum cleaner

to check that the blockage has been properly cleared. If the nozzle head is still blocked, the suction force will be weak.

Caution: When the suction hose A, B or Nozzle head is blocked, the bypass valve will be opened automatically to protect the motor, resulting

in the suction force being reduced. The bypass valve will be at its original position automatically after the blockage is removed.

Bypass Valve

(Inside)

Cleaning the agitator assembly

When threads get caught in the agitator assembly, clean the assembly

Remove the bottom plate(refter to page 14)

Remove threads caught in the assembly by cutting them with scissors.

Scissors

Threads

11

REPLACEMENT INSTRUCTIONS

Caution: Be sure to turn the ON/OFF switch to the"OFF" position and disconnect the power cord from the wall outlet before replacing any of the parts below.

REPLACING THE HEADLIGHT LAMP

1 Set the vacuum cleaner to the parallel position.

2

Loosen the screws to remove the lens.

Screw











Lens



When removing the headlight lamp, be careful



3 not to pull on the headlight lamp wiring.



Remove the lamp by pushing it gently in

2

4 the direction of the

arrow

and then turning

it counterclockwise.





1







Headlight Lamp Socket

Push a new lamp gently into the socket and



5 turn it clockwise to tighten it .



Use a standard bayonet base appliance lamp

2

rated at 120V and 15W (LAMP MAX.15W).





1

Socket

Caution: Be careful not to clamp the headlight lamp wiring.

6 Reattach the lens and fasten the screws.

12

REPLACEMENT INSTRUCTIONS

Caution: Be sure to turn the ON/OFF switch to the"OFF" position and disconnect the power cord from the wall outlet before replacing any of the parts below.

REPLACING THE FLAT BELT

1

2

3

Remove the bottom plate. (refer to page 14)

Lift out the agitator assembly,and then remove the flat belt from the motor shaft and the agitator pulley.

Motor Shaft

Flat Belt

Agitator Assembly

Place a new flat belt onto the motor shaft and pulley.

Motor Shaft

Flat Belt

Flat Belt

Pulley

Place the agitator assembly into the grooves in the nozzle head, making sure that the new 4 flat belt slides securely into the guide.

Bearing Holder

Groove

Nozzle Head

Reattach the bottom plate 5 (refer to page 14)

Caution:

Install the flat belt so that it has no twists in it,and so that all components turn smoothly.

13

REPLACEMENT INSTRUCTIONS

REMOVING THE BOTTOM PLATE

Set the vacuum cleaner to the

1 parallel position and turn it over.





Pull here







Slide the latch in the direction

Latch

Press

Press

2 of the arrow.







Remove the bottom plate by pulling 3 the tabs as illustrated.

Bottom Plate

REATTACHING THE BOTTOM PLATE

Insert the projection on the bottom plate 1 into the groove on the nozzle housing

and set the bottom plate in place.

Bottom Plate

Projection

Groove

2 Push the bottom plate as shown.

Press

Press

3 Slide the latch in the direction shown.

Latch

Turn the vacuum over and place in the 4 upright position.

14

REPLACEMENT INSTRUCTIONS

REPLACING THE FILTER

Under normal usage, the HEPA Filter will require replacement once every three (3) months, however, vacuuming large amounts of extremely fine dust, powder or similar material over a long period of time may decrease airflow performance through the filter. If this occurs, it may become necessary to

replace the HEPA Filter more often. Only use genuine FANTOM replacement filters.

Press in the locking tabs at points 1

Filter Cover

1

1 and pull the filter cover away from the

1

vacuum cleaner.

2

2 Remove the HEPAfilter.

HEPA Filter

Caution:

Do not attempt to wash the HEPA filter.

Always replace the old filter with a new one.

Insert a new HEPA filter with the seal 3 to the inside of the vacuum cleaner.

Reattach the filter cover.

Seal

Caution:

Be sure that seal on the HEPAfilter is inserted towards the inside of the vacuum cleaner.

The filter cover should be correctly oriented

when it is reattached. Do not reattach it upside down.

CLEANING THE SUB-FILTER

Clean the sub-filter when it becomes dirty.

Remove the dust compartment

1 (refer to page 8).

Remove the air inlet cover.

2

Remove the sub-filter from the vacuum cleaner.

2





Air Inlet

Sub-Filter



1 Cover

3 Gently clean the sub-filter with water.







Make sure that it is completely dry and







then re-install it into the vacuum cleaner.





4 Replace the air inlet cover and the dust compartment.





Caution: Do notwash the sub-filter in a washing machine, and do not use any other equipment such as a hair dryer to dry it. Always allow 24 hours for drying. Do not operate

the vacuum without the sub-filter. Be sure the sub-filter is dry and properly installed.

Failure to do so could result in electrical shock, personal injury, or motor failure.

Note: We recommend replacing the sub-filter every three (3) to six (6) months, depending on usage.

15

TROUBLESHOOTING

If there is a problem with the vacuum cleaner, carry out the following checks

to find the cause. If the problem still persists after the checks have been made, do not use the vacuum cleaner to prevent the possibility of an accident occurring.

Turn the ON/OFF switch to the "OFF" position, disconnect the power cord from the wall outlet, and contact FANTOM Customer Service at 1-800-275-9251.

Problem



Cause

Remedy











The motor does not operate

The

power cord plug is not

Insert the power

cord plug

when the ON/OFF switch is

securely inserted into the

securely into the

wall

set to the "ON" position.

wall outlet.

outlet.(refer to page 5 )













Suction force is weak.

The dust compartment is full.

Empty the dust compartment.







(refer to page 9)





The

suction hose is blocked.

Remove the blockage.







(refer to page 11)





The

nozzle head is blocked.

Remove the blockage.







(refer to page 11)





The

filters are dirty.

Clean the filters.









(refer to page 10)









(refer to page 15)





The

nozzle air inlet pipe is

Remove the blockage.



blocked.

(refer to page 11)





The bypass vavle is opened.

Remove the blockage.







(refer to page 11)









The agitator does not

The flat belt is worn or

Replace the flat belt.

operate.

broken.

(refer to page 13)













TO ORDER REPLACEMENT FILTERS CALL 1-800-275-9251

9BF-D-P111-00721 0304-

E

16

ONE (1) YEAR LIMITED WARRANTY

FANTOM warrants this product to be free from defects in material and workmanship for a period of one (1)

year from the date of the original purchase, when utilized for normal household use, subject to the following conditions, exclusions and exceptions.

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, return the complete appliance and accessories, freight prepaid to

In US: FANTOM,, 94 Main Mill Street, Door 16, Plattsburgh, N.Y. 12901

If the appliance is found by FANTOM to be defective in material or workmanship, FANTOM will repair or replace it free of charge. Proof of purchase date and $19.95 to cover the cost of return shipping and handling must be included. *

Non-durable parts including, without limitation, dust cup filters, filters,belts, brushes and electrical parts which normally require replacement are specifically excluded from warranty.

The liability of FANTOM is limited solely to the cost of the repair or replacement of the unit at our option. This

warranty does not cover normal wear of parts and does not apply to any unit that has been tampered with or used for commercial purposes. This limited warranty does not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This warranty does not cover damage or defects caused by or resulting from damages from shipping or repairs, service or alterations to the product or any of its parts, which have been performed by a repair person not authorized by FANTOM.

This warranty is extended to the original purchaser of the unit and excludes all other legal and/or conventional warranties. The responsibility of FANTOM if any, is limited to the specific obligations expressly assumed by it under the terms of

the limited warranty. In no event is FANTOM liable for incidental or consequential damages of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

*Important: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date and to attach

tag to item before packing with your name, complete address and phone number with a note giving purchase information, model number and what you believe is the problem with item. We recommend you insure the package (as damage in shipping is not covered by your warranty). Mark the outside of your package "ATTENTION CUSTOMER SERVICE,,.

OWNERSHIP REGISTRATION CARD

Please fill out and mail the product registration card within ten (10) days of purchase. The registration will enable us to contact you in the unlikely event of a product safety notification. By returning this card you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions.

RETURN TO FANTOM, 94 Main Mill Street, Door 16, Plattsburgh, N.Y. 12901

Model FM741B

Appliance model

Date purchased



Name of store



Owner ,s name















Address

City

State

Zip Code

Printed in China
