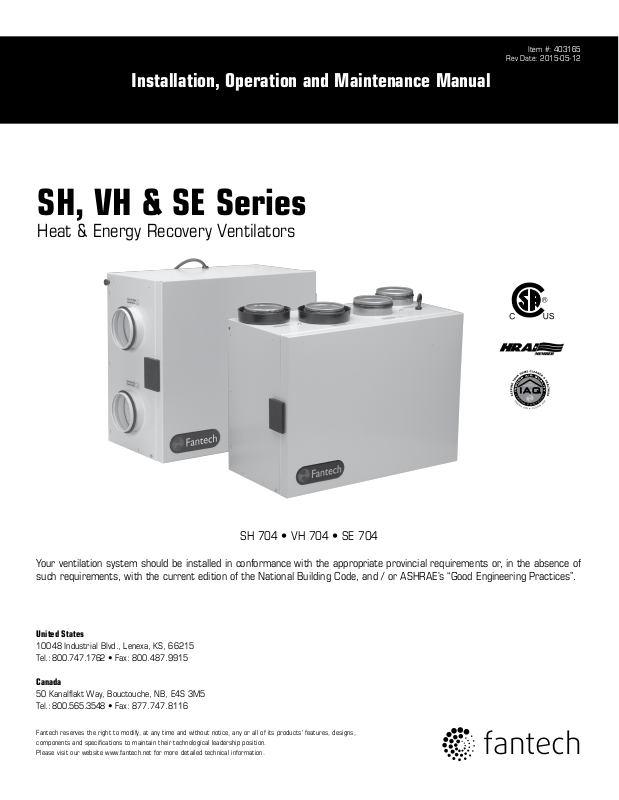

Installation, Operation and Maintenance Manual

SH, VH & SE Series

Heat & Energy Recovery Ventilators

Item #: 403165

Rev Date: 2015-05-12

SH 704 • VH 704 • SE 704

Your ventilation system should be installed in conformance with the appropriate provincial requirements or, in the absence of such requirements, with the current edition of the National Building Code, and / or ASHRAE’s “Good Engineering Practices”.

United States

10048 Industrial Blvd., Lenexa, KS, 66215 Tel.: 800.747.1762 • Fax: 800.487.9915

Canada

50 Kanalflakt Way, Bouctouche, NB, E4S 3M5 Tel.: 800.565.3548 • Fax: 877.747.8116

Fantech reserves the right to modify, at any time and without notice, any or all of its products’ features, designs, components and specifications to maintain their technological leadership position. Please visit our website www.fantech.net for more detailed technical information.

Page 2

Note Warning/

Important

note

Information Technical

information

Practical tip

PLEASE READ THIS MANUAL BEFORE INSTALLING UNIT

For residential use only

Before installation careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler operating at a higher static pressure. After installation, the compatibility of the two pieces of equipment must be conrmed by measuring the airow of the Heat Recovery Ventilator using the balancing procedure found in this manual. It is always important to assess how the operation of any HRV may interact with vented combustion equipment (i.e. Gas Furnaces, Oil Furnaces, Wood Stoves, etc.)

Products are designed and manufactured to provide reliable performance, but they are not guaranteed to be 100% free of defects. Even reliable products will experience occasional failures, and this possibility should be recognized by the user. If these products are used in a life support ventilation system where failure could result in loss or injury, the user should provide adequate back-up ventilation, supplementary natural ventilation or failure alarm system, or

acknowledge willingness to accept the risk of such loss or injury.

Your ventilation system should be installed in accordance with the local building code that is in effect, in absence of such requirements, it is recommenced to check with local authorities having jurisdiction in your area prior to installing this product.

fantech

Page 3

Table of content

DETERMINING YOUR AIRFLOW REQUIREMENT ..................................................... 4

INSTALLATION EXAMPLES

Fully dedicated system ................................................................ 5

Partially dedicated system .............................................................. 6

Simplified installation – Option 1 ...........................................................7

Simplified installation – Option 2 ...........................................................8

EXTERIOR DUCTING INSTALLATION

Weatherhood Location ................................................................. 9

Installing the ducting to the weatherhood ................................................... 9

INSTALLING DUCTS TO / FROM INSIDE

General Tips ....................................................................... 10

Supply & Exhaust Air Ducting ........................................................... 10

HRV INSTALLATION......................................................................... 11

AIRFLOW ADJUSTMENT & BALANCING ...........................................................12

MAINTENANCE .............................................................................13

ELECTRICAL CONNECTIONS................................................................... 15

TROUBLESHOOTING ........................................................................ 17

MAINTENANCE CHART .......................................................................18

fantech

Page 4

Determining your airflow requirement

Room Count Method

1 CFM = 0.47 L/s 1 L/s = 2.13 CFM

ASHRAE method

Room classification Number of rooms CFM (L/s)

Master bedroom x 10 L/s (20 CFM) =

Basement yes or no =

Bedrooms x 5 L/s (10 CFM) =

Living room x 5 L/s (10 CFM) =

Others x 5 L/s (10 CFM) =

Kitchen x 5 L/s (10 CFM) =

Bathroom x 5 L/s (10 CFM) =

Laundry room x 5 L/s (10 CFM) =

Utility room x 5 L/s (10 CFM) =

Total Ventilation Requirements (add last column ) =

if yes add 10 L/s (20 CFM) if no = 0

CFM Required

Ventilation Air requirements

Floor area Bedrooms

0-1 2-3 4-5 6-7 >7

< 1500 <139 30 14 45 21 60 28 75 35 90 42

1501-3000 139.1-279 45 21 60 28 75 35 90 42 105 50

3001-4500 279.1-418 60 28 75 35 90 45 105 50 120 57

4501-6000 418.1-557 75 35 90 42 105 50 120 57 135 64

6001-7500 557.1-697 90 42 105 50 120 57 135 64 150 71

>7500 >697 105 50 120 57 135 64 150 71 165 78

* ASHRAE 62.2-2010 Table 4.1, Ventilation and Acceptable Indoor Air Quality in Low-Rise Residential Buildings.

CFM L/s CFM L/s CFM L/s CFM L/s CFM L/s

Bathroom: If the HRV is going to provide the required local exhaust ventilation for each bathroom with each a continuous 20 CFM

(10 L/s), this ventilation rate can be considered as part of the whole-building ventilation rate.

fantech

Page 5

Installation examples

Example only – duct configuration may differ depending on the model.

FULLY DEDICATED SYSTEM BEST FOR NEW CONSTRUCTION

1. Stale air is drawn from key areas of the home requiring local exhaust (bathroom, kitchen, laundry room).

2. Fresh air is distributed directly to habitable rooms in the house (bedrooms, living room)

3. The HRV’s airflow must be balanced after installation using the procedure found in the section “AIRFLOW BALANCING”

HRV ducting for fully Dedicated System

Suggested installation for:

• Hydronic baseboard

• Inoor heating

• Electric baseboard

• Mini split heat pump

Benets: Provides the best fresh air distribution in the house; lowest operation cost since the furnace/air handler unit is not needed.

Stale air from inside

Outside

Fresh air from

outside

Fresh air to living areas

Stale air to

outside

fantech

Page 6

Installation examples (Cont'd)

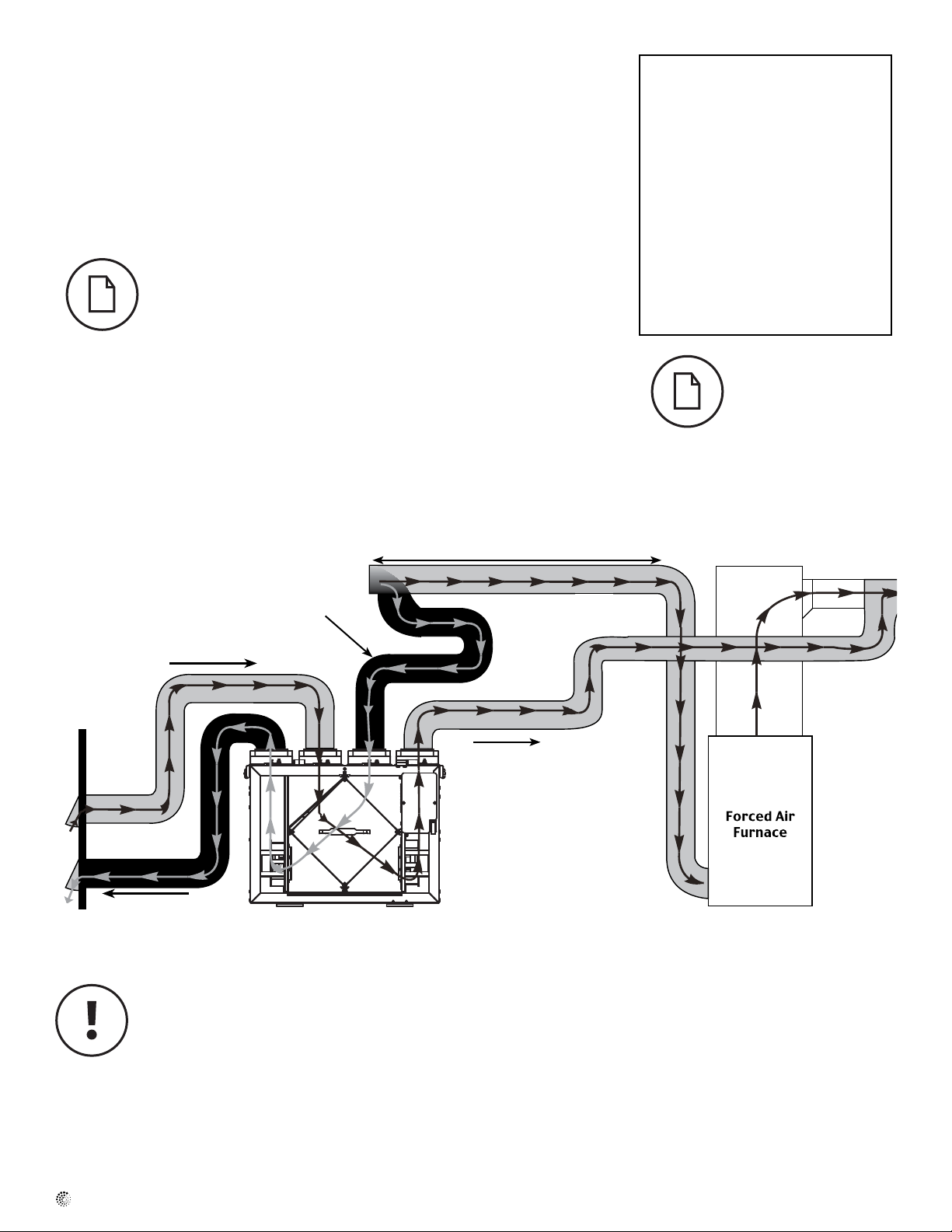

DIRECT CONNECTION of the FRESH air to living area to the RETURN PLENUM of the AIR HANDLER (Stale air drawn from key areas of home)

PARTIALLY DEDICATED SYSTEM (BETTER)

1. Furnace blower must operate when ventilation from HRV is required. The furnace should be set to run continuously or interlocked with HRV

2. Stale air is drawn from key areas of the home (bathroom, kitchen, laundry room).

3. Fresh air is supplied to the return air plenum of the furnace.

4. Due to the difference in pressure between the HRV and the equipment it is being connected to the HRV’s airflow must be balanced on site, using the procedure found in the section “AIRFLOW BALANCING”

HRV/ Furnace ducting for Partially Dedicated System

Suggested installation for:

• Central furnace (air handling unit or central air conditioners)

• When ducting fresh air to living area is not possible or practical, i.e. expensive or when the central AHU will operate year-round.

Benets: Conditions the fresh air prior to distributing it throughout the house

Outside

Stale air from inside

Fresh air from

outside

1 m (3' 3")

min.

Fresh air

to living

areas

Stale air to

outside

Fantech heat recovery ventilators (HRV) that use a supply fan shutdown for frost prevention do not include an outdoor air motorized damper. If you are using a simplied installation, i.e. connecting the HRV supply air duct to a furnace's return air duct, the HRV must operate continuously. When the HRV is turned off, no warm exhaust air will ow through the HRV but the furnace's fan will continue to draw in outdoor air directly into the furnace. If it's cold outside, cold air will be introduced, without re-heating, directly into the furnace.

* Unit airflow should be balanced while HRV is on “Normal” speed and furnace blower is running.

recommended

Cold air

return

fantech

Page 7

Installation examples (Cont'd)

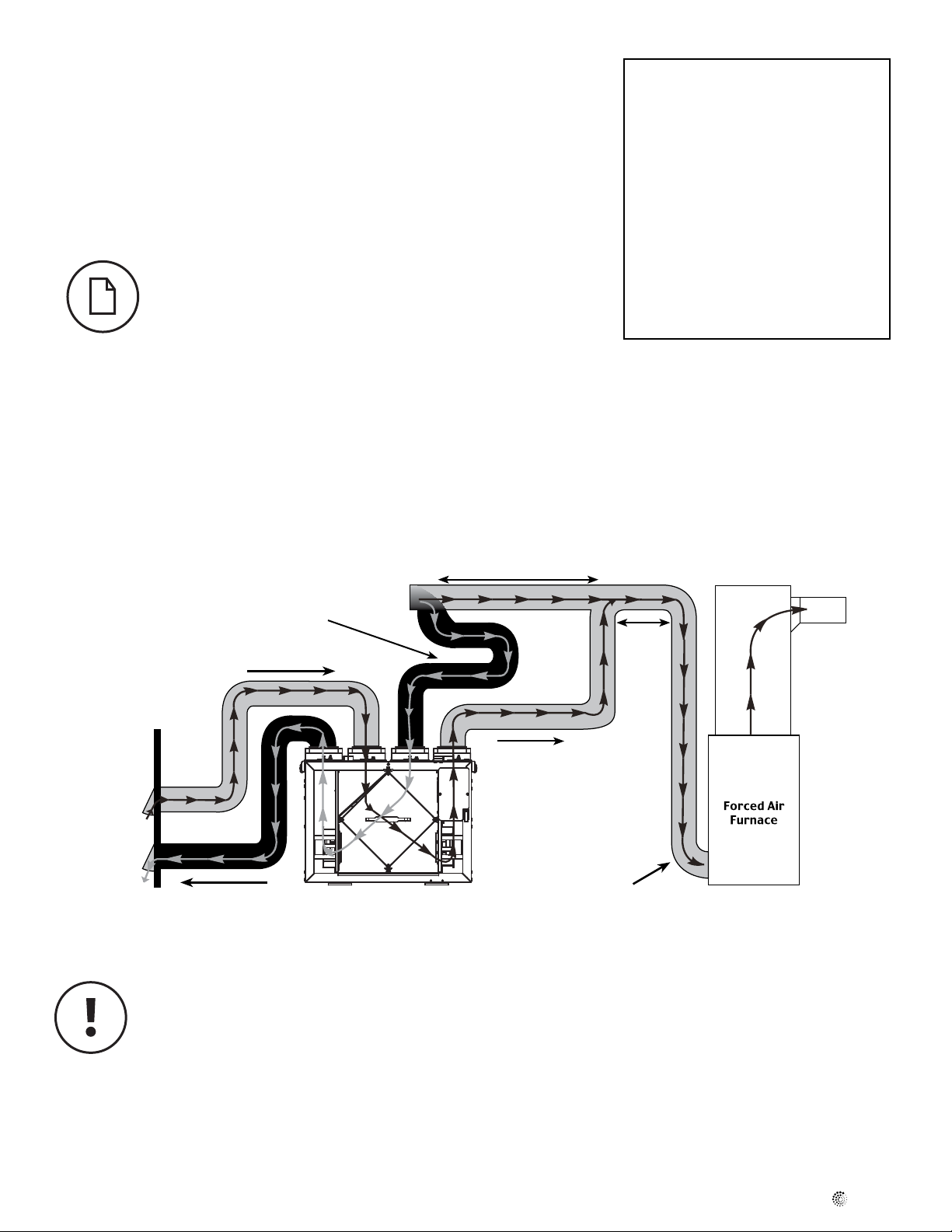

DIRECT CONNECTION of both the HRV SUPPLY AIR STREAM and EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN

SIMPLIFIED INSTALLATION (GOOD) (RETURN/RETURN METHOD) - OPTION 1

1. Furnace blower must operate when ventilation from HRV is required. The furnace should be set to run continuously or interlocked with HRV.

2. A minimum separation of 1m (3`3’’) is recommended between the two direct connections.

3. In order to prevent exhausting any fresh air, the HRV’s exhaust air connection should be upstream of the HRV’s supply air connection when ducting to the furnace’s cold air return.

HRV/ furnace for Simplified Installation – Option 1

Suggested installation for:

• When bathroom and kitchen already have local exhaust system

• May be suitable for retrotting

Benets: Least expensive installation type

1 m (3' 3") min. recommended

Stale air from inside

Fresh air from

outside

Outside

Fresh air to living areas

Stale air to

outside

* Unit airflow should be balanced while HRV is on “Normal” speed and furnace blower is running.

1 m (3' 3")

min.

recom-

mended

Cold air

return

fantech

Page 8

Installation examples (Cont'd)

DIRECT CONNECTION of the HRV SUPPLY AIR STREAM to the SUPPLY AIR SIDE on the FURNACE & EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN

SIMPLIFIED INSTALLATION (GOOD) OPTION 2

1. Furnace blower must operate when ventilation from HRV is required. The furnace should be set to run continuously or interlocked with HRV.

2. Due to the differences in pressure between the HRV and the equipment it is being connected to, the HRV‘s airflow must be balanced on site, using the procedure found section "AIRFLOW BALANCING".

HRV/Furnace ducting for Simplified Installation - Option 2

1 m (3' 3") min. recommended

* Ductwork layout may differ depending on model

Suggested installation for:

• When bathroom and kitchen already have local exhaust system

• May be suitable for retrotting

Benets: Least expensive installation type

In the case of a simplified installation, Option 1 is recommended.

Outside

Air from inside

Fresh air from

outside

Motorized Damper

Fresh air to living areas

Cold air

return

Stale air to

outside

* Unit air flow should be balanced while HRV is on "Normal" speed and furnace blower is running.

fantech

Page 9

Exterior ducting installation

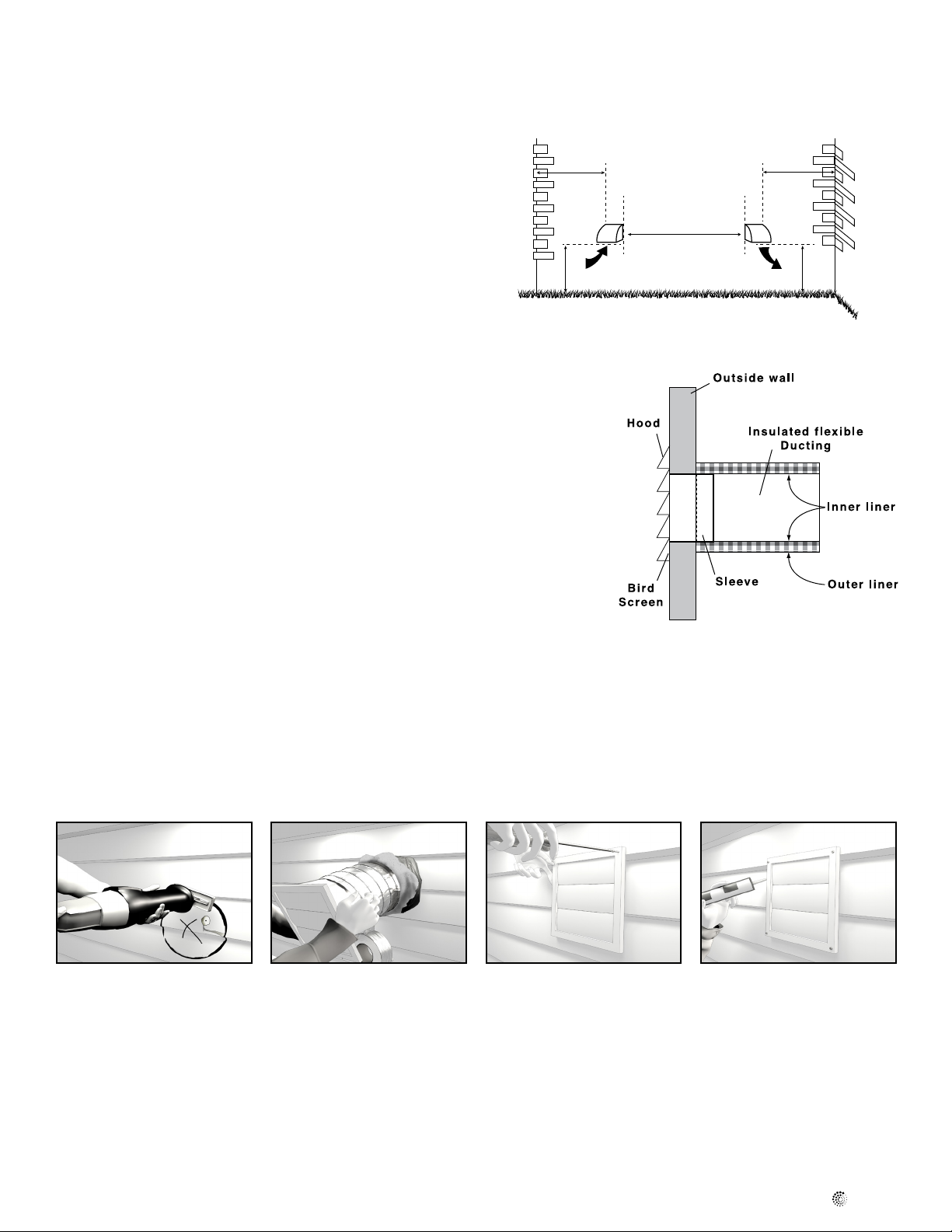

Weatherhood location

• Decide where your intake and exhaust hoods will be located.

OUTSIDE CORNER INSIDE CORNER

36" (1m)

min.

36” (1m)

min.

Locating the Intake Weatherhood

• Should be located upstream (if there are prevailing winds) from the

exhaust outlet.

• At a minimum of 2m (6’) away from dryer vents and furnace exhaust

(medium or high efficiency furnaces), driveways, oil fill pipes, gas meters, or garbage containers.

INTAKE

18" (460mm) min.

6' (2m)

min.

EXHAUST

18" (460mm) min.

• At a minimum height of 460mm (18’’) above the ground, or above the level

of expected snow accumulation.

• At a minimum distance of 1m (3’) from the corner of the building.

• Do not locate in the garage, attic, crawl space, or underneath deck.

Locating the Exhaust Weatherhood

• At least 460mm (18") above ground or above the depth of expected snow accumulation

• At least 1m (3’) away from the corner of the building

• Not near a gas meter, electric meter or a walkway where fog or ice could create a hazard

• Do not locate in a garage, workshop or other unheated space

Installing the ducting to the weatherhoods

A well designed and installed ducting system will allow the HRV/ERV to operate at its maximum efficiency. The inner liner of the flexible insulated duct must be secured to the sleeve of the weatherhood (as close to the outside as possible) and to the appropriate duct connection on the HRV/ERV. The insulation should remain full and not crushed. The outer liner, which acts as a vapor barrier, must be completely sealed to the outer wall and the HRV/ERV using tape and/ or caulking. A good bead of high quality caulking (preferably acoustical sealant) will seal the inner flexible duct to both the HRV/ERV duct connection and the weatherhood prior to securing them.

To minimize airflow restriction, the flexible insulated duct that connects the two outside weatherhoods to the HRV/ERV should be stretched tightly and be as short as possible.

Twisting or folding the duct will severely restrict airflow.

See “Installation Diagram Examples” for installation examples.

Steps for hood installation

1 Using the duct connection of

the outside hood, outline the intake & exhaust holes to be cut. The holes should be slightly larger than the duct connection to allow for the thickness of the insulated flexible duct. Cut a hole for both the intake and exhaust hoods.

2 Pull the insulated flexible duct

through the opening until it is well extended and straight. Slide the duct’s inner vinyl sleeve over the hood duct connection and secure. Pull the insulation over the duct and pull the vapour barrier over the sleeve. Secure with appropriate tape or sealant.

3 Push the hood into the opening

and then attach the hood to the outside wall with mounting screws. Repeat the installation procedure for both the supply and exhaust hoods.

4 Using a caulking gun, seal

around both hoods to prevent any leaks.

fantech

Page 10

Installing duct to/from inside

To maximize airflow in the ductwork system, all ducts should be kept short and have as few bends or elbows as possible. Forty-five degree are preferred to 90º elbows. Use “Y” tees instead of 90º elbows whenever possible.

All duct joints must be fastened with screws or duct sealant and wrapped with a quality tape to prevent leakage. Aluminum foil duct tape is recommended. Galvanized ducting from the HRV/ERV to the living areas in the house is recommended whenever possible, although flexible duct can be used in moderation when necessary.

• Building Codes and Combustion Appliance Installation Codes do not allow location of return air grilles or any opening such as a “breathing tee” in an enclosed room with spillage susceptible combustion appliances.

• The fresh air inlet from the HRV needs to respect a minimum distance from the furnace return drop to ensure proper air mixing and temperature at the furnace core. See furnace manufacturer for appropriate specications.

pressure (E.S.P.) of the system. Static pressure is a measure of resistance imposed on the blower by length of duct work/number of fittings used in duct work, duct heater etc..

Supply air ducting

In homes without a forced air furnace, fresh air should be supplied to all habitable rooms including, bedrooms and living areas. It should be supplied from high wall or ceiling locations. Grilles that diffuse the air comfortably such as Fantech Contour Grilles are recommended. To avoid possible noise transfer through the ductwork system, a short length (approximately 12”, 300 mm) of nonmetallic flexible insulated duct should be connected between the HRV/ ERV and the supply/exhaust ductwork system.

If the floor is the only option available, then special care should be taken in locating grilles. Areas such as under baseboard heaters will help to temper the air. Also optional inline duct heaters are available for mounting in the supply duct work to add heat if required. In homes with a forced air furnace, you may want to connect the HRV/ERV to the furnace ductwork (see information below).

The SH704 & VH704 should be installed with a 4” (100mm) duct system that has less than 80 ft (25m) of equivalent duct length on the supply and on the exhaust side. If longer runs are required, increasing the duct diameter or following the instructions below might help. It is the responsibility of the installer to ensure all ductwork is sized and installed as designed to ensure the system will perform as intended. All air movement devices have a performance curve. The amount of air (CFM) that an HRV/ERV will deliver is directly related to the total external static

Exhaust air ducting

The stale air exhaust system is used to draw air from the points in the house where the worst air quality problems occur. Due to its lower capacity, the SH704, VH704 and SE704 are designed to vent from a single source point only and to the bathroom that is closest to the unit or directly out of the furnace return. Additional source points may be drained from if designed properly or installed on a separate Fantech fan bath kit to ventilate additional areas. Fantech bath kits are listed below and are ideal for both new construction and retro fit.

fantech

Page 11

Installation

back

• Install the unit close to the outside wall on which the supply and exhaust hoods will be mounted.

• Have a nearby power supply 120 Volts, 60Hz. (power cord is 3 feet long)

• Mount the unit as level as possible in order to allow proper condensate drainage. (SH704 & VH704 only)

• Have access to a water drain for the condensate of the unit during defrost. (SH704 & VH704 only)

• Have a certain amount of heat around the unit (attic installation is not recommended for SH704 and VH704).

• Installations close to the living space, such as closets, should be design and to minimize noise or vibration transfers.

• Have access for future maintenance. (10” is recommended for removal of core)

Location

The HRV/ERV must be located in a heated space where it will be possible to conveniently service the unit. Typically the HRV would be located in the mechanical room or an area close to the outside wall where the weatherhoods will be mounted. If a basement area is not convenient or does not exist, a utility room or laundry, closet, above drop ceiling or attic (SE704) and garage may be used.

Attic installations are not normally recommended due to:

• The complexity of the installation

• Freezing conditions in the attic

• Difficulty of access for service and cleaning

• No drain access

Connecting appliances to the HRV is not recommended. These include:

• Clothes dryer

• Range top

• Stovetop fan

• Central vacuum system

• Bathroom exhaust fans unless they are specifically designed for this purpose

These appliances may cause lint, dust or grease to collect in the HRV, damaging the unit.

Connecting any of these types of appliances to the HRV will void your warranty.

16” (406mm)

Safety screws (included)

Mounting – Wall Mount

1. Attach bracket to wall

2. Lift unit & slide nuts into slots on bracket

3. Tighten screws to secure unit to bracket

4. Insert the safety screws & place wall bumpers to level off the unit.

* Optional chain hanging kit available.

Place bumpers on

of unit (included)

Installing drain line- (SH704 & VH704 ONLY) - Drainline not included in kit

Through normal operation and during its defrost mode, the HRV may produce some condensation. This water should flow into a nearby drain, or be taken away by a condensate pump. The HRV and all condensate lines must be installed in a space where the temperature is maintained above the freezing point. A “P” trap should be made in the drain line. This will prevent odors from being drawn back up into the unit.

1 Install the drain nipple.

2 Install the drain hose,

making a “P” trap

fantech

Page 12

Airflow adjustment & balancing

Commissioning the system after installation is recommended which include confirming the proper operation of the system and how it interacts with other components within the home.

Airflow station grid method

1 For this ow measuring station, cut the

duct and place the ow measuring station between each section of duct. Make sure that the ow measuring station's air direction arrow points in the direction of the airow. Secure the ow measuring station with duct tape.

(300 mm)

Measure

here

12”

12” (300 mm)

Measure here

2 Before taking the reading, make sure that

the megnehelic gauge is level and at 0. Refer to the ow measuring station's chart to determine your unit's airow velocity.

• To avoid airow turbulence and incorrect readings, the airow velocity should be measured on steel ducting a minimum of 12" (300 mm) from the unit or elbow and before any transition.

3 Adjust the "Supply Air Out" damper until

you reach the desired velocity. Follow the previous steps to adjust the "Exhaust Air Out" damper, if needed.

fantech

Page 13

Electrical connections

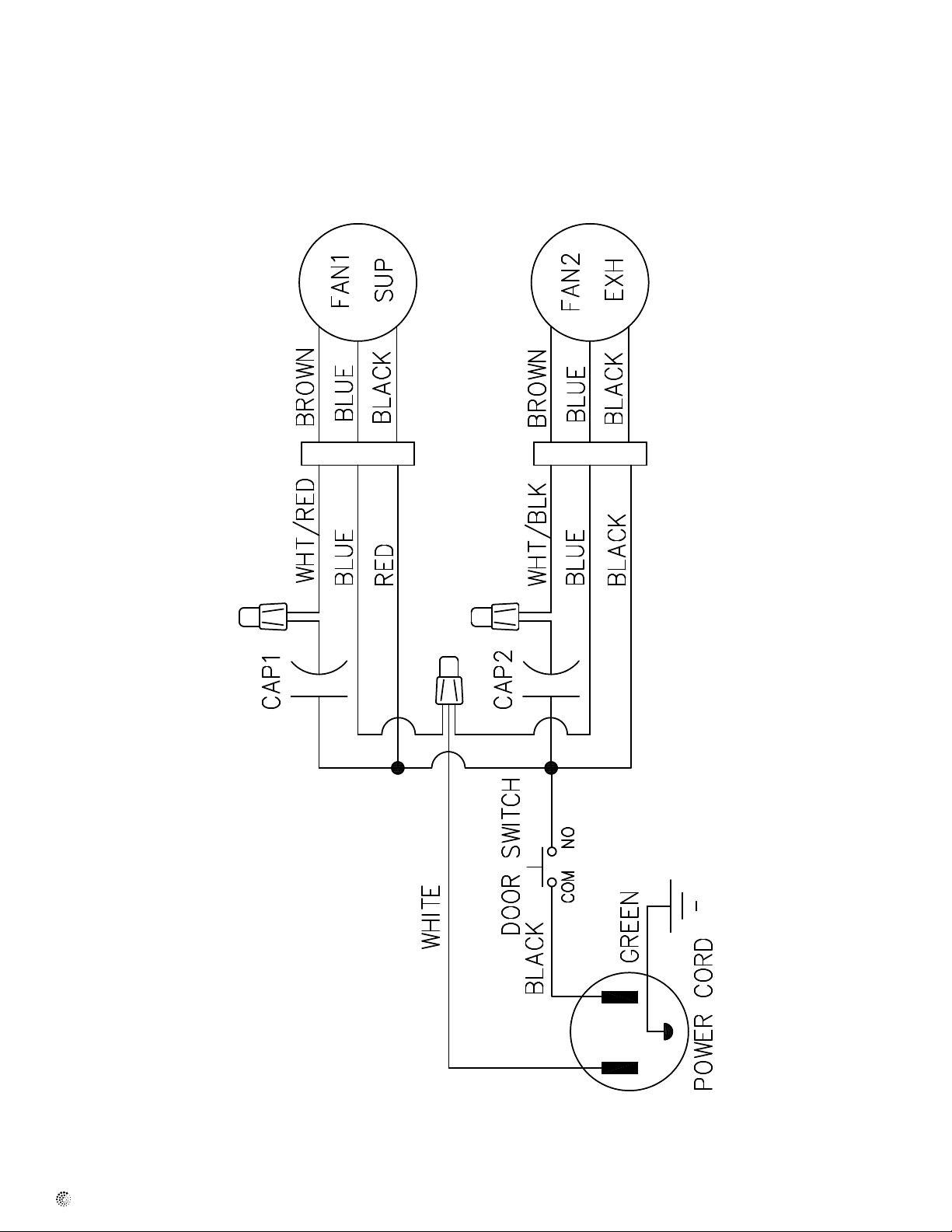

SH704 & VH704

fantech

Page 14

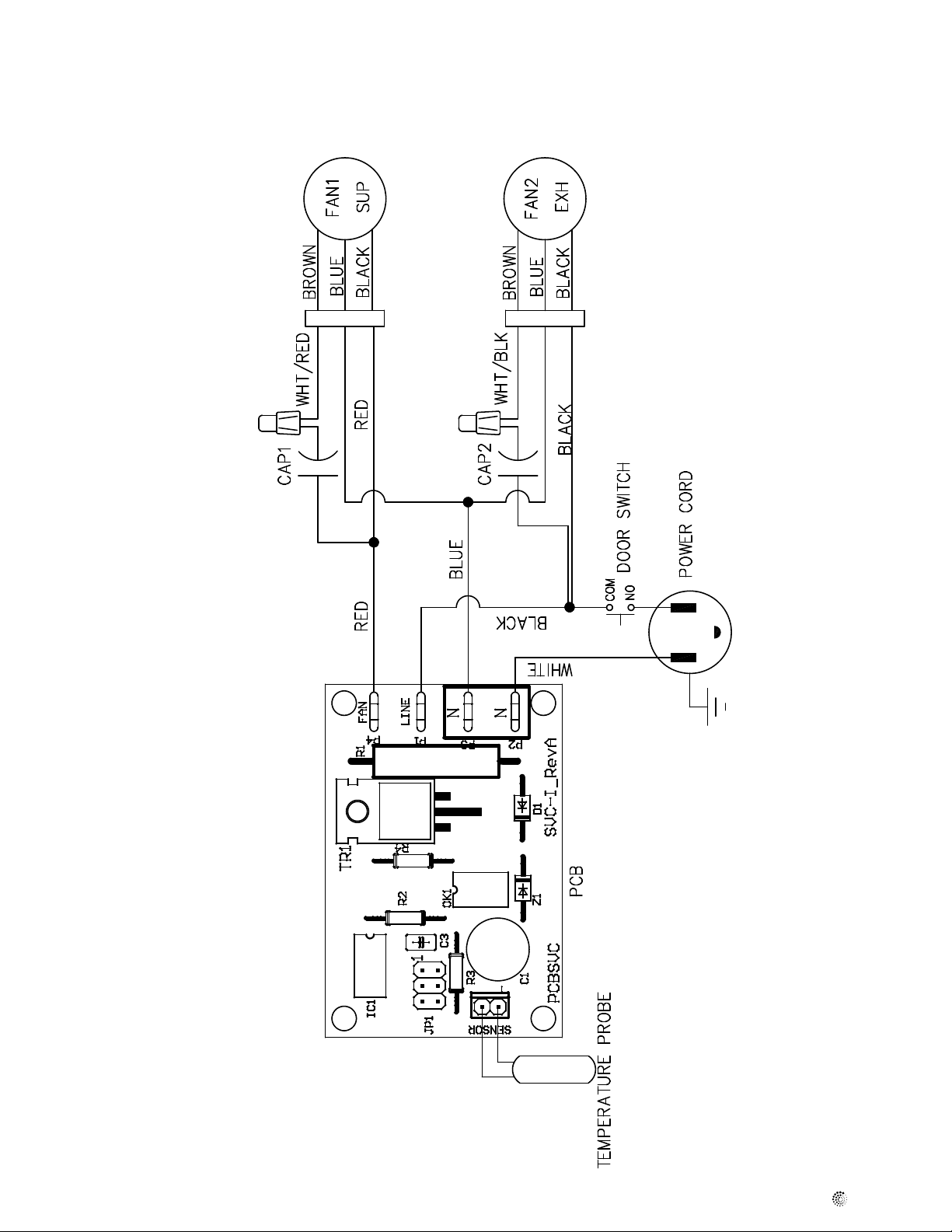

Electrical connections (Cont'd)

SE 704N

fantech

Page 15

Troubleshooting

Problem Causes Solutions

Air is too dry Insufcient water vapour generated Install humidier

Air is too humid Sudden increase in humidity by cooking or bathing Ventilate at the source of the problem using a HRV or additional fan

Sudden change in temperature Wait until outside temperature stabilizes (winter). Heating will also improve

Storing too much wood for heating Store a majority of your wood outside. Even dried, a cord of wood contains

Dryer vent exhaust is inside home Arrange outside vent for dryer.

Poor air circulation near windows Open curtains or blinds. Bay or bow windows may require mechanical method.

HRV not operating (during winter) Check power to the unit

Persistent condensation on window Poor Air Flows 1/4" (6mm) mesh on the outside hoods is plugged Clean exterior hoods or vents

Supply air feels cold Poor location of supply grilles, the airow may irritate

Poor air circulation near windows Open curtains or blinds. Bay or bow windows may require mechanical method.

Filters plugged Remove and clean lter

Core obstructed Remove and clean core

Indoor grilles closed or blocked Check and open grilles

Dampers are closed (if installed) Have electrician check supply voltage

Poor power supply at site Check duct installation

Ductwork is restricting HRV/ERV

the occupant

Outdoor temperature extremely cold If supply air is ducted into furnace return, the furnace fan may need to run

situation.

more than 20 gallons of water.

Locate the grilles high on the walls or under the baseboards, install ceiling mounted diffuser or grilles so as not to directly spill the supply air on the occupant (eg. Over a sofa) Use superior grilles such as Fantech CG grille A small duct heater (1kw) could be used to temper the supply air Placement of furniture or closed doors is restricting the movement of air in the home

continuously to distribute ventilation air comfortably

HRV / ERV and / or Ducts Frosting upHRV/ERV air ows are improperly balanced Have HVAC contractor balance the HRV/ERV airows

Condensation or Ice Build Up in Insulated Duct to the Outside

Malfunction of the HRV defrost system Note: minimal frost build-up is expected on cores before unit initiates defrost

Outdoor temp. extremely cold Install duct heater

Incomplete vapour barrier around insulated duct Tape and seal all joints

A hole or tear in outer duct covering Tape any holes or tears made in the outer duct covering

Incomplete vapour barrier around insulated duct

A hole or tear in outer duct covering

cycle functions

Ensure that the vapour barrier is completely sealed. Tape and seal all joints

Tape any holes or tears made in the outer duct covering

Ensure that the vapour barrier is completely sealed.

fantech

Page 16

Maintenance chart

Maintenance Required Recommended Frequency Date Maintenance Performed

Check and Clean Filters Every 3 months or if

dirty

Check Heat/Energy Recovery Core

Check Drain Pan and Lines

Vacuum the Inside of the Unit

Clean and Un-block Outside Hoods

Clean and Inspect Duct Work

General Servicing by a Qualied Contractor

Every 6 months

Every 3 months

Annually

Limited Warranty

• The heat recovery aluminum core has

a limited lifetime warranty and the enthalpy energy recovery core has a 5 year limited warranty.

• The motors found in all Fantech HRV/

ERVs require no lubrication, and are factory balanced to prevent vibration and promote silent operation.

• The limited warranty covers normal

use. It does not apply to any defects, malfunctions or failures as a result of improper installation, abuse, mishandling, misapplication, fortuitous occurrence or any other circumstances outside Fantech’s control.

• Inappropriate installation or

maintenance may result in the cancellation of the warranty.

• Any unauthorized work will result in

the cancellation of the warranty.

* Schedule may be altered to meet your own needs. More frequent servicing may be required depending on the severity of your home's indoor and outdoor environments.

Contractor Telephone Number Date Serviced

• Fantech is not responsible for any

incidental or consequential damages incurred in the use of the ventilation system.

• Fantech is not responsible for

providing an authorized service centre near the purchaser or in the general area.

• Fantech reserves the right to supply

refurbished parts as replacements.

• Transportation, removal and

installation fees are the responsibility of the purchaser.

• The purchaser is responsible to

adhering to all codes in effect in his area.

• The warranty is limited to 5 years on parts and 7 years on the motor from the date of purchase, including parts replaced during this time period. If there is no proof of purchase available, the date associated with the serial number will be used for the beginning of the warranty period.

* This warranty is the exclusive and only

warranty in effect relative to the ventilation system and all other warranties either expressed or implied are invalid.

fantech

Page 17
