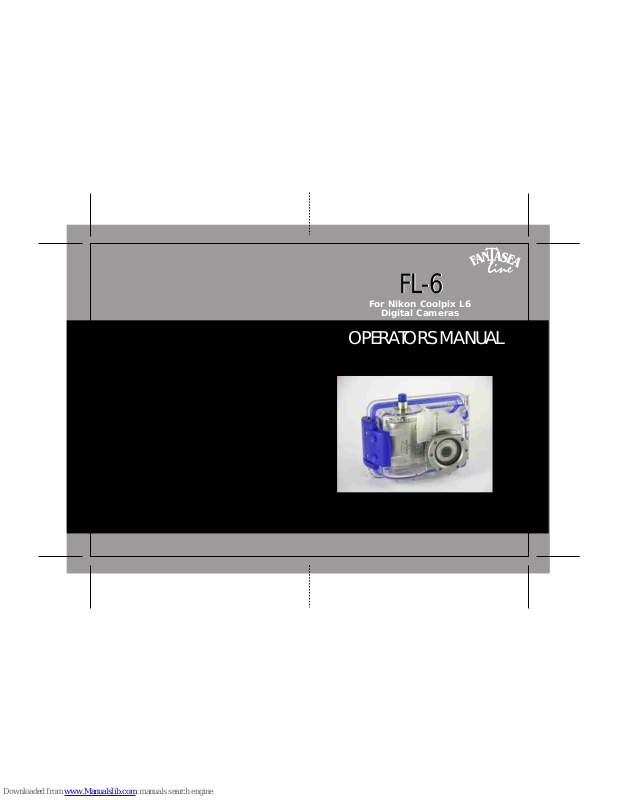

Fantasea FL-6 Operator's Manual
For Nikon Coolpix L6
Digital Cameras
FL-6
FL-6
OPERATORS MANUAL
1
TABLE OF CONTENTS
Manual for the FL-6
Care & Maintenance: ............................
pg.16
Using the flash: .....................................
pg.13
Accessory slave flash: ................................................
Lens accessories: ........................................................
Fantasea coolpix accessory systems and sets: ...............
pg.13
pg.14
Battery life: ............................................
pg.11
Using the fantasea FL-6 housing.....................
pg.8
Opening the Housing: ..................................................
Inserting Camera: ............................................................
Checking the gasket: ...................................................
Closing the housing: ....................................................
pg.8
pg.9
pg.9
pg.10
General information: ..............................
pg.2
The Fantasea FL-6 housing: ........................................
Fantasea FL-6 Uses: ....................................................
General Camera description: ........................................
Nikon Coolpix L6 feature highlights: .............................
pg.2
pg.2
pg.7
pg.8
Table of contents.....................................
pg.1
Exposure Modes:
(Pre-set before camera insertion)
......
Zoom control: ..............................................................
Macro focus: ...............................................................
Quick review: ..............................................................
Camera standby mode: ..............................................
pg.15
pg.15
pg.15
pg.15
pg.15
Shooting Techniques: ............................
pg.15
Viewing the subject: ...............................
pg.11
Taking the picture: .......................................................
Choosing image files: ..................................................
pg.11
pg.12
Flood insurance: ...................................
pg.18
2
General Information:
Fantasea FL-6 Uses:
The Fantasea FL-6 housing is designed as underwater/outdoor
camera housings. It has a working depth of 130 feet/40 meters.
Underwater photographers can dive or snorkel and capture all the
excitement of this fascinating world, while outdoor photographers
also have the option of capturing the action of such activities as
white water and paddle sports, sailing and boating, surfing, fishing
and hunting, backpacking and camping, and for family activities
around the swimming pool or at the beach. The Fantasea FL-6
will protect the Coolpix L6 camera from water, sand, dust, impact
and other damaging elements and occurrences.
The Fantasea FL-6 housing:
Fantasea has specially designed a housing for the Nikon Coolpix
L6 camera. This housing is dedicated to insure the most compact
design for easy handling and accurate access to camera functions
through the critical placement of push-button controls.
With all essential control functions:
The FL-6 housings provide a built in Flash Diffuser and an antiglare hood over the LCD screen as well.
This housing is ideal for outdoor and underwater photographers
who enjoy the camera's automatic exposure features for capturing
fast action pictures easily and creatively.
pg.14
Camera on
Macro
Exposure
Video/Still
Delete
Review
Menu
Mode
Zoom
3
Top/Front Side of Housing
3
2
1
Back Side of Housing Buttons
6
9
11
7
8
4
1: Shutter Release button:
This is a two stage shutter-release button. First lightly press
the shutter-release button halfway, stopping when you feel
minimal resistance. Once the camera has focused (a green dot
will appear on the LCD screen), press the shutter-release
button the rest of the way down to release the shutter and take
the picture.
2: Buckle to secure housing:
Refer to the section "Using the Fantasea FL-6 Housing" on
how to operate the buckle and open and close the camera
housing.
3: Removable Flash diffuser:
To diffuse the flash's intensity [the internal flash]. See the
section on "Accessory Slave Flash" for additional information.
4: Lens Port:
Refer to the section "Inserting Camera" for useful information.
5 & 6:
Zoom Control/playback zoom and thumbnail playback
Numbered description below refers to corresponding numbers
on above graphic.
Pressing the W button in full-frame playback displays pictures
in contact sheets whereas pressing the T button can be used
to zoom in on pictures during full-frame playback.
The zoom control is used to frame subjects in the monitor.
Select W to zoom out, increasing the area visible in the frame.
Select T to zoom up to 3x so that the subject fills a larger area
of the frame. Pressing T for about 2 seconds at 3x zoom will
trigger the digital zoom, allowing subject to be magnified up
to 4x more. Note that unlike the optical zoom, the digital zoom
will not increase the amount of detail visible in the picture
they are simply enlarged producing a slightly grainy image.
It is not recommended to use the "Digital Zoom" for UW
Photography.
4
5
10
