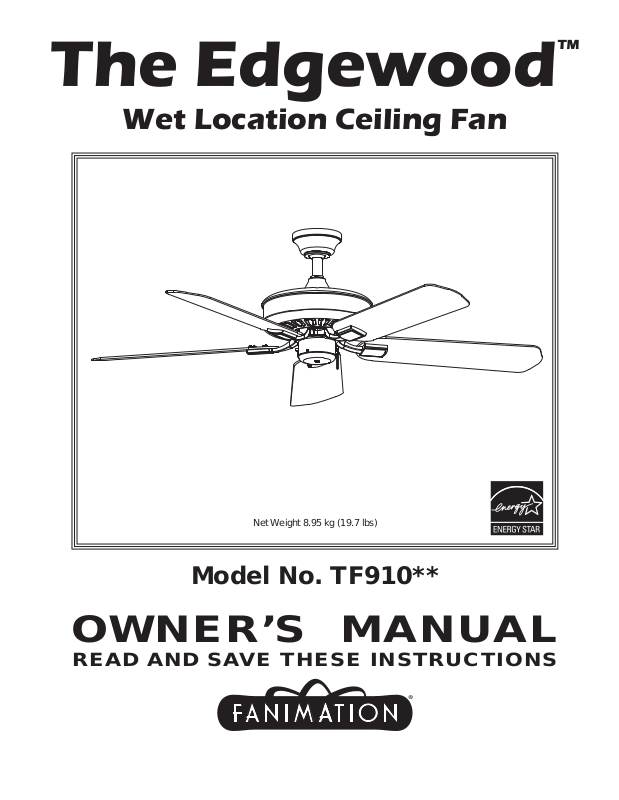

Fanimation B1870440 User Manual
The Edgewood
Wet Location Ceiling Fan
™
Net Weight 8.95 kg (19.7 lbs)
Model No. TF910**
OWNER’S MANUAL
READ AND SAVE THESE INSTRUCTIONS
Important Safety Instructions
WARNING: To avoid fire, shock and serious personal injury, follow these instructions.
1. Read your owner’s manual and safety information before installing your new fan. Review the accompanying assembly diagrams.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a warning device, such
as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to the ceiling fan before
servicing.
4. Do not insert anything into the fan blades while the fan is operating.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan without blades.
2. All wiring and installation procedures must satisfy National Electrical Codes (ANSI/ NFPA 70-1999) and Local Codes. The ceiling fan
must be grounded as a precaution against possible electrical shock. Electrical installation should be made or approved by a licensed
electrician.
3. The fan base must be securely mounted and capable of reliably supporting at least 50 lbs. Consult a qualified electrician if in doubt.
4. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the fan blades.
5. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not have adequate electrical
knowledge or experience, have your fan installed by licensed electrician.
WARNING: TO REDUCE THE RISK OF SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: This product is designed to use only those parts supplied with this product and/or accessories designated specifically for
use with this product. Using parts and/or accessories not designated for use with this product could result in personal injury or property
damage.
WARNING: To reduce the risk of personal injury, do not bend the blade bracket (flange or blade holder) when installing the brackets,
balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
LIMITED LIFETIME WARRANTY
Extends to the original purchaser of a Fanimation Fan
1. LIMITED LIFETIME MOTOR WARRANTY - If any part of your fan motor fails, due to a defect in materials or workmanship during
the lifetime of the original purchaser, Fanimation will provide the replacement part free of charge, when the defective fan is returned
to our national service center. Proof of purchase is required. Customer shall be responsible for all costs incurred in the removal or
reinstallation and shipping of the product for repairs or replacement.
2. ONE YEAR MOTOR LABOR WARRANTY - If your fan motor fails at any time within one year from the original purchase, due to
defects in materials or workmanship, labor to repair the motor will be provided free of charge at our national service center. Purchaser
will be responsible for labor charges after this one-year period. Customer shall be responsible for all costs incurred in the removal or
reinstallation and shipping of the product for repairs or replacement.
3. If any other part of your fan fails at any time within one year after original purchase, due to a defect in materials or workmanship, we
will repair, or replace, at our option, the defective part free of charge for parts and labor performed at our national service center.
4. Because of varying climate conditions, this warranty does not cover changes in the finish, including rusting, pitting, corroding,
tarnishing, or peeling.
5. This warranty is void and does not apply to damage from improper installation, neglect, accident, misuse, exposure to extremes of
heat or humidity, or as a result of any modification to the original product.
6. All costs of removal and reinstallation of the fan are the sole responsibility of the owner of the fan and not the store that sold the fan
or Fanimation.
7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty.
8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must accompany authorized returns and must be sent freight prepaid to Fanimation. The fan to be returned must be properly packed to avoid
damage in transit; Fanimation will not be responsible for any damage resulting from improper packaging.
9. It is understood that any repair or replacement is the exclusive remedy available from Fanimation. There is no other expressed or
implied warranty. Fanimation hereby disclaims any and all implied warranties, including, but not limited to those of merchantability and
fitness for a particular purpose to the extent permitted by law. Some states do not allow limitations on implied warranties. Fanimation
will not be liable for incidental, consequential, or special damages arising out of or in conjunction with product use or performance,
except as may otherwise be accorded by law. This warranty gives you special legal rights and you may also have other rights that vary
from state to state.
10. A certain amount of wobble is normal and should not be considered a problem or a defect.
Table of Contents
Unpacking Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .snaF gnilieC fo esU tneicif fE ygrenE
Electrical and Structural Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
How to Assemble Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
How to Hang Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
How to Wire Your Ceiling Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installing the Canopy Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Mounting the Fan Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Instructions - Pull Chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Blade Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Exploded-View Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Trouble Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
This Manual is Designed to Make it as Easy as Possible for You
to Assemble, Install, Operate, and Maintain Your Ceiling Fan
Tools Needed for Assembly Materials
• One Phillips head screwdriver
• One stepladder
• One ¼” blade screwdriver
• One wire stripper
• Four wire connectors
(supplied)
Wiring outlet box and box connectors must be of type
required by local code. The minimum wire would be a 3conductor (2-wire with ground) of the following size:
Wire Size A.W.G.Installed Wire Length
▲
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 4). If you feel you
do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
Up to 50 ft.
50 - 100 ft.
NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are missing,
contact your local retailer.
14
12
Unpacking Instructions
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
steps have been completed and will be helpful in finding your place should you be interrupted.
▲
WARNING
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not
designated for use with this product by Fanimation could
result in personal injury or property damage. Contact
your retail store for missing or damaged parts.
1. Check to see that you have received the following
parts:
• Fan Motor Assembly
• Hanger Bracket Assembly
• Downrod/Hanger Ball
Assembly
• Ceiling Canopy
• Motor Coupling Cover Assembly
• Canopy Screw Cover Assembly
• Blade Holder Set
• Blade Set
• Hardware bag:
– Eleven ¼”-20 x 14mm
(blade holder to fan motor hub)
screws with lockwashers
– Sixteen
to blade holder) phillips-head
screws with flat washers
– Four wire connectors
– Chain Coupler
– Chain Fob
– Balance Kit
– Two #8-32 junction box screws
3
/16-24 x 7.5mm (blade
NOTE: If you are uncertain of part description, refer to
exploded view illustration. (Figure 1, page 11)
Hanger Bracket
Assembly
Ceiling Canopy
Motor Coupling
Cover Assembly
Canopy Screw
Cover Assembly Blade Holder Set
Downrod/
Hanger Ball
Assembly
Hardware Bag
Fan Motor
Assembly
Blade Set
3
Energy Effi cient Use of Ceiling Fans
Ceiling fan performance and energy savings rely
heavily on the proper installation and use of the ceiling
fan. Here are a few tips to ensure efficient product
performance.
Choosing the Appropriate Mounting Location
Ceiling fans should be installed, or mounted, in the middle
of the room and at least 7 feet above the floor and 18
inches from the walls. If ceiling height allows, install the fan
8 - 9 feet above the floor for optimal airflow. Consult your
Fanimation Retailer for optional mounting accessories.
Turn Off When Not in the Room
Ceiling fans cool people, not rooms. If the room is
unoccupied, turn off the ceiling fan to save energy.
Electrical and Structural Requirements
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit. The
outlet box must be securely anchored and capable of
withstanding a load of at least 50 lbs. Figure 1 depicts
different structural configurations that may be used for
mounting the outlet box.
Using the Ceiling Fan Year Round
Summer Season: Use the ceiling fan in the counter-
clockwise direction. The airflow produced by the ceiling
fan creates a wind-chill effect, making you “feel” cooler.
Select a fan speed that provides a comfortable breeze,
lower speeds consume less energy.
Winter Season: Reverse the motor and operate the ceiling
fan at low speed in the clockwise direction. This produces
a gentle updraft, which forces warm air near the ceiling
down into the occupied space.Remember to adjust your
thermostat when using your ceiling fan - additional energy
and dollar savings could be realized with this simple step!
Ceiling
▲
WARNING
To reduce the risk of fire, electrical shock, or personal
injury, mount fan to outlet box marked acceptable
for fan support of 22.7 kg (50 lbs) or less. Use screws
supplied with outlet box. Most outlet boxes commonly
used for support of light fixtures are not acceptable for
fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
If your fan is to replace an existing light fixture, turn
electricity off at the main fuse box at this time and remove
the existing light fixture.
▲
WARNING
Turning off wall switch is not sufficent. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring must
be in accordance with National and Local codes and the
ceiling fan must be properly grounded as a precaution
against possible electrical shock.
Ceiling
Joists
2˝ x 4˝
Outlet
Box
Figure 1
▲
WARNING
To avoid fire or shock, follow all wiring instructions
carefully. Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
4
How to Assemble Your Ceiling Fan
1. Prior to assembly, set aside and save the hardware
bags packed in the packing. Remove the hanger ball
by loosening the setscrew in the hanger ball until the
ball falls freely down the downrod. Remove the pin
from the downrod, then remove the hanger ball.
Retain the pin and hanger ball for reinstallation in
Step 5. (Figure1)
Hanger
Ball
Pin
Setscrew
Figure 1
2. The fan comes with blue, black, and white 80”
wires.
Separate and untwist the three wires. Route
the wires the wires through the downrod.
NOTE: You will be using either the 4½”
downrod supplied with your fan or an optional
downrod purchased separately.
Loosen the two setscrews in the downrod support.
Install downrod into coupler. Align the clevis pin
holes in the downrod with the holes in the downrod
support. (Figure 2)
3. Install the clevis pin, hairpin clip and tighten set
screws. The clevis pin and hair pin clip must be
properly installed to prevent the set screws from
working loose. (Figure 3)
▲
WARNING
It is critical that the clevis screw in the downrod support is
properly installed and the setscrews and nuts are securely
tightened. Failure to verify that the clevis screw, nuts, hairpin
clip and setscrews are properly installed could result in the fan
falling.
Downrod/
Hanger Ball
Assembly
Clevis Screw
w/Rubber
Washers (2),
Locknut
Figure 2
Hairpin
Clip
Set Screw
w/Hex Nut
Rubber
Washer (2ea)
Figure 3
5
How to Assemble Your Ceiling Fan (cont’d)
4. Route wires through motor coupling cover, screw
cover and ceiling canopy. (Figure 4)
5. Reinstall the hanger ball on the downrod as follows.
Route the three 80 in. wires through the hanger ball.
Position the pin through the two holes in the downrod
and align the hanger ball so the pin is captured in the
groove in the top of the hanger ball. Pull the hanger ball
up tight against the pin. Securely tighten the set screw
in the hanger ball. A loose set screw could create fan
wobble. (Figure 5)
Ceiling
Canopy
Canopy Screw
Cover
Motor
Coupling
Cover
Figure 4
6. sehcni 9 ot 6 yletamixorppa eriw dael ssecxe ffo tuC
above top of the top of the downrod. Strip insulation off
1/2 inch from the end of each lead wire. (Figure 6)
NOTE:
where necessary, before installation.
All set screws must be checked, and retightened
Figure 5
Figure 6
6
How to Hang Your Ceiling Fan
WARNING
To avoid possible fire or shock, be sure electricity is
turned off at the main fuse box before hanging.
(Figure 7)
MAIN FUSE BOX
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advise, as it must be
grounded for safe operation.
WARNING
The fan must be hung with at least 7’ of clearance
from floor to blades. (Figure 8)
1. Securely attach the hanger bracket to the outlet box
using the outlet box screws and washers supplied with
the outlet box. (Figure 9)
WARNING
The outlet box must be securely anchored. Hanger
bracket must seat firmly against outlet box. If the
outlet box is recessed, remove wall board until bracket
contacts box. If bracket and /or outlet box are not
securely attached, the fan could wobble or fall.
Figure 7
Ceiling
No
less than
7 ft
Floor
Figure 8
Outlet Box
2. Carefully lift the fan and seat the downrod/hanger ball
assembly on the hanger bracket that was just attached
to the outlet box. Be sure the groove in the ball is lined
up with tab on the hanger bracket. (Figure 10)
WARNING
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
To avoid possible shock, do not pinch wires between
the hanger ball assembly and the hanger bracket.
Hanger
Bracket
Screw (2)
Supplied with
Outlet Box
Hanger
Bracket
Tab
Figure 9
Outlet Box
Downrod/Hanger
Ball Assembly
Figure 10
7
How to Wire Your Ceiling Fan
WARNING
To avoid possible fire or shock, be sure electricity is
turned off at the main fuse box before hanging.
(Figure 11)
MAIN FUSE BOX
Figure 11
1. Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the supply grounding conductor (this may
be a bare wire or wire with green colored insulation).
Securely connect wires with wire connectors supplied.
(Figure 12)
2. Securely connect the white fan motor wire to the
white supply (neutral) wire using wire connector
supplied. Securely connect the black fan motor wire
and blue wire to the black supply wire using wire
connector supplied. (Figure 12)
3. After splicing and making the wire connections, the
wires should be spread apart and turned upward with
the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the
ungrounded conductor on the other side of the outlet
box. (Figure 13)
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades are in place. Noise and fan damage
could result.
GREEN WIRE
(GROUND)
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
(Ground) from
Green Wire
(Ground) from
Hanger Bracket
Green Wire
(Ground) from
Hanger Ball
BLACK FAN
WIRE
Figure 12
HARDWARE USED:
WIRE
CONNECTORS
Green Wire
Supply
Figure 13
White Wire
from Supply
White Wire
from Fan
BLACK
BLUE
X 3
Listed
Outlet Box
Black Wire
from Supply
Blue Wire
from Fan
Black Wire
from Fan
LISTED
OUTLET BOX
HOUSEHOLD
SUPPLY
WHITE
Household
Supply
Installing the Canopy Housing
NOTE: This step is applicable after the necessary wiring
is completed.
▲
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy housing
and not pinched between the housing and the ceiling.
1. Remove one of the two shoulder screws in the hanger
bracket. Loosen the second shoulder screw without fully
removing it. Assemble canopy by rotating key slot in
canopy over shoulder screw in hanger bracket. Tighten
shoulder screw. Fully assemble and tighten second
shoulder screw that was previously removed.
(Figure 14a)
2. Securely attach and tighten the canopy screw cover
over the shoulder screws in the hanger bracket utilizing
the keyslot twist-lock feature. (Figrue 14b)
8
Figure 14a Figure 14b
Assembling and Mounting the Fan Blades
1. Position the blade over the blade holder with
threaded posts showing. Make sure the bottom edge
of the blade is fully seated against the blade arm.
With a phillips screwdriver, tighten 3/16-24 x 7.5 mm
phillips head screws and flat washers to secure the
blade to the blade arm. (Figure 15)
CAUTION
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled
may result in damage to the fan blades.
Blade
HARDWARE USED:
3/16-24 x 7.5mm
PHILLIPS HEAD
SCREWS
FLAT WASHER
Blade Holder
Arm
Figure 15
x 15
x 15
2. Secure the blade holders to the motor support
using the 1/4-20 x 14 mm screws throught the holes
located on the side of the motor support. (Figure 16)
NOTE:
Periodically check blade holder hardware and
resecure if necessary.
!
WARNING
To reduce the risk of personal injury, do not bend the
blade holders when installing, balancing the blades
or cleaning the fan. Do not insert foreign objects in
between the rotating blades.
CAUTION
To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing
light kit.
Figure 16
HARDWARE USED:
1/4-20 x 14mm
SCREWS
x 10
9
Loading...
