Falmec FIMAR28B6SS Instruction Manual

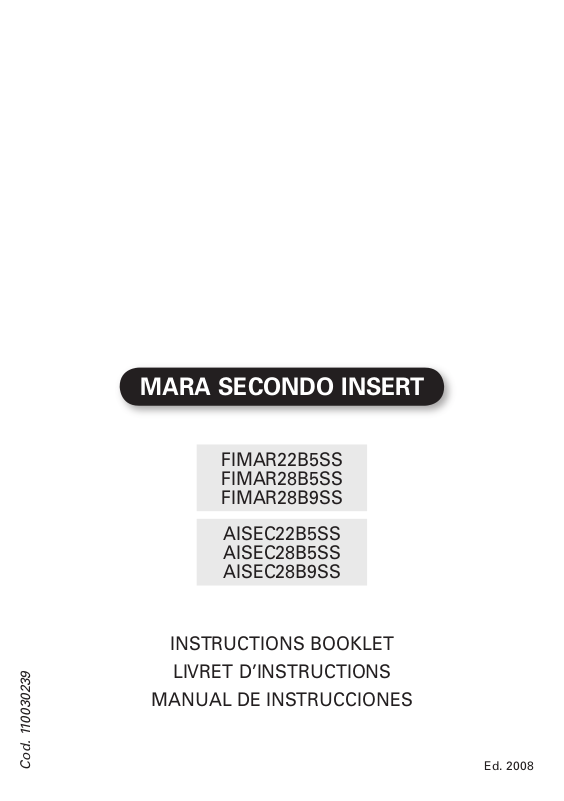

MARA SECONDO INSERT
FIMAR22B5SS
FIMAR28B5SS
FIMAR28B9SS
AISEC22B5SS
AISEC28B5SS
AISEC28B9SS
INSTRUCTIONS BOOKLET
LIVRET D’INSTRUCTIONS
MANUAL DE INSTRUCCIONES
Cod. 110030239
Ed. 2008
Dear Sir/Madam, congratulations!
You have purchased a prestigious range hood of guaranteed quality. For best results, we
suggest that you carefully follow the operating and maintenance instructions provided in this
booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.
Chère Madame/Cher Monsieur, félicitations!
Vous venez d’acheter une hotte haut de gamme. Pour en tirer les performances les
meilleures veuillez lire avec attention le mode d’emploi et la maintenance que vous trouvez
dans ce manuel ; pour commander les filtres de rechange au carbone actif veuillez vous
servir du coupon annexé à la couverture.
Enhorabuena Señora/Señor!
Ha comprado una campana extractora de prestigio y calidad segura. Para que pueda
obtener las mejores prestaciones, le sugerimos seguir con atención las instrucciones
contenidas en este manual para el uso y el mantenimiento. Para pedir los filtros de recambio
de carbón activo, utilice el cupón adjunto a la cubierta.
28 3/8"
25 3/4"
18 7/8"
11 13/16"
9 1/16"
28 3/8"
27 3/16"
17 7/8"
5"
5 15/16"
10 1/4"
7/8"
10 13/16"
26 1/4"
10 5/16"
CUT-OUT
11 13/16"
10 1/8"
10"
3/4"
10 3/8"
11 1/8"
MARA SECONDO INSERT 28,34” 2M
1
28 3/8"
18 7/8"
25 3/4"
7/8"
17 7/8"
11 13/16"
10 13/16"
9 1/16"
28 3/8"
27 3/16"
5"
5 7/8"
26 1/4"
10 5/16"
CUT-OUT
11 13/16"
10 1/8"
10"
11 1/8"
3/4"
10 3/8"
MARA SECONDO INSERT 28,34” 1M
2
19 5/8"
10 5/16"
22 1/16"
19 7/16"
12 9/16"
7/8"
11 9/16"
22 1/16"
10 13/16"
11 13/16"
6 15/16"
9 1/16"
20 1/16"
20 7/8"
5 7/8"
5"
11 13/16"
9 15/16"
10 1/8"
3/4"
10 3/8"
11 1/16"
CUT-OUT
MARA SECONDO INSERT 22”
3
HOOD INSERT
Fig. C
Fig. O
4
OPTIONAL: Duct transition kit (only for 2 motors version)
(Seulement pour modéle 2 moteurs)
(Solo por versión 2 motores)
10 13/16"
9 13/16"
2 3/8"
9"
8"
10 3/16"
16 3/4"
17 5/8"
8 11/16"
9 7/8"
5
GB
INSTRUCTIONS BOOKLET
A
WARNINGS
This instruction booklet must be kept together with the appliance for future
reference. If the appliance is sold or consigned to other parties, check that
the booklet is supplied with it, to ensure that the new user has the correct
information on the operation of the range hood and is aware of the warnings.
These warnings have been provided for the your safety and the safety of others. As a result, please read them carefully before installing and operating the
appliance.
This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure
that they can use the appliance safely. Young children should be supervised to
ensure they do not play with the appliance.
The appliance must be installed by qualified personnel, in accordance with
national and local safety regulations the standards in force. If the supply cord
is damaged, it must be re-placed by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard. Any modifications that
may be required to the electrical system for the installation of the range hood
must only be made by qualified electricians.
It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance,
do not attempt to solve the problems directly.
Repairs performed by unqualified persons may cause damage. For all repair
and other work on the appliance, contact an authorised service/spare parts
centre.
Always check that all the electrical parts (lights, exhaust device), are off when
the appliance is not being used. Read the entire instruction booklet before
performing any operations on the range hood.
The manufacturer can not be held responsible for unauthorized work. Ensure
that power to the appliance is OFF while installation or repair work is performed.
Verify that the voltage, load and circuit rating information found on the data
plate (located behind the grease filter), match the household electrical supply
before installing the hood.
The range hood must only be used for the exhaust of cooking fumes in home
kitchens. The manufacturer disclaims all liability for any other use of the appliance.
The maximum weight of any object placed above the hood, or hung to it (if
possible) must not exceed 1,5 kilos. After installing the stainless steel hood,
clean it in order to remove any residue of the protective glue, and stains of
grease or oil. The manufacturer recommends its cleaning cloth available for
purchase. The manufacturer accepts no liability in case of damage caused by
the use of different detergent types.
7
B
TECHNICAL SPECIFICATIONS
The technical data pertaining to the electric appliance The technical specifications of the appliance are shown on the rating plates located inside the range
hood.
C
Mounting instruction: see section “O” of the booklet.
D
INSTALLATION
(Section reserved for qualified installers of the range hood)
Minimum distance: distance between the main top of the cooking appliance
and the bottom-most section of the hood. When the hood is positioned above
a gas appliance this minimum distance must be at least 65 cm (25,6“) (see
fig. C) or more importantly, check the distances specified for the gas cooking
appliance.
In the outside exhaust version, the diameter of the entire duct run must be no
smaller than the range hood connection.
In the horizontal duct run, the duct must slope slightly (around 10%) upwards,
so as to better ventilate the air outside of the room.
Avoid using angled pipes, make sure that the pipes are at least of the minimum length.
Comply with the current regulations on air discharge into the atmosphere.
If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at
the same time, make sure the room where the fumes are extracted is well
ventilated, in compliance with the current regulations.
ELECTRICAL CONNECTIONS
(Section reserved for qualified installers)
WARNING!
Before doing any work inside the range hood, disconnect the appliance from
the mains power supply.
Check that the wires inside the range hood are not disconnected or cut; if this
is the case, contact your nearest service centre. The electrical connections
must be performed by qualified personnel.
The connections must be performed in compliance with the legal standards
in force. Check that the receptacle and wiring are able to support the load of
the appliance (see the technical specifications in point B).
THIS APPLIANCE MUST BE GROUNDED.
Important:
The hood comes equipped with a 5 ft(1.5 m) power cord with a NEMA 5-15
molded plug for connection to a 120 VAC, 60 Hz, 15 A power outlet. This outlet
must be located in the duct cover area above the hood.
Some types of appliance are supplied with a cable without plug; in this case,
“standardised” or a junction box must be used, keeping in mind that:
- the yellow-green wire must be used for the earth,
- the blue/white wire must be used for the neutral,
8
