Falcom FOX User Manual

THIS DOCUMENT IS AVAILABLE AT HTTP://WWW.FALCOM.DE/
.
FOX
Hardware manual
PRELIMINARY
Version: 1.0.0; Created: Tuesday 4 December 2007
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0
Table of contents
1.1 General......................................................................................................................5
1.2 Circuit concept.........................................................................................................6
1.3 Related documents..................................................................................................8
2.1 General information.................................................................................................9
2.2 Exposure to RF energy............................................................................................9
2.3 Efficient modem operation....................................................................................10
2.4 Driving.....................................................................................................................10
2.5 Electronic devices..................................................................................................10
2.6 Vehicle electronic equipment...............................................................................10
2.7 Medical electronic equipment...............................................................................10
2.8 Aircraft.....................................................................................................................10
2.9 Children...................................................................................................................11
2.10 Blasting areas.......................................................................................................11
2.11 Potentially explosive atmospheres....................................................................11
2.12 Non-ionizing radiation.........................................................................................11
4.1 Product features.....................................................................................................13
4.1.1 Power consumption............................................................................................14
4.1.2 Operating temperatures......................................................................................14
4.1.3 GSM/GPRS features..........................................................................................15
4.1.4 GPS features......................................................................................................16
4.2 NMEA data message..............................................................................................17
5.1 Power supply..........................................................................................................18
5.1.1 Power supply pins (1 and 2) on the 8-pin connector..........................................18
5.1.2 Automatic shutdown...........................................................................................18
5.2 Determining the External Equipment Type.........................................................18
6.1 8-wire connector, pin assignments......................................................................20
6.1.1 8-pin connector pinout........................................................................................20
6.1.2 Special pin description (Pins 4, 5, 6)..................................................................21
6.1.2.1 How to use these pins as analog inputs.................................................................................21
6.1.2.2 How to use these pins as digital Inputs (Pin 4, 5, 6)..............................................................22

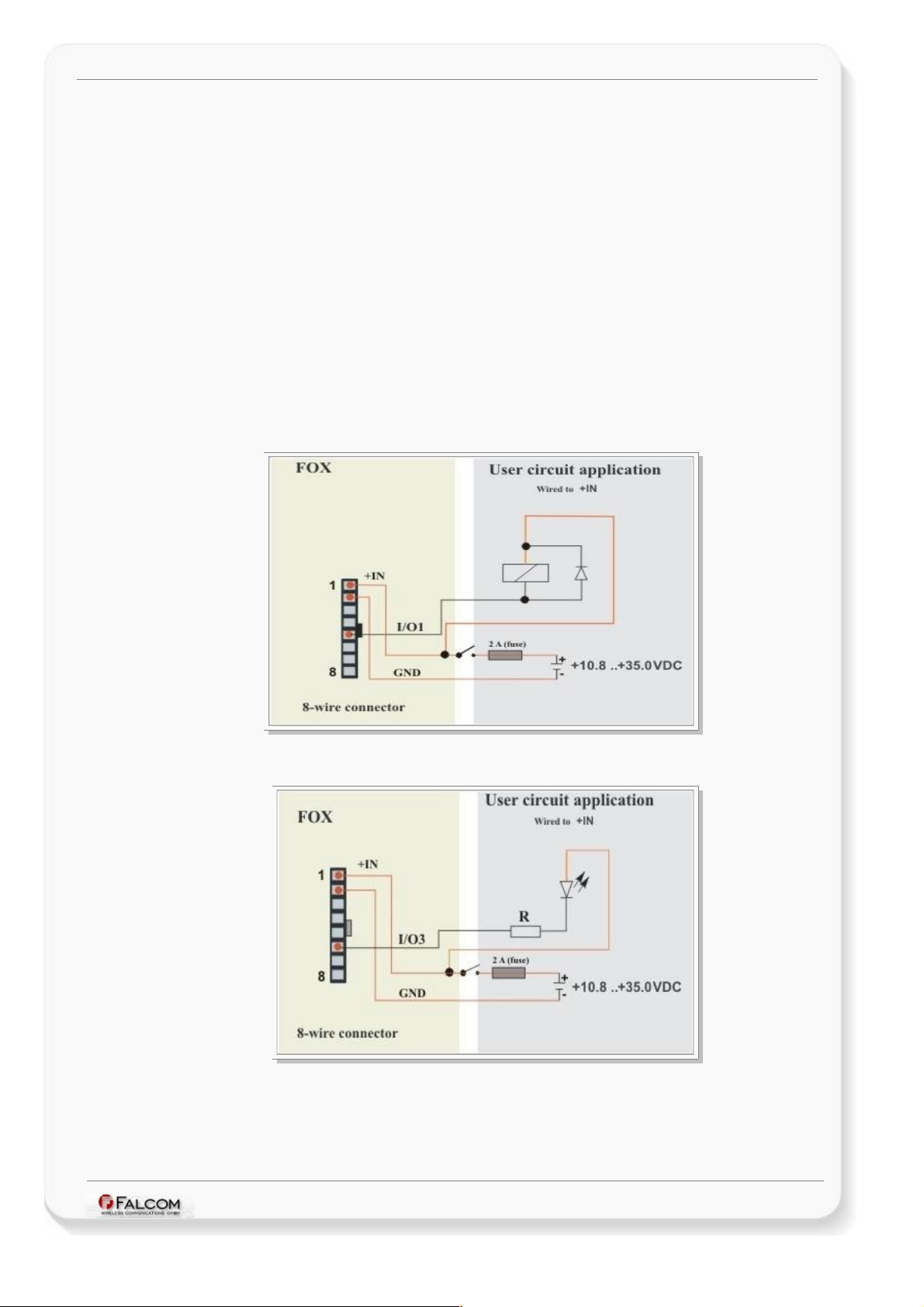

6.1.2.3 How to use these pins as digital outputs (Pin 4, 5, 6)............................................................23
6.1.2.4 How to use IGN pin(pin 3)......................................................................................................24
6.1.2.5 Serial communication signals (RxA and TxA)........................................................................25
6.2 SIM card interface (Molex-91228-0002)................................................................25

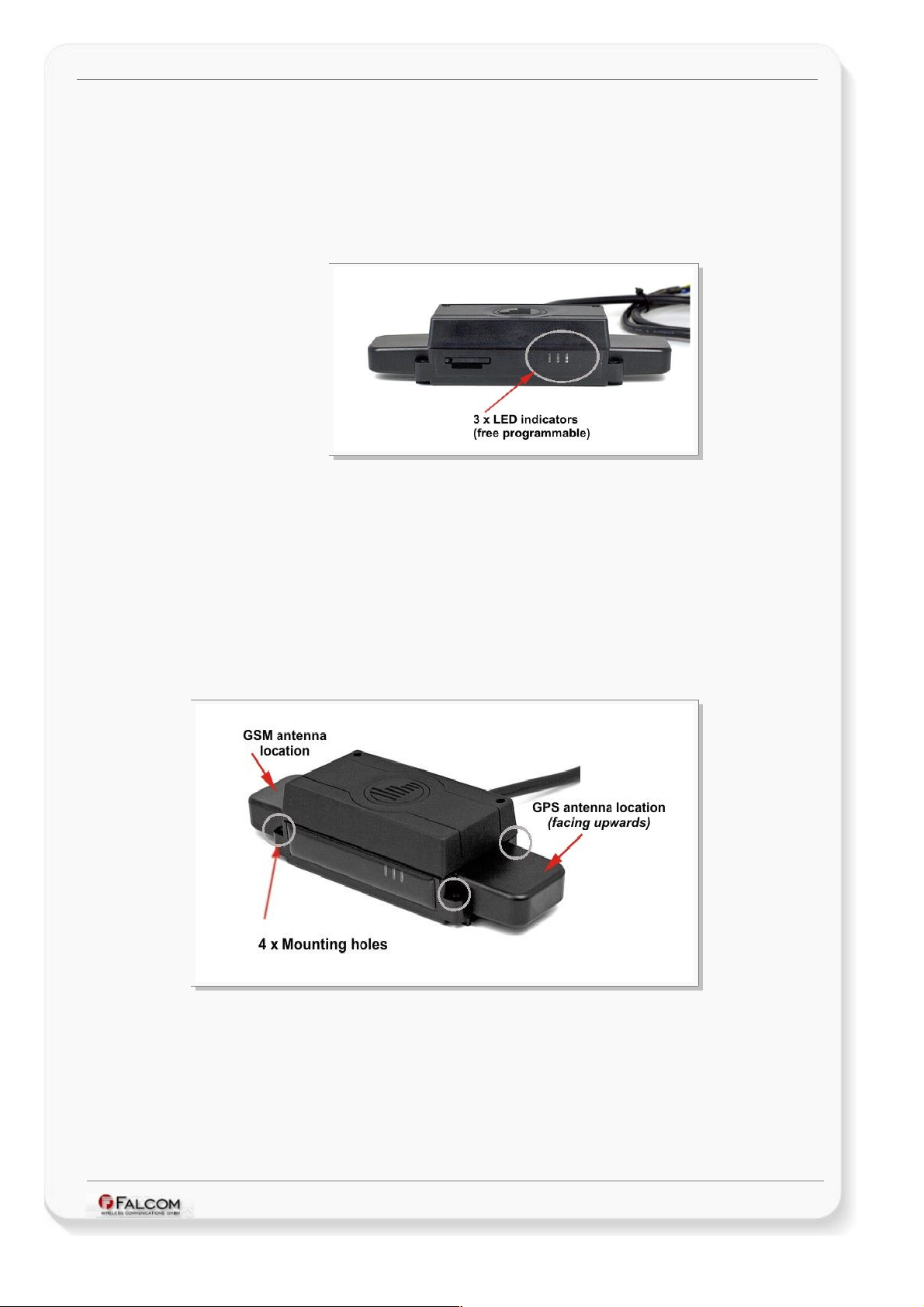

6.3 LED’s description...................................................................................................26
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 2 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0
6.4 Interface E (Mounting holes).................................................................................26

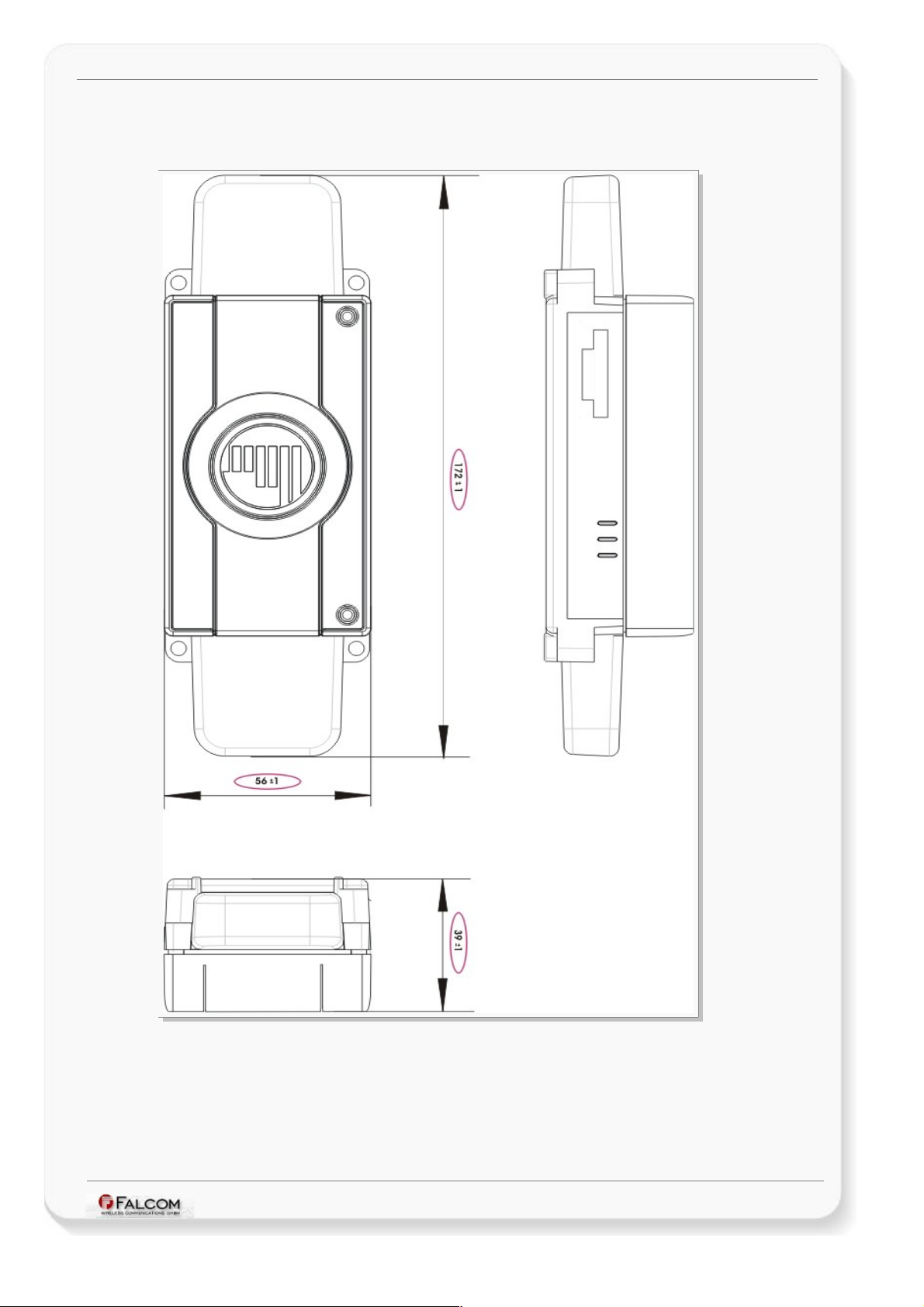

6.4.1.1 Mounting the FOX device ......................................................................................................27
9.1 Schematics.............................................................................................................30

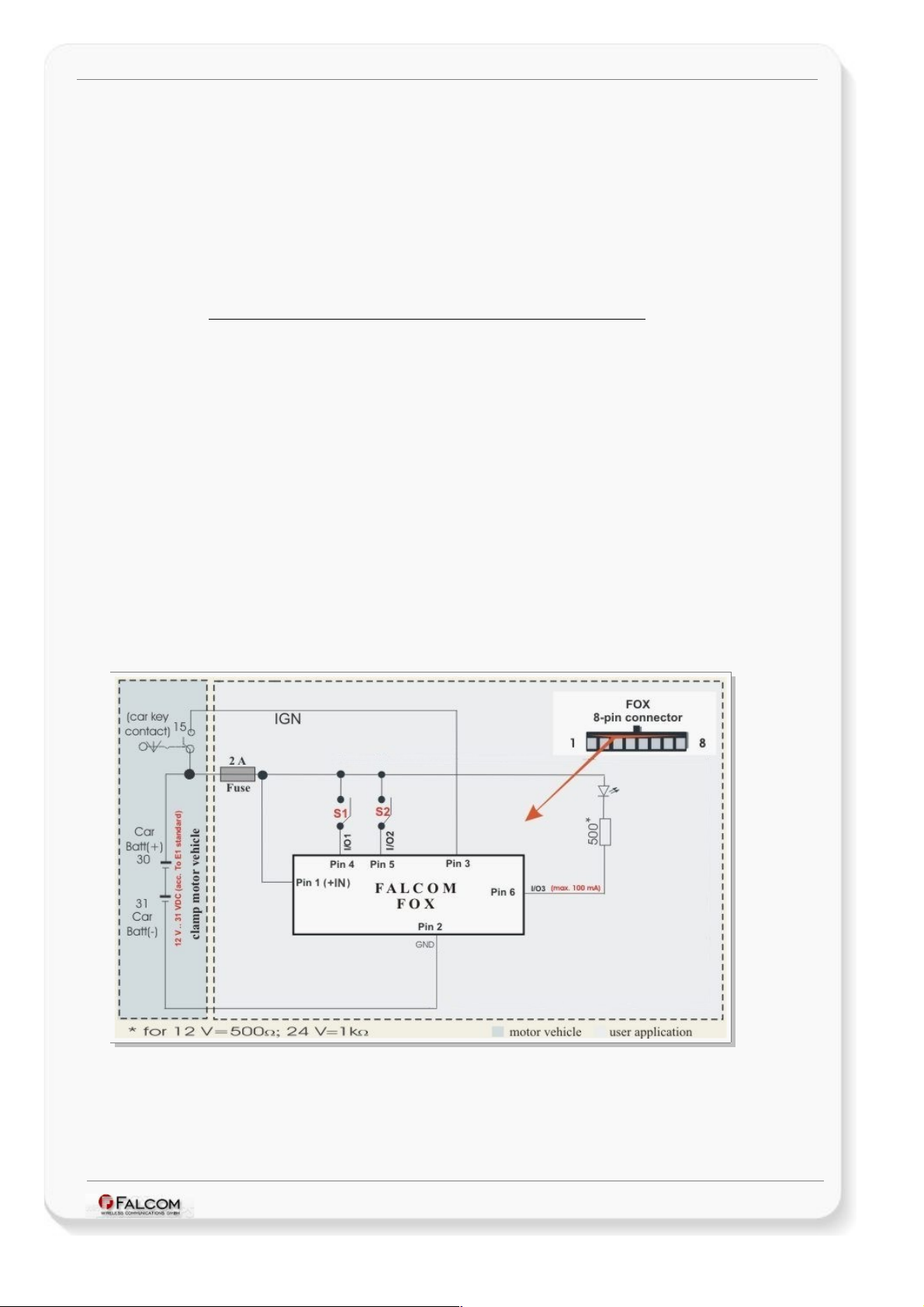

9.1.1 Installation guidance for 8-wire cable connector................................................30
9.2 What should be considered when using the FOX device..................................31
Version history:
Nnumber
1.0.0 F. Beqiri - Initial version. 04/12/2007
Author Changes Change date
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 3 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0
Cautions
Information furnished herein by FALCOM is accurate and reliable. However, no responsibility is assumed for its use.
Please, read carefully the safety precautions.
If you have any technical questions regarding this document or the product described in it, please contact your vendor.
General information about FALCOM and its range of products are available at the following Internet address: http://www.falcom.de/
Trademarks
Some mentioned products are registered trademarks of their respective companies.
Copyright
This document is copyrighted by FALCOM WIRELESS COMMUNICATIONS GmbH with all rights reserved. No part of this documentation may be produced in any form without the prior written permission of FALCOM WIRELESS COMMUNICATIONS GmbH.
FALCOM WIRELESS COMMUNICATIONS GmbH.
No patent liability is assumed with respect to the use of the information contained herein.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 4 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0

1 INTRODUCTION

This product manual is only addressed to qualified personnel which is well skilled in electronical/electrical installation and not addressed to private consumers/end user. The installation, implementing or setting into operation of the product can only be performed by this qualified personnel.
The status of the product described in the data sheet may have changed since publication of the data sheet and therefore information in this data sheet on product status may be outdated. The latest information of the product is available on the download area of the FALCOM website.

1.1 General

FALCOM is using state-of-the-art technology to develop unique, low-cost devices, which more effectively manage assets and vehicle tracking than current systems. FOX is a new telematics product designed to be more flexible and efficient for vehicle management, and especially to meet the needs of tracking, controlling and monitoring vehicles with an outstanding safety and security. The FOX terminal comprises an embedded configurable software that provides even greater performance and flexibility for its users and system integrators to develop high-performance applications that allow the tracking of vehicles over the Internet/TCP. The device concept is targeting for direct implementation as a mobile client in a wide range of high volume, low-cost, flexible system solutions like
recovery
client application is combined with variety of alert messaging capabilities. The configurable alert messages contain current position and status report and use 3 multi­function I/O. In addition to that two predefined digital inputs are detecting ignition line and main power (car battery) failure, and so you may handle these events and use as notification.
and
other related area
By default, FOX is offered without internal battery. Shall you need a FOX device with an internal battery, please see “Ordering Guide” and choose one that meets your specific requirements.
The housing of the new FOX device offers IP65 protection
(optional) and can be operated at ambient temperatures up to +85°C
The embedded software the embedded software can be controlled by word like
“PFAL” commands needed for executing particular actions, reading or setting
particular configurations. These commands are valid for all kinds of operations including SMS, CSD, TCP and SMTP.
FOX provides Geofence features for territory management, route verification, prohibited locations, parking area and more with exception reporting to a wide variety of events, such as arrivals, departures, deliveries, pick-ups, illegal entries, unauthorized movement, etc. FOX contains a data-logger that enables it to archive unique locations in sequence for up to 45 days for later analysis and evaluation (for example, archive interval up to 20 sec.).
The physical interface to the terminal application is made through integrated connector. It is required for controlling the terminal, receiving GPS location data, transferring data and audio signals and providing power supply lines. FOX provides 1 serial interface giving you maximum flexibility for local use.
AVL, fleet management, vehicle security and
. The tracking functionality of the embedded mobile
.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 5 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0
FOX is equipment that can be configured and integrated onto any asset platform, including:
1. Trailers
2. Trucks
3. Delivery vans
4. Rail cars
5. as well as other industrial monitoring installations.
and it can be used in a variety of applications, including:
•
Real time online tracking
•
Fleet management / monitoring
•
Security / emergency services
•
Real time satellite navigation
•
Territory management
•
Personalized drivers logbook
•
Route verification
•
Trip management / distance calculations
•
Theft protection
•
Toll collection / pay as you drive
The FOX - EVALKIT provides an easy and efficient way to evaluate and configure all system parameters of the mobile client. The configuration of the FOX can be done via local serial link or remotely via the GSM network or GPRS/TCP/Internet. All of these features are perfectly integrated in a device concept, which significantly reduces time to-market and provides low cost tracking and security solutions.

1.2 Circuit concept

The FOX architecture includes the following major functional components (
diagram is available below
):
ARCHITECTURE INTEGRATES:
High-performance Quad-Band GSM/GPRS core (operating at 26MHz),
20 parallel channel low-power GPS core (operating at L1 1575.42 MHz and C/A code 1,023 MHz chip rate),
ARM7TDMI Processor (at speed 25MHz) that controls all functions of the system,
Internal SIM card reader (
Internal GSM antenna,
Internal GPS antenna,
1.8/3V SIM cards
),
a block
OPTIONS TO FOX
CAN Interface,
3D motion Micro-SD-Card
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
sensor,
,
Page 6 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0
Rechargeable Li-Polymer battery (see Ordering Guide),
PHYSICAL INTERFACES:
Power supply line,
3 x Multi-line I/O,
1 x Ignition;
RS232 port
Figure 1: FOX block diagram
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 7 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0

1.3 Related documents

Some others PDF documents such as FCC approval, application notes, Certificate of Conformity R&TTE etc. are also available on the Web at: http://www.falcom.de/ in the published download area.
In addition to this document, the following files comprise the full set of FALCOM FOX product manuals:
NR PDF file name Description
[1] SteppIII_fox_bolero_lt_PFAL_Configuration_Com
mand_Set.pdf
[2] AppNotes_Transform_history_data.pdf Contains information of how to transform history data that are being
[3] AppNote_Remote_update.pdf Contains information of how to upgrade FALCOM AVL devices device
[4] AppNotes_connecting_a_bar_code_scanner.pdf Describes how to connect a bar code scanner to a STEPPII,
[5] AppNotes_in_vehicle_mounting.pdf This document provides all the necessary information to allow your
These PDF files are viewable and printable from Adobe Reader. If you do not have the Adobe Reader installed, you can download it from
Contains the description of the internal firmware and the supported Configuration Command Set for the FALCOM STEPPIII, FOX and
BOLERO-LT.
transmitted from FOX via TCP connection.
to a new firmware revision remotely via TCP.
STEPPIII, FOX etc. and store or transmit the scanned data.
FALCOM product to be properly and safely installed.
http://www.adobe.com.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 8 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0

2 SECURITY

IMPORTANT FOR THE EFFICIENT AND SAFE OPERATION OF YOUR GSM-MODEM, READ THIS INFORMATION BEFORE USE!
Your cellular engine FOX is one of the most exciting and innovative electronic products ever developed. With it, you can stay in contact with your office, your home, emergency services and others, wherever service is provided.
This chapter contains important information for the safe and reliable use of the FOX device. Please read this chapter carefully before starting to use the cellular engine FOX.

2.1 General information

Your FOX device utilizes the GSM standard for cellular technology. GSM is a newer radio frequency („RF“) technology than the current FM technology that has been used for radio communications for decades. The GSM standard has been established for use in the European community and elsewhere. Your FOX is actually a low power radio transmitter and receiver. It sends out and receives radio frequency energy. When you use your modem, the cellular system handling your calls controls both the radio frequency and the power level of your cellular modem.
For the use of the acquired devices SIM cards are needed, which are not included in the scope of delivery of the device. The SIM cards can be acquired e.g. by specific providers. From the use of the SIM cards can result additional costs, which are to be borne by the purchaser (client) of the devices. The seller does not cover the extra costs for the use of the devices. The seller gives no recommendation for the use of specific SIM cards and does not liable also for the fact that the devices are usable with all available SIM cards. The seller also covers no other costs, that are needed for the application of the customer in connection with this device.

2.2 Exposure to RF energy

There has been some public concern about possible health effects of using a GSM modem. Although research on health effects from RF energy has focused for many years on the current RF technology, scientists have begun research regarding newer radio technologies, such as GSM. After existing research had been reviewed, and after compliance to all applicable safety standards had been tested, it has been concluded that the product is fit for use.
If you are concerned about exposure to RF energy, there are things you can do to minimize exposure. Obviously, limiting the duration of your calls will reduce your exposure to RF energy. In addition, you can reduce RF exposure by operating your cellular modem efficiently by following the guidelines below.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 9 of 31
FOX HARDWARE MANUAL - PRELIMINARY - VERSION 1.0.0

2.3 Efficient modem operation

In order to operate your modem at the lowest power level, consistent with satisfactory call quality please take note of the following hints.
•
If your device has an extendible antenna, extend it fully. Some models allow you to place a call with the antenna retracted. However, your FOX operates more efficiently with the antenna fully extended.
•
Do not hold the antenna (if externally connected) when the modem is „IN USE“. Holding the antenna affects call quality and may cause the modem to operate at a higher power level than needed.

2.4 Driving

Check the laws and regulations on the use of cellular devices in the area where you drive. Always obey them. Also, when using your FOX while driving, please pay full attention to driving, pull off the road and park before making or answering a call if driving conditions so require. When applications are prepared for mobile use, they should fulfil road-safety instructions of the current law!

2.5 Electronic devices

Most electronic equipment, for example in hospitals and motor vehicles is shielded from RF energy. However, RF energy may affect some malfunctioning or improperly shielded electronic equipment.

2.6 Vehicle electronic equipment

Check your vehicle manufacturer’s representative to determine if any on board electronic equipment is adequately shielded from RF energy.

2.7 Medical electronic equipment

Consult the manufacturer of any personal medical devices (such as pacemakers, hearing aids, etc.) to determine if they are adequately shielded from external RF energy.
Turn your FOX device OFF in health care facilities when any regulations posted in the area instruct you to do so. Hospitals or health care facilities may be using RF monitoring equipment.

2.8 Aircraft

Turn your FOX OFF before boarding any aircraft. Use it on the ground only with crew permission. Do not use it in the air.
To prevent possible interference with aircraft systems, Federal Aviation Administration (FAA) regulations require you to have permission from a crew­member to use your modem while the plane is on the ground. To prevent interference with cellular systems, local RF regulations prohibit using your modem whilst airborne.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
Page 10 of 31
