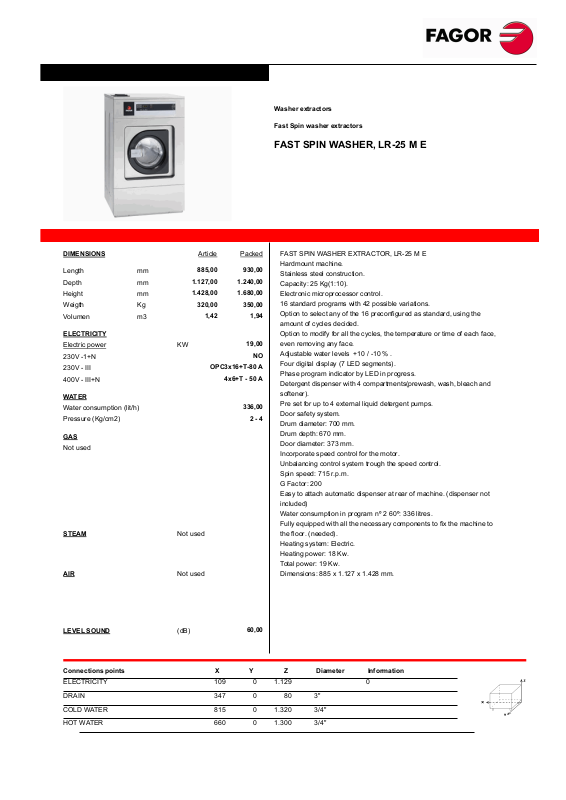

Fagor LR-25 M E Datasheet

FAST SPIN WASHER, LR-25 M E

Fast Spin washer extractors

Washer extractors

FAST SPIN WASHER EXTRACTOR, LR-25 M E

Hardmount machine.

Stainless steel construction.

Capacity: 25 Kg(1:10).

Electronic microprocessor control.

16 standard programs with 42 possible variations.

Option to select any of the 16 preconfigured as standard, using the

amount of cycles decided.

Option to modify for all the cycles, the temperature or time of each face,

even removing any face.

Adjustable water levels +10 / -10 % .

Four digital display (7 LED segments).

Phase program indicator by LED in progress.

Detergent dispenser with 4 compartments(prewash, wash, bleach and

softener).

Pre set for up to 4 external liquid detergent pumps.

Door safety system.

Drum diameter: 700 mm.

Drum depth: 670 mm.

Door diameter: 373 mm.

Incorporate speed control for the motor.

Unbalancing control system trough the speed control.

Spin speed: 715 r.p.m.

G Factor: 200

Easy to attach automatic dispenser at rear of machine. (dispenser not

included)

Water consumption in program nº 2 60º: 336 litres.

Fully equipped with all the necessary components to fix the machine to

the floor. (needed).

Heating system: Electric.

Heating power: 18 Kw.

Total power: 19 Kw.

Dimensions: 885 x 1.127 x 1.428 mm.

885,00

1.127,00

1.428,00

320,00 350,00

1,94

Length

Depth

Height

Weigth

Volumen

mm

mm

mm

Kg

m3

19,00

NO

OPC3x16+T-80 A

4x6+T - 50 A

230V -1+N

230V - III

400V - III+N

GAS

KW

336,00

2 - 4

Pressure (Kg/cm2)

Connections points X Y Z Diameter

LEVEL SOUND

60,00

Information

DIMENSIONS

930,00

1.240,00

1.680,00

1,42

ELECTRICITY

STEAM

AIR

(dB)

Article Packed

Electric power

WATER

Water consumption (lit/h)

Not used

Not used

Not used

109 0 1.129ELECTRICITY 0

347 0 80DRAIN 3"

815 0 1.320COLD WATER 3/4"

660 0 1.300HOT WATER 3/4"
