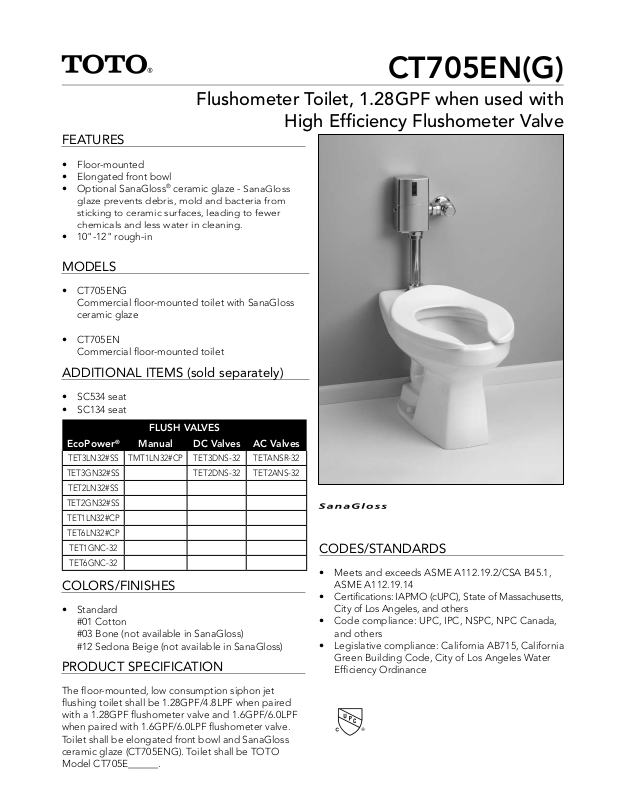

Factory Direct Hardware CT705ENG User Manual
Flushometer Toilet, 1.28GPF when used with
FEATURES
• Floor-mounted
• Elongated front bowl
• Optional SanaGloss® ceramic glaze -
glaze prevents debris, mold and bacteria from
sticking to ceramic surfaces, leading to fewer
chemicals and less water in cleaning.
• 10"-12" rough-in
MODELS
• CT705ENG
Commercial oor-mounted toilet with SanaGloss
ceramic glaze
• CT705EN
Commercial oor-mounted toilet
SanaGloss
CT705EN(G)
High Efficiency Flushometer Valve
ADDITIONAL ITEMS (sold separately)
• SC534 seat
• SC134 seat
FLUSH VALVES
EcoPower
TET3LN32#SS TMT1LN32#CP TET3DNS-32 TETANSR-32
TET3GN32#SS TET2DNS-32 TET2ANS-32
TET2LN32#SS
TET2GN32#SS
TET1LN32#CP
TET6LN32#CP
TET1GNC-32
TET6GNC-32
®
Manual DC Valves AC Valves
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone (not available in SanaGloss)
#12 Sedona Beige (not available in SanaGloss)
PRODUCT SPECIFICATION
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certications: IAPMO (cUPC), State of Massachusetts,
City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efciency Ordinance
The oor-mounted, low consumption siphon jet
ushing toilet shall be 1.28GPF/4.8LPF when paired
with a 1.28GPF ushometer valve and 1.6GPF/6.0LPF
when paired with 1.6GPF/6.0LPF ushometer valve.
Toilet shall be elongated front bowl and SanaGloss
ceramic glaze (CT705ENG). Toilet shall be TOTO
Model CT705E______.
CT705EN(G)
14-3/8"
(365mm)
9-1/8"
(232mm)
1" (25.4mm)
I.P.S.
4-3/4"
(121mm)
26-1/2"
(673mm)
15"
(380mm)
12"
(305mm)
10"
(254mm)
15"
(380mm)
3"
(76mm)
5"
(127mm)
1-1/2" (38mm)
I.P.S.
18-1/2" (470mm)
28-1/8" (714mm)
14-3/8"
(365mm)
5-1/2"
(140mm)
25-1/4" (642mm)
18-1/2" (470mm)
26-1/8" (663mm)
14-3/8"
(365mm)
5-1/2"
(140mm)
25-1/4" (642mm)
1-1/2" (38mm)
I.P.S.
with 10" rough-in
with 12" rough-in
Flowing Pressure (psi)
Screw Adjustment (turn)
Flow Rate (Gpm)
5
10 15 20 25 30
10
15
20
25
30
35
ORIGINAL
POSITION
3/4 CCW
1/4 CCW
1/2 CCW
40
45
55
50
60
MINIMUM OPERATING
RANGE WITH SCREW
ADJUSTMENT
OPERATING RANGE
WITHOUT SCREW
ADJUSTMENT
Flushometer Toilet, 1.28GPF when used with
High Efficiency 1.28GPF Flushometer Valve)
SPECIFICATIONS INSTALLATION NOTES
• Water Use 1.28GPF/4.8LPF
• Flush System Siphon jet ushing action
• Min. Water Pressure 35 psi (owing)
• Min. Flow Rate 23 GPM
• Water Surface 10-1/4" x 9-5/8"
• Trap Diameter 1-7/8"
• Rough-in 12", or 10"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT705EN(G) - 52.5lbs
• Shipping Dimensions CT705EN(G)
26-1/2"L x 9-1/2" W1 x 16-
1/4"W2 x 17"H
Water pressures over 80 psi are not recommended for
most plumbing xtures.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifications are subject to change without notice
Printed in U.S.A. | © TOTO USA 06/09 | Printed on recycled paper ♻
# SS-00452 v.04
