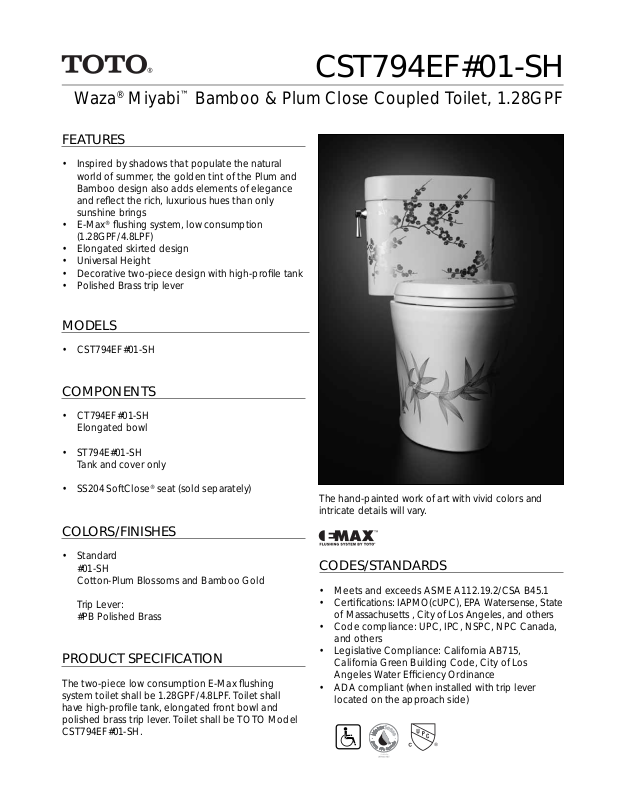

CST794EF#01-SH
Waza® Miyabi ™ Bamboo & Plum Close Coupled Toilet, 1.28GPF
FEATURES
• Inspired by shadows that populate the natural
world of summer, the golden tint of the Plum and
Bamboo design also adds elements of elegance
and refl ect the rich, luxurious hues than only
sunshine brings
• E-Max® fl ushing system, low consumption
(1.28GPF/4.8LPF)
• Elongated skirted design
• Universal Height
• Decorative two-piece design with high-profi le tank
• Polished Brass trip lever
MODELS
• CST794EF#01-SH
COMPONENTS
• CT794EF#01-SH
Elongated bowl
• ST794E#01-SH
Tank and cover only
• SS204 SoftClose® seat (sold separately)
COLORS/FINISHES
• Standard
#01-SH
Cotton-Plum Blossoms and Bamboo Gold
Trip Lever:
#PB Polished Brass
PRODUCT SPECIFICATION
The two-piece low consumption E-Max fl ushing
system toilet shall be 1.28GPF/4.8LPF. Toilet shall
have high-profi le tank, elongated front bowl and
polished brass trip lever. Toilet shall be TOTO Model
CST794EF#01-SH.
The hand-painted work of art with vivid colors and
intricate details will vary.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
CST794EF#01-SH
Waza® Miyabi™ Bamboo & Plum Close Coupled Toilet, 1.28GPF/4.8LPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System E-Max
• Min. Water Pressure 8 psi (static)
• Water Surface 10-1/4" x 8-1/4"
• Trap Diameter 2-1/16"
• Rough-in 12"
• Trap Seal 2-1/4"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT794EF#01-SH - 62lbs
• Shipping Dimensions CT794EF#01-SH
29-3/4"L x 16-1/2"W
ST794E#01-SH
20-3/8"L x 8-3/8"W
®
ST794E#01-SH - 36.5lbs
x 24-3/4"H
x 19-5/8"H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
28"
(710mm)
5-1/2"
(140mm)
3/4"
(20mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
7-1/4" (185mm)
12" (305mm)
18-1/2"
(470mm)
14-1/2"
(368mm)
17-1/8"
(435mm)
17-7/8" (454mm)
32-1/2"
(824mm)
1/2" Supply
4-1/2" (114mm)*
4" (102mm)*
These dimensions and specifi cations are subject to change without notice
*Suggested
Dimensions
Printed in U.S.A. | © TOTO USA 05/10 | Printed on recycled paper ♻
# SS-00530, v.02
