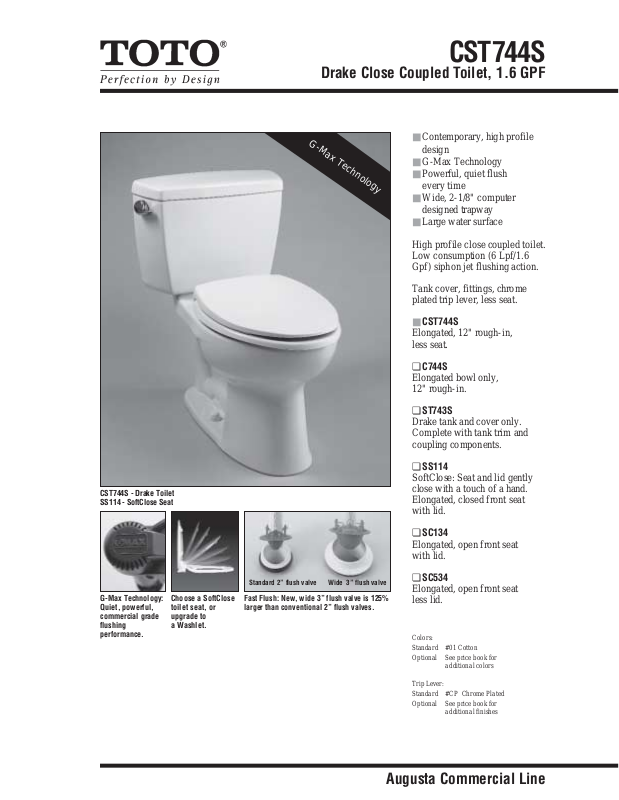

CST744S - Drake Toilet
SS114 - SoftClose Seat
■ Contemporary, high profile
design
■ G-Max Technology
■ Powerful, quiet flush
every time
■ Wide, 2-1/8" computer
designed trapway
■ Large water surface
High profile close coupled toilet.
Low consumption (6 Lpf/1.6
Gpf) siphon jet flushing action.
Tank cover, fittings, chrome
plated trip lever, less seat.
■ CST744S
Elongated, 12" rough-in,
less seat.
❏ C744S
Elongated bowl only,
12" rough-in.
❏ ST743S
Drake tank and cover only.
Complete with tank trim and
coupling components.
❏ SS114
SoftClose: Seat and lid gently
close with a touch of a hand.
Elongated, closed front seat
with lid.
❏ SC134
Elongated, open front seat
with lid.
❏ SC534
Elongated, open front seat
less lid.
CST744S
Drake Close Coupled Toilet, 1.6 GPF
Augusta Commercial Line
G-Max Technology
G-Max Technology:
Quiet, powerful,
commercial grade
flushing
performance.
Fast Flush: New, wide 3” flush valve is 125%
larger than conventional 2” flush valves.
Standard 2” flush valve Wide 3” flush valve
Choose a SoftClose
toilet seat, or
upgrade to
a Washlet.
Colors:
Standard #01 Cotton
Optional See price book for
additional colors
Trip Lever:
Standard #CP Chrome Plated
Optional See price book for
additional finishes
(
)
CST744S - Drake Toilet
■ PERFORMANCE
The TOTO G-Max low consumption toilets
received high ratings during ANSI/ASME and
CSA testing at independent laboratories. Designed
with a powerful siphon jet flushing action, the
toilet offers a large water surface and a glazed
trapway.
■ SPECIFICATIONS
Water Use: 1.6 Gpf / 6.0 Lpf
Flush System:
Gravity Feed (G-Max System)
Min. Water Pressure: 8 psi
Water Surface: 10-1/4" x 8-1/2"
Trap Diameter: 2-1/8"
Rough-in: 12" rough-in
Trap Seal: 2-1/2"
Warranty: Five Year Limited Warranty
Material:
Vitreous china
Shipping Weight: C744S 52 lbs.
ST743S 35 lbs.
Shipping Dimensions:
C744S
27-3/4"L
x 15"W
1
x 11-3/8"W2 x 15-1/8"H
ST743S
20-1/8"L x 8-1/4"W
x 15-1/2"H
Fixture dimensions and hydraulic performance meet
or exceed ANSI/ASME standard A112.19.2M and
CAN/CSA B 45 requirements.
Listing and approval: IAPMO/UPC, CSA, City of Los
Angeles, State of MA, and others
These dimensions and specifications are subject to
change without notice.
CST744S
Drake Close Coupled Toilet, 1.6 GPF
*Suggested Dimension
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (770) 282-8686 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 02/03 #A10110
Printed on recycled paper
REV 02/03
5-1/2" (140mm)
14"
(355mm)
1-1/8"
(30mm)
12" (305mm)
19-1/2" (494mm)
18-1/2" (470mm)
28" (710mm)
28-1/2"
(724mm)
14-5/8"
(370mm)
1/2" Supply
8"* (202mm)
(228mm)
6"
*
153mm
9"
