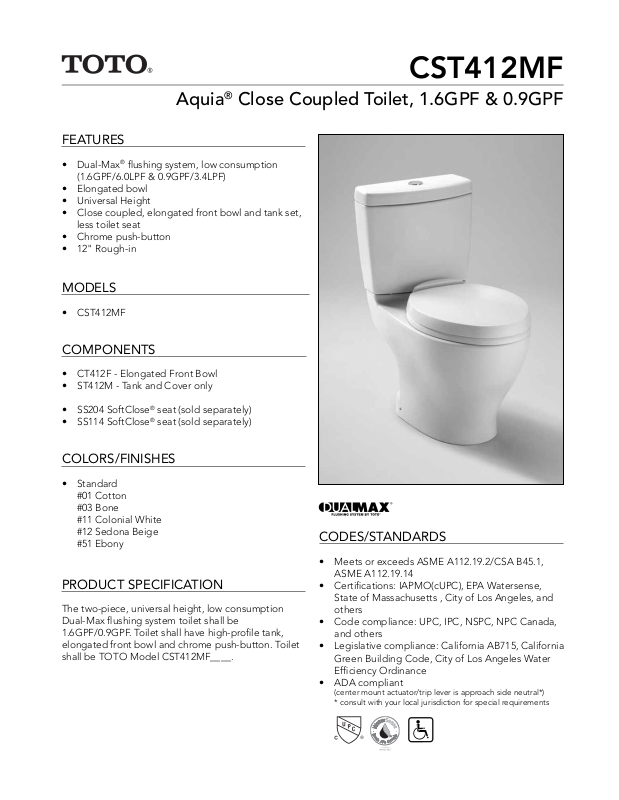

Factory Direct Hardware CST412MF User Manual

Aquia® Close Coupled Toilet, 1.6GPF & 0.9GPF
FEATURES
• Dual-Max® fl ushing system, low consumption (1.6GPF/6.0LPF & 0.9GPF/3.4LPF)
• Elongated bowl
• Universal Height
• Close coupled, elongated front bowl and tank set, less toilet seat
• Chrome push-button
• 12" Rough-in
MODELS
• CST412MF
COMPONENTS
CST412MF
• CT412F - Elongated Front Bowl
• ST412M - Tank and Cover only
• SS204 SoftClose® seat (sold separately)
• SS114 SoftClose® seat (sold separately)
COLORS/FINISHES
• Standard
#01 Cotton #03 Bone #11 Colonial White #12 Sedona Beige #51 Ebony
PRODUCT SPECIFICATION
The two-piece, universal height, low consumption Dual-Max fl ushing system toilet shall be
1.6GPF/0.9GPF. Toilet shall have high-profi le tank,
elongated front bowl and chrome push-button. Toilet shall be TOTO Model CST412MF____.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14
• Certifi cations: IAPMO(cUPC), EPA Watersense, State of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada, and others
• Legislative compliance: California AB715, California Green Building Code, City of Los Angeles Water Effi ciency Ordinance
• ADA compliant
(center mount actuator/trip lever is approach side neutral*)
* consult with your local jurisdiction for special requirements
CST412MF
7
Aquia® Close Coupled Toilet, 1.6GPF & 0.9 GPF
SPECIFICATIONS
• Water Use 1.6 GPF & 0.9GPF (6.0 LPF & 3.4LPF)
• Flush System Dual-Max
• Min. Water Pressure 8 psi (fl owing)
• Water Surface 6" x 4-1/2"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT412F - 80lbs ST412M - 30lbs
• Shipping Dimensions CT412F
30-3/4" L x 17-3/8" W
x 20-1/2" H
ST412M 17-1/4" L x 7-7/8" W
x 17-1/2" H
INSTALLATION NOTES
Back-to-Back Toilet Installations: TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
5-1/2"
(140mm)
14-1/4"
(362mm)
18-1/2"(470mm)
27-1/2"(700mm)
3/4" (19mm)
(
17-1/8"
(435mm)
16-1/8"
(410mm)
12" (305mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
15-3/8"
(390mm)
31-1/4"
(794mm)
6"
(152mm)
7-3/4"
(197mm)
10"
(254mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 12/09 | Printed on recycled paper ƛ
# SS-00455 V.03
