Factory Direct Hardware BB1816-4 User Manual

.437 (11.10)

.781

(19.84)

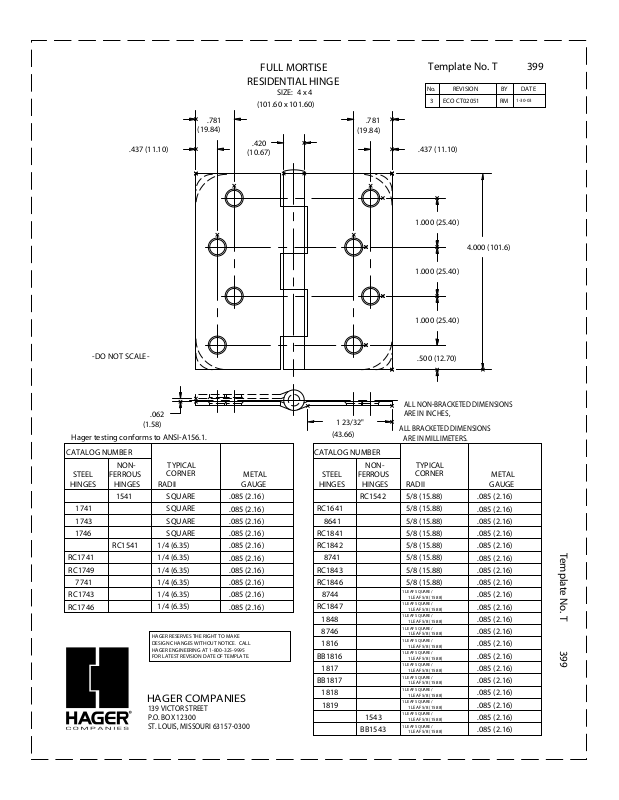

FULL MORTISE

RESIDENTIAL HINGE

SIZE: 4 x 4

(101.60 x 101.60)

.420

(10.67)

.781

(19.84)

Template No. T

REVISIONNo.

ECO CT02051

.437 (11.10)

1.000 (25.40)

4.000 (101.6)

399

DATE

1-30-03

-DO NOT SCALE-

.062

(1.58)

Hager testing conforms to ANSI-A156.1.

CATALOG NUMBER

STEEL

HINGES

1741

1743

1746

NON-

FERROUS

HINGES

1541

TYPICAL

CORNER

RADII

SQUARE

1/4 (6.35)RC1541

RC1741

RC1749

7741

RC1743

RC1746

1/4 (6.35)

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES

139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300

METAL

GAUGE

.085 (2.16)

1 23/32"

(43.66)

CATALOG NUMBER

NON-

STEEL

HINGES

FERROUS

HINGES

RC1542

RC1641

8641

RC1841

RC1842

8741

RC1843

RC1846

8744

RC1847

1848

8746

1816

BB1816

1817

BB1817

1818

1819

1543

BB1543

.500 (12.70)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES,

ALL BRACKETED DIMENSIONS

ARE IN MILLIMETERS.

TYPICAL CORNER

METAL

RADII GAUGE

5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

1 LEAF SQUARE/

1 LEAF 5/8 (15.88)

.085 (2.16)

Template No. T

399
